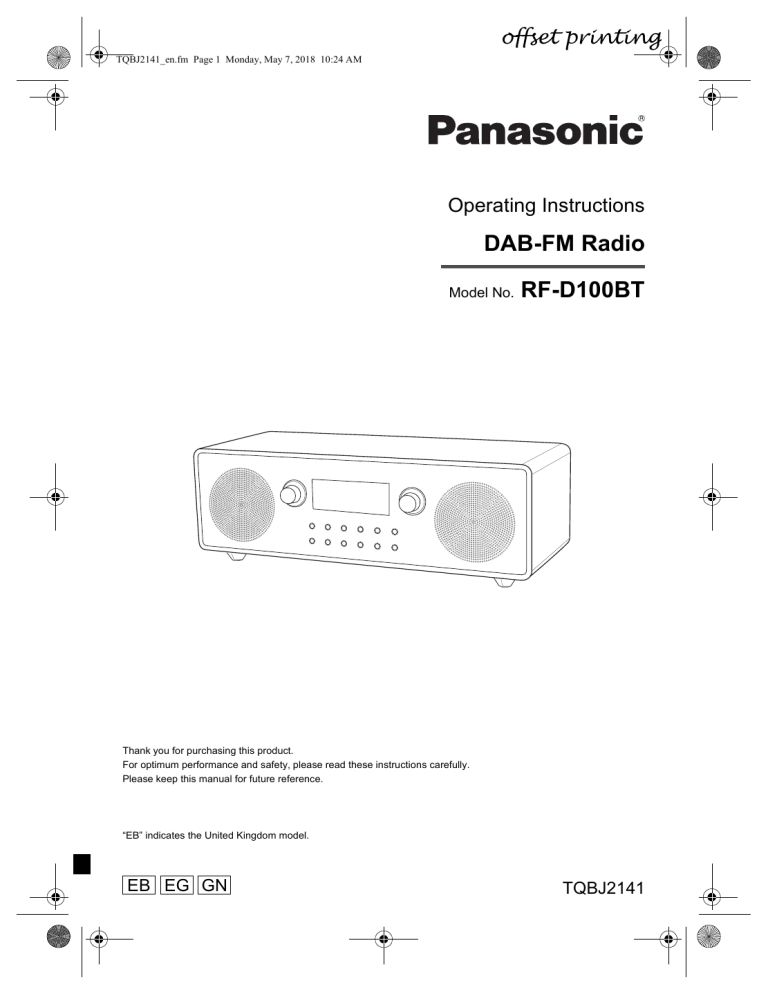

TQBJ2141_en.fm Page 1 Monday, May 7, 2018 10:24 AM
Operating Instructions
DAB-FM Radio
Model No.
RF-D100BT
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.
“EB” indicates the United Kingdom model.
EB EG GN
TQBJ2141
offset printing
TQBJ2141_en.fm Page 2 Monday, May 7, 2018 10:24 AM
Unless otherwise indicated, illustrations in these operating
instructions are of model for Australia and New Zealand.
Your system and the illustrations can look differently.
The symbols on this product (including the accessories)
represent the following:
AC
DC
Safety precautions
WARNING!
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases,
on this unit.
– Use the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
CAUTION!
Unit
• Do not place sources of naked flames, such as lighted
candles, on this unit.
• This unit may receive radio interference caused by
mobile telephones during use. If such interference
occurs, please increase separation between this unit
and the mobile telephone.
• The speakers do not have magnetic shielding. Do not
put them near PCs or other equipment easily influenced
by magnetism.
AC mains lead
• The mains plug is the disconnecting device. Install this
unit so that the mains plug can be unplugged from the
socket outlet immediately.
TQBJ2141
Battery
• Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
• When disposing of the batteries, please contact your
local authorities or dealer and ask for the correct
method of disposal.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and
windows closed.
• Do not break open or short-circuit the battery.
• Do not charge the alkaline or manganese battery.
• Do not use the battery if the cover has peeled off.
• Remove the battery if you do not use the unit for a long
period of time or if the unit is to be powered exclusively
by AC power. Keep in a cool, dark area.
2
Small objects
• The [‒ VOLUME +] and [TUNE/MENU SELECT] knob
can come off when pulled hard. To prevent children from
swallowing, do not pull it off.
Class II equipment (The construction of the
product is double-insulated.)
ON
Standby
Table of contents
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Sales and Support Information . . . . . . . . . . . . . . . . . . . . 3
Supplied accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Overview of controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Power sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Getting started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DAB/DAB+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
FM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Bluetooth® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
External music device . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
System settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
offset printing
TQBJ2141_en.fm Page 3 Monday, May 7, 2018 10:24 AM
For the United Kingdom and Ireland
Customer Communications Centre
• For customers within the UK: 0344 844 3899
• For customers within Ireland: 01 289 8333
• Monday – Friday 9:00am – 5:00pm (Excluding public
holidays).
• For further support on your product, please visit our
website: www.panasonic.co.uk
Direct Sales at Panasonic UK
• Order accessory and consumable items for your product
with ease and confidence by phoning our Customer
Communications Centre Monday – Friday 9:00am –
5:00pm (Excluding public holidays).
• Or go on line through our Internet Accessory ordering
application at www.pas-europe.com.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are
provided directly by Panasonic UK.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping for
a wide range of finished products. Take a browse on our
website for further details.
Supplied accessories
Check and identify the supplied accessories.
 1 AC adaptor
For the United Kingdom and Ireland
(TPBPA813)
For Continental Europe
(TPBPA812)
For Australia and New Zealand
(TPBPA814)
Note:
Product numbers correct as of April 2018. These may be
subject to change.
References
About Bluetooth®
Panasonic bears no responsibility for data and/or
information that is compromised during a wireless
transmission.
Frequency band
• This system uses the 2.4 GHz frequency band.
Certification
• This system conforms to the frequency restrictions and
has received certification based on frequency laws.
Thus, a wireless permit is not necessary.
• The actions below are punishable by law in some
countries:
– Taking apart or modifying the unit.
– Removing specification indications.
Restrictions of use
• Wireless transmission and/or usage with all Bluetooth®
equipped devices is not guaranteed.
• All devices must conform to standards set by the
Bluetooth SIG, Inc.
• Depending on the specifications and settings of a
device, it can fail to connect or some operations can be
different.
• This system supports Bluetooth® security features. But
depending on the operating environment and/or
settings, this security is possibly not sufficient. Transmit
data wirelessly to this system with caution.
• This system cannot transmit data to a Bluetooth®
device.
Range of use
• Use this device at a maximum range of 10 m.
• The range can decrease depending on the environment,
obstacles or interference.
Interference from other devices
• This system may not function properly and troubles
such as noise and sound jumps may arise due to radio
wave interference if this unit is located too close to other
Bluetooth® devices or the devices that use the 2.4 GHz
band.
• This system may not function properly if radio waves
from a nearby broadcasting station, etc. is too strong.
Intended usage
• This system is for normal, general use only.
• Do not use this system near an equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals, laboratories,
etc.).
Licenses
The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth SIG, Inc. and any
use of such marks by Panasonic Corporation is under
license. Other trademarks and trade names are those of
their respective owners.
TQBJ2141
Sales and Support Information
3
offset printing
TQBJ2141_en.fm Page 4 Monday, May 7, 2018 10:24 AM
Overview of controls
K
L
M
N
1
3
2
4
5
P
O
9
Q
J
7
8
A Standby/on switch [1]
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still consuming
a small amount of power.
B Select the audio source
K Adjust the volume level
L Display panel
M Select desired frequency in manual tuning
View available options
N Headphones jack ( )
C Auto tuning for FM stations
D View available information
E View available menu
F Confirm an option
O AUX IN jack (~8)
G Select “Bluetooth” as the audio source
P DC IN terminal (~5)
During Bluetooth® source playback, press to pause or
resume the playback.
H Direct preset buttons
I Battery compartment (~5)
J Antenna
Extend the antenna, adjust the length, angle and
direction for best reception.
TQBJ2141
Signal strength indicator
4
Plug type: Ø 3.5 mm stereo (not supplied)
Excessive sound pressure from earphones and
headphones can cause hearing loss.
Listening at full volume for long periods may damage
the user’s ears.
(Blinking)
Weak
Strong
Q For Australia and New Zealand
USB port (~5)
offset printing
TQBJ2141_en.fm Page 5 Monday, May 7, 2018 10:24 AM
Using the batteries (not supplied)
Power sources
Using the household mains socket
Connect the AC adaptor firmly to the unit and the
household mains socket.
Use alkaline or manganese batteries.
Install the batteries so that the poles (+ and –) align with
those in the unit.
This unit will use the batteries as the power source when
you disconnect the AC adaptor. The battery indicator will
light up.
The battery indicator shows the battery levels.
1
To household mains socket
Gap
2
2
When the DC IN plug is fully
inserted, there will be a gap between
the plug and the panel, there is no
problem using the unit.
Note:
• Do not use any other AC adaptors except the supplied one.
• The unit is in the standby condition when the AC adaptor is
connected. The primary circuit is always “live” as long as the
AC adaptor is connected to an electrical outlet.
█ Charging a portable device
For Australia and New Zealand
R14/LR14, C
The USB port at the rear of the unit can be use to charge
a portable device.
Caution!
Be careful when adjusting the antenna or in handling the
unit, always keep the antenna away from your face to
avoid an injury.
Note:
When the battery indicator “
of the batteries.
USB cable
(not supplied)
Note:
• You can charge the portable device only when the unit is
connected to the household mains socket, either switched
on or in standby mode.
• Some devices cannot be charged as the maximum USB
charging current is 1.0 A only.
• Depending on the type and placement of the portable device
that is connected to the USB port, you may notice a
degradation in radio signal reception.
TQBJ2141
Portable device
(not supplied)
” begins flashing, replace all 4
5
offset printing
TQBJ2141_en.fm Page 6 Monday, May 7, 2018 10:24 AM
Getting started
1
2
Extend the antenna.
Press [1] to switch on the unit.
The first time you switch on the unit, it will enter DAB
mode and automatically scan for stations. It sets the time
and date (if data is available) and starts playing the first
station it finds.
Listening to a station
1
2
Turn [TUNE/MENU SELECT] to select a station
from the station list.
Press [ENTER] to tune to the selected station.
Note:
“ ” indicates a secondary service station. Secondary service
stations are always listed next to their primary station in the
station list.
Presetting stations
You can preset up to 5 stations into the direct preset
buttons.
Number of stations found
1
Note:
In standby mode, the unit shows the time and date (only when
the unit is powered by AC).
DAB/DAB+
DAB (Digital Audio Broadcasting) is a procedure of
broadcasting the radio digitally. It gives less interference
and better sound quality.
This unit supports DAB in “BAND III” bands.
DAB operation
The first time you enter DAB mode, or if the station list is
empty, the unit will start the full scan and memorise the
stations.
You can perform the full scan procedure when there is a
new station or a station becomes available.
1
2
Press [SELECTOR] to select “DAB”.
Press [MENU] to select “Full scan” and then press
[ENTER] to start full scan.
To cancel, press [MENU].
█ Remove unavailable listed stations
This unit indicates those stations that are closed or no
longer available with a question mark in front of the station
name. You can remove these stations from the station list.
1
TQBJ2141
2
3
6
Press [MENU] and then turn [TUNE/MENU
SELECT] to select “Prune”.
Press [ENTER].
Turn [TUNE/MENU SELECT] to select “Yes” and
then press [ENTER].
To cancel, select “No”.
2
While listening to a station, press and hold the
desired direct preset button ([1] to [5]).
Example: press and hold [2] to store current station
into preset 2.
Press [ENTER] to preset the station.
█ Listening to a preset station
Press the direct preset button ([1] to [5]) to listen to
the preset station.
█ Manual tuning
You can perform manual tuning to a particular channel or
frequency. This can be useful when you are adjusting the
antenna to achieve the best possible reception and
scanning a particular channel to update the station list.
1
2
3
Press [MENU].
Turn [TUNE/MENU SELECT] to select “Manual
tune” and then press [ENTER].
Turn [TUNE/MENU SELECT] to select a frequency
or channel and then press [ENTER].
The display shows the received signal strength of the
selected frequency. Adjust the antenna to achieve the
best reception.
Threshold indicator
Adjust the antenna so that the received signal strength
(solid rectangles) exceeds the threshold indicator.
Viewing available information
You can view various information about the DAB
broadcast such as dynamic label information (if available),
signal strength, program type, ensemble name, channel
number, bit rate, DAB variant and date.
Press [DISPLAY] to view the available information.
Press and hold [DISPLAY] to show the default display.
offset printing
TQBJ2141_en.fm Page 7 Monday, May 7, 2018 10:24 AM
FM radio
Bluetooth®
1
2
You can connect and play an audio device wirelessly
through Bluetooth®.
Press [AUTO TUNE] to tune to a station.
The unit stops tuning when it finds a station.
Press [AUTO TUNE] again to tune to the next station.
Manual tuning
Turn [TUNE/MENU SELECT] to tune to the required
station.
Presetting stations
You can preset up to 5 stations into the direct preset
buttons.
These direct preset buttons are preset with a default
frequency for your convenience.
1
2
While listening to a station, press and hold the
desired direct preset button ([1] to [5]).
Press [ENTER] to preset the station.
█ Listening to a preset station
Preparation
• Switch on the unit.
• Switch on the Bluetooth® feature of the device and put
the device near the system.
• Read the operating instructions of the device for details.
Pairing a device
Preparation
If this system is connected to a Bluetooth® device,
disconnect it (~8).
1
2
3
4
5
Press the direct preset button ([1] to [5]) to listen to
the preset station.
Viewing available information
This unit can show the text data transmitted by the radio
data system (RDS) available in some areas, such as radio
text, programme service, programme type and date.
Press [DISPLAY].
Note:
RDS may not be available if reception is poor.
Press and hold [ ].
If “Pairing” is shown, continue with step 5.
Press [MENU].
Turn [TUNE/MENU SELECT] to select “Pairing”
and then press [ENTER].
Turn [TUNE/MENU SELECT] to select “Yes” and
then press [ENTER].
“Pairing” is shown.
To cancel, select “No”.
Select “RF-D100BT” from the Bluetooth® menu of
the device.
If prompted for a passkey, input “0000” or “1234”.
The device connects with this system automatically
after pairing is complete.
The MAC address (example: 6C:5A:B5:B3:1D:0F)
may be shown before “RF-D100BT” is shown.
Note:
You can pair up to 8 devices with this system. If a 9th device is
paired, the device that has not been used for the longest time
will be replaced.
Connecting a device
Preparation
If this system is connected to a Bluetooth® device,
disconnect it (~8).
1
2
3
Press [ ].
“Bluetooth Ready” is shown.
Select “RF-D100BT” from the Bluetooth® menu of
the device.
Start playback on the device.
Press [4/9] to pause or resume the playback.
Note:
• A device must be paired to connect.
• This system can only connect to one device at a time.
• When “Bluetooth” is selected as the source, this system will
automatically try to connect to the last connected device.
TQBJ2141
Press [SELECTOR] to select “FM”.
7
offset printing
TQBJ2141_en.fm Page 8 Monday, May 7, 2018 10:24 AM
Disconnecting a device
While a Bluetooth® device is connected
1
2
3
Press [MENU].
Turn [TUNE/MENU SELECT] to select
“Disconnect” and then press [ENTER].
Turn [TUNE/MENU SELECT] to select “Yes” and
then press [ENTER].
“Bluetooth Ready” is shown.
To cancel, select “No”.
Alternatively, press and hold [ ] until “Pairing” is
shown to disconnect the device.
External music device
System settings
█ To view the System menu
When in DAB, Bluetooth or AUX mode
1
2
Press [MENU].
Turn [TUNE/MENU SELECT] to select “System”
and then press [ENTER].
When in FM mode
Press [MENU].
█ To navigate around the menu
Turn [TUNE/MENU SELECT] to select an item or
option. Press [ENTER] to confirm.
Example: Backlight setting displays
You can play music from an external music device.
Preparation
• Switch off the equaliser (if any) of the external music
device to prevent sound distortion.
• Decrease the volume of the system before you connect
or disconnect the external music device.
Audio cable
(not supplied)
1
2
3
Connect the external music device using an audio
cable (not supplied).
Plug type: Ø 3.5 mm stereo
Press [SELECTOR] repeatedly to select “AUX”.
Play the external music device.
To adjust the input level
1
2
TQBJ2141
3
8
Press [MENU].
Turn [TUNE/MENU SELECT] to select “Input level”
and then press [ENTER].
Turn [TUNE/MENU SELECT] to select “Normal” or
“High” and then press [ENTER].
Note:
• The default setting is “Normal”.
• Select “Normal” if the sound is distorted during “High” input
level.
• Read the operating instructions of the external music device
for details.
Indicates current setting
Alarm
The Alarm Wizard is shown.
• Alarm: Alarm Off, Alarm On
Select “Alarm On” to switch on the
alarm.
• On time: Set the hours and minutes of
start time.
• Snooze: Snooze On, Snooze Off
Select “Snooze On” to switch on the
snooze function. Snooze interval is
5 minutes.
• Source: Buzzer, DAB, FM
Set the audio source.
If FM or DAB is set, select the last
station you tuned in to (“Last listened”)
or a preset station as the audio source.
• Set the volume
The alarm starts at a low volume and
increases gradually to the preset level.
“ ” is shown after you set the alarm.
Stop the alarm
Press and hold [ENTER] to stop the
alarm.
“Alarm Off” is shown.
Snooze function
Press any button or turn any knob to
put the alarm into snooze mode.
The unit will switch into standby mode
and the “ ” indicator blinks slowly.
Press [1] to switch on the unit will also
stop the snooze mode.
Note:
• The alarm does not work when the unit is
powered by batteries.
• Check that the date and time are set
correctly, or else the alarm may not work as
desired.
• The alarm will come on at the set time
every day for a duration of 59 minutes.
• You need to set the alarm again every time
you disconnect and connect the AC power
or after you replace the batteries.
offset printing
TQBJ2141_en.fm Page 9 Monday, May 7, 2018 10:24 AM
Kitchen timer
The kitchen timer is a convenient
countdown timer.
Set the desired duration. You can set
up to 99 minutes.
“ ” is shown after you set the timer.
To cancel, select “Off”.
Note:
• The countdown is shown on the
display for 10 seconds.
• To view the remaining time, select
“Kitchen timer” and then press
[ENTER], or press [DISPLAY] in
standby mode.
Sleep
The sleep timer switches off the unit
after the set time (in minutes).
Sleep off, 30 minutes, 60 minutes,
90 minutes, 120 minutes
“
” is shown after you set the
timer.
To cancel, select “Sleep off”.
Equaliser
Heavy, Soft, Clear, Vocal, Flat
“ ” is shown after you select the
effect.
To cancel, select “Flat”.
Time
The time and date information are
updated automatically with the
DAB/RDS broadcast (if available).
You can also set the time and date
manually with the Time menu.
This is a 24 hour clock.
• Set time: Set the hours and
minutes.
• Set date: Set the day, month and
year.
Dimmer
• Off: Switches off the function.
• Dimmer 1: Decrease the brightness
of the backlight.
• Dimmer 2: Further decrease the
brightness of the backlight.
Backlight
• On: The backlight is always on.
• 10 sec: The backlight switches off
after 10 seconds of inactivity.
Language
You can change the language for the
display panel.
English, Français, Deutsch, Italiano
Except for Australia
and New Zealand
Auto Power Off • On: The unit automatically switches
(Bluetooth and
off when you do not use it for
AUX mode only)
approximately 20 minutes.
• Off
Note:
This function does not work when you
are in radio source.
No, Yes
Select “Yes” to reset the unit to factory
default setting.
TQBJ2141
Factory Reset
9
offset printing
TQBJ2141_en.fm Page 10 Monday, May 7, 2018 10:24 AM
Troubleshooting
General
Sound is distorted or no sound.
• Adjust the volume.
• Check and adjust the antenna.
• Move the unit to another location and do a full scan
again.
• An AC mains lead or fluorescent light is near the cables.
Keep other appliances and cords away from the cables
of this unit.
• The batteries are weak. Replace them with new ones.
Reception is poor or beat sound is heard.
• Keep the antenna away from computers, TVs, other
cables and cords. Move mobile telephones away from
the unit if the interference is apparent.
Messages
“Alarm Not saved”
• The changes made to the alarm was not saved, the
changes will be lost.
“No DAB Station”
• No DAB station available.
• Check the antenna.
• Move the unit to another location and do a full scan
again.
“Service not available”
• No DAB reception.
“Time Not saved”
• The changes made to the time was not saved, the
changes will be lost.
“USB Overcurrent Remove Device”
• The USB device is using too much power. Disconnect
the USB device, switch off the unit and then switch on
again.
Bluetooth®
Pairing cannot be done.
• Check the Bluetooth® device condition.
• The device is out of the 10 m communication range.
Move the device nearer to the system.
The device cannot be connected.
• The pairing of the device was unsuccessful. Do pairing
again.
• The pairing of the device has been replaced. Do pairing
again.
• This unit might be connected to a different device.
Disconnect the other device and try connecting the
device again.
The device is connected but audio cannot be heard
through the system.
• For some built-in Bluetooth® devices, you have to set
the audio output to “RF-D100BT” manually. Read the
operating instructions of the device for details.
TQBJ2141
Sound from the device is interrupted.
• The device is out of the 10 m communication range.
Move the device nearer to the system.
• Remove any obstacle between the system and the
device.
• Other devices that use the 2.4 GHz frequency band
(wireless router, microwaves, cordless phones, etc.) are
interfering. Move the device nearer to the system and
distance it from the other devices.
10
Maintenance
Disconnect the AC adaptor before maintenance.
Clean this system with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this
system.
• Before using chemically treated cloth, read the
instructions that came with the cloth carefully.
offset printing
TQBJ2141_en.fm Page 11 Monday, May 7, 2018 10:24 AM
Specifications
Power supply
AC adaptor
Input
Output
AC 100 V to 240 V, 50/60 Hz
DC 9 V, 2.5 A
DC 9 V, 2 A
For Australia and New Zealand
For others
Main unit
Input
For Australia and New Zealand
For others
Battery
DC 9 V, 2.5 A
DC 9 V, 2 A
DC 6 V (4 x R14/LR14)
Power consumption in standby mode
With “Dimmer” set to “Off”
0.9 W (approximate)
Battery life
(Operate at 100mW with backlight off)
Power source
Manganese R14
battery
Alkaline LR14
battery
Bluetooth®
Approx. 3 H
Approx. 8 H
FM/DAB
Approx. 3 H
Approx. 8 H
Dimensions (W x H x D)
317 mm x 110 mm x 141 mm
Mass
With batteries
Without batteries
AC adaptor
Operating temperature range
2.3 kg
2.1 kg
0.2 kg
0°C to +40°C
Operating humidity range
20% to 80% RH (no condensation)
RMS output power stereo mode (both ch driven)
Front ch
5 W per channel (6 Ω), 1 kHz, 10% THD
Total RMS stereo mode power
10 W
Terminals
AUX IN
Headphones jack
Stereo, 3.5 mm jack
Stereo, 3.5 mm jack
For Australia and New Zealand
USB port power
DC OUT 5 V 1 A
Tuner
Preset memory
FM 5 stations
Frequency modulation (FM)
Frequency range
87.50 MHz to 108.00 MHz (50 kHz step)
DAB
DAB memories
5 channels
Frequency band (wavelength)
Band III
5A to 13F (174.928 MHz to 239.200 MHz)
Sensitivity *BER 4x10-4
Min requirement
–98 dBm
Bluetooth®
Version
Class
Supported profiles
Operating frequency
Frequency band
Operation distance
Maximum RF power
Supported codec
Bluetooth® Ver. 4.2
Class 2
A2DP, AVRCP
2.4 GHz band FH-SS
2402 MHz to 2480 MHz
10 m line of sight
3 dBm
SBC
Speaker (built-in)
Full range
6.5 cm cone type x 1/ch
Note:
Specifications are subject to change without notice. Mass and
dimensions are approximate.
TQBJ2141
RMS output power (battery operation)
Front ch
2.5 W per channel (6 Ω), 1 kHz
Total RMS stereo mode power
5W
11
offset printing
TQBJ2141_en.fm Page 12 Monday, May 7, 2018 10:24 AM
Safety information for customers in the EU
English
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that this
product is in compliance with the essential requirements
and other relevant provisions of Directive 2014/53/EU.
Customers can download a copy of the original DoC to
our RE products from our DoC server:
http://www.ptc.panasonic.eu
Contact to Authorised Representative:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Germany
Type of wireless
Frequency band
Maximum power
(dBm E.I.R.P.)
Bluetooth®
2402 – 2480 MHz
3 dBm
Ελληνικά
Δήλωση συμμόρφωσης (DoC)
Η “Panasonic Corporation” δηλώνει ότι το προϊόν αυτό
είναι συμμορφωμένο προς τις βασικές απαιτήσεις και
άλλες σχετικές διατάξεις της Οδηγίας 2014/53/EΕ.
Οι πελάτες μπορούν να κατεβάσουν ένα αντίγραφο του
πρωτοτύπου DoC για τα RE προϊόντα μας από τον DoC
server μας:
http://www.ptc.panasonic.eu
Επικοινωνήστε με τον Εξουσιοδοτημένο Αντιπροσωπό
μας:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Γερμανία
Τύπο ασύρματης
Ζώνη
συχνοτήτων
Μέγιστη ισχύς
(dBm e.i.r.p.)
Bluetooth®
2402 – 2480 MHz
3 dBm
TQBJ2141
Português
Declaração de Conformidade (DoC)
Com o presente documento, a “Panasonic Corporation”
declara que este produto se encontra em conformidade
com os requisitos específicos e demais especificações
referentes à Diretiva 2014/53/UE.
Os clientes podem baixar uma cópia da declaração de
conformidade (DoC) para nossos produtos RE do Server
DoC:
http://www.ptc.panasonic.eu
Contacto com um Representante Autorizado:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Alemanha
12
Tipo de ligação
sem fios
Banda de
frequência
Potência máxima
(dBm e.i.r.p.)
Bluetooth®
2402 – 2480 MHz
3 dBm
Lietuviškai
Atitikties deklaracija (AD)
Bendrovė “Panasonic Corporation” patvirtina, kad šis
gaminys atitinka direktyvos 2014/53/ES esminius
reikalavimus ir kitas taikytinas nuostatas.
Mūsų RE gaminių originalios atitikties deklaracijos kopiją
klientai gali atsisiųsti iš mūsų AD serverio:
http://www.ptc.panasonic.eu
Įgaliotojo atstovo adresas:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Vokietija
Bevielio ryšio
tinklas
Bluetooth®
Dažnių
diapazonas
2402 – 2480 MHz
Maksimali siuntimo
galia (dBm e.i.r.p.)
3 dBm
Slovensko
Izjava o skladnosti (DoC)
“Panasonic Corporation” v tem dokumentu izjavlja, da je
izdelek v skladu z bistvenimi zahtevami in drugimi
pomembnimi določbami Direktive 2014/53/EU.
Stranka lahko naloži izvod izvirnega DoC o naših izdelkih
RE s strežnika DoC:
http://www.ptc.panasonic.eu
Naslov pooblaščenega predstavnika:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Nemčija
Vrsta brezžiène
povezave
Bluetooth®
Frekvenčni pas
2402 – 2480 MHz
Največja moč
(dBm EIRP)
3 dBm
Slovensky
Vyhlásenie o zhode (DoC)
“Panasonic Corporation” týmto vyhlasuje, že tento
výrobok je v súlade so základnými požiadavkami a
ďalšími príslušnými ustanoveniami smernice 2014/53/EÚ.
Zákazníci si môžu stiahnuť kópiu pôvodného DoC na
naše RE výrobky z nášho servera DoC:
http://www.ptc.panasonic.eu
Kontakt na splnomocneného zástupcu:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Nemecko
Typ bezdrôtového
Frekvenčné
Maximálny výkon
pripojenia
pásmo
(dBm e.i.r.p.)
Bluetooth®
2402 – 2480 MHz
3 dBm
offset printing
TQBJ2141_en.fm Page 13 Monday, May 7, 2018 10:24 AM
Español
Declaración de Conformidad (DoC)
Български
Декларация за съответствие (DoC)
Por la presente, “Panasonic Corporation” declara que
este producto es de conformidad con los requisitos
sustanciales y con las disposiciones pertinentes de la
Directiva 2014/53/UE.
С настоящото “Panasonic Corporation” декларира, че
този продукт е в съответствие с основните изисквания
и други съответни разпоредби на Директива
2014/53/EС.
Los usuarios pueden descargar una copia de la
declaración de conformidad original (DoC) de los
productos RE del servidor DoC:
http://www.ptc.panasonic.eu
Contacto con el representante autorizado:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Alemania
Потребителите могат да свалят копие от оригиналните
DoC към нашите продуктите от типа RE от сървъра, на
който се съхраняват DoC:
http://www.ptc.panasonic.eu
Свържете се с нашия упълномощен представител:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Германия
Banda de
frecuencia
2402 – 2480 MHz
Potencia máxima
(dBm p.i.r.e)
3 dBm
Eesti keel
Vastavusdeklaratsioon (DoC)
Käesolevaga kinnitab “Panasonic Corporation”, et see
toode vastab direktiivi 2014/53/EL olulistele nõuetele ja
teistele asjakohastele sätetele.
Kliendid saavad koopia meie RE toodetele kehtiva
originaalvastavusdeklaratsiooni koopia alla laadida meie
DoC-serveristt:
http://www.ptc.panasonic.eu
Võtke ühendust volitatud esindajaga:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Saksamaa
Juhtmevaba
seadme
tüüp
Sagedusriba
Maksimaalne
võimsus
(dBm EIRP)
Bluetooth®
2402 – 2480 MHz
3 dBm
Вид безжична
връзка
Честотна лента
Максимална
мощност
(dBm e.i.r.p.)
Bluetooth®
2402 – 2480 MHz
3 dBm
Român
Declaraţie de Conformitate (DoC)
“Panasonic Corporation” declară prin prezenta că acest
produs este conform cu cerinţele esenţiale şi alte
prevederi relevante ale Directivei 2014/53/UE.
Clienţii pot descărca o copie a DoC-ului original al
produselor noastre RE de la adressa noastră DoC din
Internet:
http://www.ptc.panasonic.eu
Contactaţi Reprezentantul Autorizat:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Germania
Tip de wireless
Interval de
frecvenţă
Putere maximă
(dBm e.i.r.p.)
Bluetooth®
2402 – 2480 MHz
3 dBm
Latviski
Atbilstības deklarācija (DoC)
Magyar
Megfelelőségi Nyilatkozat (DoC)
Ar šo “Panasonic Corporation” paziņo, ka šis izstrādājums
atbilst pamatprasībām un pārējiem Direktīvas 2014/53/ES
noteikumiem.
Ezennel a, “Panasonic Corporation” kijelenti, hogy a jelen
termék kielégíti az 2014/53/EU Irányelv létfontosságú
követelményeit és más vonatkozó rendelkezéseit.
Pircēji var lejupielādēt oriģinālo DoC kopiju mūsu RE
izstrādājumos no mūsu DoC servera:
http://www.ptc.panasonic.eu
Lūdzam sazināties ar pilnvaroto parstāvi:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Vācijā
A vásárlók letölthetik az RE termékek eredeti DoC
másolatát a DoC szerverünkről:
http://www.ptc.panasonic.eu
A hivatalos képviselő elérhetősége:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Németország
Bezvadu tips
Frekvenču josla
Maksimālā jauda
(dBm EIRP)
Bluetooth
2402 – 2480 MHz
3 dBm
®
Wireless típus
Frekvenciasáv
Maximális
teljesítmény
(dBm e.i.r.p.)
Bluetooth®
2402 – 2480 MHz
3 dBm
TQBJ2141
Tipo de red
inalámbrica
Bluetooth®
13
offset printing
TQBJ2141_en.fm Page 14 Monday, May 7, 2018 10:24 AM
Hrvatski
Deklaracija o podobnosti (DoC)
Ovime “Panasonic Corporation” izjavljuje da ovaj proizvod
udovoljava osnovnim zahtjevima i ostalim relevantnim
odredbama Direktive 2014/53/EU.
Kupci mogu preuzeti kopiju originalne DoC za naše RE
proizvode s našeg DoC poslužitelja:
http://www.ptc.panasonic.eu
Adresa ovlaštenog predstavništva:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Njemačka
Vrsta bežične
Frekvencijski
mreže
pojas
Bluetooth®
2402 – 2480 MHz
Maksimalna snaga
(dBm e.i.r.p.)
3 dBm
Česky
Deklarace shody (DoC)
“Panasonic Corporation” tímto prohlašuje, že tento
výrobek splňuje základní požadavky a další relevantní
ustanovení Směrnice 2014/53/EU.
TQBJ2141
Zákazníci si mohou stáhnout kopii originálu deklarace
shody (DoC) pro naše výrobky RE z našeho serveru DoC:
http://www.ptc.panasonic.eu
Kontakt na Autorizovaného obchodního zástupce:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Německo
14
Typ bezdrátového
připojení
Frekvenční pásmo
Maximální
výkon
(dBm e.i.r.p.)
Bluetooth®
2402 – 2480 MHz
3 dBm
offset printing
TQBJ2141_en.fm Page 15 Monday, May 7, 2018 10:24 AM
For Australia
Panasonic Warranty
1. Subject to the conditions of this warranty Panasonic or its Authorised Service Centre will perform necessary service on the
product, without charge for parts or labour, if in the opinion of Panasonic the product is found to have a manufacturing defect
within one (1) year or (12 months) (the “warranty period”) from the date of purchase appearing on your purchase receipt.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia, it’s Authorised
Distributors, or Dealers, and only where the products are used and serviced within Australia or its territories. Warranty cover
only applies to the services that are carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase
is presented when the warranty service is requested.
3. This warranty only applies if the product has been installed and/or used in accordance with the manufacturer’s
recommendations (as noted in the operating instructions) under normal use and reasonable care (in the opinion of
Panasonic). The warranty does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect
installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply
problems, thunderstorm activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including
unauthorised alterations), exposure to abnormally corrosive conditions, or any foreign object or matter having entered the
product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Consumable parts
(b) Cosmetic parts
(c) Worn or damaged parts
(d) Information stored on Hard Disk Drives, Optical Discs, USB Devices, SD Cards, Tapes
(e) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)
5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not
cover:
(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) Incompatible software or software not specifically stipulated in the product operations manual; and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the
internet or any other device.
6. To claim warranty service, when required, you should:
• Contact Panasonic’s Customer Care Centre on 132 600 for Service Centre information.
• Confirm the opening and acceptance times with the Authorised Service Centre that you choose.
• Then send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt.
• Any freight and insurance costs associated with the transport of the product to and/or from your nearest Authorised Service
Centre must be arranged and paid for by you.
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other
ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or
replacement of and do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or
related to such installation, de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia,
however, coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product,
please telephone our Customer Care Centre on 132 600 or visit our website and use the Service Centre Locator.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded
under the Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have
a refund or to have the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in
value of the goods. You are also entitled to have the product repaired or replaced if the product fails to be of acceptable
quality and the failure does not amount to a major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable
period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic
may choose to repair or replace the product and will do so in a reasonable period of time from receiving notice from you.
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
Panasonic Australia Pty. Limited
PRO-031-F11 Issue: 5.0
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
www.panasonic.com.au
23-01-2018
TQBJ2141
If you require assistance regarding warranty conditions or any other enquiries, please visit the
Panasonic Australia website www.panasonic.com.au or contact by phone on 132 600
If phoning in, please ensure you have your operating instructions available.
15
offset printing
TQBJ2141_en.fm Page 16 Monday, May 7, 2018 10:24 AM
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying
documents mean that used electrical and electronic products and
batteries must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and
used batteries, please take them to applicable collection points in
accordance with your national legislation.
By disposing of them correctly, you will help to save valuable
resources and prevent any potential negative effects on human
health and the environment.
For more information about collection and recycling, please contact
your local municipality.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
Note for the battery symbol (bottom symbol):
This symbol might be used in combination with a chemical symbol. In
this case it complies with the requirement set by the Directive for the
chemical involved.
Manufactured by:
Panasonic Corporation
Kadoma, Osaka, Japan
Importer for Europe: Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Corporation
Web Site: http://www.panasonic.com
© Panasonic Corporation 2018
En
TQBJ2141
L0418CH3058
Download PDF

advertising
