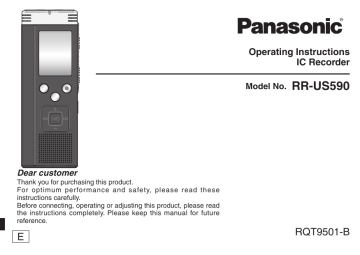

Operating Instructions
IC Recorder
Model No.
RR-US590
Dear customer
Thank you for purchasing this product.
For optimum perfor mance and safety, please read these
instructions carefully.
Before connecting, operating or adjusting this product, please read
the instructions completely. Please keep this manual for future
reference.
E
RQT9501-B
Supplied accessories
Features
Recording
Meeting
Lesson
Lecture
Dictation
Playing back
to listen
• Recorded file
• MP3 music file
with speaker
or earphones
(not included)
Connecting this unit to a computer
RQT9501
Using a computer
• Copy/Organize (Delete) recorded files/
Play back to listen
From a computer
• Transfer MP3 music files
2
Please check and identify the supplied
accessories.
Use numbers indicated in parentheses
when asking for replacement parts.
(Product numbers correct as of May
2009. These may be subject to change.)
(For the United Kingdom and Republic of Ireland)
To order accessories, refer to “Sales and
Support Information” (➜ page 36).
1 USB cable [K2KZ4CB00012]
Basic Operations
Recording settings ............................................................ 8
Switching recording position ........................................ 8
Recording ......................................................................... 9
Playing ............................................................................ 10
Listening to the audio using earphones.......................... 11
Deleting recorded files .................................................... 12
Locking recorded files (File protection)........................... 13
Advanced Operations
Changing recording settings
(Monaural/Stereo, Microphone sensitivity) ..................... 14
Changing recording settings
(Zoom microphone/Recording mode (XP/LP/SLP)) ....... 15
Preventing unnecessary recording (VAS) ....................... 16
Confirming possible (remaining) recording time ............. 16
Setting the playback speed control function ................... 17
Reducing noise (EQ setting)........................................... 18
Slight return playback ..................................................... 18
Repeat play/Successive play .......................................... 19
A-B Repeat play ............................................................. 19
Security functions ........................................................... 20
Recording using an external microphone ....................... 22
Recording from other devices ......................................... 22
Recording to other devices ............................................. 23
Cancelling the operation beep ........................................ 23
Using with a computer
Connecting this unit to a computer ................................. 24
Opening the folder of this unit using a computer ............ 25
Importing the recorded files in this unit to a
computer/Organizing files ............................................... 26
Returning the files imported to the computer
to this unit ....................................................................... 27
Listening to music on this unit
(Transferring MP3 music files to this unit) ....................... 28
Listening to music on this unit
(Playing MP3 music files on this unit) ............................. 29
Creating MP3 music files ................................................ 30
Other
System requirements...................................................... 31
Q & A (Frequently Asked Questions).............................. 32
Troubleshooting guide .................................................... 33
Sales and Support Information
(For the United Kingdom and Republic of Ireland) ......... 36
Care and use .................................................................. 38
Maintenance ................................................................... 39
Specifications ................................................................. 40
RQT9501
Preparation
Features ........................................................................... 2
Supplied accessories ....................................................... 2
Part names ....................................................................... 4
Inserting the batteries ....................................................... 5
Turning ON/OFF the Power .............................................. 6
Hold function..................................................................... 6
Setting the time................................................................. 7
Preparation
Table of contents
3
Part names
Main unit
ԁ
Ԃ
ԃ
„
‟
Ԅ
ӻ
†
‡
•
‣
․
‥
ӹ
Ӻ
′
Ӽ
ӽ
Ӿ
ӿ
″
Ԁ
‴
„ Recording indicator (red)
‟ LCD display
† FOLDER
‡ STOP
• + (Volume)
‣ u (Fast backward)
․ q/g (Play/Stop/Enter)
‥ – (Volume)
… i (Fast forward)
‧ Built-in speaker
OPR/HOLD
Recording position switch
(ZOOM/WIDE/MANUAL)
‪ REC/PAUSE
‫• ‫‬MENU/−REPEAT
‬ ERASE
‭ USB jack
‫ ‮‬Built-in microphone
Ԃ External microphone jack (MIC)
‰ Headphone/earphone jack (W)
‱ Stand
When you perform zoom
recording with the unit placed
on the desk, etc., stable zoom
effect can be obtained by
putting up the stand.
stand
′ Zoom microphone
″ġBattery cover
‴ġHand strap hole
Display
: Noise reduction
: Playback speed control
: Formatting
: Folder
Remaining memory/Recording level
RQT9501
XPLPSLP : Recording mode
4
SPEED
: Monaural/Stereo
: Microphone sensitivity
: Battery indicator
: Delete
: Security
: File protection
: VAS recording
: Operation beep
: Zoom recording
: Successive/Repeat play
: Possible remaining recording time
Recording (Playback) elapsed time/Possible remaining recording time/Remaining playback time/Current time etc.
Clock/Recording (Playback) time/Recording date
File number
: Slight return playback
ALL
The remaining battery display shown below is
displayed while recording or playing.
Blinking
1
* If the batteries run out, “ ” blinks. Replace the
batteries as soon as possible.
* Remove the batteries from the unit if you will not
use it for a long period of time.
* Please replace batteries within approx. 30
seconds for preservation of the clock data.
3
2
2 AAA LR03 batteries
(not included)
Preparation
Inserting the batteries
Make sure to turn the power off before
removing the batteries.
• If the batteries are removed while recording,
deleting, etc, all data on this unit may be lost or
this unit may be destroyed.
* Use alkaline batteries.
RQT9501
Make sure the batteries face the right direction.
5
Turning ON/OFF the Power
Button operations are ignored when you set Hold
on.
OPERATION/HOLD Switch
HOLD
OPR
Hold function
OPR: operation
Switching Hold on/off
Hold on
HOLD
RQT9501
Turning the power ON
• Slide OPERATION/HOLD switch to OPR side,
then the power turns on and the display lights on.
6
Turning the power OFF
• Slide and hold OPERATION/HOLD switch to OPR
side for 2 seconds.
Also, when you do not operate the unit for more
than approx. 15 minutes while the unit is stopped,
“
” is displayed and the power automatically
turns off.
* When batteries are inserted for the first time,
” blinks on the display. Please set the
“
time (➜ page 7).
OPR
Hold off
HOLD
OPR
• When the Hold function is on, button operation is
ignored even if the unit is on (“
” is displayed).
Accordingly, operation mistakes (i.e. Recording or
playback stops midway.) can be prevented.
When the power is turned on, “
” blinks on the display when the time is not set (e.g. at the time of
purchase). (In power-on condition, the display changes to “
” (blinking) in approx. 1 minute.)
The clock is used for preserving recording date. Please set the time first.
Recording is possible even if the clock is not set. However, the Recording date, Recording start time will be displayed as “
”.
STOP
REPEAT
When “
” is blinking
• Turn the power on (➜ page 6).
1
2
Press q/g .
Press +, – to set the year and
press q/g to enter.
Set month and day in the same way.
3
Year
Month
Day
The above illustration is a display example.
Press u, i to select the time
display and press q/g to enter.
24-hour display
4
12-hour display
Press +, – to set the time and
press q/g to enter.
You can adjust the time quickly by
pressing and holding +, –.
24-hour display
12-hour display
When the time display is
“ ” (blinking) or you change
the time
• Turn the power on (➜ page 6).
• Press STOP to stop the unit.
1
Press • MENU/ REPEAT .
“
” (blinking) or “
is displayed.
” (blinking)
2
Press +, – to select “
and press q/g to enter.
3
Follow step 2 , 3 and 4
shown at left.
If “
”
” blinks, press q/g to enter.
STOP
* Press
to stop the setting process
midway.
* The clock operates with the monthly
loss/gain of approx. 60 seconds at
normal temperature.
* The time setting is cleared, if the battery
has been consumed completely.
RQT9501
• MENU/
Preparation
Setting the time
7
Recording settings
Recording
setting item
Setting contents and
display
RQT9501
Recording High-quality
mode
(➜ page 15) Long recording
8
Switching
Monaural
Monaural/
Stereo
Stereo
(➜ page 14)
:
:
Microphone High
sensitivity Normal
(➜ page 14)
Low
:
:
:
:
:
:
Switching recording position
This unit is equipped with 3 recording positions: [ZOOM],
[WIDE] and [MANUAL]. The [ZOOM] and [WIDE] content
settings are fixed while [MANUAL] content settings can
be changed according to your preference. You can switch
among the positions using Recording position switch.
The total possible recording time (➜ page
40) changes according to the combination
of the recording mode and Stereo/Monaural.
FOLDER
STOP
Recording Setting contents (display)
position
and situations
For lessons, lectures,
etc. (Recording the
aimed person’s voice).
ZOOM
WIDE
Zoom
Zoom microphone ON
microphone
:
(➜ page 15) Zoom microphone OFF
: No display
REC/PAUSE
For meetings, etc. (Recording
with a lively feeling).
✽
MANUAL
For
dictation,
etc.
✽ [MANUAL]
position has been set to
be suitable for dictation at the time
of purchase. You can change the
setting according to your preference
(➜ pages 14, 15).
You can change the recording mode (XP,
LP, SLP) in all positions (➜ page 15).
MANUAL
WIDE ZOOM
MANUAL WIDE
ZOOM
This unit has 4 recording setting items related to
recording quality. Using different combinations of
recording settings, you can adjust audio quality
according to recording situations.
Recording
position switch
Recording
Slide recording position switch to
select a position.
Switch modes according to situations (➜ page 8).
2
3
Select a folder for recording.
FOLDER
The folder is switched each time you press
.
” (The factory setting is
Select among “
“ ”).
When you select “ ”, recording is automatically
saved in “ ” (If the folder already contains 99 files,
the next folder with recordable space is used).
Press
REC/PAUSE
(Recording starts).
Each time you press Pause
Recording resumes
Display during recording
Light stays on. (Blinks while paused.)
The display changes depending
on recording levels.
In stereo Top side: ch-L/Bottom
side: ch-R
Recording elapsed time
(Blinks while paused.)
To stop: Press
STOP
.
File
Recorded audio data from the starting point to the
ending point is saved as a file.
The saved data is called a file.
* Even if you change the position of Recording
position switch during recording, the setting
will not be changed until the recording is
complete.
* Change the recording mode as necessar y
(➜ page 15).
* Do not block the holes of the zoom microphone
and built-in microphone dur ing recording
(➜ page 4).
RQT9501
1
[Folder] for this unit means locations in which
recording (music) files are stored. There are 4
audio folders “
” and 1 music folder “ ” in
this unit.
Using each folder according to the purposes of
recording enables you to search files easily later.
A maximum of 99 files can be saved into each
audio folder to .
Basic Operations
Folder
• Turn the power on (➜ page 6).
• Press STOP to stop the unit.
9
Playing
• Press STOP to stop the unit.
• Select a folder (➜ right).
• Select a file (➜ right).
1
FOLDER
STOP
Press q/g (Playback starts).
Adjusting the volume
Turn up the volume: Press +.
Turn down the volume: Press –.
Volume range is 0 to 20.
(The factory setting is 13.)
Operations during playback
Jump (Skip):
RQT9501
Press u, i.
Press u midway while playing a
file and the playback jumps to the
beginning of the file. To return to the
previous file, press u again within 1
second.
10
Fast backward/Fast forward
(Search):
Press and hold u, i.
Stop: Press q/g or
STOP
.
Select a folder
The folder is switched each time you
FOLDER
press .
Select among “ ”, “ ”, “ ”, “ ”, “ ”.
Select the folder that contains the file to
play.
Select a file
Press u, i to select.
Each time you press, the file number
changes.
File number
When a file is selected, the recording
information below is displayed.
Recording date → Recording start time →
Recording time → Total number of files in the
folder
Press and hold
for
1 second or longer
during playback.
FOLDER
Connect stereo earphones (not included).
Plug type: ø 3.5 mm stereo mini plug
Recommended additional earphones: Panasonic RP-HV250 (the product
number is correct as of May 2009.)
Monitoring the recording
progress
The remaining time of the file
being played is displayed for
approx. 3 seconds.
Adjusting the volume:
Insert
securely.
Built-in
speaker
Remaining
playback
time
* The remaining playback time
for the last approx. 3 seconds
of file is not displayed.
You can adjust the volume by pressing
+, –, but the recording level is not
affected.
Listening to the audio
during playback
The audio during playback comes from
the speaker. Listening may be difficult in
noisy places due to the speaker output.
In that case, connect stereo earphones
(not included).
* The built-in speaker is turned off when
earphones are connected.
RQT9501
Confirming the
remaining time
Basic Operations
Listening to the audio using earphones
11
Deleting recorded files
• Select a folder (➜ page 10).
STOP
ERASE
1
Press
ERASE
while playing or
the unit is stopped.
2
Press u, i to select the file.
ӱ Deleting one file
Ӳ Deleting all files in
one folder
ӳ Deleting all files in
folder A through D
Ӵ Deleting all files in all
folders
RQT9501
ӵ Formatting this unit
12
ӱ to Ӵ : Protected files and files which
cannot be played back on this
unit cannot be deleted.
3
4
Press q/g to enter.
Press u, i to select “
and press q/g to enter.
”
When deleting is complete, “ ” is
displayed.
It may take dozens of seconds until
deleting is complete.
Formatting
If the unit is formatted, all existing files
including protected files, music files,
data files transferred from PCs, etc. are
deleted.
* Deleted files cannot be recovered.
* You cannot delete a portion of a file.
STOP
* Press
to stop the operation midway.
* The file numbers displayed on this unit
are moved forward after deleting files.
* Both deleting and formatting data are
not available when the remaining battery
display shows “
” (blinking).
Locking recorded files (File protection)
STOP
REPEAT
• Press
1
3
to stop the unit.
Press • MENU/ REPEAT .
“
2
STOP
” (blinking) is displayed.
Press +, – to select “
press q/g to enter.
4
Press q/g to enter.
5
Press u, i to select “ ”
and press q/g to enter.
” and
Press u, i to select the
file.
Lock is performed.
It may take dozens of seconds until
locking is complete.
To cancel lock:
ӱ Selecting one file
Follow step 1 to 4 , select “
enter in step 5 .
Ӳ Selecting all files in
one folder
* Press
to stop the setting process
midway.
*“
” is displayed for the locked files
when the file is selected.
*“
” is not displayed when there is no
file in the selected folder.
* You cannot lock files when the remaining
battery display shows “
” (blinking).
ӳ Selecting all files in all
folders
” and
STOP
RQT9501
• Select a folder (➜ page 10).
• MENU/
Basic Operations
Locked files cannot be deleted on this unit (except when formatting).
Use this function to protect files.
13
Changing recording settings (Monaural/Stereo, Microphone sensitivity)
Switching Monaural/Stereo
STOP
• MENU/
REPEAT
• Set the Recording position switch to
[MANUAL] (➜ page 8).
• Press
1
STOP
MANUAL WIDE ZOOM
RQT9501
to stop the unit.
• Set the Recording position switch to
[MANUAL] (➜ page 8).
• Press
Press • MENU/ REPEAT .
“
14
Changing microphone sensitivity
Press +, – to select “
and press q/g to enter.
3
Press u, i to select “
”
or “ ” and press q/g to enter.
Monaural
Stereo
”
to stop the unit.
1
Press • MENU/ REPEAT .
2
Press +, – to select “
press q/g to enter.
3
Press u, i to select
microphone sensitivity and
press q/g to enter.
” (blinking) is displayed.
2
STOP
“
” (blinking) is displayed.
Low
Normal
” and
High
STOP
* Press
to stop the setting process midway.
Recording
* If “ ” is selected and entered while “
” is on ( ➜ page 15), “
position switch (“
” disappears.)
” turns off.
Changing recording settings (Zoom microphone/Recording mode (XP/LP/SLP))
When the zoom is set to “ ”, the surrounding sound volume
is lowered, and the sound in front is clearly recorded.
When recording with zoom microphone, the audio becomes monaural.
STOP
• Set the Recording position switch to [MANUAL] (➜ page 8).
” (Monaural) (➜ page 14).
• MENU/ REPEAT • Set to “
• Press
STOP
to stop the unit.
Press • MENU/ REPEAT .
2
Press +, – to select “
to enter.
3
Press u, i to select “ ” or “
press q/g to enter.
” (blinking) is displayed.
Zoom ON
STOP
” and press q/g
” and
to stop the unit.
Press • MENU/ REPEAT .
2
Press q/g to enter.
3
Press u, i to
select among “XP”,
“LP” and “SLP” and
press q/g to enter.
Zoom OFF
* Press
to stop the setting process midway.
* When “ ” is set ( ➜ page 14), you cannot set the zoom
” is not displayed on the menu screen.
microphone and “
* The zoom function does not work as long as a device is connected to the
external microphone jack even if the zoom is set to ON on this unit.
* When you perform zoom recording with the unit placed on the
Recording
desk, etc., we recommend putting up the stand (➜ page 4).
position switch
MANUAL WIDE ZOOM
1
STOP
“
” (blinking) is
displayed.
1
“
• Press
* If noise bothers you when
recording/playing in SLP
mode, use XP or LP
mode.
Advanced Operations
How to set the
recording mode
(XP/LP/SLP)
RQT9501
Changing Zoom microphone setting
15
Preventing unnecessary recording (VAS)/Confirming possible (remaining) recording time
VAS (Voice Activated System) function
Recording stops automatically when silence
continues for about 3 seconds. If the unit
detects sound, the recording resumes.
STOP
Recording indicator
to stop the unit.
• MENU/ REPEAT • Press
FOLDER
Press • MENU/ REPEAT .
STOP
1
“
” (blinking) is displayed.
2
Press +, – to select “
press q/g to enter.
3
Press u, i to select “ ” and
press q/g to enter.
Then “
” and
” is displayed.
Start recording to activate this function.
When the VAS function is active and the
recording is paused during recording, “ ”
and the recording indicator blink.
RQT9501
Cancelling VAS function:
16
” and enter in step 3 .
Select “
* Turn the function off when recording
important matters.
* Press
STOP
to stop the setting process midway.
Confirming possible
(remaining) recording time
1
Remaining
Press and hold
recording time
for 1 second or longer
while recording or
stopped.
FOLDER
hour minute
Remaining recording time
second
is displayed for approx. 3
seconds.
When there is only a little∗ remaining
memory left while recording, the display
is automatically changed to the remaining
recording time display.
The “ ” display while
stopped shows approximate
remaining memory.
“ ” lights up in response to
the remaining time.
When there is only a little∗ remaining
memory left, “ ” blinks.
∗ When the remaining recording time falls
below approx. 1 hour.
Setting the playback speed control function
Playback speed can be adjusted at 5 different speeds.
2
Press i to select “SPEED” and press q/g to enter.
3
Press u, i to select playback speed.
4
Press q/g to enter.
• MENU/
REPEAT
during playback.
“ ” (blinking) and “SPEED ” (lighting) are displayed.
(Only “SPEED ” (blinking) is displayed when “ ” is selected.)
STOP
When pressing i, the playback speed becomes faster and “ ” (blinking) moves to the right.
When pressing u, the playback speed becomes slower and “ ” (blinking) moves to the left.
× 0.5
× 0.75
×1
× 1.5
×2
* Press STOP to stop the setting process midway.
* When playing with speed other than × 1 speed, the bar at the top blinks and
“SPEED ” lights up.
e.g. When playing back with × 0.75 speed
Advanced Operations
REPEAT
Press
RQT9501
• MENU/
1
17
Reducing noise (EQ setting)/Slight return playback
Reducing noise (EQ setting)
This function makes it easier to hear
sounds during playback.
You cannot make this setting when “ ” is
• MENU/ REPEAT selected.
STOP
1
• Press
“ ” (blinking) and “SPEED ” (lighting)
are displayed.
1
Press • MENU/ REPEAT .
2
Press +, – to select “
press q/g to enter.
3
Press u, i to select “
and press q/g to enter.
2
Press q/g to enter.
3
Press u, i to select “
and press q/g to enter.
”
” is displayed while
Cancelling Noise reduction (EQ setting):
” and enter in step 3 .
Select “
RQT9501
Slight Return Playback function: When u
is pressed during playback, the play point
reverses about 5 seconds, and playback
resumes from the point.
Press • MENU/ REPEAT during playback.
After setting, “
playing.
18
Setting Slight return playback
“
Then “
to stop the unit.
” (blinking) is displayed.
” and
”
” is displayed.
Cancelling Slight return playback:
Select “
STOP
STOP
” and enter in step 3 .
* Press
to stop the setting process midway.
* Slight return playback cannot be done during A-B Repeat play (➜ page 19).
Repeat play/Successive play, A-B Repeat play
Repeat play/Successive play
A-B Repeat play
REPEAT
Each time you press and hold
for 1 second or longer while stopped, the
playback style is switched as follows.
Playback repeats between the start point (A)
and finish point (B) if those points are set.
• MENU/
The start point (A) is set
and “ ” (blinking) and “
(lighting) are displayed.
→ No display →
REPEAT
“ALL” display
The selected file until
the last file in the selected folder are
played successively. The unit stops
when the playback finishes. (The
factory setting is “ALL”.)
“ALL
” display
Plays all files in the
folder repeatedly.
No display
When the playback
for one file finishes, the unit stops.
“ ” display
Plays one file repeatedly.
• Select one of the above settings
and, press q/g to start playback.
• MENU/
2
REPEAT
Press and hold
for 1
second or longer while playing.
”
Press • MENU/ REPEAT at the finish point (B).
The display changes to “ ”
(lighting) and repeat play starts.
Cancelling A-B Repeat:
• MENU/
REPEAT
Press and hold
for 1 second or longer, or press
u, i while playing or the unit is stopped.
* You cannot set A-B Repeat in the following cases;
• Within approx. 1 second from the beginning of the file
and within approx. 2 seconds from the end of the file
• Less than approx. 2 seconds between the
start point (A) and finish point (B)
* When only the start point (A) is set and playback
continues until the end of the file, the end becomes
the finish point (B) and A-B Repeat begins.
* During A-B Repeat playback, the Slight return
playback (➜ page 18) is not available.
Advanced Operations
ALL → ALL
1
RQT9501
• MENU/
19
Security functions
If you set a password, password authentication is necessary when playing back this unit or connecting to
a computer. When the unit is lost or stolen, the recorded data stored in this unit cannot be played or the
computer does not recognise this unit as long as the password does not match.
If you forget the password, you cannot
4 Press +, – to select a number
play files in folder A to D. Please write it
and press q/g to enter.
down in MEMO section (➜ right) not to
• MENU/ REPEAT
Move to the next digit and select a
forget.
number. Repeat this until the 4th digit.
STOP
(You can select a digit with u, i.)
The password is determined when
you finish entering the 4th digit.
Then “ ” is displayed.
MEMO
Setting the password
(4-digit number)
• Press
STOP
to stop the unit.
1
Press • MENU/ REPEAT .
2
Press +, – to select “ ” and
press q/g to enter.
3
Press u, i to select “
and press q/g to enter.
“
Password
” (blinking) is displayed.
If the password has been set and you
press q / g to play a file, the password
entry display appears (➜ page 21).
Cancelling the security lock:
”
„ Select “ ” and enter in step 3 .
‟ Perform step 4 . (Enter the password.)
RQT9501
Enters the password entry display.
20
STOP
* Press
to stop the setting process
midway.
* To change the password, cancel the
security lock and set a password again
from step 1 .
To initialize the password, delete all files.
ӱ Release all locks set on files in folder A through
D (➜ page 13).
Ӳ Delete all files in folder A through D
(➜ page 12).
ӳ Select “
” in step 3 of “Setting the password
(4-digit number)” and press q/g to enter
(➜ page 20).
g When the password matches
* The security lock is temporarily released and
the audio file can be played. (“ ” blinks while
temporarily cancelling.)
* In the condition , the security lock is set again.
A
• When you do not operate for more than
approx. 15 minutes and the power turns off
while the unit is stopped (➜ page 6)
• When the unit is off for more than approx. 15
minutes
g When the password is wrong
* The unit beeps and “
” is displayed,
then the password entry display reappears.
When wrong passwords are entered 5 times in
succession, the unit stops accepting password
entry. In that case, reenter the password in the
condition (➜ above).
* If this unit is connected to a computer when the
security lock is not cancelled, the computer does
not recognise this unit. After connecting the USB
cable, the password entry display appears. Then,
authenticate the password.
* Even if the security lock is not cancelled, recording
and playing music are available.
Advanced Operations
g When you have forgotten the password
Perform step 4 in page 20.
(Enter the password.)
RQT9501
Authenticating the password
21
Recording using an external microphone/Recording from other devices
Recording using an external
microphone
• Change the setting to monaural/stereo on
this unit according to the microphone’s
monaural/stereo (➜ page 14).
Insert
securely
Plug type:
ø 3.5 mm
stereo mini
plug
MIC
External
microphone
(not included)
Recording from other devices
• Set monaural/stereo to stereo (➜ page 14).
Head phone
jack
(Stereo
device)
Stereo
mini plug
Stereo
mini plug
(Monaural
device)
Monaural
mini plug
Stereo
mini plug
Playing
ӱ Record the audio (➜ page 9).
RQT9501
* If the recording level is too low or high, adjust the
microphone sensitivity (➜ page 14).
22
Audio Cable with resistor (not included)
Insert
securely MIC
Plug type:
ø 3.5 mm
(1/8")
stereo mini plug
ӱ On the source, play audio you want to copy.
Ӳ On this unit, record the audio (➜ page 9).
* Use the connection cable that matches monaural/stereo of the connected device.
Wrong connection may cause recording trouble (i.e. Only 1 channel is recorded.).
* The recorded sound may differ from the original recording sound.
* Adjust the recording volume on the source to the desired level.
* Read the operating instructions for the connected device.
* The microphone function of this unit does not work as long as a device is connected to the external
microphone jack.
Cancelling the operation beep
• Cancel the operation beep while copying (➜ right).
Audio Cable with resistor (not included)
Stereo
mini plug
Stereo
mini plug
Stereo
mini plug
Monaural
mini plug
Insert
securely
Mini microphone
jack
(Stereo
device)
• Press
• MENU/
REPEAT
STOP
STOP
to stop the unit.
1
Press
• MENU/
“
” (blinking) is displayed.
2
Press +, – to select “ ”
and press q/g to enter.
3
Press u, i to select
“ ” and press q/g to
enter.
REPEAT
.
(Monaural
device)
Recording
Plug type:
ø 3.5 mm
(1/8")
stereo mini plug
ӱ On this unit, play the file you want to copy (➜ page 10).
Ӳ Record using recording equipment.
Select “
” and enter in step 3 .
RQT9501
* Read the operating instructions for the
connected device.
* Use the connection cable that matches monaural/stereo
of the connected device. Wrong connection may cause
recording trouble (i.e. Only 1 channel is recorded.).
* The recorded sound quality may differ from the
sound quality of this unit.
* Adjust the recording volume on this unit to the
desired level.
Setting the operation beep ON:
Advanced Operations
Recording to other devices
* Press
STOP
to stop the setting process midway.
23
Connecting this unit to a computer
You can copy files recorded on this unit to the
computer.
• Start the computer beforehand.
• Press STOP to stop the unit.
1. Insert the USB cable into this unit.
2. Insert the USB cable into the computer.
This unit
Computer
Use the supplied USB cable.
Do not use the supplied cable with other devices.
Caution: Use only the included USB cable with a
ferrite core when connecting to computer.
RQT9501
Windows 2000 (SP4), Windows XP and SP2, SP3,
Windows Vista and SP1 (As of May 2009)
* Please see page 31 for details of system requirements.
Double-click the icon (Windows 2000/Windows XP: [ ], Windows
Vista: [ ]) on the task tray at the bottom of the computer screen
and follow the on-screen instructions to remove the USB cable. (The
icon may not be displayed depending on the OS settings.)
After the cable is removed, this unit turns off.
• Do not use any other USB connection cables except the supplied one.
“ ” is displayed on the unit’s screen when the computer recognises this unit.
24
g System requirements (OS)
g Removing the USB cable
Insert the USB
cable straight in
the same direction
as that of the
terminal.
USB cable (included)
* Even if you connect this unit to the computer
without the battery or with the depleted battery, the
computer cannot recognise this unit (➜ page 33).
When the computer does not recognise this unit
” is displayed, enter the password (➜ page 21).
If “
If “
” is displayed, disconnect this unit from the computer
once, replace the batteries and reconnect the unit to the computer.
g USB mass storage function
This unit functions as a USB memory and is recognised as a
computer’s external storage device.
Data files in the computer can be transferred and saved in this unit.
* When the unit is connected to the computer, the computer may
not start (restart). It is recommended that the USB cable is
removed from this unit when starting (restarting) the computer.
* When the unit is connected to the computer, if you
start (restart) the computer or the computer enters
standby mode, the computer may not recognise the unit.
Disconnect the unit and reconnect to the computer or
reconnect the unit after the computer is restarted.
* Operation is not guaranteed when 2 or more USB devices are
connected to 1 computer, or a USB hub or extension cable are used.
* Please see the Operating Instructions for the computer.
Opening the folder of this unit using a computer
The folders (A to D, MUSIC) in this unit appear.
(They are displayed as
on this unit’s
screen.)
1. Click [Start] → [My Computer].
This unit is displayed as a removable disk.
ユーザー名
3. Right-click to open the folder.
Recorded files in this unit appear.
A removable disk is an external storage device (SD
memory card, USB memory etc.) connected to the
computer.
The components of the computer and the external
storage device illustrated here is an example.
The display may differ depending on the computer
you are using.
“H” indicated in Removable Disk (H:) is not a fixed
character.
Using with a computer
• Connect this unit to a Computer beforehand
(➜ page 24).
2. Right-click to open the removable disk
(this unit).
RQT9501
The illustrations show Windows XP (OS). The
display may differ depending on the OS.
25
Importing the recorded files in this unit to a computer/Organizing files
• Open the removable disk (this unit) displayed on
the computer screen and open the audio folder
(A to D) beforehand (➜ page 25).
Importing recorded files to a computer
1. Select the recorded file in this unit, rightclick and select [Copy].
2. Select a folder in the computer, right-click and
select [Paste] to import to the computer.
Folder in this unit
Folder in the computer
Playing recorded files on the computer:
RQT9501
Select the recorded file in this unit, right-click and
select [Play].
26
Delete unnecessary files using the
computer:
Select the recorded file in this unit, right-click,
select [Delete] and [Yes] to enter.
Do not change the folder names
If you change the names of folders (A, B, C,
D, MUSIC) of this unit, new A, B, C, D and
MUSIC folders are generated when this unit is
disconnected from the computer. The files in the
folders with changed names cannot be played on
this unit.
* Using [drag and drop], you can import the files to
the computer as well.
* If the file is deleted, file numbers displayed on
this unit are moved forward.
* “ ” (blinking) is displayed during the data
transmission. Never remove the USB cable
while “ ” is blinking. File data or this unit may be
destroyed, or all the data in this unit may be lost.
* When this unit is removed from the computer
or the power is turned on afterwards, “
” is
displayed for a moment while updating the file
data.
* Do not format this unit using a computer.
Returning recorded files to this
unit from the computer
1. Select the recorded file imported to the computer
(➜ page 26), right-click and select [Copy].
2. Select the original folder in this unit, right-click
and select [Paste] to return the recorded file.
Reload the files to the original folder that the files
were imported from. When you reload the files to other
folders, those files cannot be played on this unit.
(Confirm the first character (A to D) of the file name
matches the folder name (A to D).)
Do not change the file names
If you change file names, those files cannot be
played on this unit. Return the file name to the
original one or move the file to MUSIC folder.
* MP3 music files which were not recorded on
this unit can be played only in MUSIC folder.
If the file is returned to folder A to D, it cannot
be played on this unit. (The file number is not
displayed on the screen of this unit.)
* Up to 99 files in folder A to D respectively can
be played on this unit. Files over 99 cannot be
played on this unit.
* If you create folders in folder A to D, and put
recorded files in the new folder, those files
cannot be played on this unit.
* The files that are returned to this unit are
played back in the order the files are received.
For example, even if the file is recorded first,
the playback order becomes 5th if the file is
reloaded from the computer at 5th.
File naming rules
(for recorded files on this unit)
The file name consists of [Folder name (1 byte,
1 character (A to D)) + File number (1 byte, 3
characters + Recording date (1 byte, 4 numbers)].
e.g. if the file is recorded as the first file in folder A on
July 20, the name is “A0010720.mp3”. The second
file on the same day is named as “A0020720.mp3”.
RQT9501
• Open the audio folder (A to D) of this unit
beforehand (➜ page 25).
Using with a computer
Returning the files imported to the computer to this unit
27
Listening to music on this unit (Transferring MP3 music files to this unit)
You can enjoy music by transferring MP3 music files stored in the computer to this unit.
Transferring MP3 music files to
this unit from the computer
• Open MUSIC folder ( ) of this unit beforehand
(➜ page 25).
1. Select an MP3 music file or folder which
has MP3 music files in the computer, rightclick and select [Copy].
2. Select MUSIC folder of this unit, right-click
and select [Paste] to transfer to this unit.
* The files in the folder that was created into the MUSIC folder
are playable. However, note that playable folders are the
ones on the 1st hierarchy and 2nd hierarchy only. Folders on
the 3rd hierarchy and after are not playable.
RQT9501
* The audio files and folders that are loaded to this unit are played
back in the order the files and folders are received. But in case of
the structure at right, files in M2 are played after all files in M1 are
played since the loaded order of 1st hierarchy takes priority. Even
if M1-2 is loaded after M2-1, the files in M1-2 are played first.
28
* Files just under the folder are played first; e.g., even if
A.mp3 was loaded last, A.mp3 is played first.
* In the case of the structure shown at right, the
order of successive playback on this unit is
A.mp3 → B.mp3 → C.mp3 → D.mp3 → E.mp3 → F.mp3 → G.mp3.
Folder/file structure in MUSIC folder (example)
This is an example when M1 was loaded before M2 for M1
and M2, M1-1 was loaded before M1-2 for M1-1 and M1-2,
C.mp3 was loaded before D.mp3 for C.mp3 and D.mp3.
MUSIC
A
M1
A
M1-1
A
When two or more files are
loaded at a time, those are
loaded in an order decided
by the computer.
C.mp3
D.mp3
M1-2
A
E.mp3
B.mp3
M2
A
This is not playable
because this is on the 3rd
hierarchy.
M2-1
A
M2-1A
G.mp3
F.mp3
H.mp3
A.mp3
(M1, etc. represent a folder and A.mp3, etc. represent a file.)
* “ ” (blinking) is displayed during data transmission.
Never remove the USB cable while “ ” is blinking.
File data or this unit may be destroyed.
1
FOLDER
STOP
2
FOLDER
Press
to select “ ” (MUSIC
folder).
Press u, i to select the
file you want to listen.
File number
After selection, the length of the music
and the total number of files in MUSIC
folder are displayed.
3
Press q/g (Playback starts).
Stop:
Press q/g or
STOP
.
* See pages 10 and 11 for playback
operations.
* In “ ” folder, you can play a maximum
of 999 files. Files over 999 cannot be
played on this unit.
* The file name or folder name cannot be
displayed. Successive numbers, starting
from “
” (file number) are displayed
according to the order of playback.
* Files other than files with MP3 format,
such as WMA, AAC format files cannot
be played. (The number is not displayed
on screen.)
* Copyright-protected MP3 music files
cannot be played.
* MP3 music files with variable bit rate
m ay b e p l aye d , bu t t h e p l ay b a ck
elapsed time display may differ from the
actual time.
RQT9501
• Remove the USB cable (➜ page 24).
• Turn the power on (➜ page 6).
STOP
• Press
to stop the unit.
Using with a computer
Listening to music on this unit (Playing MP3 music files on this unit)
29
Creating MP3 music files
This unit is not equipped with the function or computer software to create MP3 file from music CD. You can
create MP3 music files using separately sold computer software, etc.
Windows XP or Windows Vista users can create MP3 music files using Windows Media Player 11.
Following is the example of operating instructions when using Windows XP and Windows Media Player
11. See [Help] section of Windows Media Player for more details. (The display and operations may differ
depending on the OS.)
• Start the computer beforehand.
1. Select [Start] - [All Programs] and start
[Windows Media Player] on the computer.
2. Select [Rip] → [Format] → [mp3].
3. Select [Rip] → [Bit Rate] and select among
[128kbps] (Smallest Size), [192kbps],
[256kbps] and [320kbps] (Best Quality).
If you select low Bit Rate for ripping, more songs
will be ripped.
RQT9501
4. Select [Rip] → [Rip CD Automatically
When Inserted] and select [Never].
5. Set music CD into the computer.
6. In “ ” for the album, add the check mark
as “ ”.
30
If there are songs you do not want to rip, remove
the check mark “ ”.
7. Click [Start Rip] to begin ripping.
Music files ripped (encoded) into the
computer using Windows Media Player
are saved in [My Music] folder of [My
Document] if the destination to save has
not been changed.
* Windows Media Player 9 and older versions
cannot create MP3 music file.
* Please see the homepage of the Microsoft
company for details of download/update of
Windows Media Player etc.
http://www.microsoft.com/windows/
windowsmedia/player/11/default.aspx
* If you cannot create MP3 music files successfully
or do not know how to operate the computer,
please consult the computer manufacturer.
• See page 28 for transferring MP3 music file to this
unit and page 29 for playback.
System requirements
RQT9501
IBM PC/AT compatible machines
• Windows® 2000 Professional SP4
OS
• Windows® XP Home Edition/Professional and SP2, SP3
• Windows Vista® Home Basic/Home Premium/Business/Ultimate and SP1
USB port
Interface
(Operation cannot be guaranteed if you use a USB hub or extension cable.)
✽ Even if the system requirements mentioned in this document are fulfilled, some personal computers
cannot be used.
✽ Operation is guaranteed only on compliant OSes.
✽ Operation is not guaranteed on an upgraded OS.
✽ Not compatible with multiboot environments.
✽ Operation is not guaranteed on home-made computers.
✽ Operation is not guaranteed on 64-bit computers.
✽ When using Windows Media® Player, your computer must fulfill the system requirements of Windows
Media® Player. Please consult Microsoft Corporation for details of Windows Media® Player.
✽ Microsoft, Windows, Windows Media and Windows Vista are registered trademarks or trademarks of
Microsoft Corporation of the U.S. and other countries.
✽ MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson multimedia.
✽ IBM and PC/AT are registered trademarks of International Business Machines Corporation of the U.S.
✽ Other system names and product names appearing in this document are in general the registered trademarks or
trademarks of the respective developer companies. Note that the ™ mark and ® mark do not appear in this document.
✽ Depending on the computer environment, malfunctions may occur (e.g. Audio data recorded on this
unit cannot be used. etc.). Panasonic and Panasonic dealers cannot be held liable for any lost audio
data or other direct or indirect damage except in cases of intentional of gross negligence.
✽ This model is not compatible with TRC/ADPCM format IC recorders made by Panasonic. Also, files recorded on this unit
cannot be played on those IC recorders and/or cannot be read using Voice Editing software supplied with those IC recorders.
✽ You can transfer contents recorded on this unit to your PC without using the dedicated software. The
computer software (Voice Editing) is not supplied with this unit.
Using with a computer/Other
Computer
31
Q & A (Frequently Asked Questions)
RQT9501
Question
32
Answer
Can I play files recorded on other • You can play files recorded on IC recorders using MP3 format by
Panasonic IC recorders?
transferring them to MUSIC folder (➜ page 27). But cannot play
files with other formats (i.e. ADPCM and TRC formats) because
the recording format is different.
Can I use audio editing software • The Voice Editing cannot be used for this product because the
(Voice Editing) included in other recording format differs from the format used for other Panasonic
Panasonic IC Recorder?
IC recorders. The recording format used for this product is MP3
format. This product is not compatible with the voice editing
software (Voice Editing) supplied with Panasonic IC recorders
using ADPCM and TRC format.
Is the security lock set on all • When you play back on this unit, the security lock is set on
folders if a password is set?
folders A through D only, but not on MUSIC folder. However,
password authentication is necessary when you use this unit
connected to a PC with the security lock set (➜ page 21).
What kind of files can be played? • Only MP3 file can be played. WMA, AAC and other files cannot be
played.
What kind of computers can be • Windows 2000 (SP4), Windows XP, Windows Vista only. Please
connected with this unit?
refer to “System requirements” (➜ page 31).
Can I do timer recording?
• No, you cannot.
Can I divide a file or delete a • No, you cannot.
portion of a file?
Troubleshooting guide
RQT9501
Symptom
Checkpoints
Battery
Cannot use a battery that can be • This unit considers the battery as empty even if there is actually
still used on other equipment.
power left in it. This is to preserve the clock setting.
Operations
No operation.
• Make sure the batteries are correctly inserted.
• You cannot operate on this unit when the unit is connected to a computer.
• The Hold function is on. Switch Hold off (➜ page 6).
Cannot operate when “
” appears.
Display
• Please set the time (➜ page 7).
“
”, “
” blinks.
” appears.
• There are 99 files in folder A, B, C, D.
“
• There is no remaining memory (➜ page 40). Delete unnecessary
recording files, files and data other than MP3 files (➜ pages 12, 26).
” appears.
• If the batteries are extremely exhausted, “
” is displayed even if the
“
unit is connected to the computer and the computer does not recognise this
unit. Disconnect this unit from the computer once, replace the batteries (If
batteries are not inserted, insert batteries.) (➜ page 5) and reconnect it.
“
” is not displayed on menu screen. • “ ” has been set. When set to “
”, “
” is displayed on menu screen (➜ page 15).
• This appears when updating data in this unit (e.g. after disconnecting
“
” appears.
this unit from the computer, when turning the power on, etc.).
N o r m a l d i s p l a y a p p e a r s • When you do not operate for 60 seconds during setting operation, the
during setting operation.
setting in process is cancelled and normal display appears.
“
” appears.
• Format was performed on a computer, etc., or the file system is damaged. Perform
format on this unit (The data is all erased after formatting is complete.) (➜ page 12).
Other
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the
remedies indicated in the chart do not solve the problem, consult your dealer for instructions.
33
Troubleshooting guide
Symptom
Display
“
” appears.
” appears.
“
RQT9501
Record
The memory is used
completely earlier than
expected.
(“
” is displayed earlier
than expected.)
Recording stops halfway.
Howling occurs when
listening to the recording in
progress with earphones.
34
Checkpoints
• The operation program is damaged. Consult your dealer.
• You tried to play an MP3 file that cannot be played on this unit, or the
MP3 file is damaged. Delete the MP3 file that cannot be played. If the
problem persists, the file system is damaged. Perform format on this
unit (The data is all erased after formatting is complete.) (➜ page 12).
• Available recording time differs approx. 16 times, comparing Stereo/
XP mode with Monaural/SLP mode (➜ page 40).
You can record longer if recording in Monaural/SLP mode (➜ pages 14, 15).
• If you lower the Bit Rate for ripping music CDs, more songs will be saved (➜ page 30).
• Is much data other than MP3 stored? Delete unnecessary data (➜ page 26).
• VAS is functioning (➜ page 16).
• Turn down the volume (➜ page 10).
• Keep earphones and this unit separate.
• When you are using an external microphone, keep earphones and
external microphone separate.
Recording ended halfway.
• The data may not be updated if the unit receives a shock (e.g. it is
dropped), or the batteries come off during recording.
“
” appears instead of the • Set the time (➜ page 7).
recording date.
“
” is not displayed.
• You are using the external microphone (➜ page 15).
Playing
Cannot play the recorded file though • The file name was changed. Only files named according to the file
it was recorded on this unit.
naming rules (➜ page 27) can be played in folder A through D.
Checkpoints
• Ensure the plug is inserted firmly.
• Wipe the plug clean.
• Please lower the microphone sensitivity (➜ page 14) or keep more
distance from the recording sound source.
• There is no sound when you have connected earphones.
• Move a mobile telephone away from this unit when you use the two in the same area.
• Reduce noise ( ➜ page 18). Noise is reduced and listening may
become easier.
• The batteries may have run out. Replace the batteries with the new ones (➜ page 5).
• When you do not operate for more than approx. 15 minutes, the power automatically turns off.
When you slide the OPERATION/HOLD switch to “ OPR ” side, the power is turned on (➜ page 6).
• The file is protected (➜ page 13).
• The folder is already empty.
• “ ” (blinking) is displayed (➜ page 12).
This unit is not recognised by • The OS on the computer may not be compliant with this unit (➜ page 31).
a computer.
• The password has been set (➜ page 21).
• Are the batteries in this unit? If they are not, insert batteries.
• When the voltage of the batteries are too low, “
” is displayed
and the computer cannot recognise this unit (➜ page 33).
Other
• You changed the playback speed (➜ page 17).
• This occurs because files imported from the computer are placed at
the end in the folder.
RQT9501
Symptom
Playing
Playback speed is too fast or slow.
The order of playing changed after
reloading files that were once imported
to the computer to this unit.
There is no sound from the earphones
or it is difficult to hear or noisy.
The sound is distorted. There is a
noise at the beginning of sound.
No sound from the speaker.
I hear noises.
Recorded sounds contain noise that
makes it difficult to hear sounds.
Others
The power cannot be turned on.
T h e p ow e r a u t o m a t i c a l ly
turns off.
Cannot delete a file or folder.
35
Sales and Support Information
(For the United Kingdom and Republic of Ireland)
Customer Care Centre
• For customers within the UK: 0844 844 3852
• For customers within the Republic of Ireland: 01 289 8333
• Visit our website for product information
• E-mail: customer.care@panasonic.co.uk
Direct Sales at Panasonic UK
• For customers: 0844 844 3856
• Order accessory and consumable items for your product with ease and confidence by phoning our
Customer Care Centre Monday-Thursday 9:00am-5:30pm, Friday 9:30am-5:30pm (Excluding public
holidays).
• Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping for a wide range of finished products, take a browse
on our website for further details.
RQT9501
Interested in purchasing an extended guarantee?
Please call 0870 240 6284 or visit our website www.panasonic.co.uk/guarantee.
36
-If you see this symbolInformation for Users on Collection and Disposal of Old Equipment and used Batteries
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise arise
from inappropriate waste handling.
Other
These symbols on the products, packaging, and/or accompanying documents mean that used electrical
and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC
and 2006/66/EC.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
Cd
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
RQT9501
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact
your local authorities or dealer and ask for the correct method of disposal.
37
Care and use
To reduce risk of radio interference caused by headphone- or earphone-cables, only use adequate
accessories with a cable length of less than 3 m.
g Unit
• Avoid using or placing this unit near sources of heat.
• To avoid product damage, do not expose this product to rain, water or other liquids.
• The unit’s speaker does not have magnetic shielding. Do not place the unit near televisions, personal
computers, magnetized cards (bank cards, commuter passes) or other devices easily influenced by a
magnet.
RQT9501
g Batteries
38
• Do not peel off the covering on batteries and do not use the batteries if the covering has been peeled
off.
• Align the poles ( and ) correctly when inserting the batteries.
• Do not mix different types of batteries or old and new batteries.
• Remove the batteries if you do not intend to use the unit for a long time.
• Do not heat or expose to flame.
• Do not leave the batteries in an automobile exposed to direct sunlight for a long period of time with
doors and windows closed.
• Do not attempt to recharge dry cell batteries.
• Battery mishandling can cause electrolyte leakage which can damage items the fluid contacts and may
cause a fire. If electrolyte leaks from the batteries, consult your dealer. Wash thoroughly with water if
electrolyte comes in contact with any part of your body.
• Keep the AAA LR03 batteries out of reach of children to prevent swallowing. Accidental swallowing of
batteries can result in stomach and intestinal damage.
• When carrying batteries in a pocket or bag, ensure no metal objects such as necklaces are placed
together with them. Contact with metal may cause short-circuiting which can cause a fire. For safety,
carry the batteries in the battery carrying case.
g Precautions for listening with the Headphones or Earphones
g Allergies
• Discontinue use if you experience discomfort with the earphones or any other parts that directly contact
your skin.
• Continued use may cause rashes or other allergic reactions.
Other
• Do not play your headphones or earphones at a high volume. Hearing experts advise against continuous
extended play.
• If you experience a ringing in your ears, reduce volume or discontinue use.
• Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many areas.
• You should use extreme caution or temporarily discontinue use in potentially hazardous situations.
• Even if your headphones or earphones are the open-air type designed to let you hear outside sounds,
don’t turn up the volume so high that you can’t hear what’s around you.
Maintenance
Clean this unit with a dry and soft cloth.
RQT9501
• If the unit becomes too dirty, wring a cloth moistened in water, wipe the dirt with it and clean with a dry cloth.
• Do not use solvents including benzene, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This
might cause the exterior case to be deformed or the coating to come off.
39
Specifications
Power
Batteries
DC 3.0 V (2 AAA LR03 batteries)
Audio
Sampling Frequency
(Stereo/Monaural)
Recording Format
Playable Bit Rate
(MUSIC folder)
Playable Sampling
Frequency (MUSIC
folder)
Frequency Response
(-10 dB, Rec-Play,
Monaural)
Built-in Microphone
S/N Ratio
RQT9501
USB
Audio
Output
40
Audio
Input
Earphone
Speaker
output
External
Microphone
XP: 44.1 kHz/44.1 kHz
LP: 22.05 kHz/16 kHz
SLP: 8 kHz/8 kHz
MP3
8 kbps to 320 kbps
8 kHz to 48 kHz
XP: 180 Hz to 15,100 Hz
LP: 180 Hz to 6,700 Hz
SLP: 180 Hz to 2,900 Hz
40.5 dB (XP) Filter (JIS A)
USB2.0 (Hi-Speed)
ø 3.5 mm, 16 Ω, Max. 3 mW
ø 20 mm, 8 Ω, Max. 330 mW
ø 3.5 mm; 0.80 mV plug in power
Built-in Memory
2 GB∗1
Operating Temperature 0°C to 40°C
Operating Humidity
20% to 80% (non-condensing)
∗1 Usable capacity will be less.
Battery life (may be less depending on the operating conditions.)
Battery
Recording mode
Rec∗3
Play∗4
(AAA LR03)
XP approx.23 h.
approx.35 h.
Stereo LP approx.29 h.
approx.35 h.
SLP approx.32 h.
approx.35 h.
Alkaline
∗2
battery
XP approx.32 h.
approx.35 h.
Monaural LP approx.42 h.
approx.35 h.
SLP approx.45 h.
approx.35 h.
∗2 Using Panasonic Alkaline battery.
∗3 When zoom microphone is off.
∗4 When audio is output from speaker (Volume: 13,
EQ: off, playback speed control : x 1)
Standard recordable time
Recording mode
Time
Bit rate
XP
36 h.00 min.
128 kbps
Stereo
LP
72 h.00 min.
64 kbps
SLP
288 h.00 min.
16 kbps
XP
72 h.00 min.
64 kbps
Monaural
LP
144 h.00 min.
32 kbps
SLP
576 h.10 min.
8 kbps
Max. Dimensions (W × H × D)
40.4 mm × 110.6 mm × 16.8 mm
Cabinet dimensions (W × H × D)
39.0 mm × 110.6 mm × 15.1 mm
Mass
Approx. 65 g with battery
Approx. 43 g without battery
* Specifications are subject to change without notice.
Product Identification Marking is located on
the bottom of unit.
Other
CAUTION
Danger of explosion if battery is incorrectly
replaced. Replace only with the same
or equivalent type recommended by the
manufacturer. Dispose of used batteries
according to the manufacturer’s instructions.
Excessive sound pressure from earphones and
headphones can cause hearing loss.
RQT9501
This product may receive radio interference
caused by mobile telephones during use. If
such interference is apparent, please increase
separation between the product and the mobile
telephone.
41
RQT9501
MEMO
42
43
RQT9501
Other
EU
Web Site: http://panasonic.net
EU
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
En
RQT9501-B
H0509TY0
Download PDF

advertising
