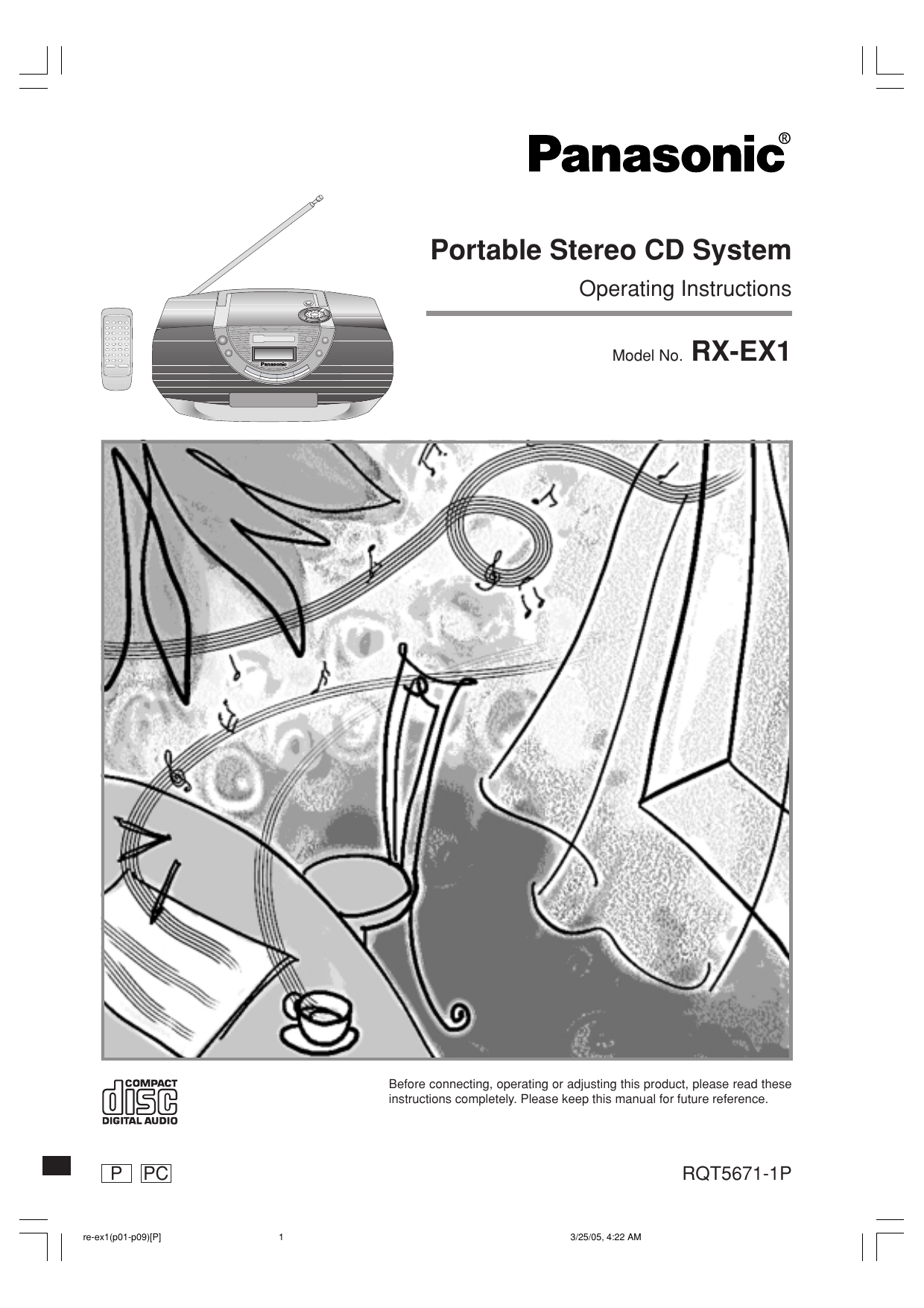

Panasonic | RXEX1 | Operating instructions | Panasonic RXEX1 Operating Instructions

Portable Stereo CD System
Operating Instructions
Model No.
RX-EX1
Before connecting, operating or adjusting this product, please read these
instructions completely. Please keep this manual for future reference.
P
PC
re-ex1(p01-p09)[P]
RQT5671-1P
1
3/25/05, 4:22 AM
Dear customer
Before use
Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.
The model number and serial number of this product
can be found on either the back or the bottom of the
unit.
Please note them in the space provided below and
keep for future reference.
MODEL NUMBER!
RX-EX1
SERIAL NUMBER
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
CAUTION:
Supplied Accessories
Please check and identify the supplied accessories.
Use numbers indicated in parentheses
when asking for replacement parts.
(Only for U.S.A.)
To order accessories contact 1-800-332-5368
or web site (http://www.panasonic.com).
AC power cord (polarized) ........................................ 1pc.
(RJA0065-A)
Note
The included AC power supply cord is for use with this
unit only. Do not use it with other equipment.
Remote control transmitter (RAK-RX979WK) .......... 1pc.
TO PREVENT ELECTRIC SHOCK MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,
DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
CAUTION!
DO NOT INSTALL, OR PLACE THIS UNIT, IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS
WELL VENTILATED. TO PREVENT RISK OF
ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND
ANY OTHER MATERIALS DO NOT OBSTRUCT
THE VENTILATION VENTS.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
2
RQT5671
re-ex1(p01-p09)[P]
2
3/25/05, 4:22 AM
Table of contents
THE FOLLOWING APPLIES ONLY IN THE U.S.A.:
Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . .
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . .
Use of batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memory Back-up Batteries . . . . . . . . . . . . . . . . . . . . .
Location of Controls . . . . . . . . . . . . . . . . . . . . . . . . . .
The Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using Headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
4
5
6
6
7
8
9
9
9
Listening
CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The Radio: manual tuning . . . . . . . . . . . . . . . . . . . . .
The Radio: preset tuning . . . . . . . . . . . . . . . . . . . . . .
Cassettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
13
14
15
Recording
Before Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Recording CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Recording the Radio . . . . . . . . . . . . . . . . . . . . . . . . . 18
Sound Quality
Harmonic Enhancer Sound . . . . . . . . . . . . . . . . . . . . 18
3D sound with the Sound Virtualizer . . . . . . . . . . . . 18
Sound Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
CAUTION:
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
¡Reorient or relocate the receiving antenna.
¡Increase the separation between the equipment
and receiver.
¡Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
¡Consult the dealer or an experienced radio/TV
technician for help.
Before use
Before use
Any unauthorized changes or modifications to this
equipment would void the user’s authority to operate
this device.
Timer
Using the Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
The Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
The Timer Fader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Reference
Warranty (U.S.A.) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
21
22
22
23
3
RQT5671
re-ex1(p01-p09)[P]
3
7/27/01, 12:37 PM
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety
precautions listed below. Keep these operating instructions handy for future reference.
Environment
Before use
Safety
1. Power source—Connect the unit to a power source of
the type described in these instructions or as marked on
the unit.
2. Polarization—The unit is equipped with a polarized
power plug where one blade is wider than the other.
This safety feature ensures that the plug fits into your
household AC outlet only one way. If the plug doesn’t fit
one way, try reversing it. If the plug still doesn’t fit,
contact an electrician to replace the obsolete outlet. Do
not attempt to defeat the safety purpose of the plug.
3. Power cord protection—Route the AC power supply
cord so that it will not be walked on or pinched by items
placed on or against it. Never take hold of the plug or
cord with wet hands. Always grasp the plug body firmly
when connecting and disconnecting it.
4. Overloading—When connecting the AC power supply
cord, be careful not to overload the household AC outlet,
extension cord, or outlet from any other device as this
can result in fire or electric shock.
5. Nonuse periods—Turn the unit off when it is not in
use. Unplug the unit from the household AC outlet if it is
not to be used for a long time. Unplug the unit during
lightning storms.
6. Attachments and accessories—Use only the attachments
and accessories recommended in these operating
instructions.
Installation
Placement
1. Ventilation—Situate the unit so that it receives proper
ventilation. Do not install in a confined space such as a
bookcase or cabinet. Allow at least 10 cm (4 inches)
clearance from the rear of the unit. To prevent the risk
of electric shock or fire due to overheating ensure
curtains and other materials do not obstruct the unit’s
ventilation.
2. Foreign material—Ensure objects and liquids do not
get into the unit. Avoid exposing the unit to excessive
smoke, dust, mechanical vibration, and shock.
3. Magnetism—Situate the unit away from equipment and
devices that generate strong magnetic fields.
4. Stacking—Do not place heavy objects on top of this
unit.
5. Surface—Place the unit on a flat, level surface.
6. Carts and stands—Use the unit only with
carts and stands recommended by the
manufacturer. Move carts with care.
Sudden stops, excessive force, and
uneven surfaces can cause carts to
overturn.
7. Wall and ceiling mounting—Do not mount the unit on
walls or ceilings unless specified in the instructions.
1. Water and moisture—Do not use the unit near water,
such as near a bathtub or swimming pool. Avoid damp
basements.
2. Heat—Situate the unit away from heat sources, such as
radiators.
Do not situate where temperatures fall below 5˚C (41˚F)
or rise above 35˚C (95˚F).
Maintenance
(See page 9 for details.)
Unplug the unit from the household AC outlet before
cleaning.
Clean with a damp cloth.
Do not use abrasive pads, scouring powders, or solvents.
Service
1. Damage requiring service—The unit should be serviced
by qualified service personnel if:
(a) The AC power supply cord or the plug has been
damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a
marked change in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond
that described in these operating instructions. Refer all
other servicing to authorized servicing personnel.
3. Replacement parts—When parts need replacing ensure
the servicer uses parts specified by the manufacturer or
parts that have the same characteristics as the original
parts. Unauthorized substitutes may result in fire, electric
shock, or other hazards.
4. Safety check—After repairs or service, ask the servicer
to perform safety checks to confirm that the unit is in
proper working condition.
4
RQT5671
re-ex1(p01-p09)[P]
4
3/25/05, 4:22 AM
Dear customer
Listening caution
EST. 1924
Selecting fine audio equipment such as the unit you’ve just
purchased is only the start of your musical enjoyment. Now
it’s time to consider how you can maximize the fun and
excitement your equipment offers. This manufacturer and
the Electronic Industries Association’s Consumer
Electronics Group want you to get the most out of your
equipment by playing it at a safe level. One that lets the
sound come through loud and clear without annoying
blaring or distortion—and, most importantly, without
affecting your sensitive hearing.
We recommend you to avoid prolonged exposure to
excessive noise.
Sound can be deceiving. Over time your hearing “comfort
level” adapts to higher volumes of sound. So what sounds
“normal” can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe
level BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.
• If this unit is not used for a long period of time or is
used only from an AC power source, remove all the
batteries to prevent potential damage due to
possible battery leakage.
• Align the poles (+ and –) properly when inserting the
batteries.
• Do not mix old and new batteries or different types of
batteries.
• Do not recharge ordinary dry cell batteries.
• Do not heat or disassemble the batteries. Do not allow
them to contact flame or water.
• Do not keep together with metallic objects such as
necklaces.
• Do not use rechargeable type batteries.
• Do not use batteries if the covering has been peeled off.
Before use
Use of Batteries
Mishandling of batteries can damage other items, cause
damage to the unit, and may cause a fire through shortcircuiting or electrolyte leakage.
If electrolyte leaks from the batteries, consult your dealer.
Wash thoroughly with water if electrolyte comes in contact
with any part of your body.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing
damage or loss in the future. After all, we want you
listening for a lifetime.
5
RQT5671
re-ex1(p01-p09)[P]
5
00.12.28, 4:57 PM
Power Sources
Operating the unit on AC power
Connect the AC power cord.
Before use
Using batteries
AC IN~
Household AC outlet
(AC 120V, 60Hz)
(not included)
The unit cannot be powered by batteries if the AC power
cord is connected.
The remote control cannot turn the unit on when batteries
are used.
AC power cord
Removing the batteries
Open the battery cover, insert a finger into the hole in the
bottom of the unit and push out.
Battery life
(R20/LR20,D,UM-1)
“
” lights when the batteries are running down. Replace
all the batteries with new ones.
Memory Back-up Batteries
Insert these batteries to save the information contained in
the memory, such as the clock and timer settings, if there is
an interruption to the power supply.
These batteries do not power the unit.
Replacing the batteries
•The memory batteries last about one year.
•Connect the unit to AC power before replacing the batteries.
•Extend the life of the memory batteries by always pressing
[ POWER,
] to turn the unit off before disconnecting the
unit from the AC power source or replacing the power
batteries.
Removing the batteries
2
1
3
Open the battery cover, insert a finger into the hole in the
bottom of the unit and push out.
4
6
RQT5671
re-ex1(p01-p09)[P]
6
00.12.28, 4:57 PM
Location of Controls
Basic controls
Designation
Reference Page
Standby/on switch (POWER,
) . . . . . . . . . . . 10
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still consuming
a small amount of power.
Power indicator (POWER)
The indicator lights red when the unit is turned on.
Volume control (– "VOLUME#+) . . . . . . 10,13,15
Harmonic enhancer sound (H.E.S) . . . . . . . . . . . 18
Display panel
Remote control signal sensor (SENSOR) . . . . . . 8
Speaker
Before use
Number
These speakers do not have magnetic shielding. Do not
place them near televisions, personal computers or other
devices easily influenced by magnetism.
Tuner/CD controls
Number
Designation
Reference Page
CD recording mode button
(CD REC MODE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Tune mode (TUNE MODE) . . . . . . . . . . . . . . . . 13,14
CD Tray
Band button (TUNER BAND) . . . . . . . . . . . . . . 13,14
CD play/pause button (
CD) . . . . . . . . . . . . . 10
Stop, TAPE/CD mode select button
( TAPE/CD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Tuning/CD skip/search/track select buttons
(REW/–/
/+/FF) . . . . . . . . . . . . . . . . 10,13,14
CD tray open/close button
( CD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cassette deck controls
Number
Designation
Reference Page
Deck
Record/record pause button
(
) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–18
Cassette play button ( TAPE) . . . . . . . . . . . . . . 15
Stop, TAPE/CD mode select button
( TAPE/CD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Rewind/fast forward buttons
(REW/–/
/+/FF) . . . . . . . . . . . . . . . . . . . . . 15
Tape eject button ( TAPE) . . . . . . . . . . . . . . . . . 17
7
RQT5671
re-ex1(p01-p09)[P]
7
01.1.3, 11:50 AM
The Remote Control
Buttons
Number
Y
Designation
Reference Page
Before use
Sleep timer button (SLEEP) . . . . . . . . . . . . . . . . . 20
Numbered buttons . . . . . . . . . . . . . . . . . . . 11–12,14
Auto scan button (AUTO SCAN) . . . . . . . . . . . . . 13
Tape counter reset button (C-RESET) . . . . . . . . 15
Clock/timer button (CLOCK/TIMER) . . . . . . . . . 9,19
Play timer/ record timer button
( PLAY/REC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Sound virtualizer button (S.VIRTUALIZER) . . . . 18
Timer fader button (TIMER FADER) . . . . . . . . . . 20
Display select button (DISPLAY) . . . . . . . . . . . 9,15
CD Program/clear, tuner preset button
(PGM/-CLEAR) . . . . . . . . . . . . . . . . . . . . . . . . . . 12,14
CD play mode button (CD PLAY MODE) . . . . . . . 11
FM mode BP button (FM MODE/BP) . . . . . . . . 13,18
Equalizer button (EQ) . . . . . . . . . . . . . . . . . . . . . . 18
When the unit is supplied with AC power, buttons ,
,
, to
and
to
function in the same way as the
controls on the main unit. To save power, the unit cannot be
turned on from the remote control when batteries are used.
Batteries
(not included)
Insert so the poles (+ and –) match those in the remote control.
Remove if the remote control is not going to be used for a
long period of time. Store in a cool, dark place.
Replace if the unit does not respond to the remote control
even when held close to the front panel.
Use
(R6,AA,UM3)
Aim at the sensor, avoiding obstacles, at a maximum range
of 7 meters directly in front of the unit.
•Keep the transmission window and the unit’s sensor free
from dust.
•Operation can be affected by strong light sources, such
as direct sunlight, and the glass doors on cabinets.
Do not;
SENSOR
30°
•put heavy objects on the remote control.
•take the remote control apart.
•spill liquids onto the remote control.
30°
8
RQT5671
re-ex1(p01-p09)[P]
8
00.12.28, 4:57 PM
Setting the Time
This is a twelve hour clock.
The example shows how to set the clock to 1:30 p.m.
Remote control only
] to turn the unit on.
Press [CLOCK/TIMER] to select “CLOCK”.
Each time the button is pressed:
CLOCK
ON PLAY
OFF PLAY
Original display OFF REC ON REC
Within 10 seconds
Press [REW/–/
time.
] or [
Before use
Press [
/+/FF] to set the
Press [CLOCK/TIMER] to start the clock.
The original display is restored shortly after.
When batteries are used
The unit cannot be turned on with the remote control.
PLAY
RE
FADER SLEEP
EQ ON
The clock may lose or gain some time over a period.
Readjust if necessary.
PLAY
RE
FADER SLEEP
EQ ON
Displaying the clock
Remote control only
Press [DISPLAY].
Using Headphones
(not included)
Reduce volume before connection.
Avoid listening for prolonged periods of time to prevent hearing damage.
Plug type: 3.5 mm stereo
Y
Maintenance
If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
If the surfaces are extremely dirty, use a soft cloth dipped in
a soap-and-water solution or a weak detergent solution.
•Never use alcohol, paint thinner, or benzine to clean this unit.
•Before using chemically treated cloth, read the instructions
that came with the cloth carefully.
PHONES
For a cleaner crisper sound
Clean the heads regularly to assure good quality playback
and recording. Use a cleaning tape (not included).
9
RQT5671
re-ex1(p01-p09)[P]
9
00.12.28, 4:57 PM
CDs
Press [POWER,
] to turn the unit on.
9 TAPE/CD] to switch to CD mode.
Press [9
Each time the button is pressed
CD
TAPE
/ CD] to open the tray, load a CD, and
Press [/
/ CD] to close the tray.
press [/
B/;
; CD] to start play.
Press [B
Plays to the end of the CD and stops.
Listening
Turn [– "VOLUME#+] to adjust the volume.
To stop play
Press [
PLAY
1
RE
FADER SLEEP
ALL 1-REC ST
REC
PGM
RANDOM
TAPE/CD].
EQ ON
MONO
Displayed when CD not loaded
One touch play (When using AC power)
When a CD is loaded, press [
CD].
The unit comes on and play starts.
To pause play
Press [
CD] during play.
Press again to resume play.
To skip tracks
Label
Press [REW/–/
] (backward) or [
/+/FF] (forward).
Searching through tracks
PLAY
1
PGM
RE
FADER SLEEP
EQ ON
Press and hold [REW/–/
(forward) during play.
ALL 1-REC ST
REC
RANDOM
MONO
Number of tracks
] (backward) or [
/+/FF]
Total playing time
If this unit causes interference to other equipment (radios
and televisions) separate it from the equipment.
PLAY
1
RE
FADER SLEEP
REC
PGM
RANDOM
Track Playing
PLAY
1
PGM
RE
FADER SLEEP
REC
RANDOM
EQ ON
ALL 1-REC ST
MONO
CD selection
Elapsed time
EQ ON
ALL 1-REC ST
MONO
Choose CDs with this mark: ( )
This unit can play CD-DA format audio CD-R and CD-RW
that have been finalized upon completion of recording.
It may not be able to play some CD-R or CD-RW due to the
condition of the recording.
Finalizing is a process that enables CD-R/CD-RW players
to play audio CD-R and CD-RW.
Do not
•use irregularly shaped CDs ( ).
•use CDs with labels and stickers that are coming off or
with adhesive exuding from under labels and stickers. ( )
•attach scratch-proof covers or any other kind of accessory.
•write anything on the CD.
•clean CDs with liquids. (Wipe with a soft, dry cloth.)
•use CDs printed with label printers available on the market.
10
RQT5671
re-ex1(p10-p15)[P]
10
00.12.28, 4:58 PM
CDs
Y
Other modes of play
Preparation:
Press [ ] to switch to CD mode.
Remote control only
Direct access play
Starts normal play from a selected track
Select the track with the numbered buttons.
Repeat play
Plays a track or all tracks repeatedly
Press [CD PLAY MODE] before or during play to
select the mode.
Listening
For tracks numbered 10 and over, press [ 10] then the two
digits.
Each time the button is pressed
: One track repeated
: All tracks repeated
PLAY
RE
1
FADER SLEEP
REC
PGM
RANDOM
EQ ON
ALL 1-REC ST
MONO
No display (cancelled)
Press [CD] to start play if in the stop mode.
To repeat selected tracks
PLAY
1-
RE
FADER SLEEP
”.
EQ ON
ALL 1-REC ST
REC
PGM
Start program play ( page 12).
Press [CD PLAY MODE] to select “
RANDOM
MONO
To cancel
Press [CD PLAY MODE] until “
” and “
” are cleared.
The mode is also cancelled if the CD tray is opened.
PLAY
1
PGM
RE
FADER SLEEP
REC
RANDOM
EQ ON
ALL 1-REC ST
Random play
Plays the tracks once each in random order
MONO
Press [CD PLAY MODE] before or during play to
select “
”.
Each time the button is pressed
No display (cancelled)
Press [CD] to start play if in the stop mode.
To cancel
Press [CD PLAY MODE] to clear “
”.
If canceled during play, play continues to the end of the
disc.
The mode is also cancelled if the CD tray is opened.
•Random play does not work when “
” is displayed
(press and hold [ PGM/ CLEAR ] first).
•Tracks cannot be selected with the numbered buttons.
•You cannot skip to tracks already played.
•Search can be done within the track in play only.
11
RQT5671
re-ex1(p10-p15)[P]
11
00.12.28, 4:58 PM
CDs
Y
Program play:
Select up to 36 tracks to play in the order you choose
Preparation:
Press [ ] to switch to CD mode.
Remote control only
Press [PGM/ CLEAR ].
Enter the track number with the numbered
buttons.
Listening
For tracks numbered 10 and over, press [ 10] then the
two digits.
Repeat this step to program the tracks in the required
order.
Press [CD].
All the tracks are played in the selected order.
The program remains intact even if play is stopped or the
unit is turned off. “Cd-P” appears when play is stopped to
indicate the contents are in the memory.
PLAY
RE
1
FADER SLEEP
REC
PGM
RANDOM
PLAY
RE
EQ ON
ALL 1-REC ST
MONO
To cancel
Press and hold [ PGM/ CLEAR ] in the stop mode until
“CLEAR” is displayed.
The mode is also canceled if the CD tray is opened.
“FULL” is displayed
1
PGM
FADER SLEEP
REC
RANDOM
EQ ON
ALL 1-REC ST
If more than 36 tracks have been programmed.
MONO
“-- --:-- --” is displayed
If the total play time of the program exceeds 100 minutes.
You can still program and play tracks.
To check the contents of the program
While stopped
Press [REW/–/
] or [
/+/FF].
Each time one of the buttons is pressed, a track and its
order in the program are displayed.
Program play does not work when “
” is displayed
(press [CD PLAY MODE] to clear it) ( page 11).
Search can be done within tracks only.
12
RQT5671
re-ex1(p10-p15)[P]
12
00.12.28, 4:58 PM
The Radio: manual tuning
Press [POWER,
] to turn the unit on.
Press [TUNER BAND] to select FM or AM.
Each time the button is pressed: AM
FM
Press [TUNE MODE] to select the manual tuning mode.
Make sure that “
Press [REW/–/
station.
“
” is not displayed.
] or [
/+/FF] to select a
” is displayed during FM stereo broadcasts.
FADER SLEEP
1
RANDOM
FADER SLEEP
1
RANDOM
FADER SLEEP
1
EQ ON
MONO
EQ ON
ALL 1-REC ST
REC
PGM
MONO
ALL 1-REC ST
REC
PGM
EQ ON
ALL 1-REC ST
REC
PGM
RANDOM
MONO
Auto-tuning
Press and hold [REW/–/
] or [
/+/FF] until the frequency starts changing rapidly.
Stops when it finds a station. (Interference may also cause
it to stop. Start auto-tuning again if this occurs.)
To stop auto-tuning
Press [REW/–/
] or [
/+/FF].
Listening
Turn [– "VOLUME#+] to adjust the volume.
Using auto scan
Remote control only
FADER SLEEP
1
EQ ON
ALL 1-REC ST
REC
PGM
RANDOM
MONO
You can search for a station by listening to all tuned-in
stations for 8 seconds each.
1 Press [TUNER] to select “FM” or “AM”.
■
2 Press [AUTO SCAN].
■
[AUTO SCAN] when you find the de3 Press
■
sired station.
Auto scan starts.
Auto scan ends when it reaches the original frequency again.
To stop during the process, press [AUTO SCAN].
To improve reception
FM: Change the length and position of the antenna.
AM: Change the facing of the unit.
Auto
scan
FADER SLEEP
1
RANDOM
FADER SLEEP
1
FM
MONO
RANDOM
•AM reception is briefly interrupted if a tape deck is operated.
•To improve reception when using the unit in a building or
vehicle use it near a window.
EQ ON
ALL 1-REC
REC
PGM
EQ ON
ALL 1-REC
REC
PGM
MONO
If noise is excessive in FM
Remote control only
AM
Press [FM MODE/BP] to display “
Monaural sound is selected (“
duces when reception is weak.
MONO
”.
” goes off) and noise re-
Press [FM MODE/BP] again to cancel the mode.
To receive FM broadcasts allocated in 0.1MHz
4
5
6
FADER SLEEP
10
1
PGM
7
8
9
0
CD PLAY
AUTO SCAN C-RESET FM MODE BP MODE
CLOCK
TIMER
TAPE
TUNER
CD
P
REC
RANDOM
EQ ON
ALL 1-REC ST
MONO
Main unit only
First press [TUNER BAND] to select “AM”. Now, press and
hold [TUNER BAND]. The display changes in a few seconds to show the current lowest FM frequency. Continue to
hold down the button.
The minimum frequency changes and the step is changed at
the same time. Changing the step erases all preset stations.
Repeat the above to change the step back.
13
RQT5671
re-ex1(p10-p15)[P]
13
00.12.28, 4:58 PM
The Radio: preset tuning
Presetting radio stations
Y
Remote control only
Tuning is simpler if you preset stations.
You can preset 12 FM and 12 AM stations.
Preparation: Tune to the station you want to preset. (
page 13)
Press [PGM/ CLEAR ].
RE
PLAY
1
FADER SLEEP
REC
PGM
EQ ON
ALL 1-REC ST
RANDOM
MONO
While “
” is flashing
Listening
Press the numbered buttons to enter the
station into a channel (1 to 12).
RE
PLAY
1
FADER SLEEP
REC
PGM
EQ ON
ALL 1-REC ST
RANDOM
MONO
•To enter channels 10, 11, and 12
Press [ 10], then the two digits.
•If “
” stops flashing
Press [PGM/ CLEAR] again.
Selecting channels
Preparation: Press [TUNER BAND] to select FM or AM.
Press [TUNE MODE] to display “
Press [REW/–/
channel.
] or [
”.
/+/FF] to select the
On the remote control
Press the numbered button(s) to select the channel (1 to 12).
To select channel 10, 11 or 12, press [≥10], then the two digits.
Using preset scan
You can search for a station by listening to all preset
channels for 8 seconds each.
Main unit only
PLAY
1
RE
FADER SLEEP
ALL 1-REC ST
REC
PGM
RANDOM
Preparation: Press [TUNE MODE] to display “
”.
and hold [REW/–/
] or [
1 Press
■
until “PS” appears on the display.
/+/FF]
EQ ON
MONO
Preset channel
Preset scan starts.
[REW/–/
] or [
2 Press
■
find the desired channel.
PLAY
1
RE
FADER SLEEP
REC
PGM
RANDOM
/+/FF] when you
EQ ON
ALL 1-REC ST
MONO
Preset scan ends after searching through each preset
channel once.
To stop during the process, press [REW/–/
] or [
/
+/FF]
Cancelling a preset channel
PLAY
1
RE
FADER SLEEP
REC
PGM
PLAY
1
PGM
RANDOM
RE
FADER SLEEP
REC
RANDOM
EQ ON
ALL 1-REC ST
MONO
e.g. If channel 3 is not needed.
Select channel 3.
Press [PGM/ CLEAR] on the remote control.
With 10 seconds
Press [REW/–/
] or [
/+/FF] so “-- --” is displayed.
Press [PGM/ CLEAR] on the remote control.
Now when [REW/–/
] or [
/+/FF] is pressed,
channel 3 is skipped.
EQ ON
ALL 1-REC ST
MONO
The channel can still be selected with the remote control.
14
RQT5671
re-ex1(p10-p15)[P]
14
00.12.28, 4:58 PM
Cassettes
Press [POWER,
] to turn the unit on.
Insert a cassette into the deck.
Play starts from the side facing up.
Turn [– "VOLUME#+ ] to adjust the volume.
To stop play
Press [7 TAPE/CD].
Listening
Press [3 TAPE] to start play.
To eject tape
Stop tape play, then press [0 TAPE].
One touch play (When using AC power)
When a cassette is loaded, press [3 TAPE].
The unit comes on and play starts.
Fast-forward and rewind
] (rewind) or [
/+/FF] (fast-forward).
Selection of tapes
RE
PLAY
1
FADER SLEEP
REC
PGM
EQ ON
ALL 1-REC ST
RANDOM
Tape Counter
RE
PLAY
1
MONO
Tape Playing
FADER SLEEP
REC
PGM
Use normal position tapes to play correctly.
High position and metal position tapes can be played, but
the unit will not be able to do full justice to the characteristics
of these tapes.
Recording
Press [REW/–/
EQ ON
ALL 1-REC ST
RANDOM
MONO
Cassette tape care
• Tapes exceeding 100 minutes are thin and can break or
get caught in the mechanism.
• Tape slack can get caught up in the mechanism and should
be taken up before the tape is played.
• Endless tapes can get caught up in the deck’s moving parts
if used incorrectly.
Before Recording
Use household AC power or new batteries when recording,
to avoid poor recording caused by the batteries running down.
Television can cause interference to recording made on this
unit if the two are too close to each others.
Selection of tapes for recording
Present state (e.g., elapsed play time of CD)
PLAY
1
RE
FADER SLEEP
EQ ON
ALL 1-REC ST
REC
PGM
RANDOM
MONO
Present time
PLAY
1
RE
FADER SLEEP
PGM
EQ ON
ALL 1-REC ST
REC
RANDOM
Use normal position tapes.
High position and metal position tapes can be used, but
the unit will not be able to record or erase them correctly.
Volume and sound quality in recording
• Recording level is set automatically.
• Recording are unaffected by changes to sound quality.
To display the tape counter while
recording
MONO
Remote control only
Tape counter
Press [DISPLAY].
PLAY
1
PGM
RE
FADER SLEEP
EQ ON
Each time you press the button in the CD or radio mode:
ALL 1-REC ST
REC
RANDOM
MONO
To reset the tape counter
Press [C-RESET].
The counter resets to “000”.
15
RQT5671
re-ex1(p10-p15)[P]
15
00.12.28, 4:58 PM
Before Recording
Side A
Erasure prevention
Tab for side “B”
Tab for side “A”
The illustration shows how to remove the tabs to prevent
recording. To record on the tape again, cover as shown.
To re-record
Normal tape
Erasing recording
Insert the cassette with the side to be erased facing up.
Press [ TAPE/CD] to switch to TAPE mode.
Press [
].
Adhesive tape
Recording CDs
Recording
Preparation:
page 9)
• Insert a CD (
• To record from the beginning of the tape
Wind on the leader tape.
Insert a cassette with the side for recording
facing up.
Press [
TAPE/CD] to switch to CD mode.
Each time the button is pressed
TAPE
CD.
Press [
] to start recording.
CD play and recording start at the same time.
The cassette stops when the CD finishes.
To stop recording
Press [
TAPE/CD].
To pause recording
Press [
].
Press again to resume recording.
To continue recording from another CD on the
same tape
Press [ CD] and insert the other CD.
Press [
].
Recording begins from where it stopped.
Side to be recorded
facing up
To record selected tracks
Do step
Press [
and
].
, program the tracks (
page 12).
To skip unwanted tracks
Press [
] to pause recording. (The CD also pauses.)
Press [REW/–/
] or [
/+/FF] so the next track you
wanted to record is displayed.
Press [
] to resume recording.
PLAY
1
RE
FADER SLEEP
REC
PGM
PLAY
1
PGM
RANDOM
RE
FADER SLEEP
REC
RANDOM
EQ ON
ALL 1-REC ST
MONO
EQ ON
ALL 1-REC ST
MONO
16
RQT5671
re-ex1(p16-p22)[P]
16
00.12.28, 4:53 PM
Recording CDs
You can record the whole CD (ALL-REC) or a selected
track(1-REC).
ALL-REC
Preparation: Insert a CD (
page 10)
9 TAPE/CD] to switch to CD mode.
Press [9
Press [CD REC MODE] so “ALL-REC” is displayed.
Each time the button is pressed
ALL-REC
1-REC
OFF
The display shows the length of tape needed.
“C-- -- -- --” indicates the tape needed exceeds 100
minutes. You can still record, but some tracks may not
be recorded if the tape isn’t long enough.
Insert a cassette with the side for recording
facing up.
RE
FADER SLEEP
REC
PGM
RANDOM
EQ ON
ALL 1-REC ST
MONO
Press [
] to start recording.
The unit rewinds the tape, records 10 seconds of silence, and then starts recording.
To stop recording
PLAY
1
RE
FADER SLEEP
REC
PGM
RANDOM
EQ ON
ALL 1-REC ST
MONO
Press [
TAPE/CD]. The CD also stops.
If a track is interrupted at the end of the side facing up
Recording
PLAY
1
Recording and CD pauses.
To record the track again on the opposite side
1. Press [0 TAPE], flip the cassette, and insert it.
2. Press [
].
The unit records 10-second of silence, and resumes recording from the beginning of the cut-off track.
To record selected tracks
Program tracks ( steps
Do steps to above.
and
on page 12).
You cannot use ALL-REC with repeat or random play
( page 11).
1-REC
Preparation: Insert a CD ( page 10) and a cassette.
Wind the tape to where you want to start recording.
Press [
TAPE/CD] to switch to CD mode.
Press [CD REC MODE] so “1-REC” is displayed.
Press [REW/–/
] or [
track you want to record.
PLAY
1
RE
FADER SLEEP
REC
PGM
RANDOM
/+/FF] to select the
EQ ON
ALL 1-REC ST
MONO
Press [
] to start recording.
CD play and recording start at the same time.
To stop recording
Press [ TAPE/CD]. The CD also stops.
To record a track in play
PLAY
1
PGM
RE
FADER SLEEP
REC
RANDOM
EQ ON
Press [CD REC MODE] to display “1-REC”.
Press [
].
Recording starts from the beginning of the track and stops
when the track finishes.
ALL 1-REC ST
MONO
Recording and CD will stop when the tape reaches its end,
even if the track has not finished.
17
RQT5671
re-ex1(p16-p22)[P]
17
00.12.28, 4:53 PM
Recording the Radio
Preparation:
•Wind on the leader tape.
•To record from part way through the tape
Wind the tape on to where you want to start recording.
Insert a cassette with the side for recording
facing up.
Tune to the station (
Recording
Press [
PLAY
1
RE
FADER SLEEP
PGM
RANDOM
] to start recording.
To stop recording
EQ ON
Press [
ALL 1-REC ST
REC
pages 13 and 14).
TAPE/CD].
MONO
To pause recording
Press [
7
8
9
Reducing noise when recording AM (Beat Proof
function)
CD PLAY
AUTO SCAN C-RESET FM MODE BP MODE
CLOCK
TIMER
Recording
PLAY
TAPE
]. Press again to resume recording.
0
TUNER
REW
CD
Remote control only
Press [FM MODE/BP] while recording.
Each time the button is pressed: bP1
bP2
Choose the setting with the least noise.
FF
Harmonic Enhancer Sound
Sound Quality
You can enjoy clear vocal sound.
Press [H.E.S.].
Press again to cancel.
Recordings are unaffected by this feature.
3D sound with the Sound
Virtualizer
PLAY
1
PGM
RE
FADER SLEEP
EQ ON
ALL 1-REC ST
REC
RANDOM
Remote control only
MONO
PLAY
REC REW
FF
You can create a three-dimensional sound field when
listening to stereo sound.
Press [S.VIRTUALIZER].
H.E.S. S.VIRTUALIZER
EQ
Press again to cancel.
VOLUME
PLAY
1
RE
FADER SLEEP
EQ ON
ALL 1-REC ST
REC
PORTABLE STEREO CD SYSTEM
Recordings are unaffected by this feature.
The actual effect depends on the source played.
Sound Quality
PLAY
REC REW
FF
H.E.S. S.VIRTUALIZER
Remote control only
EQ
You can choose one of four types of sound quality.
XBS: Adds punch to rock.
Clear: Clarifies higher sounds
Soft: For background music
Vocal: Adds gloss to vocal
VOLUME
PORTABLE STEREO CD SYSTEM
RAK-RX979WK
Press [EQ] to select a setting.
Each time you press the button:
XBS
Clear
Soft
Vocal
EQ - OFF (cancelled)
Changes to sound quality do not affect recordings.
18
RQT5671
re-ex1(p16-p22)[P]
18
00.12.28, 4:53 PM
Using the Timer
Remote control only
SLEEP TIMER FADER DISPLAY
1
2
3
4
5
6
10
7
8
9
0
You can set the timer to come on at a certain time to wake
you up (play timer) or record a radio station (record timer).
PGM CLEAR
Preparations:
Turn the unit on and set the clock. ( page 9).
•For play timer, prepare the music source (tape/CD/
radio) for listening, and set the volume.
CD PLAY
AUTO SCAN C-RESET FM MODE BP MODE
CLOCK
TIMER
TAPE
TUNER
CD
PLAY
REC REW
•For record timer, check the cassette’s erasure prevention
tab (
page 16: ■
A ) and load the cassette with the side for
recording facing up. Tune to the radio station ( page 13 to
14), and set the volume.
FF
H.E.S. S.VIRTUALIZER
EQ
Setting the start and finish times
Press [CLOCK/TIMER] to select the desired
timer function.
Each time you press the button:
PLAY
RE
1
FADER SLEEP
REC
PLAY
EQ ON
FADER SLEEP
EQ ON
ALL 1-REC ST
CLOCK
ON
Original display
PLAY
OFF
OFF PLAY
REC
ON REC
ON PLAY: to set the play timer
ON REC: to set the record timer
Proceed to step
before these indicators stop flashing (about 10 seconds).
RE
FADER SLEEP
EQ ON
PLAY
FADER SLEEP
/+/FF] to set the
Press [REW/–/
] or [
finish time.
Press [CLOCK/TIMER].
/+/FF] to set the
EQ ON
The start and finish times are now set.
PLAY
RE
FADER SLEEP
EQ ON
PLAY
FADER SLEEP
Turning the timer on
EQ ON
Timer
PLAY
Press [REW/–/
] or [
start time.
Press [CLOCK/TIMER].
Press [
PLAY/REC] to display the timer
indicator.
Each time you press the button:
PLAY
A
AY
PLAY
RE
FADER SLEEP
PLAY
EQ ON
FADER SLEEP
EQ ON
REC
no display (off)
PLAY: to turn the play timer on
REC: to turn the record timer on
(The indicator doesn't appear if the start and finish times
haven't been set.)
“E” appears if the clock hasn't been set.
Press [ ] to turn the unit off.
The unit must be off for timer to operate.
REC
PLAY
The record timer comes on about 30 seconds earlier
than the set time.
To cancel the timer
Press [ PLAY/REC] when the unit is on to clear the timer
indicators from the display.
(The timer comes on at the set time everyday if the timer is on).
(Continued on next page)
19
RQT5671
re-ex1(p16-p22)[P]
19
00.12.28, 4:53 PM
Using the Timer
To check the settings (when unit is off)
Press [CLOCK/TIMER].
The settings are shown in the following order:
Start time, Finish time
Source
Volume
Y
Clock
To change the settings (when unit is on)
PLAY
1
RE
FADER SLEEP
EQ ON
ALL 1-REC ST
REC
PGM
RANDOM
MONO
To change the times
Do steps , , , and .
To change the source or volume
1. Press [ PLAY/REC] to clear the timer indicator.
2. Make changes to the source or volume.
3. Do steps
to .
You can enjoy other sources after you have set
the timer.
Turn the unit off before the timer’s start time.
The play and record timers cannot be used together.
Y
The Sleep Timer
Remote control only
Set the unit to stop and turn off after a certain time.
While listening to a CD, a cassette, or the radio.
PLAY
1
RE
FADER SLEEP
REC
PGM
RANDOM
EQ ON
Press [SLEEP] to select the time (in minutes).
ALL 1-REC ST
MONO
Each time the button is pressed
SLEEP 30
SLEEP 60
SLEEP 90
SLEEP OFF
SLEEP 120
To cancel
Press [SLEEP] to select “SLEEP OFF”.
To check the remaining time
Timer
Press [SLEEP] once.
The remaining time is shown for about 5 seconds.
To change the time.
Press [SLEEP] to select the new time.
The sleep timer can be used in combination with the play
and record timers. Make sure the unit is off before the play
or record timer's set start time.
The Timer Fader
Remote control only
Volume increases slowly to the set level when a timer turns
the unit on and decreases slowly when the sleep timer
turns the unit off.
Press [TIMER FADER] to display “
”.
(All timers will be affected.)
Press again to cancel.
This feature does not affect record timer’s recordings.
20
RQT5671
re-ex1(p16-p22)[P]
20
00.12.28, 4:53 PM
Warranty (U.S.A.)
ONLY FOR U.S.A.
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Sales Company, Division of Matsushita Electric
of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Portable Audio
Limited Warranty
This warranty is extended only to the original purchaser.
Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively
referred to as “the Warrantor”) will repair or replace this product with new or refurbished
parts or equivalent product, free of charge in the U.S.A. or Puerto Rico, in the event of a
defect in materials or workmanship as follows (all time periods commence from the date
of original purchase):
PARTS & LABOR - ONE (1) YEAR
Non-rechargeable batteries are not warranted
Rechargeable batteries - (when applicable) exchange defective item for new one for ten
(10) days.
For assistance in the continental U.S.A. in obtaining repairs please ship the product to:
Panasonic Services Company - Customer Servicenter
Suite B 4900 George McVay Drive
McAllen, TX 78503
In Puerto Rico contact the Panasonic Sales Company.
Tel.(787) 750-4300
Fax.(787)768-2910
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day
time phone number where you can be reached.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL
BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE. AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT
SUCH PROOF OF PURCHASE.
Also, the purchaser will be responsible for shipping the unit to the above address.
This warranty only covers failures due to defects in materials and workmanship which
occur during normal use. The warranty does not cover damage which occurs in shipment, or failures which are caused by products not supplied by the warrantor, or failures
which result from accident, misuse, abuse, neglect, mishandling, faulty installation, misapplication, improper insertion of consumables, set-up adjustments, maladjustment of
consumer controls, improper operation or maintenance, improper antenna, inadequate
signal reception or pickup, alteration, modification, power line surge, improper voltage
supply, lightning damage, commercial use or service by anyone other than a
PANASONIC SERVICES COMPANY authorized repair facility, or damage that is attributable to acts of God.
LIMITS AND EXCLUSIONS
There are no express warranties except as listed above.
THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES OR
DISCS) RESULTING FROM THE USE OF THIS PRODUCTS, OR ARISING OUT OF
ANY BREACH OF THE WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET
FORTH ABOVE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or
limitations may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which
vary from state to state.
If you have a problem with this product that is not handled to your satisfaction, then write to the Consumer Affairs Department at the Company address indicated above.
For Product Information, Operating Assistance, Literature Request, Dealer Locations, and all Customer Service inquiries please contact:
1-800-211-PANA(7262), Monday - Friday 9 am - 9 pm, Saturday - Sunday 9 am - 7 pm, EST.
Accessory Purchases:
1-800-332-5368 (Customer Orders Only)
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(6 am to 5 pm Monday - Friday; 6 am to 10:30 am Saturday, PST)
(Visa, MasterCard, Discover Card, American Express, Check)
Reference
Web Site: http://www.panasonic.com
You can purchase parts, accessories or locate your nearest servicenter
by visiting our Web Site.
21
RQT5671
re-ex1(p16-p22)[P]
21
7/27/01, 12:03 PM
Troubleshooting
Before requesting service, make the below checks. If you can’t fix the system as described below, or if something not listed
here occurs, refer to the enclosed directory to locate an Authorized Service Center convenient to you or contact your dealer.
For detailed instructions, contact an authorized servicenter in the U.S.A. and Panasonic Canada Inc. Customer Care
Centre in Canada.
In the U.S.A., call 1-800-211-7262, e-mail consumerproducts@panasonic.com, or visit www.panasonic.com
In Canada, call 905-624-5505 or visit www.panasonic.ca
Reference pages are shown as black circled numbers
Common problems
6.
“E” is displayed
Indicates incorrect operation. Read the instructions.
“UO1” is displayed
Replace the batteries or use household AC power.
“UO2” is displayed
Batteries haven't been inserted. Insert batteries or use household AC
power. (“UO2” appears only if you have inserted memory batteries.)
6
6
CD
CD won't play or CD display is incorrect
Ä
Clean the CD
Wait for about an hour for condensation to clear and try again.
Make sure the label is facing up.
Replace the CD if it is scratched, warped, or irregularly shaped.
Ä
Ä
Cassette deck
Recording not possible
Have the cassette's tabs been removed? Cover the holes with tape.
Poor sound quality
Clean the heads.
9
Ü
Radio
A lot of noise or difficult to tune
Interference may be caused by other equipment. Turn the other equipment
off or separate this unit from them.
Interference may occur if a remote control from other equipment is used.
Remote control
8
The remote control doesn't work.
Check the batteries are inserted correctly.
Replace the batteries if they are worn.
The unit can't be turned on from the remote
control.
Use the power button on the main unit if you are using batteries to power
the unit.
8
68
Reference
Specifications
General
Radio
Frequency range
FM
AM
87.9–107.9 MHz (200 kHz steps)
87.5–108.0 MHz (100 kHz steps)
520–1710 kHz (10 kHz steps)
CD player
Sampling frequency
44.1 kHz
Decoding
16 bit linear
Beam source
Semiconductor laser (wavelength 780 nm)
No. of channels
2 channel, stereo
Wow and flutter
Below measurable limit
D/A converter
MASH (1 bit DAC)
Tape recorder
Track system
Monitor system
Recording system
Erasing system
Frequency response
Normal position
4 track, 2 channel, stereo
Variable sound monitor
AC bias
Multi Pole magnet
Speakers
Full Range
7 cm 5.4 ΩX2
Jacks
Output
PHONES: 3.5 mm stereo (16–64 Ω)
Power requirement
AC
120 V, 60 Hz
Power consumption: 17 W
In standby mode: 1.2 W
Battery
12 V (Eight R20, D, UM-1 batteries)
Memory back-up for computer/clock
6V (Four R6, AA,UM-3 batteries)
Dimensions (WXHXD)
380 × 158 × 250 mm
1431/32˝× 67/32˝× 927/32˝ inch
Mass
3.7 kg (8.2Ibs)
without batteries
Specifications are subject to change without notice.
Mass and dimensions are approximate.
50 Hz–14 kHz
22
RQT5671
re-ex1(p16-p22)[P]
22
7/27/01, 12:03 PM
Product Service
1. Damage requiring service —The unit should be serviced by qualified
service personnel if:
(a) The AC power supply cord or AC adaptor has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change
in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond that described
in these operating instructions. Refer all other servicing to authorized
servicing personnel.
3. Replacement parts—When parts need replacing ensure the servicer
uses parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may
result in fire, electric shock, or other hazards.
4. Safety check—After repairs or service, ask the servicer to perform
safety checks to confirm that the unit is in proper working condition.
Product information
For product information or assistance with product operation:
In the U.S.A., contact the Panasonic Customer Call Center at
1-800-211-7262, or e-mail consumerproducts@panasonic.com,
or web site (http://www.panasonic.com).
For assistance in the continental U.S.A. in obtaining repairs please ship
the product to:
Panasonic Services Company - Customer Servicenter
Suite B 4900 George McVay Drive
McAllen, TX 78503
In Puerto Rico contact the Panasonic Sales Company.
Tel.(787) 750-4300
Fax.(787) 768-2910
Reference
When shipping the unit carefully pack and send it prepaid, adequately
insured and preferably in the original carton. Include a letter detailing
the complaint and provide a day time phone number where you can be
reached.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/
PROOF OF PURCHASE INDICATING DATE OF PURCHASE,
AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE
CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT
SUCH PROOF OF PURCHASE.
Also, the purchaser will be responsible for shipping the unit to the
above address.
In Canada, contact Panasonic Canada Inc. Customer Care Centre at
905-624-5505, web site (www.panasonic.ca), or an authorized
Servicentre closest to you.
23
RQT5671
re-ex1(p16-p22)[P]
23
7/27/01, 12:03 PM
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Panasonic Canada Inc.
RQT5671-1P
© 2000 Matsushita Electric Industrial Co., Ltd.
Printed in Malaysia
re-ex1(p16-p22)[P]
24
En
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
L1200GL1061
7/27/01, 12:03 PM
Download PDF

advertising
