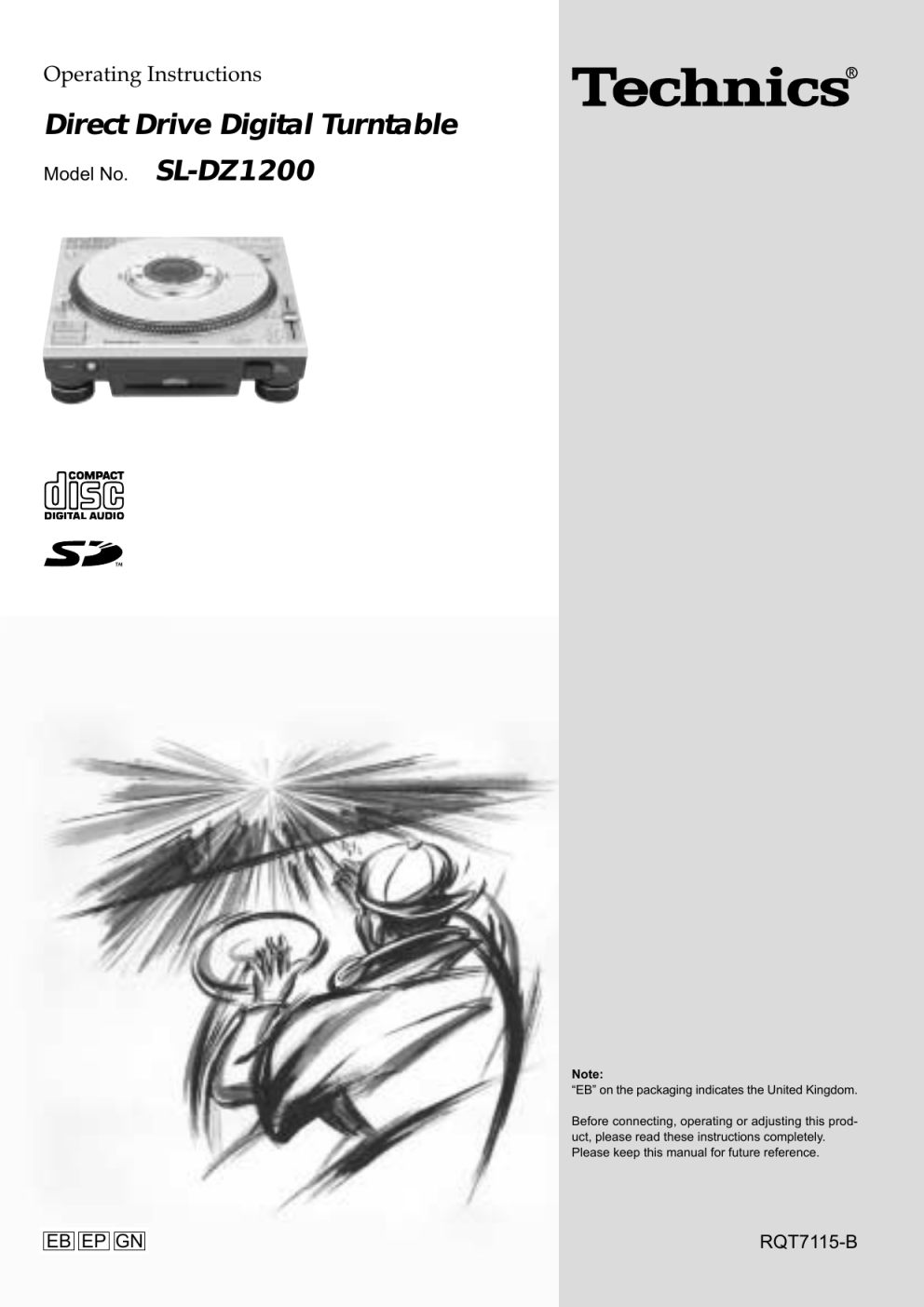

Panasonic SLDZ1200 Operating Instructions

Operating Instructions
Direct Drive Digital Turntable
Model No.
SL-DZ1200
Note:
“EB” on the packaging indicates the United Kingdom.
Before connecting, operating or adjusting this product, please read these instructions completely.
Please keep this manual for future reference.
EB EP GN
RQT7115-B
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions
carefully.
Parts and supplied accessories
Please check and identify the parts and supplied accessories.
For the United Kingdom only:
Use the numbers indicated in parentheses
when asking for replacements parts.
Table of contents
Parts and supplied accessories ................................................. 2
Caution for AC Mains Lead ......................................................... 4
Safety precautions ....................................................................... 4
Main features ................................................................................ 5
Component part names ............................................................... 6
Platter setup .................................................................................. 7
Setup .............................................................................................. 7
Connections .................................................................................. 8
Connecting with the DJ mixer .................................................... 8
Connecting the control terminals for relay play ......................... 9
Connecting with the stereo amplifier (Not using the DJ mixer) ........... 9
Connecting to equipment with digital input terminals ................ 9
Inserting-removing a disc or SD Memory Card ...................... 10
Display indicator ......................................................................... 11
Playing a CD or SD Memory Card (basic play) ....................... 12
Basic function settings .............................................................. 14
Selecting TURNTABLE mode or CD PLAYER mode .............. 14
Instant play (INSTANT CHANGE) ........................................... 14
Using the FREE WHEEL mode ............................................... 14
Adjusting the platter brake ....................................................... 14
Adjusting the auto cue level ..................................................... 14
Platter operations ....................................................................... 15
Changing play with your hand ................................................. 15
Basic play for DJ’s ................................................................... 15
Changing tempo and direction of play .................................... 16
Changing tempo ....................................................................... 16
Locking the pitch ...................................................................... 16
Reverse play (Reversing the platter) ....................................... 16
Playing from memory ................................................................. 17
Setting the auto cue point ........................................................ 17
Setting the cue point at any point ............................................ 17
Play from the stored point ........................................................ 17
Storing to the CUE PADS and playing .................................... 18
Store desired points to memory and play (loop play) ............. 18
Recording to the SAMPLE PADS and playing ........................ 19
Erasing cue pad, sample pad, loop play data ......................... 19
Changing the sound ................................................................... 20
Changing sound to simulate analogue .................................... 20
Change sound with combined performance ............................ 20
Editing the SAMPLE PADS ...................................................... 20
Saving to a SD Memory Card, Recalling .................................. 21
Saving to a SD Memory Card .................................................. 21
Formatting the SD Memory Card ............................................. 22
Recalling (loading) data saved on a SD Memory Card ........... 22
Regarding MP3 albums and SD audio .................................... 22
Using with other equipment ...................................................... 23
Start play using the mixer’s fader ............................................ 23
Using two units for relay play ................................................... 23
Using the amplifier and other equipment ................................ 23
Linking different tracks ............................................................. 24
Unit’s initialize memory function .............................................. 24
Initializing this unit’s memory ................................................... 24
Concerning CDs ......................................................................... 25
Handling SD Memory Cards ...................................................... 25
Maintenance ................................................................................ 25
Q&A (Frequently asked questions) .......................................... 26
Troubleshooting guide ............................................................... 26
Error messages .......................................................................... 27
Specifications ............................................................................. 27
2
RQT7115
AC mains lead ................................................................. 1
For the United Kingdom (REZ1496)
For Australia and New Zealand
(REZ1620)
For others (REZ1495)
Note
The included AC mains lead is for use with this unit only.
Do not use it with other equipment.
Stereo phono cable (SFDHBD2N01) .............................. 1
Slip surface (RGK1704-S1) ............................................. 1
For United Kingdom and Republic of Ireland
www.panasonic.co.uk
(for UK customers only)
•Order accessory and consumable items for your product with ease and confidence by telephoning our Customer Care Centre Mon–Friday 9:00am–5:30pm.(Excluding public holidays.)
•Or go on line through our Internet Accessory ordering application.
•Most major credit and debit cards accepted.
•All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.
•It couldn’t be simpler!
Customer Care Centre
For UK customers: 08705 357357
For Republic of Ireland customers: 01 289 8333
Technical Support
For UK customers: 0870 1 505610
This Technical Support Hot Line number is for Panasonic PC software related products only.
For Republic of Ireland, please use the Customer Care Centre number listed above
for all enquiries.
For all other product related enquiries, please use the Customer Care Centre numbers listed above.
CLASS 1
LASER PRODUCT
(Back of product)
(Inside of product)
(Apparatens insida)
(Indersiden at apparatet)
(Produktets innside)
(Tuotteen sisällä)
(Im Inneren des Gerätes)
(Intérieur de l’appareil)
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
CAUTION!
• DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING, ENSURE
THAT CURTAINS AND ANY OTHER MATERIALS DO
NOT OBSTRUCT THE VENTILATION VENTS.
•DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.
•DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH
AS LIGHTED CANDLES, ON THE UNIT.
•DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS
TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
This product may receive radio interference caused by
mobile telephones during use. If such interference is
apparent, please increase separation between the product
and the mobile telephone.
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
Marking sign is located on bottom of the unit.
The socket outlet shall be installed near the equipment and
easily accessible or the mains plug or an appliance coupler
shall remain readily operable.
3
RQT7115
Caution for AC Mains Lead
(For United Kingdom)
Safety precautions
Placement
(“EB” area code model only)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for
your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is approved
by ASTA or BSI to BS1362.
Check for the ASTA mark m or the BSI mark o on the body of the fuse.
If the plug contains a removable fuse cover you must ensure that it
is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE
SHOULD BE REMOVED AND THE PLUG CUT OFF AND
DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK
IF THE CUT OFF PLUG IS INSERTED INTO ANY 13AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring code as
stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with the
following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the terminal
which is marked with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E, BY THE EARTH SYMBOL n OR COLOURED
GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the
unit and cause a fire.
Do not use a DC power source. Check the source carefully when
setting the unit up on a ship or other place where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not damaged. Poor connection and lead damage can cause fire or electric
shock. Do not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC
mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric
shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric
shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock
or malfunction. If this occurs, immediately disconnect the unit from
the power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem
that is not covered in these operating instructions occurs, disconnect
the AC mains lead and contact your dealer or an authorized service
center. Electric shock or damage to the unit can occur if the unit is
repaired, disassembled or reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power
source if it is not to be used for a long time.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains
plug (figures A and B). Confirm the AC mains plug fitted and follow
the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
Figure B
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
Figure B
Figure A
Fuse
(5 ampere)
4
RQT7115
Fuse
(5 ampere)
Insertion of connector
Even when the connector is perfectly inserted, depending on the
type of inlet used, the front part of
the connector may jut out as shown
in the drawing.
However there is no problem using
the unit.
Connector
Approx. 6 mm
Appliance inlet
Main features
This direct drive digital turntable is designed for DJ’s to play digital media (CDs and SD audio) giving an analogue-like feeling. Having the feeling of
an analogue turntable, this unit delivers digitally robust functions and performance realizing a new style of play.
Control panel
SAMPLE PADS
SD CARD LOAD and SAVE
VINYL SIM
•You can store up to 4 audio segments to memory.
•You can use for dual play for up to 2 sample pads,
and use for switching between one shot and loop
play.
You can SAVE and LOAD sample
pad, cue point panel data etc. to
the SD Memory Card.
You can simulate sound similar to an analogue player.
DYNAMIC FX
You can transform sound by
using the platter.
CUE PADS
You can store 4 cue points to
memory. Play can be started instantly from one of those cue
points.
FORWARD and REVERSE
The rotation direction of the
platter can be reversed by
switching the play direction
switch to REVERSE or FORWARD.
LOOP play
You can set the IN and OUT
points and play as a loop.
Platter
Play media is synchronized
with platter movement.
Strobo Dot Reflectors
You can use the red strobo illuminator to check changes in
tempo.
Platter slip surface
Use your hand to turn the platter slip surface for scratch,
brake and spin DJ play.
CUE
•Setting the cue point
Store the cue point to
memory.
•Back cue
During play you can instantly
return to the set cue point
and the unit waits in the
pause state.
TEMPO
PLAY SELECT
FREE WHEEL
You can switch the platter to
freewheel.
Selects CD or SD play.
•You can control the play speed
(tempo).
•You can adjust the tempo to
4 levels of settings between
±8 and ±50 using the
RANGE button.
•You can instantly return to
normal playing speed using
the RESET button.
•By using the PITCH LOCK
button the pitch is held even
if the tempo is changed.
Front panel
SD Memory Card slot
CD slot (Slot in type)
Rear panel
TURNTABLE
Mode for DJ play.
CD PLAYER
Mode for use as an audio
player.
5
RQT7115
Component part names
The unshaded numbers
etc, correspond to the numbered illustrations. The shaded numbers
Control panel
etc, are reference pages.
Track skip, search, setting buttons
(
,
,
,
) .............................................
,
Platter .......................................................................
Strobo dot reflectors ...............................................
Play pause button, lamp (PLAY/PAUSE) ...............
Cue setting, load and stop button, lamp (CUE STOP)
...........................................................................
,
Strobo illuminator ...................................................
Platter free wheel setting button (PUSH) ..............
Platter free wheel indicator (FREE WHEEL) .........
Display ......................................................................
Remaining time display, auto cue setting button
(•REMAIN –AUTO CUE) ....................................
,
Cue point, pad memory button (REALTIME REC)
.....................................................................
,
,
Cue memory, play and erase button, lamp
(1-4 CUE PADS) ........................................................
Sampling data record, play, and erase button, lamp
(1-4 SAMPLE PADS) .........................................
,
Front panel
Sample pad play mode, edit memory button (MEMORY)
Play mode and edit item select button (SAMPLE EDIT)
...........................................................................
,
Start point (START) lamp, end point (END) lamp,
level (LEVEL) lamp ..................................................
Modify data button (– + TRIM) ................................
Loop play button (LOOP) ........................................
CD eject button (
Start of loop play point setting, erase button, lamp (IN)
CD slot ......................................................................
CD EJECT) ..............................
End of loop play point setting, erase button, lamp (OUT)
Power lamp ..............................................................
Play or cancel loop play button (EXIT/RELOOP)
SD Memory Card slot (SD CARD) ..........................
Execute button (EXECUTE) ...................................
Load SD Memory Card data button, lamp (LOAD)
Rear panel
Save SD Memory Card data button, lamp (SAVE)
SD Memory Card save mode select button, lamp
(S.PADS, PANEL) .....................................................
Analogue player simulation button, lamp (VINYL SIM)
Special effects button, lamp (DYNAMIC FX) .........
Simulation, effect type select button (– + TYPE) ....
Cue bank, file number select button (– + BANK)
,
Headphone volume control knob (VOLUME) ........
Play direction switch (REVERSE, FORWARD) ......
Output terminal (LINE OUT) ...................................
Display angle setting, function setting button
Digital output terminal (DIGITAL OUT) ..................
(•DISPLAY ANGLE –FUNCTION) ......................
,
Turntable, CD player select switch (MODE) ..........
Normal tempo button, lamp (RESET) ....................
Platter brake control (BRAKE) ...............................
Tempo, pitch control slider (TEMPO) ....................
AC input terminal (AC IN
Fixed pitch play button, lamp (PITCH LOCK) .......
Power button (POWER
Media play select switch (PLAY SELECT) .............
RQT7115
Digital turntable control terminal (CONTROL) ......
SD Memory Card access indicator (SD ACCESS)
Tempo variation range button, lamp (RANGE) .....
6
Headphone terminal (PHONES) .............................
Instant play select button, lamp (INSTANT CHANGE)
Platter slip surface ..................................................
) ...................................
OFF
ON) .................
Platter setup
Setup
The stoppers are used to lock the platter, protecting the unit from
shock during shipping.
Place the unit on a flat and stable surface that is not subject to
vibrations or movement.
1. Remove the 3 platter lock stoppers from the platter
Note
•Do not place this unit on top of amplifiers emitting hot air or place
near spot lights and use for any long duration. This may effect the
unit or disc causing problems.
•Create space around this unit in order to assist heat release.
•Place the unit away from televisions and tuners to avoid interference. Interference will effect picture and sound quality.
•Placing the unit near speakers may result in undesired sound in an
environment that requires elevated volume. In this case move the
unit further away from the speaker(s) or turn the volume down.
•Place stereo phono cables, AC mains lead and panel in a location
that will not be effected by movement or vibration during play.
Undesirable sounds may result if there are movements or vibrations effecting the unit with exception of the legs.
Platter lock stoppers
Turn the platter lock stoppers approximately 90°
Pull the platter lock stoppers out
•Pull out the platter lock stoppers once they are aligned with
the release hole.
2. Attach the slip surface (included)
Slip surface
Adjusting the height of the main unit
Marker
After placing the unit in the desired location for use, adjust the insulator so the main unit is flat and secure.
Platter mounting pin
•With the markers on the slip surface facing up, attach onto the 2
platter mounting pins.
Store the 3 platter lock stoppers in a safe place after removal.
Changing the display angle
Change display angle corresponding to position of the main unit.
( page 11)
Adjusting the platter brake
You can adjust the platter brake speed using the BRAKE control on
the rear of the unit. After connecting, adjust to the desired brake speed.
( page 14)
When transporting the unit
Make sure to re-attach the 3 platter lock stoppers.
1. Remove the slip surface
•Pack in a way to avoid bending the slip surface.
2. Insert the 3 platter lock stoppers
1. Align the platter holes with the chassis holes inside at the same
position used to remove the stoppers above in step 1.
2. Insert the platter lock stoppers into the holes
•Move the platter to fully insert the stoppers.
3. Turn the platter lock stoppers approximately 90° to lock
7
RQT7115
Connections
Connecting with the DJ mixer
This example indicates a connection with the SH-MZ1200 DJ mixer (not included) and two digital turntables. Use the stereo phono cable (supplied
accessories) and control cable (not included) to connect the main unit with the DJ mixer. Turn off all power when connecting component equipment.
Connect the AC mains lead after all other connections have been connected.
Connection to the SL-DZ1200 rear panel CONTROL terminal
Stereo phono cable
White (L)
Red (R)
Rear panel
Only the direct drive digital turntable or the separately sold
DJ Mixer can be operated.
Connecting to control terminals of other manufacturer’s products
may result in incorrect operation or other equipment problems.
Direct drive digital turntable 2
Connects to DJ mixer CH4.
Type: 6.3 mm
stereo
Headphone
(not included)
Household
mains socket
Rear panel
AC mains lead
(supplied
accessories)
Direct drive digital turntable 1
Connects to DJ mixer CH1.
Type: 6.3 mm
stereo
Household
mains socket
AC mains lead
(supplied
accessories)
Headphone
(not included)
Control cable
(not included)
Type:
3.5 mm stereo
Control cable
(not included)
Type:
3.5 mm stereo
When connecting for
fader start play
(
page 23)
DJ mixer rear panel
For the United Kingdom:
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 4 BEFORE CONNECTION.
Connecting with other mixers
Do not connect with the PHONO terminal. Connecting will result in excessive sound being generated and may result in serious damage
to your equipment.
Connect the main unit's LINE OUT terminal with the mixers LINE input terminal or AUX input terminal.
Listening with the headphones
•When connecting the headphones, reduce the volume using the phones VOLUME control.
•Avoid listening for prolonged periods of time to prevent hearing damage.
8
RQT7115
Connecting the control terminals for relay play
Use the control terminals of the two units to connect for relay play. (
Rear panel
Direct drive digital turntable 2
page 23)
Rear panel
Direct drive digital turntable 1
Control cable (not included)
Type: 3.5 mm stereo
Connecting with the stereo amplifier (Not using the DJ mixer)
Do not connect with the PHONO terminal. Connecting will result in excessive sound being generated and may result in serious damage
to your equipment.
Connect with the amplifier's CD or AUX input terminal.
Rear panel
Speaker
(not included)
Amplifier
(not included)
Stereo phono cable (Supplied accessories)
Connecting to equipment with digital input terminals
Connect to the digital input terminal on the DJ mixer or amplifier with digital input terminals using the connection cables (not included).
•SD Audio cannot be output from this unit's digital out terminals.
Rear panel
DJ mixer etc. (not included)
Connection cable (not included)
Type: RCA coaxial
9
RQT7115
Inserting-removing a disc or SD Memory Card
Rear panel
Front panel
Front panel
SD access indicator
With the label
face up
power lamp
SD Memory Card
With the label
face up
Inserting a SD Memory Card
1. Open the SD Memory Card slot lid
2. With the label on the card facing up and the notched
edge facing the unit, insert the card
3. Insert until the card locks into place
Inserting a disc
1. Press [POWER
4. Close the lid
OFF
ON] on the rear of unit
The unit power is on. The display comes on and the power lamp
lights.
2. Insert a disc
Removing a SD Memory Card
•Insert the disc flat and parallel into the CD slot, with the label up.
The unit will automatically load the disc.
•You cannot use an 8 cm disc.
After confirming the SD ACCESS indicator is not flashing, open the lid and press on the center of the SD
Memory Card to release the lock and pull the ejected
card out carefully, then close the lid.
Note
•Do not insert a disc when the power is off.
•Do not insert 2 or more discs.
•Do not try to insert the disc using unnecessary force that may bend
the disc. When the unit is loading or ejecting a disc, do not apply
opposing force to the disc. Not following the above steps may result in damage to the disc or unit.
•The SD ACCESS indicator flashes when the SD Memory Card
is being accessed. Do not turn off the power or try to open the lid
and remove the card while the indicator is flashing. (Doing so
may result in a loss of saved data.)
Removing a disc
Note
•Make sure to always close the SD card slot lid.
If you try using when the lid is open, “NO SD CARD” or “SD LID
OPEN” will appear in the display and operation will not be possible.
While stopped or while paused
1. Press [
CD EJECT]
•Press the button and the disc will come out.
•If you press while playing in TURNTABLE mode, a message
appears in the display and play continues. Make sure to press
after pausing play.
•If you do not remove the disc within approximately 10 seconds
the unit will automatically re-load the disc.
After ejected
2. Press again.
•You can now remove the disc with greater ease.
You can forcefully eject a disc when the disc does not eject even after
pressing [ CD EJECT].
OFF
ON] to turn the power off
OFF
ON] again holding down
2. Press [POWER
[ CD EJECT] to turn the power on, and then release
[ CD EJECT] after “DZ1200” appears in the display
10
RQT7115
Reference
Page
25
CD
CD-DA audio that is finalized on a
CD-R or CD-RW
MP3 files
(WMA is not supported)
Secure AAC
SD Memory Card
Secure MP3
(SD audio)
(WMA is not supported)
Forced disc eject
1. Press [POWER
Playable media
12, 22
22
Display indicator
Displayed when using CD, SD audio
Displayed when using MP3 files on CD-R and CD-RW
Displaying the remaining time
While playing a CD, SD Memory Card
Press [•REMAIN –AUTO CUE]
•“REMAIN” appears and the remaining play time of the track is
displayed.
•Pressing again will return the time display to its original state.
•When you are playing a MP3 file from a CD-R or CD-RW the
remaining play time will not be displayed if you press [•REMAIN
–AUTO CUE].
•When there is less than 30 seconds of time remaining, you are
notified by the flashing time display. With a MP3 file from a CDR or CD-RW, the time display flashes if there is less than 7 seconds of time remaining. However, depending on the operation,
the flashing indicator in the display may not appear.
Changing the display angle
You can rotate the display angle corresponding to the way the unit is
setup.
Press [•DISPLAY ANGLE –FUNCTION] to select the display angle
•The angle of the display rotates 90 degrees clockwise each time
the button is pressed.
•The setting remains in memory even when the power is turned
off.
Selected play media indicator
: Indicates CD is selected
: Indicates SD is selected
Track number indicator
When using CD, SD Audio: Total number of tracks and the track
being played is displayed
When using CD-R, CD-RW MP3 files:
Total number of tracks and the track
being played within the album is displayed
Current track position indicator
Change in tempo rate indicator
Auto Cue indicator
: Indicates Auto Cue is on
Adjusting the display contrast
1. Press and hold [•DISPLAY ANGLE –FUNCTION] for
about 2 or more seconds until the display changes
•”CONTRAST” is selected in the display.
2. Press [–
], [+
] to adjust the display contrast
•Press [–
], [+
] to change the display to the desired contrast (adjustable range: 1-100).
•If no buttons are pressed for more than 5 seconds, the time display returns to its original state.
•The setting remains in memory even when the power is turned
off.
Cue bank indicator
REALTIME REC indicator
: Indicates the sample pad is in REALTIME REC operation
Beats per minute (BPM) indicator
Number of beats per minute, indicating track speed
Depending on the music, the BPM may not be detectable, or
may take time to be displayed.
Play time (Minutes, seconds, frames), remaining time
(CD, SD audio) indicator
Remaining time (REMAIN) indicator
Displayed only for CD, SD audio
MP3 album number indicator
Indicated when using MP3 files
CD-MP3 (CD-R, CD-RW MP3 file) indicator
11
RQT7115
Playing a CD or SD Memory Card (basic play)
Rear panel
1
Adjusting volume when
using the headphones
2
Turn [VOLUME]
5
3
4
Front panel
Front panel
With the label
face up
SD ACCESS
indicator
With the label
SD Memory Card
face up
Auto Cue function (TURNTABLE mode only)
Playing CD-R and CD-RW discs
When one of the media has been set, or when a track has been
skipped, or when advancing to the next song while playing, the auto
cue point automatically sets and pauses at the point just before audio
begins, skipping the null sound area at the beginning of the track.
Auto Cue is set to on as default.
This unit can play CD-DA formatted CD-R and CD-RW discs.
CD-DA formatted discs must be finalized at the final point of recording using a CD designed for music recording. CD-R and CD-RW discs
containing MP3 files can also be played. However, play may not be
possible on some discs depending on the state of recording.
Finalizing makes audio recordings compatible for play on equipment that supports play of CD-R and CD-RW discs that are designed for music recording.
Auto Cue indicator
auto cue point setting indicator
Turning off Auto Cue
Press [•REMAIN –AUTO CUE] for more than 2 seconds
12
RQT7115
•The display indicator changes from “
” to “
”
•Each time you press and hold the button:
(Auto Cue is on)
(Auto Cue is off).
•The segment without sound that is skipped is a maximum of 15
seconds from the beginning of the track.
•The on or off setting remains in memory even when the power is
turned off. Additionally, the setting stored to memory for each
CD or SD Memory Card is restored once the set media is reinserted.
1
Press [POWER
2
Switch [MODE] to TURNTABLE
OFF
ON]
•The unit display will come on once the power is turned on.
•Functions are limited when using the CD PLAYER mode.
( page 14)
3
Switch [PLAY SELECT] to select the media to be used
•When there is no media inserted, "NO DISC" or "NO SD
CARD" appears in the display.
•You can control platter movement and adjust tempo once
the media is inserted.
4
Insert a disc or SD Memory Card
( page 10)
•Make sure to close the SD card slot lid as it will not work if
left open.
•It takes several seconds for the disc to be loaded.
•When Auto Cue is on, the unit switches to standby at the
1st track's auto cue point. The CUE lamp flashes when the
settings are being read and after reading is finished it
changes to a stationary light.
When Auto Cue is off, the unit switches to standby at the
beginning of the 1st track.
•The PLAY/PAUSE lamp begins flashing.
5
When no disc is inserted
When no SD Memory Card is inserted
Press [PLAY/PAUSE]
When Auto Cue is on
•The platter begins rotating and synchronized with the platter, the first track begins playing.
•The PLAY/PAUSE lamp and the CUE lamp light.
•Once play of the first track has ended, play is paused at the
second track’s auto cue point. The platter stops at this point.
During CD play
Track number
When Auto Cue is off
•The platter begins rotating, synchronized with the platter,
the first track begins playing and the PLAY/PAUSE lamp
lights.
•Play continues again from the 1st track once the last track is
reached. (All track repeat)
Pausing
Selecting MP3 albums, selecting SD audio tracks
Press [PLAY/PAUSE] (to restart, press once more)
•PLAY/PAUSE lamp flashes and the platter stops.
Skipping forward or backward
Press [
Play time
Play position
], [
]
•Skips each time the button is pressed or while being pressed.
•When Auto cue is on, the unit skips to the auto cue point just
before where the selected track's audio begins.
Searching forward or backward
During play or while paused
Press and hold [–
], [+
]
•Hold the button to search.
•You cannot search beyond a track with MP3 files on CD-R, CDRW.
•Sounds heard when searching become cut with MP3 files and
SD Audio.
Regarding display indicators when the inserted
media is not recognized
Re-insert correctly.
NO CD AUDIO TRACK: The CD type is not supported. (
page
25), or was inserted upside down.
NO SD AUDIO TRACK: The SD Memory Card is unrecognizable
because of damage or an error, or there is
no track data.
Select the SD audio track stored on the SD Memory Card or the
MP3 album on the CD-R, CD-RW. ( page 22, Regarding MP3
albums and SD audio)
1. Switch [PLAY SELECT] to select the media to be used
], [
2. Press [
] to select the track
•The album number of the CD-R, CD-RW MP3 album appears in
the display.
•The memorized track name etc. that is selected appears in the
display when played. (Up to 32 alphanumeric characters.)
•When using SD audio on a SD Memory Card, a track only from
the default playlist can be selected or played.
Removing the CD
While paused
Press [
CD EJECT]
•The eject indicator appears in the display and the disc is ejected.
•When you press during play, the CD does not eject, a message
appears in the display and play continues.
Removing the SD Memory Card (
page 10)
•Remove after play has ended.
•The SD ACCESS indicator flashes when the SD Memory Card
is being accessed. Do not turn off the power or try to open the lid
and remove the card from the SD Memory Card slot while the
indicator is flashing. (Doing so may result in a loss of saved
data.)
13
RQT7115
Basic function settings
Instant play (INSTANT CHANGE)
When in the TURNTABLE mode and Instant Change is off, the sound
when starting and pausing is synchronized with the starting and stopping of the platter. When Instant Change is on, just like pressing [PLAY/
PAUSE] on a normal CD player, play is paused or starts instantly.
This is a feature specific to digital turntables.
Press [INSTANT CHANGE]
•The INSTANT CHANGE lamp lights.
•Pressing [INSTANT CHANGE] again will cancel the setting.
•The Instant Change on or off setting for each CD or SD Memory
Card is stored to memory, and the setting is restored once the set
media is re-inserted.
Using the FREE WHEEL mode
While in TURNTABLE mode
Press [PUSH]
Selecting TURNTABLE mode or
CD PLAYER mode
You can select to use the unit as a turntable, or as a CD player.
On the rear panel, switch [MODE] to either TURNTABLE
or CD PLAYER
TURNTABLE : A mode for DJ play, all functions are useable.
•Panel data ( page 19) set on this unit is memorized on this
unit.
•When using CD-R, CD-RW MP3 files, the total number of tracks
and total album number are not displayed. Confirm by switching to the CD PLAYER mode.
CD PLAYER:
The mode best suited for play as an audio player.
Limited functions
•The platter does not rotate. The platter slip surface cannot be
operated.
•The auto cue, cue point and cue bank functions do not work.
•All operations function with Instant Change on.
•Excluding the limited functions, all other functions are operational.
Automatic settings immediately after switching modes
•The RESET lamp comes on and returns to normal play speed.
•Auto Cue is switched to off.
•Other functions are switched to off.
Basic play operation ( page 12-13) changes
•In step 2, switch to the CD PLAYER side.
•In step 5, press [PLAY/PAUSE] Total play time
and play of the first track begins, (Hours, Minutes, Seconds)
and once the end of track is
reached the PLAY/PAUSE lamp
goes out and play stops.
Display indicator when stopped
When using CD, SD Audio:
Total play time is displayed.
When using CD-R, CD-RW MP3 files:
The total number of tracks and Total number Total number
total number of albums are dis- of tracks
of albums
played.
•To start play
Press [PLAY/PAUSE].
•To stop play
Press [CUE STOP].
•To eject the CD
During play, you can also press the CD eject button to eject the
disc.
14
RQT7115
•The platter drive motor stops. When playing, the platter comes to a gradual stop,
and the sound playing is synchronized to
the platters movement.
•The strobo illuminator light goes out, and FREE WHEEL indicator
the FREE WHEEL indicator flashes in the
display.
•You can press [PUSH] again to release.
•Turning the power off will erase the settings.
Adjusting the platter brake
While in TURNTABLE mode, you can adjust the brake speed for the
platter to come to a stop by pressing [PLAY/PAUSE] during play.
On the rear panel, turn [BRAKE]
S (Slow) direction : Slow stop
F (Fast) direction : Fast stop
Adjusting the auto cue level
When the Auto Cue function is on ( page 12), depending on the
track, the auto cue point may not be set at the point just before where
the audio begins. In this situation you can adjust the auto cue level.
1. Press and hold [•DISPLAY ANGLE –FUNCTION] for
more than 2 seconds until the display changes
2. Press [
LEVEL”
] and from the display select “AUTO CUE
•“LEVEL –60 dB” appears in the display (initial settings example).
3. Press [–
], [+
] and select the level:
•Select from –36 dB, –42dB, –48 dB, –54 dB, –60 dB, –66 dB,
–72 dB, –78 dB
•Sound that is lower than the set level is skipped as null sound.
4. Press [•DISPLAY ANGLE –FUNCTION]
•The selection is automatically set if you do not press [•DISPLAY
ANGLE –FUNCTION] within 5 seconds.
•The set auto cue level for each CD or SD Memory Card is stored
to memory, and the setting is restored once the set media is reinserted.
