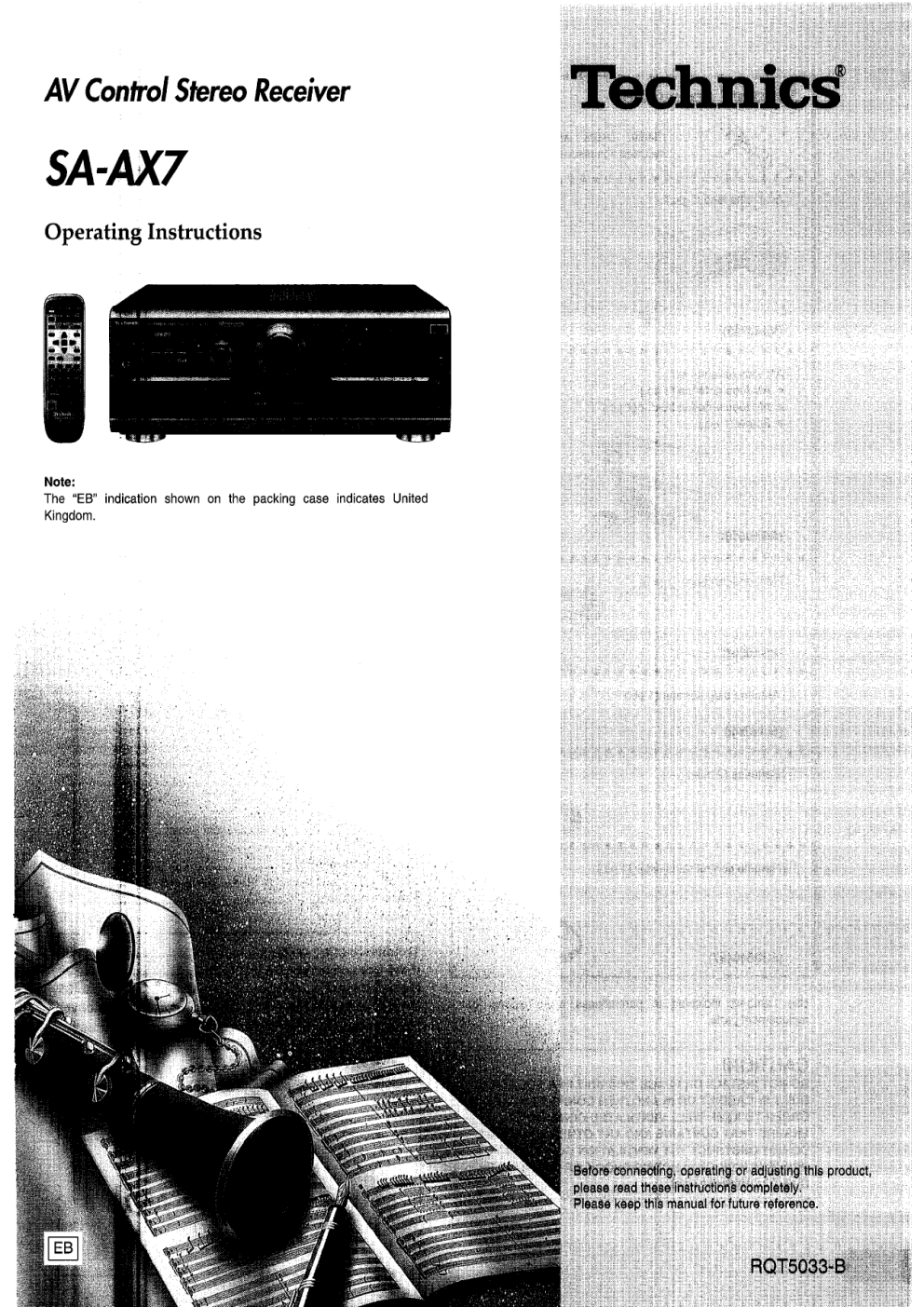

Panasonic SAAX7 Operating Instructions

iver
| Stereo Rece
fro
AV Con
Instructions
ing
.
Operat
Note
The
tes United
indica
ing case
hown on the pack
ion $
t
indica
“E B”
dom
ing
K
2
RQT5033
Supplied accessories
Please check and identify the
supplied accessories.
p BGO 8 O66 0 HD OS OCD CED OREDE GOOG EDGE
[J] AC mains lead (1 pc.)
(VJA0733)
A HR O ONCVQLONIOODQQONNADOCHANÓOGO COS €
[I AM loop antenna set
® AM loop antenna (1 pc.)
e AM loop antenna holder (1 pc.)
e Screw (1 pc.)
(RSA0010)
Bb O O OQ 28 BQ OO 6G ROO CE EO DEED ET DHECE RG OC
[] РМ indoor antenna (1 pc.)
(RSA0007)
» 0 6 B08 GPE OH SG HEB BOOED OOP D BG
[J] Antenna plug adapter (1 pc.)
(SJP9009)
D ON EOOLQOCCHOCCOCRRE SOACOQCQOQQOOSDDE
[] Batteries (2 pes.) 6 D
J
PB OC EDEL OEE ODO ODODE HEE ED LBE Ne Y
[_] Remote control transmitter (1 pc.)
(EUR646497)
Dear Customer
Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.
Front cover is open in all explanations in these operating
instructions.
Table of contents
Use numbers indicated in parentheses when asking for
replacement parts.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT IN CABINET OR IN ANOTHER CONFINED SPACE IN
ORDER TO KEEP WELL VENTILATED CONDITION.
ENSURE THAT CURTAINS AND ANY OTHER MATERIALS
DO NOT OBSTRUCT THE VENTILATION CONDITION TO
PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD
DUE TO OVERHEATING.
Caution for AC Mains Lead ................-.=.e=.—.—.esavenevevs nuvo 3
Suggestions for Safety …...…..…….…..…imenenianenenançnnenesnnnnunn+ns 4
Concerning the remote control... . 4
Surround guide uci eer nenes 5
Front panel controls .............e=e=.e=.e.... nocuceunansanmoneeaveNTNENeNeNO 6
Equipment connections ........... paanonasanmanennen een 1000 0m Dao revues 8
Antenna connections .......... euonanvevenannocaoameanenes aneanennanama .. 12
Speaker connections ............. nencenseneaneneneoNana anconsaseemenvaues 14
BASIC OPCEFAtIONS c.….ucuvisssnsusenseanmenene anses AUKKUNKUKKEMBUBRUAMEHDN 17
To adjust the tone quality ..................-..e.e.emereeneree te EN 18
To adjust the sound balance ‚een EHER EEE 18
To enjoy bi-amp sound ...............e...ee==eeeeiveriererine re e anannns 19
To adjust the subwoofer level ......................err.ece00rmereee ne 19
To compensate when the volume is low .....................eerrerreenas 19
To adjust the output range of the subwoofer .................... e... 19
Listening to radio broadcasts .............w...e=e==e==.e=neneenon 20
Sequential tuning .................ee eee RR RR OREA. 20
Direct tuning .................er..ecernercenirne reee. 21
Preset tuning «oo. ee 22
Enjoying RDS broadCAstS ....…......….….….versaurscnannanmen ananas amas 25
To display RDS information …..…..…..….….….……..……rrirerresseneanrrransnennances 25
PTY search and EON TUNING .………..….….……rrerrersensenenterserses ra sance 26
About the PTY displAÿ …….…rereeresssencensensesreransane nant re nr annee 28
Dolby Pro Logic ........e......nne=vsnrereneooaonanannananea center anencen ven ‚ 29
Setting the center mode and adjusting speaker output level ........ 29
Adjusting the delay time ….…................…rrresreensensirersensnen seras 31
DVD 6CH INPUT mode .............eeneseemnrnnanananoannnnanoanena nen. 33
VGCA mode .........e-e—ee-...neneanamonnensiniveneccarenoneaeevaanane cenamos ... 34
Other functions ...........-=w===es=uecunerranonne ene nanen ne nanea nene enNe 35
To mute the sound level .....................e..1...e0 nee 35
To listen through headphones ........................se2rerererree ee 35
. When using the VCR 2 terminals (front panel) .................—...... 35
To tum off the blue light ......................... e... ere Dee 35
Making a recording .............—.weem mee... SP. |.
Recording to a tape deck or VCR ...............meemmernereerinerneecenacaceo 36
Timer funcCtiON arena TeUO. 37
Setting the timers are cece 37
Troubleshooting guide ................-..————ere==esermescenereniennes … 38
If the front cover comes Off .......…….….…vucrersensensncersenses 39
Maintenance .................—......ncvoroorecoonea enana Eee enana nnea 39
Technical specifications .................. eennnaDAnUNONO: Back cover
CAUTION
Do not place a tape deck, CD, or DVD player on top of this
unit.
Heat radiated from the top of this unit may cause damage to
the software.
NO
Caution for AC Mains lead
(For United Kingdom)
(“EB” area code model only)
For your safety, please read the following text
carefully.
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 5-ampere
and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark > or the BSI mark Y on
the body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from
your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE
FOR THE SOCKET OUTLET IN YOUR HOME
THEN THE FUSE SHOULD BE REMOVED AND
THE PLUG CUT OFF AND DISPOSED OF
SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED
INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring
code as stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in
accordance with the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the
coloured markings identifying the terminals in your
plug, proceed as follows:
The wire which is coloured Blue must be connected
to the terminal which is marked with the letter N or
coloured Black or Blue.
The wire which is coloured Brown must be connected
to the terminal which is marked with the letter L or
coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO
THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E, BY THE EARTH SYMBOL = ОВ
COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of
AC mains plug (figures A and B). Confirm the AC
mains plug fitted and follow the instructions below.
lllustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A К
ATA
Figure B
mmm TS
2. Replace the fuse and close or attach the fuse
cover.
Figure A
Fuse
(5 ampere)
Figure B
„= =
“a
Fuse
(5 ampere)
RQT5033
4
RQT5033
Suggestions for safety
Concerning the remote control
Placement
Avoid placing the unit in areas of:
® direct sunlight
® high temperature
® high humidity
® excessive vibration
® uneven surfaces (Place the unit on a flat level surface.)
Such conditions might damage the cabinet and/or other
component parts and thereby shorten the unit's service life.
pr
Never place heavy items on top of the unit or the AC mains lead.
® |t is very dangerous to use an AC power source of high voltage
such as for an air conditioner.
A fire might be caused by such a connection.
e A DC power source can not be used.
Be sure to check the power source carefully, especially if on a
ship or other place where DC is used.
| | AC mains lead as |
® Avoid cuts, scratches or poor connection of the AC mains lead,
as this may result in fire or electric shock.
Excessive bending, pulling or slicing of the AC mains lead
should also be avoided.
e Do not pull on the AC mains lead when you are disconnecting
the power, as this could cause an electric shock. Grasp the plug
firmly when you disconnect the AC mains lead.
e Never touch the plug with wet hands or a serious electric shock
could result.
“Foreign materials
® Ensure that no foreign objects, such as needies, coins,
screwdrivers etc, accidentally fall into the unit.
Otherwise, a serious electric shock or malfunction could occur.
e Be extremely careful about spilling water or liquid on/into the
unit, as a fire or electric shock could occur.
(Disconnect the power plug and contact your dealer
immediately if this occurs.)
® Avoid spraying insecticides onto the unit as they contain
flammable gases which can be ignited.
® Insecticides, alcohol, paint thinner and similar chemicals should
never be used to clean the unit as they can cause flaking or
cloudiness to the cabinet finish.
ESA
e Never attempt to repair, disassembie or reconstruct the unit if
there seems to be a problem.
A serious electric shock could result if you ignore this
precautionary measure.
e |f a problem occurs during operation (the sound is interrupted,
indicators fail to light up, smoke is detected, etc.) contact your
dealer or Authorized Service Center immediately.
e Disconnect the AC mains lead if the unit will not be used for a
long time. Otherwise the operation life could be shortened.
ECO installation
| Use of batteries
(R6, AA, UM-3)
e Align the poles (+ and —) properly when inserting the batteries.
e Do not mix old and new batteries or different types of batteries.
e Do not recharge ordinary dry cell batteries. |
® Do not heat or disassemble the batteries. Do not allow them t
contact flame or water.
® Remove the batteries if the unit is not to be used for a long time.
e Do not keep together with metallic objects such as necklaces.
e Do not use rechargeable type batteries.
Mishandling of batteries can cause electrolyte leakage which can
damage items the fluid contacts and may cause a fire.
If electrolyte leaks from the batteries, consult your dealer.
Wash thoroughly with water if electrolyte comes in contact with any
part of your body.
| Correct method of use
Remote control signal sensor
И
599090060060
a
: ее
90000 o
eseeaea |] |00000):;
ci
CIN
30° 30
= Transmission
window
About 7 meters in front of the signal sensor.
| Operation notes
e Do not place obstacles between the remote control signal
sensor and remote control unit.
e Do not expose the remote control signal sensor to direct
sunlight or to the bright light of a fluorescent light.
e Take care to keep the remote control signal sensor and end of
the remote control unit free from dust.
e |f this system is installed in a rack with glass doors, the glass
doors’ thickness or color might make it necessary to use the
remote control a shorter distance from the system.
| To prevent damage
e Never place heavy items on top of the unit.
e Do not disassemble or reconstruct the unit.
e Do not spill water or other liquids into the unit.
Surround guide
You are able to enjoy this surround system with this receiver.
Surround system ENIX
( | N
Dolby Pro Logic is a decoding system that was
developed to get a better sense of presence from e Video tapes
sources encoded with Dolby Surround. The e Laser discs
feeling of position has been improved by the e DVDs
addition of a separate center speaker channel. e CDs
Dolby Surround was developed to allow
enjoyment of Dolby Stereo, a cinema system, i
private homes. This system reproduces sound
close to that of the original movie through use of
an analog matrix.
Software encoded with Dolby
Surround can be identified with this
mark.
[JC] [po ey suarouno ]
(= Page 29.)
Г NO N в
Dolby Digital is a discrete 6 (5.1) channel digital
surround system developed for cinema use.
®
The sound signals in Dolby Digital format are DVDs
| Dolby compressed to 1/12 their original size, allowing an Software encoded with Dolby Digital
Di ital entire movie to be recorded on a single DVD. can be identified with this mark
g Not all Dolby Digital sources are recorded with 6 ;
(AC-3) channels. Some sources marked Dolby Digital
may be recorded in Dolby Surround, a 2 channel
oem QU [potev]
(= Page 33.) DIGITAL
N SUN И XA J
( NN 4 N ( NN
e DVDs
DTS is a discrete 6 (5.1) channel digital surround e Laser discs
system developed for cinema use. Sources e CDs
encoded in DTS are only compressed to a quarter
DTS of the size of the original to preserve sound Software encoded with DTS can be
quality. identified with this mark.
DTS sources are produced with the intention that DIGITAL
all speaker channels will be used.
(= Page 33.) SURROUND
No NN AN J
RQT5033
RQT5033
Front panel controls
a BSH OFEN — =
ADAATIVE LEVEL
CONTROL
Fas
an
TAPEIMONITORI VCR) TVWOR? VCR)
MAA
INPUT SELECTOR
| Main unit
No. Name Ref. page
Standby/on switch (© /1) ……………ccosessesensensensences 17
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
Standby indicator ( 5)
When the unit is connected to the AC mains supply, this
indicator lights up in standby mode and goes out when the unit
is turned on,
Timer button (TIMER, -MODE, -TIME) ............ 37
Speaker select buttons
(SPEAKERS A, B, TS y
Bi-amp indicator (BI-AMP) .........—e——...... mex... 19
Adaptive subwoofer control/indicator
(SUBWOOFER ADAPTIVE CONTROL) ........... 19
Subwoofer level control
(SUBWOOFER LEVEL) ..........reee=mnannanannararrora 19
Volume control (VOLUME) a... nenn 17
Input indicator .......... e... ...e-.esarnenneno rana 17
VGCA mode select button/indicator
Input selector (INPUT SELECTOR) ................. 17
Wake indicator (WAKE) .............==w.—e==. www... 37
Remote control signal sensor
Headphone jack (PHONES) -...............www.....ee... 35
TV/VCR 2 input select button
(= TV, = VCR2) .............conzannrnanranannnenaneanenenmoa- 35
VCR 2 terminals (VCR 2) .............———ewmxecnnnannnanae= 9
© 69999 SOU Y OS VE
Name Ref. page
Display section
Bass control (BASS)............-....e=e=minenneacnnaenna 18
Treble control (TREBLE) ..................exexe0eeee— 18
Balance control (BALANCE) .............e==me=nen==a. 18
Bi-amp balance control
(BI-AMP BALANCE) ...................aaconucanennncesnuerne 19
Subwoofer low pass filter control
(SUBWOOFER LOW PASS FILTER)................ 19
Front cover open button
(PUSH OPEN) .............eeonennnananeuanonnnsonnrnnaznnenenees 18
Tape monitor button (TAPE MONITOR) ......... 18
DVD 6CH INPUT select button
(DVD 6CH INPUT) ..............eeemenesemnacaniaraaononnenenere 33
Dolby Pro Logic mode off button
(STEREO) ....e..eerrnennnnnnenennnnancarcanannancanannoneenecnannees $2
Dolby Pro Logic mode/center mode select
button (-O0PRO LOGIC, -CENTER MODE)... 29
Band select/FM mode select button
(-BAND, —FM MODE) .........ceene==emnnanenunananananananzas 20
Preset channel button (PRESET) .................... 24
Memory button (MEMORY) ..............— 22
RDS display mode select button
PTY selector (AABN V, A)... 26
EON button ( (20) ) …………………...….…...….….…0s 27
PTY search button (EST101)) -................. 26
Tuning buttons (TUNING V , A) rrereerezernnannnes- 20
3880 3658 8 SB $ 69 © B® COVE 2
Front panel controls
| Remote control
The pages referred to on this page are in the booklet “How to use
the remote control transmitter.” The page numbers in boxes (eg.
SAN) refer to pages in this manual.
No. Name Ref. page
M Standby /on button ( © ) ……………uerensensensensensenses 2
@ » button (»).......…..csurrenencennenennenanesenenn 5
<< /<4 DUttON (44/4) sera nennen Э
@ БиНоп (Ш) ........ооносонноннннннннненнннанленнннвасннненннеоносы:
Title button (TITLE) .............=«==e..n....... BACK COVE
Display button (DISPLAY)................. Back cover
Dolby Pro Logic surround select button
(SURROUND) ……..….…irsescemcensaneenensensansennsns By SM
Dolby Pro Logic off button (STEREO) ..............
Speaker channel select button
(LEVEL) ..........necnnnenanzoncnanonenacannenseneanananenenavas Gy J ()
Delay time button (DELAY) .......... 3,
TV volume buttons (v TV VOL A) reennenrccnnennnonrna 7
Processor standby/on button
(PROCESSOR O) ...........merreccenecerscenaeeenenenenee nens
Muting button (MUTING) ................e..mresreners 2
Audio standby button (AUDIO O) .........—....e==e..
Input select buttons
(TV, VCR, TAPE, CD, TUNER/BAND, DVD).......2
>> />> button (>> />>1) our ernennen D
Cursor/select buttons........................ Back cover
Menu button (MENU) .............c.se...... Back cover
Test button (TEST) esse 3,
Delay time/level adjust buttons (—, +) ........ 3, El}
Direct tuning/disc enter button |
(DIRECT TUNING/DISC ENTER) ................ 5 241
>10/-/-- button (>210/-/--) ..............=2earnannrzornaano Y
Numeric buttons ........-..-—.....eeneeer nenes 3) PA
Disc/deck 1/2 select button
(DISC/DECK 1/2) ...………eussserssaonsensanseessenensannenuan sens D
TV/AV select button (TV/AV)..............e==..e===e=m==— 7
Volume buttons (-VOL+)....…rvrescrrenessennsnsennen @s
m
o
<p
A
<
o
m
m
r=
<
dû
mm
<
m
ООО
HOO
“eo
x
D
GB |
m
Cr
Cr
o
=
=
=
|
=
ow
A ©
889 9988 98966896 696 EOE OS JOB
se
HE
RQT5033
Equipment connections
Make sure that the power supply for all components has been
turned off before making any connections.
Do not place books, etc., on the top of this unit or block the
To connect equipment, refer to the appropriate operating heat radiation vents in any way.
instructions. |
Come
Stereo phono cable (not included)
White (L) << Ibm (Im >
Red (R) Mm” — arma =
CD player (or CD changer)
Tape deck (not included) (not included)
a LH DZ L_] > e EI
O <= +3: свое
| Ss — Y о © = с
= o Ta |
PLAY (OUT) REC (IN) OUTPUT
LH
Only for
turntable with
| ground terminal.
GND OUTPUT Cooling fan
— ol D (rs | The cooling fan operates at high power
output levels only.
Turntable (not included)
RQT5033
Stereo phono cable (not included) Video connection cable (not included)
White (L) Они,
Red (A) Mm? Com "(ея «ЧР
Connecting video equipment
VCR (for playback only) TV (not included)
(not included) J J
EJ =
o apr |
645555 — or
AUDIO VIDEO |
OUT OUT С = o m
AUDIO VIDEO {VIDEO AV IN
OUT OUT IN
21pin scart cable
UT (not included)
<= (VIDEO IN)
<= (VIDEO OUT)
(HP) (AUDIO OUT)
21pin scart cable
. Connecting to the VCR 2 terminals on the
(not included)
front panel
(VIDEO IN) => —— — —
(VIDEO OUT) «ii-——— |—|—-——H
(AUDIO IN) CE”
(AUDIO OUT), 1
AUDIO AUDIO VIDEO | VIDEO
AV IN OUT IN OUT IN
с = al =
° ° «=
— CoDoeuo dd Ol 080 a Video camera, etc.
(not included)
VCR (not included)
RQT5033
RQT5033
Equipment connections
Stereo phono cable (not included)
White (L) = Du | rm >
Red (В) Mm a
Monaural connection cable (not included)
<_ ID
am >
Connecting a DVD player
Connection through a digital surround processor
Digital surround processor (not included)
DVD player (not included)
(FRONT L,R) | (CENTER) |
© ese GG BY LEG YEG BBG B EERE Eee BEE CD EO BE ODD CD BEDS EE
Direct connection of the DVD player
DVD player with 6ch output
| AUDIO OUT (not included)
(SUBWOOFER)
AUDIO OUT
(FRONT LR) |
a [LES {°| 222 иово our
O ин
5
AUDIO QUT | AUDIO OUT
(CENTER) (SURROUND L,R)
AUDIO OUT
(SURROUND L,R) DIGITAL DIGITAL
и NIN OUT _
. _.. 8 9 1 3 N
AUDIO OUT 21 — JO: 6 E o
(SUBWOOFER) AUDIO OUT | AUDIO OUT
o o| coo
CII
Optical fiber cable
(not included)
VIDEO
OUT
& & % 6 8 © BH @ à & & € € 6 à & 8 &
DVD player with 2ch output
(not inctuded)
AUDIO OUT
o o| 000
CII
VIDEO
OUT
| Connections to/from S-VIDEO terminals
VCR (not included)
Do ; | | m
al 1°
9 9H0
‘S-VIDEO OUT
o
S-VIDEO cable
(not included)
S-VIDEO cable
(not included)
TV (not included)
S-VIDEO IN
S-VIDEO cable
(not included)
This receiver has S-VIDEO terminals for a DVD player, VCR (VCR
1 only) and TV.
| Caution when using a TV with an S-VIDEO terminal |
On some television models, the video signal from components
which do not use S-VIDEO input and are connected only to the
VIDEO terminals will not be shown on the television screen.
If this occurs, use one of the following methods to view the video
signal.
Does the television have a
VIDEO/S-VIDEO” selector
switch?
— Set the switch to “VIDEO”.
YES — If the television has two or more video input
terminals
Connect the VIDEO terminal and the S-VIDEO
NO — terminal to different video input terminals on
the television, and switch the picture on the
television according to the video source being
played.
—— [If the television has only one video input
terminal
Disconnect the S-VIDEO cable connected to
the television’s S-VIDEO terminal and connect
only the video tarminal.
When using S-VIDEQ terminals be aware of the following.
Video signals input into the VIDEO terminals cannot be output
S-VIDEO OUT from S-VIDEO terminals or vice versa.
co O о ee) DVD player
O ID (not included)
O
AC power supply cord
AC mains lead
(included)
Household mains socket
(AC 50 Hz, 230-240 V)
Connect this cord only after all other cables and cords are
connected.
Insertion of connector
Even when the connector is
perfectly inserted, depending on
the type of inlet used, the front
part of the connector may jut out
as shown in the drawing.
However there is no problem
using the unit.
Appliance inlet
Connector
Approx. 6 mm
(For United Kingdom only)
BE SURE TO READ THE CAUTION FOR THE
AC MAINS LEAD ON PAGE 3 BEFORE
CONNECTION.
RQT5033
tions
Antenna connec
included)
indoor antenna (
FM
ion of FM broadcasts.
t for recept
¡en
IC
is normally suff
Is antenna
Th
ion of best
irect
the di
ing tape) facing in
(us
Attach to a wall
on
recept
on
For best recept
An FM outdoor antenna
is recommended
FM outdoor antenna
o
Ф
"0
2
Wv
‚=
(not
IN
is unit i
th
forced concrete
ing
+
An outdoor antenna should be used when us
In
in spaces enclosed by re
Nous areas or
mounta
does not provide
luded)
inc
door antenna (
in
Ion
where the FM
factory recept
isconnect the FM
satis
D
if an FM outdoor antenna is
door antenna
In
Adhesive tape
FM indoor antenna
(included)
(not included)
talled
INS
An outdoor antenna should be installed by a qualified technician
- -— FM outdoor antenna
(not included)
#4 75 €) coaxial cable
(not included)
Antenna plug adapter
(included)
SERRE ISERE
ENE = satiné
po
ZE
de
ETE
AM loop antenna
(included)
AM loop antenna
holder (included)
©
1
AM ANT
AMLOOP ANT|ESy-———
Le A
Screw (included)
Vinyl-covered wire
(not included)
AM loop antenna
k————Bb512m— — (included)
y
N
ÁM ANT
AM LOOP ANT | Е
Antenna connections
AM loop antenna (included)
This antenna is normally sufficient for reception of AM broadcasts.
Fit the AM loop antenna holder (included) onto the rear panel of
this unit and then attach the AM loop antenna to the AM loop
antenna holder (facing in the direction of best reception).
Pay attention to the following points when mounting the
antenna.
e Do not mount it close to power cords, speaker wires or metal
surfaces (doing so will result in noise).
e Do not mount it close to a tape deck. When the tape deck is
being used, chirping or beeping sounds may result.
When mounting the antenna to a column, a wall or rack El
Mount the antenna so that the hinge is vertical.
AM outdoor antenna (not included)
An outdoor antenna should be used when using this unit in
mountainous areas or in spaces enclosed by reinforced concrete
where the AM loop antenna (included) does not provide
satisfactory reception.
Stretch 5-12 m of vinyl-covered wire horizontally across a window
frame or other convenient location, keeping it as high as possible
from the ground.
When the unit is not in use, disconnect the outdoor antenna to
prevent possible damage that may be caused by lightning. Never
use an outdoor antenna during an electrical storm.
Be sure to connect the AM loop antenna even when an outdoor
antenna is used.
13
RQT5033
Speaker connections
Placement of speakers
Front speakers
Front speaker Place the front speakers on the left and right of the TV at seated
(right) ear height so that there is good coherency between the picture
Center speaker
Front speaker (not included)
(left)
(not included) on (not included) and sound.
a — Center speaker
= Ly Place this speaker underneath or above the center of the TV. Aim
the speaker at the seating area.
Subwoofer
(not included) Surround speakers
Place these speakers on the side of or slightly behind the listener,
and about one meter higher than ear level.
Subwoofer
The subwoofer can be placed in any position as long as it is at a
reasonable distance from the TV.
Note that some experimentation can yield the smoothest low
Surround speaker Surround speaker frequency performance. Placement near a corner can increase the
(left) (right) apparent output level, but can result in unnatural bass.
(not included) (not included)
Connecting speakers
Other connections are possible depending on your speaker system.
See your speaker system's operating instructions for details.
| Front speakers
Front speaker Front speaker
(right) (left)
| Speaker cables
i (not included) (not included) (not included)
“B” terminals
For connection to a second pair of speakers.
Use the A terminals to enjoy Dolby Pro Logic and
7 DVD eCH INPUT.
RQT5033
Bi-wiring connection
When bi-wiring, use speakers designed for that purpose that have combined impedance of 6-16 4.
Front speaker Speaker cables
(right) (not included)
(not included)
Front speaker
(left)
(not included)
Speaker cables
(not included)
Speaker impedance:
A or B: 4-16 Q
À and B: 8-16 Q
BI-WIRE: 6-16 Q
(7 — N
Connecting the cables
1 2 3
To prevent damage to circuitry,
never short-circuit positive (+)
4 and negative (—) speaker wires.
— su
15
RQT5033
Speaker connections
Other speakers
Subwoofer without
built-in amplifier
Center speaker
(not included)
(not included)
Speaker cables
(not included)
Monaural
connection cable
(not included)
Surround speaker
(left) (not included)
Surround speaker
(right) (not included)
~
Speaker cables
(not included)
For subwoofer
You only need to make one of the shown connections to get
sound from the subwoofer.
To connect a subwoofer which has a
built-in amplifier
Speaker impedance:
— Center speaker: 6-16 Q
INPUT Surround speaker: 6-16 Q
Subwoofer: 6-16 Q
Subwoofer with built-in
amplifier (not included)
RQT5033
-
»
4
ny
"
*
hd
»
+
*
К]
о I
O Or ra a due
Зе (
Nt
OOCOOOOO
OOODOCD
=— SPEAKERS —
IO
A. 8 €
Selected source
Basic operations
Before operation, set [VOLUME] to the “MIN” position.
Press [ 0/1].
Select the speaker system(s) to be used.
The buttons A, B and LEXMIMIY refer to the speaker
terminals at the rear of the unit.
If the button is pressed once more, the indicator will switch
off and no sound will be heard from the speakers.
CIR and A, or EIEME and B cannot both be used at
the same time.
Turn [INPUT SELECTOR] to select and start
the desired source.
(Refer to the appropriate operating instructions for details.)
The indicator corresponding to the selected source lights and
the source is shown on the display.
The selected source and “INPUT” will be shown on the
display.
TAPE (MONITOR): To listen to cassette tapes
VCR 1: To watch video tapes (VCR 1)
TV/VCR 2: To watch TV or video tapes (VCR 2)
VCR 3: To watch video tapes (VCR 3)
DVD: To watch DVD
CD: To listen to compact discs
TUNER: To listen to radio broadcasts
PHONO: To listen to phono discs
To watch a video (or DVD) or the TV, set the TV to either the
TV mode or VIDEO mode.
Adjust the volume level.
For your reference
e If a Dolby Pro Logic mode has been selected
After displaying the selected source, the display will then
change to show the Dolby Pro Logic mode and “INPUT” will go
out.
(=? раде 29)
If the source chosen was TUNER then the display will change
again to show the frequency.
e If you are using VCR and you select TAPE, CD, TUNER, or
PHONO
The picture will remain on the screen.
e The volume control
The volume control on this unit allows more gradual adjustment
compared to past models, thus making it easier to make fine
volume adjustments during normal use.
When you finish listening
Be sure to reduce the volume level, and switch the power to the
standby condition by pressing [ O 11).
17
RQT5033
(5 нон ны
o
o
o
o
o
o
o
О
PUSH OPEN
=—SPEAKERS—=
se
TAPE
MONITOR
|
BALANCE
perles
ROT5033
Basic operations
To open the front cover A
Press [PUSH OPEN]
Push the cover closed by hand.
| For front speakers with an impedance ender 6 2 E
Press and hold [A] or [B] until “LOW IMP” lights
up on the display.
If even one of the speakers being used has an impedance under
6 4, press and hold down either [A] or [B] for 4 seconds or more to
set the impedance on the main unit to LOW.
Press and hold down once again for 4 seconds or more to turn it
off.
Note that when “LOW IMP” is illuminated, speakers [A] and [B]
cannot both be used at the same time.
To change speakers when “LOW IMP” is on:
e.g. To use speaker B, press [A] ( “IY” goes out), and then press
[B] to activate speaker B.
| The TAPE (MONITOR) indicator
This indicator lights in the following two situations:
1. While TAPE is selected.
2. While TAPE MONITOR is in use.
Tape monitor
If [TAPE MONITOR] is pressed while a source other than
TAPE is selected, the “TAPE (MONITOR)” indicator lights and the
tape monitor comes on.
Sources other than tape can still be selected with [INPUT
SELECTOR] while the “TAPE (MONITORY indicator is on.
Press [TAPE MONITOR] again to turn the tape monitor off.
(=) See “Making a recording” on page 36 for details on how to use
the tape monitor during recording.
Cee ETES quality
Turn [BASS] to adjust the low frequency sound.
Turn [TREBLE] to adjust the high frequency
sound.
To adjust the sound balance
Turn [BALANCE] to adjust the left/right sound
balance.
|
SE
90600000
О
m. am
——
000000
cococo|[ |
000)
—
BI-AMP
-— SPEAKERS —L >
Bl-AMP
BALANCE
/
Y
CO:
У
LF HF
a - + a
® + a # *
С — SUBWOOFER—=
( Need,
LUN
LEVEL
MIN
BA | -——SUBWOOFER—
ADAPTIVE
CONTROL
>
SUBWOOFER
LOW PASS FILTER
O)
Basic operations
To enjoy bi-amp sound El
By using the bi-wiring feature of this unit to connect your speakers,
you are able to take advantage of two separate amplifiers for the
high frequency and low frequency ranges. This enables more highiy
defined sound reproduction of the two ranges thus producing high
quality bi-amp stereo sound.
Ensure “BI-AMP” illuminates when GIEMETS is
selected.
BI-AMP will turn off and the indicator will go out in the
following cases:
e |f any of the Dolby Pro Logic modes are turned on.
e If DVD 6CH INPUT is selected.
| To adjust the high and low balance El
Turn [BI-AMP BALANCE] to adjust the LF/HF
balance.
This adjusts the high and low frequency output of bi-wired front
speakers.
The setting depends on the speakers being used.
Adjust the balance to suit your room's acoustics and the features of
the speakers.
To adjust the subwoofer level
Turn [SUBWOOFER LEVEL] to adjust its level.
If the subwoofer isn't being used, be sure to set it to MIN.
El
To compensate when the volume is low
This button balances low volume sounds by boosting bass sound
pressure of the front speakers and subwoofer.
This function allows you to enjoy balanced sounds even if the
volume is low.
Press [SUBWOOFER ADAPTIVE CONTROL].
The message “ON” will appear on the display for 2 seconds.
“SUBWOOFER ADAPTIVE CONTROL” indicator will light up.
To return to the previous condition, press once again.
The message “OFF” will appear on the display for 2 seconds, then
the indicator turns off.
To adjust the output range of the subwoofer
Turn [SUBWOOFER LOW PASS FILTER] to select
a suitable frequency.
The setting depends on the room's acoustics, the peculiarities of the
subwoofer, and the interaction of the subwoofer and the front
speakers.
Adjustments can not be made when DVD 6CH INPUT has been
selected.
RQT5033
ROT5033
Г
/ /
0 Oo 0 O0 O0 QO O
o О
SD
Г. Ir щен
—
“и”
о оософос
: Q000O0
INPUT SELECTOR
Selected band
e ® y # a ее & & @ ®
Listening to radio broadcasts
Sequential tuning
Use the tuning buttons to tune-in radio stations.
Turn [INPUT SELECTOR] to select “TUNER.”
Press [-BAND, -FM MODE] to select “FM” or
“AM.”
Press [TUNING (\/ or A)] to tune to the
desired frequency.
“TUNED” lights up when tuned. |
“STEREO” lights up when an FM stereo broadcast is
received.
To make an automatic search for stations
If [TUNING ( V or A)]is held down for an instant until the
frequency begins to scroll, the broadcast stations are tuned
in automatically when one is found.
Tuning may stop automatically if any jamming is
encountered.
If noise is excessive in the FM stereo mode
Press [-BAND, -FM MODE].
(“STEREO" will go out, and “MONO” will light up).
The broadcast will be monaural, but noise will be reduced.
If the button is pressed once more, the stereo mode resumes.
For your reference
The tuner can pick up interference from DVD players. If this
occurs turn the DVD player off.
To change the AM frequency step
Press and hold [-BAND, —FM MODE] for about 3 seconds when
AM band is selected. (The frequency step changes from 9 kHz to
10 kHz per step.)
To return to the previous step, press and hold [-BAND, —FM
MODE] for about 3 seconds again.
Listening to radio broadcasts
Direct tuning
by remote control only
Specify the frequency using the numeric buttons on the remote
control to directly tune to the desired station.
Press [TUNER/BAND].
This will set the remote control to operate the tuner.
The selector on the receiver will change to “TUNER.”
Each time the button is pressed, the band will change as
follows,
РМ + AM.
Press [DIRECT TUNING/DISC ENTER].
While cursor display is flashing (approx. 10 seconds)
Press the numeric buttons to enter the
frequency.
If the desired FM frequency is 107.90 MHz, press
>[0)>[7)>[91>[0).
If the frequency has been input correctly, the displayed
frequency will blink once.
1. If no button is pressed while the cursor display is flashing,
the display will return to the frequency which is currently
DIRECT TUNING/ I — being received.
DISC ENTER o | «| To re-specify the frequency, repeat the procedure from
! | step 2.
2. If the frequency has not been input correctly, “ERROR”
Will be displayed.
In this case, re-enter the frequency.
2]
RQT5033
RQT5033
00000000
o ooooooë&
OO 900009007
MEMORY
Listening to radio broadcasts
| JET ne | !
Presetting radio stations into the memory channels of this unit
makes selecting stations simple.
A total of 30 FM and AM stations can be preset.
Please remember this
If a new station is preset into a channel, the setting for the station
which was previously entered in that channel will be automatically
erased.
| Automatic memory presetting
Automatic memory presetting allows this unit to automatically
search for broadcast stations and then preset them into memory.
With this method, the channels that can be preset into the memory
are set as follows for different bands (FM or AM). |
When FM stations are preset,
For FM stations .............e—...r.eeserenireener nen 1-30
When FM and AM stations are preset,
For FM stations ..............meve=memiiieceae 1-20
For AM stations .............. 2130
EN Set to the frequency from which you want to
start automatic memory presetting.
= Page 20, 21.
A Press [MEMORY] until the frequency begins
to change.
Automatic memory presetting will start.
During automatic memory presetting, the memory indicator
will flash while the frequency scrolls.
To stop, press [MEMORY] again.
When a broadcast station is preset И]
The memory indicator and the preset channel number will be
displayed for approximately 1 second.
When presetting is completed
The last broadcast station to be preset will be displayed.
Frequencies may not be preset correctly in cases where the
broadcast waves are too strong or too weak. In such cases, carry
out presetting manually (= page 23).
0000020000
()°
00000
MEMORY
Listening to radio broadcasts
| Manual memory presetting
The desired stations can be preset into the desired channels by
the user.
Set to the desired frequency.
(= Page 20, 21.)
If interference or static is keeping you from enjoying an FM
broadcast, press [-BAND, —-FM MODE] and change to
monaural.
You can preset the station in monaural just as in stereo.
Press [MEMORY].
To cancel the memory function, press [MEMORY] again.
Press [TUNING (\/ or A)] to select the
desired channel.
Holding the buttons down lets you scroll through channels
faster.
Press [MEMORY].
The channel will blink on the display.
To continue presetting
Repeat steps 1 through 4.
RQT5033
RQT5033
I
o
o о o
ооо o( |]
O 100000%o
ООО! Сосо
{
90000000
ON
FE —
щи”
PRESET
Listening to radio broadcasts
To listen to preset channels
1 Press [PRESET].
2 Press [TUNING (V or Aj].
Holding down the buttons lets you scroll through channels
faster.
The channel number flashes for approximately 5 seconds.
Select the desired channel number during that time.
After 5 seconds, the display will change from the channel
number to the frequency.
If you press [PRESET] while the channel number is displayed, the
display will change to the frequency.
To confirm the channel number of the broadcast
station being received
Press [PRESET].
The channel number flashes for approximately 5 second.
Note
The channel number is not displayed if you change the frequency
or FM mode setting.
For your reference
Even if the power cord is disconnected from the household AC
outlet, the memory will retain its contents for approximately one
month.
If frequency presettings are accidentally erased
Program the presettings once again.
The power cord should remain connected for one hour or more for
the memory back-up to be effective.
осо
о 0000000
| pOOOOCH
o O00 00
QQ: о © Or
оО О
36000 °()
[
00000 |
DISPLAY MODE
Enjoying RDS broadcasts
RDS (Radio data system) is a muitiplex broadcasting system.
Along with the audio signals of FM broadcasts, text information
and other signals are transmitted to help you enjoy radio more and
make tuning into programs easier. This unit can use the following
types of signals.
e PS (Program service):
The name of the station can be displayed.
e PTY (Program type):
The type of program can be displayed. This signal can also be
used to search for a type of program (= page 26). See page 28
for more information about the PTY displays.
e EON (Enhanced other networks):
This signal is used between networked stations to make it
easier for listeners to tune in to a type of program (= page 27).
e RT (Radio text):
This is text transmitted by the station. This unit can show a
maximum of 64 characters by scrolling it across the screen. The
text could be information about the song playing, traffic and
weather reports, phone-in numbers, or police information.
Some areas do not currently have PTY, EON, and RT.
To display RDS information
The display normally shows the radio frequency. When the “RDS”
indicator lights, the station is broadcasting RDS signals.
Press [DISPLAY MODE].
Each time the button is pressed, the display changes as follows.
—» (D Frequency display
O PS display
| (See below if PS is not displayed)
(9 PTY display
| (NO PTY is displayed if PTY signals are not being
; received, then the frequency is shown again.)
Y
— (O RT display
(There is no change if RT signals are not being received.)
If RDS signals are not being received, the “RDS” indicator does
not light and there is no change when the button is pressed.
For your reference
Occasionally PS isn’t displayed even if PS signals are being
received. You may be able to see PS if you change the reception
mode.
Press and hold [DISPLAY MODE].
The mode switches between “MODE 1” and “MODE 2” every time
the button is pressed and held.
If PS isn't displayed, PS signals are not being received. Restore
“MODE 1” in this case.
RQT5033
Enjoying RDS broadcasts
PTY search and EON tuning
Before trying to use these functions, it is necessary to preset radio
stations into the receiver's memory (™ page 22 and 23). Neither
of these functions will work if stations have not been preset,
| ©
со 4 @ f | PTY search
> le
ООО cede 5 | Carry out this operation while listening to an FM broadcast.
PTY search finds a particular type of program for you.
1 Press [PTY SELECTOR (v or A] to select the
desired program type.
Each time you press these buttons, the PTY display will
change in sequence. (For PTY displays: = page 28.
While the PTY display is flashing (approx. 10 seconds)
Press [PTY SEARCH].
“PTY” flashes while the search is carried out.
. LE .е . + a » ° ее # . a ФФ = aa те ее «a € # . a ФФ + + # 4
When the selected type of program is located:
The receiver automatically switches over to the station
broadcasting the program. The PTY indicator continues to flash for
about two seconds after the program is found. During this time the
display changes, first showing the preset channel number, then
the frequency of the station, and finally the previously selected
display mode is resumed.
Restarting a search:
It is possible to restart the search during the two seconds that the
PTY indicator is flashing after the program is found, simply by
pressing [PTY SEARCH] again.
It is also possible to search for the same kind of program on
another station by pressing [PTY SEARCH] at any time if the
display is in PTY mode. If [PTY SEARCH] is pressed in any other
mode, the message “SELECT PTY FIRST” scrolls across the
display.
If the desired type of program is not found:
NO PTY” will be displayed for a moment, then the current
frequency and the receiver will return to the original display.
ced
RQT5033
=
o
o
00
O
sof)
oO 0 0 0 0 0 0 0
O°
о
ОО су о
ос
= НЙ
[|
00000
2060
Enjoying RDS broadcasts
| EON tuning
EON tuning is useful if the type of program you want to listen to is
not currently being broadcast. It allows you to set the unit to
automatically change to a particular type of program when one
begins.
EON tuning only works if RDS data and EON signals are being
received.
EON tuning finds programs on stations that share EON signals.
Press [PTY SELECTOR (v or A)] to select the
desired program type.
Each time you press these buttons, the PTY display will
change in sequence. (For PTY displays: = page 28.)
While the PTY display is flashing (approx. 10 seconds)
Press [EON].
“EON” will light up.
The current station remains tuned in until the selected type of
program begins. When the receiver finds the type of program you
selected, “EON” appears on the display and the message “OTHER
PROGRAM SERVICE” scrolls from right to left across the display.
The receiver automatically changes over at this time. If the type of
program you selected is currently broadcasting, the receiver will
immediately change to that station.
EON tuning turns OFF if you operate the tuner (= pages 20-24),
change the input source, or turn the unit OFF.
When “NO EON” is displayed:
The broadcast you are presently receiving does not provide EON
service.
To check the program type while on reception standby:
Press [PTY SELECTOR (V or Aj].
The program type last selected will be displayed for approximately
2 seconds. (“EON” will flash.)
If you press one of the buttons again while the program type is
being displayed, you will turn EON tuning OFF.
To cancel EON tuning:
Press [EON].
“EON” will go out.
27
RQT5033
RDS broadcasts
Enjoying
LY
About the PTY d
The display
is un
is presse
isplays on thi
[PTY SELECTOR
The table below shows the order
There are a total of 31 PTY d
d
lay changes,
т
h the d
lay
(V or A)
in w
f each d
me
changes each t
isp
IC
h
isp
ives an explanation o
and also g
©
o ©
3 5
c > < 2
= 2 2 5
«© © od
< a °ol_| 8 E ol .L B|
= = Ф| | © © © | 2 снеге
Q © ol cl. @ ols = 5}! = cl © >,
Ш < | 2 5 'D| S 5 2/9| 31€ + с о = w| S| 8 ©
| tu = D 3 P| 8B a Elo] 9 5S 5 | 2| 2 = 2 2218
< © | © 2 © | с Edo Ре 2 — 2 al LL ELE S| vw] E| E| 5] ©
2 DE SEsScaEL Esso Seo c| of ® 3 =
3510) 93) Ss = 2/99 SE =| 2 5 e 22 522 N| SISI x=|3|5| 6
52 ao oso Zas eL EN EEE
ZO E£auaoaa>arc=iaooSsioarcariSoz: oax:
_ > E
À
3 |o НН === 06 wa <315| Jul EZ Ш
т oC H|<| <= 2/8 oc plc TQ lI wiggle FZ == =
ag= | £ SPS" Cu EZ <a ZE5| 12/6 915151-12
Su 903 <= L|djoj0/0o/5/< 1453 = 20/7 60 2 2 N5 Fa 525€
WU A OE OOOO JE 1 Ou iciu<co<-ooul3
Z|< <a> ar= ooo carliSozoar:zZz
Emergency Broadcast System which
to emergency broadcasts when they beg
t does not have EBS-
is uni
tunes automat
Th
In.
In
Пу
ica
RQT5033
Dolby Pro Logic
| Dolby Pro Logic SURROUND mode EN
By reproducing the feeling of depth and movement of sound, video
software or compact discs recorded with Dolby Surround provide
the listener with a feeling of presence like that of a movie theater.
EL 0000 O Л (0 = | Dolby Pro Logic 3 STEREO mode El |
Ten 0004000 — OO 000 = You can enjoy audio/video sources with clear sound, more
presence and a good feeling of orientation. 3 STEREO can be
used with stereo sources not encoded with Dolby Surround.
Setting the center mode and Tr speaker
output level
- JEPRO LOGIC
-CENTER MODE
Adjust speaker level so the output from the center and surround
speakers is the same apparent level when sitting where you wouid
normally enjoy a source.
Preparation
e Turn ON the speakers with [A] or [BI-WIRE].
e Adjust front speaker balance with [BALANCE].
- BOPRO LOGIC
-CENTER MODE
Press [-OMPRO LOGIC, -CENTER MODE] to
select “SURROUND.”
Each time the button is pressed, the Dolby Pro Logic mode
will change as follows
SURROUND += 3 STEREO.
1. Select “3 STEREO” if surround speakers have not been
connected.
2, Remember you cannot adjust the output level of the
surround speakers if you selected *3 STEREO” mode.
, 60000000 Press and hold [-OOPRO LOGIC, -CENTER
= àooû à | LO MODE] to select the correct center mode.
O When the button is pressed and held, the current center
0 ooodaoo mode is displayed.
2530521] 00000]
Pressing it again changes the center mode.
NORMAL
When the center speaker is smaller than the front speakets.
WIDEBAND
When the center speaker is the same size as or larger than
the front speakers.
- DOPRO LOGIC PHANTOM SURROUND mode only
-CENTER MODE When no center speaker is connected.
In the PHANTOM mode, the sound which would have been
sent to the center speaker will be divided equally between
both the left and right front speakers.
(Continued on next page)
- DOPRO LOGIC
-CENTER MODE
RQT5033
IV. YOR AUDICH
TAPE CD AND
PPP
Press [TEST] to output a test signal.
The speaker outputting the test signal is displayed while the
test is running.
: Front speaker (Left
: Center speaker
: Front speaker (Right
: Surround speakers
DOM
The subwoofer is muted while testing.
In the PHANTOM mode, the center speaker is OFF, so there
is no center test signal and “C” is not displayed.
by remote control
Press [VOL (- or +)] to set the volume level
normally used for enjoying the source.
by remote control only
Press [LEVEL] to select the center or
surround speakers.
by remote control only
Press [-] or [+] to adjust the output level to
the same apparent level as the front
speakers.
SURROUND: L--C—R— S
tr |
—: Decrease the output level.
3 STEREO: ; —C— A +: Increase the output level.
Output level can be varied within a range of —12 dB to
+12 dB with front speaker output level serving as the zero
point.
Note
During steps 5 and 6 above the test signal sequence is
interrupted and the signal will only come from the selected
speaker.
The sequence will resume when adjustments are stopped.
Va Repeat steps 5 and 6 for each speaker
channel.
To stop the test signal
Press [TEST].
To turn off the Dolby Pro Logic systems
Press [STEREO].
ROT5033
ES
ООО” ОВО
00:00
o
~
+
SURROUND
Center speaker
Front Front
speaker speaker
(left) (right)
D» D2
Surround speaker Surround speaker
(left) (right)
Dolby Pro Logic
Adjusting the delay time
by remote control only
Adjust the sound from the surround speakers until the proper
effect is produced.
Press [SURROUND].
This procedure can be done only in the SURROUND mode.
Press [DELAY].
When the button is pressed, the current delay time is
displayed.
Press [-] or [+] to set the time.
Each time the button is pressed, the delay time will change
by 5 ms within a range of 15 ms to 30 ms.
The standard setting is 20 ms.
| To calculate the delay time El
D:: Distance from front speakers
Da: Distance from surround speakers
e |f D: is equal to or less than D:
Set to 15 ms.
e |f D: is less than Dx
Start at 15 ms and increase by 5 ms for every 1.5 m of
difference between D: and De.
Manufactured under license from Dolby Laboratories Licensing
Corporation.
DOLBY, the double-D symbol DO and “PRO LOGIC” are
trademarks of Dolby Laboratories Licensing Corporation.
31
RQT5033
Dolby Pro Logic
A...
A
Ensure you have your speakers set up in either of the
following ways.
® The front speakers are connected to the A terminals
(= page 14) and “SPEAKERS A” is selected.
e The front speakers are bi-wired (= page 15) and “SPEAKERS
BI-WIRE” is selected.
Turn [INPUT SELECTOR] to select the desired
» 0086000 source.
06 Sr 9000005
Start the source.
3 Select the mode.
The selected reproduction mode appears on the display.
= Page 29 for descriptions of the modes.
INPUT SELECTOR | To turn off the Dolby Pro Logic modes
O ) Press [STEREO].
- DIPRO LOGIC | e These modes cannot be turned on while “SPEAKERS B"” is on.
-CENTER MODE These modes are automatically switched to STEREQ if
SPEAKERS B is selected and the modes in the memory for all
sources will also be switched to STEREO. The modes must be
selected again for all sources when SPEAKERS B is turned off
again. |
® BI-AMP and Dolby Pro Logic cannot be used at the same time.
If you are using BI-AMP and you select a Dolby Pro Logic
mode, BI-AMP will turn OFF and the “BI-AMP” indicator will go
out.
For your reference
You can set the sound mode for each source.
Each source will retain the selected mode.
RQT5033
— / f
05000000
o ph O
5 9900 50) o
— I AN A
‚ © 0600000
eds
00000 ||
INPUT SELECTOR
O)
DVD
ECH INPUT
DVD 6CH INPUT mode
Use this mode when playing back 6 channel discrete sources such
as Dolby Digital and DTS. To use this mode connect a DVD
player, digital surround processor or any other component that has
6 channel discrete output capabilities (» Page 10).
Dolby Digital, DTS and other 6 channel discrete sources are
recorded with each speaker channel discrete from the other.
Depth, movement, position and other characteristics are
maintained, so using this mode will make you feel as if you were
at the movie theater when in your own home.
Ensure you have your speakers set up in either of the
following ways.
e The front speakers are connected to the A terminals
(» page 14) and “SPEAKERS A” is selected.
e The front speakers are bi-wired (= page 15) and “SPEAKERS
BI-WIRE"” is selected.
i Turn [INPUT SELECTOR] to select “DVD.”
Press [DVD 6CH INPUT] to select “DVD 6CH.”
Changes as follows, each time the button is pressed.
DVD 6CH — DVD (2CH)
If you press this button while another source (CD, PHONO,
etc.) is selected, the receiver switches the source to DVD
and engages the DVD 6CH INPUT mode.
Start the desired source.
Follow your equipment’s operating instructions.
e This mode cannot be turned on while SPEAKERS B is on. This
mode is automatically cancelled if SPEAKERS B is selected
and the modes in the memory for all sources will also be
switched to STEREO. The modes must be selected again for all
sources when SPEAKERS B is turned off again.
e You cannot select Dolby Pro Logic modes while in the DVD
6CH INPUT mode.
e BI-AMP and DVD 6CH INPUT cannot be used at the same
time.
If you are using BI-AMP and you select DVD 6CH INPUT,
BI-AMP will turn OFF and the “BI-AMP” indicator will go out.
RQT5033
VGCA mode
ier
trol ampl
IN Con
iable ga
-the-art vari
of
t features a state
is un
Th
VGCA)
This feature cuts down greatly on no
(
tered during
ise encoun
»
normal use
[INPUT SELECTOR] to select the source.
Turn
lected
IS se
»
“VGCA”
hts when
19
icator li
ind
“VGCA”
“VGCA ON”
The
OFF”
A Press [VGCA]
)O © |
“TONE DEFEAT / DISPLAY
then
isplayed
a
is d
scrolis across the d
lay then turns off
the current frequency
isplay. The disp
IC
OO
O
000
o
om | |O
CO
If TUNER was chosen as the source
hown.
ISS
d source.
Ire
ipmen
Start the des
ing instructions.
s operat
t
Follow your equ
To confirm the current display
Press [STEREO]
The d
lay comes on for about 3 seconds.
isp
INPUT SELECTOR
For your reference
You can set the VGCA mode for each source.
Each source will retain the selected mode.
de.
is on.
ity (bass and treble) cannot be adjusted in this mo
e Tone qual
des cannot be selected while VGCA
These modes are also canceled when VGCA is turned on and
ic mo
STEREO mode is engaged.
e Dolby Pro Log
| To have the display on constantly
The display is turned off while VGCA is on to cut down on
if you would prefer to have
ing
. Do the follow
unnecessary noise
the display on.
O Turn [INPUT SELECTOR] to select a source other than
TUNER.
@ Press [VGCA] to turn VGCA on.
® Press and hold [VGCA] for about 4 seconds until the
display comes on.
turned off.
|5
lay off aga
ive even if the uni
Ins act
This setting rema
in
isp
Repeat the procedure to turn the d
RQT5033
{
9000060000
y - o o
Q OOO 0
—
— AE
O
§ 0900900000
ho ccooocm
©Edlooo |
Go — vo. +
=e OO
(2) PHONES
VOLUME
Headphones
(not included)
+ + * * + * a + * * a + + + + Led = +
D @ ©
DISPLAY MUTING
- =
Other functions
To mute the sound level E
by remote control only
Press [MUTING].
The message “MUTING ON NOW” runs repeatedly from right to
left across the display as long as the muting function is on.
Press once again to return to the previous volume level.
Muting is cancelled when the receiver is turned off.
To listen through headphones El
(1) Reduce the volume level.
@ Connect the headphones.
Plug type: 6.3 mm stereo
@ Adjust the volume level.
Turn the speakers off when using headphones. Turning the
speakers off automatically engages STEREO mode and ensures
no sound is heard from the subwoofer. If either SURROUND or 3
STEREO is used, the sound heard through the headphones will
seem unusual.
Avoid listening for prolonged periods of time to prevent hearing
damage.
When using the VCR 2 terminals (front panel)
This button can be used only when TV/VCR 2 is selected as the
input source.
The TV/DSS, VCR 2 input select button works for both TV input
and input from the source connected to the front panel “VCR 2°
terminals.
(= Page 9.)
Set to “ a. TV” or “ = VCR 2”.
Lee RCE UTA
by remote contro! only
Turning off the blue light can improve video viewing in dark or
dimly lit rooms.
Press [MUTING].
O (within 3 seconds)
Press [DISPLAY].
The blue light is turned off.
3 Press [MUTING] to cancel the muting function.
Repeat to turn on again.
This light comes on when the power is turned on.
RQT5033
RQT5033
/
a 0 0 Ofo0 0 00
o O
CO
—
a
000000
1000: Y 09090007
“и
INPUT SELECTOR
O)
MONITOR
Making a recording
When you select DVD 6CH INPUT mode, only sound from the front
left and right speakers is recorded.
To record all 6 channels
Set the playback mode on your DVD player or decoder to 2 channel
stereo) mode.
For details, see the instruction manual that came with the
connected equipment.
Recording to a tape deck or VCR
You can record to a tape deck connected to TAPE REC (OUT) or
to a VCR connected to VCR 1 OUT.
See the recording unit's operating instructions for details on how
to prepare it for recording.
When recording with a tape deck, you can record any source
except TAPE.
When recording with a VCH, you can record any source except
TAPE or VCR 1.
Recording from the tape deck to the VCR is not possible.
Turn [INPUT SELECTOR] to select the source
to be recorded.
you selected TV/VCR 2 in step 1, set [x TV,
= VCR 2] to the required position.
Begin recording.
Follow your recording unit's operating instructions.
Start the source to be recorded.
Follow your equipment's operating instructions.
| To monitor sound being recorded onto a tape deck F1
It is possible to check the sound being recorded if your tape deck
is a 3 head system.
Press [TAPE MONITOR] on this unit and set the
monitor button on the tape deck to “TAPE.”
Press [TAPE MONITOR] once again to turn it off.
For your reference
Use the VCR 2 terminals on the front of the unit when dubbing
from a video camera.
90006000
o e
SO
Ne,
oo000m[
SLEEP timer mode
Timer function
There are two timer functions: the sleep timer and the wake timer.
® Sleep timer:
The unit turns off after a set time.
It can be set for 30, 60, or 90 minutes.
e Wake timer:
The unit can be set to turn on a certain number of hours after it
is turned off.
It can be set for 5, 7, or 9 hours.
Setting the timers
IN Press [TIMER] to select the desired timer
mode.
The timer mode changes as follows:
SLEEP — WAKE — OFF
PA [Within 5 seconds]
Press [TIMER] and release when the time you
require is displayed.
The display changes as follows:
e In sleep timer mode
30 — 60 — 90 (minutes)
A |
e In wake timer mode
5H — 7H — 9H (hours)
+s __ |
The display is restored 5 seconds after the setting is
completed.
© Wake timer mode only
Press [ 5/1] to turn off the unit.
The “WAKE” indicator lights up.
Checking the remaining time on the sleep timer and the
time set for the wake timer
Press [TIMER] once.
Do not press [TIMER] again before the remaining time indication
goes out.
The setting may change if you do this.
Changing a setting
Repeat steps 1 and 2.
To cancel the timer
Press [TIMER] until “OFF” is displayed.
“SLEEP” or “WAKE” will go out.
e The timers cannot be used together.
e The sleep timer turns off the receiver, and the wake timer turns
on the receiver, but they do not turn off/on any externally
connected components.
37
RQT5033
Troubleshooting guide
Before requesting service for this unit, check the chart below for a If you are in doubt about some of the check points, or if the
possible cause of the problem you are experiencing. Some simple remedies indicated in the chart do not solve the problem, refer to
checks or a minor adjustment on your part may eliminate the the directory of Authorized Service Centers (enclosed with this
problem and restore proper operation. unit) to locate a convenient service center, or consult your dealer
for instructions.
| Problem | Probable cause(s) Suggested remedy | Page(s) |
While listening to FM broadcasts
Hiss is heard during Modulation for the two types is different so | € Reduce the treble. | 18
stereo broadcasts, but not |some noise may be heard during stereo | e Change the location and direction of the 12
during monaural ones. broadcasts. antenna.
7 CT Da ® Use an outdoor antenna. 12
Excessive noise in both Antenna location and direction poor. e Use an antenna with more elements. _
stereo and monaural
broadcasts. Station is distant.
“STEREO” and “TUNED” Antenna location and direction poor. e Change the location and direction of the 12
indicators flicker. antenna.
Station is distant. e Use an outdoor antenna. 12
e Use an antenna with more elements. —
Stereo broadcasts highly Building or mountain nearby.
distorted.
While listening to AM broadcasts
Unusual “beat”sound is A television is on nearby. e Separate the two or turn the television off. —
heard.
Adjacent signal is interfering. e Reduce the treble. 18
Low-pitched “hum” is Power cord is near the antenna wires. e Separate the power cord from the wires. —
heard when a station is о
tuned. Electronic interference from the power cord | e Use an outdoor antenna. 13
is fed to the speakers.
A continuous or Interference from other appliances. ® Separate this unit from such appliances. -
intermittent hiss is heard.
An AM broadcast station Frequency step set to 10 kHz. e Hold down [-BAND, —FM MODE] for about 20
cannot be picked up 3 seconds.
clearly. This will change step to 9 kHz.
While enjoying sound modes
Sound doesn’t come from | PHANTOM is selected. ® Select NORMAL or WIDEBAND. 29
the center speaker while
using Dolby Pro Logic.
Sound doesn’t come from | Speaker settings are incorrect. ® Check speaker setting of the DVD player —
the center speaker, or digital surround processor,
surround speakers, or
subwoofer while using DVD
ECH INPUT.
RQT5033
| Problem | Probable cause(s) | Suggested remedy | Page(s) |
Common Problems
Unit doesn't come on. The power cord plug is not fully inserted. ® Confirm the plug is fully inserted. —
Sound la not heard. The speaker indicators are off. e Turn on the speaker indicators. 17
The tape monitor function is on. e Press the tape monitor button. 18
The muting function is on. e Press the muting button on the remote 35
control.
Incomplete or incorrect connection to e Check al! connections. 8-11, 14-16
speakers and external equipment.
The incorrect input source has been | e Select the correct source. 17
selected.
Sound suddenly stops or The protection circuitry has functioned | e Switch off the unit, determine and correct —
none is heard when the because: the positive and negative speaker | the cause, then switch the unit on.
unit is switched on. wires have shorted; speakers with a lower | ® Use speakers with the right impedance 15, 16
“OVERLOAD” appears on |impedance than this unit's rated impedance | rating.
the display. are being used; the speakers are under
strain through excessive volume, excessive
power, or by being used in a high
temperature environment.
If the front cover comes off @
(1 Insert the cover as shown in the illustration.
(2 Ensure the cover is parallel to the unit, then
press firmly down on the levers until they click
into place.
(3) Check that the cover now moves correctly.
If it does not, remove it and repeat the above procedure.
Maintenance
| If the surfaces are dirty |
To clean this unit, wipe with a soft, dry cloth.
If the surfaces are extremely dirty, use a soft cloth dipped in a
soap-and-water solution or a weak detergent solution,
® Never use alcohol, paint thinner or benzine to clean this unit.
e Before using chemically treated cloth, read the instructions that
came with the cloth carefully.
RQT5033
Technical specifications (DIN 45 500)
NM AMPLIFIER SECTION
Power output (at 240 V)
DIN 1 kHz (T. H. D. 1%)
20 Hz-20 kHz continuous power output
both channels driven
Total harmonic distortion
rated power at 20 Hz-20 kHz
half power at 1 kHz
Power output at the Dolby Pro Logic operation
DIN 1 kHz (T. H. D. 1%)
2x100 W (6 Q)
2x80 W (6 Q)
0.05% (6 Q)
0.03% (6 Q)
Front | 2x100 W (6 Q)
Center 100 W (6 9)
Surround 2x100 W (6 Q)
Subwoofer (f=100 Hz)
Power bandwidth
both channels driven, —3 dB
100 W (6 ©)
10 Hz-40 kHz (6 9)
Damping factor 30 (6 Q)
Load impedance
Front
AorB 4-16 Q
AandB 8-16 ©
BI-WIRE 6-16 Q
Center | 6-16 Q
Surround 6-16 Q
Subwoofer 6-16 Q
Frequency response
PHONO RIAA standard curve (30 Hz-15 kHz) +0.8 dB
CD, TAPE, DVD, VCR 1, TV/VCR 2, VCR 3
10 Hz-70 kHz, +3 dB
Input sensitivity and impedance |
PHONO 3 mV/ 47 kQ
CD, TAPE, DVD, VCR 1, TV/VCR 2, VCR 3 200 mV/ 22 kQ
S/N at rated power (6 ©) (VGCA ON)
PHONO 70 dB (IHF, A: 80 dB)
CD, TAPE, DVD (L/R/C/LS/RS), VCR 1, TV/VCR 2, VCR 3
98 dB (IHF, A: 100 dB)
110 dB (IHF A, rated power, S=2 V)
Tone controls |
BASS | 50 Hz, +10 to-10 dB
TREBLE 20 kHz, +10 to —10 dB
Output voltage
TAPE REC (OUT), VCR 1 OUT 200 mV
Channel balance (250 Hz-6.3 kHz) +1 dB
Channel separation 55 dB
Adaptive control (volume at —30 dB) 50 Hz, +5 dB
Headphones output level and impedance 430 mV/330 Q
Subwoofer cut off frequency control 50-200 Hz
Ш FM TUNER SECTION
Frequency range 87.50-108.00 MHz
Sensitivity
S/N 30 dB 1.5 uV/75 Q
S/N 26 dB 1.3 uV/75 Q
S/N 20 dB 1.2 uV/75 Q
IHF usable sensitivity (IHF' 58) 1.5uV/75 Q
IHF 46 dB stereo quieting sensitivity 22 uV/75 Q
Total harmonic distortion
MONO 0.2%
STEREO 0.3%
S/N
MONO 60 dB (75 dB, IHF)
STEREO 58 dB (71 dB, IHF)
Frequency response
20 Hz-15 kHz +1 dB, —2 dB
Alternate channel selectivity
+400 kHz 65 dB
Capture ratio 1.5 dB
Image rejection at 98 MHz 40 dB
IF rejection at 98 MHz 70 dB
Spurious response rejection at 98 MHz 70 dB
AM suppression 50 dB
Stereo separation
1 kHz 40 dB
Carrier leak
19 kHz —30 dB (-35 dB, IHF)
38 kHz —50 dB (-55 dB, IHF)
Channel balance (250 Hz-6.3 kHz) +1.5 dB
Limiting point 1.2 uv
Bandwidth
IF amplifier 180 kHz
FM demodulator 1000 kHz
Antenna terminal 75 Q (unbalanced)
H AM TUNER SECTION
Frequency range 522-1611 kHz (9 kHz steps)
530-1620 kHz (10 kHz steps)
Sensitivity 20 uV, 330 uV/m
Selectivity (at 999 kHz) 55 dB
IF rejection (at 999 kHz) 50 dB
NM VIDEO SECTION
Output voltage at 1 V input (unbalanced) 10.1 Vp-p
Maximum input voltage 1.5 Vp-p
input/output impedance 75 Q (unbalanced)
N GENERAL
Power supply AC 230-240 V, 50 Hz
Power consumption 300 W
(In standby condition: 3 W)
Dimensions (WxHxD) 430x158x378.4 mm
Weight 11 kg
Notes:
1. Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Matsushita Electric Industrial Co., Ltd.
Osaka 542-8588, Japan
En
RQT5033-B
HO599P0 (D)

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
