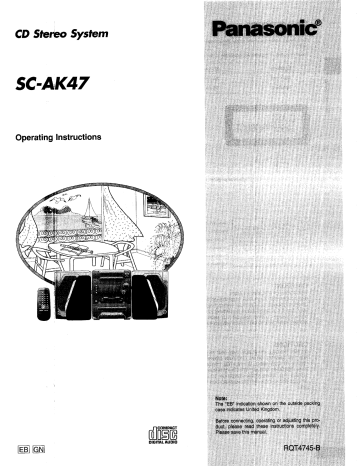

Panasonic SAAK47 Operating instructions

Panasonic SAAK47 Operating instructions
System
Stereo
CD
У
y
DEL
IONS
ing Instruct
Operat
B
E
Before using B
RQT4745
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions
carefully.
These operating instructions are applicable to the following system.
System SC-AK47
Main unit SA-AK47
Speakers SB-AK47
CLASS 1
LASER PRODUCT
(Back of product)
A
INVISIBLE LASER RADIATION WHEN OPEN,
DANGER AVOID DIRECT EXPOSURE TO BEAM.
(Inside of product)
ADVARSEL USYNLIG LASERSTRALING YEO ABNING. NAR SIKKERHEDSAFBRYDERE
ER UDF AF FURKTION. UNDGA UDSETTELSE FOR STRALING.
VARO! AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTINA
di NAKYMATONTA LASERSATEILYLLE. ALA KATSO SATEESEEN.
OSYNLIG LASERSTRALNING NÁR DENNA DEL ÁR ÓPPNAD OCH
(Indersiden at apparatet)
(Tuotteen sisällä)
VARNING SpÄRREN ÄRURKOPPLAD. BETRAKTAE) STRALEN. (Apparatens insida)
USYNLIG LASERSTRALING NAR DEKSEL APNES 06 SIKKERHEDSLAS a
ADVARSEL — parres. UNNGA EXSPONERING FOR STRALEN (Produktets innside)
UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET.
VORSICHT NICHT DEM STRAHL AUSSETZEN (Im Inneren des Gerätes)
CAUTION!
м
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT IN CABINET OR IN ANOTHER CONFINED SPACE IN
ORDER TO KEEP WELL VENTILATED CONDITION. ENSURE
THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OB-
STRUCT THE VENTILATION CONDITION TO PREVENT RISK
OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEAT-
ING.
Supplied accessories
Please check and identify the
supplied accessories.
| |] AC power supply cord ................... me... 1 pc.
For United Kingdom For Australia and New
(RJA0053-2X) Zealand
(RJA0035-X)
(RAK-CH945WK)
| ] Batteries for remote control ....................... 2pcs.
[ | FM indoor antenna................—.—e.e...e ese. 1pc.
For Australia and New Zealand For United Kingdom
(RSA0006-J) (RSA0007)
[|] AM loop antenna set (RSA0022-L)
AM loop antenna.................. e... .enearenenenen 1pc.
Antenna Holder …….…...….….….……crsssenmenemennnnünes 1pc.
|] Antenna plug adaptor (SJP9009) 1pc.
(United Kingdom only)
Use numbers indicated in parentheses when asking for replacement
parts.
Before using
Supplied accessories
aneanunenEeananenaaeDna sucransrenans 2
Suggestions for SAfQY .…….………ermssmemmmenänsennnennnnennnnnnnünûnn 3
Caution for AC Mains Lead ........ A 4
Concerning the remote control .. 5
Battery installation .………….………………emsemenenmmentennsennensennennnn 5
Correct method Of USE ass EHEN SEHEN KENT EEE 5
Placement of speakers .............=-==.e=nenenneenernonnenetenen mane reneenconanaoa 5
Connections ......-ee--.e1ssnineceornenaoenan o iemenoaa aaa eun NENE Ea en NAaNeNa rene NanaaneremenA 6
Basic connections (for supplied accessories) ................——...e=——. 6
Optional antenna connections ..............——.——=————..ereeereseeneee SEE 7
External unit CONNECHON 4.2.00... es 7
Surround speaker connections .................=-.-.eneeenn 7
Front panel controls... . enanimenenroamo 8
Turning the demo function off ...........—.—.«.—xe...reneneneereor ena 10
ECO mode. oran OPP 10
Setting the time . ennanenenacenemenanrannanenenreemenn 11
One-tOUCN PlAY cuvrscronressemmenmensensseansenecransentman a nnnens 11
Listening operations
Presetting radio broadcasts ........
enanaeaoonanunaenerrecanenererDanen 12
Listening to radio broadcasts … cavavauannesensren se 13
Listening to compact diSCS ..….….…—……u0vercceressseenseansennennsennsenmeenencennens 14
Loading and checking CDS .......0.0000400404r0r rn EEE 14
Sequential play a... imines 15
Direct access play aa... EEE HENKE BERKER REKEN REGEN 16
Repeat play «sc... EEK EREENRT EEE NE EEE KO EEEKEE EEK EEOHG 16
Random play ss. r EEE KANNE ER EE EN EE REN HERE E RER EEE EEE 16
Program play aa... rer icine sss es 17
To listen to special CDs and tracks (CD Manager function) ..... 18
Listening to tapes.....
Recording operations В
Before recording (Deck 2 ONly) .…………-0mcrcrscerenneemennsen enssonvenneccreceeee 21
Recording from radio broadCastS _…..…..-..-…..……+100sreunemmanenasernacenncs 22
Recording from compact disCS .........….………..….…..…seruonsemencenmentçenennnn 23
To record special CDs and tracks (CD Manager function) ........ 24
Tape-to-tape recording .... eanaDaanaveneaacanNNAenenaneneneranantanenen rene 25
Sound quality/ TE TL
Using the built-in sound quality/sound field settings ..............- 26
Boosting the super WOOfEF .….……....-….….0rmemreammennnnnmnnnMnnnnnnnnnnn 26
Varying the sound quality with the acoustic image
(Al) equalizer ....... nennanaDaoueo Ra nenmmO ne nenmaaTanaDuaNro cana ne none 27
Selecting the 3D acoustic image (3D Al)
equalizer Lenenapnnnenenaneencennoeunenencanenencaneenaneneene .. ‚ 27
Varying the sound quality with the manual equalizer ............. 28
Using the timer ; 29
Using the play timer ..................... K EEK EEK N EEE EEEE KORK K ENGE MEET 29
Using the record timer .…….…..…..…….…erseirennmeenmnnçenençennssennes 30
Using the play/record timer ……………….………eccenennnnensnnnnenn 31
Using the sleep timer ………….….……sereremenennnnnçennnnennnnnn 31
Using an external Unit .….......--………vecriseonimencrennaennns A
Convenient fUNCtIONS ...…..…...1…11esscessercenmanansenen annannan ne sennenme anne neue 32
Сопсеймта сотрас! AÎSCS .……..….……0u0cmenememennnennnnnnnnennnnnnnnn 33
Concerning cassette tapes ........ es anceseanesseres 33
Troubleshooting guide cespencemeae seeeute 34
Maintenance | .. .. 35
Technical specifications .............-...——+—e=.6———<ese=... e. Back Cover
Placement
Avoid placing the unit in areas of :
direct sunlight
high temperature
high humidity
excessive vibration
uneven surfaces (Place the unit on a flat level surface.)
Such conditions might damage the cabinet and/or other component
parts and thereby shorten the unit's service life.
To protect the unit against sound distortion and acoustical effects,
please place the unit at least 15 cm away from wall surfaces etc.
PTE
Never place heavy items on top of the unit or the AC power cord.
e It is very dangerous to use an AC power source of high voltage
such as for an air conditioner.
A fire might be caused by such a connection.
e ADC power source can not be used.
Be sure to check the power source carefully, especially if on a ship
or other place where DC is used.
Power cord | protection
e Avoid cuts, scratches or poor connection of the AC power cord, as
this may result in fire or electric shock.
Excessive bending, pulling or slicing of the cord should also be
avoided.
Do not pull on the cord when you are disconnecting the power, as
this could cause an electric shock. Grasp the plug firmly when you
disconnect the power supply.
Never touch the plug with wet hands or a serious electric shock
could result.
Foreign materials
e Ensure that no foreign objects, such as needles, coins, screwdriv-
ers etc., accidentally fall into the unit.
Otherwise, a serious electric shock or malfunction could occur.
e Be extremely careful about spilling water or liquid on/into the unit,
as a fire or electric shock could occur.
(Disconnect the power plug and contact your dealer immediately if
this occurs.)
e Avoid spraying insecticides onto the unit as they contain flammable
gases which can be ignited.
e Insecticides, alcohol, paint thinner and similar chemicals should
never be used to clean the unit as they can cause flaking or
cloudiness to the cabinet finish.
® Never attempt to repair, disassemble or reconstruct the unit if there
seems to be a problem.
A serious electric shock could result if you ignore this precaution-
ary measure.
e |f a problem occurs during operation (the sound is interrupted,
indicators fail to light up, smoke is detected, etc.) contact your
dealer or Authorized Service Center immediately.
e Disconnect the power supply if the unit will not be used for a long
time. Otherwise the operation life could be shortened.
©
5
©
L
©
са
НОТ 4745
Before using
ROT4745
(For United Kingdom)
(“EB” area code model only)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that
the replacement fuse has a rating of 5-ampere and that
it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark <> or the BSI mark Y on the
body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from your
local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE
FOR THE SOCKET OUTLET IN YOUR HOME THEN
THE FUSE SHOULD BE REMOVED AND THE PLUG
CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED INTO
ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring
code as shown below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance
with the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
The wire which is coloured Blue must be connected to
the terminal which is marked with the letter N or coloured
Black or Blue.
The wire which is coloured Brown must be connected to
the terminal which is marked with the letter L or coloured
Brown or Red. |
WARNING: DO NOT CONNECT EITHER WIRE TO
THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E, BY THE EARTH SYMBOL + OR
COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of
AC mains plug (figures A and B). Confirm the AC mains
plug fitted and follow the instructions below.
llustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
7
||
=
|
=
CE
VI EZZZ2
Figure B
Fuse cover
=. = = == =
2. Replace the fuse and close or attach the fuse cover.
Figure A
Fuse
+
Des ampere)
Figure B
Fuse
(5 ampere)
Insert the batteries observing the correct polarities (©, ©).
“ (RG, AA, UM-3)
Remote control
signal sensor
30°
Transmission
, About 7 meters in front of
window
the signal sensor
Super woofer
Battery installation
Use of batteries
e Do not mix old and new batteries, or batteries of different types
(manganese and alkaline, etc.).
e Never subject batteries to excessive heat or flame; do not attempt
to disassemble them; and be sure they are not short-circuited.
e If the remote control is not to be used for a long period of time,
remove the batteries and store them in a cool, dark place.
e Do not attempt to recharge alkaline or manganese batteries.
e Do not use rechargeable type batteries.
Correct method of use
| Operation notes |
® Do not place obstacles between the remote control signal sensor
and remote control unit.
e Do not expose the remote control signal sensor to direct sunlight
or to the bright light of an invertor fluorescent light.
e Take care to keep the remote control signal sensor and end of the
remote control unit free from dust.
e |f this system is installed in a rack with glass doors, the glass
doors' thickness or colour might make it necessary to use the remote
control a shorter distance from the system.
To prevent damage |
e Never place heavy items on top of the unit.
e Do not disassemble or reconstruct the unit.
e Do not spill water or other liquids into the unit.
Place the speakers so that the super woofer is on the outside.
e Keep your speakers at least 10 mm away from the system for
proper ventilation.
e To avoid damage to the speakers, do not touch the speakers
cones if you have taken the nets off.
Caution
e Use the speakers only with the recommended system.
Failure to do so may lead to damage to the amplifier and/or
the speakers, and may result in the risk of fire.
Consult a qualified service person if damage has occurred
or if you experience a sudden change in performance.
e Do not attach these speakers to walls or ceilings.
о
Æ
3
©
L
a
5
RQT4745
Before using
RQT4745
Adhesive tape
FM indoor antenna
Adhesive tape
FM indoor antenna
AM loop antenna
rE er eee
5
SPEAKER ow
H
RAS - La Ч
LOL A
KE
A |
Connector
Appliance inlet —f
approx. 6 mm
Basic connections (for supplied accessorie
e Plug the AC power cord into a household AC outlet only after all
other connections have been made.
e To prepare the AM loop antenna wire and speaker cords, twist the
vinyl cover tip and puil off.
Connect the FM indoor antenna.
Tape the antenna to a wall or column, in a position where radio
signals are received with the least amount of interference.
Except for Australia and New Zealand
The configuration of the FM antenna terminal is different.
For best reception sound quality:
An FM outdoor antenna is recommended. (See page 7.)
Connect the AM loop antenna.
After attaching the antenna, turn on the system and tune in a
broadcast station. Then, turn the antenna to the angle of best
reception and least interference.
Connect the front speaker cables.
Connect each end of the speaker cables to the terminal lever of
the same colour,
e Use only the supplied front speakers.
The combination of the main unit and front speakers provide
the best sound. Using other front speakers can damage the
unit and sound quality will be negatively affected.
® То prevent damage to circuitry, never short-circuit positive (+)
and negative (—) speaker wires.
Connect the AC power cord.
(FOR UNITED KINGDOM ONLY)
BE SURE TO READ THE CAUTION FOR THE
AC MAINS LEAD ON PAGE 4 BEFORE
CONNECTION.
Insertion of connector
Even when the connector is perfectly inserted, depending on
the type of inlet used, the front part of the connector may jut out
as shown in the drawing.
However there is no problem using the unit.
For Australia and New Zealand
FM outdoor antenna
(not included)
75Q coaxial cable (not included)
O |
30 mm
e вв
Shield braid
ISIN — Core wire
(3)
—/—
FM outdoor
«— antenna
(not included)
75Q coaxial cable
(not included)
Antenna plug adaptor (included)
For Australia and New Zealand
— a AM outdoor antenna
|4—5 -12m— (not included)
AM loop antenna
(included)
For United Kingdom
| — © AM outdoor antenna
4—5 -12m—» (not included)
AM loop antenna
(included)
Rear panel of this unit
N
Rear panel of this unit
Surround speakers
(not included)
Right
3]
Optional antenna connections
You may need an outdoor antenna if you use this system in a
mountainous region or inside a reinforced-concrete building, etc.
FM outdoor antenna EY |
Disconnect the FM indoor antenna if an FM outdoor antenna is in-
stalled.
(1) Remove a piece of the outer vinyl insulator.
() Twist the shield braid.
(3) Expose the core wire.
An outdoor antenna should be installed by a qualified technician only.
[AM outdoor antenna El |
Connect the outdoor antenna without removing the AM loop antenna.
Run 5 to 12 m of vinyl-covered wire horizontally along a window or
other convenient location.
When the unit is not in use, disconnect the outdoor antenna to prevent
possible damage that may be caused by lightning. Never use an
outdoor antenna during an electrical storm.
External unit connection
e For details, refer to the instruction manual of the units which are to
be connected.
e This example shows how to connect an analog player with the
PHONO OUT/LINE OUT switch.
e When units other than those described below are to be connected,
please consult with your audio dealer.
e Only an analog player with a built-in phono equalizer can be con-
nected. |
e Setthe switch to the “LINE OUT” position at the back of the analog
player.
Surround speaker connections
Except for United Kingdom
Connect the surround speaker cables.
If only one of the surround speakers is connected, no sound will come
out. Be sure to connect both speakers.
O
E
Wn
>
©
L
а
4
RQT4745
No. Name Ref. page
CD manager button
(CD MANAGER) -................m.—..... senenenanenzanananernae 18, 24
@ Random play button (RANDOM)............emnemnernna.. 16
© ECO button (ECO) nananENenamannNe menor emana nanamananennemanereemanaa 10
@ АС supply indicator (AC IN)
This indicator lights when the unit is connected to the AC mains
supply.
For Australia and New Zealand
Standby/on switch (0/1, POWER) ...............—.e.emecm.. 10
For United Kingdom
Standby/on switch (0/1) su 10
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
Disc select buttons and indicators
(DISC 1-DISC 5) ен. axsacurucennunu pneu suvunaenanemenaneccues 14
Direct disc tray open/close buttons
(= OPEN/CLOSE 1 - 4 OPEN/CLOSE 5) ен 14
Disc tray
Before using
Center console El
|
Name Ref. page
Play timer/record timer button and indicator
(OPLAY/OREC) .................. cers 29, 30
Clock/timer button
(CLOCK/TIMER) .
Display
Basic operating buttons
Functions change according to the source.
Sound equalizer control/indicators
(SOUND CONTROL JOG) .............. erences 26
3D Al EQ button
(3D Al A A y
Deck 1 open button (2 DECK 1 OPEN) .................. 19
Tape edit button (TAPE EDIT) …..………scveoscenmscrmensvenes 25
Recording start/stop button (® REC/STOP)............. 22
DOLBY noise reduction button
(DOLBY NR) .........
Reverse mode select button
(REV MODE) eeneneanananenennnanenenannanaonanernanarnmarenenanacemanenana 19
Deck 2 open button (4 DECK 2 OPEN) ................. 19
Super woofer on/off button
(S.WOOFER) ................ een pecanaraninenene ene maana 2Ó
cones 11, 29, 30
SWOOFER
a DECK 2
8 RECISTOP A DOLBY NR | AEV MODE "OPEN
98 © ©0906 © © SEO © oz
RQT4745
сз 00920000
| Main unit (continued) |
No. Name Ref. page
@ CD button (CD) ….…………-<<cevmemeememennenenendennennennnenn „14
@ Tuner/band select button (TUNER/BAND) -............. 12
@ Tape/deck select button
(TAPE/DECK 1/2) .….ccessererensoneenesseneeanennnrenennennenssnns 19
@ AUX button (AUX) OS 7
Headphone jack (PHONES) .......--....—c2rnenene=nanenecncanene 32
@ Deck 1 cassette holder ............ cesuenenenenanenaneneoenarenaoees 19
Display select/demonstration button
(-DISPLAY/-DEMO) -...........- ceaniceeonererecrenenenees 10, 11, 32
Volume control (VOLUME) .........—--—==—m=ensrereeneeenenenenos 13
Deck 2 cassette holder ..............e....==—.e==eseneneneneenenas 19
Remote control El |
Buttons O, 6, O, Y to ® and O have the same functions as the
corresponding buttons on the main unit.
No.
Name Ref. page
© В © ©
ББ 0966
Numeric buttons TE 7
Program button (PROGRAM) a...4..440400000004400 0000000000000 17
Cancel button (CANCEL)......045000000000 000000 ST „uns 17
40/4, >> 71 buttons
(-l</<<, D>> D>DI) ................. canracasesase vases 15, 20
Muting button (MUTING) Gacserenaeaneeneraas anse na renne recrues Î
</V button (<4/V) rreraaerenareenerareepeneccuruananenarnanenncan 135 19
Sleep button (SLEEP) necerdscenpescenonerenareracnenveoceareraanes DÍ
Disc button (DISC) .............-=... O Y
Repeat button (REPEAT) .............. генные 16
Equalizer button (EQ) ........— ==... pascansnann eme vrou000 26
AA button (AA) -......——e-=====eseenmnanannanonas 13, 15, 19
Stop button (M) sasmacan ae se seannenes ann.... aan 15, 19
D
=
Wu
3
Before
RQT4745
If the clock has not been set, a demonstration of the display is shown
when the unit is switched to standby.
This function is set to on at the time of purchase.
Turn this function off to get the most from the economy mode (see
below).
Press and hold [-DISPLAY/-DEMO] until “NO DEMO” Ís
displayed.
The display changes each time the button is held down.
2 NO DEMO (off) + DEMO (on)
3
o
©
v
EQ
When this mode is used the display remains blank when the unit is
-DISPLAY/ switched to standby mode and the power consumed is reduced to
DEMO 0.6W from a maximum of 15W.
The mode is set to on at the time of purchase.
Condition in standby Diso! р
ECO mode isplay ower consumption
off clock 15W
on blank 0.6W
To get the most from this mode, turn the demo function off or set the
clock.
Turning ECO mode on and off
Press [OA] to turn the unit on.
Press [ECO].
The current ECO mode is displayed. Press again to change the mode.
The display changes each time the button is pressed.
NORMAL (off) <> ECO (on)
The ECO mode can be turned on if the unit is in standby but it
cannot be turned off.
For Australia and New Zealand
For United Kingdom
10
RQT4745
This is a 24-hour display clock.
This example in the figure shows how to set the time for 16:25
(4:25 p.m.).
i Press [0/1] to switch on the system.
2 Press [CLOCK/TIMER] to select “CLOCK”.
Every time you press the button:
CLOCK > OPLAY > OREC
+ Previous display „|
3 (within 7 seconds or so)
Press [V] or [A] to show the present time.
D
Æ
3
©
Ф
а
4 Press [CLOCK/TIMER] to finish setting the time.
The display will return to whatever was displayed before you
For Australia and New Zealand For United Kingdom .
set the time.
To display the time when system is ON
Press [CLOCK/TIMER] to select “CLOCK”.
Pano tn AA APA AI
At ECO mode on, to display the time when system is OFF
Press [-DISPLAY/-DEMO!].
The time will be displayed for about 5 seconds and then the display
will return to whatever was previously displayed.
NT eve TS When the system is on standby, playing starts automatically when you
press one of the following buttons.
Listening to radio broadcasts
[TUNER/BAND] The station heard previously is
tuned in.
Listening to compact discs
[CD] Play starts from track 1 of the CD
played previously.
[DISC 1] - [DISC 5] Play starts from track 1 on the
selected CD.
Listening to tapes
[TAPE/DECK 1/2] Playback starts from deck 2 if tapes
have been installed in both decks.
DISC 1 DISC 2 DISC 4 DISC 5
И
RQT4745
* Up to 12 stations can be set in each band with the automatic or
manual memory presetting.
e If broadcast frequencies are preset in the memory, you can easily
tune in any of these frequencies from the system or remote control
unit.
© You can preset just those stations you like. (See “Presetting only
your favourite stations” below.)
EN Press [TUNER/BAND] to select band.
The system will come on automatically.
Every time you press the button: FM <> AM
2 Press [TUNE MODE] to select “MANUAL”.
Every time you press the button: MANUAL <> PRESET.
3 Press [V] or [A] until the display shows the frequency
from which you want to begin automatic memory
presetting.
Tips on tuning in radio stations
TUNER/ (M) Hold down either arrow button until the frequency numbers
start scrolling.
@ When near to the frequency you are looking for, press the
button repeatedly until the station is tuned in.
Listening operations
4 Press and hold [MEMORY] until the frequency begins
to change.
This will start presetting automatically. When finished, the radio
will tune in the last station memorized.
If auto presetting is not possible because radio signals are weak
or for some other reasons, do the following.
| Presetting only your favourite stations |
Preset the stations one at a time.
1. Perform step El above. Then, press [MEMORY] (“MEMO”
flashes) and select a station with [V] or [A].
2. While “MEMO" is flashing, press [MEMORY] again and select a
preset channel with [V] or [A].
3. Press [MEMORY] to preset the station.
Memory retention
Your preset is retained in memory for about 2 weeks while the system
is unplugged.
MEMORY
Preset channel
RQT4745
}
—
i
ri
1 Press [TUNER/BAND] to select band.
The system will come on automatically.
Every time you press the button: FM <> AM
2 Press [TUNE MODE] to select “PRESET” or
“MANUAL”.
Every time you press the button: MANUAL <> PRESET.
PRESET: For preset stations
MANUAL: For non-preset stations
3 Press [V] or [A] to select the desired broadcast.
“STEREO” lights when an FM stereo broadcast is being received.
“TUNED” lights when you precisely tune in a broadcast station.
4 Adjust the volume level.
| Auto tuning |
Auto tuning is an easy way to tune in non-preset stations in the
manual mode.
Hold down either [V] or [A], and release the button when the
frequency starts scrolling.
The frequency will stop scrolling automatically on the first station it
picks up.
e When there is outside interference, the radio sometimes stops on
a certain frequency where no station is broadcasting.
To stop auto tuning
Press either [V] or [A] again.
С noise is excessive in the FM stereo mode I} |
Press [FM MODE/BP]. (“MONO"” will light up.)
Sound will be produced in monaural, but this also reduces noise.
Press the button again to cancel. “MONO” will go out.
Normally, you'll want to listen in stereo, so leave “MONO” off. This
way, you can listen to stereo broadcasts in stereo, and monaural
broadcasts in mono.
You can preset an FM station in monaural by following the steps
under “Presetting only your favourite stations” on page 12. After
selecting the station in step 1, select “MONO” with [FM MODE/BP],
then continue with steps 2 and 3.
e If you preset stations in memory, you can tune in a preset station
by simply selecting the preset channel with the numeric buttons on
the remote control.
1. Press [TUNER] on the remote control.
2. Press the numeric button(s) to select the desired preset channel.
To select a two-digit channel:
Press [>10] and then the two numbers you want within 10
seconds or so.
e Sound is momentarily interrupted if you load/unioad tapes while
listening to an AM broadcast.
Wi
&
‚©
=
D
Listening ope
RQT4745
wn
6
8
q
2
Listen
|
RQT4745
REPEAT
VOLUME +
Panasonic
Press [CD].
Press [DISC].
Press [1] — [5] to select the disc you want.
Press the numeric button to select the desired track
number.
The CD will be played from the selected track to the last track
of the final disc (page 15).
Kl (within 10 seconds or so)
To select a two-digit track
Press [>10] and then the two numbers you want within 10 seconds or
SO, |
For example
Track no. 20: [>10] — [2] — [0]
Track no. 35: [210] — [3] > [5]
Repeat play
by remote control only
Press [REPEAT] before or during play. [A
All tracks on the loaded CDs are repeated.
To cancel repeat play
Press [REPEAT] once again.
To repeat your favourite tracks
. Program the tracks you want (perform steps E - E on page 17).
. Press [REPEAT] and make sure “CY is displayed.
. Press [B>AI/A]. Playback will start.
WN =
To repeat just one track
Set the 1-TRACK mode (page 18), press [REPEAT] before or during
playback, and make sure “CY” is displayed.
Random play
Press [RANDOM]. EJ
All tracks on the loaded CDs will be played in random order. Playback
will stop automatically when all tracks have been played.
To cancel random play
Press [RANDOM] once again.
You can use random play with your program. Only the programmed
tracks will be played, but in random order.
ea EEE
2 PROGRAM
ee NEU
3 DISC
rare EEN
UE —
OO
3
OD Specified disc number
So
299 a
QPF
OOOO
Pera AEREO
»> ALA
Indicates
program mode
pan AER EA
4 EA E EEE
aaa eE
aaa RP N
KK NU
Program play
by remote control only
You can program up to 24 tracks.
Press [CD].
Ensure CD is stopped.
Press [PROGRAM].
Press [DISC].
(within 10 seconds or so)
Press [1] — [5] to select the disc you want.
Press the numeric button to select the desired track.
Repeat steps El through until you have pro-
grammed all the tracks you want.
7 Press [PVA]
Play will start in the programmed sequence.
To cancel program play mode
Press [PROGRAM] in the stop mode.
Programmed contents will be saved in memory.
Pressing [MH] will cancel program play, but it will also erase the entire
program.
Wy
©
9
Е
8
8.
©
D)
E
E
£
„m
mi
To select a two-digit track
Press [210] and then the two numbers you want.
When “CD FULL” appears EN
The number of programmed tracks is limite
can be programmed.
d to 24. No further tracks
You can do the following during program mode El
e Check program contents.
Press [-+/-<<] or [>> >>.
Every time you press one of the buttons,
are shown on the display.
e Add to the program.
Repeat steps El through El.
e Cancel entries.
the track and program No.
From the last Press [CANCEL].
programmed track
Select the track with [-/-] or
[>>>], and press [CANCEL] within
3 seconds.
Press [MI].
A specified track
only
All tracks
Memory retention
Your program is retaine
system Is unplugged.
d in memory for about 2 weeks while the
To replay your program
If you turned OFF your program with [PROGRAM], you can play it
again as explained below.
1. Press [PROGRAM].
2. Press [AVA]
If you program a track not on your CDs
The track is initially programmed, but during program play, the player
will skip that track and will continue playing from the next programmed
item.
PA
RQT4745
‚To listen to special CDs and tracks
(CD Manager function) |
This function makes it easier for you to select special CDs and tracks
from amongst those loaded in the player,
You can use this function to make recordings as well.
There are 3 CD/track selection modes.
© For playing back 1 track only from all loaded CDs
1-Track mode (1-TRACK)
® For playing back 1 CD only from all loaded CDs
1-Disc mode (1-DISC)
® For playing back 1 track on ali loaded CDs
a 1-Track All-Disc mode (1-ALL)
‚о
5 Press [CD].
$ Ensure CD is stopped.
Q
D) Press [CD MANAGER] to select the desired mode.
© Every time you press the button:
5 ISE aa 1-TRACK — 1-DISC -» 1-ALL
t NORMAL |
(OFF)
1-TRACK: — Only one particular track is played.
1-DISC; The tracks on only one particular disc are played.
1-ALL: The same track numbers on each of the CDs are
played in succession.
(NORMAL: The original display is restored in about 3
seconds.)
CD MANAGER
Press [DISC 1] - [DISC 5] to select the disc you want.
Note |
This step is not required if 1-ALL was selected in step El.
Press [-T</<-<] or [>> MDI] to select the desired
track.
This step is not required if 1-DISC was selected in step Ed.
Press [D 11].
Specified disc number The selected track will start.
To stop play
Press [Ш].
When playback ends
“NORMAL” will appear on the display for about 3 seconds, then the
CD MANAGER function will turn OFF automatically.
FM MODE/BP MEMORY ‘
dd
SA { During play in the 1-ALL mode:
E ® it is not possible to skip back to a CD whose track has already
been played.
© If a CD does not have the designated track number, it is skipped
and play continues.
You can use the repeat function (page 16) and random play (page 16)
at the same time. However, in 1-TRACK mode, random play is not
available.
18
RQT4745
DECK 1/2
TT EEE
Front side
ES
DOLBY NA
La a a 1e EE nd aaa a 1 A a ER EE ETES
p,
NO
NO
pT
TAPE/
DECK 1/2
Deck in use
Types of tapes which can be played correctly:
The unit automatically identifies the type of tape.
NORMAL POSITION/TYPE |
HIGH POSITION/TYPE |
METAL POSITION/TYPE IV
You can use either deck 1 or deck 2 for tape playback.
Press [TAPE/DECK 1/2].
The system will come on automatically.
Press [£* DECK 1 OPEN] or [4 DECK 2 OPEN] and
insert the tape.
Insert the tape with the exposed tape facing down.
Close the holder by hand.
Press [DOLBY NR].
You have to turn Dolby NR ON/OFF according to the type of
recording you made.
Every time you press the button: 00 NR = (OFF)
Press [REV MODE] to select the reverse mode.
Every time you press the button:
7 >>)
- One side is played, then playback stops automatically.
> : Both sides (front side — reverse side) are played one
time each, then playback stops automatically.
CZ); Both sides are played 8 times each, then playback stops
automatically.
р
a
=
=
Press [-<] or [>] to start playback.
» : The forward side (front side) will play.
« : The reverse side will play.
Adjust the volume level.
rR
To stop tape playback
Press [MM].
To change the deck to be used E
Press [TAPE/DECK 1/2] to select the deck you want to use when you
load cassettes into both decks.
To listen to 2 tapes consecutively
Load a tape into each deck and select “CD”. Both tapes will be
played 8 times each.
Playback is momentarily interrupted while playing back tapes, if you
open the other deck.
wn
с
Q
=
3
©
©
Æ
с
2
м
ad
19
RQT4745
To find the beginning of a program
(TPS: Tape Program Sensor)
Wu
с
2 Tape To play the current tune To play the next tune
5 direction | from the beginning from the beginning
o 4-47 || >> moi) | DOLEY NR
о
O)
Е
© | Notes |
w
= The TPS function searches for silent parts of about 4 seconds in
function properly in the following cases:
® With short silent parts
* When noise occurs between tunes
® With silent parts found Within tunes
About the Dolby noise-reduction system
to bring it back to the previous level.
during playback as was used during recording.
This unit includes the Dolby B NR-type.
Dolby B NR-type
Noise is reduced to about one-third.
Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol DO are trademarks of Dolby
Laboratories Licensing Corporation.
20
RQT4745
length which are normally found between tunes. As a result, it may not
The Dolby noise-reduction system is designed to effectively reduce
the annoying high-frequency “hissing” noise typical of cassette tapes.
During recording, the System functions to increase the high-frequency
sound level, and then, during playback, that same portion is weakened
The Dolby NR effect is obtained by selecting the same type of Dolby
an be recorded correctly
Types of tapes which ¢
The unit automatically identifies the type of tape.
NORMAL POSITION/TYPE |
HIGH POSITION/TYP
METAL POSITION/TYPE IV
‘Recording part
Leader tape (no recording
can be made)
This system cannot make a recording or erasing correctly, if metal
position tapes are used.
e beginning of the tape E
To record from th
rt of the tape. Before recording,
You cannot record on the leader pa
t where recording can start
wind the tape past the leader to a poin
immediately.
How volume, sound quality/field and super woofer
affect recording
The tape you are recording is not affected whatsoever by changes in
volume, sound quality/field and super woofer.
e In recording, sound quality/field are set automatically to “FLAT”.
e You can change volume and super woofer effect for the playback
sound.
se a recorded sound El
2
2
в
$
©
3
©
8
©
EN Press [TAPE/DECK 1/2].
insert the recorded tape into deck 2.
TAPE/
DECK 1/2
3 Press [DOLBY NR] so that the Dolby NR indicator
goes off.
Press [REV MODE] to select reverse mode.
Press [e REC/STOP].
You cannot open deck 1 while recording.
You cannot fast-forward or rewind one deck while recording with
the other.
Your attention is drawn to the fact that recording pre-recorded
tapes or discs ОГ other published or broadcast material may
infringe copyright laws.
21
RQTA745
Press [& DECK 2 OPEN] and insert the tape.
Close the holder by hand.
Tape direction is automatically set to “>>”.
2 Press [DOLBY NR].
You have to turn Dolby NR ON/OFF according to the type of
recording you want to make,
Every time you press the button: DO NA — (OFF)
3, Press [REV MODE] to select the reverse mode.
Every time you press the button:
RE 72 >)
= : One side is recorded, then recording stops auto-
matically.
25,C7) : Both sides (front side — reverse side) are recorded,
then recording stops automatically.
4 Select a radio station. Perform steps through
on page 13.
À | { El Press [e REC/STOP] to start recording.
If you selected “ CC” in step El, the direction will automatically
change to “>” when recording starts.
To stop recording
Press [e REC/STOP] again.
Recording can also be stopped by pressing [m].
В
6
a
To start recording on the reverse side
Load a tape and change the tape direction as follows:
1. Press [TAPE/DECK 1/2] and select tape deck 2,
2. Press [-<] and immediately thereafter [M]. The tape direction will
be shown as “<7”.
To record from a specific point on a tape
Before recording, advance the tape to the point from where you want
to start recording.
To cut an unnecessary part while recording
1. Press [e REC/STOP] during the unnecessary part. The casseite
deck will go into the stop mode.
2. Press [e REC/STOP] to resume recording again. Recording will
continue in the same direction as before.
When recording an AM broadcast, sound is momentarily interrupted
when you start and stop the recording.
To reduce noise while
function) EY
AM recording (Beat proof
Press [FM MODE/BP] while recording.
Each time you press the button, “BP1” and
alternately.
Select the position where there is less noise,
“BP2” will be displayed
RQT4745
Press [2 DECK 2 OPEN], and insert the tape.
Close the holder by hand.
Tape direction is automatically set to “>”.
Press [DOLBY NR].
You have to turn Dolby NR ON/OFF according to the type of
recording you want to make.
Every time you press the button: DO NR — (OFF)
Press [REV MODE] to select the reverse mode.
Every time you press the button:
7 > 7-7
> - One side is recorded, then recording stops auto-
matically.
7,077 : Both sides (front side -» reverse side) are
recorded, then recording stops automatically.
Press [CD].
Insert CD in the tray.
(See page 14).
want.
Pressing [BI] will stop playback.
ara par rere N ad ES
parra ANA
Press [9 REC/STOP] to start recording.
e If you selected “CY” in step El, the direction will
automatically change to “22” when recording starts.
е The recording will proceed from the first track on the selected
CD and will continue on through the last track of the final disc
(page 15).
e The tape deck stops automatically when the CD is finished.
6 Press [DISC 1] — [DISC 5] to select the disc you
uv
e
0
E
q
O
D
E
0
|
©
0
X
23
=..." Pa rt
rere
To stop recording
e To add a 4 second silent interval before stopping
pere Press [M]. The CD will stop automatically too.
e To stop recording without a silent interval
Press [9 REC/STOP!. The CD will stop automatically too.
ee REO
To start recording on the reverse side
Load a tape and change the tape direction as follows:
1. Press [TAPE/DECK 1/2] and select tape deck 2.
2. Press [«] and immediately thereafter [MM]. The tape direction will
be shown as “<”.
pere ETS e To record from a specific point on a tape
® Before recording, advance the tape to the point from where you want
to start recording,
cord programmed tracks
After step El, program the track you want (perform steps В оп
раде 17).
Press [e REC/STOP] to start recording.
—
M
RQT4745
Front side
Reverse side
The interrupted track is re-recorded in its
entirety on the reverse side.
Nng operations
i
|
©
24
CD MANAGER
RQT4745
To record special CDs and tracks
(CD Manager function)
This function makes it easier for you to select special CDs and tracks
from amongst those loaded in the player.
® While recording, if a track is cut off in the middle at the end of the front
side, it is re-recorded from the beginning, on the reverse side. IY
Before recording
Prepare the tape you want to use. Perform steps through on
page 23.
1 Press [CD].
Press [CD MANAGER] to select the desired mode,
Every time you press the button:
1-TRACK — 1-DISC — 1-ALL
NORMAL —
(OFF)
1-TRACK: Only one particular track is recorded.
1-DISC: The tracks on only one particular disc are recorded.
1-ALL: The same track numbers on each of the CDs are
recorded in succession.
(NORMAL: The original display is restored in about 3 seconds.)
Press [DISC 1] — [DISC 5] to select the disc you
want.
This step is not required if 1-ALL was selected in step BJ.
Press [<4/ <<] or [>> Bi] to select the desired
track.
This step is not required if 1-DISC was selected in step В.
Press [e REC/STOP] to start recording.
To stop recording
® To add a 4 second silent interval before stopping
Press [M]. The CD will automatically stop too.
© To stop recording without a silent interval
Press [e REC/STOP]. The CD will stop automatically too,
The recording level and the Dolby effect will be recorded as they are
on the tape being played back.
Press [TAPE/DECK 1/2].
Press [+ OPEN] on both decks and insert the tapes.
For playback: Into deck 1
For recording: Into deck 2
Close the holders by hand.
Tape direction is automatically set to “ >”.
Press [REV MODE] to select the reverse mode.
Every time you press the button:
7 > 7-0
- . One side is recorded, then recording stops auto-
matically.
79,072 : Both sides (front side > reverse side) are recorded,
then recording stops automatically.
Press [TAPE EDIT] to start recording.
e If you selected “CD” in step El, the direction will
TAPE/ :
DECK 1/2 | automatically change to “>>” when recording starts.
To stop recording:
Press [@
Both decks will stop.
To start recording on the reverse side
Load a tape and change the tape direction as follows:
1. Press [TAPE/DECK 1/2] and select tape deck 2.
2. Press [€] and immediately thereafter [m]. The tape direction will
be shown as “<”.
©
=
2
$
D
5
0
$
os
To record from a specific point on a tape
Before recording, advance the tape to the point from where you want
to start recording.
Tape direction of the tape
you are recording onto
25
RQT4745
Dial [SOUND CONTROL JOG] to select the sound quality or
sound field.
When it is turned clockwise, the settings are selected in the following
sequence,
(D HEAVY (sound quality)
Select this when playing rock or other kinds of music that sound
better with an added punch.
@ CLEAR (sound quality)
Select this for jazz or other kinds of music for which clarity in the
treble range is desired.
SOFT (sound quality)
Select this when listening to background music,
DISCO (sound field)
Select this to produce sound with the same kind of lengthy
reverberations heard at a disco,
O
@
O) LIVE (sound field)
®
Select this to make vocals more alive.
HALL (sound field)
Select this to add an expansiveness to the sound to produce the
atmosphere of a great concert hall.
@ MANUAL (see page 28)
Al EQ (see page 27)
The original display is restored on the display panel in about 5 seconds,
The [SOUND CONTROL JOG] lamp lights more brightly, and “FLAT”
IS cleared.
To release the equalizer
Dial [SOUND CONTROL JOG] to display “FLAT”.
When using the remote control to perform the operations
described above
Press [EQ].
Press [S.WOOFER].
® When listening to the sound through the speakers
MID (medium) — MAX (high) — Light off (OFF)
* When listening to the sound through the headphones
Light on (ON) — Light off (OFF)
Rr
All recordings are performed at the flat setting even if an alternative
sound quality/sound field setting has been selected and the super
woofer effect is set to ON.
©
‚6
E
5
o
3
u
5
©
N
£
©
o
V
3
‘^
RQT4745
The Al equalizer uses the SOFT, SHARP, HEAVY and LIGHT sound
quality coordinates to achieve subtle sound quality settings with ease.
Dial [SOUND CONTROL JOG] to display “Al EQ”.
When it is turned clockwise, the settings are selected in the
following sequence.
DD HEAVY
(2) CLEAR
(3) SOFT
@ DISCO
6) LIVE
(6) HALL
(7) MANUAL
Al EQ
(9) FLAT
The [SOUND CONTROL JOG] lamp lights more brightly, and
“FLAT” is cleared.
Operate [SOUND CONTROL JOG] jogcap and set
the sound quality as desired.
@) « — direction: SOFT-SHARP setting
@ | 7 direction: LIGHT-HEAVY setting
Repeat steps (D and (2) to set the desired sound quality.
The original display is restored on the display panel in about 5
seconds.
To release the equalizer
Dial [SOUND CONTROL JOG] to display “FLAT”.
e The sound quality setting is stored automatically. It is recalled
when “Al EQ” is next selected.
e All recordings are performed at the flat setting even if an alternative
sound quality setting has been selected.
It is possible to use the acoustic image equalizer (Al EQ) together
with the surround effect to create your Own sound effect.
Press [3D Al EQ.
Every time you press the button:
3p Al1 — SDAI?
La EQ
e |f the equalizer is not set at Al mode, it will be switched to Al mode
once [3D Al EQ] is pressed.
e All recordings are performed at the flat setting even if an alternative
sound quality setting has been selected.
W
=
o
E
à
©
3
©
Ч
v
©
5
a
>
£
Bv
3
or
"9
Е
a
VA
RQT4745
Sound quality/sound field operations
28
RQT4745
C0 osa 7/6
©,
Dial [SOUND CONTROL JOG] to display “MANUAL”,
When it is turned Clockwise, the settings are selected in the
following sequence.
® HEAVY
®@ CLEAR
(3) SOFT
(9) DISCO
® LIVE
(6) HALL
@ MANUAL
Al EQ
© FLAT
The [SOUND CONTROL JOG] lamp lights more brightly, and
“FLAT” is cleared.
Operate [SOUND CONTROL JOG] jogcap and set
the sound quality as desired.
< — direction: For Selecting the range of the sound to
be adjusted
Characteristics of each sound range
Under 100 Hz: Super woofer range
Around 330 Hz: — Bass to midrange
Around 1 kHz: Midrange
Around 3.3 kHz: Midrange to treble
Above 10 kHz: Treble
O L Tairection: For adjusting the level (7 steps)
When the level is in the center, the dot flashes rapidly.
Repeat steps M) and ® to set the desired sound quality.
The original display is restored on the display panel in about 5
seconds.
To release the equalizer
Dial [SOUND CONTROL JOG] to display “FLAT”.
® The sound quality setting is stored automatically. It is recalled
when “MANUAL” is next selected.
® All recordings are performed at the flat setting even if an alternative
sound quality setting has been selected.
я ©
0 ©
“Wp CONTROV
Using the play timer
imer as an alarm clock.
Select this timer when you want to use the t
er, tape or aux) at à
You can wake up listening to music (CD, tun
desired volume level and time.
e Make sure that you have completed
e Switch on the system.
“Setting the time” on page 11.
The figure shows how 10 set the play timer to play a CD from 6:30 to
7:40.
1] Press [CLOCK/TIMER] to select “OPLAY”.
Every time you press the button:
CLOCK > OPLAY — OREC
to Previous display
“ON” time setting
(Within 8 seconds or so)
(1) Press [V] or [A] to select the starting time.
(2) Press [CLOCK/TIMER!.
“OFF” time setting
G) Press [V] or [A] to select the ending time.
@ Press [CLOCK/TIMER].
Source selection
Select the desired source and then prepare for
playing.
To play CD(s)
Press [CD] and insert CD(s). a
If more than 1 CD is loaded g
Press [DISC 11-[DISC 5) to se
and press [MM].
Disc selection does not become pa
lect the CD you want to hear first =
rt of the timer memory.
To play tape(s)
Press [TAPE/DECK 1/2] and insert tape(s).
If tapes are loaded in both decks, playback will start from deck 2.
To play the radio
Press [TUNER/BAND] and tune in the desired station.
To play a unit connected to the “AUX” terminals
Press [AUX].
Play volume setting
Set the playback volume.
Press [OPLAY/OREC] to select “OPLAY”.
Every time you press the button:
OPLAY > OREC
t__ (OFF) —
If the record timer has not been set
Each time it is pressed:
OPLAY <> off (no display)
(OPLAY/OREC] indicator lights up.
Press [0/1] to put the unit on standby before your
timer start time.
The timer play will start at the preset time wit
gradually up to the volume level you preset.
h volume increasing
29
RQT4745
©
~
y
Pla я
5 Te
-
LA
и”
a
Н
r
"
a,
CT aer aivaa,
7 For Australia and New Zealand
30
RQT4745
For United Kingdom
Select this timer when you want to use the timer to record a midnight
program or while you are out.
* Make sure that you have completed “Setting the time” on page 11.
® Switch on the system.
The figure shows how to set the record timer for recording FM
broadcasts from 18:30 to 20:00.
Press [CLOCK/TIMER] to select “OREC”,
Every time you press the button:
CLOCK + OPLAY — OREC
+ Previous display
“ON” time setting
(Within 8 seconds or so)
@ Press [V] or [A] to select the starting time.
(2 Press [CLOCK/TIMER].
“OFF”
time setting
© Press [V] or [A] to select the ending time.
@ Press [CLOCK/T IMER].
Source selection
Select the desired source and then prepare for
recording.
To record from the radio
Press [T UNER/BAND] to select the band and tune in the desired
station.
To record from a unit connected to the “AUX” terminals
Press [AUX],
Prepare for recording.
D Insert a tape into deck 2 with the side on which the recording
will start facing you.
@ Select [DOLBY NR].
© Select the reverse mode.
Dolby NR and reverse mode do not become part of the timer
memory.
Press [OPLAY/OREC] to select “OREC”.
Every time you press the button:
OPLAY — OREC
L_ (orr) +
If the play timer has not been set
Each time it is pressed:
DREC «> ой (по display)
[OPLAY/OREC] indicator lights up.
Press [U/l] to put the unit on standby at least 2 min-
utes before your timer starting time,
About 30 seconds before the set time, the recording will start
with all sound muted automatically.
For Australia спо
New Zealand
| To switch the timer OFF
| Press [OPLAY/OREC] and
If you set the timer incorrectly
Repeat the procedure from step El.
check [OPLAY/OREC] indicator lights off.
To check settings
Press [CLOCK/TIMER] to select “OPLAY” (for play timer) or “OREC”
(for record timer).
Two seconds later, the dis
e For play timer
( Play start time
@ Play end time
@) Play source and playback volume
play will change in the following order:
e For record timer
(1) Recording start time
@ Recording end time
@ Recording source
You can check the settings even when the system is OFF.
urce after the timer setting is completed
The volume level (for play timer) and music source are stored in the
timer memory and the timer will start in these preset conditions.
However, the Disc numbers, Dolby NR and reverse mode do not get
3—— DISC a .
© © stored in the timer memory.
= 1. After step MA, start playing the desired source.
2. Reset the Disc numbers, Dolby NR and reverse mode if you have
DR LE | | ty
OOOO changed any of them, confirm that a Disc or cassette is inserted,
© [ then press [0/1 to put the unit on standby.
cp TUNER AUX Ë
GC Turning the timer ON/OFF
As long as [OPLAY/O REC] indicator lights Up, the timer will come ON
everyday as set.
You can tum the timer ON/OFF by pressing [9 PLAY/OREC] while the
system is OFF.
Remember that when [9 PLAY/®REC] indicator lights up, the timer is
ON. When lights off, the timer is OFF.
To enjoy the desired so
£ WOOFER ЗО А Е
La
©
E
=
e If the system is on, the timer will not function. The system must be
in the standby mode.
e |f you switch the system to the standby mode while the play/record
timer is functioning, the OFF time setting will not be activated.
e | AUX is selected as the source, when the timer comes ON, the
system will turn ON and will engage “AUX” as the source. If you
want to playback or record from a connected component, set the
components timer to the same time. (See the instruction manual
that came with the component.)
e The play timer cannot be used in
timer.
combination with the record
Using the sleep timer
OFF at the set time (Max. 2 hours,
This timer turns your system
it lets you fall asleep listening to
settable at 30-minute intervals).
music.
te control only
by remo
Preparation
Switch on the system.
The figure shows how to set the sys
minutes.
While enjoying the desired source:
Press [SLEEP] to select the desired time.
Every time you press the button:
30 > 60 — 90 > 120 > OFF
tem to standby mode after 30
The system is turned off after the set time has elapsed.
31
(Continued on next page)
RQT4745
:
Ф
&
>
$
Ё
RQT4745
GS Using the sleep timer
1——2 3——DISC
RAPP
осо
To cancel the sleep timer:
Press [SLEEP] to select “OFF”,
To confirm the remaining time:
(only while system is ON)
Press [SLEEP].
To change the time rem
Press [SLEEP] to show
select the desired time.
Note
aining during Operation:
the remaining time then press [SLEEP] to
® The sleep timer turns OFF automatically the moment
to edit-record a CD using CD Manager function.
® The sleep timer can be used in combination with the play/record
timer.
you attempt
The sleep timer always has priority.
Be sure not to overlap timer settings.
Listening to an external source
(See page 7 for external unit connection)
1. Press [AUX].
The system will come on automatically.
2. Start playback from the external source. (
owner's manual of the equipment.)
For details, refer to the
Recording from an external source
. Follow steps НЕ] ол page 22.
Press [AUX].
Press [e REC/STOP] (recording starts).
. Start playback from the external source.
owner's manual of the equipment.)
(For details, refer to the
Reduce the volume level, and connect th
e headphones.
Plug type: 3.5 mm stereo
Avoid listening for prolonged periods of time to prevent hearing damage.
Switching displays
Press [-DISPLAY/-DEMO
analyzer.
Every time you press the button:
] to select the desired spectrum
Aurora — Wiper—(OFF)-Normal
PROGRAM CANCEL REPEAT RANDOM
OOO ; о Peak hold — |
SWOOFER 30 AIG EQ 3
OOO
CD TUNER AUX
>
To mute the volume DJ
MUTING | «tz LT
remote control only
This feature is convenient when yo
Press [MUTING].
Press the button again to cancel.
"MUTING” goes out.
Muting can also be
way (--dB).
When the system is ture
cancelled.
u have a telephone call, etc.
cancelled by lowering the volume all the
d off, the muting operation will be automatically
Do not touch the
recorded surface.
Wipe from inside outward.
E To protect tapes against further recording
Tab { or side “B” Tab for side “A
To re-record
Normal position tape Hi-position tape
With this system, you can only play
compact discs having this mark.
However, do not use irregular shape
CDs. CDs of the sort can damage the
unit.
ОЛЕГ
DIGITAL AUDIO
Handling precautions
Handle CDs as shown on the left (в - E.
e If you are taking the disc from a cold to a warm environment,
moisture may form on the disc. Wipe this off with a soft, dry, lint-
free cloth before using the disc.
e Do not write on the label side with a ball-point pen or other writing
instrument.
e Donotuse record cleaning sprays, benzine, thinner, static electric-
ity prevention liquids or any other solvent.
e Do not attach labels or stickers to CDs. (Do not use CDs with
exposed adhesive from tape or left over peeled off stickers.)
e Do not use scratch-proof protectors Or covers other than those
specified for use with this system.
Storage precautions
Be sure to store discs in their cases to protect them from dust,
scratches, and warping.
Do not place or store discs in the following places
Locations exposed to direct sunlight
Humid or dusty locations
Locations directly exposed to a heat vent or heating appliance
In the glove compartment or on the rear deck of an automobile
a
Selection of cassette ta
Tapes can get caught on the capstans. Use caution with the following
types of tapes.
Cassette tapes exceeding 100 minutes
Tapes are made of a thin film material. Do not repeatedly advance
and stop the tape, fast-forward it or rewind it.
Endiess-tapes
For this unit, it is recommended to use the tape which is appropriate
to the auto reverse mechanism.
Always read the instructions provided with your tapes.
Tape slack El
Tape slack may cause the tape to break.
Use a pencil or similar object to take up the stack.
Erasure prevention
Use a screwdriver of similar object to break out the tab.
To re-record on a protected cassette
Cover the hole with adhesive tape.
Do not cover the detection hole on hi-position tapes.
Storage precautions
Do not place or store tapes in the following places:
higher) areas
This can erase a recording.
e Locations exposed to direct sunlight
e In high temperature (35°C or higher) or high humidity (80% or
e Ina strong magnetic field (near a speaker, on top of a TV, etc.) _
$
e
©
$
o
33
RQT4745
o
с
&
:
34
RQT4745
A LA
Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a
minor adjustment on your part may eliminate the problem and restore proper operation.
If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of
Authorized Service Centers (enclosed with this unit) to locate a convenient Service center, or consult your dealer for instructions.
Problem Reference
page(s)
13, 15, 19
Probable cause(s) Suggested remedy
Problems common to all systems
There is no sound when the
system is ON.
Volume is set too low. Adjust the volume level with the volume
control.
The location of the various
musical instruments is not
well defined.
The (+) and (=) connections to one of the
Connect the Speaker cords correctly.
Speakers are reversed.
The left and right sounds
are reversed.
The left and right connections to the
Speaker are reversed.
Either the left or the right LOW speaker
cable is not connected.
Connect the speaker cords correctly.
LOW frequency sounds
cannot be heard.
Connect the left and ri
the LOW terminals.
ght speaker cables to
When listening to the
external unit, the left and
right sounds are reversed.
The left and right connections to the
Connect the external units cord correctly.
external unit are reversed.
There is no sound when a
source is being played.
The (+) and (-) wire of the speaker
Switch the system to the standby mode,
cords are shorted.
and reconnect the Speaker cords so that they
are not shorted. Then switch on the system.
“ERROR” message appears
on the display.
Wrong operation has been done. Operate the unit correctly by following the
operating instructions,
—
11
1. Press [0/1] to switch on the system.
The tray will open. |
2. Take out CD from the tray if there is any,
then press [4 OPEN/CLOSE 1] to close
the tray. The system will restore normal
operation.
If you are using an indo
to an outdoor antenna.
cf
--:-- appears on the
display.
* You plugged the
first time.
* There was a power failure recently.
power cord in for the
There is no operation when
[DISC 1] — [DISC 5] /
[TAPE/DECK 1/2] /
[CD] / [TUNER/BAND] / [AUX]
is pressed during system
standby mode.
There was a power failure or the power cord
was disconnected from the household AC
outlet
* during disc changing operation or
* when the disc tray is opened.
While listening to FM broadcasts
There is a “rushing noise”
during a stereo broadcast
which is not audible during
a monaural broadcast.
The transmitting station is a long distance
away.
or antenna, change
You hear excessive noise
during a stereo broadcast,
and occasionally the sound
disappears.
The installation location and orientation of
the antenna are unsuitable,
The stereo indicator The transmitting station is a long distance
("STEREO") flickers and away.
does not light completely. The power of the TV get or VCR is ON. Try switching off the TV set or VCR,
The sound during a stereo T
here is a building or mountain nearby. Use a high-grade outdoor antenna, and
broadcast is highiy distorted. [Distortion is caused by interference install it in a good location, height, and
between the signal from the transmitting orientation for reception.
station (direct Wave) and the signal
reflected from the building or mountain
(reflected wave).]
y
While listening to AM broadcasts
You hear an Unusual beat
sound.
You are using the System at the same time
Switch off the TV Set, or use the system
you are playing a TV set.
further away from it.
You hear a low-frequency
The antenna wire is near the power cord.
hum,
Separate the antenna wire
cord.
from the power
Reference
Problem Probable cause(s)
When there is a television set nearby
If you are using an indoor antenna, change
to an outdoor antenna.
The picture on the TV The location and orientation of the antenna
disappears or stripes appear are incorrect.
on the screen.
Separate the antenna wire of the TV set
from the system.
The wiring at the back of the system is
unsuitable.
When listening to tapes
Clean the heads.
Match Dolby-NR ON/OFF according to the
Dolby-NR is set incorrectly.
type of recording you made.
Sound is low, intermittent,
poor quality, noisy, scratchy,
or unsteady.
The deck does not enter the
recording mode.
Attach tape to cover the space left by
removal of the erase-prevention tabs.
The erase-prevention tabs are removed
from the cassette.
While listening to compact discs
The display does not show The disc is upside down. Set the disc with the label facing upward. 04|
the correct indication. Disc | The disc is dirty. Wipe the disc with a soft cloth. 33 |
play does not start when
The disc is badiy warped. isc | .
you press the play button. he disc is badly warped
Replace the disc with a different one.
The disc is a nonstandard one.
Wait for 60 minutes before using the CD
player.
Replace the disc with a new one.
There is condensation inside the CD
changer.
A certain music passage The disc is dirty. Wipe the disc with a soft cloth.
can't be played correctly.
While using the remote control
Re-insert the batteries in the correct
polarity.
Replace the batteries with new batteries.
The batteries are installed in the reverse
polarity.
The batteries are run-down.
The system cannot be
operated with the remote
control.
©
e
o
L
$
X
If the surfaces are dirty For a cleaner crisper sound
To clean this unit, wipe with a soft, dry cloth. We recommend that you periodically clean parts (the shaded portion
If the surfaces are extremely dirty, use a soft cloth dipped in a soap- in the figure below) the tape contacts like the heads.
and-water solution or a weak detergent solution. Do not use any solution other than alcohol for head cleaning.
e Never use alcohol, paint thinner or benzine to ciean this unit.
* Before using chemically impregnated cloth, read the instructions
that came with the cloth carefully.
ROT4745
AMPLIFIER SECTION
RMS power output
THD 10%, both channels driven
1 kHz continuous power output
THD 1%, both channels driven (DIN) 85 W per channel (6 Q)
Input sensitivity
130 W per channel (6 Q)
AUX 250 mV
Input Impedance
AUX 13.3 kQ
FM TUNER SECTION
Frequency range 87.50 — 108.00 MHz (50 kHz steps)
Sensitivity
S/N 26dB 1.5 uv
Antenna terminal(s) 75 Q (unbalanced)
AM TUNER SECTION
Frequency range
Sensitivity
S/N 20 dB
522 — 1629 kHz (9 kHz steps)
560 uV/m
CASSETTE DECK SECTION
Track system 4 track, 2 channel
Heads
Record/playback Solid permalloy head
Erasure Double gap ferrite head
Motor DC servo motor
Recording system AC bias 100 kHz
Erasing system AC erase 100 kHz
Tape speed 4.8 em/s
Frequency response (+3, -6 dB at DECK OUT)
NORMAL (TYPE |) 35 Hz — 14 kHz
HIGH (TYPE If) 35 Hz — 14 kHz
S/N
Dolby NR off 50 dB (A weighted)
Dolby NR on 60 dB (CCIR)
Wow and flutter
Fast forward and rewind time
0.18 % (WRMS)
Approx. 120 seconds
with C-60 cassette tape
CD SECTION
Sampling frequency 44.1 kHz
Decoding 16 bit linear
Beam source/wave length Semiconductor laser/780 nm
Number of channels Stereo
Frequency response 20 Hz-20 kHz (+1, -2 dB)
Wow and flutter Below measurable limit
Digital filter 8 fs
D/A converter MASH (1 bit DAC)
SPEAKER SECTION
Type 4 way speaker system
Speaker(s)
Super Woofer 17 em cone type
Woofer 12 em cone type
Midrange 6 cm ring shaped dome type
Tweeter Piezo type
Impedance Total 6 Q
Input power Total 160 W (Music)
Output sound pressure level
Cross over frequency
Frequency range
84 dB/W (1.0 m)
200 Hz, 3.5 kHz
45 Hz-40 kHz (—16 dB)
55 Hz-36 kHz (-10 dB)
Dimensions (WxHxD) 250 x 330 x 307 mm
Weight 4.9 kg
GENERAL
Power supply AC 230-240 V, 50 Hz
Power consumption 163 W
Power consumption in standby mode
ECO mode on 0.6 W
ECO mode off 15 W
Dimensions (WxHxD) 270 x 331 x 338 mm
Weight 8.4 kg
1. Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Matsushita Electric Industrial Co., Ltd.
Osaka 542-8588, Japan
Em
RQT4745-B
P1198YO/M)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
