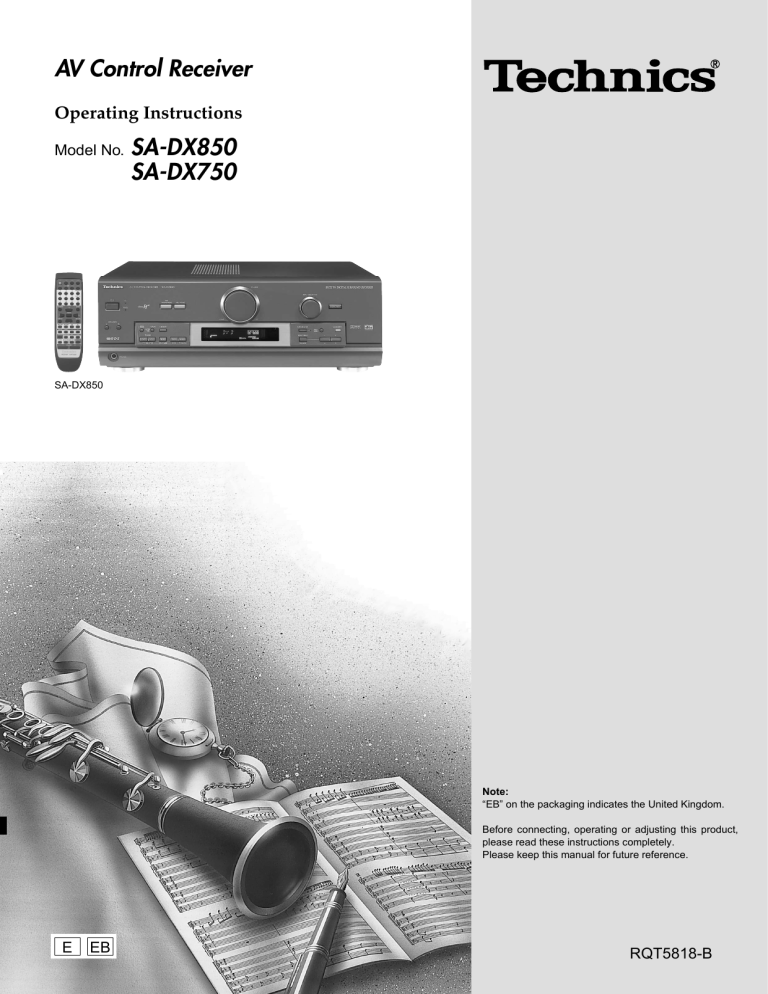

AV Control Receiver
Operating Instructions
Model No.
SA-DX850
SA-DX750
SA-DX850
Note:
“EB” on the packaging indicates the United Kingdom.
Before connecting, operating or adjusting this product,
please read these instructions completely.
Please keep this manual for future reference.
E
EB
RQT5818-B
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.
These operating instructions are applicable to models SADX850 and SA-DX750, however, are intended primarily for
model SA-DX850.
Table of contents
Before use
Supplied accessories................................................................3
Safety precautions .....................................................................3
Caution for AC Mains Lead .....................................................4
Control reference guide ...........................................................5
Enjoying surround sound
Pages
Connect your equipment
6–9
Connections
Position and connect the speakers
Connections ................................................................................6
Connecting video equipment .........................................................6
Connecting audio equipment.........................................................7
Connecting digital equipment ........................................................7
Antenna connections .....................................................................8
Connecting the AC mains lead and other information ...................9
Speaker connections ..............................................................10
Placement of speakers ................................................................10
Connecting speakers...................................................................10
10–11
Change the settings
12–14
Adjust speaker output level
15
Preparations
Customizing your receiver ....................................................12
Sit back and enjoy the experience
Basic steps ..................................................................................13
18
Adjusting speaker output level ............................................15
Operations
DSP sound modes ...................................................................16
STEREO mode............................................................................16
SURROUND mode......................................................................16
SFC modes..................................................................................17
Enjoying the sounds ...............................................................18
Adjusting the tone and balance ...................................................20
Using headphones.......................................................................20
Muting the volume .......................................................................21
Adjusting the subwoofer level......................................................21
Using the TAPE MONITOR .........................................................21
Radio functions
The radio.....................................................................................22
Manual tuning ..............................................................................22
Preset tuning ...............................................................................23
RDS broadcasts .......................................................................24
To display RDS information.........................................................24
PTY search..................................................................................24
EON tuning ..................................................................................25
PTY displays................................................................................25
Reference
Making a recording ..................................................................26
Timer function ...........................................................................27
The HELP function...................................................................28
Maintenance ..............................................................................28
Troubleshooting guide ...........................................................29
Specifications ...........................................................................30
2
RQT5818
CAUTION
Do not place anything on top of this unit or block the heat
radiation vents in any way. In particular, do not place tape decks
or CD/DVD players on this unit as heat radiated from it can
damage your software.
NO
Supplied accessories
Safety precautions
Placement
Please check and identify the supplied
accessories.
AC mains lead...................................................................1
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These
conditions can damage the cabinet and other components, thereby
shortening the unit’s service life.
Do not place heavy items on the unit.
Voltage
For Continental Europe
(RJA0019-2K)
For the United Kingdom
(VJA0733)
AM loop antenna set (RSA0012) .....................................1
(AM loop antenna, antenna holder, screw)
Do not use high voltage power sources. This can overload the
unit and cause a fire.
Do not use a DC power source. Check the source carefully when
setting the unit up on a ship or other place where DC is used.
AC mains lead protection
Antenna plug (SJP9009) ..................................................1
(Only for the United Kingdom)
Batteries ............................................................................2
Before use
FM indoor antenna (RSA0007-L) .....................................1
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fire or
electric shock. Do not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC
mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric
shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause
electric shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock
or malfunction. If this occurs, immediately disconnect the unit from
the power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.
Service
Remote control (EUR7702030) ........................................1
Refer to the separate booklet, “Remote Control”, for remote
control operation details.
Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any other
problem that is not covered in these operating instructions occurs,
disconnect the AC mains lead and contact your dealer or an
authorized service center. Electric shock or damage to the unit can
occur if the unit is repaired, disassembled or reconstructed by
unqualified persons.
Extend operating life by disconnecting the unit from the power
source if it is not to be used for a long time.
Use the numbers indicated in parentheses when asking for
replacement parts.
3
RQT5818
Caution for AC Mains Lead
(For United Kingdom)
(“EB” area code model only)
For your safety, please read the following text
carefully.
WARNING: DO NOT CONNECT EITHER WIRE TO
THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E, BY THE EARTH SYMBOL
OR
COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF–KEEP DRY.
Before use
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 5-ampere
and that it is approved by ASTA or BSI to BS 1362.
Check for the ASTA mark
or the BSI mark
on
the body of the fuse.
Remove the connector cover.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from your
local dealer.
1. Open the fuse cover with a screwdriver.
How to replace the fuse
The location of the fuse differ according to the type of
AC mains plug (figures A and B). Confirm the AC
mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
Figure A
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE
FOR THE SOCKET OUTLET IN YOUR HOME
THEN THE FUSE SHOULD BE REMOVED AND
THE PLUG CUT OFF AND DISPOSED OF
SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED
INTO ANY 13-AMPERE SOCKET.
Figure B
Fuse cover
If a new plug is to be fitted please observe the wiring
code as stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in
accordance with the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the
coloured markings identifying the terminals in your
plug, proceed as follows:
The wire which is coloured Blue must be connected to
the terminal which is marked with the letter N or
coloured Black or Blue.
The wire which is coloured Brown must be connected
to the terminal which is marked with the letter L or
coloured Brown or Red.
2. Replace the fuse and close or attach the fuse
cover.
Figure A
Fuse
(5 ampere)
Figure B
Fuse
(5 ampere)
4
RQT5818
Control reference guide
1 2 3 4 5 6 7 8 9
10
11
12 13 14
VOLUME
INPUT SELECTOR
DSP
SOUND MODE
SFC MODE
WAKE
DIGITAL INPUT
DOWN
UP
SPEAKERS
A
B
RDS
TIMER
MODE
TIME
TAPE MONITOR
MEMORY
PRESET
PTY SELECTOR
DVD 6CH INPUT
HELP
RESET
TUNING
DISPLAY MODE
BAND
BASS/TREBLE
–
+
BALANCE
L
R
FM MODE
EON PTY SEARCH
PHONES
25
16 17 18 19
20
26
27
21 22 23 24
kHz
MHz
SPEAKERS
A B LOW IMP
28
TUNED
STEREO
MONO M
29 30 31 32 33
RDS PS
SLEEP RT PTY
WAKE
EON
34
35
L
C
R
LS S LFE RS
Before use
15
FIXED
PRO LOGIC
PCM
SOUND MODE SFC
DIGITAL STEREO SURROUND
36
37
Reference pages are given in parentheses.
Main unit
q Standby/on switch [8] ........................................................(13)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
w Standby indicator [^]
When the unit is connected to the AC mains supply, this
indicator lights up in standby mode and goes out when the unit
is turned on.
e Wake indicator [WAKE] .......................................................(27)
r SA-DX850
Speaker select buttons [SPEAKERS, A, B]..................(13, 18)
SA-DX750
Speaker on/off button [SPEAKERS] .............................(15, 18)
t RDS button [RDS].................................................................(24)
y Timer button [TIMER, -MODE, –TIME] ................................(27)
u DSP sound mode select button
[DSP SOUND MODE] ......................................................(13, 18)
i SFC mode select button [SFC MODE] ..........................(13, 18)
o Memory button [MEMORY] ..................................................(23)
!0 Volume control [VOLUME] ..................................................(18)
!1 Input selector [INPUT SELECTOR] .....................................(18)
!2 Digital input select button/indicator [DIGITAL INPUT]......(18)
!3 Help/reset button [-HELP, –RESET]....................................(28)
!4 SA-DX850
DVD 6ch input select button/indicator [DVD 6CH INPUT] .....(19)
!5 Headphone jack [PHONES] .................................................(20)
!6 Tuning/PTY select buttons
[TUNING, PTY SELECTOR, 2, 1]..................................(22, 24)
!7 Preset channel/display mode button
[PRESET, DISPLAY MODE] ...........................................(23, 24)
!8 Band select/EON button [BAND, EON].........................(22, 25)
!9 FM mode select/PTY search button
[FM MODE, PTY SEARCH] .............................................(22, 24)
@0 Display section
@1 Tape monitor button [TAPE MONITOR]..............................(21)
@2 Tone and balance select button
[BASS/TREBLE, BALANCE] ................................................(20)
@3 Tape monitor indicator ........................................................(21)
@4 Tone and balance adjust buttons [–, +, L, R] .....................(20)
Display section
@5 Display
@6 Frequency unit indicators [kHz, MHz] ................................(22)
@7 Program format indicators [L, C, R, LS, S, LFE, RS].........(18)
@8 SA-DX850
Front speaker indicators [-SPEAKERS-, Å, ı].................(18)
SA-DX750
Front speaker indicator [-SPEAKERS-] ..............................(18)
@9
#0
#1
#2
#3
#4
#5
#6
SA-DX850
Low impedance indicator [LOW IMP] .................................(14)
Tuned indicator [TUNED].....................................................(22)
Stereo indicator [STEREO] ..................................................(22)
Monaural indicator [MONO].................................................(22)
Memory indicator [˜] ..........................................................(23)
Timer indicators [SLEEP, WAKE] .......................................(27)
RDS indicators [ RDS , PS, RT, PTY, EON] .........................(24)
SA-DX850
Signal format indicators
[FIXED, PCM,
, % DIGITAL, % PRO LOGIC] .....(16, 18)
SA-DX750
Signal format indicators
[FIXED, PCM, % DIGITAL, % PRO LOGIC] ................(16, 18)
#7 DSP sound mode indicators
[-SOUND MODE-, SFC, STEREO, SURROUND] .................(18)
Refer to the separate booklet, “Remote Control”, for a guide to the
remote control’s buttons.
5
RQT5818
Connections
Stereo phono cable
White
(L)
Red
(R)
Video connection cable
To connect equipment, refer to the appropriate operating
instructions.
Note
¡Turn off all components before making any connections.
¡Use digital connection to enjoy Dolby Digital or (SA-DX850 only)
DTS (\ page 18).
¡Use analogue connection to enjoy sources that cannot be
decoded on this unit and to record a source (\ pages 16, 19 and
26).
Peripheral equipment and cables sold separately unless otherwise
indicated.
Connecting video equipment
FRONT
R
LOOP ANT
HOLDER
A
L
+
SA-DX850
TV
DIGITAL IN
OPTICAL1
(TV)
OPTICAL2
(DVD)
VCR
–
DVD/DVD 6CH
MONITOR
OUT
COAXIAL
CENTER SURROUND
SPEAKERS
FM
ANT
IN
L
FRONT
R B L
SURROUND CENTER
R L
75 Ω
IN
PHONO
LOOP
EXT
CD
TAPE/MD
REC
(OUT)
IN
SUBWOOFER
TV
PLAY
(IN)
OUT
FRONT
IN
AM
ANT
SUBWOOFER
OUT
L
L
+
+
VIDEO OUT
–
GND
AC IN
AC OUTLET
–
R
R
VIDEO IN
a DVD player
R
AUDIO OUT
VIDEO OUT
VIDEO
OUT
AUDIO
OUT
VIDEO
IN
AUDIO
IN
b TV or monitor
c VCR
Connection with 21 pin scart cable
TV
AUDIO
OUT
SA-DX850
VCR
MONITOR
OUT
To connect analogue 6 channel
DVD/DVD 6CH
CENTER SURROUND
IN
TV
IN
OUT
L
IN
IN
SUBWOOFER
R
FRONT
L
R
VIDEO
IN
VIDEO AUDIO
OUT
OUT
AUDIO
IN
AUDIO
OUT
AV IN
d 21 pin
scart cable
VIDEO
OUT
VIDEO
IN
AV IN
AUDIO OUT
(FRONT L, R)
AUDIO OUT
(CENTER)
(SUBWOOFER)
VIDEO OUT
6
RQT5818
e TV or monitor
f VCR
g DVD player
AUDIO OUT
(SURROUND L, R)
Optical fiber cable
Coaxial cable
Connecting audio equipment
SA-DX850
a Turntable
GND
FRONT
R
b Only for
turntable with
ground terminal.
IN
A
L
c CD player
DVD
LOOP ANT
HOLDER
+
–
DIGITAL IN
OPTICAL1
(TV)
OPTICAL2
(DVD)
TV
VCR1
DVD/DVD 6CH
OUTPUT
MONITOR
OUT
COAXIAL
CENTER SURROUND
FM
ANT
IN
SPEAKERS
HAUT – PARLEURS
L
SURROUND
75 Ω
R
IN
PHONO
LOOP
EXT
CD
TAPE/MD
REC
(OUT)
PLAY
(IN)
IN
SUBWOOFER
TV
OUT
IN
FRONT
FRONT
R B L
SUBWOOFER
(OUT)
+
L
L
AM
ANT
CENTER
L
R
–
GND
Connections
OUTPUT
R
R
d Tape or MD deck
Note
PLAY (OUT)
If you have a graphic equalizer, connect it to the TAPE/MD
terminals (\ page 21).
REC (IN)
Connecting digital equipment
e Satellite receiver, etc.
DIGITAL OUT
Changing the digital input settings
You can change the input settings for the
digital terminals if necessary (for example,
if your CD player doesn’t have a coaxial
output terminal). Note the equipment you
have connected to the terminals, then
change the settings (\ pages 12–14).
Optical fiber cable connection
h Dust cap
FRONT
R
¡Do not bend the optical fiber cable.
¡If the digital optical connector is not
going to be used, be sure to attach
the dust cap to prevent exposure to
dust.
IN
TV
FM
ANT
VCR1
+
DVD/DVD 6CH
MONITOR
OUT
OPTICAL1 OPTICAL2 COAXIAL
(TV)
(DVD)
CENTER SURROUND
SPEAKERS
HAUT – PARLEURS
IN
L
SURROUND
75 Ω
R
IN
PHONO
Note
This unit cannot decode Dolby Digital
RF (radio frequency) signals from a
laser disc player.
AM
ANT
L
–
DIGITAL IN
LOOP
EXT
A
DVD
LOOP ANT
HOLDER
CD
TAPE/MD
REC
(OUT)
PLAY
(IN)
TV
OUT
IN
FRONT
IN
R
DIGITAL
SUBWOOFER
OUT
SUBWOOFER
(OUT)
L
CENTER
FRONT
R B L
f CD player
+
L
L
–
GND
R
R
g DVD player
DIGITAL OUT
7
RQT5818
Connections
Antenna connections
When mounting the antenna
to a column, wall or rack
FM antenna
Fix the other end of the antenna where
reception is best.
d Screw
(included)
a FM indoor antenna (included)
c AM loop antenna (included)
b Adhesive tape
LOOP ANT
HOLDER
S-VIDEO
VCR1
TV
MONITOR
OUT
DIGITAL IN
OPTICAL1
(TV)
FM
ANT
OPTICAL2
(DVD)
IN
TV
AM loop antenna
¡Fit the AM loop antenna holder
(included) onto the rear panel of
this unit and then attach the AM
loop antenna to it (facing in the
direction of best reception).
¡Keep the antenna cord away
from tape decks, DVD players,
and other cords.
VCR1
MONITOR
OUT
COAXIAL
75 Ω
IN
PHONO
1
LOOP
EXT
L
AM
ANT
R
2
CD
TAPE
REC
(OUT)
PLAY
(IN)
TV
(OUT)
GND
3
To connect an outdoor antenna
FM outdoor antenna
AM outdoor antenna
¡Disconnect the FM indoor antenna.
¡The antenna should be installed by a competent technician.
¡Run a piece of vinyl wire horizontally across a window or other
convenient location.
¡Leave the loop antenna connected.
¡Disconnect the antenna when the unit is not in use. Do not use
the antenna during an electrical storm.
g Vinyl-covered wire
5–12 m
e FM outdoor anntena
TV
LOOP ANT
HOLDER
MONITOR
OUT
DIGITAL IN
OPTICAL1
(TV)
FM
ANT
OPTICAL2
(DVD)
S-VIDEO
VCR1
IN
TV
f 75 Ω coaxial cable
[Only for the United Kingdom]
Antenna plug (included)
75 Ω
TV
S-VIDEO
VCR1
TV
VCR1
MONITOR
OUT
VCR1
MONITOR
OUT
COAXIAL
LOOP ANT
HOLDER
DIGITAL IN
OPTICAL1
(TV)
FM
ANT
OPTICAL2
(DVD)
MONITOR
OUT
COAXIAL
75 Ω
IN
PHONO
8
RQT5818
LOOP
EXT
L
AM
ANT
R
GND
CD
TAPE
REC
(OUT)
PLAY
(IN)
IN
IN
TV
PHONO
(OUT)
LOOP
EXT
L
AM
ANT
R
GND
CD
TAPE
REC
(OUT)
PLAY
(IN)
TV
(OUT)
Connecting the AC mains lead and other information
(FOR THE UNITED KINGDOM ONLY)
AC mains lead
READ THE CAUTION FOR THE
AC MAINS LEAD ON PAGE 4
BEFORE CONNECTION.
Connect this lead only after all other cables
and cords are connected.
Note
FRONT
A
L
The included AC mains lead is for use with
this unit only. Do not use it with other
equipment.
a Cooling fan
The cooling fan operates at
high power output levels only.
Insertion of Connector
Even when the connector is perfectly inserted,
depending on the type of inlet used, the front
part of the connector may jut out as shown in
the drawing.
However there is no problem using the unit.
FRONT
TER
R B L
+
+
–
–
b AC mains lead
(included)
AC IN
d Connector
c To household
mains socket
e Approx. 6 mm
f Appliance inlet
Connections
R
9
RQT5818
Speaker connections
Placement of speakers
Front speakers
a Center speaker
b Front speaker
(left)
Place on the left and right of the TV at seated ear height so that
there is good coherency between the picture and sound.
c Front speaker
(right)
30° 30°
Center speaker
Place underneath or above the center of the TV. Aim the speaker at
the seating area.
d Subwoofer
Surround speakers
Place on the side of or slightly behind the seating area, about one
meter higher than ear level.
120°
Subwoofer
e Surround speaker
(left)
The subwoofer can be placed in any position as long as it is at a
reasonable distance from the TV.
Note that some experimentation can yield the smoothest low
frequency performance. Placement near a corner can increase the
apparent output level, but can result in unnatural bass.
f Surround speaker
(right)
The front, center, and surround speakers should be placed at
approximately the same distance from the seating area. The angles
in the diagram are approximate.
Connecting speakers
Other connections are possible depending on your speaker system.
See your speaker system’s operating instructions for details.
Front speakers
SA-DX850
g Front speaker
(right)
Speaker impedance:
4-16 Ω
8-16 Ω
A or B:
A and B:
Note
h Front speaker
(left)
i Speaker cables
If you connect speakers with an
impedance under 6 Ω, switch on
“LOW IMP” (\ page 14).
SA-DX750
Speaker impedance: 6-16 Ω
SA-DX850
3
2
1
TV
LOOP ANT
HOLDER
MONITOR
OUT
DIGITAL IN
OPTICAL1
(TV)
OPTICAL2
(DVD)
TV
IN
R
VCR1
SPEAKERS
L
FRONT
R B L
SURROUND CENTER
R L
IN
TAPE
REC
(OUT)
PLAY
(IN)
IN
SUBWOOFER
TV
(OUT)
(IN)
FRONT
R
SUBWOOFER
OUT
+
+
–
–
AC IN
AC OUTLET
L
L
SA-DX850
AM
ANT
CD
3
–
DVD/DVD 6CH
IN
PHONO
2
CENTER SURROUND
FM
ANT
LOOP
EXT
L
+
75 Ω
GND
A
IN
MONITOR
OUT
COAXIAL
1
FRONT
S-VIDEO
VCR1 DVD
GND
R
R
“B” terminals
For connection to a second pair of
speakers.
SA-DX750
Note
FRONT
R L
Use the A terminals to enjoy
SURROUND, SFC and DVD 6CH
INPUT.
10
RQT5818
+
j Front speaker
(right)
k Speaker cable
–
m Front speaker
(left)
l Speaker cable
Center speaker
6-16 Ω
Speaker impedance:
FRONT
MONITOR
OUT
DIGITAL IN
OPTICAL1
(TV)
OPTICAL2
(DVD)
R
S-VIDEO
VCR1 DVD
TV
IN
TV
IN
VCR1
MONITOR
a Center
speaker
OUT
A
+
–
DVD/DVD 6CH
CENTER SURROUND
COAXIAL
SPEAKERS
IN
L
SURROUND
CENTER
FRONT
R L
IN
PHONO
CD
L
TAPE
REC
(OUT)
IN
SUBWOOFER
TV
PLAY
(IN)
(OUT)
FRONT
(IN)
R B L
R
SUBWOOFER
(OUT)
L
GND
+
+
–
–
AC IN
R
b Speaker cable
6-16 Ω
Speaker impedance:
FRONT
S-VIDEO
VCR1 DVD
TV
MONITOR
OUT
IN
R
IN
c Surround speaker (right)
DIGITAL IN
CAL1
V)
OPTICAL2
(DVD)
TV
VCR1
COAXIAL
e Surround speaker (left)
CENTER SURROUND
IN
L
SPEAKERS
SURROUND CENTER
FRONT
R L
IN
NO
CD
TAPE
REC
(OUT)
PLAY
(IN)
IN
SUBWOOFER
TV
(OUT)
L
–
DVD/DVD 6CH
MONITOR
OUT
A
+
FRONT
(IN)
Connections
Surround speakers
R B L
R
SUBWOOFER
(OUT)
+
+
–
–
AC IN
L
GND
d Speaker cableR
f Speaker cable
Subwoofer
g Active subwoofer
INPUT
LOOP ANT
HOLDER
DIGITAL IN
OPTICAL1
(TV)
OPTICAL2
(DVD)
TV
VCR1
DVD/DVD 6CH
MONITOR
OUT
COAXIAL
CENTER SURROUND
Note
FM
ANT
IN
L
This receiver does not have an amplifier for
the subwoofer.
75 Ω
IN
PHONO
LOOP
EXT
AM
ANT
CD
TAPE/MD
REC
(OUT)
PLAY
(IN)
IN
SUBWOOFER
TV
OUT
IN
R
To connect a passive subwoofer
SUBWOOFER
FRONT
OUT
L
L
GND
R
R
h Monaural connection
cable
¡Connect another amplifier and connect
the subwoofer to it.
Or
¡Connect a passive subwoofer that has
front speaker terminals.
(See the operating instructions of the
speaker system for details.)
11
RQT5818
Customizing your receiver
Change the settings to suit your speakers and equipment and to
suit the environment in which the unit is to be used. Before making
any changes, read the following descriptions, note the factory
settings and ranges, and refer to the instructions for the speakers
and equipment.
FRONT
CENTER
SUB-WFR
SURROUND
LARGE
SMALL
FRONT
CENTER, SURROUND
NONE
SMALL
LARGE
YES
SUB-WFR NO
The settings remain intact until they are changed, even after the
power is turned off.
Setting descriptions
SIZE
FRONT
CENTER
1.0 m
10.0 m
SURROUND
Change to suit the speakers you have connected.
LARGE: For speakers that can reproduce a full sound range,
particularly the bass range below 100 Hz.
SMALL: For speakers that cannot adequately reproduce the bass
range. This setting is sufficient for most speakers if you are
using a subwoofer.
NONE: For speakers you haven’t connected (center or surround).
The factory settings are:
Front:
LARGE
Center and surround: SMALL
For the subwoofer, select YES if you have connected one (factory
setting), or NO if you have not.
DISTANCE
100
150
Enter the distance of the speakers from the seating position so that
the sound from all the speakers (except for the subwoofer) reaches
you at the same time.
You can select distances between 1.0 and 10.0 m at 0.1 m
intervals.
The factory settings are:
Front and center: 3.0 m
Surround:
1.5 m
200
FILTER
OFF
STANDARD
This setting allows you to change the cut-off for bass output from
the front speakers. If you set the front speakers to “SMALL”, the
filter is set to 100 Hz. Raise the cut-off if the bass from the front
speakers is unsatisfactory so that this bass is output through the
subwoofer.
You can raise the cut-off from 100 Hz to either 150 Hz or 200 Hz.
MAX
DR COMP - Dynamic range compression
CD
DVD
TV
COAX
OPT1
OPT2
Change this setting to view software at low volume (such as late at
night) and maintain audio clarity. This setting works with Dolby
Digital software. It reduces the peak level in loud scenes without
affecting the sound field.
OFF: The software is played with the original dynamic range
(factory setting).
STANDARD: The level recommended by the producer of the
software for household viewing.
MAX: The maximum allowable compression (recommended for
night viewing).
D-INPUT - Digital input
OFF
ON
Change these settings to suit the connections you have made to the
three digital input terminals, COAX, OPT1, and OPT2 (\ page 7),
so that the correct source is selected when you turn [INPUT
SELECTOR] (\ page 18).
The factory settings are:
CD: COAX
DVD: OPT2
TV: OPT1
DIMMER
This setting allows you to dim the unit’s display for better viewing in
a darkened room.
The factory setting is OFF (normal brightness).
12
RQT5818
Customizing your receiver
SA-DX850
3 1 2,5 4
4
Basic steps
If you allow about 10 seconds to elapse between settings, the
procedure is canceled, all settings are returned to how they were,
and the previous display is restored. Begin again if this occurs.
1
2
Press [8].
SA-DX850
Press [A] and [B] at the same time.
1 3 2,5 4
SA-DX750
SA-DX750
4
Press [DSP SOUND MODE] and [SFC
MODE] at the same time.
3
Press [A] (SA-DX850) or [DSP SOUND
MODE] (SA-DX750) to select the item
you want to change.
Each time you press the button:
SIZE/DISTANCE/FILTER/DR COMP/D-INPUT/ DIMMER
↑
1
2
Change the settings (a below).
Repeat steps 3 and 4 to complete the necessary
settings.
SA-DX850
SPEAKERS
A
B
SA-DX750
DSP
SOUND MODE SFC MODE
5
SA-DX850
Press [A] and [B] at the same time.
SA-DX750
Press [DSP SOUND MODE] and [SFC
MODE] at the same time.
3
4
DSP
SA-DX850 ASPEAKERS SA-DX750 SOUND MODE
Preparations
4
Changing the settings
SIZE
SIZE, DISTANCE, D-INPUT
SA-DX850
INPUT SELECTOR
SPEAKERS
B
SFC MODE
INPUT SELECTOR
1 Press [B] (SA-DX850) or [SFC MODE] (SA-DX750) to select
the speaker you want to set.
Each time you press the button:
FRONT / CENTER / SURROUND / SUB-WFR (Subwoofer)
↑
2 Turn [INPUT SELECTOR] to change the setting.
When you turn the selector:
FRONT: SMALL ,
/ LARGE
CENTER and SURROUND: NONE ,
/ SMALL ,
/ LARGE
SUB-WFR: NO ,
/ YES
3 Repeat 1 and 2 to change other SIZE settings.
DISTANCE
SA-DX750
1 Press [B] (SA-DX850) or [SFC MODE] (SA-DX750) to select
the speaker you want to set.
Each time you press the button:
FRONT / CENTER / SURROUND
↑
2 Turn [INPUT SELECTOR] to set the distance.
3 Repeat 1 and 2 to change other DISTANCE settings.
FILTER, DR COMP, DIMMER
INPUT SELECTOR
FILTER
5
SA-DX850
SPEAKERS
A
B
SA-DX750
DSP
SOUND MODE SFC MODE
Turn [INPUT SELECTOR] to set the cut-off.
When you turn the selector:
100 ,
/ 150 ,
/ 200
DR COMP
Turn [INPUT SELECTOR] to change the setting.
When you turn the selector:
OFF ,
/ STANDARD ,
/ MAX
(Continued on next page)
13
RQT5818
Customizing your receiver
SPEAKERS A, B
D-INPUT
1 Press [B] (SA-DX850) or [SFC MODE] (SA-DX750) to select
the input position you want to set.
Each time you press the button:
CD COAX / DVD OPT2 / TV OPT1
↑
These are the factory settings. Actual displays depend on the
changes you make. If you change one setting, the other
corresponding setting will also change.
2 Turn [INPUT SELECTOR] to change the setting.
When you turn the selector:
COAX ,
/ OPT1 ,
/ OPT2
↑
↑
3 Repeat 1 and 2 to change other D-INPUT settings.
DIMMER
Turn [INPUT SELECTOR] to change the setting.
When you turn the selector:
OFF ,
/ ON
SPEAKERS
A
B
SPEAKERS
A LOW IMP
For front speakers with an impedance under 6 Ω
SA-DX850
Turn “LOW IMP“ on if even one of your speakers has an impedance
under 6 Ω.
Press and hold [A] or [B] until “LOW IMP”
lights up on the display.
Press and hold down again to cancel “LOW IMP”.
Note that when “LOW IMP” is on, SPEAKERS A and B cannot be
used at the same time.
14
RQT5818
Adjusting speaker output level
1
Adjust the level of the speakers so they are the same apparent level
as the front speakers when you are sitting where you would
normally enjoy a source.
1
SA-DX850
Press [A] to turn on SPEAKERS A.
You cannot adjust output level when SPEAKERS B is on.
SA-DX750
DISPLAY
/
/
DELAY
LEVEL
SUBWOOFER SOUND MODE
+
TEST
– TV VOL+
TV/AV
–
1
–
SFC
VOLUME
5
2,6
3
MUTING
+
2
DSP sound mode switches to SURROUND mode.
The signal is output from each speaker in order for about two
seconds each:
L: Front speaker (left)
C: Center speaker
R: Front speaker (right)
RS: Surround speaker (right)
LS: Surround speaker (left)
SW: Subwoofer
Speakers set as “NONE” or “NO” are skipped.
SA-DX850
SPEAKERS
A
Note
The test signal will not be output if DSP is defeated (\ page 22)
or (SA-DX850 only) DVD 6CH INPUT is on (\ page 19).
SPEAKERS
A
3
SA-DX750
Adjust the volume to the level
normally used.
Adjust the balance of the front speakers if necessary
(\ page 20).
SPEAKERS
SPEAKERS
2
Press [TEST] to output the test signal.
4
Press [LEVEL] to select the speaker
channel to adjust.
The current level appears on the display.
Press again to change the speaker channel.
TEST
Preparations
4
Press [SPEAKERS] to turn on
SPEAKERS.
RETURN
Speakers set as “NONE” or “NO” are skipped.
L
3
–
4
LEVEL
VOLUME
C
R
RS
LS
SW
5
+
Press [–] or [+] to adjust the level to
the same apparent level as the front
speakers.
C, RS, and LS can be adjusted between –10 dB and +10 dB,
with zero being the current level of the front speakers.
SW can be set to MIN, between 1 to 19, or MAX.
Repeat steps 4 and 5 for each speaker channel.
6
Press [TEST] to stop the test signal.
For your reference
5
–
6
TEST
+
Subwoofer output is easily influenced by the source played. You
can achieve better results by adjusting its output while listening to a
source (\ page 21).
15
RQT5818
DSP
SOUND MODE
DSP sound modes
DIGITAL INPUT
The digital sound processor (DSP) in this unit can decode Dolby
Digital and DTS digital signals. It automatically determines the type
of signal, PCM, Dolby Digital, or DTS, and processes it accordingly.
The DSP can add surround-like effects to stereo sources (analogue
or PCM signals).
Choose from the STEREO, SURROUND, or SFC modes.
The DSP may interfere with radio reception. You can turn it off if this
occurs (\ page 22).
Output is in stereo when you turn the DSP off so sound is only
heard through the front speakers.
Note
A
¡PCM with a sampling frequency of 44.1 kHz is the digital signal
format normally found on CDs. Some DVDs also use this format
but often with a higher sampling rate.
¡This unit cannot process other digital signal formats, such as
PCM signals with sampling frequencies of 96 kHz and 192 kHz
and MPEG.
¡SA-DX750 cannot process DTS signals.
DSP
SOUND MODE
L
SPEAKERS
A
B
R
SOUND MODE
STEREO
DSP
SOUND MODE
A
Use this mode to play digital or analogue stereo sources or to play
surround sources through two speakers. When surround sources
are played in this mode, the sounds intended for the other speaker
channels are played through the front speakers.
B
L
LS
SPEAKERS
A
DIGITAL
C
R
LFE RS
SOUND MODE
SURROUND
STEREO mode
SURROUND mode
Select this mode when you are playing a digital surround source
[Dolby Digital or (SA-DX850 only) DTS] or an analogue source that
is recorded with Dolby Surround (VCR, for example).
C
Changing the recognition mode
In rare cases, the unit may have trouble recognizing the digital
signals on discs. With the PCM signals on CDs, this may cause the
beginning of a track to be cut off. Engage the PCM FIX mode if this
occurs.
(SA-DX850 only) With DTS, the signals may not be recognized at
all. Engage the DTS FIX mode if this occurs.
This mode does not need to be changed under normal
circumstances. Change it only if the unit appears to be having
trouble recognizing the software you are playing.
C
SA-DX850
DIGITAL INPUT
FIXED
PCM
While the input source is selected and digital input is engaged:
Press and hold [DIGITAL INPUT].
The current mode is displayed. Press again to change the mode.
Each time you press the button:
FIXED
SA-DX850
AUTO / PCM FIX / DTS FIX
↑
SA-DX750
SA-DX750
AUTO ,
/ PCM FIX
When a FIX mode is on, the unit cannot process other signals. This
may cause noise to be output. Select “AUTO” if this occurs.
The selected mode is stored even if the unit is turned off.
FIXED
PCM
16
RQT5818
DSP sound modes
A
DSP
SOUND MODE
A
SFC MODE
SFC modes
Enjoy an enhanced sound experience with greater presence and
spread by using these SFC (sound field control) modes with PCM or
analogue stereo sources.
The SFC modes cannot be used if the input signal is Dolby Digital
or DTS (SA-DX850 only).
Choose from the following modes.
HALL
Imparts the reflection and spread of a large concert hall.
CLUB
Conveys the exciting and intimate atmosphere of a jazz club.
DSP
SOUND MODE
LIVE
Brings you up close for “live” stage performance and smoother
vocals.
SFC MODE
THEATER
Recreates natural sound ambience and direction.
SIM SURR (Simulated Surround)
Heightens the sensation of expanded space with stereo sources,
and augments monaural sources.
SPEAKERS
A
SOUND MODE SFC
B
Adjusting the sound field
To adjust the speaker level
1 Press [LEVEL] to select the speaker channel.
Each time you press the button:
C / RS / LS / SW
↑
Speakers set as “NONE” or “NO” are skipped.
2 Press [–] or [+] to adjust the level.
C, RS, and LS:
–10 dB to +10 dB
SW:
--- (off) ,
/ MIN ,
/ 1 – 19 ,
/ MAX
B
TV
MD
DVD
VCR
TUNER/BAND TAPE
CD
1
2
3
DIRECT TUNING/
DISC
4
5
6
≥10/-/--
7
8
9
To adjust the delay time
1 Press [DELAY].
2 Press [–] or [+] to change the delay time.
0
TOP MENU
Delay time can be set at 10-millisecond (ms) intervals between
10 and 100 ms.
The factory setting is 50 ms for each mode.
MENU
ENTER
RETURN
DISPLAY
1
1
/
/
DELAY
LEVEL
SUBWOOFER SOUND MODE
–
+
SFC
TEST
– TV VOL+
TV/AV
–
Operations
You can adjust the sound field by adjusting the level of the
speakers and the delay time of the surround speakers. These
adjustments can be made for each SFC mode.
VOLUME
2 2
MUTING
+
17
RQT5818
Enjoying the sounds
1 2 4- 4 1
2
6
3
1
2
Press [8].
SA-DX850
Press [A].
“SURROUND” and “SFC” do not work if you select “B”.
SA-DX750
Press [SPEAKERS] to turn on
SPEAKERS.
DIGITAL INPUT
3
1
Turn [INPUT SELECTOR] to select the
input source.
To switch between analogue and digital input
(CD, DVD, and TV)
2
Press [DIGITAL INPUT].
Each time you press the button:
ANALOG ,
/ DIGITAL
The indicator lights when you select “DIGITAL”.
Once you have set the mode for a source, that mode is
engaged whenever you select that source.
SA-DX850
SPEAKERS
A
4
Select the DSP sound mode.
5
Start playing the source.
SPEAKERS
A
SA-DX750
SPEAKERS
SPEAKERS
1 Press [DSP SOUND MODE].
The indicator corresponding to the mode lights.
Select the mode appropriate to the source (\ pages 16–17).
2 When you select “SFC”
Press [SFC MODE].
Once you have set the mode for a source, that mode is
engaged whenever you select that source.
Refer to the equipment’s instructions for details.
3
6
INPUT SELECTOR
Adjust the volume.
When you finish listening
Be sure to reduce the volume and press [8] to switch the unit to
standby.
4
For your reference
1
2
DSP
SOUND MODE
SFC MODE
L
LS
SPEAKERS
A
DIGITAL
6
VOLUME
DOWN
18
RQT5818
UP
C
R
LFE RS
SOUND MODE
SURROUND
¡If you are using a VCR and you select TAPE/MD, CD, TUNER,
or (SA-DX850 only) PHONO
The picture will remain on the screen.
¡The signal format indicators
The following indicators light depending on the source you are
playing.
% DIGITAL:
Dolby Digital sources
(SA-DX850 only):
DTS sources
% PRO LOGIC:
Analogue sources in SURROUND mode
Digital sources with PCM signals in SURROUND mode
Dolby Digital sources that contain Dolby Pro Logic in
SURROUND mode
¡The program format indicators (L, C, R, LS, S, LFE, RS)
The program format indicators light up to indicate the channels
contained in the digital input signal. They do not light when input
is analogue.
L: Front channel (left)
C: Center channel
R: Front channel (right)
LS: Surround channel (left)
RS: Surround channel (right)
S: If the surround channel is monaural.
LFE (Low Frequency Effect): Deep-bass effect.
Enjoying the sounds
SPEAKERS B
DVD 6CH INPUT
A
To switch between DVD 2 channel and 6 channel
input SA-DX850
There may be times when you need to use analogue input for DVD,
such as to enjoy sources recorded with MPEG, linear PCM and
multiple channel linear PCM.
Select the analogue input mode to suit the source.
DVD: For two-channel audio.
DVD 6CH: For multiple channel audio.
Press [DVD 6CH INPUT].
Each time you press the button:
DVD ,
/ DVD 6CH
Input switches automatically to DVD if you press this button while
another source is selected.
The indicator lights when you select “DVD 6CH”.
Once you have set the mode, that mode is engaged whenever you
select “DVD”.
A
DVD 6CH INPUT
Note
SPEAKERS
B
SPEAKERS
B
B
To use SPEAKERS B SA-DX850
Use SPEAKERS B if you have connected another set of speakers
to the B terminals.
Sound will be heard in stereo while SPEAKERS B is on.
Press [B].
If you don’t want sound coming from the speakers connected to the
A terminals, press [A] to turn them off.
Operations
B
¡DVD 6CH INPUT only works when SPEAKERS A is on and
SPEAKERS B is off.
¡You cannot use any of the DSP sound modes while DVD 6CH
INPUT is on.
¡Speaker settings (\ page 13) are ineffective while DVD 6CH
INPUT is on. Change the settings on the DVD player if
necessary.
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks of
Dolby Laboratories.
Confidential Unpublished Works. c 1992-1997 Dolby
Laboratories. All rights reserved.
SA-DX850
Manufactured under license from Digital Theater Systems, Inc.
“DTS” and “DTS Digital Surround” are trademarks of Digital
Theater Systems, Inc. c 1996 Digital Theater Systems, Inc. All
rights reserved.
19
RQT5818
Enjoying the sounds
1 2
A
Adjusting the tone and balance
A
You can adjust the tone (BASS and TREBLE) only when the DSP
sound mode is STEREO and input is either analogue or PCM. You
cannot adjust the tone while the DSP is defeated or if DVD 6CH
INPUT is selected (SA-DX850 only).
1
Press [BASS/TREBLE, BALANCE].
Each time you press the button:
BASS / TREBLE / BALANCE
↑
BASS: To adjust the bass
TREBLE: To adjust the treble
BALANCE: To adjust the left/right sound balance
1
BASS/TREBLE
2
Press [–, L] or [+, R].
–, L: to lower the selected tone or shift the balance to the left
speaker.
+, R: to raise the selected tone or shift the balance to the
right speaker.
The previous display returns after a few seconds.
BALANCE
2
–
+
L
R
BASS, TREBLE
Using headphones
B
–10 dB
BALANCE
+10 dB
q
SA-DX850
Press [A] and/or [B] to turn off the speakers.
SA-DX750
Press [SPEAKERS] to turn off the speakers.
B
1
3
2 4
Turning the speakers off automatically engages STEREO mode
and ensures no sound is heard from the subwoofer.
(Sound will seem unusual if you use another DSP mode.)
w Reduce the volume.
e Connect the headphones (not included).
Plug type: 6.3 mm stereo
r Adjust the volume.
Note
Avoid listening for prolonged periods of time to prevent hearing
damage.
a Headphones
20
RQT5818
Enjoying the sounds
TAPE MONITOR
A
Muting the volume
Press [MUTING].
The message “MUTING ON NOW” runs repeatedly from right to left
across the display as long as the muting function is on.
To cancel
Press [MUTING].
Muting is also canceled when the unit is turned off.
B
TV
VCR
You can adjust the volume of the subwoofer while listening to a
source. No sound is heard from the subwoofer if “SW ---” is
selected. This setting can be done for each DSP mode.
You cannot adjust the subwoofer level while the DSP is defeated or
if DVD 6CH INPUT is selected (SA-DX850 only).
The factory setting is “SW 10”.
DVD
TUNER/BAND TAPE
MD
CD
1
2
3
DIRECT TUNING/
DISC
4
5
6
≥10/-/--
7
8
9
Press [SUBWOOFER].
0
TOP MENU
The current setting is shown.
Each time you press the button:
SW --- / SW MIN / SW 5 / SW 10 / SW 15 / SW MAX
↑
MENU
ENTER
RETURN
DISPLAY
LEVEL
SUBWOOFER
/
/
DELAY
LEVEL
SUBWOOFER SOUND MODE
–
+
SFC
TEST
– TV VOL+
TV/AV
–
VOLUME
MUTING
+
Adjusting the subwoofer level
–, +
MUTING
To make finer adjustments
1 Press [LEVEL] to select “SW”.
2 Press [–] or [+].
A
C
MUTING
Using the TAPE MONITOR
Use the tape monitor if you have connected a graphic equalizer to
the TAPE/MD terminals.
Press [TAPE MONITOR].
Operations
Note
Sound from the subwoofer can be distorted if you raise the unit’s
volume while subwoofer level is high. Reduce subwoofer level if this
occurs.
The “TAPE MONITOR” indicator lights and the tape monitor comes
on.
B
SUBWOOFER
Sources other than TAPE/MD can still be selected with [INPUT
SELECTOR] while the “TAPE MONITOR” indicator is on.
Press [TAPE MONITOR] again to turn the tape monitor off.
(\ See “Making a recording” on page 26 for details on how to use
the tape monitor during recording.)
Note
C
TAPE MONITOR
¡The tape monitor cannot be used when input is digital and turns
off if you select digital input.
¡Depending on the setting, the graphic equalizer can cause
distortion.
21
RQT5818
The radio
DSP
SOUND MODE
3
A
1
Manual tuning
A
You can tune radio stations manually by selecting the station’s
frequency, or you can preset up to 30 stations into channels to
make tuning simpler (\ page 23).
2
1
FM MODE, PTY SEARCH
1
Turn [INPUT SELECTOR] to select
“TUNER”.
2
Press [BAND, EON] to select “FM” or
“AM”.
3
Press [TUNING, PTY SELECTOR,
2 , 1] to select the frequency of the
station.
INPUT SELECTOR
“TUNED” lights when tuned.
“STEREO” lights during FM stereo broadcasts.
Automatic tuning
Hold down [TUNING, PTY SELECTOR, 2, 1] until the frequency
begins to scroll. Tuning stops when a station is found. (Tuning may
stop if there is interference.)
2
Improving reception
BAND
EON
MHz
3
TUNING
MHz
PTY SELECTOR
TUNED
STEREO
B
TV
1
3
MD
DVD
VCR
TUNER/BAND TAPE
CD
1
2
3
DIRECT TUNING/
DISC
4
5
6
≥10/-/--
7
8
9
0
TOP MENU
MENU
ENTER
RETURN
DISPLAY
/
/
DELAY
LEVEL
SUBWOOFER SOUND MODE
–
+
SFC
TEST
– TV VOL+
TV/AV
–
VOLUME
MUTING
+
2
¡FM mode
You can improve FM reception by switching reception to
monaural.
Press [FM MODE, PTY SEARCH].
“MONO” lights.
Press the button again to cancel.
¡DSP DEFEAT
You can improve reception by turning off the DSP (a page 16).
Press and hold [DSP SOUND MODE] until “DEFEAT” appears.
Press and hold [DSP SOUND MODE] again to turn the DSP on.
¡For your reference
DVD players can interfere with radio reception. Turn the DVD
player off or move it further away from the antennas if this occurs.
To change the AM frequency step
Press and hold [BAND, EON] for about 3 seconds when AM band is
selected. (The frequency step changes from 9 kHz to 10 kHz.)
To return to the previous step, press and hold [BAND, EON] for
about 3 seconds again.
B
Direct tuning
q Press [TUNER/BAND].
The band changes each time you press the button.
w Press [DIRECT TUNING/DISC].
e Press the numbered buttons to enter the
frequency.
e.g. To select 107.90 MHz, press [1] / [0] / [7] / [9] / [0]
Note
1. If you do not press a button while the cursor is flashing, the
display returns to the frequency being received.
2. If the frequency has not been input correctly, “ERROR” will be
displayed.
22
RQT5818
The radio
MEMORY
A
C
Preset tuning
Choose either automatic presetting, which presets the stations the
tuner can receive, or manual presetting, which allows you to select
the stations to preset and the order in which they are to be preset.
There are 30 channels available for presetting.
Remember
If a new station is preset into a channel, the old station is erased.
A
Automatic presetting
1 3 2 4
Presetting FM stations
A
Preparation: Tune to the FM frequency where you want to begin
presetting (\ page 22).
MEMORY
Press and hold [MEMORY].
The FM stations the unit can receive are preset in channels 1 to 30.
M
Presetting AM stations
B
Preparation: Tune to the AM frequency where you want presetting
to begin (\ page 22).
Press and hold [MEMORY].
D
21
During automatic presetting, the memory indicator flashes and the
frequency scrolls. The memory indicator and channel numbers are
displayed for a second when a station is preset (ı).
The last station to be preset is displayed when presetting finishes.
For your reference
Even if the AC mains lead is disconnected from the household
mains socket, the stations remain in memory for approximately one
month.
C
Manual presetting
Preset the stations one at a time.
TV
MD
≥10/-/--, 1–0
VCR
1 Tune to the station.
2 Press [MEMORY].
3 Press [TUNING, PTY SELECTOR, 2, 1] to
select a channel.
4 Press [MEMORY].
DVD
TUNER/BAND TAPE
CD
1
2
3
DIRECT TUNING/
DISC
4
5
6
≥10/-/--
7
8
9
0
TOP MENU
MENU
D
ENTER
/
/
DELAY
LEVEL
SUBWOOFER SOUND MODE
1
–
+
SFC
TEST
– TV VOL+
–
Selecting channels
RETURN
DISPLAY
TV/AV
Radio functions
The AM stations the unit can receive are preset in channels 21 to
30. (FM stations are replaced if any were preset in these channels.)
M
VOLUME
Press [PRESET, DISPLAY MODE].
The channel number flashes for about 5 seconds.
2
MUTING
+
Press [TUNING, PTY SELECTOR,
2, 1].
Hold down the buttons to change channels faster.
1
2
On the remote control
Press the numbered buttons.
For channels 1 to 9, press the corresponding number.
For channels 10 or over, press [≥10/-/--], then the two digits.
e.g. To select channel 21
[≥10/-/--] / [2] / [1]
PRESET
DISPLAY MODE
TUNING
PTY SELECTOR
MHz
23
RQT5818
RDS broadcasts
12
A
1
RDS (radio data system) is a multiplex broadcasting system where,
along with FM audio signals, stations transmit other signals to help
you enjoy radio more and tune into programs easier. This unit can
use the following types of signals. Some stations do not have PTY,
EON, and RT.
¡PS (Program service): Station name.
¡PTY (Program type): Displays the program type and is used to
search for a type of program (a below).
¡EON (Enhanced other networks): This signal is used between
networked stations to make it easier for you to tune into a type of
program (a page 25).
¡RT (Radio text): This unit can show up to 64 letters by scrolling
them across the display. This text could be about the song, traffic
or weather, phone-in numbers, or police information.
RDS
MHz
RDS
Note
This unit does not have the emergency broadcasts system (EBS)
that tunes automatically into emergency broadcasts.
2
PRESET
DISPLAY MODE
A
1
MHz
RDS
2
The display normally shows the radio frequency. “RDS” lights when
the station is broadcasting RDS signals. You cannot change the
display if “RDS” is off.
1
2
RDS PS
3
Press [RDS].
While “RDS” is flashing
Press [PRESET, DISPLAY MODE].
The display changes each time you press the button.
q Frequency display
w PS display
e PTY display (“NO PTY” if there are no PTY signals, then
the frequency is shown again)
r RT display (no change if there are no RT signals)
RDS
PTY
4
RDS
RT
B
B
To display RDS information
12 3
PTY search
PTY finds programs currently broadcasting from amongst the preset
FM stations. Preset FM stations before proceeding.
1
2
Press [RDS].
While “RDS” is flashing
Press [TUNING, PTY SELECTOR,
2, 1] to select the program type.
The display changes each time you press the button
(a page 25 for PTY displays).
1
3
MHz
RDS
2
TUNING
PTY SELECTOR
RDS
PTY
3
FM MODE
PTY SEARCH
RDS
24
RQT5818
While the PTY display is flashing
Press [FM MODE, PTY SEARCH].
RDS
PTY
The PTY indicator flashes while searching.
The unit switches to the station broadcasting the program.
The PTY indicator flashes for another two seconds.
“SELECT PTY FIRST” scrolls across the display if you try to
start a PTY search without selecting a program type.
RDS broadcasts
12 3
A
A
EON tuning
EON puts the unit on standby to receive programs that are going to
be broadcast on a station that shares RDS signals with the current
station. Preset FM stations before proceeding. EON tuning does not
work if the unit is not receiving EON signals (“NO EON” is
displayed.)
1
2
1
Press [RDS].
While “RDS” is flashing
Press [TUNING, PTY SELECTOR,
2, 1] to select the program type.
RDS
MHz
RDS
3
While the PTY display is flashing
Press [BAND, EON].
TUNING
PTY SELECTOR
RDS
PTY
3
To cancel EON tuning
1. Press [RDS].
2. Press [BAND, EON].
EON tuning is also canceled if you operate the tuner, change the
input source, or turn the unit off.
BAND
EON
B
RDS
PTY displays
EON
NEWS
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIED
POP M
ROCK M
M. O. R. M
LIGHT M
CLASSICS
OTHER M
WEATHER
FINANCE
CHILDREN
SOCIAL A
RELIGION
PHONE IN
TRAVEL
LEISURE
JAZZ
COUNTRY
NATIONAL
OLDIES
FOLK M
DOCUMENT
TEST
ALARM
News
Current affairs
Information
Sport
Education
Drama
Culture
Science
Varied
Pop music
Rock music
Middle-of-the-road Music
Light classical
Serious classical
Other music
Weather information
Finance
Children
Social affairs
Religion
Phone in
Travel
Leisure
Jazz music
Country music
National music
Oldies
Folk music
Documentary
Test broadcast
Emergency announcement
Radio functions
2
“EON” lights.
The current station remains tuned in until the program type
starts, then the unit switches to the station and “OTHER
PROGRAM SERVICE” scrolls across the display. (It changes
immediately if the selected program is broadcasting.)
25
RQT5818
Making a recording
1
A
Note
¡You cannot record a source connected through a digital terminal.
When recording CD, DVD, or TV, ensure the source is connected
through the corresponding analogue terminals (\ pages 6–7)
and “ANALOG” input is selected (\ page 18).
¡(SA-DX850 only) When you select DVD 6CH INPUT mode, only
sound from the front left and right channels is recorded.
A
TAPE MONITOR
1
INPUT SELECTOR
B
Recording on a tape or MD deck,
or VCR
You can record to a tape deck connected to TAPE/MD REC (OUT)
or to a VCR connected to VCR OUT.
See the recording unit’s operating instructions for details on how to
prepare it for recording.
When recording with a tape or MD deck, you can record any source
except TAPE/MD.
When recording with a VCR, you can record any source except
TAPE/MD or VCR.
1
Turn [INPUT SELECTOR] to select the
source to be recorded.
2
Begin recording.
Follow your recording unit’s operating instructions.
TAPE MONITOR
3
Begin the source to be recorded.
Follow your equipment’s operating instructions.
B
To monitor sound being recorded onto a tape deck
It is possible to check the sound being recorded if your tape deck is
a 3 head system.
Press [TAPE MONITOR] on this unit and
set the monitor button on the tape deck to
“TAPE”.
Press [TAPE MONITOR] once again to turn it off.
26
RQT5818
Timer function
3
There are two timer functions: the sleep timer and the wake timer.
12
Note
¡ Sleep timer:
The unit turns off after a set time.
It can be set for 30, 60, or 90 minutes.
¡ Wake timer:
The unit can be set to turn on a certain number of hours after it is
turned off.
It can be set for 5, 7, or 9 hours.
Setting the timers
1
WAKE
1
2
Press [TIMER, -MODE, –TIME] to
select the desired timer mode.
[Within 5 seconds]
Press [TIMER, -MODE, –TIME] and
release when the time you require is
displayed.
TIMER
-MODE
–TIME
SLEEP
The display changes as follows:
¡In sleep timer mode
30 / 60 / 90 (minutes)
↑
¡In wake timer mode
5H / 7H / 9H (hours)
↑
The display is restored 5 seconds after the setting is
completed.
WAKE
2
3
TIMER
-MODE
–TIME
Wake timer mode only
Press [8] to turn off the unit.
The “WAKE” indicator lights up.
WAKE
MHz
WAKE
3
Press [TIMER, -MODE, –TIME] once.
Note
Do not press [TIMER, -MODE, –TIME] again before the remaining
time indication goes out.
The setting may change if you do this.
Changing a setting
Repeat steps 1 and 2.
Reference
Checking the remaining time on the sleep timer and the
time set for the wake timer
To cancel the timer
Press [TIMER, -MODE, –TIME] until “OFF” is displayed.
“SLEEP” or “WAKE” will go out.
Note
¡The timers cannot be used together.
¡The sleep timer turns off the receiver, and the wake timer turns
on the receiver, but they do not turn off/on any externally
connected components.
27
RQT5818
The HELP function
-HELP
–RESET
If you make a mistake in operation or if sound output stops, the
HELP function displays information that indicates how you can
remedy the situation.
If “ERROR” or scrolling characters (“SPEAKER OFF NOW”, for
example) appear on the display, do the following.
Press [-HELP, –RESET].
The remedy for the situation is displayed.
For your reference
You can reset the unit’s settings to the factory settings. If this is ever
necessary, press and hold [-HELP, –RESET] for about 2 seconds
until “RESET” is displayed.
This will not erase radio stations you have preset.
Maintenance
If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
If the surfaces are extremely dirty, use a soft cloth dipped in a soapand-water solution or a weak detergent solution.
¡Never use alcohol, paint thinner or benzine to clean this unit.
¡Before using chemically treated cloth, read the instructions that
came with the cloth carefully.
28
RQT5818
Troubleshooting guide
Before requesting service, make the below checks. If you can’t fix the system as described below, or if something not listed here occurs, refer to
the enclosed directory to locate an Authorized Service Center convenient to you or contact your dealer.
No power.
¡Ensure the power cord is connected.
No sound.
¡Turn the volume up.
¡Turn muting off.
¡Check connections to speakers and other equipment.
¡Turn on the speakers.
¡Turn off the tape monitor.
¡Select the correct source.
¡Change the DIGITAL input setting to suit the type of connection you have
made.
¡Check that the digital signals can be decoded by this unit.
¡Turn PCM FIX off.
¡DTS FIX off (SA-DX850 only).
Ref.Pages
9
18
21
6–11
18
21
18
12–14
16
16
16
Cannot select “DIGITAL” input.
¡Cancel “DSP DEFEAT”.
22
–
Sound stops. “OVERLOAD”
appears on the display.
¡Switch off the unit, determine and correct the cause, then switch the unit on.
Causes include shorting of the positive and negative speaker wires, using
speakers with an impedance lower than rated for this unit, straining of the
speakers through excessive volume or power, and using the unit in a hot
environment.
¡Use speakers with the right impedance rating.
10–11
“F 70” appears on the display.
¡Turn the unit off, disconnect the AC mains lead, then reconnect and turn the
unit on. Consult your dealer if “F 70” remains on the display.
–
The picture doesn’t appear on the
television.
¡Change the television’s input mode to suit the connections between this unit
and the television.
–
DSP sound modes
Sound is not heard from the
center, surround, or subwoofer
speakers.
¡Ensure the size settings for your speakers are correct.
¡Check the DSP sound mode.
¡Cancel “DSP DEFEAT”.
DSP sound modes cannot be
selected.
¡Cancel “DSP DEFEAT”.
¡Turn SPEAKERS B off (SA-DX850 only).
¡Turn DVD 6CH INPUT off (SA-DX850 only).
Radio
Ref.Pages
12–13
16–17
22
Reference
Common problems
22
19
19
Ref.Pages
The radio cannot be tuned in or
there is a lot of noise and
interference.
¡Adjust the position of the FM or AM antenna.
¡Reduce the treble.
¡Select “DSP DEFEAT”.
¡Turn off nearby televisions, video decks, DVD players, and satellite receivers.
¡You may need an outdoor antenna or an antenna with more elements.
¡Separate the antenna from other cables, leads, and appliances.
8
20
22
22
8
–
The correct AM frequency cannot
be tuned in.
¡Change the frequency step. Hold [BAND, EON] down for 10 seconds to
change the step to 9 kHz.
22
29
RQT5818
Specifications (DIN 45 500)
■ AMPLIFIER SECTION
■ FM TUNER SECTION
Power output (at 230 V for Continental Europe)
(at 240 V for the United Kingdom)
DIN 1 kHz (T.H.D. 1 %)
2 x 80 W (6 Ω)
40 Hz–20 kHz continuous power output
both channels driven
2 x 60 W (6 Ω)
Total harmonic distortion
rated power at 40 Hz–20 kHz
0.9 % (6 Ω)
half power at 1 kHz
0.07 % (6 Ω)
Power output at 1 kHz each channel driven
DIN 1 kHz (T.H.D. 1 %)
Front
2 x 80 W (6 Ω)
Center
80 W (6 Ω)
Surround
2 x 80 W (6 Ω)
Power bandwidth
both channels driven, –3 dB
10 Hz–40 kHz (6 Ω)
Damping factor
30 (6 Ω)
Load impedance
Front
[SA-DX850] A or B
4–16 Ω
[SA-DX850] A and B
8–16 Ω
[SA-DX750]
6–16 Ω
Center
6–16 Ω
Surround
6–16 Ω
Frequency response
[SA-DX850 only] PHONO
RIAA standard curve (30 Hz–15 kHz) ±0.8 dB
CD, TAPE/MD, DVD, TV, VCR
10 Hz–40 kHz, ±3 dB
Input sensitivity and impeadance
[SA-DX850 only] PHONO
3 mV/47 kΩ
CD, TAPE/MD, DVD, TV, VCR
200 mV/22 kΩ
S/N at rated power (6 Ω)
[SA-DX850 only] PHONO
70 dB (IHF, A: 80 dB)
CD, TAPE/MD, DVD, TV, VCR
75 dB (IHF, A: 85 dB)
Tone controls
BASS
50 Hz, +10 to –10 dB
TREBLE
20 kHz, +10 to –10 dB
Output voltage
TAPE/MD REC (OUT), VCR OUT
200 mV
Channel balance (250 Hz–6.3 kHz)
±1 dB
Channel separation
55 dB
Headphones output level and impeadance
430 mV/330 Ω
Subwoofer frequency response (–6 dB)
7–200 Hz
Frequency range
Sensitivity
S/N 30 dB
S/N 26 dB
S/N 20 dB
IHF usable sensitivity (IHF’58)
IHF 46 dB stereo quieting sensitivity
Total harmonic distortion
MONO
STEREO
S/N
MONO
STEREO
Frequency response
20 Hz–15 kHz
Alternate channel selectivity
±400 kHz
Capture ratio
Image rejection at 98 MHz
IF rejection at 98 MHz
Spurious response rejection at 98 MHz
AM suppression
Stereo separation
1 kHz
Carrier leak
19 kHz
38 kHz
Channel balance (250 Hz–6.3 kHz)
Limiting point
Bandwidth
IF amplifier
FM demodulator
Antenna terminal
Digital input
Optical
Coaxicial
2
1
87.50–108.00 MHz
1.5 µV/75 Ω
1.3 µV/75 Ω
1.2 µV/75 Ω
1.5 µV/75 Ω
22 µV/75 Ω
0.2 %
0.3 %
60 dB (73 dB, IHF)
58 dB (67 dB, IHF)
+1 dB, –2 dB
65 dB
1.5 dB
40 dB
70 dB
70 dB
50 dB
40 dB
–30 dB (–35 dB, IHF)
–50 dB (–55 dB, IHF)
±1.5 dB
1.2 µV
180 kHz
1000 kHz
75 Ω (unbalanced)
■ AM TUNER SECTION
Frequency range
Sensitivity
Selectivity (at 999 kHz)
IF rejection (at 1000 kHz)
522–1611 kHz (9 kHz steps)
530–1620 kHz (10 kHz steps)
20 µV, 330 µV/m
55 dB
50 dB
■ VIDEO SECTION
Output voltage at 1 V input (unbalanced)
Maximum input voltage
Input/output impedance
1±0.1 Vp-p
1.5 Vp-p
75 Ω (unbalanced)
■ GENERAL
Power supply
For Continental Europe
For the United Kingdom
Power consumption
Dimensions (W x H x D)
Mass
Power consumption in standby mode:
AC 230 V, 50 Hz
AC 230–240 V, 50 Hz
220 W
430 x 158 x 375 mm
9.3 kg
2W
Notes:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
30
RQT5818
Reference
MEMO
31
RQT5818
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE, DO NOT EXPOSE THIS APPLIANCE
TO RAIN, SPLASHING, DRIPPING OR MOISTURE.
CAUTION!
DO NOT INSTALL, OR PLACE THIS UNIT, IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY
OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
SUOMI
VAROITUS:
TULIPALO-, SÄHKÖISKUVAARAN TAI MUUN VAHINGON
VÄHENTÄMISEKSI EI LAITETTA SAA ALTISTAA
SATEELLE, ROISKEELLE, VESIPISAROILLE TAI
KOSTEUDELLE.
VAROITUS!
ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA
KABINETTITYYPPISEEN KIRJAKAAPPIIN TAI MUUHUN
SULJETTUUN TILAAN, JOTTA TUULETUS ONNISTUISI.
VARMISTA, ETTÄ VERHO TAI MIKÄÄN MUU MATERIAALI
EI HUONONNA TUULETUSTA, JOTTA VÄLTETTÄISIIN
YLIKUUMENEMISESTA JOHTUVA SÄHKÖISKU- TAI
TULIPALOVAARA.
NORSK
ADVARSEL:
FOR Å REDUSERE FAREN FOR BRANN, STRØMSJOKK
ELLER SKADER PÅ PRODUKTET, MÅ DETTE APPARATET
IKKE UTSETTES FOR REGN, VANNSPRUT, VANNDRÅPER
ELLER FUKTIGHET.
ADVARSEL!
APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET
INNEBYGGET KABINETT ELLER ET ANNET LUKKET STED
HVOR VENTILASJONSFORHOLDENE ER
UTILSTREKKELIGE. SØRG FOR AT GARDINER ELLER
LIGNENDE IKKE FORVERRER
VENTILASJONSFORHOLDENE, SÅ RISIKO FOR
ELEKTRISK SJOKK ELLER BRANN FORÅRSAKET AV
OVERHETING UNNGÅS.
Matsushita Electric Industrial Co., Ltd.
Osaka 542-8588, Japan
En
RQT5818-B
H0101RF0
Download PDF

advertising
