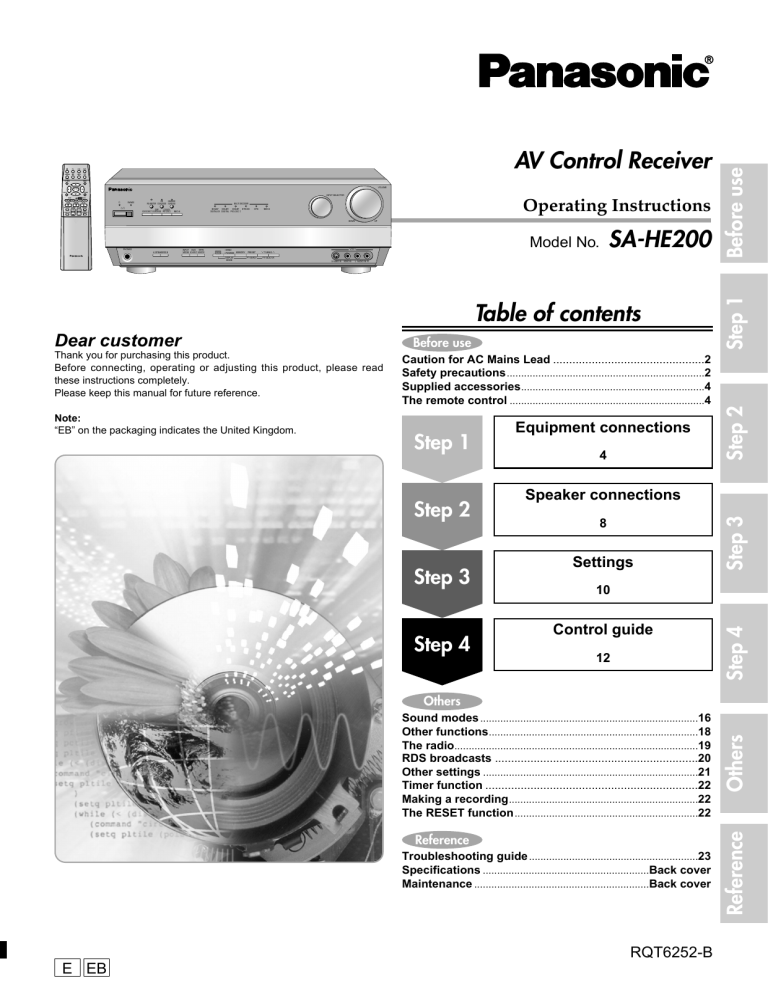

CD MENU VOLUME ENTER RETURN INPUT SELECTOR SLOW /SEARCH SKIP STOP PAUSE PLAY SOUND MODE CHANNEL VOLUME MUTING SUBWOOFER ^ WAKE 8 INPUT SELECTOR ENHANCED HQ RE-MASTER SOUND MODE SURROUND DSP DOLBY SOURCE DIRECT SOUND MODE PRO LOGIC2 Operating Instructions MULTI DECODER DOLBY DOLBY DOLBY DTS-ES DIGITAL EX DIGITAL PRO LOGIC 2 NEO:6 DTS NEO:6 DOWN PHONES A SPEAKERS B INPUT DVD TAPE MODE 6CH INPUT MONITOR RDS - BAND – FM MODE MEMORY PRESET DISPLAY MODE PTY SEARCH UP Model No. VCR 3 2 TUNING 1 SA-HE200 PTY SELECTOR S-VIDEO IN VIDEO IN L AUDIO IN R Table of contents Dear customer Thank you for purchasing this product. Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference. Note: “EB” on the packaging indicates the United Kingdom. Before use Caution for AC Mains Lead ...............................................2 Safety precautions .....................................................................2 Supplied accessories................................................................4 The remote control ....................................................................4 Step 1 Step 2 Step 3 Step 4 Equipment connections 4 Step 1 DISPLAY Before use AV Control Receiver DVD Step 2 VCR TAPE Speaker connections 8 Settings Step 3 TV MD RECEIVER 10 Control guide 12 Step 4 TUNER/BAND TOP MENU Reference Troubleshooting guide ...........................................................23 Specifications ..........................................................Back cover Maintenance .............................................................Back cover RQT6252-B E EB Reference Sound modes ............................................................................16 Other functions .........................................................................18 The radio.....................................................................................19 RDS broadcasts ...............................................................20 Other settings ...........................................................................21 Timer function ..................................................................22 Making a recording ..................................................................22 The RESET function ................................................................22 Others Others Caution for AC Mains Lead (For United Kingdom) Placement (“EB” area code model only) For your safety, please read the following text carefully. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer. CAUTION! IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET. If a new plug is to be fitted please observe the wiring code as stated below. If in any doubt please consult a qualified electrician. IMPORTANT The wires in this mains lead are coloured in accordance with the following code: Blue: Neutral, Brown: Live. As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red. WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL OR COLOURED GREEN OR GREEN/YELLOW. THIS PLUG IS NOT WATERPROOF–KEEP DRY. Before use How to replace the fuse The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug. 1. Open the fuse cover with a screwdriver. Figure B Fuse cover 2. Replace the fuse and close or attach the fuse cover. Figure B Figure A Fuse (5 ampere) 2 RQT6252 Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life. Do not place heavy items on the unit. Voltage Do not use high voltage power sources. This can overload the unit and cause a fire. Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other place where DC is used. AC mains lead protection Ensure the AC mains lead is connected correctly and not damaged. Poor connection and lead damage can cause fire or electric shock. Do not pull, bend, or place heavy items on the lead. Grasp the plug firmly when unplugging the lead. Pulling the AC mains lead can cause electric shock. Do not handle the plug with wet hands. This can cause electric shock. Foreign matter Do not let metal objects fall inside the unit. This can cause electric shock or malfunction. Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer. Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit. Service Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC mains lead and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualified persons. Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time. Remove the connector cover. Figure A Safety precautions Fuse (5 ampere) ¡DO NOT INSTALL, OR PLACE THIS UNIT, IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. ¡DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS. ¡DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT. ¡DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER. SUOMI VAROITUS! ¡ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA KABINETTITYYPPISEEN KIRJAKAAPPIIN TAI MUUHUN SULJETTUUN TILAAN, JOTTA TUULETUS ONNISTUISI. VARMISTA, ETTÄ VERHO TAI MIKÄÄN MUU MATERIAALI EI HUONONNA TUULETUSTA, JOTTA VÄLTETTÄISIIN YLIKUUMENEMISESTA JOHTUVA SÄHKÖISKU- TAI TULIPALOVAARA. ¡ ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA SANOMALEHDELLÄ, PÖYTÄLIINALLA, VERHOLLA TAI MUULLA VASTAAVALLA ESINEELLÄ. ¡ ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA AVOTULEN LÄHDETTÄ LAITTEEN PÄÄLLE. ¡ HÄVITÄ PARISTOT LUONTOA VAHINGOITTAMATTOMALLA TAVALLA. Before use CAUTION! Do not place anything on top of this unit or block the heat radiation vents in any way. In particular, do not place tape decks or CD/DVD players on this unit as heat radiated from it can damage your software. For the United Kingdom and Republic of Ireland www.panasonic.co.uk (for UK customers only) ¡Order accessory and consumable items for your product with ease and confidence by telephoning our Customer Care Centre Mon-Friday 9:00am-5:30pm. (Excluding public holidays.) ¡Or go on line through our Internet Accessory ordering application. ¡Most major credit and debit cards accepted. ¡All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd. ¡It couldn’t be simpler! Customer Care Centre For UK customers: 08705 357357 For Republic of Ireland customers: 01 289 8333 ADVARSEL! ¡ APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET INNEBYGGET KABINETT ELLER ET ANNET LUKKET STED HVOR VENTILASJONSFORHOLDENE ER UTILSTREKKELIGE. SØRG FOR AT GARDINER ELLER LIGNENDE IKKE FORVERRER VENTILASJONSFORHOLDENE, SÅ RISIKO FOR ELEKTRISK SJOKK ELLER BRANN FORÅRSAKET AV OVERHETING UNNGÅS. ¡ APPARATETS VENTILASJONSÅPNINGER MÅ IKKE DEKKES TIL MED AVISER, BORDDUKER, GARDINER OG LIGNENDE. ¡ PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS, OPPÅ APPARATET. ¡ BRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR MILJØET. ADVARSEL: FOR Å REDUSERE FAREN FOR BRANN, ELEKTRISK STØT ELLER SKADER PÅ PRODUKTET, MÅ DETTE APPARATET IKKE UTSETTES FOR REGN, FUKTIGHET, VANNDRÅPER ELLER VANNSPRUT. DET MÅ HELLER IKKE PLASSERES GJENSTANDER FYLT MED VANN, SLIK SOM BLOMSTERVASER, OPPÅ APPARATET. Technical Support For UK customers: 0870 1 505610 This Technical Support Hot Line number is for Panasonic PC software related products only. For Republic of Ireland, please use the Customer Care Centre number listed above for all enquiries. For all other product related enquiries, please use the Customer Care Centre numbers listed above. Step 2 NORSK DETTE APPARATET ER BEREGNET TIL BRUK UNDER MODERATE KLIMAFORHOLD. Step 3 CAUTION TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI LEUDOSSA ILMASTOSSA. Step 4 This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone. TULIPALO-, SÄHKÖISKUVAARAN TAI TUOTETTA KOHTAAVAN MUUN VAHINGON VÄHENTÄMISEKSI EI LAITETTA SAA ALTISTAA SATEELLE, KOSTEUDELLE, VESIPISAROILLE TAI ROISKEELLE, EIKÄ NESTETTÄ SISÄLTÄVIÄ ESINEITÄ, KUTEN ESIMERKIKSI MALJAKOITA, SAA ASETTAA LAITTEEN PÄÄLLE. Others THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES. VAROITUS: Reference TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. Step 1 WARNING: 3 RQT6252 Step Supplied accessories Please check and identify the supplied accessories. 1 AC mains lead For the United Kingdom For continental Europe 1 2 3 4 To connect equipment, refer to the appropriate operating instructions. Peripheral equipment and cables sold separately unless otherwise indicated. Stereo phono cable White (L) Red (R) (VJA0733) Video connection cable (RJA0019-2K) 1 FM indoor antenna (RSA0007-L) S-video connection cable 1 AM loop antenna set (N1DAEYA00006) (AM loop antenna, antenna stand, antenna wall bracket) Optical fiber cable 1 Antenna plug adapter (K1YZ02000013) For the United Kingdom Coaxial cable 2 Batteries 1 Remote control (EUR7502XC0) Refer to the separate booklet, “Remote Control Operation Guide”, for remote control operation details. Note Use the numbers indicated in parentheses when asking for replacement parts. The remote control ■ Batteries You can change the input settings for the digital input terminals if necessary. 3 For example, if you have a DVD player that only has a coaxial output terminal, connect it to COAXIAL IN, then change the DVD setting from OPT 2 to COAX. As you connect the equipment, fill in the table and make changes to the settings as necessary (\ page 11). + 1 + 4 – 2 – (R6, AA, UM-3) ¡Insert so the poles (+ and –) match those in the remote control. ¡Do not use rechargeable type batteries. ■ Use ■ How to open Aim at the sensor, avoiding obstacles, at a maximum range of 7 m directly in front of the unit. TUNER/BAND TV VCR MD TAPE DVD CD TUNER/BAND MENU TOP MENU RECEIVER PAUSE PLAY SOUND MODE CHANNEL VOLUME MUTING ENHANCED HQ RE-MASTER SOUND MODE SURROUND WAKE 8 DSP DOLBY SOURCE DIRECT SOUND MODE PRO LOGIC2 MULTI DECODER DOLBY DOLBY DOLBY DTS-ES DIGITAL EX DIGITAL PRO LOGIC 2 NEO:6 DTS NEO:6 DISPLAY RETURN INPUT SELECTOR INPUT DVD TAPE MODE 6CH INPUT MONITOR RDS - BAND – FM MODE MEMORY DISPLAY MODE 7m 30˚ 30˚ TUNER/BAND TV VCR MD TAPE DVD CD RECEIVER TOP MENU MENU ENTER DISPLAY RETURN SLOW /SEARCH SKIP STOP PAUSE PLAY SOUND MODE CHANNEL VOLUME MUTING SUBWOOFER 4 RQT6252 INPUT SELECTOR PRESET 2 TUNING 1 PTY SEARCH PTY SELECTOR PAUSE PLAY SOUND MODE CHANNEL VOLUME MUTING INPUT SELECTOR SUBWOOFER 1 2 3 SOURCE DIRECT 4 5 6 INPUT MODE DVD 6CH 7 8 9 DIRECT TUNING/ DISC 0 10/-/-- ENHANCED SURROUND RE-MASTER /L DOLBY PROLOGIC 2 SFC EFFECT LEVEL NEO:6 TEST TONE BALANCE AUDIO A SPEAKERS B CD SLOW /SEARCH SKIP STOP DIMMER PHONES DVD ENTER RETURN SLOW /SEARCH SKIP ^ VCR TAPE MENU ENTER DISPLAY SUBWOOFER TV MD RECEIVER TOP MENU STOP ¡Do not bend optical fiber cables. ¡Turn off all components before making any connections. ¡Use digital connection to enjoy Dolby Digital or DTS and record digital sources (\ page 16 and 22). ¡Use analogue connection to enjoy sources that cannot be decoded on this unit and record analogue sources (\ pages 16 and 22). DVD TV VOL GROUP TIMER /R TV/AV PAGE SETUP INPUT Default settings TV OPT 1 DVD OPT 2 DVR OPT 3 MD/CD-R OPT 4 CD COAX Actual connections Equipment connections TV and DVD player DVD player DVD/DVD 6CH OPTICAL1 OPTICAL2 OPTICAL3 OPTICAL4 COAXIAL (TV) IN (DVD) IN (DVR) IN (MD/CD-R/RW) IN IN L OPTICAL OUT L AUDIO OUT (FRONT L, R) CENTER R R SUBWOOFER SURROUND FRONT Before use DIGITAL AUDIO OUT (CENTER, SUBWOOFER) AUDIO OUT (SURROUND L, R) S-VIDEO OUT IN IN DIGITAL AUDIO OUT VIDEO OUT Step 1 Note Connect to FRONT L, R if your DVD player does not have 6 channel output. L L B AC IN A FRONT CENTER R R SUBWOOFER SURROUND FRONT TV PRE OUT FM ANT 75Ω IN MONITOR OUT IN OUT TV IN VCR1 OUT DVR/VCR2 IN OUT IN IN OUT IN SURROUND SUBWOOFER BACK L LOOP R EXT AM ANT L OUT L R L A OR B : 4-16 Ω/EACH SPEAKER A AND B : 8-16 Ω/EACH SPEAKER S-VIDEO IN R VIDEO SURROUND BACK 6-16 Ω R SURROUND L 6-16 Ω/EACH SPEAKER CENTER 6-16 Ω GND R IN PHONO REC (OUT) PLAY (IN) TAPE REC (OUT) PLAY (IN) IN MD/CD-R/RW CD IN TV OUT Step 2 SPEAKERS DVD/DVD 6CH OPTICAL OUT IN VCR1 OUT IN Step 3 DIGITAL OPTICAL1 OPTICAL2 OPTICAL3 OPTICAL4 COAXIAL (TV) IN (DVD) IN (DVR) IN (MD/CD-R/RW) IN IN DVR/VCR2 Video DIGITAL OPTICAL1 OPTICAL2 OPTICAL3 OPTICAL4 COAXIAL (TV) IN (DVD) IN (DVR) IN (MD/CD-R/RW) IN IN There are two types of connections: S-VIDEO, and VIDEO (composite). Video input can only be output again through the same type of terminal. OPTICAL OUT S-VIDEO Step 4 Satellite receiver etc. Use this connection for better picture quality than with the VIDEO terminals. This is the most basic video connection. DIGITAL OUT TV or monitor MONITOR OUT OUT TV IN S-VIDEO IN S-VIDEO OUT IN VIDEO OUT VIDEO IN AUDIO OUT Reference TV Others VIDEO IN TV 21-pin scart cable connection also possible. 5 RQT6252 Equipment connections Other audio visual equipment MD deck or CD recorder CD Player DIGITAL DVD recorder DIGITAL DIGITAL OPTICAL1 OPTICAL2 OPTICAL3 OPTICAL4 COAXIAL (TV) IN (DVD) IN (DVR) IN (MD/CD-R/RW) IN IN OPTICAL OUT OPTICAL1 OPTICAL2 OPTICAL3 OPTICAL4 COAXIAL (TV) IN (DVD) IN (DVR) IN (MD/CD-R/RW) IN IN DIGITAL OUT DIGITAL IN DIGITAL OUT OPTICAL1 OPTICAL2 OPTICAL3 OPTICAL4 COAXIAL (TV) IN (DVD) IN (DVR) IN (MD/CD-R/RW) IN IN OPTICAL OUT OPTICAL OUT DIGITAL AUDIO OUT DVR/VCR2 OUT S-VIDEO IN S-VIDEO OUT REC (IN) LINE OUT PLAY (OUT) REC (OUT) IN OUT VIDEO IN VIDEO OUT IN IN CD AUDIO OUT PLAY (IN) MD/CD-R/RW AUDIO IN OUT IN DVR/VCR2 DIGITAL SPEAKERS DVD/DVD 6CH OPTICAL1 OPTICAL2 OPTICAL3 OPTICAL4 COAXIAL (TV) IN (DVD) IN (DVR) IN (MD/CD-R/RW) IN IN L OPTICAL OUT L B AC IN A FRONT CENTER R R SUBWOOFER SURROUND FRONT TV PRE OUT FM ANT 75Ω IN MONITOR OUT IN OUT TV VCR1 IN OUT R DVR/VCR2 IN OUT IN IN OUT IN SURROUND SUBWOOFER BACK L LOOP R EXT AM ANT L OUT R L A OR B : 4-16 Ω/EACH SPEAKER A AND B : 8-16 Ω/EACH SPEAKER S-VIDEO IN L VIDEO SURROUND BACK 6-16 Ω R SURROUND L 6-16 Ω/EACH SPEAKER CENTER 6-16 Ω GND R REC (OUT) IN PHONO PLAY (IN) REC (OUT) TAPE PLAY (IN) MD/CD-R/RW IN CD IN OUT TV IN VCR1 OUT IN DVR/VCR2 Tape deck Turntable VCR VCR1 OUT PHONO OUT REC (IN) GND PLAY (OUT) IN S-VIDEO OUT IN L GND R IN PHONO Connect if your turntable has a ground terminal. REC (OUT) 6 VIDEO IN VIDEO OUT VIDEO AUDIO OUT PLAY (IN) TAPE If you have a graphic equalizer, connect it to the TAPE terminals. RQT6252 S-VIDEO IN S-VIDEO OUT AUDIO IN OUT IN VCR1 21-pin scart cable connection also possible. Antennas FM outdoor antenna FM indoor antenna (included) Fix the other end of the antenna where reception is best. Adhesive tape DIGITAL OPTICAL1 OPTICAL2 OPTICAL3 OPTICAL4 COAXIAL (TV) IN (DVD) IN (DVR) IN (MD/CD-R/RW) IN IN FM ANT 75Ω AM loop antenna (included) OPTICAL OUT FM outdoor antenna DVD (ForTV IN the United Kingdom) Y Antenna plug P (included) PRE OUT IN FM ANT 75Ω SURROUND SUBWOOFER BACK L 75 Ω coaxial cable B LOOP Before use ¡Disconnect the FM indoor antenna. ¡The antenna should be installed by a competent technician. LOOP R EXT AM ANT L Step 1 PR EXT AM ANT GND R Using the stand IN Attach to the stand and place on a flat surface. PHONO REC (OUT) PLAY (IN) REC (OUT) TAPE AM outdoor antenna (included) ¡Run a piece of vinyl wire horizontally across a window or other convenient location. ¡Leave the loop antenna connected. ¡Disconnect the antenna when the unit is not in use. Do not use the antenna during an electrical storm. Screw Keep the antenna cord away from tape decks, MD decks, DVD players, and other cords. Step 3 Vinyl-covered wire 5–12 m AM antenna stand (included) When attaching the AM loop antenna to another surface Wall bracket Step 2 AM loop antenna (included) (FOR THE UNITED KINGDOM ONLY) Connect this lead after all other cables and cords are connected. READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 2 BEFORE CONNECTION. AC mains lead (included) To household mains socket Step 4 Connecting the AC mains lead cord and other information OPTICAL1 OPTICAL2 OPTICAL3 OPTICAL4 COAXIAL (TV) IN (DVD) IN (DVR) IN (MD/CD-R/RW) IN IN L OPTICAL OUT AC IN SPEAKERS DVD/DVD 6CH L B A FRONT CENTER R R SUBWOOFER SURROUND FRONT TV PRE OUT FM ANT 75Ω IN MONITOR OUT IN OUT TV IN VCR1 OUT DVR/VCR2 IN OUT IN IN OUT IN SURROUND SUBWOOFER BACK L LOOP EXT AM ANT R OUT L R L Insertion of connector A OR B : 4-16 Ω/EACH SPEAKER A AND B : 8-16 Ω/EACH SPEAKER S-VIDEO IN R VIDEO SURROUND BACK 6-16 Ω L R SURROUND L 6-16 Ω/EACH SPEAKER CENTER 6-16 Ω GND R IN PHONO REC (OUT) PLAY (IN) TAPE REC (OUT) PLAY (IN) MD/CD-R/RW IN CD IN TV OUT IN VCR1 OUT The included AC mains lead is for use with this unit only. Do not use it with other equipment. IN DVR/VCR2 Cooling fan Operates at high power output levels only. Even when the connector is perfectly inserted, depending on the type of inlet used, the front part of the connector may jut out as shown in the drawing . However there is no problem using the unit. Connector Appliance inlet Approx. 6 mm Reference DIGITAL Others Note 7 RQT6252 Step 1 2 Speaker connections 3 4 Placement of speakers Front speakers ( FL left FR right) Place on the left and right of the TV at seated ear height so that there is good coherency between the picture and sound. SB SR SL Center speaker ( C ) Place underneath or above the center of the TV. Aim the speaker at the seating area. 45˚ 45˚ 45˚ 45˚ 30˚ Surround speakers ( left SL SR right) Place on the side of or slightly behind the seating area, about one meter higher than ear level. 30˚ Surround back speaker ( C FR SB ) Place behind the seating area (slightly to the left and right if you connect two), about one meter higher than ear level. FL SW Subwoofer ( SW ) The subwoofer can be placed in any position as long as it is at a reasonable distance from the TV. Note that some experimentation can yield the smoothest low frequency performance. Placement near a corner can increase the apparent output level, but can result in unnatural bass. INPUT DIGITAL DVD/DVD 6CH OPTICAL1 OPTICAL2 OPTICAL3 OPTICAL4 COAXIAL (TV) IN (DVD) IN (DVR) IN (CD-R/RW) IN IN SPEAKERS L OPTICAL OUT L B AC IN A FRONT CENTER R R SUBWOOFER SURROUND FRONT TV PRE OUT FM ANT 75Ω IN MONITOR OUT IN OUT TV IN VCR1 OUT DVR/VCR2 IN OUT IN IN OUT IN SURROUND SUBWOOFER BACK L R L IN OUT L R L The front, center, and surround speakers should be placed at approximately the same distance from the seating area. The angles in the diagram are approximate. A OR B : 4-16 Ω/EACH SPEAKER A AND B : 8-16 Ω/EACH SPEAKER S-VIDEO LOOP EXT AM ANT R VIDEO SURROUND BACK 6-16 Ω R SURROUND L 6-16 Ω/EACH SPEAKER CENTER 6-16 Ω GND R IN PHONO REC (OUT) PLAY (IN) TAPE/MD REC (OUT) PLAY (IN) CD-R/RW IN CD IN TV OUT IN VCR1 OUT IN DVR/VCR2 Change the speaker settings. To get the best performance from this unit and the speakers you connect to it, you need to change the settings described below. As you connect the speakers, circle the corresponding SPEAKERS and fill in the approximate DISTANCE from the seating area. Now go to page 10 and change the settings as necessary. SPEAKERS Change to suit the size and number of speakers you connect. LARGE: For speakers that can reproduce a full sound range, particularly the bass range below 100 Hz. SMALL: For speakers that cannot adequately reproduce the bass range. This setting is sufficient for most speakers if you are using a subwoofer. “SUB-WFR” is set to “YES” if you select this setting for “FRONT”. NONE: For speakers you haven’t connected (center, surround or surround back). You cannot change the “SUR BACK” setting if you select this setting for “SURROUND”. SINGLE: If you connect one surround back speaker to the speaker terminal. DUAL: If you connect two surround back speakers via a power amplifier to the pre-out terminal. YES: If you connect a subwoofer. NO: If you do not connect a subwoofer. “FRONT” is set to “LARGE” if you select this setting. DISTANCE ¡Factory settings for SPEAKERS are underlined. ¡Factory settings for DISTANCE are shown in parentheses. SPEAKERS FL DISTANCE FR FRONT SMALL LARGE (3.0) m C CENTER SL NONE SMALL LARGE (3.0) m NONE SMALL LARGE (1.5) m DUAL (1.5) m SR SURROUND SB SUR BACK NONE (SURROUND BACK) SINGLE SW Change so the sound from the speakers reaches you at the same time. SUB-WFR (SUBWOOFER) YES NO Speaker cable Cable Twist the wire 8 RQT6252 Speaker terminals Note Do not short circuit. Peripheral equipment and cables sold separately unless otherwise indicated. Connecting speakers Turn off the receiver before connecting the speakers. Right Center speaker – Impedance: 6–16 Ω Left FL FR If you connect speakers with an impedance under 6 Ω, switch on “LOW IMP” (\ page 12). A and B 8–16 Ω Speaker cables A FRONT Step 1 B C Speaker cable “B” terminals CENTER For connection to a second pair of speakers. Use the A terminals to enjoy SURROUND, SFC and DVD 6CH INPUT. R L R L 6-16 Ω SPEAKERS DVD/DVD 6CH OPTICAL1 OPTICAL2 OPTICAL3 OPTICAL4 COAXIAL (TV) IN (DVD) IN (DVR) IN (MD/CD-R/RW) IN IN L OPTICAL OUT L B AC IN A FRONT Step 3 DIGITAL Step 2 A OR B : 4-16 Ω/EACH SPEAKER A AND B : 8-16 Ω/EACH SPEAKER CENTER R R SUBWOOFER SURROUND FRONT TV PRE OUT MONITOR OUT IN OUT TV VCR1 IN OUT R DVR/VCR2 IN OUT IN IN OUT IN SURROUND SUBWOOFER BACK L LOOP R EXT AM ANT L OUT R L A OR B : 4-16 Ω/EACH SPEAKER A AND B : 8-16 Ω/EACH SPEAKER S-VIDEO IN L VIDEO SURROUND BACK 6-16 Ω R SURROUND L 6-16 Ω/EACH SPEAKER CENTER 6-16 Ω Step 4 FM ANT 75Ω IN GND R PHONO REC (OUT) PLAY (IN) TAPE REC (OUT) PLAY (IN) MD/CD-R/RW Subwoofer IN CD IN OUT TV IN VCR1 OUT IN DVR/VCR2 Surround back speakers – Impedance: 6–16 Ω PRE OUT To connect two surround back speakers SURROUND SUBWOOFER BACK L SURROUND BACK PRE OUT R Surround speakers – Impedance: 6–16 Ω Others IN Active subwoofer Stereo phono cable R SURROUND L 6-16 Ω/EACH SPEAKER 6-16 Ω SURROUND SUBWOOFER BACK L OR Right Left SW R INPUT SB SR SL Power amplifier Monaural connection cable Speaker cable Speaker cables Reference Front speakers – Impedance: A or B 4–16 Ω Before use Other connections are possible depending on your speaker system. See your speaker system’s operating instructions for details. 9 RQT6252 Step 1 2 3 4 Settings See page 21 to change the DIMMER, DR COMP and A/D ATT settings. INPUT SELECTOR 8 1 SPEAKERS 2 DISTANCE VOLUME INPUT SELECTOR ^ ENHANCED HQ RE-MASTER SOUND MODE SURROUND WAKE 8 DSP DOLBY SOURCE DIRECT SOUND MODE PRO LOGIC2 MULTI DECODER DOLBY DOLBY DOLBY DTS-ES DIGITAL EX DIGITAL PRO LOGIC 2 NEO:6 DTS NEO:6 DOWN PHONES INPUT DVD TAPE MODE 6CH INPUT MONITOR A SPEAKERS B RDS - BAND – FM MODE MEMORY DISPLAY MODE A SPEAKERS B TUNER/BAND UP VCR 3 PRESET 2 TUNING 1 PTY SEARCH PTY SELECTOR S-VIDEO IN VIDEO IN L AUDIO IN R DISPLAY TV VCR DVD MD TAPE CD Change to suit the size and number of speakers you connect Change the settings based on the table you completed on page 8. The factory settings are: FRONT: LARGE CENTER: SMALL SURROUND: SMALL SUR BACK: SINGLE SUB-WFR: YES 8 Enter the distance of the front, center and surround speakers from the seating position Change the settings based on the table you completed on page 8. You can select distances between 1.0 and 10.0 m at 0.1-meter intervals. The factory settings are: FRONT: 3.0 m CENTER: 3.0 m SURROUND: 1.5 m SUR BACK: 1.5 m RECEIVER TOP MENU MENU ENTER DISPLAY RETURN A SPEAKERS B SLOW /SEARCH SKIP STOP PAUSE VOLUME INPUT SELECTOR SUBWOOFER 1 2 3 SOURCE DIRECT 4 5 6 INPUT MODE 7 8 9 DVD 6CH DIRECT TUNING/ DISC 0 10/-/-- TIMER ENHANCED SURROUND RE-MASTER /L DOLBY PROLOGIC 2 SFC EFFECT LEVEL NEO:6 TEST TONE BALANCE Enter the setting mode. Press and hold at the same time PLAY SOUND MODE CHANNEL VOLUME MUTING Select. Select. Select. Select. A SPEAKERS B /L /R /R LEVEL TEST DIMMER AUDIO TV VOL GROUP TV/AV PAGE A SPEAKERS B SETUP DVD FRONT, CENTER, SURROUND SUR BACK, SUB-WFR Repeat. INPUT SELECTOR Change. FRONT, CENTER, SURROUND, SUR BACK Repeat. Change. NONE, SMALL, LARGE SINGLE, DUAL NO, YES 1.0 m A SPEAKERS B 10 RQT6252 Press and hold at the same time Exit the setting mode. 10.0 m Change the settings to suit your speakers and units to the environment in which you are using them. Before making any changes, read the descriptions of the settings, note the factory settings and ranges, and refer to the equipment’s instructions. 4 D-INPUT Digital input 5 Adjusting speaker output level Adjust the level of the other speakers based on the output of the front speakers. (Speakers set as “NONE” or “NO” are skipped. Adjust the volume of the front speakers with [VOLUME].) If you set the front speakers to “SMALL”, the filter is set to 100 Hz. Raise the cut-off if the bass from the front speakers is unsatisfactory so that this bass is output through the subwoofer. You can raise the cut-off from 100 Hz to either 150 Hz or 200 Hz. Change the settings based on the table you completed on page 4 so that the correct source is selected when you turn [INPUT SELECTOR]. The factory settings are: TV: OPT 1 DVD: OPT 2 DVR: OPT 3 MD/CD-R: OPT 4 CD: COAX C (center), SR (surround right), SB (surround back)(SBR– surround back right– and SBL–surround back left– when DUAL selected), and SL (surround left) can be adjusted between –10 dB and +10 dB, with 0 being the level of the front speakers. Adjust center, surround and surround back output to the same apparent level of the front speakers. For SW (subwoofer), you can select “---” so there is no output, “MIN” for minimum output, a level between 1 and 19, or “MAX” for maximum output. Adjust subwoofer output so it is balanced with the front speakers. Subwoofer output is easily influenced by the source. You can also change its level while playing something for better effect (\ page 15). Step 2 Change the cut-off for bass output from the front speakers Before use FILTER Step 1 3 Preparation: Turn SPEAKERS A on. Output the signal. TEST “SINGLE” L “DUAL” L R R SR SR SBR SB SL SW SBL SL SW Select. VOLUME Adjust the main volume. Select the speaker channel. Select. Step 4 Select. C C Step 3 Two seconds each. TV, DVD, DVR, MD/CD-R, CD C, SR, SB (SBR, SBL), SL, SW Repeat. Repeat. Change. Adjust the level. /L 100, 150, 200 /R OPT 1, OPT 2, OPT 3, OPT 4, COAX Stop the test signal. Reference Change. Others LEVEL TEST The “SURROUND” DSP mode is engaged. 11 RQT6252 Step 1 2 3 4 Control guide Main unit [ENHANCED SURROUND] For turning on the enhanced surround mode. The indicator lights when the mode is on. [HQ SOUND MODE] For selecting the HQ sound mode. The indicator lights when the mode is on. [RE-MASTER] For selecting a re-master mode. The indicator lights while a remaster mode is on. [SOURCE DIRECT] For selecting a source direct mode. [WAKE] Wake timer indicator Standby indicator [^] When the unit is connected to the AC mains supply, this indicator lights up in standby mode and goes out when the unit is turned on. ^ WAKE 8 Standby/on switch [8] ENHANCED HQ RE-MASTER SOUND MODE SURROUND DSP DOLBY SOURCE DIRECT SOUND MODE PRO LOGIC2 MULTI DECO DOLBY DOLBY DOLBY DT DIGITAL EX DIGITAL PRO LOGIC 2 NEO:6 Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. Remote control sensor [DSP SOUND MODE] For selecting “STEREO”, “SURROUND” or “SFC”. PHONES A SPEAKERS B INPUT DVD TAPE MODE 6CH INPUT MONITOR RDS [DOLBY PRO LOGIC 2] DISPLAY MODE For selecting a Dolby Pro Logic 2 mode: MOVIE, MUSIC or PANORAMA. Use when “DOLBY PRO LOGIC 2” lights in the SURROUND mode. [PHONES] Headphone jack Plug type: 6.3 mm stereo Avoid listening for prolonged periods of time to prevent hearing damage. Turn the speakers off when using the headphones. [SPEAKERS, A, B] For selecting speakers A or B. Turning the speakers off automatically engages the STEREO mode (when listening through headphones, for example). If your speakers have an impedance under 6 Ω Press and hold [A] or [B] until “LOW IMP” lights up on the display. Note that when “LOW IMP” is on, SPEAKERS A and B cannot be used at the same time. [NEO:6] For selecting a DTS NEO:6 mode: CINEMA or MUSIC. Use when “NEO:6” lights in the ENHANCED SURROUND mode. [INPUT MODE] For selecting AUTO, ANALOG or DIGITAL. [DVD 6CH INPUT] For switching between 6-channel and 2-channel DVD input. When you select DVD 6CH, SOURCE DIRECT mode is on. Basic operations 1 Switch on. 8 2 Turn SPEAKERS A on. A SPEAKERS B 12 RQT6252 - BAND – FM MODE MEMORY 3 Select input. INPUT SELECTOR VOLUME INPUT SELECTOR S-ES DTS NEO:6 DOWN Light to indicate the source’s input signal and decoding format used. DOLBY DIGITAL EX: Dolby Digital Surround EX sources DOLBY DIGITAL: Dolby Digital sources DOLBY PRO LOGIC 2: Dolby Pro Logic 2 decoder is being used DTS-ES: DTS-ES discrete or matrix sources DTS: DTS sources NEO:6: DTS NEO:6 matrix decoder is being used Step 1 [MULTI DECODER] DER [VOLUME] UP Volume control. [INPUT SELECTOR] Display (\ page 14) [VCR 3] VCR 3 PRESET 2 TUNING 1 PTY SEARCH PTY SELECTOR Step 2 For selecting input. For a video camera, etc. S-VIDEO IN VIDEO IN L AUDIO IN R TUNING; For tuning the radio and selecting preset stations. Press and hold until the frequency starts scrolling to start automatic tuning. Tuning stops when a station is found. PTY SELECTOR; For changing the PTY display. [PRESET, PTY SEARCH] Step 3 [TUNING, 2, 1, PTY SELECTOR] For presetting radio stations. [-BAND, –FM MODE, DISPLAY MODE ] -BAND, –FM MODE; For switching between AM and FM. If reception is poor in FM, press and hold until “MONO” appears to switch to monaural mode. DISPLAY MODE; For changing the RDS display mode: PS, PTY or RT. [TAPE MONITOR] For monitoring sound when recording to a 3 head cassette deck. Also used when you have connected a graphic equalizer to the TAPE terminals. 4 Start play of the source. 5 [RDS] Press to use the RDS functions. Select the DSP sound mode. 6 Adjust the volume. VOLUME DSP SOUND MODE (\ pages 16 and 17) DOWN UP Others [MEMORY] Step 4 PRESET; Press to allow preset station selection with [TUNING, 2, 1] PTY SEARCH; For starting a PTY search. Reference Y ¡When SPEAKERS B is on The STEREO DSP SOUND mode is engaged automatically. ¡When you finish listening Be sure to reduce the volume and press [8] to switch the unit to standby. ¡When DTS FIX mode is on You cannot use ENHANCED SURROUND and DTS-ES signals will be played through 5.1 channels (i.e., there will be no sound from the surround back speaker). ¡When input is DIGITAL The tape monitor cannot be used. Before use For your reference ¡When playing videotapes (connected to VCR 1) The picture remains on the screen even if you select TAPE, CD, MD/CD-R, TUNER or PHONO. ¡Once you have set a mode (DSP, AUTO/DIGITAL/ANALOG input, or 2-channel/6-channel input) for an input source That mode is engaged whenever you reselect the input source. ¡When using a graphic equalizer Some distortion may occur, depending on the equalizer’s settings. 13 RQT6252 Control guide Display [ATT] Lights when the A/D attenuator is working. [OVER] Lights when input exceeds rated values. Turn the A/D attenuator on if this occurs frequently (\ page 21). [kHz, MHz] Frequency unit indicators kHz: AM, or PCM sampling frequency MHz: FM [L, C, R, S, SL, SB, SR, LFE] [LOW IMP, SPEAKERS A , B ] Program format indicators Show the channels contained in the digital input signal. They do not light when input is analogue. L: Front left channel C: Center channel R: Front right channel S: If the surround channel is monaural. SL: Surround left channel SB: Surround back channel SR: Surround right channel LFE (Low Frequency Effect): Deep-bass effect. Speaker indicators LOW IMP:You have switched to LOW IMP because you have connected speakers with an impedance under 6 Ω. SPEAKERS Å: Sound is output from speakers connected to the front A, surround, and center terminals. SPEAKERS ı: Sound is output only from speakers connected to the front B terminals. SPEAKERS Å ı: Sound is output from speakers connected to the front A and B terminals. General display Shows the input mode, radio frequency, and other general information. ATT kHz MHz LOW IMP M TUNED SPEAKERS STEREO B A MONO TAPE MONITOR RDS INPUT MODE PS RT WAKE PTY SLEEP DIGITAL ANALOG L C R S SL SB SR LFE OVER FIXED PCM DTS DIRECT 12 SOUND MODE SFC STEREO SURROUND [FIXED, PCM, DTS] Light when a fix mode is selected. FIXED PCM: PCM FIX mode FIXED DTS: DTS FIX mode [ RDS , PS RT, PTY] [SOUND MODE, STEREO, SURROUND, SFC] Show the current RDS display mode. Show the current DSP sound mode. [TUNED, STEREO, MONO, ˜] Radio indicators TUNED: A station is tuned. MONO: You have switched to monaural mode with [-BAND, –FM MODE, DISPLAY MODE] to improve reception. STEREO: A stereo FM broadcast is tuned. ˜: Flashes during presetting. [DIRECT 1 2] Lights when source direct mode is selected. [WAKE, SLEEP] Wake/sleep timer indicators. [INPUT MODE, DIGITAL, ANALOG] Input indicators [TAPE MONITOR] Lights when the tape monitor is on. Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. 14 RQT6252 Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942, 5,956,674, 5,974,380, 5,978,762 and other world-wide patents issued and pending. “DTS”, “DTS-ES Extended Surround” and “Neo:6” are trademarks of Digital Theater Systems, Inc. Copyright 1996, 2000 Digital Theater Systems, Inc. All rights reserved. Remote control Buttons not explained on this page are used only to operate other equipment. Refer to the separate Remote Control Operation Guide for details. TUNER/BAND MD TAPE CD RECEIVER TOP MENU RETURN [MUTING] STOP PAUSE PLAY SOUND MODE CHANNEL VOLUME MUTING INPUT SELECTOR SUBWOOFER [CHANNEL, 1, 2] To enter radio frequencies and channels. [DIRECT TUNING/DISC] To enable selection of radio stations by frequency. [ENHANCED SURROUND] For turning on the enhanced surround mode. [RE-MASTER] 2 3 SOURCE DIRECT 4 5 6 INPUT MODE 7 8 9 DVD 6CH DIRECT TUNING/ DISC 0 10/-/-- TIMER ENHANCED SURROUND RE-MASTER /L DOLBY PROLOGIC 2 SFC EFFECT LEVEL NEO:6 TEST TONE BALANCE For selecting a Dolby Pro Logic 2 mode: MOVIE, MUSIC or PANORAMA. Use when “DOLBY PRO LOGIC 2” lights in the SURROUND mode. [SFC] For selecting SFC modes. [NEO:6] [SOURCE DIRECT] For selecting a source direct mode. [INPUT MODE] For selecting AUTO, ANALOG or DIGITAL. [DVD 6CH] /R For switching between 6-channel and 2channel DVD input. When you select DVD 6CH, SOURCE DIRECT mode is on. [TIMER] For setting the wake/sleep timer. For selecting a re-master mode. [DOLBY PRO LOGIC 2] To select input source. To adjust the volume. 1 [≥10/-/--] To enter two digit channels. [INPUT SELECTOR] [VOLUME, +, –] For selecting preset radio channels. [1, 2, 3, 4, 5, 6, 7, 8, 9, 0] To mute the volume. Step 3 For selecting subwoofer level. Adjust the level in 5 steps SW MIN, SW 5, SW 10, SW 15, and SW MAX. Select SW --- to stop output. SLOW /SEARCH SKIP [SUBWOOFER] DIMMER AUDIO DVD TV VOL GROUP TV/AV PAGE SETUP [–/L, +/R] First select EFFECT, LEVEL, TONE or BALANCE, then press [–/L] or [+/R] to adjust. [EFFECT] Use when adjusting Dolby Pro Logic 2, DTS NEO:6, or SFC effects Step 4 For selecting “STEREO”, “SURROUND” or “SFC” ENTER DISPLAY Input mode and remote control mode buttons. These buttons light when you press other buttons to indicate the current remote control mode. [LEVEL] For selecting a DTS NEO:6 mode: CINEMA or MUSIC. Use when “NEO:6” lights in the ENHANCED SURROUND mode. Use when adjusting speaker level. [TEST] To adjust the front speaker balance. [TONE] To adjust the bass and treble. [BALANCE] To start the speaker test signal. Others [SOUND MODE] MENU [TV, VCR, DVD, TUNER/BAND RECEIVER, MD, TAPE, CD] Before use DVD Step 1 VCR Standby/on button Step 2 TV [^] For dimming the unit’s display. For your reference ¡When using the subwoofer You cannot adjust subwoofer level while the SOURCE DIRECT mode is on or if DVD 6CH INPUT is selected. Sound can be distorted if you raise the volume while subwoofer level is high. Reduce subwoofer level if this occurs. ¡When muting is on Muting is also canceled when the unit is turned off. Reference [DIMMER] 15 RQT6252 Sound modes STEREO mode DSP SOUND MODE ENHANCED SURROUND L R DSP SOUND MODE SOURCE DIRECT SPEAKERS A INPUT MODE DIGITAL SOUND MODE STEREO VOLUME INPUT SELECTOR ^ WAKE 8 ENHANCED HQ RE-MASTER SOUND MODE SURROUND DSP DOLBY SOURCE DIRECT SOUND MODE PRO LOGIC2 MULTI DECODER DOLBY DOLBY DOLBY DTS-ES DIGITAL EX DIGITAL PRO LOGIC 2 NEO:6 DTS NEO:6 DOWN PHONES A SPEAKERS B INPUT DVD TAPE MODE 6CH INPUT MONITOR RDS - BAND – FM MODE MEMORY PRESET DISPLAY MODE PTY SEARCH UP Use this mode to play digital or analogue stereo sources or to play surround sources through two speakers. When surround sources are played in this mode, the sounds intended for the other speaker channels are played through the front speakers. VCR 3 2 TUNING 1 PTY SELECTOR S-VIDEO IN VIDEO IN L AUDIO IN R SURROUND mode DOLBY PRO LOGIC2 INPUT MODE NEO:6 L SL DSP SOUND MODE INPUT SELECTOR SUBWOOFER 1 2 3 SOURCD DIRECT 4 5 6 INPUT MODE 7 8 9 DVD 6CH DIRECT TUNING/ DISC 0 10/-/-- TIMER ENHANCED SURROUND RE-MASTER /L DOLBY PROLOGIC 2 SFC EFFECT LEVEL NEO:6 TEST TONE BALANCE PAGE SETUP /L /R /R LEVEL TV VOL DIMMER AUDIO SPEAKERS A GROUP TV/AV EFFECT INPUT MODE DIGITAL SOUND MODE SURROUND ENHANCED SURROUND mode L SL ENHANCED SURROUND SPEAKERS A DVD The digital signal processor in this unit can decode the following signals: ¡ Dolby Digital, including Dolby Digital Surround EX ¡ DTS, including DTS-ES ¡ PCM, including PCM with sampling frequencies of 96 or 88.2 kHz It cannot decode: ¡Other digital signals, such as MPEG ¡Dolby Digital RF signals from a laser disc player R SR LFE Select this mode when you are playing a digital surround source (Dolby Digital or DTS). Also select this mode when playing analogue or digital stereo sources. Dolby Pro Logic 2 decoder works not only on sources recorded with Dolby Surround, but DOLBY PRO LOGIC2 also on any stereo source. The following modes are available when using Dolby Pro Logic 2. SFC Notes on using the Digital Signal Processor C INPUT MODE DIGITAL C SB R SR LFE SOUND MODE SURROUND This mode uses the surround back speaker to create a realistic sound field. It is especially effective when playing DTS-ES and Dolby Digital Surround EX, but can be used with other DTS and Dolby Digital sources. This mode engages automatically if the disc has a recognition signal for DTS-ES or Dolby Digital Surround EX (you can still turn the mode off). Use DTS NEO:6 to play 5.1-channel DTS, 2-channel PCM, and analogue sources through 6.1 channels. The following modes are available when playing NEO:6 2-channel PCM and analogue sources. SFC modes L R DSP SOUND MODE SPEAKERS A When playing PCM with sampling frequencies of 96 or 88.2 kHz, the STEREO DSP mode is engaged automatically. For your reference In rare cases, the unit may have trouble recognizing the digital signals on discs. ¡With the PCM signals on CDs, this may cause the beginning of a track to be cut off. Engage the PCM FIX mode if this occurs. ¡With DTS, the signals may not be recognized at all. Engage the DTS FIX mode if this occurs. While the input source is selected: 1 Press [INPUT MODE] to select “DIGITAL”. 2 Press and hold [INPUT MODE]. / The current mode is displayed. Press again to change the mode. Each time you press the button: AUTO / PCM FIX / DTS FIX 16 RQT6252 When a FIX mode is on, the unit cannot process other signals. This may cause noise to be output. Select “AUTO” if this occurs. The selected mode is stored for each input source even if the unit is turned off. INPUT MODE DIGITAL SOUND MODE SFC Enjoy an enhanced sound experience with greater presence and spread by using these SFC (sound field control) modes with PCM or analogue stereo sources. The SFC modes cannot be used if the input signal SFC is Dolby Digital or DTS. Choose from the following modes. SOURCE DIRECT modes SOURCE DIRECT SPEAKERS A INPUT MODE ANALOG DIRECT 1 SOUND MODE STEREO Use this mode to enjoy pure sound from digital and analogue sources, unaltered by this unit’s DSP and other circuits. Choose from the following modes. SOURCE DIRECT 1 Press [EFFECT] to select “C-WDTH”. 2 Press [–/L] or [+/R] to adjust the effect. 2 Notes on using Dolby Pro Logic2 ENHANCED SURROUND turns off if you select a Dolby Pro Logic 2 mode. Dimension Control – DIMEN You can make up for differences in the output level of the front and surround speakers. You can choose a level between –3 and +3 – Increase the level to move sound to the front speakers, decrease to move it to the surround speakers. The default is level 0. 1 Press [EFFECT] to select “DIMEN”. 2 Press [–/L] or [+/R] to adjust the effect. CINEMA Use this mode when playing movie software. MUSIC Adds surround effects to stereo sources. Notes on using DTS NEO:6 You cannot select the above modes when the “DTS” indicator is lit. HALL Imparts the reflection and spread of a large concert hall. Before use This adjustment helps you realize a more natural sound image when listening to music. Move sound out into the front speakers to improve the overall front image, or add sound to the center speaker to fix the center image. You can choose a level between 0 (the center speaker is dominant) and 7 (center sound is spread out). The default level is 3. Step 1 PANORAMA Sound is spread out more so you feel like you are surrounded by music. Center Width Control – C-WDTH You can adjust the effect of MUSIC with the center image control. Center Image Control – C-IMG This adjustment helps you realize a more natural sound image when listening to music. Move sound out into the front speakers to improve the overall front image, or add sound to the center speaker to fix the center image. You can choose a level between 0 (the center speaker is dominant) and 5 (center sound is spread out). The default level is 3. 1 Press [EFFECT] to select “C-IMG”. 2 Press [–/L] or [+/R] to adjust the effect. You can adjust the sound field by adjusting the level of the speakers and the delay time of the surround speakers. These adjustments can be made for each SFC mode. Step 2 MUSIC Adds surround effects to stereo sources. You can adjust the effect of MUSIC and PANORAMA with the center width and dimension controls. Step 3 MOVIE Use this mode when playing movie software, especially videotapes, recorded in Dolby Surround. THEATER Recreates natural sound ambience and direction. SIM SURR (Simulated Surround) Heightens the sensation of expanded space with stereo sources, and augments monaural sources. To adjust the delay time 1 Press [EFFECT] . 2 Press [–/L] or [+/R] to change the delay time. Delay time can be set at 10-millisecond (ms) intervals between 10 and 100 ms. The factory setting is 50 ms for each mode. PARTY This mode uses the front and surround speakers so that sound is in stereo regardless of the direction you are facing. DIRECT 1 Enjoy pure stereo sound. DIRECT 2 Further purifies sound by shutting off video signals, turning off the display (unless input is TUNER), and turning on the HQ SOUND MODE. SOURCE DIRECT 1 or 2 turns off if you: – Select SURROUND mode, – Select ENHANCED SURROUND mode, – Select SFC modes, or – Select RE-MASTER modes, While the SOURCE DIRECT 1 or 2 mode is selected, you cannot: – Adjust the tone, or – Use the subwoofer. Others LIVE Brings you up close for “live” stage performance and smoother vocals. 1 Press [LEVEL] to select the speaker channel. Each time you press the button: C / SR / SL / SW ↑ Sound does not come from the surround back speaker(s). Speakers set as “NONE” or “NO” are skipped. 2 Press [–/L] or [+/R] to adjust the level. C, SR, and SL: –10 dB to +10 dB SW: --- (off) , / MIN , / 1 – 19 , / MAX Reference CLUB Conveys the exciting and intimate atmosphere of a jazz club. Step 4 To adjust the speaker level 17 RQT6252 Other functions HQ sound mode HQ SOUND MODE HQ sound mode uses a system that varies the actual gain of the amplifier. This helps provide clear sound when listening at regular volume levels. RE-MASTER Press [HQ SOUND MODE]. VOLUME INPUT SELECTOR ^ WAKE 8 ENHANCED HQ RE-MASTER SOUND MODE SURROUND DSP DOLBY SOURCE DIRECT SOUND MODE PRO LOGIC2 MULTI DECODER DOLBY DOLBY DOLBY DTS-ES DIGITAL EX DIGITAL PRO LOGIC 2 NEO:6 DTS NEO:6 DOWN PHONES A SPEAKERS B INPUT DVD TAPE MODE 6CH INPUT MONITOR RDS - BAND – FM MODE MEMORY PRESET DISPLAY MODE PTY SEARCH UP VCR 3 For your reference You can only raise the volume to –10 dB when HQ sound mode is on and the level is automatically lowered to this level if you turn HQ sound mode on when the level is higher. 2 TUNING 1 PTY SELECTOR S-VIDEO IN VIDEO IN L AUDIO IN R Re-master INPUT MODE Using 1/f algorithm technology, this original Panasonic feature boosts the frequencies of the higher harmonics that are lost during recording due to compression. TUNER/BAND TV VCR DVD MD TAPE CD Press [RE-MASTER] to select “EFFECT 1”, “EFFECT 2”, “EFFECT 3” or “EFFECT 4”. When Re-master is on, the current level appears, then each time you press the button: EFFECT 1: for fast tracks (pop and rock) EFFECT 2: for tracks with a variety of tempos (jazz) EFFECT 3: for slow tracks (classical) EFFECT 4: for compressed audio signals OFF: the re-master processing is off. RECEIVER TOP MENU MENU ENTER DISPLAY RETURN SLOW /SEARCH SKIP STOP PAUSE PLAY Input mode SOUND MODE CHANNEL VOLUME MUTING INPUT SELECTOR SUBWOOFER 1 2 3 SOURCE DIRECT 4 5 6 INPUT MODE 7 8 9 DVD 6CH DIRECT TUNING/ DISC 0 10/-/-- TIMER ENHANCED SURROUND RE-MASTER /L DOLBY PROLOGIC 2 SFC EFFECT LEVEL NEO:6 TEST TONE BALANCE This unit automatically detects whether input is digital or analogue, but you can fix the input mode. /L /R RE-MASTER DIMMER AUDIO DVD TV VOL GROUP TV/AV PAGE SETUP Press [INPUT MODE] to select “AUTO”, “ANALOG” or “DIGITAL”. INPUT MODE /R For your reference ¡When input is DIGITAL The tape monitor cannot be used. BALANCE Balance TONE You can adjust the balance of the front speakers. 1 Press [BALANCE]. 2 Press [–/L] or [+/R] to adjust. Tone You can adjust the level of the bass and treble. 1 Press [TONE] to select “BASS” or “TREBLE”. 2 Press [–/L] or [+/R] to adjust bass/treble. For your reference ¡To adjust the tone The STEREO DSP mode must be on and input must be either analogue or PCM signals. You cannot adjust the tone while the SOURCE DIRECT mode is on or if DVD 6CH INPUT is selected. 18 RQT6252 The radio INPUT SELECTOR Direct tuning q Press [TUNER/BAND RECEIVER]. The band changes each time you press the button. e.g. To select 107.90 MHz, press [1] / [0] / [7] / [9] / [0] NEO:6 DOWN A SPEAKERS B INPUT DVD TAPE MODE 6CH INPUT MONITOR RDS DISPLAY MODE RDS PTY SELECTOR S-VIDEO IN VIDEO IN DISPLAY MODE RECEIVER 2 TUNING 1 PTY SEARCH - BAND – FM MODE MEMORY TUNER/BAND VCR 3 - BAND – FM MODE MEMORY PRESET PRESET 2 TUNING 1 PTY SEARCH PTY SELECTOR TUNER/BAND TV VCR DVD MD TAPE CD L AUDIO IN R Automatic presetting 1 Tune to “FM 87.50 MHz”. 2 Press and hold [MEMORY]. The FM stations the unit can receive are preset in channels 1 to 30. 3 Tune to “AM 522 kHz”. 4 Press and hold [MEMORY]. RECEIVER TOP MENU MENU The AM stations the unit can receive are preset in channels 21 to 30. (FM stations are replaced if any were preset in these channels.) ENTER DISPLAY RETURN SLOW /SEARCH SKIP STOP PAUSE PLAY CHANNEL SOUND MODE CHANNEL VOLUME MUTING 1 2 3 INPUT SELECTOR SUBWOOFER 4 5 6 7 8 9 1 2 3 SOURCE DIRECT 4 5 6 INPUT MODE 7 8 9 DVD 6CH DIRECT TUNING/ DISC 0 10/-/-- TIMER ENHANCED SURROUND RE-MASTER /L DOLBY PROLOGIC 2 SFC EFFECT LEVEL NEO:6 TEST TONE BALANCE PAGE SETUP 0 ¡If you do not press a button while the cursor is flashing, the display returns to the frequency being received. ¡If the frequency has not been input correctly, “ERROR” will be displayed. During automatic presetting, the memory indicator (˜) flashes and the frequency scrolls. The memory indicator and channel numbers are displayed for a second when a station is preset. The last station to be preset is displayed when presetting finishes. For your reference Even if the mains lead is disconnected from the household mains socket, the stations remain in memory for approximately one month. Manual presetting 10/-/-- Preset the stations one at a time. DIRECT TUNING/ DISC DIMMER AUDIO TV VOL GROUP Step 1 PHONES UP Step 2 DTS /R TV/AV DVD Manual tuning You can tune radio stations manually by selecting the station’s frequency. 1 Turn [INPUT SELECTOR] to select “TUNER”. 2 Press [-BAND, –FM MODE, DISPLAY MODE] to select “FM” or “AM”. 3 Press [TUNING, 2, 1, PTY SELECTOR] to select the frequency. For your reference Some equipment can interfere with radio reception. Turn off nearby TV, VCR, DVD players, and satellite receivers or move them further away from the antennas if this occurs. 1 Tune to the station. 2 Press [MEMORY]. 3 Press [TUNING, 2, 1, PTY SELECTOR] to select a channel. 4 Press [MEMORY]. Selecting channels Step 3 DOLBY DOLBY DOLBY DTS-ES DIGITAL EX DIGITAL PRO LOGIC 2 NEO:6 Step 4 DSP DOLBY SOURCE DIRECT SOUND MODE PRO LOGIC2 MULTI DECODER 1 Press [PRESET, PTY SEARCH]. The channel number flashes for about 5 seconds. 2 Press [TUNING, 2, 1, PTY SELECTOR]. Hold down the buttons to change channels faster. On the remote control Press [CHANNEL 1 or 2 ]. or Press the numbered buttons. For channels 1 to 9, press the corresponding number. For channels 10 or over, press [≥10/-/--], then the two digits. e.g. To select channel 21: [≥10/-/--] / [2] / [1] Others 8 ENHANCED HQ RE-MASTER SOUND MODE SURROUND Reference WAKE Before use VOLUME INPUT SELECTOR ^ w Press [DIRECT TUNING/DISC]. e Press the numbered buttons to enter the frequency. 19 RQT6252 RDS broadcasts PTY displays VOLUME INPUT SELECTOR ^ WAKE 8 ENHANCED HQ RE-MASTER SOUND MODE SURROUND DSP DOLBY SOURCE DIRECT SOUND MODE PRO LOGIC2 MULTI DECODER DOLBY DOLBY DOLBY DTS-ES DIGITAL EX DIGITAL PRO LOGIC 2 NEO:6 DTS NEO:6 DOWN PHONES INPUT DVD TAPE MODE 6CH INPUT MONITOR A SPEAKERS B RDS - BAND – FM MODE MEMORY PRESET DISPLAY MODE RDS - BAND – FM MODE MEMORY DISPLAY MODE PTY SEARCH UP VCR 3 2 TUNING 1 PTY SELECTOR S-VIDEO IN VIDEO IN PRESET 2 TUNING 1 PTY SEARCH PTY SELECTOR L AUDIO IN R RDS (Radio data system) is a multiplex broadcasting system to help you enjoy radio more and tune into programs easier. PS (Program service): Station name PTY (Program type): Displays the program type, and is used to search for a type of program from amongst preset FM stations. RT (Radio text): This unit can show up to 64 characters by scrolling them across the display. The text could be about the song, traffic and weather, phone in numbers, or police information. Note This unit does not have the emergency broadcast system (EBS) that tunes automatically into emergency broadcasts. To display RDS information q Press [RDS]. w Press [-BAND, –FM MODE, DISPLAY MODE]. The display changes each time you press the button: .. ./ PS display ./ PTY display ./ RT display ... Frequency display ,... PTY display: “NO PTY” appears if PTY signals are not being received. PTY search First, preset FM stations. q Press [RDS]. w While “RDS” is flashing Press [TUNING, 2, 1, PTY SELECTOR] to select the program type. The display changes each time you press the button. e While the PTY display is flashing Press [PRESET, PTY SEARCH]. The PTY indicator flashes while searching. The unit switches to the station broadcasting the program. The PTY indicator flashes for another two seconds. ¡“SELECT PTY FIRST” is displayed if you try to start without selecting a program type. 20 RQT6252 NEWS AFFAIRS INFO SPORT EDUCATE DRAMA CULTURE SCIENCE VARIED POP M ROCK M M. O. R. M LIGHT M CLASSICS OTHER M WEATHER FINANCE CHILDREN SOCIAL A RELIGION PHONE IN TRAVEL LEISURE JAZZ COUNTRY NATIONAL OLDIES FOLK M DOCUMENT TEST ALARM News Current affairs Information Sport Education Drama Culture Science Varied Pop music Rock music Middle-of-the-road Music Light classical Serious classical Other music Weather information Finance Children Social affairs Religion Phone in Travel Leisure Jazz music Country music National music Oldies Folk music Documentary Test broadcast Emergency announcement Other settings DIMMER – Dim the display for better viewing in a darkened room INPUT SELECTOR Press [DIMMER] on the remote control. Adjusting the brightness of the display VOLUME DSP DOLBY SOURCE DIRECT SOUND MODE PRO LOGIC2 MULTI DECODER DOLBY DOLBY DOLBY DTS-ES DIGITAL EX DIGITAL PRO LOGIC 2 NEO:6 DTS NEO:6 DOWN PHONES A SPEAKERS B INPUT DVD TAPE MODE 6CH INPUT MONITOR RDS - BAND – FM MODE MEMORY PRESET DISPLAY MODE PTY SEARCH UP VCR 3 2 TUNING 1 PTY SELECTOR S-VIDEO IN VIDEO IN A SPEAKERS B L AUDIO IN R Choose a level between 1 (dim) and 5 (bright). The factory setting is LEVEL 2. 1 Press and hold [A] and [B] at the same time to enter the setting mode. 2 Press [A] to select “DIMMER”. 3 Turn [INPUT SELECTOR] to select “LEVEL 1”, “LEVEL 2”, “LEVEL 3”, “LEVEL 4” or “LEVEL 5”. MD TAPE CD RECEIVER TOP MENU ENTER DISPLAY RETURN SLOW /SEARCH SKIP STOP PAUSE PLAY SOUND MODE CHANNEL VOLUME MUTING INPUT SELECTOR SUBWOOFER 1 DIMMER 2 3 SOURCE DIRECT 4 5 6 INPUT MODE 7 8 9 DVD 6CH DIRECT TUNING/ DISC 0 10/-/-- TIMER ENHANCED SURROUND RE-MASTER DOLBY PROLOGIC 2 SFC NEO:6 TEST DIMMER AUDIO DR COMP – Dynamic range compression MENU /L LEVEL TONE BALANCE TV VOL GROUP /R EFFECT Change this setting to listen to software recorded with Dolby Digital at low volume (such as late at night) and maintain audio clarity. It reduces the peak level in loud scenes without affecting the sound field. OFF: The software is played with the original dynamic range (factory setting). STANDARD: The level recommended by the producer of the software for household viewing. MAX: The maximum allowable compression (recommended for night viewing). 1 Press and hold [A] and [B] at the same time to enter the setting mode. 2 Press [A] to select “DR COMP”. 3 Turn [INPUT SELECTOR] to select “OFF”, “STANDARD” or “MAX”. 4 Press and hold [A] and [B] at the same time to exit the setting mode. TV/AV PAGE A/D ATT – turn the A/D attenuator on if “OVER” lights frequently when using 2-channel analogue input SETUP DVD Step 2 DVD Step 3 VCR Step 4 TUNER/BAND TV Step 1 The brightness changes to show the level. 4 Press and hold [A] and [B] at the same time to exit the setting mode. The factory setting is OFF. 1 Press and hold [A] and [B] at the same time to enter the setting mode. 2 Press [A] to select “A/D ATT”. 3 Turn [INPUT SELECTOR] to select “OFF” or “ON”. 4 Press and hold [A] and [B] at the same time to exit the setting mode. Others 8 ENHANCED HQ RE-MASTER SOUND MODE SURROUND Note ¡The setting affects all 2-channel analogue input. ¡You can raise the volume to a maximum of –10 dB while A/D ATT is on. Reference WAKE Before use INPUT SELECTOR ^ 21 RQT6252 Timer function Making a recording INPUT SELECTOR 1 2 3 SOURCE DIRECT 4 5 6 INPUT MODE 8 9 DVD 6CH VOLUME ^ 7 ENHANCED HQ RE-MASTER SOUND MODE SURROUND WAKE 8 DSP DOLBY SOURCE DIRECT SOUND MODE PRO LOGIC2 INPUT SELECTOR VOLUME MULTI DECODER DOLBY DOLBY DOLBY DTS-ES DIGITAL EX DIGITAL PRO LOGIC 2 NEO:6 DTS INPUT SELECTOR NEO:6 DIRECT TUNING/ DISC 0 10/-/-- ENHANCED SURROUND RE-MASTER /L TIMER TIMER ^ DOWN PHONES INPUT DVD TAPE MODE 6CH INPUT MONITOR A SPEAKERS B - BAND DOLBY RDS – FM MODE PROLOGIC 2 /R UP WAKE 8 ENHANCED HQ RE-MASTER SOUND MODE SURROUND DSP DOLBY SOURCE DIRECT SOUND MODE PRO LOGIC2 SFC MEMORY PRESET PTY SEARCH EFFECT 2 TUNING 1 NEO:6 UP +/R LEVEL PTY SELECTOR S-VIDEO IN VIDEO IN TONE TEST TV VOL DIMMER AUDIO DTS DOWN –/L L AUDIO IN R PHONES A SPEAKERS B WAKE DOLBY DOLBY DOLBY DTS-ES DIGITAL EX DIGITAL PRO LOGIC 2 NEO:6 VCR 3 DISPLAY MODE NEO:6 MULTI DECODER GROUP BALANCE INPUT DVD TAPE MODE 6CH INPUT MONITOR RDS - BAND – FM MODE MEMORY PRESET DISPLAY MODE PTY SEARCH VCR 3 2 TUNING 1 PTY SELECTOR S-VIDEO IN VIDEO IN L AUDIO IN R TV/AV PAGE SETUP The SLEEP timer can turn the unit off after a set time and the WAKE timer can turn it on. You can use only one timer at a time. They do not control any other components. q Press [TIMER]. “TIMER” is shown in the display. w Within 4 seconds Press [TIMER] to select the timer. / SLEEP / WAKE / OFF e Within 5 seconds Press [–/L] or [+/R] to select the required time. The display changes as follows: SLEEP (in minutes) 30 ,/ 60 ,/ 90 ,/ 120 WAKE (in hours) 5H ,/ 6H ,/ 7H ,/ 8H ,/ 9H ,/ 10H Recording on other equipment You can record to a tape deck connected to TAPE REC (OUT), a MD deck or CD recorder connected to MD/CD-R/RW REC (OUT), a VCR connected to VCR 1 OUT, a DVD recorder/VCR connected to DVR/VCR 2 OUT, or digital recording equipment connected to DIGITAL OPTICAL OUT. See the recording unit’s operating instructions for details on how to prepare it for recording. 1 Turn [INPUT SELECTOR] to select the source to be recorded. 2 Begin recording. Follow your recording unit’s operating instructions. 3 Start the source to be recorded. Follow your equipment’s operating instructions. Note ¡ SLEEP starts working immediately. ¡ WAKE starts working when you switch the unit to standby. (The “WAKE” timer indicator lights up.) To check the setting Press [TIMER] once. ¡If you set SLEEP, the time remaining appears. ¡If you set WAKE, the setting appears. To change the setting Repeat the procedure from the beginning. ¡With a tape deck, you can record any analogue source except TAPE. ¡With a MD deck or CD recorder, you can record any analogue source except TAPE and MD/CD-R/RW. ¡With a VCR (connected VCR 1), you can record any analogue source except TAPE and VCR 1. ¡With a DVD recorder/VCR (connected DVR/VCR2), you can record any analogue source except TAPE and DVR/VCR2. ¡With digital recording equipment, you can record any digital source without copy protection. ¡When you select DVD 6CH INPUT mode, only sound from the front left and right channels is recorded. ¡Some sources do not allow digital recording. Connect through the analogue terminals and select “ANALOG” input. The RESET function While the unit is on While pressing and holding [DSP SOUND MODE], press [8], so “RESET” appears on the display. 8 Settings are reset to those made at the time of shipment. Preset radio stations remain intact. VOLUME INPUT SELECTOR ^ WAKE 8 ENHANCED HQ RE-MASTER SOUND MODE SURROUND DSP DOLBY SOURCE DIRECT SOUND MODE PRO LOGIC2 MULTI DECODER DOLBY DOLBY DOLBY DTS-ES DIGITAL EX DIGITAL PRO LOGIC 2 NEO:6 DTS NEO:6 DOWN PHONES A SPEAKERS B INPUT DVD TAPE MODE 6CH INPUT MONITOR RDS - BAND – FM MODE MEMORY PRESET DISPLAY MODE 22 RQT6252 DSP SOUND MODE PTY SEARCH UP VCR 3 2 TUNING 1 PTY SELECTOR S-VIDEO IN VIDEO IN L AUDIO IN R Troubleshooting guide Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, consult your dealer for instructions. No sound. ¡Turn the volume up. ¡Check connections to speakers and other equipment. ¡Turn on the speakers. ¡Turn off the tape monitor. ¡Select the correct source. ¡Change the D-INPUT setting to suit the type of connection you have made. ¡Check that the digital signals can be decoded by this unit. ¡Turn PCM FIX or DTS FIX off. 13 4–9 12 13 12 11 16 16 Sound stops. “OVERLOAD” appears on the display. ¡Switch off the unit, determine and correct the cause, then switch the unit on. Causes include: –Shorting (bare wires touching) of positive and negative speaker wires. –Using speakers with an impedance lower than that rated for this unit. –Straining of the speakers through excessive volume or power. –Using the unit in a hot environment without proper ventilation. 8 9 – – “F 70” appears on the display. ¡Turn the unit off, disconnect the AC mains lead, and consult your dealer. – ¡Ensure the SPEAKERS settings for your speakers are correct. ¡Check the DSP sound mode. 10 16 Sound is not heard from the surround back speaker. ¡Ensure the SPEAKERS settings for your speakers are correct. ¡Turn ENHANCED SURROUND on. 10 16 DSP sound modes cannot be selected. ¡Turn DVD 6CH INPUT off. ¡The DSP switches to STEREO if input is PCM with sampling frequencies of 96 or 88.2 kHz. 12 16 Radio The radio cannot be tuned in or there is a lot of noise and interference. ¡Connect the appropriate antenna. (You may need an outdoor antenna or one with more elements.) ¡Adjust the position of the FM or AM antenna. ¡Reduce the treble. ¡Select “SOURCE DIRECT”. ¡Turn off nearby televisions, video decks, DVD players, and satellite receivers. ¡Separate the antenna from other cables, leads, and appliances. The correct AM frequency cannot be tuned in. ¡Change the frequency step. Hold [-BAND, –FM MODE, DISPALY MODE] down for 3 seconds to change the step to 9 kHz. Pages Step 4 Sound is not heard from the center, surround, or subwoofer speakers. Step 3 Pages 7 7 18 16 – – Others DSP sound modes 7 Step 1 ¡Ensure the AC mains lead is connected. Step 2 No power. Before use Pages – Reference Common problems 23 RQT6252 Specifications (DIN 45 500) ■ AMPLIFIER SECTION ■ FM TUNER SECTION Power output Frequency range Sensitivity S/N 30 dB S/N 26 dB S/N 20 dB IHF usable sensitivity (IHF’58) IHF 46 dB stereo quieting sensitivity Total harmonic distortion MONO STEREO S/N MONO STEREO Frequency response 20 Hz–15 kHz Alternate channel selectivity ±400 kHz Capture ratio Image rejection at 98 MHz IF rejection at 98 MHz Spurious response rejection at 98 MHz AM suppression Stereo separation 1 kHz Carrier leak 19 kHz 38 kHz Channel balance (250 Hz–6.3 kHz) Limiting point Bandwidth IF amplifier FM demodulator Antenna terminal (at 230 V for continental Europe) (at 240 V for the United Kingdom) DIN 1 kHz (T.H.D. 1 %) 2 × 100 W (6 Ω) 20 Hz–20 kHz continuous power output both channels driven 2 × 80 W (6 Ω) Total harmonic distortion rated power at 20 Hz–20 kHz 0.05 % (6 Ω) half power at 1 kHz 0.03 % (6 Ω) Power output each channel driven DIN 1 kHz (T.H.D. 1 %) Front (L/R) 100 W (6 Ω) Center 100 W (6 Ω) Surround (L/R/BACK) 100 W (6 Ω) Power bandwidth both channels driven, –3 dB 10 Hz –100 kHz (6 Ω, 0.9 %) Damping factor 45 (6 Ω) Load impedance Front (L/R) A or B 4–16 Ω A and B 8–16 Ω Center 6–16 Ω Surround (L/R/BACK) 6–16 Ω Frequency response PHONO RIAA standard curve (30 Hz–15 kHz) ±0.8 dB CD, MD/CD-R/RW, TV, DVD/DVD 6CH, VCR 1, DVR/VCR 2, VCR 3, TAPE 10 Hz–100 kHz, ±3 dB Input sensitivity and impedance PHONO 3 mV/47 kΩ CD, MD/CD-R/RW, TV, DVD/DVD 6CH, VCR 1, DVR/VCR 2, VCR 3, TAPE 200 mV/22 kΩ S/N at rated power (6 Ω) PHONO 70 dB (IHF, A: 80 dB) CD, MD/CD-R/RW, TV, DVD/DVD 6CH, VCR 1, DVR/VCR 2, VCR 3, TAPE 98 dB (IHF, A: 100 dB) SOURCE DIRECT/HQ SOUND MODE 108 dB, IHF A/Rated Power/S=2 V Tone controls BASS 50 Hz, +10 to –10 dB TREBLE 20 kHz, +10 to –10 dB Output voltage TAPE, MD/CD-R/RW, VCR 1, DVR/VCR 2 200 mV Channel balance (250 Hz–6.3 kHz) ±1 dB Channel separation 55 dB Headphones output level and impedance 430 mV/330 Ω Subwoofer frequency response (–6 dB) 7–200 Hz Digital input (OPTICAL) (COAXIAL) Digital output (OPTICAL) 4 1 1 87.50–108.00 MHz 1.5 µV/75 Ω 1.3 µV/75 Ω 1.2 µV/75 Ω 1.5 µV/75 Ω 22 µV/75 Ω 0.2 % 0.3 % 60 dB (75 dB, IHF) 58 dB (71 dB, IHF) +1 dB, –2 dB 65 dB 1.5 dB 40 dB 70 dB 70 dB 50 dB 40 dB –30 dB (–35 dB, IHF) –50 dB (–55 dB, IHF) ±1.5 dB 1.2 µV 180 kHz 1000 kHz 75 Ω (unbalanced) ■ AM TUNER SECTION Frequency range Sensitivity Selectivity IF rejection 522–1611 kHz (9 kHz steps) 530–1620 kHz (10 kHz steps) 20 µV, 330 µV/m 55 dB 50 dB ■ VIDEO SECTION Output voltage at 1 V input (unbalanced) 1±0.1 Vp-p Maximum input voltage 1.5 Vp-p Input/output impedance 75 Ω (unbalanced) S-VIDEO input DVD/DVD 6CH, VCR 1, DVR/VCR 2, VCR 3, TV S-VIDEO output VCR 1, DVR/VCR 2, TV MONITOR ■ GENERAL Power supply For continental Europe For the United Kingdom Power consumption Dimensions (W × H × D) Mass Power consumption in standby mode: AC 230 V, 50 Hz AC 230–240 V, 50 Hz 280 W 430 × 158 × 377 mm 11.9 kg 2W Note: 1. Specifications are subject to change without notice. Mass and dimensions are approximate. 2. Total harmonic distortion is measured by the digital spectrum analyzer. Maintenance If the surfaces are dirty To clean this unit, wipe with a soft, dry cloth. ¡Never use alcohol, paint thinner or benzine to clean this unit. ¡Before using chemically treated cloth, read the instructions that came with the cloth carefully. Matsushita Electric Industrial Co., Ltd. Web Site: http://www.panasonic.co.jp/global/ En RQT6252-B H0402HM0
