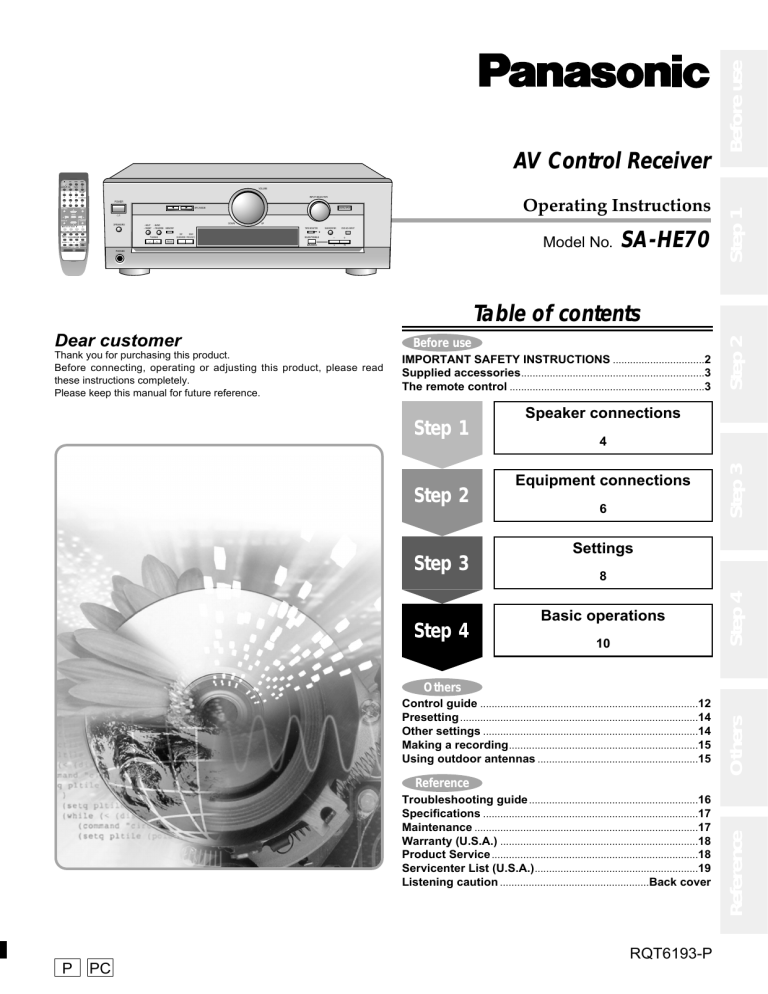

Panasonic SAHE70 Operating instructions

Panasonic SAHE70 Operating instructions
VCR
DVD
TUNER/BAND TAPE
CD
VOLUME
DIRECT TUNING/
DISC ENTER
1
2
3
4
5
6
≥10/ENTER
7
8
9
0
INPUT SELECTOR
yy
;;
TOP MENU
/
–
LEVEL
DISC/
DECK 1/2 SOUND MODE
TV/VIDEO
–
q
DIGITAL INPUT
SFC MODE
8
SUBWOOFER
DISPLAY
EFFECT
w
MENU
ENTER
/
Operating Instructions
POWER
- HELP - BAND
– RESET – FM MODE MEMORY
UP
TAPE MONITOR
SUBWOOFER
DVD 6CH INPUT
+
SFC
CH
VOLUME
SPEAKERS
DOWN
DSP
DOLBY
SOUND MODE PRO LOGIC 2
TUNING
TEST
2
MUTING
1
BASS/TREBLE
3
4
BALANCE
L
R
Model No.
PRESET
+
PHONES
SA-HE70
Step 1
AUDIO
Before use
AV Control Receiver
TV
Before use
IMPORTANT SAFETY INSTRUCTIONS ................................2
Supplied accessories................................................................3
The remote control ....................................................................3
Step 1
Step 2
Step 3
Step 4
Speaker connections
4
Equipment connections
6
Step 3
Thank you for purchasing this product.
Before connecting, operating or adjusting this product, please read
these instructions completely.
Please keep this manual for future reference.
Settings
8
Basic operations
10
Step 4
Dear customer
Step 2
Table of contents
Others
Others
Control guide ............................................................................12
Presetting ...................................................................................14
Other settings ...........................................................................14
Making a recording ..................................................................15
Using outdoor antennas ........................................................15
RQT6193-P
P
PC
Reference
Reference
Troubleshooting guide ...........................................................16
Specifications ...........................................................................17
Maintenance ..............................................................................17
Warranty (U.S.A.) .....................................................................18
Product Service ........................................................................18
Servicenter List (U.S.A.) .........................................................19
Listening caution ....................................................Back cover
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety precautions listed
below. Keep these operating instructions handy for future reference.
Safety
1. Power source—Connect the unit to a power source of the type
described in these instructions or as marked on the unit.
2. Polarization—The unit is equipped with a polarized power plug
where one blade is wider than the other. This safety feature
ensures that the plug fits into your household AC outlet only one
way. If the plug doesn’t fit one way, try reversing it. If the plug
still doesn’t fit, contact an electrician to replace the obsolete
outlet. Do not attempt to defeat the safety purpose of the plug.
3. Power cord protection—Route the AC power supply cord so
that it will not be walked on or pinched by items placed on or
against it. Never take hold of the plug or cord with wet hands.
Always grasp the plug body firmly when connecting and
disconnecting it.
4. Overloading—When connecting the AC power supply cord, be
careful not to overload the household AC outlet, extension cord,
or outlet from any other device as this can result in fire or electric
shock.
5. Nonuse periods—Turn the unit off when it is not in use. Unplug
the unit from the household AC outlet if it is not to be used for a
long time. Unplug the unit during lightning storms.
6. Attachments and accessories—Use only the attachments and
accessories recommended in these operating instructions.
4. Outdoor antenna grounding—If you connect an outdoor
antenna, ground the antenna system to protect against voltage
surges and built-up static charges. Section 810 of the National
Electrical Code, ANSI/NFPA No. 70-1990, provides information
about grounding of the mast and supporting structure, grounding
of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna-discharge unit,
connection to grounding electrodes, and requirements for the
grounding electrode. Refer to this diagram.
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
Installation
NEC—NATIONAL ELECTRICAL CODE
Placement
1. Ventilation—Situate the unit so that it receives proper
ventilation. Do not install in a confined space such as a
bookcase or cabinet. Allow at least 10 cm (4 inches) clearance
from the rear of the unit. To prevent the risk of electric shock or
fire due to overheating ensure curtains and other materials do
not obstruct the unit’s ventilation.
2. Foreign material—Ensure objects and liquids do not get into
the unit. Avoid exposing the unit to excessive smoke, dust,
mechanical vibration, and shock.
3. Magnetism—Situate the unit away from equipment and devices
that generate strong magnetic fields.
4. Stacking—Do not place heavy objects on top of this unit.
5. Surface—Place the unit on a flat, level surface.
6. Carts and stands—Use the unit only with carts
and stands recommended by the manufacturer.
Move carts with care. Sudden stops, excessive
force, and uneven surfaces can cause carts to
overturn.
7. Wall and ceiling mounting—Do not mount the unit on walls or
ceilings unless specified in the instructions.
Environment
1. Water and moisture—Do not use the unit near water, such as
near a bathtub or swimming pool. Avoid damp basements.
2. Heat—Situate the unit away from heat sources, such as
radiators.
Do not situate where temperatures fall below 5°C (41°F) or rise
above 35°C (95°F).
3. Power lines—Take care when setting up an outdoor antenna
that it is not near overhead power lines, electric lights, or
electrical circuits, and that there is no danger of the antenna
falling on power lines, electric lights, or electrical circuits. When
installing an outdoor antenna, take extreme care not to touch
such power lines or circuits, as contact with them can be fatal.
2
RQT6193
Maintenance
(See page 17 for details.)
Unplug the unit from the household AC outlet before cleaning.
Clean with a damp cloth.
Do not use abrasive pads, scouring powders, or solvents.
Service
1. Damage requiring service—The unit should be serviced by
qualified service personnel if:
(a) The AC power supply cord or the plug has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked
change in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other
servicing to authorized servicing personnel.
3. Replacement parts—When parts need replacing ensure the
servicer uses parts specified by the manufacturer or parts that
have the same characteristics as the original parts.
Unauthorized substitutes may result in fire, electric shock, or
other hazards.
4. Safety check—After repairs or service, ask the servicer to
perform safety checks to confirm that the unit is in proper
working condition.
CAUTION
Do not place anything on top of this unit or block the heat
radiation vents in any way. In particular, do not place tape decks
or CD/DVD players on this unit as heat radiated from it can
damage your software.
Step 2
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Supplied accessories
Please check and identify
the supplied accessories.
1 AC power supply cord
(RJA0065-A)
2 Batteries
1 FM indoor antenna
(RSA0006-L)
1 Remote control
(EUR7702KE0)
1 AM loop antenna set
(RSA0012)
(AM loop antenna,
antenna holder, screw)
Refer to the separate booklet, “Remote Control
Operation Guide”, for remote control operation
details.
Use the numbers indicated in parentheses when asking for
replacement parts.
Step 1
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock
to persons.
(Only for U.S.A.)
To order accessories contact 1-800-332-5368 or web site
(http://www.panasonic.com).
Step 3
CAUTION:TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT
EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.
Step 4
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Before use
WARNING:
CAUTION
Batteries
Use
Remote control signal sensor
4
3
1
VOLUME
Others
The remote control
INPUT SELECTOR
POWER
w
2
q
DIGITAL INPUT
SFC MODE
8
SPEAKERS
DOWN
- HELP - BAND
– RESET – FM MODE MEMORY
1
TAPE MONITOR
DSP
DOLBY
SOUND MODE PRO LOGIC 2
TUNING
2
UP
SUBWOOFER
DVD 6CH INPUT
BASS/TREBLE
3
4
BALANCE
L
R
PRESET
(R6, AA, UM-3)
7 meters (23 feet)
Transmission window
TV
AUDIO
¡Insert so the poles (+ and –) match those in the remote control.
¡Do not use rechargeable type batteries.
VCR
TUNER/BAND TAPE
1
2
3
4
5
6
7
8
9
TOP MENU
DVD
CD
DIRECT TUNING/
DISC ENTER
≥10/ENTER
Reference
PHONES
0
MENU
¡Keep the transmission window and the unit’s sensor free from
dust.
¡Operation can be affected by strong light sources, such as direct
sunlight, and the glass doors on cabinets.
3
RQT6193
Step
1
Speaker connections
2 3 4
Placement of speakers
C
B
F
A
E
D
The front, center, and surround speakers should be
placed at approximately the same distance from the
seating area. The angles in the diagram are
approximate.
Connecting speakers
Other connections are possible depending on your speaker system.
See your speaker system’s operating instructions for details.
Turn off the receiver before connecting the speakers.
Front speakers – Impedance: 6–8 Ω
Right
Left
SPEAKERS
HAUT-PARLEURS
B
A
SURROUND
FRONT
CENTER
R L
R
6-8Ω
6-8Ω
L 6-8Ω
EACH SPEAKER
CHAQUE
EACH SPEAKER
CHAQUE
Speaker cable
Speaker cable
Subwoofer
Active subwoofer
TV
LOOP ANT
HOLDER
MONITOR
OUT
SUBWOOFER
S-VIDEO
TV
VCR
IN
IN
TV
VCR
DVD
IN
OUT
DIGITAL IN
INPUT
CENTER SURROUND
IN
L
GND
Monaural connection cable
4
RQT6193
SURROUND
R L
IN
SUBWOOFER
IN
F
SPEAKERS
HAUT-PARLEURS
DVD/DVD 6CH
OPTICAL1 OPTICAL2 COAXIAL MONITOR
OUT
(TV)
(DVD)
FM
ANT
75Ω
CD
TAPE
REC
(OUT)
PLAY
(IN)
TV
OUT
IN
R
SUBWOOFER
FRONT
OUT
LOOP
L
L
EXT
AM
ANT
R
R
6-8Ω
EACH SPEAKER
CHAQUE
CENTER
6-8Ω
FRONT
R
L 6-8Ω
EACH SPEAKER
CHAQUE
AC IN ∼
AC OUTLET
Speaker cable
Front speakers (A left B right)
Cable
Place on the left and right of the TV at seated ear height so that
there is good coherency between the picture and sound.
Center speaker (C)
Speaker terminals
Do not short
circuit.
Twist the wire
Place underneath or above the center of the TV. Aim the speaker at
the seating area.
Note
Before use
Peripheral equipment and cables sold separately unless otherwise indicated.
Step 1
Surround speakers (D left E right)
Place slightly behind the seating area, about one meter (3 feet)
higher than ear level.
Subwoofer (F)
Step 3
Step 2
The subwoofer can be placed in any position as long as it is at a
reasonable distance from the TV.
Note that some experimentation can yield the smoothest low
frequency performance. Placement near a corner can increase the
apparent output level, but can result in unnatural bass.
Center speaker – Impedance: 6–8 Ω
SURROUND
C
R L
D
6-8Ω
CENTER
6-8Ω
Step 4
SPEAKERS
HAUT-PARLEURS
FRONT
R
L 6-8Ω
EACH SPEAKER
CHAQUE
EACH SPEAKER
CHAQUE
Others
Speaker cable
Surround speakers – Impedance: 6–8 Ω
Left
SPEAKERS
HAUT-PARLEURS
E
SURROUND
R L
6-8Ω
EACH SPEAKER
CHAQUE
Speaker cable
CENTER
6-8Ω
D
FRONT
R
L 6-8Ω
EACH SPEAKER
CHAQUE
Reference
Right
Speaker cable
5
RQT6193
Step
1
2
Equipment connections
3 4
Stereo connection cable
White
(L)
Red
(R)
Video connection cable
To connect equipment, refer to the appropriate operating
instructions.
Changing the digital input settings
You can change the input settings for the digital
terminals if necessary. Note the equipment you have
connected to the terminals, then change the settings (\
pages 8 and 9).
Note
¡Do not bend the optical fiber cable.
¡Turn off all components before making any connections.
¡Use digital connection to enjoy Dolby Digital or DTS (\ page 10).
¡Use analog connection to enjoy sources that cannot be decoded
on this unit and to record a source (\ pages 10 and 15).
TV, VCR and DVD player
DVD player
DIGITAL IN
VIDEO OUT
DVD/DVD 6CH
OPTICAL1 OPTICAL2 COAXIAL
(DVD)
(TV)
CENTER SURROUND
IN
AUDIO OUT
(SURROUND L, R)
L
IN
SUBWOOFER
R
AUDIO OUT
(CENTER, SUBWOOFER)
FRONT
L
DIGITAL AUDIO OUT
Note
AUDIO OUT
(FRONT L, R)
R
Connect to FRONT L, R if your
DVD player does not have 6
channel output.
The S-VIDEO
terminals
Connections through
these terminals provide
higher quality pictures
than through the video
terminal.
TV
LOOP ANT
HOLDER
MONITOR
OUT
DIGITAL IN
S-VIDEO
TV
VCR
IN
IN
TV
VCR
Video signals input into
the VIDEO terminals
cannot be output from
S-VIDEO terminals or
vice versa.
IN
SPEAKERS
HAUT-PARLEURS
DVD/DVD 6CH
CENTER SURROUND
OPTICAL1 OPTICAL2 COAXIAL MONITOR
OUT
(TV)
(DVD)
FM
ANT
75Ω
Note
DVD
IN
L
SURROUND
R L
IN
SUBWOOFER
IN
GND
CD
TAPE
REC
(OUT)
PLAY
(IN)
TV
OUT
IN
6-8Ω
CENTER
FRONT
R
6-8Ω
AC IN ∼
OUT
L
L
EXT
AM
ANT
R
R
TV or monitor
OPTICAL1 OPTICAL2 COAXIAL
(DVD)
(TV)
AC OUTLET
VCR
VCR
TV
DIGITAL IN
L 6-8Ω
EACH SPEAKER
CHAQUE
EACH SPEAKER
CHAQUE
SUBWOOFER
FRONT
LOOP
Satellite receiver
etc.
R
MONITOR
OUT
OUT
VIDEO IN
VIDEO IN
IN
VIDEO OUT
VIDEO OUT
IN
TV
OUT
IN
AUDIO IN
AUDIO OUT
AUDIO OUT
6
RQT6193
DIGITAL OUT
Optical fiber cable
Before use
Peripheral equipment and cables sold separately unless otherwise indicated.
Coaxial cable
CD, Tape deck and antennas
Antennas
Tape deck
FM indoor antenna (included)
TAPE
Fix the other end of the antenna
where reception is best.
PLAY
(IN)
REC
(OUT)
Step 1
PLAY (OUT)
Adhesive tape
REC (IN)
If you have a graphic equalizer, connect it to the TAPE
terminals.
FM
ANT
75Ω
MONITOR
OUT
LOOP
DIGITAL IN
S-VIDEO
TV
VCR
IN
IN
TV
VCR
DVD
IN
CENTER SURROUND
FM
ANT
75Ω
IN
L
When attaching the
AM loop antenna to
another surface
Fit the holder into the holes on the
rear panel, then attach the
antenna to it, facing it in the
direction of best reception.
SURROUND
CENTER
R L
IN
GND
Using the antenna holder
SPEAKERS
HAUT-PARLEURS
DVD/DVD 6CH
OPTICAL1 OPTICAL2 COAXIAL MONITOR
OUT
(TV)
(DVD)
EXT
AM
ANT
CD
TAPE
REC
(OUT)
PLAY
(IN)
IN
SUBWOOFER
TV
OUT
IN
R
6-8Ω
6-8Ω
EACH SPEAKER
CHAQUE
FRONT
R
L 6-8Ω
EACH SPEAKER
CHAQUE
SUBWOOFER
FRONT
AC IN ∼
OUT
LOOP
L
L
EXT
AM
ANT
R
R
AC OUTLET
Step 3
TV
LOOP ANT
HOLDER
CD Player
DIGITAL IN
OPTICAL1 OPTICAL2 COAXIAL
(DVD)
(TV)
CD
Screw
(included)
LOOP ANT
HOLDER
L
Keep the antenna cord away from tape decks, DVD players,
and other cords.
R
Outdoor antennas \ page 15
LINE
OUT
DIGITAL OUT
Connecting the AC power supply cord and other information
Step 4
GND
Step 2
AM loop antenna (included)
MONITOR
OUT
DIGITAL IN
S-VIDEO
TV
VCR
IN
IN
TV
VCR
DVD
IN
SPEAKERS
HAUT-PARLEURS
DVD/DVD 6CH
CENTER SURROUND
OPTICAL1 OPTICAL2 COAXIAL MONITOR
OUT
(TV)
(DVD)
FM
ANT
75Ω
IN
L
SURROUND
R L
IN
SUBWOOFER
IN
GND
CD
TAPE
REC
(OUT)
PLAY
(IN)
TV
OUT
IN
R
6-8Ω
CENTER
6-8Ω
FRONT
R
EACH SPEAKER
CHAQUE
L 6-8Ω
EACH SPEAKER
CHAQUE
SUBWOOFER
FRONT
OUT
LOOP
L
L
EXT
AM
ANT
R
R
AC power supply cord
(included)
Connect this cord after
all other cables and
cords are connected.
Note
The included AC power supply cord is for use with
this unit only. Do not use it with other equipment.
AC IN ∼
AC OUTLET
“SWITCHED” AC outlet
Power to the outlet is controlled by the power switch
of this unit. Audio equipment rated up to a maximum
of 80 W can be connected here. If equipment
exceeding this rating is connected, the outlet may be
rendered inoperable. Consult your dealer to replace
the fuse.
Household AC outlet
(AC 120 V/60 Hz)
Conserving power
The unit consumes 1 W even when it is turned off with [POWER, ^/l]. To
save power when the unit is not to be used for a long time, unplug it from the
household AC outlet.
If the unit is left unplugged for longer than a few weeks, all settings will revert
to the factory settings. Do the settings again if this occurs.
Reference
TV
LOOP ANT
HOLDER
TO PREVENT ELECTRIC SHOCK
MATCH WIDE BLADE OF PLUG TO
WIDE SLOT, FULLY INSERT.
Others
CAUTION:
7
RQT6193
Step
1 2
3
4
Settings
Change the settings to suit your speakers and units to the environment in which you are using them. Before making any changes, read the
descriptions of the settings, note the factory settings and ranges, and refer to the equipment’s instructions.
1
SIZE
Set the size to suit
your speakers
LARGE:For speakers that can reproduce a full sound range, particularly
the bass range below 100 Hz.
SMALL: For speakers that cannot adequately reproduce the bass range.
This setting is sufficient for most speakers if you are using a
subwoofer.
NONE: For speakers you haven’t connected (center or surround).
The factory settings are: FRONT:
LARGE
CENTER and SURROUND:
SMALL
For the subwoofer (SUB-WFR), select YES if you have connected one
(factory setting), or NO if you have not.
2
DISTANCE
Enter the distance of
the front, center and
surround speakers
from the seating
position
Change the distance so that the sound from all the speakers (except for
the subwoofer) reaches you at the same time.
You can select distances between 3 and 30 feet at one-foot intervals.
The factory settings are: FRONT and CENTER: 10 FEET
SURROUND:
5 FEET
Press at the same
time to enter the
setting mode.
3
FILTER
Change the cut-off
for bass output from
the front speakers
4
D-INPUT
Digital input
5
Adjusting
speaker output
level
8
RQT6193
w
q
SFC MODE
If you set the front speakers to “SMALL”, the filter is set to 100 Hz. Raise
the cut-off if the bass from the front speakers is unsatisfactory so that this
bass is output through the subwoofer.
You can raise the cut-off from 100 Hz to either 150 Hz or 200 Hz.
Change these settings to suit the connections you have made to the three
digital input terminals, COAX, OPT1 and OPT2, so that the correct source
is selected when you turn [INPUT SELECTOR].
The factory settings are: CD: COAX
DVD:OPT 2
TV: OPT 1
Adjust the level of the other speakers based on the output of the front
speakers. (Adjust the volume of the front speakers with [VOLUME].)
C (center), SR (surround right), and SL (surround left) can be adjusted
between –10 dB and +10 dB, with 0 being the level of the front speakers.
Adjust center and surround output to the same apparent level of the front
speakers.
For SW (subwoofer), you can select “---” so there is no output, “MIN” for
minimum output, a level between 1 and 19, or “MAX” for maximum output.
Adjust subwoofer output so it is balanced with the front speakers.
Subwoofer output is easily influenced by the source. You can also change
its level while playing something for better effect (\ page 13).
Turn SPEAKERS
on.
SPEAKERS
q
SFC MODE
yy
;;
;;
yy
LEVEL
/
/
EFFECT
LEVEL
DISC/
DECK 1/2 SOUND MODE
VOLUME
INPUT SELECTOR
TV/VIDEO
POWER
w
SPEAKERS
q
DIGITAL INPUT
SFC MODE
–
8
SPEAKERS
DOWN
- HELP - BAND
– RESET – FM MODE MEMORY
1
UP
TAPE MONITOR
DSP
DOLBY
SOUND MODE PRO LOGIC 2
TUNING
2
–
SUBWOOFER
DVD 6CH INPUT
BASS/TREBLE
3
4
BALANCE
L
R
PRESET
PHONES
+
SFC
CH
VOLUME
–
+
TEST
TEST
MUTING
+
–
VOLUME
+
DISPLAY
Select “SIZE”.
Select the speaker.
Change the
setting.
Before use
INPUT SELECTOR
w
INPUT SELECTOR
q
SFC MODE
w
q
SFC MODE
Step 1
w
Repeat for each speaker channel.
Change the
setting.
Step 2
Select the speaker.
INPUT SELECTOR
w
q
SFC MODE
w
q
SFC MODE
Press at the same
time to exit the
setting mode.
Repeat for each speaker channel.
Select “FILTER”.
Change the
setting.
w
q
INPUT SELECTOR
q
SFC MODE
Select “D-INPUT”.
Select the input
position.
Step 4
w
SFC MODE
Step 3
Select
“DISTANCE”.
Change the
setting.
INPUT SELECTOR
q
SFC MODE
w
q
SFC MODE
Output the signal.
The speakers output a signal
in order for about two seconds
each.
–
TEST
L
C
R
SR
Adjust the main
volume.
SL
VOLUME
+
Adjust the level.
Press [LEVEL] to select the
speaker channel, then press
[–] or [+].
LEVEL
–
+
Stop the test
signal.
TEST
Reference
Others
w
SW
Speakers set as “NONE” or
“NO” are skipped.
Repeat for each
speaker channel.
9
RQT6193
Step
1
4
1 2 3
Basic operations
STEREO mode
POWER
Switch on.
L
R
8
SPEAKERS
2
Turn
SPEAKERS on.
SPEAKERS
SOUND MODE
STEREO
Use this mode to play digital or analog stereo sources or to play
surround sources through two speakers. When surround sources
are played in this mode, the sounds intended for the other
speaker channels are played through the front speakers.
SPEAKERS
SURROUND mode
3
Select input.
INPUT SELECTOR
L
SL
↔
↔
TUNER ↔ CD ↔ DVD
SPEAKERS
Select digital or analog input.
DIGITAL INPUT
4
Select the DSP
sound mode.
DSP
SOUND MODE
R
SR LFE
SOUND MODE
SURROUND
DIGITAL
TAPE ↔ VCR ↔ TV
For CD, DVD, TV
C
Select this mode when you are playing a digital surround source
(Dolby Digital or DTS).
Also select this mode when playing analog or digital stereo
sources. The Dolby Pro Logic 2 processor works
DOLBY
not only on sources recorded with Dolby
PRO LOGIC 2
Surround, but also on any stereo source. The
following modes are available when using Dolby
Pro Logic 2.
SFC modes
5
Start play of the
source.
6
VOLUME
Adjust the
volume.
DOWN
SOUND MODE
SPEAKERS
SFC
Enjoy an enhanced sound experience with greater presence and
spread by using these SFC (sound field control) modes with PCM
or analog stereo sources.
The SFC modes cannot be used if the input signal is Dolby
Digital or DTS.
w
q
Choose from the following modes.
SFC MODE
UP
When you finish listening
Be sure to reduce the volume and press [
to standby.
POWER
] to switch the unit
8
For your reference
In rare cases, the unit may have trouble recognizing the digital
signals on discs.
¡With the PCM signals on CDs, this may cause the beginning of a
track to be cut off. Engage the PCM FIX mode if this occurs.
¡With DTS, the signals may not be recognized at all. Engage the
DTS FIX mode if this occurs.
While the input source is selected and digital input is engaged:
Press and hold [
DIGITAL INPUT
].
The current mode is displayed. Press again to change the mode.
Each time you press the button:
AUTO / PCM FIX / DTS FIX
↑
10
RQT6193
When a FIX mode is on, the unit cannot process other signals. This
may cause noise to be output. Select “AUTO” if this occurs.
The selected mode is stored for each input source even if the unit is
turned off.
Notes on using the Digital Signal Processor
The digital signal processor (DSP) in this unit can decode Dolby
Digital and DTS digital signals. It automatically determines the type
of signal, PCM, Dolby Digital, or DTS, and processes it accordingly.
¡This unit cannot process other digital signal formats, such as
PCM signals with sampling frequencies of 96 kHz and 192 kHz
and MPEG.
¡This unit cannot decode Dolby Digital RF (radio frequency)
signals from a laser disc player.
q
3
6
7
8
9
DIRECT TUNING/
DISC ENTER
≥10/ENTER
0
TOP MENU
SFC MODE
MENU
ENTER
LEVEL
SUBWOOFER
DISPLAY
DOWN
UP
/
POWER
/
yy
;;
EFFECT
EFFECT
VOLUME
INPUT SELECTOR
8
POWER
w
q
TV/VIDEO
DIGITAL INPUT
SFC MODE
8
SPEAKERS
2
1
–
UP
TAPE MONITOR
DSP
DOLBY
SOUND MODE PRO LOGIC 2
TUNING
SUBWOOFER
DVD 6CH INPUT
BASS/TREBLE
3
4
BALANCE
L
R
PRESET
PHONES
DSP
SOUND MODE
DOLBY
PRO LOGIC 2
–
+
SFC
TEST
CH
VOLUME
–
+
MUTING
+
Step 1
SPEAKERS
DOWN
- HELP - BAND
– RESET – FM MODE MEMORY
LEVEL
DISC/
DECK 1/2 SOUND MODE
DIGITAL INPUT
MOVIE
Use this mode when playing movie software, especially
videotapes, recorded in Dolby Surround.
You can adjust the effect of MUSIC and PANORAMA with the
center width and dimension controls.
Center Width Control – C-WDTH
MUSIC
Adds surround effects to stereo sources.
PANORAMA
Sound is spread more so you feel like you are surrounded by
music.
You can choose a level between 0 and 7 – the higher the level,
the more the sound from the center channel is spread into the
front speakers.
The default is level 0.
1 Press [
EFFECT
Step 2
w
INPUT SELECTOR
2
5
Before use
VOLUME
1
4
] to select “C-WDTH”.
2 Press [ – ] or [ + ] to adjust the effect.
1 Press [
EFFECT
] to select “DIMEN”.
2 Press [ – ] or [ + ] to adjust the effect.
LIVE
Brings you up close for “live” stage performance and smoother
vocals.
THEATER
Recreates natural sound ambience and direction.
To adjust the speaker level
1 Press [
PARTY
This mode uses the front and surround speakers so that sound is
in stereo regardless of the direction you are facing.
] to select the speaker channel.
Each time you press the button:
C / SR / SL / SW
↑
Speakers set as “NONE” or “NO” are skipped.
2 Press [ – ] or [ + ] to adjust the level.
C, SR, and SL: –10 dB to +10 dB
SW:
--- (off) ,
/ MIN ,
/ 1 – 19 ,
/ MAX
To adjust the delay time
1 Press [
SIM SURR (Simulated Surround)
Heightens the sensation of expanded space with stereo sources,
and augments monaural sources.
LEVEL
Others
CLUB
Conveys the exciting and intimate atmosphere of a jazz club.
You can adjust the sound field by adjusting the level of the
speakers and the delay time of the surround speakers. These
adjustments can be made for each SFC mode.
EFFECT
].
2 Press [ – ] or [ + ] to change the delay time.
Delay time can be set at 10-millisecond (ms) intervals between
10 and 100 ms.
The factory setting is 50 ms for each mode.
Reference
HALL
Imparts the reflection and spread of a large concert hall.
Step 4
You can choose a level between 0 and 6 – the higher the level,
the more the sound moves to the rear.
The default is level 3.
Step 3
Dimension Control – DIMEN
11
RQT6193
Control guide
Band select/FM mode select button
[-BAND, –FM MODE]
Memory button [MEMORY]
For presetting radio stations.
For switching between AM and FM.
If reception is poor in FM, press and hold until “MONO” appears to
switch to monaural mode.
SFC mode select buttons
[SFC MODE, w, q]
For selecting the SFC mode
Help/reset button [-HELP, –RESET]
Press if an error message appears. A message offering a possible
solution scrolls across the display.
To reinitiate the unit’s settings, press and hold until “RESET” appears.
Standby/on button [POWER, 8]
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
POWER
Speaker on/off button [SPEAKERS]
Turning the speakers off automatically engages the STEREO mode
(when listening through headphones, for example).
Headphone jack [PHONES]
w
q
SFC MODE
8
SPEAKERS
Plug type: 6.3 mm (1/4") stereo
Avoid listening for prolonged periods of time to prevent hearing
damage.
DOWN
- HELP - BAND
– RESET – FM MODE MEMORY
DSP
DOLBY
SOUND MODE PRO LOGIC 2
TUNING
2
1
PRESET
PHONES
Tuning buttons [TUNING, 2, 1]
For tuning the radio and selecting preset stations.
Press and hold until the frequency starts scrolling to start automatic
tuning. Tuning stops when a station is found.
Tuning intervals: FM–0.2 MHz, AM–10 kHz
Preset channel button [PRESET]
Press to allow preset station selection with [TUNING, 2, 1].
DSP sound mode select button [DSP SOUND MODE]
For selecting “STEREO”, “SURROUND” or “SFC”
Dolby Pro Logic 2 mode select button
[DOLBY PRO LOGIC 2]
Use when “% PRO LOGIC 2” lights in the SURROUND mode.
The display
Frequency unit indicators [kHz, MHz]
kHz: AM, MHz: FM
General display
Shows the input mode, radio frequency, and other general
information.
kHz
MHz
Speaker indicator [SPEAKERS]
Lights when the speakers are on.
M TUNED
SPEAKERS MONO
STEREO
SOUND MODE
STEREO SURROUND
SFC
L
SL
FIX
PCM
C
R
S
SR LFE
PRO LOGIC 2
DIGITAL
Radio indicators [TUNED, MONO, STEREO, ˜]
TUNED: A station is tuned.
MONO: You have switched to monaural mode with [-BAND, –FM
MODE] to improve reception.
STEREO: A stereo FM broadcast is tuned.
˜: Lights during presetting.
12
RQT6193
DSP sound mode indicators
[SOUND MODE, STEREO, SURROUND, SFC]
Show the current DSP sound mode.
Tape monitor button/indicator [TAPE MONITOR]
For monitoring sound when recording to a 3-head cassette deck.
Also used when you have connected a graphic equalizer to the TAPE
terminals.
Before use
Volume control [VOLUME]
Digital/analog input select button/indicator
[DIGITAL INPUT]
For switching between analog and digital input when you have
selected TV, CD, or DVD. The button lights when digital is selected.
Step 1
Input selector [INPUT SELECTOR]
VOLUME
DIGITAL INPUT
DVD 6ch/2ch input select button [DVD 6CH INPUT]
For switching between 6-channel and 2-channel DVD input.
UP
SUBWOOFER
DVD 6CH INPUT
BASS/TREBLE
3
4
BALANCE
L
R
Subwoofer level button [SUBWOOFER]
Adjust the level in 5 steps
SW MIN, SW 5, SW 10, SW 15, and SW MAX.
Select SW --- to stop output.
Tone/balance adjust buttons
[BASS/TREBLE, BALANCE, –, +, L, R]
Step 3
TAPE MONITOR
Step 2
INPUT SELECTOR
Step 4
For adjusting the tone and balance.
First select BASS, TREBLE, or BALANCE, then press [–, L] or [+, R]
to adjust.
Signal format indicators
[FIX, % PRO LOGIC 2, PCM,
, % DIGITAL]
Light depending on the source you are playing.
% DIGITAL: Dolby Digital sources
: DTS sources
% PRO LOGIC 2: Analog sources in SURROUND mode
Digital sources with 2-channel signals in
SURROUND mode
FIX: PCM FIX or DTS FIX mode
PCM: PCM FIX mode
Reference
Show the channels contained in the digital input signal. They do not
light when input is analog.
L: Front channel (left)
C: Center channel
R: Front channel (right)
S: If the surround channel is monaural.
SL: Surround channel (left)
SR: Surround channel (right)
LFE (Low Frequency Effect): Deep-bass effect.
¡When playing videotapes
The picture remains on the screen even if you select TAPE,
CD, or TUNER.
¡Once you have set a mode (DSP, digital/analog input, or
2-channel/6-channel input) for an input source
That mode is engaged whenever you reselect the input source.
¡When DVD 6CH input is on
Speaker settings are ineffective. Change the settings on the
DVD player if necessary.
¡When input is DIGITAL
The tape monitor cannot be used.
¡When using a graphic equalizer
Some distortion may occur, depending on the equalizer’s
settings.
¡To adjust the tone
The STEREO DSP mode must be on and input must be either
analog or PCM signals. You cannot adjust the tone while the
DSP is defeated or if DVD 6CH INPUT is selected.
¡When using the subwoofer
You cannot adjust subwoofer level while the DSP is defeated
or if DVD 6CH INPUT is selected.
Sound can be distorted if you raise the volume while subwoofer
level is high. Reduce subwoofer level if this occurs.
Others
For your reference
Program format indicators
[L, C, R, S, SL, SR, LFE]
13
RQT6193
Presetting
TUNING
2
Other settings
- BAND
– FM MODE
1
MEMORY
w
INPUT SELECTOR
q
SFC MODE
VOLUME
INPUT SELECTOR
POWER
w
q
DIGITAL INPUT
SFC MODE
VOLUME
8
INPUT SELECTOR
SPEAKERS
DOWN
- HELP - BAND
– RESET – FM MODE MEMORY
TAPE MONITOR
DSP
DOLBY
SOUND MODE PRO LOGIC 2
TUNING
2
1
POWER
UP
SUBWOOFER
DVD 6CH INPUT
BASS/TREBLE
3
4
BALANCE
L
R
w
q
DIGITAL INPUT
SFC MODE
8
PRESET
SPEAKERS
PHONES
DSP
SOUND MODE
DOWN
- HELP - BAND
– RESET – FM MODE MEMORY
1
TAPE MONITOR
DSP
DOLBY
SOUND MODE PRO LOGIC 2
TUNING
2
UP
SUBWOOFER
DVD 6CH INPUT
BASS/TREBLE
3
4
BALANCE
L
R
PRESET
PHONES
PRESET
Automatic presetting
DR COMP –
Dynamic range compression
- BAND
1 Press [ – FM MODE ] to select “FM”.
TUNING
2 Press [ 2 1 ] to tune to “FM 87.9 MHz”.
MEMORY
3 Press and hold [
].
The FM stations the unit can receive are preset in channels 1 to 30.
- BAND
4 Press [ – FM MODE ] to select “AM”.
TUNING
5 Press [ 2 1 ] to tune to “AM 530 kHz”.
6 Press and hold [ MEMORY ].
The AM stations the unit can receive are preset in channels 21 to 30.
(FM stations are replaced if any were preset in these channels.)
During automatic presetting, the memory indicator (˜) flashes and
the frequency scrolls. The memory indicator and channel numbers
are displayed for a second when a station is preset.
The last station to be preset is displayed when presetting finishes.
Manual presetting
Preset the stations one at a time.
1 Tune to the station.
MEMORY
2 Press [
].
TUNING
3 Press [ 2 1 ] to select a channel.
MEMORY
4 Press [
].
Change this setting to listen to software recorded with Dolby Digital
at low volume (such as late at night) and maintain audio clarity. It
reduces the peak level in loud scenes without affecting the sound
field.
OFF: The software is played with the original dynamic range
(factory setting).
STANDARD: The level recommended by the producer of the
software for household viewing.
MAX: The maximum allowable compression (recommended for
night viewing).
q
SFC MODE ] at the same time to enter
1 Press [ w
the setting mode.
2 Press [
w
q
SFC MODE
] to select “DR-COMP”.
INPUT SELECTOR
3 Turn [
] to select “OFF”, “STANDARD” or
“MAX”.
q
SFC MODE ] at the same time to exit
4 Press [ w
the setting mode.
DIMMER –
Dim the unit’s display for better viewing in a
darkened room
The factory setting is OFF (normal brightness).
Selecting channels
1 Press [
PRESET
].
The channel number flashes for about 5 seconds.
2 Press [
TUNING
2
1
Improving reception
DSP
¡ DSP DEFEAT
SOUND MODE
Press and hold [
] until “DEFEAT” appears.
DSP
SOUND MODE
] again to turn the DSP on.
Note
14
w
q
SFC MODE
] to select “DIMMER”.
INPUT SELECTOR
For your reference
Even if the power supply cord is disconnected from the household
AC outlet, the stations remain in memory for approximately one
month.
RQT6193
2 Press [
].
Hold down the buttons to change channels faster.
Press and hold [
q
SFC MODE ] at the same time to enter
1 Press [ w
the setting mode.
While the DSP is defeated, you cannot:
– Select DSP sound modes,
– Adjust the tone,
– Output a test signal,
– Adjust individual speaker output, or
– Use digital input.
¡For your reference
DVD players can interfere with radio reception. Turn the DVD
player off or move it further away from the antennas if this occurs.
3 Turn [
] to select “OFF” or “ON”.
q
SFC MODE ] at the same time to exit
4 Press [ w
the setting mode.
FM outdoor antenna
¡Disconnect the FM indoor antenna.
¡The antenna should be installed by a competent technician.
¡Twist the coaxial cable’s shield braid firmly and connect it to the
GND terminal.
INPUT SELECTOR
q
DIGITAL INPUT
SFC MODE
8
1
TAPE MONITOR
DSP
DOLBY
SOUND MODE PRO LOGIC 2
TUNING
2
UP
SUBWOOFER
DVD 6CH INPUT
BASS/TREBLE
3
4
BALANCE
L
R
PRESET
PHONES
Recording on a tape deck or VCR
You can record to a tape deck connected to TAPE REC (OUT) or to
a VCR connected to VCR OUT.
See the recording unit’s operating instructions for details on how to
prepare it for recording.
When recording with a tape deck, you can record any source
except TAPE.
When recording with a VCR, you can record any source except
TAPE or VCR.
20 mm (25/32")
;;
;;
;;
;;
;;
Step 1
DOWN
- HELP - BAND
– RESET – FM MODE MEMORY
Shield braid
FM outdoor antenna
10 mm (3/8")
75 Ω coaxial cable
Core wire
Step 2
SPEAKERS
INPUT SELECTOR
1 Turn [
] to select the source to be recorded.
2 Begin recording.
Follow your recording unit’s operating instructions.
3 Start the source to be recorded.
Follow your equipment’s operating instructions.
MONITOR
OUT
;;;
;;;
DIGITAL IN
Note
IN
IN
TV
VCR
DVD
IN
DVD/DVD 6CH
CENTER SURROUND
OPTICAL1 OPTICAL2 COAXIAL MONITOR
OUT
(TV)
(DVD)
FM
ANT
75Ω
GND
¡You cannot record a source connected through a digital terminal.
When recording CD, DVD, or TV, ensure the source is connected
through the corresponding analog terminals and “ANALOG” input
is selected.
¡When you select DVD 6CH INPUT mode, only sound from the
front left and right channels is recorded.
S-VIDEO
TV
VCR
TV
LOOP ANT
HOLDER
IN
L
SURROUND
R L
IN
SUBWOOFER
IN
CD
TAPE
REC
(OUT)
PLAY
(IN)
TV
OUT
IN
R
6-8Ω
CENTE
6-8Ω
EACH SPEAKER
CHAQUE
SUBWOOFER
FRONT
OUT
LOOP
L
L
EXT
AM
ANT
R
R
Step 3
w
AM loop antenna (included)
Vinyl-covered wire
5–12 m
(16–40 ft)
AM outdoor antenna
Step 4
VOLUME
POWER
¡Run a piece of vinyl wire horizontally across a window or other
convenient location.
¡Leave the loop antenna connected.
¡Disconnect the antenna when the unit is not in use. Do not use
the antenna during an electrical storm.
Others
INPUT SELECTOR
Before use
Using outdoor antennas
Reference
Making a recording
15
RQT6193
Troubleshooting guide
Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in
the chart do not solve the problem:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail [email protected], or web site
(http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or web site (www.panasonic.ca), or an authorized
Servicentre closest to you.
Common problems
No power.
¡Ensure the power cord is connected.
No sound.
¡Turn the volume up.
¡Check connections to speakers and other equipment.
¡Turn on the speakers.
¡Turn off the tape monitor.
¡Select the correct source.
¡Change the D-INPUT setting to suit the type of connection you have made.
¡Check that the digital signals can be decoded by this unit.
¡Turn PCM FIX or DTS FIX off.
10
4–7
10
13
10
8–9
10
10
Cannot select “DIGITAL” input.
¡Cancel “DSP DEFEAT”.
14
Sound stops. “OVERLOAD”
appears on the display.
¡Switch off the unit, determine and correct the cause, then switch the unit on.
Causes include:
–Shorting (bare wires touching) of positive and negative speaker wires.
–Using speakers with an impedance lower than that rated for this unit.
–Straining of the speakers through excessive volume or power.
–Using the unit in a hot environment without proper ventilation.
5
4–5
–
–
“F 70” appears on the display.
¡Turn the unit off, disconnect the AC power supply cord, then reconnect and
turn the unit on. Consult your dealer if “F 70” remains on the display.
DSP sound modes
–
Pages
¡Ensure the SIZE settings for your speakers are correct.
¡Check the DSP sound mode.
¡Cancel “DSP DEFEAT”.
8–9
10
14
DSP sound modes cannot be
selected.
¡Cancel “DSP DEFEAT”.
¡Turn DVD 6CH INPUT off.
14
13
The radio cannot be tuned in or
there is a lot of noise and
interference.
16
7
Sound is not heard from the
center, surround, or subwoofer
speakers.
Radio
RQT6193
Pages
¡Connect the appropriate antenna. (You may need an outdoor antenna or one
with more elements.)
¡Adjust the position of the FM or AM antenna.
¡Reduce the treble.
¡Select “DSP DEFEAT”.
¡Turn off nearby televisions, video decks, DVD players, and satellite receivers.
¡Separate the antenna from other cables, leads, and appliances.
Pages
7, 15
7
13
14
–
–
Frequency range
87.9–107.9 MHz
Sensitivity
11.2 dBf (2 µV, IHF ’58)
50 dB quieting sensitivity
MONO
18.3 dBf (4.5 µV, IHF ’58)
STEREO
38.3 dBf (45 µV, IHF ’58)
Total harmonic distortion
MONO
0.2 %
STEREO
0.3 %
S/N
MONO
73 dB
STEREO
67 dB
Frequency response
20 Hz–15 kHz, +1 dB, –2 dB
Alternate channel selectivity
65 dB
Capture ratio
1.5 dB
Image rejection at 98 MHz
40 dB
Spurious response rejection at 98 MHz
75 dB
AM suppression
50 dB
Stereo separation
1 kHz
40 dB
10 kHz
30 dB
Antenna terminal
75 Ω (unbalanced)
530–1710 kHz
20 µV, 330 µV/m
55 dB
50 dB
■ VIDEO SECTION
Output voltage at 1 V input (unbalanced)
Maximum input voltage
Input/output impedance
1±0.1 Vp-p
1.5 Vp-p
75 Ω
■ GENERAL
Power supply
Power consumption
Dimensions (W x H x D)
Mass
AC 120 V, 60 Hz
410 VA, 320 W
430 x 158 x 367 mm
(16-15/16'' x 6-7/32'' x 14-15/32'')
9.1 kg (20.1 lb.)
Power consumption in standby mode:
Step 3
2
1
Frequency range
Sensitivity
Selectivity
IF rejection at 1000 kHz
1W
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks of
Dolby Laboratories.
Manufactured under license from Digital Theater Systems, Inc.
US Pat. No. 5,451,942, 5,956,674, 5,974,380, 5,978,762 and
other world-wide patents issues and pending. “DTS” and “DTS
Digital Surround” are registered trademarks of Digital Theater
Systems, Inc. c 1996, 2000 Digital Theater Systems, Inc. All
rights reserved.
Maintenance
If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
¡Never use alcohol, paint thinner or benzine to clean this unit.
¡Before using chemically treated cloth, read the instructions that
came with the cloth carefully.
Reference
Others
Notes:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Step 4
Digital input
Optical
Coaxial
■ AM TUNER SECTION
Step 1
■ FM TUNER SECTION
Rated minimum sine wave RMS power output
40 Hz–20 kHz both channels driven
0.9 % total harmonic distortion
100 W per channel (6 Ω)
1 kHz continuous power output both channels driven
0.05 % total harmonic distortion
105 W per channel (6 Ω)
Total harmonic distortion
rated power at 40 Hz–20 kHz
0.9 % (6 Ω)
half power at 1 kHz
0.07 % (6 Ω)
Power output at 1kHz each channel driven
0.9 % total harmonic distortion
Front
2 x 100 W (6 Ω)
Center
100 W (6 Ω)
Surround
2 x 100 W (6 Ω)
Low frequency damping factor
30 (6 Ω)
Load impedance
Front
6–8 Ω
Center
6–8 Ω
Surround
6–8 Ω
Dynamic headroom
2 dB (6 Ω)
Frequency response
CD, TAPE, DVD, TV, VCR
10 Hz–70 kHz, ±3 dB
Input sensitivity
CD, TAPE, DVD, TV, VCR
27 mV (200 mV, IHF ’66)
S/N (IHF A)
CD, TAPE, DVD, TV, VCR
75 dB (85 dB, IHF ’66)
Input impedance
CD, TAPE, DVD, TV, VCR
22 kΩ
Tone controls
BASS
50 Hz, +10 to –10 dB
TREBLE
20 kHz, +10 to –10 dB
Subwoofer frequency response (–6 dB)
7–200 Hz
Step 2
■ AMPLIFIER SECTION
Before use
Specifications (IHF’78)
17
RQT6193
Warranty (U.S.A.)
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Sales Company, Division of Matsushita Electric
of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic/Technics Audio Products
Limited Warranty
Panasonic Consumer Electronics Company or Panasonic Sales Company
(collectively referred to as “the warrantor”) will repair or replace this product
with new or refurbished parts or equivalent product, free of charge in the
U.S.A. or Puerto Rico, in the event of a defect in materials or workmanship
as follows (all time periods commerce from the date of original purchase):
AUDIO PRODUCTS–labor and parts for one (1) year.
ALL AUDIO RACKS (cabinets)–parts only 30 days.
TECHNICS STAND ALONE SPEAKERS, SUBWOOFER SPEAKERS–
labor and parts for three (3) years.
USB READER-WRITER, PERSONAL COMPUTER CARD ADAPTERS–
(when applicable)–exchange defective unit with a new or refurbished one
for one (1) year.
ACCESSORIES–HEADPHONES, CARTRIDGES, MICROPHONES,
ADAPTERS–labor and parts for ninety (90) days.
RECHARGEABLE BATTERY–(when applicable)–exchange defective item
for new one for ten (10) days. Non-rechargeable batteries are not
warranted.
SD MEMORY CARDS, RECHARGEABLE BATTERY PACK–(when
applicable)–exchange defective item for new one for ninety (90) days. Nonrechargeable battery packs are not warranted.
Carry-in or mail-in service in the U.S.A. can be obtained during the
warranty period by contacting a Panasonic Services Company (PASC)
Factory Servicenter listed in the Servicenter Directory. Or call toll free,
1-800-211-7262 to locate a PASC authorized Servicenter. Carry-in or mail-in
service in Puerto Rico can be obtained during the warranty period by calling
the Panasonic Sales Company telephone number listed in the Servicenter
Directory.
This warranty is extended only to the original purchaser. A purchase
receipt or other proof of date of original purchase will be required before
warranty service is rendered.
This warranty only covers failures due to defects in materials and
workmanship which occur during normal use and does not cover normal
wear to the stylus (when applicable) or a dealer installed cartridge or stylus.
The warranty does not cover damages which occur in shipment or failures
which are caused by products not supplied by the warrantor, or failures
which result from accident, misuse, abuse, neglect, mishandling, faulty
installation, misapplication, set-up adjustments, maladjustment of consumer
controls, improper operation or maintenance, improper antenna, inadequate
signal reception or pick-up, alteration, modification, power line surge,
improper voltage supply, lightning damage, commercial use, such as; hotel,
office, restaurant, or other business or rental use of the product, or service
by anyone other than a PASC Factory Servicenter or a PASC authorized
Servicenter, or damage that is attributable to acts of God.
LIMITS AND EXCLUSIONS
There are no express warranties except as listed above.
THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY,
INCLUDING WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS
OR DISCS. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING
THE WARRANTIES OF MERCHANTABILITY, AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE
WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the
exclusion or limitation of incidental or consequential damages, or limitations
on how long an implied warranty lasts, so the above exclusions or
limitations may not apply to you.
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
If a problem with this product develops during or after the warranty
period, you may contact your dealer or Servicenter. If the problem is not
handled to your satisfaction, then write to the Consumer Affairs Department
at the company address indicated above.
If you ship the product
Carefully pack and send it prepaid, adequately insured and preferably in the original carton.
Attach a postage-affixed letter, detailing the complaint, to the outside of the carton.
Do NOT send the product to the Executive or Regional Sales offices. They are NOT equipped to make repairs.
Product Service
1. Damage requiring service — The unit should be serviced by
qualified service personnel if:
(a) The AC power supply cord or the plug has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked
change in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing — Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other
servicing to authorized servicing personnel.
3. Replacement parts — When parts need replacing ensure the
servicer uses parts specified by the manufacturer or parts that
have the same characteristics as the original parts.
Unauthorized substitutes may result in fire, electric shock, or
other hazards.
4. Safety check — After repairs or service, ask the servicer to
perform safety checks to confirm that the unit is in proper
working condition.
18
RQT6193
Product information
For product information or assistance with product operation:
In the U.S.A., contact the Panasonic Customer Call Center at 1800-211-7262, or e-mail [email protected], or
web site (http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre
at 905-624-5505, or web site (www.panasonic.ca), or an authorized
Servicentre closest to you.
Reference
Others
Step 4
Step 3
Step 2
Step 1
Before use
Servicenter List (U.S.A.)
RQT6193
19
Listening caution
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
CAUTION:
EST. 1924
Selecting fine audio equipment such as the unit you’ve just
purchased is only the start of your musical enjoyment. Now it’s time
to consider how you can maximize the fun and excitement your
equipment offers. This manufacturer and the Electronic Industries
Association’s Consumer Electronics Group want you to get the most
out of your equipment by playing it at a safe level. One that lets the
sound come through loud and clear without annoying blaring or
distortion–and, most importantly, without affecting your sensitive
hearing.
We recommend you to avoid prolonged exposure to excessive
noise.
Sound can be deceiving. Over time your hearing “comfort level”
adapts to higher volumes of sound. So what sounds “normal” can
actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level
BEFORE your hearing adapts.
To establish a safe level:
¡Start your volume control at a low setting.
¡Slowly increase the sound until you can hear it comfortably and
clearly, and without distortion.
Once you have established a comfortable sound level:
¡Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing
damage or loss in the future. After all, we want you listening for a
lifetime.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
¡Reorient or relocate the receiving antenna.
¡Increase the separation between the equipment and receiver.
¡Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
¡Consult the dealer or an experienced radio/TV technician for
help.
Any unauthorized changes or modifications to this equipment
would void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
CAUTION!
DO NOT INSTALL, OR PLACE THIS UNIT, IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR
FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT
CURTAINS AND ANY OTHER MATERIALS DO NOT
OBSTRUCT THE VENTILATION VENTS.
As an ENERGY STAR® Partner, Panasonic
has determined that this product meets the
E NERGY S TAR ® guidelines for energy
efficiency.
User memo:
DATE OF PURCHASE __________________________
DEALER NAME _______________________________
DEALER ADDRESS ____________________________
_____________________________________________
TELEPHONE NUMBER _________________________
The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for
future reference.
SA-HE70
MODEL NUMBER ____________________________________
SERIAL NUMBER ____________________________________
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
 2001 Matsushita Electric Industrial Co., Ltd.
Printed in Malaysia
Panasonic Canada Inc.
En
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
RQT6193-P
H1101HM0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
