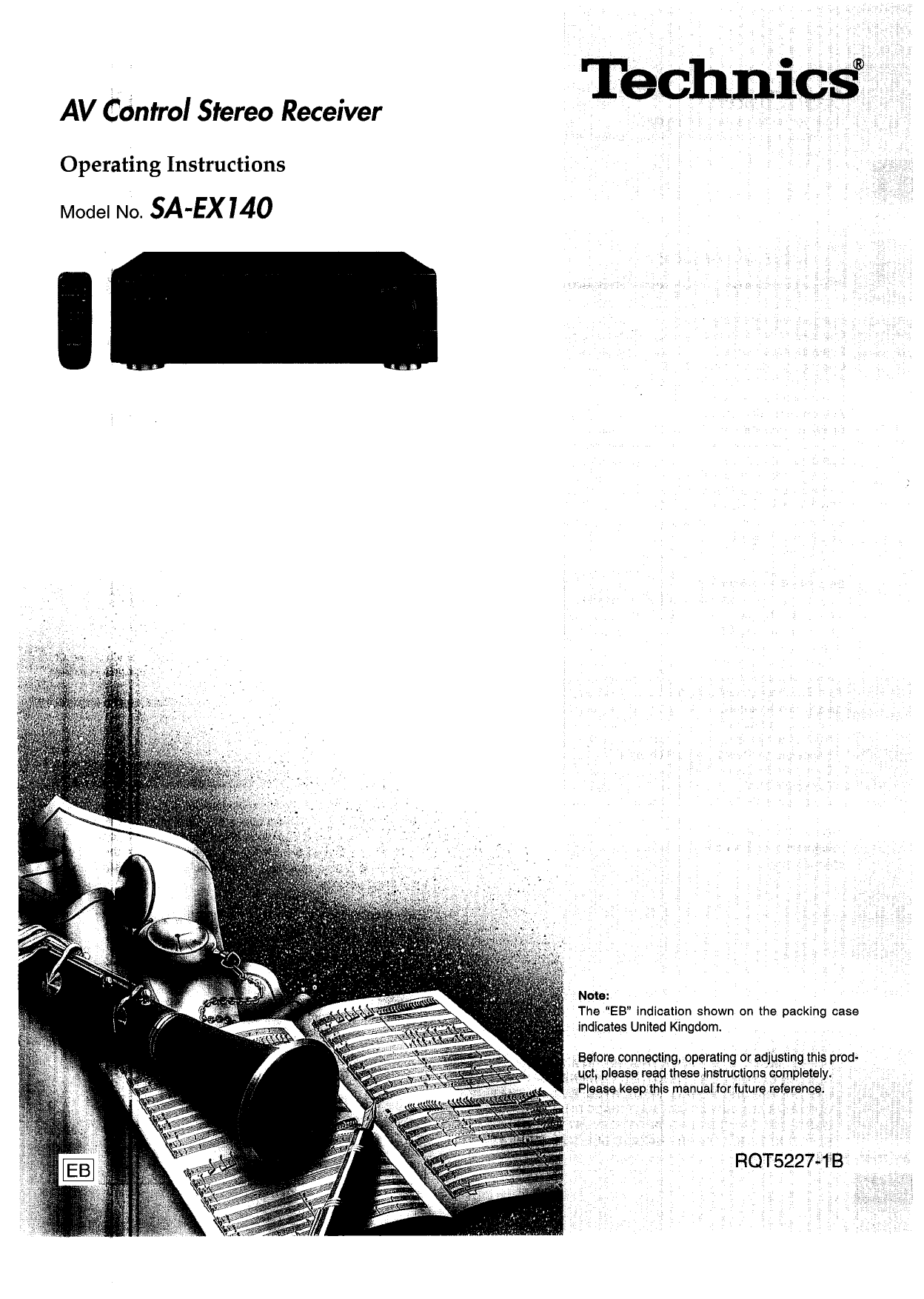

Panasonic SAEX140 Operating instructions

 control Stereo Receiver
AV
Operating Instructions
Model No. SA-EX 140
“Note: | | ВО
The “EB” indication shown on the packing case
indicates United Kingdom.
Caution for AC Mains Lead
(For United Kingdom)
(“EB” area code model only)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that
the replacement fuse has a rating of 5-ampere and that it
is approved by ASTA or BSI to BS1362.
Check for the ASTA mark © or the BSI mark Y on the
body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until
a replacement cover is obtained.
A replacement fuse cover can be purchased from your
local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE
FOR THE SOCKET OUTLET IN YOUR HOME THEN
THE FUSE SHOULD BE REMOVED AND THE PLUG
CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED INTO
ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring
code as shown below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance
with the following code:
Biue: Neutral, Brown: Live.
As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
The wire! which is coloured Blue must be connected to
the terminal which is marked with the letter N or coloured
Black or Blue.
The wire which is coloured Brown must be connected to
the terminal which is marked with the letter L or coloured
Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO
THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E, BY THE EARTH SYMBOL = ОВ
COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF-KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of
AC mains plug (figures A and B). Confirm the AC
mains plug fitted and follow the instructions below.
lllustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A DON
Figure B
2. Replace the fuse and close or attach the fuse
cover.
Figure A
Figure B
„==
“a
Fuse
(5 ampere)
Before use BB
3
RQT5227
- Da de
po —_—
Front panel controls
| Main unit ИД |
(D Standby/on switch ( Л)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
@ Tuning buttons (v TUNING A)
(3) Band select button (BAND)
(4) FM mode select button (FM MODE)
© Memory button (MEMORY)
© Preset channel buttons (v PRESET A)
(7 Remote control signal sensor (SENSOR)
“STANDBY” indicator ( 5)
When the unit is connected to the AC mains supply, this indica-
tor lights up in standby mode and goes out when the unit is
turned on.
© Display
Muting button (MUTING)
(D Volume controi (VOLUME)
(2 Headphone jack (PHONES)
(3 Speaker ON/OFF button (SPEAKERS)
(4 Input select buttons
(5 Tape monitor button (TAPE MONITOR)
(0 Bass control (BASS)
@? Treble control (TREBLE)
(8 Balance control (BALANCE)
RDS display mode select button
(DISPLAY MODE)
20 PTY select buttons (PTY SELECT)
@) EON ON/OFF button (EON)
@ PTY search button (SEARCH)
Before use a
| Remote control E
(D Standby/on button ( © )
@ Input and mode select buttons
(TV, VCR, TUNER, CD)
(9) >> / >>I button ( >> / >>)
© I44/ 44 button (14</ <<)
© TV Volume buttons (- TV VOL +)
(6) TV/AV button (TV/AV)
(7 Muting button (MUTING)
© Volume buttons (- VOLUME +)
(9 Audio standby button (AUDIO (>)
(0 Tape monitor button (TAPE MONITOR)
M H button (H)
(2 < button («)
(3 » button (»)
(4 Disc/Deck 1/2 button (DISC/DECK 1/2)
(5 Direct tuning/disc enter button
(DIRECT TUNING/DISC ENTER)
(0 Numbered buttons
(7 Sleep button (SLEEP)
5
RQT5227
FM indoor antenna
Е РМ АМТ
5 754
(included) —
| q
Adhesive tape
AM loop antenna (included)
ut
ul
AM ANT
= AM LOOP ANTES — m—m—m
O
Le A | A
Screw (included)
Antenna connections
FM indoor antenna (included) E
This antenna is normally sufficient for reception of FM broadcasts.
Attach to a wall (using tape) facing in the direction of best reception.
For best reception
An FM outdoor antenna is recommended.
AM loop antenna (included) El
This antenna is normally sufficient for reception of AM broadcasts.
Fit the AM loop antenna holder (included) onto the rear panel of this
unit and then attach the AM loop antenna to the AM loop antenna
holder (facing in the direction of best reception).
Pay attention to the following points when mounting the antenna.
® Do not mount it close to AC mains lead, speaker wires or metal
surfaces (Doing so will result in noise).
® Do not mount it close to a tape deck. When the tape deck is
being used, chirping or beeping sounds may result.
| When mounting the antenna to a column, a wall or rack |
Mount the antenna so that the hinge is vertical.
Q
5
5
=
D
En
7
RQT5227 |
Speaker connections
Connecting speaker cables
To prevent damage to circuitry, never short-circuit positive (+) and
negative (—) speaker wires. |
Connecting speakers
For details, see the operating instructions that came with your
speaker system.
Speaker impedance: 4-16 Q
Right speaker
(not included)
Left speaker
(not included)
Speaker cables
/ (not included)
9 ©
9 ©
90
00
00
90
Before use Ш
RQT5227
Listening to radio broadcasts
Sequential tuning
You can use the tuning buttons to tune-in radio stations.
Press [TUNER].
Press [BAND] to select “FM” or “AM”.
Press [TUNING (V) or (A)] to tune to the
desired frequency.
“QUARTZ LOCK” lights up when tuned.
“STEREO” lights up when an FM stereo broadcast is
received.
To make an automatic search for broadcast stations
If [TUNING (Y) or (A)] is held down for an instant until the fre-
quency begins to scroll, the broadcast stations are tuned in
automatically when found.
Operation Ш
aa AE DS Tuning may stop automatically if any jamming is encoun-
IN LIA | tered.
ARE ELE ZIP MH2 O еее. e rencoooreacooneacrenreceo eocococorercartenrceronoreraocecaoeo.
If noise is excessive in the FM stereo mode
...... e occoreococacaororerooracenencroooanreoreancarecooseneraceserencc | Press [FM MODE].
Y TUNING A (The “STEREO” indicator will go out, and the “MONO” indicator will
QUARTZ LOCK - STEREO So И light up.)
AAA A MH The broadcast will be monaural, but noise will be reduced.
If the button is pressed once more, the stereo mode will be
resumed.
Direct tuning
(Only available from the remote control.)
Specify the frequency using the numbered buttons on the remote
control transmitter to directly tune to a station.
Ea | 3 sus scans Я - — First select between FM and AM with the [BAND] button on the
E © -M 1 receiver.
Press [TUNER].
This will set the remote control to operate the tuner.
Press [DIRECT TUNING/DISC ENTER].
hd EN E UE OU y OÍ AA While cursor is flashing (approx. 10 seconds)
Press the numbered buttons to enter the
frequency.
| If the desired FM frequency is 107.90 MHz, press
eeeccococeooeccaneraccaveneroreecercarecorereroararroeavcecanercacecanes | [1] — [0] — [7] — [9] — 10]
DIRECT TUNING! == UAG
- DISCENTER E The frequency will blink once and the station will be tuned in.
ah 1. If no button is pressed while the cursor display is flashing,
eecorcareorecevorarercereronencacenenecercarocenencaneronercero ener eee о the display will return to the frequency which is currently
being received. To re-specify the frequency, repeat the
a CE procedure from step 2.
2 о 2. If the frequency was not input correctly, “ERROR” is dis-
LAS APR ATL ADA
AAA 1 НЙ мн: played. In this case, re-enter the frequency.
ROT5227
‘QUARTZ LOCK "STEREO . -
vv PRESET A
C1 J
QUARTZLOCK - STEREO = 0 °°°
O
Listening to radio broadcasts
| Manual memory presetting El |
The desired stations can be preset into the desired channels by the
user.
Set to the desired frequency.
(See page 11.)
If interference or static is keeping you from enjoying an FM
station, press [FM MODE] and change to monaural. The sta-
tion is preset in monaural if this is done.
Press [MEMORY].
To cancel the memory function, press [MEMORY] again.
Press [PRESET (Vv) or (A)] to select the
desired channel.
Holding the buttons down lets you scroll through channels
faster.
Press [MEMORY].
The channel will blink on the display.
To continue presetting
Repeat steps 1 through 4.
| To listen to preset channels 3]
Press [PRESET (Vv) or (A)] to select the
desired channel.
Holding the buttons down lets you scroll through channels
faster.
To confirm the channel number of the station
Press [TUNER].
(The channel number will be displayed for approximately 1 second.)
The channel number is not displayed if you change the frequency or
FM mode setting.
For your reference
Even if the AC mains lead is disconnected from the househoid
mains socket, the memory will retain its contents for approximately
one month.
If preset channels are accidentally erased
Program the presettings once again.
The AC mains lead should remain connected for one hour or more
for the memory back-up to be effective.
Operation Е
ВОТ5227
Enjoying RDS broadcasts
PTY search and EON tuning
Before trying to use these functions, it is necessary to preset radio
- stations into the receiver's memory (see pages 12 and 13). Neither
o, Co of these functions will work if stations have not been preset.
DO Oo О © © ) PTY search
Carry out this operation while listening to an FM broadcast.
PTY search finds a particular type of program for you.
Press [PTY SELECT (Vv) or (A)] to select the
desired program type.
Each time you press these buttons, the PTY display will
change in sequence. (For PTY displays, see page 14.)
с
2
8
к.
o
O
While the PTY display is flashing (approx. 10 seconds)
Press [SEARCH].
“PTY” flashes while the search is carried out.
- SEARCH
When the desired type of program is located:
The receiver will switch to the preset channel it just found and will
display the broadcast frequency. (If the PS or PTY display was dis-
played when the search started, the receiver will switch back to the
original display after displaying the frequency of the station.)
The PTY display flashes for about two seconds after a station has
been found and the search can be continued at this time by press-
ing [SEARCH]. The receiver starts searching for another program
NE de | from that point. If you press the button after the display switched to
UA A the frequency or broadcast station, “SELECT PTY FIRST” runs from
3 E right to left across the display.
If the desired type of program is not found:
“NO PTY” will be displayed for a moment and then the receiver will
return to the original display. (If the PS or PTY display was dis-
played when the search started, the receiver will display the fre-
quency for about 3 seconds before returning to the original display.)
RQT5227
Making a recording
Recording on a tape deck
Before recording, prepare the tape deck for recording (recording
level adjustment, etc.).
See the tape deck's operating instructions for details.
Select the source to be recorded.
Any source can be selected except | TAPE MONITOR |.
Begin recording on the tape deck.
Follow your tape deck’s operating instructions.
Begin the source to be recorded.
Follow your equipment's operating instructions.
a ann To check the sound recorded while a recording is being
made E]
©
o
5
Tan
8.
O
RU a e A It is possible to check the sound being recorded if your tape deck is
| — a3headsystem.
Press | TAPE MONITOR | on this unit and set the monitor but-
ton on the tape deck to “TAPE”.
Press | TAPE MONITOR | once again to turn it off.
Recording on a VCR
Before recording, prepare the VCR for recording (recording level
adjustment, input selector setting, etc.).
See the VCR's operating instructions for details.
Select the source to be recorded.
Any source can be selected except VCR and
| TAPE MONITOR |.
Recording from the tape deck is not possible.
Begin recording on the VCR.
Follow your VCR's operating instructions.
a qu Begin the source to be recorded.
o CINE Follow your equipment's operating instructions.
| To listen through headphones E
(1) Reduce the volume level.
(2) Connect the headphones.
Plug type: 6.3 mm stereo
(3 Adjust the volume level.
ти O PHONES - If you do not want sound from the speakers, press [SPEAKERS]
> “and check the speaker indicator goes out.
©) VOLUME Headphones ;
| (not included) © Note |
| ~~ Avoid listening for prolonged periods of time to prevent hearing
MIN MAX | ` damage.
RQT5227
Using the remote control
This remote control transmitter can be used to operate other units
manufactured by this company in addition to this receiver,
including TVs and VCRs, CD players (or CD changers) and cas-
sette decks which are equipped with a remote control sensor.
Depending on the model, there may be cases where operation is
not possible.
For detailed information concerning operation, please refer to the
appropriate page for each unit and the respective operating
instructions.
Operation BN
To operate this unit
Basic operations
@ | To turn the receiver ON/OFF
To turn the audio system OFF
(This may not be possible with some models.)
O
© | To select an input source
© | To adjust the volume level
® To mute the sound level
Press once more to return to the origina! volume.
To select the sleep timer
® Changes as follows each time the button is pressed.
90 > 60 90 > OFF
To listen to radio broadcasts.
To switch the remote control transmitter to tuner
© | operation mode.
Be sure to press this button before operating the receiver.
TUNER o
Dm» CO
AUDIOS
CD
- O vCR TUNER CD MONITOR
‘ D OO
‘ | O — VOLUME +
; E) MUTING
| O
- ® SLEEP
- CD
© TUNER
CD
® ob oe
с > es e >10/4-- ! 2
OO OC bo»
D SAS
Eu 550
DD
OOOO
DIRECT TUNING/
(a) OOOO
To select the desired channel
(Preset tuning)
® (a) (Example: Channel 9)
® (Example: Channel 12)
To select radio station by frequency
(Direct tuning)
D First select the band with the [BAND] button on the receiver.
@ (Example: 107.90 MHz)
ВОТ5227
Using the remote control
To operate a cassette deck El
(A) | To turn the cassette deck ON/OFF
To switch the remote control transmitter to
cassette deck operation mode
Be sure to press this button before operating the cassette
deck.
To select the tape deck (DECK 1/DECK 2)
| - Only when using a double cassette deck
B ON TOR | ©
CD | The remote control indicator of the cassette deck will
change each time the button is pressed.
. DECK
12
To start playback
© | @ (Reverse)
( (Forward)
Operation |
U U | To fast-forward or rewind the tape
| While the tape is stopped
44 / «4 >> />)>|
CD O : ® With TPS-equipped cassette decks, while the tape is
| playing, you can move to the beginning of a track by press-
ing these buttons.
©
5 ee,
E)
®
F) | To stop playback
Toe e
(A) | To turn the TV ON/OFF
To switch the remote control to TV operation
mode
Be sure to press this button before operating the TV.
© To select the TV/VIDEO mode
© | The TV screen will change each time the button is pressed.
To select the desired channel
O) | @ (Example: Channel 9)
(b) (Example: Channel 12)
(E) | To adjust the volume
@ | ©
()=
2
@ O
©] ©
О
3
О
8 210/44
ООО a aa
ODO Oo» O»
— TV VOL +
Do |
RQT5227
=
Troubleshooting guide
Before requesting service for this unit, check the chart below for a
possible cause of the problem you are experiencing. Some simple
checks or a minor adjustment on your part may eliminate the
problem and restore proper operation.
If you are in doubt about some of the check points, or if the
remedies indicated in the chart do not solve the problem, refer to
the directory of Authorized Service Centers (enclosed with this
unit) to locate a convenient service center, or consult your dealer
for instructions.
Reference pages indicated in black circles. (For example: (©)
| Problem | Probable cause(s) |
Suggested remedy
While listening to FM broadcasts
An unusual hissing noise is
heard when listening to the
broadcast In stereo, but not
heard when listening
monaurally.
A slight noise may be heard because the method
used for modulation of FM stereo broadcasts is
different than that used for monaural broadcasts.
Noise is excessive in both
stereo and monaural broad-
casts.
Poor location and/or direction of the antenna.
Transmitting station is too far away.
e Try reducing the treble sound by using the treble
control. (©)
e Try changing the location, height and/or direction
of the antenna. (@, ©)
e |f an indoor antenna is being used, change to an
outdoor antenna. (O)
e Try using an antenna with more elements.
The FM stereo indicator or
the quartz lock indicator
flickers, without completely
illuminating.
Poor location and/or direction of the antenna.
Transmitting station is too far away.
Excessive distortion in the
sound of stereo broadcasts.
Nearby building or mountain.
e Try changing the location, height and/or direction
of the antenna. (0, O)
e |f an indoor antenna is being used, change to an
outdoor antenna. (O)
e Try using an antenna with more elements.
While listening to AM broadcasts
An unusual “beat” sound is
heard.
Unit is being used at the same time as the
television set.
e Turn off the television set, or use this unit farther
away from it.
Interference from adjacent broadcast signal.
e Try reducing the treble sound by using the treble
control. (0)
A low-pitched “hum” sound
is heard when the station is
tuned.
The AM loop antenna connection wires are too
close to the AC mains lead.
e Place the antenna connection wires and the AC
mains lead farther apart.
The power supply frequency from the AC mains
lead is modulated and heard from the speakers.
e Install a special outdoor antenna. (0)
A strange hissing noise is
produced continuously or
intermittently.
Caused by the “discharge phenomenon” and the
“oscillation phenomenon” of electric appliances
(such as fluorescent lights, TV, small series-type
motors, rectification equipment, etc.).
® Try placing this unit farther away from such equip-
ment.
| Common Problems
Unit will not switch ON.
The AC mains lead plug is not completely
inserted.
® Confirm that the AC mains lead plug is connected
completely.
No sound is heard.
The speaker indicator is turned off.
e Turn on the speaker indicator. (@)
“The tape monitor function is ON.
e Press the tape monitor button. (®)
The muting function is ON.
e Press the muting button. ({®)
Connections to the speaker systems or external
equipment are incomplete or incorrect.
e Check that all wires and cables are correctly con-
nected. (@, ©)
The incorrect input source has been selected.
e Check that the correct source is selected. (P)
Sound stops during a per-
formance, or no sound is _
heard when the unit is
switched ON.
(The word “OVERLOAD”
appears on the display.)
The protection circuitry has functioned because
the positive and negative speaker connection
wires have “shorted,” speaker systems with an
impedance less than the indicated rated
impedance of this unit have been used or are
under severe use, such as through excessive vol-
ume, excessive power or being in an excessively
hot environment.
e Switch off the unit, and after determining and cor-
recting the cause, switch on the unit once again.
e Use a speaker system of the proper impedance
rating. (O)
Reference Ш
RQT5227

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
