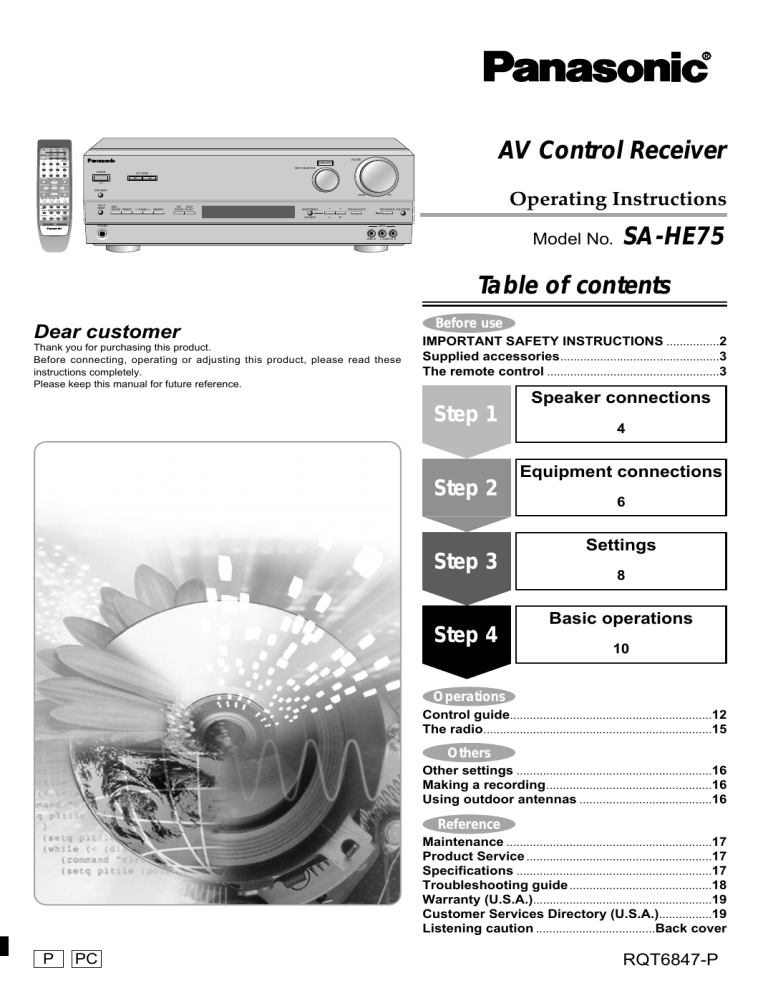

Operating Instructions
UP
DVD 6CH INPUT
TAPE MONITOR SUB WOOFER
+
PHONES
VCR 2
VIDEO IN
Model No.
L AUDIO IN R
SA-HE75
Table of contents
Dear customer
Thank you for purchasing this product.
Before connecting, operating or adjusting this product, please read these
instructions completely.
Please keep this manual for future reference.
Before use
IMPORTANT SAFETY INSTRUCTIONS ................2
Supplied accessories ................................................3
The remote control ....................................................3
Step 1
Step 2
Step 3
Step 4
Speaker connections
4
Equipment connections
6
Settings
8
Basic operations
10
Operations
Control guide.............................................................12
The radio.....................................................................15
Others
Other settings ...........................................................16
Making a recording ..................................................16
Using outdoor antennas ........................................16
Reference
Maintenance ..............................................................17
Product Service ........................................................17
Specifications ...........................................................17
Troubleshooting guide ...........................................18
Warranty (U.S.A.)......................................................19
Customer Services Directory (U.S.A.)................19
Listening caution ....................................Back cover
P
PC
RQT6847-P
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety precautions listed below.
Keep these operating instructions handy for future reference.
Before use
Safety
1. Power source—Connect the unit to a power source of the type
described in these instructions or as marked on the unit.
2. Polarization—The unit is equipped with a polarized power plug
where one blade is wider than the other. This safety feature ensures
that the plug fits into your household AC outlet only one way. If the
plug doesn’t fit one way, try reversing it. If the plug still doesn’t fit,
contact an electrician to replace the obsolete outlet. Do not attempt
to defeat the safety purpose of the plug.
3. Power cord protection—Route the AC power supply cord so that it
will not be walked on or pinched by items placed on or against it.
Never take hold of the plug or cord with wet hands. Always grasp the
plug body firmly when connecting and disconnecting it.
4. Overloading—When connecting the AC power supply cord, be
careful not to overload the household AC outlet, extension cord, or
outlet from any other device as this can result in fire or electric shock.
5. Nonuse periods—Turn the unit off when it is not in use. Unplug the
unit from the household AC outlet if it is not to be used for a long
time. Unplug the unit during lightning storms.
6. Attachments and accessories—Use only the attachments and
accessories recommended in these operating instructions.
4. Outdoor antenna grounding—If you connect an outdoor antenna,
ground the antenna system to protect against voltage surges and
built-up static charges. Section 810 of the National Electrical Code,
ANSI/NFPA No. 70-1990, provides information about grounding of
the mast and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. Refer to this diagram.
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
Placement
Environment
RQT6847
1. Water and moisture—Do not use the unit near water, such as near
a bathtub or swimming pool. Avoid damp basements.
2. Heat—Situate the unit away from heat sources, such as radiators.
Do not situate where temperatures fall below 5°C (41°F) or rise
above 35°C (95°F).
3. Power lines—Take care when setting up an outdoor antenna that it
is not near overhead power lines, electric lights, or electrical circuits,
and that there is no danger of the antenna falling on power lines,
electric lights, or electrical circuits. When installing an outdoor
antenna, take extreme care not to touch such power lines or circuits,
as contact with them can be fatal.
2
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
Installation
1. Ventilation—Situate the unit so that it receives proper ventilation. Do
not install in a confined space such as a bookcase or cabinet. Allow
at least 10 cm (4 inches) clearance from the rear of the unit. To
prevent the risk of electric shock or fire due to overheating ensure
curtains and other materials do not obstruct the unit’s ventilation.
2. Foreign material—Ensure objects and liquids do not get into the
unit. Avoid exposing the unit to excessive smoke, dust, mechanical
vibration, and shock.
3. Magnetism—Situate the unit away from equipment and devices that
generate strong magnetic fields.
4. Stacking—Do not place heavy objects on top of this unit.
5. Surface—Place the unit on a flat, level surface.
6. Carts and stands—Use the unit only with carts
and stands recommended by the manufacturer.
Move carts with care. Sudden stops, excessive
force, and uneven surfaces can cause carts to
overturn.
7. Wall and ceiling mounting—Do not mount the
unit on walls or ceilings unless specified in the instructions.
ANTENNA
LEAD IN
WIRE
NEC—NATIONAL ELECTRICAL CODE
Maintenance
(See page 17 for details.)
Unplug the unit from the household AC outlet before cleaning.
Clean with a damp cloth.
Do not use abrasive pads, scouring powders, or solvents.
Service
1. Damage requiring service—The unit should be serviced by
qualified service personnel if:
(a) The AC power supply cord or the plug has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change
in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond that described
in these operating instructions. Refer all other servicing to authorized
servicing personnel.
3. Replacement parts—When parts need replacing ensure the servicer
uses parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may
result in fire, electric shock, or other hazards.
4. Safety check—After repairs or service, ask the servicer to perform
safety checks to confirm that the unit is in proper working condition.
WARNING:
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT
EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE PLACED ON
THE APPARATUS.
CAUTION
Do not place anything on top of this unit or block the heat radiation
vents in any way. In particular, do not place tape decks or CD/DVD
players on this unit as heat radiated from it can damage your
software.
Before use
CAUTION
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Supplied accessories
Please check and identify the
supplied accessories.
1 AC power supply cord
(RJA0065-A)
2 Batteries
1 FM indoor antenna
(RSA0006-L)
1 Remote control
(EUR7702KK0)
1 AM loop antenna set
(RSA0012-L)
(AM loop antenna,
antenna holder, screw)
Refer to the separate booklet, “Remote
Control Operation Guide”, for remote
control operation details.
Use the numbers indicated in parentheses when asking for replacement
parts.
(Only for U.S.A.)
To order accessories contact 1-800-332-5368 or web site
(http://www.panasonic.com).
The remote control
Batteries
Use
Remote control signal sensor
4
3
1
VOLUME
DIGITAL INPUT
INPUT SELECTOR
POWER
SFC MODE
8
SPEAKERS
2
DOWN
-HE LP
–RESET
-BAND
–FM MODE PRESET
2 TUNING 1 MEMORY
DSP
DOLBY
SOUND MODE PRO LOGIC2
BASS/TREBLE
–
+
BALANCE
L
R
UP
DVD 6CH INPUT
TAPE MONITOR SUB WOOFER
PHONES
VCR 2
VIDEO IN
L AUDIO IN R
7 meters (23 feet)
(R6, AA, UM-3)
Transmission window
¡ Insert so the poles (+ and –) match those in the remote control.
¡Do not use rechargeable type batteries.
VCR
TUNER/BAND TAPE
DVD
CD
1
2
3
DIRECT TUNING/
DISC ENTER
4
5
6
>=10/ENTER
7
8
9
0
¡ Keep the transmission window and the unit’s sensor free from dust.
¡ Operation can be affected by strong light sources, such as direct
sunlight, and the glass doors on cabinets.
RQT6847
TV
AUDIO
3
1
Step
Speaker connections
2 3 4
Placement of speakers
C
B
F
A
Step 1
E
D
The front, center, and surround speakers should be placed
at approximately the same distance from the seating area.
The angles in the diagram are approximate.
Connecting speakers
Other connections are possible depending on your speaker system.
See your speaker system’s operating instructions for details.
Turn off the receiver before connecting the speakers.
Front speakers – Impedance: 6–8 Ω
Right
Left
SPEAKERS
HAUT-PARLEURS
B
SURROUND
A
FRONT
CENTER
R L
R
6-8Ω
6-8Ω
L 6-8Ω
EACH SPEAKER
CHAQUE
EACH SPEAKER
CHAQUE
Speaker cable
Speaker cable
Subwoofer
Active subwoofer
F
TV
LOOP ANT
HOLDER
MONITOR
OUT
S-VIDEO
VCR1
TV
IN
IN
TV
VCR1
DVD
IN
SUBWOOFER
OUT
DIGITAL IN
CENTER SURROUND
FM
ANT
75Ω
IN
L
RQT6847
GND
4
SURROUND
R L
IN
SUBWOOFER
IN
CD
TAPE
REC
(OUT)
PLAY
(IN)
TV
OUT
IN
R
SUBWOOFER
FRONT
OUT
LOOP
L
L
EXT
AM
ANT
R
R
Monaural connection cable
SPEAKERS
HAUT-PARLEURS
DVD/DVD 6CH
OPTICAL1 OPTICAL2 COAXIAL MONITOR
OUT
(TV)
(DVD)
INPUT
6-8Ω
EACH SPEAKER
CHAQUE
CENTER
6-8Ω
FRONT
R
L 6-8Ω
EACH SPEAKER
CHAQUE
AC IN ∼
AC OUTLET
Peripheral equipment and cables sold separately unless otherwise indicated.
Speaker cable
Front speakers (A left B right)
Cable
Place on the left and right of the TV at seated ear height so that there is
good coherency between the picture and sound.
Center speaker (C)
Place underneath or above the center of the TV. Aim the speaker at the
seating area.
Speaker terminals
Note
Do not short
circuit.
Twist the wire
Surround speakers (D left E right)
Place slightly behind the seating area, about one meter (3 feet) higher
than ear level.
Step 1
Subwoofer (F)
The subwoofer can be placed in any position as long as it is at a
reasonable distance from the TV.
Note that some experimentation can yield the smoothest low frequency
performance. Placement near a corner can increase the apparent output
level, but can result in unnatural bass.
Center speaker – Impedance: 6–8 Ω
SPEAKERS
HAUT-PARLEURS
CENTER
SURROUND
C
R L
6-8Ω
6-8Ω
D
EACH SPEAKER
CHAQUE
FRONT
R
L 6-8Ω
EACH SPEAKER
CHAQUE
Speaker cable
Surround speakers – Impedance: 6–8 Ω
Right
Left
SPEAKERS
HAUT-PARLEURS
E
D
SURROUND
R L
6-8Ω
6-8Ω
FRONT
R
L 6-8Ω
EACH SPEAKER
CHAQUE
RQT6847
EACH SPEAKER
CHAQUE
CENTER
Speaker cable
Speaker cable
5
Step
2
1
Equipment connections
3 4
Stereo connection cable
White (L)
Red (R)
Video connection cable
To connect equipment, refer to the appropriate operating
instructions.
Changing the digital input settings
You can change the input settings for the digital
terminals if necessary. Note the equipment you have
connected to the terminals, then change the settings
(\ page 9).
Note
¡Do not bend the optical fiber cable.
¡Turn off all components before making any connections.
¡Use digital connection to enjoy Dolby Digital or DTS (\ page 10).
¡Use analog connection to enjoy sources that cannot be decoded on
this unit and to record a source (\ pages 10 and 16).
TV, VCR and DVD player
DVD player
DIGITAL IN
VIDEO OUT
DVD/DVD 6CH
OPTICAL1 OPTICAL2 COAXIAL
(DVD)
(TV)
Step 2
CENTER SURROUND
IN
AUDIO OUT
(SURROUND L, R)
L
IN
SUBWOOFER
R
AUDIO OUT
(CENTER, SUBWOOFER)
FRONT
L
DIGITAL AUDIO OUT
AUDIO OUT
(FRONT L, R)
R
Note
Connect to FRONT L, R if your DVD player does not have 6 channel output.
The S-VIDEO
terminals
ANT
Connections through LOOP
these
HOLDER
terminals provide higher
quality pictures than
through the video terminal.
Note
S-VIDEO
TV
VCR1
TV
MONITOR
OUT
DIGITAL IN
IN
IN
TV
VCR1
ANT
DIGITAL IN
SPEAKERS
HAUT-PARLEURS
DVD/DVD 6CH
CENTER SURROUND
IN
L
SURROUND
CENTER
R L
IN
SUBWOOFER
IN
CD
TAPE
REC
(OUT)
PLAY
(IN)
TV
OUT
IN
R
6-8Ω
6-8Ω
FRONT
R
L 6-8Ω
EACH SPEAKER
CHAQUE
EACH SPEAKER
CHAQUE
SUBWOOFER
FRONT
AC IN ∼
OUT
L
L
R
R
Satellite receiver
etc.
OPTICAL1 OPTICAL2 COAXIAL
(DVD)
(TV)
IN
OPTICAL1 OPTICAL2 COAXIAL MONITOR
OUT
(TV)
(DVD)
FM
ANT
75Ω
Video signals input into
the
GND
VIDEO terminals cannot be
LOOP
output from S-VIDEO
EXT
terminals or vice versa.
AM
DVD
VCR
TV or monitor
VCR1
TV
MONITOR
OUT
OUT
VIDEO IN
VIDEO IN
IN
VIDEO OUT
VIDEO OUT
IN
TV
RQT6847
OUT
6
AC OUTLET
IN
AUDIO IN
AUDIO OUT
AUDIO OUT
DIGITAL OUT
Peripheral equipment and cables sold separately unless otherwise indicated.
Optical fiber cable
Coaxial cable
CD, Tape deck and antennas
Antennas
Tape deck
FM indoor antenna (included)
Fix the other end of the antenna
where reception is best.
TAPE
PLAY
(IN)
REC
(OUT)
PLAY (OUT)
Adhesive tape
REC (IN)
FM
ANT
75Ω
If you have a graphic equalizer, connect it to the
TAPE terminals.
AM loop antenna (included)
TV
LOOP ANT
HOLDER
MONITOR
OUT
LOOP
DIGITAL IN
S-VIDEO
TV
VCR1
IN
IN
TV
VCR1
DVD
IN
EXT
AM
ANT
Using the antenna holder
CENTER SURROUND
IN
L
SURROUND
CENTER
R L
IN
SUBWOOFER
IN
GND
CD
TAPE
REC
(OUT)
PLAY
(IN)
TV
OUT
IN
R
6-8Ω
6-8Ω
EACH SPEAKER
CHAQUE
FRONT
R
L 6-8Ω
EACH SPEAKER
CHAQUE
SUBWOOFER
FRONT
AC IN ∼
OUT
LOOP
L
L
EXT
AM
ANT
R
R
When attaching the
AM loop antenna to
another surface
Fit the holder into the holes on the rear
panel, then attach the antenna to it,
facing it in the direction of best reception.
SPEAKERS
HAUT-PARLEURS
DVD/DVD 6CH
OPTICAL1 OPTICAL2 COAXIAL MONITOR
OUT
(TV)
(DVD)
FM
ANT
75Ω
Step 2
GND
AC OUTLET
CD Player
DIGITAL IN
OPTICAL1 OPTICAL2 COAXIAL
(DVD)
(TV)
CD
LOOP ANT
HOLDER
Screw
(included)
L
Keep the antenna cord away from tape decks, DVD players, and other
cords.
R
Outdoor antennas (\ page 16)
LINE
OUT
DIGITAL OUT
Connecting the AC power supply cord and other information
CAUTION:
MONITOR
OUT
DIGITAL IN
S-VIDEO
TV VCR1
IN
IN
TV
VCR1
IN
SPEAKERS
HAUT-PARLEURS
DVD/DVD 6CH
CENTER SURROUND
OPTICAL1 OPTICAL2 COAXIAL MONITOR
OUT
(TV)
(DVD)
FM
ANT
75Ω
IN
L
SURROUND
R L
IN
SUBWOOFER
IN
GND
CD
TAPE
REC
(OUT)
PLAY
(IN)
TV
OUT
TO PREVENT ELECTRIC
SHOCK MATCH WIDE
BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
DVD
IN
R
6-8Ω
CENTER
6-8Ω
FRONT
R
L 6-8Ω
EACH SPEAKER
CHAQUE
EACH SPEAKER
CHAQUE
SUBWOOFER
FRONT
OUT
LOOP
L
L
EXT
AM
ANT
R
R
AC power supply cord
(included)
Connect this cord after all
other cables and cords are
connected.
Note
The included AC power supply cord is for use with this unit
only. Do not use it with other equipment.
AC IN ∼
AC OUTLET
“SWITCHED” AC outlet
Power to the outlet is controlled by the power
switch of this unit. Audio equipment rated up
to a maximum of 80 W can be connected
here. If equipment exceeding this rating is
connected, the outlet may be rendered
inoperable. Consult your dealer to replace the
fuse.
Household AC outlet
(AC 120 V/60 Hz)
Conserving power
The unit consumes 1 W even when it is turned off with [POWER, ^/l]. To save
power when the unit is not to be used for a long time, unplug it from the
household AC outlet.
If the unit is left unplugged for longer than a few weeks, all settings will revert
to the factory settings. Do the settings again if this occurs.
RQT6847
TV
LOOP ANT
HOLDER
7
Step
3
1 2
POWER
1
INPUT SELECTOR
SFC MODE
<
Settings
4
2
SIZE
DISTANCE
>
8
VOLU
DIGITAL INPUT
INPUT SELECTOR
POWER
SFC MODE
8
SPEAKERS
-HE LP
–RESET
SPEAKERS
-BAND
–FM MODE PRESET
2 TUNING 1 MEMORY
DSP
DOLBY
SOUND MODE PRO LOGIC2
BASS/TREBLE
–
+
BALANCE
L
R
DVD 6CH
Set the size to suit your
speakers
PHONES
Display
POWER
8
LARGE: For speakers that can
reproduce a full sound range,
particularly the bass range
below 100 Hz.
SMALL: For speakers that cannot
adequately reproduce the
bass range. This setting is
sufficient for most speakers if
you are using a subwoofer.
NONE: For speakers you haven’t
connected (center or surround).
The factory settings are: SMALL
For the subwoofer (SUB-WFR), select
YES if you have connected one (factory
setting), or NO if you have not.
Enter the distance of the front,
center and surround speakers
from the seating position
Change the distance so that the sound
from all the speakers (except for the
subwoofer) reaches you at the same
time.
You can select distances between
3 and 30 feet at one-foot intervals.
The factory settings are:
FRONT and CENTER: 10 FEET
SURROUND:
5 FEET
– +
LEVEL
Step 3
SFC MODE
<
TV
AUDIO
VCR
>
Enter the setting mode.
DVD
TUNER/BAND TAPE
Press at the
same time.
CD
1
2
3
DIRECT TUNING/
DISC ENTER
4
5
6
>=10/ENTER
7
8
9
0
TOP MENU
Select.
Select.
Select the speaker.
Select the speaker.
MENU
SFC MODE
DIRECT NAVIGATOR
PLAY LIST
ENTER
/
/
EFFECT
LEVEL
–
–
>
+
yy
;;
DISC/
DECK 1/2 SOUND MODE
TV/VIDEO
<
SUBWOOFER
DISPLAY
SFC
CH
VOLUME
TEST
MUTING
+
TEST
SFC MODE
<
>
Repeat.
Repeat.
Change the setting.
Change the setting.
Repeat these steps for each speaker
channel.
Repeat these steps for each speaker
channel.
INPUT SELECTOR
– VOLUME +
RQT6847
SFC MODE
8
<
>
Press at the
same time.
Exit the setting mode.
Change the settings to suit your speakers and units to the environment in which you are using them. Before making any changes,read the
descriptions of the settings, note the factory settings and ranges, and refer to the equipment’s instructions.
3
FILTER
4
D-INPUT
Digital input
5
Adjusting speaker output
level
Adjust the level of the other speakers based on the
output of the front speakers. (Adjust the volume of the
front speakers with [VOLUME].)
Change the cut-off for bass
output from the front speakers
If you set the front speakers to “SMALL”,
the filter is set to 100 Hz. Raise the cut-off
if the bass from the front speakers is
unsatisfactory so the bass is output
through the subwoofer.
You can raise the cut-off from 100 Hz to
either 150 Hz or 200 Hz.
Change these settings to suit the
connections you have made to the three
digital input terminals, COAX, OPT 1 and
OPT 2, so that the correct source is
selected when you turn [INPUT
SELECTOR].
The factory settings are:
CD:
COAX
DVD:
OPT 2
TV:
OPT 1
C (center), SR (surround right), and SL (surround left)
can be adjusted between –10 dB and +10 dB, with 0
being the level of the front speakers.
Adjust center and surround output to the same apparent
level of the front speakers.
For SW (subwoofer), you can select “---” so there is no
output, “MIN” for minimum output, a level between 1 and
19, or “MAX” for maximum output.
Adjust subwoofer output so it is balanced with the front
speakers. Subwoofer output is easily influenced by the
source. You can also change its level while playing
something for better effect (\ page 13).
Preparation: Turn SPEAKERS on.
TEST
Two seconds each.
L
C
R
SR
SL
SW
Step 3
Output the signal.
Speakers set as “NONE” or “NO”
are skipped.
Select.
Select.
–
VOLUME
Select the input.
+
Adjust the main volume.
Select the speaker
channel.
LEVEL
Repeat.
Change the setting.
Adjust the level.
–
Repeat these steps for each input.
+
Repeat these steps for each speaker
channel.
TEST
Stop the test signal.
RQT6847
Change the setting.
Repeat.
9
Step
1 2 3
4
Basic operations
STEREO mode
1
POWER
Switch on.
L
R
8
SPEAKERS
2
Turn
SPEAKERS on.
SPEAKERS
SOUND MODE
STEREO
Use this mode to play digital or analog stereo sources or to play
surround sources through two speakers. When surround sources
are played in this mode, the sounds intended for the other
speaker channels are played through the front speakers.
SPEAKERS
SURROUND mode
Select input.
INPUT SELECTOR
TUNER ,
/ CD ,
/ DVD
/
,
3
/
/
L
SL
TAPE ,
/ VCR 2 ,
/ VCR 1 ,
/ TV
SPEAKERS
C
R
SR LFE
SOUND MODE
SURROUND
DIGITAL
For CD, DVD, TV
DIGITAL INPUT
4
Select the DSP
sound mode.
DSP
SOUND MODE
5
Step 4
Select digital or analog
input.
Start play of
the source.
Select this mode when you are playing a digital surround source
(Dolby Digital or DTS).
Also select this mode when playing analog or digital stereo
sources. The Dolby Pro Logic 2 processor works not only on
sources recorded with Dolby Surround, but
DOLBY
also on any stereo source. The following
PRO LOGIC 2
modes are available when using Dolby Pro
Logic 2.
SFC modes
SOUND MODE
SPEAKERS
6
SFC
VOLUME
Adjust the
volume.
DOWN
UP
Enjoy an enhanced sound experience with greater presence and
spread by using these SFC (sound field control) modes with
PCM or analog stereo sources.
The SFC modes cannot be used if the input signal is Dolby
Digital or DTS. Choose from the
SFC MODE
following modes.
<
>
When you finish listening
Be sure to reduce the volume and press [POWER, 8] to switch the unit
to standby.
For your reference
In rare cases, the unit may have trouble recognizing the digital signals on
discs.
¡ With the PCM signals on CDs, this may cause the beginning of a track
to be cut off. Engage the PCM FIX mode if this occurs.
¡ With DTS, the signals may not be recognized at all. Engage the DTS
FIX mode if this occurs.
While the input source is selected and digital input is engaged:
Press and hold [DIGITAL INPUT].
RQT6847
/
The current mode is displayed. Press again to change the mode.
Each time you press the button:
AUTO / PCM FIX / DTS FIX
10
When a FIX mode is on, the unit cannot process other signals. This may
cause noise to be output. Select “AUTO” if this occurs.
The selected mode is stored for each input source even if the unit is
turned off.
Notes on using the Digital Signal Processor
The digital signal processor in this unit can decode the
following signals:
¡Dolby Digital
¡DTS
¡PCM
It cannot decode:
¡Other digital signals, such as MPEG
¡PCM with sampling frequencies of 88.2 kHz, 96 kHz, 176.4 kHz or
192 kHz
¡Dolby Digital RF signals from a laser disc player
VOLUME
SFC MODE
<
INPUT SELECTOR
>
1
2
3
DIRECT TUNING/
DISC ENTER
4
5
6
>=10/ENTER
7
8
9
MENU
DIRECT NAVIGATOR
DOWN
UP
/
EFFECT
VOLUME
DIGITAL INPUT
INPUT SELECTOR
SPEAKERS
DOWN
-HE LP
–RESET
SPEAKERS
-BAND
–FM MODE PRESET
SUBWOOFER
/
yy
;;
LEVEL
DISC/
DECK 1/2 SOUND MODE
SFC MODE
8
8
2 TUNING 1 MEMORY
DSP
DOLBY
SOUND MODE PRO LOGIC2
BASS/TREBLE
–
+
BALANCE
L
R
LEVEL
UP
DVD 6CH INPUT
TV/VIDEO
TAPE MONITOR SUB WOOFER
PHONES
VCR 2
VIDEO IN
DSP
SOUND MODE
DOLBY
PRO LOGIC2
PLAY LIST
ENTER
DISPLAY
EFFECT
POWER
POWER
0
TOP MENU
–
–
+
SFC
TEST
CH
VOLUME
–
+
MUTING
+
L AUDIO IN R
DIGITAL INPUT
MOVIE
Use this mode when playing movie software, especially
videotapes, recorded in Dolby Surround.
MUSIC
Adds surround effects to stereo sources.
PANORAMA
Sound is spread more so you feel like you are surrounded by
music.
You can adjust the effect of MUSIC and PANORAMA with the
center width and dimension controls.
Center Width Control – C-WDTH
This adjustment helps you realize a more natural sound image
when listening to music. Move sound out into the front speakers to
improve the overall front image, or add sound to the center speaker
to fix the center image.
You can choose a level between 0 (the center speaker is dominant)
and 7 (center sound is spread out).
The default level is 0.
1 Press [EFFECT] to select “C-WDTH”.
2 Press [–] or [+] to adjust the effect.
You can make up for differences in the output level of the front and
surround speakers.
You can choose a level between 0 and 6 – Increase the level to
move sound to the front speakers, decrease to move it to the
surround speakers.
The default is level 3.
1 Press [EFFECT] to select “DIMEN”.
2 Press [–] or [+] to adjust the effect.
Step 4
Dimension Control – DIMEN
HALL
Imparts the reflection and spread of a large concert hall.
CLUB
You can adjust the sound field by adjusting the level of the speakers
and the delay time of the surround speakers. These adjustments
can be made for each SFC mode.
Conveys the exciting and intimate atmosphere of a jazz club.
To adjust the speaker level
Brings you up close for “live” stage performance and
smoother vocals.
1 Press [LEVEL] to select the speaker channel.
Each time you press the button:
C / SR / SL / SW
/
LIVE
Speakers set as “NONE” or “NO” are skipped.
THEATER
Recreates natural sound ambience and direction.
2 Press [–] or [+] to adjust the level.
C, SR, and SL: –10 dB to +10 dB
SW:
--- (off) ,
/ MIN ,
/ 1 – 19 ,
/ MAX
To adjust the delay time
Heightens the sensation of expanded space with stereo
sources, and augments monaural sources.
PARTY
This mode uses the front and surround speakers so that
sound is in stereo regardless of the direction you are facing.
1 Press [EFFECT].
2 Press [–] or [+] to change the delay time.
Delay time can be set at 10-millisecond (ms) intervals between
10 and 100 ms.
The factory setting is 50 ms for each mode.
RQT6847
SIM SURR (Simulated Surround)
11
Control guide
[MEMORY]
For presetting radio stations.
[SFC MODE, <, >]
For selecting the SFC modes.
[-BAND, –FM MODE]
For switching between AM and FM.
If reception is poor in FM, press and hold until “MONO” appears to
switch to monaural mode.
[POWER, 8]
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
[SPEAKERS]
Turning the speakers off automatically engages the STEREO mode
(when listening through headphones, for example).
[-HELP, –RESET]
Press if an error message appears. A message offering a possible
solution scrolls across the display.
To reinitiate the unit’s settings, press and hold until “RESET” appears.
[PRESET]
POWER
SFC MODE
8
SPEAKERS
Press to allow preset station selection with [TUNING, 2, 1].
-HE LP
–RESET
[PHONES]
Headphone jack
Plug type: 6.3 mm (1/4") stereo
Avoid listening for prolonged periods of time to prevent hearing damage.
Turn the speakers off when using the headphones.
-BAND
–FM MODE PRESET
2 TUNING 1 MEMORY
DSP
DOLBY
SOUND MODE PRO LOGIC2
PHONES
[TUNING, 2, 1]
For tuning the radio and selecting preset stations.
Press and hold until the frequency starts scrolling to start automatic
tuning. Tuning stops when a station is found.
[DSP SOUND MODE]
For selecting “STEREO”, “SURROUND” or “SFC”.
[DOLBY PRO LOGIC 2]
Operations
Use when “%PRO LOGIC 2” lights in the SURROUND mode.
The display
[kHz, MHz]
Frequency unit indicators.
kHz: AM, MHz: FM
General display
Shows the input mode, radio frequency, and other general information.
[SPEAKERS]
Speaker indicator.
Lights when the speakers are on.
[TUNED, MONO, STEREO, ˜]
RQT6847
Radio indicators.
TUNED: A station is tuned.
MONO: You have switched to monaural mode with [-BAND,
–FM MODE] to improve reception.
STEREO: A stereo FM broadcast is tuned.
˜:
Flashes during presetting.
12
[SOUND MODE, STEREO, SURROUND, SFC]
DSP sound mode indicators.
Show the current DSP sound mode.
kHz
MHz
M TUNED
SPEAKERS MONO
STEREO
SOUND MODE
STEREO SURROUND
SFC
L
SL
FIX
PCM
C
R
S
SR LFE
PRO LOGIC 2
DIGITAL
[DIGITAL INPUT]
For switching between analog and digital input when you have selected
CD, DVD or TV. The button lights when digital is selected.
[INPUT SELECTOR]
For selecting input.
[VOLUME]
Volume control
[SUBWOOFER]
Adjust the level in 5 steps.
SW MIN, SW 5, SW 10, SW 15, and SW MAX.
Select SW --- to stop output.
VOLUME
[TAPE MONITOR]
DIGITAL INPUT
For monitoring sound when recording to a 3-head cassette deck.
Also used when you have connected a graphic equalizer to the TAPE
terminals.
INPUT SELECTOR
DOWN
UP
[VCR 2]
BASS/TREBLE
–
+
BALANCE
L
R
DVD 6CH INPUT
TAPE MONITOR SUB WOOFER
For a Video camera, etc.
[DVD 6CH INPUT]
VCR 2
For switching DVD 6-channel input mode on or off.
VIDEO IN
L AUDIO IN R
[BASS/TREBLE, BALANCE, –, +, L, R]
For adjusting the tone and balance.
First select BASS, TREBLE, or BALANCE, then press [–, L] or [+, R] to
adjust.
Program format indicators.
Show the channels contained in the digital input signal. They do
not light when input is analog.
L: Front channel (left)
C: Center channel
R: Front channel (right)
S: If the surround channel is monaural.
SL: Surround channel (left)
SR: Surround channel (right)
LFE (Low Frequency Effects): Deep-bass effects.
[FIX, %PRO LOGIC 2, PCM,
%DIGITAL]
,
Signal format indicators.
Light depending on the source you are playing.
%DIGITAL: Dolby Digital sources
: DTS sources
%PRO LOGIC 2: The Dolby Pro Logic 2 circuit is being used
FIX: PCM FIX or DTS FIX mode
PCM: PCM FIX mode
Note
While the DSP is defeated, you cannot:
– Select DSP sound modes,
– Adjust the tone,
– Output a test signal,
– Adjust individual speaker output, or
– Use digital input.
RQT6847
[L, C, R, S, SL, SR, LFE]
¡ When playing videotapes (VCR 1)
The picture remains on the screen even if you select TAPE, CD, or
TUNER.
¡ Once you have set a mode (DSP, digital/analog input, or
2-channel/6-channel input) for an input source
That mode is engaged whenever you reselect the input source.
¡ When DVD 6CH input is on
Speaker settings are ineffective. Change the settings on the DVD
player if necessary.
¡ When input is DIGITAL
The tape monitor cannot be used.
¡ When using a graphic equalizer
Some distortion may occur, depending on the equalizer’s settings.
¡ To adjust the tone
The STEREO DSP mode must be on and input must be either
analog or PCM signals. You cannot adjust the tone while the DSP is
defeated or if DVD 6CH INPUT is selected.
¡ When using the subwoofer
You cannot adjust subwoofer level while the DSP is defeated or if
DVD 6CH INPUT is selected.
Sound can be distorted if you raise the volume while subwoofer
level is high. Reduce subwoofer level if this occurs.
¡ Improving reception
DSP DEFEAT
Press and hold [DSP SOUND MODE] until “DEFEAT” appears.
Press and hold [DSP SOUND MODE] again to turn the DSP on.
Operations
For your reference
13
Control guide
Buttons not explained on this page are used only to operate other equipment.
Refer to the separate Remote Control Operation Guide for details.
TV
VCR
DVD
TUNER/BAND TAPE
CD
[^]
Standby/on button.
AUDIO
1
2
3
DIRECT TUNING/
DISC ENTER
4
5
6
>=10/ENTER
7
8
9
0
[1, 2, 3, 4, 5, 6, 7, 8, 9, 0]
To enter radio frequencies and channels.
[TV, VCR, DVD,
TUNER/BAND, TAPE, CD]
Input mode and remote control mode
buttons.
[DIRECT TUNING/
DISC ENTER]
To enable selection of radio stations by
frequency.
[>
=10/ENTER]
TOP MENU
MENU
DIRECT NAVIGATOR
To enter two digit channels.
PLAY LIST
ENTER
SUBWOOFER
DISPLAY
[SUBWOOFER]
[EFFECT]
Use when adjusting Dolby Pro Logic 2, or
SFC effects.
[LEVEL]
/
/
EFFECT
LEVEL
Use when adjusting speaker level.
[–, +]
First select EFFECT or LEVEL, then press
[–] or [+] to adjust.
[CH, 2, 1]
Operations
For selecting preset radio channels.
+
SFC
TEST
yyy
;;;
;;;
yyy
DISC/
DECK 1/2 SOUND MODE
TV/VIDEO
–
–
CH
VOLUME
MUTING
+
For selecting subwoofer level.
Adjust the level in 5 steps:
SW MIN, SW 5, SW 10, SW 15, and SW
MAX.
Select SW --- to stop output.
[SOUND MODE]
For selecting “STEREO”, “SURROUND” or
“SFC”.
[SFC]
For selecting SFC modes.
[TEST]
To start the speaker test signal.
[VOLUME, –, +]
To adjust the volume.
[MUTING]
To mute the volume.
For your reference
When muting is on
RQT6847
Muting is also canceled when the unit is turned off.
14
The radio
AUDIO
INPUT SELECTOR
TUNER/BAND TAPE
CD
1
2
3
DIRECT TUNING/
DISC ENTER
4
5
6
>=10/ENTER
7
8
9
0
TUNER/BAND
1
2
3
4
5
6
7
8
9
DIRECT TUNING/
DISC ENTER
10/ENTER
0
VOLUME
TOP MENU
DIGITAL INPUT
INPUT SELECTOR
POWER
MENU
SFC MODE
8
DIRECT NAVIGATOR
DOWN
2 TUNING 1 MEMORY
DSP
DOLBY
SOUND MODE PRO LOGIC2
BASS/TREBLE
–
+
BALANCE
L
R
DVD 6CH INPUT
TAPE MONITOR SUB WOOFER
PHONES
VIDEO IN
- BAND
– FM MODE PRESET
SUBWOOFER
DISPLAY
VCR 2
2 TUNING 1
/
/
EFFECT
LEVEL
L AUDIO IN R
DISC/
DECK 1/2 SOUND MODE
TV/VIDEO
Manual tuning
You can tune radio stations manually by selecting the station’s
frequency.
1 Turn [INPUT SELECTOR] to select “TUNER”.
2 Press [-BAND, –FM MODE] to select “FM” or “AM”.
3 Press [TUNING 2 or 1] to select the frequency.
1 Press [TUNER/BAND] to select “FM” or “AM”.
2 Press [DIRECT TUNING/DISC ENTER].
3 Press the numbered buttons to enter the frequency.
e.g. To select 107.9 MHz, press [1] / [0] / [7] / [9]
Tuning intervals: FM – 0.1 MHz
AM – 10 kHz
¡ If you do not press a button while the cursor is flashing, the
display returns to the frequency being received.
¡ If the frequency has not been input correctly, “ERROR” will be
displayed.
+
TEST
CH
CH
MUTING
Automatic presetting
1 Tune to “FM 87.9 MHz”.
2 Press and hold [MEMORY].
The FM stations the unit can receive are preset in channels 1 to 30.
3 Tune to “AM 530 kHz”.
4 Press and hold [MEMORY].
Tuning intervals: FM – 0.2 MHz
AM – 10 kHz
Direct tuning
–
SFC
yy
;;
MEMORY
The AM stations the unit can receive are preset in channels 21 to 30.
(FM stations are replaced if any were preset in these channels.)
During automatic presetting, the memory indicator (˜) flashes and the
frequency scrolls. The memory indicator and channel numbers are
displayed for a second when a station is preset.
The last station to be preset is displayed when presetting finishes.
Manual presetting
Preset the stations one at a time.
1
2
3
4
Tune to the station.
Press [MEMORY].
Press [TUNING 2 or 1] to select a channel.
Press [MEMORY].
Selecting channels
1 Press [PRESET].
The channel number flashes for about 5 seconds.
2 Press [TUNING 2 or 1].
Hold down the buttons to change channels faster.
On the remote control
Operations
-BAND
–FM MODE PRESET
UP
Press [CH 2 or 1].
or
Press the numbered buttons.
For channels 1 to 9, press the corresponding number.
>10/ENTER], then the two digits.
For channels 10 or over, press [=
>10/ENTER] / [2] / [1]
e.g. To select channel 21: [=
For your reference
Even if the power supply cord is disconnected from the household AC
outlet, the stations remain in memory for approximately one month.
RQT6847
-HE LP
–RESET
PLAY LIST
ENTER
SPEAKERS
15
Other settings
SFC MODE
<
Making a recording
INPUT SELECTOR
INPUT SELECTOR
>
VOLUME
VOLUME
DIGITAL INPUT
DIGITAL INPUT
INPUT SELECTOR
INPUT SELECTOR
POWER
POWER
8
8
SPEAKERS
SPEAKERS
DOWN
-HE LP
–RESET
SFC MODE
SFC MODE
-BAND
–FM MODE PRESET
2 TUNING 1 MEMORY
DSP
DOLBY
SOUND MODE PRO LOGIC2
BASS/TREBLE
–
+
BALANCE
L
R
DOWN
UP
-HE LP
–RESET
DVD 6CH INPUT
TAPE MONITOR SUB WOOFER
PHONES
2 TUNING 1 MEMORY
DSP
DOLBY
SOUND MODE PRO LOGIC2
BASS/TREBLE
–
+
BALANCE
L
R
UP
DVD 6CH INPUT
TAPE MONITOR SUB WOOFER
PHONES
VCR 2
VIDEO IN
-BAND
–FM MODE PRESET
VCR 2
VIDEO IN
L AUDIO IN R
DR COMP – Dynamic range compression
L AUDIO IN R
Recording on a tape deck or VCR
You can record to a tape deck connected to TAPE REC (OUT) or to a
VCR connected to VCR 1 OUT.
See the recording unit’s operating instructions for details on how to
prepare it for recording.
When recording with a tape deck, you can record any source except
TAPE.
When recording with a VCR (connected VCR 1), you can record any
source except TAPE or VCR 1.
Change this setting to listen to content recorded with Dolby Digital at low
volume (such as late at night) and maintain audio clarity. It reduces the
peak level in loud scenes without affecting the sound field.
OFF: The software is played with the original dynamic range (factory
setting).
STANDARD: The level recommended by the producer of the software
for household viewing.
MAX: The maximum allowable compression (recommended for night
viewing).
1 Turn [INPUT SELECTOR] to select the source to be
recorded.
2 Begin recording.
1 Press [SFC MODE < and >] at the same time to enter
the setting mode.
2 Press [SFC MODE <] to select “DR COMP”.
3 Turn [INPUT SELECTOR] to select “OFF”, “STANDARD”
or “MAX”.
4 Press [SFC MODE < and >] at the same time to exit the
setting mode.
Follow your recording unit’s operating instructions.
3 Start the source to be recorded.
Follow your equipment’s operating instructions.
Note
¡ You cannot record a source connected through a digital terminal.
When recording CD, DVD, or TV, ensure the source is connected
through the corresponding analog terminals and “ANALOG” input is
selected.
¡ When you select DVD 6CH INPUT mode, only sound from the front
left and right channels is recorded.
DIMMER
The factory setting is OFF (normal brightness).
Dim the unit’s display for better viewing in a darkened room
1 Press [SFC MODE < and >] at the same time to enter
the setting mode.
2 Press [SFC MODE <] to select “DIMMER”.
3 Turn [INPUT SELECTOR] to select “OFF” or “ON”.
4 Press [SFC MODE < and >] at the same time to exit the
setting mode.
Using outdoor antennas
;;;
;;;
;;; ;;
;;
;;
;;
Others
20 mm (25/32")
TV
LOOP ANT
HOLDER
Shield braid
10 mm (3/8")
MONITOR
OUT
DIGITAL IN
S-VIDEO
TV
VCR
IN
IN
TV
VCR
DVD
FM outdoor antenna
75 Ω coaxial cable
¡ Disconnect the FM indoor antenna.
¡ The antenna should be installed by a
competent technician.
¡ Twist the coaxial cable’s shield braid firmly and
connect it to the GND terminal.
IN
DVD/DVD 6CH
CENTER SURROUND
OPTICAL1 OPTICAL2 COAXIAL MONITOR
OUT
(TV)
(DVD)
FM
ANT
75Ω
GND
FM outdoor antenna
IN
L
IN
SUBWOOFER
IN
CD
TAPE
REC
(OUT)
PLAY
(IN)
TV
OUT
IN
R
SUBWOOFER
FRONT
OUT
LOOP
L
L
EXT
AM
ANT
R
R
AM outdoor antenna
Core wire
RQT6847
AM loop antenna
(included)
16
5–12 m
(16–40 ft)
Vinyl-covered wire
¡ Run a piece of vinyl wire horizontally across a
window or other convenient location.
¡ Leave the loop antenna connected.
¡ Disconnect the antenna when the unit is not in
use. Do not use the antenna during an electrical
storm.
To clean this unit, wipe with a soft, dry cloth.
¡ Never use alcohol, paint thinner or benzine to clean this unit.
¡ Before using chemically treated cloth, read the instructions that came
with the cloth carefully.
Product Service
1. Damage requiring service — The unit should be serviced by
qualified service personnel if:
(a) The AC power supply cord or the plug has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change
in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing — Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.
3. Replacement parts — When parts need replacing ensure the
servicer uses parts specified by the manufacturer or parts that have
the same characteristics as the original parts. Unauthorized
substitutes may result in fire, electric shock, or other hazards.
4. Safety check — After repairs or service, ask the servicer to
perform safety checks to confirm that the unit is in proper working
condition.
Product information
For product information or assistance with product operation:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-2117262, or e-mail [email protected], or web site
(http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at
905-624-5505, or web site (www.panasonic.ca), or an authorized
Servicentre closest to you.
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks of
Dolby Laboratories.
Manufactured under license from Digital Theater Systems, Inc.
US Pat. No. 5,451,942, 5,956,674, 5,974,380, 5,978,762 and other
world-wide patents issued and pending. “DTS” and “DTS Digital
Surround” are registered trademarks of Digital Theater Systems, Inc.
c 1996, 2000 Digital Theater Systems, Inc. All rights reserved.
■ AMPLIFIER SECTION
Rated minimum sine wave RMS power output
40 Hz–20 kHz both channels driven
0.9 % total harmonic distortion
100 W per channel (6 Ω)
1 kHz continuous power output both channels driven
0.05 % total harmonic distortion
105 W per channel (6 Ω)
Total harmonic distortion
rated power at 40 Hz–20 kHz
0.9 % (6 Ω)
half power at 1 kHz
0.07 % (6 Ω)
Power output at 1 kHz each channel driven
0.9 % total harmonic distortion
Front
2 x 100 W (6 Ω)
Center
100 W (6 Ω)
Surround
2 x 100 W (6 Ω)
Low frequency damping factor
30 (6 Ω)
Load impedance
Front
6–8 Ω
Center
6–8 Ω
Surround
6–8 Ω
Dynamic headroom
2 dB (6 Ω)
Frequency response
CD, TAPE, DVD, TV, VCR 1, VCR 2
10 Hz–70 kHz, ±3 dB
Input sensitivity
CD, TAPE, DVD, TV, VCR 1, VCR 2
27 mV (200 mV, IHF ’66)
S/N (IHF A)
CD, TAPE, DVD, TV, VCR 1, VCR 2
75 dB (85 dB, IHF ’66)
Input impedance
CD, TAPE, DVD, TV, VCR 1, VCR 2
22 kΩ
Tone controls
BASS
50 Hz, +10 to –10 dB
TREBLE
20 kHz, +10 to –10 dB
Subwoofer frequency response (–6 dB)
7–200 Hz
Digital input
Optical
2
Coaxial
1
■ FM TUNER SECTION
Frequency range
87.9–107.9 MHz
Sensitivity
11.2 dBf (2 µV, IHF ’58)
50 dB quieting sensitivity
MONO
18.3 dBf (4.5 µV, IHF ’58)
STEREO
38.3 dBf (45 µV, IHF ’58)
Total harmonic distortion
MONO
0.2 %
STEREO
0.3 %
S/N
MONO
73 dB
STEREO
67 dB
Frequency response
20 Hz–15 kHz, +1 dB, –2 dB
Alternate channel selectivity
65 dB
Capture ratio
1.5 dB
Image rejection at 98 MHz
40 dB
Spurious response rejection at 98 MHz
75 dB
AM suppression
50 dB
Stereo separation
1 kHz
40 dB
10 kHz
30 dB
Antenna terminal
75 Ω (unbalanced)
■ AM TUNER SECTION
Frequency range
530–1710 kHz
Sensitivity
20 µV, 330 µV/m
Selectivity
55 dB
IF rejection at 1000 kHz
50 dB
■ VIDEO SECTION
Output voltage at 1 V input (unbalanced)
1±0.1 Vp-p
Maximum input voltage
1.5 Vp-p
Input/output impedance
75 Ω
■ GENERAL
Power supply
AC 120 V, 60 Hz
Power consumption
410 VA, 320 W
Dimensions (W x H x D)
430 x 158 x 367 mm
(16-15/16'' x 6-7/32'' x 14-15/32'')
Mass
9.1 kg (20.1 lb.)
Power consumption in standby mode:
1W
Notes:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Reference
If the surfaces are dirty
Specifications (IHF’78)
RQT6847
Maintenance
17
Troubleshooting guide
Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies
indicated in the chart do not solve the problem:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail [email protected], or
web site (http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or web site (www.panasonic.ca), or an
authorized Servicentre closest to you.
Common problems
No power.
¡Ensure the power cord is connected.
No sound.
¡Turn the volume up.
¡Check connections to speakers and other equipment.
¡Turn on the speakers.
¡Turn off the tape monitor.
¡Select the correct source.
¡Change the D-INPUT setting to suit the type of connection you have made.
¡Check that the digital signals can be decoded by this unit.
¡Turn PCM FIX or DTS FIX off.
10
4–7
10
13
10
9
10
10
Cannot select “DIGITAL” input.
¡Cancel “DSP DEFEAT”.
13
Sound stops. “OVERLOAD”
appears on the display.
¡Switch off the unit, determine and correct the cause, then switch the unit on.
Causes include:
–Shorting (bare wires touching) of positive and negative speaker wires.
–Using speakers with an impedance lower than that rated for this unit.
–Straining of the speakers through excessive volume or power.
–Using the unit in a hot environment without proper ventilation.
5
4–5
–
–
“F 70” appears on the display.
¡Turn the unit off, disconnect the AC power supply cord, and consult your dealer.
DSP sound modes
Reference
–
Pages
¡Ensure the SIZE settings for your speakers are correct.
¡Check the DSP sound mode.
¡Cancel “DSP DEFEAT”.
8
10
13
DSP sound modes cannot be
selected.
¡Cancel “DSP DEFEAT”.
¡Turn DVD 6CH INPUT off.
13
13
The radio cannot be tuned in or
there is a lot of noise and
interference.
RQT6847
7
Sound is not heard from the
center, surround, or subwoofer
speakers.
Radio
18
Pages
¡Connect the appropriate antenna. (You may need an outdoor antenna or one
with more elements.)
¡Adjust the position of the FM or AM antenna.
¡Reduce the treble.
¡Select “DSP DEFEAT”.
¡Turn off nearby televisions video players, DVD players, and satellite receivers.
¡Separate the antenna from other cables, leads, and appliances.
¡Turn the DVD player off or move it further away from the antennas if this occurs.
Pages
7, 16
7
13
13
–
–
–
Warranty (U.S.A.)
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Sales Company, Division of Matsushita Electric
of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic/Technics Audio Products
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Electronics Company or Panasonic Sales
Company (collectively referred to as “the warrantor”) will, for the length of the period
indicated on the chart below, which starts with the date of original purchase
(“warranty period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to repair or
replace will be made by the warrantor.
Product or Part Name
Parts
Labor
Audio Products (except items listed below)
One (1) year
One (1) year
All Audio Racks (cabinets)
Thirty (30) days
Not Applicable
Technics Stand Alone Speakers, Subwoofer
Speakers
Three (3) years
Three (3) years
One (1) year
Not Applicable
Ninety (90) days
Ninety (90) days
Ten (10) days
Not Applicable
Ninety (90) days
Not Applicable
USB Reader-Writer, Personal Computer
Card Adapters
(in exchange for defective item)
Accessories: Headphones, Cartridges,
Microphones, Adapters
Rechargeable Batteries (in exchange for
defective item)
SD Memory Cards, Rechargeable Battery
Packs (in exchange for defective item)
During the “Labor” warranty period there will be no charge for labor. During the
“Parts” warranty period, there will be no charge for parts. You must carry-in or mail-in
your product during the warranty period. If non-rechargeable batteries are included,
they are not warranted. This warranty only applies to products purchased and
serviced in the United States or Puerto Rico. This warranty is extended only to the
original purchaser of a new product which was not sold “as is”. A purchase receipt or
other proof of the original purchase date is required for warranty service.
Carry-In or Mail-In Service
For Carry-In or Mail-In Service in the United States call 1-800-211-PANA (1-800-2117262) or visit Panasonic web site: http://www.panasonic.com
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax
(787)-768-2910.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which
are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, or commercial use
(such as in a hotel, office, restaurant, or other business), rental use of the product,
service by anyone other than a Factory Servicenter or other Authorized Servicer, or
damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF
THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As
examples, this excludes damages for lost time, travel to and from the servicer, loss of
media or images, data or other memory content. The items listed are not exclusive,
but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE
PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the exclusions may not
apply to you.
This warranty gives you specific legal rights and you may also have others rights
which vary from state to state. If a problem with this product develops during or after
the warranty period, you may contact your dealer or Servicenter. If the problem is not
handled to your satisfaction, then write to the warrantor’s Consumer Affairs
Department at the addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY ARE YOUR RESPONSIBILITY.
Customer Services Directory (U.S.A.)
For Product Information, Operating Assistance, Literature Request, Dealer Locations, and
all Customer Service inquiries please contact:
1-800-211-PANA (7262), Monday–Friday 9 am–9 pm; Saturday–Sunday 9 am–7 pm, EST.
or send e-mail:
[email protected]
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases:
Service in Puerto Rico
Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/Factory Servicenter:
Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787) 750-4300 Fax (787) 768-2910
Reference
1-800-332-5368 (Customer Orders Only)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(6 am to 5 pm Monday–Friday; 6 am to 10:30 am Saturday; PST)
(Visa, MasterCard, Discover Card, American Express, Check)
RQT6847
Web Site: http://www.panasonic.com
You can purchase parts, accessories or
locate your nearest servicenter by visiting
our Web Site.
19
Listening caution
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
CAUTION:
EST. 1924
Selecting fine audio equipment such as the unit you’ve just
purchased is only the start of your musical enjoyment. Now it’s
time to consider how you can maximize the fun and excitement
your equipment offers. This manufacturer and the Electronic
Industries Association’s Consumer Electronics Group want you
to get the most out of your equipment by playing it at a safe
level. One that lets the sound come through loud and clear
without annoying blaring or distortion–and, most importantly,
without affecting your sensitive hearing.
We recommend that you avoid prolonged exposure to
excessive noise.
Sound can be deceiving. Over time your hearing “comfort level”
adapts to higher volumes of sound. So what sounds “normal”
can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level
BEFORE your hearing adapts.
To establish a safe level:
¡Start your volume control at a low setting.
¡Slowly increase the sound until you can hear it comfortably
and clearly, and without distortion.
Once you have established a comfortable sound level:
¡Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing
damage or loss in the future. After all, we want you listening for
a lifetime.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
¡Reorient or relocate the receiving antenna.
¡Increase the separation between the equipment and
receiver.
¡Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
¡Consult the dealer or an experienced radio/TV technician
for help.
Any unauthorized changes or modifications to this
equipment would void the user’s authority to operate this
device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
User memo:
DATE OF PURCHASE ________________________
DEALER NAME _____________________________
DEALER ADDRESS __________________________
__________________________________________
TELEPHONE NUMBER _______________________
The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for
future reference.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING, ENSURE
THAT CURTAINS AND ANY OTHER MATERIALS DO
NOT OBSTRUCT THE VENTILATION VENTS.
SA-HE75
MODEL NUMBER _________________________________
SERIAL NUMBER _________________________________
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
 2002 Matsushita Electric Industrial Co., Ltd.
Printed in Malaysia
For U.S.A.
As an E NERGY S TAR
®
Partner,
Panasonic has determined that this
product meets the E NERGY S TAR ®
guidelines for energy efficiency.
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
En
RQT6847-P
H1202KM0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
