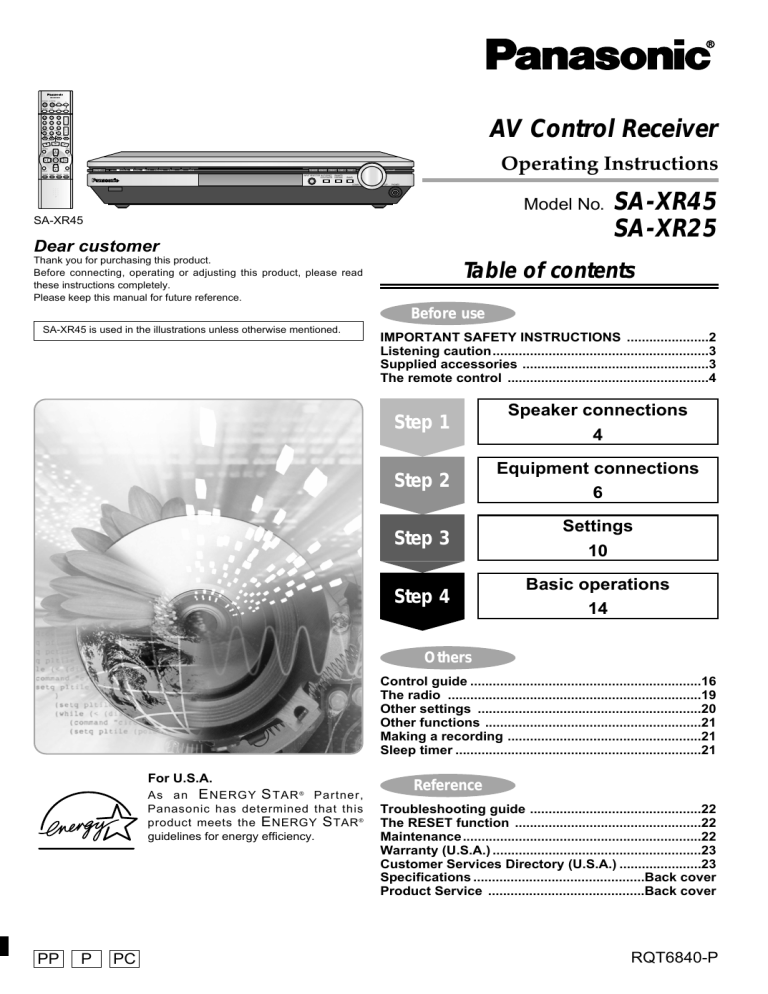

Dear customer
Thank you for purchasing this product.
Before connecting, operating or adjusting this product, please read
these instructions completely.
Please keep this manual for future reference.
SA-XR45
SA-XR25
Table of contents
Before use
SA-XR45 is used in the illustrations unless otherwise mentioned.
IMPORTANT SAFETY INSTRUCTIONS ......................2
Listening caution..........................................................3
Supplied accessories ..................................................3
The remote control ......................................................4
Step 1
Speaker connections
4
Step 2
Equipment connections
6
Step 3
Settings
10
Step 4
Basic operations
14
Others
Control guide ..............................................................16
The radio ....................................................................19
Other settings ............................................................20
Other functions ..........................................................21
Making a recording ....................................................21
Sleep timer ..................................................................21
For U.S.A.
As an E NERGY S TAR ® Partner,
Panasonic has determined that this
product meets the E NERGY S TAR ®
guidelines for energy efficiency.
PP
P
PC
Reference
Troubleshooting guide ..............................................22
The RESET function ..................................................22
Maintenance................................................................22
Warranty (U.S.A.) ........................................................23
Customer Services Directory (U.S.A.) ......................23
Specifications ..............................................Back cover
Product Service ..........................................Back cover
RQT6840-P
IMPORTANT SAFETY INSTRUCTIONS
Before use
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety
instructions listed below. Keep these operating instructions handy for future reference.
1)
Read these instructions.
2)
Keep these instructions.
3)
Heed all warnings.
4)
Follow all instructions.
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
7)
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8)
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9)
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
RQT6840
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
2
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
CAUTION:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
¡Reorient or relocate the receiving antenna.
¡Increase the separation between the equipment and
receiver.
¡Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
¡Consult the dealer or an experienced radio/TV technician
for help.
Any unauthorized changes or modifications to this
equipment would void the user’s authority to operate this
device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Listening caution
Supplied accessories
Please check and identify the supplied
accessories.
EST. 1924
1 AC power supply cord
(RJA0065-A)
1 FM indoor antenna
(RSA0006-L)
Before use
Selecting fine audio equipment such as the unit you’ve just
purchased is only the start of your musical enjoyment. Now it’s
time to consider how you can maximize the fun and excitement
your equipment offers. This manufacturer and the Electronic
Industries Association’s Consumer Electronics Group want you
to get the most out of your equipment by playing it at a safe
level. One that lets the sound come through loud and clear
without annoying blaring or distortion–and, most importantly,
without affecting your sensitive hearing.
1 AM loop antenna
(RSA0037)
We recommend that you avoid prolonged exposure to
excessive noise.
Once you have established a comfortable sound level:
¡Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing
damage or loss in the future. After all, we want you listening for
a lifetime.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT
EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE PLACED ON
THE APPARATUS.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING, ENSURE
THAT CURTAINS AND ANY OTHER MATERIALS DO
NOT OBSTRUCT THE VENTILATION VENTS.
Marking sign is located on bottom of the unit.
2 Batteries
1 Remote control
SA-XR45
SA-XR25
(EUR7622X10)
(EUR7622KA0)
Refer to the separate booklet, “Remote Control Operation
Guide”, for remote control operation details.
Use the numbers indicated in parentheses when asking for replacement
parts.
(Only for U.S.A.)
To order accessories contact 1-800-332-5368 or web site
(http://www.panasonic.com).
User memo:
DATE OF PURCHASE _____________________________
DEALER NAME __________________________________
DEALER ADDRESS _______________________________
________________________________________________
TELEPHONE NUMBER ____________________________
The model number and serial number of this product can be found
on either the back or the bottom of the unit.
Please note them in the space provided below and keep for future
reference.
MODEL NUMBER _______________________________________
SERIAL NUMBER _______________________________________
RQT6840
Sound can be deceiving. Over time your hearing “comfort level”
adapts to higher volumes of sound. So what sounds “normal”
can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level
BEFORE your hearing adapts.
To establish a safe level:
¡Start your volume control at a low setting.
¡Slowly increase the sound until you can hear it comfortably
and clearly, and without distortion.
3
The remote control
Step 1
Batteries
2 3 4
Placement of speakers
1
C
3
A
(R6, AA, UM-3)
B
–
+
Before use
2
G
–
30° 30°
+
D
E
90°
¡ Insert so the poles (+ and –) match those in the remote control.
¡ Do not use rechargeable type batteries.
The front, center, and
surround
speakers
should be placed at
approximately the same
distance from the seating
area. The angles in the
diagram are approximate.
90°
F
Front speakers (A left B right)
Use
Aim at the sensor, avoiding obstacles, at a maximum range of 7 m
(23 feet) directly in front of the unit.
Remote control signal sensor
Place on the left and right of the TV at seated ear height so that there is
good coherency between the picture and sound.
Center speaker (C)
Place underneath or above the center of the TV. Aim the speaker at the
seating area.
Surround speakers (D left E right)
POWER 8
^
% DIGITAL EX % DIGITAL
% PL2
DTS 96/24
DTS-ES
DTS
NEO:6
FM MODE MEMORY PRESET TUNE 2 TUNE 1
INPUT SELECTOR MULTI-SOURCE ENHANCED
DIGITAL RE-MASTER SURROUND
VOLUME
BAND
DOWN
UP
Place on the side of or slightly behind the seating area, about one meter
(3 feet) higher than ear level.
PHO
Surround back speaker (F)
Place behind the seating area, about one meter (3 feet) higher than ear
level.
7 meters (23 feet)
Subwoofer (G)
Transmission window
The subwoofer can be placed in any position as long as it is at a
reasonable distance from the TV.
Note that some experimentation can yield the smoothest low frequency
performance. Placement near a corner can increase the apparent output
level, but can result in unnatural bass.
RECEIVER
RECEIVER AV SYSTEM
DVD
^
^
TAPE
2CH / 6CH
CD
1
2
3
4
5
6
TUNER/BAND
TV
VCR
RECEIVER
CH
VOLUME
7
8
9
DIRECT TUNING
ENTER
> 10
0
DISC
=
Speaker cable
SLOW / SEARCH
SKIP
u
i
t
y
– TV VOL +
h
g
q
TOP MENU
MENU
PLAY
LIST
DIRECT
NAVIGATOR
Cable
Speaker terminals
ENTER
RETURN
DISPLAY
TV/VIDEO DIMMER
SUBWOOFER
MUTING
INPUT MODE
-TEST
–SETUP
–/L
+/R
SLEEP
TONE/
BALANCE
LEVEL
EFFECT
STEREO/
2CH MIX
DOLBY
PRO LOGIC
NEO:6
SFC
Twist the wire
¡ Keep the transmission window and the unit’s sensor free from dust.
¡ Operation can be affected by strong light sources, such as direct
sunlight, and the glass doors on cabinets.
FRONT
Other terminals
■ How to open the remote control
Note
If using 4-mm plugs
RQT6840
Do not short-circuit.
4
(
)
(
)
Fully tighten the terminal,
then insert.
Speaker connections
Peripheral equipment and cables sold separately unless otherwise indicated.
Connecting speakers
Turn off the receiver before connecting the speakers.
Other connections are possible depending on your speaker system.
See your speaker system’s operating instructions for details.
Center speaker – Impedance: 6–8 Ω
Front speakers – Impedance: 6–8 Ω
Left
(
B
C
A
Step 1
Right
(
)
)
Speaker cable
Speaker cable
R
Speaker cable
L
R L BACK
CENTER
FRONT
75 Ω GND
LOOP ANT
GND
LOOP
FM ANT
EXT
DIGITAL
L
R
OUT
SECOND AUDIO OUT OPTICAL
CENTER
AM ANT
(TV) IN
OPTICAL1
L
S VIDEO
(DVD) IN
(DVR) IN
IN
OPTICAL2
OPTICAL3
COAXIAL
DVD
DVR/VCR
L
L
SURROUND
Class 2 Wiring
(
Y
TV MONITOR
OUT
TV IN
DVD IN
DVR/VCR IN
(
PB
)
IN
OUT
IN
R
)
PR
REC (OUT) PLAY (IN)
TAPE
OUT
IN
DVR/VCR
IN
TV
AUDIO
Subwoofer
R
MONITOR OUT
IN
IN
TV
DVD
COMPONENT VIDEO
L
R
Surround speakers – Impedance: 6–8 Ω
D
OUT
SUBWOOFER
Monaural connection cable
AC IN ∼
L BACK
FRONT
CENTER
SURROUND
SPEAKERS (6∼8Ω) HAUT-PARLEURS
Left
Speaker cable
E
F
Right
Back
(
INPUT
)
Speaker cable
Speaker cable
G
R L BACK
CENTER
SURROUND
RQT6840
IN
CD
R
R
MONITOR OUT
IN
SUBWOOFER SURROUND FRONT
OUT
TV
DVD/DVD 6CH
SUBWOOFER
VIDEO
Active subwoofer
5
Step
Equipment connections
2
1
3 4
Stereo connection cable
White (L)
Red (R)
Optical fiber cable
Video connection cable
Coaxial cable
Turn off all components before making any connections.
To connect equipment, refer to the appropriate operating
instructions.
Note
¡Do not bend the optical fiber cable.
¡Use digital connection to enjoy Dolby Digital or DTS (\ page 14).
¡Use analog connection to enjoy sources that cannot be decoded on
this unit, to record analog sources and to output through SECOND
AUDIO OUT (SA-XR45) (\ pages 8, 14, 20 and 21).
Changing the digital input settings
You can change the input settings for the digital terminals if
necessary. Note the equipment you have connected to the
terminals, then change the settings (\ page 11 or 13).
TV and DVD player
Step 2
DVD player
DIGITAL AUDIO OUT
SA-XR45
OUT
OPTICAL
(TV) IN
OPTICAL1
(DVD) IN
OPTICAL2
(DVR) IN
OPTICAL3
DIGITAL
AUDIO
OUT
SA-XR25
DIGITAL
DIGITAL
IN
COAXIAL
OUT
OPTICAL
(TV) IN
OPTICAL1
(DVD) IN
OPTICAL2
IN
COAXIAL
AUDIO OUT
(CENTER, SUBWOOFER)
AUDIO OUT
(SURROUND L, R)
DVD
CENTER
L
L
VIDEO OUT
IN
AUDIO OUT
(FRONT L, R)
R
R
SUBWOOFER SURROUND FRONT
DVD/DVD 6CH
75 Ω GND
LOOP ANT
GND
FM ANT
LOOP
EXT
DIGITAL
L
R
OUT
SECOND AUDIO OUT OPTICAL
CENTER
AM ANT
Note
Connect to FRONT L, R if your DVD player does
not have 6 channel output.
(TV) IN
OPTICAL1
L
(DVD) IN
(DVR) IN
IN
OPTICAL2
OPTICAL3
COAXIAL
DVD
DVR/VCR
L
L
S VIDEO
Class 2 Wiring
(
Y
TV MONITOR
OUT
TV IN
DVD IN
DVR/VCR IN
(
PB
)
IN
OUT
IN
R
)
PR
IN
CD
REC (OUT) PLAY (IN)
TAPE
OUT
IN
DVR/VCR
IN
TV
AUDIO
R
R
MONITOR OUT
IN
SUBWOOFER SURROUND FRONT
OUT
TV
DVD/DVD 6CH
SUBWOOFER
VIDEO
R
MONITOR OUT
IN
IN
TV
DVD
COMPONENT VIDEO
Satellite receiver etc.
SA-XR45
L
R
L BACK
AC IN ∼
FRONT
CENTER
SURROUND
SPEAKERS (6∼8Ω) HAUT-PARLEURS
TV or monitor
DIGITAL OUT
VIDEO IN
DIGITAL
VIDEO OUT
OUT
OPTICAL
(TV) IN
OPTICAL1
(DVD) IN
OPTICAL2
(DVR) IN
OPTICAL3
RQT6840
SA-XR25
6
MONITOR OUT
IN
TV
VIDEO
IN
COAXIAL
DIGITAL OUT
AUDIO OUT
DIGITAL
OUT
OPTICAL
(TV) IN
OPTICAL1
(DVD) IN
OPTICAL2
IN
COAXIAL
IN
TV
AUDIO
Peripheral equipment and cables sold separately unless otherwise indicated.
Other audio visual equipment
SA-XR45
SA-XR25
DVD recorder/VCR
VCR
DIGITAL AUDIO OUT
DIGITAL
(DVD) IN
OPTICAL2
(TV) IN
OPTICAL1
(DVR) IN
OPTICAL3
IN
COAXIAL
VIDEO IN
DVR/VCR
VIDEO IN
VCR
VIDEO OUT
VIDEO OUT
OUT
OUT
AUDIO IN
AUDIO IN
AUDIO OUT
AUDIO OUT
OUT
IN
DVR/VCR
OUT
LOOP ANT
GND
AUDIO
LOOP
FM ANT
IN
VCR
AUDIO
75 Ω GND
IN
IN
Step 2
OUT
OPTICAL
EXT
DIGITAL
L
R
OUT
SECOND AUDIO OUT OPTICAL
CENTER
AM ANT
(TV) IN
OPTICAL1
L
(DVD) IN
(DVR) IN
IN
OPTICAL2
OPTICAL3
COAXIAL
DVD
DVR/VCR
L
L
S VIDEO
Class 2 Wiring
(
Y
TV MONITOR
OUT
TV IN
DVD IN
DVR/VCR IN
(
PB
)
IN
OUT
IN
R
)
PR
IN
CD
REC (OUT) PLAY (IN)
TAPE
OUT
IN
DVR/VCR
IN
TV
AUDIO
R
R
MONITOR OUT
IN
SUBWOOFER SURROUND FRONT
OUT
TV
DVD/DVD 6CH
SUBWOOFER
VIDEO
R
MONITOR OUT
IN
IN
TV
DVD
COMPONENT VIDEO
L
R
L BACK
Tape deck
CD Player
AC IN ∼
FRONT
CENTER
SURROUND
SPEAKERS (6∼8Ω) HAUT-PARLEURS
CD recorder
SA-XR45
SA-XR45
DIGITAL OUT
DIGITAL
DIGITAL IN
DIGITAL
OUT
OPTICAL
(TV) IN
OPTICAL1
(DVD) IN
OPTICAL2
(DVR) IN
OPTICAL3
IN
COAXIAL
SA-XR25
REC
(IN)
DIGITAL OUT
OUT
OPTICAL
(TV) IN
OPTICAL1
(DVD) IN
OPTICAL2
(DVR) IN
OPTICAL3
IN
COAXIAL
DIGITAL
PLAY
(OUT)
OUT
OPTICAL
(TV) IN
OPTICAL1
(DVD) IN
OPTICAL2
IN
COAXIAL
SA-XR25
DIGITAL IN
DIGITAL
REC (OUT) PLAY (IN)
TAPE
OUT
OPTICAL
(TV) IN
OPTICAL1
(DVD) IN
OPTICAL2
IN
COAXIAL
LINE OUT
R
IN
CD
RQT6840
L
7
Equipment connections
Antennas
FM indoor antenna (included)
Fix the other end of the antenna
where reception is best.
FM outdoor antenna
¡ Disconnect the FM indoor antenna.
¡ The antenna should be installed by a competent technician.
¡ Twist the coaxial cable’s shield braid firmly and connect it to the
GND terminal.
Adhesive tape
FM outdoor antenna
2
AM loop antenna
(included)
1
75 Ω GND
Shield braid
75 Ω coaxial cable
LOOP
EXT
10 mm (3/8")
Red
White
LOOP ANT
GND
FM ANT
;;;
;;;
AM ANT
Core wire
75 Ω GND
Step 2
;;;
;;;
;;;
;;
;;
20 mm (25/32")
LOOP ANT
GND
Black
1
LOOP ANT
GND
LOOP
FM ANT
EXT
AM ANT
2
2
1
Keep the antenna cord away from tape decks, DVD players, and
other cords.
75 Ω GND
LOOP ANT
GND
FM ANT
LOOP
EXT
AM ANT
DIGITAL
L
R
OUT
SECOND AUDIO OUT OPTICAL
CENTER
(TV) IN
OPTICAL1
L
(DVD) IN
(DVR) IN
IN
OPTICAL2
OPTICAL3
COAXIAL
DVD
DVR/VCR
L
L
S VIDEO
Class 2 Wiring
(
Y
TV MONITOR
OUT
TV IN
DVD IN
DVR/VCR IN
(
PB
)
IN
OUT
IN
R
)
PR
IN
CD
REC (OUT) PLAY (IN)
TAPE
OUT
IN
DVR/VCR
IN
TV
AUDIO
R
R
MONITOR OUT
IN
SUBWOOFER SURROUND FRONT
OUT
TV
DVD/DVD 6CH
SUBWOOFER
VIDEO
Using the SECOND AUDIO OUT terminal
Use SECOND AUDIO OUT to connect a
stereo amplifier in another room. Choose
whether to output the audio of the source
playing on this unit or audio from another
source (\ “SECOND-A” or “Second Audio
Output”, page 20).
R
MONITOR OUT
IN
IN
TV
DVD
COMPONENT VIDEO
L BACK
AC IN ∼
Stereo amplifier
75 Ω GND
LOOP ANT
GND
FM ANT
LOOP
EXT
AM ANT
AUDIO IN
L
R
SECOND AUDIO OUT O
C
R
IN
CD
REC (OUT) PLAY (IN)
TAPE
OUT
IN
DVR/VCR
IN
TV
S
AUDIO
RQT6840
R
SA-XR45
L
8
L
SURROUND
FRONT
CENTER
SPEAKERS (6∼8Ω) HAUT-PARLEURS
Note
¡Connect the source to analog terminals. You cannot output sources connected only to the digital terminals.
¡When you connect DVD 6CH input, only sound from the front left and right channels is output.
Other video connections
Video connection cable
COMPONENT VIDEO
This connection provides high quality pictures by separating the color
(PB and PR) and the luminance (Y) signals.
S VIDEO
S-video connection cable
Use this connection for better picture quality than with the VIDEO
terminals.
Note
Video input can only be output again through the same type of
terminal.
DVD recorder/VCR
SA-XR45
S VIDEO
S-VIDEO OUT
GITAL
S VIDEO
IN
COAXIAL
VCR
TV MONITOR
OUT
Class 2 Wiring
TV IN
DVD IN
DVR/VCR IN
(
Y
TV MONITOR
OUT
TV IN
DVD IN
VCR
DVR/VCR IN
(
SA-XR25
PB
S VIDEO
)
IN
)
PR
R
MONITOR OUT
IN
IN
TV
DVD
COMPONENT VIDEO
L
R
L BACK
AC IN ∼
S-VIDEO OUT
FRONT
CENTER
SURROUND
SPEAKERS (6∼8Ω) HAUT-PARLEURS
TV MONITOR
OUT
TV or monitor
COMPONENT
VIDEO
OUT (Y)
COMPONENT
VIDEO
OUT (PB)
COMPONENT
VIDEO
OUT (PR)
Y
PB
COMPONENT
VIDEO
IN (PR)
PR
VCR IN
COMPONENT VIDEO
OUT (PB)
S-VIDEO IN
S-VIDEO OUT
S VIDEO
DVD IN
COMPONENT VIDEO
OUT (Y)
COMPONENT VIDEO
OUT (PR)
IN
DVD
COMPONENT VIDEO
MONITOR OUT
IN
TV
COMPONENT VIDEO
TV IN
DVD IN
DVD player
COMPONENT
VIDEO
IN (Y)
COMPONENT
VIDEO
IN (PB)
TV MONITOR
OUT
TV IN
Step 2
IN
EO
S-VIDEO OUT
S VIDEO
TV MONITOR
OUT
DVR/VCR IN
TV IN
DVD IN
DVR/VCR IN
Connecting the AC power supply cord and other information
CAUTION:
The cooling fan operates at high power output
levels only.
S VIDEO
TO PREVENT ELECTRIC
SHOCK MATCH WIDE BLADE
OF PLUG TO WIDE SLOT,
FULLY INSERT.
Class 2 Wiring
(
TV IN
DVD IN
DVR/VCR IN
(
Household AC outlet
(AC 120 V/60 Hz)
)
)
UT
IN
IN
TV
DVD
OMPONENT VIDEO
R
L
R
L BACK
AC IN ∼
SURROUND
FRONT
CENTER
SPEAKERS (6∼8Ω) HAUT-PARLEURS
AC power supply cord
(included)
Note
The included AC power supply cord is for use with
this unit only. Do not use it with other equipment.
Connect this cord after all other cables
and cords are connected.
Conserving power
The unit consumes 1 W even when it is turned off
with [POWER ^/l]. To save power when the unit is
not to be used for a long time, unplug it from the
household AC outlet.
If the unit is left unplugged for longer than a few
weeks, all settings will revert to the factory
settings. Do the settings again if this occurs.
RQT6840
TV MONITOR
OUT
9
Step
1 2
POWER 8
POWER 8
^
Settings
3
4
TUNE 2 TUNE 1
% DIGITAL EX % DIGITAL
DTS 96/24
% PL2
DTS-ES
DTS
SA-XR45 also has an On Screen Display Mode for settings 1
to 4 (\ pages 12 and 13).
1
SPEAKERS
2
DISTANCE
FM MODE MEMORY PRESET TUNE 2 TUNE 1
NEO:6
INPUT SELECTOR MULTI-SOURCE ENHANCED
DIGITAL RE-MASTER SURROUND
BAND
DOWN
INPUT SELECTOR
Display
BAND
POWER 8
Switch on
Set the size to suit your
speakers
LARGE: For speakers that can
reproduce a full sound range,
particularly the bass range
below 100 Hz.
SMALL: For speakers that cannot
adequately reproduce the
bass range. This setting is
sufficient for most speakers if
you are using a subwoofer.
NONE: For speakers you haven’t
connected (center or surround).
The factory settings are:
SMALL
For the surround back (SUR BACK) and
subwoofer (SUB-WFR), select YES if
you have connected one (factory
setting), or NO if you have not.
Enter the distance of the front,
center and surround speakers
from the seating position
Change the distance so that the sound
from all the speakers (except for the
subwoofer) reaches you at the same
time.
You can select distances between 3
and 30 feet at one-foot intervals.
The factory settings are:
FRONT and CENTER:
10 FEET
SURROUND and SUR BACK:
5 FEET
RECEIVER
RECEIVER AV SYSTEM
DVD
TV
TAPE
2CH / 6CH
CD
VCR
1
2
3
4
5
6
Step 3
^
^
TUNER/BAND
INPUT SELECTOR
RECEIVER
CH
VOLUME
VOLUME
7
8
DIRECT TUNING
DISC
ENTER
0
> 10
i
t
=
Press at the
same time
SLOW / SEARCH
SKIP
u
y
– TV VOL +
h
g
q
TOP MENU
MENU
INPUT SELECTOR
PLAY
LIST
DIRECT
NAVIGATOR
RETURN
DISPLAY
TV/VIDEO DIMMER
SUBWOOFER
Select the speaker.
MUTING
BAND
–/L
–/L
+/R
TONE/
BALANCE
LEVEL
EFFECT
DOLBY
STEREO/
2CH MIX PRO LOGIC
NEO:6
SFC
INPUT MODE -TEST/–SETUP
Select “SPEAKERS”.
SPEAKERS
ENTER
SLEEP
Enter the setting mode.
BAND
9
+/R
FRONT
FRONT, CENTER, SURROUND,
SUR BACK, SUB-WFR
LEVEL
SA-XR45
Repeat.
TUNE 2 TUNE 1
SA-XR25
SMALL
NONE, SMALL, LARGE
NO, YES
TEST
DISTANCE
Select the speaker.
FRONT
FRONT, CENTER,
SURROUND, SUR BACK
Repeat.
Change the setting.
-TEST/–SETUP
Select “DISTANCE”.
Change the setting.
10 FEET
3 FEET
INPUT SELECTOR
RQT6840
Exit the setting mode.
10
BAND
Press at the
same time
30 FEET
Change the settings to suit your equipment to the environment in which you are using it. Before making any changes, read the descriptions of the
settings, note the factory settings and ranges, and refer to the equipment’s instructions.
4
FILTER
Change the cut-off for bass
output from the front speakers
If you set the front speakers to “SMALL”,
the filter is set to 100 Hz. Raise the cut-off
if the bass from the front speakers is
unsatisfactory so that this bass is output
through the subwoofer.
You can raise the cut-off from 100 Hz to
either 150 Hz or 200 Hz.
5
D-INPUT
Digital input
Change these settings to suit the
connections you have made to the optical
(OPT) and coaxial (COAX) digital input
terminals, so that the correct source is
selected when you press [INPUT
SELECTOR].
The factory settings are:
SA-XR45
TV:
DVD:
DVR:
CD:
OPT 1
OPT 2
OPT 3
COAX
SA-XR25
TV:
DVD:
CD:
OPT 1
OPT 2
COAX
Adjusting speaker output
level
Adjust the level of the other speakers based on the
output of the front speakers. (Speakers set as “NONE” or
“NO” are skipped. Adjust the volume of the front speakers
with [VOLUME].)
C (center), RS (right surround), SB (surround back) and
LS (left surround) can be adjusted between –10 dB and
+10 dB, with 0 being the level of the front speakers.
Adjust center, surround and surround back output to the
same apparent level of the front speakers.
For SW (subwoofer), you can select “– – –” so there is no
output, “MIN” for minimum output, a level between 1 and
19, or “MAX” for maximum output.
Adjust subwoofer output so it is balanced with the front
speakers. Subwoofer output is easily influenced by the
source. You can also change its level while playing
something for better effect (\ page 18).
SA-XR45
Step 3
3
Output the signal.
-TEST/–SETUP
TEST
SETUP
SA-XR25
L
TEST
Select “FILTER”.
VOLUME
Select “D-INPUT”.
D-INPUT
FILTER
Select the input position.
TV
C
100
LEVEL
C
100, 150, 200
SB
LS
SW
0dB
C, RS, SB, LS, SW
TV, DVD, CD
Repeat.
Change the setting.
OPT 1
RS
Adjust the main
volume.
Repeat.
Change the setting.
R
Select the speaker
channel.
OPT 1
SA-XR45 TV, DVD, DVR, CD
SA-XR25
L
Two seconds each.
Adjust the level.
–/L
+/R
SA-XR45 OPT 1, OPT 2, OPT 3, COAX
SA-XR25 OPT 1, OPT 2, COAX
C
-10 dB
---, MIN, 1
4dB
+10 dB
19, MAX
Stop the test signal.
SA-XR45
-TEST/–SETUP
SA-XR25
TEST
RQT6840
COMPLETE
11
On Screen Display mode
Settings
SA-XR45
¡Use the on screen display to change the settings to suit
your equipment to the environment in which you are
using it.
Turn on the television and select the video input for this
unit.
¡Before making any changes, read the descriptions of
the settings, note the factory settings and ranges, and
refer to the equipment’s instructions.
1
Set the size to suit your speakers
LARGE: For speakers that can reproduce a full sound
range, particularly the bass range below 100 Hz.
SMALL: For speakers that cannot adequately reproduce the
bass range. This setting is sufficient for most
speakers if you are using a subwoofer.
NONE: For speakers you haven’t connected (center or
surround).
The factory settings are:
SMALL
RECEIVER
RECEIVER AV SYSTEM
DVD
TV
TAPE
2CH / 6CH
CD
VCR
1
2
3
4
5
6
^
^
TUNER/BAND
Speaker Size
For the surround back (Surr Back) and subwoofer
(Subwoofer), select YES if you have connected one (factory
setting), or NO if you have not.
RECEIVER
CH
VOLUME
7
8
9
DIRECT TUNING
> 10
=
SLOW / SEARCH
SKIP
u
Enter the setup menu.
ENTER
0
DISC
i
t
-TEST/–SETUP
y
SETUP
– TV VOL +
h
g
ENTER
q
TOP MENU
MENU
Press and hold
PLAY
LIST
DIRECT
NAVIGATOR
ENTER
ENTER
Select the speaker.
Step 3
DISPLAY
RETURN
TV/VIDEO DIMMER
SUBWOOFER
SETUP
MUTING
RETURN
–/L
+/R
TONE/
BALANCE
LEVEL
EFFECT
DOLBY
STEREO/
2CH MIX PRO LOGIC
NEO:6
SFC
INPUT MODE -TEST/–SETUP
-TEST/–SETUP
SLEEP
ENTER
ENTER
Fr o n t
Ce n te r
Su r r o u n d
Su r r Ba ck
Su b wo o fe r
[ SMAL L
[ SMAL L
[ SMAL L
[ YES
[ YES
]
]
]
]
]
Repeat.
Change the setting.
SETUP
ENTER
ENTER
Fr o n t
Ce n te r
Su r r o u n d
Su r r Ba ck
Su b wo o fe r
[ SMAL L
[ SMAL L
[ SMAL L
[ YES
[ YES
]
]
]
]
]
To exit On Screen Display mode
Select “Exit from SETUP” in the main
menu.
Or
A/D Att enuat i on
Secon d Audi o O ut put
Exit fr om S E T U P
Press [RETURN] until the setup menu
disappears.
Exit the setup menu.
RETURN
Or
Continue making other settings.
For your reference
RQT6840
¡To return to the main menu
12
Ce n te r
Su r r o u n d
Su r r Ba ck
Su b wo o fe r
Select “Return”
Or
Press [RETURN].
¡Do 5 on page 11 to adjust speaker output
level.
Or
ENTER
Oth e r Se tu p s
[ SMAL L ]
[ YES ]
[ YES ]
2
-TEST/–SETUP
Speaker Distance
3
Filter Frequency
Enter the distance of the front,
center and surround speakers
from the seating position
Change the cut-off for bass
output from the front
speakers
Change the distance so that the sound
from all the speakers (except for the
subwoofer) reaches you at the same time.
You can select distances between 3 and
30 feet at one-foot intervals.
The factory settings are:
Front and Center:
10 FEET
Surround and Surr Back: 5 FEET
If you set the front speakers to
“SMALL”, the filter is set to 100 Hz.
Raise the cut-off if the bass from the
front speakers is unsatisfactory so
bass is output through the
subwoofer.
You can raise the cut-off from 100 Hz
to either 150 Hz or 200 Hz.
Enter the setup menu.
SETUP
Digital Input
4
Change these settings to suit the
connections you have made to the
optical (OPT) and coaxial (COAX)
digital input terminals, so that the
correct source is selected when you
press [INPUT SELECTOR].
The factory settings are:
CD:
TV:
DVD:
DVR:
COAX
OPT 1
OPT 2
OPT 3
ENTER
Press and hold
Select “Other Setups”.
Ce n te r
Su r r o u n d
Su r r Ba ck
Su b wo o fe r
[ SMAL L ]
[ YES ]
[ YES ]
Oth e r Se tu p s
Select “Speaker Distance”.
SETUP
ENTER
ENTER
Speaker S i ze
S peaker D i st ance
F i l t er Frequency
D -R ange C ompressi on
D i gi t al I nput
Select “Filter Frequency”.
SETUP
ENTER
Sp e a ke r Si ze
Sp e a ke r Di s ta n c e
Fi l te r Fr e q u e n c y
D- Ra n g e Co mp r e s s i o n
Di g i ta l In p u t
Select the speaker.
SPEAKER
DI S TA N C E
ENTER
Front
C ent er
S urround
S urr B ack
SETUP
Sp e a ke r Si ze
Sp e a ke r Di s ta n c e
Fi l te r Fr e q u e n c y
D- Ra n g e Co mp r e s s i o n
Di g i ta l In p u t
DIGITAL
INPUT
CD
TV
DVD
DVR
feet
feet
feet
feet
Repeat.
ENTER
Front
C ent er
S urround
S urr B ack
ENTER
[ COAX
[ OPT1
[ OPT2
[ OPT3
]
]
]
]
Repeat.
Change the setting.
SPEAKER
DI S TA N C E
ENTER
Select the input position.
ENTER
[ 10 ]
[ 10 ]
[ 5]
[ 5]
Select “Digital Input”.
Step 3
ENTER
ENTER
[ 10 ]
[ 10 ]
[ 5]
[ 5]
feet
feet
feet
feet
Change the setting.
FILTER
FREQUENCY
[ 100 ]
[ 150 ]
ENTER
[ 200 ]
Change the setting.
DIGITAL
INPUT
CD
TV
DVD
DVR
ENTER
[ COAX
[ OPT1
[ OPT2
[ OPT3
]
]
]
]
Returns to the main menu.
Ret ur n
ENTER
Return to the main
menu.
Re tu r n
RQT6840
Return to the main menu.
13
Step
1 2 3
Basic operations
4
NAVIGATOR
INPUT SELECTOR
LIST
ENHANCED
SURROUND
ENTER
POWER 8
RETURN
DISPLAY
TV/VIDEO DIMMER
POWER 8
^
% DIGITAL EX % DIGITAL
% PL2
DTS 96/24
DTS-ES
DTS
FM MODE MEMORY PRESET TUNE 2 TUNE 1
NEO:6
INPUT SELECTOR MULTI-SOURCE ENHANCED
DIGITAL RE-MASTER SURROUND
SUBWOOFER
MUTING
–/L
+/R
TONE/
BALANCE
LEVEL
EFFECT
DOLBY
STEREO/
2CH MIX PRO LOGIC
NEO:6
SFC
VOLUME
BAND
DOWN
UP
PHONES
INPUT MODE
INPUT MODE -TEST/–SETUP
SLEEP
VOLUME
STEREO/
2CH MIX
DOLBY
PRO LOGIC2
DOWN
1
+/R
LEVEL
EFFECT
SFC
NEO:6
UP
Switch on.
POWER 8
–/L
Sound modes
The unit sets the sound mode to suit the signal.
Adding surround effects to stereo sources
2
■ Using Dolby Pro Logic2
Select input.
INPUT SELECTOR
SA-XR45
TUNER / CD / TV / DVD
SA-XR25
TAPE , DVR/VCR ,
TUNER / CD / TV / DVD
,
3
,
2
TAPE , VCR ,
Start play of the
source.
Step 4
The unit sets the sound mode to suit
the input signal.
4
VOLUME
DOWN
Adjust the
volume.
UP
Dolby Pro Logic 2 processor works not only on sources recorded
with Dolby Surround, but also on any stereo source.
The following modes are available when using Dolby Pro DOLBY
PRO LOGIC2
Logic 2.
■ Using NEO:6
Use NEO:6 to play 2-channel sources through multi-channels.
The following modes are available when playing 2-channel
NEO:6
sources.
■ Using the Sound Field Control (SFC)
Enjoy an enhanced sound experience with greater presence and
spread by using these SFC modes with PCM or analog SFC
stereo sources.
Choose from the following modes.
Dolby Pro Logic 2, NEO:6 and SFC modes remain in effect until
you change them.
¡ To return to stereo sound
Press [STEREO/2CH MIX].
ENHANCED SURROUND mode
When you finish listening
Be sure to reduce the volume and press [POWER 8] to switch the unit
to standby.
Notes on digital input
This unit can decode the following signals:
¡ Dolby Digital, including Dolby Digital Surround EX
¡ DTS, including DTS-ES or DTS 96/24 (SA-XR45)
¡ PCM, including PCM with sampling frequencies of 192, 176.4
(SA-XR45, OPTICAL2), 96 or 88.2 kHz
It cannot decode:
¡ Other digital signals, such as MPEG
¡ Dolby Digital RF signals from a laser disc player
RQT6840
Notes on sound modes
14
When input is Dolby Digital or DTS:
¡You cannot use SFC.
When input is PCM with sampling frequencies of 192, 176.4 (SA-XR45,
OPTICAL2), 96, or 88.2 kHz:
¡You cannot add surround effects with Dolby Pro Logic 2, NEO:6 or
SFC.
When you have selected “NONE” for both the center and surround
speakers:
¡You cannot use Dolby Pro Logic 2, NEO:6, or SFC.
This mode uses the surround back speaker to create a
ENHANCED
realistic sound field. It is especially effective when playing SURROUND
DTS-ES and Dolby Digital Surround EX, but can be used
with other DTS and Dolby Digital sources, as well as
Dolby Pro Logic 2 and NEO:6. This mode engages automatically if
the disc has a recognition signal for DTS-ES or Dolby Digital
Surround EX (you can still turn the mode off).
Listening to multi-channel sources in stereo
When surround sources are played in this mode, the
sounds intended for the other speaker channels are
played through the front speakers.
STEREO/
2CH MIX
The 2CH MIX mode remains in effect until you change input mode
or turn off the unit.
¡ To return to surround sound
Press [STEREO/2CH MIX].
If the unit does not automatically recognize Dolby Digital
Surround EX or DTS-ES and output is 5.1 channels:
¡Press [ENHANCED SURROUND] to switch the mode on manually.
Sound will now come from the surround back speaker.
MOVIE
Use this mode when playing movie software,
especially videotapes, recorded in Dolby Surround.
MUSIC
Adds surround effects to stereo sources.
PANORAMA
Sound is spread out more so you feel like you are
surrounded by music.
You can adjust the effect of MUSIC and PANORAMA with the center width
and dimension controls.
Center Width Control – C-WDTH
This adjustment helps you realize a more natural sound image when listening
to music. Move sound out into the front speakers to improve the overall front
image, or add sound to the center speaker to fix the center image.
You can choose a level between 0 (the center speaker is dominant) and
7 (center sound is spread out).
The default level is 3.
1. Press [EFFECT] to select “C-WDTH”.
2. Press [–/L] or [+/R] to adjust the effect.
Dimension Control – DIMEN
You can make up for differences in the output level of the front and surround
speakers.
You can choose a level between –3 and +3 – Increase the level to move
sound to the front speakers, decrease to move it to the surround speakers.
The default is level 0.
1. Press [EFFECT] to select “DIMEN”.
2. Press [–/L] or [+/R] to adjust the effect.
CINEMA
You can adjust the effect of MUSIC with the center image control.
Use this mode when playing movie software.
Center Image Control – C-IMG
Adds surround effects to stereo sources.
Notes on using NEO:6
You cannot select the above modes when the “DTS” or
“% DIGITAL” indicator is on.
HALL
Imparts the reflection and spread of a large concert hall.
CLUB
Conveys the exciting and intimate atmosphere of a
jazz club.
This adjustment helps you realize a more natural sound image when listening
to music. Move sound out into the front speakers to improve the overall front
image, or add sound to the center speaker to fix the center image.
You can choose a level between 0 (the center speaker is dominant) and
5 (center sound is spread out).
The default level is 3.
1. Press [EFFECT] to select “C-IMG”.
2. Press [–/L] or [+/R] to adjust the effect.
You can adjust the sound field by adjusting the level of the speakers and the
delay time of the surround speakers. These adjustments can be made for
each SFC mode.
To adjust the speaker level
1. Press [LEVEL] to select the speaker channel.
Each time you press the button:
C / RS / LS / SW
,
LIVE
Brings you up close for “live” stage performance and
smoother vocals.
THEATER
Step 4
MUSIC
Sound does not come from the surround back speaker.
Speakers set as “NONE” or “NO” are skipped.
2. Press [–/L] or [+/R] to adjust the level.
Recreates natural sound ambience and direction.
C, RS, and LS:
SW:
–10 dB to +10 dB
– – – (off) ,
/ MIN ,
/ 1 – 19 ,
/ MAX
SIM SURR (Simulated Surround)
Heightens the sensation of expanded space with
stereo sources, and augments monaural sources.
PARTY
To adjust the delay time
1. Press [EFFECT].
2. Press [–/L] or [+/R] to change the delay time.
This mode uses the front and surround speakers so
that sound is in stereo regardless of the direction you
are facing.
Delay time can be set at 10-millisecond (ms) intervals between 10 and
100 ms.
The factory setting is 50 ms for each mode.
For your reference
In rare cases, the unit may have trouble recognizing the digital signals on
discs.
¡ With the PCM signals on CDs, this may cause the beginning of a track
to be cut off. Engage the PCM FIX mode if this occurs.
¡ With DTS, the signals may not be recognized at all. Engage the DTS
FIX mode if this occurs.
While the input source is selected:
¡ When DTS FIX mode is on
You cannot use ENHANCED SURROUND.
DTS-ES and DTS 96/24 (SA-XR45) are played as normal DTS (i.e.,
there is no output from the surround back speaker).
,
The current mode is displayed. Press again to change the mode.
Each time you press the button:
AUTO / PCM FIX / DTS FIX
When a FIX mode is on, the unit cannot process other signals. This may
cause noise to be output. Select “AUTO” if this occurs.
The mode returns to AUTO when you switch the unit to standby.
RQT6840
1. Press [INPUT MODE] to select “DIGITAL”
2. Press and hold [INPUT MODE] for four seconds.
15
Control guide
Main unit
2,
[% DIGITAL EX, % DIGITAL, % PL2
DTS 96/24, DTS-ES, DTS, NEO:6] ( SA-XR45 )
2, DTS-ES,
[% DIGITAL EX, % DIGITAL, % PL2
DTS, NEO:6] ( SA-XR25 )
Light to indicate the source’s input signal and decoding format
used.
% DIGITAL EX: Dolby Digital Surround EX sources
% DIGITAL: Dolby Digital sources
2: Dolby Pro Logic 2 decoder is being used
% PL2
DTS 96/24: DTS 96/24 sources ( SA-XR45 )
DTS-ES: DTS-ES discrete or matrix sources
DTS: DTS sources
NEO:6: NEO:6 matrix decoder is being used
[POWER 8]
Press to switch the unit from on to standby mode or vice
versa.
In standby mode, the unit is still consuming a small amount of
power.
Standby indicator [^]
POWER 8
^
% DIGITAL EX % DIGITAL
% PL2
DTS 96/24
DTS-ES
DTS
NEO:6
When the unit is connected to the AC mains supply, this
indicator lights up in standby mode and goes out when the
unit is turned on.
Remote control signal sensor
Display
Others
[SLEEP]
Sleep timer indicator.
[˜, TUNED, ST, MONO]
Radio indicators
˜: Flashes or lights during presetting.
TUNED: A station is tuned.
ST: A stereo FM broadcast is tuned.
MONO: You have switched to
monaural mode with [FM
MODE] to improve reception.
M
General display
Shows the input mode, radio
frequency, and other general
information.
RQT6840
[kHz, MHz]
16
Frequency unit indicators
kHz: AM, or PCM sampling frequency
MHz: FM
TUNED ST MONO
SLEEP 2CH
DIGITAL
L
C
R
MIX
ENHANCED
LS SB RS
kHz
MHz SURROUND SFC S LFE
[FM MODE]
If reception is poor in FM, press so “MONO” appears to switch
to monaural mode.
[MEMORY]
For presetting radio stations.
[PRESET]
Press to allow preset station selection with [TUNE, 2, 1].
[TUNE, 2, 1]
For tuning the radio and selecting preset stations.
Press and hold until the frequency starts scrolling to start
automatic tuning. Tuning stops when a station is found.
[VOLUME]
Volume control.
[PHONES]
FM MODE MEMORY PRESET TUNE 2 TUNE 1
INPUT SELECTOR MULTI-SOURCE
DIGITAL RE-MASTER
ENHANCED
SURROUND
VOLUME
BAND
DOWN
UP
PHONES
Headphone jack
Plug type: 6.3 mm (1/4") stereo
¡Avoid listening for prolonged periods of time to prevent
hearing damage.
¡The STEREO/2CH MIX mode is engaged when you
connect headphones and you cannot select any of the other
sound modes.
[BAND]
For switching between FM and AM.
[ENHANCED SURROUND]
For turning on the enhanced surround mode.
[MULTI-SOURCE DIGITAL RE-MASTER] (
SA-XR45
)
For selecting a re-master mode. The button lights while a remaster mode is on.
[INPUT SELECTOR]
Lights when digital input is selected.
[L, C, R, LS, SB, RS, S, LFE]
Program format indicators
Show the channels contained in the digital input
signal. They do not light when input is analog.
L: Front left channel
C: Center channel
R: Front right channel
LS: Surround left channel
SB: Surround back channel
RS: Surround right channel
S: If the surround channel is monaural.
LFE (Low Frequency Effects): Deep-bass effect.
[2CH MIX, ENHANCED , SURROUND, SFC]
2CH MIX: Appears when you are playing a multichannel source in 2CH MIX mode
ENHANCED : Appears when enhanced surround
mode is on
SURROUND: Appears when you are using Dolby Pro
Logic 2, NEO:6 or enhanced surround
mode
SFC: Appears when you are using an SFC mode
For your reference
¡When playing video sources connected to DVR/VCR
(SA-XR45) or VCR (SA-XR25)
The picture remains on the screen even if you select TAPE,
CD or TUNER.
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks of
Dolby Laboratories.
Manufactured under license from Digital Theater Systems, Inc.
US Pat. No. 5,451,942, 5,956,674, 5,974,380, 5,978,762 and other
world-wide patents issued and pending.
“DTS”, “DTS-ES Extended Surround” and “Neo:6” are trademarks of
Digital Theater Systems, Inc. Copyright 1996, 2000 Digital Theater
Systems, Inc. All rights reserved.
RQT6840
[DIGITAL]
Others
For selecting input.
17
Control guide
Remote control
Buttons not explained on this page are used only to operate other equipment. Refer to the separate Remote
Control Operation Guide for details.
[DVD 2CH/6CH, TV,
TUNER/BAND RECEIVER,
TAPE, CD, VCR] ( SA-XR45 )
[DVD 2CH/6CH, TV,
TUNER/BAND, TAPE, CD, VCR]
( SA-XR25 )
RECEIVER
RECEIVER AV SYSTEM
[^, RECEIVER]
Standby/on button.
^
DVD
TV
TAPE
2CH / 6CH
CD
VCR
^
TUNER/BAND
RECEIVER
[1, 2, 3, 4, 5, 6, 7, 8, 9, 0]
To enter radio frequencies and
channels.
1
2
3
>10, ENTER]
[=
4
5
6
7
8
9
To enter two digit channels.
CH
VOLUME
DIRECT TUNING
[DISC, DIRECT TUNING]
To enable selection of radio stations
by frequency.
DISC
ENTER
These buttons light when you press
other buttons to indicate the current
remote control mode. ( SA-XR45 )
0
> 10
SLOW / SEARCH
[1, CH, 2]
i
t
For selecting preset radio channels.
=
SKIP
u
Input mode and remote control mode
buttons.
DVD 2CH/6CH:For switching between
6-channel and
2-channel DVD input.
y
– TV VOL +
h
g
[+, –, VOLUME]
q
To adjust the volume.
TOP MENU
[e,r,w, q, ENTER, RETURN]
To operate the on screen menus.
( SA-XR45 )
MENU
PLAY
LIST
DIRECT
NAVIGATOR
[SUBWOOFER]
ENTER
[DIMMER]
For dimming the unit’s display and
turning off the panel light.
RETURN
DISPLAY
TV/VIDEO DIMMER
SUBWOOFER
MUTING
–/L
+/R
To mute the volume.
LEVEL
EFFECT
[-TEST/–SETUP] (
[INPUT MODE]
For selecting AUTO, ANALOG or
DIGITAL.
[SLEEP]
To start the sleep timer.
For selecting subwoofer level.
Adjust the level in 5 steps:
SW MIN, SW 5, SW 10, SW 15, and
SW MAX.
Select SW – – – to stop output.
[MUTING]
INPUT MODE -TEST/–SETUP
SLEEP
TONE/
BALANCE
DOLBY
STEREO/
2CH MIX PRO LOGIC
NEO:6
SFC
[TEST] (
Others
SA-XR45
)
To start the speaker test signal or
enter the setup menu.
SA-XR25
)
To start the speaker test signal.
[STEREO/2CH MIX]
[TONE/BALANCE]
For selecting STEREO or 2CH MIX
mode.
To adjust the bass, treble and front
speaker balance.
[DOLBY PRO LOGIC 2]
For selecting a Dolby Pro Logic 2
mode:
MOVIE,
MUSIC
or
PANORAMA.
[LEVEL]
[NEO:6]
Use when adjusting Dolby Pro Logic
2, NEO:6 or SFC effects.
Use when adjusting speaker level.
[EFFECT]
For selecting a NEO:6 mode:
CINEMA or MUSIC.
[–/L, +/R]
First select SLEEP, EFFECT, LEVEL,
TONE or BALANCE, then press [–/L]
or [+/R] to adjust.
[SFC]
For selecting SFC modes.
For your reference
¡When DVD 6CH input is on
Speaker settings are ineffective. Change the settings on the DVD player if necessary.
RQT6840
¡When using the subwoofer
18
You cannot adjust subwoofer level if DVD 6CH INPUT is selected.
Sound can be distorted if you raise the volume while subwoofer level is high. Reduce
subwoofer level if this occurs.
¡When muting is on
Muting is also canceled when the unit is turned off.
The radio
FM MODE MEMORY PRESET TUNE 2 TUNE 1
SA-XR45 SA-XR25
TUNER/BAND
TUNER/BAND
RECEIVER
RECEIVER AV SYSTEM
DVD
TV
TAPE
2CH / 6CH
CD
VCR
1
2
3
4
5
6
^
^
TUNER/BAND
RECEIVER
RECEIVER
1
2
3
4
5
6
7
8
9
CH
% DIGITAL EX % DIGITAL
% PL2
DTS 96/24
DTS-ES
DTS
NEO:6
FM MODE MEMORY PRESET TUNE 2 TUNE 1
INPUT SELECTOR MULTI-SOURCE ENHANCED
DIGITAL RE-MASTER SURROUND
VOLUME
BAND
DOWN
UP
PHONES
DIRECT TUNING
BAND
INPUT SELECTOR
DISC
7
8
DIRECT TUNING
DISC
ENTER
0
> 10
=
9
ENTER
0
> 10
i
t
=
SLOW / SEARCH
SKIP
u
y
– TV VOL +
g
h
q
TOP MENU
Manual tuning
1. Press [INPUT SELECTOR] to select “TUNER”.
2. Press [BAND] to select “FM” or “AM”.
3. Press [TUNE 2 or 1] to select the frequency.
FM – 0.2 MHz
AM – 10 kHz
1. Tune to “FM 87.9 MHz”.
2. Press and hold [MEMORY].
The FM stations the unit can receive are preset in channels 1 to 30.
3. Tune to “AM 530 kHz”.
4. Press and hold [MEMORY].
The AM stations the unit can receive are preset in channels 21 to 30.
(FM stations are replaced if any were preset in these channels.)
Improving reception
¡ FM mode
You can improve FM reception by switching reception to monaural.
Press [FM MODE].
“MONO” lights.
Press [FM MODE] again to cancel.
¡ For your reference
DVD players can interfere with radio reception. Turn the DVD player off
or move it further away from the antennas if this occurs.
Direct tuning (on the remote control)
1. Press [TUNER/BAND RECEIVER]. (
Press [TUNER/BAND]. ( SA-XR25 )
MENU
Automatic presetting
You can tune radio stations manually by selecting the station’s
frequency.
Tuning intervals:
CH
VOLUME
SA-XR45
)
The band changes each time you press the button.
2. Press [DISC, DIRECT TUNING].
3. Press the numbered buttons to enter the
frequency.
e.g. To select 107.9 MHz, press [1] / [0] / [7] / [9]
Tuning intervals: FM – 0.1 MHz
AM – 10 kHz
¡ If you do not press a button while the cursor is flashing, the display
returns to the frequency being received.
¡ If the frequency has not been input correctly, “ERROR” will be
displayed.
During automatic presetting, the memory indicator (˜) flashes and the
frequency scrolls. The memory indicator and channel numbers are
displayed for a second when a station is preset.
The last station to be preset is displayed when presetting finishes.
For your reference
Even if the power supply cord is disconnected from the household AC
outlet, the stations remain in memory for approximately two weeks.
Manual presetting
Preset the stations one at a time.
1. Tune to the station.
2. Press [MEMORY].
3. Press [TUNE 2 or 1] to select a channel.
4. Press [MEMORY].
For your reference
FM stations can also be preset in the MONO mode.
Others
^
Selecting channels
1. Press [PRESET].
The channel number flashes for about 5 seconds.
2. Press [TUNE 2 or 1].
Hold down the buttons to change channels faster.
On the remote control
Press [1 , CH, 2].
or
Press the numbered buttons.
For channels 1 to 9, press the corresponding number.
>10, ENTER], then the two digits.
For channels 10 or over, press [=
>10, ENTER] / [2] / [1]
e.g. To select channel 21: [=
RQT6840
POWER 8
19
Other settings
– TV VOL +
h
g
TUNE 2 TUNE 1
q
TOP MENU
MENU
PLAY
LIST
DIRECT
NAVIGATOR
ENTER
ENTER
POWER 8
^
% DIGITAL EX % DIGITAL
% PL2
DTS 96/24
DTS-ES
DTS
NEO:6
FM MODE MEMORY PRESET TUNE 2 TUNE 1
INPUT SELECTOR MULTI-SOURCE ENHANCED
DIGITAL RE-MASTER SURROUND
VOLUME
BAND
DOWN
UP
PHONES
RETURN
DISPLAY
TV/VIDEO DIMMER
INPUT SELECTOR
SUBWOOFER
MUTING
–/L
+/R
LEVEL
EFFECT
RETURN
BAND
INPUT MODE -TEST/–SETUP
-TEST/–SETUP
On the main unit
A DR COMP - Dynamic range compression
Change this setting to listen to software recorded with Dolby Digital at
low volume (such as late at night) and maintain audio clarity. It
reduces the peak level in loud scenes without affecting the sound
field.
OFF: The software is played with the original dynamic range (factory
setting).
STANDARD: The level recommended by the producer of the software
for household viewing.
MAX: The maximum allowable compression (recommended for night
viewing).
B A/D ATT - A/D attenuator
Turn the A/D attenuator on if “OVERFLOW” lights frequently when
using 2-channel analog input or DVD 6CH input.
The factory setting is OFF.
SLEEP
TONE/
BALANCE
STEREO/
DOLBY
On Screen Display mode
SA-XR45
A D-Range Compression - Dynamic range compression
Change this setting to listen to software recorded with Dolby Digital at
low volume (such as late at night) and maintain audio clarity. It
reduces the peak level in loud scenes without affecting the sound
field.
OFF: The software is played with the original dynamic range (factory
setting).
STANDARD: The level recommended by the producer of the software
for household viewing.
MAX: The maximum allowable compression (recommended for night
viewing).
B A/D attenuation
Turn the A/D attenuator on if “OVERFLOW” lights frequently when
using 2-channel analog input or DVD 6CH input.
The factory setting is OFF.
C Second Audio Output
C SECOND-A - Second Audio output ( SA-XR45 )
Select the source to output from SECOND AUDIO OUT.
The factory setting is SOURCE (the source playing on this unit is
output).
Others
Changing the settings
1. Press [INPUT SELECTOR] and [BAND] at the
same time to enter the setting mode.
2. Press [INPUT SELECTOR] to select the item you
want to change.
3. Change the settings.
A DR COMP
Press [TUNE 2 or 1] to select “OFF”, “STANDARD” or “MAX”.
B A/D ATT
Press [TUNE 2 or 1] to select “OFF” or “ON”.
C SECOND-A ( SA-XR45 )
Press [TUNE 2 or 1] to select “SOURCE”, “CD”, “TV”, “DVD”,
“DVR/VCR” or “TAPE”.
¡To listen to the radio, select SOURCE and tune to the station.
RQT6840
4. Press [INPUT SELECTOR] and [BAND] at the
same time to exit the setting mode.
20
Select the source to output from SECOND AUDIO OUT.
The factory setting is SOURCE (the source playing on this unit is
output).
Changing the settings
1. Press and hold [-TEST/–SETUP] to enter the
setup menu.
2. Press [e] or [r] to select “Other Setups”.
3. Press [ENTER].
4. Press [e] or [r] to select the item you want to
change.
5. Press [ENTER].
6. Change the settings.
A D-Range Compression
Press [w] or [q] to select “OFF”, “STANDARD” or “MAX”.
B A/D attenuation
Press [w] or [q] to select “OFF” or “ON”.
C Second Audio Output
Press [w] or [q] to select the “SOURCE”, “CD”, “TV”, “DVD”,
“DVR/VCR” or “TAPE”.
¡To listen to the radio, select SOURCE and tune to the station.
7. Press [ENTER].
8. Press [e] or [r] to select “Exit from SETUP”.
9. Press [ENTER].
For your reference
¡To exit On Screen Display mode
Press [RETURN] until the setup menu disappears.
¡To return to the main menu
Press [RETURN].
Other functions
Making a recording
INPUT SELECTOR
RETURN
DISPLAY
TV/VIDEO DIMMER
SUBWOOFER
MUTING
–/L
+/R
INPUT MODE
FM MODE MEMORY PRESET TUNE 2 TUNE 1
–/L
LEVEL
EFFECT
STEREO/ DOLBY
2CH MIX PRO LOGIC
NEO:6
SFC
SLEEP
+/R
INPUT SELECTOR MULTI-SOURCE ENHANCED
DIGITAL RE-MASTER SURROUND
VOLUME
BAND
DOWN
UP
PHONES
POWER 8
^
% DIGITAL EX % DIGITAL
% PL2
DTS 96/24
DTS-ES
DTS
FM MODE MEMORY PRESET TUNE 2 TUNE 1
NEO:6
INPUT SELECTOR MULTI-SOURCE ENHANCED
DIGITAL RE-MASTER SURROUND
DOWN
TONE/
BALANCE
UP
PHONES
MULTI-SOURCE
DIGITAL RE-MASTER
Input mode
Recording on other equipment
This unit automatically detects whether input is digital or analog, but you
can fix the input mode.
Press [INPUT MODE] to select “AUTO”, “ANALOG”
or “DIGITAL”.
Balance
You can adjust the balance of the front speakers.
1. Press [TONE/BALANCE] to select “BALANCE”.
2. Press [–/L] or [+/R] to adjust.
You can record to a tape deck connected to TAPE REC (OUT), a VCR
connected to VCR OUT (SA-XR25), a DVD recorder/VCR connected to
DVR/VCR OUT (SA-XR45), or digital recording equipment connected to
DIGITAL OPTICAL OUT.
See the recording unit’s operating instructions for details on how to
prepare it for recording.
1. Press [INPUT SELECTOR] to select the source to
be recorded.
2. Begin recording.
Follow your recording unit’s operating instructions.
3. Start the source to be recorded.
Tone
Follow your equipment’s operating instructions.
You can adjust the level of the bass and treble.
1. Press [TONE/BALANCE] to select “BASS” or
“TREBLE”.
2. Press [–/L] or [+/R] to adjust bass/treble.
For your reference
¡To adjust the tone
The STEREO mode must be on and input must be either analog or
PCM signals. You cannot adjust the tone if DVD 6CH is selected.
Re-master
VOLUME
BAND
¡ With a tape deck, you can record any analog source except TAPE.
¡ With a VCR, you can record any analog source except VCR
(SA-XR25).
¡ With a DVD recorder/VCR, you can record any analog source except
DVR/VCR (SA-XR45).
¡ With digital recording equipment, you can record any digital source
without copy protection.
¡ When you select DVD 6CH INPUT mode, only sound from the front
left and right channels is recorded.
¡ Some sources do not allow digital recording. Connect through the
analog terminals and select “ANALOG” input.
SA-XR45
This original Panasonic feature boosts the frequencies of the higher
harmonics that are lost during recording due to compression.
Sleep timer
Press [MULTI-SOURCE DIGITAL RE-MASTER] to select
“EFFECT 1”, “EFFECT 2”, “EFFECT 3” or “EFFECT 4”.
–/L
+/R
TONE/
BALANCE
LEVEL
EFFECT
DOLBY
STEREO/
2CH MIX PRO LOGIC
NEO:6
SFC
INPUT MODE -TEST/–SETUP
When Re-master is on, the current level appears, then each time you
press the button:
EFFECT 1: for fast tracks (pop and rock)
EFFECT 2: for tracks with a variety of tempos (jazz)
EFFECT 3: for slow tracks (classical)
EFFECT 4: for compressed audio signals
OFF: the re-master processing is off.
–/L
SLEEP
SLEEP
+/R
Others
TONE/
BALANCE
The SLEEP timer can turn the unit off after a set time.
It does not control any other components.
1. Press [SLEEP].
,
SLEEP / OFF
2. Within 5 seconds
Press [–/L] or [+/R] to select the required time.
The display changes as follows:
30 ,
/ 60 ,
/ 90 ,
/ 120 (in minutes)
To check the setting
Press [SLEEP] once.
¡The time remaining appears.
To change a setting
Repeat the procedure from the beginning.
RQT6840
INPUT MODE -TEST/–SETUP
21
Troubleshooting guide
Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the
chart do not solve the problem:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail [email protected], or web site
(http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or web site (www.panasonic.ca), or an authorized
Servicentre close to you.
Common problems
Pages
No power.
¡Ensure the power cord is connected.
No sound.
¡Turn the volume up.
¡Check connections to speakers and other equipment.
¡Select the correct source.
¡Change the D-INPUT (or Digital Input) setting to suit the type of connection you have
made.
¡Check that the digital signals can be decoded by this unit.
¡Turn PCM FIX or DTS FIX off.
9
Sound stops. “F 76”,
“OVERLOAD” or “FAN LOCK”
appears on the display for
about a second, and the unit
turns off.
¡Determine and correct the cause, then switch the unit on.
Causes include:
–Shorting (bare wires touching) of positive and negative speaker wires.
–Using speakers with an impedance lower than that rated for this unit.
–Straining of the speakers through excessive volume or power.
–Using the unit in a hot environment without proper ventilation.
Consult your dealer if the problem occurs again after switching the unit on.
“F 70” appears on the display.
¡Turn the unit off, disconnect the AC power supply cord, and consult your dealer.
Sound modes
Reference
4
5
–
–
–
Sound is not heard from the
center, surround, or
subwoofer speakers.
¡Ensure the SPEAKERS (or Speaker Size) settings for your speakers are correct.
¡Turn 2CH MIX off.
¡The source may be stereo. Change the sound mode.
10,12
14
14
Sound is not heard from the
surround back speaker.
¡Ensure the SPEAKERS (or Speaker Size) settings for your speakers are correct.
¡Turn ENHANCED SURROUND on.
10,12
14
2,
Cannot use Dolby Pro Logic2
NEO:6 or SFC.
¡Turn DVD 6CH INPUT off.
¡You cannot use Dolby Pro Logic2, NEO:6 or SFC when input is PCM with sampling
frequencies of 192, 176.4 (SA-XR45, OPTICAL2), 96, or 88.2 kHz.
The radio cannot be tuned in
or there is a lot of noise and
interference.
There is a lot of noise when
listening to AM.
¡Try changing the A/D ATT (or A/D attenuation) setting. This may change the volume,
but noise will also reduce.
% DIGITAL EX % DIGITAL
8
21
–
–
20
If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
POWER 8
^
8
Maintenance
INPUT SELECTOR
POWER 8
18
14
Pages
¡Connect the appropriate antenna. (You may need an outdoor antenna or one with
more elements.)
¡Adjust the position of the FM or AM antenna.
¡Reduce the treble.
¡Turn off nearby televisions, video decks, DVD players, and satellite receivers.
¡Separate the antenna from other cables, cords, and appliances.
The RESET function
% PL2
DTS 96/24
DTS-ES
DTS
NEO:6
FM MODE MEMORY PRESET TUNE 2 TUNE 1
INPUT SELECTOR MULTI-SOURCE ENHANCED
DIGITAL RE-MASTER SURROUND
VOLUME
BAND
DOWN
UP
PHONES
While the unit is on
RQT6840
14
15
Pages
Radio
22
14
4–9
14
11,13
While pressing and holding [INPUT SELECTOR],
press [POWER 8].
“RESET” appears on the display.
The operation settings for the unit will be initialized to the settings made
at the time of shipment.
However, any preset radio stations will not be erased.
¡ Never use alcohol, paint thinner or benzine to clean this unit.
¡ Before using chemically treated cloth, read the instructions that came
with the cloth carefully.
Warranty (U.S.A.)
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Sales Company, Division of Matsushita Electric
of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic/Technics Audio Products
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Electronics Company or Panasonic Sales
Company (collectively referred to as “the warrantor”) will, for the length of the period
indicated on the chart below, which starts with the date of original purchase
(“warranty period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to repair or
replace will be made by the warrantor.
Product or Part Name
Audio Products (except items listed below)
All Audio Racks (cabinets)
Technics Stand Alone Speakers, Subwoofer
Speakers
USB Reader-Writer, Personal Computer
Card Adapters
(in exchange for defective item)
Accessories: Headphones, Cartridges,
Microphones, Adapters
Rechargeable Batteries (in exchange for
defective item)
SD Memory Cards, Rechargeable Battery
Packs (in exchange for defective item)
Parts
One (1) year
Thirty (30) days
Labor
One (1) year
Not Applicable
Three (3) years
Three (3) years
One (1) year
Not Applicable
Ninety (90) days
Ninety (90) days
Ten (10) days
Not Applicable
Ninety (90) days
Not Applicable
During the “Labor” warranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. You must carry-in or mail-in your product during the warranty period. If non-rechargeable batteries are included, they are not
warranted. This warranty only applies to products purchased and serviced in the United
States or Puerto Rico. This warranty is extended only to the original purchaser of a new
product which was not sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.
Carry-In or Mail-In Service
For Carry-In or Mail-In Service in the United States call 1-800-211-PANA (1-800-2117262) or visit Panasonic web site: http://www.panasonic.com
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax
(787)-768-2910.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and
DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO
DOES NOT COVER damages which occurred in shipment, or failures which are caused
by products not supplied by the warrantor, or failures which result from accidents, misuse,
abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge,
lightning damage, modification, or commercial use (such as in a hotel, office, restaurant,
or other business), rental use of the product, service by anyone other than a Factory
Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “ LIMITED
WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As
examples, this excludes damages for lost time, travel to and from the servicer, loss of
media or images, data or other memory content. The items listed are not exclusive, but
are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING
THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE
LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have others rights which
vary from state to state. If a problem with this product develops during or after the
warranty period, you may contact your dealer or Servicenter. If the problem is not handled
to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the
addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY
ARE YOUR RESPONSIBILITY.
Customer Services Directory (U.S.A.)
For Product Information, Operating Assistance, Literature Request, Dealer Locations, and
all Customer Service inquiries please contact:
1-800-211-PANA (7262), Monday–Friday 9 am–9 pm; Saturday–Sunday 9 am–7 pm, EST.
or send e-mail:
[email protected]
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
1-800-332-5368 (Customer Orders Only)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(6 am to 5 pm Monday–Friday; 6 am to 10:30 am Saturday; PST)
(Visa, MasterCard, Discover Card, American Express, Check)
Service in Puerto Rico
Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/Factory Servicenter:
Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787) 750-4300 Fax (787) 768-2910
RQT6840
Accessory Purchases:
Reference
Web Site: http://www.panasonic.com
You can purchase parts, accessories or
locate your nearest servicenter by visiting
our Web Site.
23
Specifications (IHF’78)
■ AMPLIFIER SECTION
■ FM TUNER SECTION
Rated minimum sine wave RMS power output
20 Hz–20 kHz both channels driven
0.3 % total harmonic distortion
100 W per channel (6 Ω)
1 kHz continuous power output both channels driven
0.3 % total harmonic distortion
105 W per channel (6 Ω)
Total harmonic distortion
rated power at 20 Hz–20 kHz
0.3 % (6 Ω)
Power output each channel driven
0.9 % total harmonic distortion at 1kHz
Front (L/R)
100 W (6 Ω)
Center
100 W (6 Ω)
Surround (L/R/BACK)
100 W (6 Ω)
Load impedance
Front (L/R)
6–8 Ω
Center
6–8 Ω
Surround (L/R/BACK)
6–8 Ω
Frequency response
Frequency range
Sensitivity
50 dB quieting sensitivity
MONO
STEREO
Total harmonic distortion
MONO
STEREO
S/N
MONO
STEREO
Frequency response
Alternate channel selectivity
Capture ratio
Image rejection at 98 MHz
Spurious response rejection at 98 MHz
AM suppression
Stereo separation
1 kHz
10 kHz
Antenna terminal
SA-XR45 CD, TV, DVD/DVD 6CH, DVR/VCR, TAPE
10 Hz–44 kHz, ±3 dB
SA-XR25 CD, TV, DVD/DVD 6CH, VCR, TAPE 10 Hz–44 kHz, ±3 dB
18.3 dBf (4.5 µV, IHF ’58)
38.3 dBf (45 µV, IHF ’58)
0.2 %
0.3 %
73 dB
67 dB
20 Hz–15 kHz, +1 dB, –2 dB
65 dB
1.5 dB
40 dB
75 dB
50 dB
40 dB
30 dB
75 Ω (unbalanced)
■ AM TUNER SECTION
Input sensitivity
SA-XR45 CD, TV, DVD/DVD 6CH, DVR/VCR, TAPE
27 mV (200 mV, IHF ’66)
SA-XR25 CD, TV, DVD/DVD 6CH, VCR, TAPE
27 mV (200 mV, IHF ’66)
Input impedance
SA-XR45 CD, TV, DVD/DVD 6CH, DVR/VCR, TAPE
22 kΩ
SA-XR25 CD, TV, DVD/DVD 6CH, VCR, TAPE
22 kΩ
Frequency range
Sensitivity
Selectivity
IF rejection at 1000 kHz
530–1710 kHz
20 µV, 330 µV/m
55 dB
50 dB
■ VIDEO SECTION
Output voltage at 1 V input (unbalanced)
Maximum input voltage
Input/output impedance
SA-XR45
S-Video
Input
S/N (IHF A)
1±0.1 Vp-p
1.5 Vp-p
75 Ω
TV, DVD, DVR/VCR
SA-XR25
SA-XR45 TV, DVD, DVR/VCR (Digital Input) 85 dB (98 dB, IHF ’66)
SA-XR25 TV, DVD (Digital Input)
Tone controls
BASS
TREBLE
Subwoofer frequency response (–6 dB)
Digital input
87.9–107.9 MHz
11.2 dBf (2 µV, IHF ’58)
85 dB (98 dB, IHF ’66)
50 Hz, +10 to –10 dB
20 kHz, +10 to –10 dB
7 Hz–200 Hz
(OPTICAL)
SA-XR45 (DVD: Fs 192 kHz Ready)
SA-XR25
(COAXIAL)
Digital output (OPTICAL)
3
2
1
1
Component Video
TV, DVD, VCR
TV MONITOR
TV, DVD
TV MONITOR
Output
Input
Output
■ GENERAL
Power supply
Power consumption
Dimensions (W x H x D)
AC 120 V, 60 Hz
130 W
430 x 74 x 375 mm
(16-15/16'' x 2-29/32'' x 14-3/4'')
SA-XR45 4.2 kg (9.2 lb.)
Mass
SA-XR25
■ DIN POWER
4 kg (8.8 lb.)
2 x 100 W (6 Ω)
1 kHz, T. H. D 1 %
Power consumption in standby mode:
1W
Notes:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Product Service
1. Damage requiring service — The unit should be serviced by
qualified service personnel if:
(a) The AC power supply cord or the plug has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change
in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing — Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.
3. Replacement parts — When parts need replacing ensure the
servicer uses parts specified by the manufacturer or parts that have
the same characteristics as the original parts. Unauthorized
substitutes may result in fire, electric shock, or other hazards.
4. Safety check — After repairs or service, ask the servicer to perform
safety checks to confirm that the unit is in proper working condition.
Product information
For product information or assistance with product operation:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-2117262, or e-mail [email protected], or web site
(http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at
905-624-5505, web site (www.panasonic.ca), or an authorized
Servicentre closest to you.
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
 2002 Matsushita Electric Industrial Co., Ltd.
Printed in Malaysia
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
En
RQT6840-P
H1202RF0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
