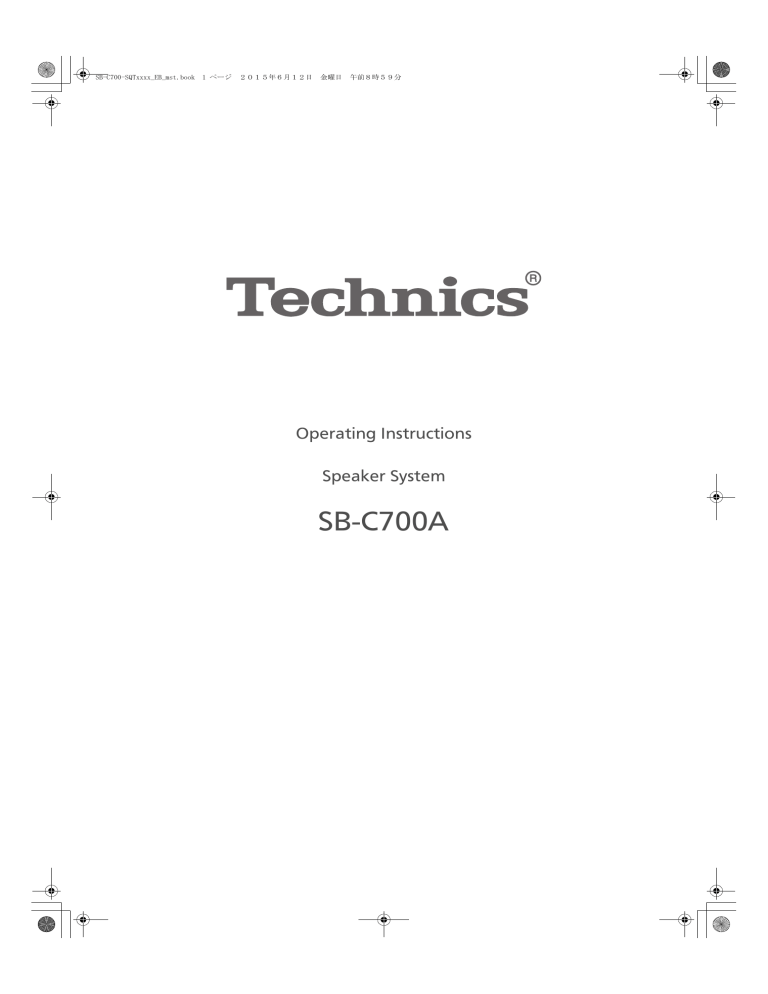

Operating Instructions
Speaker System
SB-C700A
SB-C700-SQTxxxx_EB_mst.book 2 ページ
2015年6月12日 金曜日 午前8時59分
SB-C700-SQTxxxx_EB_mst.book 3 ページ
2015年6月12日 金曜日 午前8時59分
Music is borderless and timeless,
touching people’s hearts across cultures and generations.
Each day the discovery of a truly emotive experience
from an unencountered sound awaits.
Let us take you on your journey to rediscover music.
SB-C700-SQTxxxx_EB_mst.book 4 ページ
2015年6月12日 金曜日 午前8時59分
Thank you for purchasing this product.
Please read these instructions carefully before using this product, and save this manual for future use.
The cabinets of this product were hand-carved by woodworkers. As a result, the left and right speakers may slightly differ from
each other in shape.
Sales and Support Information
Customer Communications Centre
≥ For customers within the UK: 0333 222 8777
≥ For customers within Ireland: 01 447 5229
≥ Monday–Friday 9:00 am – 5:00 pm, (Excluding public holidays).
≥ For further support on your product, please visit our website: www.technics.com/uk/
Safety precautions
WARNING
≥ Put the speakers on a flat safe surface.
≥ Do not hang the speakers from the ceiling or on the wall. Doing so
may cause the speaker to fall off, causing personal injury.
≥ Do not place any objects in the bass reflex ports on the rear of the
speakers. Doing so may cause fire or personal injury. Pay close
attention to children.
≥ Do not repair the speakers by yourself. Refer servicing to qualified
service personnel.
CAUTION
≥ Do not stand on the speakers.
≥ Do not place heavy items on the speakers.
≥ Do not hold the speaker in one hand to avoid injury by dropping
the speaker when carrying.
≥ Do not expose the speakers to direct sunlight, high temperatures,
high humidity, and excessive vibration.
≥ Do not expose the speakers to rain, moisture, dripping or splashing.
≥ The speakers and speaker nets use powerful magnets. Do not put
them near TVs, PCs or other equipment easily influenced by
magnetism.
≥ You can damage your speakers and shorten their useful life if you
play sound at high levels over extended periods.
≥ Do not touch the diaphragms. Doing so might cause distortion.
≥ Be cautious when children are near.
≥ Do not insert a finger into the bass reflex ports on the rear of the
speakers. Pay close attention to children as doing so may cause
personal injury.
≥ Do not connect the speakers to an amplifier with an output greater
than their allowable input.
Doing so may overheat the speakers and cause a fire.
Product Identification Marking is located on the bottom of the unit.
Disposal of Old Equipment
Only for European Union and countries with recycling systems
This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products
must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance
with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human
health and the environment.
For more information about collection and recycling, please contact your local municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
4
SB-C700-SQTxxxx_EB_mst.book 5 ページ
2015年6月12日 金曜日 午前8時59分
Table of contents
Safety precautions ............................................................. 4
Accessories ........................................................................ 5
About this unit.................................................................... 5
Installation .......................................................................... 6
Connections ....................................................................... 7
Attaching the speaker nets................................................ 9
Notes on use..................................................................... 10
Unit care ............................................................................ 10
Specifications ................................................................... 11
About descriptions in this operating instructions
≥ The illustrations shown may differ from your unit.
Accessories
∏ 2 Speaker nets
(RYB0400)
∏ 2 Speaker cables
(For operation checks, 1.2 m)
(RFA3620)
≥ Product numbers provided in this operating instructions are correct as of June 2015. These may be subject to change.
About this unit
∫ Names of parts and features of the speakers
Rear
Front
1 Speaker unit
ヒ
2 Bass reflex port
ビ
3 Speaker terminals
ピ
4 Product Identification Marking
≥ The model number is located on the Product Identification Marking on the bottom of this unit.
1
Flat coaxial 2-way speaker unit*1
2
Dome tweeter that can reproduce frequencies of up to 100 kHz
3
High rigidity entasis form cabinet
The newly developed flat coaxial two-way speaker units (woofer and tweeter) realise a point sound source. Technics's
original flat woofer diaphragm provides smooth directional characteristics over the entire frequency range without peaks
and dips, achieving superb sound localisation and a large soundstage.
*1 Since the flat diaphragm is woven with carbon fibre, its flat panel component has a fine waffle texture.
Please note that this does not affect the performance and other characteristics of the speakers.
The lightweight aluminium diaphragm allows the reproduction of sound over an ultra-wide frequency range that extends
up to 100 kHz. The result is a faithful reproduction of audio signals with all nuances intact.
Designed to eliminate unwanted vibration, diffraction reflection, and standing waves, the cabinet allows the reproduction
of faithful and rich sound ambience.
∫ Recommended devices
We recommend using Technics devices (optional) for superior audio quality.
Product name
Network Audio Player
Compact Disc Player
Stereo Integrated Amplifier
Model number
ST-C700A
SL-C700
SU-C700A
5
SB-C700-SQTxxxx_EB_mst.book 6 ページ
2015年6月12日 金曜日 午前8時59分
Installation
e.g.,
60°
The angle is approximate.
≥ Place the speakers at approximately the same distance from the listening position.
≥ The speakers produce bass sound from the bass reflex ports on the rear as well as from the front. Install the speakers at least
5 cm away from the walls so that they do not cover the bass reflex ports on the rear.
≥ When placing the speakers on stands, be sure to consult an installation specialist to protect the speakers from earthquakes.
≥ Keep the amplifier or any other device and the speakers at least 1 cm away from each other.
∫ For optimum position
The quality and volume of the bass sound, sound localisation performance, sound ambience, and other factors that determine the
audio quality vary depending on the installation location of this unit, listening position, room conditions, and other factors. Refer to
the information below when installing the speakers.
Determining an installation location.
≥ Put the speakers on a flat safe surface.
≥ To minimise the gap in audio quality between the left and right speakers, install them so that acoustic conditions (reflection and
absorption of sound) around them are the same.
≥ Depending on the way the speakers are placed, the speaker cables may not be long enough. In such a case, use desired
cables that are sufficiently long and deliver high quality audio.
Adjusting the distances between the rear of the speakers and the walls
If you install the speakers close to a wall or in a corner, the bass sound will be more powerful; however, when the speakers are
too close to it, sound localisation performance and sound ambience may deteriorate. If this occurs, adjust the distance between
the speakers and the front wall, which should be between 30 cm to 60 cm. (Please note that the distance between the speakers
and the side walls should be greater than 60 cm.)
6
SB-C700-SQTxxxx_EB_mst.book 7 ページ
2015年6月12日 金曜日 午前8時59分
Connections
Connecting the speaker cables
≥ Keep the terminal knobs and the terminal caps out of reach of children to prevent swallowing.
Speaker (rear)
1 Twist the insulation covering the tips
of the speaker cables to pull them
out.
2 Turn the knobs to loosen them, and
insert the core wires into the holes.
3 Tighten the knobs.
Do not insert the vinyl
insulation.
+ (Red)
- (Black)
Cable with
a red line
≥ Do not place the speakers with the front side down. Doing so may damage the speakers.
≥ Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the amplifier.
DO NOT
≥ Check the colours of the speaker cables (supplied) to connect the left and right speakers correctly. Incorrect connection can damage the
speakers.
7
SB-C700-SQTxxxx_EB_mst.book 8 ページ
2015年6月12日 金曜日 午前8時59分
Connecting with an amplifier
≥ Before connection, turn off the amplifier and disconnect its power cord.
≥ For details, refer to the operating instructions of the amplifier.
e.g.,
SU-C700A
1 Turn the knobs to loosen them, and insert the core wires into
the holes.
Cable with a red line
2 Tighten the knobs.
Cable with a red line
Speaker (right)
To the right speaker
Speaker (left)
To the left speaker
≥ Do not move the speaker while the speaker cables are connected. This may cause a short circuit.
≥ When the connections are completed, pull the speaker cables lightly to check that they are connected firmly.
≥ Wire the polarity (+/-) of the terminals correctly. Not doing so may adversely affect stereo effects or cause malfunction.
8
SB-C700-SQTxxxx_EB_mst.book 9 ページ
2015年6月12日 金曜日 午前8時59分
Attaching the speaker nets
The speakers are supplied with speaker nets, which protect the speaker units from dust. Use the magnets to fix the speaker nets
to the speakers.
≥ Attach each speaker net so that the upper part of its back indicated as [Upper] is attached to the upper part of each speaker.
≥ Instruction labels are attached to the upper part of each speaker net. Remove them before use.
Speaker (front)
Speaker net (rear)
Check the orientation of [Upper].
Magnets
Magnets
Speaker unit
DO
DO NOT
≥ Attach the speaker nets so that
they fully cover the speaker
units.
≥ Attaching the speaker nets
upside down may cause the
sound quality to deteriorate.
≥ You can enjoy superior quality audio by removing the speaker nets before playback.
9
SB-C700-SQTxxxx_EB_mst.book 10 ページ
2015年6月12日 金曜日 午前8時59分
Notes on use
To protect the speakers from damage caused by excessive input, observe the following precautions:
≥ Reduce the volume in the following cases to avoid damage:
jWhen playing distorted sound.
jWhen the speakers are receiving howling from a microphone or record player, noise from FM broadcasts, or continuous
signals from an oscillator, test disc, or electronic instrument.
jWhen adjusting the sound quality.
jWhen turning the amplifier on or off.
≥ Avoid raising the volume level too much when enhancing the treble sound with a graphic equalizer or any other controls.
≥ Avoid outputting excessively loud sound with a small power amplifier. Doing so will increase the amplifer’s harmonic distortion
and may damage the speakers.
≥ You can damage your speakers and shorten their useful life if you play sound at high levels over extended periods.
Unit care
Clean the speakers with a soft, dry cloth.
≥ When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and then wipe it with a dry cloth.
≥ Do not use solvents including benzine, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might cause the exterior
case to be deformed or the coating to come off.
10
SB-C700-SQTxxxx_EB_mst.book 11 ページ
2015年6月12日 金曜日 午前8時59分
Specifications
Type
Coaxial 2 way 2 Speaker Bass reflex
Speaker unit
Woofer
Tweeter
Impedance
Input power (IEC)
Sound pressure level
Frequency range
Crossover frequency
Dimensions (WkHkD)
16 cm Flat Typek1
1.9 cm Dome Typek1
4≠
100 W (MAX)
50 W (RATED)
85 dB (2.83 V/m)
82 dB (W/m)
40 Hz to 100 kHz (-16 dB)
45 Hz to 80 kHz (-10 dB)
2.5 kHz
220 mmk336 mmk286 mm
(include net 8 mm and back terminal knob 5 mm)
Mass
Approx. 8.5 kg
Operating temperature range
0 oC to i40 oC
Operating humidity range
20 % to 80 % RH (no condensation)
≥ Specifications are subject to change without notice.
≥ Mass and dimensions are approximate.
11
SB-C700-SQTxxxx_EB_mst.book 72 ページ
2015年6月12日 金曜日 午前8時59分
Headquarter Address:
Importer for Europe:
Panasonic Corporation
Kadoma, Osaka, Japan
Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Corporation
Web Site: http://www.panasonic.com
p
SQT1038
C Panasonic Corporation 2015
F0615SB0
