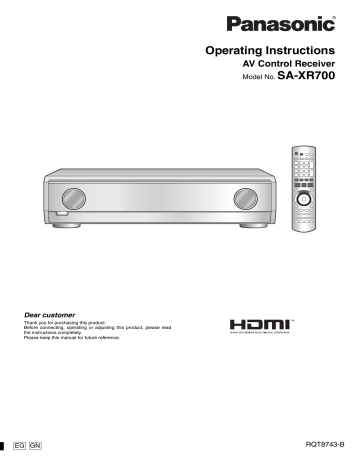

Operating Instructions
AV Control Receiver
Model No.
SA-XR700
Dear customer
Thank you for purchasing this product.
Before connecting, operating or adjusting this product, please read
the instructions completely.
Please keep this manual for future reference.
EG GN
RQT8743-B
ENGLISH
Caution for AC Mains Lead
(For the United Kingdom and Republic of Ireland)
For your safety, please read the following text carefully.
Caution for AC Mains Lead/Safety precautions
This appliance is supplied with a moulded three pin mains plug
for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is
approved by ASTA or BSI to BS1362.
Check for the ASTA mark
or the BSI mark
on the body of
the fuse.
If the plug contains a removable fuse cover you must ensure
that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local
dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE
SHOULD BE REMOVED AND THE PLUG CUT OFF AND
DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK
IF THE CUT OFF PLUG IS INSERTED INTO ANY
13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring code as
stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with
the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the terminal
which is marked with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E, BY THE EARTH SYMBOL
OR COLOURED
GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF–– KEEP DRY.
Before use
Set the unit up on an even surface away from direct sunlight,
high temperatures, high humidity, and excessive vibration.
These conditions can damage the cabinet and other
components, thereby shortening the unit’s service life.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the
unit and cause a fire.
Do not use a DC power source. Check the source carefully when
setting the unit up on a ship or other place where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fire or
electric shock. Do not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC
mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause
electric shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock
or malfunction. If this occurs, immediately disconnect the unit
from the power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any other
problem that is not covered in these operating instructions
occurs, disconnect the AC mains lead and contact your dealer
or an authorized service center. Electric shock or damage to the
unit can occur if the unit is repaired, disassembled or
reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power
source if it is not to be used for a long time.
(For the United Kingdom and Republic of Ireland)
How to replace the fuse
The location of the fuse differ according to the type of AC mains
plug (figures A and B). Confirm the AC mains plug fitted and
follow the instructions below.
Illustrations may differ from actual AC mains plug.
Customer Care Centre
• For customers within the UK: 08705 357357
• For customers within the Republic of Ireland: 01 289 8333
• Visit our website for product information
• E-mail: [email protected]
1. Open the fuse cover with a screwdriver.
Direct Sales at Panasonic UK
• Order accessory and consumable items for your product with ease
and confidence by phoning our Customer Care Centre
Monday-Thursday 9:00am-5:30pm, Friday 9:30am-5:30pm.
(Excluding public holidays)
• Or go on line through our Internet Accessory ordering application at
www.panasonic.co.uk.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are provided
directly by Panasonic UK Ltd.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping for a wide range
of finished products, take a browse on our website for further details.
Figure B
Figure A
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
Figure B
Figure A
Fuse
(5 ampere)
2
Placement
g Sales and Support Information
Remove the connector cover.
RQT8743
Safety precautions
Fuse
(5 ampere)
Interested in purchasing an extended guarantee?
Please call 0870 240 6284 or visit our website
www.panasonic.co.uk/guarantee.
Until now...
Simple connections using
HDMI cables. (➡ page 7)
Many different
cables were
necessary
∗ Other connections
are also possible.
With SA-XR700!
Settings
Until now...
Speakers are set
with just one press.
(➡ page 10)
Manual setting for
each speaker
We must
make speaker
settings...
A
It’s
difficult.
B
Automatic setting
with simple
operations!
It’s easy.
With SA-XR700!
Playback
Until now...
Speakers provide surround
sound when you just play
DVDs or receive TV
broadcast. (➡ page 12)
Remote control
operations for
surround playback
How can we get
sound from speakers
behind us?
When you connect the unit to your TV (VIERA) and DVD
recorder (DIGA) compatible with HDAVI Control
HDAVI Control
TM
Press just one button and enjoy the Home Theater. (➡ page 13)
Previous Home Theater systems required multiple
operations.
The
Home
Theater
begins.
ENGLISH
With SA-XR700!
Connections
Enjoying the Home Theater has become easy!/Supplied accessories
Enjoying the Home Theater has become easy!
One-touch
playback
Supplied accessories
Please check and identify the supplied accessories.
AC mains lead
For continental Europe, the United Kingdom and Republic of Ireland
For continental Europe For the United Kingdom and Republic
(K2CQ2CA00002)
of Ireland (K2CT3CA00004)
1 FM indoor antenna
(RSA0007-L)
1 AM loop antenna
(RSA0037)
For Australia and
New Zealand
1 Setup microphone
(L0CBAB000123)
2 Batteries
1 Remote control
(EUR7662YS0)
(K2CJ2DA00010)
1 Antenna plug adapter
For the United Kingdom
and Republic of Ireland
(K1YZ02000013)
For Australia and
New Zealand
(K2RC021B0004)
Use numbers indicated in parentheses
when asking for replacement parts.
(Product numbers correct as of August
2006. These may be subject to change.)
3
RQT8743
ENGLISH
Table of contents
Before use
Table of contents
Caution for AC Mains Lead................................................... 2
Safety precautions ................................................................ 2
Enjoying the Home Theater has become easy! .................. 3
Supplied accessories............................................................ 3
Control guide ......................................................................... 5
Quick guide
Step 1
Connect a TV and a DVD recorder/DVD player
using HDMI cables ................................................. 7
Step 2
Connect speakers................................................... 8
Step 3
Set speakers and test speaker output
Detecting speakers automatically.................................10
Testing speaker output ..................................................11
Step 4
Watch DVDs or TV ................................................ 12
Control with HDMI (HDAVI Control™)
Enjoying the Home Theater through one-touch operations......13
Preparations
Connections
Connecting cables to video and audio terminals
(to use the TV, DVD recorder, DVD player, VCR)............................14
Connection with 21-pin scart cable
(For continental Europe, the United Kingdom and Republic of Ireland) ........14
Connecting cables to S video and audio terminals
(to use the TV, DVD recorder, DVD player) .....................................15
Connecting cables to component and audio terminals
(to use the TV and DVD recorder) ...................................................16
Other connections
To enjoy TV with surround sound .......................................... 17
To connect a DVD recorder with built-in VCR........................ 17
To enjoy analogue sounds..................................................... 18
To enjoy high-quality analogue sounds using DVD-Audio discs
(DVD analogue 6-channel connections) .............................................18
To connect the unit to a cable box or satellite receiver etc. ... 19
To connect the unit to a CD player......................................... 19
To connect the unit to a video camera or game player etc......... 19
Connecting speakers
To connect bi-wire speakers .................................................. 20
Making bi-wire setting.........................................................................20
To connect a second pair of front speakers........................... 20
Connecting antennas .......................................................... 21
Auto speaker setup using the setup microphone...22
Basic operations
Enjoying the Home Theater.......................................24
Using SPEAKERS B ............................................................. 25
ADVANCED DUAL AMP........................................................ 25
BI-AMP .................................................................................. 25
Playing DVD-Audio (Enjoying DVD-Audio sources through
digital connections/Playing DVD ANALOG 6CH/
Enjoying high quality 2-channel analogue sounds) ............... 25
Operations
Listening to surround sound
Dolby Pro Logic
/NEO:6/SFC (Sound Field Control).... 26
Remote controlling sound effects/convenient functions
4
RQT8743
Adjusting Dolby Pro Logic
’s “MUSIC ” mode ................... 28
Adjusting NEO:6’s “MUSIC ” mode ....................................... 28
Adjusting SFC (Sound Field Control) .....................................28
Adjusting speaker volumes ....................................................29
Adjusting the subwoofer level.................................................29
Silencing speakers temporarily ..............................................29
Dimming the display light (Dimmer) .......................................29
Sound effects/Convenient functions
How to set up........................................................................30
Adjusting the bass..................................................................31
Adjusting the treble ................................................................31
Balancing front speaker volumes ...........................................31
Changing the audio output (Dual program)............................31
Adjusting the brightness of the display...................................31
Sleep timer .............................................................................31
Settings
How to set up........................................................................32
Setting speakers and their sizes ............................................33
Setting distances....................................................................33
Setting the lowpass filter ........................................................33
Changing auto speaker settings
(To return speakers to factory settings/
Setting the unit against automatic polarity adjustment)..........34
Making BI-AMP settings (Cancelling BI-AMP
(using the triple amp mode)/Adjusting the balance/
Correcting the HF and LF difference).....................................34
Setting ADVANCED DUAL AMP off .......................................34
Changing the digital input settings .........................................35
Setting input signals ...............................................................35
Reducing standby power consumption
(power saving standby mode) ................................................35
Setting the unit against HDAVI Control ..................................35
Listening clearly at low volume ..............................................36
Switching the attenuator.........................................................36
Adjusting audio timing to video timing....................................36
RESET (factory settings)........................................................36
Using headphones .....................................................36
Audio signals and amp mechanism .........................37
The radio
Manual tuning.......................................................................38
AM allocation...................................................................................... 38
Preset tuning ........................................................................39
Presetting stations..................................................................39
Listening to preset stations ....................................................39
Reducing excessive noise.................................................................. 39
RDS broadcasts
Changing the display...........................................................40
Remote controlling a TV or DVD recorder etc.
Remote controlling a TV......................................................41
Remote controlling a VCR ...................................................41
Remote controlling a DVD recorder ...................................42
Remote controlling a DVD player........................................43
Remote controlling a CD player..........................................43
Using two or more Panasonic equipment
(a mini component system, an AV amp etc.)..........................44
Entering a code to operate other equipment..........................44
Reference
Troubleshooting guide.........................................................45
Help message .......................................................................46
Specifications.......................................................................46
Maintenance .........................................................................47
This unit
For selecting input sources
(á pages 12 and 24)
Lights on when ADVANCED DUAL AMP is on (á page 25)
Lights on when BI-AMP is on (á page 25)
Lights on during surround playback (á pages 12 and 24)
Standby indicator (^)
When the unit is connected to
the AC mains supply, this
indicator lights up in standby
mode and goes out when the
unit is turned on.
Standby/on switch [8]
Press to switch the unit from on
to standby mode or vice versa.
In standby mode, the unit is still
consuming a small amount of
power.
INPUT SELECTOR
Lights on during the auto
speaker setup (á page 22)
Lights on while
communicating through
HDMI connections
(á page 12)
For adjusting volumes
(á pages 12 and 24)
VOLUME
BI-AMP
SURROUND
AUTO SPEAKER SETUP
HDMI
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
SPEAKERS
RETURN
TUNE
SETUP MIC
AUX
AUTO DETECTOR
-MENU/-SETUP
ENTER
SPEAKERS
SURROUND
TUNE
S VIDEO
RETURN
L
VIDEO
-AUDIO-R
SETUP MIC
AUX
AUTO DETECTOR
For MENU operations
(á pages 30, 31, 38, 39 and 40)
For SETUP operations
(á pages 20, 32 to 36 and 44)
For connecting headphones
(á page 36)
For tuning the radio and selecting
preset stations (á pages 38 and 39)
For connecting the setup
microphone (á page 22)
For selecting front speakers
(á pages 11, 12, 22, 24 and 25)
For detecting speakers
automatically (á page 10)
For switching the surround function
on and off (á pages 12 and 24)
Control guide
ENGLISH
Control guide
For connecting a video
camera etc. (á page 19)
Display
Lights on when
2-channel mix is
functioning
Radio display
2CH MIX
TUNED
Sleep timer indicator
Unit display
MONO ST RDS PS PTY M SLEEP
Lights on when PCM FIX is selected
DIGITAL INPUT
PCM
SPEAKERS
BI-WIRE
A
B
Input signals (digital audio)
(á page 37)
cm DTS 96/24DTS-ES
kHz
MHz
General display
Displays front speakers in use
DIGITAL EX
EX
Frequency unit indicators
Remote control
RECORDER
DVD
TV
TUNER
CD
BAND
CH
VOLUME
0
DIRECT
TUNING
DISC
-/- -
SKIP
STOP
SLOW/SEARCH
PAUSE
MANUAL SKIP
TOUCH PLAY
ONE
ENTER
For adjusting the subwoofer
level (á page 29)
For listening to surround
sounds (á pages 26 to 28)
SUBWOOFER
OFF
MUSIC
For adjusting volumes
(á pages 13 and 29)
Use
Remote control signal sensor
INPUT SELECTOR
BI-AMP
For operating other
equipment
(á pages 13 and 41 to 43)
SURROUND
AUTO SPEA
ADVANCED DUAL AMP
Transmission window
TV/AV
MOVIE
For selecting a channel
Place this side in before the other side
TUNER (á page 39)
when you close.
TV (á page 41)
• Insert so the poles (( and )) match those in the
VCR (á page 41)
remote control.
DVD recorder (á page 42) • Do not use rechargeable type batteries.
• Do not heat or expose to flame.
For silencing speakers
temporarily (á page 29)
EFFECT VOL
AUTO
TEST
(R6/LR6, AA)
RETURN
TV
NEO : 6
SFC
For playing DVD-Audio
sources on 6 channels
(á page 25)
About 7 meters or less when you
sit directly in front of the signal
sensor (Exact distance depends
on angles).
DIMMER
LEVEL
Press on the tab to open.
PLAY
DRIVE SELECT
SUB MENU
For dimming the display
light (á page 29)
PLAYER
BD/DVD
ANALOG 6CH
VCR
Batteries
CTIONS
FUN
For inputting channels
TV (á page 41)
VCR (á page 41)
DVD recorder (á page 42)
For selecting a track or
chapter
DVD recorder (á page 42)
DVD player (á page 43)
For selecting a track
CD player (á page 43)
For inputting the station
frequency/
For selecting a channel
TUNER (á pages 38 and 39)
AV
SYSTEM
TOP
ME
For selecting tuner/
For switching FM or AM
(á page 38)
N
DIRECT NAVIGATO U
R
Power button
RECEIVER
For switching an input
source on and off/
Source switching/
Switching remote control
modes (á pages 41 to 44)
MUTING
For confirming speaker
output (á page 11)/
For auto speaker setup
using the setup microphone
(á page 22)/
For adjusting speaker
volumes (á page 29)
Caution
• Do not place an object between the signal sensor
and the remote control.
• Do not place the signal sensor under direct sunlight
or the strong light of an inverter fluorescent lamp.
• Keep the transmission window and the unit’s
sensor free from dust.
When you set the unit in a cabinet
The remote controlling range may decrease
depending on the thickness or colours of glass
cabinet doors.
5
RQT8743
ENGLISH
Quick guide
This section introduces basic connection, setting and playback methods for enjoying the Home Theater.
Quick guide
• Turn off all equipment before making any connections.
• Peripheral equipment sold separately unless otherwise indicated.
• To connect equipment, refer to the appropriate operating instructions.
Step
1
Connect a TV and a DVD recorder/DVD player using HDMI cables (á page 7)
Using HDMI connections, you can easily
enjoy high-quality pictures and sounds.
To make HDMI connections, you need an HDMI terminal on both
your TV and DVD recorder (DVD player).
When one of the two or both equipment lacks an HDMI terminal:
You can connect cables to S video terminals (á page 15).
You can connect cables to component terminals (á page 16).
You can connect cables to video terminals (in the absence of
component or S video terminals) (á page 14).
Step
2
・メニュー −初期設定 決定
サラウンド
外部入力
スピーカー
A
戻る
測定マイク
引-開
W
B
自動検出
Connect speakers (á page 8)
You install and connect speakers in this step.
・メニュー −初期設定 決定
サラウンド
Step
3
外部入力
スピーカー
A
戻る
測定マイク
引-開
W
B
自動検出
Set speakers and test speaker output (á page 10)
Using automatic speaker detection, you can
easily set speakers.
After speakers are set, you can confirm audio output using the test
signal.
Step
4
Watch DVDs or TV (á page 12)
You can enjoy DVDs with surround sound.
・メニュー −初期設定 決定
サラウンド
スピーカー
A
戻る
6
RQT8743
B
自動検出
外部入力
測定マイク
W
引-開
Connection cable (All cables are sold separately)
Video and Audio cable
HDMI Cable (It is recommended that you use Panasonic’s HDMI cable.)
[Recommended part number: RP-CDHG15 (1.5 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m) etc.]
Audio cable
Stereo phono cable
White (L)
Red (R)
.
TV
HDMI
(AV IN)
You need a stereo phono cable for
enjoying TV with surround sound.
See “To enjoy TV with surround sound”
(á page 17) for making digital
connections (using an optical cable).
AUDIO OUT
(R) (L)
Rear panel
LOOP
EXT
LOOP ANT
GND
R
FRONT A
LF
BI-WIRE
L
R
FRONT B
HF
CENTER
L
SURROUND
R
SURROUND BACK
L
R
L
75
(BD/DVD PLAYER) IN
OUT
FM ANT
(DVD RECORDER) IN
AM ANT
DIGITAL IN
(BD/
(TV/STB) (DVD RECODER) DVD PLAYER)
S VIDEO
(CD)
OPTICAL1 OPTICAL2 COAXIAL1 COAXIAL2
VIDEO
OUT
IN
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER DVD RECORDER
IN
IN
VCR
TV/STB
CENTER
A OR B / BI-WIRE (4-16 Ω EACH SPEAKER) A AND B (6-16 Ω EACH SPEAKER)
SPEAKERS
L
Y
R
PB
PR
Y
TV MONITOR OUT
IN
CD
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
IN
DVD RECORDER
IN
VCR
IN
TV/STB
PB
PR
DVD RECORDER IN
Y
(6-16 Ω EACH SPEAKER)
PB
PR
TV / STB IN
AC IN
COMPONENT VIDEO
OUT
SUBWOOFER
AUDIO
DVD player
(BD player)
HDMI
(AV OUT)
HDMI
(AV OUT)
DVD recorder
HDMI connection
The HDMI input terminal on the unit’s rear is made to specifications that presume connection of a DVD recorder/DVD player.
When other equipment is connected, sounds may not come out of the unit, or pictures shown on the equipment (TV) connected to
the HDMI output terminal may be disrupted.
In such cases, see page 19 and make connections other than HDMI.
You can hear DVD sounds from speakers on the TV when you turn off the unit connected in the way shown above (standby
through function). This convenient function enables you to enjoy DVDs late at night.
Note
HDMI stands for High-Definition Multimedia Interface.
• The HDMI cable enables you to transmit digital audio and video signals using a single cable. You can also transmit control signals
using HDMI connections.
• The unit complies with CPPM∗1. It can digitally transmit surround sound in DVD-Audio sources.
∗1 Content Protection for Prerecorded Media (CPPM): This copyright protection technology prevents copying of DVD-Audio files.
• We recommend using Panasonic cables 5.0 meters long or shorter for enjoying 1125p∗2 (1080p) pictures. They prevent picture
degradation.
∗2 1125p (1080p): a progressive (non-interlace) scanning system that sends 1,125 scan lines every 1/60 second.
• The audio signal transmitted through HDMI takes priority when you use both HDMI and digital terminals (á pages 14 to 17) for
connection.
ENGLISH
Quick guide
1 Connect a TV and a DVD recorder/DVD player using HDMI cables
Connect a TV and a DVD recorder/DVD player using HDMI cables
Step
When the HDMI terminal does not exist on your TV, DVD recorder (DVD player) or both
You can connect cables to S video terminals.
See page 15.
You can connect cables to component terminals.
See page 16.
You can connect cables to video terminals.
See page 14.
Move on to “Connect speakers”
(á page 8) in the Quick guide.
7
RQT8743
ENGLISH
Step
Quick guide
2 Connect speakers
The ideal placement is to set each speaker (excluding the subwoofer) the same distance away from the listening-viewing position.
Measure the actual distance from each of the connected speakers to the listening-viewing position and perform steps
instructed in “Setting distances” (á page 33) or perform steps instructed in “Auto speaker setup using the setup
microphone” (á page 22) when you cannot install speakers the same distance away.
Example: Front speakers (2), center speaker (1), surround speakers (2), surround back speaker(s)
(1 or 2) and subwoofer
This is a placement suited for playing 6.1-channel sources
(Dolby Digital Surround EX and DTS-ES materials).
This placement offers 7.1/6.1-channel playback of 2-channel
and 5.1-channel sources with the aid of Dolby Pro Logic
,
NEO:6, and SFC technology.
Center speaker
Front speaker (right)
Connect speakers
Front speaker (left)
Surround speaker (right)
Subwoofer
Surround back speaker
(right)
Surround back speaker
(one speaker only)
Surround speaker (left)
Surround back speaker (left)
Front speakers (left, right)
Place on the left and right of the TV at seated ear height so that there is good coherency between the picture and sound.
Center speaker
Place underneath or above the center of the TV. Aim the speaker at the seating area.
When you do not install the center speaker, sound assigned to it is distributed to front speakers and output from them.
Surround speakers (left, right)
Place on the side of or slightly behind the seating area.
When you do not install surround speakers, sound assigned to them is distributed to front speakers and output from them.
Surround back speakers (left, right)
Place behind the seating area, about 1 meter higher than ear level.
When you do not install any surround back speaker, sound assigned to them is distributed to surround speakers or front speakers and
output from them.
Subwoofer
The subwoofer can be placed in any position as long as it is at a reasonable distance from the TV.
How to connect speaker cables
1
2
Speaker terminals
Remove the vinyl covering the tips
of speaker cords by twisting it off.
8
RQT8743
Note
• Connect speaker cords properly to terminals after making
sure left and right, and ( and ). Improper connections may
cause the unit to develop problems.
• Do not short-circuit speaker cords. The action may damage
circuits.
ENGLISH
Use the terminal for the left speaker when you
connect one surround back speaker only.
Front speakers
(R) (L)
Surround speakers
(R) (L)
Surround back
speakers
Center
(R) (L)
speaker
Speaker cable
Quick guide
Speaker impedance
Front A:
4 to 16 Ω
Center:
6 to 16 Ω
Surround:
6 to 16 Ω
Surround back: 6 to 16 Ω
LOOP
EXT
LOOP ANT
GND
R
FRONT A
LF
BI-WIRE
L
R
FRONT B
HF
CENTER
L
SURROUND
R
SURROUND BACK
L
R
L
75
(BD/DVD PLAYER) IN
OUT
FM ANT
(DVD RECORDER) IN
AM ANT
DIGITAL IN
(BD/
(TV/STB) (DVD RECODER) DVD PLAYER)
S VIDEO
(CD)
OPTICAL1 OPTICAL2 COAXIAL1 COAXIAL2
VIDEO
OUT
IN
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER DVD RECORDER
IN
IN
VCR
TV/STB
CENTER
A OR B / BI-WIRE (4-16 Ω EACH SPEAKER) A AND B (6-16 Ω EACH SPEAKER)
SPEAKERS
L
Y
R
PB
PR
Y
TV MONITOR OUT
IN
CD
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
IN
DVD RECORDER
IN
VCR
IN
TV/STB
OUT
SUBWOOFER
PB
PR
DVD RECORDER IN
Y
(6-16 Ω EACH SPEAKER)
PB
PR
AC IN
TV / STB IN
COMPONENT VIDEO
AUDIO
Monaural
connection
cable
Connect speakers
Rear panel
AC mains lead
(included)
To household
mains socket
Active
subwoofer
FOR THE UNITED KINGDOM AND REPUBLIC OF IRELAND ONLY
READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 2 BEFORE CONNECTION.
Insertion of connector
(Except the United Kingdom and Republic of Ireland)
Even when the connector is perfectly inserted, depending on the type
of inlet used, the front part of the connector may jut out as shown in
the drawing.
However there is no problem using the unit.
Appliance inlet
Connector
Approx. 6 mm
Connect AC mains lead after all other cables and cords are connected.
• The included AC mains lead is for use with this unit only. Do not use it with other equipment.
• Do not use an AC mains lead from any other type of equipment with this unit.
• The unit’s settings remain effective after the AC mains lead is removed from the household mains socket.
Note
Do not forget to take steps instructed in “Set speakers and test speaker output” (á page 10) or “Auto speaker setup using the setup
microphone” (á page 22) after connecting a new speaker.
9
RQT8743
ENGLISH
Step
3 Set speakers and test speaker output
Quick guide
The unit checks each speaker’s connection status and make speaker settings automatically.
SPEAKERS
“ ”
B
AUTO DETECTOR
INPUT SELECTOR
VOLUME
BI-AMP
SURROUND
AUTO SPEAKER SETUP
HDMI
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
RETURN
-MENU/-SETUP
SPEAKERS
TUNE
SETUP MIC
AUX
AUTO DETECTOR
ENTER
SURROUND
SPEAKERS
TUNE
S VIDEO
RETURN
-AUDIO-R
L
VIDEO
SETUP MIC
AUX
AUTO DETECTOR
Detecting speakers automatically
CH
VOLUME
0
DIRECT
TUNING
DISC
-/- -
SKIP
STOP
SLOW/SEARCH
PAUSE
PLAY
MANUAL SKIP
ENTER
SUB MENU
• The standby indicator “^” goes off when
you turn the unit on.
8
To check the speaker
presence
SPEAKERS
Press
A
B
AUTO DETECTOR
simultaneously.
Automatic speaker detection starts.
The unit checks the center speaker, surround
speakers, surround back speakers and the
subwoofer in that order.
(The connection status for front speakers is always
present.)
RETURN
SUBWOOFER
OFF
LEVEL
The display shows the number of detected speakers
(excluding the subwoofer).
TV
DIMMER
EFFECT VOL
NEO : 6
The display shows connected speakers.
TV/AV
SFC
MUSIC
Press
TOUCH PLAY
ONE
TOP
ME
N
DIRECT NAVIGATO U
R
DRIVE SELECT
1
2
To turn the unit on
CTIONS
FUN
Set speakers and test speaker output
A
MOVIE
AUTO
TEST
(e.g.)
MUTING
When automatic detection is finished, the display
returns to the original.
How speakers are displayed
L : Front left
C : Center
R : Front right
SB : Surround back W : Subwoofer
S : Surround
“WARNING ” messages may appear on the display depending on detection results.
The right surround back speaker was detected, but the unit did not detect the left surround back
speaker. Use the terminal for the left speaker when you connect one surround back speaker only
(á page 9).
The unit did not detect left and right surround speakers.
Connect surround speakers as well when you connect surround back speakers to the unit.
The unit did not detect one of the two surround speakers.
Check speaker connections.
Note
• Automatic detection does not work well depending on speakers and cables.
Make speaker settings manually in such cases (á page 33).
• These settings remain effective after the unit goes off.
• The unit considers seven speakers and one subwoofer are connected to the unit (keeps factory settings) unless you perform these steps.
• Perform the above steps when you connect a new speaker.
10
RQT8743
ENGLISH
1
To select “SPEAKERS A”
Press
SPEAKERS
A
to switch “
A
When only the SPEAKERS A
setting is selected
When SPEAKERS A and
SPEAKERS B settings are
selected
SPEAKERS
SPEAKERS
” on.
A
A
B
• If you select SPEAKERS B only, the test signal will not be
output.
2
To test speaker output
Press
AUTO
TEST
• Adjust the volume of front speakers to the normal
listening level.
• The test signal is output from one speaker at a
time for two seconds in the order shown below.
L
C
R
RS
SBR
SBL
LS
SW
LS
SW
or
L
C
R
RS
SB
(When you connect one surround back speaker)
Speaker
How speakers are displayed
L:
RS :
SBR :
SB :
SW :
3
Front left
C : Center
R : Front right
Surround right
LS : Surround left
Surround back right
SBL : Surround back left
Surround back
(When you connect one surround back speaker)
Subwoofer
Quick guide
Confirm audio output using the test signal after speakers are set.
Set speakers and test speaker output
Testing speaker output
To stop the test signal
Press
AUTO
TEST
Note
• Unconnected speakers do not output the test signal.
• Check connections and perform automatic speaker detection once again when a connected speaker does not output the test signal.
(á pages 9 and 10)
• When bi-wire speakers are connected (á page 20), press [SPEAKERS A] or [SPEAKERS B] to switch “ A
B ” on.
SPEAKERS
BI-WIRE
A
B
To make detailed settings
To make various settings automatically
With the supplied setup microphone, the unit sets speaker distances, polarity, size,
lowpass filter, frequency and levels automatically (á page 22).
To set speakers the way you like
“Adjusting speaker volumes” (á page 29)
“Setting speakers and their sizes” (á page 33)
“Setting distances” (á page 33)
“Setting the lowpass filter” (á page 33)
11
RQT8743
ENGLISH
Quick guide
Watch DVDs or TV
Step
4 Watch DVDs or TV
SPEAKERS
INPUT SELECTOR
“SURROUND”
A
“HDMI”
VOLUME
INPUT SELECTOR
VOLUME
“ ”
BI-AMP
SURROUND
AUTO SPEAKER SETUP
HDMI
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
RETURN
-MENU/-SETUP
SURROUND
SPEAKERS
SPEAKERS
TUNE
SETUP MIC
AUX
AUTO DETECTOR
ENTER
SURROUND
RETURN
SPEAKERS
TUNE
S VIDEO
-AUDIO-R
L
VIDEO
SETUP MIC
AUX
AUTO DETECTOR
Turn the TV on and switch the TV’s input mode (to “HDMI” and others).
1
To turn the unit on
Press
8
The “SURROUND” indicator lights on
(factory setting).
2
3
• The standby indicator “^” goes off when you turn the unit on.
To select “SPEAKERS A”
Press
SPEAKERS
A
to switch “
A
” on.
SPEAKERS
A
To select “DVR ”, “BD/DVD ”
or “TV/STB ”
INPUT SELECTOR
Note
Turn
You can also select the input source using the
remote control (á page 5).
• Select the connected terminal when the
names of the terminal and equipment you wish
to use for playback do not match.
4
5
Watch DVDs or TV
• The “HDMI” indicator lights on while
communicating through HDMI connections.
To adjust the volume
VOLUME
Turn
Volume range:
– – dB (minimum),
– 79dB to 0dB (maximum)
To finish watching
Be sure to reduce the volume and press [8] to turn the unit to standby.
Note
Playback modes switch between 2-channel stereo and surround each time you press [SURROUND].
The “SURROUND” indicator is off during 2-channel stereo playback.
When you play back sources using a CD player and other equipment
See page 24.
12
RQT8743
1 Connect the unit to a Panasonic TV
(VIERA) and DVD recorder (DIGA) under
HDAVI Control using the HDMI cable.
(It is recommended that you use Panasonic’s
HDMI cable. Non-HDMI-compliant cables
cannot be utilized.)
2 Make settings in the menu for the TV
(VIERA) to activate linked HDAVI Control
operations.
3 Perform the following steps to make sure
the unit accurately identifies connected
equipment.
1) Turn all equipment on.
2) Switch the TV (VIERA) off and then put it
back on.
3) Switch the unit’s input to “DVR ” and make
sure the TV (VIERA) correctly shows
pictures.
(Take these steps after changing connections
or settings.)
HDMI
(AV OUT)
DVD recorder
(DIGA)
Rear panel
TV (VIERA)
(BD/DVD PLAYER) IN
OUT
(DVD RECORDER) IN
S VIDEO
VIDEO
OUT
IN
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER DVD RECORDER
IN
IN
VCR
TV/STB
CENTER
A OR B
L
R
IN
CD
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
IN
DVD RECORDER
IN
VCR
IN
TV/STB
HDMI
(AV IN)
(L) AUDIO
(R) OUT
OUT
SUBWOOFER
AUDIO
You need a stereo phono cable for enjoying
TV with surround sound.
.
Enjoying the Home Theater through one-touch operations
CH
Aim the remote control at the DVD recorder (DIGA) and press
VOLUME
0
DIRECT
TUNING
DISC
-/- -
SKIP
STOP
SLOW/SEARCH
PAUSE
PLAY
MANUAL SKIP
TOP
ME
ENTER
The following operations are automatically performed when you just press [ONE TOUCH PLAY].
1 The DVD recorder goes on and starts playing back the recorded media in the selected drive (e.g.
HDD, DVD).
2 The TV goes on and the TV input changes.
3 Surround playback starts after the unit is turned on and the input source for the unit switches to
“DVR ”.
ENGLISH
VOLUME
TOUCH PLAY
ONE
CTIONS
FUN
N
DIRECT NAVIGATO U
R
DRIVE SELECT
TOUCH PLAY
ONE
Quick guide
What is HDAVI Control?
HDAVI Control is a convenient function that offers linked operations of this unit, and a Panasonic TV (VIERA) or DVD recorder
(DIGA) under HDAVI Control. You can use this function by connecting the equipment with the HDMI cable. See the operating
instructions for connected equipment for operational details.
Control with HDMI (HDAVI ControlTM)
Control with HDMI (HDAVI Control™)
To adjust the volume: Press
You can also adjust the volume on your TV (VIERA)’s remote control.
(A message informing the action appears on your TV while you adjust the volume.)
• Press [u SKIP] to start playing a DVD disc or a recorded TV program again when playback does
not start from the beginning.
Note
• Only this unit turns off when you shut it down. Other connected equipment compatible with HDAVI Control stay on.
• Audio output automatically switches to speakers on your TV (VIERA) when you turn the unit off.
Audio output from the DVD recorder (DIGA) switches from speakers on the TV (VIERA) to speakers connected to the unit when you
turn the unit on.
• This unit goes from off to on, and speakers connected to this unit start making audio output when you set the TV (VIERA) to output
sounds from the unit.
• This unit automatically goes off when you switch your TV (VIERA) off. (This operation is unavailable when you set the input source as
“TUNER ” or “CD ” on this unit.)
• (For Australia and New Zealand) Only this unit turns off when you shut it down. Other connected equipment compatible with HDAVI
Control stay on.
• The input for the unit switches automatically to “DVR ” when a source is played back on the DVD recorder.
• When pictures arrive after sounds, select “ON ” in “Adjusting audio timing to video timing” (á page 36).
• To set the unit against HDAVI Control, see page 35.
Enjoying sounds from the TV
The input source for the unit switches to “TV/STB ” when you select a TV channel or operate the TV in other ways (á page 41).
13
RQT8743
ENGLISH
Connections
Connecting cables to video and audio terminals (to use the TV, DVD recorder, DVD player, VCR)
Connection cable (All cables are sold separately)
Connections
Video cable
Scart cable
21-pin scart cable
Video connection cable
Use when connecting equipment with a 21-pin scart
terminal.
Audio cable
Optical fiber cable
Coaxial cable
Stereo phono cable
White (L)
Red (R)
Changing the digital input
settings
For example, you can connect
the unit to a DVD player that
makes optical output only by
performing the steps instructed
in “Changing the digital input
settings” (á page 35).
• To enjoy TV with surround sound,
make
additional
connections
instructed on page 17.
VIDEO IN
TV
LOOP
EXT
Rear panel
LOOP ANT
GND
75
(BD/DVD PLAYER) IN
OUT
FM ANT
(DVD RECORDER) IN
AM ANT
DIGITAL IN
S VIDEO
(BD/
(TV/STB) (DVD RECODER) DVD PLAYER)
VIDEO
OUT
IN
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER DVD RECORDER
(CD)
OPTICAL1 OPTICAL2 COAXIAL1 COAXIAL2
IN
IN
VCR
TV/STB
CENTER
A OR B / BI-
L
How to connect the optical
fiber cable
Y
R
TV
IN
CD
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
IN
DVD RECORDER
IN
VCR
IN
TV/STB
OUT
SUBWOOFER
AUDIO
Insert the cable after
making sure shapes
match.
DIGITAL
VIDEO
AUDIO OUT OUT
(OPTICAL)
DIGITAL VIDEO
AUDIO OUT OUT
(COAXIAL)
Do not sharply bend the
optical fiber cable.
DVD player
(BD player)
(R) (L)
AUDIO OUT
DVD recorder
VIDEO
OUT
VCR
Note
• The input video signal can be sent out through an output terminal of the same type only.
• See page 19 for connecting the unit to a cable box or satellite receiver.
Connection with 21-pin scart cable (For continental Europe, the United Kingdom and Republic of Ireland)
Rear panel
EXT
AV
AV
LOOP ANT
GND
(BD/DVD PLAYER) IN
OUT
(DVD RECORDER) IN
M ANT
S VIDEO
VIDEO
DVD recorder
CD)
XIAL2
OUT
IN
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER DVD RECORDER
IN
IN
VCR
TV/STB
TV
CENTER
A
L
14
RQT8743
DVD player
(BD player)
AV
R
IN
CD
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
IN
DVD RECORDER
AUDIO
IN
VCR
IN
TV/STB
OUT
SUBWOOFER
Connecting cables to S video and audio terminals
(to use the TV, DVD recorder, DVD player)
ENGLISH
• Turn off all equipment before making any
connections.
• Peripheral equipment sold separately unless
otherwise indicated.
• To connect equipment, refer to the appropriate
operating instructions.
Connections
Connection cable (All cables are sold separately)
Video cable
S VIDEO connection cable
Audio cable
Optical fiber cable
Coaxial cable
Changing the digital input
settings
For example, you can connect
the unit to a DVD player that
makes optical output only by
performing the steps instructed
in “Changing the digital input
settings” (á page 35).
S VIDEO
IN
• To enjoy TV with surround
sound,
make
additional
connections instructed on
page 17.
TV
Rear panel
LOOP
EXT
LOOP ANT
GND
75
(BD/DVD PLAYER) IN
OUT
FM ANT
How to connect the optical
fiber cable
(DVD RECORDER) IN
AM ANT
DIGITAL IN
(BD/
(TV/STB) (DVD RECODER) DVD PLAYER)
S VIDEO
(CD)
OPTICAL1 OPTICAL2 COAXIAL1 COAXIAL2
VIDEO
OUT
IN
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER DVD RECORDER
IN
IN
VCR
TV/STB
CENTER
Insert the cable after
making sure shapes
match.
A OR B / BI-
L
Y
R
TV
IN
CD
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
IN
DVD RECORDER
IN
VCR
IN
TV/STB
OUT
SUBWOOFER
AUDIO
Do not sharply bend the
optical fiber cable.
DIGITAL S VIDEO
AUDIO OUT OUT
(COAXIAL)
DVD player
(BD player)
S VIDEO DIGITAL
OUT AUDIO OUT
(OPTICAL)
DVD recorder
Note
• The input video signal can be sent out through an output terminal of the same type only.
• See page 19 for connecting the unit to a cable box or satellite receiver.
15
RQT8743
ENGLISH
Connections
Connections
Connecting cables to component and audio terminals (to use the TV and DVD recorder)
The component video terminals can produce more accurate colours than the S video terminals (á page 15).
Connection cable (All cables are sold separately)
Video cable
Audio cable
Optical fiber cable
Video connection cable
Y
PB
PR
COMPONENT
VIDEO IN
TV
• To enjoy TV with surround sound,
make
additional
connections
instructed on page 17.
“Changing the digital input
settings” (á page 35)
LOOP
EXT
Rear panel
LOOP ANT
GND
R
FRONT A
LF
BI-WIRE
L
R
FRONT B
HF
CENTER
L
SURROUND
R
SURROUND BACK
L
R
L
75
(BD/DVD PLAYER) IN
OUT
FM ANT
(DVD RECORDER) IN
AM ANT
DIGITAL IN
(BD/
(TV/STB) (DVD RECODER) DVD PLAYER)
S VIDEO
(CD)
OPTICAL1 OPTICAL2 COAXIAL1 COAXIAL2
VIDEO
OUT
IN
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER DVD RECORDER
IN
IN
VCR
TV/STB
CENTER
A OR B / BI-WIRE (4-16 Ω EACH SPEAKER) A AND B (6-16 Ω EACH SPEAKER)
SPEAKERS
L
Y
R
PB
PR
TV MONITOR OUT
IN
CD
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
IN
DVD RECORDER
IN
VCR
IN
TV/STB
Y
PB
PR
Y
DVD RECORDER IN
(6-16 Ω EACH SPEAKER)
PB
TV / STB IN
PR
AC IN
COMPONENT VIDEO
OUT
SUBWOOFER
AUDIO
How to connect the optical
fiber cable
Insert the cable after
making sure shapes
match.
Y
Do not sharply bend the
optical fiber cable.
DIGITAL
AUDIO OUT
(OPTICAL)
PB
PR
COMPONENT
VIDEO OUT
DVD recorder
Component video terminals
The component video terminals (colour-difference video terminals) output red (PR), blue (PB), and luminance (Y) signals
separately. The terminals reproduce colours with greater accuracy for this reason.
Note
• The input video signal can be sent out through an output terminal of the same type only.
• See page 19 for connecting the unit to a cable box or satellite receiver.
16
RQT8743
Other connections
Connection cable (All cables are sold separately)
ENGLISH
• Turn off all equipment before making any
connections.
• Peripheral equipment sold separately unless
otherwise indicated.
• To connect equipment, refer to the appropriate
operating instructions.
Video cable
Connections
Video connection cable
Audio cable
Optical fiber cable
Stereo phono cable
White (L)
Red (R)
To enjoy TV with surround sound
Make the following connections in addition to those instructed on pages 14 to 16.
• Speakers produce sounds when you make connections for either digital audio (OPTICAL) output or analogue audio output. Make
connections according to your equipment and preference.
• Use the optical fiber cable for connection when your TV has the digital output terminal.
DIGITAL
AUDIO OUT
(OPTICAL)
How to connect the optical
fiber cable
AUDIO OUT
(R) (L)
Insert the cable after
making sure shapes
match.
TV
Rear panel
LOOP
EXT
LOOP ANT
GND
R
FRONT A
LF
BI-WIRE
L
R
FRONT B
HF
Do not sharply bend the
optical fiber cable.
L
75
(BD/DVD PLAYER) IN
OUT
FM ANT
(DVD RECORDER) IN
AM ANT
DIGITAL IN
S VIDEO
(BD/
(TV/STB) (DVD RECODER) DVD PLAYER)
VIDEO
OUT
IN
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER DVD RECORDER
(CD)
OPTICAL1 OPTICAL2 COAXIAL1 COAXIAL2
IN
IN
VCR
TV/STB
CENTER
A OR B / BI-WIRE (4-16 Ω EACH SPEAKER) A AND B (6-16 Ω EACH SPEAKER)
S
L
“Changing the digital input
settings” (á page 35)
Y
R
PB
PR
Y
TV MONITOR OUT
IN
CD
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
IN
DVD RECORDER
IN
VCR
IN
TV/STB
PB
PR
DVD RECORDER IN
COMPONENT VID
OUT
SUBWOOFER
AUDIO
To connect a DVD recorder with built-in VCR
VIDEO IN
“Changing the digital input
settings” (á page 35)
LOOP
EXT
Rear panel
TV
LOOP ANT
GND
R
FRONT A
LF
BI-WIRE
L
R
FRONT B
HF
CENTER
L
SURROUND
R
SURROUND BACK
L
R
L
75
(BD/DVD PLAYER) IN
OUT
FM ANT
(DVD RECORDER) IN
AM ANT
DIGITAL IN
(BD/
(TV/STB) (DVD RECODER) DVD PLAYER)
S VIDEO
(CD)
OPTICAL1 OPTICAL2 COAXIAL1 COAXIAL2
VIDEO
OUT
IN
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER DVD RECORDER
IN
IN
VCR
TV/STB
CENTER
A OR B / BI-WIRE (4-16 Ω EACH SPEAKER) A AND B (6-16 Ω EACH SPEAKER)
SPEAKERS
L
Y
R
PB
PR
TV MONITOR OUT
IN
CD
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
IN
DVD RECORDER
IN
VCR
IN
TV/STB
Y
PB
PR
DVD RECORDER IN
OUT
SUBWOOFER
COMPONENT VIDEO
(R) (L)
AUDIO OUT
VIDEO
OUT
Y
(6-16 Ω EACH SPEAKER)
PB
TV / STB IN
PR
AC IN
AUDIO
How to connect the optical
fiber cable
Insert the cable after
making sure shapes
match.
Do not sharply bend the
optical fiber cable.
DIGITAL
AUDIO OUT
(OPTICAL)
VIDEO
OUT
DVD OUT terminals
DVD/VCR COMMON OUT terminals
DVD recorder with
built-in VCR
• See page 24 for
playback instructions.
17
RQT8743
ENGLISH
Connections
Other connections
Connection cable (All cables are sold separately)
Connections
Video cable
S VIDEO connection cable
Video connection cable
Audio cable
Optical fiber cable
Stereo phono cable
Coaxial cable
White (L)
Red (R)
To enjoy analogue sounds
Make analogue connections according to your equipment and preference. See pages 14 to 16 for video connections.
Rear panel
LOOP
EXT
LOOP ANT
GND
R
FRONT A
LF
BI-WIRE
L
R
FRONT B
HF
CENTER
SURROUND
L
R
SURROUND BACK
L
R
L
75
(BD/DVD PLAYER) IN
OUT
FM ANT
(DVD RECORDER) IN
AM ANT
DIGITAL IN
S VIDEO
(BD/
(TV/STB) (DVD RECODER) DVD PLAYER)
VIDEO
OUT
IN
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER DVD RECORDER
(CD)
OPTICAL1 OPTICAL2 COAXIAL1 COAXIAL2
IN
IN
VCR
TV/STB
CENTER
A OR B / BI-WIRE (4-16 Ω EACH SPEAKER) A AND B (6-16 Ω EACH SPEAKER)
SPEAKERS
L
Y
R
PB
PR
Y
TV MONITOR OUT
IN
CD
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
IN
DVD RECORDER
IN
VCR
IN
TV/STB
PB
PR
(6-16 Ω EACH SPEAKER)
Y
DVD RECORDER IN
PB
PR
AC IN
TV / STB IN
COMPONENT VIDEO
OUT
SUBWOOFER
AUDIO
DVD player
(BD player)
DVD recorder
(R) (L)
AUDIO OUT
(R) (L)
AUDIO OUT
To enjoy high-quality analogue sounds using DVD-Audio discs (DVD analogue 6-channel connections)
Rear panel
LOOP
EXT
LOOP ANT
GND
R
FRONT A
LF
BI-WIRE
L
R
FRONT B
HF
CENTER
L
SURROUND
R
SURROUND BACK
L
R
L
75
(BD/DVD PLAYER) IN
OUT
FM ANT
(DVD RECORDER) IN
AM ANT
DIGITAL IN
(BD/
(TV/STB) (DVD RECODER) DVD PLAYER)
S VIDEO
(CD)
OPTICAL1 OPTICAL2 COAXIAL1 COAXIAL2
VIDEO
OUT
IN
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER DVD RECORDER
IN
IN
VCR
TV/STB
CENTER
A OR B / BI-WIRE (4-16 Ω EACH SPEAKER) A AND B (6-16 Ω EACH SPEAKER)
SPEAKERS
L
Y
R
PB
PR
TV MONITOR OUT
IN
CD
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
IN
DVD RECORDER
IN
VCR
IN
TV/STB
Y
PB
PR
Y
DVD RECORDER IN
(6-16 Ω EACH SPEAKER)
PB
TV / STB IN
PR
AC IN
COMPONENT VIDEO
OUT
SUBWOOFER
AUDIO
DVD recorder
or
DVD player
(BD player)
SUBWOOFER
CENTER
(R) (L)
FRONT
(R) (L)
SURROUND
• See page 25 for playback instructions.
18
RQT8743
ENGLISH
• Turn off all equipment before making any
connections.
• Peripheral equipment sold separately unless
otherwise indicated.
• To connect equipment, refer to the appropriate
operating instructions.
Make either digital audio (OPTICAL) output connections or analogue audio output connections according to your equipment and
preference.
Cable box or
satellite receiver etc.
• Use cables that belong to the same type as the video cable
you used for connecting the unit to your TV.
• See pages 14 to 16 for connecting the unit to the TV.
LOOP
EXT
LOOP ANT
GND
R
FRONT A
LF
BI-WIRE
L
Rear panel
FRONT B
HF
R
CENTER
SURROUND
L
R
S VIDEO
OUT
SURROUND BACK
L
R
L
75
(BD/DVD PLAYER) IN
OUT
FM ANT
(DVD RECORDER) IN
Connections
To connect the unit to a cable box or satellite receiver etc.
AM ANT
DIGITAL IN
S VIDEO
VIDEO
VIDEO OUT
(BD/
(TV/STB) (DVD RECODER) DVD PLAYER)
OUT
IN
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER DVD RECORDER
(CD)
OPTICAL1 OPTICAL2 COAXIAL1 COAXIAL2
IN
IN
VCR
TV/STB
CENTER
A OR B / BI-WIRE (4-16 Ω EACH SPEAKER) A AND B (6-16 Ω EACH SPEAKER)
SPEAKERS
L
Y
R
PB
PR
Y
TV MONITOR OUT
IN
CD
“Changing the digital
input settings”
(á page 35)
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
IN
DVD RECORDER
IN
VCR
IN
TV/STB
PB
PR
(6-16 Ω EACH SPEAKER)
Y
DVD RECORDER IN
PB
PR
PR
AC IN
TV / STB IN
COMPONENT VIDEO
OUT
SUBWOOFER
PB
AUDIO
Y
COMPONENT
VIDEO OUT
(L) AUDIO
(R) OUT
DIGITAL
AUDIO OUT
(OPTICAL)
To connect the unit to a CD player
Make either digital audio (COAXIAL) output connections or analogue audio output connections according to your equipment and
preference.
CD player
Rear panel
LOOP
EXT
LOOP ANT
GND
R
FRONT A
LF
BI-WIRE
L
R
FRONT B
HF
CENTER
SURROUND
L
R
SURROUND BACK
L
R
L
75
(BD/DVD PLAYER) IN
OUT
FM ANT
DIGITAL
AUDIO OUT
(COAXIAL)
(DVD RECORDER) IN
AM ANT
DIGITAL IN
(BD/
(TV/STB) (DVD RECODER) DVD PLAYER)
S VIDEO
VIDEO
OUT
IN
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER DVD RECORDER
(CD)
OPTICAL1 OPTICAL2 COAXIAL1 COAXIAL2
IN
IN
VCR
TV/STB
CENTER
A OR B / BI-WIRE (4-16 Ω EACH SPEAKER) A AND B (6-16 Ω EACH SPEAKER)
SPEAKERS
L
“Changing the digital
input settings”
(á page 35)
Y
R
PB
PR
Y
TV MONITOR OUT
IN
CD
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
IN
DVD RECORDER
IN
VCR
IN
TV/STB
PB
PR
(6-16 Ω EACH SPEAKER)
Y
DVD RECORDER IN
PB
TV / STB IN
(L) AUDIO
(R) OUT
PR
AC IN
COMPONENT VIDEO
OUT
SUBWOOFER
AUDIO
To connect the unit to a video camera or game player etc.
These terminals are convenient for equipment you want to connect only temporarily.
• Use a cable that belongs to the same type as the video cable you used for connecting the unit to your TV.
• See pages 14 to 16 for connecting the unit to the TV.
S VIDEO
OUT
VIDEO OUT
INPUT SELECTOR
VOLUME
BI-AMP
SURROUND
AUTO SPEAKER SETUP
(L) AUDIO
(R) OUT
HDMI
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
RETURN
-MENU/-SETUP
RETURN
SPEAKERS
TUNE
SETUP MIC
AUX
AUTO DETECTOR
ENTER
SURROUND
SPEAKERS
TUNE
S VIDEO
AUTO DETECTOR
L
VIDEO
AUX
-AUDIO-R
SETUP MIC
Video camera
etc.
19
RQT8743
ENGLISH
Connections
Connecting speakers
See pages 8 and 9 for placing and connecting your speakers according to their number.
Connections
To connect bi-wire speakers
Bi-wire speakers have separate connection terminals for high frequency and low frequency signals.
• Bi-wiring prevents high frequency and low frequency signals from interfering with each other. It offers playback in high audio quality.
• HF and LF stand for high frequency and low frequency, respectively.
• Make sure to select “YES ” in “Making bi-wire setting” (below) when you connect the unit to bi-wire speakers. The speakers do not
produce adequate sounds unless you make this setting.
Rear panel
HF
R
FRONT A
LF
BI-WIRE
L
R
FRONT B
HF
CENTER
SURROUND
L
R
SURROUND BACK
L
R
HF
L
DER) IN
Front speaker (R)
Rear view
Front speaker (L)
Rear view
VIDEO
IN
BD/ IN
DVD PLAYER DVD RECORDER
IN
IN
VCR
TV/STB
A OR B / BI-WIRE (4-16 Ω EACH SPEAKER) A AND B (6-16 Ω EACH SPEAKER)
SPEAKERS
Y
LF
PB
PR
Y
TV MONITOR OUT
Speaker impedance
BI-WIRE:
4 to 16 Ω
FRONT
6CH IN
IN
DVD RECORDER
IN
VCR
IN
TV/STB
PB
PR
(6-16 Ω EACH SPEAKER)
Y
DVD RECORDER IN
PB
PR
LF
AC IN
TV / STB IN
COMPONENT VIDEO
OUT
SUBWOOFER
Speaker cable
AUDIO
Note
• Make sure to connect speakers’ HF terminals with the unit’s FRONT B terminals, and speakers’ LF terminals with the unit’s FRONT A terminals.
• Different amps for high frequency and low frequency signals produce BI-AMP stereo sounds that are clearer and higher in audio
quality when you play on 2 channels sources containing analogue audio and 2-channel PCM signals (á page 25).
Making bi-wire setting
1 Press and hold [-MENU/–SETUP, RETURN] for
about 2 seconds to enter the SETUP.
Basic operation
INPUT SELECTOR
-MENU/-SETUP
ENTER
2 Select and confirm the choice.
RETURN
Turn to select.
To return to
the previous
display/
To cancel
Press to
confirm your
choice.
3 Select and confirm the choice.
INPUT SELECTOR
YES : When bi-wire speakers are connected
NO : When bi-wire speakers are not connected
Factory setting: NO
INPUT SELECTOR
BI-AMP
SURROUND
4 Select and finish the setting.
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
-MENU/-SETUP
ENTER
SPEAKERS
RETURN
-MENU/-SETUP
TUNE
AUTO DETECTOR
ENTER
SPEAKERS
SURROUND
RETURN
TUNE
AUTO DETECTOR
RETURN
Note
See “Making BI-AMP settings” (á page 34) for detailed settings.
To connect a second pair of front speakers
Make the following connections when you wish to install a second pair of speakers in another room and enjoy music there.
Rear panel
R
Front speaker (R)
Note
20
RQT8743
BI-WIRE
L
R
FRONT B
HF
CENTER
L
SURROUND
R
SURROUND BACK
L
R
L
Front speaker (L)
VIDEO
IN
BD/ IN
OR DVD PLAYER DVD RECORDER
Speaker impedance
Front A and B: 6 to 16 Ω
Front B:
4 to 16 Ω
FRONT A
LF
CORDER) IN
IN
IN
VCR
TV/STB
A OR B / BI-WIRE (4-16 Ω EACH SPEAKER) A AND B (6-16 Ω EACH SPEAKER)
SPEAKERS
Y
PB
PR
TV MONITOR OUT
ND FRONT
VD 6CH IN
IN
DVD RECORDER
AUDIO
IN
VCR
IN
TV/STB
OUT
SUBWOOFER
Y
PB
PR
DVD RECORDER IN
COMPONENT VIDEO
Y
(6-16 Ω EACH SPEAKER)
PB
TV / STB IN
PR
AC IN
Speaker cable
• “Auto speaker setup using the setup microphone” (á page 22) is unavailable for speakers connected to the FRONT B terminals. When “SPEAKERS
B” is selected, the unit automatically switches the selection to “SPEAKERS A” only and uses the setting for the auto speaker setup.
• Select “SPEAKERS B” when you wish to enjoy sounds from speakers connected to the FRONT B terminals (á page 25).
• If you select “SPEAKERS B” only, playback is 2-channel stereo. When a surround source is played, the sounds intended for all the
speakers are played through the front left and front right speakers (2CH MIX).
AM loop antenna (included)
Keep the antenna cord away
from DVD recorders, DVD
players, and other cords.
2
Adhesive tape
1
2
1
LOOP
EXT
LOOP ANT
GND
75
FM ANT
DIGITAL IN
FM indoor antenna
(included)
Fix the other end of
the antenna where
reception is best.
(BD/
(TV/STB) (DVD RECODER) DVD PLAYER)
(BD/DVD PLAYER) IN
OUT
AM ANT
Rear panel
3
(DVD RECORDER) IN
Black
S VIDEO
OUT
IN
IN
OUT
BD/ IN
BD/ IN
TV MONITOR DVD PLAYER DVD RECORDER TV/STB TV MONITOR DVD PLAYER
(CD)
OPTICAL1 OPTICAL2 COAXIAL1 COAXIAL2
Red
ENGLISH
Connecting antennas
Connections
• Turn off all equipment before making any
connections.
• Peripheral equipment sold separately unless
otherwise indicated.
• To connect equipment, refer to the appropriate
operating instructions.
CENTER
L
R
IN
CD
FM outdoor antenna (not included)
• Disconnect the FM indoor antenna.
• The antenna should be installed by a competent technician.
(For continental Europe, the United Kingdom and
Republic of Ireland)
SUBWOOFER SURROUND FRONT
BD/DVD/
DVD 6CH IN
White
AU
To connect a 75 Ω coaxial cable
Remove a piece of the
outer vinyl insulator.
Remove the lead wire and
clamp it with the plastic bar.
10 mm
Lead wire
FM outdoor
antenna
T
FM AN
75 Ω coaxial cable
Antenna plug adapter (included and necessary for the
United Kingdom and Republic of Ireland)
7 mm
Carefully pull the tabs
apart to remove the
cover.
Plastic bar
Install the coaxial cable.
Clamp the cable conductor, and
wind it on so that it does not
contact anything else.
(For Australia and New Zealand)
Two types of wire commonly used for connection from the
antenna are 300 Ω parallel feeder wire and 75 Ω coaxial
cable. For best resistance to interference, use 75 Ω coaxial
cable.
Clamp with pliers.
FM outdoor
antenna
75 Ω coaxial
cable
300 Ω feeder
wire
Attach the cover.
T
FM AN
or
Antenna
plug adapter
(included)
To connect a 300 Ω feeder wire
Loosen the screws, connect the wires, and
tighten the screws to secure the connection.
21
RQT8743
ENGLISH
Auto speaker setup using the setup microphone
Auto speaker setup using the setup microphone
Using the supplied setup microphone, you can measure such items as distance from the seating area, polarity and size
and make adjustment for connected speakers.
Keep quiet during the auto speaker setup. Conversational voice, air-conditioning noise and small sounds made
by winds may cause an error or produce an incorrect setting. Speakers output loud test signals during the auto
speaker setup. Make sure to keep little children out of the room.
• Mute the TV volume before starting the auto speaker setup.
• When the subwoofer is connected, make sure it is turned on. (There are subwoofer models that turn off automatically.)
Set the subwoofer volume to the normal listening level.
• Select “Yes ” in “Making bi-wire setting” (á page 20) when you connect the unit to bi-wire speakers.
“ ”
SPEAKERS
A
INPUT SELECTOR
VOLUME
BI-AMP
SURROUND
AUTO SPEAKER SETUP
HDMI
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
RETURN
-MENU/-SETUP
RETURN
RECEIVER
AV
SYSTEM
RECORDER
DVD
TV
TUNER
CD
PLAYER
BD/DVD
ANALOG 6CH
VCR
BAND
CH
VOLUME
0
DIRECT
TUNING
DISC
-/- -
SKIP
STOP
SLOW/SEARCH
PAUSE
PLAY
MANUAL SKIP
TOP
ME
TOUCH PLAY
ONE
ENTER
SUB MENU
RETURN
SUBWOOFER
OFF
LEVEL
5
TV
DIMMER
EFFECT VOL
NEO : 6
MOVIE
AUTO
TEST
MUTING
To cancel the setup
halfway
Press [TEST, –AUTO].
SETUP MIC
AUX
AUTO DETECTOR
ENTER
SURROUND
SPEAKERS
“AUTO SPEAKER SETUP”
TUNE
S VIDEO
L
VIDEO
-AUDIO-R
SETUP MIC
AUX
AUTO DETECTOR
To turn the unit on
Press
8
• The standby indicator “^” goes off when you turn the unit on.
To select “SPEAKERS A”
Press
SPEAKERS
A
SPEAKERS
(on the unit) to switch “
A
” on.
A
Connect the setup microphone.
AUTO SPEAKER SETUP
HDMI
SETUP MIC
AUX
S VIDEO
L
VIDEO
-AUDIO-R
SETUP MIC
AUX
Place the setup microphone.
• Place the setup microphone on a flat surface to stabilize it.
Examples: a level bench sharing the height with
the seating area, a top section of a sofa etc.
• Set the microphone at seated ear height.
• Use a tripod (for camera and other products) for best results.
To start the setup
Press and hold
AUTO
TEST
(on the remote
control) for 2 seconds.
Tripod
• The “AUTO SPEAKER SETUP” indicator flashes.
• When all auto settings are made, “COMPLETE ” appears and the “AUTO SPEAKER SETUP” indicator lights on.
• The auto speaker setup takes about 3 minutes to finish in the case of a 5.1-channel system.
• The unit cancels the auto speaker setup halfway through when you give a different
operational instruction before the setup finishes.
• You can perform other operations after “COMPLETE ” is displayed. The unit keeps the
settings even if you move straight on to another operation.
TV/AV
SFC
MUSIC
CTIONS
FUN
N
DIRECT NAVIGATO U
R
DRIVE SELECT
1
2
3
4
SPEAKERS
TUNE
6
To finish the setup
AUTO
TEST (on the remote control).
• The unit turns off and on in quick succession for completing the setup.
• Unplug the setup microphone when the setup is finished.
Press
Note
• The setup microphone is sensitive to heat. Keep it away from direct sunlight and avoid placing it on top of the unit.
• These settings remain effective after the unit goes off.
• The setup microphone jack is for use with the setup microphone only. Do not connect other microphones.
• The volume may reach an extremely high level when you repeat the auto speaker setup.
When the auto speaker setup is finished, check the volume before starting playback.
22
RQT8743
Such factors as speaker types, room conditions and speaker placement may cause the unit to set speaker size, lowpass filter frequency and other
items differently for the same type of speakers or produce settings that differ from the actual characteristics of respective speakers.
When sound from speakers seems odd, check the following settings. When you find undesirable settings, correct them manually.
• See “Setting speakers and their sizes”, “Setting distances” and “Setting the lowpass filter” (á page 33).
STEP2
STEP3
DISTANCE : The unit measures the distance between each speaker and the seating area and corrects the sound delay
in the seating area. The maximum speaker distance for correcting the delay is 15 meters.
POLARITY : The unit checks the polarity of each speaker and, when the polarity is wrong, corrects it.
Select “CHECK NO ” in “Setting the unit against automatic polarity adjustment” (á page 34) before starting the auto
speaker setup when you do not want the unit to adjust polarity automatically.
SIZE / FREQUENCY : The unit measures acoustic characteristics of the room including speaker characteristics (size
and lowpass filter settings) and adjusts them.
LEVEL : The unit checks the output level of each speaker and makes adjustment.
Error messages
When one of the following error messages appears, press [TEST, –AUTO] to cancel and perform the auto speaker setup again.
Message
Cause
Countermeasure
• The setup microphone is not connected.
• Connect the setup microphone properly.
• The setup microphone does not catch test signals.
• Check if the microphone is placed properly.
• Loud noise is preventing measurement.
• A speaker is too far.
• An error occurred from an unknown cause.
• Perform the auto speaker setup again when the
room is quiet.
• Turn off an air-conditioner and other equipment
that are producing noise.
• Check speaker locations.
• Perform the setup again.
• The right surround back speaker was detected, • Connect to the left surround back speaker terminal
when you connect only one surround back speaker.
but the left surround back speaker was not
detected.
• Check the left surround back speaker’s connections.
• Surround back speakers were detected, but left • Connect surround speakers as well when you
and right surround speakers were not detected.
connect surround back speakers.
ENGLISH
STEP1
Auto speaker setup using the setup microphone
With the setup microphone, the unit automatically sets the following.
• Unable to detect one or both of the two surround
• Check connections.
speakers
• Unable to detect one or both of the two front
• Check connections.
speakers
• Change the microphone location (height, direction etc.).
• Test signals from the speakers are too weak to
• Check if there is any obstacle near a speaker that
allow
accurate
measurement
with
the
is blocking the test signals.
microphone.
• Set the subwoofer volume to the normal listening level.
Note
• You can also perform automatic speaker detection only (á page 10).
• Speaker placement, speaker directions and other conditions
may prevent correct setting.
• The unit sets the lowpass filter frequency at the value of the
speaker capable of reproducing the lowest frequency signal
among speakers judged as “SMALL”.
• When left and right speakers differ in size, they are set as “SMALL”.
• When surround speakers and surround back speakers differ in
size, they are set as “SMALL”.
• Left and right front speakers are set as “LARGE ” even if their
size is “SMALL” when you perform the auto speaker setup
without connecting the subwoofer.
• The connection status is set and the level is adjusted for the subwoofer.
• HDAVI Control (á page 13) does not work during the auto
speaker setup.
• The auto speaker setup is unavailable while muting (á page 29) is on.
• The unit sets at 15 meters the distance of speakers located
more than 15 meters away from the seating area. The set
distance is displayed as “OVER ” (á page 33).
• Speakers whose polarity was automatically adjusted are
displayed with “– ” such as “L 3.0 – ” (á page 33).
• Speaker settings made with the setup microphone are cancelled
when you perform automatic speaker detection (á page 10).
When the “AUTO SPEAKER SETUP” indicator is off
after the auto speaker setup:
Auto speaker settings have been cancelled as a result of
various setting changes.
Speaker size
• LARGE: Speakers that can sufficiently reproduce the bass
range down to 20 Hz.
• SMALL: Speakers that do not satisfy the requirements for
LARGE speakers.
You can perform steps instructed in “Setting speakers and their
sizes” (á page 33) to change speaker sizes set automatically.
Lowpass filter
When the speaker size is “SMALL”, the unit cannot sufficiently
reproduce the bass range.
You can set the lowpass filter frequency according to the
playback frequency range and arrange the unit to output the
missing bass range from the subwoofer.
23
RQT8743
ENGLISH
Enjoying the Home Theater
SPEAKERS
“SURROUND”
“ ”
A
“BI-AMP”
B
VOLUME
RECEIVER
AV
SYSTEM
Enjoying the Home Theater
INPUT SELECTOR
TV
VOLUME
INPUT SELECTOR
BI-AMP
SURROUND
AUTO SPEAKER SETUP
TUNER
HDMI
CD
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
RETURN
-MENU/-SETUP
SPEAKERS
TUNE
RECORDER
DVD
VCR
BAND
SETUP MIC
AUX
PLAYER
BD/DVD
ANALOG 6CH
AUTO DETECTOR
ENTER
SURROUND
RETURN
SPEAKERS
TUNE
S VIDEO
-AUDIO-R
L
VIDEO
SETUP MIC
AUX
AUTO DETECTOR
CH
SURROUND
“ADVANCED DUAL AMP”
1
2
To turn the unit on
• The standby indicator “^” goes off when you turn the unit on.
Note
Press
8
The “SURROUND” indicator lights on (factory
setting).
Do not forget to perform speaker detection when you play
a source with the unit for the first time or when you change
the number of connected speakers (á pages 10 and 22).
To select “SPEAKERS A”
Press
SPEAKERS
A
to switch “
A
SPEAKERS
” on.
A
To select “SPEAKERS B”
Press [SPEAKERS B].
(á page 25)
To use bi-wire speakers (á page 20)
Press [SPEAKERS A] or [SPEAKERS B] to switch
“ A
B ” on.
3
To switch input sources
SPEAKERS
BI-WIRE
A
B
To enjoy BI-AMP stereo sounds
See page 25.
(e.g.)
• Select the connected terminal when the names of the
terminal and equipment you wish to use for playback
do not match.
TUNER FM
TUNER AM
CD
TV/STB
INPUT SELECTOR
VCR
DVR
BD/DVD
AUX
• When you select “DVR ”, “DVD RECORDER ” scrolls across
the display once.
• You can also select an input source using the remote control (á page 5).
Turn
To use a DVD recorder with built-in VCR (á page 17)
• To play a DVD: select “DVR ”
• To play a video cassette: select “VCR ”
4
5
Play the selected input source.
To switch between 2-channel
stereo playback and surround
playback
Press [SURROUND].
To adjust the volume
VOLUME
Volume range:
– – dB (minimum),
–79dB to 0dB (maximum)
Turn
To finish the Home Theater
Be sure to reduce the volume and press [8] to turn the unit to standby.
Digital signals this unit can play:
Dolby Digital (including Dolby Digital Surround EX), DTS (including DTS-ES and DTS 96/24) and PCM (á page 37)
Note
24
RQT8743
• The unit memorizes whether [SURROUND] has been pressed
on or off for each input source.
• The setting always switches from off to on when the input comes
from a surround source in Dolby Digital, DTS or other formats.
• When you press [SURROUND] off while playing a surround
source (excluding a DVD-Audio source that does not allow
down-mixing), 2-channel mix (2CH MIX) activates.
2-channel mix is cancelled when you turn the unit off or when
you switch input sources.
• The “SURROUND” indicator goes off when the sampling
frequency for the input signal is higher than 96 kHz.
• The number of source channels appears on the display when
a digital signal is input or input sources are switched. (Their
number may not appear depending on the selected source.)
Subwoofer
Number of surround and surround back channels
Number of front and center channels
• The unit is compatible with linear PCM 8-channel surround
signals decoded by the BD player and other equipment (up to
96 kHz/24 bit). See the operating instructions for equipment
used for playback.
ADVANCED
DUAL AMP
Press
SPEAKERS
B
to switch “
B
” on.
SPEAKERS
B
To turn off speakers connected
to the FRONT A terminals
Switch “ A ” on the display off by
pressing [SPEAKERS A].
ADVANCED DUAL AMP activates automatically when you use 2-channel stereo playback or 5.1-channel
playback.
The “ADVANCED DUAL AMP” indicator stays on while this function
is on.
• You can also set the ADVANCED
DUAL AMP off (á page 34).
This function activates automatically when you play analogue audio sources or 2-channel PCM signals
through bi-wire connections.
BI-AMP
• Connect bi-wire speakers (á page 20).
• Select “YES ” in “Making bi-wire setting” (á page 20).
• Press [SURROUND] off (á pages 12 and 24).
Enjoying DVDAudio sources
through digital
connections
Playing
DVD-Audio
Playing DVD
ANALOG 6CH
Connect the unit to a DVD recorder or DVD player using the HDMI cable (á page 7) or a
digital cable (COAXIAL1) (á pages 14 and 15).
• Make analogue 6-channel connections
(á page 18).
• Select “SPEAKERS A” or turn bi-wire
speakers on (á page 24).
• Switch the input source to “BD/DVD ”
(á page 24).
PLAYER
BD/DVD
ANALOG 6CH
Press and hold
until
“DVD 6CH ” is displayed.
Enjoying high
quality 2-channel
analogue sounds
Note
• The “BI-AMP” indicator stays on while
BI-AMP is at work.
• Refer to “Making BI-AMP settings”
(á page 34) for detailed settings.
ENGLISH
Using
SPEAKERS B
Enjoying the Home Theater
Sound is output from the speakers connected to the FRONT B terminals on this unit.
When the unit is connected to a
DVD recorder
Playback is unavailable while the
input source is “DVR ”. Make
analogue 6-channel connections
and switch the mode to “BD/DVD ”.
• To cancel, press and hold until
“BD/DVD ” is displayed.
You can enjoy high quality stereo sound with 192 kHz 2-channel DVD-Audio.
1 Cancel the “DVD 6CH ” setting. (above)
2 Set the input signal to “ANALOG ” in “Setting input signals”. (á page 35)
SPEAKERS B
• Playback is in 2-channel stereo when you select “SPEAKERS
B” only.
• When only “SPEAKERS B” is selected and the input source is
surround, “2CH MIX” appears on the display.
• Selected speakers output sounds assigned to front 2 channels
when you make DVD ANALOG 6CH connections.
• If you select “SPEAKERS B” only, the following are set
automatically irrespective of settings selected in “Setting
speakers and their sizes” (á page 33).
Speaker size: “LARGE ”
Subwoofer: “NO ” (Bass is output from the front speakers.)
• Settings made through the auto speaker setup (á pages 22
and 23) are cancelled.
ADVANCED DUAL AMP (á page 37)
• The unit takes advantage of unused amps, and runs one
speaker with 2 amps when this function is on. ADVANCED
DUAL AMP offers you sounds that are clearer and higher in
audio quality than those available in normal playback. In 2channel stereo playback, 3 speaker amps drive front
speakers. The operation is called the triple amp mode.
2-channel stereo playback: Front, surround and surround back
speaker amps are used for driving front speakers (triple amp
mode).
5.1-channel playback: Front and surround back speaker amps
are used for driving front speakers (dual amp mode).
BI-AMP (á page 37)
• The unit takes advantage of the front speaker and the
surround speaker amps, and drives the speakers’ highfrequency and low-frequency ranges separately when this
function is on.
• ADVANCED DUAL AMP is available with BI-AMP. When
combined, the two functions enhance clarity and audio quality
of stereo sounds.
• When you make bi-wire setting (á page 20), both BI-AMP and
ADVANCED DUAL AMP take effect as long as overlap is
possible. In such case, ADVANCED DUAL AMP activates in
the dual amp mode.
Select “OFF ” in “Cancelling BI-AMP (using the triple amp
mode)” (á page 34) when you wish to use the triple amp
mode.
• You cannot use BI-AMP with analogue 6-channel connections
for DVD-Audio sources.
Playing DVD-Audio
Make the following speaker settings on the DVD recorder or the
DVD player. (They are normal factory settings for the DVD
recorder and the DVD player.)
• Speaker size: “LARGE ” for all speakers
• Speaker presence: present for all speakers
• Distance setting: 0 or an equal distance for all speakers
25
RQT8743
ENGLISH
You can add surround effects or create surround sound from 2-channel stereo sources.
Dolby Pro Logic
RECEIVER
AV
SYSTEM
RECORDER
DVD
TV
TUNER
CD
PLAYER
BD/DVD
ANALOG 6CH
VCR
BAND
CH
• Dolby Pro Logic
offers you surround playback of 2-channel stereo sources.
• The technology enables you to play 5.1-channel Dolby Digital and DTS sources on
7.1 channels (when two surround back speakers are connected to the unit) and on
6.1 channels (when only one surround back speaker is connected).
• The technology makes surround back channels available for the playback of
Dolby Digital Surround EX sources.
Press
modes.
to select one of the following
To cancel
Press OFF
(The modes switch each time you press the button.)
VOLUME
0
DIRECT
TUNING
DISC
or
-/- -
SKIP
STOP
SLOW/SEARCH
PAUSE
PLAY
DRIVE SELECT
MANUAL SKIP
TOP
ME
TOUCH PLAY
ONE
ENTER
SUB MENU
CTIONS
FUN
N
DIRECT NAVIGATO U
R
Listening to surround sound
Listening to surround sound
RETURN
NEO:6
• NEO:6 offers you surround playback of 2-channel stereo sources.
• The technology enables you to play 5.1-channel Dolby Digital and DTS sources on
6.1 channels.
NEO : 6
Press
modes.
to select one of the following
To cancel
Press OFF
(The modes switch each time you press the button.)
SUBWOOFER
OFF
LEVEL
TV
DIMMER
EFFECT VOL
NEO : 6
TV/AV
SFC
MUSIC
MOVIE
AUTO
TEST
MUTING
SFC (Sound Field Control)
You can add presence and spread to surround sound according to your choice
when you use SFC with Dolby Digital, DTS, PCM or analogue sources.
Note
• Speaker output levels set with the
setup microphone (á pages 22 and 23)
apply to Dolby Pro Logic
, NEO:6
and SFC.
• Surround effects may be unavailable
depending on sources.
• These settings remain effective after
the unit goes off.
• The unit makes output through
speakers according to the number of
channels recorded in sources when
you switch Dolby Pro Logic
, NEO:6,
or SFC off.
Example: The unit makes output
through front speakers, the center
speaker, surround speakers, and the
subwoofer when you play 5.1-channel
sources. Surround back speakers go
silent.
26
RQT8743
Use this mode when
playing music.
(Music)
To cancel
Press OFF
Use this mode when
playing movies.
(Movie)
Press MUSIC
modes.
SFC
to select one of the following
(The modes switch each time you press the button.)
You can also select each of the following modes by
SFC
pressing
MUSIC
SFC
Press
modes.
MOVIE
, and
in succession.
to select one of the following
(The modes switch each time you press the button.)
You can also select each of the following modes by
To cancel
Press OFF
pressing
SFC
MOVIE , and
in succession.
This mode produces good effects when you play commercial film titles in the Dolby Surround format.
Sounds assigned to surround back channels become stereo in playback when you connect two surround back
speakers to the unit.
Dolby Pro Logic
is in this mode in the factory setting.
MUSIC
Use this mode when playing music.
EX
(Dolby Digital EX)
This mode produces good effects when you play commercial film titles recorded in the Dolby Digital Surround
EX format.
This mode is effective on sources containing surround channels only.
Sounds assigned to surround back channels become monaural in playback when you connect two surround
back speakers to the unit.
DIGITAL EX” or “
EX” replaces “
PL
” on the display when you connect one surround back speaker.
•“
GAME
You can play games with dynamic sounds in this mode.
This mode is effective on 2-channel stereo sources.
This mode is unavailable when surround and surround back speakers are unconnected (á pages 9, 10, 22 and
23) or when you set them as absent in “Setting speakers and their sizes” (á page 33).
NEO:6
CINEMA
Use this mode when playing movies.
MUSIC
Use this mode when playing music.
ENGLISH
MOVIE
Listening to surround sound
Dolby Pro Logic
SFC (Sound Field Control)
LIVE
Imparts the reflection and spread of a large concert hall.
POP/ROCK
Best suited for dynamic sound such as pop and rock music.
VOCAL
Best suited to enhance vocals.
JAZZ
Recreates natural sound ambience and direction.
DANCE
Enjoy a dance hall like audio effect.
PARTY
This mode gives you a stereo impression wherever your listening position may be. Music played in the mode
sounds like background music at parties.
DRAMA
Best suited for dialogues in drama movies.
ACTION
Best suited for action movies with impact.
SPORTS
Enjoy a feeling like being at a live sporting event.
MUSICAL
Enjoy a feeling like being at a live musical performance.
GAME
Enjoy games with greater audio impact.
Note
Dolby Pro Logic
Choices become “EX ” or “MUSIC ” when you connect one surround back speaker only.
NEO:6
• The “CINEMA ” mode is available for 2-channel stereo Dolby Digital and DTS sources containing surround data. The “MUSIC ” mode
is available for the same sources containing no surround data.
• The subwoofer goes silent when you use NEO:6 on 2-channel stereo sources as long as all speakers have been set as “LARGE ” in
“Setting speakers and their sizes” (á page 33).
SFC (Sound Field Control)
• In the “PARTY ” mode, when only one surround back speaker is connected and the center speaker is unused, the surround back
speaker goes off.
The center speaker goes silent when you connect no surround back speaker to the unit.
• Sound may be distorted when the selected input source and SFC mode do not match.
In such cases, lower the effect level in “Adjusting the effect level” (á page 28) or select another mode through procedures instructed
on page 26.
27
RQT8743
ENGLISH
Remote controlling sound effects/convenient functions
See pages 26 and 27 for information about each mode.
Adjusting Dolby Pro Logic
’s “MUSIC ” mode
RECEIVER
AV
SYSTEM
RECORDER
DVD
TV
TUNER
CD
(Dimension Control)
PLAYER
BD/DVD
ANALOG 6CH
VCR
BAND
You can make up for differences in the output level of the front and surround
speakers.
EFFECT
Press
to select “DIMEN ”, and press
for adjustment.
Adjustment range: -3 (More surround sound) to +3 (More front sound)
Factory setting: 0
CH
VOLUME
0
DIRECT
TUNING
DISC
SKIP
STOP
(Center Width Control)
SLOW/SEARCH
PAUSE
Factory setting: 3
MANUAL SKIP
You feel like you are surrounded by music thanks to greater spread created by
surround speakers.
TOP
ME
TOUCH PLAY
ONE
ENTER
SUB MENU
EFFECT
Press
to select “C-WIDTH ”, and press
for adjustment.
Adjustment range: 0 (Center becomes clearer) to 7 (Center becomes wider)
PLAY
DRIVE SELECT
N
DIRECT NAVIGATO U
R
In this mode, you can play music more naturally by adjusting sounds assigned
to front and center speakers as a whole.
-/- -
CTIONS
FUN
Remote controlling sound effects/convenient functions
You can use the following modes when the input source is 2-channel stereo.
(Panorama)
Press
EFFECT
to select “PANORAMA ”, and press
for selecting “ON ” or “OFF ”.
RETURN
Factory setting: OFF
SUBWOOFER
OFF
TV
DIMMER
LEVEL
EFFECT VOL
NEO : 6
TV/AV
SFC
MUSIC
MOVIE
AUTO
TEST
Adjusting NEO:6’s “MUSIC ” mode
You can use the following modes when the input source is 2-channel stereo.
In this mode, you can play music more naturally by adjusting sounds assigned to
front and center speakers as a whole.
MUTING
(Center Image
Control)
EFFECT
Press
to select “C-IMAGE ”, and press
for adjustment.
Adjustment range: 0 (Center becomes clearer) to 5 (Center becomes wider)
Factory setting: 2
Note
These settings remain
effective after the unit
goes off.
Adjusting SFC (Sound Field Control)
Adjusting the
output level
LEVEL
Press
to select a speaker, and press
adjustment.
for
C (Center), RS (Surround right), SBR (Surround back right), SBL (Surround back left)
(SB when only one surround back speaker is connected), LS (Surround left):
Adjustment range; -20dB to +10dB
Factory setting; 0dB
SUBW (Subwoofer):
Adjustment range; --- (off), MIN (minimum), 1 to 29, MAX (maximum)
Factory setting; 20
Note
• You cannot adjust the output levels of speakers other than the subwoofer in the
“PARTY ” mode (á pages 26 and 27).
• You cannot adjust speakers not connected (á pages 9, 10, 22 and 23) and
others set as absent in “Setting speakers and their sizes” (á page 33).
Adjusting the
effect level
Press
EFFECT
, and press
for adjustment.
Adjustment range: EFFECT 1 (minimum) to EFFECT 10 (maximum)
Factory setting: EFFECT 5
28
RQT8743
Note
You cannot adjust the effect level in the “PARTY ” mode (á pages 26 and 27).
Press [SPEAKERS A] on the unit to switch “ A ” on.
(Press [SPEAKERS A] or [SPEAKERS B] to switch “ A
on when bi-wire speakers are connected.)
Note
B ”
If you select “SPEAKERS B” only,
the test signal will not be output.
AUTO
1 Press TEST
Adjusting speaker
volumes
• A test signal is output from one speaker at a time for two
seconds in the following order.
L
C
L
How speakers are displayed
L:
Front left
C:
Center
R:
Front right
RS : Surround right
LS : Surround left
SBR : Surround back right
SBL : Surround back left
SB : Surround back
(If you connect one
surround back
speaker)
SW (SUBW ) : Subwoofer
R
C
RS
R
SBR
RS
SBL
SB
LS
SW
LS
SW
Speaker
(When you connect one surround back speaker)
• Speakers not connected (á pages 9, 10, 22 and 23) or set as
unconnected in “Setting speakers and their sizes” (á page 33)
do not output test signals.
VOLUME
2 Press
to adjust the volumes of front speakers
to the normal listening level.
3 Press
LEVEL
to select a speaker for adjustment.
• Speakers switch in the following order each time you press the button.
C
RS
C
Volume range:
- - dB (minimum),
-79dB to 0dB (maximum)
SBR
RS
SBL
SB
LS
LS
SUBW
SUBW
(When you connect one surround back speaker)
4 Press
to adjust the volume of the
selected speaker.
Repeat steps 3 and 4 to adjust the level of each speaker.
• Only the adjusted speaker produces the test signal in steps 3 and 4.
• Connected speakers start producing the test signal again in the above
order 2 seconds after both steps.
• Press [TEST, –AUTO] to stop the test signal.
Speaker
Adjustment range:
–20dB to +10dB
Factory setting: 0dB
SUBW only:
MIN (minimum) ↔ 1 to 29 ↔
MAX (maximum)
Factory setting: 20
ENGLISH
Remote controlling sound effects/convenient functions
Adjust speaker output to balance front speaker sounds with those from each of the other
speakers in the seating area.
Make adjustment after detecting speakers automatically (á page 10).
You can adjust the output level while playing sources. You can adjust the level according to your
preference by thickening or thinning the ultra bass, for example.
Press
Adjusting the
subwoofer level
SUBWOOFER
to select a level.
• Select “--- ” to stop output.
Adjustment range:
--- (off), MIN (minimum), 5, 10, 15,
20, 25, MAX (maximum)
Factory setting: SUBW 20
Note
• Sound can be distorted if you raise the volume while the subwoofer level is high. Reduce the subwoofer
level if this occurs.
• Adjust the output level by taking steps described in “Adjusting speaker volumes” (above) when you
wish to make detailed settings.
Press
Silencing speakers
temporarily
MUTING
• “MUTING IS ON ” scrolls across the display while the volume is muted.
• Press the button again to cancel the operation.
Note
Muting is cancelled when you turn the unit off or adjust the volume.
Dimming the
display light
(Dimmer)
Press
DIMMER
• Press the button to dim the display. The light above [INPUT SELECTOR] and [VOLUME] goes off.
• Press the button again to cancel the operation.
Note
Refer to page 31 for adjusting the brightness on the unit.
29
RQT8743
ENGLISH
Sound effects/Convenient functions
-MENU/-SETUP
ENTER
RETURN
INPUT SELECTOR
Sound effects/Convenient functions
INPUT SELECTOR
VOLUME
BI-AMP
SURROUND
AUTO SPEAKER SETUP
HDMI
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
SPEAKERS
RETURN
-MENU/-SETUP
TUNE
SETUP MIC
AUX
AUTO DETECTOR
ENTER
SPEAKERS
SURROUND
RETURN
TUNE
S VIDEO
AUTO DETECTOR
L
VIDEO
-AUDIO-R
SETUP MIC
AUX
How to set up
1
2
To enter the MENU
-MENU/-SETUP
Press
RETURN
To select the item you wish to change
INPUT SELECTOR
Turn
to select an item.
Press
choice.
ENTER
for confirming the
∗ “TUNER ” appears only when “TUNER FM ” or “TUNER AM ”
has been selected as the input source.
3
To change the setting
INPUT SELECTOR
Turn
Press
4
to change the setting.
ENTER
for confirming the choice.
To finish the setting
-MENU/-SETUP
Press
several times to select “EXIT ”.
RETURN
Press
ENTER
for confirming the choice.
• The display returns to the original one.
• You can also select “EXIT ” by turning [INPUT SELECTOR].
To return to the previous display/To cancel
Press
-MENU/-SETUP
RETURN
30
RQT8743
ENGLISH
Adjusting the bass
• You can adjust the bass
through this operation.
Adjusting the treble
• You can adjust the treble
through this operation.
2 Make adjustment and confirm the choice.
Adjustment range: -10 dB to +10 dB
Factory setting: 0 dB
1 Select and confirm the choice.
2 Make adjustment and confirm the choice.
Adjustment range: -10 dB to +10 dB
Factory setting: 0 dB
1 Select and confirm the choice.
Balancing front speaker
volumes
2 Make adjustment and confirm the choice.
• You can adjust the balance
of the front speakers.
Sound effects/Convenient functions
1 Select and confirm the choice.
L : Front left
R : Front right
The bar shows the standard balance.
Note
You cannot adjust volume balance when you use SFC’s “PARTY ” mode (á pages 26 and 27).
Changing the audio
output (Dual program)
• The unit allows you to
switch dual audio signals in
Dolby Digital and DTS
formats.
“DUAL PRG ” appears on the display when the unit receives dual audio signals.
1 Select and confirm the choice.
2 Select audio and confirm the choice.
MAIN :
Main audio output
SAP :
Sub channel audio output
M+S :
Main and sub channel audio output
Factory setting: MAIN
1 Select and confirm the choice.
Adjusting the
brightness of the
display
• Dim the display for better
viewing in a darkened room.
2 Select a setting and confirm the choice.
• The light above [INPUT SELECTOR] and [VOLUME] goes
off when you make this adjustment.
• Select “DIMMER OFF ” to cancel.
Adjustment range:
DIMMER 1 (bright) to
DIMMER 3 (dim)
Factory setting: OFF
1 Select and confirm the choice.
Sleep timer
2 Select the time and confirm the choice.
Times available for setting:
30, 60, 90, 120 (minutes)
Factory setting: OFF
• The sleep timer can turn the
unit off after a set time.
• When this is set, “SLEEP” appears on the display.
• To check the setting:
After setting the time, you can check the remaining time
using step 1.
• To change a setting:
Repeat the procedure from the beginning.
Note
Sleep timer is for this unit only.
31
RQT8743
ENGLISH
Settings
-MENU/-SETUP
ENTER
RETURN
INPUT SELECTOR
Settings
INPUT SELECTOR
VOLUME
BI-AMP
SURROUND
AUTO SPEAKER SETUP
HDMI
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
RETURN
-MENU/-SETUP
SPEAKERS
TUNE
SETUP MIC
AUX
AUTO DETECTOR
ENTER
SURROUND
SPEAKERS
TUNE
S VIDEO
RETURN
AUTO DETECTOR
L
VIDEO
-AUDIO-R
SETUP MIC
AUX
How to set up
1
2
To enter the SETUP
-MENU/-SETUP
Press and hold
for about 2 seconds.
RETURN
To select the item you wish
to change
INPUT SELECTOR
Turn
to select an item.
ENTER
Press
choice.
(á page 20)
for confirming the
(á page 44)
∗ BI-AMP settings appear on the display and become selectable
only when you set bi-wire speakers (á page 20).
3
To change the setting
INPUT SELECTOR
Turn
Press
to select an item.
ENTER
for confirming the choice.
• You must repeat these steps several times depending on settings.
4
To finish the setting
-MENU/-SETUP
Press
several times to select “EXIT ”.
RETURN
Press
ENTER
for confirming the choice.
• The display returns to the original one.
• You can also select “EXIT ” by turning [INPUT SELECTOR].
To return to the previous display/To cancel
-MENU/-SETUP
Press
RETURN
32
RQT8743
2 Select a speaker for setting and
confirm the choice.
3 Change a setting and confirm the
choice.
Setting speakers and
their sizes
• You can set connected
speakers and their sizes
manually.
• Different ranges are played
by different speakers. Size
setting is necessary for
reproducing sources,
particularly their bass
section, completely.
To go back to step 1
Select and confirm the choice.
When you set the front speakers (LR) as “LARGE ”
• The subwoofer also makes audio output in the
bass range when you perform stereo playback
of analogue and PCM sources.
• The subwoofer sends out only the LFE (low
frequency effect channel) signal contained in
2-channel Dolby Digital or DTS sources when
you play them in stereo.
Subwoofer
Front speakers
Center speaker
Surround speakers
Surround back speakers
SUBW : NO ; unconnected
YES ; connected
LR, C, S :
NONE ;
For speakers you haven’t connected (center or
surround only).
SMALL ;
For speakers that cannot adequately
reproduce the bass range. This setting is
sufficient for most speakers if you are using a
subwoofer.
LARGE ;
For speakers that can sufficiently reproduce
the bass range down to 20 Hz.
ENGLISH
SUBW :
LR :
C:
S:
SB :
Settings
1 Select and confirm the choice.
SB :
NONE ;
For speakers you haven’t connected.
1-SPK ;
If you connect one surround back speaker.
2-SPK ;
If you connect two surround back speakers.
Factory settings:
LR, C, S ; SMALL
SUBW ;
YES
SB ;
2-SPK
Note
• Set the lowpass filter frequency according to frequencies available for playback when speakers
are set as “SMALL ”. The factory setting is 80 Hz. (below)
• The following are set automatically.
When you set “LR ” to “SMALL ”, “SUBW ” is set to “YES ”.
When you set “SUBW ” to “NO ”, “LR ” is set to “LARGE ”.
• “SB ” does not appear when “S ” is set to “NONE ”.
• The “SB ” size becomes the “S ” size because the unit does not offer “SB ” size setting.
• When you change the number of connected speakers, settings made with the setup microphone
are cancelled. (á pages 22 and 23)
1 Select and confirm the choice.
Setting distances
• By adjusting the distance
from each speaker (except
the subwoofer) to the
seating area, the sound
delay time is automatically
adjusted so that sound
reaches the listener at the
same time.
Setting the lowpass
filter
• If the speaker sizes (above)
are set to “SMALL”, make
this setting.
• The unit cannot reproduce the
entire bass range when speakers
are set as “SMALL ”. You can
arrange the unit to provide missing
bass sounds through the
subwoofer by setting the lowpass
filter frequency according to
frequencies available for playback.
2 Select a speaker for setting and
confirm the choice.
m
3 Select a distance and confirm the
choice.
m
L:
C:
RS :
SBL :
SBR :
Front left
R : Front right
Center
LS : Surround left
Surround right
Surround back left
Surround back right
Adjustment range: 0.5 to 15.0 m
This unit is adjusted at 0.1 meter intervals.
Factory settings: L, R ;
C;
LS, RS ;
SBL, SBR ;
3.0 m
3.0 m
1.5 m
1.5 m
Note
• Speakers whose polarity was automatically adjusted through the auto speaker setup using the
setup microphone are displayed with “– ” such as “L 3.0 – ”.
• When the speaker distance measured through the auto speaker setup (á pages 22 and 23)
exceeds 15 meters, the distance is displayed as “OVER ”.
1 Select and confirm the choice.
2 Select the lowpass filter frequency
and confirm the choice.
Lowpass filter frequency for sending the bass
range to the subwoofer:
80, 100, 120, 140, 160, 180, 200 (Hz)
Factory setting: 80 (Hz)
Note
The setting made through these steps applies to all speakers set as “SMALL ”.
33
RQT8743
ENGLISH
Settings
-MENU/-SETUP
ENTER
“BI-AMP”
RETURN
INPUT SELECTOR
Settings
INPUT SELECTOR
VOLUME
BI-AMP
SURROUND
AUTO SPEAKER SETUP
HDMI
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
RETURN
-MENU/-SETUP
RETURN
SPEAKERS
TUNE
SETUP MIC
AUX
AUTO DETECTOR
ENTER
SURROUND
SPEAKERS
TUNE
S VIDEO
L
VIDEO
-AUDIO-R
SETUP MIC
AUX
AUTO DETECTOR
See page 32 for receiver operations.
1 Select and confirm the choice.
Changing auto
speaker settings
1) Among speaker settings
made with the setup
microphone, you can return
polarity and frequency to
factory settings. (The “AUTO
SPEAKER SETUP” indicator
goes off when you perform
this operation.)
2) The unit judges polarity of
certain properly connected
speakers as opposite. When
this happens, set the unit
against automatic polarity
adjustment and prevent
polarity reversal.
1) To return
speakers to
factory
settings
2 Select and confirm the choice.
3 Select and confirm the choice.
• To cancel, press “NO ”.
YES :
For returning to factory settings
NO :
For keeping auto settings
1 Select and confirm the choice.
2) Setting the
unit against
automatic
polarity
adjustment
2 Select and confirm the choice.
3 Select and confirm the choice.
CHECK YES :
Normal auto speaker setup
CHECK NO :
No automatic polarity
adjustment
1 Select and confirm the choice.
Making BI-AMP
settings
• BI-AMP settings appear
on the display and
become selectable only
when you set bi-wire
speakers (á page 20).
1) You can drive speakers
with front, surround and
surround back speaker
amps instead of using
BI-AMP (triple amp
mode).
2) You can adjust HF (high
frequency) and LF (low
frequency) output
balance of the bi-wired
speakers.
3) You can reduce the
delay time due to the
difference in size of the
HF and LF units.
1) Cancelling
BI-AMP
(using the
triple amp
mode)
2 Select and confirm the choice.
3 Select and confirm the choice.
Factory setting : AUTO
• The “BI-AMP” indicator goes off when the
unit enters the triple amp mode.
1 Select and confirm the choice.
2) Adjusting the
balance
2 Select and confirm the choice.
3 Make adjustment and confirm the choice.
LF : Low frequency
HF : High frequency
The bar shows the standard balance.
3) Correcting
the HF and
LF difference
1 Select and confirm the choice.
(Side view of a speaker
in cross section)
2 Select and confirm the choice.
Difference
3 Make adjustment and confirm the choice.
1 Select and confirm the choice.
Setting ADVANCED
DUAL AMP off
AUTO :
When using BI-AMP
OFF :
When not using BI-AMP (when
using the triple amp mode)
2 Select and confirm the choice.
cm
Adjustment range:
0 to 30 cm
You can select differences at
1 cm intervals.
Factory setting: 0 cm
AUTO :
Advanced dual amp is on
OFF :
Advanced dual amp is off
Factory setting: AUTO
34
RQT8743
ENGLISH
Changing the digital
input settings
• Change these settings to
suit the connections you
have made to the digital
input terminals.
• You can only allocate one
piece of equipment per
terminal.
Example: “OPT 1 ” becomes
the only digital terminal you
can use for connecting the
DVD player to the unit when
you change the DVD setting
to the terminal.
1 Select and confirm the choice.
2 Select the equipment connected to the digital
input terminal and confirm the choice.
3 Change the digital input setting and confirm the
choice.
Repeat steps 2 and 3 to change settings.
TV :
DVR :
DVD :
CD :
TV
DVD recorder
DVD player
CD player
Factory setting:
TV ;
OPT1 (OPTICAL1)
DVR ; OPT2 (OPTICAL2)
DVD ; COAX1 (COAXIAL1)
CD ;
COAX2 (COAXIAL2)
Settings
See page 32 for receiver operations.
1 Select and confirm the choice.
2 Select the equipment connected to the digital
input terminal and confirm the choice.
Setting input signals
• You can fix the signal type
(digital, analogue or PCM)
supplied by such equipment
as the DVD recorder and the
DVD player or make the unit
identify the input signal
type.
• Select “AUTO ” when it is
not necessary to fix the
signal.
3 Select the method for identifying input signals
and confirm the choice.
Repeat steps 2 and 3 to change settings.
PCM FIX mode
• In rare cases, the unit may have trouble recognizing the digital
signals on discs.
• Use this mode when, for example, the beginning of a playing CD
track is cut off.
• You do not need to set the mode when playback is normal.
• When PCM FIX mode is on, the unit cannot process other signals.
Cancel the mode when noise occurs.
TV :
DVR :
DVD :
CD :
TV
DVD recorder
DVD player
CD player
AUTO :
Automatic identification of digital
and analogue signals (HDMI
takes priority when the input
signal is digital.)
ANALOG :
Fixes the input signal to
analogue.
DIG :
Fixes the input signal to digital.
PCMFIX :
Fixes the input signal to PCM.
Factory setting:
TV, DVR ,DVD, CD ; AUTO
Note
• “DIGITAL INPUT” stays on the display when you fix the input signal as digital.
• “PCM” appears on the display when you set the input signal as “PCMFIX ”.
• “PCM FIX ” flashes on the display when the unit is in the PCM FIX mode and a non-PCM source
is input through digital (OPTICAL or COAXIAL) connections.
1 Select and confirm the choice.
2 Select and confirm the choice.
Reducing standby
power consumption
(power saving standby
mode)
3 Select and confirm the choice.
OFF :
When you wish to reduce
standby power consumption
ON :
When you activate the standby
through function (standby power
consumption becomes 0.9 W in
this setting)
Factory setting: ON
Note
When you select “OFF ”, the following becomes applicable.
• Standby power consumption becomes 0.45 W.
• Standby through with HDMI connections (á page 7) does not work.
• HDAVI Control (á page 13) is cancelled (when the unit is off).
Setting the unit against
HDAVI Control
• You can set the unit against
HDAVI Control when
compatible TV (VIERA) and
DVD recorder (DIGA) are
connected.
1 Select and confirm the choice.
2 Select and confirm the choice.
OFF :
When not using HDAVI Control
ON :
When using HDAVI Control
Factory setting: ON
3 Select and confirm the choice.
35
RQT8743
ENGLISH
Settings
-MENU/-SETUP
ENTER
RETURN
INPUT SELECTOR
Settings/Using headphones
INPUT SELECTOR
VOLUME
BI-AMP
SURROUND
AUTO SPEAKER SETUP
HDMI
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
RETURN
-MENU/-SETUP
RETURN
SPEAKERS
TUNE
SETUP MIC
AUX
AUTO DETECTOR
ENTER
SURROUND
SPEAKERS
TUNE
S VIDEO
L
VIDEO
-AUDIO-R
SETUP MIC
AUX
AUTO DETECTOR
See page 32 for receiver operations.
Listening clearly at low volume
1 Select and confirm the choice.
• This function compresses the dynamic
range of Dolby Digital contents.
• Without affecting the sound field, the
function makes spoken lines easier to
catch at low volume by reducing the
difference between the maximum and
minimum sounds created by audio signals.
This convenient function allows you to
enjoy commercial sources late at night
when you cannot produce big sounds.
2 Select a setting and confirm the choice.
Note
This function does not work when disc data does not
support it.
1 Select and confirm the choice.
Switching the attenuator
• Switch the attenuator on when
sounds become distorted while
playing an analogue input source
and the sign “OVERFLOW ”
appears on the display.
2 Select and confirm the choice.
OFF :
The software is played with the
original dynamic range
STANDARD :
The level recommended by the
producer of the software for
household viewing
MAX :
The maximum allowable
compression (recommended for
night viewing)
Factory setting: OFF
OFF :
For switching the attenuator off
ON :
For switching the attenuator on
Factory setting: OFF
• To cancel, select “OFF ”.
Adjusting audio timing to
video timing
1 Select and confirm the choice.
• Adjust audio timing to video timing by
delaying audio output by 40 msec or
so when pictures arrive after sounds.
2 Select and confirm the choice.
OFF : Normal setting
ON : Setting for delaying audio
output
Factory setting: OFF
1 Select and confirm the choice.
2 Select and confirm the choice.
RESET (factory settings)
• Re-enter settings to your liking
when necessary.
YES : Choice for resetting
NO : Choice against resetting
• To cancel, select “NO ”.
Note
When you select “YES ”, the input source becomes TUNER (preset channel 1).
Preset radio stations will not be erased.
Using headphones
1 Press [SPEAKERS A] and [SPEAKERS B] to
switch all speakers off.
2 Lower the volume by turning [VOLUME, –, +]
and connect headphones to the unit.
VOLUME
Plug type: ø 6.3 mm stereo standard plug
SPEAKERS
A
3 Adjust the volume by turning [VOLUME, –, +].
B
Note
INPUT SELECTOR
VOLUME
BI-AMP
SURROUND
AUTO SPEAKER SETUP
HDMI
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
RETURN
-MENU/-SETUP
RETURN
SPEAKERS
TUNE
SETUP MIC
AUX
AUTO DETECTOR
ENTER
SURROUND
SPEAKERS
TUNE
S VIDEO
AUTO DETECTOR
L
VIDEO
-AUDIO-R
SETUP MIC
AUX
W (Headphone jack)
36
RQT8743
SPEAKERS
• Avoid listening for prolonged periods of time to prevent hearing damage.
• Playback channels become two when you switch all speakers off.
The 2-channel mix (2CH MIX) function activates automatically when
you play a surround source. (Excluding DVD-Audio sources that do
not allow down-mixing.)
• The DVD ANALOG 6CH (á page 25) goes off and front two
channels make audio output when you play sources through
analogue 6-channel connections (á page 18).
Digital signals this unit can play
This is the digital surround system developed by Dolby Laboratories.
Dolby Digital Surround EX adds a surround back channel to the
traditional 5.1-channel format of Dolby Digital. This creates a sound with
greater presence.
DTS
(including DTS-ES
and DTS 96/24)
This is the digital surround system developed by DTS (Digital Theater
Systems, Inc.). DTS-ES adds a surround back channel to the traditional
5.1-channel format of DTS. This creates a sound with greater presence.
DTS 96/24 provides 96 kHz sound at up to 24 bits. The 96 kHz/24 bit high
frequency sounds are played through multiple channels.
PCM
This unit’s DIGITAL IN COAXIAL1 terminal can play up to 192 kHz and
the other DIGITAL IN terminals can play up to 96 kHz.
Frequencies appear on the display when the unit receives input signals
transmitted at the frequencies of 88.2 kHz, 96 kHz, 176.4 kHz, and
192 kHz.
DVD etc.
DVD etc.
CD,
DVD-Audio
etc.
Audio signal displays
2CH MIX
TUNED
MONO ST RDS PS PTY M SLEEP
cm DTS 96/24DTS-ES
SPEAKERS
BI-WIRE
A
kHz
MHz
B
DIGITAL:
Dolby Digital decoder is being used.
DIGITAL EX:
Dolby Digital Surround EX decoder (Dolby
Pro Logic
decoder) is being used when
the input signal is Dolby Digital 5.1-channel
or Dolby Digital Surround EX.
(Displayed only when you connect one
surround back speaker.)
EX:
PL
Dolby Digital Surround EX decoder (Dolby
Pro Logic
decoder) is being used when
the input signal is DTS 5.1-channel.
(Displayed only when you connect one
surround back speaker.)
:
Dolby Pro Logic
DIGITAL INPUT
PL :
DIGITAL EX
PCM
EX
Audio signals and amp mechanism
Dolby Digital
(including Dolby
Digital Surround EX)
ENGLISH
Audio signals and amp mechanism
The display informs Dolby Pro Logic
(the Dolby Pro Logic decoder) is used on
2-channel stereo sources when surround
back speakers are absent.
DTS:
DTS decoder is being used.
DTS 96/24:
DTS 96/24 decoder is being used.
DTS-ES:
DTS-ES discrete or matrix decoder is being
used.
NEO:6:
DTS NEO:6 matrix decoder is being used.
SFC:
SFC matrix function is being used.
decoder is being used.
ADVANCED DUAL AMP (á page 25)
n
Stereo playback
Front left (L)
Surround left (LS)
Surround back left (SBL)
Front right (R)
Surround right (RS)
Surround back right (SBR)
n
5.1-channel surround playback
Front left (L)
Surround left (LS)
Surround back left (SBL)
Front left (L)
Front right (R)
Surround right (RS)
Surround back right (SBR)
Front right (R)
The unit
Front left (L)
Front right (R)
The unit
BI-AMP (á page 25)
n
BI-AMP
Front left (L)
Surround left (LS)
Surround back left (SBL)
Front right (R)
Surround right (RS)
Surround back right (SBR)
The unit
n
Front left (L)
Front right (R)
Bi-wire speakers
BI-AMP and ADVANCED DUAL AMP
Front left (L)
Surround left (LS)
Surround back left (SBL)
Front right (R)
Surround right (RS)
Surround back right (SBR)
The unit
Front left (L)
Front right (R)
Bi-wire speakers
37
RQT8743
ENGLISH
The radio
-MENU/-SETUP
TUNE
ENTER
RETURN
INPUT SELECTOR
RECEIVER
AV
SYSTEM
The radio
INPUT SELECTOR
BI-AMP
SURROUND
AUTO SPEAKER SETUP
TUNER
HDMI
CD
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
RETURN
-MENU/-SETUP
SPEAKERS
TUNE
RECORDER
DVD
TV
VOLUME
AUX
VCR
BAND
SETUP MIC
AUTO DETECTOR
ENTER
SURROUND
SPEAKERS
TUNE
S VIDEO
RETURN
L
VIDEO
-AUDIO-R
SETUP MIC
AUX
AUTO DETECTOR
CH
Basic operation
INPUT SELECTOR
PLAYER
BD/DVD
ANALOG 6CH
-MENU/-SETUP
ENTER
VOLUME
Press to confirm
your choice.
Turn to select.
RETURN
DIRECT
TUNING
DISC
To return to the
previous display/
To cancel
0
-/- -
Manual tuning
(Using the remote control)
1
(Using the unit)
To use the radio tuner
Press
TUNER
1
To select “TUNER FM ” or
“TUNER AM ”
INPUT SELECTOR
BAND
Turn
2
To select “TUNER FM ” or
“TUNER AM ”
Press and hold
TUNER
2
To tune to the station
Press
TUNE
for 2 seconds.
BAND
3
FM
AM
To enter the station frequency
(direct tuning)
Press
Automatic tuning
Hold down [TUNE 2 or 1] until the frequency begins
to scroll. Tuning stops when a station is found.
(Tuning may stop if there is interference.)
DIRECT
TUNING
DISC
0
e.g. FM 107.90 MHz, Press [DIRECT TUNING, DISC] →
[1] → [0] → [7] → [9] → [0]
• If you do not press a button while the cursor is flashing,
the display returns to the frequency being received.
• If the frequency has not been input correctly,
“ERROR ” will be displayed.
• “TUNED” is displayed when a station is tuned.
• “ST” is displayed when a stereo FM broadcast is tuned.
Note
Improving reception
DVD recorders and DVD players can interfere with radio
reception. Turn the DVD recorder and the DVD player off or
move them further away from the AM loop antenna if this occurs.
AM allocation
If the correct AM frequency cannot be tuned in, change the
frequency step to suit your area.
Press [-MENU/–SETUP, RETURN] to enter the MENU.
1 Select “TUNER ” and confirm the setting.
2 Select “AM STEP ” and confirm the setting.
3 Select “9 ” or “10 ” and confirm the setting.
Factory setting: AM STEP 9
38
RQT8743
4 Press [-MENU/–SETUP, RETURN] twice to
select “EXIT ” and press [ENTER].
ENGLISH
Presetting stations
n Auto presetting
n Manual presetting
1 Tune to the frequency where you want to
begin presetting. (á page 38)
1 Tune to the station you want to preset.
(á page 38)
Set the channel reception to FM 87.50 MHz or AM 522 kHz
(9 kHz steps), AM 530 kHz (10 kHz steps) if you want automatic
presetting to start from the lowest frequency.
Preset channels that are automatically assigned by this unit
are:
FM: 1 to 30
AM: 21 to 30
Preset the FM stations first. If the AM stations are preset
before the FM stations, they will be erased when the FM
stations are preset.
-MENU/-SETUP
2 Press
RETURN
3 Select “TUNER ” and confirm the setting.
4 Select “MEMORY ” and confirm the setting.
5 Select a channel number and press [ENTER].
“STORED ” is displayed.
• To continue presetting, press [TUNE 2 or 1] to tune
another station from step 1.
-MENU/-SETUP
2 Press
to enter the MENU.
RETURN
3 Select “TUNER ” and confirm the setting.
4 Select “AUTO MEMO ” and confirm the setting.
5 Select “START ” and press [ENTER].
to enter the MENU.
The radio
Preset tuning
6 Press [-MENU/–SETUP, RETURN] twice to
select “EXIT ” and press [ENTER].
• FM stations can also be preset in the MONO mode
(below).
Select “CANCEL ” to cancel.
• During automatic presetting, the memory indicator ( M ) flashes
and the frequency scrolls. The memory indicator and channel
number are displayed for a second when a station is preset.
• The last station to be preset is displayed when presetting finishes.
• Frequencies may not be preset correctly when broadcast waves are
too strong or too weak. In such cases, carry out presetting manually.
Listening to preset stations
(Using the remote control)
n Select the channel.
-MENU/-SETUP
1 Press
• Hold down the button to change
channels faster.
Press CH
n Press the numbered buttons to select the channel.
Press
(Using the unit)
To select a two digit number
e.g. 21: [ ≧10, -/--] → [2] → [1]
0
-/- -
2
3
4
5
to enter the MENU.
RETURN
Select “TUNER ” and confirm the setting.
Select “TUNE MODE ” and confirm the setting.
Select “PRESET ” and confirm the setting.
Press [-MENU/–SETUP, RETURN] twice to
select “EXIT ” and press [ENTER].
6 Press
TUNE
to select the channel.
• Hold down the button to change channels faster.
• Select “MANUAL ” in step 4 when you wish to perform manual
tuning (á page 38).
Reducing excessive noise
Select if noise is excessive during radio reception.
Press [-MENU/–SETUP, RETURN] to enter the MENU.
n During FM stereo reception
n During AM reception
You can improve FM reception by switching reception to When there is a lot of noise interference with an AM broadcast,
monaural.
try switching to this mode.
1 Select “TUNER ” and confirm the setting.
2 Select “FM MODE ” and confirm the setting.
3 Select “MONO ” and confirm the setting.
• When this is set, “MONO” appears on the display.
• Select “AUTO ” to cancel.
4 Press [-MENU/–SETUP, RETURN] twice to
select “EXIT ” and press [ENTER].
1 Select “TUNER ” and confirm the setting.
2 Select “BEAT PROOF ” and confirm the setting.
3 Select “MODE 1 ” or “MODE 2 ” and confirm
the setting.
Factory setting: MODE 1
4 Press [-MENU/–SETUP, RETURN] twice to
select “EXIT ” and press [ENTER].
39
RQT8743
ENGLISH
RDS broadcasts
-MENU/-SETUP
INPUT SELECTOR
ENTER
RETURN
RDS broadcasts
INPUT SELECTOR
BI-AMP
AUTO SPEAKER SETUP
SPEAKERS
RETURN
-MENU/-SETUP
RETURN
INPUT SELECTOR
TUNE
HDMI
Turn to select.
News
Current affairs
Information
Sport
Education
Drama
Culture
Science
Varied
Pop music
Rock music
Middle-of-the-road Music
Light classical
Serious classical
Other music
Weather information
Finance
Children
Social affairs
Religion
Phone in
Travel
Leisure
Jazz music
Country music
National music
Oldies
Folk music
Documentary
Test broadcast
Emergency announcement
SETUP MIC
AUX
AUTO DETECTOR
ENTER
SPEAKERS
SURROUND
TUNE
S VIDEO
L
VIDEO
-AUDIO-R
SETUP MIC
AUX
AUTO DETECTOR
Basic operation
-MENU/-SETUP
ENTER
NEWS
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIED
POP M
ROCK M
M. O. R. M
LIGHT M
CLASSICS
OTHER M
WEATHER
FINANCE
CHILDREN
SOCIAL A
RELIGION
PHONE IN
TRAVEL
LEISURE
JAZZ
COUNTRY
NATIONAL
OLDIES
FOLK M
DOCUMENT
TEST
ALARM
40
SURROUND
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
PTY displays
RQT8743
VOLUME
Press to confirm
your choice.
RETURN
To return to the
previous display/
To cancel
Changing the display
This unit can display the text data transmitted by the radio
data system (RDS) available in some areas.
“ RDS ” lights while RDS signals are being received.
• RDS displays may not be available if reception is poor.
1 Press [-MENU/–SETUP, RETURN] to enter
the MENU.
2 Select “TUNER ” and confirm the setting.
3 Select “RDS DISP ” and confirm the
setting.
4 Select the display mode and confirm the
setting.
FREQUENCY : Frequency display
PS DISP :
Program service, the station name
PTY DISP :
Program type
Factory setting: PS DISP
• “PS” appears on the display when you select “PS DISP ”.
“PTY” appears when you select “PTY DISP ”.
5 Press [-MENU/–SETUP, RETURN] twice to
select “EXIT ” and press [ENTER].
Aim the remote control at the
equipment you wish to operate.
RECEIVER
AV
SYSTEM
RECORDER
DVD
TV
TUNER
CD
PLAYER
BD/DVD
ANALOG 6CH
VCR
BAND
CH
VOLUME
0
DIRECT
TUNING
DISC
SKIP
To turn the TV on or
off
To switch the TV’s
input mode (TV/video)
TV
Do not forget to
press this before
operating a TV.
To switch the unit’s
input to “VCR ”/
To switch the remote
control to the VCR
operation mode
VCR
Do not forget to
press this before
operating a VCR.
AV
SYSTEM
To turn the VCR on or
off
AV
SYSTEM
TV/AV
To start playback
PLAY
TV
SLOW/SEARCH
PAUSE
PLAY
DRIVE SELECT
To adjust the TV
volume
To fast forward/rewind
a tape
VOL
MANUAL SKIP
TOP
ME
TOUCH PLAY
ONE
ENTER
SUB MENU
To pause
CTIONS
FUN
N
DIRECT NAVIGATO U
R
To switch the unit’s
input to “TV/STB ”/
To switch the remote
control to the TV
operation mode
Remote controlling a VCR
-/- -
STOP
To select a channel
(When you make a
selection in rising or falling
order)
CH
OFF
LEVEL
(When you make a
selection in rising or falling
order)
TV
DIMMER
EFFECT VOL
NEO : 6
TV/AV
SFC
MOVIE
AUTO
TEST
PAUSE
CH
To select a channel
(When you select a
channel directly)
To select a channel
0
MUTING
SLOW/SEARCH
To select a channel
RETURN
SUBWOOFER
MUSIC
Remote controlling a TV
ENGLISH
Besides this unit, you can operate a Panasonic TV, DVD recorder, DVD player, VCR or CD player (excluding certain models) using the
supplied remote control. See respective equipment’s operating instructions for detailed operations.
You may need to enter a code to operate some equipment (á page 44).
Remote controlling a TV or DVD recorder etc.
Remote controlling a TV or DVD recorder etc.
-/- -
(When you select a
channel directly)
0
-/- -
To stop playback
STOP
Note
When you operate a DVD recorder with
built-in VCR, press [DRIVE SELECT] to
select VCR.
41
RQT8743
Aim the remote control at the
equipment you wish to operate.
AV
SYSTEM
RECORDER
DVD
TV
TUNER
CD
PLAYER
BD/DVD
ANALOG 6CH
VCR
BAND
CH
To switch the unit’s
input to “DVR ”/
To switch the remote
control to the DVD
recorder operation
mode
RECORDER
DVD
Do not forget to
press this before
operating a DVD
recorder.
To turn the DVD
recorder on or off
AV
SYSTEM
To start playback
PLAY
To confirm the
selected item
ENTER
To select a track or
chapter directly
• Some of the models
require you to press
[ENTER] to confirm after
pressing number buttons.
0
-/- -
VOLUME
0
-/- -
SKIP
STOP
PLAY
MANUAL SKIP
TOUCH PLAY
ONE
TOP
ME
N
DIRECT NAVIGATO U
R
DRIVE SELECT
ENTER
SUB MENU
RETURN
SUBWOOFER
OFF
To skip a track or
chapter
To search through the
disc
To play in
slow-motion
PAUSE
To move forward or
backward frame by
frame
SLOW/SEARCH
PAUSE
SLOW/SEARCH
TV/AV
MOVIE
SKIP
EFFECT VOL
NEO : 6
SFC
PAUSE
To skip 30 seconds
forward
MANUAL SKIP
TV
DIMMER
LEVEL
MUSIC
To pause
SLOW/SEARCH
PAUSE
AUTO
TEST
MUTING
To show the direct
navigator
(or the top menu)
TOP
ME
DIRECT
TUNING
DISC
CTIONS
FUN
Remote controlling a TV or DVD recorder etc.
RECEIVER
Remote controlling a DVD recorder
N
DIRECT NAVIGATO U
R
ENGLISH
Remote controlling a TV or DVD recorder etc.
To switch DVD
recorder drives (HDD,
DVD drive, and SD
drive etc.)
DRIVE SELECT
To select a channel
To show a sub menu
To return to the
previous screen
CTIONS
FUN
To show the
FUNCTIONS window
(while stopped)
SUB MENU
(When you make a
selection in rising or falling
order)
To select a channel
(When you select a
channel directly)
0
RETURN
To select an item
CH
-/- -
To stop playback
STOP
Press to select after
pressing [DIRECT
NAVIGATOR, TOP MENU],
[S, SUB MENU], or
[FUNCTIONS].
When operating a Panasonic DVD recorder
using the supplied remote control
Change the control setting on the supplied
remote control to match the DVD
recorder’s remote control mode.
Confirm the DVD recorder’s remote
control mode in its operating instructions.
1 Press [DVD RECORDER].
2 Press and hold [ENTER] together with
[1], [2], or [3] for 2 seconds or longer.
42
RQT8743
• [Mode 1], [Mode 2], or [Mode 3] is set on
the remote control according to the
pressed button.
• The factory setting is [Mode 1].
When DVD recorder drives do not switch
The condition may mean the DVD recorder does not
recognize the signal this unit’s remote control transmits.
Switch the drives again after changing the
signal in the following procedure.
1 Press [DVD RECORDER].
2 Press and hold [ENTER] together
with [8] for 2 seconds or longer.
• To return: In step 2 above, press and hold
[ENTER] together with [9] for 2 seconds
or longer.
Note
When you operate a DVD recorder with
built-in VCR, press [DRIVE SELECT] to
select a choice other than VCR.
PLAYER
To switch the unit’s
BD/DVD
input to “BD/DVD ”/
ANALOG
6CH
To switch the remote
Do not forget to
control to the DVD
press this before
player operation mode operating a DVD
player.
To turn the DVD player
on or off
To start playback
To skip a track or
chapter
To search through the
disc
To confirm the
selected item
To specify a disc
(5-disc changer only)
To switch the unit’s
input to “CD ”/
To switch the remote
control to the CD
player operation
mode
ENTER
DIRECT
TUNING
DISC
AV
SYSTEM
PLAY
SKIP
To select a track or
chapter directly
• Some of the models
require you to press
[ENTER] to confirm after
pressing number buttons.
0
-/- -
CD
Do not forget to
press this before
operating a CD
player.
To turn the CD player
on or off
AV
SYSTEM
To start playback
PLAY
To skip a track
SKIP
To pause
PAUSE
To search through the
disc
SLOW/SEARCH
SLOW/SEARCH
PAUSE
To play in
slow-motion
PAUSE
To pause
To move forward or
backward frame by
frame
To show a sub menu
SUB MENU
CTIONS
FUN
To show the
FUNCTIONS window
(while stopped)
TOP
ME
To show the direct
navigator
(or the top menu)
N
DIRECT NAVIGATO U
R
SLOW/SEARCH
To specify a disc
(3-or 5-disc changer)
To stop playback
PAUSE
DIRECT
TUNING
DISC
ENGLISH
Remote controlling a CD player
Remote controlling a TV or DVD recorder etc.
Remote controlling a DVD player
STOP
DIRECT
TUNING
DISC
Note
[FUNCTIONS] activates display functions
on some of the Panasonic DVD players.
To start play from a
specified disc [MEGA
CD changer] (holds
more than 50 discs)
0
To return to the
previous screen
To select an item
Press to select after
pressing [DIRECT
NAVIGATOR, TOP MENU],
[S, SUB MENU], or
[FUNCTIONS].
RETURN
PLAY
To select a track
directly
0
-/- -
To stop playback
STOP
43
RQT8743
ENGLISH
Remote controlling a TV or DVD recorder etc.
Remote controlling a TV or DVD recorder etc.
Using two or more Panasonic equipment (a
mini component system, an AV amp etc.)
Two or more Panasonic audio equipment
may start functioning when you operate
the unit using the supplied remote control.
Set the unit’s remote control mode to
“REMOTE 2 ” in such cases.
Do the following to set the same number
(2) as the remote control code.
Changing the codes
TV
VCR
TV
VCR
DVD player
PLAYER
BD/DVD
ANALOG 6CH
Press and hold the button
corresponding to the equipment.
INPUT SELECTOR
BI-AMP
-MENU/-SETUP
ADVANCED DUAL AMP
-MENU/-SETUP ENTER SURROUND
RETURN
-MENU/-SETUP
ENTER
SURROUND
RETURN
SPEAKERS
AUTO DETECTOR
Basic operation
RETURN
INPUT SELECTOR
Press to confirm
your choice.
To return to the
previous display/
To cancel
0
Enter the first digit.
Turn to select.
PANASONIC
AKAI
ALBA
BAIRD
BAUR
BLAUPUNKT
BRANDT
BUSH
0
Enter the second digit.
-MENU/-SETUP
RETURN
3 Select and confirm the choice.
4 Select and finish the setting.
Operation on the remote control
TUNER
BAND
ENTER
6 Press
and
simultaneously and hold
them in the position for
about 2 seconds.
When you return the remote
control code to “1 ”
• Operation on the unit: select “1 ” in step 3.
• Operation on the remote control: in step
6, press [ENTER] and [1] simultaneously
and hold them in the position for about 2
seconds.
FISHER
FUNAI
GOLDSTAR
GOLDSTAR/LG
GOODMANS
GO-VIDEO
GRUNDIG
ENTER
2 Select and confirm the choice.
5 Press
TV
DAEWOO
DENON
DUAL
FERGUSON
FINLUX
SPEAKERS
AUTO DETECTOR
ENTER
Code table
SURROUND
1 Press and hold [-MENU/
–SETUP, RETURN] for about
2 seconds to enter the SETUP.
44
This remote control can operate Panasonic and Technics audio-visual equipment that
has remote control sensors. You may need to change the remote control code.
It can also operate some other brands of TVs, VCRs, and DVD players. Check the table
for the brand and enter the code as follows.
INPUT SELECTOR
Operation on the unit
RQT8743
Entering a code to operate other equipment
The remote control outputs the on/off signal.
If the code is correct, the equipment
turns on or off.
If it doesn’t, try entering another code.
• Note that this remote control cannot
operate some equipment and that it may
not be able to perform some operations.
• Re-enter the codes after you change the
batteries.
HCM
HITACHI
ICE
INNO HIT
ITT
ITT/NOKIA
JVC
KENDO
KENWOOD
LOEWE
LOEWE OPTA
LUXOR
MATSUI
METZ
MITSUBISHI
NEC
NOKIA
NORDMENDE
OCEANIC
OKANO
ORION
PHILIPS
PHONOLA
PIONEER
POLKAUDIO
RADIOLA
RAITE
RCA
RFT
ROADSTAR
SABA
SALORA
SAMPO
SAMSUNG
SANYO
SCHAUB
LORENZ
SCHNEIDER
SEG
SELECO
SHARP
SIEMENS
SINUDYNE
SONY
TECHNICS
THOMSON
THORN
TOSHIBA
UNIVERSUM
WHITE WESTIN
HOUSE
YAMAHA
ZENITH
VCR
01/29/30/31
01/29/30
07/11/28/36/37 06/08/16/17/
19/37
05/11/12
02/06/23
–
08/10/37
32
–
28/36
01/26/29/30/
33
26/41
–
02/05/10/11/12/ 02/09/23
32/38
11/12/32
15
–
–
32
–
11/12
31
11/12/22/23/24/ –
25/40
37
05/07/10/11/
12
02/38
–
11/12
–
–
03/04/36/37
11/12/25/32
02/03/18/23/
27/33
–
–
28/36
02/23/26/28/
32/33
–
02/23
01/09/26/41
13/14
21/39
–
34
–
–
08/10/11/37
05/07/37
18/27/37
18
20/21
40
08/09/37
–
–
14/33
03/32
32
–
37
08/10/11/17/
19/37
02/05/06/07/10/ 03/05/09
11/12/25/37/38
–
01
14/19/28/36
17/19/21/32
–
04/21/36/37
05/07/37
08/10/11/18/
22/27/37
26/41
20/21
27/35
–
–
06
02/03/05/10/11/ 05/09
12/38
11/12/13/15
22/32/33/34/
35
11/12
32
–
–
–
–
11/12
–
–
–
–
–
–
33
39
02/03/18/23/
27
26/41
21
07/37
08/11/17/19/
37
–
–
11/12/15/21/25/ 15/16/18/27
34/39
07/17/25/37
07/10/11
–
10
11/12
02/03/18/23/
27/32
39/40
02/18/23/27
11/24
–
17/20
22
11/12/17/28/36 03/10/11/32
02/05/11/12/22/ –
24/38/40
16
24/25/26
–
–
05/26/41
21
06/08/11/12/14/ 10
16/25/32
03/04/06/08
15/17/19/32
39
03/08/32/37
11/12/22/40
–
–
–
–
–
DVD
player
01
–
–
–
–
–
–
–
–
01/17
–
02
–
–
–
–
–
–
12
–
–
11
–
–
–
–
09
–
15
–
–
–
–
–
06
–
–
02
–
–
–
04/16
–
03
16
–
13
02
–
–
02
–
14
10
–
–
–
–
–
08
–
–
05
01
02
–
04
–
–
01
07/12
No sound.
Sound is distorted.
Sound stops.
“OVERLOAD ” appears on the
display for about a second, and
the unit turns off.
Analogue input becomes distorted and
the message “OVERFLOW ” appears on
the display during playback.
“F76 ” appears on the display and
the unit turns off.
“F70 ” appears on the display.
“REMOTE 2 ” or “REMOTE 1 ”
appears on the display.
Display is dim.
Clicking sound is heard during
play.
“MEASURING ERROR ” appears
on the display.
When speaker distances are set (á page
33), “– ” appears on the display with the
speaker name such as “L 3.0 – ”.
When speaker distances are set (á page
33), “OVER ” appears on the display.
Sound is not heard from the
center, surround or subwoofer
speakers.
Sound is not heard from the
surround back speaker.
Dolby Pro Logic , NEO:6, and
SFC are unavailable.
There is no DTS audio output.
There is audio output, but the DTS
decoder indicator is not lit.
Sound is distorted when using the
Sound Field Control (SFC).
The radio cannot be tuned in or
there is a lot of noise and
interference.
There is a lot of noise when
listening to AM.
The correct AM frequency cannot
be tuned in.
When using an HDMI connection,
the first few seconds of sound is
cut off.
“U70-1-1 ” appears on the display.
“U70-1-2 ” appears on the display.
“U70- 3 ” appears on the display.
The unit does not work properly.
HDAVI Control does not function
properly.
The equipment connected to the
unit’s “HDMI (BD/DVD PLAYER) IN”
terminal turns on and off by itself.
The remote control doesn’t work.
Other products respond to the
remote control.
•
•
•
•
•
•
•
•
•
•
Turn the volume up.
Check connections to speakers and other equipment.
Turn on the speakers.
Select the correct source.
Change DIG INPUT setting to suit the type of connection you have made.
Check that the digital signals can be decoded by this unit.
Turn the muting off.
Turn PCM FIX off.
Recording of some DVD-Audio may not be possible due to copyright protection.
Determine and correct the cause, then turn the unit on.
Causes include:
- Shorting (bare wires touching) of positive and negative speaker wires.
- Using speakers with an impedance lower than that rated for this unit.
- Straining of the speakers through excessive volume or power.
- Using the unit in a hot environment without proper ventilation.
á Consult your dealer if the problem occurs again after switching the unit on.
12, 24
7 to 9, 14 to 21
12, 24, 25
12, 24
35
37
29
35
–
8
9, 20
–
–
• Switch the attenuator on.
36
• Turn the unit off, disconnect the AC mains lead, and consult your dealer.
–
• Turn the unit off, disconnect the AC mains lead, and consult your dealer.
–
• Match the codes on the main unit and the remote control.
44
• Cancel “DIMMER ”.
• Depending on the input signal when playing DVD etc., the ADVANCED DUAL AMP function changes
automatically. A clicking sound is heard when it changes. This does not mean a problem with the unit.
á You can also set the unit against automatic ADVANCED DUAL AMP operations.
• A speaker is too far. Check speaker locations.
• An error occurred from a cause that cannot be identified. Perform the auto speaker setup again.
• It appears when polarity of a speaker is automatically adjusted.
á You can set speakers against automatic polarity adjustment.
• It appears when the measured distance exceeds 15 meters.
Check the speaker location.
29, 31
–
34
22, 23
–
34
–
• Ensure the speaker settings for your speakers are correct.
• Confirm Dolby Pro Logic
, NEO:6, or SFC settings, and select an adequate mode.
• Press [SURROUND] on when you play 2-channel stereo sources.
10, 22, 23, 33
26 to 28
12, 24
•
•
•
•
•
10, 22, 23, 33
12, 24
9
12, 24
–
Ensure the speaker settings for your speakers are correct.
Press [SURROUND] on.
Check if the center speaker, surround speakers, and surround back speakers are connected properly.
Press [SPEAKERS A] on.
You cannot use Dolby Pro Logic , NEO:6 or SFC on sources containing PCM signals with the sampling
frequency of 192 kHz.
• Cancel DVD ANALOG 6CH playback.
• You cannot use the effect when the input source contains dual audio signals in Dolby Digital or DTS formats.
25
–
• Set the DTS Digital Audio Output setting on the DVD player or DVD recorder to “Bitstream”.
–
• Depending on the input source, sound may be distorted if you increase the SFC effect level. If this
happens, decrease the SFC effect level.
• Connect the appropriate antenna. (You may need an outdoor antenna or one with more elements.)
• Adjust the position of the FM or AM antenna.
• Reduce the treble.
• Turn off nearby televisions, video decks, DVD recorders, DVD players, and satellite receivers.
• Separate the antenna from other cables, cords, and appliances.
28
• Try changing the BEAT PROOF mode.
39
• Change the frequency step to suit your area when AM is selected.
38
• Should you be playing a chapter on a DVD:
- Change the audio output setting on the DVD player or DVD recorder from “Bitstream” to “PCM”.
(6.1-channel sources will however be played as 5.1-channel.)
- Select “PCMFIX ” as instructed in “Setting input signals” when you play 2-channel stereo sources.
• The equipment connected by the HDMI cable is not compatible with the unit’s copyright protection technology.
• The unit has received a signal for a picture format that is incompatible with the HDMI connection. Check
the settings of the connected equipment.
• Should anything unusual happen using an HDMI connection:
Consult your dealer if the sign remains on the display after these steps.
- Turn the connected equipment off and on again.
- Pull out the HDMI cable then reinsert it.
- Reduce the number of equipment connected in series to the HDMI terminal if exceeding 2 units.
• The unit does not work properly when wrong cords are in HDMI input and output terminals. Turn the unit
off, unplug the AC mains lead, and make connections again.
• Connect the unit to your TV (VIERA) using the HDMI cable, switch the TV on, unplug the unit’s AC mains
lead, and insert it into a household mains socket again.
ENGLISH
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not
solve the problem, consult your dealer for instructions.
Pages
• Ensure the AC mains lead is connected.
9
No power.
Troubleshooting guide
Troubleshooting guide
21
21
31
–
–
–
35
–
–
–
7, 13
–
7, 13
–
• Some of the linked operations apply to the connected equipment that is HDAVI Control compatible. To
prevent this, set the connected equipment (DVD recorder (DIGA) and others) against HDAVI Control.
–
• Replace the batteries if they are worn.
5
• Change this unit’s remote control code to “REMOTE 2 ”.
44
45
RQT8743
ENGLISH
Help message
Message
1
Help message/Specifications
Cause/countermeasure
Message
Muting is on.
Press [MUTING] on the remote
control to cancel the function
(á page 29).
The selected mode is not “MUSIC ”.
Change the mode to “MUSIC ”
(á pages 26 and 27).
Center and surround speakers are
not connected, or they are set as
absent. Connect the speakers
(á page 9) or change their setting
to present (á page 33).
Surround and surround back
speakers are not connected, or
they are set as absent. Connect
the speakers (á page 9) or change
their setting to present
(á page 33).
Surround back speakers are not
connected, or they are set as
absent. Connect the speakers
(á page 9) or change their setting
to present (á page 33).
2
3
4
5
Cause/countermeasure
6
You are trying to use the effect
unavailable for DTS-ES sources.
7
You are trying to use the effect
unavailable for DVD-Audio sources.
8
You are trying to use the effect
unavailable for DVD analogue
6-channel playback.
9
You are trying to use the effect
unavailable for the current input
source.
10
The unit is in the “PCMFIX ” mode.
Cancel this mode (á page 35).
(flashing)
11
12
“SPEAKERS A” is off. Select
“SPEAKERS A” (á pages 12 and
24).
“SPEAKERS A” and “SPEAKERS
B” are off. Select “SPEAKERS A”
or “SPEAKERS B” (á pages 12, 24
and 25).
Specifications (DIN 45 500)
n AMPLIFIER SECTION
Power output (at AC 230-240 V)
DIN 1 kHz (T.H.D. 1 %)
2 x 145 W (4 Ω)
20 Hz-20 kHz continuous power output both channels driven
2 x 80 W (6 Ω)
Total harmonic distortion
rated power at 20 Hz-20 kHz
0.09 % (6 Ω)
Power bandwidth
both channels driven, –3 dB
4 Hz to 88 kHz (6 Ω, 0.9 %)
Power output each channel driven (at AC 230-240 V)
DIN 1 kHz (T.H.D. 1 %)
Front (L/R)
100 W (6 Ω)
Center
100 W (6 Ω)
Surround (L/R)
100 W (6 Ω)
Surround Back (L/R)
100 W (6 Ω)
Load impedance
Front (L/R)
A or B
4 to 16 Ω
A and B
6 to 16 Ω
BI-WIRE
4 to 16 Ω
Center
6 to 16 Ω
Surround (L/R)
6 to 16 Ω
Surround Back (L/R)
6 to 16 Ω
Frequency response
CD, AUX, TV/STB, VCR, DVD RECORDER, BD/DVD 4 Hz to 88 kHz, ±3 dB
DVD 6CH
4 Hz to 44 kHz, ±3 dB
Input sensitivity and impedance
CD, AUX, TV/STB, VCR, DVD RECORDER, BD/DVD/DVD 6CH
200 mV/22 kΩ
S/N at rated power (6 Ω)
CD, TV/STB, BD/DVD PLAYER, DVD RECORDER (Digital Input)
90 dB (IHF, A: 103 dB)
Tone controls
BASS
50 Hz, +10 to –10 dB
TREBLE
20 kHz, +10 to –10 dB
Channel balance (250 Hz-6.3 kHz)
±1 dB
Channel separation
55 dB
Subwoofer frequency response (– 6 dB)
7 Hz to 200 Hz
Digital input
(OPTICAL)
(COAXIAL)
2
2
HDMI (Version 1.2a) Input
Output
2
1
n FM TUNER SECTION
46
RQT8743
Frequency range
Sensitivity
S/N 30 dB
S/N 26 dB
S/N 20 dB
IHF usable sensitivity (IHF ’58)
IHF 46 dB stereo quieting sensitivity
Total harmonic distortion
MONO
STEREO
87.50 to 108.00 MHz
1.5 µV/75 Ω
1.3 µV/75 Ω
1.2 µV/75 Ω
1.5 µV/75 Ω
22 µV/75 Ω
0.2 %
0.3 %
S/N
MONO
STEREO
Frequency response
Alternate channel selectivity
Capture ratio
Image rejection at 98 MHz
IF rejection at 98 MHz
Spurious response rejection at 98 MHz
AM suppression
Stereo separation
Carrier leak
Channel balance (250 Hz-6.3 kHz)
Limiting point
Bandwidth
IF amplifier
FM demodulator
Antenna terminal
60 dB
58 dB
20 Hz to 15 kHz, +1 dB, –2 dB
±400 kHz, 65 dB
1.5 dB
40 dB
70 dB
70 dB
50 dB
1 kHz, 40 dB
19 kHz, –30 dB
38 kHz, –50 dB
±1.5 dB
1.2 µV
180 kHz
1000 kHz
75 Ω (unbalanced)
n AM TUNER SECTION
Frequency range
Sensitivity
Selectivity (at 999 kHz)
IF rejection (at 999 kHz)
522 to 1611 kHz (9 kHz steps)
530 to 1620 kHz (10 kHz steps)
20 µV, 330 µV/m
55 dB
50 dB
n VIDEO SECTION
Output voltage at 1 V input (unbalanced)
1±0.1 Vp-p
Maximum input voltage
1.5 Vp-p
Input/output impedance
75 Ω (unbalanced)
S-Video
Input TV/STB, BD/DVD PLAYER, DVD RECORDER, AUX
Output
TV MONITOR
Component Video Input
TV/STB, DVD RECORDER
Output
TV MONITOR
n GENERAL
Power supply
Power consumption
Dimensions (W x H x D)
Mass
Power consumption in standby mode
AC 230 to 240 V, 50 Hz
140 W
430 mm x 107.5 mm x 390 mm
Approx. 5.3 kg
(HDMI Off Mode)
0.9 W
0.45 W
Notes:
1. Specifications are subject to change without notice.
2. Total harmonic distortion is measured by the digital spectrum analyzer.
Information on Disposal for Users of Waste Electrical &
Electronic Equipment (private households)
ENGLISH
-If you see this symbol-
This symbol on the products and/or accompanying
documents means that used electrical and
electronic products should not be mixed with
general household waste.
For proper treatment, recovery and recycling,
please take these products to designated collection points, where
they will be accepted on a free of charge basis. Alternatively, in
some countries you may be able to return your products to your
local retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable
resources and prevent any potential negative effects on human
health and the environment which could otherwise arise from
inappropriate waste handling. Please contact your local authority
for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please
contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the
European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local
authorities or dealer and ask for the correct method of disposal.
Maintenance
If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came with the cloth carefully.
47
RQT8743
Manufactured under license from Dolby Laboratories.
Dolby, “Pro Logic” and the double-D symbol are trademarks
of Dolby Laboratories.
“DTS”, “DTS-ES”, “Neo:6” and “DTS 96/24” are trademarks of
Digital Theater Systems, Inc.
CAUTION!
Do not place anything on top of this unit or block the heat radiation
vents in any way. In particular, do not place DVD recorder or CD/DVD
players on this unit as heat radiated from it can damage your
software.
HDMl, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
HDAVI Control ™ is a trademark of Matsushita Electric Industrial Co., Ltd.
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS
TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
CAUTION!
• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK
OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS
WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
This product may receive radio interference caused by mobile
telephones during use. If such interference is apparent,
please increase separation between the product and the
mobile telephone.
The socket outlet shall be installed near the equipment and easily
accessible.
The mains plug of the power supply cord shall remain readily
operable.
To completely disconnect this apparatus from the AC Mains,
disconnect the power supply cord plug from AC receptacle.
NORSK
DETTE APPARATET ER BEREGNET
MODERATE KLIMAFORHOLD.
TIL
BRUK
UNDER
ADVARSEL:
FOR Å REDUSERE FAREN FOR BRANN, ELEKTRISK STØT
ELLER SKADER PÅ PRODUKTET, MÅ DETTE APPARATET IKKE
UTSETTES FOR REGN, FUKTIGHET, VANNDRÅPER ELLER
VANNSPRUT. DET MÅ HELLER IKKE PLASSERES
GJENSTANDER FYLT MED VANN, SLIK SOM BLOMSTERVASER,
OPPÅ APPARATET.
ADVARSEL!
• APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET
INNEBYGGET KABINETT ELLER ET ANNET LUKKET STED
HVOR VENTILASJONSFORHOLDENE ER UTILSTREKKELIGE.
SØRG FOR AT GARDINER ELLER LIGNENDE IKKE
FORVERRER VENTILASJONSFORHOLDENE, SÅ RISIKO FOR
ELEKTRISK SJOKK ELLER BRANN FORÅRSAKET AV
OVERHETING UNNGÅS.
• APPARATETS VENTILASJONSÅPNINGER MÅ IKKE DEKKES
TIL MED AVISER, BORDDUKER, GARDINER OG LIGNENDE.
• PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS, OPPÅ
APPARATET.
• BRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR
MILJØET.
Strømuttaket må befinne seg i nærheten av utstyret og være lett
tilgjengelig.
Støpslet på strømkabelen må være klart til bruk.
Når dette apparatet skal kobles helt fra strømnettet (AC), må støpslet
på strømkabelen trekkes ut av stikkontakten.
SUOMI
TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI LEUDOSSA
ILMASTOSSA.
VAROITUS:
TULIPALO-, SÄHKÖISKUVAARAN TAI TUOTETTA KOHTAAVAN
MUUN VAHINGON VÄHENTÄMISEKSI EI LAITETTA SAA
ALTISTAA SATEELLE, KOSTEUDELLE, VESIPISAROILLE TAI
ROISKEELLE, EIKÄ NESTETTÄ SISÄLTÄVIÄ ESINEITÄ, KUTEN
ESIMERKIKSI MALJAKOITA, SAA ASETTAA LAITTEEN PÄÄLLE.
VAROITUS!
• ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA
KABINETTITYYPPISEEN KIRJAKAAPPIIN TAI MUUHUN
SULJETTUUN TILAAN, JOTTA TUULETUS ONNISTUISI.
VARMISTA, ETTÄ VERHO TAI MIKÄÄN MUU MATERIAALI EI
HUONONNA TUULETUSTA, JOTTA VÄLTETTÄISIIN
YLIKUUMENEMISESTA JOHTUVA SÄHKÖISKU- TAI
TULIPALOVAARA.
• ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA
SANOMALEHDELLÄ, PÖYTÄLIINALLA, VERHOLLA TAI
MUULLA VASTAAVALLA ESINEELLÄ.
• ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA AVOTULEN
LÄHDETTÄ LAITTEEN PÄÄLLE.
• HÄVITÄ PARISTOT LUONTOA VAHINGOITTAMATTOMALLA
TAVALLA.
Pistorasia tulee asentaa laitteen lähelle helppopääsyiseen paikkaan.
Verkkojohdon pistokkeen on oltava aina helposti käytettävissä.
Tämä laite voidaan kytkeä kokonaan irti verkkovirrasta irrottamalla
verkkojohdon pistoke pistorasiasta.
Matsushita Electric Industrial Co., Ltd.
Web Site: http://panasonic.net
En
RQT8743-B
H0806WM0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
