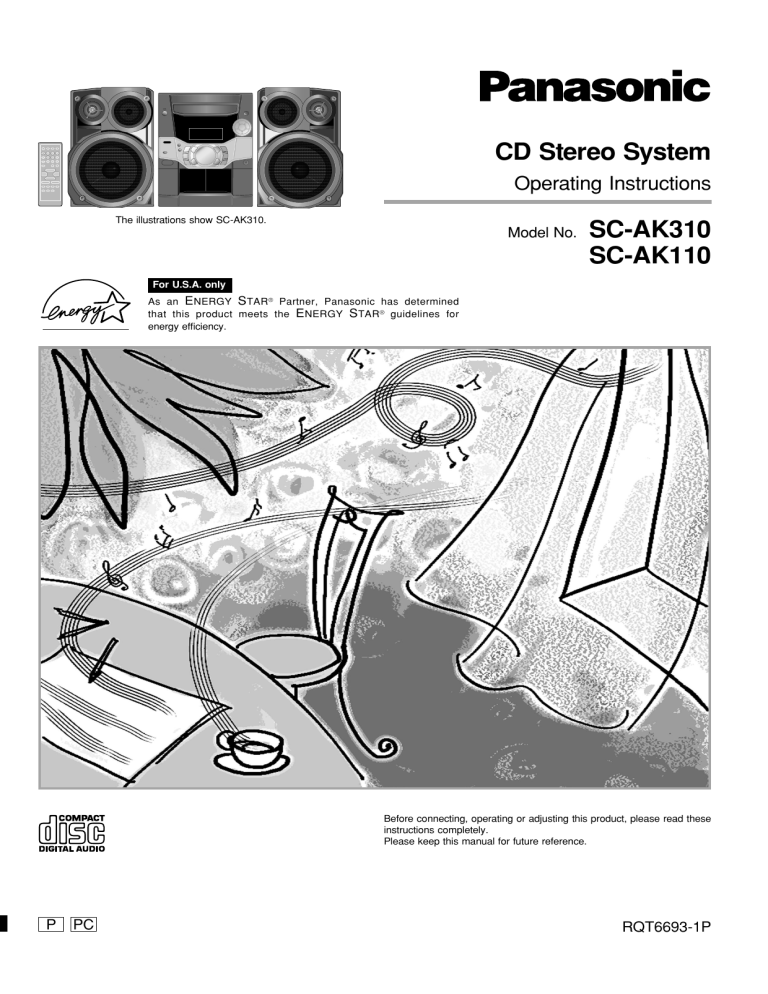

Panasonic | SCAK110P | Operating instructions | Panasonic SCAK110P Operating Instructions

CD Stereo System
Operating Instructions
The illustrations show SC-AK310.
Model No.
SC-AK310
SC-AK110
For U.S.A. only
As an E NERGY S TAR ® Partner, Panasonic has determined
that this product meets the E NERGY S TAR ® guidelines for
energy efficiency.
Before connecting, operating or adjusting this product, please read these
instructions completely.
Please keep this manual for future reference.
P
PC
RQT6693-1P
Table of contents
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions
carefully.
These operating instructions are applicable to the following systems.
Before using
These operating instructions, however, fundamentally explain the
operation of system SC-AK310.
System
SC-AK310
Main unit
SA-AK310
SA-AK110
Speakers
SB-AK310
SB-AK110
SC-AK110
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE, DO NOT EXPOSE THIS
APPARATUS TO RAIN, MOISTURE, DRIPPING OR
SPLASHING AND THAT NO OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, SHALL BE PLACED
ON THE APPARATUS.
CAUTION:
TO PREVENT ELECTRIC SHOCK MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
IMPORTANT SAFETY INSTRUCTIONS ................... 3
Listening caution ..................................................... 3
Supplied accessories .............................................. 4
Placement of speakers ............................................ 4
The remote control .................................................. 4
Set-up ....................................................................... 5
Front panel controls ................................................ 6
The radio: manual tuning ........................................ 7
The radio: preset tuning.......................................... 7
CDs ........................................................................... 8
Cassettes ................................................................ 10
Using the built-in sound quality/sound field
settings ................................................................ 10
Enhancing the sound quality ................................ 10
Recording ............................................................... 10
Optional antenna connections ............................. 11
External unit connections ..................................... 11
Using an external unit ........................................... 11
Using headphones (not included) ........................ 11
Turning the demo function off .............................. 12
Convenient functions ............................................ 12
Auto-off function .................................................... 12
Setting the time...................................................... 12
Using the timers .................................................... 13
Troubleshooting guide .......................................... 14
Maintenance ........................................................... 14
Specifications ........................................................ 15
Product Service ..................................................... 15
Limited Warranty (ONLY FOR U.S.A.) ... Back cover
Customer Services Directory
(ONLY FOR U.S.A.) ............................... Back cover
CAUTION!
Except for U.S.A.
DO NOT INSTALL, OR PLACE THIS UNIT, IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
Except for U.S.A.
2
RQT6693
Inside of product
The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for
future reference.
MODEL NUMBER
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
SERIAL NUMBER
Before using
TELEPHONE NUMBER
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions
listed below. Keep these operating instructions handy for future reference.
1)
Read these instructions.
2)
Keep these instructions.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
3)
Heed all warnings.
11) Only use attachments/accessories specified by the manufacturer.
4)
Follow all instructions.
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
7)
Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
13) Unplug this apparatus during lightning storms or when unused
for long periods of time.
8)
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9)
Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than
the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally,
or has been dropped.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.:
Listening caution
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to
consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of
your equipment by playing it at a safe level. One that lets the sound
come through loud and clear without annoying blaring or
distortion—and, most importantly, without affecting your sensitive
hearing.
We recommend you to avoid prolonged exposure to excessive noise.
Sound can be deceiving. Over time your hearing “comfort level”
adapts to higher volumes of sound. So what sounds “normal” can
actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFORE
your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and
clearly, and without distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage
or loss in the future. After all, we want you listening for a lifetime.
CAUTION:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician
for help.
Any unauthorized changes or modifications to this equipment
would void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
3
RQT6693
Supplied accessories
The remote control
Please check and identify the supplied accessories.
Use numbers indicated in parentheses when asking
for replacement parts.
Batteries
(Only for U.S.A.)
To order accessories contact 1-800-332-5368 or
web site (http://www.panasonic.com).
R6, AA, UM-3
AC power supply cord ..... 1 pc.
(RJA0065-A)
FM indoor antenna .......... 1 pc.
(RSA0006-L)
AM loop antenna ..... 1 pc.
(N1DADYY00002)
•
•
Insert so the poles (+ and –) match those in the remote control.
Do not use rechargeable type batteries.
Do not:
Remote control
transmitter ....................... 1 pc.
SC-AK310
(N2QAGB000025)
SC-AK110
For U.S.A: (N2QAGB000025)
For Canada: (N2QAGB000029)
Batteries ................ 2 pcs.
R6, AA, UM-3
Placement of speakers
•
•
•
•
•
•
•
mix old and new batteries.
use different types at the same time.
heat or expose to flame.
take apart or short-circuit.
attempt to recharge alkaline or manganese batteries.
use batteries if the covering has been peeled off.
keep together with metallic objects such as necklaces.
Mishandling of batteries can cause electrolyte leakage which can
damage items the fluid contacts and may cause a fire.
If electrolyte leaks from the batteries, consult your dealer.
Wash thoroughly with water if electrolyte comes in contact with any
part of your body.
Remove if the remote control is not going to be used for a long
period of time. Store in a cool, dark place.
Replace if the unit does not respond to the remote control even
when held close to the front panel.
Use
SC-AK310
Place the speakers so that the super tweeter is on the outside.
Super tweeter
1
2
5
Remote control
signal sensor
SC-AK110
30˚
Speakers are designed identically so that no left or right channel
orientation is necessary.
This illustration shows the model for U.S.A.
Notes
Keep your speakers at least 10 mm (13/32˝) away from the system
for proper ventilation.
• These speakers do not have magnetic shielding. Do not place them
near televisions, personal computers or other devices easily
influenced by magnetism.
• You cannot take the front net off the speakers.
•
4
RQT6693
4
Transmission
window
3
30˚
About 7 meters in front of
the signal sensor
Aim at the sensor, avoiding obstacles, at a maximum range of 7
meters directly in front of the unit.
• Keep the transmission window and the unit’s sensor free from dust.
• Operation can be affected by strong light sources, such as direct
sunlight, and the glass doors on cabinets.
Do not:
•
•
•
put heavy objects on the remote control.
take the remote control apart.
spill liquids onto the remote control.
Set-up
Connect the AC power supply cord only after all other connections have been made.
Preparation
Before using
Twist and pull off the vinyl tip of the antenna wires and speaker cords.
2 AM loop antenna
Stand the antenna up
on its base.
1 FM indoor antenna
Adhesive tape
Affix where
reception is
best.
4 AC power supply cord
Note
The included AC power supply
cord is for use with this unit only.
Do not use it with other equipment.
For your reference
Information you enter into the unit’s
memory, except for time, remains
intact for up to a week after the
AC power supply cord is
disconnected.
3
Connections
SC-AK310
Blue
Black
Red
Gray
Connect the left (L) side
in the same way.
Red (+)
Black (–)
3
2
1
Blue (–)
Gray (+)
Use only the supplied speakers.
The combination of the main unit and speakers provide the best sound.
Using other speakers can damage the unit and sound quality will be
negatively affected.
Caution
• Use the speakers only with the recommended
system. Failure to do so may lead to damage
to the amplifier and/or the speakers, and may
result in the risk of fire. Consult a qualified
service person if damage has occurred or if
you experience a sudden change in
performance.
• Do not attach these speakers to walls or
ceilings.
SC-AK110
Black
Red
Connect the left (L) side
in the same way.
Red (+)
3
1
2
Black (–)
5
RQT6693
Front panel controls
Main unit
1 AC supply indicator (AC IN)
This indicator lights when the unit is connected to the AC power
supply.
2 Standby/on switch (f
f/I, POWER)
Before using
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
3
4
5
6
7
8
9
0
!
@
Display
Remote control signal sensor ................................... 4
Super sound EQ button (SUPER SOUND EQ) ........ 10
Preset EQ select button (PRESET EQ) ................... 10
Deck 1 cassette holder .............................................. 10
Disc tray
CD tray open/close button (c, OPEN/CLOSE) ......... 8
Disc direct play buttons (1 ~ 5) ................................. 8
Headphones jack (PHONES) .................................... 11
Deck 2 cassette holder .............................................. 10
Center console
REC
DECK 1/2
CD
TUNER /
BAND
REW
FF
STOP
DISP/
DEMO
TAPE
AUX
DECK 1
DECK 2
# Tuner/band select button (TUNER/BAND) ................ 7
$ CD skip/search, tape fast-forward/rewind,
tune/preset channel select, time adjust buttons
(g/REW/3, f/FF/4) .................... 7, 8, 10, 12, 13
% Record button (a REC) .............................................. 10
^ Deck select button (DECK 1/2) ................................ 10
& Display, demonstration button (-DISP/–DEMO) .. 8, 12
* Deck 1 open button (c, DECK 1) ............................ 10
( AUX button (AUX) ...................................................... 11
) Volume control (VOLUME DOWN, UP) .................... 12
- CD play/pause button (:/ J, CD) ............................... 8
= Stop/program clear button (L, STOP) ................. 8, 10
[ Deck 2 open button (c, DECK 2) ............................ 10
] Tape play button (:, TAPE) ..................................... 10
Remote control
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
DISC
1
2
3
4
5
6
7
8
9
0
10
PROGRAM
S.SOUND EQ
PRESET EQ
CD
TUNER
TAPE
BAND
AUX
VOL
VOL
MUTING REW
CLEAR
CD DISP DIMMER PLAY MODE
6
RQT6693
FF
Buttons such as 2 function in exactly the same way as the
buttons on the main unit.
\ Sleep timer/auto off button
(SLEEP, –AUTO OFF) .......................................... 12, 13
; Disc button (DISC) ...................................................... 9
Program button (PROGRAM) ..................................... 9
, Muting button (MUTING) ........................................... 12
. CD display button (CD DISP) ..................................... 8
/ Dimmer button (DIMMER) ......................................... 12
_ Play timer/record timer button (rPLAY/REC) ......... 13
+ Clock/timer button (CLOCK/TIMER) .................. 12, 13
X10, 1–9, 0) ............................ 7, 9
{ Numbered buttons (X
} Play mode select button (PLAY MODE) .......... 7, 9, 10
The radio: manual tuning
The radio: preset tuning
Remote control only
There are two methods of pre-setting stations.
Automatic presetting : All the stations the tuner can receive are
preset.
Manual presetting
: You can select the stations to preset and the
order they are preset in.
Up to 15 stations each can be set in the FM and AM bands.
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
DISC
1
3
1
2
3
4
5
6
8
9
0
10
PROGRAM
3
S.SOUND EQ
7
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
PRESET EQ
CD
DISC
TUNER
TAPE
BAND
AUX
VOL
MUTING REW
1
2
3
5
6
CLEAR
FF
CD DISP DIMMER PLAY MODE
8
9
0
10
S.SOUND EQ
7
2
PRESET EQ
Cassette deck operations
VOL
4
PROGRAM
CD
TUNER
TAPE
BAND
AUX
1 Press [TUNER/BAND] to select band.
“MANUAL”.
Every time you press the button:
MANUAL ↔ PRESET
3 Hold down [g/REW/3] or [f/FF/4] for a moment
to search for a station.
The frequency stops when it finds a clear station.
To stop during the process, press [g/REW/3] or [f/FF/4].
Under excessive interference, a station may not be found.
Press [g/REW/3] or [f/FF/4] repeatedly to tune step-bystep.
“TUNED” is displayed when a radio station is tuned.
“ST” is displayed when a stereo FM broadcast is being
received.
MUTING REW
CLEAR
FF
CD DISP DIMMER PLAY MODE
Preparation:
Press [TUNER BAND] to select “FM” or “AM”.
Automatic presetting
Do the following once each for FM and AM.
Preparation: Tune to the frequency where pre-setting is to begin.
Hold down [PROGRAM] until the frequency changes.
The tuner presets all the stations it can receive into the channels in
ascending order. When finished, the last station memorized is tuned in.
SC-AK310
Recording operations
2 Press [PLAY MODE] on the remote control to select
VOL
VOL
The unit comes on.
Every time you press the button:
FM ↔ AM
SC-AK110
If noise is excessive in FM
Remote control only
Hold down [PLAY MODE] to display “MONO”.
Monaural sound is selected and noise reduces when reception is
weak.
Hold down [PLAY MODE] again to cancel the mode.
“MONO” is also cancelled if the frequency is changed.
To receive FM broadcasts allocated in 0.1 MHz steps
Main unit only
Hold down [TUNER/BAND]. The display changes in a few seconds to
show the current minimum FM frequency. Continue to hold down the
button until the minimum frequency changes. The step is changed.
Repeat the above to change the step back.
Notes
• After changing the “allocation” setting, the frequencies you previously
preset in the memory will be cleared.
• Sound is momentarily interrupted if you load/unload tapes while
listening to an AM broadcast.
Manual presetting
Pre-set the stations one at a time.
1 Press [PROGRAM] then press [g, REW/3 ] or
[f, 4/FF] to tune to the desired station.
2 Press [PROGRAM] then press [g, REW/3 ] or
[f, 4/FF] to select a channel.
3 Press [PROGRAM].
The station occupying a channel is erased if another station is preset
in that channel.
Selecting channels
Press the numbered buttons to select the channel.
To enter channel 10 or over, press [X10], then the two digits.
SC-AK310
SC-AK110
OR
1 Press [PLAY MODE] to select “PRESET”.
2 Press [g, REW/3] or [f, 4/FF] to select the
channel.
7
RQT6693
CDs
CD selection
1•2
3
Choose CDs with this mark:
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
DISC
2
3
4
5
6
7
8
9
1
PROGRAM
S.SOUND EQ
PRESET EQ
0
10
CD
Do not:
•
•
•
BAND
AUX
CLEAR
FF
CD DISP DIMMER PLAY MODE
XXXX XXXX XXXXX
XXXX XX
XXXX XXXX XXXXX
XXXX XXXX XXXXX
XXXX XXXX
1 Press [c, OPEN/CLOSE] to open the tray.
The unit comes on.
2 Set a CD in the tray. (Label must face upward.)
To continue loading CDs in the other trays
Press [1]–[5] to select the required tray and press [c, OPEN/
CLOSE] to open the tray.
Press [c, OPEN/CLOSE] to close the tray.
3 Press [1]–[5] to play your desired disc.
(Alternatively, you can press [:/J, CD] if the current disc is your
desired CD.)
The track number and its elapsed playing time are shown.
Display during play
(example):
Current disc indicator
To prevent damage
Always observe the following points:
• Load only 1 CD on the tray.
Cassette deck operations
VOL
VOL
MUTING REW
x
xx
xx xxx
xx x
x
use irregularly shaped CDs.
attach extra labels and stickers.
use CDs with labels and stickers
that are coming off or with
adhesive exuding from under
labels and stickers.
attach scratch proof covers or
any other kind of accessory.
write anything on the CD.
clean CDs with liquids. (Wipe
with a soft, dry cloth.)
use CDs printed with label
printers available on the market.
xxxxxxx
xxxxxxx x xx
xx x
xxx xx
x xx x
x
xx
•
TAPE
xx
x
xx x
x
xx x
•
•
•
TUNER
Use the CD Play Mode function’s ALL-DISC mode to play CDs in
succession. (A page 9)
•
Load CDs as shown in the figure.
An adaptor is not needed with 8 cm CDs (singles).
XX
X
XX XXXX
XX
XX
X
XX XXXX
XX
XX
X
XX XXXX
XX
X
XX
XX X
XX XXX
X
XX
XX X
XX XXX
X
XX
X
XX
XX
X X XX
XX X XX
XX
XX
XX
XX
XX
X
XX
XX
XX XXX XX
XX
XX
XX
X
XX
XX
X
XX
XX X
XX XXX
8 cm CD
To stop the disc play
Press [L, STOP].
The total number of tracks and total playing time are shown.
“ ” (SC-AK110: “ ”) indication
It indicates current disc has 16 or more tracks.
One touch play
During standby mode and when a CD is loaded, press [:/J, CD] or
[1] - [5].
The unit comes on and play starts.
To pause
Press [:/J, CD] during play.
Press again to resume play.
To search forward/
backward
Hold down [g/REW/3] (backward)
or [f/FF/4] (forward) during play or pause.
To skip forward/
backward
Press [g/REW/3] (backward) or
[f/FF/4] (forward) during play or pause.
XXXXXX XXX XXXXXXX
XXXX XX XXXXX
12 cm CD
•
•
XXXXXXX XXX XXXXXX
XXXXX XX XXXX
XXXX XX XXXXX
XXXX XX XXXXX
XXXX XXXX XXXXX
XXXX XXXX XXXXX
XXXXX XX XXXX
XXXXX XX XXXX
XXXXX XXXX XXXX
XXXXX XXXX XXXX
Set the system on a flat, level surface.
Always unload all CDs before moving the unit.
Do not:
•
•
•
•
•
set the unit on top of magazines, inclined surfaces, etc.
move the unit while a tray is opening/closing, or when loaded.
put anything except a CD in the tray.
use cleaning CDs or CDs which are badly warped or cracked.
disconnect the AC power supply cord from the household AC outlet
during disc changing operation.
Notes
During 1-RANDOM or A-RANDOM play (A page 9), you cannot
skip to tracks already played.
During program play (A page 9), 1-RANDOM or A-RANDOM play,
you can search only within the track.
Always stop the changer before loading or changing CDs. You
cannot change CDs while a disc is playing.
•
•
•
CD display
You can display the remaining play time of the current track.
This unit can play CD-DA (digital audio) format audio CD-R and
CD-RW that have been finalized (a process that enables CD-R/
CD-RW players to play audio CD-R and CD-RW) upon completion
of recording.
It may not be able to play some CD-R or CD-RW due to the
condition of the recording.
SC-AK310
Remote control only
Press [CD DISP] during play or pause.
SC-AK110
Press [-DISP/–DEMO] during play or pause.
Remote control: Press [CD DISP].
Every time you press the button:
Elapsed play time ↔ Remaining play time
8
RQT6693
Note
When track number 25 or greater is playing, remaining play time
display shows “– –:– –”.
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
DISC
DISC
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
8
9
0
10
PROGRAM
PROGRAM
S.SOUND EQ
S.SOUND EQ
7
PRESET EQ
PRESET EQ
0
10
CD
TUNER
TAPE
BAND
TAPE
BAND
AUX
AUX
FF
CLEAR
VOL
VOL
MUTING REW
CD DISP DIMMER PLAY MODE
CLEAR
FF
CD DISP DIMMER PLAY MODE
Starting play from a specific track
To listen to specific CDs and tracks
(CD Play Mode function)
Remote control only
1 Press [DISC] and (within 10 seconds) [1]–[5] to select the
disc.
2 Select the track with the numbered buttons.
To select track 10 or over, press [X10] then the two digits.
Play starts from the selected track.
1
Cassette deck operations
VOL
Remote control only
Preparation: Press [:/J, CD] and then [L, CLEAR].
1 Press [PLAY MODE] to select the desired mode.
Every time you press the button:
Note
You cannot use this function with 1-RANDOM or A-RANDOM mode.
ALL-DISC
1-SONG
1-RANDOM
A-RANDOM
1-DISC
Program play
ALL-DISC:
Plays all loaded discs in succession from the
selected disc to the final disc .
1-SONG:
Plays one selected track on the selected disc.
1-RANDOM: Plays one selected disc in random order.
A-RANDOM: Plays all loaded discs in random order.
1-DISC:
Plays one selected disc.
(The original display is restored in about 2 seconds.)
You can program up to 24 tracks.
Remote control only
J, CD] and then [L, CLEAR].
Preparation: Press [:
:/J
1 Press [PROGRAM].
“PGM” appears.
Recording operations
VOL
MUTING REW
3
4
CD
TUNER
2
Proceed to step 4 when you selected A-RANDOM in step 1.
2 Press [DISC] and (within 10 seconds) [1]–[5] to select the
disc.
2 Press [DISC] and (within 10 seconds) [1]–[5] to select the
disc.
The CD starts.
3 Select the tracks with the numbered buttons.
To select track 10 or over, press [X10] then the two digits.
Repeat steps 2 and 3 to program other tracks.
3
Only when you selected “1-SONG” in step 1
Select the track with the numbered buttons.
4 Press [:/J, CD] to start play.
To select a track 10 or over, press [X10] then the two digits.
Play starts from the selected track.
To exit program mode
Press [PROGRAM] in the stop mode. (You can replay your program
by pressing [PROGRAM] then [:/J, CD].)
To cancel
Press [L, CLEAR] in the stop mode. “CLEAR” is displayed.
To check program contents
Press [g, REW/3] or [f, 4/FF] while “P” is displayed.
Every time you press the button, the track number and program order
are displayed.
To add to the program
Do steps 2 and 3 while “P” is displayed.
Note
You can use repeat mode with program play.
4
Only when you selected “A-RANDOM” in step 1
Press [:/J, CD] to start play.
To stop play
Press [L, CLEAR].
When playback ends
The current play mode will be retained.
Final disc
For example, if play starts from disc 4, disc 3 will be the “final disc”.
Order of progression: Disc 4z5z1z2z3
Note
You can use repeat mode with CD Play Mode function.
Repeat play
Remote control only
Hold down [PLAY MODE] during play.
“
” is displayed.
To cancel repeat play
Hold down [PLAY MODE] to clear “
”.
9
RQT6693
Cassettes
Enhancing the sound quality
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
DISC
2
3
4
5
6
7
8
9
0
10
1
PROGRAM
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
S.SOUND EQ
PRESET EQ
DISC
2
3
4
5
6
7
8
9
1
CD
PROGRAM
TUNER
TAPE
BAND
AUX
SUPER
SOUND EQ
VOL
VOL
MUTING REW
CLEAR
FF
CD DISP DIMMER PLAY MODE
S.SOUND EQ
S.SOUND EQ
PRESET EQ
0
10
CD
TUNER
TAPE
BAND
AUX
VOL
VOL
MUTING REW
You can use either deck 1 or deck 2 for tape playback.
Use normal position tapes.
High position and metal position tapes can be played, but the unit will
not be able to do full justice to the characteristics of these tapes.
1 Press [:, TAPE].
The unit comes on.
If a cassette was loaded, play starts automatically (One touch play).
2 Press [c, DECK 1] or [c, DECK 2] and insert the
cassette.
Insert with the side to be played
facing towards you and the
exposed tape facing down.
Close the holder by hand.
CLEAR
FF
CD DISP DIMMER PLAY MODE
You can enhance the bass and treble effect of the sound.
Press [SUPER SOUND EQ].
Remote control: Press [S.SOUND EQ].
The button light comes on.
Press the button again to cancel.
The button light goes out.
Front side
Recording
3 Press [:, TAPE] to start playback.
To play on the other side of the tape, turn the tape over and press
[:, TAPE].
To stop tape playback
Press [L, STOP].
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
DISC
2
3
4
5
6
7
8
9
1
Cassette deck operations
PROGRAM
To fast-forward or rewind
Press [g/REW/3] (rewind) or [f/FF/4] (fast-forward).
S.SOUND EQ
PRESET EQ
0
10
CD
To select between loaded decks
Press [DECK 1/2] (remote control: [PLAY MODE]).
TUNER
TAPE
BAND
AUX
VOL
VOL
MUTING REW
Notes
• Tape playback is momentarily interrupted if you open the other deck.
• Tapes exceeding 100 minutes are thin and can break or get caught
in the mechanism.
• Tape slack can get caught up in the mechanism and should be
taken up before the tape is played.
• Endless tapes can get caught up in the deck’s moving parts if used
incorrectly.
CLEAR
CD DISP DIMMER PLAY MODE
FF
PLAY MODE
Selection of tapes for recording
Use normal position tapes.
High position and metal position tapes can be used, but this unit will
not be able to record or erase them correctly.
Preparation:
Wind up the leader tape so recording can begin immediately.
Using the built-in sound quality/
sound field settings
1 Press [c, DECK 2] and insert the cassette to be
recorded.
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
DISC
1
2
3
5
6
8
9
Insert with the side to be recorded facing towards you and the
exposed tape facing down.
PROGRAM
4
S.SOUND EQ
7
PRESET EQ
0
10
CD
TUNER
TAPE
BAND
AUX
VOL
VOL
MUTING REW
CLEAR
FF
CD DISP DIMMER PLAY MODE
Press [PRESET EQ] to select a setting.
Every time you press the button:
HEAVY
SOFT
CLEAR
DISCO
LIVE
HALL
EQ-OFF
(cancelled)
HEAVY (sound quality) :
SOFT (sound quality) :
CLEAR (sound quality):
DISCO (sound field)
:
LIVE (sound field)
HALL (sound field)
10
RQT6693
Adds punch to rock
For background music
Clarifies higher sounds
Produces sound with the same kind of
lengthy reverberations heard at a disco
: Makes vocals more alive
: Adds an expansiveness to the sound to
produce the atmosphere of a great concert
hall.
Note
You cannot use PRESET EQ and SUPER SOUND EQ together.
2 Select the source to be recorded.
Radio recording:
Tune in the station. (A page 7)
CD recording:
1 Insert the CD(s) you want to record.
Press [:/J, CD] and then [L, STOP].
2 Prepare the desired CD recording mode.
• To record programmed tracks (A “Program play” on page
9: steps 1–3).
• To record specific CDs/tracks
1-DISC/ALL-DISC recording
Do steps 1 to 2 on page 9: “To listen to specific CDs and
tracks (CD Play Mode function)”.
Ensure CD is stopped.
1-SONG recording
1. Do steps 1 to 2 on page 9: “To listen to specific CDs and
tracks (CD Play Mode function)”.
Ensure CD is stopped.
2. Press [g/REW/3] or [f/FF/4] to select the track.
Tape-to-tape recording:
1 Press [:, TAPE] and then [L, STOP].
2 Press [c, DECK 1] and insert the cassette you want to record.
3 Press [a REC] to start recording.
Recording
Optional antenna connections
To stop recording
Press [L, STOP].
AM outdoor antenna
AM outdoor antenna (not included)
If the tape finishes before the CD
The CD continues playing. Press [L, STOP] to stop it.
5 -12 m
(16 – 40 ft.)
To record on the other side of the tape
Turn the tape over and press [a REC].
Remote control only
Hold down [PLAY MODE] while recording.
Every time you hold down the button: BP1 ↔ BP2
Choose the setting with the least noise.
Notes
• Changes to volume and sound/field quality do not affect recording.
• You cannot open deck 1 while recording.
• You cannot fast-forward or rewind one deck while recording with
the other.
• When recording an AM broadcast, sound is momentarily interrupted
when you start and stop the recording.
Run a piece of vinyl wire horizontally across a window or other
convenient location.
Leave the loop antenna connected.
Note
Disconnect the outdoor antenna when the unit is not in use.
Do not use the outdoor antenna during an electrical storm.
External unit connections
Erasure prevention
Use a screwdriver or similar object to break out the tab.
Rear panel of
this unit
R
L
Cassette deck operations
AM loop
antenna
(included)
Reducing noise when recording AM
Side A
(R)
Analog player
(not included)
Tab for side A
To re-record on a protected cassette
Cover the hole with adhesive tape.
•
•
•
An analog player with a built-in phono equalizer can be connected.
For details, refer to the instruction manual of the units which are to
be connected.
When units other than those described above are to be connected,
please consult your audio dealer.
Using an external unit
Adhesive tape
To erase a tape
1. Press [:, TAPE] and then [L, STOP].
2. Insert the recorded tape into deck 2.
Ensure there is no tape in deck 1.
3. Press [a REC].
REC
AUX
Recording operations
Tab for side B
(L)
Optional antenna connections
Use outdoor antenna if radio reception is poor.
FM outdoor antenna
FM outdoor antenna
(not included)
Listening to an external source
(See above for external unit connection)
1. Press [AUX].
The unit comes on.
2. Start playback from the external source. (For details, refer to the
external unit’s instruction manual.)
Recording from an external source
75 Ω coaxial cable (not included)
1
30 mm
(1 3/16”)
1
2
•
•
2
Shield braid
Shield braid
15 mm
(19/32”)
3
Core wire
Core wire
Disconnect the FM indoor antenna.
The antenna should be installed by a competent technician.
1. Press [AUX].
2. Press [a REC] (recording starts).
3. Start playback from the external source. (For details, refer to the
external unit’s instruction manual.)
Using headphones (not included)
Reduce the volume level and connect the headphones to the
[PHONES] jack.
Plug type: 3.5 mm (1/8˝) stereo
Note
Avoid listening for prolonged periods of time to prevent hearing damage.
11
RQT6693
Turning the demo function off
Auto-off function
Remote control only
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
SLEEP
–AUTO OFF
DISC
1
2
3
4
5
6
8
9
0
10
PROGRAM
S.SOUND EQ
7
PRESET EQ
CD
TUNER
TAPE
BAND
AUX
VOL
VOL
MUTING REW
A demonstration of the display is shown if you have not set the clock.
You can reduce the power consumed in standby mode by turning it off.
During standby mode
Hold down [-DISP/–DEMO] until “NO DEMO” is displayed.
Every time you hold down the button:
NO DEMO (off) ↔ DEMO ON (on)
FF
CLEAR
CD DISP DIMMER PLAY MODE
When CD or tape is selected as the source
To save power, the unit turns off if it is left unused for ten minutes.
This function does not work if the source is tuner or AUX.
Hold down [–AUTO OFF].
To show a demonstration of the display
Hold down [-DISP/–DEMO] until “DEMO ON” is displayed.
“AUTO OFF” is shown on the display.
The setting is maintained even if the unit is turned off.
If you select tuner or AUX as the source, “AUTO OFF” goes out. It
comes on again when you select CD or tape.
Note
DEMO function cannot be turned on when Dimmer is on.
To cancel
Hold down [–AUTO OFF] again.
Convenient functions
Setting the time
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
DISC
1
2
3
4
5
6
8
9
Remote control only
PROGRAM
S.SOUND EQ
7
PRESET EQ
0
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
10
CD
TUNER
DISC
TAPE
BAND
AUX
CLEAR
1
2
3
4
5
6
8
9
0
10
PROGRAM
VOL
VOL
MUTING REW
FF
S.SOUND EQ
CD DISP DIMMER PLAY MODE
7
PRESET EQ
CD
TUNER
TAPE
BAND
To dim the display panel
AUX
VOL
VOL
Timer operations
Remote control only
MUTING REW
Switching displays SC-AK310 only
Press [-DISP/–DEMO] to select the desired spectrum
analyzer.
This is a 12-hour clock.
1 Switch on the power.
2 Press [CLOCK/TIMER] to select “CLOCK”.
Every time you press the button:
CLOCK
Every time you press the button:
Normal
Peak hold
Aurora
(OFF)
To mute the volume
Remote control only
Press [MUTING].
Press the button again to cancel.
“MUTING” goes out.
To cancel from the unit, turn [VOLUME] to minimum (--dB), then raise
it to the required level.
Muting is also cancelled when the unit is turned off.
12
RQT6693
FF
CD DISP DIMMER PLAY MODE
Press [DIMMER].
The display is dimmed and the indicator is turned off.
(The AC supply indicator remains on.)
Press [DIMMER] again to restore the display.
CLEAR
PLAY
REC
Previous display
3
(within 7 seconds or so)
Press [g, REW/3] or [f, 4/FF] to set the time.
4 Press [CLOCK/TIMER] to finish setting the time.
The display will return to whatever was displayed before you set
the time.
To display the time
Press [CLOCK/TIMER] once when the unit is on or at standby mode.
The time is shown for about 5 seconds.
Note
Reset the clock regularly to maintain accuracy.
Using the timers
PL
PLAY
REC
SLEEP CLOCK
AUTO
UTO OFF TIMER
DISC
2
3
4
5
6
7
8
9
0
10
1
PROGRAM
S.SOUND EQ
PRESET EQ
CD
TUNER
TAPE
BAND
AUX
VOL
VOL
MUTING REW
CLEAR
FF
CD DISP DIMMER PLAY MODE
To cancel the timer
Press [rPLAY/REC] to clear the timer indicator from the display.
(The timer comes on at the set time everyday if the timer is on.)
To change the settings (when the unit is on)
To change the play/record times
Do steps 1, 2, 3 and 5.
To change the source or volume
1. Press [rPLAY/REC] to clear the timer indicator from the display.
2. Make changes to the source or volume.
3. Do steps 4 to 5.
To change the timer
Press [rPLAY/REC] to select the desired timer.
Every time the button is pressed:
PLAY
REC
(off)
Remote control only
You can set the timer to come on at a certain time to wake you up
(play timer) or to record a radio station or from the aux source (record
timer).
The play and record timers cannot be used together.
Preparations:
• Turn the unit on and set the clock (A page 12).
• For the play timer, prepare the desired music source (tape/CD/
radio/aux), and set the volume.
• For the record timer, check the cassette’s erasure prevention tabs
(A page 11) and insert the tape in deck 2 (A page 10). Tune to
the radio station (A page 7) or select the aux source (A page 11).
1 Press [CLOCK/TIMER] to select the timer function.
Every time you press the button:
CLOCK
PLAY
REC
Previous display
rPLAY: to set the play timer
rREC: to set the record timer
2 ON time setting
1 (Within 8 seconds or so)
Press [g, REW/3] or [f, 4/FF] to set the
start time.
2 Press [CLOCK/TIMER].
3 OFF time setting
1 Press [g, REW/3] or [f, 4/FF] to set the
finish time.
2 Press [CLOCK/TIMER].
To check the settings
Press [CLOCK/TIMER] while the unit is on to select “rPLAY” or
“rREC”.
The settings are shown in the following order:
Play timer: start time→finish time→source→volume
Record timer: start time→finish time→source
To check the settings while the unit is off, press [CLOCK/TIMER]
twice.
If you use the unit after the timers are set
After using, check that the correct tape/CD are loaded before turning
the unit off.
Notes
•
If you turn the unit off and on again while a timer is functioning, the
finish time setting will not be activated.
•
If you selected AUX as the source, when the timer comes on, the
unit turns on and engages “AUX” as the source. If you want to
playback or record from a connected unit, set that unit’s timer to the
same time. (See the connected unit’s instruction manual.)
Using the sleep timer
Remote control only
Timer operations
Using the play/record timer
This timer turns the unit off after a set time.
While enjoying the desired source:
Press [SLEEP] to select the time (minutes).
Every time you press the button:
SLEEP 30
SLEEP 60
SLEEP 90
SLEEP 120
SLEEP OFF
4 Press [rPLAY/REC] to display the timer indicator.
Every time you press the button:
PLAY
REC
(off)
rPLAY: to turn the play timer on
rREC: to turn the record timer on
(The indicator doesn’t appear if the start and finish times or the
clock hasn’t been set.)
f] to turn the unit off.
5 Press [f
The unit must be off for the timers to operate.
• Play timer: Play will start in the set condition at the set time
with volume increasing gradually to the set level.
• Record timer: The unit comes on 30 seconds before the set
time with the volume muted.
To cancel the sleep timer
Press [SLEEP] to select “SLEEP OFF”.
To confirm the remaining time
Press [SLEEP] once.
The remaining time is shown for about 5 seconds.
Reference
The start and finish times are now set.
To change the setting
Press [SLEEP] to select the new setting.
You can use the sleep timer in combination with the play/record timer.
Make sure the unit is off before the play/record timer’s start time.
Note
The sleep timer will be turned off when you start recording from a CD.
13
RQT6693
Troubleshooting guide
Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the
chart do not solve the problem:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail consumerproducts@panasonic.com, or web site
(http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505, web site (www.panasonic.ca), or an authorized
Servicentre closest to you.
Reference pages are shown as black circled numbers 5.
Common Problems
No sound.
Sound stops.
Sound is unfixed, reversed or
comes from one speaker
only.
Humming heard during play.
“ERROR” is displayed.
“– –:– –” appears on the
display at standby mode.
“F61” is displayed.
Turn the volume up.
Switch off the unit, determine and correct the cause, then switch the unit on. Causes include shorting of
the positive and negative speaker wires, straining of the speakers through excessive volume or power,
and using the unit in a hot environment.
Check the speaker connections. 5
An AC power supply cord or fluorescent light is near the cables. Keep other appliances and cords away
from this unit’s cables.
Incorrect operation performed. Read the instructions and try again.
You plugged the AC power supply cord in for the first time or there was a power failure recently. Set the
time. @
Check and correct the speaker cords connection. 5
If this does not fix the problem, there is a power supply problem. Consult the dealer.
Listening to the radio
Noise is heard.
The stereo indicator flickers
or doesn’t light.
Sound is distorted.
Use an outdoor antenna. !
A beat sound is heard.
Turn the TV off or separate it from the unit.
A low hum is heard during
AM broadcasts.
Separate the antenna from other cables and cords.
When there is a television set nearby
The picture on the TV
disappears or stripes
appear on the screen.
The location and orientation of the antenna are incorrect. If you are using an indoor antenna, change to
an outdoor antenna.
The TV antenna wire is too close to the unit. Separate the antenna wire of the TV set from the unit.
Using the cassette deck
Poor quality sound.
Clean the heads. See below
Recording is not possible.
If the erasure prevention tabs have been removed, cover the holes with adhesive tape. !
Reference
Playing discs
The display is wrong or
play won’t start.
The disc may be upside down. 8
Wipe the disc.
Replace the disc if it is scratched, warped, or non-standard.
Condensation may have formed inside the unit due to a sudden change in temperature. Wait about an
hour for it to clear and try again.
CD-RW cannot be read.
The disc was incompletely formatted. Use the recording equipment to fully format the disc before recording.
“TAKE OUT/DISC” appears
on the display.
There is a problem with the disc mechanism. (A power failure may have occurred.)
The tray will open automatically. Remove the disc from the tray, and after ensuring there is no disc in the tray,
close it. The unit will make the disc changing noises for a few moments and then it should operate normally.
Remote control
Remote control doesn’t
work.
Check that the batteries are inserted correctly. 4
Replace the batteries if they are worn.
Maintenance
If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
14
RQT6693
•
•
Never use alcohol, paint thinner or benzine to clean this unit.
Before using a chemically treated cloth, read the instructions that
came with the cloth carefully.
For a cleaner, crisper sound
Clean the heads regularly to assure good quality playback and
recording.
Use a cleaning tape (not included).
Specifications
AMPLIFIER SECTION SC-AK310
CASSETTE DECK SECTION
SPEAKER SECTION SB-AK110
Power output
10% Total harmonic distortion
60 Hz–3 kHz, both channels driven
(Low channel) 40 W per channel (6 Ω)
3 kHz–16 kHz, both channels driven
(High channel) 40 W per channel (6 Ω)
Total Bi-Amp power 80 W per channel
Power output
10% Total harmonic distortion
1 kHz, both channels driven
(Low channel) 55 W per channel (6 Ω)
10 kHz, both channels driven
(High channel) 55W per channel (6 Ω)
Total Bi-Amp power 110 W per channel
Input sensitivity
AUX
250 mV
Input Impedance
AUX
13.3 kΩ
Track system
4 track, 2 channel
Heads
Record/playback Solid permalloy head
Erasure
Double gap ferrite head
Motor
DC servo motor
Recording system
AC bias 100 kHz
Erasing system
AC erase 100 kHz
Tape speed
4.8 cm/s (17/8 ips)
Overall frequency response
(+3 dB, –6 dB at DECK OUT)
NORMAL (TYPE I)
35 Hz – 14 kHz
S/N
50 dB (A weighted)
Wow and flutter
0.18% (WRMS)
Fast forward and rewind time
Approx. 120 seconds with
C-60 cassette tape
Type
2 way, 2 speaker system
Speaker(s)
Woofer
16 cm (61/2˝) cone type
Tweeter
6 cm (23/8˝) cone type
Impedance
6Ω
Input power
160 W (Music)
Output sound pressure level
86.8 dB/W (1.0 m)
Cross over frequency
4 kHz
Frequency range
45 Hz–30 kHz (–16 dB)
60 Hz–26 kHz (–10 dB)
Dimensions (WxHxD) 220 x 330 x 227 mm
(821/32˝ x 13˝ x 815/16˝)
Mass
3.0 kg (6.6 lb.)
AMPLIFIER SECTION SC-AK110
Power output
10% Total harmonic distortion
60 Hz–16 kHz, both channels driven
60 W per channel (6 Ω)
Power output
10% Total harmonic distortion
1 kHz, both channels driven
80 W per channel (6 Ω)
Input sensitivity
AUX
250 mV
Input Impedance
AUX
13.3 kΩ
FM TUNER SECTION
Frequency range
87.9 – 107.9 MHz (200 kHz steps)
87.5 – 108.0 MHz (100 kHz steps)
Sensitivity
2.5 µV (IHF)
S/N 26 dB
2.2 µV
Antenna terminal(s)
75 Ω (unbalanced)
AM TUNER SECTION
Frequency range
520 – 1710 kHz (10 kHz steps)
Sensitivity
S/N 20 dB (at 1000 kHz)
560 µV/m
CD SECTION
Sampling frequency
44.1 kHz
Decoding
16 bit linear
Beam source/wavelength
Semiconductor laser/780 nm
Number of channels
Stereo
Frequency response
20 Hz–20 kHz (+1, –2 dB)
Wow and flutter
Below measurable limit
Digital filter
8 fs
D/A converter
MASH (1 bit DAC)
SPEAKER SECTION SB-AK310
Type
3 way, 3 speaker system
Speaker(s)
Woofer
16 cm (61/2˝) cone type
Tweeter
6 cm (23/8˝) cone type
Super tweeter
2.5 cm (1˝) Piezo type
Impedance
HIGH
6Ω
LOW
6Ω
Input power
HIGH
110 W (Music)
LOW
110 W (Music)
Output sound pressure level
86.5 dB/W (1.0 m)
Cross over frequency
3.5 kHz, 10 kHz
Frequency range
35 Hz–25 kHz (–16 dB)
47 Hz–24 kHz (–10 dB)
Dimensions (WxHxD) 227 x 344 x 243 mm
(815/16˝ x 1317/32˝ x 99/16˝)
Mass
3.3 kg (7.3 lb.)
GENERAL
Power supply
AC 120 V, 60 Hz
Power consumption
165 W
Dimensions (WxHxD) 250 x 330 x 370 mm
(927/32˝ x 13˝ x 143/8˝)
Mass
SC-AK310 7.6 kg (16.7 lb.)
SC-AK110 7.0 kg (15.4 lb.)
Power consumption in standby mode: 0.34 W
Notes:
1. Specifications are subject to change
without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by
the digital spectrum analyzer.
3. SB-AK310 only
The labels “HIGH” and “LOW” on the rear
of the speakers refer to High frequency
and Low frequency.
1. Damage requiring service —The unit should be serviced by
qualified service personnel if:
(a)The AC power supply cord or AC adaptor has been damaged; or
(b)Objects or liquids have gotten into the unit; or
(c)The unit has been exposed to rain; or
(d)The unit does not operate normally or exhibits a marked change
in performance; or
(e)The unit has been dropped or the cabinet damaged.
2. Servicing —Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing
to authorized servicing personnel.
3. Replacement parts —When parts need replacing ensure the
servicer uses parts specified by the manufacturer or parts that
have the same characteristics as the original parts. Unauthorized
substitutes may result in fire, electric shock, or other hazards.
4. Safety check —After repairs or service, ask the servicer to
perform safety checks to confirm that the unit is in proper working
condition.
Product information
For product information or assistance with product operation:
In the U.S.A., contact the Panasonic Customer Call Center at
1-800-211-7262, or e-mail consumerproducts@panasonic.com,
or web site (http://www.panasonic.com).
Reference
Product Service
In Canada, contact Panasonic Canada Inc. Customer Care Centre
at 905-624-5505, web site (www.panasonic.ca), or an authorized
Servicentre closest to you.
15
RQT6693
Limited Warranty (ONLY FOR U.S.A.)
Panasonic Sales Company, Division of Matsushita Electric
of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic/Technics Audio Products
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively
referred to as “the warrantor”) will, for the length of the period indicated on the chart
below, which starts with the date of original purchase (“warranty period”), at its option
either (a) repair your product with new or refurbished parts, or (b) replace it with a new or
a refurbished product. The decision to repair or replace will be made by the warrantor.
Product or Part Name
Parts
Labor
One (1) year
One (1) year
All Audio Racks (cabinets)
Thirty (30) days
Not Applicable
Technics Stand Alone Speakers, Subwoofer
Speakers
Audio Products (except items listed below)
Three (3) years
Three (3) years
USB Reader-Writer, Personal Computer
Card Adapters
(in exchange for defective item)
One (1) year
Not Applicable
Accessories: Headphones, Cartridges,
Microphones, Adapters
Ninety (90) days
Ninety (90) days
Rechargeable Batteries (in exchange for
defective item)
Ten (10) days
Not Applicable
SD Memory Cards, Rechargeable Battery
Packs (in exchange for defective item)
Ninety (90) days
Not Applicable
During the “Labor” warranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. You must carry-in or mail-in your product during the warranty period. If non-rechargeable batteries are included, they are not
warranted. This warranty only applies to products purchased and serviced in the United
States or Puerto Rico. This warranty is extended only to the original purchaser of a new
product which was not sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.
Carry-In or Mail-In Service
For Carry-In or Mail-In Service in the United States call 1-800-211-PANA (1-800-2117262) or visit Panasonic web site: http://www.panasonic.com
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax
(787)-768-2910.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and
DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO
DOES NOT COVER damages which occurred in shipment, or failures which are caused
by products not supplied by the warrantor, or failures which result from accidents, misuse,
abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge,
lightning damage, modification, or commercial use (such as in a hotel, office, restaurant,
or other business), rental use of the product, service by anyone other than a Factory
Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED
WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT,
OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, travel to and from the servicer, loss of media or images,
data or other memory content. The items listed are not exclusive, but are for illustration
only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY
OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which
vary from state to state. If a problem with this product develops during or after the
warranty period, you may contact your dealer or Servicenter. If the problem is not handled
to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the
addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY
ARE YOUR RESPONSIBILITY.
Customer Services Directory (ONLY FOR U.S.A.)
For Product Information, Operating Assistance, Literature Request, Dealer Locations, and
all Customer Service inquiries please contact:
1-800-211-PANA (7262), Monday–Friday 9 am–9 pm; Saturday–Sunday 9 am–7 pm, EST.
or send e-mail:
consumerproducts@panasonic.com
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Web Site: http://www.panasonic.com
You can purchase parts, accessories or
locate your nearest servicenter by visiting
our Web Site.
Accessory Purchases:
Reference
1-800-332-5368 (Customer Orders Only)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(6 am to 5 pm Monday–Friday; 6 am to 10:30 am Saturday; PST)
(Visa, MasterCard, Discover Card, American Express, Check)
16
RQT6351
Service in Puerto Rico
Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/Factory Servicenter:
Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787) 750-4300 Fax (787) 768-2910
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
©2002 Matsushita Electric Industrial Co., Ltd.
Printed in Malaysia
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
En
RQT6693-1P
G0802CP1102
