Panasonic SCAKX200 Operating instructions

Panasonic SCAKX200 Operating instructions
Ű NORSK
Sales and Support Information
ADVARSEL!

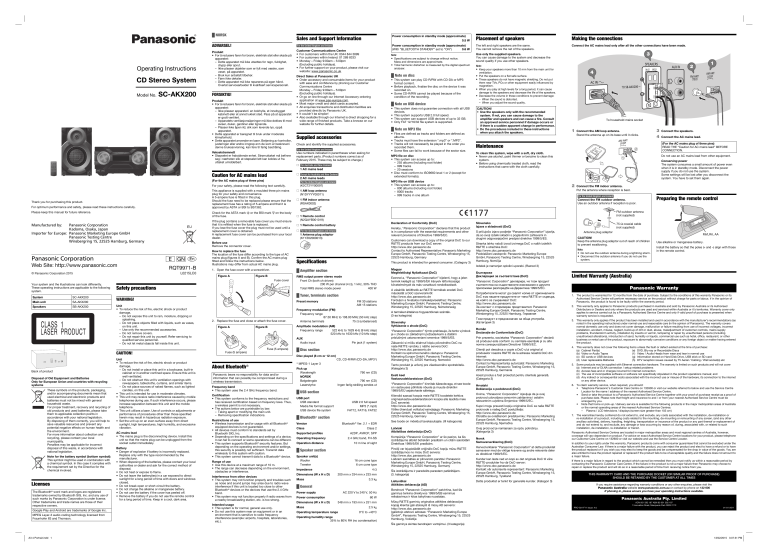

Operating Instructions
CD Stereo System
Model No.
SC-AKX200
For the United Kingdom and Ireland
Produkt
• For å redusere faren for brann, elektrisk støt eller skade på
apparatet:
– Dette apparatet må ikke utsettes for regn, fuktighet,
drypp eller sprut.
– Ikke plasser objekter som er fylt med væske, som
vaser, på apparatet.
– Bruk kun anbefalt tilbehør.
– Fjern ikke deksler.
– Dette apparatet må ikke repareres på egen hånd.
Overlat servicearbeider til kvalifisert servicepersonell.
FORSIKTIG!
Produkt
• For å redusere faren for brann, elektrisk støt eller skade på
apparatet:
– Ikke plasser apparatet i en bokhylle, et innebygget
kabinett eller et annet lukket sted. Pass på at apparatet
er godt ventilert.
– Apparatets ventilasjonsåpninger må ikke dekkes til med
aviser, duker, gardiner eller lignende.
– Plasser ikke åpen ild, slik som levende lys, oppå
apparatet.
• Dette apparatet er beregnet til bruk under moderate
klimaforhold.
• Dette apparatet anvender en laser. Betjening av kontroller,
justeringer eller andre inngrep enn de som er beskrevet i
denne bruksanvisning, kan føre til farlig bestråling.
Vekselstrømnett
• Støpselet er frakoblende enhet. Strømuttaket må befinne
seg i nærheten slik at støpselet lett kan kobles ut fra
uttaket umiddelbart.
Customer Communications Centre
• For customers within the UK: 0344 844 3899
• For customers within Ireland: 01 289 8333
• Monday – Friday 9:00am – 5:00pm
(Excluding public holidays).
• For further support on your product, please visit our
website: www.panasonic.co.uk
Supplied accessories
Check and identify the supplied accessories.
For the United Kingdom and Ireland
Use numbers indicated in parentheses when asking for
replacement parts. (Product numbers correct as of
February 2015. These may be subject to change.)
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.
Check for the ASTA mark
of the fuse.
Panasonic Corporation
Kadoma, Osaka, Japan
Importer for Europe: Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
For Australia and New Zealand
E
GN En
RQT9971-B
How to replace the fuse
The location of the fuse differ according to the type of AC
mains plug (figures A and B). Confirm the AC mains plug
fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
Figure B
Fuse cover
Your system and the illustrations can look differently.
These operating instructions are applicable to the following
system.
System
SC-AKX200
Main unit
SA-AKX200
Speakers
SB-AKX200
Safety precautions
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases,
on this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
– Do not let metal objects fall inside this unit.
CAUTION!
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling
systems
These symbols on the products, packaging,
and/or accompanying documents mean that
used electrical and electronic products and
batteries must not be mixed with general
household waste.
For proper treatment, recovery and recycling of
old products and used batteries, please take
them to applicable collection points in
accordance with your national legislation.
By disposing of them correctly, you will help to
save valuable resources and prevent any
potential negative effects on human health and
the environment.
For more information about collection and
recycling, please contact your local
municipality.
Penalties may be applicable for incorrect
disposal of this waste, in accordance with
national legislation.
Note for the battery symbol (bottom symbol):
This symbol might be used in combination with
a chemical symbol. In this case it complies with
the requirement set by the Directive for the
chemical involved.
Licenses
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by Panasonic Corporation is under license.
Other trademarks and trade names are those of their
respective owners.
Google Play and Android are trademarks of Google Inc.
MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.
A3 4 Portrait.indd 1
1 AM loop antenna
Figure A
Figure B
(N1DYYYY00011)
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
– Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
– Do not place sources of naked flames, such as lighted
candles, on this unit.
• This unit is intended for use in moderate climates.
• This unit may receive radio interference caused by mobile
telephones during use. If such interference occurs, please
increase separation between this unit and the mobile
telephone.
• This unit utilizes a laser. Use of controls or adjustments or
performance of procedures other than those specified
herein may result in hazardous radiation exposure.
• Set the unit up on an even surface away from direct
sunlight, high temperatures, high humidity, and excessive
vibration.
AC mains lead
• The mains plug is the disconnecting device. Install this
unit so that the mains plug can be unplugged from the
socket outlet immediately.
Battery
• Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
• When disposing of the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows
closed.
• Do not break open or short-circuit the battery.
• Do not charge the alkaline or manganese battery.
• Do not use the battery if the cover has peeled off.
• Remove the battery if you do not use the remote control
for a long period of time. Keep in a cool, dark area.
Panasonic bears no responsibility for data and/or
information that can possibly be compromised during a
wireless transmission.
Frequency band
• This system uses the 2.4 GHz frequency band.
Certification
• This system conforms to the frequency restrictions and
has received certification based on frequency laws. Thus,
a wireless permit is not necessary.
• The actions below are punishable by law:
– Taking apart or modifying the main unit.
– Removing specification indications.
Restrictions of use
• Wireless transmission and/or usage with all Bluetooth®
equipped devices is not guaranteed.
• All devices must conform to standards set by
Bluetooth SIG, Inc.
• Depending on the specifications and settings of a device,
it can fail to connect or some operations can be different.
• This system supports Bluetooth® security features. But
depending on the operating environment and/or settings,
this security is possibly not sufficient. Transmit data
wirelessly to this system with caution.
• This system cannot transmit data to a Bluetooth® device.
Range of use
• Use this device at a maximum range of 10 m.
• The range can decrease depending on the environment,
obstacles or interference.
Interference from other devices
• This system may not function properly and troubles such
as noise and sound jumps may arise due to radio wave
interference if this unit is located too close to other
Bluetooth® devices or the devices that use the 2.4 GHz
band.
• This system may not function properly if radio waves from
a nearby broadcasting station, etc. is too strong.
Intended usage
• This system is for normal, general use only.
• Do not use this system near an equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals, laboratories,
etc.).
• This system does not guarantee connection with all USB
devices.
• This system supports USB 2.0 full speed.
• This system can support USB devices of up to 32 GB.
• Only FAT 12/16/32 file system is supported.
CAUTION!
• Use the speakers only with the recommended
system. If not, you can cause damage to the
amplifier and speakers and can cause a fire. Consult
an approved service personnel if damage occurs or
if there is a sudden apparent change in performance.
• Do the procedures included in these instructions
when you attach the speakers.
2
4
1
To household mains socket
1
Connect the AM loop antenna.
Stand the antenna up on its base until it clicks.
3
4
Connect the speakers.
Connect the AC mains lead.
(For the AC mains plug of three pins)
READ THE “Caution for AC mains lead” BEFORE
CONNECTION.
Maintenance
To clean this system, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this
system.
• Before using chemically treated cloth, read the
instructions that came with the cloth carefully.
Do not use an AC mains lead from other equipment.
Conserving power
The system consumes a small amount of power even
when it is in standby mode. Disconnect the power
supply if you do not use the system.
Some settings will be lost after you disconnect the
system. You have to set them again.
2
Connect the FM indoor antenna.
Put the antenna where reception is best.
For the United Kingdom and Ireland
Preparing the remote control
FM outdoor antenna
(not supplied)
1 Remote control
(N2QAYB001019)
Declaration of Conformity (DoC)
1 Remote control battery
For the United Kingdom and Ireland
Hereby, “Panasonic Corporation” declares that this product
is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
1 Antenna plug adaptor
(K1YZ02000013)
Customers can download a copy of the original DoC to our
R&TTE products from our DoC server:
http://www.doc.panasonic.de
Contact to Authorised Representative: Panasonic Marketing
Europe GmbH, Panasonic Testing Centre, Winsbergring 15,
22525 Hamburg, Germany
Specifications
This product is intended for general consumer. (Category 3)
Ű Amplifier section
Magyar
Megfelelőségi Nyilatkozat (DoC)
RMS output power stereo mode
Front Ch (both ch driven)
200 W per channel (4 ȍ), 1 kHz, 30% THD
Total RMS stereo mode power
400 W
Ezennel a, “Panasonic Corporation” kijelenti, hogy a jelen
termék kielégíti az 1999/5/EK Irányelv létfontosságú
követelményeit és más vonatkozó rendelkezéseit.
Slovensko
Izjava o skladnosti (DoC)
S pričujočo izjavo podjetje “Panasonic Corporation” izjavlja,
da so svoji izdelki skladni s poglavitnimi zahtevami in
drugimi odgovarjajočimi predpisi direktive 1999/5/ES.
Stranka lahko naloži izvod izvirnega DoC o naših izdelkih
R&TTE s strežnika DoC:
http://www.doc.panasonic.de
Pooblaščeni zastopnik: Panasonic Marketing Europe
GmbH, Panasonic Testing Centre, Winsbergring 15, 22525
Hamburg, Nemčija
75 Ÿ coaxial cable
(not supplied)
Antenna plug adaptor
CAUTION!
Keep the antenna plug adaptor out of reach of children
to prevent swallowing.
Note:
• Do not use the outdoor antenna during a lightning storm.
• Disconnect the outdoor antenna if you do not use the
system.
Use alkaline or manganese battery.
Install the battery so that the poles (+ and –) align with those
in the remote control.
Izdelek je namenjen splošni uporabi. (Razred 3)
FM 30 stations
AM 15 stations
Frequency modulation (FM)
Frequency range
87.50 MHz to 108.00 MHz (50 kHz step)
Antenna terminals
75 ȍ (unbalanced)
Amplitude modulation (AM)
Frequency range
522 kHz to 1629 kHz (9 kHz step)
520 kHz to 1630 kHz (10 kHz step)
Pin jack (1 system)
Ű Disc section
CD, CD-R/RW (CD-DA, MP3 )
About Bluetooth
Ű Note on USB device
(RSAX0002)
Disc played (8 cm or 12 cm)
®
• This system can play CD-R/RW with CD-DA or MP3
format content.
• Before playback, finalise the disc on the device it was
recorded on.
• Some CD-R/RW cannot be played because of the
condition of the recording.
Note:
• Keep your speakers more than 10 mm from the main unit for
ventilation.
• Put the speakers on a flat safe surface.
• These speakers do not have magnetic shielding. Do not put
them near TVs, PCs or other equipment easily influenced by
magnetism.
• When you play at high levels for a long period, it can cause
damage to the speakers and decrease the life of the speakers.
• Decrease the volume in these conditions to prevent damage:
– When the sound is distorted.
– When you adjust the sound quality.
Connect the FM outdoor antenna.
Use an outdoor antenna if reception is poor.
AUX
Audio input
Fuse (5 ampere)
Ű Note on disc
3
Use only the supplied speakers.
You can cause damage to the system and decrease the
sound quality if you use other speakers.
1 FM indoor antenna
Preset memory
2. Replace the fuse and close or attach the fuse cover.
Connect the AC mains lead only after all the other connections have been made.
MP3 file on USB device
• This system can access up to:
– 800 albums (including root folder)
– 8000 tracks
– 999 tracks in one album
(K2CT2YY00097)
Ű Tuner, terminals section
WARNING!
Fuse (5 ampere)
Back of product
Except for Australia and New Zealand
Before use
Remove the connector cover.
L0215LC0
© Panasonic Corporation 2015
on the body
If the plug contains a removable fuse cover you must ensure
that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local
dealer.
Manufactured by:
Panasonic Corporation
Web Site: http://www.panasonic.com
or the BSI mark
The left and right speakers are the same.
You cannot remove the net of the speakers.
MP3 file on disc
• This system can access up to:
– 255 albums (including root folder)
– 999 tracks
– 20 sessions
• Disc must conform to ISO9660 level 1 or 2 (except for
extended formats).
For the United Kingdom and Ireland
This appliance is supplied with a moulded three pin mains
plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is
approved by ASTA or BSI to BS1362.
Power consumption in standby mode (approximate)
(With “BLUETOOTH STANDBY” set to “ON”)
0.6 W
• Files are defined as tracks and folders are defined as
albums.
• Tracks must have the extension “.mp3” or “.MP3”.
• Tracks will not necessarily be played in the order you
recorded them.
• Some files can fail to work because of the sector size.
2 AC mains leads
For your safety, please read the following text carefully.
Making the connections
Ű Note on MP3 file
1 AC mains lead
(For the AC mains plug of three pins)
Placement of speakers
Note:
• Specifications are subject to change without notice.
Mass and dimensions are approximate.
• Total harmonic distortion is measured by the digital spectrum
analyser.
Direct Sales at Panasonic UK
• Order accessory and consumable items for your product
with ease and confidence by phoning our Customer
Communications Centre
Monday – Friday 9:00am – 5:00pm
(Excluding public holidays).
• Or go on line through our Internet Accessory ordering
application at www.pas-europe.com.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are
provided directly by Panasonic UK.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping for a
wide range of finished products. Take a browse on our
website for further details.
Caution for AC mains lead
Power consumption in standby mode (approximate)
0.5 W
MPEG-1 Layer 3
Pick up
Wavelength
NORSK
Bølgelengde
Laserstyrke
Slovensky
Vyhlásenie o zhode (DoC)
“Panasonic Corporation” týmto prehlasuje, že tento výrobok
je v zhode so základnými požiadavkami a ďalšími
príslušnými ustanoveniami smernice 1999/5/ES.
Zákazníci si môžu stiahnuť kópiu pôvodného DoC na
naše R&TTE výrobky z nášho servera DoC:
http://www.doc.panasonic.de
Kontakt na splnomocneného zástupcu: Panasonic
Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Nemecko
790 nm (CD)
790 nm (CD)
Ingen farlig stråling sendes ut
USB port
USB standard
Media file format support
USB device file system
USB 2.0 full speed
MP3 (*.mp3)
FAT12, FAT16, FAT32
Ű Bluetooth® section
Version
Bluetooth® Ver. 2.1 + EDR
Class
Ű General
AC 220 V to 240 V, 50 Hz
Power consumption
60 W
348 mm x 193 mm x 251 mm
Mass
Operating temperature range
“Panasonic Corporation” kinnitab käesolevaga, et see toode
on vastavuses põhiliste nõuete ja muude direktiivi
1999/5/EÜ asjakohaste sätetega.
Hrvatski
Deklaracija o podobnosti (DoC)
See toode on mõeldud tavakasutajale. (III kategooria)
Ovime, “Panasonic Corporation” izjavljuje da je ovaj
proizvod udovoljava osnovnim zahtjevima i ostalim
relevantnim uvjetima Smjernice 1999/5/EC.
Kupci mogu preuzeti kopiju originalne DoC za naše R&TTE
proizvode s našeg DoC poslužitelja:
http://www.doc.panasonic.de
Obratite se ovlaštenom predstavniku: Panasonic Marketing
Europe GmbH, Panasonic Testing Centre, Winsbergring 15,
22525 Hamburg, Njemačka
16 cm cone type
6 cm cone type
3.3 kg
Power supply
Acest produs a fost proiectat pentru clientela generală.
(Categoria 3)
Pircēji var lejupielādēt oriģinālo DoC kopiju mūsu R&TTE
izstrādājumos no mūsu DoC servera:
http://www.doc.panasonic.de
Lūdzam sazināties ar pilnvaroto parstāvi: Panasonic
Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Germany
200 mm x 334 mm x 233 mm
Mass
Clienţii pot descărca o copie a DoC-ului original al
produselor noastre R&TTE de la adressa noastră DoC din
Internet:
http://www.doc.panasonic.de
Contact la Reprezentanţa autorizată: Panasonic Marketing
Europe GmbH, Panasonic Testing Centre, Winsbergring 15,
22525 Hamburg, Germania
Norsk
Samsvarserklæring (DoC)
4ȍ
Impedance
Prin prezenta, societatea “Panasonic Corporation” declară
că produsul este conform cu cerinţele esenţiale şi cu alte
norme corespunzătoare Directivei 1999/5/EC.
10 m line of sight
Ű Speaker section
Speaker unit(s)
Woofer
Tweeter
Român
Declaraţie de Conformitate (DoC)
Kompānija “Panasonic Corporation” ar šo paziņo, ka šis
izstrādājums atbilst būtiskām prasībām un citām saistošām
Direktīvas 1999/5/EK prasībām.
2.4 GHz band, FH-SS
Operation distance
Този продукт е предназначен за обща употреба.
(Категория 3)
Ovaj proizvod je namijenjen za opću potrošnju.
(Kategorija 3)
A2DP, AVRCP, SPP
Operating frequency
Потребителите могат да свалят копие от оригиналните
DoC към нашите продуктите от типа R&TTE от сървъра,
на който се съхраняват DoC:
http://www.doc.panasonic.de
За контакт с оторизиран представител: Panasonic
Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Германия
Eesti keel
Vastavusdeklaratsioon (DoC)
Kliendid saavad koopia meie R&TTE toodetele kehtiva
originaalvastavusdeklaratsiooni koopia alla laadida meie
DoC serverist:
http://www.doc.panasonic.de
Võtke ühendust volitatud esindajaga: Panasonic Marketing
Europe GmbH, Panasonic Testing Centre, Winsbergring 15,
22525 Hamburg, Germany
2.5 kg
0°C to +40°C
Operating humidity range
35% to 80% RH (no condensation)
Šis izstrādājums ir paredzēts parastam patērētājam.
(3. kategorija)
Lietuviškai
Atitikties deklaracija (AD)
Bendrovė “Panasonic Corporation” patvirtina, kad šis
gaminys tenkina direktyvos 1999/5/EB esminius
reikalavimus ir kitas taikytinas nuostatas.
Mūsų R&TTE gaminių originalios atitikties deklaracijos
kopiją klientai gali atsisiųsti iš mūsų AD serverio:
http://www.doc.panasonic.de
Įgaliotojo atstovo adresas: “Panasonic Marketing Europe
GmbH”, Panasonic Testing Centre, Winsbergring 15, 22525
Hamburg, Vokietija
Limited Warranty (Australia)
“Panasonic Corporation” декларира, че този продукт
съответства на съществените изисквания и другите
приложими разпоредби на Директива 1999/5/EC.
Latviski
Atbilstības deklarācija (DoC)
Class 2
Supported profiles
Dimensions (W x H x D)
A terméket általános fogyasztóknak szánták.
(3-as kategória)
Tento produkt je určený pre všeobecného spotrebiteľa.
(Kategória 3)
Ű USB section
Dimensions (W x H x D)
A vásárlók letölthetik az R&TTE termékek eredeti DoC
másolatát a DoC szerverünkről:
http://www.doc.panasonic.de
Forduljon a hivatalos márkaképviselethez: Panasonic
Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Németország
Български
Декларация за съответствие (DoC)
Herved erklærer “Panasonic Corporation” at dette produktet
samsvarer med de viktige kravene og andre relevante deler
av direktivet 1999/5/EC.
Kunder kan laste ned en kopi av det originale DoC til våre
R&TTE-produkter fra vår DoC-server:
http://www.doc.panasonic.de
Kontakt vår autoriserte representant: Panasonic Marketing
Europe GmbH, Panasonic Testing Centre, Winsbergring 15,
22525 Hamburg, Tyskland
Panasonic Warranty
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its
Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of
Panasonic, the product is found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised
Distributors or Dealers and only where the products are used and serviced within Australia or it’s territories. Warranty cover only
applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when
warranty service is requested.
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations (as
noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers
normal domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect
installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply
problems, thunderstorm activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including
unauthorised alterations), introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other
business or rental use of the product, exposure to abnormally corrosive conditions or any foreign object or matter having entered
the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Cabinet Part(s)
(e) DVD, Blu-ray or Recordable Discs
(b) Video or Audio Tapes
( f ) Video / Audio Heads from wear and tear in normal use
(c) SD cards or USB devices
(g) Information stored on Hard Disk Drive, USB stick or SD card
(d) User replaceable Batteries
(h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s) etc
5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover
(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) The use of incompatible software or software not specifically stipulated in the product operations manual; and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet
or any other device.
6. To claim warranty service, when required, you should:
• Telephone Panasonic’s Customer Care Centre on 132600 or visit our website referred to below and use the Service Centre
Locator for the name / address of the nearest Authorised Service Centre.
• Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of
purchase date. Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be
arranged by you.
• Note that home or pick-up / delivery service is available for the following products in the major metropolitan areas of Australia
or the normal operating areas of the nearest Authorised Service Centres:
– Plasma / LCD televisions / displays (screen size greater than 103 cm)
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other
ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement of
and do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such
installation, de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however,
coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone
our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the
Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have
the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are
also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to
a major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by
contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to
repair or replace the product and will do so in a reasonable period of time from receiving notice from you.
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
Dette produktet er tenkt for generelle kunder. (Kategori 3)
If you require assistance regarding warranty conditions or any other enquiries, please visit the
Panasonic Australia website www.panasonic.com.au or contact by phone on 132 600
If phoning in, please ensure you have your operating instructions available.
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
PRO-031-F11 Issue: 4.0
01-01-2011
Šis gaminys skirtas bendrajam vartojimui. (3 kategorija)
13/02/2015 3:07:31 PM
Overview of controls
Media playback
Radio
Sound effects
Do the procedures with the remote control. You can also use the buttons on the main unit if they are the same.
The following marks indicate the availability of the feature.
CD-R/RW in CD-DA format or with MP3 files.
CD :
USB device with MP3 files.
USB :
BLUETOOTH : Bluetooth® device.
Preparation
Press [RADIO/AUX] to select “FM” or “AM”.
Preset EQ
1
Press [SOUND] (main unit: [LOCAL EQ]) to select
“PRESET EQ”.
Manual tuning
2
Press [R, T] to select the desired preset EQ setting
and then press [OK].
Or turn [MULTI CONTROL] to select the desired preset
EQ setting.
Basic playback
CD USB BLUETOOTH
Play
Stop
Press [4/9].
Press [8].
1
2
3
USB
The position is memorised.
“RESUME” is shown.
Press again to stop fully.
Pause
Skip
Press [4/9].
Press again to continue playback.
Press [2/3] or [5/6] to skip track.
CD USB
Press [R, T] to skip MP3 album.
Search
A Standby/on switch [`], [1]
K View the play menu
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a
small amount of power.
L Select the sound effects
M Remote control sensor
Distance: Within approximately 7 m
Angle: Approximately 20° up and down, 30° left and right
B Select the audio source
On the main unit:
To start Bluetooth® pairing, press and hold [
–PAIRING].
N Select MP3 album or track
Press [ALBUM/TRACK] to select album or track.
Browse tracks or albums
Turn [MULTI CONTROL] to browse.
To start playback from the selection, press [4/9].
C Basic playback control
D View the setup menu
E View the content information
F Select or confirm the option
G Open or close the disc tray
H Decrease the brightness of the display panel
To cancel, press the button again.
I Adjust the volume level
O USB port (
)
USB status indicator
P Display panel
Q Disc tray
Viewing available information
CD USB BLUETOOTH
You can view the available information, such as MP3 album
and track number, on the display panel.
2
OFF
PLAYMODE
Cancel the setting.
1-TRACK
Play one selected track.
Press [2/3] or [5/6] to select
the track.
1
Play one selected MP3 album.
Press [R, T] to select the MP3 album.
RANDOM
Play all tracks randomly.
RND
1
Decrease the volume and connect the USB device to the USB port.
Hold the main unit when connecting or disconnecting the USB device.
2
Press [USB/CD] to select “USB A” or “USB B”.
USB status indicator lights up in red when selected.
1-ALBUM
RANDOM
1
1-TRACK
REPEAT
1
Bluetooth®
1
You can connect and play an audio device wirelessly through Bluetooth .
Preparation
• Switch on the Bluetooth® feature of the device and put the device near the system.
• Read the operating instructions of the device for details.
Ű Pairing a device
Ű Connecting a device
Preparation
If this system is connected to a Bluetooth® device,
disconnect it (Z“Disconnecting a device”).
Preparation
If this system is connected to a Bluetooth® device,
disconnect it (Z“Disconnecting a device”).
1
Press [ ].
If “PAIRING” is shown, continue with step 4.
1
Press [ ].
“BLUETOOTH READY” is shown.
2
3
Press [PLAY MENU] to select “PAIRING”.
2
Select “SC-AKX200” from the Bluetooth® menu of
the device.
The name of the connected device is shown for a few
seconds.
Using the main unit
1
Press and hold [
shown.
2
Select “SC-AKX200” from the Bluetooth® menu of
the device.
–PAIRING] until “PAIRING” is
Note:
You can pair up to 8 devices with this system. If a 9th device is
paired, the device that has not been used for the longest time will
be replaced.
3
Start playback on the device.
Note:
• A device must be paired to connect.
• This system can only connect to one device at a time.
• When “BLUETOOTH” is selected as the source, this system
will automatically try to connect to the last connected device.
Ű Disconnecting a device
1
2
3
1-ALBUM
REPEAT
RANDOM
REPEAT
®
Select “SC-AKX200” from the Bluetooth® menu of
the device.
If prompted for a passkey, input “0000”.
The device connects with this system automatically after
pairing is complete.
The name of the connected device is shown for a few
seconds.
RND
ALL REPEAT
Note:
Do not use a USB extension cable. The system cannot recognise USB device connected through a cable.
4
1
2
Press [ ].
Press [PLAY MENU] to select “DISCONNECT?”.
Press [R, T] to select “OK? YES” and then press
[OK].
“BLUETOOTH READY” is shown.
To cancel, select “OK? NO”.
Press [PLAY MENU] to select “A.PRESET”.
Press [R, T] to select “LOWEST” or “CURRENT” and
then press [OK].
The tuner presets all the stations it can receive into the
channels in ascending order.
To cancel, press [8].
1
2
Press [R, T] to select the setting and then press
[OK].
1-ALBUM
Preparation
Before you connect a USB device to the system, make sure you do a backup of the data.
Play all tracks in one selected MP3
album randomly.
Press [R, T] to select the MP3 album.
1-ALBUM
RANDOM
REPEAT
Press [PLAY MENU] to select “TUNE MODE”.
Press [R, T] to select “MANUAL” and then press
[OK].
3
Press [2/3] or [5/6] to tune in to the
station.
4
5
Press [OK].
Press [R, T] to select a preset number and then
press [OK].
Do steps 3 through 5 again to preset more stations.
The new station replaces any station that occupies the
same preset number.
Ű Selecting a preset station
1
2
3
Press [PLAY MENU] to select “TUNE MODE”.
Press [R, T] to select “PRESET” and then press
[OK].
Press [2/3] or [5/6] to select the preset
station.
Repeat all tracks.
Using the main unit
Repeat 1-TRACK.
1
2
Press [TUNE MODE] to select “PRESET”.
Press [2/3] or [5/6] to select the preset
station.
3
Press [2/3] or [5/6] to select the setting
and then press [OK].
D.Bass
1
Press [SOUND] to select “D.BASS” and then press
[R, T] to select “D.BASS LEVEL” or “D.BASS BEAT”.
Or press [D.BASS] on the main unit to select
“D.BASS LEVEL” or “D.BASS BEAT”.
To cancel, select “OFF D.BASS”.
2
Press [2/3] or [5/6] to select the setting
and then press [OK].
Or turn [MULTI CONTROL] to select the setting.
DJ jukebox
USB
You can use DJ jukebox to add cross-fading effect between
songs. You can also use additional features with the
“Panasonic MAX Juke” app (Zbelow).
1
2
Press [PLAY MENU] to select “JUKEBOX”.
Press [R, T] to select the setting and then press
[OK].
Using the main unit
Press [DJ JUKEBOX] to select the setting.
OFF CROSSFADE
Cancel cross-fading.
ON CROSSFADE
Add cross-fading.
OFF
Switch off DJ jukebox.
Ű Changing the repeat setting
1
2
Ű Common problems
Ű Main unit displays
1
2
“ADJUST CLOCK”
• The clock is not set. Adjust the clock.
Note:
Reset the clock regularly to maintain accuracy.
The unit does not work.
• The safety device has been activated. Do the following:
1. Press [1] on the main unit to switch the unit to standby
mode. If the unit does not switch to standby mode,
– Press and hold the button for a minimum of 10 seconds.
Or,
– Disconnect the AC mains lead and then connect it again.
2. Press [1] again to switch on the unit. If the problem
persists, consult your dealer.
Sleep timer
The display panel lights up and changes continuously in
standby mode.
• Press and hold [8] on the main unit to select “DEMO OFF”.
Press [SETUP] to select “CLOCK”.
Press [R, T] to set the time and then press [OK].
To check the time
Press [SETUP] to select “CLOCK” and then press [OK].
In standby mode, press [DISPLAY].
The sleep timer switches off the system after the set time.
1
2
Press [SETUP] to select “SLEEP”.
Press [R, T] to select the setting (in minutes) and
then press [OK].
To cancel, select “OFF”.
Note:
• The remaining time is always shown on the display. The
display changes temporarily when you perform other
operations.
• The play timer and sleep timer can be used together.
• The sleep timer always comes first. Be sure not to set an
overlap of timers.
(Except for Bluetooth and AUX source)
®
You can set the timer to come on at a certain time to wake
you up.
Preparation
Set the clock.
1
2
3
4
Press [SETUP] to select “TIMER ADJ”.
Press [R, T] to set start time and then press [OK].
Do step 2 again to set the end time.
Press [R, T] to select the source you want to play
and then press [OK].
To start the timer
Press [R, T] to select the setting and then press
[OK].
1
2
Using the main unit
In the stop mode, turn [MULTI CONTROL] to select the
setting.
RANDOM REPEAT
Repeat random playback.
RND
ALL TITLE REPEAT
Repeat all tracks.
Note:
DJ jukebox is switched off when you switch off the system or
change to another source.
Using the “Panasonic MAX Juke” app
You can download and install the free Android™ app
“Panasonic MAX Juke” on Google Play™ for additional
features, such as to request song playback from multiple
devices simultaneously.
External equipment
Repeat 1-ALBUM RANDOM.
1
2
You can connect a VCR, DVD player etc. and listen to the
audio through this system.
RND
Note:
• During random playback, you cannot skip to tracks which
have been played.
• The setting is cancelled when you open the disc tray.
Link mode
Press [R, T] to select “MONO” and then press [OK].
To cancel, select “STEREO”.
“MONO” is also cancelled when you change the
frequency.
To memorise the setting
Continue with step 4 of “Manual presetting”.
Preparation
• Disconnect the AC mains lead.
• Switch off all equipment and read the appropriate
operating instructions.
DVD player (not supplied)
When “AM” is selected
1
2
Press [SETUP] to select “TIMER SET”.
Press [R, T] to select “PLAY ON” and then press
[OK].
“#” is shown.
To cancel, select “PLAY OFF”.
The system must be switched off for the timer to
operate.
To check the setting
Press [SETUP] to select “TIMER ADJ” and then press
[OK].
In standby mode, press [DISPLAY] two times.
Note:
• The timer starts at a low volume and increases gradually to the
preset level.
• The timer comes on at the set time every day if the timer is on.
• If you switch off the system and then switch on again while a
timer is in operation, the timer will not stop at the end time.
Press [PLAY MENU] to select “B.PROOF”.
Rear panel of
this main unit
Press [R, T] to select the setting that provides the
best reception and then press [OK].
Others
Auto off
This system automatically switches off when you do not use
it for approximately 20 minutes.
1
2
Press [SETUP] to select “AUTO OFF”.
Press [R, T] to select “ON” and then press [OK].
To cancel, select “OFF”.
Note:
This function does not work when you are in radio source or
when a Bluetooth® device is connected.
BLUETOOTH
You can change the link mode to suit the connection type.
Checking the signal status
Bluetooth® standby
Preparation
If this system is connected to a Bluetooth® device,
disconnect it (Z“Disconnecting a device”).
When “FM” is selected
This function automatically switches on the system when
you establish a Bluetooth® connection from a paired device.
1
2
For Australia and New Zealand
For others
Press [R, T] to select the mode and then press [OK].
Press [PLAY MENU] to select “FM STATUS” and then
press [OK].
MODE 1
Emphasis on connectivity.
MODE 2
Emphasis on sound quality.
Note:
Select “MODE 1” if the sound is interrupted.
Audio cable
(not supplied)
Press [DISPLAY].
Press [PLAY MENU] to select “LINK MODE”.
FM – – – –
The FM signal is in monaural.
The system is not tuned in to a station.
1
2
3
Connect the external equipment.
Press [RADIO/AUX] to select “AUX”.
Play the external equipment.
FM ST
The FM signal is in stereo.
To adjust the input level
FM MONO
“MONO” is selected as the “FM MODE”.
1
2
RDS broadcasting
Except for Australia and New Zealand
Press and hold [
Press [DISPLAY].
PS
Programme service
PTY
Programme type
FREQ
Frequency
Sound is distorted or no sound.
• Adjust the volume of the system.
• Switch off the system, determine and correct the cause, and
then switch on again. It can be caused by straining of the
speakers through excessive volume or power, and when using
the system in a hot environment.
A humming sound can be heard during playback.
• An AC mains lead or fluorescent light is near the cables. Keep
other appliances and cords away from the cables of this
system.
The sound level reduces.
• The protection circuit has been activated due to the
continuous use at high volume output. This is to protect the
system and maintain the sound quality.
Display not shown correctly.
Playback does not start.
• You have not put in the disc correctly. Put it in correctly.
• Disc is dirty. Clean the disc.
• Replace the disc if it is scratched, warped, or non-standard.
• There is condensation. Let the system dry for 1 to 2 hours.
The total number of tracks displayed is incorrect.
The disc cannot be read.
Distorted sound is heard.
• You put in a disc that the system cannot play. Change to a
playable disc.
• You put in a disc that has not been finalised.
Ű USB
The USB device or the contents in it cannot be read.
• The format of the USB device or the contents in it are not
compatible with the system.
• USB devices with storage capacity of more than 32 GB cannot
work in some conditions.
Slow operation of the USB device.
• Large content size or large memory USB device takes longer
time to read.
Ű Bluetooth®
Pairing cannot be done.
• Check the Bluetooth® device condition.
• The device is out of the 10 m communication range. Move the
device nearer to the system.
The device cannot be connected.
• The pairing of the device was unsuccessful. Do pairing again.
• The pairing of the device has been replaced. Do pairing again.
• This system might be connected to a different device.
Disconnect the other device and try pairing the device again.
• The system may have a problem. Switch off the system and
then switch on again.
The device is connected but audio cannot be heard through
the system.
When “FM” is selected
Press [PLAY MENU] to select “FM MODE”.
No operations can be done with the remote control.
• Examine that the battery is installed correctly.
Ű Disc
Play timer
Press [PLAY MENU] to select “PLAYMODE”.
Repeat random playback.
Using the main unit
–PAIRING] until “PAIRING” is shown.
Press [R, T] to select the sound effect.
Or turn [MULTI CONTROL] to select the sound effect.
This is a 24-hour clock.
Improving the sound quality
This system can show the text data transmitted by the radio
data system (RDS) available in some areas.
Note:
A device is disconnected when you:
• Select a different source.
• Move the device out of the maximum range.
• Disable the Bluetooth® transmission of the device.
• Switch off the system or the device.
2
Troubleshooting
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions
indicated do not solve the problem, consult your dealer for instructions.
Setting the clock
Repeat 1-ALBUM.
RND
1
Press [SOUND] (main unit: [LOCAL EQ]) to select
“MANUAL EQ”.
Ű Automatic presetting
Ű Manual presetting
CD
1
USB
Press [R, T] to select “OK? YES” and then press
[OK].
“PAIRING” is shown.
To cancel, select “OK? NO”.
You can preset up to 30 FM and 15 AM stations.
Press [PLAY MENU] to select “PLAYMODE”.
Press [USB/CD] to select “CD”.
1
Memory presetting
Tuning begins from the current frequency.
2
Press [CD x] (main unit: [x OPEN/CLOSE]) to open the disc tray.
Put in a disc with the label facing up.
Press again to close the disc tray.
Press [2/3] or [5/6] to tune in to the
station.
CURRENT
USB
Disc
Press [TUNE MODE] to select “MANUAL”.
Note:
• Maximum characters that can be shown: Approximately 32
• This system supports ver. 1.0, 1.1 and 2.3 ID3 tags.
• Text data that the system does not support can show
differently.
Press [PLAY MENU].
1
1
2
Tuning begins from the lowest frequency.
1
Manual EQ
Using the main unit
LOWEST
CD USB
Preparing media
Press [2/3] or [5/6] to tune in to the
station.
To tune automatically, press and hold the button until
the frequency starts changing quickly.
“STEREO” is shown when a stereo broadcast is being
received.
Press [DISPLAY].
Play menu
To cancel, press the button again.
“MUTE” is also cancelled when you adjust the volume or
when you switch off the system.
Press [R, T] to select “MANUAL” and then press
[OK].
Press and hold [2/3] or [5/6].
Note:
Depending on the Bluetooth® device, some operations may not
work.
R Select DJ jukebox
J Mute the sound
Press [PLAY MENU] to select “TUNE MODE”.
Clock and timers
Press [PLAY MENU] to select “INPUT LEVEL”.
Press [R, T] to select “NORMAL” or “HIGH” and
then press [OK].
Note:
• Select “NORMAL” if the sound is distorted during “HIGH”
input level.
• Components and cables are sold separately.
• If you want to connect equipment other than those described,
refer to the audio dealer.
• Sound distortion can occur when you use an adaptor.
1
2
Press [SETUP] to select “BLUETOOTH STANDBY”.
Press [R, T] to select “ON” and then press [OK].
To cancel, select “OFF”.
Note:
Some devices may take longer to respond. If you are connected
to a Bluetooth® device before switching off the system, wait for a
minimum of 5 seconds before connecting to this system from
your Bluetooth® device again.
Software version
• For some built-in Bluetooth® devices, you have to set the
audio output to “SC-AKX200” manually. Read the operating
instructions of the device for details.
Sound from the device is interrupted.
• The device is out of the 10 m communication range. Move the
device nearer to the system.
• Remove any obstacle between the system and the device.
• Other devices that use the 2.4 GHz frequency band (wireless
router, microwaves, cordless phones, etc.) are interfering.
Move the device nearer to the system and distance it from the
other devices.
• Select “MODE 1” for stable communication.
“ADJUST TIMER”
• The play timer is not set. Adjust the play timer.
“AUTO OFF”
• The system has not been used for 20 minutes and will switch
off within a minute. To cancel, press any button.
“ERROR”
• An incorrect operation was done. Read the instructions and try
again.
“F61”
• Examine and correct the speaker cords connection.
• Disconnect the USB device. Switch off the system and then
switch on again.
“F70”
• Examine the Bluetooth® connection.
• Disconnect the Bluetooth® device. Switch off the system and
then switch on again.
“F76”
• There is a problem with the power supply.
• Disconnect the AC mains lead and consult your dealer.
“F77”
• Disconnect the AC mains lead and consult your dealer.
“NO DEVICE”
• The USB device is not connected. Examine the connection.
“NO DISC”
• You have not put in a disc.
“NO PLAY”
“UNSUPPORT”
• Examine the content. You can only play supported format.
• The system may have a problem. Switch off the system and
then switch on again.
“NO TRACK”
• There is no album or track in the USB device.
“PLAYERROR”
• An unsupported MP3 file has been played. The system will
skip that track and play the next one.
“REMOTE 1”
“REMOTE 2”
• The remote control and the main unit are using different
codes. Change the code of the remote control.
– When “REMOTE 1” is shown, press and hold [OK] and [ ]
for a minimum of 4 seconds.
– When “REMOTE 2” is shown, press and hold [OK] and
[USB/CD] for a minimum of 4 seconds.
“TEMP NG”
• The temperature protection circuit has been activated, and the
system will switch off. Let the unit cool down before switching
it on again.
• Check that the ventilation opening of the unit is not
obstructed.
• Ensure this unit is well ventilated.
“USB OVER CURRENT ERROR”
• The USB device is using too much power. Disconnect the
USB device, switch off the system and then switch on again.
“VBR”
• The system cannot show the remaining play time for variable
bit rate (VBR) tracks.
Remote control code
When other Panasonic equipment responds to the remote
control of this system, change the remote control code for
this system.
Preparation
Press [USB/CD] to select “CD”.
Ű To set the code to “REMOTE 2”
1
Press and hold [USB/CD] on the main unit and
[USB/CD] on the remote control until “REMOTE 2” is
shown.
2
Press and hold [OK] and [USB/CD] on the remote
control for a minimum of 4 seconds.
Ű To set the code to “REMOTE 1”
Ű Radio
1
Sound is distorted.
• Use an optional FM outdoor antenna. The antenna should be
installed by a competent technician.
Press and hold [USB/CD] on the main unit and [ ] on
the remote control until “REMOTE 1” is shown.
2
Press and hold [OK] and [ ] for a minimum of
4 seconds.
A beat sound is heard.
• Switch off the TV or move it away from the system.
• Move mobile telephones away from the system if the
interference is apparent.
• When in AM tuner mode, select the “B.PROOF” setting that
provides the best reception.
A low hum is heard during AM broadcasts.
• Move the antenna away from other cables and cords.
System memory reset
Reset the memory when the following situations occur:
• There is no response when buttons are pressed.
• You want to clear and reset the memory contents.
1
2
Disconnect the AC mains lead.
3
Release [1].
All the settings are set back to the factory preset.
It is necessary to set the memory items again.
While you press and hold [1] on the main unit,
connect the AC mains lead again.
Continue to press and hold the button until
“– – – – – – – – –” is shown.
You can check the software version of the system.
1
Press [SETUP] to select “SW VER.” and then press
[OK].
The software version is shown.
2
Press [OK] again to exit.
Note:
RDS may not be available if reception is poor.
AM allocation setting
By main unit only
This system can also receive AM broadcasts allocated in
10 kHz steps.
1
2
Press [RADIO/AUX] to select “FM” or “AM”.
Press and hold [RADIO/AUX].
After a few seconds, the display panel shows the current
minimum radio frequency. Release the button when the
minimum frequency changes.
• To go back to the initial setting, do the above steps again.
• Preset frequencies are erased after you change the
setting.
A3 4 Portrait.indd 2
13/02/2015 3:07:33 PM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
