SCBT205EP-RQT9457-R.book 1 ページ 2009年3月30日 月曜日 午後7時7分

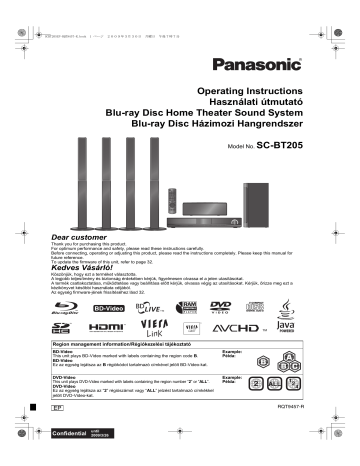

Operating Instructions
Használati útmutató
Blu-ray Disc Home Theater Sound System
Blu-ray Disc Házimozi Hangrendszer
Model No.
SC-BT205
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for
future reference.
To update the firmware of this unit, refer to page 32.
Kedves Vásárló!
Köszönjük, hogy ezt a terméket választotta.
A legjobb teljesítmény és biztonság érdekében kérjük, figyelmesen olvassa el a jelen utasításokat.
A termék csatlakoztatása, működtetése vagy beállítása előtt kérjük, olvassa végig az utasításokat. Kérjük, őrizze meg ezt a
kézikönyvet későbbi használata céljából.
Az egység firmware-jének frissítéséhez lásd 32.
Region management information/Régiókezelési tájékoztató
BD-Video
This unit plays BD-Video marked with labels containing the region code B.
BD-Video
Ez az egység lejátsza az B régiókódot tartalmazó címkével jelölt BD-Video-kat.
Example:
Példa:
DVD-Video
This unit plays DVD-Video marked with labels containing the region number “2” or “ALL”.
DVD-Video
Ez az egység lejátsza az “2” régiószámot vagy “ALL” jelzést tartalmazó címkékkel
jelölt DVD-Video-kat.
Example:
Példa:
2
ALL
1
2
4
RQT9457-R
EP
2009/3/26
SCBT205EP-RQT9457-R.book 2 ページ 2009年3月30日 月曜日 午後7時7分
Getting Started
≥Please note that the actual controls and components, menu
items, etc. of your Blu-ray Disc Home Theater Sound System
may look somewhat different from those shown in the
illustrations in these Operating Instructions.
≥Operations in these instructions are described mainly with the
remote control, but you can perform the operations on the
main unit if the controls are the same.
System
Main unit
Front speakers
Center speaker
Surround speakers
Subwoofer
SC-BT205
SA-BT205
SB-HF770
SB-HC300
SB-HS870
SB-HW200
Accessories
Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts.
(Product numbers correct as of March 2009. These may be subject to change.)
∏ 1 Remote control
(N2QAKB000073)
∏ 1 FM indoor antenna
∏ 1 Speaker cable
(center)
∏ 4 Speaker stands
(with cable)
∏ 1 Sheet of speaker
cable stickers
∏ 4 Bases
∏ 1 Auto speaker setup
microphone
∏ 1 AC mains lead
∏ 2 Remote control
batteries
∏ 1 Video cable
≥For use with this unit only.
Do not use it with other
equipment. Also, do not use
cords from other equipment
with this unit.
∏ 16 Screws
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
CAUTION!
≥DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
≥DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS
WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
≥DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
≥DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE,
≥DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,
DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED
WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON
THE APPARATUS.
≥USE ONLY THE RECOMMENDED ACCESSORIES.
≥DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
This product may receive radio interference caused by mobile
telephones during use. If such interference is apparent, please
increase separation between the product and the mobile
telephone.
The socket outlet shall be installed near the equipment and easily
accessible.
The mains plug of the power supply cord shall remain readily
operable.
To completely disconnect this apparatus from the AC Mains,
disconnect the power supply cord plug from AC receptacle.
RQT9457
2
2
(Inside of product)
SCBT205EP-RQT9457-R.book 3 ページ 2009年3月30日 月曜日 午後7時7分
Placement
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These
conditions can damage the cabinet and other components, thereby
shortening the unit’s service life. Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit and
cause a fire. Do not use a DC power source. Check the source
carefully when setting the unit up on a ship or other place where DC is
used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not damaged.
Poor connection and lead damage can cause fire or electric shock. Do
not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC mains
lead can cause electric shock. Do not handle the plug with wet hands.
This can cause electric shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric
shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock or
malfunction. If this occurs, immediately disconnect the unit from the
power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain flammable
gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is interrupted,
indicators fail to light, smoke appears, or any other problem that is not
covered in these instructions occurs, disconnect the AC mains lead
and contact your dealer or an authorized service center. Electric shock
or damage to the unit can occur if the unit is repaired, disassembled or
reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power source
if it is not to be used for a long time.
Unit and media care
Disc and card handling
Clean discs
DO
DO NOT
Getting Started
Safety precautions
ENGLISH
Wipe with a damp cloth and then wipe dry.
Disc and card handling precautions
≥Handle discs by the edges to avoid inadvertent scratches or
fingerprints on the disc.
≥Do not attach labels or stickers to discs (This may cause disc
warping, rendering it unusable).
≥Do not write on the label side with a ball-point pen or other writing
instrument.
≥Do not use record cleaning sprays, benzine, thinner, static electricity
prevention liquids or any other solvent.
≥Do not use scratch-proof protectors or covers.
≥Clean any dust, water, or foreign matter from the terminals on the
rear side of the card.
≥Do not use the following discs:
– Discs with exposed adhesive from removed stickers or labels
(rented discs etc).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.
Maintenance
Clean this unit with a soft, dry cloth
≥Never use alcohol, paint thinner or benzine to clean this unit.
≥Before using chemically treated cloth, carefully read the instructions
that came with the cloth.
Observe the following points to ensure continued
listening and viewing pleasure.
Dust and dirt may adhere to the unit’s lens over time, making it
impossible to play discs.
Use the lens cleaner (not included) about once every year, depending
on frequency of use and the operating environment. Carefully read the
lens cleaner’s instructions before use.
Lens cleaner: RP-CL720E
≥This lens cleaner may not be for sale depending on the region.
≥This lens cleaner is sold as specific for DIGA, but can be used
without problem on this unit as well.
To dispose or transfer this unit
This unit may record information of your operating procedures. If you
discard this unit either by disposal or transfer, then follow the
procedures to return all the settings to the factory presets to delete the
recorded information. (> 48, “To return to the factory preset”)
≥When BD-Video is played back, the operation history may be
recorded in the memory of this unit. The recorded contents differ
depending on the disc.
RQT9457
3
3
SCBT205EP-RQT9457-R.book 4 ページ 2009年3月30日 月曜日 午後7時7分
Getting Started
Table of contents
Getting Started
TV
Accessories........................................................2
Safety precautions.............................................3
Unit and media care...........................................3
Using the remote control ..................................5
Enjoying TV, etc. with this unit’s speakers ... 27
Playback
Batteries ................................................................. 5
Use ......................................................................... 5
Control reference guide (remote control) ........5
Control reference guide (main unit) .................6
Front panel ............................................................. 6
Rear panel terminals .............................................. 6
Radio
Assembling the speakers ..............................7
Positioning ......................................................8
Speaker connections......................................9
TV connections .............................................10
Connections with a video cable ...............................10
Connections with a component video cable...........11
Connections with a HDMI cable ...............................11
TV
Connections to a Set Top Box, etc..............12
Radio antenna connections .........................12
Network connection......................................13
AC mains lead connection ...........................13
SMART SETUP ..............................................14
Basic setting for the system (SMART SETUP) .......14
Showing START menu.....................................15
Selecting the playback source .......................16
Selecting the source from the START menu ........ 16
Selecting the source by the remote control .......... 16
Other devices
Enjoying sound from all speakers and
various sound effects ....................................17
Advanced operations
Enjoying surround sound effects .......................... 17
Changing the sound modes.................................. 17
Adjusting speaker level during play ...................... 17
Optional speaker
settings
Reference
Other devices
Using the iPod ................................................. 30
iPod Connection ................................................... 30
iPod Playback....................................................... 31
Advanced operations
Enjoying VIERA CASTTM.................................. 32
Firmware updating........................................... 32
Network settings.............................................. 33
Changing settings with the on-screen menu.... 35
On-screen menu operations ................................. 35
What you can change with the on-screen menu .. 35
Changing the unit’s settings .......................... 37
Setup menu operations ........................................ 37
Summary of settings ............................................. 37
Speaker settings ................................................... 41
Optional speaker settings
Wireless connections (optional) .................... 42
Connecting the speakers with the optional
wireless system (SH-FX70)................................ 42
Speaker installation option............................. 43
Basic operation ................................................18
Media (Disc, card and USB device)
information..................................................... 44
Playing secondary video (picture-in-picture) and
secondary audio ................................................. 21
Enjoying BD-Live discs with Internet .................... 21
Playing DivX® videos .......................................22
Regarding DivX VOD content............................... 22
Displaying subtitles text ........................................ 22
Playing still pictures ........................................23
Useful functions during still picture play ............... 24
Playing music...................................................25
Radio
Listening to the Radio .....................................26
Setting up the radio .............................................. 26
Listening/confirming the preset channels ............. 26
RDS broadcasting ................................................ 26
4
What is VIERA Link “HDAVI Control”? ................. 28
What you can do with “HDAVI Control” ................ 28
Easy control only with VIERA remote control ....... 29
Reference
Enjoying BD-LIVE or BONUSVIEW
in BD-Video.....................................................21
4
Linked operations with the TV (VIERA Link
“HDAVI ControlTM”) ........................................ 28
Playback
Other operations during play (These functions
may not work depending on the media.) ............ 19
Playing video recorded on a Video Camera or
Video Recorder .................................................. 20
RQT9457
Enjoying TV and other devices sound from
this unit’s speakers............................................. 27
Adjusting the sound .............................................. 27
Making settings for digital audio input .................. 27
Packaged discs .................................................... 44
Recorded discs..................................................... 44
SD cards ............................................................... 45
USB device........................................................... 45
Regarding 24p output ........................................... 45
Discs that cannot be played ................................. 45
About MP3/JPEG/DivX files ............................ 46
Troubleshooting guide .................................... 48
Messages ......................................................... 52
Frequently asked questions ........................... 53
Language code list .......................................... 54
Licenses ........................................................... 54
Glossary ........................................................... 55
Specifications .................................................. 57
Index ............................................................... 118
Using the remote control
Batteries
I
Insert so the poles ( and ) match those in the remote control.
≥Do not leave the battery(ies) in an automobile exposed to direct
sunlight for a long period of time with doors and windows closed.
≥Do not take apart or short circuit.
≥Do not attempt to recharge alkaline or manganese batteries.
≥Do not use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage which can
damage items the fluid contacts and may cause a fire.
Remove batteries if the remote control is not going to be used for a
long period of time. Store in a cool, dark place.
Getting Started
SCBT205EP-RQT9457-R.book 5 ページ 2009年3月30日 月曜日 午後7時7分
Use
Press in and lift up.
R6/LR6, AA
Replace the lid.
When closing the lid, insert it from the  (minus) side.
Aim at the remote control signal sensor (> 6), avoiding obstacles, at a
maximum range of 7 m directly in front of the unit.
≥If you cannot operate the unit or other equipment using the remote
control after changing the batteries, please re-enter the codes
(> 51).
Remote control signal sensor
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
≥Use alkaline or manganese batteries.
≥Do not mix old and new batteries.
≥Do not use different types at the same time.
≥Do not heat or expose to flame.
30˚
20˚
20˚
30˚
7 m directly in front of the unit
Control reference guide (remote control)
13
TV
1
VOL
2
3
AV
1 2abc 3def
4ghi 5jkl 6mno
7pqrs 8tuv 9wxyz
CANCEL 0
PIP
4
SEARCH
14
15
MUTE
RADIO
EXT-IN
iPod
BD/SD
VOL
PLAY
SEARCH
PAUSE
SKIP
16
17
18
SLOW
5
SKIP
STOP
SURROUND
6
U
20
MENU
OK
21
8
RETURN
OPTION
9
10
11
12
22
R
G
SETUP
STATUS
-CH SELECT
: [R], [G], [Y], [B]
These buttons are used when;
≥Operating a BD-Video disc that includes JavaTM applications
(BD-J). For more information about operating this kind of disc,
please read the instructions that came with the disc.
≥Displaying “Title View”, and “Album View” screens. (Only the [R]
and [G] buttons B 23)
≥Operating contents of VIERA CAST (> 32)
; Show Setup menu (> 37)/Select speaker channel (> 17)
< Show status messages (> 20)
= TV operation buttons
You can operate the TV through the unit’s remote control.
-UP
EN
P
OP
DIRECT
NAV
TOP M IGAT
19
START
OR
7
SOUND
1 Turn the unit on and off (> 14)
2 Display Home screen of VIERA CAST (> 32)
3 Select title numbers, etc./Enter numbers or characters (> 19, 34)
(The character buttons may be used when operating VIERA CAST
contents. B 32)
[CANCEL]: Cancel
4 Basic playback control buttons (> 18, 19)
5 Select preset radio stations (> 26)
6 Select surround sound effects (> 17)
7 Show Top menu/Direct Navigator (> 18)
8 [3, 4, 2, 1]:
Menu selection
[OK]:
Selection
[2, 1]:
Select preset radio station (> 26)
[2] (2;), [1] (;1): Frame-by-frame (> 19)
9 Show OPTION menu (> 19)
Y
B
DISPLAY
AUDIO
-SLEEP
23
24
>
?
@
A
B
C
D
E
F
G
H
[Í] :
Turn the television on and off
[AV] :
Switch the input select
[i j VOL]:
Adjust the TV volume
Adjust the volume of the main unit (> 18)
Mute the sound (> 18)
Switch on/off Secondary Video (Picture-in-picture) (> 21)
Select the source
[BD/SD]:Select disc drive or SD card drive (> 16)
[iPod]:Select iPod as the source (> 16, 30)
[RADIO/EXT-IN]:Select FM tuner, USB or external audio as the
source (> 16, 26, 27)
Select radio stations manually (> 26)
Set the sound mode (> 17)
Show start menu (> 15)
Show Pop-up menu (> 18)
Return to previous screen
Select audio (> 19)
Show on-screen menu (> 35)/Set the sleep timer (> 20)
RQT9457
5
5
SCBT205EP-RQT9457-R.book 6 ページ 2009年3月30日 月曜日 午後7時7分
Getting Started
Control reference guide (main unit)
Front panel
1
3
2
4
5
Dock for iPod
SMART SETUP
OPEN CLOSE
VOLUME
SURROUND OUTPUT
Dock for iPod
SETUP MIC
SD CARD
8
6
9
SELECTOR
10
Pull open.
TUNE
14 15 16 17 18
11 12 13
7
1 Standby/on switch (Í/I) (> 14)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
2 Open or close the disc tray (> 18)
3 SMART SETUP button (> 14)
4 Stop (> 19)
5 Start play (> 18)
6 Disc tray (> 18)
7 Connect iPod (> 30)
8 SD card slot (> 18)
= Select the source (> 16)
BD/DVD )SD )IPOD )FM )USB )AUX )D-IN 1 )D-IN 2
>
?
@
9 Connect Auto speaker setup microphone (> 14)
: The indicator lights when there is surround sound effect. (> 17)
; USB port (> 18)
< Display
A
B
“SD” and “USB” on the unit’s display is not displayed when the SD
card or USB device is not in the SD card slot or USB port.
Skip or slow-search play (> 19)/Select the radio stations (> 26)
Volume indicator
≥It is possible to set the indicator to turn on/off.
(> 38, “FL Display”)
Adjust the volume of the main unit (> 18)
≥When pulled hard, the volume knob may come off.
≥To prevent children from swallowing the volume knob, do not pull
off the volume knob.
Connect headphones (not included) (> 18)
Remote control signal sensor
Rear panel terminals
1
3
2
4
R
SPEAKERS
AUX(TV)
5
Y
PB
2
1
5
6
3Ω SUB- 3Ω
R 3Ω L
WOOFER CENTER FRONT
4
3
R 3Ω L
SURROUND
AV OUT
9
AC IN terminal (> 13)
Cooling fan
SPEAKERS terminal (> 9)
AUX (TV) terminal (> 10, 11)
This terminal can also be used for equipment other than the TV.
5 COMPONENT VIDEO OUT terminal (> 11)
6 OPTICAL DIGITAL IN terminals
Terminal 1(TV) is designated for connection with the TV. (> 10, 11)
Terminal 2(STB) can be used for connection with devices other than
the STB. (> 12)
1
2
3
4
RQT9457
6
6
8
7
L
+
AC IN
6
VIDEO
OUT
PR
COMPONENT
VIDEO OUT
OPTICAL
2(STB)
FM ANT
75Ω
1(TV)
DIGITAL IN
10 11
7
8
9
:
;
FM Radio antenna terminal (> 12)
Digital transmitter dock (> 42)
LAN port (> 13)
HDMI AV OUT terminal (> 11)
VIDEO OUT terminal (> 10)
DIGITAL
TRANSMITTER
Assembling the speakers
Front speakers and Surround speakers
Preparation
≥To prevent damage or scratches, lay down a soft cloth and perform
assembly on it.
≥For assembly, use a Phillips-head screwdriver (not included).
≥For wall mount, refer to page 43.
Make sure you have all the indicated components before starting assembly, setup, and connection.
Keep the screws out of reach of children to prevent swallowing.
Getting Started
SCBT205EP-RQT9457-R.book 7 ページ 2009年3月30日 月曜日 午後7時7分
2 Front speakers
2 Surround speakers
4 Stands
(with cables)
4 Bases
16 Screws
1
Slide into the groove.
Tighten securely.
2
2
Insert the wire fully.
: White
: Blue
Push!
Position the cable
between the ridges.
1
Press into the groove.
Tighten securely.
Leave about 120 mm
Speaker assembly option
Thread the speaker cable
through the base.
Attach the speaker.
Insert the wire fully.
: White
: Blue
Push!
Leave about 120 mm
Press into the groove.
Tighten securely.
Slide into
the groove.
You can remove and use the cable
from the stand. To reattach the
cable, refer to page 43.
NOTE
DO
NOT
≥Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the
speakers.
Preventing the speakers from falling
≥You will need to obtain the appropriate screw eyes to match the walls or pillars to which they are going to be fastened.
≥Consult a qualified housing contractor concerning the appropriate procedure when attaching to a concrete wall or a surface that may not have
strong enough support. Improper attachment may result in damage to the wall or speakers.
e.g.
Caution
String (not included)
Thread from the wall to the speaker and tie tightly.
Screw eye
(not included)
Rear of the speaker
Wall
Approx.
150 mm
≥Do not stand on the base. Be cautious when children are near.
e.g.
DO
NOT
RQT9457
7
7
SCBT205EP-RQT9457-R.book 8 ページ 2009年3月30日 月曜日 午後7時7分
Getting Started
Positioning
How you set up your speakers can affect the bass and the sound field.
≥This system is a 5.1ch sound system.
≥Place speakers on flat secure bases.
≥Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick curtains.
NOTE ≥For optional wall mount, refer to page 43.
≥Keep your speakers at least 10 mm away from the system for proper ventilation.
Setup example
Place the front, center, surround speakers at approximately the same distance from the seating position. Using “SMART SETUP” (> 14) is a convenient way to
get the ideal surround sound from your speakers when you are unable to place them. The angles in the diagram are approximate.
Center speaker
Subwoofer
Front speakers
45º to 60º
Put on a rack or shelf. Vibration
caused by the speaker can
disrupt the picture if it is placed
directly on the TV.
Place to the right or
left of the TV, on the
floor or a sturdy shelf
so that it will not
cause vibration.
Leave about 30 cm
from the TV.
Main unit
To allow for proper ventilation
and to maintain good airflow
around the main unit, position
it with at least 5 cm of
space on all sides.
Surround speakers
120º
Position the speakers as illustrated and place them
at the same height or higher than ear level.
Set your surround sound free!
Optional Panasonic wireless accessory
(SH-FX70)
You can enjoy surround speaker sound wirelessly
when you use the optional Panasonic wireless
accessory ( SH-FX70). (> 42)
For details, please refer to the operating
instructions for the optional Panasonic wireless
accessory.
NOTE
RQT9457
8
8
TIPS
≥Use only supplied speakers
Using other speakers can damage the unit, and
sound quality will be negatively affected.
≥You can damage your speakers and shorten
their useful life if you play sound at high levels
over extended periods.
≥Reduce the volume in the following cases to
avoid damage:
– When playing distorted sound.
– When the speakers are reverberating due to a
record player, noise from FM broadcasts, or
continuous signals from an oscillator, test
disc, or electronic instrument.
– When adjusting the sound quality.
– When turning the unit on or off.
≥Positioning speakers in front
It is possible to locate all the speakers in front
of the listening position. However the optimal
surround sound effect may not be obtainable.
If irregular colouring occurs on your TV
The center speaker is designed to be used close to a TV, but the
picture may be affected with some TVs and setup combinations.
If this occurs, turn the TV off for about 30 minutes.
The demagnetising function of the TV should correct the problem. If it
persists, move the speakers further away from the TV.
Caution
≥The main unit and supplied speakers are to be used only as
indicated in this setup. Failure to do so may lead to damage to
the amplifier and/or the speakers, and may result in the risk of
fire. Consult a qualified service person if damage has
occurred or if you experience a sudden change in
performance.
≥Do not attempt to attach these speakers to walls using
methods other than those described in this manual.
Caution
Do not touch the front netted area of the speakers. Hold by the sides.
e.g. Center speaker
DO
NOT
DO
SCBT205EP-RQT9457-R.book 9 ページ 2009年3月30日 月曜日 午後7時7分
Getting Started
Speaker connections
Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are complete.
R
SPEAKERS
AUX(TV)
L
Y
+
PB
AC IN
2
1
5
6
3Ω SUB- 3Ω
R 3Ω L
WOOFER CENTER FRONT
4
3
R 3Ω L
SURROUND
AV OUT
VIDEO
OUT
PR
COMPONENT
VIDEO OUT
OPTICAL
2(STB)
FM ANT
75Ω
DIGITAL
TRANSMITTER
1(TV)
DIGITAL IN
Main unit
Setup example
Sheet of speaker cable
stickers
Speaker cable for center
speaker (Green)
≥Don’t use a front speaker as a surround speaker or vice versa. Verify the type of speaker with label on the rear label of the speaker
before connecting the appropriate cable.
≥Pay attention to the type of speaker and the connector colour when you place the speakers.
PURPLE GREEN
RED
SUBWOOFER
FRONT
(Rch)
CENTER
e.g. Front speaker (L)
Speaker cable sticker (included)
WHITE GREY
FRONT
(Lch)
SURROUND
(Rch)
FRONT
Lch
1
e.g.
Insert the wire fully,
taking care not to insert
beyond the wire
insulation.
: White
: Blue
BLUE
Be careful not to cross
(short-circuit) or reverse
the polarity of the
speaker wires as doing
so may damage the
speakers.
+
2
1
6
5
3Ω SUB- 3Ω
R 3Ω L
WOOFER CENTER FRONT
Push!
SURROUND
(Lch)
SPEAKERS
4
3
R 3Ω L
SURROUND
Main unit
Surround speaker (L )
Do not
Connect to the terminals of the same colour.
Use of the speaker cable stickers is convenient when making cable connections.
≥Match the connector colour and the type of speaker as shown above.
≥Extending the speaker cables may damage the speakers and sound quality will negatively be affected.
NOTE
RQT9457
9
9
Getting Started
SCBT205EP-RQT9457-R.book 10 ページ 2009年3月30日 月曜日 午後7時7分
TV connections
R
SPEAKERS
AUX(TV)
L
Y
+
PB
AC IN
2
1
6
5
3Ω SUB- 3Ω
R 3Ω L
WOOFER CENTER FRONT
4
3
AV OUT
R 3Ω L
SURROUND
VIDEO
OUT
PR
COMPONENT
VIDEO OUT
OPTICAL
2(STB)
FM ANT
75Ω
DIGITAL
TRANSMITTER
1(TV)
DIGITAL IN
Main unit
My television has COMPONENT VIDEO IN terminals and HDMI IN terminal. Which should I connect with?
≥The different levels of picture quality input are listed below in order from highest to lowest.
HDMI IN )COMPONENT VIDEO IN )VIDEO IN. However, it will take longer for the picture output to start up when this unit is connected with
the HDMI IN terminal.
– To enjoy all features of this unit, connect the video cable, even if the component video cable or the HDMI cable is used.
For connections with a video cable (> below)
For connections with a component video cable (> 11)
For connections with a HDMI cable (> 11)
Connections with a video cable
Video cable
VIDEO IN
Audio cable*1
(not included)
The optical digital audio
cable can be used when
connecting to televisions
with optical out terminals
( right).
TV
AUDIO IN
AUDIO OUT
L
L
R
R
Video cable
(included)
OPTICAL
OUT
Optical digital
audio cable*1,2
(not included)
AUX(TV)
R
SPEAKERS
AUX(TV)
OPTICAL 1(TV)
L
Y
+
PB
AC IN
Main unit
2
1
6
5
3Ω SUB- 3Ω
R 3Ω L
WOOFER CENTER FRONT
4
3
R 3Ω L
SURROUND
AV OUT
VIDEO
OUT
PR
COMPONENT
VIDEO OUT
PB
OPTICAL
2(STB)
1(T
DIGITAL IN
VIDEO
OUT
PR
COMPONENT
VIDEO OUT
OPTICAL
2(STB)
FM ANT
75Ω
1(TV)
DIGITAL IN
VIDEO OUT
≥Set “High Clarity Sound” on the on-screen menu to “Off” (> 36).
(Otherwise, the video will not be output.)
NOTE
TIPS
RQT9457
10
10
Optional connections
≥For those who want to enjoy higher picture quality and have a TV equipped with an HDMI terminal (> 11)
≥For those who want to enjoy higher picture quality and have a TV equipped with a COMPONENT VIDEO IN terminal (> 11)
≥For those who have a Set Top Box (Satellite receiver, Cable box, etc.) or video cassette recorder (> 12)
To enjoy TV audio from this home theater system’s speakers
*1You can enjoy the audio from your TV through this home theater system’s speakers by connecting to the “AUX(TV)” terminal or
“OPTICAL 1(TV)” terminal. (> 27)
*2This is the preferred connection for best sound and true surround sound depending on your television.
This unit can decode the surround signals received from your TV. Refer to the operating instructions for the TV for the settings
necessary to output its audio from the digital audio output to your home theater system. Only Dolby Digital and PCM can be played
with this connection.
– After making this connection, make settings to suit the type of audio from your digital equipment (> 27).
Getting Started
SCBT205EP-RQT9457-R.book 11 ページ 2009年3月30日 月曜日 午後7時7分
Connections with a component video cable
Do not disconnect the video cable even if the below is connected. Some features may not be displayed.
COMPONENT
VIDEO IN
TV
Audio cable*1
(not included)
The optical digital audio
cable can be used when
connecting to televisions
with optical out terminals
( right).
Y
AUDIO OUT
PB
PR
L
R
Component
Video cable
(not included)
AUX(TV)
AUX(TV)
OPTICAL 1(TV)
L
Y
+
PB
AC IN
2
1
6
5
3Ω SUB- 3Ω
R 3Ω L
WOOFER CENTER FRONT
Optical digital
audio cable*1,2
(not included)
COMPONENT VIDEO OUT
R
SPEAKERS
OPTICAL
OUT
PR
4
3
R 3Ω L
SURROUND
VIDEO
OUT
AV OUT
COMPONENT
VIDEO OUT
PB
OPTICAL
2(STB)
PR
1(T
DIGITAL IN
VIDEO
OUT
COMPONENT
VIDEO OUT
OPTICAL
2(STB)
FM ANT
75Ω
1(TV)
DIGITAL IN
Main unit
≥Connect to terminals of the same colour.
≥Set “High Clarity Sound” on the on-screen menu to “Off” (> 36).
(Otherwise, the video will not be output.)
NOTE ≥The video output resolution is restricted to “576p/480p” when DVD-Video discs, DivX and BD-Video discs recorded at a rate of 50
field per second are output from the COMPONENT VIDEO OUT terminals.
TIPS
To enjoy high definition/progressive video
≥Connect to a television that supports 576p/480p or higher.
≥Set “Component Resolution” to “576p/480p”, “720p” or “1080i”. (> 39)
≥Set “HDMI Video Mode” to “Off”. (> 39) Otherwise, the video is output as 480i.
Connections with a HDMI cable
Do not disconnect the video cable even if the below is connected. Some features may not be displayed.
HDMI
compatible
TV
Audio cable*1
(not included)
The optical digital audio
cable can be used when
connecting to televisions
with optical out terminals
( right).
AUDIO OUT
AV IN
L
R
HDMI cable
(not included)
R
AUX(TV)
OPTICAL 1(TV)
L
Y
+
PB
-
Main unit
Optical digital
audio cable*1,2
(not included)
AUX(TV)
SPEAKERS
AC IN
OPTICAL
OUT
2
1
6
5
3Ω SUB- 3Ω
R 3Ω L
WOOFER CENTER FRONT
4
3
R 3Ω L
SURROUND
AV OUT
VIDEO
OUT
PR
COMPONENT
VIDEO OUT
PB
OPTICAL
2(STB)
1(T
DIGITAL IN
VIDEO
OUT
PR
COMPONENT
VIDEO OUT
OPTICAL
2(STB)
FM ANT
75Ω
1(TV)
DIGITAL IN
HDMI AV OUT
≥If there is more than one HDMI terminal, refer to the operating instructions for the TV to determine terminal to connect to.
≥Non-HDMI-compliant cables cannot be utilized.
≥Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover). It is recommended that you use
NOTE
Panasonic’s HDMI cable.
Recommended part number:
RP-CDHG10 (1.0 m), RP-CDHG15 (1.5 m), RP-CDHG20 (2.0 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m), etc.
≥This unit incorporates HDMITM (V.1.3a with Deep Colour, x.v.ColourTM, High Bit rate Audio) technology. (> 55, 56)
≥When outputting 1080p signal (> 39, “HDMI Video Format”) please use HDMI cables 5.0 meters or less.
TIPS
TIPS
NECESSARY SETTINGS
“HDMI Video Mode” : “On”/“HDMI Audio Output” : “Off” (> 39)
With this connection, you can use VIERA Link “HDAVI Control” (> 28).
To enjoy TV audio from this home theater system’s speakers
*1You can enjoy the audio from your TV through this home theater system’s speakers by connecting to the “AUX(TV)” terminal or
“OPTICAL 1(TV)” terminal. (> 27)
*2This is the preferred connection for best sound and true surround sound.
This unit can decode the surround signals received from your TV. Refer to the operating instructions for the TV for the settings necessary to
output its audio from the digital audio output to your home theater system. Only Dolby Digital and PCM can be played with this connection.
– After making this connection, make settings to suit the type of audio from your digital equipment (> 27).
RQT9457
11
11
Getting Started
SCBT205EP-RQT9457-R.book 12 ページ 2009年3月30日 月曜日 午後7時7分
Connections to a Set Top Box, etc.
Use the following connections when you want to output the original surround audio from your Set Top Box, cable TV, VCR, DVD recorder, etc.
through this unit’s speakers.
≥Do not connect through the video cassette recorder.
Due to copy guard protection, the picture may not be displayed properly.
≥Turn off all equipment before connection.
STB, VCR, DVD recorder, etc.
TV
OPTICAL
OUT
Refer to the operating instructions of the respective devices
for the optimal connections.
Optical digital
audio cable
(not included)
R
SPEAKERS
AUX(TV)
OPTICAL 2(STB)
L
Y
+
PB
AC IN
2
1
6
5
3Ω SUB- 3Ω
R 3Ω L
WOOFER CENTER FRONT
4
3
VIDEO
OUT
AV OUT
R 3Ω L
SURROUND
PR
COMPONENT
VIDEO OUT
OPTICAL
2(STB)
FM ANT
75Ω
DIGITAL
TRANSMITTER
1(TV)
DIGITAL IN
Main unit
≥This unit can decode the surround signal from the Set Top Box (Satellite receiver, Cable box, etc).
Press [EXT-IN] several times to select “D-IN 2” (DIGITAL IN 2*).
* “(CABLE/SAT)” is displayed next to DIGITAL IN 2 when set for CABLE/SAT AUDIO input. (> 28, Setting the TV audio for VIERA
Link “HDAVI Control”)
≥For connections between this unit and the TV, refer to “TV connections” (> 10, 11).
TIPS
≥If you have various sound sources and this unit’s terminals are not sufficient, connect them to the available inputs on the TV and the
TV output should then be connected to the “AUX(TV)” or “OPTICAL 1(TV)” terminal of the main unit.
Refer to the operating instructions of the TV, video cassette recorder, DVD recorder or Set Top Box for settings to output its audio via
AUDIO OUT or OPTICAL OUT terminal of the TV.
– In some cases the audio signal will only be out as 2ch audio from the TV. In this case, connect the Set Top Box (Satellite receiver,
Cable box, etc.) that will be used most commonly with multi-channel audio to this unit’s “OPTICAL 2(STB)” terminal.
Radio antenna connections
R
SPEAKERS
AUX(TV)
L
Y
+
PB
AC IN
2
1
6
5
3Ω SUB- 3Ω
R 3Ω L
WOOFER CENTER FRONT
4
3
R 3Ω L
SURROUND
AV OUT
VIDEO
OUT
PR
COMPONENT
VIDEO OUT
OPTICAL
2(STB)
FM ANT
75Ω
DIGITAL
TRANSMITTER
1(TV)
DIGITAL IN
Main unit
Using an indoor antenna
Using an outdoor antenna
Use outdoor antenna if FM radio reception is poor.
≥Disconnect the antenna when the unit is not in use.
≥Do not use the outdoor antenna during an electrical storm.
Adhesive tape
Main unit
FM ANT
75 Ω
FM indoor antenna
(included)
Affix this end of the antenna
where reception is best.
Main unit
FM ANT
75 Ω
75  coaxial cable
(not included)
RQT9457
12
12
FM outdoor antenna
[Using a TV antenna
(not included)]
The antenna should be
installed by a competent
technician.
SCBT205EP-RQT9457-R.book 13 ページ 2009年3月30日 月曜日 午後7時7分
Getting Started
Network connection
The following services can be used when this unit is connected to the internet via a broadband.
≥Firmware can be updated (> 32)
≥You can enjoy the BD-Live (> 21)
≥You can enjoy the VIERA CAST (> 32)
Internet
LAN
R
SPEAKERS
AUX(TV)
L
Y
+
PB
AC IN
2
1
6
5
3Ω SUB- 3Ω
R 3Ω L
WOOFER CENTER FRONT
PR
4
3
R 3Ω L
SURROUND
AV OUT
VIDEO
OUT
COMPONENT
VIDEO OUT
OPTICAL
2(STB)
FM ANT
75Ω
DIGITAL
TRANSMITTER
1(TV)
DIGITAL IN
Main unit
Straight LAN cable (not included)
Hub or broadband router
Telecommunications equipment
(modem, etc.)
≥When your communication equipment (modem), etc. has no broadband router functions: Connect a broadband router.
When your communication equipment (modem), etc. has broadband router functions but there are no vacant ports: Connect a hub.
≥Use shielded LAN cables when connecting to peripheral devices.
NOTE ≥Use a router that supports 10BASE-T/100BASE-TX.
≥When operating the VIERA CAST, use high-speed internet service no less than 1.5 Mbps for SD (Standard Definition) and 6 Mbps
for HD (High Definition) picture quality by your local broadband company.
– If using slow Internet connection, the video may not be displayed correctly.
≥After connecting to the Internet, perform necessary settings. (> 33)
≥Inserting any cable other than a LAN cable in the LAN terminal can damage the unit.
AC mains lead connection
≥Before turning the power on for the first time, be sure to read the preparations for SMART SETUP. (> 14)
AC mains lead
Main unit
R
SPEAKERS
AUX(TV)
L
Y
+
PB
AC IN
6
5
2
1
3Ω SUB- 3Ω
R 3Ω L
WOOFER CENTER FRONT
4
3
R 3Ω L
SURROUND
PR
AV OUT
VIDEO
OUT
COMPONENT
VIDEO OUT
OPTICAL
2(STB)
FM ANT
75Ω
DIGITAL
TRANSMITTER
1(TV)
DIGITAL IN
AC mains lead (included)
To a household mains socket
Connect only after all other connections are complete.
NOTE
TIPS
Conserving power
This unit consumes a small amount of power even when it is turned off (approx. 0.3 W). To save power when the unit is not to be used
for a long time, unplug it from the household mains socket.
You will need to reset some memory items after plugging in the main unit.
RQT9457
13
13
Getting Started
SCBT205EP-RQT9457-R.book 14 ページ 2009年3月30日 月曜日 午後7時7分
SMART SETUP
The SMART SETUP screen assists you to make necessary
settings.
When the system is switched on for the first time, the SMART SETUP
screen for the basic settings is displayed automatically. Follow the
on-screen prompts to make basic settings for the system.
Preparation
To optimize the surround sound experience we recommend that you
setup the speaker output level using the Auto speaker setup function.
Keep as quiet as possible during the Auto speaker setup. Excessive
background noise may lead to incorrect settings. The speakers
output loud test signals during setup.
BD/SD
BD/SD
Auto speaker setup microphone
OK
OK
RETURN
RETURN
≥Place the Auto speaker setup microphone at actual seating position.
(At ear level when seated.)
≥A test signal is output from each speaker during the SMART SETUP.
≥After the SMART SETUP is completed, unplug the Auto speaker setup
microphone and keep it for future use.
SMART SETUP
SD
SD CARD
CARD
SETUP MIC
SELECTOR
SELECTOR
TUNE
TUNE
1 Press [Í].
≥When the SMART SETUP screen appears automatically, skip
step 2 and 3.
2 Press [BD/SD] to select “BD/DVD”.
3 Press [SMART SETUP] on the main unit.
≥The SMART SETUP screen appears.
4 Follow the on-screen instructions and make the
settings with [3, 4, 2, 1] and [OK].
≥Auto Speaker Setup can be activated through SMART
SETUP only.
≥Audio settings will be restored to default if Auto Speaker
NOTE
Setup is cancelled.
Basic setting for the system
(SMART SETUP)
Preparation
Turn on your TV and select the appropriate video input mode (e.g.
VIDEO 1, AV 1, HDMI, etc.) to suit the connections to this unit.
≥To change your TV’s video input mode, refer to its operating
instructions.
≥This remote control can perform some basic TV operations (> 5).
RQT9457
14
14
≥Language (> below)
Select the language used on menu screen.
≥TV Aspect (> below)
Select the aspect to suit your TV and preference.
≥Speakers position
Specify the positioning of the surround speakers.
≥Auto Speaker Setup
Adjust the speaker output level automatically.
≥Speaker Output
Make surround sound setting for speaker output.
≥TV Audio
Select the audio input connection from your TV.
For AUX connection (> 10): Select “AUX”.
For OPTICAL DIGITAL IN connection (> 10): Select “DIGITAL
IN 1”.
This will be the TV Audio setting for VIERA Link “HDAVI
Control”. (> 28)
To return to the previous screen, press [RETURN].
5 Press [OK] to finish the SMART SETUP.
≥If this unit is connected to a “HDAVI Control 3 (or later)”
compatible TV via HDMI cable, the menu language and
TV aspect information will be retrieved via VIERA Link.
NOTE ≥If this unit is connected to a “HDAVI Control 2” compatible
TV via HDMI cable, the menu language information will
be retrieved via VIERA Link.
≥Even if this unit is connected to a “HDAVI Control 2 (or
later)” compatible TV via HDMI cable, the menu screen
language will not be automatically retrieved if this unit
does not support the language. In this case, set the
language manually.
≥Settings in the SMART SETUP can also be changed in
the unit settings [e.g. language, TV aspect, speaker level
and TV audio (> 37)].
≥Positioning examples for mounting all speakers in front.
(> 8)
Showing START menu
Some functions of this unit can be operated from the START menu.
1 Press [Í] to turn on the unit.
2 Press [START].
≥Items displayed vary according to the chosen selector and
media.
e.g., [BD-V]
START
Home Cinema
BD-Video
Playback Disc
3 Press [3, 4] to select the item and press [OK].
Getting Started
SCBT205EP-RQT9457-R.book 15 ページ 2009年3月30日 月曜日 午後7時7分
Top Menu
Menu
Network
Input Selection
Sound(Equalizer)
To Others
OK
RETURN
START
OK
START
Items
Playback Disc
Playback
Top Menu
Menu
Functions
Network
Input Selection
Displays Home screen of VIERA CAST (> 32)
Starts playing disc/USB device/SD Card.
Shows a disc top menu.
Shows a media menu.
To play AVCHD (> 20)
To play MPEG2 (> 20)
To play MP3, CD(> 25)
To play JPEG (> 23)
To play DivX (> 22)
Shows the iPod menu.
To play “Music” (> 31)
To play “Videos” (> 31)
To play “All (iPod display)” (> 31)
For “Play Mode” (> 31)
Select the source.
BD/DVD/CD:
To play BD-Video, DVD-Video, AVCHD (> 18-21)
To play JPEG (> 23)
To play DivX (> 22)
To play MP3, CD (> 25)
OK
SD card:
To play AVCHD (> 20)
To play MPEG2 (> 20)
To play JPEG (> 23)
iPod:
To play iPod contents (> 30)
e.g., [BD-V]
Home Cinema START
Input Selection
BD-Video
BD/DVD/CD
SD
SD card
iPod
FM
USB device
AUX (TV)
DIGITAL IN 1
DIGITAL IN 2
FM:
To enjoy the FM radio (> 26)
USB device:
OK
RETURN
To play MP3 (> 25)
To play JPEG (> 23)
To play DivX (> 22)
AUX (TV)*1:
To enjoy TV broadcasts with this unit’s speakers (> 27)
DIGITAL IN 1 (TV)*1:
To enjoy TV broadcasts with this unit’s speakers (> 27)
DIGITAL IN 2 (CABLE/SAT)*2:
To enjoy audio from other devices with this unit’s speakers (> 27)
* “(TV)” is displayed next to items set for TV AUDIO input. (B 28,
1
Setting the TV audio for VIERA Link “HDAVI Control”)
*2 “(CABLE/SAT)” is displayed next to DIGITAL IN 2 when set for
CABLE/SAT AUDIO input. (> 28, Setting the TV audio for VIERA
Link “HDAVI Control”)
Sound(Equalizer)
To Others
Select the equalizer function (> 17)
Setup:
You can change the unit’s settings using Setup menu (> 37).
Card Management:
Formatting SD cards/Deleting data (> 21)
Playlists:
You can play playlists created on DVD-VR.
Press [3, 4, 2, 1] to select the playlist and press [OK].
RQT9457
15
15
Getting Started
SCBT205EP-RQT9457-R.book 16 ページ 2009年3月30日 月曜日 午後7時7分
Selecting the playback source
Selecting the source from the START menu
You can select sound modes, desired source, or access playback/menus by using
the START menu.
1 Press [Í] to turn on the unit.
2 Press [START] to show the START menu.
3 Press [3, 4] to select the item and then
press [OK].
≥To exit, press [START].
START
Home Cinema
No Disc
4 Press [3, 4] to make the setting.
When “Input Selection” is selected
You can select a desired source from the menu.
≥BD/DVD/CD, SD card, iPod, FM, USB device, AUX*1,
DIGITAL IN 1*1, DIGITAL IN 2*2 (> 15)
*1 “(TV)” is displayed next to items set for TV AUDIO input.
(> 28, Setting the TV audio for VIERA Link “HDAVI Control”)
*2
“(CABLE/SAT)” is displayed next to DIGITAL IN 2 when set
for CABLE/SAT AUDIO input. (> 28, Setting the TV audio for
VIERA Link “HDAVI Control”)
Network
Input Selection
Sound(Equalizer)
To Others
OK
RETURN
When a disc is loaded, an USB device is connected or a SD card is inserted, you
can also access playback or menus from the START menu.
e.g. [BD-V]
BD/SD
iPod
BD/SD
iPod
RADIO
EXT-IN
RADIO/EXT-IN
Home Cinema
START
BD-Video
Playback/menu access
Playback Disc
Top Menu
Menu
START
START
Network
OK
Input Selection
OK
Sound(Equalizer)
To Others
OK
RETURN
Selecting the source by the remote control
Press
To select
BD/SD
SD
SD CARD
CARD
SETUP MIC
SELECTOR
SELECTOR
SELECTOR
TUNE
TUNE
iPod
BD/DVD/CD or SD (> 18)
IPOD (iPod) (> 30)
Each time you press the button:
RADIO
EXT-IN
FM (> 26)
USB (> 18)
AUX*1: For audio input through the AUX terminal.(> 27)
D-IN1 (DIGITAL IN 1*1): (> 27)
D-IN2 (DIGITAL IN 2*2): (> 27)
*1“(TV)” is displayed next to items set for TV AUDIO input. (> 28,
Setting the TV audio for VIERA Link “HDAVI Control”)
*2“(CABLE/SAT)” is displayed next to DIGITAL IN 2 when set for
CABLE/SAT AUDIO input. (> 28, Setting the TV audio for
VIERA Link “HDAVI Control”)
Press [SELECTOR] on the main unit to select source from the main unit.
NOTE
RQT9457
16
16
≥Confirm the audio connection to the AUX or OPTICAL DIGITAL IN
terminals on the main unit when you select the corresponding sources
(> 10 to 12).
≥Reduce the volume on the TV to its minimum, and then adjust the
volume of the main unit.
Enjoying sound from all speakers and
various sound effects
≥The following sound effects/modes may not be available or have no effect with some sources, or when headphones are used (> 18).
≥You may experience a reduction in sound quality when these sound effects/modes are used with some sources. If this occurs, turn the sound
effects/modes off.
Changing the sound modes
Getting Started
SCBT205EP-RQT9457-R.book 17 ページ 2009年3月30日 月曜日 午後7時7分
Available sound modes
Mode
EQ:
(Equalizer)
SURROUND
SOUND
SOUND
SURROUND
OK
-CH SELECT
SUB W:
This unit will change the settings for the amount of
(Subwoofer bass depending on the source.
level)
However you can also adjust the amount of bass for
the source being played.
– 1 (Weakest effect)
–2
–3
– 4 (Strongest effect)
≥The setting you make is retained, and recalled
every time you play the same type of source.
CF:
(Center
Focus)
(Effective when playing audio containing center
channel sound.)
You can make the sound of the center speaker seem
like it is coming from within the TV.
– ON
– OFF
W.S.:
(Whispermode
Surround)
(Effective when playing video with 5.1ch audio.)
You can enhance the surround effect for low volume
5.1-channel sound.
(Convenient for late night viewing.)
– ON
– OFF
-CH SELECT
Enjoying surround sound effects
Available surround sound effects
Effect
Setting
STANDARD: Sound is output as it was recorded/encoded.
Speaker output varies depending on the source.
MULTI-CH:
You can enjoy sound from the front speakers, as well
as the surround speakers even when playing a
2-channel sound or non-surround sound.
MANUAL:
– DOLBY PL II MOVIE:
Suitable for movie software, or the one recorded in
Dolby Surround. (except [DivX])
– DOLBY PL II MUSIC:
Adds 5.1-channel effects to stereo sources. (except
[DivX])
– S.SURROUND:
You can enjoy sound from all speakers with stereo
sources.
– 2CH STEREO:
You can play any source in stereo. Sound will be
output to the front speakers and the subwoofer
only.
Press [SURROUND] several times to select the effect.
≥You can also press [SURROUND] and then [3, 4] to select the
mode.
≥The selected effect will only be displayed on the main unit.
When selecting the MANUAL effects.
While “MANUAL” is displayed
Press [2, 1] and select the desired effect.
≥“NOT CONDITIONAL” is displayed on the main unit if the setting is
not active.
≥“DOLBY PL II MOVIE” and “DOLBY PL II MUSIC” do not work when
audio is output from the HDMI AV OUT terminal.
Setting
You can select sound quality settings.
– FLAT(Flat):Cancel (no effect is added).
– HEAVY(Heavy):Adds punch to rock.
– CLEAR(Clear):Clarifies higher sounds.
– SOFT(Soft):For background music.
1 Press [SOUND] several times to select the mode.
≥You can also press [SOUND] and then [3, 4] to select the
mode.
≥The selected effect will only be displayed on the main unit.
2
While the selected mode is displayed
Press [2, 1] and select the desired setting.
Adjusting speaker level during play
1 Press and hold [-CH SELECT] for 3 seconds to
activate the speaker setting mode.
2 Press [-CH SELECT] several times to select the
speaker.
Each time you press the button:
L R—) C_) RS_) LS_) SW
^""""""""""""""""""b
L R:
Front speaker (left and right)
C:
Centre speaker
RS:
Surround speaker (right)
LS:
Surround speaker (left)
SW:
Subwoofer
≥The channels not included in the playing audio will not be
displayed (subwoofer is displayed even if it is not included).
Adjusting the balance of the front speakers
(When “L R” selected)
3 Press [2, 1] to adjust the balance of the front
speakers.
Adjusting the speaker level
(When other speakers are selected)
4 Press [3] (increase) or [4] (decrease) to adjust
the speaker level for each speaker.
s6 dB to r6 dB
RQT9457
17
17
SCBT205EP-RQT9457-R.book 18 ページ 2009年3月30日 月曜日 午後7時7分
Basic operation
Instructions for operations are generally described using the remote control in these operating instructions.
Preparation
Turn on the television and select the appropriate video input on the television.
Inserting or removing an SD card
Inserting or removing a disc
1 Pull to flip down the front panel.
2 Insert the SD card into the SD card slot.
Insert the card label
up with the cut-off
corner on the right.
≥Press on the
center of the card
until it clicks into
place.
1 Press [< OPEN/CLOSE] to open the disc tray.
2 Insert or remove the disc.
Playback
Label facing up
SD CARD
≥Press [< OPEN/CLOSE] again to close the disc tray.
≥DVD-RAM: Remove discs from their cartridges before use.
≥Insert double-sided discs so the label for the side you want to play is
facing up.
≥To remove the card, press on the center of the card
and pull it straight out.
Stop Play
VOLUME
SURROUND OUTPUT
SD CARD
SETUP MIC
SELECTOR
TUNE
,VOLUME
Inserting or removing a USB device
1 Pull to flip down the front panel.
2 Insert the USB device into the USB port.
Skip/Search/Slow-motion
To remove the USB device, complete all USB device-related
operations and pull the USB device straight out.
≥ Before inserting any USB device to this unit, ensure that the data stored therein has been backed up.
≥Check the orientation of the USB connector and insert it straight in.
≥Some USB devices inserted into this unit may cause this unit to stop operating.
Such USB devices cannot be used on this unit.
About the use of USB device
Since the physical size of USB device can vary, please consider its width when connecting
any USB device to this unit. It is possible that some devices may accidentally activate the
playback button and cause this unit to not operate properly.
≥In such cases we recommend using a USB extension cable (not included).
1 Press [Í] to turn on the unit.
2 Insert the media (D above).
Play start.
≥If play does not start, press [1PLAY].
≥If the media with data in different file formats is inserted, the file
selection menu is displayed. Press [3, 4] to select the desired file
format and press [OK].
≥If the menu is displayed, press [3, 4, 2, 1] to select the item and
press [OK].
≥If the screen prompting you to use the colour buttons appears,
continue to operate with the colour buttons on the remote control.
∫ To adjust the volume.
VOL
Press to adjust the volume
It is also possible to adjust the volume with the volume knob on the
main unit.
∫ To mute the sound.
MUTE
RQT9457
18
18
Press to mute the sound
“MUTE” flashes on the unit’s display. e.g., Display
≥To cancel, press [MUTE] again or
adjust the volume.
≥Muting is cancelled if the unit is
turned off.
Headphones (not included)
Headphone plug type: ‰3.5 mm stereo
mini plug
≥Reduce the volume before connecting.
≥Audio is automatically switched to 2ch
stereo.
≥To prevent hearing damage, avoid
listening for prolonged periods of time.
Excessive sound pressure from
earphones and headphones can cause
hearing loss.
≥Signal from PAL discs is output as PAL. Signal from
NTSC discs is output as “NTSC” or “PAL60”. You can
select “NTSC” or “PAL60” in “NTSC Contents Output” for
NOTE
NTSC discs. (> 37)
≥DISCS CONTINUE TO ROTATE WHILE MENUS ARE
DISPLAYED. Press [∫STOP] when you finish to preserve
the unit’s motor and your television screen.
≥If a media is inserted while the unit is stopped, the drive
switches automatically depending on the inserted media.
≥The producers of the disc can control how discs are
played. So you may not always be able to control play as
described in these operating instructions. Read the disc’s
instructions carefully.
≥When playing a set of two or more BD-Video discs, the
menu screen may continue to display even if the disc has
been ejected.
TIPS
To display menus
[BD-V] [AVCHD] [DVD-VR] [DVD-V] [DivX]
Press [TOP MENU/DIRECT NAVIGATOR].
To show Pop-up menu [BD-V]
The Pop-up menu is a special feature available with some
BD-Video discs. This menu may vary with discs. For the
operating method, refer to the instructions for the disc.
1) Press [POP-UP MENU].
2) Press [3, 4, 2, 1] to select the item and press [OK].
≥Pop-up menu also appears by pressing [OPTION] and
selecting “Pop-up Menu”.
≥Press [POP-UP MENU] to exit the screen.
≥It may take time to read BD-Video discs that include BD-J
(> 55).
SCBT205EP-RQT9457-R.book 19 ページ 2009年3月30日 月曜日 午後7時7分
Other operations during play (These functions may not work depending on the media.)
SEARCH
VOL
MUTE
PLAY
SEARCH
PAUSE
SKIP
SLOW
SKIP
STOP
START
MENU
OK
RETURN
OPTION
R
≥While stopped (the image on the right is
displayed on the screen), the title is designated.
While playing, the chapter is designated.
-U P
EN
P
U
OP
DIRECT
NAV
TOP M IGAT
OR
During playback, you can access specific recordings or scenes
through direct entry of the numbered buttons.
Play starts from the selected title or chapter.
[BD-V] [AVCHD]
[DVD-V]
e.g., 5: [0] B [0] B [5]
e.g., 5: [0] B [5]
15: [0] B [1] B [5]
15: [1] B [5]
Playback
1 2abc 3def
4ghi 5jkl 6mno
7qrsp 8tuv 9xyzw
0
1 2abc 3def
4ghi 5jkl 6mno
Direct Play
7pqrs 8tuv 9wxyz
0
G
Y
STATUS
B
AUDIO
Frame-by-frame
OK
-SLEEP
STOP
Stop
The stopped position is memorized.
Resume play function
Press [1PLAY] to restart from this position.
≥The position is cleared if the tray is opened or you press [∫STOP]
several times to display “STOP” on unit’s display.
≥[BD-V]: On BD-Video discs including BD-J (> 55), the resume
play function does not work.
≥[CD] [MP3] [DivX] [MPEG2]: The position is cleared if the unit is turned
off.
PAUSE
Pause
Press [;PAUSE] again or [1PLAY] to restart play.
SEARCH
SEARCH
Search/Slow-motion
SLOW
The speed increases up to 5 steps.
≥Press [1PLAY] to revert to normal playback speed.
≥For some discs, the speed may not change.
Search
While playing, press [SEARCH6] or [SEARCH5].
≥[BD-V] [AVCHD] [DVD-VR] [DVD-V]:
Audio is heard during first level of forward search.
≥[DivX] [MPEG2]: Audio is not heard during all levels of search.
≥[CD] [MP3]: The speed is fixed to a single step.
Slow-motion
While paused, press [SEARCH6] or [SEARCH5].
≥[BD-V] [AVCHD]: Forward direction [SEARCH5] only.
≥[DVD-VR]: If continued for approx. 5 minutes, slow-motion play
pauses automatically.
SKIP
SKIP
Skip
Skip to the title, chapter or track you want to play.
≥Each press increases the number of skips.
≥[DivX]: Backward direction [SKIP:] only.
While paused, press [2] (2;) or [1] (;1).
Each press shows the next frame.
≥Press and hold to change in succession forward or backward.
≥Press [1PLAY] to revert to normal playback speed.
≥[BD-V] [AVCHD]: Forward direction [1] (;1) only.
Changing audio during play
AUDIO
[BD-V] [AVCHD] [DVD-V]
e.g. [DVD-V]
Soundtrack
1 ENG
Digital 3/2.1ch
English is selected.
You can change the audio channel number each time you press the
button. This allows you to change the soundtrack language (> 35,
Soundtrack), etc.
≥[BD-V] When “BD-Video Secondary Audio” (> 38) is set to “On”,
Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and
DTS-HD High Resolution Audio are output as Dolby Digital or DTS
Digital Surround regardless of this setting.
[DVD-VR] [DivX] [MPEG2]
AudioLR>AudioL>Audio R
^------------------------------------------}
DVD-RAM(VR)
PLAY
“AudioLR” is
selected
AudioLR
Chapter playback
[DVD-VR]
1 Insert a disc (> 18).
2 While “Title View” screen is displayed
Press [3, 4] to select the title and press
[OPTION].
Chapter View
To display the title properties
(recording date, etc.)
To select the chapter
To Picture
Playing still pictures (> 23)
Properties
3 Press [3, 4] to select “Chapter View” and
press [OK].
4 Press [2, 1] to select the chapter and press
[OK].
RQT9457
19
19
SCBT205EP-RQT9457-R.book 20 ページ 2009年3月30日 月曜日 午後7時7分
Basic operation
STATUS
Playing video recorded on a Video
Camera or Video Recorder
Status messages
The status messages give you information about what is currently
being played. Each time you press [STATUS], the information
displayed will change.
e.g. [BD-V]
Type of disc
[AVCHD] [MPEG2]
It is possible to playback the High Definition (AVCHD format) video
recorded on a Panasonic High definition Video Camera on a
DVD-RAM/R/RW/R DL/+R/+RW/+R DL, or SD card and Standard
Definition (MPEG2 format) Video recorded on the Panasonic SD Video
Camera on a SD card.
Play status
BD-Video
Playback
PLAY
1 Insert a disc or SD card. (> 18)
No display
T: Title
C: Chapter
≥“Title View” or “Video (MPEG-2)” screen is displayed.
≥If a media containing data in different file formats is inserted, the
file selection menu may be displayed.
Press [3, 4] to select “Play Video (AVCHD)” or “Play Video
(MPEG-2)” and press [OK].
Items change
depending on the
disc played.
e.g. [SD]
PL: Playlist
SD CARD
Play Pictures (JPEG)
Play Video (AVCHD)
Play Video (MPEG-2)
Elapsed time in the title
 T1
C1
Select an action or press RETURN.
0:05.14
OK
0:20.52
Current position
OPTION
Total time
2 Press [3, 4, 2, 1] to select the title and press
[OK].
Depending on the kind of disc or the playback status, this
display may not appear.
Screen Aspect
NOTE
When black bars are shown at the top, bottom, left, and right sides of
the screen, you can enlarge the image to fill the screen.
1 Press [OPTION].
2 Press [3, 4] to select “Screen Aspect” and press [OK].
3 Press [2, 1] to select “Side cut” or “Zoom” and press [OK].
Normal: Normal output
Side cut: The black bars on the right and left sides of the 16:9
image disappear and the image is enlarged. Please note
that the right and left sides of the image are cut off when
the black bar is not displayed.
Zoom:
The black bars on the top and bottom sides of the 4:3
image disappear and the image is enlarged. Please note
that the top and bottom sides of the image are cut off
when the black bar is not displayed.
≥[BD-V] [DVD-V]: “Side cut” does not have any effect.
≥When “TV Aspect” (> 39) is set to “4:3” or “4:3 Letterbox”, the
“Zoom” effect is disabled.
DISPLAY
Setting the sleep timer
-SLEEP
1 Press and hold [—SLEEP] for 3 seconds.
2 While “SLEEP ££” is displayed,
Press [—SLEEP] several times to select the time (in minutes).
SLEEP 30 ) SLEEP 60 ) SLEEP 90 )SLEEP 120 )OFF
^""""""""""""""""""""""""""""""""b
e.g., Display
SLP
To confirm the remaining time
Press and hold [—SLEEP] for 3 seconds.
≥The sleep timer cannot be set while the Setup menu is displayed.
≥The sleep timer will be cancelled in the following cases.
– When the sleep timer is set to “OFF”.
– When this unit is turned off from the remote control, main unit or via
the VIERA Link.
RQT9457
20
20
RETURN
TIPS
≥It may pause for a few seconds between images when
editing such as partial deletion is performed.
≥High definition video (transfer rate of 18 Mbps or faster)
cannot be played back correctly if it was recorded on a
DVD compatible to double speed or slower.
To return to the previous screen
Press [RETURN].
To exit the screen
Press [TOP MENU/DIRECT NAVIGATOR].
To switch from other menus to AVCHD or MPEG2
menu
(If the media contains data in different file formats)
1) Press [START].
2) Press [3, 4] to select “Menu” and press [OK].
3) Press [3, 4] to select “Play Video (AVCHD)” or “Play
Video (MPEG-2)” and press [OK].
SCBT205EP-RQT9457-R.book 21 ページ 2009年3月30日 月曜日 午後7時7分
[BD-V]
What is BONUSVIEW?
BONUSVIEW allows you to enjoy functions such as picture-in-picture or secondary audio etc., with BD-Video supporting BD-ROM Profile 1
version 1.1/ Final Standard Profile.
What is BD-Live?
In addition to the BONUSVIEW function, BD-Video supporting BD-ROM Profile 2 that has a network extension function allows you to enjoy more
functions such as subtitles, exclusive images and online games by connecting this unit to the Internet. In order to use the Internet feature, you
must have this unit connected to a broadband network (> 13).
≥These discs may not be on sale in certain regions.
≥The usable functions and the operating method may vary with each disc, please refer to the instructions on the disc and/or visit their website.
Playback
Enjoying BD-LIVE or BONUSVIEW in
BD-Video
Playing secondary video (picture-in-picture) and secondary audio
Secondary video can be played from a disc compatible with the picture-in-picture function.
For the playback method, refer to the instructions for the disc.
≥Discs may not always be played back
according to the settings on this unit, as
Secondary video NOTE certain playback formats are prioritized on
certain discs.
≥Only the primary video is played during
search/slow-motion or frame-by-frame.
≥When “BD-Video Secondary Audio” in
“Digital Audio Output” is set to “Off”,
secondary audio will not be played. Please
check that “BD-Video Secondary Audio” is
set to “On” (> 38).
≥When the secondary video is turned off, the
secondary audio is not be played.
To turn on/off secondary video
Press [PIP].
Secondary video is played.
≥Press the button to turn it ON and OFF.
To turn on/off secondary audio
Set “Soundtrack” in “Secondary Video” to
“On” or “Off” (> 35, “Signal Type”).
Primary video
Enjoying BD-Live discs with Internet
Many BD-Live compatible discs require content to be downloaded onto an SD card
≥While using this feature, do not remove the
(> 56, Local storage) in order to access the available BD-Live features.
SD card. Doing so will cause playback to
≥An SD card with 1 GB or more of free space (SD Speed Class Rating 2 or higher) needs
NOTE stop.
to be inserted prior to inserting the BD-Live compatible disc.
≥A message may be displayed when SD
Some BD-Live content available on the Blu-ray discs may require an Internet
card doesn't have enough storage capacity
account to be created in order to access the BD-Live content. Follow the screen
for BD-Live content.
display or instruction manual of the disc for information on acquiring an account.
Please make space available on the current
SD card, or insert another SD card.
Preparation
≥For details about usable cards, refer to
“Media (Disc, card and USB device)
≥Connect to the network. (> 13)
information” (> 44)
≥The unit must be connected to the Internet
1 Insert an SD card (> 18).
and set up (> 33) to use the BD-Live
≥If the SD card menu screen is displayed, press [BD/SD], select “BD/DVD”.
functions. “BD-Live Internet Access” may
2 Insert the disc (> 18).
need to be changed for certain discs
≥For operation method, refer to the instructions on the disc.
(> 37).
≥When discs supporting BD-Live are played
back, the player or disc IDs may be sent to
the content provider via the Internet. You
To use the above functions, it is recommended that you format the card on this unit.
can restrict Internet access (> 37, “BD-Live
Format the card using the following procedures.
Internet Access” ).
≥The unit is connected to the Internet when
Formatting SD cards/Deleting data
BD-Live functions are used, generating
It is impossible to restore data after formatting the card or erasing the data.
communication charges.
Once a card is formatted, all data including those recorded on the PC is erased as well,
≥The playback may be paused depending on
even if the data were protected with other equipment.
the communication environment.
Confirm whether the card can be formatted.
Some functions may be disabled to prevent
skipping to sections that have not been
downloaded, etc.
1) Insert an SD card (> 18).
2) Press [START].
3) Press [3, 4] to select “To Others” and press [OK].
BD-Video Data Erase
4) Press [3, 4] to select “Card Management” and press
Format SD Card
[OK].
5) Press [3, 4] to select “BD-Video Data Erase” or
“Format SD Card” and press [OK].
Format this SD Card.
6) Press [2, 1] to select “Yes” and press [OK].
7) Press [2, 1] to select “Start” and press [OK].
Card Management
SD CARD
No. of Files 6
Free space 300 MB
OK
RETURN
RQT9457
21
21
SCBT205EP-RQT9457-R.book 22 ページ 2009年3月30日 月曜日 午後7時7分
Playing DivX® videos
[DivX]
Playback
ABOUT DIVX VIDEO:
DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video.
You can play DVD-R/R DL, CD-R/RW discs and USB device which contain DivX video contents that have been recorded on a personal
computer.
(About structure of folders D 47, “Structure of folders that can play back on this unit”)
≥Because DivX format can use many different codecs, there is no guarantee that all DivX files will play. (> 46, “About MP3/JPEG/
DivX files”)
1 Insert a disc or a USB device. (> 18)
≥If the disc containing data in different file
formats is inserted, the file selection menu
may be displayed. Press [3, 4] to select
“Play Video (DivX)” and press [OK].
e.g.,
Display
e.g.,
NOTE
CD
Play Video (DivX)
Play Pictures (JPEG)
Play Music (MP3)
Select an action or press RETURN.
OK
2 Press [3, 4] to select the title
and press [OK].
e.g.,
TIPS
RETURN
OPTION
DIRECT NAVIGATOR
CD (DivX)
DivX
Name of Title
No.
Play starts on the selected title.
001
ABC.divx
Play
OPTION
Folders can be selected from OPTION.
Page 01/01
RETURN
≥The picture sizes set for recording
may prevent the unit from showing
pictures in the proper aspect. You
may be able to adjust the aspect
through the TV.
≥Successive play is not possible.
≥You can use search and skip
functions. (> 19)
≥Press [SKIP:, SKIP9] to
show other pages.
DVD-R/R DL, CD-R/RW, USB device
To switch from other menus to DivX
menu
(If the media contains data in different
file formats)
1) Press [START].
2) Press [3, 4] to select “Menu” and
press [OK].
3) Press [3, 4] to select “Play Video
(DivX)” and press [OK].
Playing a title in another folder
1 While the “DIRECT NAVIGATOR” is displayed
Press [OPTION], press [3, 4] to select “Folder” and press [OK].
e.g.,
DIRECT NAVIGATOR
CD (DivX)
OK
≥You cannot select folders that
contain no compatible files.
Folder selection
12_02_2004
Selected folder No. /Total folders
If the folder has no title, “– –” is displayed
as folder number.
F 1/21
NOTE
To return to the previous screen
Press [RETURN].
TIPS
RETURN
Page 01/01
2 Press [3, 4] to select a folder and press [OK].
The “DIRECT NAVIGATOR” for the folder appears.
Regarding DivX VOD content
ABOUT DIVX VIDEO-ON-DEMAND:
This DivX® Certified device must be registered in order to play DivX
Video-on-Demand (VOD) content.
First generate the DivX VOD registration code for your device and
submit it during the registration process. [Important: DivX VOD content
is protected by a DivX DRM (Digital Rights Management) system that
restricts playback to registered DivX Certified devices. If you try to play
DivX VOD content not authorized for your device, the message
“Authorisation Error.” will be displayed and your content will not play.]
Learn more at www.divx.com/vod.
Display the unit’s registration code.
(> 40, “DivX Registration” in “General”)
DivX Registration
DivX® Video On Demand
Your registration code is : XXXXXXXX
8 alphanumeric
characters
To learn more visit www.divx.com/vod
≥After playing DivX VOD content for the first time, another registration
code is then displayed in “DivX Registration”. Do not use this
registration code to purchase DivX VOD content. If you use this code
to purchase DivX VOD content, and then play the content on this
unit, you will no longer be able to play any content that you
purchased using the previous code.
≥If you purchase DivX VOD content using a registration code different from
this unit’s code, you will not be able to play this content. (“Authorisation
Error.” is displayed.)
Regarding DivX VOD content that can only be played a set
number of times
Some DivX VOD content can only be played a set number of times.
When you play this content, the remaining number of plays is
displayed. You cannot play this content when the number of remaining
plays is zero. (“Rental Expired.” is displayed.)
When playing this content
≥The number of remaining plays is reduced by one if
– you play the content to the end.
– you press [Í].
– you press [∫STOP] and play others.
– you press [∫STOP] twice. (except for content of USB device)
– you press [< OPEN/CLOSE] or remove the USB device.
Displaying subtitles text
RQT9457
22
22
You can display subtitles text onto the DivX video disc on this unit.
This function has no relation to the subtitles specified in DivX standard
specifications and has no clear standard. The operation might be
different or it may not operate properly depending on the way the file
was made or the state of this unit (playing, stopped, etc.).
1 While playing, press [DISPLAY].
2 Press [3, 4] to select “Disc” and press [1].
3 Press [3, 4] to select “Subtitle” and press [1].
4 Press [3, 4] to select “On” and press [1].
5 Press [3, 4] to select “Text”.
≥DivX video files that do not display “Text” do not contain subtitles
text.
Subtitles text cannot be displayed.
≥If the subtitles text are not displayed correctly, try changing the
language settings. (> 37)
To exit the screen
Press [DISPLAY].
SCBT205EP-RQT9457-R.book 23 ページ 2009年3月30日 月曜日 午後7時7分
Playing still pictures
Connecting a USB device
USB connection cable
Specified cable such as
accessory of the USB
equipment
SD
SD CARD
CARD
SETUP MIC
TUNE
TUNE
≥Setup screen may be displayed on
equipment connected with the USB. Set it
NOTE to the mode for connecting to a PC.
≥Also read the operating instructions of the
connected equipment for details of
connection and setup.
≥Do not disconnect the USB connection
cable while recognizing.
Playback
[JPEG]
Playback of the BD-RE, DVD-RAM/R/R DL or CD-R/RW with still pictures recorded. This unit can also play still pictures recorded on the SD card
or USB memory. In addition, you can also connect Panasonic digital camera by USB connection.
(About structure of folders D 47, “Structure of folders that can play back on this unit”)
Connect to USB terminal
Panasonic digital
camera, etc.
1 Insert a disc, SD card or USB device. (> 18)
BD-RE, DVD-RAM
“Album View” screen is displayed
≥When the “Title View” screen is displayed, press the [G] button to switch to the
“Album View” screen.
≥If the DVD-RAM containing both JPEG and AVCHD format is inserted, the file
selection menu may be displayed.
DVD-R/R DL, CD-R/RW, SD card, USB device
≥Press [2, 1] to display the previous or
next still picture.
≥Press [SKIP:, SKIP9] to show other
TIPS
pages.
To return to the previous screen
Press [RETURN].
To exit the screen
Press [TOP MENU/DIRECT NAVIGATOR].
e.g., Display
≥If the media containing data in different file formats is
inserted, the file selection menu may be displayed.
DVD-RAM/R/R DL, CD-R/RW, SD card,
USB device
To switch from other menus to JPEG
menu
(If the media contains data in different file
formats)
Press [3, 4] to select “Play Pictures (JPEG)” and press
[OK].
“Picture View” screen is displayed
B Go to step 3
e.g., [SD]
1) Press [START].
2) Press [3, 4] to select “Menu” and press
[OK].
3) Press [3, 4] to select “Play Pictures
(JPEG)” and press [OK].
SD CARD
Play Pictures (JPEG)
Play Video (AVCHD)
Play Video (MPEG-2)
Select an action or press RETURN.
≥Small-sized still pictures are displayed with
a frame.
OK
OPTION
RETURN
NOTE
2 Press [3, 4, 2, 1] to select the album and press [OK].
e.g.,
DIRECT NAVIGATOR
Album View
DVD-RAM(VR)
106_DVD
Total 8
Video
12/9/2006
Total 13
Page 02/02
 Previous
OK
OPTION
RETURN
R Video
G Picture
 Next
 Slide Show
Press OK to go to Picture View
3 Press [3, 4, 2, 1] to select the still picture and press [OK].
RQT9457
23
23
SCBT205EP-RQT9457-R.book 24 ページ 2009年3月30日 月曜日 午後7時7分
Playing still pictures
Useful functions during still picture play
Start Slide Show
Rotate
You can display still pictures one by one at a constant interval.
1 While playing (except for slideshows)
Press [OPTION].
Playback
BD-RE, DVD-RAM
1 While the “Album View” screen is displayed
Press [3, 4, 2, 1] to select the album and press [OPTION].
2 Press [3, 4] to select “Rotate RIGHT” or “Rotate LEFT” and
press [OK].
2 Press [3, 4] to select “Start Slide Show” and press [OK].
≥The rotation information will be stored until the unit is turned off or
the media is removed.
≥You can also start slideshow by pressing [1PLAY] after selecting
the album.
DVD-R/R DL, CD-R/RW, SD card, USB device
1 While the “Picture View” screen is displayed
Press [OPTION].
Zoom out
This function is only available for small-sized still pictures.
2 Press [3, 4] to select “Start Slide Show” and press [OK].
1 While playing (except for slideshows)
Press [OPTION].
To stop slideshow
Press [∫STOP].
2 Press [3, 4] to select “Zoom out” and press [OK].
Slide Show Setting
≥To cancel “Zoom out”, press [3, 4] to select “Zoom in” in step 2
and press [OK].
≥The zoom-out information will not be stored.
After performing step 1 in Start Slide Show above,
2 Press [3, 4] to select “Slide Show Setting” and press [OK].
To select the still pictures in another folder
3 To change the display interval
Press [3, 4] to select “Display interval” and press [2, 1] to
select the interval (“Long”, “Normal” or “Short”).
≥When a still picture with large number of pixels is played, the
display interval may become longer. Even if the setting is
changed, the display interval may not become shorter.
To set display method
Press [3, 4] to select “Transition Effect” and press [2, 1] to
select “Fade”, “Motion” or “Random”.
“Fade”:
Pictures are changed by fading out and fading in.
This setting is factory preset.
“Motion”:
Pictures are changed by fading out and fading in,
while it is enlarged, reduced, or moved up or down.
“Random”: In addition to the “Motion”, pictures are changed by
various methods.
To repeat Slide Show
Press [3, 4] to select “Repeat Play” and press [2, 1] to select
“On” or “Off”.
To listen to a Background Music
Music files on an iPod, a USB device or a music CD can be played
back as Background music during the slideshow.
Press [3, 4] to select “Soundtrack” and press [2, 1] to select
“On” or “Off”.
≥You cannot search or skip on a music.
≥When the slideshow stops, the playback of the music also
stops.
≥Playback of the music files will be in the following order:
[CD] : Order of “Music list” display in repeat mode.
iPod: The music files will be played back in repeat mode.
≥When a music CD, a USB device with MP3 recorded and an
iPod is inserted/connected to this unit, the iPod has first priority
to be played back as Background.
To playback MP3 recorded on a USB device as Background
music, remove the iPod and music CD from the main unit.
To select a folder
A folder to playback can be selected when a USB device with MP3
recorded is connected to this unit.
Press [3, 4] to select “Soundtrack Folder” and press [OK], and
press [2, 1] to select folder and press [OK].
4 Press [3, 4, 2, 1] to select “Set” and press [OK].
BD-RE, DVD-RAM
To switch to another higher folder
(Only if there is a multiple number of higher folders recognizable)
1 While the “Album View” screen is displayed
Press [OPTION].
2 Press [3, 4] to select “Select Folder” and press [OK].
Select Folder
Change the Album folder to be accessed.
\JPEG\DCIM001
Press [OK] to set
OK
RETURN
3 Press [2, 1] to select the higher folder and press [OK].
DVD-R/R DL, CD-R/RW
1 While the “Picture View” screen is displayed
Press [OPTION].
2 Press [3, 4] to select “Folder” and press [OK].
3 Press [3, 4] to select a folder and press [OK].
The “Picture View” screen for the folder appears.
e.g.,
DIRECT NAVIGATOR
CD(JPEG)
Folder selection
021216_0026
001
002
003
004
005
006
007
008
009
010
F 2/25
103
104
105
OK
RETURN
To show the picture properties
While playing
Press [STATUS] twice.
e.g., JPEG on DVD-RAM
Shooting date
Date
To exit, press [STATUS].
RQT9457
24
24
11.12.2009
Total
3/9
SCBT205EP-RQT9457-R.book 25 ページ 2009年3月30日 月曜日 午後7時7分
Playing music
[CD] [MP3]
1 Insert a disc or USB device. (> 18)
e.g.
≥If the media containing data in
different file formats is inserted,
the file selection menu may be
displayed. Press [3, 4] to select
“Play Music (MP3)” and press
[OK].
To switch from other menus to MP3 menu
(If the media contains data in different file
formats)
TIPS
1) Press [START].
2) Press [3, 4] to select “Menu” and press
[OK].
3) Press [3, 4] to select “Play Music
(MP3)” and press [OK].
e.g. Display
CD
Play Video (DivX)
Play Pictures (JPEG)
Play Music (MP3)
Select an action or press [RETURN].
≥You can use search and skip functions.
(> 19)
≥When the “Screen Saver Function” is set to
“On” (> 38), the screen switches to Screen
Saver mode if there is no operation for 5
minutes after starting playback. (Playback
continues.)
OK
OPTION
RETURN
2 Press [3, 4] to select the track and press [OK].
Play starts on the selected track.
e.g. [CD]
“
” indicates the
track currently
playing.
0.09
Music list
DIRECT NAVIGATOR
CD
No.
01
02
03
04
05
4.30
Playback
You can play generally available music CD or MP3 files recorded onto a DVD-R/R DL, CD-R/RW and USB device.
(About structure of folders D 47, “Structure of folders that can play back on this unit”)
Track1
5 Tracks / Total Play Time 20min54sec
Track Name
Play Time
4min30sec
Track1
3min41sec
Track2
Track3
4min30sec
Track4
3min11sec
Track5
5min 2sec
Play
RETURN
[MP3] Playing a track in another folder
1 While the “Music list” is displayed
Press [OPTION], press [3, 4] to select
“Select Folder” and press [OK].
Selected folder No. /Total folders
If the folder has no track, “– –” is displayed
as folder number.
2 Press [3, 4] to select a folder and press e.g.
[OK].
The “Music list” for the folder appears.
DIRECT NAVIGATOR
CD(MP3)
≥You cannot select folders that contain no
compatible tracks.
NOTE
To return to the previous screen
Press [RETURN].
Select Folder
MP3 music
001 My favorite
002 Brazilian pops
003 Chinese pops
004 Czech pops
005 Hungarian pops
006 Liner notes
007 Japanese pops
008 Mexican pops
009 Philippine pops
010 Swedish pops
011 Momoko
012 Standard number
013 Piano solo
014Vocal
F 8/25
TIPS
OK
RETURN
Playing music continuously even after turning off power to the television
When the unit is connected to a Panasonic TV (VIERA) that supports HDAVI Control 2 or
later and other device supports VIERA Link, the unit is turned off if the power to the
television is turned off, since “Power off link” (> 29) operates.
The following operations make it possible to keep the power of the unit ON and to play
music continuously.
Set “Power Off Link” to “Video” (> 39).
NOTE
≥Sound may be discontinued for several
seconds when the power to the television is
turned off.
RQT9457
25
25
SCBT205EP-RQT9457-R.book 26 ページ 2009年3月30日 月曜日 午後7時7分
Listening to the Radio
Setting up the radio
Listening/confirming the preset channels
1 Press [RADIO] to select “FM”.
2 Press the numbered buttons to select the channel.
Numbered
buttons
To select a 1-digit number
e.g., 1: [1] > [OK].
To select a 2-digit number
e.g., 12: [1] B [2]
Alternatively, press [W, X] or [2, 1].
When a stereo FM broadcast is being received,
“ST” lights in the display.
≥The FM setting is also shown on the TV display.
1 2abc 3def
4ghi 5jkl 6mno
7pqrs 8tuv 9wxyz
0
RADIO
EXT-IN
SEARCH
SEARCH
RADIO
SEARCH
SEARCH
∫ If noise is excessive
When FM is selected
Press [AUDIO] to display “MONO”.
,
Radio
T
, OK
OK
STATUS
STATUS
DISPLAY
SD CARD
AUDIO
ST
MONO
Press the button again to cancel the
mode.
≥The mode is also cancelled when you
change the frequency.
≥This setting can be preset for each broadcasting station. When
“MONO” appears follow procedures 1 and 2 in “Presetting stations
manually” (> below).
Manual tuning
AUDIO
DISPLAY
SETUP MIC
SELECTOR
SELECTOR
SELECTOR
TUNE
TUNE
TUNE
Presetting stations automatically
Up to 30 stations can be set.
1 Press [RADIO] to select “FM”.
1 Press [RADIO] to select “FM”.
2 Press [SEARCH6] or [SEARCH5] to select
the frequency.
≥Main unit:
Press [X TUNE W] to select the frequency.
≥When a radio broadcast is being
T
received, “T” lights in the display.
≥To start automatic tuning, press
and hold [SEARCH6,
SEARCH5] (main unit: [X TUNE W]) until the frequency
starts scrolling. Tuning stops when a station is found.
∫ Presetting stations manually
This unit: Press [SELECTOR].
Up to 30 stations can be set.
1 While listening to the radio broadcast
Press [OK].
Each time you press the button:
2 While “P” is flashing on the display
Press the numbered buttons to select a channel.
To select a 1-digit number
e.g., 1: [1] > [OK].
To select a 2-digit number
e.g., 12: [1] B [2]
2 Press [STATUS] to select the position to start the
auto preset search.
LOWEST (factory preset):
To begin auto preset with the lowest frequency (FM 87.50).
CURRENT:
To begin auto preset with the current frequency.*
* To change the frequency, refer “Manual tuning” (B right).
3 Press and hold [OK].
Release the button when
“AUTO” is displayed.
The tuner starts to preset all the stations it can
receive into the channels in ascending order.
≥“SET OK” is displayed when the stations are set, and the radio tunes
to the last preset station.
≥“ERROR” is displayed when automatic presetting is unsuccessful.
Preset the stations manually (B right).
A station previously stored is overwritten when another station is
stored in the same channel preset.
RDS broadcasting
The unit can display the text data transmitted by the radio data system
(RDS) available in some areas.
If the station you are listening to is transmitting RDS signals, “RDS” will
light up on the display.
While listening to the radio broadcast
Press [DISPLAY] to display the text data.
Each time you press the button:
PS:
Program service
PTY:
Program type
OFF:
Frequency display
PTY displays
NEWS
VARIED
FINANCE
COUNTRY
AFFAIRS
POP M
CHILDREN
NATIONAL
INFO
ROCK M
SOCIAL A
OLDIES
SPORT
M.O.R. M*
RELIGION
FOLK M
EDUCATE
LIGHT M
PHONE IN
DOCUMENT
DRAMA
CLASSICS
TRAVEL
TEST
CULTURE
OTHER M
LEISURE
ALARM
SCIENCE
WEATHER
* M.O.R. M”=Middle of the road music
JAZZ
RDS displays may not be available if reception is poor.
NOTE
RQT9457
26
26
SCBT205EP-RQT9457-R.book 27 ページ 2009年3月30日 月曜日 午後7時7分
Enjoying TV, etc. with this unit’s speakers
You can enjoy TV broadcasts with this unit’s speakers.
Adjusting the sound
You can adjust the mode depending on the source or situation.
1 Press [SOUND] several times to select the mode.
≥You can also press [SOUND] and then [3, 4] to select the
mode.
≥The selected effect will only be displayed on the main unit.
2
EXT-IN
EXT-IN
While the selected mode is displayed
Press [2, 1] and select the desired setting.
For more detailed information on this operation, please refer to the
“Changing the sound modes” section on page 17.
SURROUND
Making settings for digital audio input
SOUND
SOUND
SURROUND
OK
Select to suit the type of audio from the OPTICAL IN terminals on the
main unit.
≥Underlined items are the factory presets.
Available settings
Mode
SD CARD
Preparation
SETUP MIC
SELECTOR
SELECTOR
TUNE
SELECTOR
Confirm the audio connection to the OPTICAL IN or AUX terminal on
this unit (> 10 to 12).
Turn on the TV.
DRC:
– ON
Adjust for clarity even when the volume is low by
(Dynamic
compressing the range of the lowest sound level
Range
Compression) and the highest sound level. Convenient for late
night viewing. (Only works with Dolby Digital)
– OFF
The full dynamic range of the signal is reproduced.
PCM FIX:
– ON
Select when receiving only PCM signals.
– OFF
Select when receiving Dolby Digital and PCM
signals.
≥When receiving true 5.1-channel surround sound,
select “OFF”.
TV AUDIO*3:
– AUX
Select when receiving analogue sound from the
TV to the AUX terminal.
– D-IN 1
Select when receiving digital sound from the TV to
the OPTICAL 1(TV) terminal.
CABLE/SAT
AUDIO*4,5:
– SET
Select when setting the main unit to switch to
“D-IN 2” when the input channel of a HDMI
connected STB is selected on the TV (B 28,
Setting the TV audio for VIERA Link “HDAVI
Control”).
– OFF
Select to cancel this setting.
1 Press [EXT-IN] several times to select “D-IN 1”
(DIGITAL IN 1)*1, “D-IN 2” (DIGITAL IN 2)*2 or
“AUX”*1.
This unit: Press [SELECTOR].
≥D-IN 1 (DIGITAL IN 1)*1:
When connecting using OPTICAL 1(TV) terminal.
≥D-IN 2 (DIGITAL IN 2)*2:
When connecting using OPTICAL 2(STB) terminal.
≥AUX*1:
When connecting using AUX terminal.
*1For connections with the TV. (> 10, 11)
*2For connections with other devices. (> 12)
≥When the system is connected to an HDAVI Control 2 or
later-compatible TV via an HDMI cable, TV broadcast audio is output
through the system speakers if the TV input is switched to TV tuner
mode. See “Setting the TV audio for VIERA Link “HDAVI Control”” on
page 28 for setting method.
≥Reduce the volume on the TV to its minimum, and then adjust the
volume of this unit.
Enjoying TV and other devices sound
from this unit’s speakers
1 Press [EXT-IN] several times to select “D-IN 1”
(DIGITAL IN 1) or “D-IN 2” (DIGITAL IN 2).
Main unit: Press [SELECTOR].
2 Press [STATUS] several times to select the
mode.
≥You can also press [STATUS] and then [3, 4] to select the
mode.
≥The digital audio input settings are to be set separately to each
source, “D-IN 1” and “D-IN 2”.
≥The selected effect will only be displayed on the main unit.
You can enhance stereo sources with surround sound effect.
Press [SURROUND] several times to select the mode.
≥You can also press [SURROUND] and then [3, 4] to select the
mode.
≥The selected effect will only be displayed on the main unit.
While “MANUAL” is displayed
Press [2, 1] and select the desired effect.
Recommended modes to enjoy TV audio:
≥DOLBY PL II MOVIE
≥DOLBY PL II MUSIC
≥S.SURROUND
Setting
(Only works with Dolby Dual Mono)
– M1
– M2
– M1+M2(stereo audio)
≥If this is set to “M1” or to “M2”, the “PCM FIX” will
automatically be set to “OFF”(> below).
TV
STATUS
DUAL:
STATUS
3
While the selected mode is displayed
Press [2, 1] and select the desired setting.
*3 When “D-IN 1” is selected.
*4 When “D-IN 2” is selected.
*5 The device connected to the OPTICAL 2(STB) terminal must be
connected to the TV via an HDMI cable. If it is not connected via an
HDMI cable, “NOT CONDITIONAL” is displayed on the main unit.
For more detailed information on this operation, please refer to the
“Enjoying surround sound effects” section on page 17.
≥Audio that is input through the OPTICAL DIGITAL IN or
AUX terminals are not output from the HDMI terminal.
NOTE
RQT9457
27
27
SCBT205EP-RQT9457-R.book 28 ページ 2009年3月30日 月曜日 午後7時7分
Linked operations with the TV
(VIERA Link “HDAVI ControlTM”)
What is VIERA Link “HDAVI Control”?
VIERA Link “HDAVI Control” is a convenient function that offers linked
operations of this unit, and a Panasonic TV (VIERA) under “HDAVI Control”.
You can use this function by connecting the equipment with an HDMI cable.
See the operating instructions for connected equipment for operational
details.
NOTE
Preparation
1 Connect this unit to your TV with an HDMI cable (> 11).
2 Set “VIERA Link” to “On” (> 39).
(The default setting is “On”.)
3 Set the “HDAVI Control” operations on the connected equipment (e.g., TV).
4 Turn on all “HDAVI Control” compatible equipment and select this unit’s input
channel on the connected TV so that the “HDAVI Control” function works
properly.
Also when the connection or settings are changed, repeat this
procedure.
Setting the TV audio for VIERA Link “HDAVI Control”
You can set the main unit to link audio operations with the TV.
TV
∫ Setting the audio from the TV
Preparation
≥Select between “AUX” and “D-IN 1” (DIGITAL IN 1) to work with the linked
operations for the TV audio.
– Confirm the audio connection to the AUX(TV) terminal (for “AUX”) or OPTICAL
1(TV) terminal (for “D-IN 1”) (> 11).
With the remote control of the main unit;
1 Press [EXT-IN] to select “AUX” or “D-IN 1” (DIGITAL IN 1).
2 Press [STATUS].
3 Press [3, 4] to select “TV AUDIO”.
4 Press [2, 1] to switch “AUX” or “D-IN 1” (DIGITAL IN 1) and press [OK].
Whenever the connection or settings are changed, reconfirm the points above.
∫ Setting the audio from the STB
This unit can be set to link operations with the TV so as to output audio from the
connected STB, etc. when the TV input is set to the input channel designated for
the STB, etc.
Preparation
≥Select the STB input channel on the TV.
≥Confirm the audio connection to the OPTICAL 2(STB) terminal (for “D-IN 2”)
(> 12).
With the remote control of this unit;
1 Press [EXT-IN] to select “D-IN 2” (DIGITAL IN 2).
2 Press [STATUS].
3 Press [3, 4] to select “CABLE/SAT AUDIO”.
4 Press [2, 1] to select “SET” and press [OK].
≥If the input channel of the STB on the TV is changed or if you want to change
the device allocated for the linked operations, select “OFF” in step 4 above and
then repeat steps 1 to 4.
NOTE
TIPS
≥VIERA Link “HDAVI Control”, based on the
control functions provided by HDMI which is an
industry standard known as HDMI CEC
(Consumer Electronics Control), is a unique
function that we have developed and added. As
such, its operation with other manufacturers’
equipment that supports HDMI CEC cannot be
guaranteed.
≥This unit supports “HDAVI Control 4”
function.
“HDAVI Control 4” is the newest standard
(current as of December, 2008) for Panasonic’s
HDAVI Control compatible equipment. This
standard is compatible with Panasonic’s
conventional HDAVI equipment.
≥Please refer to individual manuals for other
manufacturers’ equipment supporting VIERA
Link function.
≥It is recommended that you use
Panasonic’s HDMI cable.
Recommended part number:
RP-CDHG10 (1.0 m), RP-CDHG15 (1.5 m),
RP-CDHG20 (2.0 m), RP-CDHG30 (3.0 m),
RP-CDHG50 (5.0 m), etc.
≥Non-HDMI-compliant cables cannot be
utilized.
≥The connected STB must also be connected
to the TV via an HDMI cable.
Refer to the operating instructions of the
respective device for details.
≥It is also possible to connect an HDMI and
optical output compatible Panasonic DVD,
Blu-ray recorder in the place of the STB.
What you can do with “HDAVI Control”
Speaker Selection
You can select whether audio is output from the unit’s speakers or the TV speakers by using the TV menu settings. For details, refer to the
operating instructions of your TV.
Home Cinema
This unit’s speakers are active.
≥When this unit is in standby mode, changing the TV speakers to this unit’s speakers in the TV menu will automatically turn the unit on and
select “AUX”*1, “D-IN 1” (DIGITAL IN 1)*1 or “D-IN 2” (DIGITAL IN 2)*2 as the source.
≥The TV speakers are automatically muted.
≥You can control the volume setting using the volume or mute button on the TV’s remote control. (The volume level is displayed on the main
unit’s FL display.)
≥To cancel muting, you can also use the home theater remote control (> 18).
≥If you turn off this unit, TV speakers will be automatically activated.
TV
TV speakers are active.
≥The volume of this unit is set to “0”.
– This function works when “BD/DVD”, “SD”, “USB”, “AUX”*1, “D-IN 1” (DIGITAL IN 1)*1 or “D-IN 2” (DIGITAL IN 2)*2 is selected as the source
on the home theater system.
≥Audio output is 2-channel audio.
≥When “TV” is selected in “Speaker Selection”, the audio from an iPod will not be output from the TV’s speakers during slideshow
background music playback. (> 24)
NOTE
RQT9457
28
28
When switching between this unit’s speakers and TV speakers, the TV screen may be blank for several seconds.
SCBT205EP-RQT9457-R.book 29 ページ 2009年3月30日 月曜日 午後7時7分
Automatic input switching
When the following operations are performed, the television will
automatically switch the input channel and display the
corresponding action.
– When play starts on the unit
– When an action that uses the display screen is performed
(e.g., Direct Navigator screen)
≥[BD-V] [DVD-V] When playback stops, the TV will automatically
return to TV tuner mode.
≥When you switch the TV input to TV tuner mode, this unit will
automatically switch to “AUX”*1, “D-IN 1” (DIGITAL IN 1)*1 or “D-IN
2” (DIGITAL IN 2)*2.
≥This function does not work when the iPod selector (SIMPLE
mode) or iPod Video menu (EXTENDED mode) is chosen. (> 31)
≥When [1PLAY] is pressed, the playback image is not
immediately displayed on the screen and it may not be
possible to watch the contents from where playback
NOTE started.
In this case, press [SKIP:] or [SEARCH6] to go back
to where playback started.
Automatic lip-sync function
(for HDAVI Control 3 or later)
Delay between audio and video is automatically adjusted, enabling
you to enjoy smooth audio for the picture (> 39, Time Delay).
≥This function works only when “BD/DVD”, “SD”, “USB”, “AUX”*1,
“D-IN 1” (DIGITAL IN 1)*1 or “D-IN 2” (DIGITAL IN 2)*2 is selected as
the source on this unit.
Easy control only with VIERA remote
control
If you connect this unit to a TV that has “HDAVI Control 2” or later with
an HDMI cable, you can operate this unit using buttons on the TV
remote control.
The buttons that you can use for this unit vary depending on the TV.
For details, refer to the operating instructions of the TV.
Use the remote control supplied with this unit if you cannot operate this
unit using buttons on the TV remote control.
≥The operation of this unit may be interrupted when you press
incompatible buttons on the TV remote control.
Using the START menu to operate this unit
By using the TV remote control, you can play media using the
START menu.
1 Press the button for VIERA Link
on the TV remote control.
2 Select the home theater.
e.g., [BD-V]
Home Cinema
START
BD-Video
Playback Disc
≥The START menu is displayed
Top Menu
3 Select the desired items on the
START menu (> 15).
Menu
Network
Input Selection
Sound(Equalizer)
To Others
OK
RETURN
Power off link
∫ Intelligent Auto Standby
Intelligent Auto Standby responsibly manages your power
consumption.
This function is available with the TV that supports “HDAVI Control
4”.
≥If connected with a TV (VIERA) with the “Intelligent Auto Standby”
setting activated on the TV, when switching the TV input, the unit
will be automatically turned to standby. For details please read the
operating instructions of the TV.
– When “Speaker Selection” is set to “Home Cinema”, the main
unit will not automatically turn to standby.
*1 “AUX” or “D-IN 1” works depending on the “TV AUDIO” setting
(B 28, Setting the TV audio for VIERA Link “HDAVI Control”).
*2 “D-IN 2” works depending on the “CABLE/SAT AUDIO” setting
(B 28, Setting the TV audio for VIERA Link “HDAVI Control”).
Using the option menu to operate this unit
By using the TV remote control, you can play discs using the
“Control Panel” and display the Top Menu (for BD-Video and
DVD-Video) or Pop-up Menu (for BD-Video).
≥This works only during “BD/DVD” or “SD” playback and resume
modes.
TV
All connected equipment compatible with “HDAVI Control”, including
this unit, automatically turns off when you switch the television off.
≥This unit automatically turns off even during playback or any other
operation.
To continue audio playback even when the TV is turned off,
select “Video” in “Power Off Link” (> 39).
1 Press [OPTION].
≥You cannot use the option menu while the e.g., [BD-V]
Top Menu for BD-Video or DVD-Video is
Control Panel
displayed.
≥This can also be displayed by using the
Screen Aspect
VIERA menu screen.
Top Menu
Pop-up Menu
2 Select an item, then press [OK].
OK
OPTION
RETURN
Control Panel
Control Panel is displayed. Follow
the indications on the screen
(> below).
Screen Aspect
(> 20)
Top Menu [BD-V] [AVCHD] [DVD-V] Top menu is displayed.
Menu [DVD-V]
Menu is displayed.
Pop-up Menu [BD-V]
Pop-up menu is displayed.
Rotate RIGHT [JPEG]
Rotate the still picture.
Rotate LEFT [JPEG]
Zoom in [JPEG]
Enlarge or shrink the still picture.
Zoom out [JPEG]
∫ Using the Control Panel
You can operate the playback with the indicated controls.
e.g.,
≥Depending on the menu, some button operations cannot
be performed from the TV’s remote control.
≥You cannot input numbers with the numbered buttons on
NOTE
the TV’s remote control ([0] to [9]). Use this unit’s remote
control to select the playlist etc.
∫ When you want to leave the TV on and set only this unit to standby mode
Press [Í] on this unit’s remote control and set to standby mode.
∫ When not using “HDAVI Control”
Set “VIERA Link” in the Setup menu to “Off”. (> 39)
RQT9457
29
29
SCBT205EP-RQT9457-R.book 30 ページ 2009年3月30日 月曜日 午後7時7分
Using the iPod
You can enjoy iPod music through this unit’s speakers or view iPod videos/photos on the TV.
iPod Connection
Preparation
≥To view photos/videos from the iPod
– Ensure the video connection to the VIDEO OUT terminal on this unit (> 10).
– Operate the iPod menu to make the appropriate photo/video output settings for your TV. (Refer to operating instructions of your iPod.)
≥To display the picture, turn on the TV and select the appropriate video input mode.
≥Before connecting/disconnecting the iPod, turn the main unit off or reduce the volume of the main unit to its minimum.
1 Open the Dock for iPod.
About dock adapter
NOTE
About recharging the battery
iPod
Pull out
≥Attach the dock adapter which should be
supplied with your iPod to the dock for the
stable use of the iPod.
If you need an adapter, consult your iPod
dealer.
≥iPod will start recharging regardless of whether
this unit is on or off.
≥“IPOD ¢” will be shown on the main unit’s
display during iPod charging in main unit
standby mode.
≥Check iPod to see if the battery is fully
recharged.
≥If you are not using iPod for an extended period
of time after recharging has completed,
disconnect it from main unit, as the battery will
be depleted naturally. (Once fully recharged,
additional recharging will not occur.)
Dock adapter
(not included)
Main unit
Dock for iPod
≥Hold the dock when connecting/disconnecting the iPod.
2 Connect the iPod (not included) firmly.
Other devices
Recharging starts when the iPod is inserted.
RQT9457
30
30
While an iPod is connected
≥Do not push the Dock for iPod.
≥Do not push or pull your iPod back and forth with great force.
DO NOT
DO NOT
Compatible iPod
Name
Memory size
iPod touch 2nd generation
8 GB, 16 GB, 32 GB
iPod nano 4th generation (video)
8 GB, 16 GB
iPod classic
120 GB
iPod touch 1st generation
8 GB, 16 GB, 32 GB
iPod nano 3rd generation (video)
4 GB, 8 GB
NOTE
≥Compatibility depends on the software
version of your iPod.
≥Audio/video cannot be recorded or
transmitted to iPods via this system.
≥Panasonic makes no warranty for iPod data
management.
≥For more information, refer to the
operating instructions for iPod.
60 GB, 80 GB
≥The contents of the operating instructions
and those displayed on iPod may differ
partially, but this will not fundamentally affect
use of playback.
iPod 5th generation (video)
30 GB
∫ To use the iPod touch features
iPod nano 1st generation
1 GB, 2 GB, 4 GB
iPod 4th generation (colour display)
40 GB, 60 GB
1 Press the Home button on the iPod touch.
2 Select the iPod touch features on the touch
screen to operate.
iPod 4th generation (colour display)
20 GB, 30 GB
iPod 4th generation
40 GB
iPod classic
80 GB, 160 GB
iPod nano 2nd generation (aluminum)
2 GB, 4 GB, 8 GB
iPod 5th generation (video)
iPod 4th generation
20 GB
iPod mini
4 GB, 6 GB
TIPS
SCBT205EP-RQT9457-R.book 31 ページ 2009年3月30日 月曜日 午後7時7分
iPod Playback
This system features two different iPod playback modes.
The first of these is EXTENDED mode, for playback of music and video contents. With this mode, you can operate the iPod from the main unit.
The second mode is SIMPLE mode, which can be used for playback of three types of contents – music, photos, and videos. With this mode,
simple operations such as play, stop, and search can be performed on the display of your iPod.
Enjoy music/video (EXTENDED mode)
Other methods of playback
1 Press [iPod] to select “IPOD”.
The iPod automatically switches to this unit’s display mode.
≥To switch the menu, press [STATUS] several times.
Music menu"""""#Video menu
^"iPod menu (iPod LCD)<n
≥“MUSIC” or “VIDEOS” is displayed on the main unit.
–When playing back video contents, ensure the video
connection to the VIDEO OUT terminal on this unit (> 10)
and switch the TV input to video in.
e.g., music main menu screen
While in “MUSIC” or “VIDEOS” mode, it is possible to select the
following playback modes.
Items
Play Mode
Selection/playback method
Shuffle*1
≥Off:
≥Songs:
Cancel
Play all songs on iPod in random
order.
Play all songs on album in random
order.
≥Albums:
Repeat
≥Off:
≥One:
≥All:
iPod Music
Playlists
Cancel
Play a single song/video repeatedly.
Play all songs/videos from selected
items (e.g., Playlists, Albums, etc.)
repeatedly.
Artists
Albums
Songs
Podcasts
*1For music playback only.
OK
RETURN
2 Press [3, 4] to select an item and press [OK].
≥Play starts from the selected song or video.
≥To display the previous or next page.
Press [2, 1]
≥Press [RETURN] to return to the previous screen.
e.g., music playback screen
Playback condition
iPod
Song
Artist
Album
Good morning
Ronaldo
Happy days
2:43
Playing position
Playback mode
45 of 1230
Shuffle (Albums)
Repeat (All)
Clear/display iPod Music or Video menu during
playback.
Press [TOP MENU/DIRECT NAVIGATOR].
NOTE
≥If the Video menu (EXTENDED mode) is accessed, the
video shuffle playback mode on the iPod is set to "Off"
when the iPod is disconnected from the unit.
1 Press [START].
2 Press [3, 4] to select “Menu” and then press
[OK].
3 Press [3, 4] to select “Play Mode” and then
press [OK].
4 Press [3, 4] to select an item and press [OK].
5 Press [3, 4] to select the setting and press
[OK].
Playback modes during and after connection.
≥Music playback modes set on the iPod will be maintained
when connected to the main unit. Changes made while
NOTE
the iPod is connected to the main unit be kept on the iPod
after disconnecting it.
≥If the Video menu (EXTENDED mode) is accessed, the
video shuffle playback mode on the iPod is set to "Off"
when the iPod is disconnected from the unit.
To return to the previous screen
Press [RETURN].
TIPS
Basic controls
While playing music or video it is possible to use the following buttons
of the remote control.
Buttons
Enjoy photos (SIMPLE mode)
You can also play music and video using SIMPLE mode.
2 Press [STATUS] several times to select the iPod
menu (iPod LCD).
3 Switch the TV input to video in.
≥Ensure the video connection to the VIDEO OUT terminal on this
unit (> 10).
Functions
[1PLAY]
Play
[∫STOP]
Pause
≥Press [1PLAY] to restart play.
≥Playback start position may not be
stored in memory in certain cases.
[;PAUSE]
1 Press [iPod] to select “IPOD”.
≥“ALL” is displayed on the main unit.
Proceed operations through iPod display.
Other devices
Audiobooks
[SKIP:,
SKIP9]
(Press and hold)
[SEARCH6,
SEARCH5]
Skip
Search
≥Use the controls on the iPod unit during photo playback.
4 Play a slideshow on your iPod.
The picture will be displayed on your TV.
You can use the remote control to operate the iPod
menu.
≥[3, 4]:
To navigate menu items
≥[OK]:
To go to the next menu.
≥[RETURN]:To return to the previous menu.
The remote control operation may vary between iPod models.
You can select the surround sound effect when you press [SURROUND] (> 17).
You can select the sound mode when you press [SOUND] (> 17).
RQT9457
31
31
SCBT205EP-RQT9457-R.book 32 ページ 2009年3月30日 月曜日 午後7時7分
Enjoying VIERA CASTTM
You can access a selection of Internet services from the Home screen with VIERA CAST, for example YouTube, Picasa Web Albums. (Current as
of March 2009)
≥VIERA CAST requires a broadband Internet connection. Dial-up Internet connections cannot be used.
≥Depending on the usage conditions, it may
Preparation
take a while to read all the data.
≥Network connection (> 13)
≥The connection to the Internet may take
≥Network setting (> 33)
NOTE time or the Internet may not be connected
1 While stopped
depending on the connection environment.
Press [BD/SD] to select “BD/DVD”.
≥The unit is connected to the Internet when
VIERA CAST is used, generating
2 Press [VIERA CAST].
communication charges.
≥Message is displayed. Please read these instructions carefully and then press
To return to VIERA CAST Home screen
Press [VIERA CAST].
[OK] to start VIERA CAST function.
Welcome to Network Service
TIPS To exit from VIERA CAST
Press [START] or [TOP MENU/DIRECT
NAVIGATOR], then press [RETURN] to
cancel the menu.
Your Panasonic Network Service allows you to access web-based content on your Player/Recorder.
Network Service is subject to change without notice. The Service through Network Service is operated by
their respective service providers, and service may be discontinued either temporarily or permanently
without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the
services. All features of websites or content of the service may not be available. Some content may be
inappropriate for some viewers and may only be available for specific countries and may be presented in
specific languages. You may disable the Network Service feature by following the instructions found in
your Operating Instructions.
Don’t show this message again
ENTER
It's recommanded your player/recorder is connected to Full HD display with HDMI. The display of the
contents may be truncated, depending on your TV. You may reduce to screen size by following the
instructions found in your Operating Instructions.
Images are for illustration purpose, message may change without notice.
3 Press [3, 4, 2, 1] to select the item and press [OK].
≥You can operate VIERA CAST using the following buttons on the unit’s remote
control. [3, 4, 2, 1], [OK], [RETURN], [OPTION], coloured buttons and
numbered buttons.
≥ To access more features on YouTube or Picasa Web Albums site, enter your user ID and
password that you have previously set up with these sites through the internet on your PC.
However, not all features may be accessible through VIERA CAST.
VIERA CAST Home screen;
Regarding “Settings”
Set VIERA CAST Home screen.
≥My Account:
You can remove your account from the unit.
≥Lock:
Enter a password to lock YouTube and Picasa Web Albums.
≥Notices
≥VIERA CASTTM home screen is subject to
change without notice.
≥The services through VIERA CASTTM are
NOTE
operated by their respective service
providers, and service may be discontinued
either temporarily or permanently without
notice. Therefore, Panasonic will make no
warranty for the content or the continuity of
the services.
≥All features of websites or content of the
service may not be available.
≥Some content may be inappropriate for
some viewers.
≥Some content may only be available for
specific countries and may be presented in
specific languages.
When this unit remains connected to the Internet, it will automatically check for the latest
firmware version when it is turned on.
When latest firmware version is available, the following screen is displayed.
Select “Yes” or “No”.
≥Downloading will require several minutes. It
may take longer or the Internet may not be
connected depending on the connection
NOTE environment. It is required that you use a
broadband connection.
New York, NY
Weather
Settings 20°
NNW7
mph
TM
Web Albums
Featured Videos
Panasonic Select
Advanced operations
Images are for illustration purpose, contents may change without notice.
Firmware updating
]
Firmware Update
The latest firmware is available.
Latest Online Version: x.x
Current Installed Version: x.x
Do you want to start firmware update?
For the update information, please visit the
following website:
http://panasonic.net/support/
Yes
No
≥If “Yes” is selected, then follow the on-screen instructions.
≥If “No” is selected, then manually update the firmware later. (B right)
After the latest firmware is downloaded, the system will be restarted and the firmware will
be updated.
When the system is restarted, the screen display disappears and
“START” is displayed on the unit’s display.
After the firmware is updated and the system is restarted, the
following screen indicates that the firmware update has been completed.
The firmware has been updated.
Current Installed Version: x.x
OK
RETURN
≥During the update process, no other operations can be performed. Serious damage
may occur if you turn off the unit and/or press any buttons.
RQT9457
32
32
≥Set the “Network Lock” to “On” to restrict
using VIERA CAST. (> 40)
≥Set the “Audio Auto Gain Control” to “Off”
when the audio is warped while using the
VIERA CAST. (> 40)
≥When display of the contents is truncated,
set the “Reduced Screen Display” to “On”.
(> 40)
≥Set the “On-Screen Language”, to switch
the language for Home screen. (> 38)
≥Set the “Time Zone” or “Summer Time”
when wrong time is displayed on the
screen. (> 40)
]
≥If downloading on this unit fails or this unit
is not connected to the Internet, then you
can download the latest firmware from the
TIPS
following website and burn it to a CD-R to
update the firmware.
http://panasonic.net/support/
(This site is in English only.)
≥When the unit is connected to the Internet,
communication charges may be generated.
≥ If you do not want to check for the latest
firmware version when the unit is turned on, set
“Automatic Update Check” to “Off”. (> 40)
Manually updating the firmware
If the firmware update is not carried out when
the unit is turned on, a message is displayed
when displaying the START menu.
The latest firmware is available.
Please update firmware in Setup.
1) Press [SETUP].
2) Press [3, 4] to select “General” and
press [OK].
3) Press [3, 4] to select “Firmware
Update” and press [OK].
4) Press [3, 4] to select “Update Now” and
press [OK].
5) Press [2, 1] to select “Yes” and press
[OK].
SCBT205EP-RQT9457-R.book 33 ページ 2009年3月30日 月曜日 午後7時7分
Network settings
These settings are used if you will connect this unit to the Internet.
≥The connection to the Internet may take time or the Internet may not be connected depending on the connection environment. (> 40)
It is required that you use a broadband connection.
Preparation
≥Connect to a broadband network. (> 13)
Testing of “IP Address / DNS Settings”
Setting the IP address
Always test the connection when a LAN cable is connected.
1 While stopped
In most cases, default settings can normally be used without
making any changes.
Set the IP address only when the router has no DHCP server
functions or when the router’s DHCP server function is
disabled.
Press [BD/SD] to select “BD/DVD”.
2 Press [SETUP].
3 Press [3, 4] to select “Network Settings” and
press [OK].
4 Press [3, 4] to select “IP Address / DNS
Settings” and press [OK].
5 Press [3, 4] to select “Connection Test” and
press [OK].
IP Address/ DNS Settings
Connection Test
On
IP Address Auto-Assignment
IP Address
Subnet Mask
Gateway Address
On
DNS-IP Auto-Assignment
Primary DNS
After performing steps 1–4 (D left)
5 Press [3, 4] to select “IP Address
Auto-Assignment” and press [2, 1] to select
“Off”.
6 Press [3, 4] to select “IP Address”, “Subnet
Mask” or “Gateway Address” and press [OK].
7 Enter numbers with the numbered buttons and
press [OK].
≥After checking the specifications for your broadband router,
enter each number.
If the number is unknown, then check the number of other
devices such as personal computers connected via a LAN
cable. Assign a different number from those of other devices
for the “IP Address” and the same number for others.
≥If a wrong number is entered, then press [CANCEL].
8 Press [2, 1] to select “Yes” and press [OK].
Secondary DNS
Connection Speed Auto-Config
On
≥The numeric input range is between 0 and 255.
Connection Speed Setting
OK
NOTE
RETURN
≥Perform the “Connection Test” also when any change
was made to the “IP Address / DNS Settings”.
NOTE
≥If the connection test fails, it may be necessary to set the MAC
address of this unit at the router side. The MAC address can be
displayed by pressing [SETUP] and selecting “Network Settings”.
Network Settings
IP Address / DNS Settings
Proxy Server Settings
Network Service
MAC Address: xx-xx-xx-xx-xx-xx
Setting the DNS-IP
In most cases, default settings can normally be used without
making any changes.
When setting an assigned DNS server from your Internet
service provider, perform the following settings.
After performing steps 1–4 (D left)
5 Press [3, 4] to select “DNS-IP
Auto-Assignment” and press [2, 1] to select
“Off”.
6 Press [3, 4] to select “Primary DNS” or
“Secondary DNS”and press [OK].
7 Enter numbers with the numbered buttons and
press [OK].
≥Follow the instructions given by your Internet service provider
and enter the numbers.
If the number is unknown, then check the number of other
devices such as personal computers connected via a LAN
cable and assign the same number.
≥If a wrong number is entered, then press [CANCEL].
Advanced operations
“Testing...”:The test is in progress.
“Pass”:
The connection is completed.
Press [RETURN] to exit.
“Fail”:
Please check the connection and settings.
Primary DNS
OK
RETURN
Please input Primary DNS and press
[OK]. Press [CANCEL] to delete the selected
character. To clear this setting, delete all
characters and press [OK].
192
0 - 9
.
1
.
.
Number
8 Press [2, 1] to select “Yes” and press [OK].
≥The numeric input range is between 0 and 255.
NOTE
RQT9457
33
33
SCBT205EP-RQT9457-R.book 34 ページ 2009年3月30日 月曜日 午後7時7分
Network settings
Setting the connection speed
Setting the proxy server
When the connection test results in “Fail” after the IP and DNS-IP
addresses are assigned, perform the following settings.
In most cases, default settings can normally be used without
making any changes.
Please use this setting when instructed to by your Internet
service provider.
After performing steps 1–4 (> 33)
5 Press [3, 4] to select “Connection Speed
Auto-Config” and press [2, 1] to select “Off”.
6 Press [3, 4] to select “Connection Speed
Setting” and press [2, 1] to select a
connection speed.
≥Select a connection speed in accordance with the environment of
the network connected.
≥When the settings are changed, the network connection may be
disabled depending on the device.
After performing steps 1–4 (D left)
5 Press [3, 4] to select “Proxy Address” and
press [OK].
≥The text entry screen is displayed.
Text field: shows the text you have entered
Proxy Address
_
Testing of “Proxy Server Settings”
1
2
3
4
5
6
7
8
9
0
Delete
Finish
Always test the connection when new “Proxy Server Settings” have
been made.
1 2 3 4 5
a
B C
d
E F
g
H I
j
K L
m
N O
Q R S p
A
D
G
J
M
P
T
While stopped
RETURN
Press [BD/SD] to select “BD/DVD”.
2 Press [SETUP].
3 Press [3, 4] to select “Network Settings” and
press [OK].
4 Press [3, 4] to select “Proxy Server Settings”
and press [OK].
5 Press [3, 4] to select “Connection Test” and
press [OK].
7
c
f
i
l
o
r
8 9 0
+ - *
%
&
@
_
)
} ~
/
#
<
[
s
=
$
>
]
(
t u v {
U V
W X Y Z w x y z
. , ? ! “ ’ : ;
\
`
I
^
Space
OK
1
6
b
e
h
k
n
q
0 -- 9
6 Press [3, 4, 2, 1] to select a character and
press [OK].
Repeat this step to enter other characters.
≥Press [;PAUSE] to delete.
7 Press [∫STOP] when you complete the entry.
8 Press [3, 4] to select “Proxy Port Number”
and press [OK].
9 Enter numbers with the numbered buttons and
press [OK].
Proxy Server Settings
Proxy Port Number
Initialize
Proxy Address
Proxy Port Number
Connection Test
Input HTTP Proxy server port number and
press [OK]. The character below can be
deleted with [CANCEL]. The number will be
set to "0" if all characters are deleted and
[OK] is pressed.
0
----
0
0 - 9
Number
OK
Advanced operations
RETURN
“Testing...”:The test is in progress.
“Pass”:
The connection is completed.
Press [RETURN] to exit.
“Fail”:
Please check the connection and settings.
: Press [2, 1] to select “Yes” and press [OK].
TIPS
≥The specified ports may be blocked and not be able to be
used depending on the network environment.
In order to restore the default settings
After performing steps 1–4 (D left)
1) Press [3, 4] to select “Initialize” and press [OK].
2) Press [2, 1] to select “Yes” and press [OK].
Using the numbered buttons to enter characters
e.g., entering the letter “F”
3def 3def
3def
1) Press [3] to move to the 3rd row.
2) Press [3] twice to highlight “F”.
3) Press [OK].
RQT9457
34
34
SCBT205EP-RQT9457-R.book 35 ページ 2009年3月30日 月曜日 午後7時7分
Changing settings with the on-screen menu
On-screen menu operations
1 Press [BD/SD] to select e.g., BD-Video
Disc
“BD/DVD”.
Signal Type
Play
2 Press [DISPLAY].
Subtitle
3 Press [3, 4] to select
Subtitle Style
Sound
the menu and press
[1].
Menus
Items
4 Press [3, 4] to select
the item and press [1].
5 Press [3, 4] to select the setting.
Off
Main
Angle
-
1ENG
-
≥Depending on the condition of the
unit (playing, stopped, etc.) and
media contents, there may be
NOTE
some items that you cannot select
or change.
≥Some items can be changed by
pressing [OK].
Settings
TIPS
To exit the on-screen menu
Press [DISPLAY].
What you can change with the on-screen menu
Menus
Items
[BD-V]
≥Primary Video
Video:
The video recording method appears. (D below, Video attribute)
Soundtrack: Select the type of audio or language. (D below, Language, Audio attribute)
≥Secondary Video
Video:
Select on/off of images.
The video recording method appears. (D below, Video attribute)
Soundtrack: Select on/off of audio and the language. (D below, Language, Audio attribute)
Video
[AVCHD]
The video recording method appears. (D below, Video attribute)
Soundtrack
[AVCHD] [DVD-V]
Select the type of audio or language. (D below, Language, Audio attribute)
[DVD-VR] [MPEG2]
The audio attributes appear. (D below, Audio attribute)
[DivX]
Select the soundtrack number.
≥Soundtrack numbers are displayed even when there is only one audio type.
Subtitle
[BD-V] [AVCHD] [DVD-V]
Turn the subtitle on/off and select the language. (D below, Language)
[DVD-VR] (Only discs that contain subtitle on/off information)
Turn the subtitle on/off.
[DivX]
Turn the subtitle on/off and select “Text” or the subtitle number.
≥Subtitle number is displayed even if there are not multiple subtitles.
Subtitle Style
[BD-V]
Select the subtitle style.
Audio channel
[DVD-VR] [DivX] [MPEG2]
(> 19, Changing audio during play)
Angle
[BD-V] [DVD-V]
Select the number of the angle.
Advanced operations
Disc
Settings and details
Signal Type
Some items may be changed only on the disc specific menu. (D 18)
Language
ENG:
FRA:
DEU:
ITA:
ESP:
NLD:
English
French
German
Italian
Spanish
Dutch
SVE:
NOR:
DAN:
POR:
RUS:
JPN:
Swedish
Norwegian
Danish
Portuguese
Russian
Japanese
Audio attribute
LPCM/
Digital/
CHI:
KOR:
MAL:
VIE:
THA:
POL:
Chinese
Korean
Malay
Vietnamese
Thai
Polish
CES:
SLK:
HUN:
FIN:
¢:
Czech
Slovak
Hungarian
Finnish
Others
Video attribute
Digital+/
Signal type
TrueHD/DTS/DTS 96/DTS-HD HI
RES/DTS-HD MSTR/MPEG
ch (channel)
Number of channels
k (kHz)
Sampling frequency
b (bit)
Number of bits
bps (bit per second)
Transfer rate of bit
MPEG-2/MPEG-4 AVC/VC-1
Video recording method
480/576/720/1080
Video Format
24p/50i/60i/50p/60p
Video Frame rate
YCbCr4:2:2/YCbCr4:4:4/RGB
Colour Space
bps (bit per second)
Transfer rate of bit
RQT9457
35
35
SCBT205EP-RQT9457-R.book 36 ページ 2009年3月30日 月曜日 午後7時7分
Changing settings with the on-screen menu
To select these settings, perform steps 1–5(> 35)
Menus
Play
Items
Repeat Play
Random
Playback
Information Window
Mode
Progressive
24p [DVD-V]
Advanced operations
Sound
Sound Effects*1, 2
Dialog Enhancer*1
High Clarity Sound
Settings and details
(Only when the elapsed time is being displayed on the unit’s display.)
Selects the item which you want to repeat. The items displayed differ depending on the type of media.
≥All tracks
All tracks
≥Chapter
Chapter
≥Playlists
Playlist
≥Title
Title
≥One track
Track
≥Off
Select “Off” to cancel.
[CD] [MP3]
While playing, press [3, 4] to select “On”.
Random playback starts from the next track.
≥On
≥Off
[BD-V] [DVD-V]
Displays audio/video attribute information of disc ( ), settings status of “Digital Audio Output” (> 38)
( ) and HDMI output information ( *&/+ ). (> 35 Audio attribute, Video attribute)
– Depending on the disc, display method may be different.
– The audio attribute information will be displayed following the "Digital Audio Output” settings. (> 38)
Press [RETURN] to exit.
[BD-V] [AVCHD] [DVD-VR] [DVD-V] [DivX] [MPEG2]
Select the picture quality mode during play.
≥Normal:
Default setting
≥Cinema:
Mellows movies, enhances detail in dark scenes.
≥Fine:
Details are sharper
≥Soft:
Soft picture with smoother video
Select the method of conversion for progressive output to suit the type of material being played (> 55,
Film and video).
≥Auto:
Automatically detects the film and video content, and appropriately converts it.
≥Video:
Select when using “Auto” and the content is distorted.
≥Film:
Select this if the edges of the film content appear jagged or rough
when “Auto” is selected.
However, if the video content is distorted as shown in the
illustration to the right, then select “Auto”.
≥On
≥Off
Only when you have selected “On” in “24p Output” (> 39) and play discs recorded at a rate of 60 fields
per second.
≥Off
Re-master *3
This feature gives you a more natural sound by adding higher frequency signals not recorded on the
track.
≥Re-master 1: When playing LPCM sound (Type of music): High tempo (e.g., pop and rock)
Other types of sound (Effect level): Light
≥Re-master 2: When playing LPCM sound (Type of music): Various tempos (e.g., jazz)
Other types of sound (Effect level): Medium
≥Re-master 3: When playing LPCM sound (Type of music): Low tempo (e.g., classical)
Other types of sound (Effect level): Strong
[BD-V] [AVCHD] [DVD-VR] [DVD-V] [DivX] [MPEG2] (3 channels or more only, including a center channel)
The volume of the center channel is raised to make dialog easier to hear.
≥On
≥Off
When the analogue video terminal is not being used, the electrical current that flows through the
analogue video circuit can be stopped. This prevents adverse effects on the audio signals and
produces clearer sound.
Use this when outputting image via HDMI Audio Output terminal. Analogue image will not be output via
COMPONENT VIDEO OUT terminal or VIDEO OUT terminal.
≥On
≥Off
Only when you have selected “Enable” in “High Clarity Sound” (> 38)
*1 When audio is output from the HDMI AV OUT terminal this function is effective only when “Dolby D/Dolby D +/Dolby TrueHD” or “DTS/
DTS-HD” is set to “PCM”.(> 38)
*2 Not every function can be set individually.
*3 This function has no effect when the type of audio is Dolby Pro Logic II.
RQT9457
36
36
SCBT205EP-RQT9457-R.book 37 ページ 2009年3月30日 月曜日 午後7時7分
Changing the unit’s settings
Change the unit’s settings if necessary. The settings remain intact even if you switch the unit to standby.
Setup menu operations
1
While stopped
Setup
Press [BD/SD] to select “BD/DVD”.
2 Press [SETUP].
3 Press [3, 4] to select the menu and
press [OK].
4 Press [3, 4] to select the item and
press [OK].
Disc
NOTE
Sound
Display
To return to the previous screen
Press [RETURN].
TV / Device Connection
Network Settings
General
If there are any other items, repeat these steps.
5 Press [3, 4, 2, 1] to select the
option and press [OK].
TIPS
OK
RETURN
≥There may be differences in
operation methods. If this happens,
follow the on-screen instructions
for the operation.
To exit the screen
Press [SETUP].
Summary of settings
Underlined items are the factory presets.
“Disc”
DVD-Video Ratings
Set a ratings level to
limit DVD-Video play.
Follow the on-screen instructions. Enter a
4-digit password with the numbered buttons
when the password screen is shown. It will be
the common password for “DVD-Video
Ratings”, “BD-Video Ratings” and “Network
Lock”.
≥Do not forget your password.
≥8 No Limit:
≥1 to 7:
≥0 Lock All:
All DVD-Video can be played.
Prohibits play of DVD-Video with corresponding
ratings recorded on them.
Prohibits play of all DVD-Video.
Changing settings (When level 0 to 7 is selected)
≥Unlock Player
≥Change Password
≥Change Level
≥Temporary Unlock
All BD-Video can be played.
≥No Limit:
≥0 to 254 year(s): Prohibits play of BD-Video with corresponding
ratings recorded on them.
BD-Video Ratings
Set an age limit of
BD-Video play.
Changing settings (When 0 to 254 year(s) is selected)
≥Unlock Player
≥Change Password
≥Change Level
≥Temporary Unlock
Subtitle
Preference
Choose the language for audio, subtitle and
disc menus.
[BD-V] [DVD-V]
≥Some discs start in a certain language
despite any changes you make here.
≥When the selected language is not available
on the disc, the default language is played.
There are discs where you can only switch
the language from the menu screen. (D 18)
≥Enter a code (> 54) with the numbered
buttons when you select “Other ¢¢¢¢”.
Menu Preference
BD-Live Internet Access [BD-V] (> 21)
You can restrict Internet access when BD-Live functions are used.
DivX Subtitle Text [DivX]
Select a suitable item according to the language used for DivX
subtitles text (> 22).
≥This item is displayed only when pressing [SETUP] after playing back
a file.
≥German
≥French
≥English
≥Italian
≥Spanish
≥Dutch
≥Original: The original language of each disc will be selected.
≥Other ¢¢¢¢
≥Automatic:
If the language selected for “Soundtrack Preference” is not
available, subtitles of that language will automatically appear if
available on that disc.
≥English
≥German
≥French
≥Italian
≥Spanish
≥Dutch
≥Other ¢¢¢¢
≥German
≥French
≥English
≥Italian
≥Spanish
≥Dutch
≥Other ¢¢¢¢
≥Permit:
Internet access is permitted for all BD-Live
contents.
≥Limit:
Internet access is permitted only for BD-Live
contents which have content owner certificates.
Internet access is prohibited for all BD-Live
contents without a certificate.
≥Prohibit:
Internet access is prohibited for all BD-Live
contents.
≥Latin 1
English, German, Spanish, etc.
Polish, Czech, Hungarian, etc.
≥Latin 2
≥Cyrillic
Russian, etc.
Advanced operations
Soundtrack
Preference
“Picture”
Still Mode [BD-V] [AVCHD] [DVD-V]
Select the type of picture shown when you pause playback
(> 55, Frames and fields).
Seamless Play [DVD-VR]
Select the play mode between playlist chapter segments and partially
deleted titles.
NTSC Contents Output
Select PAL60 or NTSC output when playing NTSC discs.
≥Automatic
≥Field: Select if jittering occurs when “Automatic” is selected. (The
picture is coarser.)
≥Frame: Select if small text or fine patterns cannot be seen clearly
when “Automatic” is selected. (The picture is clearer and
finer.)
The chapters in playlists are played seamlessly. This does
≥On:
not work while searching or when there are several audio
types included on the playlist. Additionally, the positioning of
chapter segments may change slightly.
≥Off:
The points where chapters in playlists change are played
accurately, but the picture may freeze for a moment.
≥NTSC: NTSC discs are played as NTSC.
≥PAL60: Select if picture is not displayed correctly when “NTSC” is
selected.
RQT9457
37
37
SCBT205EP-RQT9457-R.book 38 ページ 2009年3月30日 月曜日 午後7時7分
Changing the unit’s settings
To select these settings, perform steps 1–5(> 37)
“Sound”
Dynamic Range Compression [BD-V] [AVCHD] [DVD-V] [DivX]
(Dolby Digital, Dolby Digital Plus and Dolby TrueHD only)
Change the dynamic range (> 55) for late night viewing.
Digital Audio Output
≥Press [OK] to show the following settings.
Dolby D/Dolby D +/
Select whether Dolby Digital, Dolby
Dolby TrueHD
Digital Plus, Dolby TrueHD, DTS
Digital Surround, DTS-HD High
DTS/DTS-HD
Resolution Audio or DTS-HD Master
Audio is output in “Bitstream” or
“PCM” format.
≥Not making the proper settings may
result in noise.
≥If the unit is connected with the HDMI AV
OUT terminal, the specifications of the
connected equipment take preference
over this unit and audio selected in these
items may not be output (e.g., when a
television is connected, the HDMI audio
output of this unit is limited to
down-mixed 2ch.)
MPEG Audio
≥On
≥Auto:
≥Bitstream:
Select “Bitstream” when the connected equipment can decode the
respective audio format.
– Connect equipment supporting HDMI (High Bit rate Audio) and use a
High Speed HDMI Cable in order to output high bit rate audio such as
Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio or
DTS-HD Master Audio.
≥PCM:
Select “PCM” when the connected equipment cannot decode the
respective audio format.
Refer to the operating instructions for connected devices to verify whether
or not they can decode each of the audio formats.
Advanced operations
PCM Down Conversion
Select how to output audio with a sampling frequency of 96 kHz or
more.
≥Signals are converted to 48 kHz despite the settings across in the
following cases:
– when the signals have a sampling frequency of over 192 kHz
– when the disc has copy protection
– when “BD-Video Secondary Audio” is set to “On”
Downmix
Switch the downmix system for playing back multi-channel
surround sound.
≥When “Dolby D/Dolby D +/Dolby TrueHD” or “DTS/DTS-HD” is set
to “Bitstream”, there are no downmix effects for the outputted
audio.
≥The audio will be outputted in “Stereo” in the following cases.
– AVCHD playback
– Playback of clicking sound on the menu and audio with
secondary video in picture-in-picture mode
High Clarity Sound
When the analogue video terminal is not being used, the electrical
current that flows through the analogue video circuit can be
stopped. This prevents adverse effects on the audio signals and
produces clearer sound.
≥This works only when “BD/DVD”, “SD” or “USB”is selected as the
source.
≥Set to “Enable” and then set “High Clarity Sound” on the
on-screen menu to “On”. (> 36)
≥Use this when outputting image via HDMI AV OUT terminal.
Analogue image will not be output via COMPONENT VIDEO OUT
terminal or VIDEO OUT terminal.
Speaker
When connected to equipment with a built-in MPEG
decoder.
When connected to equipment without a built-in MPEG
decoder.
The primary audio and secondary audio are mixed and output.
The sampling frequency is converted to 48 kHz.
The clicking sound on the menu and secondary audio are not
output.
Signals are converted to 48 kHz. (Choose when the connected
equipment cannot process signals with sampling frequency of
96 kHz.)
Signals are output as 96 kHz. (Choose when the connected
equipment can process signals with sampling frequency of
96 kHz.)
≥Bitstream:
≥PCM:
BD-Video Secondary Audio [BD-V]
Turn on/off the clicking sound on the menu and audio with
secondary video in picture-in-picture mode. (> 21)
≥Off
Effective only when Dolby TrueHD is played.
≥On:
≥Off:
≥On:
≥Off:
When connected to equipment that does not support
the virtual surround function.
≥Surround encoded: When connected to equipment that supports the
conversion from 2 channels to multi channel
surround.
≥Stereo:
≥Enable
≥Disable
Refer to page 41
“Display”
RQT9457
38
38
On-Screen Messages
Choose whether to show status messages automatically.
On-Screen Language
Choose the language for these menus and on-screen messages.
Screen Saver Function
This is to prevent burn-in on the screen.
≥When this is set to “On”, the masked-off area on the screen
becomes grey.
[Only when connecting with an HDMI cable or a component
video cable and “HDMI Video Format” (> 39) is set to any other
mode than “576p/480p”, or “Component Resolution” (> 39) is
set to “720p” or “1080i”]
≥Automatic
FL Display
Changes the brightness of the unit’s display.
– The brightness of the volume indicator (> 6) is also changed.
≥Bright
≥Dim:
≥Automatic:
Software Licence
Information about the software used by this unit is displayed.
≥Off
≥English
≥Français
≥Español
≥Deutsch
≥Italiano
≥Nederlands ≥РУССКИЙ
≥On:
If there is no operation for 5 minutes or more, the displayed screen switches
to the other states automatically.
– When the Direct Navigator or START menu is displayed, the display
returns to the screen saver mode.
– When CD or MP3 is played, the display returns to the screen saver
mode. (Playback continues.)
– When still pictures are shown (except for slideshow), the display returns
to the Direct Navigator screen.
≥Off
The display is dimmed.
The display is dimmed, but brightens when you perform
some operations.
SCBT205EP-RQT9457-R.book 39 ページ 2009年3月30日 月曜日 午後7時7分
“TV/Device Connection”
TV Aspect
Set to match the type of television connected.
When connected to a 16:9 widescreen television:
Video recorded for 4:3 aspect screen is displayed as a 4:3
≥16:9:
ratio image in the center of the screen.
When connected to a 4:3 aspect television:
≥4:3:
Video recorded for a widescreen is played as Pan & Scan
(unless prohibited by the producer of the disc). When playing
BD-Video, video is output as “4:3 Letterbox”.
Video recorded for a widescreen is played in the letterbox style.
≥4:3 Letterbox:
≥Auto ≥0ms ≥20ms ≥40ms ≥60ms ≥80ms ≥100ms ≥120ms ≥140ms
Time Delay*1
When connected with a Plasma display, adjust if you notice When using VIERA Link “HDAVI Control” with “HDAVI Control 3” (or later)
the audio is out of sync with the video.
compatible TV (> 29), select “Auto”. Audio and video will automatically be set in
sync.
– This works only when “BD/DVD”, “SD”, “USB” “AUX”,“D-IN1” (DIGITAL IN 1) or
D-IN2” (DIGITAL IN 2) is selected as the source. (> 29)
HDMI Connection
≥Press [OK] to show the following settings.
Images are output from the HDMI AV OUT terminal in the resolution set in “HDMI
HDMI Video Mode
≥On:
Video Format”. Video from COMPONENT VIDEO OUT terminal is output as
Select “On” when video is output from HDMI AV OUT
“576i/480i”.
terminal.
≥Off
Images are output in the resolution set in “Component Resolution”.
Automatically selects the output resolution best suited to the
≥Automatic:
HDMI Video Format*2
connected television (1080p, 1080i, 720p or 576p/480p).
The items supported by the connected devices are
≥576p/480p
≥720p
indicated on the screen as “¢”. When any item without
≥1080i
≥1080p
“¢” is selected, the images may be distorted.
– When outputting 1080p signal, we recommend using High Speed HDMI Cables
that have the HDMI logo (as shown on the cover) and are less than 5.0 meters to
prevent video distortion etc.
– To enjoy high definition video up-converted to 1080p, you need to connect the unit directly
to 1080p compatible HDTV (High Definition Television). If this unit is connected to an
HDTV through other equipment, it must also be 1080p compatible.
24p Output [BD-V] [DVD-V]
≥On:
Images in 24p are output in 24p as they are.
However,
When this unit is connected to a TV supporting 1080/24p
–when video is being output at 24 frames, images from any other
output via an HDMI cable, this unit displays each frame at
terminal than the HDMI AV OUT terminal may not be output properly.
1/24 second intervals – the same interval originally shot
–[BD-V]: when images other than 24p are played, images are output at
with the film camera.
60p.
≥When playing DVD-Video, set to “On” and then set
≥Off
“24p” in “Picture” (> 36) to “On”
HDMI Output Range
The video is output as it is.
≥Standard:
When the black and white contrast of a video is low, the signal
Effective when connected to a device that only supports ≥Enhanced:
is enhanced to reproduce clear video.
RGB output.
Component Resolution*2
This sets the video output resolution when using the
COMPONENT VIDEO OUT terminal.
≥On:
≥Off:
To output audio through the TV’s speakers or other devices.
To output audio through system speakers. (The audio is output using the
settings of the main unit.)
≥On:
≥Off:
Select when you do not want to use “HDAVI Control”.
When the TV is turned off, this unit will turn off automatically.
When the TV is turned off, this unit will turn off except during
the following conditions:
– audio playback ([CD] [MP3])
– iPod mode
– radio mode
– “AUX” or “D-IN1” (DIGITAL IN 1) mode (non-selected TV
audio setting for VIERA Link)
– “D-IN2” (DIGITAL IN 2) mode (non-selected TV audio setting
for CABLE/SAT)
≥576p/480p
≥576i/480i
≥720p
≥1080i
480i, 480p: When playing NTSC discs
576i, 576p: When playing PAL discs
≥Video/Audio:
≥Video:
Advanced operations
HDMI Audio Output
This setting selects whether or not to output audio from
HDMI.
VIERA Link
Set to use “HDAVI Control” function when connected with
an HDMI cable to a device that supports “HDAVI Control”.
Power Off Link
Select the desired power off link setting of this unit for VIERA
Link operation (> 29). (This works depending on the
settings of the connected VIERA Link “HDAVI Control”
compatible equipment.)
Even if you select “720p” or “1080i”, the video output resolution is restricted to
“576p/480p” when DVD-Video discs, DivX and BD-Video discs recorded at a rate
of 50 field per second are output from the COMPONENT VIDEO OUT terminals.
≥NTSC:
Select when connecting to a NTSC television.
Select when connecting to a PAL or multi-system television.
≥PAL:
TV System
Change the setting to match the equipment you are
connecting with.
≥If picture output is not smooth, change the setting.
≥When NTSC contents are played, they are outputted in
the signal format specified in the “NTSC Contents Output”,
irrespective of the settings here.
*1 This function has no effect when S.SURROUND is selected during AUX (TV) playback.
*2 In this unit, a P4HD (> 56) video processor is used to provide video of optimal resolution to the connected TV.
RQT9457
39
39
SCBT205EP-RQT9457-R.book 40 ページ 2009年3月30日 月曜日 午後7時7分
Changing the unit’s settings
To select these settings, perform steps 1–5(> 37)
Advanced operations
“Network Settings”
RQT9457
40
40
IP Address / DNS Settings (> 33)
≥Press [OK] to show the following settings.
Connection Test
IP Address Auto-Assignment
IP Address
Subnet Mask
Gateway Address
DNS-IP Auto-Assignment
Primary DNS
Secondary DNS
Connection Speed Auto-Config
Connection Speed Setting
This is enabled only when “Connection Speed Auto-Config” is
turned “Off”.
Proxy Server Settings (> 34)
≥Press [OK] to show the following settings.
Initialize
Proxy Address
Proxy Port Number
Connection Test
Network Service (> 32) (VIERA CAST)
≥Press [OK] to show the following settings.
Network Lock
You can restrict using VIERA CAST.
Follow the on-screen instructions. Enter a 4-digit password with
the numbered buttons when the password screen is shown. It will
be the common password for “DVD-Video Ratings”, “BD-Video
Ratings” and “Network Lock”.
≥Do not forget your password.
Audio Auto Gain Control
Volume that is different depending on the contents is adjusted
automatically to the standard volume while using the VIERA
CAST.
≥Depending on contents, this function effect will not work.
≥Select “Off” when the audio is warped.
≥This function has no effect when Dolby PL II is activated.
(> 17)
Reduced Screen Display
The screen is displayed reduced so the displayed screen of the
VIERA CAST does not get truncated.
Time Zone
By selecting the time zone, it is possible to set the unit’s time to
match your location.
≥Some VIERA CAST contents require the time zone to be set.
Set the time zone if necessary.
Summer Time
Select “On” when using Daylight Saving time.
MAC Address (> 33)
Displays the “MAC Address” of this unit.
————
≥Off
≥On
— — —. — — —. — — —. — — —
— — —. — — —. — — —. — — —
— — —. — — —. — — —. — — —
≥On
≥Off
— — —. — — —. — — —. — — —
— — —. — — —. — — —. — — —
≥Off
≥On
≥10BASE Full Duplex
≥10BASE Half Duplex
≥100BASE Half Duplex
≥100BASE Full Duplex
≥Yes
≥No
(The initial setting is blank.)
(The initial setting is “0”.)
————
≥On
≥Off
Changing settings (When “On” is selected)
≥Change Password
≥On
≥Off
≥On
≥Off
≥GMT -12 to +12
(The initial setting is “+1”.)
GMT 0 l WET (Western European Time)
GMT +1l CET (Central European Time)
GMT +2l EET (Eastern European Time)
≥On
≥Off
“General”
Remote Control (> 51)
≥Set Code 1 ≥Set Code 2
Default Settings
≥Yes
≥No
This returns all values in the Setup menu and the on-screen menu,
except for “Remote Control”, “On-Screen Language”, “IP Address /
DNS Settings”, “Proxy Server Settings”, “Network Service”
“DVD-Video Ratings” and “BD-Video Ratings” to the default
settings.
DivX Registration [DivX] (> 22)
You need this registration code to purchase and play DivX Video-on-Demand (VOD) content.
Firmware Update (> 32)
≥Press [OK] to show the following settings.
≥Off
Automatic Update Check
≥On
When this equipment remains connected to the Internet, it will
check for the latest firmware version when it is turned on and
you can update it if necessary.
Update Now
≥Yes
≥No
You can update the firmware manually.
SCBT205EP-RQT9457-R.book 41 ページ 2009年3月30日 月曜日 午後7時7分
Speaker settings
Adjusting the sound lag between speakers
Delay time (
ms
0.0
)
Center (C)
For optimum listening with 5.1-channel sound, all the speakers, except
for the subwoofer, should be the same distance from the seating
position.
If you have to place the center, surround speakers closer to the
seating position, adjust the delay time to make up for the difference.
If either distance A or B is less than C (D below), find the difference
in the relevant table and change to the recommended setting.
1 Press [3, 4, 2, 1] to select the distance box (
[OK].
ms
0.0
ms
L
dB
0
C
0.0
dB
0
Complete
Test
) and press
dB
0
LS
R
dB
0
ms
0.0
SW
RS
2 Press [3, 4] to select the setting and press [OK].
[LS (L)] Surround [RS (R)]
Approximate room dimensions
: Actual speaker position
C
C
L
R
A
: Ideal speaker position
C
SW
B
LS
LS
A B C : Primary listening distance
RS
RS
Circle of constant primary listening distance
A Center speaker
Difference
Setting
Approx. 34 cm
1.0 ms
Approx. 68 cm
2.0 ms
Approx. 102 cm
3.0 ms
Approx. 136 cm
4.0 ms
Approx. 170 cm
5.0 ms
B Surround
Setting
Approx. 170 cm
5.0 ms
Approx. 340 cm
10.0 ms
Approx. 510 cm
15.0 ms
Advanced operations
Difference
Adjusting speaker level
Volume (Channel balance) (
dB
0
)
Center (C)
(Effective when playing multi-channel audio)
1 Select “Test” and press [OK].
A test signal is output.
Front (L)_—)Center (C)_—)Front (R)
:
;
Surround (LS)(—___ Surround (RS)
2 While listening to the test signal, press [3, 4] to adjust the volume
of each speaker.
The volume can be adjusted between r6 dB to s6 dB.
≥Set each speaker level according to the volume of the Front (L)
and Front (R) speaker volume respectively.
3 Press [OK].
The test signal stops.
≥No signal is output for the subwoofer. To adjust its volume, see
page 17, Adjusting speaker level during play.
L
ms
0.0
C
Test
LS
0
dB
0
Complete
Test
Surround
(LS)
dB
dB
0
ms
0.0
dB
0
R
SW
RS
Surround
(RS)
To finish the speaker setting
Press [3, 4, 2, 1] to select “Complete” and press [OK].
RQT9457
41
41
SCBT205EP-RQT9457-R.book 42 ページ 2009年3月30日 月曜日 午後7時7分
Wireless connections (optional)
Connecting the speakers with the optional wireless system (SH-FX70)
∫ Wireless setup diagram
Connections
∫ Digital transmitter
Main unit
(with the digital
transmitter)
Do not insert or remove while the home theater unit is on.
Seating position
Wireless system
SH-TR70 digital transmitter
Insert fully until you hear a click.
Digital transmitter cover
LS
RS
PUSH
PUSH
Surround speaker cables
LS: Surround (left), RS: Surround (right)
≥Place the speakers slightly behind the seating position.
≥Place the speakers at the same height or higher than ear level.
PUSH
DIGITAL
DIGITAL
TRANSMITTER
TRANSMITTER
PUSH
PUSH
DIGITAL
DIGITAL
TRANSMITTER
TRANSMITTER
PUSH
LOOP
AM
NOTE
≥Turn off all equipment before connection and read the
appropriate operating instructions.
≥Connect the AC mains lead after all other
connections are complete.
≥Do not use the wireless system and digital transmitter in
a metal cabinet or bookshelf.
≥Place the wireless system within approximately 15 m
from the home theater unit.
Main unit
Main unit
You can use the blunt end of a writing instrument to
push here until the cover pops out.
Remove the digital transmitter cover before installing any
optional digital transmitter.
≥Replace the cover when the digital transmitter is not in use.
Making the wireless link
∫ Wireless system
Preparation
If the surround speaker cables (with a blue connector, with a grey
connector) have already been connected, disconnect them from the
main unit and the speakers.
Connecting the cables
Use the cables supplied with the wireless system.
≥It is also possible to use the original cables supplied with the main
unit.
Left side speakers
SURROUND (LS): Blue
Right side speakers
SURROUND (RS): Grey
Connecting the speakers to the wireless system
Insert fully.
SPEAKERS
ENCEINTES
LS / RB LB / RS
AC IN
SURR
Speaker cable
I/D SET
SURROUND (3 – 6 )
L
R
SIDE SIDE AMBIOPHONIQUES
Connect to terminals of the same colour.
Setting the Surround selector
SPEAKERS
ENCEINTES
LS / RB LB / RS
AC IN
Optional speaker
settings
SURR
I/D SET
SURROUND (3 – 6 )
L
R
SIDE SIDE AMBIOPHONIQUES
SURR
L
R
SIDE SIDE
∫ AC mains lead
AC mains lead
To household mains socket
RQT9457
42
42
SCBT205EP-RQT9457-R.book 43 ページ 2009年3月30日 月曜日 午後7時7分
1
Turn on the wireless system.
Unit on/off button [C I, B Í]
Use this button to turn the unit on and off.
B Í: The unit is off.
C I: The unit is on.
Speaker installation
option
Attaching to a wall
WIRELESS LINK indicator
Red: The unit is on and the wireless link is deactivated.
Turn off and on the wireless system.
Green: The unit is on and the wireless link is activated.
2
Turn on the main unit.
The wireless link indicator on the main unit will be turned on.
At least 30 mm
4.0 mm
7.5 mm to 9.4 mm
e.g.
SLP STCT
DDTS
PL
SRDE. PRG
PGM RND RDS
EQ W1W2 WS
3
≥ If the indicator is flashing, refer to the
“Optional wireless system (SH-FX70)”
Page in the Troubleshooting guide.
(> 51)
Start play on the main unit.
NOTE
≥For optimal audio output, it is recommended to
re-configure the main unit using SMART SETUP. (> 14)
≥You cannot use the wireless system with SH-FX65T or
SH-FX67T digital transmitter.
Wall or pillar
3 mm to 5 mm
2 Fit the speaker securely onto the screw(s) with the hole(s).
Front and surround speaker
Attach to a wall without the base and the stand
72 mm
DO
NOT
348.5 mm
DO
In this position,
the speaker will
likely fall if
moved to the
left or right.
Move the
speaker so that
the screw is in
this position.
Center speaker
190 mm
Reattaching the speaker cables
Leave about
120 mm
Insert the cable
from the bottom.
Optional speaker
settings
WIRELESS LINK
You can attach all of the speakers (except subwoofer) to a wall.
≥The wall or pillar on which the speakers are to be attached should be
capable of supporting 10 kg per screw. Consult a qualified building
contractor when attaching the speakers to a wall. Improper
attachment may result in damage to the wall and speakers.
1 Drive a screw (not included) into the wall.
Pull out the cable
through the hole.
RQT9457
43
43
SCBT205EP-RQT9457-R.book 44 ページ 2009年3月30日 月曜日 午後7時7分
Media (Disc, card and USB device)
information
Packaged discs
This chart shows the different type of retail/commercial discs you can use, and also includes the industry-standard logos that should appear on
the discs and/or packaging.
Type of media/
Logo
BD-Video
Features
High Definition (HD)
movie and music discs
≥Discs supporting
BD-Live (BD-ROM
Profile 2) that allows
interactive functions to
be used when this unit
is connected to the
Internet in addition to
the BONUSVIEW
function.
Indicated as
Type of media/
Logo
[BD-V]
DVD-Video
CD
≥Discs supporting
BONUSVIEW
(BD-ROM Profile 1
version 1.1/Final
Standard Profile) that
allows
Picture-in-Picture
functions to be used.
Features
High quality movie and
music discs
Compact Discs (CD’s)
that contain audio and
music
≥Operation and sound
quality of CDs that do
not conform to CD-DA
specifications (copy
control CDs, etc.)
cannot be guaranteed.
Indicated as
[DVD-V]
[CD]
Recorded discs
This chart shows the different type of discs recorded with other devices that you can use.
Finalized This mark means you must finalize the disc with the DVD recorder, etc. before playback. For details about finalizing, refer to
the operating instructions for your equipment.
Type of media/
Logo
Formats
Indicated as
Type of media/
Logo
Formats
Indicated as
BD-RE
≥Version 3 of the BD-RE
Recording Format
≥JPEG format
[BD-V]
DVD-R DL
≥DVD-Video Format
≥Version 1.2 of the DVD
Video Recording
Format
≥MP3 format
≥JPEG format
≥AVCHD format
≥DivX format
[DVD-V]
[DVD-VR]
[JPEG]
Finalized
≥+VR (+R/+RW Video
Recording) Format
≥AVCHD format
[DVD-V]
BD-R
DVD-RAM
DVD-R/RW
Reference
Finalized
RQT9457
44
44
≥Version 2 of the BD-R
Recording Format
[BD-V]
≥Version 1.1 of the DVD
Video Recording
Format
≥JPEG format
≥AVCHD format
[DVD-VR]
≥DVD-Video Format
≥Version 1.1 of the DVD
Video Recording
Format
≥MP3 format (DVD-RW
is not supported)
≥JPEG format (DVD-RW
is not supported)
≥AVCHD format
≥DivX format (DVD-RW
is not supported)
[DVD-V]
[DVD-VR]
rR/rRW/
rR DL
Finalized
[JPEG]
[AVCHD]
[MP3]
[JPEG]
[AVCHD]
[DivX]
CD-R/RW
Finalized
≥CD-DA format
≥MP3 format
≥JPEG format
≥DivX format
[MP3]
[JPEG]
[AVCHD]
[DivX]
[AVCHD]
[CD]
[MP3]
[JPEG]
[DivX]
≥It may not be possible to play the above discs in some cases
due to the type of discs, the condition of the recording, the
recording method and how the files were created.
≥When a disc recorded in the AVCHD format is being played, the
video may be paused for a few seconds at portions spliced, due
to deletion or editing.
SCBT205EP-RQT9457-R.book 45 ページ 2009年3月30日 月曜日 午後7時7分
SD cards
This chart shows the different type of cards recorded with other devices that you can use.
Type of media
SD Memory Card*
(from 8 MB to 2 GB)
SDHC Memory Card
Formats
≥JPEG format
≥AVCHD format
≥MPEG2 format
Indicated as
[JPEG]
[AVCHD]
[MPEG2]
(from 4 GB to 32 GB)
* Including miniSD Card and microSD Card
In these operating instructions, the cards shown in the table (D above)
are comprehensively called SD cards.
≥A miniSD Card and a microSD Card must be used with the
attached adaptor that comes with the card.
≥When using from 4 GB to 32 GB SD cards, only SD cards
that display the SDHC logo can be used.
≥This unit is compatible with SD Memory Cards that meet
SD Card Specifications FAT12 and FAT16 formats, as well
as SDHC Memory Cards in FAT32 format.
ADAPTER
≥Useable memory is slightly less than the card capacity.
≥If the SD card is formatted on a PC, you may not be able to use it on
this unit.
≥We recommend using a Panasonic SD card.
Please confirm the latest information on the following website.
http://panasonic.co.jp/pavc/global/cs
(This site is in English only.)
≥Keep the Memory Card out of reach of children to prevent
swallowing.
≥When a card recorded in the AVCHD format is being played, the
video may be paused for a few seconds at portions spliced, due to
deletion or edition.
≥Switch the write-protect switch to the “LOCK” position to protect the
content from accidental erasure.
USB device
This unit can playback pictures by connecting the USB memory recorded with a PC or similar in following formats, and Panasonic digital cameras
connected via USB cable.
Type of media
USB device
Formats
≥MP3 format
≥JPEG format
≥DivX format
Indicated as
[MP3]
[JPEG]
[DivX]
Compatible USB devices
≥USB devices which are defined as USB mass storage class.
– USB devices that support USB 1.0/1.1 and USB 2.0 Full Speed/
High Speed.
≥USB devices of up to 128 GB can be used.
≥USB devices that support bulk only transfer.
CBI (Control/Bulk/Interrupt) is not supported.
≥Digital Cameras which require additional programme installation
when connected to a PC are not supported.
≥MTP (Media Transport Protocol) device is not supported.
≥A multi-port USB card reader is not supported.
Regarding 24p output
File system
≥FAT12, FAT16 and FAT32 file systems are supported.
≥UDF/NTFS/exFAT file system is not supported.
≥Depending on the sector size, some files may not work.
≥Only the first partition on USB devices with multi-partition is
supported.
Despite meeting the conditions mentioned above, there may be USB
device that cannot be used with this unit.
This unit does not support USB device charging.
[BD-V]
Many BD-Video movie contents are recorded in 24 frames/second in accordance with the film materials. However, they will normally be output in
60 frames/second in accordance with the display format.
These can be output in 24p as the original. Therefore, high-quality video can be enjoyed with improved clarity, enhanced perspective, etc.
NECESSARY CONNECTIONS
≥Connect to a TV supporting 1080/24p input via an HDMI cable.
NECESSARY SETTINGS
≥“24p Output”: “On” (> 39)
Discs that cannot be played
≥DVD-Audio
≥Video CD and SVCD
≥WMA discs
≥HD DVD
≥Other discs that are not specifically supported
Reference
≥BD-RE with the cartridge
≥2.6 GB and 5.2 GB DVD-RAM
≥3.95 GB and 4.7 GB DVD-R for Authoring
≥DVD-RAM that cannot be removed from their cartridges
≥Version 1.0 of DVD-RW
≥DVD-ROM, CD-ROM, CDV, SACD, Photo CD, MV-Disc and PD
RQT9457
45
45
SCBT205EP-RQT9457-R.book 46 ページ 2009年3月30日 月曜日 午後7時7分
About MP3/JPEG/DivX files
File format
MP3
JPEG
Playable media
CD-R*1, CD-RW*1, DVD-R*1, DVD-R DL*1, USB
device
CD-R*1, CD-RW*1, DVD-RAM*2, DVD-R*1, DVD-R DL*1,
BD-RE*3, SD card, USB device
Extension
Files must have the extension “.mp3” or “.MP3”.
Picture resolution
—
Files must have the extension “.jpg” or “.JPG”.
between 34k34 and 8192k8192 pixels
(sub sampling is 4:2:2 or 4:2:0)
Compression rate
32 kbps to 320 kbps
—
Sampling rate
44.1 kHz/48 kHz
—
Reference
ID3 tags: version 1, 2.2, 2.3, 2.4
ID3 is a tag embedded in MP3 track to provide
information about the track.
This unit supports the versions listed above but only
titles and the names of artists can be displayed.
≥If there is a large amount of still picture data etc.
within a MP3 file, play may not be possible.
JPEG conforming DCF*4 is supported.
Thawing Time: approx. 2 sec. (7M pixels)
≥MOTION JPEG and Progressive JPEG is not supported.
File format
DivX
Subtitles text file of DivX
Playable media
CD-R*1, CD-RW*1, DVD-R*1, DVD-R DL*1, USB
device
CD-R*1, CD-RW*1, DVD-R*1, DVD-R DL*1, USB device
File format
—
Extension
Files must have the extension “.DIVX”, “.divx”, “.AVI”
or “.avi”.
Picture resolution
between 32k32 and 720k576 pixels
Reference
≥Certified to the DivX Home Theater Profile.
Video
– Number of stream: Up to 1
– Codec: DIV3, DIV4, DIVX, DV50, DIV6
– FPS (Frame Per Second): Up to 30 fps
Audio
– Number of stream: Up to 8
– Format: MP3, MPEG, Dolby Digital
– Multi channel: Dolby Digital is possible. MPEG
multi is 2 ch conversion.
≥GMC (Global Motion Compensation) is not
supported.
MicroDVD, SubRip, or TMPlayer
Files must have the extension “.SRT”, “.srt”, “.SUB”, “.sub”,
“.TXT”, or “.txt”
—
≥The DivX video file and subtitles text file are inside the same
folder, and the file names are the same except for the file
extensions.
≥If there are more than one subtitles text files inside the same
folder, they are displayed in the following order of priority:
“.srt”, “.sub”, “.txt”.
≥In the following situations, the subtitles cannot be displayed
as recorded. Furthermore, depending on the methods used
to create the file or the state of the recording, only parts of
the subtitles may be displayed, or the subtitles may not be
displayed at all.
– When special text or characters are included in the
subtitles text.
– When the file size is larger than 256 KB.
– When characters with specified styling are included in the
subtitle data.
– Codes that specify the character style within files are
displayed as subtitle characters.
– When data with a different format exists within the subtitle
data.
≥If the file name of the DivX video file is not displayed
correctly on the menu screen (the file name is displayed as
“_”), the subtitles text may not be displayed correctly.
≥Depending on the disc, the subtitles text cannot be displayed
when search and other such operations are being
performed.
Reference
≥English alphabet and Arabic numerals are displayed correctly. Other characters may not be displayed correctly.
≥The display order on this unit may differ from how the order is displayed on a computer.
≥Depending on how you create the media (writing software), files and folders may not play in the order you numbered them.
≥Depending on how you create the structure of folders (writing software), files and folders may not play. (> 47)
≥This unit is not compatible with packet-write format.
≥Depending on the recording conditions, the media may not play.
≥Operation may take time to complete when there are many files and/or folders and some files may not display or be playable.
*1 ISO9660 level 1 or 2 (except for extended formats), Joliet
This unit is compatible with multi-session.
This unit is not compatible with packet writing.
*2 Discs must conform to UDF 2.0.
*3 Discs must conform to UDF 2.5.
*4 Design rule for Camera File system: unified standard established by Japan Electronics and Information Technology Industries Association
(JEITA).
RQT9457
46
46
SCBT205EP-RQT9457-R.book 47 ページ 2009年3月30日 月曜日 午後7時7分
∫ Structure of folders that can play back on this unit
You can play files on this unit by structure of folders as shown
below. However depending on the method of writing data (writing
software), play may not be in the order you numbered the folders.
: Folder which can be displayed with this unit
Structures of still picture (JPEG) folders
in DVD-R/DVD-R DL/CD-R/CD-RW
Files inside a folder are displayed in the order they were updated or
taken.
Root
¢¢¢: Numbers
XXX: Letters
*1 ¢¢¢: from 001 to 999
*2 ¢¢¢: from 100 to 999
XXX: up to 5 figures
*3 ¢¢¢¢: from 0001 to 9999
e.g.,
Folder A
Folder B
Structure of MP3 folders in DVD-R/DVD-R DL/CD-R/CD-RW/USB
device
Prefix the file names with 3-digit numbers in the order you want to
play them.
e.g.,
001XXXX.mp3
002XXXX.mp3
001
Folder A
003XXXX.mp3
004XXXX.mp3
005XXXX.mp3
in BD-RE/DVD-RAM
≥Folder structure is not displayed.
Root
e.g.,
Folder B
JPEG
006XXXX.mp3
007XXXX.mp3
008XXXX.mp3
009XXXX.mp3
DCIM
Folder C
010XXXX.mp3
011XXXX.mp3
012XXXX.mp3
DCIM
Structure of DivX folders in DVD-R/DVD-R DL/CD-R/CD-RW/
USB device
Files inside a folder are displayed in the order they were updated or
taken.
Root
e.g.,
P0000001.divx
P0000002.divx
Folder A
P0000003.divx
P0000004.divx
P0000005.divx
Folder B
P0000006.divx
P0000007.divx
P0000008.divx
P0000009.divx
Folder C
P0000010.divx
P0000011.divx
P0000012.divx
*1
XXXXX *2
XXXX.JPG *3
XXXXX *2
XXXX.JPG *3
in SD card/USB device
Displays JPEG files in all folders.
≥Folder structure is not displayed.
Root
e.g.,
DCIM
XXXXX *2
XXXX.JPG*3
Folder A
Reference
Root
Folder C
RQT9457
47
47
SCBT205EP-RQT9457-R.book 48 ページ 2009年3月30日 月曜日 午後7時7分
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart
do not solve the problem, consult your dealer for instructions.
The following do not indicate a problem with this unit:
≥Regular disc rotating sounds.
≥Image disturbance during search.
To reset this unit
Page
To restore the unit if it freezes
due to one of the safety
devices being activated
≥Press and hold [Í/I] on the main unit for 3 seconds. (The settings remain unchanged.)
—
To return all settings other than
some settings to the factory
preset
≥Select “Yes” in “Default Settings” in the Setup menu.
This returns all values in the Setup menu and the on-screen menu, except for “Remote
Control”, “On-Screen Language”, “IP Address / DNS Settings”, “Proxy Server Settings”,
“DVD-Video Ratings”, “BD-Video Ratings” and “Network Service” to the default settings.
40
To return to the factory preset
(No setting)
≥Reset the unit as follows:
1 Press [Í/I] on the unit to turn off the unit.
2 Press and hold [5/9] and press [Í/I] and [< OPEN/CLOSE] on the unit at the same
time for more than 5 seconds until “PLEASE WAIT” is displayed on the unit.
3 The power is turned on and then turned off automatically.
—
No power.
≥Insert the AC mains lead securely into a household mains socket.
13
The unit switches to standby mode.
≥When the time set for the sleep timer has passed, the power will be turned off.
≥One of the unit’s safety devices is activated. Press [Í/I] on the main unit to turn the unit on.
20
—
Power of this unit is turned off
when the input for the TV is
changed.
≥If connected with an HDAVI Control 4 compatible TV (VIERA) with the “Intelligent Auto
Standby” setting activated on the TV, when switching the TV input, the unit will be
automatically turned to standby if the TV audio is not output from the unit’s speakers. For
details please read the operating instructions of the TV.
Power
29
Operation
The remote control doesn’t
work properly.
The unit is on but cannot be
operated.
Play fails to start even when
[1PLAY] is pressed.
Play starts but then stops
immediately.
Cannot eject disc.
Startup is slow.
Reference
It takes time before play starts.
RQT9457
48
48
Played back image is distorted
or does not playback correctly.
([AVCHD])
Cannot set “On” in “24p
Output”.
≥The remote control and main unit are using different codes.
Change the code on the remote control.
Press and hold [OK] and the indicated number button at the
same time for more than 5 seconds.
≥The batteries are depleted. Replace them with new ones.
≥It may be necessary to set the code of the remote control again after changing the batteries
for remote control.
≥You are not pointing the remote control at the main unit’s remote control signal sensor during
operation.
≥Coloured glass may obstruct the signal reception/transmission.
≥Don’t place the signal sensor in direct sunlight or in areas that may be subject to sunlight exposure.
≥Confirm the correct drive is selected.
≥Some operations may be prohibited by the disc.
≥The unit is hot (“U59” appears on the display). Wait for “U59” to disappear.
≥One of the unit’s safety devices may have been activated.
Reset the unit as follows:
1 Press [Í/I] on the main unit to switch the unit to standby.
If the unit doesn’t switch to standby, press and hold [Í/I] on the main unit for about 3
seconds. The unit is forcibly switched to standby.
Alternatively, disconnect the AC mains lead, wait one minute, then reconnect it.
2 Press [Í/I] on the main unit to switch it on. If the unit still cannot be operated, consult the
dealer.
≥Condensation has formed. Wait 1 to 2 hours for it to evaporate.
≥Insert the disc correctly with the label facing up.
≥The disc is dirty.
≥You tried to play a blank disc or unplayable media on this unit.
≥[DivX] If playing DivX VOD content, refer to the homepage where you purchased it.
≥The producers of the disc can control how discs are played. So you may not always be able
to control play as described in these operating instructions. Read the disc’s instructions
carefully.
≥The unit may have a problem. While the unit is off, press and hold [5/9] and [< OPEN/
CLOSE] on the main unit at the same time for about 5 seconds. Remove the disc and consult
the dealer.
≥Startup takes time in the following situations.
– Immediately after a power failure or the AC mains lead is connected.
– When the unit is connected with an HDMI cable.
51
5
5, 51
5
—
—
16
—
53
—
—
18
3
44, 45
22
—
—
—
≥High definition video (transfer rate of 18 Mbps or faster) cannot be played back correctly if it
was recorded on a DVD compatible to double speed or slower.
—
≥Only when the unit is connected to the HDMI terminal of a TV supporting 24p you can select
“On”.
39
SCBT205EP-RQT9457-R.book 49 ページ 2009年3月30日 月曜日 午後7時7分
Displays
Page
The display is dim.
≥Change “FL Display” in the Setup menu.
38
The elapsed time displayed is
actually less than the play time.
≥The displayed play time is converted from the number of frames at 29.97 frames (equal to
0.999 seconds) to one second. There will be a slight difference between the time displayed
and the actual elapsed time (e.g., actual one-hour elapsed time may display as
approximately 59 minutes 56 seconds).
—
≥Make sure that the television is connected to the VIDEO OUT terminal, COMPONENT
VIDEO OUT terminals or HDMI AV OUT terminal on this unit.
≥Make sure that the television’s input setting (e.g., AV 1) is correct.
≥An incorrect resolution is selected in “HDMI Video Format”, when the television is connected to HDMI
AV OUT terminals. While stopped, press and hold [1PLAY] and [∫STOP] on the main unit at the
same time for more than 5 seconds to cancel this setting. Set the item again. However, Dolby Digital
Plus, Dolby TrueHD, and DTS-HD audio are not output in bitstream. To output the bitstream,
select “Default Settings” to restore the factory presets and make proper settings.
≥To output video from a device connected with an HDMI cable, set “HDMI Video Mode” to “On”
in the Setup menu.
≥If “24p Output” is set to “On” when the unit is connected to a TV through any terminal other
than HDMI, images may not display properly. In this case, set “24p Output” to “Off”.
≥When “24p Output” is set to “On”, HDMI authentication takes place where 24p images switch
to other images, and a black screen is displayed.
≥When “24p Output” is set to “On”, jittering may occur while playing DVD-Video. In this case,
turn “24p Output” to “Off”.
≥An incorrect resolution is selected in “Component Resolution”, when the television is connected to
COMPONENT VIDEO OUT terminals. While stopped, press and hold [1PLAY] and [∫STOP] on
the main unit at the same time for more than 5 seconds to cancel this setting. Set the item again.
≥Picture may not be seen when more than 2 devices are connected with HDMI cables.
Reduce the number of connected devices.
≥The unit and television are using different video systems. While stopped, keep pressing
[∫STOP] and [< OPEN/CLOSE] on the main unit for 5 or more seconds. The system
switches from PAL to NTSC or vice versa.
≥The system used on the disc doesn’t match your television.
– PAL discs cannot be correctly viewed on an NTSC television.
– This unit can convert NTSC signals to PAL60 for viewing on a PAL television (“NTSC
Contents Output” in the “Picture”).
≥[DivX] Images may not be output due to how files were created.
≥If you are using an indoor TV antenna, change to an outdoor antenna.
≥The TV antenna wire is too close to the unit. Move it away from the unit.
10, 11
TV screen and video
Picture is distorted.
Jittering occurs.
—
39
39
39
39
39
39
—
—
—
37
—
—
—
Picture stops.
≥[DivX] Picture may stop if the DivX files are greater than 2 GB.
—
The screen changes
automatically.
≥When the “Screen Saver Function” in the Setup menu is set to “On”, the display may return to
the screen saver mode automatically if there is no operation for 5 minutes or more.
38
Video is not output.
≥An image is not output from the COMPONENT VIDEO OUT terminal or the VIDEO OUT
terminal when the “High Clarity Sound” is enabled. Set the “High Clarity Sound” in the
on-screen menu to “Off” to use the COMPONENT VIDEO OUT terminal or the VIDEO OUT
terminal.
36
Video is not output in high
definition.
≥High definition video cannot be output through the VIDEO OUT terminal.
≥Confirm that the “HDMI Video Mode”, “HDMI Video Format”, and “Component Resolution” in
the Setup menu are set properly.
≥The video output resolution is restricted to colour “576p/480p” when DVD-Video discs, DivX
and BD-Video discs recorded at a rate of 50 field per second are output from the
COMPONENT VIDEO OUT terminals.
—
39
The Setup menu cannot be
accessed.
≥Select “BD/DVD” as the source.
—
38
—
Status messages do not appear.
≥Select “Automatic” in “On-Screen Messages” in the Setup menu.
The 4:3 aspect ratio picture
expands left and right.
Screen size is wrong.
≥Use the television to change the aspect. Refer to your television’s operating instructions.
≥When using a component video cable, set “Progressive” to “Video”. If the situation is not
restored after that, set “TV Aspect” to “4:3”.
≥When using an HDMI cable, set “TV Aspect” to “16:9”.
When playing DVD-Video using
progressive output, one part of
the picture momentarily
appears to be doubled up.
≥When you use the HDMI AV OUT terminal for video output, follow the steps below for setting.
1 Connect this unit to the TV with any cable except the HDMI cable.
2 When you connect with the Component Video cable, set “HDMI Video Mode” to “Off” and
“Component Resolution” to “576i/480i” in the Setup menu.
39
There is no apparent change in
picture quality when adjusted
with the “Picture” menu in the
on-screen menu.
≥The effect is less perceivable with some types of video.
—
The masked-off area is masked
in grey.
≥If the “Screen Saver Function” in the Setup menu is set to “Off”, the masked-off area is
displayed in black.
38
Still pictures (JPEG) do not
playback normally.
≥The images that were edited on the PC, such as Progressive JPEG, etc., may not playback.
46
After choosing “Home Cinema”
in “Speaker Selection” with the
TV’s remote control, the TV’s
input selection also changes.
≥Disconnect the HDMI cable from the TV and reconnect it to a different HDMI terminal.
—
—
36, 39
39
Reference
The images from this unit do
not appear on the television.
RQT9457
49
49
SCBT205EP-RQT9457-R.book 50 ページ 2009年3月30日 月曜日 午後7時7分
Troubleshooting guide
Sound
No sound.
Low volume.
Distorted sound.
Cannot hear the desired audio
type.
Page
≥Turn the volume up.
≥Turn the muting off.
≥Check connections to speakers and other equipment.
≥Select the corresponding source.
≥Press [AUDIO] to select the audio.
≥Ensure the speaker settings for your speakers are correct.
≥To output audio from a device connected with an HDMI cable, set “HDMI Audio Output” to
“On” in the Setup menu.
≥When “BD-Video Secondary Audio” is set to “On”, Dolby Digital Plus, Dolby TrueHD, and
DTS-HD are converted to 48 kHz Dolby Digital or DTS Digital Surround and output. LPCM
7.1 channel audio is converted to 5.1 channel audio. In this case, set the “BD-Video
Secondary Audio” to “Off”.
≥Audio may not be heard when more than 2 devices are connected with HDMI cables.
Reduce the number of connected devices.
≥Re-master will not work when the bitstream signal is output from the HDMI AV OUT terminal.
≥Depending on the connected equipment, the sound may be distorted if this unit is connected
with an HDMI cable.
≥The multi-channel audio from a device connected to the TV is not output in it’s original
multi-channel form.
– If the device has an optical audio output terminal, connect the device to this unit’s
“OPTICAL 2(STB)” terminal.
≥[DivX] Audio may not be output depending on how files were created.
18
18
9–12
16
19
41
39
38
—
36
—
12,27
—
Humming is heard during play.
≥An AC mains lead or fluorescent light is near this unit. Keep other appliances and cables
away from this unit.
—
No surround sound.
≥Press [SURROUND] to select a surround effect.
17
Cannot switch audio.
≥There are discs for which audio cannot be changed because of how the disc was created.
≥When audio is output from the HDMI AV OUT terminal, you cannot switch the audio if “Dolby
D/Dolby D +/Dolby TrueHD” or “DTS/DTS-HD” is set to “Bitstream”. Set “Dolby D/Dolby D +/
Dolby TrueHD” or “DTS/DTS-HD” to “PCM”.
—
38
No sound from the TV
≥Press [EXT-IN] to select the corresponding source.
16
≥When a BD-Video that supports the BD-Live is used, and an SD card is in the slot, data may
be written to the SD card. Erase the data by using “BD-Video Data Erase”, format the card or
use a new card.
≥Data that can be played from an SD card are AVCHD, MPEG2 and JPEG data.
21
≥The card is not compatible or the contents on the card may be damaged.
≥Turn off and then turn on the unit again.
45
—
≥Remove the USB device from the USB port and then insert again. If this does not solve the
problem, turn off and turn on the unit again.
≥Check that the USB device is inserted correctly.
≥The format of the USB device or of its contents is not compatible with the unit. (The contents
on the USB device may be damaged.)
≥The USB device contains a folder structure and/or file extensions that are not compatible with
this unit.
≥Turn off and then turn on the unit again.
≥USB memories connected using a USB extension cable or a USB hub may not be
recognized by this unit.
≥Some USB devices cannot be used with this unit.
≥If inserted during playback the USB device may not be recognized by this unit.
≥Turn the power of this unit off once, and turn it back on.
—
Card
The capacity of the SD card
decreased.
Music on an SD card cannot be
played.
The contents of the card
cannot be read.
45
USB
The contents of the USB device
cannot be read.
USB device cannot be
operated.
18
45
47
—
—
45
—
—
iPod operation
Cannot charge or operate.
Cannot display iPod videos/
photos on the TV.
The TV input channel
unintentionally changes to
HDMI input.
≥Check that the iPod is connected firmly.
≥The battery of the iPod is depleted. Charge the iPod, and then operate again.
≥Make sure that TV is connected to the VIDEO OUT terminal on this unit.
≥Operate the iPod menu to make the appropriate video/photo output settings for your TV.
(Refer to operating instructions for your iPod.)
≥When the main unit is connected with an “HDAVI Control” compatible TV and VIDEO IN is
selected for iPod video or photo playback, the TV input channel will automatically change to
the HDMI input channel when [START] is pressed.
– Re-select the TV’s VIDEO IN input channel.
30
—
10
—
≥Adjust the position of the antenna.
≥Use an outdoor antenna.
—
12
≥Turn the TV off or move it away from the unit.
—
—
Reference
Radio
RQT9457
50
50
Distorted sound or noise is
heard. “ST” flickers or does not
light.
A beat sound is heard.
SCBT205EP-RQT9457-R.book 51 ページ 2009年3月30日 月曜日 午後7時7分
Optional wireless system (SH-FX70)
No power.
The indicator on the wireless
system does not turn green
even though [I/D SET] is
pressed and pairing completed.
The wireless link indicator
(e.g. “ [W1] ” or an indicator) is
flashing.
The wireless link indicator
(e.g. “ [W1] ” or an indicator)
does not light.
The wireless link indicator
keeps flashing between red
and green.
Page
≥Ensure the AC mains lead of the wireless system is connected properly.
≥Turn the wireless system off and then back on.
—
—
≥There is no link between the main unit and the wireless system. Turn the wireless system off
and then back on. Alternatively, turn the wireless system off, disconnect the AC mains lead,
and then reconnect it.
≥Check that the main unit is turned on, and the wireless system is turned on.
≥Ensure that the digital transmitter is fully inserted into the slot of the main unit.
≥Ensure the surround sound setting on the main unit.
≥There is a power supply problem. Consult the dealer.
—
—
42
—
—
Network
I can’t connect to the network.
≥Has the LAN cable come unplugged? Check that the LAN cable is properly connected.
≥Have you plugged in a modular cable for use with a telephone into the LAN terminal on this
unit? Connect with a straight LAN cable.
≥Is the power for the modem or broadband router turned on? Turn the power on for each
device.
≥Is there a mistake in the network settings? Follow any instructions you may have received
from your ISP (Internet Service Provider) and make changes to the settings.
≥Are the broadband router settings correct? Read the operating instructions for the broadband
router.
≥Is the broadband router and/or modem correctly connected? Check the operating
instructions for each device and connect accordingly.
≥Check the “Network Settings” and “BD-Live Internet Access” settings.
13
13
—
—
—
—
37, 40
While using my PC, I cannot
connect to the network.
≥Does your Internet Service Provider (ISP) or service contract prevent multiple terminals
connecting at the same time? Check the content of your contract.
—
VIERA CAST does not operate
or connect.
≥Is the network connection correct?
≥Image of the video contents may be incomplete or may not display depending on how busy
the environment or the connected line is.
13
—
Other difficulties with playback
Audio and video momentarily
pause.
BD-Video or DVD-Video is not
played.
Picture-in-picture is not played
with BD-Video.
The BD-Live is not played with
BD-Video.
Alternative soundtrack and
subtitles cannot be selected.
No subtitles.
Angle cannot be changed.
The resume play function does
not work.
≥This occurs between playlist chapters or scenes ([AVCHD]).
≥When playing a title recorded on both layers, the unit automatically switches between layers
and plays the title in the same way as a normal program. However, video and audio may
momentarily cut out when the unit is switching layers.
≥Ensure the disc is for the correct BD-Video region code or DVD-Video region number, and is
not defective.
≥You have set a ratings level to limit BD-Video or DVD-Video play. Change this setting.
≥Some BD-Video can only be output with HDMI.
≥Confirm whether the disc supports picture-in-picture.
≥Confirm whether the disc supports the BD-Live.
≥The inserted SD card does not have sufficient available capacity.
≥The SD card is write-protected.
≥Sub contents copied to an SD card are provided by the disc producer as a part of the
BD-Video content. Even if you record images and audio onto an SD card, it cannot be played
as a BD-Live.
≥The languages are not recorded on the disc.
≥You may not be able to use the on-screen menu to change the soundtrack and subtitles on
some discs. Use the disc’s menus to make changes.
≥Subtitles are not recorded on the disc.
≥Turn the subtitles on. Set “Subtitle” on the on-screen menu to “On”.
≥Angles can only be changed during scenes where different angles are recorded.
≥Memorized positions are cancelled when
– pressing [∫STOP] several times.
– opening the disc tray.
≥The resume play function may not work depending on the disc.
≥[BD-V]: On BD-Video discs including BD-J, the resume play function does not work.
—
—
Cover
37
—
—
21
—
45
21
—
18
—
35
—
—
—
—
When other Panasonic products respond to this remote control
Press [] and [OK] together
press [OK].
for more than 5 seconds on
5 Press [3, 4] to select the code (1 or 2) and press the remote.
[OK].
6 To change the code on the remote control
While pressing [OK], press and hold the numbered button ([1] or
[2]) for more than 5 seconds.
7 Press [OK].
The unit’s remote control code
Press and hold [OK] and the
indicated number button at the same
time for more than 5 seconds.
Reference
Change the remote control code on the main unit and the remote control (the two must match) if you place other Panasonic products close
together.
When the following indicator
Remote Control
1 Press [BD/SD] to select “BD/DVD”.
appears on the unit’s display and
Set
Code
1
2 While stopped, press [SETUP].
you are unable to operate the unit
Set Code 2
NOTE
3 Press [3, 4] to select “General” and press [OK].
e.g., Display
4 Press [3, 4] to select “Remote Control” and
RQT9457
51
51
SCBT205EP-RQT9457-R.book 52 ページ 2009年3月30日 月曜日 午後7時7分
Messages
The following messages or service numbers appear on the television or unit’s display when something unusual is detected during startup and use.
On the television
Page
Authorisation Error.
This unit is not authorised to
play this title.
≥[DivX] You are trying to play the DivX VOD content that was purchased with a different
registration code. You cannot play the content on this unit.
Cannot play.
≥You inserted an incompatible disc.
44, 45
Cannot play on this unit.
≥You tried to play a non-compatible image.
45, 46
No disc is inserted.
≥The disc may be upside down.
18
Rental Expired.
≥[DivX] The DivX VOD content has zero remaining plays. You cannot play it.
22
$ This operation is not
available.
≥Some operations are unsupported by the unit. For example;
– [BD-V]: During play back, reverse slow-motion or reverse frame-by-frame is not possible.
19
$ This operation is prohibited
by this disc.
≥Depending on the disc, you may not be able to perform search or skip when film previews
and warning screens are being played back.
—
Cannot connect.
Please check the connection of
the LAN cable.
≥When a hub is used but its Link lamp does not light up, check the cable connection, LAN
terminal connection, cable itself (a cross cable may be used by mistake), etc.
13
IP address is not set.
≥The “IP Address” in “IP Address / DNS Settings” is “---. ---. ---. ---“. Set the “IP Address”,
“Subnet Mask”, and “Gateway Address“. (Select the automatic address acquisition if
necessary.)
33
Cannot obtain IP address.
Please check the connection or
setting of the router.
≥If you use a hub, then check the connection between the hub and the router.
– Use the UPLINK port of the hub to connect to a router.
– Check whether or not the hub’s Link lamp lights up. If it does not light up, then check the
cable connection, LAN terminal connection, cable itself (a cross cable may be used by
mistake), etc.
≥If the above conditions are OK, then the router may not operate in DHCP mode. Check the
router settings and operation. You may reset the router to restore it to normal.
13
This IP address is already in
use.
Please check the setting.
≥This unit’s IP address is used by another device. Check the IP addresses of this unit,
personal computers, and routers, etc. If necessary, reconfigure them to avoid IP
addresses from being duplicated.
—
Connection test could not be
conducted.
≥Turn the unit off. Remove the AC mains lead and reconnect it and try again. If the same
symptom persists, then consult your dealer.
—
≥If you use a hub, then check the connection between the hub and the router.
– Use the UPLINK port of the hub to connect to a router.
– If the hub’s Link lamp does not light up, then check the cable connection, LAN terminal
connection, cable itself (a cross cable may be used by mistake), etc.
≥Check the “IP Address”, “Subnet Mask”, and “Gateway Address” in the “IP Address / DNS
Settings”.
≥If the MAC address information is required, then press [SETUP] to display the “Network
Settings” menu.
13
Network connection was
rejected.
Please confirm Setup “BD-Live
Internet Access”.
≥When you set “BD-Live Internet Access” to “Limit” and play BD-Live contents which do not
have a content owner certificate, the Internet access of the content is not allowed. If you
allow the content to connect to Internet, set “BD-Live Internet Access” to “Permit”.
37
Could not check for latest
firmware version.
Please try again later.
≥The firmware download server is currently unavailable. Please try again later.
—
High Clarity Sound is effective.
Analog video output is turned
off when playback starts.
≥“High Clarity Sound” in setup menu is set to “Enable”, and “High Clarity Sound” in
on-screen menu is set to “On”.
No Video
≥Depending on the connected iPod, video menu may not be available on the TV. Select the
iPod menu (iPod LCD) mode and operate video playback from your iPod menu.
22
13
IP address is not set correctly.
Connection test was
unsuccessful. No reply from
Gateway. Please check the
connection or setting of the
router.
Reference
On the unit’s display
RQT9457
52
52
33
33
36, 38
31
Page
F99
≥The unit fails to operate properly. Press [Í/I] on the main unit to switch the unit to standby
for 3 seconds. Now press [Í/I] on the main unit again to turn the unit on.
—
HDMI ONLY
≥Some BD-Video discs can only be output with HDMI.
—
NET
≥Displays while VIERA CAST is starting up.
—
No PLAY
≥There is a viewing restriction on a BD-Video or DVD-Video.
37
No READ
≥The media is dirty or badly scratched. The unit cannot play.
—
PLEASE WAIT
≥The unit is carrying out internal process.This is not a malfunction. You cannot operate the
unit while “PLEASE WAIT” is displayed.
≥When connected to TV (VIERA) with HDAVI Control 4, and power supply is turned off by
the “Intelligent Auto Standby” function on the TV side.
—
—
REMOVE
≥The USB device is drawing too much power. Remove the USB device.
18
SET 
(“ ” stands for a number.)
≥The remote control and main unit are using different codes. Change the code on the
remote control.
Press and hold [OK] and the indicated number button at the same time
for more than 5 seconds.
51
UNFORMAT
≥You inserted an unformatted DVD-RAM, DVD-RW, +RW, an unused +R, +R DL or
DVD-RW (DVD-Video format).
—
SCBT205EP-RQT9457-R.book 53 ページ 2009年3月30日 月曜日 午後7時7分
On the unit’s display
UNSUPPORT
“[W1]” is flashing.
(when using the optional wireless
accessory: SH-FX70)
U59
U72
U73
H or F
(“ ” stands for a number.)
IPOD OVER CURRENT ERROR
START
UPD/
FINISH
NOT CONDITIONAL
llllllll
Page
≥You have inserted a media the unit cannot play.
≥You tried to operate with a non-compatible USB device.
≥There is no link between this unit and the wireless system. Check that the wireless system
is plugged into the household mains socket and is turned on.
≥Ensure that the digital transmitter is fully inserted into the slot of this unit.
≥If the wireless system is not used, disconnect the digital transmitter from this unit.
≥The unit is hot.
The unit switches to standby for safety reasons. Wait for about 30 minutes until the
message disappears.
Select a position with good ventilation when installing the unit. Do not block the cooling fan
on the rear of the unit.
≥The HDMI connection acts unusually.
– The connected equipment is not HDMI compatible.
– Please use HDMI cables that have the HDMI logo (as shown on the cover).
– The HDMI cable is damaged.
≥Check and correct the speaker cable connections.
≥There is something unusual. (The service number displayed after H and F depends on the
unit’s condition.)
≥Check the unit using the troubleshooting guide. If the service number does not disappear,
do the following.
1 Disconnect the plug from the household mains socket wait a few seconds, then
reconnect it.
2 Press [Í/I] to turn the power on. (The unit may be fixed.)
If the service number does not disappear despite doing the above, request service from
the dealer. Inform the dealer of the service number when requesting service.
≥The iPod is drawing too much power. Remove the iPod, and turn the unit off and on again.
≥The system is being restarted during the firmware update. Please do not turn off power.
≥The firmware is being updated.
≥The firmware update is complete.
≥The requested operation cannot be conducted.
≥The main unit could not save the modified settings. Some settings may need to be reset.
44, 45
45
42
42
—
—
—
9
—
48–51
—
32
32
32
—
—
Frequently asked questions
Setup
Page
Can I connect other speakers?
≥Speakers other than those supplied cannot be used. This system achieves ideal audio
properties through the combination of the main unit and the supplied speakers. Using
other speakers may damage the system and will not produce correct audio
characteristics (e.g., no bass sounds).
—
Can I extend the speaker cables?
≥It is not recommended that you extend the speaker cables. Extending the speaker
cables may damage the speakers, and sound quality will be negatively affected.
—
Can I make the system into a 7.1ch
sound system?
≥You cannot make into a 7.1ch sound system.
This system is a 5.1ch sound system.
—
Can I connect the unit directly to a
computer?
≥This unit cannot be connected directly to a computer.
—
My television has COMPONENT
VIDEO IN terminals and HDMI IN
terminal. Which should I connect with?
≥The different levels of picture quality input are listed below in order from highest to lowest.
HDMI IN )COMPONENT VIDEO IN )VIDEO IN. However, it will take longer for the
picture output to start up when this unit is connected with the HDMI IN terminal.
—
Can I play BD-Video and DVD-Video
bought in another country?
≥You cannot play:
– BD-Video discs that do not include region “B”.
– DVD-Video discs that do not include region “2” or “ALL”.
Refer to the cover of these operating instructions for more information about your region
code and number.
Refer to the disc’s jacket for more information.
Cover
Can BD-Video/DVD-Video that does
not have a region code/number be
played?
≥The region management information for BD-Video/DVD-Video indicates that the disc
conforms to industry standards. You cannot play discs that do not conform to industry
standards or do not have a region code or number.
Please tell me about disc
compatibility with this unit.
≥Refer to “Media (Disc, card and USB device) information” and “About MP3/JPEG/DivX files”.
≥You cannot write to a disc with this unit.
Disc
—
44, 46
—
SD card
What kinds of cards can be used?
≥The following operations are available.
– Play back JPEG data recorded with a digital camera etc.
– Play back AVCHD motion pictures recorded with Panasonic High Definition Video
Camera.
– Play back MPEG2 motion pictures recorded with a Panasonic Standard Definition
Video Camera,
≥If a BD-Video disc supporting BD-Live or BONUSVIEW is used, it is possible to copy
secondary video, etc. from the Internet or disc to the card and play it back together with
the images on the disc, etc.
≥SD Memory Cards (from 8 MB to 2 GB), SDHC Memory Cards (from 4 GB to 32 GB),
miniSD Cards§, and microSD Cards§ can be used.
A miniSD Card and a microSD Card must be used in the adaptor included with the
memory card.
Please confirm the latest information on the following website.
http://panasonic.co.jp/pavc/global/cs
(This site is in English only.)
—
—
—
21
Reference
What kinds of operations are
available on the SD card slot on this
unit?
45
§
RQT9457
53
53
SCBT205EP-RQT9457-R.book 54 ページ 2009年3月30日 月曜日 午後7時7分
Language code list
Enter the code with the numbered buttons.
Abkhazian:
6566
Afar:
6565
Afrikaans:
6570
Albanian:
8381
Amharic:
6577
Arabic:
6582
Armenian:
7289
Assamese:
6583
Aymara:
6589
Azerbaijani:
6590
Bashkir:
6665
Basque:
6985
Bengali; Bangla:
6678
Bhutani:
6890
Bihari:
6672
Breton:
6682
Bulgarian:
6671
Burmese:
7789
Belorussian:
6669
Cambodian:
7577
Catalan:
Chinese:
Corsican:
Croatian:
Czech:
Danish:
Dutch:
English:
Esperanto:
Estonian:
Faroese:
Fiji:
Finnish:
French:
Frisian:
Galician:
Georgian:
German:
Greek:
Greenlandic:
Guarani:
6765
9072
6779
7282
6783
6865
7876
6978
6979
6984
7079
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
Gujarati:
Hausa:
Hebrew:
Hindi:
Hungarian:
Icelandic:
Indonesian:
Interlingua:
Irish:
Italian:
Japanese:
Javanese:
Kannada:
Kashmiri:
Kazakh:
Kirghiz:
Korean:
Kurdish:
Laotian:
Latin:
Latvian, Lettish:
7185
7265
7387
7273
7285
7383
7378
7365
7165
7384
7465
7487
7578
7583
7575
7589
7579
7585
7679
7665
7686
Lingala:
Lithuanian:
Macedonian:
Malagasy:
Malay:
Malayalam:
Maltese:
Maori:
Marathi:
Moldavian:
Mongolian:
Nauru:
Nepali:
Norwegian:
Oriya:
Pashto, Pushto:
Persian:
Polish:
Portuguese:
Punjabi:
Quechua:
7678
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
7865
7869
7879
7982
8083
7065
8076
8084
8065
8185
Rhaeto-Romance:
8277
Romanian:
8279
Russian:
8285
Samoan:
8377
Sanskrit:
8365
Scots Gaelic: 7168
Serbian:
8382
Serbo-Croatian: 8372
Shona:
8378
Sindhi:
8368
Singhalese:
8373
Slovak:
8375
Slovenian:
8376
Somali:
8379
Spanish:
6983
Sundanese:
8385
Swahili:
8387
Swedish:
8386
Tagalog:
8476
Tajik:
8471
Tamil:
Tatar:
Telugu:
Thai:
Tibetan:
Tigrinya:
Tonga:
Turkish:
Turkmen:
Twi:
Ukrainian:
Urdu:
Uzbek:
Vietnamese:
Volapük:
Welsh:
Wolof:
Xhosa:
Yiddish:
Yoruba:
Zulu:
8465
8484
8469
8472
6679
8473
8479
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
Licenses
Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and
other countries.
Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567;
7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending.
DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio | Essential are trademarks of DTS, Inc.
© 1996-2008 DTS, Inc. All Rights Reserved.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this
copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
This product is licensed under the AVC patent portfolio license and VC-1 patent portfolio license for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the AVC Standard and VC-1 Standard (“AVC/VC-1 Video”) and/or (ii) decode AVC/VC-1 Video
that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to
provide AVC/VC-1 Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA,
LLC. See http://www.mpegla.com.
HDAVI Control™ is a trademark of Panasonic Corporation.
“AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.
SDHC Logo is a trademark.
Portions of this product are protected under copyright law and are provided under license by ARIS/SOLANA/4C.
x.v.ColourTM is a trademark.
VIERA CASTTM is a trademark of Panasonic Corporation.
Plays DivX® video
DivX® is a registered trademark of DivX, Inc., and is used under license.
Reference
“Blu-ray Disc” is trademark.
“BD-LIVE” logo is trademark of Blu-ray Disc Association.
“BONUSVIEW” is trademark of Blu-ray Disc Association.
YouTube and Picasa are trademarks of Google, Inc.
iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
RQT9457
54
54
SCBT205EP-RQT9457-R.book 55 ページ 2009年3月30日 月曜日 午後7時7分
Glossary
BD-J
Some BD-Video discs contain Java applications, and these
applications are called BD-J. You can enjoy various interactive
features in addition to playing normal video.
BD-Live
This is a BD-Video (BD-ROM Profile 2) that supports the new functions
such as Internet connection, etc. in addition to the BONUSVIEW
function.
Bitstream
This is the digital form of multi-channel audio data (e.g., 5.1 channel)
before it is decoded into its various channels.
BONUSVIEW (Final Standard Profile)
This is a BD-Video (BD-ROM Profile 1 version 1.1) that supports the
new functions such as Picture-in-picture and Secondary Audio, etc.
Deep Colour
This unit incorporates HDMITM (V.1.3a with Deep Colour) technology
that can reproduce greater colour gradation (4096 steps) when
connected to a compatible TV.
You can enjoy exceptionally rich, natural-looking colours, with smooth,
detailed gradation and minimal colour banding.
[A lower colour gradation (256 steps), without Deep Colour, will be
reproduced if connected to a TV which does not support Deep Colour.
The unit will automatically set appropriate output to suit the connected
TV.]
DivX
DivX is a popular media technology created by DivX, Inc. DivX media
files contain highly compressed video with high visual quality that
maintains a relatively small file size.
DNS Server
A server which acts like a telephone directory and translates Internet
domain names into IP addresses.
DTS-HD High Resolution Audio
This is a signal format achieved by improving the previous DTS,
DTS-ES and DTS 96/24 formats. It is compatible with sampling
frequency 96 kHz/48 kHz. BD-Video supports up to 7.1 channel
output.
DTS-HD Master Audio
This is a lossless audio format and compatible with 96 kHz/7.1ch or
less. In addition, faithful reproduction of the master audio is enabled
using lossless audio encoding technology. BD-Video supports up to
7.1 channel output.
Dynamic range
Dynamic range is the difference between the lowest level of sound that
can be heard above the noise of the equipment and the highest level
of sound before distortion occurs.
Dynamic range compression means reducing the gap between the
loudest and softest sounds. This means you can listen at low volumes
but still hear dialog clearly.
Film and video
DVD-Video are recorded using either film or video. This unit can
determine which type has been used, then uses the most suitable
method of progressive output.
Film:
Recorded at 25 frames per second (PAL discs) or 24
frames per second (NTSC discs). (NTSC discs recorded at
30 frames per second as well.)
Generally appropriate for motion picture films.
Video:
Recorded at 25 frames/50 fields per second (PAL discs) or
30 frames/60 fields per second (NTSC discs). Generally
appropriate for TV drama programs or animation.
Folder
This is a place on the disc, USB device or SD card where groups of
data are stored together. Additional folders can be created within
folders, and you can make detailed classifications depending on the
folder structure. (> 47)
Frames and fields
Frames refer to the single images that constitute the video you see on
your television. Each frame consists of two fields.

Dolby Digital
This is a method of coding digital signals developed by Dolby
Laboratories. Apart from stereo (2-channel) audio, these signals can
also be multi-channel audio.
Dolby Digital Plus
Multi-channel audio and higher audio quality is made possible using
Dolby Digital Plus. BD-Video supports up to 7.1 channel output.
Dolby Pro Logic II
Dolby Pro Logic II enables you to play stereo sources on 5.1-channel.
Dolby TrueHD
Dolby TrueHD is a very high quality audio format that reproduces the
studio master audio. BD-Video supports up to 7.1 channel output.
r
Frame
Field
Field
≥A frame still shows two fields, so there may be some blurring, but
picture quality is generally better.
≥A field still shows less picture information so it may be rougher, but
there is no blurring.
Gateway
IP address of the electronic device providing Internet access.
Usually called a router IP address. (e.g., 192.168.0.1)
HDMI (High-Definition Multimedia Interface)
HDMI is a digital interface for consumer electronic products. Unlike
conventional connections, it transmits uncompressed digital video and
audio signals on a single cable.
Down-mixing
This is the process of remixing the multi-channel audio found on some
discs into fewer channels.
Hub
Used for connecting more than one device to the network.
DTS (Digital Theater Systems)
This surround system is used in many movie theaters. There is good
separation between the channels, so realistic sound effects are
possible.
IP address
A set of numbers which distinguish each device on the network when,
for example, connected to the Internet. When using a PC in a LAN to
access a PC or device that is not included in the LAN, the IP address
is called the local IP address. (e.g., 192.168.0.10)
DTS-HD
DTS-HD is a high-quality, sophisticated audio format used in movie
theaters. Previous DTS Digital Surround-compatible equipment can
play DTS-HD as DTS Digital Surround audio. BD-Video supports up to
7.1 channel output.
Reference
AVCHD
AVCHD is a new format (standard) for high definition video cameras
that can be used to record and play high-resolution HD images.
RQT9457
55
55
SCBT205EP-RQT9457-R.book 56 ページ 2009年3月30日 月曜日 午後7時7分
Glossary
JPEG (Joint Photographic Experts Group)
This is a system used for compressing/decoding colour still pictures. If
you select JPEG as the storage system on digital cameras, etc., the
data will be compressed to 1/10–1/100 of its original size. The benefit
of JPEG is less deterioration in picture quality considering the degree
of compression.
LAN (Local Area Network)
A group of linked devices in a company, school or home.
Indicates the boundaries of a particular network.
Local storage
This storage area is used as a destination for sub contents for playing
BD-Live on BD-Video.
LPCM (Linear PCM)
These are a kind of PCM format.
These are uncompressed digital signals, similar to those found on
CDs.
MPEG2 (Moving Picture Experts Group)
A standard for efficiently compressing and expanding colour video.
MPEG2 is a compression standard used for DVD and satellite based
digital broadcasting.
VIERA CAST
An information service unique with Panasonic where specific Web
sites can be viewed on this unit by connecting to the Internet without
using a PC.
Pan&Scan/Letterbox
In general, DVD-Video are produced with the intention that they be
viewed on a widescreen television (16:9 aspect ratio), so images often
don’t fit regular (4:3 aspect ratio) televisions. Two styles of picture,
“Pan & Scan” and “Letterbox”, deal with this problem.
x.v.ColourTM
x.v.ColourTM is a name for devices that are compatible with the xvYCC
format, an international standard for expanded colour in motion
pictures, and that follow the rules for signal transmission.
You can enjoy vivid colours of wider colour ranges for a more realistic
picture when connected to a TV that supports the x.v.ColourTM with
HDMI cable.
Picture-in-picture
This is a function of BD-Video that plays the primary video and
secondary video simultaneously. For instance, the function is capable
of playing the original movie as the primary video while playing video
commentary from the film director on a small screen as a secondary
video.
Reference
Subnet mask
Enables efficient network use. A set of numbers which identify which
part of the IP address allocated to every device connected to the
router is the network portion.
MP3 (MPEG Audio Layer 3)
An audio compression method that compresses audio to
approximately one tenth of its size without any significant loss of audio
quality.
PCM (Pulse Code Modulation)
This is one format for converting analogue audio into digital audio,
enabling you to enjoy digital audio with no hassle.
56
Sampling frequency
Sampling is the process of converting the heights of sound wave
(analogue signal) samples taken at set periods into digits (digital
encoding). Sampling frequency is the number of samples taken per
second, so larger numbers mean more faithful reproduction of the
original sound.
USB (Universal Serial Bus)
An interface specification to connect peripherals. Playback of MP3,
JPEG, or DivX recorded to a USB memory by PC or other equipment,
or JPEG in the Panasonic digital camera or similar connected via USB
connection cable is possible with this unit.
Letterbox: Black bands appear at the top and bottom
of the picture so the picture itself appears
in an aspect ratio of 16:9.
56
Router
Distinguishes the IP address assigned to each device, such as the PC,
and relays the flow of data within the network.
MPEG-4 AVC/H.264
A standard for efficiently compressing and expanding colour video.
MPEG-4 AVC/H.264 is an encoding method used for recording of the
high definition videos.
Pan&Scan:The sides are cut off so the picture fills the
screen.
RQT9457
P4HD (Pixel Precision Progressive Processing for HD)
This is a processor which makes use of an exclusive Panasonic
algorithm. Various processing is supported, including a high-level
conversion of the TV scanning format from interlace to progressive
and a high-level conversion of standard resolution (480i or 576i) video
signal to a 1080 High Definition video signal.
Consequently, this unit is able to provide video of optimal resolution to
the connected TV.
Progressive/Interlace
The PAL video signal standard has 625 (or 576) interlaced (i) scan
lines, whereas progressive scanning, called 625p (or 576p), uses
twice the number of scan lines. For the NTSC standard, these are
called 525i (or 480i) and 525p (or 480p) respectively.
Using progressive output, you can enjoy the high-resolution video
recorded on media such as DVD-Video.
Your television must be compatible to enjoy progressive video.
Panasonic televisions with 625 (576)/50i · 50p, 525 (480)/60i · 60p
input terminals are progressive compatible.
1080i (1125i)
In one high definition image, 1080 (1125) alternating scan lines pass to
create an interlaced image. Because 1080i (1125i) more than doubles
current television broadcasts of 480i, the detail is much clearer and
creates a more realistic and rich image.
1080p (1125p)
In one high definition image, 1080 (1125) scan lines pass at the same
time to create a progressive image. Since progressive video does not
alternate scan lines like interlace, there is a minimal amount of screen
flicker.
24p
This is a progressive image recorded at a rate of 24 frames per
second.
720p (750p)
In one high definition image, 720 (750) scan lines pass at the same
time to create a progressive image. Since progressive video does not
alternate scan lines like interlace, there is a minimal amount of screen
flicker.
SCBT205EP-RQT9457-R.book 57 ページ 2009年3月30日 月曜日 午後7時7分
Specifications
SPEAKER SECTION
∫ Front speakers
SB-HF770
Type
1 way, 1 speaker system (Bass reflex)
Full range
6.5 cm Cone type (Bamboo Cone)
Impedance/Input power (IEC)
3 ≠/125 W (Max) *1
Output sound pressure
79 dB/W (1.0 m)
Frequency range
80 Hz to 25 kHz (j16 dB)
90 Hz to 22 kHz (j10 dB)
Dimensions (WtHtD)
255 mmt1020 mmt255 mm
Mass
Approx. 2.3 kg
∫ Surround speakers
SB-HS870
Type
1 way, 1 speaker system (Bass reflex)
Full range
6.5 cm Cone type
Impedance/Input power (IEC)
3 ≠/125 W (Max) *1
Output sound pressure
79 dB/W (1.0 m)
Frequency range
80 Hz to 25 kHz (j16 dB)
90 Hz to 22 kHz (j10 dB)
Dimensions (WtHtD)
255 mmt1020 mmt255 mm
Mass
Approx. 2.3 kg
AMPLIFIER SECTION
RMS TTL Power Output
1000 W
Front Ch
125 W per channel (3 ≠), 1 kHz, 10 % THD
Surround Ch
125 W per channel (3 ≠), 1 kHz, 10 % THD
Center Ch
250 W per channel (3 ≠), 1 kHz, 10 % THD
Subwoofer Ch
250 W per channel (3 ≠), 100 Hz, 10 % THD
DIN TTL Power Output
470 W
Front Ch
65 W per channel (3 ≠), 1 kHz, 1.0 % THD
Surround Ch
65 W per channel (3 ≠), 1 kHz, 1.0 % THD
Center Ch
105 W per channel (3 ≠), 1 kHz, 1.0 % THD
Subwoofer Ch
105 W per channel (3 ≠), 100 Hz, 1.0 % THD
Audio Input
AUX
k1
Digital Audio Input
Optical
k2
Sampling frequency
32 kHz, 44.1 kHz, 48 kHz
Audio Format
PCM, Dolby Digital
FM TUNER SECTION
Frequency range
Antenna terminals
87.50 to 108.00 MHz (50-kHz step)
75 ≠ (unbalanced)
∫ Center speaker
SB-HC300
Type
1 way, 2 speaker system (Bass reflex)
Full range
6.5 cm Cone type k 2 (Bamboo Cone)
Impedance/Input power (IEC)
3 ≠/250 W (Max) *1
Output sound pressure
82 dB/W (1.0 m)
Frequency range
82 Hz to 25 kHz (j16 dB)
99 Hz to 22 kHz (j10 dB)
Dimensions (WkHkD)
250 mmk94.5 mmk81 mm
Mass
Approx. 1.15 kg
∫ Subwoofer
SB-HW200
Type
1 way, 1 speaker system (Kelton type)
1. Woofer
16 cm Cone type
2. Passive Radiator
25 cm
Impedance/Input power (IEC)
3 ≠/250 W (Max)
Output sound pressure
78 dB/W (1.0 m)
Frequency range
35 Hz to 200 Hz (j16 dB)
40 Hz to 198 Hz (j10 dB)
Dimensions (WkHkD)
181 mmk361 mmk315 mm
Mass
Approx. 4.7 kg
Reference
*1 Rating with the low cut filter equipped amplifier.
RQT9457
57
57
SCBT205EP-RQT9457-R.book 58 ページ 2009年3月30日 月曜日 午後7時7分
Specifications
DISC SECTION
VIDEO SECTION
Playable disc:
BD-Video:BD-ROM Version 2
BD-RE: Version 3 (Single Layer, Dual Layer), JPEG*6
BD-R
Version 2 (Single Layer, Dual Layer)
DVD-RAM:
DVD Video Recording format,
AVCHD format*7, JPEG*4
DVD-R/DVD-R DL:
DVD-Video format*1, DVD Video Recording format*1,
AVCHD format*1, 7, JPEG*4, MP3, DivX*8
DVD-RW:
DVD-Video format*1, DVD Video Recording format*1,
AVCHD format*1, 7
+R/+RW/+R DL:
Video*1, AVCHD format*1, 7
DVD-Video:
DVD-Video format
CD-Audio:
CD-DA
CD-R/CD-RW:
CD-DA, JPEG*5, MP3, DivX*8
Optical pick-up:
System with 2 lenses
Wave length:
782 nm (CDs)/662 nm (DVDs)/405 nm (BDs)
LASER Specification:
Class 1 LASER Product
Wave length:
782 nm (CDs)/662 nm (DVDs)/405 nm (BDs)
Laser power:
No hazardous radiation is emitted with the safety
protection
SD CARD SECTION
SD card slot:
SD card:
Connector (1 system)
SD Memory Card*2 formatted FAT12, FAT16, FAT32*3:
JPEG*4, AVCHD format*7, MPEG2
≥Usable capacity will be less (SD Card).
USB DEVICE SECTION
USB slot:
USB Standard:USB 2.0 High Speed
Format:
Connector (1 system)
MP3, JPEG*4, DivX*8
FAT12, FAT16, FAT32
Reference
*1 Finalizing is necessary.
*2 includes SDHC card
includes miniSD cards (need a miniSD Adaptor)
includes microSD cards (need a microSD Adaptor)
*3 Does not support long file name
*4 The total combined maximum number of recognizable picture
contents and folders: 3000 picture contents and 300 folders.
*5 The total combined maximum number of recognizable picture
contents and folders: 999 picture contents and 99 folders.
*6 The total combined maximum number of recognizable picture
contents and folders: 9999 picture contents and 300 folders.
*7 AVCHD format V1.0
*8 The total combined maximum number of recognizable file contents
and folders: 200 file contents and 300 folders.
RQT9457
58
58
Signal system:
PAL/NTSC
Video output
Output level:
1.0 Vp-p (75 ≠)
Output connector:
Pin jack (1 system)
Component video output
(1080i/720p/480p/480i)
Y output level:
1.0 Vp-p (75 ≠)
0.7 Vp-p (75 ≠)
PB output level:
0.7 Vp-p (75 ≠)
PR output level:
Output connector: Pin jack (Y: green, PB: blue, PR: red) (1 system)
HDMI AV output
Output format:
480p (525p)/576p (625p)/720p (750p)/1080i (1125i)/
1080p(1125p)
Output connector:
Type A (19 pin)
TM (V.1.3a with Deep Colour, x.v.ColourTM, High Bit rate Audio)
HDMI
This unit supports “HDAVI Control 4” function.
NETWORK SECTION
Ethernet
10BASE-T/100BASE-TX (1 system)
GENERAL
Power supply
iPod Connector
Power consumption
Power consumption in standby mode
Dimensions (WkHkD)
AC 220 to 240 V, 50 Hz
DC OUT 5 V 500 mA MAX
120 W
approx. 0.3 W
430 mmk63 mmk327 mm
Approx. 3.7 kg
(Dimensions and Mass do not include the speakers.)
Operating temperature range
0 oC to r40 oC
Operating humidity range
35 % to 80 % RH (no condensation)
Mass
Specifications are subject to change without notice.
NOTE
Reference
SCBT205EP-RQT9457-R.book 59 ページ 2009年3月30日 月曜日 午後7時7分
RQT9457
59
59
