Panasonic SCEH680 Operating Instructions
System Component
Operating Instructions
Model No.
H
SLEEP PROGRAM CANCEL
2
1
5
4
8
7
TEST
SC-EH780
SC-EH680
SC-EH580
3
DISC
6
j/-/--
9
0
UPRO LOGIC SUPER SRND
3D AI
EQ
CH SELECT
AV EFFECT
SUPER
SOUND EQ
DIGITAL
S.WOOFER
VCR/AUX/ TAPE/
6CH INPUT DECK 1/2
CD
⁄/g
»
TUNER/
BAND
¤
M
MUTING
∂
VOLUME
N
µ

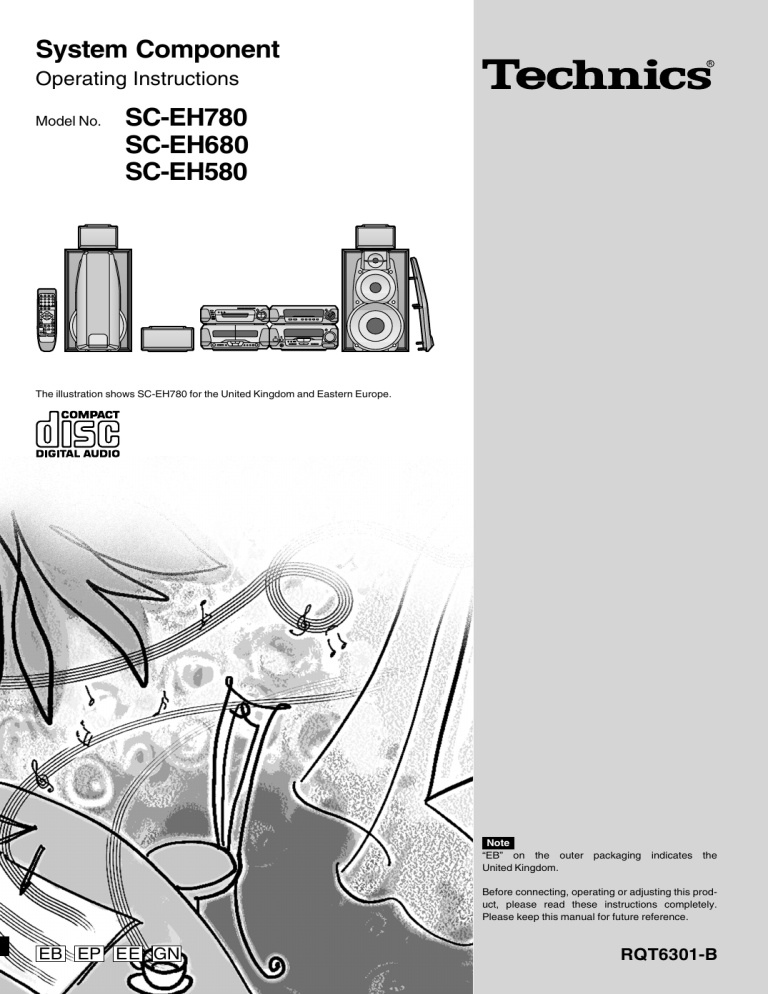

The illustration shows SC-EH780 for the United Kingdom and Eastern Europe.
Note
“EB” on the outer packaging indicates the
United Kingdom.
Before connecting, operating or adjusting this product, please read these instructions completely.
Please keep this manual for future reference.
EB EP EE GN
RQT6301-B
Dear customer
Supplied accessories
Before use
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
These operating instructions are applicable to the following systems.
These operating instructions, however, fundamentally explain the
operation of system SC-EH780.
[EH780]: indicates a function which can be enjoyed with SC-EH780 only.
[EH680]: indicates a function which can be enjoyed with SC-EH680 only.
[EH580]: indicates a function which can be enjoyed with SC-EH580 only.
System
¸ AC mains lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
For the United Kingdom
For Australia and N.Z.
(RJA0053-3X)
(RJA0035-2X)
SC-EH780 SC-EH680 SC-EH580
Sound processor
SH-EH780
SH-EH680
SH-EH580
Tuner / amplifier
SA-EH780
SA-EH680
SA-EH580
CD changer
SL-EH780
—
—
CD player
—
SL-EH680
SL-EH680
Cassette deck
RS-DV280
RS-DV280
RS-DV280
Front
SB-DV280
SB-EH680
SB-EH580
Center
SB-PC95
SB-PC94
—
Surround
SB-PS95
SB-PS95
—
Speakers
Please check and identify the supplied
accessories.
Use numbers indicated in parentheses when
asking for replacement parts.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
For Eastern Europe
(RJA0019-2X)
Note
The included AC mains lead is for use with this unit only. Do not
use it with other equipment.
¸ Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
[EH780] for the United Kingdom
[EH780] for Australia and N.Z.
and Eastern Europe
(EUR7702060)
(EUR7702050)
[EH680]
(EUR7702170)
[EH580]
(EUR7702070)
¸ Remote control batteries . . . . . . . . . . . . . . . . . . . . . . . . 2 pcs.
CLASS 1
LASER PRODUCT
CD changer or CD player
(Back of product)
¸ FM indoor antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
For the United Kingdom
For Australia and N.Z.
and Eastern Europe
(RSA0006-J)
(RSA0007)
¸ AM loop antenna set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 set
(RSA0022-L)
DANGER
ADVARSEL
INVISIBLE LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURE TO BEAM.
USYNLIG LASERSTRÅLING VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE
ER UDE AF FUNKTION. UNDGÅ UDSÆTTELSE FOR STRÅLING.
VARO!
AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTÖNTÄ LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH
SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN.
¸ Speaker leads
(REE1057) . . . . . 2 pcs.
USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES OG SIKKERHEDSLÅS
ADVARSEL BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN.
UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET.
VORSICHT NICHT DEM STRAHL AUSSETZEN.
(Red/Black)
(Inside of product)
This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.
RQT6301
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
2
(REE0853) . . . . . . . . . . 2 pcs.
[EH780] [EH580]
(Gray/Blue)
¸ Antenna plug adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
Only for the United Kingdom
(SJP9009)
Table of contents
Safety precautions
Placement
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Caution for AC Mains Lead . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Simple set-up and play
Locating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speaker leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flat cables and AC mains lead . . . . . . . . . . . . . . . . . .
Listening to a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
6
7
7
8
Control guide and preparatory steps
Front panel controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turning DEMO off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
12
13
13
Basic operations
CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The radio: manual tuning . . . . . . . . . . . . . . . . . . . . . . . . . .
The radio: preset tuning . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cassette tapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
17
18
19
Changing sound field and quality
Boosting the super woofer . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the super sound equalizer . . . . . . . . . . . . . . . . . . . . 20
Changing sound field and quality . . . . . . . . . . . . . . . . . . . . 20
Using the acoustic image equalizer (AI EQ) . . . . . . . . . . . . . . . . . . . 21
Using the manual equalizer (M.EQ) . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Enjoying surround sound . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6CH DISCRETE INPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
DOLBY PRO LOGIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
SUPER SURROUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Surround effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Voltage
Do not use high voltage power sources. This can overload the unit and
cause a fire.
Do not use a DC power source. Check the source carefully when setting
the unit up on a ship or other place where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not damaged. Poor
connection and lead damage can cause fire or electric shock. Do not pull,
bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC mains
lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric shock
or malfunction.
Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain flammable
gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered
in these instructions occurs, disconnect the AC mains lead and contact
your dealer or an authorized service center. Electric shock or damage to
the unit can occur if the unit is repaired, disassembled or reconstructed by
unqualified persons.
Extend operating life by disconnecting the unit from the power source if it
is not to be used for a long time.
WARNING:
Recording operations
Before recording (Deck 2 only) . . . . . . . . . . . . . . . . . . . . . .
Recording CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tape-to-tape recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can
damage the cabinet and other components, thereby shortening the unit’s
service life.
Place it at least 15 cm away from wall surfaces to avoid distortion and
unwanted acoustical effects.
Do not place heavy items on the unit.
Before use
Before use
28
29
30
30
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR
SPLASHING AND THAT NO OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON
THE APPARATUS.
Timer operations and convenient functions
31
34
34
34
35
36
37
37
References
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cassette tape selection and care . . . . . . . . . . . . . . . . . . . . 39
Technical specifications . . . . . . . . . . . . . . . . . . . Back cover
CAUTION!
³DO NOT INSTALL, OR PLACE THIS UNIT, IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC
SHOCK OR FIRE HAZARD DUE TO OVERHEATING,
ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
³DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.
³DO NOT PLACE SOURCES OF NAKED FLAMES,
SUCH AS LIGHTED CANDLES, ON THE UNIT.
³DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.
RQT6301
Using the timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the sound range display . . . . . . . . . . . . . . . . . . .
Muting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enjoying karaoke (For Australia and N.Z.) . . . . . . . . . . . . .
External unit connections . . . . . . . . . . . . . . . . . . . . . . . . .
Optional antenna connections . . . . . . . . . . . . . . . . . . . . .
Using other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
Caution for AC Mains Lead
(For United Kingdom)
(“EB” area code model only)
Before use
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains
plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that
the replacement fuse has a rating of 5-ampere and that it
is approved by ASTA or BSI to BS1362.
Check for the ASTA mark m or the BSI mark o on the
body of the fuse.
If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your
local dealer.
WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E, BY THE EARTH SYMBOL n OR COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC
mains plug (figures A and B). Confirm the AC mains plug
fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN
YOUR HOME THEN THE FUSE SHOULD
BE REMOVED AND THE PLUG CUT OFF
AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG
IS INSERTED INTO ANY 13-AMPERE
SOCKET.
If a new plug is to be fitted please observe the wiring code
as stated below.
If in any doubt please consult a qualified electrician.
Figure B
Fuse cover
IMPORTANT
The wires in this mains lead are coloured in accordance
with the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
The wire which is coloured Blue must be connected to the
terminal which is marked with the letter N or coloured
Black or Blue.
The wire which is coloured Brown must be connected to
the terminal which is marked with the letter L or coloured
Brown or Red.
2. Replace the fuse and close or attach the fuse
cover.
Figure A
Fuse
(5 ampere)
Figure B
RQT6301
Fuse
(5 ampere)
4
Simple set-up and play
Locating
The illustrations show SC-EH780 for the United Kingdom and Eastern Europe.
Components
CD changer or
CD player
Speakers
Optimum location
Distance: A=B=C=D=E
Sound processor
Front speaker (left)
Cassette deck
[EH780] [EH680]
Center speaker
Tuner/amplifier
A
B
Front speaker (right)
Simple set-up and play
1
STEP
C
Sound processor
D
Tuner/amplifier
E
CD changer or CD player
Cassette deck
[EH780] [EH680]
Surround speaker (left)
Caution
³Use the speakers only with the recommended system.
Failure to do so may lead to damage to the amplifier and/or the
speakers, and may result in the risk of fire.
Consult a qualified service person if damage has occurred or if
you experience a sudden change in performance.
³Do not attempt to attach these speakers to walls using methods
other than those described in this manual.
If irregular colouring occurs on your television
These speakers are designed to be used close to a television, but the
picture may be affected with some televisions and set-up combinations.
If this occurs, turn the television off for about 30 minutes.
The television’s demagnetizing function should correct the problem.
If it persists, move the speakers further away from the television.
Use only the supplied speakers.
Using other speakers can damage the unit and sound quality will be negatively affected.
Front speakers
Left and right front speakers are exactly same.
Surround speakers
Place either side of the listening position, or slightly to the rear, about 1
meter higher than ear level with the Technics logo facing toward the listening position.
The effect varies with the type of music and the music source.
If you are unable to position the surround speakers as recommended
You can put them near the front speakers and still achieve a surroundlike effect (á page 26, VIRTUAL REAR SURROUND).
Attaching to a wall
Set the speaker onto screws and slide through bracket to lock into position.
70 mm
30–35 mm
Ø7.5–9.5 mm
7–9 mm
Note
The wall or pillar on which the speakers are to be attached should be
capable of supporting 5 kC per screw.
RQT6301
Note
Do not put the CD changer or CD player on the top
of the tuner/amplifier. Heat can damage your CDs.
[EH780] [EH680]
Surround speaker (right)
5
Simple set-up and play
2
STEP
The illustrations show SC-EH780 for the United Kingdom and Eastern Europe.
Do not connect the AC mains lead until all other connections are complete.
Speaker leads
[EH780] [EH680]
Surround and center speakers
Center speaker
CENTER
Simple set-up and play
Surround speaker (left)
Surround speaker
(right)
SURROUND
L
R
Right
Front speaker
Connect the leads to the terminals of the
same colour.
LF and HF stand for low frequency and
high frequency.
Left
Speaker side
Tuner/amplifier side
[EH780] [EH580]
[EH780] [EH580]
Grey
Red Grey
HF
Blue
Grey
Connect the left (L) side in the same
way.
Note
³Never short-circuit positive (r) and negative (s) speaker wires.
³Be sure to connect only positive (red or
grey) wires to positive (r) terminals and
negative (black or blue) wires to negative
(s) terminals.
Incorrect connection can damage the
speakers.
Red
Black
LF
Black
Blue
HF
HF (8L™F) (6™)
LF (6
™)
Blue
(8™)
Red
R
[EH680]
Black
Blue
Red
Red
[EH680]
Black
Red
Twist the vinyl tip and pull off.
Grey
L
Black
Red
Black
(6™)
R
(6™)
L
RQT6301
Black
6
Red
Black
3
Antennas
STEP
FM indoor antenna
For Australia and N.Z.
Fix the other end of the antenna where reception is best.
Twist the vinyl tip and pull off.
Simple set-up and play
Adhesive tape
AM indoor antenna
Keep loose antenna cord away
from other wires and cords.
Twist the vinyl tip and pull off.
4
STEP
Flat cables and AC mains lead
Connecting
Flat cables
Disconnecting
Keep the cables as flat as possible against the back of the unit.
Connect the connectors to the terminals of the same colour.
Incorrect connection can damage the unit.
B1
A1
B2
To household
mains socket
AC mains lead
Insertion of connector
Even when the connector is perfectly inserted, depending on the type of inlet
used, the front part of the connector may
jut out as shown in the drawing.
However there is no problem using the unit.
Appliance inlet
Connector
Approx. 6 mm
For your reference:
Information you enter into the unit’s memory, except for time, remains
intact for up to two weeks after the mains lead is disconnected.
RQT6301
(For the United Kingdom only)
BE SURE TO READ THE CAUTION FOR THE AC
MAINS LEAD ON PAGE 4 BEFORE CONNECTION.
7
Simple set-up and play
[EH780]
— Listening to a CD —
1
Press DIRECT OPEN [DISC1]–
[DISC5] and insert a CD.
Simple set-up and play
2
Press [ê/I] to turn the unit on.
Label must face upward.
DISC
1
2
3
4
5
3
Press [<, OPEN/CLOSE] to close the tray.
Repeat steps 2 and 3 to load the other trays.
Displayed when the unit is in CD mode.
DISC
Disc number Total number
of tracks
Total playing time
4
Press [!] to start play.
Play starts from the first track on the disc in
the play position and finishes at the end of the
last track on the final disc (see below).
You can start play from another disc by
pressing [DISC, 1–5].
5
Adjust the volume.
DISC
Track number
RQT6301
-- dB
MIN
To stop the disc
Final disc
Press [º].
For example, if play starts from disc 4, disc 3 will be the final disc.
Order of progression: Disc 4>5>1>2>3
To pause play
8
Elapsed play time
Press [;] during play. The “!” indicator flashes.
Press [;] or [!] to resume play.
Note
You can not change CDs in other trays while a disc is playing.
0 dB
MAX
Play position
³The disc in the play position is ready to play immediately when you
press [!].
³“NO DISC” is displayed when a disc isn’t in the play position.
[EH680] [EH580]
1
The illustration shows SC-EH580 for the United Kingdom and Eastern Europe.
Press [<, OPEN/CLOSE] and
insert a CD.
Simple set-up and play
2
Press [ê/I] to turn the unit on.
Label must face upward.
3
Press [<, OPEN/CLOSE] to close the tray.
Displayed when the unit is in CD mode.
Total number of tracks
Total playing time
4
Press [!] to start play.
Track number
Elapsed play
time
5
Adjust the volume.
-- dB
MIN
To stop the disc
0 dB
MAX
“NO DISC” is displayed when a disc isn’t in the player.
Press [º].
Press [;] during play. The “!” indicator flashes.
Press [;] or [!] to resume play.
RQT6301
To pause play
9
Front panel controls
A
EH780
1
2 345 6
7 8
9
;
DIGITAL
S.WOOFER
VOLUME
UP
FPLAY/FREC
Í
CLOCK/
TIMER
Í/I
FM AUTO/
6CH
MONO DISCRETE INPUT
sDEMO
TUNING MODE
PHONES
SET
INPUT SELECTOR
TUNER/BAND
DOWN
X
W
TUNING
KARAOKE
ECHO
MIC VOL
MIC
1
=> ?
@
<
2
MIN
MAX
C D
AB
EH680
1
2 345 6
:
7 8
;
MUTING
VOLUME
UP
FPLAY/FREC
Control guide and preparatory steps
Í
CLOCK/
TIMER
Í/I
INPUT SELECTOR
FM AUTO/
MONO
sDEMO
TUNING MODE
PHONES
TUNER/BAND
DOWN
SET
X
TUNING
W
PS
RDS
DISP MODE
1 Standby/on switch (ê/I) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
2 Standby indicator (ê)
When the unit is connected to the AC mains supply, this indicator lights
up in standby mode and goes out when the unit is turned on.
3 Play timer/record timer button and indicator
(.PLAY/.REC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31, 32
4 Clock/timer button (CLOCK/TIMER) . . . . . . . . . . . . . . . . 13, 31, 32
5 Demo button (–DEMO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6 FM mode button (FM AUTO/MONO) . . . . . . . . . . . . . . . . . . . . . . 17
7 Source input button (INPUT SELECTOR) . . . . . . . . . . . . . . . . . . 37
8 Tuner/band button (TUNER/BAND) . . . . . . . . . . . . . . . . . . . . . . . 17
9 [EH780] [EH580]
Digital super woofer button and indicator
(DIGITAL S.WOOFER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
: [EH680]
Muting button and indicator (MUTING) . . . . . . . . . . . . . . . . . . . . 34
; Volume control (VOLUME) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
< Headphone jack (PHONES) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
= Tuning mode button (TUNING MODE) . . . . . . . . . . . . . . . . . . . . 17
> Set button (SET) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 18
? Tuning buttons (X, W TUNING) . . . . . . . . . . . . . . . . . . . . . . . . . 13, 17
PTY
@ [EH780]
6ch discrete input button (6CH DISCRETE INPUT) . . . . . . . . . . 24
=>
<
A [EH780\for\the\United\Kingdom\and\Eastern\Europe\
]EH680]
[EH580\for\areas\except\the\United\Kingdom]
RDS display mode button (RDS, PS–DISP MODE–PTY) . . . . . . 17
A
?
EH580
1
2 345 6
7 8
9
;
DIGITAL
S.WOOFER
VOLUME
[EH780\for\Australia\and\N.Z.\
B Karaoke and echo buttons (KARAOKE, ECHO) . . . . . . . . . . . . . 35
C Microphone jacks (1–MIC– 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
D Microphone volume control (MIC VOL) . . . . . . . . . . . . . . . . . . . . 35
UP
B CD changer/CD player
»
FPLAY/FREC
Í
CLOCK/
TIMER
Í/I
sDEMO
INPUT SELECTOR
FM AUTO/
MONO
TUNING MODE
PHONES
TUNER/BAND
DOWN
SET
=>
<
X
TUNING
W
PS
RDS
DISP MODE
PTY
E
F
G
H
I
J
K
L
M
A
?
B
EH780
E FG
HI
DIRECT OPEN
DISC 1
DISC 2
DISC 3
DISC 4
DISC 5
DISC
<
RANDOM
REPEAT
EDIT
2
6
5/9
/9
3
∫
4
;
5
J
N
EH680
EH580
K L M
O
E FG H I
RANDOM
REPEAT
EDIT
OPEN/CLOSE
<
5/9
6
/9
∫
RQT6301
;
J
Random play button (RANDOM) . . . . . . . . . . . . . . . . . . . . . . . . . 16
Repeat play button (REPEAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
CD edit button (EDIT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Disc tray open/close button (<, OPEN/CLOSE) . . . . . . . . . . . . 8, 9
Skip/search buttons (", #) . . . . . . . . . . . . . . . . . . 14
Disc tray
Stop button (º) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 9
Pause button (;) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 9
Play button and indicator (!) . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 9
The colour of the indicator depends on the operation taking place.
If stopped: orange
If playing: green
If paused: flashes
OPEN/CLOSE
1
10
A Tuner/amplifier
»
K L M
[EH780]
N Disc select buttons and indicators (DISC, 1–5) . . . . . . . . . . . . . . 8
Green: Indicates that the tray is ready to play its CD or to be opened.
O Disc direct open buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
(DIRECT OPEN, DISC 1–DISC 5)
Front panel controls
A
A Cassette deck
»
Q
P
R
6
<OPEN
5
DECK 1/2
COUNTER
RESET
S
DOLBY NR REV MODE TAPE EDIT
∫
T
V
W
<OPEN
µREC
PAUSE
P
Q
R
S
T
U
DISPLAY
U V W X YZ [ \
X
Y
Z
[
\
B
Deck 1 cassette holder open button (< OPEN) . . . . . . . . . . . . .
Deck 1
Fast forward/rewind, TPS buttons (6, 5) . . . . . . . . . . . . . .
Deck 2
Deck 2 cassette holder open button (< OPEN) . . . . . . . . . . . . .
Counter reset, display buttons
(COUNTER, RESET, DISPLAY) . . . . . . . . . . . . . . . . . . . . . . . . . .
Deck 1/deck 2 select button (DECK 1/2) . . . . . . . . . . . . . . . . . . .
Playback buttons and indicators (", !) . . . . . . . . . . . . . . . . . .
The colour of the indicators depends on the operation taking place.
If stopped, fast forwarding or rewinding: orange
If playing or recording: green
While carrying out TPS or recording is on standby: flashes
Stop button (º) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dolby noise reduction button (DOLBY NR) . . . . . . . . . . . . . . . .
Reverse mode button (REV MODE) . . . . . . . . . . . . . . . . . . . . . . .
Tape edit button (TAPE EDIT) . . . . . . . . . . . . . . . . . . . . . . . . . . .
Record pause button (´ REC PAUSE) . . . . . . . . . . . . . . . . . . . .
19
19
19
28
19
19
19
19
19
30
29
B Sound processor
»
]
^
_
`
SUPER
3D AI EQ
MULTI JOG
DISPLAY MODE
ÎPRO LOGIC
SUPER
SURROUND
OFF/ON
SUPER
SOUND EQ
CENTER
FOCUS
VIRTUAL REAR MULTI REAR
SURROUND SURROUND
SEAT
POSITION
DSP CONTROL
e f
abc d
g
EH680
^
]
d
_
SUPER
3D AI EQ
MULTI
CONTROL
] Display mode button (DISPLAY MODE) . . . . . . . . . . . . . . . . . . . 34
^ Display
_ Super sound EQ button (SUPER SOUND EQ) . . . . . . . . . . . . . . 20
[EH780]
` Jog control and joystick (2, 1, 3, 4, MULTI JOG) . . . . . . . . .
a Virtual rear surround button and indicator
(VIRTUAL REAR SURROUND) . . . . . . . . . . . . . . . . . . . . . . . . . . .
b Multi rear surround button and indicator
(MULTI REAR SURROUND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
c Seat position button and indicator (SEAT POSITION) . . . . . . . .
[EH780] [EH680]
d Super 3D AI EQ button (SUPER 3D AI EQ) . . . . . . . . . . . . . . . . .
e DOLBY PRO LOGIC button and indicator
(ëPRO LOGIC, OFF/ON) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
f Super surround button and indicator
(SUPER SURROUND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
g Center focus button and indicator
(CENTER FOCUS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control guide and preparatory steps
EH780
20
26
26
27
21
24
24
26
[EH680]
h AI EQ/Manual EQ button (AI EQ/M. EQ) . . . . . . . . . . . . . . . . 21, 22
EQ
DISPLAY MODE
ÎPRO LOGIC
SUPER
SURROUND
OFF/ON
CENTER
FOCUS
SUPER
SOUND EQ
AI EQ/
M.EQ
DSP CONTROL
e f
g
i j
h
[EH680] [EH580]
i Multi control buttons
(2, 1, 3, 4, MULTI CONTROL) . . . . . . . . . . . . . . . . . . . . . . . . . 21
j EQ button (EQ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
[EH580]
k AI EQ button (AI EQ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
l Manual EQ buttons (M1, M2, M3) . . . . . . . . . . . . . . . . . . . . . . . . . 22
m Flat button (FLAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
EH580
]
^
FLAT
MULTI
CONTROL
EQ
DISPLAY MODE
SUPER
SOUND EQ
AI EQ
M1
M2
M3
MANUAL EQ
i j
l
m
RQT6301
_
k
11
A
Front panel controls
The illustration shows the remote control for SC-EH780 for
Australia and N.Z.
A Remote control
»
n
Buttons such as function in the same way as the controls on the main
unit.
t
Í
SLEEP PROGRAM CANCEL
u
1
1
2
3
DISC
4
5
6
L/-/--
7
8
9
0
|
o
TEST
~
e
ÎPRO LOGIC SUPER SRND
r
s
t
u
v
w
x
y
f
SUPER
3D AI EQ
md
z°
EQ
p
CH SELECT
EH680
AV EFFECT
} g
†
Control guide and preparatory steps
_
Bk
¢{
q
r
:s
SUPER
SOUND EQ
KARAOKE
VCR/AUX/ TAPE/
6CH INPUT DECK 1/2
ECHO
DIGITAL
S.WOOFER
CD
TUNER/
BAND
∫
1
2/;
MUTING 4
;
s
9
Bl
8
v
w
x
y
5
VOLUME
n
o
p
q
Sleep timer button (SLEEP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Numbered buttons (1–9, 0,M) . . . . . . . . . . . . . . . . . . . . . . 15
Cursor buttons (2, 1, 3, 4) . . . . . . . . . . . . . . . . . . . . . . . . 25, 26
Tape select, deck 1/deck 2 select button
(TAPE/DECK 1/2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
CD pause/tape reverse playback button (2/;) . . . . . . . . . . . 8, 19
Muting button (MUTING) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Program button (PROGRAM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cancel button (CANCEL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
CD button (CD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 16
CD play/tape forward playback button (1) . . . . . . . . . . . . . . 15, 19
CD/tape stop button (º) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 19
CD skip/search, tape fast forward/rewind buttons
(4, 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 19
[EH780] [EH580]
z EQ button (EQ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
[EH780]
{ Input select button (VCR/AUX/6CH INPUT) . . . . . . . . . . . . . . . . . 37
| Disc button (DISC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
} AV effect button (AV EFFECT) . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
[EH780] [EH680]
~ Test button (TEST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Channel select button (CH SELECT) . . . . . . . . . . . . . . . . . . . . . . 25
[EH680]
¡ EQ/AI EQ/Manual button (EQ/AI EQ/M. EQ) . . . . . . . . . . . . . 20–22
[EH680] [EH580]
¢ AUX button (AUX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
r
The remote control
B Batteries
»
³Insert so the poles (i and j) match those in the remote control.
³Do not use rechargeable type batteries.
Do not;
B
³mix old and new batteries.
³use different types at the same time.
³heat or expose to flame.
³take apart or short circuit.
³attempt to recharge alkaline or manganese batteries.
³use batteries if the covering has been peeled off.
³keep together with metallic objects such as necklaces.
Mishandling of batteries can cause electrolyte leakage which can damage
items the fluid contacts and may cause a fire.
If electrolyte leaks from the batteries, consult your dealer.
Wash thoroughly with water if electrolyte comes in contact with any part of
your body.
+
2
1
-
R6, AA, UM-3
+
-
Remove if the remote control is not going to be used for a long period of
time. Store in a cool, dark place.
Replace if the unit does not respond to the remote control even when held
close to the front panel.
C
C Use
»
RQT6301
Tuner/amplifier
12
Aim at the sensor, avoiding obstacles, at a maximum range of 7 meters
directly in front of the unit.
³Keep the transmission window and the unit’s sensor free from dust.
³Operation can be affected by strong light sources, such as direct sunlight,
and the glass doors on cabinets.
7m
30x
30x
Í
SLEEP PROGRAM CANCEL
1
2
3
DISC
4
5
6
L/-/--
7
8
9
0
Do not;
³put heavy objects on the remote control.
³take the remote control apart.
³spill liquids onto the remote control.
A
[A] Turning DEMO off
A demonstration of the display is shown if you have not set the
clock.
You can reduce the power consumed in standby mode by turning
the demonstration off.
While the unit is on:
Press and hold [–DEMO] until “NO DEMO” is
displayed.
Each time you press and hold the button:
NO DEMO (off)bDEMO (on)
»
B Setting the time
sDEMO
This is a 24-hour clock.
The example shows how to set the clock for 16:25 (4:25 p.m.).
1
2
DEMO
Press [ê/I] to turn the unit on.
1 Press [CLOCK/TIMER] to display “CLOCK”.
Each time you press the button:
CLOCK>FPLAY>FREC>Original display
^------------------------------------------------------------}
B
3
Control guide and preparatory steps
2 Within 5 seconds
Press [SET].
1 Press [TUNING (X or W)] to set the time.
The time display can be changed in one minute units by tapping
the buttons, and quickly by holding down the buttons.
2 Press [SET].
1
2
3
The time is set and the original display is restored.
Displaying the clock
Press [CLOCK/TIMER].
The clock is shown for about 5 seconds.
Reset the clock regularly to maintain accuracy.
1
21
2
H/I
CLOCK/
TIMER
SET
3
2
?
TUNING @
SET
RQT6301
1
13
A
CDs
a
See pages 8 and 9 for basic CD play.
»
A CD selection
Choose discs with this mark (=).
b
Do not;
³use irregularly shaped discs (>).
³attach extra labels and stickers.
³use discs with labels and stickers that are coming off or with adhesive
exuding from under labels and stickers (?).
³attach scratch-proof covers or any other kind of accessory.
³write anything on the CD.
³clean CDs with liquids. (Wipe with a soft, dry cloth.)
³use CDs printed with label printers available on the market.
c
»
B To prevent damage
Always observe the following points.
³Load only 1 CD per tray (@).
³Load CDs as shown in figure (A).
An adaptor is not needed with 8 cm CDs (singles).
³Set the system on a flat, level surface.
³Always unload all CDs before moving the system.
B
d
Do not;
³set it on top of magazines, inclined surfaces, etc.
³move the system while tray is opening/closing, or when loaded.
³put anything except CDs in trays.
³use cleaning CDs or CDs which are badly warped or cracked.
e
Basic operations
»
C Skipping and searching through tracks
8cm CD
Skipping tracks
Press [4] (backward), or [5] (forward).
Current position
Twice
12cm CD
Once
Track
Once
Track
[4 ]
C
Twice
Track
[ 5]
Searching through tracks
During play
Press and hold [4] (backward), or [5] (forward).
Note
³Skipping is done in the selected order in program play (á page 15).
³You cannot skip to tracks already played in random play
(á page 16).
³You can search only within tracks in program and random play.
4, 5
Note on CD-R and CD-RW
RQT6301
This unit can play CD-DA format audio CD-R and CD-RW that have
been finalized¤ upon completion of recording. It may not be able to
play some CD-R or CD-RW due to the condition of the recording.
¤Finalizing is a process that enables CD-R/CD-RW players to play
audio CD-R and CD-RW.
14
CDs
1
Í
Program play
SLEEP PROGRAM CANCEL
CANCEL
1
2
3
DISC
4
5
6
IL/-/--
7
8
9
0
2
3
ÎPRO LOGIC SUPER SRND
TEST
3D AI
Select up to 24 tracks to play in the order you choose.
Remote control only
Preparation: Press [CD] to put the unit in CD mode.
1
2
Press [PROGRAM].
3
Select the track with the numbered buttons.
EQ
CD
CH SELECT
AV EFFECT
SUPER
SOUND EQ
DIGITAL
S.WOOFER
VCR/AUX/ TAPE/
6CH INPUT DECK 1/2
2/;
CD
TUNER/
BAND
∫
1
∫
MUTING 4
4
5
j
∂
VOLUME
5
4
i
[EH780]
1 Press [DISC].
2 Within 10 seconds or so
Press [1]-[5] to select the disc.
For tracks numbered 10 and over, press [L/-/--] then the two digits.
e.g. To select track 21: [L/-/--]>[2]>[1]
Repeat steps 2 through 3 (SC-EH780) or step 3 (SC-EH680 and
SC-EH580) to program the tracks in the required order.
The total playing time of the programmed tracks is displayed.
4
Press [1].
All the tracks are played in the selected order.
To cancel
Press [PROGRAM].
“CLEAR” is displayed and all the tracks are canceled.
“FULL” is displayed
1
If 24 tracks have been programmed.
PROGRAM
PRGM
DISC
“– –:– –” is displayed if;
2
To check the contents of the program
EH780
1
DISC
2
1
2
4
5
Basic operations
³total playing time for the tracks is over 99 minutes and 59 seconds.
³a track numbered 25 or over was programmed.
³a disc not in playing position was programmed (SC-EH780).
Tracks can still be programmed and played.
3
DISC
PRGM
DISC
PRGM
1 Press [CANCEL]. “CANCEL” will light.
2 Press [4] or [5]. Each time you press the button, the
disc numbers (SC-EH780), track numbers and programmed order are
displayed.
3 After the playing time appears on the display, press [CANCEL].
“CANCEL” goes out.
To add to the end of the program
Repeat steps 2 and 3 (SC-EH780) or step 3 (SC-EH680 and SC-EH580).
To cancel tracks
Programmed
track no.
3
DISC
1
2
3
4
5
6 L/-/--
7
8
9
A particular track
1. Press [CANCEL].
2. Select the track with [4] or
[5] then press [CANCEL].
3. Press [CANCEL] again.
All tracks
Press [PROGRAM] or [º] while stopped.
Programmed order
PRGM
To program the track you are listening to
Press [PROGRAM]. The program mode engages and the current track is
automatically recorded as program No. 1.
0
Total playing time
DISC
1
RQT6301
4
PRGM
15
CDs
A
Í
Preparation: Press [CD] on the remote control or [INPUT SELECTOR] on
the tuner/amplifier to select “CD”.
SLEEP PROGRAM CANCEL
1
2
3
DISC
4
5
6
IL/-/--
7
8
9
0
A Direct access play
»
1
2
[EH780]
Starts normal play from a selected track on a selected disc to the last track
of the final disc (á page 8).
[EH680] [EH580]
Starts normal play from a selected track to the last track.
ÎPRO LOGIC SUPER SRND
TEST
3D AI
EQ
CH SELECT
AV EFFECT
SUPER
SOUND EQ
DIGITAL
S.WOOFER
VCR/AUX/ TAPE/
6CH INPUT DECK 1/2
CD
TUNER/
BAND
⁄/g
»
¤
11 EH780
DISC
2
Basic operations
2
1
2
4
5
2
1
Remote control only
1
[EH780]
1 Press [DISC].
2 Within 10 seconds or so
Press [1]-[5] to select the disc.
2
Select the track with the numbered buttons.
CD
For tracks numbered 10 and over, press [L/-/--] then the two digits.
e.g. To select track 21: [L/-/--]>[2]>[1]
DISC
B Random play
»
3
DISC
[EH780]
Plays the tracks on all discs once each in random order.
[EH680] [EH580]
Plays the tracks once each in random order.
Press [RANDOM].
3
DISC
4
5
6 L/-/--
7
8
9
To cancel
0
Press [RANDOM].
“RANDOM” goes out.
For your reference:
In the program play mode (á page 15), the programmed tracks are played
randomly.
INPUT SELECTOR
RANDOM REPEAT
EH780
!
C Repeat play
»
[EH780]
Repeats all tracks on all discs or all programmed tracks.
[EH680] [EH580]
Repeats all tracks or programmed tracks.
Press [REPEAT] before or during play.
EH680
RANDOM
EH580
REPEAT
!
To cancel
Press [REPEAT].
“`” goes out.
To repeat only your favourite track(s)
B
EH780
RANDOM
EH680
EH580
RANDOM
DISC
RANDOM
C
EH780
RQT6301
REPEAT
16
EH680
EH580
REPEAT
DISC
1 Program the track(s) you want (á page 15).
2 Press [REPEAT] and make sure “`” is displayed.
3 Press [!]. Play will start.
The radio: manual tuning
Radio stations can be tuned manually by selecting the station’s frequency
or they can be preset into channels to make it easy to tune (á page 18).
Preparation: Press [ê/I] to turn the unit on.
2
Í/I
3 1
4
1
Press [TUNER/BAND] to select FM or AM.
Each time you press the button: FMbAM
2
Press [TUNING MODE] to select “MANUAL”.
Each time you press the button: MANUALbPRESET
3
Press [TUNING (X or W)] to tune in the desired
broadcast.
If you press and hold [TUNING (X or W)] for a moment, the frequency
starts changing automatically. It stops when a station is found.
It may also stop if there is outside interference. Press and hold
[TUNING (X or W)] again to restart. You can also stop the frequency
changing by pressing [TUNING (X or W)].
FM AUTO/
RDS
MONO PS-DISP MODE-PTY
“TUNED” is displayed when a radio station is tuned.
“ST” is displayed when a stereo FM broadcast is being received.
1
4
TUNER/BAND
MHz
»
A If noise is excessive in FM
Press [FM AUTO/MONO] to display “MONO”.
This mode improves sound quality if reception is weak for some reason but
broadcasts are heard in monaural.
Press [FM AUTO/MONO] again to cancel the mode. “MONO” goes out.
MONO is also canceled if the frequency is changed.
TUNING MODE
3
?
Turn off “MONO” for normal listening. Stereo and monaural broadcasts are
automatically played as they are received.
TUNING @
Stations can be preset in monaural. Carry out presetting manually
(á page 18).
Basic operations
2
Adjust the volume.
TUNED
MHz
ST
4
»
B
VOLUME
UP
-- dB
MIN
0 dB
MAX
DOWN
This unit can display the text data transmitted by the radio data system
(RDS) available in some areas.
If the station you are listening to is transmitting RDS signals, “RDS”
will light up on the display.
Displaying the text data
A
FM AUTO/
MONO
MHz
MONO
Press [PS-DISP MODE] to display a station name.
Press [DISP MODE-PTY] to display a program type.
Each time you press the button:
Frequency displaybPS or PTY display
Note
RDS displays may not be available if reception is poor.
B
PS
RDS broadcasting
[EH780\for\the\United\Kingdom\and\Eastern\Europe\
[EH680]
[EH580\for\areas\except\the\United\Kingdom]
¤
RDS
DISP MODE PTY
RDS
“M.O.R M”=“Middle of the road music”
PS
RDS
PTY
VARIED
FINANCE
COUNTRY
AFFAIRS
POP M
CHILDREN
NATIONAL
INFO
ROCK M
SOCIAL A
OLDIES
SPORT
M.O.R M¤
RELIGION
FOLK M
EDUCATE
LIGHT M
PHONE IN
DOCUMENT
DRAMA
CLASSICS
TRAVEL
TEST
CULTURE
OTHER M
LEISURE
ALARM
SCIENCE
WEATHER
JAZZ
RQT6301
PTY displays
NEWS
17
The radio: preset tuning
There are two methods of presetting stations.
Automatic presetting: The stations the tuner can receive are preset.
Manual presetting:
You can select the stations to preset and the order
they are preset in.
There are 39 channels available for presetting.
2, 4 3
A Automatic presetting
»
Do the following once each for FM and AM.
Preparation: Tune to the frequency presetting is to begin at (á page 17).
TUNING MODE
A
SET
Hold down [SET].
Release the button when “AUTO MEMORY” appears.
The tuner presets all the stations it can receive into the channels in ascending order. FM stations are preset into channels 1 to 39, and AM stations are
preset into channels 21 to 39.
“SET OK” is shown when presetting is complete and the last station to be
preset is played.
“ERROR” is displayed if the tuner doesn’t receive any stations. Do presetting manually if this happens (see below).
SET
MHz
B
2
SET
Basic operations
3 ?
4
Note
AM stations replace any FM channels that were preset in channels 21
to 39.
B Manual presetting
»
Preset the stations one at a time.
TUNING @
1
2
3
4
The station occupying a channel is erased if another station is preset in that
channel.
SET
C Selecting channels
»
C
H
SLEEP PROGRAM CANCEL
Í
1
2
3
DISC
4
5
6
j/-/--
7
8
9
TEST
0
Preparation: Press [ê] to turn the unit on.
2
UPRO LOGIC SUPER SRND
3D AI
On the remote control
1
2
EQ
CH SELECT
AV EFFECT
SUPER
SOUND EQ
DIGITAL
S.WOOFER
VCR/AUX/ TAPE/
6CH INPUT DECK 1/2
CD
2/;
»
MUTING 4
∂
1
2
VOLUME
TUNER/
BAND
¤
RQT6301
18
Press [TUNER/BAND].
Press the numbered buttons to select the
channel.
For channels 1 to 9 press the corresponding number.
For channels 10 or over press [L/-/--], then the two digits.
e.g. To select channel 21: [L/-/--]>[2]>[1]
1
3
3
On the main unit
Adjust the volume.
5
µ
1 Select “PRESET” with [TUNING MODE].
2 Press [TUNING (X or W)] to select the channel.
TUNER/
BAND
1
2
3
4
5
6
7
8
9
j/-/--
Preset channel
3
Tune to the required station.
Press [SET].
Press [TUNING (X or W)] to select a channel.
Press [SET].
0
∂ VOLUME
µ
Cassette tapes
See page 39 for tape selection.
Preparation: Press [ê/I] to turn the unit on.
Í/I
1
5
Press [< OPEN] on deck 1 or deck 2 and insert
the cassette.
Close the holder by hand.
DECK 1/2
6, 5
2
Press [DOLBY NR] to select Dolby NR on
(“ëNR” appears) or off.
3
Press [REV MODE] to select the reverse mode.
Each time you press the button:
b:
One side is played.
d: Both sides are played.
f: Both sides are played 8 times each.
4
Press ["] (reverse side) or [!] (forward side).
Play begins and the indicator changes to green.
1
4
DECK 1
1
∫
2 3 1
5
Adjust the volume.
DECK 2
<OPEN
Forward side
Tape facing down
To stop the tape
Press [º].
[A] To change the deck to be used
Press [DECK 1/2] to select the deck you want to play.
To listen to 2 tapes consecutively
2
DOLBY NR
ÎNR
Insert a tape into each deck and select “f”. Both tapes will be played
8 times each.
1
»
B Finding a place on a tape
To fast-forward and rewind
REV MODE
ÎNR
1
Basic operations
3
Press [6] or [5] while the tape is stopped.
To find the beginning of a track (TPS: Tape program sensor)
Press [6] or [5] during play.
Play resumes from the beginning.
4
Tape direction
rewind
fast-forward
!
6
5
"
5
6
Tape direction
5
³Each deck’s play direction is stored in the system’s memory.
³You can fast-forward or rewind the tape while you are playing or recording
a tape in another deck.
Press [DECK 1/2] to switch to the deck not playing, and then press
[6] or [5]. After the above operation, be sure to press [DECK 1/2] to
reselect the deck playing.
VOLUME
UP
-- dB
MIN
0 dB
MAX
Note
TPS may not operate correctly in the following situations:
If the interval between tracks is less than 4 seconds.
If there is noise between tracks.
If there are silent parts within tracks.
DOWN
Dolby noise reduction
DECK 1/2
ÎNR
2
B
6
7
Dolby NR reduces “hissing” when playing tapes. It increases the high frequency region when recording and then reduces it in playback. Use the
same system during playback and recording. This unit has Dolby B NR
which reduces noise to a third.
Prerecorded cassettes and equipment marked “ëNR” use Dolby B NR.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
RQT6301
A
19
»
A Boosting the super woofer
DIGITAL
S. WOOFER
[EH780] [EH580]
Boosting the super woofer adds power to the bass.
Press [DIGITAL S.WOOFER].
The indicator turns green.
Each time you press the button:
MID (medium)>MAX (high)>cancel (off)
^--------------------------------------------------------}
There is only one level when listening through headphones.
SUPER
SOUND EQ
To cancel
MULTI JOG
EH780
Press [DIGITAL S.WOOFER] to turn the indicator off.
»
B Using the super sound equalizer
Turning on the super sound equalizer gives you a more powerful sound.
SUPER
SOUND EQ
EQ
Press [SUPER SOUND EQ].
The indicator turns green.
EH680
To cancel
Press [SUPER SOUND EQ] so the indicator turns orange (SC-EH780) or
turns off (SC-EH680 and SC-EH580).
SUPER
SOUND EQ
EH580
FLAT
EQ
Changing sound field and quality
[C] [EH780]
Turn [MULTI JOG] to select a setting.
Changing sound field and quality
A
Each time you turn:
HEAVY: Adds punch to rock.
CLEAR: Clarifies higher sounds.
SOFT: For background music
HALL: Expands sound to make you feel like you were in a hall.
AI-EQ: Adjust sound with the acoustic image equalizer (á page 21).
M.EQ: Create your own effects (á page 22).
FLAT: Canceled (no effect is added).
DIGITAL
S.WOOFER
[D] [EH680]
B
EH780
EH680
SUPER
SOUND EQ
EH580
SUPER
SOUND EQ
Press [EQ] to select a setting.
Each time you press the button:
HEAVY: Adds punch to rock.
CLEAR: Clarifies higher sounds.
SOFT: For background music
HALL: Expands sound to make you feel like you were in a hall.
FLAT: Canceled (no effect is added).
[E] [EH580]
Press [EQ] to select a setting.
Each time you press the button:
HEAVY: Adds punch to rock.
CLEAR: Clarifies higher sounds.
SOFT: For background music
C
MULTI JOG
On the remote control
[EH780] [EH580] Press [EQ].
[EH680] Press [EQ/AI EQ/M.EQ].
To cancel
[EH780] Turn [MULTI JOG] to select “FLAT”.
[EH680] Press [EQ] to select “FLAT”.
[EH580] Press [FLAT].
RQT6301
D E
20
Note
[EH780] [EH680]
Turn off the effect if sound quality reduces when using HALL with a source.
EQ
Changing sound field and quality
2
1, 3
Using the acoustic image equalizer (AI EQ)
Achieve subtle sound quality settings with the soft, sharp, heavy, and light
coordinates.
EH780
1
12 3
[EH780]
Turn [MULTI JOG] to select “AI EQ”.
[EH680]
Press [AI EQ/M.EQ] to select “AI EQ”.
The indicator turns green.
[EH580]
Press [AI EQ] to select “AI EQ”.
EH680
The indicator turns green.
2
1
FLAT
3
[EH780] [EH680]
Press [SUPER 3D AI EQ] to select the surround
level.
Each time you press the button:
AI EQ>SUPER 3D AI 1>SUPER 3D AI 2
^----------------------------------------------------------}
EH580
SUPER 3D AI 1: Adds a surround effect to the AI EQ.
SUPER 3D AI 2: Adds a stronger surround effect to the AI EQ.
3
1
EH780
EH680
EH580
MULTI JOG
AI EQ/
M.EQ
AI EQ
Change the sound quality with [2, 1, 3, 4].
Adjust softness and sharpness with [2, 1].
Adjust heaviness and lightness with [3, 4].
The original display is restored on the display panel in about
5 seconds.
To cancel
[EH780]
[EH680]
[EH580]
Turn [MULTI JOG] to select “FLAT”.
Press [AI EQ/M.EQ] to select “FLAT”. The indicator turns off.
Press [FLAT]. The indicator turns off.
The changes you make are stored and automatically recalled the next time
you select AI EQ.
EH780
3
EH780
EH680
SUPER
3D AI EQ
MULTI JOG
Changing sound field and quality
2
Note
[EH780] [EH680]
³Turn off the effect if sound quality reduces when using SUPER 3D AI EQ
with a source.
³You cannot select “SUPER 3D AI 1” or “SUPER 3D AI 2” while:
³Using a surround system (á page 23)
³Karaoke mode is on (SC-EH780 for Australia and N.Z. only á page 35)
³Listening to the radio
³Using headphones
EH580
EH680
MULTI
CONTROL
HEAVY
SHARP
SOFT
RQT6301
LIGHT
21
Changing sound field and quality
1,2
Using the manual equalizer (M.EQ)
Create your own sound quality effects.
SC-EH580 has three manual equalizers.
EH780
1
1
2
[EH780]
Turn [MULTI JOG] to select “MANUAL”.
[EH680]
Press [AI EQ/M.EQ] to select “MANUAL”.
The indicator turns green.
[EH580]
Press [M1], [M2], or [M3] to select the equalizer
you want to set.
EH680
The indicator turns green.
1 FLAT 2
EH580
2
Change the sound quality with [2, 1, 3, 4].
Select the sound range to be adjusted with [2] or [1].
Adjust the level with [3] or [4].
Repeat step 2 to set the desired sound quality.
The original display is restored on the display panel in about
5 seconds.
To cancel
1
EH780
EH680
MULTI JOG
AI EQ/
M.EQ
[EH780]
[EH680]
[EH580]
Note
The changes you make are stored and automatically recalled the next time
you select the manual equalizer.
EH580
Changing sound field and quality
M1
2
M2
EH780
MULTI JOG
M3
EH680
RQT6301
22
EH580
MULTI
CONTROL
LOW
Turn [MULTI JOG] to select “FLAT”.
Press [AI EQ/M.EQ] to select “FLAT”. The indicator turns off.
Press [FLAT]. The indicator turns off.
MID
HIGH
Enjoying surround sound
[EH780] [EH680]
The following chart gives a summary of this unit’s surround features. It also shows additional effects that can be used to enhance your enjoyment.
Note
“DTS”, “DTS Digital Surround” and “DTS Digital Out” are registered
³All the features are only effective if speakers are used. No discernible
trademarks of Digital Theater Systems, Inc.
effect will be heard through headphones.
³You may experience a reduction in sound quality when these surround
Manufactured under license from Dolby Laboratories.
systems and effects are used with some sources. If this occurs, turn the
“Dolby”, “Pro Logic” and the double-D symbol are trademarks of
surround system or effect off.
Dolby Laboratories.
[EH780] When you turn on one of the surround systems, the indicator for
the additional effects you can use also light.
Additional effects
See below for details.
DVDs encoded with Dolby Digital or
DTS can be identified with these
marks.
³This unit has built-in Dolby Pro Logic
circuitry so you can enjoy Dolby
Surround.
³Dolby Pro Logic is a decoding system
that was developed to get a better sense
of presence from sources encoded with
Dolby Surround. The feeling of position
has been improved by the addition of a
separate center speaker channel.
³If your DVD player only has 2-channel
output, you can still enjoy surround
sound when playing 5.1 channel
software by using Dolby Pro Logic.
Software encoded with Dolby
Surround can be identified with this
mark.
[EH780]
) Center focus
* Virtual rear surround
+ Multi rear surround
, Seat position
³DVD
³Laser Disc
³Video tape
³CD
[EH680]
) Center focus
MOVIE
³This mode adds surround effects to
movie software that hasn’t been
recorded with the above systems.
³In MOVIE mode you can adjust the
volume of the surround speakers to get
the best surround effect.
Any stereo sound source except for
the radio.
³Video tape
³CD
³Tape
[EH780]
* Virtual rear surround
+ Multi rear surround
, Seat position
MUSIC
This mode adds surround effects to stereo
sources.
(á page 24)
[EH780] [EH680]
DOLBY PRO
LOGIC
(á page 24)
(á page 24)
Software
³Use this input selector to enjoy
5.1 channel sources (e.g. Dolby Digital or
DTS) played on a DVD player with
5.1 channel output and a built in Dolby
Digital/DTS decoder (á page 36 for
connection, page 24 for operation).
³Connect a subwoofer (not included) to
the SUBWOOFER terminal to enhance
the surround effect (á page 36).
[EH780]
6CH
DISCRETE
INPUT
[EH780]
[EH680]
SUPER
SURROUND
Features
)
*
+
,
Center focus
Virtual rear surround
Multi rear surround
Seat position
See the manual for the equipment you
have connected for details on the
types of software you can use.
Changing sound field and quality
Surround system
Additional effects
) Center focus
[EH780] [EH680] (á page 26)
+ Multi rear surround
[EH780] (á page 26)
³This mode makes it seem like the
sound from the center speaker is
coming from within the television.
³The center speaker should be placed
above the television.
This mode makes it seem like there
are multiple surround speakers in your
room, increasing the cinema-like
atmosphere.
Virtual speakers
* Virtual rear surround
[EH780] (á page 26)
, Seat position
[EH780] (á page 27)
³This mode is useful if you have to
place your surround speakers near
the front speakers due to the layout
of your room.
³This mode makes it seem like the
sound from the surround speakers is
coming from behind you.
RQT6301
This mode helps maintain the sound
position even if the listening position
itself is changed.
Virtual speakers
23
Enjoying surround sound
[EH780] [EH680]
See page 25 for speaker level adjustments.
1
A 6CH DISCRETE INPUT
»
[EH780]
Preparation: Connect a DVD player with a built in Dolby Digital or DTS
decoder (á page 36).
1
2
INPUT SELECTOR
Press [6CH DISCRETE INPUT].
Playback a Dolby Digital or DTS source.
On the remote control
Press [VCR/AUX/6CH INPUT] to select “6CH INPUT”.
To cancel
SUPER SURROUND
Press [INPUT SELECTOR] to select another source.
Note
You cannot record or enjoy karaoke (For Australia and N.Z.) when you are
using 6CH DISCRETE INPUT. To record or enjoy karaoke with DVDs, ensure
the DVD player is also connected to the AUX (DVD) terminals and select
“AUX (DVD)” with [INPUT SELECTOR] (á page 37).
B DOLBY PRO LOGIC
»
[EH780] [EH680]
A
1
Press [ë PRO LOGIC, OFF/ON].
The indicator turns green.
Playback a Dolby Surround source.
6CH
DISCRETE INPUT
To cancel
Changing sound field and quality
Press [ë PRO LOGIC, OFF/ON] so the indicator turns off.
C SUPER SURROUND
»
1
[EH780] [EH680]
ÎPRO LOGIC
OFF/ON
Press [SUPER SURROUND] and select “MOVIE” or
“MUSIC”.
The indicator turns green.
Each time you press the button:
MUSIC>MOVIE>STEREO SOUND (off)
^-------------------------------------------------}
To cancel
C
SUPER
SURROUND
RQT6301
24
B
Press [SUPER SURROUND] to select “STEREO SOUND”.
The indicator turns off.
Enjoying surround sound
8
7
TEST
TEST
9
0
[EH780] [EH680]
ÎPRO LOGIC SUPER SRND
SUPER
3D AI EQ
3, 4
Speaker level adjustments
EQ
6CH DISCRETE INPUT, DOLBY PRO LOGIC
CH SELECT
AV EFFECT
SUPER
SOUND EQ
DIGITAL
S.WOOFER
CH SELECT
VCR/AUX/ TAPE/
6CH INPUT DECK 1/2
2/;
TUNER/
BAND
CD
1
∫
MUTING 4
s
r
Preparation: Set the volume level of the front speakers normally used for
enjoying the source.
Remote control only
TEST
6CH DISCRETE INPUT
Press [CH SELECT] to select the speaker.
The speaker channel changes each time you press the button.
DOLBY PRO LOGIC
Press [TEST].
A test signal is output from each speaker in order.
To stop the test signal, press [TEST] again.
Lch:
Front left
Cch: Center
Rch: Front right
RSch: Right surround
LSch: Left surround
SWch: Subwoofer (6CH DISCRETE INPUT; only when connected)
³The surround channel for Dolby Pro Logic is monaural so the indicator
appears as “Sch” instead.
Press [3] (to increase level) or [4] (to decrease level).
SUPER SURROUND
While playing a source
1. Press [CH SELECT].
2. Press [3] (to increase level) or [4] (to decrease level).
Changing sound field and quality
CH SELECT
RQT6301
1
2
VOLUME
5
If the level of the speakers appears to be different while listening to a
source, adjust the level of the speakers to the same apparent level.
6CH DISCRETE INPUT: Adjust while listening to a surround source.
If your DVD player is able to output a test signal,
you can use it instead of playing a source.
DOLBY PRO LOGIC:
Adjust while listening to a test signal.
25
Surround effects
VIRTUAL REAR
SURROUND
EH780
[EH780] [EH680]
These effects can be used with the surround systems described on page 24.
Refer to the chart on page 23 for details on which effects can be used.
[EH780]: These effects are available when the corresponding indicators are
alight.
»
A CENTER FOCUS [EH780] [EH680]
Press [CENTER FOCUS].
The indicator turns green.
CENTER
FOCUS
MULTI REAR
SURROUND
EH680
To cancel
Press [CENTER FOCUS] so the indicator turns orange (SC-EH780) or turns
off (SC-EH680).
CENTER
FOCUS
On the remote control
[EH780]
Press [AV EFFECT].
Press [2] or [1] so the CENTER FOCUS indicator flashes.
! Press [3] (ON) or [4] (OFF).
[EH680]
Press [CENTER FOCUS].
»
B VIRTUAL REAR SURROUND [EH780]
EH680
EH780
Press [VIRTUAL REAR SURROUND].
Í
1
2
3
4
5
6
7
8
9
TEST
Í
SLEEP PROGRAM CANCEL
DISC
1
2
3
L/-/--
4
5
6
L/-/--
0
7
8
9
0
TEST
ÎPRO LOGIC SUPER SRND
SUPER
3D AI EQ
Changing sound field and quality
2
EQ
CH SELECT
AV EFFECT
SUPER
SOUND EQ
DIGITAL
S.WOOFER
TAPE/
Press [VIRTUAL REAR SURROUND] so the indicator turns orange.
On the remote control
ÎPRO LOGIC SUPER SRND
Press [AV EFFECT].
Press [2] or [1] so the VIRTUAL REAR SURROUND indicator
flashes.
! Press [3] (ON) or [4] (OFF).
TUNER/
EQ/AI EQ/M.EQ
CENTER
FOCUS
CH SELECT
1
SUPER
SOUND EQ
TAPE/
CENTER
FOCUS
»
C MULTI REAR SURROUND [EH780]
TUNER/
Press [MULTI REAR SURROUND].
The indicator turns green.
A
CENTER
FOCUS
To cancel
Press [MULTI REAR SURROUND] so the indicator turns orange.
On the remote control
Press [AV EFFECT].
Press [2] or [1] so the MULTI REAR SURROUND indicator
flashes.
! Press [3] (ON) or [4] (OFF).
B
VIRTUAL REAR
SURROUND
C
RQT6301
MULTI REAR
SURROUND
26
To cancel
3D AI
3
VCR/AUX/
The indicator turns green.
SLEEP PROGRAM CANCEL
Surround effects
1
2
SEAT POSITION [EH780]
1
Press [SEAT POSITION].
The indicator flashes green.
2
While the indicator is flashing (within 10 seconds)
Adjust the seat position with [2, 1, 3, 4].
The indicator flashes for 10 seconds then lights green.
To cancel
Í
SLEEP PROGRAM CANCEL
1
2
3
DISC
4
5
6
L/-/--
8
9
0
7
TEST
1. Press [SEAT POSITION] so the indicator flashes.
2. Press [SEAT POSITION] again while the indicator is flashing so it turns
orange.
On the remote control
Press [AV EFFECT].
Press [2] or [1] so the SEAT POSITION indicator flashes.
! Press [3] (ON).
" Adjust the seat position with [2, 1,3, 4] .
To turn it off, after steps and
press [4] so the indicator turns orange.
ÎPRO LOGIC SUPER SRND
SUPER
3D AI EQ
EQ
234
CH SELECT
AV EFFECT
SUPER
SOUND EQ
DIGITAL
S.WOOFER
2/;
TUNER/
BAND
CD
1
∫
MUTING 4
s
1
VOLUME
5
r
Changing sound field and quality
VCR/AUX/ TAPE/
6CH INPUT DECK 1/2
1
Note
³The seat position is remembered by the unit and is reactivated when you
turn seat position on again.
³When used with virtual rear surround, seat position is changed in
3 horizontal steps.
(On the sound processor)
SEAT
POSITION
MULTI JOG
RQT6301
2
27
Before recording (Deck 2 only)
A B
See page 39 for tape selection.
Note
[EH780]
You cannot record when [6CH DISCRETE INPUT] is selected.
1
COUNTER
RESET DISPLAY
Volume, sound quality and surround effects have no effect on recording. Sound quality and surround effects are automatically set to
flat when recording.
DECK 1/2
»
A To display the tape counter while recording
Press [COUNTER DISPLAY].
The counter is displayed for about 5 seconds.
6
A
³Press [COUNTER RESET] to reset the counter.
³To display or reset the tape counter for deck 1, first press [DECK 1/2].
34 5 2
»
B Erasing recordings
COUNTER
Press [INPUT SELECTOR] to select “TAPE”.
Insert the recorded tape into deck 2.
! Press [DOLBY NR] so the “ë NR” indicator goes out.
" Select the reverse mode.
# Press [´ REC PAUSE].
$ Press ["] or [!].
DISPLAY
COUNTER
RESET
C
»
C Erasure prevention
Side A
The illustration shows how to remove the tabs to prevent recording. To
record on the tape again, cover as shown, being careful not to cover the
high position discrimination hole.
Tab for side B
Tab for side A
Your attention is drawn to the fact that recording pre-recorded
tapes or discs or other published or broadcast material may infringe
copyright laws.
To re-record
High-position tape
A
Normal tape
D Preparatory steps
»
A
Discrimination hole
Do these steps before each recording.
Wind up the leader tape so recording can begin immediately.
Recording operations
D
Press [< OPEN] on deck 2 and insert the
cassette.
2
Press [DOLBY NR] to select Dolby NR on
(“ëNR” appears) or off.
(á “Dolby noise reduction”, page 19)
3
2 3
1
<OPEN
RQT6301
2
DOLBY NR
3
REV MODE
Press [REV MODE] to select the reverse mode.
Each time you press the button:
>:
One side only records.
@ and B: Both sides record (forward >reverse).
“B” automatically changes to “@” when [´ REC PAUSE], [EDIT]
or [TAPE EDIT] is pressed.
1
Forward side
Tape facing down
28
1
Î NR
2
ÎNR
2
Recording CDs
B
1
Preparation:
³Do the preparatory steps (á page 28).
³Insert the CD(s) you want to record (á page 8 or 9).
³[EH780]
Press [DISC, 1–5] on the CD changer to select the disc where you want to
start recording, then press [º] to stop the disc.
2
A Normal recording
»
1 Press ["] (reverse side) or [!] (forward side) then [º] to
set the tape direction.
2
Press [´ REC PAUSE].
The deck goes into the recording standby mode and the indicator “"”
or “!” starts flashing.
∫
EH780
3
3
EDIT
Press [!] on the CD changer or CD player.
Recording starts automatically.
4 seconds after the CD(s) finishes, the deck goes into the recording standby mode.
To stop recording
∫
DISC1–5
EH680
EITHER
Press [º] on the CD changer or CD player.
The deck goes into the recording standby mode 4 seconds later.
OR
Press [º] on the deck.
Recording stops immediately but the CD continues to play.
EH580
EDIT
3
To record programmed tracks
Program tracks before step 1 (á page 15).
B One touch CD editing
»
This function makes it easier for you to record from discs.
³When recording, if a track is cut off in the middle at the end of the front
side, it is recorded from the beginning on the reverse side.
(Ensure the reverse mode “@” is selected. )
∫
A
³At the end of the reverse side recording stops and the current track will be
interrupted.
1
After pressing ["] or [!] then [º] on the cassette deck to set the tape
direction,
∫
Press [EDIT].
Recording starts. In the meantime, “CD EDIT” will scroll across the display.
2
¥REC
PAUSE
ÎNR
2
REC
Recording operations
After edit-recording has finished, the cassette deck automatically stops.
To stop editing
Press [º] on the CD changer or CD player.
The cassette deck also stops. “EDIT OUT” scrolls across the display.
To edit programmed tracks
Program the tracks (á page 15) and press [EDIT].
3
EH780
EDIT
EH680
EH580
EDIT
2
REC
EDIT
RQT6301
B
29
»
A Recording the radio
A
Preparation: Do the preparatory steps (á page 28).
1
Tune to the required station.
(á page 17 or 18)
3
2
2
Press [´ REC PAUSE].
The deck goes into the recording standby mode and the play indicator “"” or “!” starts flashing.
3
Press ["]
recording.
(reverse side)
or [!]
(forward side)
to start
To stop recording
Press [º].
To temporarily stop recording
Press [´ REC PAUSE].
The deck goes into recording standby mode.
To resume recording press ["] or [!] with the flashing indicator.
∫
2
¥REC
PAUSE
TUNED
ÎNR
2
REC
MHz
»
B Tape-to-tape recording
Preparation:
³Do the preparatory steps 1 and 3 (á page 28).
³Insert the tape to be recorded in deck 1.
3
1
Set the tape direction on both decks.
2
Press [TAPE EDIT] to start recording.
Press [DECK 1/2] to select “DECK 2”.
First press ["] or [!], and then [º].
Repeat steps and
B
for deck 1.
The indicator “"” or “!” shows deck 2 direction.
If either deck 1 or deck 2 stops, the other deck also stops.
1
To stop recording
2
Press [º].
Both decks will stop.
To enjoy another source while recording
Start playing the other sound source.
You can change the volume level and tone quality without affecting the
recording.
Recording operations
Note
The recording level and the noise reduction effect of the original (playback)
tape will be recorded on the new tape.
∫
11
DECK 1/2
2
∫
2
TAPE EDIT
ÎNR
12
RQT6301
REC
30
Using the timers
The play timer
3 1
This timer starts play of the selected source at the selected time.
The example shows settings for preset radio channel 1 to play between
6:30 and 7:40 at j48 dB.
2
Preparation: Turn the unit on, set the time (á page 13), preset radio stations if you want the timer to start playing the radio
(á page 18).
1
Press [CLOCK/TIMER] to select “.PLAY”.
Each time you press the button:
CLOCK>.PLAY>.REC>Original display
^-----------------------------------------------------------}
Press [SET] within 3 seconds.
FPLAY/FREC
1
Press [SET].
CLOCK/
TIMER
2
= Start time
> Finish time
? Source
TUNER()CD()TAPE
^------------------------------J
Insert a CD or tape if you select these sources.
SET
FPLAY
2
Follow these steps to set items =to @.
Press [TUNING (X or W)] to select the condition required and
1
?
If you select TUNER
Select a preset channel.
@ Volume
TUNING @
The play timer is now on standby. The display shows each condition
again then restores the original display.
3
2
SET
Timer operations and convenient functions
1
2
Press [ê/I] to turn the unit off.
.PLAY/.REC indicator remains illuminated to show the play (or
record) timer is on.
The timer starts at the set time with the volume increasing gradually to the
set level.
a
FPLAY
b
To cancel the timer
Press [.PLAY/.REC] so “.PLAY” goes out.
Each time you press the button:
.PLAY>.REC>.PLAY .REC>Light off (OFF)
^---------------------------------------------------------------------}
The play timer will be canceled, but the settings stay in the
memory.
FPLAY
c
For your reference:
FPLAY
When you insert cassettes in decks 1 and 2, deck 1 has priority.
MHz
CH
d
FPLAY
FPLAY
FPLAY
H/I
FPLAY
RQT6301
3
31
Using the timers
The record timer
4 1
This timer records the radio at the set time.
The example shows settings for recording preset channel 1 from 18:30
to 19:30.
2
Preparation: Turn the unit on, set the time (á page 13), preset radio stations (á page 18).
1
Press [CLOCK/TIMER] to select “.REC”.
Each time you press the button:
CLOCK>.PLAY>.REC>Original display
^-----------------------------------------------------------}
Press [SET] within 3 seconds.
3
FPLAY/FREC
2
Follow these steps to set items =,> and ?.
Press [TUNING (X or W)] to select the condition required and
Press [SET].
= Start time
> Finish time
? Preset channel
The record timer is now on standby. The display shows each condition again then restores the original display.
1
1
Timer operations and convenient functions
2
Prepare for recording.
4
Press [ê/I] to turn the unit off.
CLOCK/
TIMER
SET
FREC
Insert a tape into deck 2.
Select the Dolby NR mode.
! Select the reverse mode.
" Select the tape direction.
.PLAY/.REC indicator remains illuminated to show the record (or
play) timer is on.
Recording starts 30 seconds before the set time with the volume muted
during the set time.
2
1
? TUNING @
To cancel the timer
2
Press [.PLAY/.REC] so “.REC” goes out.
Each time you press the button:
.PLAY>.REC>.PLAY .REC>Light off (OFF)
^---------------------------------------------------------------------}
The record timer will be canceled, but the settings stay in the
memory.
SET
a
FREC
b
FREC
c
MHz
CH
FREC
FREC
4
H/I
RQT6301
FREC
32
3
Using the timers
A
A The play and record timers
»
Turning the timers on and off
The timers come on at the set times if the .PLAY/.REC indicator is on.
They can be turned on and off by pressing [.PLAY/.REC].
FPLAY/FREC
Checking the timers
Press [CLOCK/TIMER] to select “.PLAY” (or “.REC”).
The timer conditions are shown in the following order:
Play timer:
Start time>Finish time>Source>Volume
Record timer:
Start time>Finish time>Selected radio station
The timers can be checked even if the unit is off.
Playing the unit after the timers are set
The unit can be used after the timers are set. Make sure the unit is off
before the set start time.
CLOCK/
TIMER
Note
³If you turn the unit off and on again while a timer is functioning, the finish
time setting will not be activated.
³If the unit is on, the timer will not function. The system must be in the
standby mode.
³This system retains the ON/OFF time settings until you make a new setting. If you make a new ON time setting, you must make a new OFF time
setting.
³Do not turn DEMO on after setting a timer. The timers will not work while
DEMO is on.
B
Í
SLEEP PROGRAM CANCEL
SLEEP
1
2
3
DISC
4
5
6
L/-/--
8
9
0
7
B The sleep timer
»
ÎPRO LOGIC SUPER SRND
TEST
3D AI
This timer turns the unit off after a set time.
CH SELECT
AV EFFECT
SUPER
SOUND EQ
DIGITAL
S.WOOFER
VCR/AUX/ TAPE/
6CH INPUT DECK 1/2
2/;
CD
TUNER/
BAND
∫
1
MUTING 4
j
Timer operations and convenient functions
Remote control only
EQ
VOLUME
While playing a source
Press [SLEEP] to select the time (minutes).
Each time you press the button:
SLEEP 30 ---------)SLEEP 60 ---------)SLEEP 90
^-----SLEEP OFF(---SLEEP 120(---}
5
To cancel the sleep timer
i
Press [SLEEP] to select “SLEEP OFF”.
“SLEEP” goes out.
To confirm the remaining time
(While the timer is functioning)
Press [SLEEP].
The remaining time is shown for about 5 seconds.
To change the setting
Press [SLEEP] to display the remaining time, then press again to select the
required time.
SLEEP
Using the timers together
Any of the timers can be used together, but ensure the unit is off before the
start time for the record and play timers.
RQT6301
SLEEP
33
»
A Changing the sound range display
A
The sound processor shows the level of each sound range with the three
types of display described below.
Press [DISPLAY MODE].
The spectrum display will change as follows.
DISPLAY MODE
[a] Normal display
This display indicates the strength of the sound in each tonal range.
[b] Peak-hold display
The peak sound value of each sound range is held on the display for
about one second after it occurs.
[c] Aurora display
The peak sound value of each sound range is displayed in inverted
form.
(On the sound processor)
DISPLAY MODE
a
»
B Muting the volume
b
[EH780] [EH580]
Remote control only
Press [MUTING].
c
Volume is reduced to minimum.
[EH680]
On the remote control or the tuner/amplifier
B
Press [MUTING].
VCR/AUX/ TAPE/
6CH INPUT DECK 1/2
2/;
∫
MUTING 4
The indicator lights green and volume is reduced to minimum.
TUNER/
BAND
CD
1
To cancel
5
MUTING
Timer operations and convenient functions
j
VOLUME
Press [MUTING] again.
“MUTING” goes out and the volume is restored.
To cancel from the tuner/amplifier, turn [VOLUME] to minimum (– – dB),
then raise it to the required level.
Muting is also canceled when the unit is turned off.
i
MUTING
Reduce the volume before connection.
EH680
Avoid listening for prolonged periods of time to prevent hearing damage.
Plug type: 3.5 mm stereo
EH680
MUTING
MUTING
C
VOLUME
RQT6301
PHONES
34
»
C Using headphones (not included)
Enjoying karaoke
1
3
(For Australia and N.Z.)
You can do karaoke with CDs and tapes.
Preparation:
Lower the volume with [MIC VOL] and connect the microphone.
Use a dynamic microphone.
Plug type: 6.3 mm monaural
1
Press [KARAOKE] to select a voice mode.
Each time you press the button:
MONO L>MONO R>VOICE MUTE>off (Normal)
^------------------------------------------------------------------}
ECHO
³Karaoke CDs and tapes
MONO L:
Only left channel sound (No vocal)
MONO R:
Only right channel sound (Vocal)
Select no vocal for karaoke. Vocal and no vocal may be reversed.
³Normal music CDs and tapes
VOICE MUTE: Voice mute (Lowers vocal volume)
1-MIC-2
2
3
1
KARAOKE
Start playing the CD or tape.
Adjust the main volume and microphone volume.
To cancel
Press [KARAOKE] to clear the display.
MONO L
To record your performance
Start recording in deck 2 and then start singing.
Ensure the voice mode is set to off (at step 2 above) when playing the
recording.
MONO R
Note
The karaoke modes cannot be used with the radio, SUPER 3D AI EQ, 6CH
DISCRETE INPUT or surround effects.
V.MUTE
Original display
Timer operations and convenient functions
When using the VOICE MUTE function
³Voice mute may not function sufficiently or noise may interfere when using the following software.
³Monaural software
³Software with few musical instruments, including classic music and
poetry recitations
³Software with duets or strong choruses
³VOICE MUTE reduces the level of the vocals but does not cancel them
out completely.
»
A Using the echo effect
3
Press [ECHO].
Each time you press the button:
ECHO 1>ECHO 2>ECHO 3>OFF
^------------------------------------------------------}
VOLUME
UP
MIC VOL
DOWN
MIN
MAX
A
ECHO
RQT6301
ECHO
35
External unit connections
A
³Turn off all units before making connections.
³Refer to the manual of the other unit for details.
(Cables and equipment not included.)
DVD player with 5.1ch output
Sound processor
AUX
(DVD)
L/R OUT
(MIX)
DVD 6ch INPUT
CENTER SURROUND FRONT
L
L
L
SUBWOOFER R
R
R
Stereo phono cable (not included)
White
Red
(L)
(R)
Connections to SC-EH780
CENTER
[A] DVD player with 5.1ch output
SUBWOOFER
This unit has the input terminals for 5.1ch surround systems but it
does not have the decoders necessary to play them back. The DVD
player should have these decoders and 5.1ch output.
SURROUND L/R
To record sound from the DVD player
Connect to AUX (DVD).
FRONT L/R
Subwoofer
The included front speakers have superwoofers, but you can enhance surround sound from a unit connected to DVD 6ch INPUT by
connecting another subwoofer to SUBWOOFER terminal.
B
[B] DVD player/Laser disc player (without 5.1ch
output), etc.
DVD player/Laser disc player
(without 5.1ch output), etc.
Sound processor
[C] Video cassette recorder
AUX
(DVD)
AUDIO
L/R OUT
This unit has Dolby Pro Logic circuitry. The sound will be reproduced
with the same powerful stereophonic effects found in movie theaters.
You can enjoy the sound from your video cassette recorder.
L
Connections to SC-EH680/SC-EH580
Timer operations and convenient functions
R
[D] DVD player/Laser disc player/Video cassette
recorder, etc.
You can enjoy the sound from your DVD player/Laser disc player/
Video cassette recorder, etc.
C
Video cassette recorder
Sound processor
AUDIO
OUT
VCR
(EXT)
AUDIO
IN
OUT IN
L
R
D
DVD player/Laser disc player/
Video cassette recorder, etc.
Sound processor
AUX
AUDIO
OUT
L
RQT6301
R
36
Optional antenna connections
Use outdoor antennas if radio reception is poor.
»
A FM outdoor antenna
Tuner/amplifier
A
A
³Disconnect the FM indoor antenna.
³The antenna should be installed by a competent technician.
For the United Kingdom and
Eastern Europe
FM outdoor antenna
A
75 ª coaxial cable
(not included)
75™
FM ANT
AM ANT
LOOP
EXT
»
B AM outdoor antenna
Run a piece of vinyl wire horizontally across a window or other convenient
location.
Leave the loop antenna connected.
Note
Disconnect the antenna when the unit is not in use.
Do not use the antenna during an electrical storm.
For the United Kingdom only
Use the antenna plug adaptor
included.
»
C Using other equipment
For Australia and N.Z.
A
ANT
Listening to an external source
75™
1
GND
AM ANT
LOOP
EXT
Each time you press the button:
[EH780]
TUNER>CD>TAPE>VCR (EXT)>AUX (DVD)
^------------------------------------------------------------------}
[EH680] [EH580]
TUNER>CD>TAPE>AUX
^--------------------------------------}
Remove a piece of the outer vinyl.
30mm
Twist the shield braid to expose the
core wire.
15mm
Shield braid
B
Core wire
On the remote control
Press [VCR/AUX/6CH INPUT] (SC-EH780) or [AUX] (SC-EH680 and
SC-EH580).
2
AM loop antenna
A
Press [INPUT SELECTOR] to select the external
source.
Timer operations and convenient functions
FM
Operate the unit.
See the unit’s manual for details on operation and connection.
[EH780]
AM ANT
LOOP
EXT
To enjoy Dolby Digital and DTS
á page 24
5–12m
AM outdoor antenna
Recording an external source
C
Press [INPUT SELECTOR] to select the external
source.
Select Dolby NR and reverse mode.
!
"
#
(á page 28)
Press [´ REC PAUSE].
Press ["] or [!] to start recording.
Start the source to be recorded.
See the unit’s manual for details on operation and connection.
To stop recording
Press [º] on the deck.
1, 1 4
2 3
To temporarily stop recording
Press [´ REC PAUSE].
The deck goes into the recording standby mode.
To resume recording press ["] or [!] with the flashing indicator.
∫
[EH780]
Connect the external unit to VCR (EXT) OUT.
Select the source to be recorded with [INPUT SELECTOR].
Start recording on the external unit and start playing the source to be
recorded.
RQT6301
Recording onto an external unit
37
Troubleshooting guide
Before requesting service, make the below checks. If you can’t fix the system as described below, or if something not listed here occurs, refer to the
enclosed directory to locate an Authorized Service Center convenient to you or contact your dealer.
Reference pages are shown as black circled numbers 6.
Common Problems
No sound.
Turn the volume up.
Switch off the unit, determine and correct the cause, then switch the unit on. Causes include shorting of the
positive and negative speaker wires, straining of the speakers through excessive volume or power, and
using the unit in a hot environment.
Sounds unfixed, reversed or
come from one speaker only.
Check the speaker connections. 6
Humming heard during play.
An AC mains lead or fluorescent light is near the cables. Keep other appliances and leads away from this
unit’s cables.
If possible in your area, turn the AC mains lead’s plug or connector over to reverse the lead’s polarity.
“ERROR” is displayed.
Incorrect operation performed. Read the instructions and try again.
“U70” is displayed.
Connect the flat cables firmly. If “U70” remains on the display, contact the dealer.
“F60” is displayed.
There is a problem with the amplifier. Consult your dealer.
“– –:– –” appears on the display.
You plugged the AC mains lead in for the first time or there was a power failure recently.
Set the time. =
The display starts up even after
the unit is turned off.
The demonstration feature (–DEMO) is on. Turn it off if it is not required. =
The CD changer or CD player
The display is wrong or play
won’t start.
The disc may be upside down. 8, 9
Wipe the disc.
Replace the disc if it is scratched, warped, or nonstandard.
Condensation may have formed in the changer or player due to a sudden change in temperature.
Wait about an hour for it to clear and try again.
[EH780]
“TAKE OUT/DISC” appears on
the display.
There is a problem with the CD mechanism. (A power failure may have occurred.)
The tray will open automatically. Remove the CD from the tray, and after ensuring there is no CD in the tray,
close it. The unit will make the disc changing noises for a few moments and then it should operate normally.
RQT6301
References
Listening to the radio
38
Noise is heard.
The stereo indicator flickers or
doesn’t light.
Sound is distorted.
Use an outdoor antenna. U
A beat sound is heard.
Turn the TV off or separate it from the unit.
A low hum is heard during AM
broadcasts.
Separate the antenna from other cables and leads.
The correct AM frequency can’t
be tuned in.
Change the frequency step. Hold [TUNER/BAND] down for 10 seconds to change the step to 9 kHz.
The cassette deck
Poor quality sound.
Clean the heads. W
Check the Dolby NR setting. C
Recording is not possible.
If the erasure prevention tabs have been removed, cover the holes with adhesive tape. L
“DECK NO TAPE” is displayed
during “One touch editing” .
Load a cassette into deck 2. L
“DECK CHANGE TAPE” is
displayed during “One touch
editing”.
If the erasure prevention tabs have been removed, cover the holes with adhesive tape. L
When there is a television set nearby
The picture on the TV
disappears or stripes appear on
the screen.
The location and orientation of the antenna are incorrect. If you are using an indoor antenna, change to an
outdoor antenna.
The TV antenna wire is too close to the unit. Separate the antenna wire of the TV set from the system.
The remote control
The remote control doesn’t
work.
Check the batteries are inserted correctly. <
Replace the batteries if they are worn.
All components are required to service the system. If service is ever necessary, bring the entire system.
To clean this unit, wipe with a soft, dry cloth.
³Never use alcohol, paint thinner or benzine to clean this unit.
³Before using chemically treated cloth, read the instructions that came with
the cloth carefully.
For a cleaner crisper sound
Clean the heads regularly to assure good quality playback and recording.
Use a cleaning tape (not included).
The unit can correctly play or record on the following types. It identifies the
type automatically.
Normal position/TYPE I
4
High position/TYPE II
4
Metal position/TYPE IV
4
³Tapes exceeding 100 minutes are thin and can break or get caught in the
mechanism.
³Tape slack can get caught up in the mechanism and should be taken up
before the tape is played.
³Endless tapes can get caught up in the deck’s moving parts if used incorrectly. Use tapes appropriate to this unit’s auto-reverse mechanism.
References
If the surfaces are dirty
Cassette tape selection and care
RQT6301
Maintenance
39
Technical specifications
SOUND PROCESSOR
º EQ/SFP section
MANUAL GEQ
5-Band EQ [EH780] [EH580]
Center frequency
70/300/1 k/3.15 k/10 k Hz
Level control
n2.0, 4.0, 6.0 dB
3-Band EQ [EH680]
Center frequency
70/1 k/10 k Hz
Level control
n2.0, 4.0, 6.0 dB
EQ/Space mode [EH780] [EH680]
4 modes
HEAVY, CLEAR, SOFT, HALL
EQ mode [EH580]
3 modes
HEAVY, CLEAR, SOFT
SUPER 3D AI EQ [EH780] [EH680]
3 modes
AI EQ, SUPER 3D AI 1, SUPER 3D AI 2
º Pre-amplifier section
Input sensitivity/impedance
VCR (EXT) [EH780]
AUX(DVD) [EH780]
AUX [EH680] [EH580]
Output level [EH780]
VCR REC OUT
250 mV/15 k­
250 mV/15 k­
250 mV/15 k­
150 mV/1.5 k­
º DOLBY PRO LOGIC section [EH780] [EH680]
PRO LOGIC mode
CENTER mode
DELAY TIME
SURROUND
NORMAL
20 ms (Fixed)
Total harmonic distortion
Rated power at 1 kHz
Half power at 1 kHz
Load impedance
FRONT
SURROUND
CENTER
Power output (L/R both channel driven)
DIN
1 kHz THD 1 %/6 ­ (High)
2k25 W
100 Hz THD 1 %/8 ­ (Low)
2k65 W
RMS 1 kHz THD 10 %/6 ­ (High)
2k35 W
100 Hz THD 10 %/8 ­ (Low)
2k85 W
Total harmonic distortion
Rated power at 1 kHz
1 % (6 ­)
Half power at 1 kHz
0.1 % (6 ­)
Load impedance Main (High)
6­
Main (Low)
8­
DIGITAL S. WOOFER
Center frequency
60 Hz
LEVEL (VOL s20 dB)
MIDi3 dB/MAXi6 dB
º FM tuner section
Frequency range
º AV SURROUND section [EH780] [EH680]
AV surround mode
SUPER SURROUND (MUSIC, MOVIE)
Frequency range
DSP control mode
SUPER SOUND EQ
[EH780] [EH680] CENTER FOCUS
[EH780] VIRTUAL REAR SURROUND
[EH780] MULTI REAR SURROUND
[EH780] SEAT POSITION
º Spectrum analyzer section
Display mode
NORMAL, PEAKHOLD, AURORA
º General
Dimensions (WtHtD)
[EH780] 293k89k270 mm
[EH680] [EH580] 293k89k269 mm
[EH780] 1.5 kC [EH680] [EH580] 1.4 kC
Mass
TUNER AMPLIFIER
º Amplifier section [EH780]
Power output (L/R both channel driven)
Stereo Mode
2k25 W
DIN 1 kHz THD 1 %/6 ­ (High)
100 Hz THD 1 %/8 ­ (Low)
2k45 W
2k35 W
RMS 1 kHz THD 10 %/6 ­ (High)
2k65 W
100 Hz THD 10 %/8 ­ (Low)
PRO LOGIC mode
DIN
FRONT 1 kHz THD 1 %/6 ­ (High)
2k25 W
100 Hz THD 1 %/8 ­ (Low)
2k45 W
SURROUND 1 kHz THD 1 %/8 ­
2k30 W
CENTER
1 kHz THD 1 %/8 ­
60 W
RMS
FRONT 1 kHz THD 10 %/6 ­(High)
2k35 W
100 Hz THD 10 %/8 ­(Low)
2k65 W
SURROUND 1 kHz THD 10 %/8 ­
2k40 W
CENTER
1 kHz THD 10 %/8­
80 W
PMPO 1 kHz/High 6 ­, Low 8­,
CENT. 8 ­, SURR. 8 ­
3000 W
Total harmonic distortion
Rated power at 1 kHz
1 % (6 ­)
Half power at 1 kHz
0.1 % (6 ­)
Load impedance
FRONT (High)
6­
FRONT (Low)
8­
SURROUND
8­
CENTER
8­
DIGITAL S. WOOFER
Center frequency
60 Hz
LEVEL (VOL s20 dB)
MID i3 dB/MAX i6 dB
º Amplifier section [EH680]
Power output (L/R both channel driven)
Stereo Mode
DIN 1 kHz THD 1 %/6 ­
RMS 1 kHz THD 10 %/6 ­
PRO LOGIC mode
DIN
FRONT 1 kHz THD 1 %/6 ­
SURROUND 1 kHz THD 1 %/8 ­
CENTER 1 kHz THD 1 %/8 ­
RMS
FRONT 1 kHz THD10 %/6 ­
SURROUND 1 kHz THD 10 %/8 ­
CENTER 1 kHz THD 10 %/8­
2k60 W
2k80 W
2k60 W
2k15 W
30 W
2k80 W
2k20 W
40 W
6­
8­
8­
º Amplifier section [EH580]
Sensitivity
S/N 26 dB
S/N MONO
Antenna terminal(s)
º DSP CONTROL section
1 %(6 ­)
0.1 %(6 ­)
87.50–108.00 MHz
(0.05 MHz steps)
1.8 ¬V (IHF usable)
1.5 ¬V
70 dB (75 dB, IHF)
75 ­ (unbalanced)
º AM tuner section
Sensitivity (S/N 20 dB)
522–1629 kHz (9 kHz steps)
520–1630 kHz (10 kHz steps)
500 ¬V/m
º Timer section
Clock
Function
Quartz-lock type
Play timer (1 time, daily),
Rec timer (1 time, daily),
Sleep (120 min, 30 min intervals)
Setting intervals (Play/Rec)
1 minute–23 hours 59 minutes (1 min intervals)
º General
Power supply
(For the United Kingdom, Australia and N.Z.)
AC 230–240 V 50 Hz
(For Eastern Europe)
AC 230 V 50 Hz
Power consumption
[EH780] 190 W [EH680] 170 W [EH580] 160 W
Standby
0.5 W
Dimensions (WtHtD)
293k118.5k345 mm
Mass
[EH780] [EH680] 5.2 kC [EH580] 5.0 kC
CD PLAYER
º Pickup
Wavelength
780 nm
º General
Dimensions (WtHtD)
[EH780] 293k89k288 mm
[EH680] [EH580] 293k89k268 mm
Mass
[EH780] 2.2 kC [EH680] [EH580] 1.6 kC
CASSETTE DECK
Deck system
Stereo cassette deck
Track system
4 track, 2 channel
Recording system
AC bias
Bias frequency
100 kHz
Erasing system
AC erase
Heads
Deck 1
(Playback head)
Permalloy head
Deck 2
(Recording/Playback head)
Permalloy head
(Erasing head)
Double gap ferrite head
Motors
Deck 1, 2 Capstan drive
DC servo motor
Tape speed
4.8 cm/s
Wow and flutter
0.16 % (WRMS)
Fast forward and rewind times
Approx. 110 seconds with C-60 cassette tape
Frequency response (Dolby NR off)
TYPE I (NORMAL)
20 Hz–16 kHz (DIN)
TYPE II (HIGH)
20 Hz–16 kHz (DIN)
TYPE IV (METAL)
20 Hz–16 kHz (DIN)
S/N (Signal levelumax recording level, TYPE II type
tape)
NR off
56 dB (A weighted)
Dolby B NR on
66 dB (A weighted)
Input sensitivity and impedance
REC (IN)
150 mV/23 k­
Output voltage and impedance
PLAY (OUT)
280 mV/360 ­
FRONT SPEAKER
Type
Speaker(s)
Super woofer
Woofer
Midrange
Tweeter
Impedance
3 way, 3 speakers, Bassreflex
[EH780] [EH580] 17 cm cone type
[EH780] [EH580] 12 cm cone type
[EH680] 17 cm cone type
[EH680] 12 cm cone type
[EH780] 6 cm ring shaped dome type
[EH680] [EH580] 6 cm cone type
[EH780] [EH580] High 6 ­, Low 8 ­
[EH680] 6 ­
Input power (Music)
[EH780] [EH580] High 60 W, Low 120 W
[EH680] 160 W
Output sound pressure level
[EH780] [EH680] 87 dB/W (1.0 m)
[EH580] 84 dB/W (1.0 m)
Crossover frequency
[EH780] 120 Hz, 4 kHz
[EH680] 3 kHz, 6 kHz
[EH580] 150 Hz, 4 kHz
Frequency range
[EH780] 42 Hz–50 kHz (j16 dB)
46 Hz–36 kHz (j10 dB)
[EH680] 49 Hz–22 kHz (j16 dB)
56 Hz–20 kHz (j10 dB)
[EH580] 42 Hz–22 kHz (j16 dB)
46 Hz–20 kHz (j10 dB)
º General
Dimensions (WtHtD)
Mass
240k412k259 mm
5.8 kC
CENTER SPEAKER [EH780]
Type
2 way, 3 speakers, Bassreflex
Speaker
Woofer(t2)
8 cm cone type
Tweeter
6 cm cone type
Impedance
8­
Input power (Music)
160 W
Output sound pressure level
86 dB/W (1.0 m)
Crossover frequency
4 kHz
Frequency range
100 Hz–22 kHz (j16 dB)
115 Hz–20 kHz (j10 dB)
º General
Dimensions (WtHtD)
Mass
190k99k166 mm
1.8 kC
CENTER SPEAKER [EH680]
Type
1 way, 1 speaker, Closed
Speaker
Full range
8 cm cone type
Impedance
8­
Input power (Music)
70 W
Output sound pressure level
84 dB/W (1.0 m)
Frequency range
130 Hz–20 kHz (j16 dB)
150 Hz–18 kHz (j10 dB)
º General
Dimensions (WtHtD)
Mass
140k99k118 mm
0.8 kC
SURROUND SPEAKER [EH780] [EH680]
Type
1 way, 1 speaker, Closed
Speaker
Full range
8 cm cone type
Impedance
8­
Input power (Music)
70 W
Output sound pressure level
84 dB/W (1.0 m)
Frequency range
130 Hz–20 kHz (j16 dB)
150 Hz–18 kHz (j10 dB)
º General
Dimensions (WtHtD)
Mass
140k99k118 mm
0.9 kC
Note
1. Specifications are subject to change without
notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the
digital spectrum analyzer.
3. “Low” and “High” stand for low frequency and
high frequency.
º General
Dimensions (WtHtD)
Mass
Matsushita Electric Industrial Co., Ltd.
Web Site: http://www.panasonic.co.jp/global/
294k118.5k281 mm
2.1 kC
RQT6301-B
F1201YW0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
