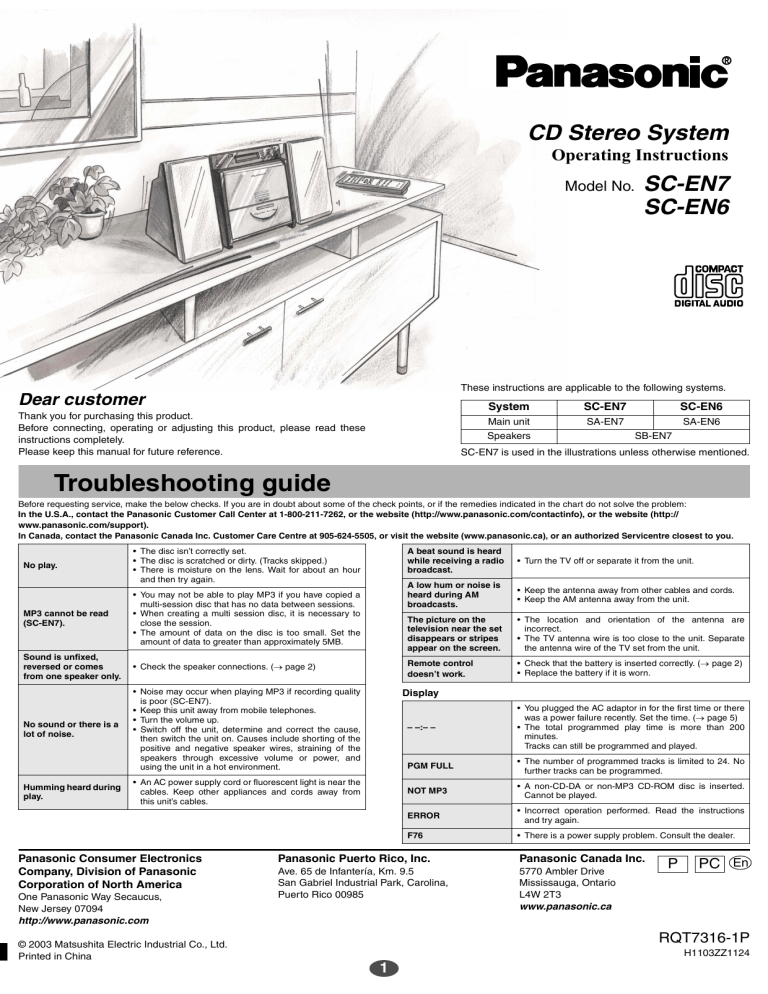

CD Stereo System
Operating Instructions
Model No.
SC-EN7
SC-EN6
These instructions are applicable to the following systems.
Dear customer
Thank you for purchasing this product.
Before connecting, operating or adjusting this product, please read these
instructions completely.
Please keep this manual for future reference.
System
SC-EN7
Main unit
SA-EN7
Speakers
SC-EN6
SA-EN6
SB-EN7
SC-EN7 is used in the illustrations unless otherwise mentioned.
Troubleshooting guide
Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or the website (http://www.panasonic.com/contactinfo), or the website (http://
www.panasonic.com/support).
In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you.
No play.
• The disc isn’t correctly set.
• The disc is scratched or dirty. (Tracks skipped.)
• There is moisture on the lens. Wait for about an hour
and then try again.
MP3 cannot be read
(SC-EN7).
• You may not be able to play MP3 if you have copied a
multi-session disc that has no data between sessions.
• When creating a multi session disc, it is necessary to
close the session.
• The amount of data on the disc is too small. Set the
amount of data to greater than approximately 5MB.
Sound is unfixed,
reversed or comes
from one speaker only.
• Check the speaker connections. (→ page 2)
No sound or there is a
lot of noise.
• Noise may occur when playing MP3 if recording quality
is poor (SC-EN7).
• Keep this unit away from mobile telephones.
• Turn the volume up.
• Switch off the unit, determine and correct the cause,
then switch the unit on. Causes include shorting of the
positive and negative speaker wires, straining of the
speakers through excessive volume or power, and
using the unit in a hot environment.
Humming heard during
play.
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
© 2003 Matsushita Electric Industrial Co., Ltd.
Printed in China
• Turn the TV off or separate it from the unit.
A low hum or noise is
heard during AM
broadcasts.
• Keep the antenna away from other cables and cords.
• Keep the AM antenna away from the unit.
The picture on the
television near the set
disappears or stripes
appear on the screen.
• The location and orientation of the antenna are
incorrect.
• The TV antenna wire is too close to the unit. Separate
the antenna wire of the TV set from the unit.
Remote control
doesn’t work.
• Check that the battery is inserted correctly. (→ page 2)
• Replace the battery if it is worn.
Display
• An AC power supply cord or fluorescent light is near the
cables. Keep other appliances and cords away from
this unit’s cables.
Panasonic Consumer Electronics
Company, Division of Panasonic
Corporation of North America
A beat sound is heard
while receiving a radio
broadcast.
– –:– –
• You plugged the AC adaptor in for the first time or there
was a power failure recently. Set the time. (→ page 5)
• The total programmed play time is more than 200
minutes.
Tracks can still be programmed and played.
PGM FULL
• The number of programmed tracks is limited to 24. No
further tracks can be programmed.
NOT MP3
• A non-CD-DA or non-MP3 CD-ROM disc is inserted.
Cannot be played.
ERROR
• Incorrect operation performed. Read the instructions
and try again.
F76
• There is a power supply problem. Consult the dealer.
Panasonic Puerto Rico, Inc.
Panasonic Canada Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
P
PC En
RQT7316-1P
H1103ZZ1124
1
Supplied accessories
The remote control
g Batteries
Use the numbers indicated in parentheses when asking for
replacement parts.
4
(Only for U.S.A.)
To order accessories contact 1-800-332-5368 or the website
(http://www.pasc.panasonic.com).
1 Remote control
2
2 Batteries
SC-EN7
(EUR7711110)
(R6, AA, UM-3)
SC-EN6
(EUR7711120)
1 AC adaptor
(RFEA206C-T)
• Insert so the poles (+ and –)
match those in the remote
control.
• Do not use rechargeable type
batteries.
3
1
g Use
1 AM loop antenna
(G0ZZ00002036)
Remote control signal sensor
• Aim at the sensor, avoiding obstacles, at a
maximum range of 7 m directly in front of the
unit.
• Operation can be affected by strong light
sources, such as direct sunlight, and the
glass doors on cabinets.
Note
The included AC adaptor is for use with this unit only. Do not use with
other equipment.
Placements
Placement of speakers
Caution
You can remove the speaker cover netting.
Left and right speakers are exactly the same.
• Use the speakers only with the
recommended system. Failure
to do so may lead to damage
to the amplifier and/or the
speakers, and may result in
the risk of fire. Consult a
qualified service person if
damage has occurred or if you
experience a sudden change
in performance.
• Do not attach these speakers
to walls or ceilings.
Note
Place this unit in an area with more than 300 mm
(1113/16″) of vertical space.
The CD lid may become damaged if it cannot open
completely.
• Keep your speakers at least 10 mm (13/32") away
from the system for proper ventilation.
• These speakers do not have magnetic shielding.
Do not place them near televisions, personal
computers or other devices easily influenced by
magnetism.
• To avoid damage to the speakers, do not touch
the speaker cones if you have taken the nets off.
Connections
1 Speakers
2 AM loop antenna
Before connecting, twist and
pull off the vinyl tip of the
speaker cords.
Stand the antenna up on its base.
Red
Black Black
3 AC adaptor
AM AN
T
Red
Copper (+)
1
Conserving power
Connect the AC adaptor only after The AC adaptor consumes 2.6 W
even when the unit is turned off. To
all other connections have been
save power when the unit is not to
made.
be used for a long time, unplug the
AC adaptor from the household AC
DC IN 13V outlet.
If the unit is left unplugged for longer
Household AC
than approximately two weeks, all
outlet (AC 120 V/
settings will revert to the factory
60 Hz)
settings. Do the settings again if this
occurs.
2
Silver (–)
L
R
Silver (–)
Copper (+)
Other equipment
(Cables and equipment not included.)
OUT
(L)
(R)
AUX
Plug type:
3.5 mm (1/8″) stereo
Tape deck, etc.
Use
Main unit
Remote control
AUX
AUX
Start Playback from
the other source.
Headphones
Reduce the volume before connection.
Plug type: 3.5 mm (1/8″) stereo
(Not included)
Select “AUX”
PHONES
Note
Note
• An analog player with a built-in phono equalizer can be
connected.
• For details, refer to the instruction manual of the other equipment.
Avoid listening for prolonged periods of
time to prevent hearing damage.
2
CD operations
1
2
Set the CD in place.
;
Start play.
Main unit
The CD lid opens and the
unit comes on.
Label must face outward.
Remote control
Elapsed playing time of track
CD
1 0:01
q/h
q/h
Press until you hear it
click into place.
Track number
If the CD is already in the unit, the unit comes on and play begins.
(One touch play)
Press again to close.
Keep fingers away from the CD lid when it is
closing to avoid possible minor injury.
CLOCK/ TIMER
TIMER ADJ SET/CHECK DISPLAY
Function indicator
To turn on
the unit
SLEEP
The color changes when
using the CD mode.
POWER
Input using the
numbered buttons
1
2
3
4
5
6
7
8
9
0
>10
=
To select a 2-digit number
e.g. 16: [>
= 10] → [1] → [6]
To select 3-digit number
e.g. 226:
[>
= 10] → [>
= 10]
→ [2] → [2] → [6]
PGM/CLEAR
PLAY MODE
To adjust the volume
g
– VOLUME +
AUX
u/–
VOL 22
+/i
TUNER/
BAND
0
50
(Minimum)
(Maximum)
Number of tracks
Track play time
Main unit
Remote control
14 40:21
g
MP3
2
(SC-EN7)
Main unit
1-&: One track
repeat
& : All track
repeat
RND: Random
play
Number of albums
Number of tracks
g
Pause
Repeat play/
random play
MP3
18
Remote control
q/h
CD
Program
play
Press again to resume play.
Main unit
u/–
3
4
u
i
• Each time you press the button:
1-& → &
→ RND
↑
(While stopped)
Select the
play mode
No display (Canceled)←
PLAY MODE
Note
• During random play, you cannot skip to the previous
track.
• You cannot select “RND” while playing MP3 (SCEN7).
• You cannot use random play and program play at
the same time.
10 2:16
q/h
Skip/
Search
To adjust the volume
4 VOL
SOUND
LIVE
VIRTUALIZER
EQ
u ALBUM i
Stop
q/h
VOL 3
EXTRA
D.BASS
2
CD
g
This function
allows you to
program up to
24 tracks.
Remote control
+/i
3
4
u
i
PGM/CLEAR
Press while
stopped
PGM
Play starts
with the track
you select.
2
6
7
8
9
0
>10
=
8
9
0
>10
=
CD
q/h
Start play
Sequence number
Track number
6 4:01
Total play time
PGM/CLEAR
• Erase a program
• You cannot search through MP3 files (SC-EN7).
• Perform search during play or while paused.
• You can search only within the current track during
program, one track repeat, or random play.
5
6
7
6 -- -- 01
Note
1
3
Track number
(CD only)
4
2
5
Select tracks
(Maximum 24 tracks)
Press to skip/
Press and hold to search
Direct
access
play
1
4
(While stopped)
CLEAR
Note
Program contents are stored in memory even after the
function has been changed or the unit is turned off.
All program contents are erased by pressing [PGM/
CLEAR] or by opening the CD lid.
3
• Confirm a programmed
track (While stopped)
• Add a program track
Select the desired track
(While stopped)
Refer to page 6 regarding MP3 play (SC-EN7 only).
Note
3
4
u
i
1
2
4
5
3
6
7
8
9
0
>10
=
Select the track
you want to add
• You cannot use random play and program play at
the same time.
3
Radio operations
Radio stations can be turned manually by selecting the station’s frequency or they can be preset into channels to make it easy to tune.
You can preset up to 20 FM channels and up to 12 AM channels.
u/–
+/i TUNING MODE
Function indicator
CLOCK/ TIMER
TIMER ADJ SET/CHECK DISPLAY
The color changes when using
the radio.
SLEEP
1
2
3
4
5
6
7
8
9
0
>10
=
PGM/CLEAR
-BAND -AUTO PRESET
Input using the numbered
buttons
PLAY MODE
To adjust the volume
– VOLUME +
Manual
tuning
0
50
(Maximum)
-BAND -AUTO PRESET
Select
“FM” or “AM”
u/–
TUNING MODE
Select
“MANUAL”
Automatic
presetting
+/i
The tuner
presets all the
stations it can
receive into
channels in
ascending order.
Select the
frequency
Remote control
TUNER/
BAND
Select
“FM” or “AM”
3
4
u
i
Select the
frequency
Auto tuning
Main unit
u/–
Remote control
+/i
3
4
u
i
Manual
presetting
Press and hold until the frequency
starts changing rapidly
Preset the
stations one at a
time.
• Auto tuning stops when it finds a station.
• To cancel auto tuning press the same button again.
EXTRA
D.BASS
CD
g
VOL 3
(Minimum)
Main unit
AUX
TUNER/
BAND
VOL 22
To select a 2-digit number
e.g. 11: [>
= 10] → [1] → [1]
q/h
To adjust the volume
4 VOL
SOUND
LIVE
VIRTUALIZER
EQ
u ALBUM i
3
4
u
i
SC-EN7
SC-EN6
u ALBUM i
PRESET TUNE
Perform both FM and AM station presetting once.
-BAND -AUTO PRESET
-BAND -AUTO PRESET
Select
“FM” or “AM”
Press and hold
until “AUTO”
appears
Note
During automatic presetting, the memory indicator
( PGM ) flashes and the frequency scrolls. The
memory indicator and channel numbers are
displayed for a second when a station is preset.
The first station to be preset is displayed when
presetting finishes.
Within 10 seconds
Tune to
the signal
you want
to set as
the preset.
PGM/CLEAR
Note
Selecting
channels
AM
6
7
8
9
0
>10
=
Select a channel
Main unit
-BAND -AUTO PRESET
u/–
TUNING MODE
Select
“FM” or “AM”
Select
“PRESET”
+/i
Select a
channel
Remote control
Extend the whip antenna and
adjust its direction.
Change the direction and location
of the AM loop antenna.
TUNER/
BAND
SC-EN7
SC-EN6
u ALBUM i
PRESET TUNE
Select a channel
Select
“FM” or “AM”
If noise is excessive in FM
You can improve FM reception by switching reception to monaural.
PLAY MODE
3
Note
The station occupying a channel is erased if another
station is preset over that channel.
To improve reception
FM
2
5
Enter preset mode
PGM
• Auto tuning may not function when there is
excessive interference.
1
4
TUNER/
BAND
MONO
Press to turn the MONO
mode ON/OFF
Select
“FM” or “AM”
4
1
2
4
5
3
6
7
8
9
0
>10
=
Select a channel
Timer and others
Play timer
CLOCK/ TIMER
TIMER ADJ SET/CHECK DISPLAY
This timer starts
play of the
selected source
at the selected
time.
SLEEP
1
2
3
4
5
6
PGM/CLEAR
PLAY MODE
7
8
9
0
>10
=
 Set the start time
Within 10 seconds
CLOCK/
TIMER ADJ
q/h
3
4
u
i
Select the start time
• Press and hold to
change the time
faster.
ON TIME
CD
g
1 Perform timer settings
Select “ON
TIME”
AUX
TUNER/
BAND
Preparation: Set the clock (see left).
AM 12:00
VOL 3
EXTRA
D.BASS
4 VOL
SOUND
LIVE
EQ
VIRTUALIZER
This is a 12-hour
clock.
CLOCK/
TIMER ADJ
3
4
u
i
u ALBUM i
Setting
the time
 Set the end time
Select
“CLOCK”
CLOCK
3
4
u
i
OFF T I ME
CLOCK/
TIMER ADJ
4
i
CLOCK/
TIMER ADJ
Select the end time
• Press and hold to
change the time faster.
Select “OFF
TIME”
Within 10 seconds
CLOCK/
TIMER ADJ
3
u
AM 12:00
Select the time
• Press and hold to
change the time faster.
2 Select the source and adjust the volume
AUX
-- --:-- --
CLOCK/
TIMER ADJ
• To display the clock when
the unit is on
VOL 3
CD
TUNER/
BAND
Select the source
TIMER
SET/CHECK
• To check the time when the
unit is off
4 VOL
q/h
Adjust the volume
3 Turn the timer on
TIMER
SET/CHECK
Note
Display “zPLAY”
The clock is accurate to within ±60 seconds a month.
Readjust if necessary.
Turn the unit off
PLAY
The unit must be off for the timer to operate.
SLEEP
timer
SLEEP
Note
You can enjoy other sources after you have set the
timer.
• Each time you press the button:
SLEEP 30 → SLEEP 60 → SLEEP 90 → SLEEP 120
←
The SLEEP
timer can turn
the unit off after
a set time.
SLEEP
OFF (Canceled)
SLEEP
• To check the remaining time
• To cancel the timer
while the unit is on
Press once
Note
The play and sleep timer can be used together.
The sleep timer always has priority. Be sure not to
overlap timer settings.
Sound
quality
You can choose
one of four types
of sound quality.
SOUND
EQ
You can create a
three-dimensional
sound field when
listening to stereo
sound.
Extra
D.Bass
Boosts the bass.
The timer function will be canceled, but the settings
stay in the memory.
The timer comes on every day if the timer is on.
• To change the timer
EQ
• To check the setting
while the unit is off
TIMER
SET/CHECK
Note
• If you turn the unit off and on again while the timer
is functioning, the finish time setting will not be
activated.
• When the “AUX” source is selected, set the timer
on the connected equipment to the same time.
LIVE
VIRTUALIZER
Press to turn the Live
Virtualizer ON/OFF
Display
Note
You can change
the display.
The actual effect depends on the source played.
EXTRA
D.BASS
TIMER
SET/CHECK
Clear “zPLAY” and
set the timer again
VOCAL
←
EQ-OFF ←
(Turns the sound (Adds gloss to
vocal)
quality off)
Live
Virtualizer
Clear “zPLAY”
Note
Select the sound quality
• Each time you press the button:
CLEAR
→ SOFT
XBS
→
(Clarifies higher (For background
(Adds punch
music)
sounds)
to rock)
↑
TIMER
SET/CHECK
D.BASS
Press to turn Extra
D. Bass ON/OFF
5
DISPLAY
The following types of information are displayed.
• Original display
• MP3 track title display (SC-EN7)
• MP3 album title display (SC-EN7)
• Time display
RQT7316
Control guide
 Power button [^].................................................................................... 3
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
 Clock/timer adjust button [CLOCK/TIMER ADJ]................................ 5
 SLEEP timer button [SLEEP] ............................................................... 5
 CD program/clear, tuner preset button [PGM/CLEAR] .................. 3, 4
 Play mode button [PLAY MODE].................................................. 3, 4, 6
 AUX button [AUX].................................................................................. 2
 Tuner/band select button [TUNER/BAND] .......................................... 4
 Volume buttons [VOL –, + VOL] ........................................................... 3
 Extra D.Bass button [EXTRA D.BASS] ................................................ 5
 Sound EQ button [SOUND EQ] ............................................................ 5
 SC-EN7 Album skip, preset channel select buttons
[2, 1, u ALBUM i]..................................................................... 4, 6
CLOCK/ TIMER
TIMER ADJ SET/CHECK DISPLAY
SLEEP
1
2
3
4
5
6
7
8
9
0
>10
=
PGM/CLEAR
PLAY MODE
AUX
TUNER/
BAND
CD
g
q/h
VOL 3
EXTRA
D.BASS
4 VOL
SOUND
LIVE
VIRTUALIZER
EQ
3
4
u
i
u ALBUM i
SC-EN7
SC-EN6
u ALBUM i
PRESET TUNE







Buttons such as Ê function the same as the controls
on the remote control.
⇩
‰⇸
′ ″ ⇰
‱
‴
SC-EN6 Preset channel select buttons [2, 1, PRESET TUNE].... 4
Display button [DISPLAY]..................................................................... 5
Timer set/check button [TIMER SET/CHECK]..................................... 5
Numbered buttons [1–9, 0, >
= 10]........................................................... 3
CD play/pause button [CD q/h]........................................................... 3
CD stop button [g]................................................................................ 3
Live virtualizer button [LIVE VIRTUALIZER]....................................... 5
CD skip/search, frequency select, time adjust buttons
[u, i, –, +]................................................................................ 3, 4, 5
 Standby indicator
When the unit is connected to the AC adaptor, this indicator lights up in
standby mode and goes out when the unit is turned on.
 Remote control signal sensor
 CD skip/search, tune/preset channel select,
time adjust buttons [u/–, +/i] ................................................... 3, 4
 Tuning mode select button [TUNING MODE]...................................... 4
 Display
 Function indicator............................................................................. 3, 4
The color changes depending on the source used.
 Tuner, band select, auto preset button
[TUNER, -BAND –AUTO PRESET]........................................................ 4
 CD open/close button [; OPEN/CLOSE] ............................................ 3
‵
⇷
‶
⇮
‷
MP3 operations (SC-EN7 only)
Limitations on MP3
This unit can play MP3, a method of compressing audio without overtly
hurting audio quality.
• This unit is compatible with multi-session but if there are a lot of sessions it
takes more time for play to start. Keep the number of sessions to a
minimum to avoid this.
• This unit cannot play files recorded using packet write.
• If the disc includes both MP3 and normal audio data (CD-DA), the unit
plays the type recorded in the inner part of the disc.
If the disc includes both MP3 and other types of audio data (e.g. WMA or
WAV), the unit plays only the MP3.
• Depending on how you create MP3 files, they may not play in the order you
numbered them or may not play at all.
• Upper case alphanumeric characters and an underbar “_” can be displayed
on this unit. Lower case characters are converted to upper case.
When creating MP3 files to play on this unit
• Maximum number of tracks and albums: 999 tracks and 256 albums.
• Compatible compression rate: Between 64 kbps and 320 kbps (stereo).
128 kbps (stereo) is recommended.
• Disc formats: ISO9660 level 1 and level 2 (except for extended formats).
• It is better not to create folders (album) within folders (004album below).
Naming tracks and albums
CD-ROM drive
001album
1
002album
001track.mp3
002track.mp3
003track.MP3
004track.mp3
005track.mp3
2
004album
3
003album
008track.MP3
009track.MP3
006track.mp3
007track.MP3
4
CLOCK/ TIMER
TIMER ADJ SET/CHECK DISPLAY
PLAY MODE
SLEEP
1
2
3
4
5
6
7
8
9
0
>10
=
PGM/CLEAR
PLAY MODE
AUX
TUNER/
BAND
VOL 3
EXTRA
D.BASS
CD
g
q/h
CD
4
u
i
Regarding CDs
Up to 31 characters for tracks and albums
Note on CD-R and CD-RW
If you created an album such as 004album on
the left, the files may not play in order.
The albums would play in the order À, Á, Â, Ã.
Album
play
You can
listen to
tracks within
albums.
u ALBUM i
u ALBUM i
ALBUM &:
Album
repeat
PLAY MODE
This unit can play CD-R and CD-RW recorded with CD-DA or MP3 (MP3:
SC-EN7 only). Use an audio recording disc for CD-DA and finalize it when
you finish∗ recording. The unit may not be able to play some discs due to
the condition of the recording.
∗A process performed after recording that enables CD-R/CD-RW players
to play audio CD-R and CD-RW.
CD
q/h
Select the
Select
album
“ ALBUM ” or
Caution
Start
play
Choose discs with this mark:
Do not;
• use irregularly shaped CDs.
• attach extra labels and stickers.
• use CDs with labels and stickers that are coming off or with adhesive
exuding from under labels and stickers.
• attach scratch-proof covers or any other kind of accessory.
• write anything on the CD.
• clean CDs with liquids (Wipe with a soft, dry cloth.).
“ ALBUM &”
ALBUM :
Album play
4 VOL
3
001track.mp3 (or.MP3)
q/h
SOUND
LIVE
VIRTUALIZER
EQ
u ALBUM i
Prefix with 3-digit numbers in the order you
want to play
Extension
ALBUM
• Skip the
album
u ALBUM i
6
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep
these operating instructions handy for future reference.
1)
Read these instructions.
2)
Keep these instructions.
10) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
3)
Heed all warnings.
4)
Follow all instructions.
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
7)
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8)
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9)
Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding-type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
Listening caution
Product Service
1. Damage requiring service — The unit should be serviced by qualified
service personnel if:
(a) The AC adaptor or the plug has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change in
performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing — Do not attempt to service the unit beyond that described in
these operating instructions. Refer all other servicing to authorized
servicing personnel.
3. Replacement parts — When parts need replacing ensure the servicer
uses parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may result
in fire, electric shock, or other hazards.
4. Safety check — After repairs or service, ask the servicer to perform
safety checks to confirm that the unit is in proper working condition.
The servicer will require all components to service your system.
Therefore, should service ever be necessary, be sure to bring the entire
system.
EST. 1924
Selecting fine audio equipment such as the unit you’ve just purchased is only
the start of your musical enjoyment. Now it’s time to consider how you can
maximize the fun and excitement your equipment offers. This manufacturer
and the Electronic Industries Association’s Consumer Electronics Group
want you to get the most out of your equipment by playing it at a safe level.
One that lets the sound come through loud and clear without annoying
blaring or distortion–and, most importantly, without affecting your sensitive
hearing.
We recommend that you avoid prolonged exposure to excessive noise.
Sound can be deceiving. Over time your hearing “comfort level” adapts to
higher volumes of sound. So what sounds “normal” can actually be loud and
harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFORE your
hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and
without distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in
the future. After all, we want you listening for a lifetime.
Product information
For product information or assistance with product operation:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-2117262, or the website (http://www.panasonic.com/contactinfo), or the website
(http://www.panasonic.com/support).
In Canada, contact the Panasonic Canada Inc. Customer Care Centre at
905-624-5505, or visit the website (www.panasonic.ca), or an authorized
Servicentre closest to you.
User memo:
The model number and serial number of this product can be found on
either the back or the bottom of the unit.
Please note them in the space provided below and keep for future
reference.
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
MODEL NUMBER
SERIAL NUMBER
Specifications
g Main unit
Radio
Frequency range
FM
87.5–108.0 MHz (100 kHz steps)
AM
520–1710 kHz (10 kHz steps)
CD player
Sampling frequency
44.1 kHz
Decoding
16 bit liner
Beam source
Semiconductor laser (wavelength 780 nm)
Number of channels
2 channel, stereo
Wow and flutter
Less than possible mesurement data
D/A converter
MASH (1 bit DAC)
g Speakers
Terminals
Input
Output
General
AUX: 3.5 mm stereo (27 kΩ)
PHONES: 3.5 mm stereo (32 Ω)
Power supply
AC adaptor
Power consumption
Dimensions (W×H×D)
AC 120 V, 60 Hz
DC 13 V, 1.5 A
30 W
240×216×170 mm
(97/16″×81/2″×611/16″)
Mass
With speakers
Without speakers
3.0 kg (6 lb. 10 oz.)
1.6 kg (3 lb. 8 oz.)
7
Full range
Ceramic tweeter
Dimensions (W×H×D)
8 cm (31/8″), 3 Ω×2
1.52 cm (19/32″) ×2
107×230×165 mm
(47/32″×91/16″×61/2″)
Power consumption in standby mode: 2.6 W
Note
Specifications are subject to change without notice.
Mass and dimensions are approximate.
MPEG Layer-3 audio decoding technology
licensed from Fraunhofer IIS and Thomson
multimedia.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
CAUTION!
CAUTION:
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER
SERVICING TO QUALIFIED PERSONNEL.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE, DO NOT EXPOSE THIS
APPARATUS TO RAIN, MOISTURE, DRIPPING OR
SPLASHING AND THAT NO OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON
THE APPARATUS.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT
IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT
CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
Any unauthorized changes or modifications to this equipment would void
the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
ONLY FOR CANADA
Maintenance
To clean this unit, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came with
the cloth carefully.
(Inside of product)
8
Download PDF

advertising
