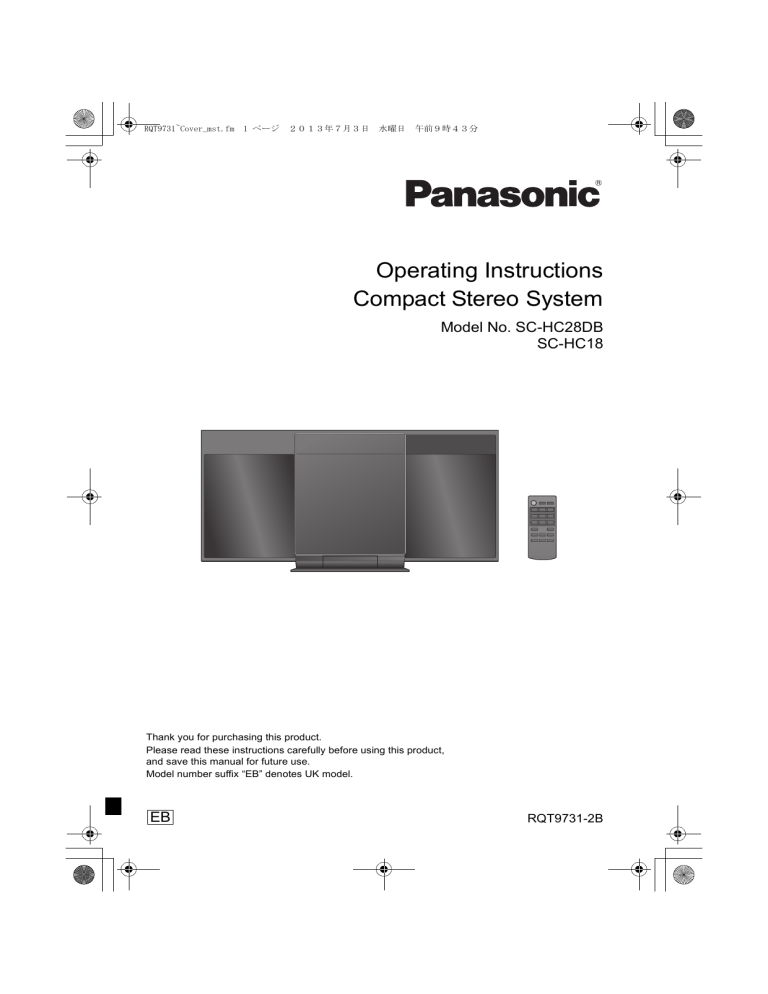

Operating Instructions
Compact Stereo System
Model No. SC-HC28DB
SC-HC18
Thank you for purchasing this product.
Please read these instructions carefully before using this product,
and save this manual for future use.
Model number suffix “EB” denotes UK model.
EB
RQT9731-2B
SC-HC28_18_EB~RQT9731-B.book
2 ページ
2013年1月3日 木曜日 午後10時17分
Caution for AC Mains Lead
Safety precautions
(For the AC mains plug of three pins)
For your safety, please read the following text
carefully.
Unit
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 5-ampere
and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on
the body of the fuse.
≥ To reduce the risk of fire, electric shock or product damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases, on
this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
– Do not let metal objects fall inside this unit.
– Do not place heavy items on this unit.
If the plug contains a removable fuse cover you
must ensure that it is refitted when the fuse is
replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from
your local dealer.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type
of AC mains plug (figures A and B). Confirm the AC
mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
WARNING
AC mains lead
≥ To reduce the risk of fire, electric shock or product damage,
– Ensure that the power supply voltage corresponds to the
voltage printed on this unit.
– Insert the mains plug fully into the socket outlet.
– Do not pull, bend, or place heavy items on the lead.
– Do not handle the plug with wet hands.
– Hold onto the mains plug body when disconnecting the
plug.
– Do not use a damaged mains plug or socket outlet.
≥ The mains plug is the disconnecting device.
Install this unit so that the mains plug can be unplugged from
the socket outlet immediately.
Button-type battery (Lithium battery)
≥ Risk of fire, explosion and burns. Do not recharge,
disassemble, heat above 60 oC or incinerate.
≥ Keep the Button-Type battery out of the reach of children.
Never put Button-Type battery in mouth. If swallowed call
your doctor.
1. Open the fuse cover with a screwdriver.
Figure A
CAUTION
Figure B
Unit
Fuse cover
2. Replace the fuse and close or attach the fuse
cover.
Figure A
2
RQT9731
Placement
Figure B
Fuse
(5 ampere)
≥ This unit utilizes a laser. Use of controls or adjustments or
performance of procedures other than those specified herein
may result in hazardous radiation exposure.
≥ Do not place sources of naked flames, such as lighted
candles, on this unit.
≥ This unit may receive radio interference caused by mobile
telephones during use. If such interference occurs, please
increase separation between this unit and the mobile
telephone.
≥ This unit is intended for use in moderate climates.
Fuse
(5 ampere)
≥ Place this unit on an even surface.
≥ To reduce the risk of fire, electric shock or product damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
– Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
– Do not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive vibration.
SC-HC28_18_EB~RQT9731-B.book
3 ページ
2013年1月3日 木曜日 午後10時17分
Button-type battery (Lithium battery)
≥ Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
≥ Insert with poles aligned.
≥ Mishandling of batteries can cause electrolyte leakage and
may cause a fire.
– Remove the battery if you do not intend to use the remote
control for a long period of time. Store in a cool, dark
place.
– Do not heat or expose to flame.
– Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows
closed.
≥ When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
Product Identification Marking is located on the bottom of
the unit.
Sales and Support Information
Customer Communications Centre
≥ For customers within the UK: 0844 844 3899
≥ For customers within Ireland: 01 289 8333
≥ Monday–Friday 9:00 am - 5:00 pm
(Excluding public holidays).
≥ For further support on your product, please visit
our website: www.panasonic.co.uk
Direct Sales at Panasonic UK
≥ Order accessory and consumable items for your
product with ease and confidence by phoning our
Customer Communications Centre
Monday–Friday 9:00 am - 5:00 pm
(Excluding public holidays).
≥ Or go on line through our Internet Accessory
ordering application at www.pas-europe.com.
≥ Most major credit and debit cards accepted.
≥ All enquiries transactions and distribution
facilities are provided directly by Panasonic UK.
≥ It couldn’t be simpler!
≥ Also available through our Internet is direct
shopping for a wide range of finished products.
Take a browse on our website for further details.
Table of contents
Caution for AC Mains Lead....................................2
Safety precautions..................................................2
Accessories.............................................................3
Control reference guide .........................................4
Connections ............................................................5
Unit and media care................................................5
Inserting media .......................................................6
Media playback operations....................................7
[SC-HC28DB] Listening to DAB/DAB+......................8
Listening to FM radio ...........................................10
Sound adjustment ................................................11
Clock and Timer....................................................11
Others ....................................................................12
Troubleshooting....................................................12
Playable media......................................................14
Licenses ................................................................15
Specifications .......................................................16
[SC-HC28DB] Attaching the support pad
to this unit ..........................................................19
About descriptions in these operating instructions
≥ Pages to be referred to are indicated as “l ±±”.
≥ These operating instructions are applicable to models
SC-HC28DB and SC-HC18. Unless otherwise indicated,
illustrations in these operating instructions are of
SC-HC28DB.
[SC-HC28DB] :indicates features applicable to SC-HC28DB
only.
[SC-HC18] : indicates features applicable to SC-HC18 only.
Accessories
Check the supplied accessories before using this unit.
∏ 1 Remote control ∏ 1 AC mains lead
(K2CT2YY00097)
(with a battery)
[SC-HC28DB]
(N2QAYC000079) ∏ [SC-HC18]
1 FM indoor
[SC-HC18]
antenna
(N2QAYC000080)
(RSAX0002)
∏ [SC-HC28DB]
1 DAB antenna
(N1EADY000001)
∏ [SC-HC18]
1 Antenna plug
adaptor
(K1YZ02000013)
∏ [SC-HC28DB]
1 Pad sheet (l 19)
(RFA3465)
≥ Do not use AC mains lead with other equipment.
≥ Product numbers provided in these operating instructions are
correct as of December 2012. These may be subject to
change.
3
RQT9731
SC-HC28_18_EB~RQT9731-B.book
4 ページ
2013年1月3日 木曜日 午後10時17分
Control reference guide
6
Unless otherwise indicated, operations are described
using the remote control.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
Standby/on switch (Í/I) (Í)
Press to switch the unit from on to standby mode or vice
versa.
In standby mode, the unit is still consuming a small
amount of power.
Select the audio source
Basic playback control buttons
Enter setup menu
Change displayed information
[SC-HC28DB] Enter the iPod/iPhone menu
Set the sleep timer
Change the brightness of the display panel
Adjust the volume (0 (min) to 50 (max))
Mute the sound
Mutes the sound. Press again to cancel. “MUTE”
is also cancelled when the volume is adjusted or
the unit is turned off.
Enter playback menu
Enter sound menu
Selection/OK
[SC-HC28DB]
“IPOD_PORT” for iPod/iPhone/iPad (l 6)
USB port (l 6)
[SC-HC18] USB port (l 6)
Open or close the sliding door
Sliding door
Display
Remote control signal sensor
7
iPod/
USB
[SC-HC18]
USB
3
8
4
5
9
10
11
12
[SC-HC18]
Top view
1
[SC-HC18]
2 13
3
8
iPad
iPod/USB
VOLUME
RADIO
USB
RADIO
15
16
18 [SC-HC28DB] “IPOD_DOCK” for iPod/iPhone/
iPad mini (l 6)
PUSH
18
∫ Before using for the first time
∫ To replace a button-type battery
Remove the insulation sheet A.
Battery type: CR2025 (Lithium battery)

≥ Set the button-type battery with its (i) mark facing upward.
≥ Keep the button-type battery out of reach of children to prevent swallowing.
4
RQT9731
OPEN/CLOSE
[SC-HC18]
Distance: Within approx. 7 m directly in front.
≥ To avoid interference, please do not put any objects in
front of signal sensor.

14

17
SC-HC28_18_EB~RQT9731-B.book
5 ページ
2013年1月3日 木曜日 午後10時17分
Connections
1
[SC-HC28DB]
Adhesive tape (not supplied)
ョヮチモワヵ
チドヘブ„ナ
ュモャチモワヵ
Be sure to tighten fully the
nut.
[SC-HC18]
Adhesive tape
(not supplied)
ョヮチモワヵ
チドヘブ„ナ
ュモャチモワヵ
ョヮチモワヵ
ヘブ„
FM indoor antenna
(supplied)
モヮチモワヵ
ロヰヰヱ
2
DAB indoor antenna
(supplied)
Connect the AC mains lead after all other connections are completed.
This unit consumes a small amount of AC power (l 16) even when turned off.
AC mains lead (supplied)
To household mains socket
≥ In the interest of power conservation, if you will not be using this unit for an extended period of time, unplug it from
the household mains socket.
READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 2 BEFORE CONNECTION.
≥ These speakers do not have magnetic shielding. Do not place them near a television, personal computer or other devices easily
influenced by magnetism.
≥ Tape the DAB/FM antenna to a wall or column in a position with the least amount of interference. (Use an DAB/FM outdoor
antenna if radio reception is poor.)
Unit and media care
Pull out the AC mains lead from the outlet before
maintenance.
∫ Clean discs
DO
DO NOT
∫ Clean this unit with a soft, dry cloth
≥ When dirt is heavy, wring a cloth moistened in water tightly to
wipe the dirt, and then wipe it with a dry cloth.
≥ Never use alcohol, paint thinner or benzine to clean this unit.
≥ Before using chemically treated cloth, carefully read the
instructions that came with the cloth.
∫ Maintenance of the lens
≥ Clean the lens regularly to prevent malfunctions. Use a
blower to remove dust and a cotton swab if it is extremely
dirty.
≥ You cannot use a CD type lens cleaner.
≥ Do not leave the sliding door open for prolonged periods
of time. This will cause the lens to get dirty.
≥ Be careful not to touch the lens with your fingers.
Lens
Wipe with a damp cloth and then wipe dry.
∫ Disc handling precautions
≥ Handle discs by the edges to avoid inadvertent scratches or
fingerprints on the disc.
≥ Do not attach labels or stickers to discs.
≥ Do not use record cleaning sprays, benzine, thinner, static
electricity prevention liquids or any other solvent.
≥ Do not use the following discs:
– Discs with exposed adhesive from removed stickers or
labels (rented discs etc.).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.
∫ To dispose or transfer this unit
The unit may keep the user settings information in the
unit. If you discard this unit either by disposal or transfer,
then follow the procedure to return all the settings to the
factory presets to delete the user settings.
(l 12, “To return all settings to the factory preset”)
5
RQT9731
SC-HC28_18_EB~RQT9731-B.book
6 ページ
2013年1月3日 木曜日 午後10時17分
Inserting media
Select “CD” as the source
[SC-HC28DB]
Select “IPOD_PORT” as the source
*6
“USB” is displayed when a compatible USB is inserted.
[SC-HC18]
[SC-HC28DB]
Select “USB” as the source
*1, 2, 3
*4
iPad
iPod/USB
RADIO
VOLUME
OPEN/CLOSE
OPEN/CLOSE
[SC-HC28DB] Attach the pad before using this unit.
(l 19)
[SC-HC28DB]
Select “IPOD_DOCK” as the source
Connect using the Lightning connector *1
pad
(supplied)
PUSH
*5
*1: Refer to “Playable media” for compatible models. (l 14)
– Do not connect an iPad (4th generation) to the
“IPOD_DOCK” connection. This unit might fall over.
Use the “IPOD_PORT” connection.
*2: When using the “IPOD_PORT” connection, do not connect
the following models to this unit:
– iPod classic, iPod [4th (colour display), and 5th (video)
generation]
Unexpected behaviour may occur.
*3: Connect using the dedicated USB cable (not supplied).
*4: Insert the USB device directly. Do not use any USB
extension cable.
*5: When using the “IPOD_DOCK” connection:
≥ Be sure to remove the iPod/iPhone/iPad mini from its case.
≥ Make sure that the iPod/iPhone/iPad mini is fully inserted.
≥ If the iPod/iPhone/iPad mini is pushed to the left or right,
make sure to check that it is still fully inserted.
≥ Make sure to hold the dock when removing the iPod/
iPhone/iPad mini.
≥ Make sure to close the dock properly after using it.
If not,
– The sliding door will not open.
– The standby power consumption will increase.
*6: Make sure to tilt the disc so as not to touch the sliding door.
6
RQT9731
≥ Do not open the sliding door manually.
≥ Make sure that the unit does not fall when inserting or
removing media.
≥ When moving this unit, be sure to remove all media and turn
this unit to standby mode.
≥ Before removing the USB device, select a source other than
“USB”.
[SC-HC28DB]
Charging an iPod/iPhone/iPad
Charging starts when an iPod*2/iPhone/iPad is
connected to this unit.
≥ During standby mode, charging will not start from the
“IPOD_PORT” connection, however it will start as usual from
the “IPOD_DOCK” connection.
– To charge from the “IPOD_PORT” connection, start the
charging before turning this unit to standby mode.
≥ Check the iPod/iPhone/iPad to see if the battery is fully
charged. (Once fully recharged, additional recharging will not
occur.)
≥ If this unit is switched to standby mode
“IPOD CHARGING” is shown on the unit’s display.
SC-HC28_18_EB~RQT9731-B.book
7 ページ
2013年1月3日 木曜日 午後10時17分
Media playback operations
The following marks indicate the availability of the
feature.
[CD]:
CD audio in CD-DA format and a CD that
contains MP3 files (l 14)
[iPod]:
Compatible iPod/iPhone/iPad (l 14)
[USB]:
USB devices containing MP3 files (l 14)
[iPod] is only available for [SC-HC28DB].
Preparation
≥ Turn the unit on.
≥ Insert the media. (l 6)
≥ Press [CD], [iPod/USB] ([SC-HC28DB]) or
[USB] ([SC-HC18]) to select the audio source.
≥ When using iPod/iPhone/iPad, the operation may vary
among those models.
∫ [iPod] To navigate through the iPod/
iPhone menu
Open the Music App to use this feature with
iPod touch/iPhone.
– [3, 4]: To navigate menu items.
– [OK]: To go to the next menu.
– [iPod MENU]: To return to the previous menu.
≥ Depending on the model (e.g., iPod nano 7th generation,
etc.), it may be necessary to select the album, artist, etc. on
the iPod/iPhone.
Playback modes ([CD], [USB])
Select the playback mode.
1
2
Basic play ([CD], [iPod], [USB])
Play
Press [1/;].
Stop
Press [∫].
≥ [USB]: The position is memorised
and “RESUME” is displayed.
Pause
Press [1/;].
Press again to restart play.
Skip
Press [:/6] or [5/9]
to skip track.
Press [PLAY MENU] to select “PLAYMODE” or
“REPEAT”.
Press [3, 4] to select the setting and then press
[OK].
PLAYMODE
OFF
PLAYMODE
Select to cancel the play mode
setting.
1-TRACK
Only plays the selected track.
≥ “1”, “ ” is displayed.
(Skip to the desired track.)
1-ALBUM
≥ “1”, “
[CD], [USB] Press [3] or [4] to
Search
Only plays the selected MP3 album.
” is displayed.
skip the MP3 album.
RANDOM
Plays the contents randomly.
During play or pause
Press and hold [:/6] or
[5/9].
1-ALBUM
RANDOM
Plays the tracks in the selected
MP3 album randomly.
≥ [iPod]: Backwards search is only
within the current track.
≥ “RND” is displayed.
≥ Press [3] or [4] to select the MP3
album.
≥ “1”, “ ”, “RND” is displayed.
∫ [CD], [USB] To display information
Press [DISPLAY] repeatedly.
≥ Maximum number of displayable characters: approx. 30
≥ This unit supports ver. 1.0, 1.1 and 2.3 ID3 tags. Text data that
is not supported will not be displayed or shown differently.
≥ Album and track indication for MP3 files.
REPEAT
ON REPEAT
Turn on repeat mode.
≥ “`” is displayed.
OFF
REPEAT
Turn off repeat mode.
“A _ _ _”: MP3 album number.
“T _ _ _”: MP3 track number.
≥ “ _ ” stands for the album or track number.
This indication is also used to refer to an album.
“ ”:
This indication is also used to refer to a track.
“ ”:
≥ When using iPod/iPhone/iPad, use the setting on the iPod/
iPhone/iPad.
≥ During random play, you cannot skip to the previous track.
≥ The mode is cancelled when you open the sliding door.
7
RQT9731
SC-HC28_18_EB~RQT9731-B.book
8 ページ
2013年1月3日 木曜日 午後10時17分
[SC-HC28DB]
Listening to DAB/DAB+
Preparation
≥ Make sure that the DAB antenna is connected. (l 5)
≥ Turn the unit on.
Memorising stations
To listen to DAB/DAB+ broadcasts, the available
stations need to be memorised in this unit.
≥ This unit will automatically start the “DAB AUTO
SCAN” and memorise the stations that are available
in your region if the memory is empty.
Press [RADIO] to select “DAB/DAB+”.
≥ “SCAN FAILED” is displayed when the auto scan is
unsuccessful. Locate the position with the best reception
(l 9, “To verify or improve the signal reception quality”) and
then re-scan DAB/DAB+ stations.
∫ To re-scan DAB/DAB+ stations
When new stations are added or when the antenna
has been moved, reperform the auto scan.
1
2
Press [PLAY MENU] to select “AUTOSCAN” and
then press [OK].
While “START ?” is flashing,
Press [OK].
≥ When updating the memory with the auto scan, preset
stations will be erased. Preset them again (l right).
Presetting DAB/DAB+ stations
You can preset up to 20 DAB/DAB+ stations.
Preparation
≥ Press [RADIO] repeatedly to select “DAB/DAB+”.
1
2
While listening to a DAB broadcast
Press [OK].
Press [3, 4] to select the desired preset channel
number and then press [OK].
≥ You cannot preset stations when the station is not
broadcasting or when the secondary service is selected.
≥ The station occupying a channel is erased if another station
is preset in that channel.
∫ Listening to preset DAB/DAB+ stations
Preparation*1
1 Press [RADIO] to select “DAB/DAB+”.
2 Press [PLAY MENU] repeatedly to select
“TUNEMODE”.
3 Press [3, 4] to select “PRESET” and then press
[OK].
1
2
Press [RADIO] to select “DAB/DAB+”.
Press [:/6] or [5/9] to select the
station.
≥ To select by preset, make sure that stations have already
been preset manually.
≥ To add additional preset stations, select the station using the
method mentioned in “Listening to the memorised stations”
(l left).
Listening to the memorised stations
Preparation*1
1 Press [RADIO] to select “DAB/DAB+”.
2 Press [PLAY MENU] repeatedly to select
“TUNEMODE”.
3 Press [3, 4] to select “STATION” and then press
[OK].
1
2
Listening to the secondary service
Some DAB/DAB+ stations provide a secondary service
as well as the primary service. If the station you are
listening to is providing secondary service, “ ” will be
displayed.
1
Press [RADIO] to select “DAB/DAB+”.
Press [:/6] or [5/9] to select the
station.
2
While “ ” is displayed.
Press [PLAY MENU] repeatedly to select “DAB
SECONDARY”.
Press [3, 4] to select the secondary service and
press [OK].
≥ The setting will go back to primary service when changes are
made (e.g. the station is changed).
*1: The “TUNEMODE” setting is memorised until it is changed.
8
RQT9731
SC-HC28_18_EB~RQT9731-B.book
9 ページ
2013年1月3日 木曜日 午後10時17分
Display
Press [DISPLAY] to change the display.
The information will scroll through the display.
Each time you press the button:
Dynamic label:
Information about the
broadcast
PTY display:
Programme type
Ensemble label:
The name of the ensemble
Frequency display:
The frequency block and
frequency is displayed.
Time display:
Current time
≥ If broadcasting stations are memorised, proceed to
“To re-scan DAB/DAB+ stations” to memorise stations on
other frequency blocks. (l 8)
≥ If “SCAN FAILED” is still displayed, repeat steps 1 to 3 until a
station is memorised. If the situation does not improve, try
using an outdoor DAB antenna or consult your dealer.
∫ Checking the DAB/DAB+ signal
reception quality
1
While listening to the DAB broadcast:
Press [PLAY MENU] repeatedly to select “SIGNAL
QUALITY” and then press [OK].
≥ The current frequency block is displayed and
then the reception quality is indicated.
Automatic clock adjustment
Reception quality
0 (poor) – 8 (excellent)
If the DAB broadcast includes time information, this
unit’s clock will be automatically updated.
1
2
Press [PLAY MENU] repeatedly to select “AUTO
CLOCK ADJ”.
Press [3, 4] to select “ON ADJUST” and then
press [OK].
2
3
≥ Select “OFF ADJUST” to turn the automatic clock adjustment
function off.
To verify or improve the signal
reception quality
To check the signal reception quality, at least 1
frequency block needs to be successfully memorised.
≥ If “SCAN FAILED” is displayed after “DAB/DAB+” is
selected or after an auto scan, proceed to “Manually
tuning 1 frequency block” (l below)
≥ If stations have already been memorised to this unit,
proceed to “Checking the DAB/DAB+ signal
reception quality” (l right)
∫ Manually tuning 1 frequency block
4
If the signal reception quality is poor, move the
antenna to a position where the reception quality
improves.
To continue checking the quality of other frequency
blocks:
Press [3, 4] again and select the desired
frequency.
Press [OK] to exit.
≥ If the antenna has been adjusted, perform auto scanning and
update the station memory. (l 8)
Changing the Auto scan frequency
range
Only the frequencies currently used in your region as
of December 2012 on BAND III are Auto scanned
(“LOCAL”, factory setting).
Use this function to scan 1 frequency block after
adjusting the position of the DAB antenna.
Preparation
Note down a frequency block that can be received in
your region (e.g., 12B 225.648 MHz).
Select “ALL BAND III” when you want to store stations
on other frequencies to memory.
1
While “SCAN FAILED” is displayed.
Adjust the position of the DAB antenna.
Press [3, 4] to select “ALL BAND III” or “LOCAL”
and then press [OK].
≥ The “DAB AUTO SCAN” begins automatically.
Press [PLAY MENU] repeatedly to select
“MANUAL SCAN”.
Press [3, 4] to select the frequency block that is
receivable in your region and then press [OK].
≥ The DAB preset channels are erased when the
“SCANMODE” is changed.
≥ If the play timer has been set and DAB/DAB+ is the music
source, the timer switches off. (l 11)
2
3
1
2
Press [PLAY MENU] repeatedly to select
“SCANMODE”.
9
RQT9731
SC-HC28_18_EB~RQT9731-B.book
10 ページ
2013年1月3日 木曜日 午後10時17分
Listening to FM radio
∫ Manual tuning and presetting
You can preset up to 30 channels.
1
Preparation
≥ Make sure that the antenna is connected. (l 5)
≥ Turn the unit on.
≥ Press [RADIO] to select “FM”.
Select a radio broadcast.
2
3
≥ To start automatic tuning, press and hold [:/6],
[5/9] until the frequency starts scrolling. Tuning
stops when a station is found.
≥ A station previously stored is overwritten when another
station is stored in the same channel preset.
Presetting stations automatically
1
2
Press [PLAY MENU] to select “A.PRESET”.
Press [3, 4] to select “LOWEST” or “CURRENT”
and then press [OK].
LOWEST:
To begin auto preset with the lowest frequency
(FM 87.50).
CURRENT:
To begin auto preset with the current frequency.*
* To change the frequency, refer to “Manual tuning and
presetting”.
The tuner starts to preset all the stations it can
receive into the channels in ascending order.
Listening to a preset channel
Preparation
1 Press [PLAY MENU] repeatedly to select
“TUNEMODE”.
2 Press [3, 4] to select “PRESET” and then press
[OK].
Press [:/6] or [5/9] to select the channel.
Press [PLAY MENU] repeatedly to select
“TUNEMODE”.
Press [3, 4] to select “MANUAL” and then press
[OK].
Press [:/6] or [5/9] to tune to the
required station.
To preset the channel
4 While listening to the radio broadcast
Press [OK].
5 Press [3, 4] to select the channel and then press
[OK].
∫ To improve FM sound quality
1
2
While receiving FM broadcasts, press
[PLAY MENU] repeatedly to select “FM MODE”.
Press [3, 4] to select “MONO” and then press
[OK].
≥ This setting can be preset and memorised. To do so,
continue to step 4 of “Manual tuning and presetting”.
≥ Select “STEREO” in step 2 to return to stereo broadcasts.
≥ “MONO” is cancelled if the frequency is changed.
≥ If “MONO” is selected, regardless of the type of signal this
unit is receiving, “FM MONO” is displayed. (l below)
∫ To display the current FM signal status
[SC-HC28DB]
While receiving FM broadcast, press [DISPLAY].
[SC-HC18]
While receiving FM broadcast, press [PLAY MENU] to
display “FM STATUS” and then press [OK].
“FM ST”:
“FM”:
The FM signal is in stereo.
The FM signal is in monaural.
≥ “FM” is also displayed even if this unit is not tuned to a
station.
∫ [SC-HC18] To display RDS text data
Press [DISPLAY] to display the text data.
≥ Each time you press the button:
“PS”:
“PTY”:
“FREQ”:
Programme service
Programme type
Frequency display
≥ “STEREO” is displayed when this unit tunes to a stereo
broadcast.
≥ The unit can display the text data transmitted by the radio
data system (RDS) available in some areas. (RDS displays
may not be available if reception is poor.)
10
RQT9731
SC-HC28_18_EB~RQT9731-B.book
11 ページ
2013年1月3日 木曜日 午後10時17分
Sound adjustment
The following sound effects can be added to the audio
output.
1
2
Press [SOUND] repeatedly to select the effect.
Press [3, 4] to select the setting and then press
[OK].
Preset EQ
(PRESET EQ)
“HEAVY” (heavy), “SOFT” (soft),
“CLEAR” (clear), “VOCAL”
(vocal) or “FLAT” (flat/off).
≥ The factory preset is “HEAVY”.
Bass (BASS) or
Treble (TREBLE)
Adjust the level (j4 to i4).
Dynamic Bass
(D.BASS)
“ON D.BASS” or “OFF D.BASS”.
Surround
(SURROUND)
“ON SURROUND” or
“OFF SURROUND”.
≥ The factory preset is “ON D.BASS”.
≥ The factory preset is
“OFF SURROUND”.
≥ You may experience a reduction in sound quality when these
effects are used with some sources. If this occurs, turn the
sound effects off.
Clock and Timer
Setting the clock
This is a 24-hour clock.
1
2
Press [SETUP] to select “CLOCK”.
Press [3, 4] to set the time and then press [OK].
≥ To display the clock, press [SETUP] to select “CLOCK” and
then press [OK] once. The time is displayed for 10 seconds.
(During standby, press [DISPLAY] once.)
≥ The clock is reset when there is a power failure or when the
AC mains lead is removed.
≥ Reset the clock regularly to maintain accuracy.
Play timer
You can set the timer so this unit turns on at a certain
time every day.
Preparation
Set the clock (l left).
∫ Setting the timer
1
2
3
Press [SETUP] repeatedly to select “TIMER ADJ”.
Press [3, 4] to set the starting time
(“ON TIME”) and then press [OK].
Press [3, 4] to set the finishing time
(“OFF TIME”) and then press [OK].
∫ Turn the timer on
1
2
3
4
Select the music source*1 and set the desired
volume.
Press [SETUP] repeatedly to select “TIMER SET”.
Press [3, 4] to select “SET” and then press [OK].
≥ “F” is displayed.
≥ To turn the timer off, select “OFF”.
Press [Í] to turn the unit off.
≥ To display the timer settings, press [SETUP] repeatedly to
select “TIMER ADJ” and then press [OK] once.
The music source and volume will also be displayed if the
timer is turned on.
≥ During standby, if the timer is turned on, press [DISPLAY]
twice to display the settings.
≥ This unit can be used as normal after the timer is set,
however:
– Turn the unit to standby mode before the timer start time.
– Even if the audio source or the volume is changed, the
timer will still use the audio source and volume that was
set when the timer was turned on.
*1: “CD”, “USB”, “IPOD_PORT” ([SC-HC28DB]),
“IPOD_DOCK” ([SC-HC28DB]), “DAB/DAB+” ([SC-HC28DB])
and “FM” can be set as the music source.
Sleep timer
The sleep timer can turn the unit off after a set time.
Press [SLEEP] repeatedly to select the time.
“SLEEP 30” --. “SLEEP 60” --. “SLEEP 90” --. “SLEEP 120”
^---------------------- OFF (Cancel) (-------------------b
≥ The remaining time is indicated on the unit’s display except
when other operations are performed.
≥ The play timer and sleep timer can be used together. The
sleep timer always has priority.
11
RQT9731
SC-HC28_18_EB~RQT9731-B.book
12 ページ
2013年1月3日 木曜日 午後10時17分
Others
Automatic standby
As a factory preset, this unit will always turn off
automatically if there is no sound output and no
operation for approx. 30 minutes.
To cancel this function
1
2
Press [SETUP] repeatedly to select “AUTO OFF”.
Press [3, 4] to select “OFF” and then press [OK].
≥ To turn automatic standby on, select “ON” in step 2.
≥ This setting cannot be selected when “DAB/DAB+” or “FM” is
the source.
Display brightness
The brightness of this unit’s display can be changed.
Press [DIMMER].
Changing the unit and remote
control code
When other Panasonic equipment responds to the
supplied remote control, change the remote control
code.
1
2
3
Press [CD] to select “CD”.
Press and hold [CD] on the unit and [CD] on the
remote control until the unit’s display shows
“REMOTE 2”.
Press and hold [OK] and [CD] on the remote
control for at least 4 seconds.
≥ To change the mode back to “REMOTE 1”, repeat the steps
above but replace the button pressed on the remote control
from [CD] to [RADIO].
Troubleshooting
Before requesting service, make the following checks.
If you are in doubt about some of the check points, or if
the solutions indicated in the following guide do not
solve the problem, consult your dealer for instructions.
To return all settings to the factory preset
When the following situations occur, reset the
memory:
≥ There is no response when buttons are pressed.
≥ You want to clear and reset the memory contents.
1 Disconnect the AC mains lead. (Wait for at least
3 minutes before proceeding to step 2.)
2 While pressing and holding down [Í/I] on the
unit, reconnect the AC mains lead.
≥ “--------” appears on the display.
3 Release [Í/I].
≥ All the settings are returned to the factory preset. You will
need to reset the memory items.
Common problems
Humming heard during play.
≥ An AC mains lead or fluorescent light is near the cords. Keep
other appliances and cords away from this unit’s cables.
MP3 cannot be read.
≥ You may not be able to play MP3 if you have copied a
multi-session disc that has no data between sessions.
≥ When creating a multi-session disc, it is necessary to close the
session.
≥ The amount of data on the disc is too small. Set the amount of
data to above 5 MB.
Disc operations
Incorrect display or play will not start.
≥ Make sure that the disc is compatible with this unit. (l 14)
≥ There is moisture on the lens. Wait for about an hour and then try
again.
USB operations
No response when [1/;] is pressed.
≥ Disconnect the USB device and then reconnect it. Alternatively,
turn the unit off and on again.
The USB drive or its contents cannot be read.
≥ The USB drive format or its contents is/are not compatible with the
unit (l 14).
≥ The USB host function of this product may not work with some
USB devices.
Slow operation of the USB flash drive.
≥ Large file size or high memory USB flash drive takes longer time
to read.
The elapsed time displayed is different from the
actual play time.
≥ Copy the data to another USB device or backup the data and
reformat the USB device.
12
RQT9731
SC-HC28_18_EB~RQT9731-B.book
13 ページ
2013年1月3日 木曜日 午後10時17分
Radio
Messages
[SC-HC28DB]
DAB/DAB+ reception is poor.
The following messages or service numbers may
appear on the unit’s display.
≥ Keep the antenna away from computers, televisions, other cables
and cords.
≥ Use an outdoor antenna (l 5).
“--:--”
A beat sound or noise is heard while receiving
radio broadcast.
“ADJUST CLOCK”
≥ Confirm the antenna is properly connected. (l 5)
≥ Adjust the position of the antenna.
≥ Try to keep a certain amount of distance between the antenna and
AC mains lead.
≥ Try using an outdoor antenna if there are buildings or mountains
nearby.
≥ Switch the television or other audio players off or separate it from
this unit.
≥ Keep this unit away from mobile phones if the interference is
apparent.
[SC-HC28DB]
iPod/iPhone/iPad operations
Cannot charge or operate.
≥ Have you selected the appropriate selector?
Press [iPod] to select either “IPOD_DOCK” or “IPOD_PORT”.
≥ Check that the iPod/iPhone/iPad is connected properly. (l 6)
≥ The battery of the iPod/iPhone/iPad is depleted. Charge the iPod/
iPhone/iPad, and then operate again.
≥ Connect the iPod/iPhone/iPad again or try to restart the iPod/
iPhone/iPad.
≥ When this unit is in standby mode, charging will not start when
using the “IPOD_PORT” connection.
Turn this unit on and make sure the charging has started before
switching this unit to standby mode.
Remote control
The remote control doesn’t work properly.
≥ The remote control and this unit are using a different code.
(l 14, “REMOTE ”)
≥ Is the battery depleted or is the battery inserted incorrectly? (l 4)
≥ You plugged the AC mains lead in for the first time or there was a
power failure recently. Set the time (l 11).
≥ Clock is not set. Adjust the clock accordingly.
“ADJUST TIMER”
≥ Play timer is not set. Adjust the play timer accordingly.
“AUTO OFF”
≥ The unit has been left unused for about 30 minutes and will shut
down within a minute. Press any button to cancel it.
[SC-HC28DB] “CHECKING CONNECTION”
≥ The unit is checking the connected iPod/iPhone/iPad.
≥ If this display keeps appearing, make sure that the battery of the
iPod/iPhone/iPad is not depleted and that the iPod/iPhone/iPad is
turned on and connected correctly (l 6).
[SC-HC28DB]
“DOCK OPEN”
≥ Is the dock open? Close the dock completely to open the sliding
door.
“ERROR”
≥ Incorrect operation is performed. Read the instructions and try
again.
“F
” (“
” stands for a number.)
≥ There is a problem with this unit.
Note down the displayed number, disconnect the AC mains lead
and consult your dealer.
“ILLEGAL OPEN”
≥ Sliding door is not in correct position. Turn the unit off and on
again. If this display appears again, consult the dealer.
[SC-HC28DB]
“IPOD_DOCK OVER CURRENT ERROR”
“IPOD_PORT OVER CURRENT ERROR”
≥ The iPod/iPhone/iPad is drawing too much power. Disconnect the
iPod/iPhone/iPad and turn the unit off and on again.
≥ The USB device is drawing too much power. Switch to “CD”
mode, remove the USB and turn the unit off.
“NODEVICE”
≥ [SC-HC28DB] The iPod/iPhone/iPad device is not inserted correctly.
Read the instructions and try again (l 6).
≥ [SC-HC28DB] The battery of the iPod/iPhone/iPad is depleted.
Charge the iPod/iPhone/iPad and turn it on before connecting.
≥ The USB device is not inserted. Check the connection.
“NO DISC”
≥ Insert the disc to be played (l 6).
13
RQT9731
SC-HC28_18_EB~RQT9731-B.book
14 ページ
2013年1月3日 木曜日 午後10時17分
Playable media
[SC-HC28DB]
“NO MEMORY”
≥ There are no preset DAB/DAB+ stations to select. Preset some
channels. (l 8)
“NO PLAY”
≥ A CD that is not in CD-DA or MP3 format is inserted. It cannot be
played.
≥ If there are more than 255 albums or folders (audio and
non-audio), some of the MP3 files in these albums may not be
read and played. Transfer these music albums to another USB.
Alternatively, reformat the USB device and save these music
albums prior to saving the other non-audio folders.
[SC-HC28DB]
Compatible iPod/iPhone/iPad
Compatible with “IPOD_DOCK” connection
(Using Lightning connector)
iPod touch (5th generation)
iPod nano (7th generation)
iPhone 5
iPad mini
[SC-HC28DB]
“NO SIGNAL”
≥ This station cannot be received. Check your antenna (l 5).
Compatible with “IPOD_PORT” connection
[Using dedicated USB cable (not supplied)]
[SC-HC28DB] “NOT SUPPORTED”
iPod touch
≥ You have connected an iPod/iPhone/iPad that cannot be played
(l right).
≥ If the iPod/iPhone/iPad is compatible, turn it on and connect it
correctly.
1st, 2nd, 3rd, 4th, and 5th generation
“READING”
≥ The unit is checking the CD information. After this display has
disappeared, start operating.
“REMOTE
” (“
” stands for a number.)
≥ The remote control and this unit are using different codes. Change
the code on the remote control.
– When “REMOTE 1” is displayed, press and hold [OK] and
[RADIO] for more than 4 seconds.
– When “REMOTE 2” is displayed, press and hold [OK] and [CD]
for more than 4 seconds.
[SC-HC28DB]
“SCAN FAILED”
≥ Stations are not receivable. Check your antenna and try Auto
scanning (l 8).
If “SCAN FAILED” is still displayed find the best signal reception
with the “MANUAL SCAN” tuning function. (l 9)
[SC-HC18] “USB OVER CURRENT ERROR”
iPod nano
2nd, 3rd, 4th, 5th, 6th, and 7th generation
iPhone 5 / iPhone 4S / iPhone 4 / iPhone 3GS /
iPhone 3G / iPhone
iPad (3rd, and 4th generation) / iPad 2 / iPad
iPad mini
(as of December 2012)
≥ Compatibility depends on the software version. Update your
iPod/iPhone/iPad to the latest software before using it with
this unit.
≥ Please be aware that Panasonic accepts no responsibility for
the loss of data and/or information.
Compatible CD
≥ A disc with the CD Logo.
≥ The USB device is drawing too much power. Switch to “CD”
mode, remove the USB and turn the unit off.
≥ This unit can play back discs that conform to the CD-DA
format.
≥ The unit may not be able to play some discs due to the
condition of the recording.
Compatible USB devices
≥ This unit does not guarantee connection with all USB
devices.
≥ FAT12, FAT16 and FAT32 file systems are supported.
≥ This unit supports USB 2.0 full speed.
≥ This unit can support USB devices of up to 32 GB.
14
RQT9731
SC-HC28_18_EB~RQT9731-B.book
15 ページ
2013年1月3日 木曜日 午後10時17分
Compatible MP3 files
≥ Supported format: Files with the extension “.mp3” or “.MP3”.
≥ Compatible compression rate: Between 64 kbps and
320 kbps (stereo).
≥ Depending on how you create the MP3 files, they may not
play in the order you numbered them or may not play at all.
Creating MP3 files on a CD-R/RW
≥ Maximum number of tracks and albums: 999 tracks and 254
albums (Excluding Root folder).
≥ Disc formats: ISO9660 level 1 and level 2 (except for
extended formats).
≥ If the disc includes both MP3 and normal audio data
(CD-DA), the unit plays the type recorded in the inner part of
the disc.
≥ This unit cannot play files recorded using packet write.
Creating MP3 files on a USB device
≥ Maximum number of tracks and albums: 2500 tracks and 254
albums (Excluding Root folder).
≥ Only one memory card will be selected when connecting a
multiport USB card reader, typically the first memory card
inserted.
Licenses
[SC-HC28DB]
“Made for iPod”, “Made for iPhone”, and “Made for iPad” mean
that an electronic accessory has been designed to connect
specifically to iPod, iPhone, or iPad, respectively, and has been
certified by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, iPhone, or
iPad may affect wireless performance.
iPad, iPhone, iPod, iPod classic, iPod nano, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other
countries.
MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.
15
RQT9731
SC-HC28_18_EB~RQT9731-B.book
16 ページ
2013年1月3日 木曜日 午後10時17分
Specifications
∫ GENERAL
Power consumption
[SC-HC28DB] 40 W
[SC-HC18] 12 W
Power consumption in standby mode*1
Approx. 0.2 W
[SC-HC28DB]
Power consumption in standby mode
(With the iPod dock open)
Approx. 0.4 W
Power supply
AC 220 V to 240 V, 50 Hz
Dimensions (WkHkD)
400 mmk213 mmk110 mm
(Min. Depth: 72 mm)
[SC-HC28DB] (Depth when tray open: 134 mm)
Mass
[SC-HC28DB] Approx. 2 kg
[SC-HC18] Approx. 1.9 kg
Operating temperature range
0 oC to r40 oC
Operating humidity range
35 % to 80 % RH (no condensation)
∫ AMPLIFIER SECTION
Output power
RMS Output Power Stereo mode
Front Ch (both ch driven)
5 W per channel (6 ≠), 1 kHz, 10 % THD
Total RMS Stereo mode power
10 W
∫ TUNER SECTION
Preset Memory
FM 30 stations
Frequency Modulation (FM)
Frequency range
87.50 MHz to 108.00 MHz (50 kHz step)
Antenna terminals
75 ≠ (unbalanced)
∫ [SC-HC28DB] DAB SECTION
DAB memories
20 channels
Frequency Band (Wavelength)
Band III (LOCAL)
10B to 12D
(211.648 MHz to 229.072 MHz)
Band III (ALL BAND III)
5A to 13F
(174.928 MHz to 239.200 MHz)
Sensitivity *BER 4x10-4
Min Requirement
s98 dBm
DAB External Antenna
Terminal
F - Connector (75 ≠)
16
RQT9731
∫ DISC SECTION
Disc played (8 cm or 12 cm)
CD, CD-R/RW (CD-DA, MP3*2)
Pick up
Wavelength
790 nm (CD)
Audio output (Disc)
Number of channels
2 ch (FL, FR)
∫ SPEAKER SYSTEM SECTION
Type
1 way, 1 speaker system (Bass reflex)
Speaker unit(s)
Full range
Impedance
8 cm Cone typek1 per channel
6≠
∫ TERMINAL SECTION
[SC-HC28DB] “IPOD_DOCK” connection
DC OUT 5 V 2.1 A MAX
“IPOD_PORT” connection ([SC-HC28DB]) /
“USB” connection ([SC-HC18])
[SC-HC28DB] DC OUT 5 V 2.1 A MAX
[SC-HC18] DC OUT 5 V 500 mA MAX
USB Standard
USB 2.0 full speed
Media file format support
MP3 (¢.mp3)
USB device file system
FAT12, FAT16, FAT32
≥ Specifications are subject to change without notice.
Mass and dimensions are approximate.
≥ Total harmonic distortion is measured by a digital spectrum
analyzer.
*1: [SC-HC28DB] When the iPod/iPhone/iPad is not charging
and the dock is closed.
*2: MPEG-1 Layer 3, MPEG-2 Layer 3
SC-HC28_18_EB~RQT9731-B.book
17 ページ
2013年1月3日 木曜日 午後10時17分
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that
used electrical and electronic products and batteries should not be mixed with general
household waste.
For proper treatment, recovery and recycling of old products and used batteries, please
take them to applicable collection points, in accordance with your national legislation and
the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable
resources and prevent any potential negative effects on human health and the
environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please
contact your local municipality, your waste disposal service or the point of sale where
you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or
supplier for further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items,
please contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it
complies with the requirement set by the Directive for the chemical involved.
Cd
17
RQT9731
SC-HC28_18_EB~RQT9731-B.book
18
RQT9731
18 ページ
2013年1月3日 木曜日 午後10時17分
SC-HC28_18_EB~RQT9731-B.book
19 ページ
2013年1月3日 木曜日 午後10時17分
[SC-HC28DB] Attaching the support pad to this unit
Attach the supplied support pad to prevent damage or scratches to this unit’s sliding door or the device connected
to the “IPOD_DOCK”.
Attach the support pad before using this unit.
≥ The location is the same for either iPod touch, iPod nano, iPhone or iPad mini.
1
Align this page to the sliding door and locate the position to attach the pad.



A Align with the top of the sliding door.
B Align with the side of the sliding door.
C Pad (supplied)
2

Attach the pad near the corner of this page.
e.g., iPhone 5

D There will be a gap between this unit’s sliding door and the connected device.
≥ 2 pads are supplied with this unit.
Keep the other pad in a secure place for future use.

19
RQT9731
RQT9731~Bcover_mst.fm
20 ページ 2013年7月3日 水曜日 午前9時53分
ョヮチモワヵ
チドヘブ„ナ
ュモャチモワヵ
(Bottom of product)
EU
Manufactured by: Panasonic Corporation Kadoma, Osaka, Japan
Importer:
Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Corporation
Web Site: http://panasonic.net
C Panasonic Corporation 2012
p
RQT9731-2B
F1212SR2073
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
