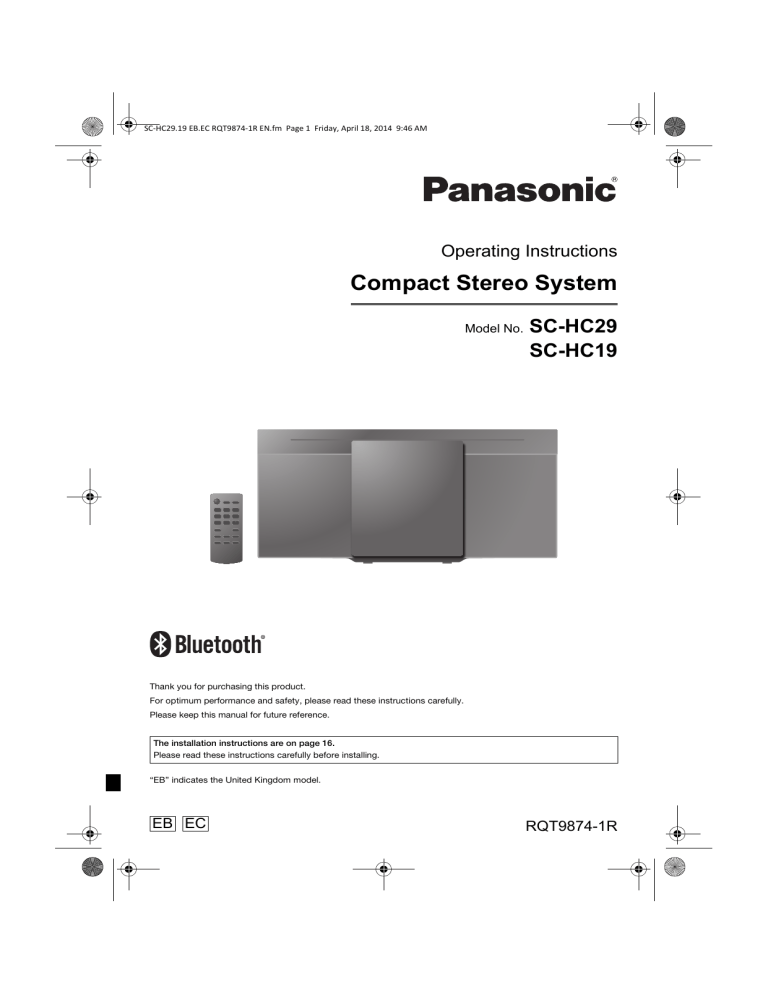

SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 1 Friday, April 18, 2014 9:46 AM
Operating Instructions
Compact Stereo System
Model No.
SC-HC29
SC-HC19
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.
The installation instructions are on page 16.
Please read these instructions carefully before installing.
“EB” indicates the United Kingdom model.
EB EC
RQT9874-1R
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 2 Friday, April 18, 2014 9:46 AM
These operating instructions are applicable for models
SC-HC29 and SC-HC19.
SC-HC29 : Indicate features applicable to SC-HC29.
SC-HC19 : Indicate features applicable to SC-HC19.
Unless otherwise indicated, illustrations in these
operating instructions are of SC-HC29. Your system and
the illustrations can look differently.
Bottom of product
Product Identification Marking is located on the bottom
of the unit.
Table of contents
RQT9874
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . .2
Caution for AC mains lead . . . . . . . . . . . . . . . . . . . .3
Supplied accessories . . . . . . . . . . . . . . . . . . . . . . . .3
About Bluetooth® . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Sales and Support Information . . . . . . . . . . . . . . . .4
Making the connections . . . . . . . . . . . . . . . . . . . . . .5
Preparing the remote control . . . . . . . . . . . . . . . . . .5
Overview of controls. . . . . . . . . . . . . . . . . . . . . . . . .6
Preparing the media . . . . . . . . . . . . . . . . . . . . . . . . .7
One-Touch Connection (NFC) . . . . . . . . . . . . . . . . .8
Media playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Clock and timers. . . . . . . . . . . . . . . . . . . . . . . . . . .11
Sound effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
External equipment. . . . . . . . . . . . . . . . . . . . . . . . .12
Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Attaching the unit to a wall (optional) . . . . . . . . . .16
2
Safety precautions
WARNING!
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as
vases, on this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
– Do not let metal objects fall inside this unit.
• To prevent injury, this apparatus must be securely
attached to the wall in accordance with the installation
instructions.
AC mains lead
• The mains plug is the disconnecting device. Install this
unit so that the mains plug can be unplugged from the
socket outlet immediately.
CAUTION!
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this
unit is well ventilated.
– Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
– Do not place sources of naked flames, such as
lighted candles, on this unit.
• This unit is intended for use in moderate climates.
• This unit may receive radio interference caused by
mobile telephones during use. If such interference
occurs, please increase separation between this unit
and the mobile telephone.
• This unit utilizes a laser. Use of controls or adjustments
or performance of procedures other than those
specified herein may result in hazardous radiation
exposure.
Battery
• Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
• When disposing the batteries, please contact your
local authorities or dealer and ask for the correct
method of disposal.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and
windows closed.
• Do not break open or short-circuit the battery.
• Do not charge the alkaline or manganese battery.
• Do not use the battery if the cover has peeled off.
• Remove the battery if you do not use the remote
control for a long period of time. Keep in a cool, dark
area.
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 3 Friday, April 18, 2014 9:46 AM
Caution for AC mains lead
Supplied accessories
(For the AC mains plug of three pins)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that
the replacement fuse has a rating of 5-ampere and that it
is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
body of the fuse.
or the BSI mark
For the United Kingdom and Ireland
Use numbers indicated in parentheses when asking for
replacement parts. (Product numbers correct as of
December 2013. These may be subject to change.)
 1 AC mains lead
For the United Kingdom and Ireland
(K2CT2YY00097)
on the
For others
(K2CQ2YY00119)
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until
a replacement cover is obtained.
A replacement fuse cover can be purchased from your
local dealer.
 1 FM indoor antenna
(RSAX0002)

For the United Kingdom and Ireland
1 Antenna plug adaptor
(K1YZ02000013)
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC
mains plug (figures A and B). Confirm the AC mains plug
fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
 1 Remote control
SC-HC29
(N2QAYB000944)
1. Open the fuse cover with a screwdriver.
Figure A
Check and identify the supplied accessories.
SC-HC19
(N2QAYB000948)
Figure B
 1 Remote control battery
Fuse cover
Wall mount kit
 2 Wall mount brackets  1 Safety holder
(RSC1262)
(RSC1266)
 1 Screw
(XTB3+8JFJK-J)
2. Replace the fuse and close or attach the fuse cover.
Figure A
Figure B
Fuse (5 ampere)
RQT9874
Fuse (5 ampere)
3
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 4 Friday, April 18, 2014 9:46 AM
About Bluetooth®
SC-HC29
Panasonic cannot be held responsible for data and/or
information that can possibly be compromised during a
wireless transmission.
Frequency band
• This system uses the 2.4 GHz frequency band.
Certification
• This system conforms to the frequency restrictions and
has received certification based on frequency laws.
Thus, a wireless permit is not necessary.
• The actions below are punishable by law:
– Taking apart or modifying the main unit.
– Removing specification indications.
Restrictions of use
• Wireless transmission and/or usage with all Bluetooth®
equipped devices is not guaranteed.
• All devices must conform to standards set by
Bluetooth SIG, Inc.
• Depending on the specifications and settings of a
device, it can fail to connect or some operations can be
different.
• This system supports Bluetooth® security features.
But depending on the operating environment and/or
settings, this security is possibly not sufficient.
Transmit data wirelessly to this system with caution.
• This system cannot transmit data to a Bluetooth®
device.
Range of use
• Use this device at a maximum range of 10 m.
• The range can decrease depending on the environment,
obstacles or interference.
Interference from other devices
• This system may not function properly and troubles
such as noise and sound jumps may arise due to radio
wave interference if this unit is located too close to
other Bluetooth® devices or the devices that use the
2.4 GHz band.
• This system may not function properly if radio waves
from a nearby broadcasting station, etc. is too strong.
RQT9874
Intended usage
• This system is for normal, general use only.
• Do not use this system near an equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals, laboratories,
etc.).
4
Licenses
MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.
The Bluetooth® word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by
Panasonic Corporation is under license. Other
trademarks and trade names are those of their
respective owners.
Google Play and Android are trademarks of Google Inc.
Sales and Support Information
For the United Kingdom and Ireland
Customer Communications Centre
• For customers within the UK: 0844 844 3899
• For customers within Ireland: 01 289 8333
• Monday – Friday 9:00am – 5:00pm
(Excluding public holidays).
• For further support on your product, please visit our
website: www.panasonic.co.uk
Direct Sales at Panasonic UK
• Order accessory and consumable items for your
product with ease and confidence by phoning our
Customer Communications Centre
Monday – Friday 9:00am – 5:00pm
(Excluding public holidays).
• Or go on line through our Internet Accessory ordering
application at www.pas-europe.com.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are
provided directly by Panasonic UK.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping
for a wide range of finished products. Take a browse
on our website for further details.
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 5 Friday, April 18, 2014 9:46 AM
Making the connections
Connect the AC mains lead only after all the other
connections have been made.
2
Connect the AC mains lead.
(For the AC mains plug of three pins)
READ THE “Caution for AC mains lead” BEFORE
CONNECTION.
To household
mains socket
Do not use an AC mains lead from other equipment.
Connect the FM indoor antenna.
Adhesive tape
(not supplied)
For the United Kingdom and Ireland
Connect the FM outdoor antenna.
Use an outdoor antenna if the reception is poor.
Note:
• These speakers do not have magnetic shielding.
Do not put them near TVs, PCs or other equipment
easily influenced by magnetism.
• Tape the antenna to a wall with the least amount of
interference.
• Use an outdoor antenna if the reception is poor.
FM outdoor antenna
(not supplied)
75 Ω coaxial cable
(not supplied)
Preparing the remote control
Antenna plug adaptor
Note:
• Do not use the outdoor antenna during a lightning
storm.
• Disconnect the outdoor antenna if you do not use the
system.
For the United Kingdom and Ireland
CAUTION!
Keep the antenna plug adaptor out of reach of
children to prevent swallowing.
Use alkaline or manganese battery.
Install the battery so that the poles (+ and –) align with
those in the remote control.
RQT9874
1
Conserving power
The system consumes a small amount of power
(Z“Specifications”) when it is in standby mode.
Disconnect the power supply if you do not use the
system.
Some settings will be lost after you disconnect the
system. You have to set them again.
5
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 6 Friday, April 18, 2014 9:46 AM
Overview of controls
Do the procedures with the remote control. You can also use the buttons on the main unit if they are the same.
Top view
A Standby/on switch [`], [1]
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still
consuming a small amount of power.
K View the play menu
L Select the sound effects
M
On the remote control:
Press the corresponding button to select the source.
On the main unit:
SC-HC29
AUX IN terminal
B Select the audio source
N USB port (
)
SC-HC29
DC OUT terminal (Z“Charging a portable device”)
O
SC-HC29
Select “BLUETOOTH” as the audio source
To start Bluetooth® pairing, press and hold the button.
C Basic playback control
D View the setup menu
E View the content information
SC-HC29
NFC touch area
Q Sliding door
G Open or close the sliding door
R Display panel
H Decrease the brightness of the display panel
S Remote control sensor
I Adjust the volume level
J Mute the sound
RQT9874
P
F Select or confirm the option
To cancel, press the button again.
6
SC-HC19
Select the dynamic bass effect
To cancel, press the button again.
“MUTE” is also cancelled when you adjust the volume
or when you switch off the system.
Distance: Within approximately 7 m
Angle: Approximately 20° up and down, 30° left and
right
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 7 Friday, April 18, 2014 9:46 AM
Preparing the media
█ Pairing a device
Disc
Preparation
If this system is connected to a Bluetooth® device,
disconnect it (Z“Disconnecting a device”).
1
1
SC-HC29
Press [USB/CD] to select “CD”.
SC-HC19
Press [CD].
Press [CD x] (main unit: [x OPEN/CLOSE]) to open
the sliding door.
Put in a disc with the label facing towards you.
3
4
3
Press [CD x] (main unit: [x OPEN/CLOSE]) again
to close the sliding door.
Keep fingers away from the sliding door when it is
closing.
Press [PLAY MENU] to select “PAIRING”.
Or press and hold [ –PAIRING] on the main unit until
“PAIRING” is shown. Continue with step 4.
Press [R, T] to select “OK? YES” and then press [OK].
“PAIRING” is shown.
To cancel, select “OK? NO”.
Select “SC-HC29” from the Bluetooth® menu of the
device.
If prompted for a passkey, input “0000”.
The device connects with this system automatically
after pairing is complete.
The name of the connected device is shown for a few
seconds.
Note:
You can pair up to 8 devices with this system. If a 9th device
is paired, the device that has not been used for the longest
time will be replaced.
█ Connecting a device
USB
USB device
(not supplied)
Preparation
If this system is connected to a Bluetooth® device,
disconnect it (Z“Disconnecting a device”).
1
2
3
SC-HC29
Press [USB/CD] to select “USB”.
SC-HC19
Press [USB].
Note:
Do not use a USB extension cable. The system cannot
recognise USB device connected through a cable.
SC-HC29
You can connect and play an audio device wirelessly
through Bluetooth®.
Preparation
• Switch on the Bluetooth® feature of the device and put
the device near the system.
• Read the operating instructions of the device for
details.
Select “SC-HC29” from the Bluetooth® menu of the
device.
The name of the connected device is shown for a few
seconds.
Start playback on the device.
Note:
• A device must be paired to connect.
• This system can only connect to one device at a time.
• When “BLUETOOTH” is selected as the source, this
system will automatically try to connect to the last
connected device.
█ Disconnecting a device
1
2
®
Bluetooth
Press [ ] to select “BLUETOOTH”.
“BLUETOOTH READY” is shown.
3
Press [ ] to select “BLUETOOTH”.
Press [PLAY MENU] repeatedly to select
“DISCONNECT?”.
Press [R, T] to select “OK? YES” and then press [OK].
“BLUETOOTH READY” is shown.
To cancel, select “OK? NO”.
Using the main unit
Press and hold [
–PAIRING] until “PAIRING” is shown.
Note:
A device is disconnected when you:
• Select a different source.
• Move the device out of the maximum range.
• Disable the Bluetooth® transmission of the device.
• Switch off the system or the device.
RQT9874
2
2
Press [ ] to select “BLUETOOTH”.
If “PAIRING” is shown, continue with step 4.
7
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 8 Friday, April 18, 2014 9:46 AM
One-Touch Connection (NFC)
Media playback
SC-HC29
The following marks indicate the availability of the feature.
CD :
CD-R/RW in CD-DA format or with MP3 files.
USB :
USB device with MP3 files.
BLUETOOTH : Bluetooth® device.
For NFC-compatible Bluetooth® devices (Android™
devices) only
Simply by touching an NFC (Near Field
Communication)-compatible Bluetooth® device on the
system, you can complete all preparations, from
registering a Bluetooth® device to establishing a
connection.
Basic playback
CD USB BLUETOOTH
Android™ device version lower than 4.1 requires the
installation of the “Panasonic Music Streaming” app
(free of charge).
A Enter “Panasonic Music Streaming” in the search
box of Google Play™ to search and then select
“Panasonic Music Streaming”.
B Start the app.
– Follow the instructions to complete the settings.
– Make sure to use the latest version of the app.
Preparation
Switch on the NFC feature of the device.
1
2
Press [ ] to select “BLUETOOTH”.
Touch and hold the device on the NFC touch area of
the main unit [ ].
– Hold the device until it beeps, vibrates or displays a
pop-up window, and then move the device away
from the system.
– Once the registration and connection of the device
is complete, the name of the connected device is
shown on the system for a few seconds.
– When the connection is not established even if the
device has touched the NFC touch area, change its
touching position. The connection may improve if
you use the “Panasonic Music Streaming” app.
Play
Press [4/9].
Stop
Press [8].
USB
The position is memorised.
“RESUME” is shown.
Press again to stop fully.
Pause
Press [4/9].
Press again to continue playback.
Skip
Press [2/3] or [5/6] to skip track.
CD USB
Press [R, T] to skip MP3 album.
Search
Press and hold [2/3] or [5/6].
Note:
SC-HC29
Depending on the Bluetooth® device, some operations may
not work.
Viewing available information
CD USB BLUETOOTH
You can view the available information on the display panel.
Press [DISPLAY].
Note:
• Maximum characters that can be shown:
CD USB : approximately 32
BLUETOOTH : approximately 16
• This system supports ver. 1.0, 1.1 and 2.3 ID3 tags.
• Text data that the system does not support can show
differently.
• Example: MP3 album and track number display.
RQT9874
3
8
Start playback on the device.
Note:
• While connected, you can connect another device by
touching and holding it on the NFC touch area of the main
unit. The previous device will be disconnected
automatically.
• Depending on the device:
– The one-touch connection may not work.
– The position of the NFC touch area of the device may be
different.
– When the connection is established, playback may start
automatically.
Album
number
Track
number
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 9 Friday, April 18, 2014 9:46 AM
Play menu
Input level
CD USB
1
2
BLUETOOTH
Press [PLAY MENU] repeatedly to select
“PLAYMODE” or “REPEAT”.
You can change the input level setting if the sound input
level of the Bluetooth® transmission is too low.
Press [R, T] to select the setting and then press [OK].
1
PLAYMODE
OFF
PLAYMODE
Cancel the setting.
1-TRACK
Play one selected track.
Press [2/3] or [5/6] to
select the track.
1
1-ALBUM
1
Play one selected MP3 album.
Press [R, T] to select the MP3 album.
RANDOM
Play all tracks randomly.
RND
1-ALBUM
RANDOM
1
RND
Play all tracks in one selected MP3
album randomly.
Press [R, T] to select the MP3 album.
REPEAT
OFF REPEAT
Cancel the setting.
ON REPEAT
Repeat playback.
Note:
• During random playback, you cannot skip to tracks which
have been played.
• The setting is cancelled when you open the sliding door.
2
Press [PLAY MENU] repeatedly to select
“INPUT LEVEL”.
Press [R, T] to select the level and then press [OK].
Note:
• The default setting is “LEVEL 0”.
• Select “LEVEL 0” if the sound is distorted.
█ Note on disc
• This system can play CD-R/RW with CD-DA or MP3
format content.
• Before playback, finalise the disc on the device it was
recorded on.
• Some CD-R/RW cannot be played because of the
condition of the recording.
█ Note on USB device
• This system does not guarantee connection with all
USB devices.
• This system supports USB 2.0 full speed.
• This system can support USB devices of up to 32 GB.
• Only FAT 12/16/32 file system is supported.
█ Note on MP3 file
BLUETOOTH
You can change the link mode to suit the connection type.
Preparation
If this system is connected to a Bluetooth® device,
disconnect it (Z“Disconnecting a device”).
1
2
Press [PLAY MENU] repeatedly to select
“LINK MODE”.
Press [R, T] to select the mode and then press [OK].
MODE 1
Emphasis on connectivity.
MODE 2
Emphasis on sound quality.
Note:
• The default setting is “MODE 2”.
• Select “MODE 1” if the sound is interrupted.
• Files are defined as tracks and folders are defined as
albums.
• Tracks must have the extension “.mp3” or “.MP3”.
• Tracks will not necessarily be played in the order you
recorded them.
• Some files can fail to work because of the sector size.
MP3 file on disc
• This system can access up to:
– 255 albums (including root folder)
– 999 tracks
– 20 sessions
• Disc must conform to ISO9660 level 1 or 2
(except for extended formats).
MP3 file on USB device
• This system can access up to:
– 800 albums (including root folder)
– 8000 tracks
– 999 tracks in one album
RQT9874
Link mode
9
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 10 Friday, April 18, 2014 9:46 AM
Radio
Improving the sound quality
Preparation
1
SC-HC29
Press [RADIO/AUX] to select “FM”.
SC-HC19
Press [RADIO].
Manual tuning
1
2
3
Press [PLAY MENU] repeatedly to select
“TUNEMODE”.
Press [R, T] to select “MANUAL” and then press [OK].
Press [2/3] or [5/6] to tune in to the station.
To tune automatically, press and hold the button until
the frequency starts changing quickly.
“STEREO” is shown when a stereo broadcast is being
received.
Memory presetting
You can preset up to 30 FM stations.
█ Automatic presetting
1
2
Tuning begins from the lowest frequency.
Tuning begins from the current frequency.
█ Manual presetting
Press [PLAY MENU] repeatedly to select
“TUNEMODE”.
Press [R, T] to select “MANUAL” and then press [OK].
Press [2/3] or [5/6] to tune in to the station.
Press [OK].
Press [R, T] to select a preset number and then press
[OK].
Do steps 3 through 5 again to preset more stations.
The new station replaces any station that occupies
the same preset number.
█ Selecting a preset station
RQT9874
1
10
2
3
To memorise the setting
Continue with step 4 of “Manual presetting”.
Checking the signal status
Press [PLAY MENU] repeatedly to select “FM STATUS”
and then press [OK].
FM
The FM signal is in monaural.
The system is not tuned in to a station.
FM ST
The FM signal is in stereo.
FM MONO
“MONO” is selected as the “FM MODE”.
RDS broadcasting
This system can show the text data transmitted by the
radio data system (RDS) available in some areas.
Press [DISPLAY].
Press [R, T] to select “LOWEST” or “CURRENT”
and then press [OK].
The tuner presets all the stations it can receive into
the channels in ascending order.
To cancel, press [8].
CURRENT
2
3
4
5
Press [R, T] to select “MONO” and then press [OK].
To cancel, select “STEREO”.
“MONO” is also cancelled when you change the
frequency.
Press [PLAY MENU] to select “A.PRESET”.
LOWEST
1
2
Press [PLAY MENU] repeatedly to select
“FM MODE”.
Press [PLAY MENU] repeatedly to select
“TUNEMODE”.
Press [R, T] to select “PRESET” and then press [OK].
Press [2/3] or [5/6] to select the preset
station.
PS
Programme service
PTY
Programme type
FREQ
Frequency
Note:
RDS may not be available if the reception is poor.
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 11 Friday, April 18, 2014 9:46 AM
Clock and timers
Play timer
(Except for Bluetooth® source)
Setting the clock
You can set the timer to come on at a certain time to
wake you up.
This is a 24-hour clock.
Preparation
Set the clock.
Press [SETUP] repeatedly to select “CLOCK”.
To check the time
Press [SETUP] repeatedly to select “CLOCK” and then
press [OK].
In standby mode, press [DISPLAY].
1
2
3
4
Note:
Reset the clock regularly to maintain accuracy.
To start the timer
Press [R, T] to set the time and then press [OK].
Sleep timer
The sleep timer switches off the system after the set time.
1
2
Press [SETUP] to select “SLEEP”.
Press [R, T] to select the setting (in minutes) and
then press [OK].
To cancel, select “OFF”.
Note:
• The remaining time is always shown on the display.
The display changes temporarily when you perform other
operations.
• The sleep timer can be used together with the play timer.
• The sleep timer always comes first. Be sure not to set an
overlap of timers.
1
2
Press [SETUP] repeatedly to select “TIMER ADJ”.
Press [R, T] to set the start time and then press [OK].
Do step 2 again to set the end time.
Press [R, T] to select the source you want to play
and then press [OK].
Press [SETUP] repeatedly to select “TIMER SET”.
Press [R, T] to select “SET” and then press [OK].
“#” is shown.
To cancel, select “OFF”.
The system must be switched off for the timer to
operate.
To check the setting
Press [SETUP] repeatedly to select “TIMER ADJ” and
then press [OK].
In standby mode, press [DISPLAY] two times.
Note:
• The timer starts at a low volume and increases gradually to
the preset level.
• The timer comes on at the set time every day if the timer is on.
• If you switch off the system and then switch on again while
a timer is in operation, the timer will not stop at the end time.
RQT9874
1
2
11
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 12 Friday, April 18, 2014 9:46 AM
Sound effects
Others
1
2
Auto off
Press [SOUND] repeatedly to select the sound effect.
Press [R, T] to select the setting and then press [OK].
PRESET EQ
“HEAVY”, “SOFT”, “CLEAR”, “VOCAL” or
“FLAT”
BASS
–4 to +4
TREBLE
–4 to +4
D.BASS
“ON D.BASS” or “OFF D.BASS”
SURROUND “ON SURROUND” or “OFF SURROUND”
Note:
The default setting is underlined. Changed settings will be
kept until it is changed again, unless otherwise indicated.
This system automatically switches off when you do not
use it for approximately 20 minutes.
1
2
Press [SETUP] repeatedly to select “AUTO OFF”.
Press [R, T] to select “ON” and then press [OK].
To cancel, select “OFF”.
Note:
• This function does not work when you are in radio source.
• SC-HC29
This function does not work when a Bluetooth® device is
connected.
Bluetooth® standby
External equipment
SC-HC29
SC-HC29
This function automatically switches on the system when
you establish a Bluetooth® connection from a paired
device.
You can play music from a portable audio equipment.
Preparation
• Switch off the equaliser (if any) of the portable audio
equipment to prevent sound distortion.
• Decrease the volume of the system and the portable
audio equipment before you connect or disconnect the
portable audio equipment.
Audio cable
(not supplied)
Portable audio
equipment
(not supplied)
1
2
Press [SETUP] repeatedly to select
“BLUETOOTH STANDBY”.
Press [R, T] to select “ON” and then press [OK].
To cancel, select “OFF”.
Charging a portable device
SC-HC29
This system can supply power to a portable device, such
as Android™ smartphone, connected to the USB port.
Note:
• Use a cable compatible with the device.
• Use the charger supplied with the device if power is not
supplied to the device.
• Do not use a cable or connect a device that exceeds the
rated value of 5 V, 1.5 A.
• Examine the screen of the device to check if charging is
complete. Disconnect the device after charging.
• Depending on the device, power may not be supplied to it.
• Read the operating instructions of the device for details.
1
2
3
Connect the portable audio equipment.
Plug type: Ø 3.5 mm stereo (not supplied)
Checking the software version
Press [RADIO/AUX] to select “AUX”.
1
Play the portable audio equipment.
To adjust the input level
RQT9874
1
2
12
2
Press [SETUP] repeatedly to select “SW VER.” and
then press [OK].
The software version is shown.
Press [OK] again to exit.
Press [SOUND] repeatedly to select “INPUT LEVEL”.
Press [R, T] to select “NORMAL” or “HIGH” and
then press [OK].
Note:
• The default setting is “NORMAL”.
• Select “NORMAL” if the sound is distorted during “HIGH”
input level.
• Read the operating instructions of the portable audio
equipment for details.
• Components and cables are sold separately.
Maintenance
To clean this system, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this
system.
• Before using chemically treated cloth, read the
instructions that came with the cloth carefully.
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 13 Friday, April 18, 2014 9:46 AM
Troubleshooting
Before requesting service, make the following checks.
If you are in doubt about some of the check points, or
if the solutions indicated do not solve the problem,
consult your dealer for instructions.
█ Bluetooth®
Pairing cannot be done.
• Check the Bluetooth® device condition.
• The device is out of the 10 m communication range.
Move the device nearer to the system.
The device cannot be connected.
█ Common problems
The unit does not work.
• The safety device has been activated. Do the following:
1. Press [1] on the main unit to switch the unit to standby
mode. If the unit does not switch to standby mode,
– Press and hold the button for a minimum of
10 seconds. Or,
– Disconnect the AC mains lead and connect it again.
2. Press [1] again to switch on the unit. If the problem
persists, consult your dealer.
• The pairing of the device was unsuccessful. Do pairing
again.
• The pairing of the device has been replaced. Do pairing
again.
• This system might be connected to a different device.
Disconnect the other device and try pairing the device
again.
The device is connected but audio cannot be heard
through the system.
No operations can be done with the remote control.
• For some built-in Bluetooth® devices, you have to set the
audio output to “SC-HC29” manually. Read the operating
instructions of the device for details.
• Examine that the battery is installed correctly.
Sound from the device is interrupted.
Sound is distorted or no sound.
• The device is out of the 10 m communication range.
Move the device nearer to the system.
• Remove any obstacle between the system and the device.
• Other devices that use the 2.4 GHz frequency band
(wireless router, microwaves, cordless phones, etc.) are
interfering. Move the device nearer to the system and
distance it from the other devices.
• Select “MODE 1” for stable communication.
• Adjust the volume of the system.
• Switch off the system, determine and correct the cause,
and then switch on again. It can be caused by straining of
the speakers through excessive volume or power, and
when using the system in a hot environment.
A humming sound can be heard during playback.
• An AC mains lead or fluorescent light is near the cables.
Keep other appliances and cords away from the cables of
this system.
Noise is heard.
• Depending on the device, noise may be heard if the device
is connected to the AUX IN and DC OUT terminals at the
same time. Disconnect the cable from the DC OUT
terminal.
█ Disc
Display not shown correctly.
Playback does not start.
•
•
•
•
You have not put in the disc correctly. Put it in correctly.
Disc is dirty. Clean the disc.
Replace the disc if it is scratched, warped, or non-standard.
There is condensation. Let the system dry for 1 to 2 hours.
█ USB
The one-touch connection (NFC) is not working.
• Make sure the system and the NFC feature of the device
are switched on.
• Touch and hold the device on the NFC touch area of this
system again.
Playback image and sound are not synchronised.
• Restart the playback app of the device.
• Connect the device to the system with an audio cable
(not supplied).
█ Radio
Sound is distorted.
• Use an optional outdoor antenna. The antenna should be
installed by a competent technician.
A beat sound is heard.
• Switch off the TV or move it away from the system.
• Move mobile telephones away from the system if the
interference is apparent.
The USB device or the contents in it cannot be read.
• The format of the USB device or the contents in it are not
compatible with the system.
• USB devices with storage capacity of more than 32 GB
cannot work in some conditions.
Slow operation of the USB device.
• Large content size or large memory USB device takes
longer time to read.
The elapsed time shown is different from the actual
play time.
RQT9874
• Transfer the data to another USB device or backup the
data and reformat the USB device.
13
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 14 Friday, April 18, 2014 9:46 AM
█ Main unit displays
“--:--”
• You connected the AC mains lead for the first time or there
was a power failure recently. Set the clock.
“ADJUST CLOCK”
Remote control code
When other Panasonic equipment responds to the
remote control of this system, change the remote control
code for this system.
• The clock is not set. Adjust the clock.
Preparation
“ADJUST TIMER”
Press [USB/CD] to select “CD”.
SC-HC29
• The play timer is not set. Adjust the play timer.
SC-HC19
Press [CD].
“AUTO OFF”
• The system has not been used for 20 minutes and will
switch off within a minute. To cancel, press any button.
“ERROR”
• An incorrect operation was done. Read the instructions and
try again.
█ To set the code to “REMOTE 2”
SC-HC29
1
“F61”
“F77”
• Disconnect the AC mains lead and consult your dealer.
“F70”
2
Press and hold [SELECTOR] on the main unit and
[USB/CD] on the remote control.
“REMOTE 2” is shown.
Press and hold [OK] and [USB/CD] for a minimum of
4 seconds.
®
• Examine the Bluetooth device.
• Disconnect the Bluetooth® device. Switch off the system
and then switch on again.
“F76”
• There is a problem with the power supply.
• Disconnect the AC mains lead and consult your dealer.
“ILLEGAL OPEN”
• The sliding door is not in a correct position. Switch off the
system and then switch on again.
“NODEVICE”
SC-HC19
1
2
Press and hold [SELECTOR] on the main unit and
[CD] on the remote control.
“REMOTE 2” is shown.
Press and hold [OK] and [CD] for a minimum of
4 seconds.
█ To set the code to “REMOTE 1”
• The USB device is not connected. Examine the connection.
SC-HC29
“NO DISC”
1
• You have not put in a disc.
“NO PLAY”
• Examine the content. You can only play supported format.
• The system may have a problem. Switch off the system and
then switch on again.
“PLAYERROR”
• You played an unsupported MP3 file. The system will skip
that track and play the next one.
“REMOTE 1”
“REMOTE 2”
• The remote control and the main unit are using different
codes. Change the code of the remote control.
2
Press and hold [SELECTOR] on the main unit and
[ ] on the remote control.
“REMOTE 1” is shown.
Press and hold [OK] and [ ] for a minimum of
4 seconds.
SC-HC19
1
2
Press and hold [SELECTOR] on the main unit and
[RADIO] on the remote control.
“REMOTE 1” is shown.
Press and hold [OK] and [RADIO] for a minimum of
4 seconds.
SC-HC29
– When “REMOTE 1” is shown, press and hold [OK] and
[ ] for a minimum of 4 seconds.
– When “REMOTE 2” is shown, press and hold [OK] and
[USB/CD] for a minimum of 4 seconds.
SC-HC19
– When “REMOTE 1” is shown, press and hold [OK] and
[RADIO] for a minimum of 4 seconds.
– When “REMOTE 2” is shown, press and hold [OK] and
[CD] for a minimum of 4 seconds.
“USB OVER CURRENT ERROR”
RQT9874
• The USB device is using too much power. Disconnect
the USB device, switch off the system and then switch on
again.
14
“VBR–”
• The system cannot show the remaining play time for
variable bit rate (VBR) tracks.
System memory reset
Reset the memory when the following situations occur:
• There is no response when buttons are pressed.
• You want to clear and reset the memory contents.
1
2
3
Disconnect the AC mains lead.
While you press and hold [1] on the main unit,
connect the AC mains lead again.
Continue to press and hold the button until
“– – – – – – – –” is shown.
Release [1].
All the settings are set back to the factory preset.
It is necessary to set the memory items again.
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 15 Friday, April 18, 2014 9:46 AM
Specifications
█ Amplifier section
█ Bluetooth® section
RMS output power stereo mode
Front Ch (both ch driven)
10 W per channel (8 Ω), 1 kHz, 10% THD
Total RMS stereo mode power
20 W
Version
Class 2
A2DP, AVRCP
Operating frequency
SC-HC29
2.4 GHz band, FH-SS
Operation distance
10 m line of sight
█ Speaker section
Speaker unit(s)
Full range
8 cm cone type x 1 per channel
8Ω
Impedance
AUX input
Terminal
Stereo, 3.5 mm jack
█ Disc section
█ General
Power supply
Disc played (8 cm or 12 cm)
CD, CD-R/RW (CD-DA, MP3 1)
AC 220 V to 240 V, 50 Hz
Power consumption
22 W
14 W
SC-HC29
SC-HC19
Pick up
Wavelength
790 nm (CD)
Dimensions (W x H x D)
400 mm x 197 mm x 107 mm
Mass
790 nm (CD)
Ingen farlig stråling sendes ut
█ USB section
1.9 kg
Operating temperature range
0°C to +40°C
Operating humidity range
35% to 80% RH (no condensation)
Power consumption in standby mode
USB port
USB standard
Media file format support
USB device file system
USB port power
SC-HC29
SC-HC19
USB 2.0 full speed
MP3 (*.mp3)
FAT12, FAT16, FAT32
DC OUT 5 V, 1.5 A
DC OUT 5 V, 500 mA
2
0.2 W (approximate)
SC-HC29
Power consumption in standby mode 2
(With “BLUETOOTH STANDBY” set to “ON”)
0.3 W (approximate)
Note:
• Specifications are subject to change without notice.
Mass and dimensions are approximate.
• Total harmonic distortion is measured by the digital
spectrum analyzer.
1
2
MPEG-1 Layer 3, MPEG-2 Layer 3
Power consumption in standby mode is measured with
USB device disconnected from the unit before switching to
standby mode.
RQT9874
FM 30 stations
Frequency modulation (FM)
Frequency range
87.50 MHz to 108.00 MHz (50 kHz step)
Antenna terminals
75 Ω (unbalanced)
NORSK
Bølgelengde
Laserstyrke
Bluetooth® Ver. 2.1 + EDR
Class
Supported profiles
█ Tuner, terminals section
Preset memory
SC-HC29
15
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 16 Friday, April 18, 2014 9:46 AM
Attaching the unit to a wall (optional)
You can use the supplied wall mount brackets to attach
this unit to the wall.
3
Fix the wall mount brackets to the wall.
Use a level to align the wall mount brackets.
Panasonic cannot be held responsible for any property
damage and/or serious injury, including death resulting
from improper installation or incorrect handling.
CAUTION!
• The installation should be done by a competent
installation specialist.
• Keep the wall mount brackets, safety holder and
screws out of reach of children to prevent swallowing.
• Make sure the screws, the cord and the wall can
support the weight of more than 30 kg.
At least 30 mm
to
Screw
(not supplied)
Wall mount bracket
4
Fix the safety holder to the unit with the supplied
screw.
Preparation
Disconnect the antenna(s) and the AC mains lead.
Screw
Installation accessories
█ Supplied accessories
5
 2 Wall mount brackets
 1 Safety holder
 1 Screw
Attach a cord to the unit to prevent the unit from
falling.
Bend the cord twice from the tip, each at 45° and
5 mm apart for it to go through the holes.
█ Additional accessories
(commercially available)
 5 Screws
 1 Screw eye
 1 Cord (with a diameter of about 1.5 mm)
Cord
(not supplied)
6
7
Connect the antenna(s) and the AC mains lead
(Z“Making the connections”).
Hook the unit onto the wall mount brackets.
Installation instructions
1
Detach the pedestal of the unit.
Put a protection layer below the unit to prevent
scratches.
Remove the screw from the bottom of the unit.
Pedestal
Wall
8
Fix the safety holder to the wall.
Screw
Protection layer
(not supplied)
2
Measure and mark the position of the wall mount
brackets on the wall.
Make sure the space on the wall is more than
60 cm (width) by 40 cm (height).
Screw
(not supplied)
9
Attach the cord to the wall.
Screw eye (not supplied)
RQT9874
Cord (not supplied)
16
Wall
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 17 Friday, April 18, 2014 9:46 AM
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that this
product is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Customers can download a copy of the original DoC to
our R&TTE products from our DoC Server:
http://www.doc.panasonic.de
Contact to Authorised Representative: Panasonic
Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Germany
This product is intended for general consumer.
(Category 3)
Slovensko
Izjava o skladnosti (DoC)
S pričujočo izjavo podjetje “Panasonic Corporation”
izjavlja, da so svoji izdelki skladni s poglavitnimi
zahtevami in drugimi odgovarjajočimi predpisi direktive
1999/5/ES.
Stranka lahko naloži izvod izvirnega DoC o naših izdelkih
R&TTE s strežnika DoC:
http://www.doc.panasonic.de
Pooblaščeni zastopnik: Panasonic Marketing Europe
GmbH, Panasonic Testing Centre, Winsbergring 15,
22525 Hamburg, Nemčija
Izdelek je namenjen splošni uporabi. (Razred 3)
Ελληνικά
∆ήλωση συμμόρφωσης (DoC)
Slovensky
Vyhlásenie o zhode (DoC)
Με την παρούσα, η “Panasonic Corporation” δηλώνει ότι
το προϊόν αυτό είναι σύμφωνο με τις βασικές απαιτήσεις
και άλλες σχετικές διατάξεις της οδηγίας 1999/5/EC.
“Panasonic Corporation” týmto prehlasuje, že tento
výrobok je v zhode so základnými požiadavkami a ďalšími
príslušnými ustanoveniami smernice 1999/5/ES.
Οι πελάτες μπορούν να κατεβάσουν ένα αντίγραφο
τουπρωτοτύπου DoC για τα R&TTE προϊόντα μας από
τον DoC server μας:
http://www.doc.panasonic.de
Στοιχεία επικοινωνίας Eξουσιοδοτημένου Aντιπροσώπου:
Panasonic Marketing Europe GmbH, Panasonic Testing
Centre, Winsbergring 15, 22525 Hamburg, Γερμανία
Zákazníci si môžu stiahnuť kópiu pôvodného DoC na
naše R&TTE výrobky z nášho servera DoC:
http://www.doc.panasonic.de
Kontakt na splnomocneného zástupcu: Panasonic
Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Nemecko
Αυτό το προϊόν προορίζεται για καταναλωτές. (Κατηγορία 3)
Tento produkt je určený pre všeobecného spotrebiteľa.
(Kategória 3)
Português
Declaração de Conformidade (DoC)
Norsk
Samsvarserklæring (DoC)
Com o presente documento, a “Panasonic Corporation”
declara que este produto é conforme os requisitos
específicos e demais especificações referentes à
Directriz 1999/5/EC.
“Panasonic Corporation” erklærer at utstyret er i samsvar
med de grunnleggende krav og øvrige relevante krav i
direktiv 1999/5/EF.
Os clientes podem baixar uma cópia da declaração de
conformidade (DoC) para nossos produtos R&TTE do
Server DoC:
http://www.doc.panasonic.de
Contacte o representante autorizado: Panasonic
Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Alemanha
Kundene kan laste ned en kopi av den
originalesamsvarserklæringen (DoC) for vårt R&TTE
utstyr fra vår DoC server:
http://www.doc.panasonic.de
Kontakt vår autoriserte representant: Panasonic
Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Tyskland
Utstyret er beregnet på den vanlige forbruker. (Klasse 3)
Lietuviškai
Atitikties deklaracija (AD)
Eesti keel
Vastavusdeklaratsioon (DoC)
Bendrovė “Panasonic Corporation” patvirtina, kad šis
gaminys tenkina direktyvos 1999/5/EB esminius
reikalavimus ir kitas taikytinas nuostatas.
“Panasonic Corporation” kinnitab käesolevaga, et see
toode on vastavuses põhiliste nõuete ja muude direktiivi
1999/5/EÜ asjakohaste sätetega.
Mūsų R&TTE gaminių originalios atitikties deklaracijos
kopiją klientai gali atsisiųsti iš mūsų AD serverio:
http://www.doc.panasonic.de
Įgaliotojo atstovo adresas: “Panasonic Marketing Europe
GmbH”, Panasonic Testing Centre, Winsbergring 15,
22525 Hamburg, Vokietija.
Kliendid saavad koopia meie R&TTE toodetele kehtiva
originaalvastavusdeklaratsiooni koopia alla laadida meie
DoC serverist:
http://www.doc.panasonic.de
Võtke ühendust volitatud esindajaga: Panasonic
Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Germany
Šis gaminys skirtas bendrajam vartojimui. (3 kategorija)
See toode on mõeldud tavakasutajale. (III kategooria)
RQT9874
Este produto destina-se ao consumador geral. (Categoria 3)
17
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 18 Friday, April 18, 2014 9:46 AM
Latviski
Atbilstības deklarācija (DoC)
Kompānija “Panasonic Corporation” ar šo paziņo, ka šis
izstrādājums atbilst būtiskām prasībām un citām
saistošām Direktīvas 1999/5/EK prasībām.
Pircēji var lejupielādēt oriģinālo DoC kopiju mūsu R&TTE
izstrādājumos no mūsu DoC servera:
http://www.doc.panasonic.de
Lūdzam sazināties ar pilnvaroto parstāvi: Panasonic
Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Germany
Šis izstrādājums ir paredzēts parastam patērētājam.
(3. kategorija)
Български
Декларация за съответствие (DoC)
“Panasonic Corporation” декларира, че този продукт
съответства на съществените изисквания и другите
приложими разпоредби на Директива 1999/5/EC.
Потребителите могат да свалят копие от оригиналните
DoC към нашите продуктите от типа R&TTE от
сървъра, на който се съхраняват DoC:
http://www.doc.panasonic.de
За контакт с оторизиран представител: Panasonic
Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Германия
Този продукт е предназначен за обща употреба.
(Категория 3)
Român
Declaraţie de Conformitate (DoC)
Prin prezenta, societatea “Panasonic Corporation”
declară că produsul este conform cu cerinţele esenţiale şi
cu alte norme corespunzătoare Directivei 1999/5/EC.
Clienţii pot descărca o copie a DoC-ului original al
produselor noastre R&TTE de la adressa noastră DoC din
Internet:
http://www.doc.panasonic.de
Contact la Reprezentanţa autorizată: Panasonic
Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Germania
Acest produs a fost proiectat pentru clientela generală.
(Categoria 3)
Magyar
Megfelelőségi Nyilatkozat (DoC)
Ezennel a, “Panasonic Corporation” kijelenti, hogy a jelen
termék kielégíti az 1999/5/EK Irányelv létfontosságú
követelményeit és más vonatkozó rendelkezéseit.
RQT9874
A vásárlók letölthetik az R&TTE termékek eredeti DoC
másolatát a DoC szerverünkről:
http://www.doc.panasonic.de
Forduljon a hivatalos márkaképviselethez: Panasonic
Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Németország
18
A terméket általános fogyasztóknak szánták.
(3-as kategória)
RQT9874
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 19 Friday, April 18, 2014 9:46 AM
19
SC-HC29.19 EB.EC RQT9874-1R EN.fm Page 20 Friday, April 18, 2014 9:46 AM
█ NORSK
ADVARSEL!
Produkt
• For å redusere faren for brann, elektrisk støt eller
skade på apparatet:
– Dette apparatet må ikke utsettes for regn, fuktighet,
drypp eller sprut.
– Ikke plasser objekter som er fylt med væske, som
vaser, på apparatet.
– Bruk kun anbefalt tilbehør.
– Fjern ikke deksler.
– Dette apparatet må ikke repareres på egen hånd.
Overlat servicearbeider til kvalifisert servicepersonell.
Vekselstrømnett
• Støpselet er frakoblende enhet. Strømuttaket må
befinne seg i nærheten slik at støpselet lett kan kobles
ut fra uttaket umiddelbart.
FORSIKTIG!
Produkt
• For å redusere faren for brann, elektrisk støt eller
skade på apparatet:
– Ikke plasser apparatet i en bokhylle, et innebygget
kabinett eller et annet lukket sted. Pass på at
apparatet er godt ventilert.
– Apparatets ventilasjonsåpninger må ikke dekkes til
med aviser, duker, gardiner eller lignende.
– Plasser ikke åpen ild, slik som levende lys, oppå
apparatet.
• Dette apparatet er beregnet til bruk under moderate
klimaforhold.
• Dette apparatet anvender en laser. Betjening av
kontroller, justeringer eller andre inngrep enn de som
er beskrevet i denne bruksanvisning, kan føre til farlig
bestråling.
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling
systems
These symbols on the products, packaging,
and/or accompanying documents mean that
used electrical and electronic products and
batteries must not be mixed with general
household waste.
For proper treatment, recovery and recycling
of old products and used batteries, please
take them to applicable collection points in
accordance with your national legislation.
By disposing of them correctly, you will help
to save valuable resources and prevent any
potential negative effects on human health
and the environment.
For more information about collection and
recycling, please contact your local
municipality.
Penalties may be applicable for incorrect
disposal of this waste, in accordance with
national legislation.
Note for the battery symbol (bottom symbol):
This symbol might be used in combination
with a chemical symbol. In this case it
complies with the requirement set by the
Directive for the chemical involved.
Manufactured by:
Panasonic Corporation
Kadoma, Osaka, Japan
Importer for Europe: Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Corporation
Web Site: http://panasonic.net
© Panasonic Corporation 2013
En
RQT9874-1R
L1213LC1044
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
