SC-HC400_402-EGEBGN~TQBJ0987.book
1 ページ
2017年3月16日 木曜日 午後7時52分

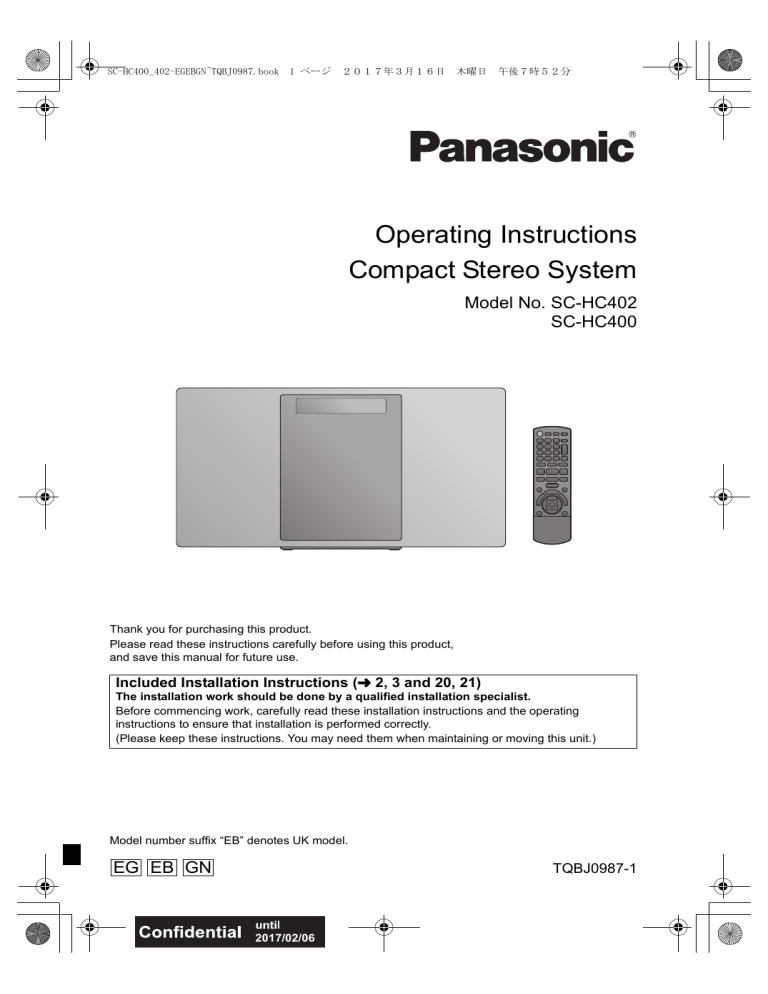

Operating Instructions
Compact Stereo System
Model No. SC-HC402
SC-HC400
Thank you for purchasing this product.
Please read these instructions carefully before using this product,
and save this manual for future use.
Included Installation Instructions (l 2, 3 and 20, 21)
The installation work should be done by a qualified installation specialist.
Before commencing work, carefully read these installation instructions and the operating
instructions to ensure that installation is performed correctly.
(Please keep these instructions. You may need them when maintaining or moving this unit.)
Model number suffix “EB” denotes UK model.
EG EB GN
TQBJ0987-1
2017/02/06
SC-HC400_402-EGEBGN~TQBJ0987.book
2 ページ
2017年3月16日 木曜日 午後7時52分
Caution for AC Mains Lead
Safety precautions
(For the AC mains plug of three pins)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 5-ampere and
that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on the
body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from your
local dealer.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of
AC mains plug (figures A and B). Confirm the AC
mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
≥ To reduce the risk of fire, electric shock or product damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases, on
this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
– Do not let metal objects fall inside this unit.
– Do not place heavy items on this unit.
AC mains lead
≥ To reduce the risk of fire, electric shock or product damage,
– Ensure that the power supply voltage corresponds to the
voltage printed on this unit.
– Insert the mains plug fully into the socket outlet.
– Do not pull, bend, or place heavy items on the lead.
– Do not handle the plug with wet hands.
– Hold onto the mains plug body when disconnecting the
plug.
– Do not use a damaged mains plug or socket outlet.
≥ The mains plug is the disconnecting device.
Install this unit so that the mains plug can be unplugged from
the socket outlet immediately.
CAUTION
2. Replace the fuse and close or attach the fuse
cover.
Figure A
Figure B
Fuse
(5 ampere)
TQBJ0987
Unit
Figure B
Fuse cover
2
WARNING
Fuse
(5 ampere)
Unit
≥ This unit utilizes a laser. Use of controls or adjustments or
performance of procedures other than those specified herein
may result in hazardous radiation exposure.
≥ Do not place sources of naked flames, such as lighted
candles, on this unit.
≥ This unit may receive radio interference caused by mobile
telephones during use. If such interference occurs, please
increase separation between this unit and the mobile
telephone.
≥ This unit is intended for use in moderate climates.
Placement
≥ Place this unit on an even surface.
≥ To reduce the risk of fire, electric shock or product damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
– Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
– Do not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive vibration.
SC-HC400_402-EGEBGN~TQBJ0987.book
3 ページ
2017年3月16日 木曜日 午後7時52分
Battery
≥ Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
≥ Mishandling of batteries can cause electrolyte leakage and
may cause a fire.
– Remove the battery if you do not intend to use the remote
control for a long period of time. Store in a cool, dark
place.
– Do not heat or expose to flame.
– Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows
closed.
– Do not take apart or short circuit.
– Do not recharge alkaline or manganese batteries.
– Do not use batteries if the covering has been peeled off.
≥ When disposing of the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
Table of contents
Caution for AC Mains Lead .............................. 2
Safety precautions............................................ 2
Accessories....................................................... 3
Control reference guide ................................... 4
Using the remote control ................................. 5
Connections ...................................................... 6
Inserting media ................................................. 7
Bluetooth® operations ...................................... 8
About Bluetooth® .............................................. 9
Media playback controls .................................. 9
[HC402] Listening to DAB/DAB+ ....................... 11
Listening to FM/AM radio ............................... 13
Sound adjustment .......................................... 14
Clock and Timer .............................................. 14
Others .............................................................. 15
Troubleshooting.............................................. 16
Unit and media care........................................ 18
Playable media................................................ 18
Specifications.................................................. 19
Attaching the unit to a wall (optional)........... 20
Licenses .......................................................... 22
Limited Warranty (ONLY FOR AUSTRALIA)...... 25
The symbols on this product (including the
accessories) represent the following:
AC
DC
Class II equipment (The construction of the
product is double-insulated.)
I
On
Í Standby
About descriptions in these operating instructions
≥ Pages to be referred to are indicated as “l ±±”.
≥ Unless otherwise indicated, operations are described using
the remote control. You can also use the controls on this
unit if they are the same.
≥ These operating instructions are applicable to models
SC-HC402 and SC-HC400 for a variety of regions. Unless
otherwise indicated, illustrations in these operating
instructions are of SC-HC402 for the Continental Europe.
≥ [HC402] :indicates features applicable to SC-HC402 only.
≥ [HC400] :indicates features applicable to SC-HC400 only.
Accessories
Check the supplied accessories before using this unit.
∏ 1 Remote control
(N2QAYB001139)
∏ 1 Battery for remote control
∏ (For the United Kingdom and Ireland)
1 AC mains lead
(For the black model: K2CT2YY00127)
(For the silver model: K2CT2YY00126)
∏ (For Continental Europe)
1 AC mains lead
(For the black model: K2CQ2YY00153)
(For the silver model: K2CQ2YY00154)
(For the white model: K2CQ2YY00154)
(For the blue model: K2CQ2YY00153)
∏ (For Australia and New Zealand)
1 AC mains lead
(K2CJ2YY00117)
∏ ([HC402])
1 DAB indoor antenna
(N1CYYYY00022)
∏ ([HC400])
1 FM indoor antenna
(RSAX0002)
∏ ([HC400])
(Australia and New Zealand only)
1 AM loop antenna
(N1DYYYY00011)
Wall mounting accessories
∏ 1 Safety holder
(TPBDA004)
∏ 2 Wall mount brackets
(RSC1262-1)
∏ 1 Wall mounting sheet
≥ Use this sheet for wall mounting. (l 20)

≥ Do not use AC mains lead with other equipment.
≥ Product numbers provided in these operating instructions are
correct as of December 2016. These may be subject to change.
3
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
4 ページ
2017年3月16日 木曜日 午後7時52分
Control reference guide
Top view
3
1
4
5
2
6
7
8
9
10
11
14
12
13
15
1
2
3
4
USB port (l 7)
AUX IN jack (l 6)
Standby/on switch (Í/I)
6
7
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
8
9
10
11
12
13
14
Select the audio source
On this unit:
“CD” -. “DAB+” ([HC402]) -. “FM” -. “AM” ([HC400]) *
:
;
“BLUETOOTH” (----------- “USB” (----------- “AUX”
≥ Press and hold to enter pairing mode (l 8) or
disconnect a Bluetooth® device (l 8).
On the remote control:
[
]: “BLUETOOTH”
[CD/USB]: “CD” ,. “USB”
[RADIO, EXT-IN]: “DAB+” ([HC402]) -"-. “FM”
:
;
“AUX” ( -------- “AM” ([HC400])*
5
4
TQBJ0987
Basic playback control buttons
Adjust the volume (0 (min) to 50 (max))
FAVOURITE buttons for storing or selecting radio
station ([1] to [5]) (l 11, 13)
Set wall mount mode
Select D.BASS
Adjust surround
Open or close the sliding door
Display
Sliding door
Remote control signal sensor
Distance: Within approx. 7 m directly in front
Angle: Approx. 30o left and right
15 Speakers
These speakers do not have magnetic shielding. Do not
place them near a TV, personal computer or other
magnetic devices.
*Only available for Australia and New Zealand
SC-HC400_402-EGEBGN~TQBJ0987.book
5 ページ
16
22
7
23
17
2017年3月16日 木曜日 午後7時52分
Using the remote control
Insert the battery so the terminals (i and j) match
those in the remote control.
6
18
24
EXT-IN
4
R6/LR6, AA
5
(Alkaline or manganese
battery)
19
9
25
26
Point it at the remote control signal sensor on this unit.
≥ To avoid interference, please do not put any objects in front
of signal sensor.
27
20
28
21
29
16 Turn the unit on or off
17 Select number
18
19
20
21
22
23
24
25
26
27
28
29
≥ To select a 2-digit number
Example: 16: [S10] > [1] > [6]
≥ To select a 3-digit number
Example: 124: [S10] > [S10] >[1]
Delete a programmed track
Enter sound menu
Set the play menu item
Change the displayed information
Clock and timer operation
Set the programme function
Mute the sound
> [2]> [4]
Press again to cancel. “MUTE” is also cancelled when the
volume is adjusted or the unit is turned off.
Select preset EQ
Enter setup menu
Set the radio menu item
Selection/OK
Dim the display panel and indicator
Press again to cancel.
5
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
6 ページ
2017年3月16日 木曜日 午後7時52分
Connections
1
Connect the antenna.
[HC402] This unit can receive DAB/DAB+ and FM stations with the DAB antenna.
Adhesive tape (not supplied)
Be sure to tighten the nut fully.
DAB indoor antenna (supplied)
[HC400] (Australia and New Zealand only)
Adhesive tape (not supplied)
AM loop antenna
(supplied)
FM indoor antenna (supplied)
[HC400]
Adhesive tape (not supplied)
FM indoor antenna (supplied)
Connect the AC mains lead after all other
connections are completed.
2
This unit consumes a small amount of AC power
(l 19) even when turned off.
AC mains lead (supplied)
To a mains socket
≥ In the interest of energy conservation, if you will not be using
this unit for an extended period of time, unplug it from the
mains socket.
≥ Some settings will be lost after you disconnect the system.
You have to set them again.

≥ Tape the antenna to a wall or column in a position with the least amount of interference.
≥ If radio reception is poor, use an outdoor antenna (not supplied).
Connect an external music device
1
2
Connect an external music device using an audio
cable (not supplied).
≥ Plug type: ‰3.5 mm stereo
Press [RADIO, EXT-IN] repeatedly to select “AUX”
and start playback on the connected device.
Audio cable
(not supplied)
∫ To select the sound input level of the
external device
1
2
While in AUX mode, press [SOUND] repeatedly to
select “INPUT LEVEL”.
Press [2, 1] to select “NORMAL” or “HIGH” and
then press [OK].
≥ The factory default is “NORMAL”.

6
≥ To improve sound distortion when “HIGH” is selected, select “NORMAL”.
≥ Switch the equalizer off or turn the volume of the external device down to reduce the input signal. High level of input signal will
distort the sound.
≥ For details, refer to the operating instructions of the device.
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
7 ページ
2017年3月16日 木曜日 午後7時52分
Inserting media
∫ Connecting a USB device
≥ Insert the USB device directly. Do not use any USB extension cable.
≥ Please disconnect the USB device if you finish using.
≥ Before removing the USB device, select a source other than “USB”.
∫ Inserting a CD
The label side
≥ Make sure to tilt the disc so as not to touch the sliding
door.
≥ Do not open the sliding door manually.
∫ Charging a device
Charging starts when a device (rated value: 5 V/1.5 A) is connected to the USB port of this unit.
1
2
Turn the unit on.
Connect a device.
{. Confirm from the screen of the connected device, etc. to
make sure charging has started.
To the compatible device
USB cable
(not supplied)
≥ A cable compatible with your device is required. Use the
cable that comes with your device.
≥ Even if you connect a cable compatible with the USB port of
this unit, your device may not be charged. In that case, use
the charger that comes with the device.
≥ Depending on your device, using other chargers may not
work. Check the operating instructions of your device before
use.
≥ Do not connect a device with a rated value higher than 5 V/
1.5 A to this unit.
≥ To check if charging is complete, look at the screen of the
connected device, etc.
≥ Once fully charged, remove the USB cable from the USB
port.
≥ After the device has started charging, you can turn the unit to
standby mode.
– When charging a depleted device, do not turn the unit to
standby mode until the device becomes operational.

≥ Make sure that the unit does not fall when inserting or removing media.
≥ When moving this unit, be sure to remove all media and turn this unit to standby mode.
7
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
8 ページ
2017年3月16日 木曜日 午後7時52分
Bluetooth® operations
You can listen to the sound from the Bluetooth® audio
device from this unit wirelessly.
≥ Refer to the operating instructions of the Bluetooth®
device for details.
Connecting via Bluetooth® menu
Preparation
≥ Turn on the Bluetooth® feature of the device and
place the device near this unit.
2
Press [
4
Press [PLAY MENU] to select “PAIRING” and then
press [OK].
PAIRING]
3
Press [PLAY MENU] repeatedly to select
“LINK MODE”.
Press [2, 1] to select the mode and then press
[OK].
MODE 1: Emphasis on connectivity
MODE 2: Emphasis on sound quality

Select “SC-HC402” or “SC-HC400” from the
Bluetooth® device’s Bluetooth® menu.
≥ Select “MODE 1” if the sound is interrupted.
≥ When enjoying video contents with this function, the video
and audio output may not be synchronised. In this case,
select “MODE 1”.
≥ The factory default is “MODE 2”.
≥ The MAC address (e.g., 6C:5A:B5:B3:1D:0F) may be
displayed before “SC-HC402” or “SC-HC400” is
displayed.
≥ The name of the connected device is indicated on the
display for a few seconds.
If the sound input level from the Bluetooth® device is
too low, change the input level setting.
Start playback on the Bluetooth® device.
∫ Connecting a paired Bluetooth device
2
1
≥ If “PAIRING” is indicated on the display, go to step 3.
®
1
Preparation
≥ Press [
] to select “BLUETOOTH”.
≥ If a Bluetooth® device is already connected,
disconnect it.
] to select “BLUETOOTH”.
≥ Alternatively, press and hold [SELECTOR, s
on the unit.
3
You can change the transmission mode to prioritise
transmission quality or sound quality.
2
∫ Pairing with Bluetooth® devices
1
Bluetooth® transmission mode
Press [
] to select “BLUETOOTH”.
≥ “READY” is indicated on the display.
Select “SC-HC402” or “SC-HC400” from the
Bluetooth® device’s Bluetooth® menu.
Bluetooth® input level
Preparation
≥ Connect a Bluetooth® device.
1
2
≥ The name of the connected device is indicated on the
display for a few seconds.
Start playback on the Bluetooth® device.

≥ If prompted for the passkey, input “0000”.
≥ You can register up to 8 devices with this unit. If a 9th device
is paired, the device that has not been used the longest will
be replaced.
≥ This unit can only be connected to one device at a time.
≥ When “BLUETOOTH” is selected as the source, this unit will
automatically try and connect to the last connected
Bluetooth® device. (“LINKING” is indicated on the display
during this process.) If the connection attempt fails, try to
establish a connection again.
Press [PLAY MENU] repeatedly to select “INPUT
LEVEL”.
Press [2, 1] to select the level and then press
[OK].
“LEVEL 0” ,. “LEVEL i1” ,. “LEVEL i2”
^--------------------------------------------------J

≥ Select “LEVEL 0” if the sound is distorted.
≥ The factory default is “LEVEL 0”.
Disconnecting a Bluetooth® device
1
2
While a Bluetooth® device is connected:
Press [PLAY MENU] repeatedly to select
“DISCONNECT?”.
Press [2, 1] to select “OK? YES” and then press
[OK].

≥ You can also disconnect the Bluetooth® device by pressing
and holding [SELECTOR, s PAIRING] on the unit.
≥ The Bluetooth® device will be disconnected if a different
audio source (e.g., “CD”) is selected.
8
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
9 ページ
2017年3月16日 木曜日 午後7時52分
About Bluetooth®
Panasonic bears no responsibility for data and/or
information that is compromised during a
wireless transmission.
∫ Frequency band used
≥ This system uses the 2.4 GHz frequency band.
Media playback controls
The following marks indicate the availability of the
feature.
CD audio in CD-DA format or a CD that
contains MP3 files (l 18)
[USB]:
USB devices containing MP3 file (l 18)
[BLUETOOTH]: Connected Bluetooth® device (l 8)
[CD]:
∫ Certification of this device
≥ This system conforms to frequency restrictions and
has received certification based on frequency laws.
Thus, a wireless permit is not necessary.
≥ The actions below are punishable by law in some
countries:
– Taking apart or modifying the system.
– Removing specification indications.
∫ Restrictions of use
≥ Wireless transmission and/or usage with all
Bluetooth® equipped devices is not guaranteed.
≥ All devices must conform to standards set by
Bluetooth SIG, Inc.
≥ Depending on the specifications and settings of a
device, it can fail to connect or some operations can
be different.
≥ This system supports Bluetooth® security features.
But depending on the operating environment and/or
settings, this security is possibly not sufficient.
Transmit data wirelessly to this system with caution.
≥ This system cannot transmit data to a Bluetooth®
device.
Basic play
([CD], [USB], [BLUETOOTH])
Preparation
≥ Turn the unit on.
≥ Insert the media or connect the Bluetooth®
compatible device. (l 7, 8)
1
2
Select the audio source.
For disc:
Press [CD/USB] repeatedly to select “CD”.
For USB device:
Press [CD/USB] repeatedly to select “USB”.
For Bluetooth® device:
Press [
] to select “BLUETOOTH”.
(When selecting using this unit, press
[SELECTOR, s PAIRING].)
Press [1/;] to start playback.
Basic controls
Stop
Press [∫].
≥ [USB]: The position is memorised and
“RESUME” is displayed.
≥ [USB]: Press [∫] twice to stop the
playback fully.
∫ Range of use
≥ Use this device at a maximum range of 10 m. The
range can decrease depending on the environment,
obstacles or interference.
∫ Interference from other devices
≥ This system may not function properly and troubles
such as noise and sound jumps may arise due to
radio wave interference if this system is located too
close to other Bluetooth® devices or the devices that
use the 2.4 GHz band.
≥ This system may not function properly if radio waves
from a nearby broadcasting station, etc. is too
strong.
∫ Intended usage
≥ This system is for normal, general use only.
≥ Do not use this system near an equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals,
laboratories, etc).
Pause
Press [1/;].
Skip
Press [:] or [9] to skip track.
(This unit: [:/6] or [5/9])
Press again to continue playback.
[CD] (MP3), [USB]
Press [3] or [4] to skip the album.
Search
During play or pause, press and hold
[6] or [5].
(This unit: [:/6] or [5/9])
∫ To display information
([CD], [USB], [BLUETOOTH])
You can display the track, artist, album name, file type,
bit rate, and other information. (The information varies
depending on the audio source.)
Press [DISPLAY] repeatedly.
e.g. [USB] (MP3)
“A”:
“T”:
MP3 album number.
MP3 track number.
(“ ” stands for a number.)
9
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
10 ページ
2017年3月16日 木曜日 午後7時52分

≥ To use this unit’s remote control with a Bluetooth® device, the
Bluetooth® device must support AVRCP (Audio Video
Remote Control Profile).
Depending on the status of the device, some controls may
not work.
≥ [CD], [USB]:Tracks can be selected by pressing the numeric
buttons.
≥ Maximum number of displayable characters:
Approx. 32
≥ This system supports ver. 1 and 2 ID3 tags.
≥ Text data that is not supported will not be displayed or will be
shown differently.
Playback modes ([CD], [USB])
Select the playback mode.
1
Press [PLAY MENU] repeatedly to select
“PLAYMODE” or “REPEAT”.
Press [2, 1] to select the setting and then press
[OK].
2
PLAYMODE
OFF
PLAYMODE
Cancels the play mode setting.
1-TRACK
Only plays the selected track.
≥ “1”, “ ” is displayed.
(Skip to the desired track.)
1-ALBUM
RANDOM
Press the numeric buttons to select the desired
track.
≥ Do this step again to programme other tracks.
3
Press [1/;] to start playback.
[CD] (MP3), [USB]
1
Press [PROGRAM] in the stop mode.
≥ “PROGRAM” is shown for a few seconds.
2
3
4
Press [3, 4] to select the desired album.
Press [9] and then press the numeric buttons to
select the desired track.
Press [OK].
≥ Do steps 2 through 4 again to programme other tracks.
5
Press [1/;] to start playback.
Plays the contents randomly.
Cancel
programme
mode
Press [PROGRAM] in the stop mode.
Clear all
programmed
tracks
Press [∫] in the stop mode. “CLEAR
ALL” is shown. Within 5 seconds, press
[∫] again.
Plays the tracks in the selected
album randomly.
Turns on repeat mode.
Turns off repeat mode.

≥ During random playback, you cannot skip to tracks which
have been played or press the numeric buttons.
≥ Playmode function does not work with “Programme play”.
≥ The mode is cancelled when you open the sliding door or
remove the USB device.
TQBJ0987
≥ “PROGRAM” is shown for a few seconds.
2
Clear the last Press [DEL] in the stop mode.
track
≥ “`” is displayed.
10
Press [PROGRAM] in the stop mode.
≥ Press [3] or [4] to select the album.
≥ “1”, “ ” is displayed.
REPEAT
OFF
REPEAT
1
Only plays the selected album.
≥ Press [3] or [4] to select the album.
≥ “1”, “ ”, “RND” is displayed.
ON REPEAT
This function allows you to programme up to 24 tracks.
[CD] (CD-DA)
Check
programme
contents
≥ “RND” is displayed.
1-ALBUM
RANDOM
Programme play
([CD], [USB])
Press [:] or [9] in the stop
mode.
≥ “PGM OFF” is shown for a few seconds.

≥ The programme memory is cleared when you open the
sliding door or remove the USB device.
SC-HC400_402-EGEBGN~TQBJ0987.book
11 ページ
2017年3月16日 木曜日 午後7時52分
[HC402]
Listening to DAB/DAB+
Preparation
≥ Make sure that the DAB antenna is connected. (l 6)
≥ Turn the unit on.
≥ Press [RADIO, EXT-IN] repeatedly to select “DAB+”.
Memorising stations
To listen to DAB/DAB+ broadcasts, the available
stations need to be memorised in this unit.
≥ This unit will automatically start the “DAB AUTO
SCAN” and memorise the stations that are available
in your region if you select “DAB+” for the first time.
Changing the stations stored under
(FAVOURITE) [1] to [5]
You can change the stations stored under
(FAVOURITE) [1] to [5] easily.
While listening to a DAB/DAB+ broadcast
Press and hold one of [1] to [5] until “P ” appears on
the display.
(“  ” stands for a number.)

≥ When you change the stations stored under (FAVOURITE)
[1] to [5], channel 1 to 5 are also changed to the same
corresponding stations.

≥ “SCAN FAILED” is displayed when the auto scan is
unsuccessful. Locate the position with the best reception
(l 12, “To verify or improve the signal reception quality”) and
then re-scan DAB/DAB+ stations.
∫ To re-scan DAB/DAB+ stations
When new stations are added or when the antenna
has been moved, reperform the auto scan.
1
2
Press [RADIO MENU] to select “AUTO SCAN” and
then press [OK].
While “START ?” is flashing,
Press [OK].

≥ When updating the station memory with the auto scan,
preset stations will be erased. Preset them again (l below).
Listening to preset DAB/DAB+
stations
Press the numeric buttons, [:] or [9] to select
the preset station.
≥ Alternatively, press [:/6] or [5/9] on this unit
when “PRESET” is selected as the tune mode*1.
≥ You can select channel 1 to 5 by pressing one of
(FAVOURITE) [1] to [5] on this unit.
*1: To change the tune mode
1 Press [RADIO MENU] repeatedly to select “TUNE
MODE”.
2 Press [2, 1] to select “STATION” or “PRESET”, and
then press [OK].

≥ To select by preset, make sure that stations have already
been preset manually.
≥ To add additional preset stations, select the station using the
method mentioned in “Listening to the memorised stations”
(l left).
Listening to the memorised stations
Press [6] or [5] to select a station.
≥ Alternatively, press [:/6] or [5/9] on this unit
when “STATION” is selected as the tune mode*1.
Presetting DAB/DAB+ stations
You can preset up to 20 DAB/DAB+ channels.
Channel 1 to 5 will be set as the favourite stations
under (FAVOURITE) [1] to [5]. (l right, “Changing the
stations stored under (FAVOURITE) [1] to [5]”)
1
2
While listening to a DAB/DAB+ broadcast
Press [PROGRAM].
Press the numeric buttons to select a preset
number.
Listening to the secondary service
Some DAB/DAB+ stations provide a secondary service
as well as the primary service. If the station you are
listening to is providing secondary service, “ ” will be
displayed.
1
2
While “ ” is displayed
Press [RADIO MENU] repeatedly to select
“DAB SECONDARY”.
Press [2, 1] to select the secondary service and
press [OK].

≥ The setting will go back to primary service when changes are
made (e.g. the station is changed).

≥ You cannot preset stations when the station is not
broadcasting or when the secondary service is selected.
≥ The station occupying a channel is erased if another station
is preset in that channel.
11
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
12 ページ
2017年3月16日 木曜日 午後7時52分

Display
Press [DISPLAY] to change the display.
The information will scroll through the display.
Each time you press the button:
≥ If broadcasting stations are memorised, proceed to
“To re-scan DAB/DAB+ stations” to memorise stations on
other frequency blocks. (l 11)
≥ If “SCAN FAILED” is still displayed, repeat steps 1 to 3 until a
station is memorised. If the situation does not improve, try
using an outdoor DAB antenna or consult your dealer.
Dynamic label:
Information about the
broadcast
PTY display:
Programme type
∫ Checking the DAB/DAB+ signal
reception quality
Ensemble label:
The name of the ensemble
1
Frequency display:
The frequency block and
frequency is displayed.
Time display:
Current time
While listening to the DAB/DAB+ broadcast:
Press [RADIO MENU] repeatedly to select
“SIGNAL QUALITY” and then press [OK].
≥ The current frequency block is displayed and
then the reception quality is indicated.
Reception quality
0 (poor) – 8 (excellent)
Automatic clock adjustment
If the DAB/DAB+ broadcast includes time information,
this unit’s clock will be automatically updated.
1
2
Press [RADIO MENU] repeatedly to select “AUTO
CLOCK ADJ”.
Press [2, 1] to select “ON ADJUST” and then
press [OK].
2
3

≥ Select “OFF ADJUST” to turn the automatic clock adjustment
function off.
To verify or improve the signal
reception quality
To check the signal reception quality, at least 1
frequency block needs to be successfully memorised.
≥ If “SCAN FAILED” is displayed after “DAB+” is
selected or after an auto scan, proceed to “Manually
tuning 1 frequency block” (l below)
≥ If stations have already been memorised to this unit,
proceed to “Checking the DAB/DAB+ signal
reception quality” (l right)
∫ Manually tuning 1 frequency block
Use this function to scan 1 frequency block after
adjusting the position of the DAB antenna.
Preparation
Note down a frequency block that can be received in
your region (e.g., 12B 225.648 MHz).
1
2
3
12
TQBJ0987
While “SCAN FAILED” is displayed.
Adjust the position of the DAB antenna.
Press [RADIO MENU] repeatedly to select
“MANUAL SCAN”.
Press [2, 1] to select the frequency block that is
receivable in your region and then press [OK].
4
If the signal reception quality is poor, move the
antenna to a position where the reception quality
improves.
To continue checking the quality of other frequency
blocks:
Press [2, 1] again and select the desired
frequency.
Press [OK] to exit.

≥ If the antenna has been adjusted, perform auto scanning and
update the station memory. (l 11)
SC-HC400_402-EGEBGN~TQBJ0987.book
13 ページ
2017年3月16日 木曜日 午後7時52分
Listening to FM/AM radio
AM radio is only available for [HC400] (Australia
and New Zealand only).
You can preset up to 30 FM channels/15 AM channels.
Channel 1 to 5 will be set as the favourite stations
under (FAVOURITE) [1] to [5]. (l right, “Changing the
stations stored under (FAVOURITE) [1] to [5]”)
Preparation
≥ Make sure that the antenna is connected. (l 6)
≥ Turn the unit on.
≥ Press [RADIO, EXT-IN] repeatedly to select “FM” or
“AM”.
Presetting stations automatically
1
2
Press [RADIO MENU] to select “A.PRESET”.
Press [2, 1] to select “LOWEST” or “CURRENT”
and then press [OK].
LOWEST:
To begin auto preset with the lowest frequency
(“FM 87.50”, “AM 520” or “AM 522”).
CURRENT:
To begin auto preset with the current frequency.*1
≥ The tuner starts to preset all the stations it can receive
into the channels in ascending order.
*1: To change the frequency, refer to “Manual tuning”.
Listening to a preset channel
Press the numeric buttons, [:] or [9] to select
the preset station.
≥ Alternatively, press [:/6] or [5/9] on this unit
when “PRESET” is selected as the tune mode*2.
≥ You can select channel 1 to 5 by pressing one of
(FAVOURITE) [1] to [5] on this unit.
∫ Manual tuning
Press [6] or [5] to tune in to the station.
≥ Alternatively, press [:/6] or [5/9] on this unit
when “MANUAL” is selected as the tune mode*2.
To tune automatically, press and hold the button until the
frequency starts changing quickly.
*2: To change the tune mode
1 Press [RADIO MENU] repeatedly to select “TUNE
MODE”.
2 Press [2, 1] to select “MANUAL” or “PRESET”, and
then press [OK].
Presetting stations manually
1
2
While listening to the radio broadcast
Press [PROGRAM].
Press the numeric buttons to select a preset
number.
≥ Do steps 1 through 2 again to preset more stations.

≥ A station previously stored is overwritten when another
station is stored in the same channel preset.
Changing the stations stored under
(FAVOURITE) [1] to [5]
You can change the stations stored under
(FAVOURITE) [1] to [5] easily.
While listening to the radio broadcast
Press and hold one of [1] to [5] until “P ” appears on
the display.
(“  ” stands for a number.)

≥ When you change the stations stored under (FAVOURITE)
[1] to [5], channel 1 to 5 are also changed to the same
corresponding stations.
∫ To display the current FM signal status
For Continental Europe:
Press [DISPLAY] repeatedly to select “FM STATUS”.
For others:
Press [DISPLAY].
“FM ST”:
“FM - - - -”:
FM stereo broadcast is being received.
No broadcast is received or FM
broadcast received is weak or in
monaural.
“FM MONO”: You have set the “FM MODE” to
“MONO”. (l 16, “If noise is excessive
during FM reception.”)

≥ “STEREO” is displayed when this unit tunes to a stereo
broadcast.
∫ To display RDS text data
(For Continental Europe only)
This system can show the text data transmitted by the
radio data system (RDS) available in some areas.
Press [DISPLAY] repeatedly.
“PS”:
Programme service
“PTY”: Programme type
“FREQ”: Frequency

≥ RDS is available only when stereo works in reception.
≥ RDS may not be available if reception is poor.
13
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
14 ページ
2017年3月16日 木曜日 午後7時52分
Sound adjustment
The following sound effects can be added to the audio
output.
1
2
Press [SOUND] repeatedly to select the effect.
“SOUND 1”, “SOUND 2”, or
“SOUND 3”.
(l below, “Saving the sound
settings”)
“BASS” (Bass) or Adjust the level (j4 to i4).
“TREBLE” (Treble)
“SURROUND”
(Surround)
“ON SURROUND” or
“OFF SURROUND”.
≥ Alternatively, press [SURROUND]
on this unit.
“CLEAR-MODE
DIALOG”
(Clear-mode
Dialogue)
“ON CLEAR-MODE DIALOG” or
“OFF CLEAR-MODE DIALOG”.
“WALL MOUNT”
(Wall mount)
“MODE 1 WALL MOUNT”,
“MODE 2 WALL MOUNT” or
“OFF WALL MOUNT”.
≥ Alternatively, press [WALL
MOUNT] on this unit.
≥ You may experience a reduction in sound quality when these
effects are used with some sources. If this occurs, turn the
sound effects off.
≥ When “AUX” is selected as the source, you can select
“INPUT LEVEL” to adjust the sound input level of the
external device. (l 6)
Saving the sound settings
You can save your desired sound settings to
“SOUND 1”, “SOUND 2” or “SOUND 3” as
“MY SOUND”.
TQBJ0987
Preset EQ
Press [PRESET EQ] repeatedly to select “HEAVY”
(heavy), “SOFT” (soft), “CLEAR” (clear), “VOCAL”
(vocal) or “FLAT” (flat/off).

≥ When “PRESET EQ” is selected, Bass and Treble settings
will be changed to the settings in preset EQ setting.
Clock and Timer
Setting the clock
This is a 24-hour clock.
1
2
Press [CLOCK/TIMER] to select “CLOCK”.
Press [3, 4] to set the time and then press [OK].
∫ To check the time
Press [CLOCK/TIMER].

≥ The clock is reset when there is a power failure or when the
AC mains lead is removed.
≥ Reset the clock regularly to maintain accuracy.
Sleep timer
The sleep timer can turn the unit off after a set time.
Press [SLEEP] repeatedly to select the setting
(in minutes).
“SLEEP 30” -. “SLEEP 60” -. “SLEEP 90” -. “SLEEP 120”
^---------------- “OFF” (Cancel) (""""""}

Press [SETUP] to select “SAVE MY SOUND”.
≥ The remaining time is indicated on the unit’s display at every
minute except when other operations are performed.
“SLEEP 1” is always shown when only 1 minute remains.
≥ The play timer and sleep timer can be used together. The
sleep timer is always the main timer on the unit.
Press [2, 1] to select a setting number and then
press [OK].
Recalling the sound settings you have
saved
14
≥ Alternatively, press [D.BASS] on the unit.
Adjust your desired sound effects. (l above)
≥ “SAVED” is displayed.
≥ The sound settings previously saved will be replaced
when you save new settings to the same setting
number.
1
2
Press [D.BASS] to select “ON D.BASS” or
“OFF D.BASS”.
Press [2, 1] to select the setting and then press
[OK].
“MY SOUND”
(My sound)
1
2
3
D.Bass
Press [SOUND] to select “MY SOUND”.
Press [2, 1] to select the desired sound setting
number and then press [OK].
SC-HC400_402-EGEBGN~TQBJ0987.book
15 ページ
2017年3月16日 木曜日 午後7時52分
Play timer
You can set the timer so this unit turns on at a certain
time every day.
Preparation
Set the clock.
1
2
3
4
Press [CLOCK/TIMER] repeatedly to select
“TIMER ADJ”.
Press [3, 4] to set the starting time (“ON TIME”)
and then press [OK].
Press [3, 4] to set the finishing time
(“OFF TIME”) and then press [OK].
Bluetooth® standby
When “SC-HC402” or “SC-HC400” is selected from a
paired Bluetooth® device’s Bluetooth® menu, this unit
will turn on automatically from standby mode and
establish a Bluetooth® connection.
1
2

≥ To turn the function off, select “OFF” in step 2.
≥ The factory default is “OFF”. If this function is set to “ON”, the
standby power consumption will increase.
Press [3, 4] to select the music source* and then
press [OK].
Changing the unit and remote
control code
Turning the timer on
1
2
3
Prepare the selected music source and set the
desired volume.
Press [F, PLAY].
≥ “F” is displayed.
To cancel, press [F, PLAY] again.
Press [Í] to turn the unit to standby mode.
∫ To check the settings
Press [CLOCK/TIMER] repeatedly to select
“TIMER ADJ”.
Press [SETUP] repeatedly to select “BLUETOOTH
STANDBY”.
Press [2, 1] to select “ON” and then press [OK].
When other Panasonic equipment responds to the
supplied remote control, change the remote control
code.
1
2
3
Press [CD/USB] repeatedly to select “CD”.
Press and hold [∫] on the unit and [2] on the
remote control until the unit’s display shows
“REMOTE 2”.
Press and hold [OK] and [2] on the remote control
for at least 4 seconds.
(During standby, press [CLOCK/TIMER] twice.)


≥ To change the mode back to “REMOTE 1”, repeat the steps
above but replace [2] with [1].
≥ The timer starts at a low volume and increases gradually to
the preset level.
≥ The timer comes on at the set time every day if the timer is
on.
≥ If you turn off the unit and turn it on again while a timer is in
operation, the timer will not stop at the end time.
* “CD”, “USB”, “DAB+” ([HC402]), “FM” and “AM” ([HC400]
Australia and New Zealand only) can be set as the music
source.
Others
Auto off function
As a factory default, this unit will turn to standby mode
automatically if there is no sound and it is not being
used for approximately 20 minutes.
To cancel this function
1
2
Software update
Occasionally, Panasonic may release updated
software for this system that may add or improve the
way a feature operates. These updates are available
free of charge.
For more details, refer to the following website.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
Checking the software version
Press [SETUP] repeatedly to select “SW VER.” and
then press [OK].
The version of the installed software is displayed.
≥ Press [OK] to exit.
Press [SETUP] repeatedly to select “AUTO OFF”.
Press [2, 1] to select “OFF” and then press [OK].

≥ To turn the function on, select “ON” in step 2.
≥ This setting cannot be selected when radio is the source.
≥ When connected to a Bluetooth® device, the function does
not work.
15
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
16 ページ
2017年3月16日 木曜日 午後7時52分
Troubleshooting
Before requesting service, make the following checks.
If you are uncertain about some of the check points, or
if the solutions indicated in the following guide does not
resolve the issue, then consult your dealer for
instructions.
USB
No response when [1/;] is pressed.
≥ Disconnect the USB device and then reconnect it. Alternatively,
turn the unit off and on again.
The USB drive or its contents cannot be read.
To return all settings to the factory defaults
When the following situations occur, reset the memory:
≥ The USB drive format or its contents is/are not compatible with the
unit (l 18).
≥ The USB host function of this product may not work with some
USB devices.
≥ There is no response when buttons are pressed.
≥ You want to clear and reset the settings.
Slow operation of the USB flash drive.
1 Disconnect the AC mains lead. (Wait for at least
30 seconds before proceeding to step 2.)
2 While pressing and holding down [Í/I] on the
unit, reconnect the AC mains lead.
≥ Keep holding down [Í/I] until “---------” appears on the
display.
3 Release [Í/I].

≥ The settings are returned to the factory defaults. It is
necessary to set the settings again.
General
Cannot turn on the unit.
≥ After connecting the AC mains lead, wait about 10 seconds before
turning on the unit.
Humming heard during playback.
≥ If an AC mains lead or fluorescent lights are near the cords, then
keep other appliances and cords away from the cables.
The unit does not work.
≥ Large file size or high memory USB flash drive takes longer time
to read.
The elapsed time displayed is different from the
actual play time.
≥ Copy the data to another USB device or backup the data and
reformat the USB device.
Radio
[HC402]
DAB/DAB+ reception is poor.
≥ Keep the antenna away from computers, televisions, other cables
and cords.
≥ Use an outdoor antenna.
If noise is excessive during FM reception.
≥ Change the audio to be output as monaural.
1 Press [RADIO MENU] repeatedly to select “FM MODE”.
2 Press [2, 1] to select “MONO” and then press [OK].
The sound becomes monaural.
≥ To cancel, select “STEREO” or change the frequency.
In normal circumstances, select “STEREO”.
Static or noisy reception is heard while listening to
a radio broadcast.
≥ One of the unit’s safety devices may have been activated.
1 Press [Í/I] on the unit to switch the unit to standby.
≥ If the unit does not turn off, disconnect the AC mains lead
from the AC outlet, reconnect it to the outlet after about
30 seconds. Then wait for about 10 seconds.
2 Press [Í/I] on the unit to switch it on. If the unit still cannot be
operated, consult the dealer.
≥ Confirm the antenna is properly connected. (l 6)
≥ Adjust the position of the antenna.
≥ Try to keep a certain amount of distance between the antenna and
AC mains lead.
≥ Try using an outdoor antenna if there are buildings or mountains
nearby.
≥ Turn the TV or other audio players off or separate it from this unit.
≥ Keep this unit away from mobile phones if there is interference.
Charging does not start during standby mode.
[HC400] (Australia and New Zealand only)
≥ Turn the unit on. Check the charging has started, and then turn
the unit to standby mode. (l 7)
Noise is heard.
≥ When a device is connected to both the AUX IN jack and the USB
port, noise may be generated depending on the device. In this
case, remove the USB cable from the USB port.
Remote control
The remote control does not work properly.
≥ The battery is depleted or inserted incorrectly. (l 5)
Disc
Incorrect display or play does not start.
≥ Make sure that the disc is compatible with this unit. (l 18)
≥ There is moisture on the lens. Wait for about an hour and then try
again.
16
TQBJ0987
AM stations cannot be selected.
≥ Change the AM frequency step.
1 Press [RADIO, EXT-IN] repeatedly to select “AM”.
2 Press and hold [∫] on the unit.
After a few seconds the display changes to show the current lowest
frequency. Continue to hold the button down. The lowest frequency
changes and the step is changed.
[HC400] (Australia and New Zealand only)
A low hum or noise is heard during AM broadcast.
≥ Keep the AM antenna away from this unit, other cables and cords.
Bluetooth®
Pairing cannot be completed.
≥ Check the Bluetooth® device condition.
The device cannot be connected.
≥ The pairing of the device was unsuccessful or the registration has
been replaced. Try re-pairing the device. (l 8)
≥ This unit might be connected to a different device. Disconnect the
other device and try re-pairing the device. (l 8)
≥ If “MODE 2” is selected in “LINK MODE”, select “MODE 1”. (l 8)
≥ If the problem persists, turn the unit off and on, then try again.
SC-HC400_402-EGEBGN~TQBJ0987.book
17 ページ
2017年3月16日 木曜日 午後7時52分
The device is connected, but audio cannot be
heard through this unit.
“NO SIGNAL” ([HC402])
≥ This station cannot be received. Check your antenna (l 6).
≥ For some built-in Bluetooth devices, you have to set the audio
output to “SC-HC402” or “SC-HC400” manually. Read the
operating instructions for the device for details.
“NOT SUPPORTED”
The sound is interrupted.
“PGM FULL”
®
≥ The device is out of the 10 m communication range. Place the
Bluetooth® device closer to this unit.
≥ Remove any interference between this unit and the device.
≥ Other devices that use the 2.4 GHz frequency band, such as
wireless routers, microwaves, cordless phones, etc. are
interfering. Place the Bluetooth® device closer to this unit and
distance it from the other devices.
≥ Select “MODE 1” for stable communication. (l 8)
Messages
The following messages or service numbers may
appear on the unit’s display.
“--:--”
≥ You plugged the AC mains lead in for the first time or there was a
power failure recently. Set the time (l 14).
“ADJUST CLOCK”
≥ Clock is not set. Adjust the clock accordingly.
“ADJUST TIMER”
≥ You have connected an unsupported USB device.
≥ The number of programmed tracks is more than 24.
“PLAYERROR”
≥ You played an unsupported file. The system will skip that track
and play the next one.
“READING”
≥ The unit is checking the “CD”/“USB” information. After this display
has disappeared, start operating.
“REMOTE ” (“ ” stands for a number.)
≥ The remote control and this unit are using different codes. Change
the code on the remote control.
– When “REMOTE 1” is displayed, press and hold [OK] and [1]
for at least 4 seconds.
– When “REMOTE 2” is displayed, press and hold [OK] and [2] for at
least 4 seconds.
“SCAN FAILED” ([HC402])
≥ Stations are not receivable. Check your antenna and try Auto
scanning (l 11).
If “SCAN FAILED” is still displayed find the best signal reception
with the “MANUAL SCAN” tuning function. (l 12)
≥ Play timer is not set. Adjust the play timer accordingly.
“SOUND NOT SET” (“ ” stands for a number.)
“AUTO OFF”
≥ There is no saved setting under the selected sound setting
number. Save the sound settings. (l 14)
≥ The unit has been left unused for about 20 minutes and will shut
down within a minute. Press any button to cancel it.
“ERROR”
≥ Incorrect operation is performed. Read the instructions and try
again.
“F” / “F” (“ ” stands for a number.)
≥ There is a problem with this unit.
Disconnect the AC mains lead from the AC outlet, reconnect it to
the outlet after about 30 seconds. Wait for about 10 seconds, then
turn on the unit. If the problem still persists, disconnect the AC
mains lead and consult your dealer.
“USB OVER CURRENT ERROR”
≥ The USB device is drawing too much power. Select a source other
than “USB”, remove the USB and turn the unit off.
“VBR”
≥ The system cannot show the remaining play time for variable bit
rate (VBR) tracks.
“WAIT”
≥ This is displayed, for example, when this unit is turning off.
“ILLEGAL OPEN”
≥ Sliding door is in the wrong position. After turning off the unit,
disconnect the AC mains lead from the AC outlet, reconnect it to
the outlet after about 30 seconds. Wait for about 10 seconds, then
turn on the unit. If the message is still displayed, disconnect the
AC mains lead and consult your dealer.
“LINKING”
≥ This system is trying to connect to the last connected Bluetooth®
device when “BLUETOOTH” is selected.
“NO DEVICE”
≥ The USB device is not inserted correctly. Read the instructions
and try again (l 7).
“NO DISC”
≥ Insert the disc to be played (l 7).
“NO PLAY”
≥ Examine the content. You can only play supported format. (l 19)
≥ The files in the USB device can be corrupted. Format the USB
device and try again.
≥ The unit may have a problem. Turn the unit off and then on again.
“NO PRESET” ([HC402])
≥ There are no preset DAB/DAB+ stations to select. Preset some
channels. (l 11)
17
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
18 ページ
2017年3月16日 木曜日 午後7時52分
Unit and media care
Pull out the AC mains lead from the outlet before
maintenance.
∫ Clean this unit with a soft, dry cloth
≥ When dirt is heavy, wring a wet cloth tightly to wipe the dirt,
and then wipe it with a dry cloth.
≥ When cleaning the speaker covers, use a fine cloth.
Do not use tissues or other materials that can fall apart.
Small pieces may get stuck inside the speaker cover.
≥ Never use alcohol, paint thinner or benzine to clean this unit.
≥ Before using chemically treated cloth, carefully read the
cloth’s instructions.
∫ Maintenance of the lens
≥ Clean the lens regularly to prevent malfunctions. Use a dust
blower to remove dust and a cotton swab if it is extremely
dirty.
≥ You cannot use a CD type lens cleaner.
≥ Do not leave the sliding door open for prolonged periods of
time. This will cause the lens to get dirty.
≥ Be careful not to touch the lens with your fingers.
Lens
∫ Clean discs
DO
DO NOT
Playable media
Compatible CD
≥ A disc with the CD Logo.
≥ This unit can play back discs that conform to the CD-DA
format.
≥ This system can play back CD-R/RW with CD-DA or MP3
format content.
≥ The unit may not be able to play some discs due to the
condition of the recording.
≥ Before playback, finalise the disc on the device it was
recorded on.
≥ If the disc includes both MP3 and normal audio data
(CD-DA), the unit plays the type recorded in the inner part of
the disc.
≥ This unit cannot play files recorded using packet write.
≥ Disc must conform to ISO9660 level 1 or 2 (except for
extended formats).

≥ Some CD-R/RW cannot be played because of the condition
of the recording.
≥ MP3 files are defined as tracks and folders are defined as
albums.
≥ This system can access up to:
– CD-DA: 99 tracks
– MP3: 999 tracks, 255 albums (including root folder)
≥ Recordings will not necessarily be played in the order you
recorded them.
Wipe with a damp cloth and then wipe dry.
∫ Disc handling precautions
≥ Handle discs by the edges to avoid inadvertent scratches or
fingerprints on the disc.
≥ Do not attach labels or stickers to discs.
≥ Do not use record cleaning sprays, benzine, thinner, static
electricity prevention liquids or any other solvent.
≥ Do not use the following discs:
– Discs with exposed adhesive from removed stickers or
labels (rented discs etc.).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.
∫ To dispose or transfer this unit
The unit may keep the user settings information in the
unit. If you discard this unit either by disposal or
transfer, then follow the procedure to return all the
settings to the factory defaults to delete the user
settings.
(l 16, “To return all settings to the factory defaults”)
18
TQBJ0987
Compatible USB devices
≥ This unit does not guarantee connection with all USB
devices.
≥ FAT12, FAT16 and FAT32 file systems are supported.
≥ This unit supports USB 2.0 Full Speed.
≥ USB devices with storage capacity of more than 32 GB
cannot work in some conditions.
≥ Supported format: Files with the extension “.mp3” or “.MP3”.
≥ Depending on how you create the files, they may not play in
the order you numbered them or may not play at all.

≥ Files are defined as tracks and folders are defined as
albums.
≥ This system can access up to:
– 800 albums (including root folder)
– 8000 tracks
– 999 tracks in one album
SC-HC400_402-EGEBGN~TQBJ0987.book
19 ページ
2017年3月16日 木曜日 午後7時52分
Specifications
∫ SPEAKER SECTION
∫ GENERAL
Speaker unit(s)
Full Range
Power consumption
23 W
Power consumption in standby mode
(When “BLUETOOTH STANDBY” is “OFF”)*1
Approx. 0.2 W
(When “BLUETOOTH STANDBY” is “ON”)*1
Approx. 0.3 W
Power supply
AC 220 V to 240 V, 50 Hz
Dimensions (WkHkD)
420 mmk225 mmk102 mm
Mass
Approx. 2.4 kg
Operating temperature range
0 oC to r40 oC
Operating humidity range
35% to 80% RH (no condensation)
∫ AMPLIFIER SECTION
Output power
RMS Output Power
Front Ch (both ch driven)
20 W per channel (8 ≠), 1 kHz, 10% THD
Total RMS power
40 W
∫ TUNER SECTION
Preset Memory
FM 30 stations
[HC400] (Australia and New Zealand only) AM 15 stations
Frequency Modulation (FM)
Frequency range
87.50 MHz to 108.00 MHz (50 kHz step)
Antenna terminals
75 ≠ (unbalanced)
[HC400] (Australia and New Zealand only)
Amplitude Modulation (AM)
Frequency range
522 kHz to 1629 kHz (9 kHz step)
520 kHz to 1630 kHz (10 kHz step)
8 cm cone typek2
∫ TERMINAL SECTION
USB Port
USB Port power
USB Standard
Media file format support
Audio support format
MP3*2
Sampling frequency
Audio word size
Channel count
USB device file system
AUX IN
DC OUT 5 V 1.5 A
USB 2.0 full speed
MP3*2 (¢.mp3)
32/44.1/48 kHz
16 bits
2 ch
FAT12, FAT16, FAT32
Stereo, 3.5 mm jack
∫ Bluetooth® SECTION
Version
Class
Supported Profiles
Frequency band
Operation Distance
Supported Codec
Bluetooth® Ver.2.1+EDR
Class 2
A2DP, AVRCP
2.4 GHz band FH-SS
10 m Line of sight
SBC

≥ Specifications are subject to change without notice.
≥ Mass and dimensions are approximate.
≥ Total harmonic distortion is measured by a digital spectrum
analyzer.
*1: No device is connected to the USB port before turning to
standby mode.
*2: MPEG-1 Layer 3, MPEG-2 Layer 3
∫ DAB SECTION ([HC402])
DAB memories
20 channels
Frequency Band (Wavelength)
Band III
5A to 13F
(174.928 MHz to 239.200 MHz)
Sensitivity *BER 4x10-4
Min Requirement
s98 dBm
DAB External Antenna
Terminal
F - Connector (75 ≠)
∫ DISC SECTION
Disc played (8 cm or 12 cm)
CD, CD-R/RW (CD-DA, MP3*2)
Pick up
Wavelength
790 nm (CD)
NORSK (NORWAY)
Bølgelengde
790 nm (CD)
Laserstyrke
Ingen farlig stråling sendes ut
(med sikkerhets-beskyttelse)
19
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
20 ページ
2017年3月16日 木曜日 午後7時52分
Attaching the unit to a wall
(optional)
This unit can be wall mounted using the supplied wall
mount brackets, safety holder, etc. Make sure that the
wall and the screws used for securing to the wall are
capable of supporting at least 36 kg. The screws and
other items are not supplied as the type and size will
vary with each installation.
≥ Refer to step 6 and step 7 of “Wall mount
instructions” for details about the required screws.
≥ As an additional protective measure, attach the unit
to the wall with the fall prevention cord.
Wall mount instructions
Before installation, turn the unit off and disconnect the
AC mains lead from the mains socket.
1
Unscrew the fixing screw at the rear of the unit.
Stand
Fixing screw
Installation accessories
∫ Supplied accessories
≥ 2 Wall mount brackets
≥ 1 Safety holder
≥ 1 Wall mounting sheet
Soft blanket or cloth
2
∫ Additionally required accessories
(commercially available)
Detach the stand from the unit while pressing the
catches upward.
≥ While lifting the catches upwards, gently pull the stand
forward.
≥ 4 Wall mount bracket fixing screws
≥ 2 Safety holder fixing screws
≥ 1 Fall prevention cord*
≥ 1 Screw eye
* Use a cord that is capable of supporting over 36 kg
(with a diameter of about 1.5 mm).
≥ Keep the screws out of reach of children to prevent
swallowing.
≥ Keep the wall mount brackets out of reach of children
to prevent swallowing.
≥ Keep the screw eye out of reach of children to prevent
swallowing.
Safety precautions
Professional installation is required.
The installation should never be done by any
other than a qualified installation specialist.
PANASONIC DISCLAIMS ANY PROPERTY
DAMAGE AND/OR SERIOUS INJURY,
INCLUDING DEATH RESULTING FROM
IMPROPER INSTALLATION OR INCORRECT
HANDLING.
Keep the removed screw and stand for future use.
≥ When using the unit in a non-wall-mounted position again,
be sure to reattach the stand to the unit and secure it with
its screw.
3
Attach the fall prevention cord (not supplied) to this
unit.


WARNING:
To prevent injury, this apparatus must be securely
attached to the wall in accordance with the
installation instructions.

A Fall prevention cord (not supplied)
20
TQBJ0987
≥ Bend the cord twice from the tip, each at 45o and 5 mm
apart for it to go through the holes.
B 5 mm
SC-HC400_402-EGEBGN~TQBJ0987.book
4
21 ページ
2017年3月16日 木曜日 午後7時52分
Put up the wall mounting sheet on the wall where
the unit is to be mounted.
8
1 Hook the unit securely onto the wall mount brackets
with both hands.
≥ Spread out the wall mounting sheet when tapping it to
the wall.
≥ Connect the antenna and the AC mains lead to the unit
before hanging the unit onto the wall. (l 6)
Adhesive tape (not supplied)
Wall mounting sheet
Attach the unit.
Wall
Wall
AC mains lead
Space required
2 Slightly uplift the unit vertically until reaching the
hook of the safety holder, and push lower so that
the unit is hooked and locked in the safety holder.
300 mm
130.5 mm
102.5 mm
118.5 mm
≥ The unit will be locked onto the safety holder with a click sound.
≥ After hanging the unit, release your hands carefully to
confirm the unit sits securely on the wall mount brackets
and the safety holder.
Wall
141 mm
73 mm
39 mm
100 mm
5
6
420 mm
9
Make holes on the wall at the center of each cross
mark on the sheet.
Wall mount bracket
Safety holder
Attach the fall prevention cord (not supplied) to the
wall.
≥ Make sure that the slack of the cord is minimal.
≥ Take the sheet away from the wall after its use.
Screw eye (not supplied)
Attach each wall mount bracket to the wall with two
screws (not supplied).
Cord (not supplied)
≥ Use a level to ensure both wall mount brackets are
level.
‰4.0 mm
Wall
At least 30 mm
‰7.5 mm to
‰9.4 mm
Wall mount bracket
7
Hook
100 mm
∫ To release the unit from the safety holder
While pressing two catches of the safety holder, uplift
the unit vertically.
Attach the safety holder with two screws (not
supplied) to the wall.
‰4.0 mm
At least 30 mm
‰7.5 mm to
‰9.4 mm
Safety holder
Catches
21
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
22 ページ
2017年3月16日 木曜日 午後7時52分
Licenses
The Bluetooth word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by
Panasonic Corporation is under license.
Other trademarks and trade names are those of their respective
owners.
®
MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.
Disposal of Old Equipment and Batteries
Only for European Union and countries with
recycling systems
These symbols on the products,
packaging, and/or accompanying
documents mean that used electrical and
electronic products and batteries must not
be mixed with general household waste.
For proper treatment, recovery and
recycling of old products and used
batteries, please take them to applicable
collection points in accordance with your
national legislation.
By disposing of them correctly, you will help to
save valuable resources and prevent any
potential negative effects on human health and the environment.
For more information about collection and recycling,
please contact your local municipality.
Penalties may be applicable for incorrect disposal of
this waste, in accordance with national legislation.
Note for the battery symbol
(bottom symbol):
This symbol might be used in combination
with a chemical symbol. In this case it
complies with the requirement set by the
Directive for the chemical involved.
Safety information for customers in Norway
NORSK
ADVARSEL
Produkt
≥ For å redusere faren for brann, elektrisk støt eller skade på
apparatet:
– Utsett ikke produktet for regn, fukt, drypping eller sprut.
– Ikke plasser objekter som er fylt med væske, som vaser,
på apparatet.
– Bruk kun anbefalt tilbehør.
– Fjern ikke deksler.
– Reparer ikke denne enheten selv, overlat service til
kvalifisert servicepersonell.
Vekselstrømnett
≥ Nettstøpselet er trukket ut fra denne enheten.
Installer denne enheten slik at nettstøpselet umiddelbart kan
trekkes fra stikkontakten.
FORSIKTIG
Produkt
≥ Dette produktet anvender en laser. Betjening av kontroller
eller justering eller andre inngrep enn de beskrevet i denne
bruksanvisning kan føre til farlig bestråling.
≥ Plasser ikke åpen ild, slik som levende lys, oppå apparatet.
≥ Dette apparatet er beregnet for bruk under moderate klimaforhold.
Plassering
22
TQBJ0987
≥ For å redusere faren for brann, elektrisk støt eller skade på
apparatet:
– Ikke plasser apparatet i en bokhylle, et innebygget
kabinett eller et annet lukket sted. Pass på at produktet er
godt ventilert.
– Apparatets ventilasjonsåpninger må ikke dekkes til med
aviser, duker, gardiner eller lignende.
SC-HC400_402-EGEBGN~TQBJ0987.book
23 ページ
2017年3月16日 木曜日 午後7時52分
Safety information for customers in the EU
English
Declaration of Conformity (DoC)
Lietuviškai
Atitikties deklaracija (AD)
Hereby, “Panasonic Corporation” declares that this product is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Customers can download a copy of the original DoC to our R&TTE
products from our DoC server:
http://www.doc.panasonic.de
Contact to Authorised Representative: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany
Bendrovë “Panasonic Corporation” patvirtina, kad šis gaminys
tenkina direktyvos 1999/5/EB esminius reikalavimus ir kitas
taikytinas nuostatas.
Mūsų R&TTE gaminių originalios atitikties deklaracijos kopiją klientai
gali atsisiųsti iš mūsų AD serverio:
http://www.doc.panasonic.de
Įgaliotojo atstovo adresas: “Panasonic Marketing Europe GmbH”,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Vokietija.
Ελληνικά
Δήλωση συμμόρφωσης (DoC)
Με την παρούσα, η “Panasonic Corporation” δηλώνει ότι το προϊόν
αυτό είναι σύμφωνο με τις βασικές απαιτήσεις και άλλες σχετικές
διατάξεις της οδηγίας 1999/5/ΕC.
Οι πελάτες μπορούν να κατεβάσουν ένα αντίγραφο του πρωτοτύπου
DoC για τα R&TTE προϊόντα μας από τον DoC server μας:
http://www.doc.panasonic.de
Στοιχεία επικοινωνίας Eξουσιοδοτημένου Aντιπροσώπου: Panasonic
Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Γερμανία
Português
Declaração de Conformidade (DoC)
Slovensko
Izjava o skladnosti (DoC)
S pričujočo izjavo podjetje “Panasonic Corporation” izjavlja, da so
svoji izdelki skladni s poglavitnimi zahtevami in drugimi
odgovarjajočimi predpisi direktive 1999/5/ES.
Stranka lahko naloži izvod izvirnega DoC o naših izdelkih R&TTE s
strežnika DoC:
http://www.doc.panasonic.de
Pooblaščeni zastopnik: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Nemčija
Slovensky
Vyhlásenie o zhode (DoC)
Com o presente documento, a “Panasonic Corporation” declara que
este produto é conforme os requisitos específicos e demais
especificações referentes à Directriz 1999/5/EC.
Os clientes podem baixar uma cópia da declaração de conformidade
(DoC) para nossos produtos R&TTE do Server DoC:
http://www.doc.panasonic.de
Contacte o representante autorizado: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Alemanha
“Panasonic Corporation” týmto prehlasuje, že tento výrobok je v
zhode so základnými požiadavkami a ďalšími príslušnými
ustanoveniami smernice 1999/5/ES.
Zákazníci si môžu stiahnuť kópiu pôvodného DoC na naše R&TTE
výrobky z nášho servera DoC:
http://www.doc.panasonic.de
Kontakt na splnomocneného zástupcu: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Nemecko
Polski
Deklaracja zgodności
Norsk
Samsvarserklæring (DoC)
Niniejszym “Panasonic Corporation” deklaruje, że ten produkt jest
zgodny z istotnymi wymaganiami i innymi odnośnymi
postanowieniami dyrektywy 1999/5/WE.
Klienci mogą pobrać oryginalną deklarację zgodności naszych
produktów z serwera deklaracji zgodności:
http://www.doc.panasonic.de
Kontakt się z autoryzowanym przedstawicielem:
Panasonic Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Niemcy
Česky
Prohlášení o shodě
Společnost “Panasonic Corporation” tímto prohlašuje, že tento
výrobek je ve shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/EC.
Zákazníci si mohou stáhnout kopii originálu prohlášení o shodě pro
naše produkty R&TTE z našeho serveru:
http://www.doc.panasonic.de
Oprávněný zástupce:
Panasonic Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Německo
Hrvatski
Deklaracija o podobnosti (DoC)
“Panasonic Corporation” erklærer at utstyret er i samsvar med de
grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
Kundene kan laste ned en kopi av den originale samsvarserklæringen (DoC)
for vårt R&TTE utstyr fra vår DoC server:
http://www.doc.panasonic.de
Kontakt vår autoriserte representant: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Tyskland
Eesti keel
Vastavusdeklaratsioon (DoC)
“Panasonic Corporation” kinnitab käesolevaga, et see toode on
vastavuses põhiliste nõuete ja muude direktiivi 1999/5/EÜ
asjakohaste sätetega.
Kliendid saavad koopia meie R&TTE toodetele kehtiva
originaalvastavusdeklaratsiooni koopia alla laadida meie
DoC-serverist:
http://www.doc.panasonic.de
Võtke ühendust volitatud esindajaga: Panasonic Marketing
Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Saksamaa
Ovime, “Panasonic Corporation” izjavljuje da je ovaj proizvod
udovoljava osnovnim zahtjevima i ostalim relevantnim uvjetima
Smjernice 1999/5/EC.
Kupci mogu preuzeti kopiju originalne DoC za naše R&TTE
proizvode s našeg DoC poslužitelja:
http://www.doc.panasonic.de
Adresa ovlaštenog predstavništva: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Njemačka
23
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
24 ページ
2017年3月16日 木曜日 午後7時52分
Български
Декларация за съответствие (DoC)
“Panasonic Corporation” декларира, че този продукт съответства
на съществените изисквания и другите приложими разпоредби
на Директива 1999/5/EC.
Потребителите могат да свалят копие от оригиналните DoC към
нашите продуктите от типа R&TTE от сървъра, на който се
съхраняват DoC:
http://www.doc.panasonic.de
За контакт с оторизиран представител: Panasonic Marketing
Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Германия
Latviski
Atbilstības deklarācija (DoC)
Kompānija “Panasonic Corporation” ar šo paziņo, ka šis izstrādājums atbilst
būtiskām prasībām un citām saistošām Direktīvas 1999/5/EK prasībām.
Pircēji var lejupielādēt oriģinālo DoC kopiju mūsu R&TTE izstrādājumos no
mūsu DoC servera:
http://www.doc.panasonic.de
Lūdzam sazināties ar pilnvaroto parstāvi
Panasonic Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Vācijā
Român
Declaraţie de Conformitate (DoC)
Prin prezenta, societatea “Panasonic Corporation” declară că
produsul este conform cu cerinţele esenţiale şi cu alte norme
corespunzătoare Directivei 1999/5/EC.
Clienţii pot descărca o copie a DoC-ului original al produselor
noastre R&TTE de la adressa noastră DoC din Internet:
http://www.doc.panasonic.de
Contact la Reprezentanţa autorizată: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germania
Magyar
Megfelelőségi Nyilatkozat (DoC)
Ezennel a , “Panasonic Corporation” kijelenti, hogy a jelen termék
kielégíti az 1999/5/EK Irányelv létfontosságú követelményeit és más
vonatkozó rendelkezéseit.
A vásárlók letölthetik az R&TTE termékek eredeti DoC másolatát a
DoC szerverünkről:
http://www.doc.panasonic.de
Forduljon a hivatalos márkaképviselethez: Panasonic Marketing
Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Németország
Türkçe
Uygunluk Beyanı (DoC)
“Panasonic Corporation” işbu belge ile bu ürünün 1999/5/EC sayılı
Direktif'in temel gereklerine ve diğer ilgili hükümlerine uygun
olduğunu beyan etmektedir.
Müşterilerimiz R&TTE ürünlerimizle ilgili orijinal DoC belgesinin bir
kopyasını DoC sunucumuzdan indirebilir:
http://www.doc.panasonic.de
Yetkili Temsilci ile temasa geçin:
Panasonic Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Almanya
24
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
25 ページ
2017年3月16日 木曜日 午後7時52分
Limited Warranty (ONLY FOR AUSTRALIA)
Panasonic Warranty
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its
Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of
Panasonic, the product is found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised
Distributors or Dealers and only where the products are used and serviced within Australia or it's territories. Warranty cover only
applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when
warranty service is requested.
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations (as
noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal
domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation,
accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm
activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations),
introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the
product, exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Cabinet Part(s)
(e) DVD, Blu-ray or Recordable Discs
(b) Video or Audio Tapes
(f) Video / Audio Heads from wear and tear in normal use
(c) SD cards or USB devices
(g) Information stored on Hard Disk Drive, USB stick or SD card
(d) User replaceable Batteries
(h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)
etc
5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover
(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) The use of incompatible software or software not specifically stipulated in the product operations manual;
and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet or
any other device.
6. To claim warranty service, when required, you should:
Telephone Panasonic’s Customer Care Centre on 132600 or visit our website referred to below and use the Service Centre
Locator for the name/address of the nearest Authorised Service Centre.
Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of
purchase date. Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be arranged
by you.
Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the
normal operating areas of the nearest Authorised Service Centres:
Plasma/LCD televisions / displays (screen size greater than 103 cm)
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other
ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement of and
do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation,
de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however,
coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone
our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the
Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have
the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are
also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a
major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by
contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair
or replace the product and will do so in a reasonable period of time from receiving notice from you.
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
If you require assistance regarding warranty conditions or any other enquiries, please visit the Panasonic Australia
website www.panasonic.com.au or contact by phone on 132 600
If phoning in, please ensure you have your operating instructions available.
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
PRO-031-F11 Issue: 4.0
01-01-2011
25
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
26
TQBJ0987
26 ページ
2017年3月16日 木曜日 午後7時52分
SC-HC400_402-EGEBGN~TQBJ0987.book
27 ページ
2017年3月16日 木曜日 午後7時52分
27
TQBJ0987
SC-HC400_402-EGEBGN~TQBJ0987.book
28 ページ
2017年3月16日 木曜日 午後7時52分
For the United Kingdom and Ireland customers
Sales and Support Information
Customer Communications Centre
≥ For customers within the UK: 0344 844 3899
≥ For customers within Ireland: 01 289 8333
≥ Monday–Friday 9:00 am - 5:00 pm
(Excluding public holidays).
≥ For further support on your product, please visit our website: www.panasonic.co.uk
Direct Sales at Panasonic UK
≥ Order accessory and consumable items for your product with ease and confidence by phoning our
Customer Communications Centre
Monday–Friday 9:00 am - 5:00 pm
(Excluding public holidays).
≥ Or go on line through our Internet Accessory ordering application at www.pas-europe.com.
≥ Most major credit and debit cards accepted.
≥ All enquiries transactions and distribution facilities are provided directly by Panasonic UK.
≥ It couldn’t be simpler!
≥ Also available through our Internet is direct shopping for a wide range of finished products. Take a
browse on our website for further details.
(Back of product)
EU
Manufactured by:
Panasonic Corporation
Kadoma, Osaka, Japan
Importer for Europe: Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Corporation
Web Site: http://www.panasonic.com
C Panasonic Corporation 2016
p
TQBJ0987-1
F1216YM2037
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
