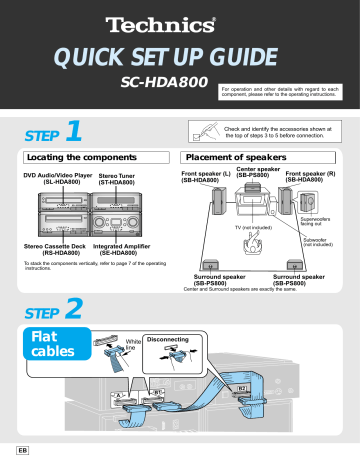

QUICK SET UP GUIDE
SC-HDA800
STEP
1
Check and identify the accessories shown at
the top of steps 3 to 5 before connection.
Locating the components
DVD Audio/Video Player
(SL-HDA800)
For operation and other details with regard to each
component, please refer to the operating instructions.
Placement of speakers
Center speaker
Front speaker (L) (SB-PS800)
Front speaker (R)
(SB-HDA800)
(SB-HDA800)
Stereo Tuner
(ST-HDA800)
Superwoofers
facing out
TV (not included)
Stereo Cassette Deck
(RS-HDA800)
Subwoofer
(not included)
Integrated Amplifier
(SE-HDA800)
To stack the components vertically, refer to page 7 of the operating
instructions.
Surround speaker
(SB-PS800)
Surround speaker
(SB-PS800)
Center and Surround speakers are exactly the same.
STEP
2
Flat
cables
White Disconnecting
line
A
EB
B1
B2
STEP
3
Front speaker cables
Center/Surround speaker cables
Tagged red, black, blue, and white
Tagged blue, and white
(7 m)
(7 m)
(2 m)
Connect so the color of the cable’s tag matches the terminal
(connect the cable tagged white to the gray terminal).
Front speaker
cables
On the speakers
Gray
HF
White
Blue
LF
Red
Black
L (Left)
L
R
R (Right)
HF : High Frequency
LF : Low Frequency
On the amplifier
Note
Incorrect connection can
damage unit.
Red
Gray
White
Black
Blue
HF LF
Center/Surround
speaker cables
On the speakers
White
Gray
Blue
On the amplifier
D
UN
D SURRO
SURROUN
R
L
Gray
White
Surround speaker (L)
Blue
Surround
speaker (R)
CENTER
(7 m)
Center speaker
(7 m)
(2 m)
STEP
4
a
( page 47 in the
operating instructions)
AM loop
antenna
Attach to a wall (using tape) facing in the
direction of best reception.
FM indoor
antenna
Push in/pull out
connector
D2
Place on a flat
surface
White line
D1
Surround
cable
STEP
Disconnecting
White line
Press
down
5
a page 11 in the operating instructions)
(
Video
connection cable
TV (not included)
VIDEO OUT
VIDEO IN
AC IN ∼
AC mains
lead
Household
mains socket
Connect the AC mains lead after you have
connected all other cables.
Check installation by playing a DVD
1
2
3
Turn on the TV and select the appropriate
video input on the TV.
Turn on the unit.
Press [; OPEN/CLOSE] and load a disc.
Label must
face upward
To stop play
4
Press [q].
5
Adjust the volume.
The disc tray closes automatically.
Remote control operation
To adjust the volume
– VOLUME +
Battery installation
1
2
RQCA0888
H0502BB0
