SC-HTB690-SQT0852.book 1 ページ 2015年4月28日 火曜日 午前9時54分

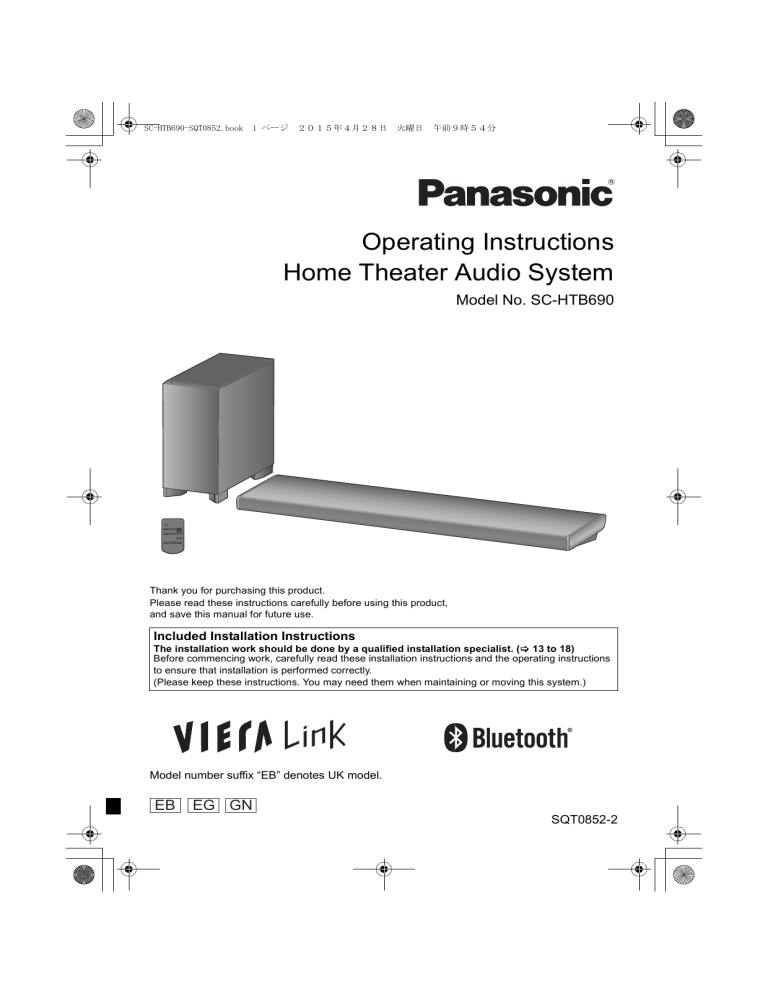

Operating Instructions

Home Theater Audio System

Model No. SC-HTB690

Thank you for purchasing this product.

Please read these instructions carefully before using this product, and save this manual for future use.

Included Installation Instructions

The installation work should be done by a qualified installation specialist. (

>

13 to 18)

Before commencing work, carefully read these installation instructions and the operating instructions to ensure that installation is performed correctly.

(Please keep these instructions. You may need them when maintaining or moving this system.)

Model number suffix “EB” denotes UK model.

EB EG GN

SQT0852-2

SC-HTB690-SQT0852.book 2 ページ 2015年4月28日 火曜日 午前9時54分

Safety precautions

WARNING

Unit

≥ To reduce the risk of fire, electric shock or product damage, j Do not expose this unit to rain, moisture, dripping or splashing.

j Do not place objects filled with liquids, such as vases, on this unit.

j Use only the recommended accessories.

j Do not remove covers.

j Do not repair this unit by yourself. Refer servicing to qualified service personnel.

≥ To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions.

AC mains lead

To reduce the risk of fire, electric shock or product damage, j

Ensure that the power supply voltage corresponds to the voltage printed on this unit.

j

Insert the mains plug fully into the socket outlet.

j

Do not pull, bend, or place heavy items on the lead.

j

Do not handle the plug with wet hands.

j

Hold onto the mains plug body when disconnecting the plug.

j

Do not use a damaged mains plug or socket outlet.

The mains plug is the disconnecting device.

Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

Button-type battery (Lithium battery)

≥ Risk of fire, explosion and burns. Do not recharge, disassemble, heat above 60 o

C or incinerate.

Keep the Button-Type battery out of the reach of children. Never put Button-Type battery in mouth. If swallowed call your doctor.

Small object

Keep the screws out of reach of children to prevent swallowing.

≥ Keep the button-type battery out of reach of children to prevent swallowing.

Never put Button-Type battery in mouth.

If swallowed call your doctor.

2

SQT0852

CAUTION

Unit

≥ Do not place sources of naked flames, such as lighted candles, on this unit.

≥ This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.

≥ This unit is intended for use in moderate climates.

≥ Product Identification Marking is located on the bottom of the unit.

Placement

Place this unit on an even surface.

To reduce the risk of fire, electric shock or product damage, j

Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.

j

Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items.

j

Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

Button-type battery (Lithium battery)

≥ Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.

≥ Insert with poles aligned.

≥ Mishandling of batteries can cause electrolyte leakage and may cause a fire.

j Remove the battery if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.

j Do not heat or expose to flame.

j Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.

≥ When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.

SC-HTB690-SQT0852.book 3 ページ 2015年4月28日 火曜日 午前9時54分

Caution for AC Mains Lead

(For the AC mains plug of three pins)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 10-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of

10-ampere and that it is approved by ASTA or

BSI to BS1362.

Check for the ASTA mark

Ï

or the BSI mark

Ì on the body of the fuse.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B).

Confirm the AC mains plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Figure A

Figure B

Fuse cover

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local dealer.

Before use

Remove the connector cover.

2. Replace the fuse and close or attach the fuse cover.

Figure A

Fuse

(10 ampere)

Figure B

Fuse

(10 ampere)

About descriptions in these operating instructions

Pages to be referred to are indicated as “ >

±±

”.

≥ Labels on this unit and the remote control are indicated as [ ±± ] in these operating instructions.

≥ The illustrations shown may differ from your unit.

These operating instructions are applicable to model SC-HTB690 for variety of regions. Unless otherwise indicated, illustrations in these operating instructions are of the model for the United Kingdom and Ireland.

≥ Operations in this operating instructions are described mainly with the remote control, but you can perform the operations on the main unit if the controls are the same.

SQT0852

3

SC-HTB690-SQT0852.book 4 ページ 2015年4月28日 火曜日 午前9時54分

Table of contents

Safety precautions ........................................................................................... 2

Caution for AC Mains Lead ............................................................................. 3

Before use

Supplied items.................................................................................................. 5

This system (SC-HTB690) .................................................................................................. 5

Accessories ......................................................................................................................... 5

Control reference guide................................................................................... 6

This system (Front) ............................................................................................................. 6

This system (Rear) .............................................................................................................. 7

Remote control .................................................................................................................... 8

Getting started

Step 1 Connections ......................................................................................... 9

Connection with the TV ....................................................................................................... 9

Connection from an HDMI compatible device ................................................................... 10

Using the IR Blaster .......................................................................................................... 11

AC mains lead connection ................................................................................................ 12

Step 2 Placement .......................................................................................... 13

Safety Precautions ............................................................................................................ 13

The active subwoofer ........................................................................................................ 13

Wireless interference ........................................................................................................ 13

Selecting the placement method ....................................................................................... 14

When placing the main unit in a rack or on a table ........................................................... 15

When attaching the main unit to a wall ............................................................................. 16

Step 3 Wireless connections ....................................................................... 19

Active subwoofer wireless connection .............................................................................. 19

Bluetooth

®

connection ....................................................................................................... 19

Remote control code ..................................................................................... 20

Operations

Using this system .......................................................................................... 21

3D sound ......................................................................................................... 22

Sound menu ................................................................................................... 22

Audio format ...................................................................................................................... 23

Setup menu ..................................................................................................... 24

Linked operations with the TV

(VIERA Link “HDAVI Control

TM

”).............................................................. 25

Reference

Troubleshooting ............................................................................................. 26

About Bluetooth ® ........................................................................................... 31

Unit care .......................................................................................................... 31

Licenses .......................................................................................................... 31

Specifications................................................................................................. 32

Limited Warranty (ONLY FOR AUSTRALIA) ................................................. 37

4

SQT0852

SC-HTB690-SQT0852.book 5 ページ 2015年4月28日 火曜日 午前9時54分

Before use

Supplied items

This system (SC-HTB690)

1 Main unit (speaker)

(SU-HTB690)

1 Active subwoofer

(SB-HWA690)

Accessories

Check the supplied accessories before using this system.

1 Remote control

(with a battery)

(N2QAYC000098)

1 IR Blaster

(SFQ0014)

2 Wall mount brackets

(RMQ2281A, RMQ2281B)

1 AC mains lead for the main unit

For the United Kingdom and Ireland

(SFQ0017)

For Continental Europe

(SFQ0015)

For Australia and New Zealand

(SFQ0021)

1 AC mains lead for the active subwoofer

For the United Kingdom and Ireland

(SFQ0018)

For Continental Europe

(SFQ0016)

For Australia and New Zealand

(SFQ0022)

2 Screws

(XYN5+J14JK)

≥ Product numbers are correct as of January 2015. These may be subject to change.

≥ The supplied AC mains lead is for use with this system only.

Do not use it with other equipment. Also, do not use cords from other equipment with this system.

SQT0852

5

SC-HTB690-SQT0852.book 6 ページ 2015年4月28日 火曜日 午前9時54分

Control reference guide

This system (Front)

1

2 3 4 5

Main unit

6

7 8

9

1 [ ] NFC touch area ( > 20)

2

[

Í

/I

] Standby/on switch (

Í

/I

)

Touch to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

3 [VOL j

] [VOL i

] Adjust the volume of this system ( > 21)

4 [INPUT] Select the input source ( > 21)

5 [ -PAIRING]

Select the Bluetooth

®

device as the source ( > 21)

Bluetooth

®

pairing ( > 19)

Disconnecting a Bluetooth

®

device ( > 19)

Active subwoofer

6 Remote control signal sensor for table top layout (

>

8)

7 Remote control signal sensor for wall mounting layout (

>

8)

8 Display

9 WIRELESS LINK indicator (

>

19)

§

These switches work just by touching the marks. Each time you touch the switch, there will be a beep sound.

The beep sound setting can be changed.

(

>

24)

6

SQT0852

SC-HTB690-SQT0852.book 7 ページ 2015年4月28日 火曜日 午前9時54分

This system (Rear)

Main unit

1

1

2

6

5

1 HDMI AV OUT (TV (ARC)) terminal (ARC compatible) ( > 9, 10)

2 HDMI AV IN (BD/DVD) terminal ( > 10)

3 OPTICAL DIGITAL AUDIO IN (TV) terminal

( > 10)

4 Ir SYSTEM terminal ( > 11)

5 AC IN terminal ( > 12)

6 [

Í

/I] Active subwoofer on/off button ( > 19)

§

1 USB port (for service use only)

§

2 The I/D SET button is only used when the main unit is not paired with the active subwoofer. ( > 30)

3

4

5

2

Active subwoofer

SQT0852

7

SC-HTB690-SQT0852.book 8 ページ 2015年4月28日 火曜日 午前9時54分

Remote control

To replace a button-type battery

Battery type: CR2025 (Lithium battery)

1

2

3

4

INPUT

SETUP SOUND

OK

5

6

7

8

1 [

Í

] Turn the main unit on or off ( > 21)

2 [INPUT] Select the input source ( > 21)

3 [SETUP] Select the setup menu ( > 24)

4 [SOUND] Select the sound menu ( > 22)

5 [ -PAIRING]

≥ Select the Bluetooth

®

device as the source ( > 21)

≥ Bluetooth

®

pairing ( > 19)

≥ Disconnecting a Bluetooth

®

device ( > 19)

6 [ j

VOL i

] Adjust the volume of this system

( > 21)

7 [MUTE] Mute the sound ( > 21)

8 [

4

][OK][

3

] Select and confirm the option

Before using for the first time

Remove the insulation sheet

A

.

Set the button-type battery with its ( i

) mark facing upward.

About remote control signal sensor

The remote control signal sensor is located on the main unit.

Use the remote control within the correct operation range.

Distance: Within approx. 7 m directly in front

Angle: Approx. 30 o left and right

For table top layout

For wall mounting layout

Dispose of the insulation sheet responsibly after removing it.

B

Remote control signal sensor for table top layout

C

Remote control signal sensor for wall mounting layout

8

SQT0852

SC-HTB690-SQT0852.book 9 ページ 2015年4月28日 火曜日 午前9時54分

Getting started

Step 1 Connections

Turn off all equipment before connection and read the appropriate operating instructions.

Do not connect the AC mains lead until all other connections are completed.

HDMI (High-Definition Multimedia

Interface)

≥ The HDMI connection supports VIERA Link “HDAVI

Control” ( > 25) when used with a compatible

Panasonic TV.

≥ Use the ARC compatible High Speed HDMI Cables.

Non-HDMI-compliant cables cannot be utilised.

It is recommended that you use Panasonic’s HDMI cable.

HDMI standby pass-through

Even if the main unit is in standby mode, the audio and/ or video signal from the device connected to the HDMI

AV IN terminal will be sent to the TV connected to the

HDMI AV OUT terminal (the sound will not be output from this system).

3D compatibility

Compatible with FULL HD 3D TV and Blu-ray Disc player.

≥ The main unit can pass-through the 3D video signal from a 3D compatible Blu-ray Disc player to a FULL

HD 3D TV.

4K/60p compatibility

Compatible with 4K Ultra HD TV and Blu-ray Disc player.

This system can pass-through the 4K content of a 4K compatible equipment to a 4K Ultra HD TV.

≥ When connecting to 4K compatible equipment and

4K Ultra HD TV, use High Speed HDMI cables which support 18 Gbps bandwidth.

Connection with the TV

1 Verify if the TV’s HDMI terminal is labelled “HDMI (ARC)”.

Connection differs depending on the label printed next to the HDMI terminal.

Labelled “HDMI (ARC)”:

Connection

[A]

Not Labelled “HDMI (ARC)”:

Connection

[B]

What is ARC?

ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. It refers to one of the HDMI functions. When you connect the main unit to the terminal labelled “HDMI (ARC)” on the TV, the optical digital audio cable that is usually required in order to listen to sound from a TV is no longer required, and TV pictures and sound can be enjoyed with a single HDMI cable.

2 Make the connection.

[A]

Labelled “HDMI (ARC)”

HDMI IN (ARC)

TV

Be sure to connect to the TV’s ARC compatible terminal. (Refer to the operating instructions for the TV.)

A

HDMI cable

SQT0852

9

SC-HTB690-SQT0852.book 10 ページ 2015年4月28日 火曜日 午前9時54分

[B]

Not labelled “HDMI

(ARC)”

Connection from an HDMI compatible device

You can direct the audio signal from the connected Blu-ray Disc player, DVD player, Set

Top Box, etc. to this system.

Preparation

≥ Connect the main unit to the TV. ( > 9)

HDMI IN

OPTICAL OUT

TV

e.g., Blu-ray Disc player

HDMI OUT

A

HDMI cable

B

Optical digital audio cable

When you use the optical digital audio cable, insert the tip correctly into the terminal.

A

HDMI cable

≥ Refer to the operating instructions of the connected

HDMI compatible device for the necessary setting, to output the video and audio signals.

≥ When connecting to 4K compatible equipment and 4K

Ultra HD TV, use High Speed HDMI cables which support

18 Gbps bandwidth.

10

SQT0852

SC-HTB690-SQT0852.book 11 ページ 2015年4月28日 火曜日 午前9時54分

Using the IR Blaster

(When the remote control does not work properly)

Depending on how the main unit is setup, it may block the TV’s remote control signal sensor, stopping the TV’s remote control from working.

Use the supplied Ir system cable if this occurs.

The TV remote control signals received by the main unit are sent to the TV to operate it.

≥ For the operation range, refer to page 8.

Do not use any other IR Blaster except the supplied one.

1 Connect the jack plug to the main unit’s Ir SYSTEM terminal.

3 Aim the TV’s remote control at this system’s remote control sensor and operate the TV.

For the location of the TV’s remote control signal sensor, refer to the operating instructions for the TV.

≥ Select a location that suits the environment.

≥ Make sure to clean the surface, where the adhesive tape is to be attached.

≥ If you peel off the adhesive tape, the surface may become damaged and exposed adhesive may remain.

Once you have confirmed the TV is operating correctly, secure it by attaching the adhesive tape.

≥ When the TV receives signals from both its remote control and the IR Blaster, their signals may interfere with each other, making it impossible for you to operate the TV.

Try using the TV’s remote control from a different angle.

A

IR Blaster (supplied)

2 Place the infrared emitter in sight of the TV’s remote control signal sensor.

Placement example

On the rear of the main unit:

B

TV remote control signal sensor

C

Infrared emitter

D

Adhesive tape

SQT0852

11

SC-HTB690-SQT0852.book 12 ページ 2015年4月28日 火曜日 午前9時54分

AC mains lead connection

Connect only after all other connections are completed.

Saving energy

The main unit is designed to conserve its power consumption and save energy.

≥ The main unit will automatically switch to standby mode when no signal is input and no operation is performed for approx. 20 minutes. Refer to page 24, “AUTO

POWER DOWN” to turn this function off.

A

To a household mains socket

B

AC mains lead for the main unit (supplied)

C

AC mains lead for the active subwoofer

(supplied)

§ Insert the AC mains lead fully into the main unit.

This system consumes a small amount of AC power ( > 32) even when it is turned off. In the interest of power conservation, if you will not be using this system for a long time, unplug it from the household mains socket.

12

SQT0852

SC-HTB690-SQT0852.book 13 ページ 2015年4月28日 火曜日 午前9時54分

Step 2 Placement

Safety Precautions

Professional installation is required.

The installation should never be done by any other than a qualified installation specialist.

PANASONIC DISCLAIMS ANY PROPERTY

DAMAGE AND/OR SERIOUS INJURY,

INCLUDING DEATH RESULTING FROM

IMPROPER INSTALLATION OR

INCORRECT HANDLING.

Be sure to install the main unit as indicated within this operating Instructions.

≥ Attach using techniques suited to the structure and materials of the installation location.

Caution

≥ This system is to be used only as indicated in these instructions. Failure to do so may lead to damage to the amplifier and/or the speaker, and may result in the risk of fire.

Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.

≥ Do not attempt to attach the main unit to a wall using methods other than those described in this manual.

Do not hold the main unit in one hand to avoid injury, you may drop the main unit when carrying it.

≥ To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

The active subwoofer

When carrying the active subwoofer

Take care not to damage the inside speaker unit.

≥ The speaker protection cover is attached to the speaker unit inside the subwoofer. Remove it before use.

≥ When the subwoofer is brought close to CRT TVs and other display devices, the magnets in the speaker may cause some colour irregularities or image distortion. If this happens, move the active subwoofer to a place where these symptoms do not occur.

Interference may occur if the TV has wireless LAN functionality, causing some communication problems

(sound is interrupted, sound skips, there is a lot of noise, etc.). If this happens, move the active subwoofer to a place where interference does not occur.

Wireless interference

Interference may occur if you are using other devices (wireless LAN/microwave ovens/ cordless phones, etc.) that use the 2.4 GHz frequency band, causing some communication problems (sound is interrupted, sound skips, there is a lot of noise, etc.).

If this happens, separate the other electronic equipment from the main unit and active subwoofer so that interference does not occur.

B

A

A

Main unit/active subwoofer

B

Wireless router, cordless phone and other electronic devices

SQT0852

13

SC-HTB690-SQT0852.book 14 ページ 2015年4月28日 火曜日 午前9時54分

Selecting the placement method

Choose a placement method that suits you best.

When placing the main unit in a rack or on a table

≥ Place the main unit on a flat and horizontal surface.

Page 15

When attaching the main unit to a wall

Place the main unit on a flat and vertical surface.

When placing the main unit in front of the TV

The main unit may block or interfere with the

TV’s various sensors (C.A.T.S. (Contrast

Automatic Tracking System) sensor, remote control sensor, etc.) and the 3D Eyewear transmitters on a 3D compatible TV.

If interference occurs, move the main unit further away from the TV. If the TV still does not function correctly, try using it in a rack or in the wall mount position.

If the TV’s remote control sensor is blocked by the main unit

Try using the TV’s remote control from a different angle. If the problem persists, you can use the supplied IR Blaster to relay the signal to the TV. ( > 11)

Place the active subwoofer within a few meters of the main unit and in a horizontal position with the top panel facing upward.

≥ Do not use the main unit or the active subwoofer in a metal cabinet.

Placing the active subwoofer too close to the walls and corners can result in excessive bass. Cover walls and windows with thick curtains.

Keep magnetised items away. Magnetised cards, watches, etc., can be damaged if placed too close to the main unit and active subwoofer.

Page 16

14

SQT0852

SC-HTB690-SQT0852.book 15 ページ 2015年4月28日 火曜日 午前9時54分

When placing the main unit in a rack or on a table

Additionally required accessories (commercially available)

Fall prevention cord ..................................................................................................................... k

2

Screw eyes (to attach the fall prevention cord) ............................................................................ k

2

Use commercially available screws that are capable of supporting over 26 k g .

Use a cord that is capable of supporting over 26 k g

(with a diameter of about 1.5 mm).

≥ Lay the unit on a blanket or soft cloth for assembly.

1 Attach the cord to the main unit.

A

Cord

§

§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations, about 5 mm apart from the tip, at an angle of 45 o (as illustrated above).

2 Place the main unit in the desired position and attach each cord onto the rack or table.

≥ Make sure that the slack of the cord is minimal.

≥ Do not lean the main unit against the TV or wall.

B

Screw eye

≥ Attach at a position capable of supporting over 26 k g .

≥ Depending on the placement of the main unit, the screwing position of the screw eye may differ.

SQT0852

15

SC-HTB690-SQT0852.book 16 ページ 2015年4月28日 火曜日 午前9時54分

When attaching the main unit to a wall

The main unit can be wall mounted using the supplied wall mount brackets, etc. Make sure that the screw used and the wall are strong enough to support the weight of at least 26 k g .

The screws and other items are not supplied as the type and size will vary with each installation.

Refer to step 3 for details about the required screws.

Be sure to attach the fall prevention cord as a secondary safety measure.

Supplied accessories

2 Screws

2 Wall mount brackets

Additionally required accessories (commercially available)

Screws for wall mounting............................................................................................................. k

2

Fall prevention cord ..................................................................................................................... k

2

Screw eyes (to attach the fall prevention cord) ........................................................................... k

2

Use a cord that is capable of supporting over 26 k g (with a diameter of about 1.5 mm).

Lay the unit on a blanket or soft cloth for assembly.

1 Attach the cord to the main unit.

A

Cord

§

§

If the cord cannot be threaded through the holes, try bending the cord in 2 locations, about 5 mm apart from the tip, at an angle of 45 o

(as illustrated above).

16

SQT0852

SC-HTB690-SQT0852.book 17 ページ 2015年4月28日 火曜日 午前9時54分

2 Attach the wall mount brackets to the main unit.

A

Wall mount bracket (supplied)

B

Screw (supplied)

3 Drive a screw into the wall.

Use the measurements indicated below to identify the screwing positions on the wall.

Leave at least 100 mm of space above of the main unit to allow enough space for fitting the main unit.

≥ Position the main unit with at least 50 mm of free space to its right. If not, it may not be possible to access the touch keys.

≥ Be sure to use a level to ensure that both mounting holes are level to each other.

Front view (semi-transparent image)

C

At least 30 mm

D

4.0 mm

E

7.0 mm to

9.4 mm

F

Wall or pillar

G

2.5 mm to 3.5 mm

H

374 mm

K

41 mm

I

315 mm

L

125.5 mm

 

J

261 mm

M

Wall mounting hole

SQT0852

17

SC-HTB690-SQT0852.book 18 ページ 2015年4月28日 火曜日 午前9時54分

4 Fit the main unit securely onto the screw(s).

DO

≥ Move the speaker so that the screw is in this position.

5 Secure the cord to the wall.

Make sure that the slack of the cord is minimal.

DO NOT

≥ In this position, the speaker will likely fall if moved to the left or right.

A

Screw eye

B

Cord

18

SQT0852

SC-HTB690-SQT0852.book 19 ページ 2015年4月28日 火曜日 午前9時54分

Step 3 Wireless connections

Active subwoofer wireless connection

Preparation

Turn on the main unit.

1 Press [

Í

/I].

The active subwoofer will still consume a small amount of power even when it is turned off.

2 Check that the wireless link is activated.

WIRELESS LINK indicator

Lights red:

The wireless link is not activated.

Lights green:

The wireless link is activated.

Blinks green:

The active subwoofer is trying to activate the wireless link with the main unit.

The wireless link will be activated when the main unit and the active subwoofer are both turned on.

Bluetooth

®

connection

By using the Bluetooth ® connection, you can listen to the sound from the Bluetooth ® audio device from this system wirelessly.

Refer to the operating instructions of the Bluetooth

® device for further instruction on how to connect a

Bluetooth ® device.

Preparation

Turn on the Bluetooth

®

feature of the device and place the device near the main unit.

Bluetooth

®

pairing

1 Press [ -PAIRING] to select

“BLUETOOTH”.

If “PAIRING” is indicated on the display, go to step 3.

2 Press and hold [ -PAIRING] until

“PAIRING” is indicated on the display.

3 Select “SC-HTB690” from the

Bluetooth

®

device’s Bluetooth

®

menu.

≥ The MAC address (e.g., 6C:5A:B5:B3:1D:0F) may be displayed before the device name is displayed.

If prompted for the passkey on the Bluetooth

®

device, enter “0000”.

≥ Once the Bluetooth ® device is connected, the name of the connected device will be indicated on the display for a few seconds.

You can register up to 8 devices with this system. If a 9th device is paired, the device that has not been used for the longest time will be replaced.

Connecting a paired

Bluetooth

®

device

1 Press [ -PAIRING] to select

Bluetooth

®

mode.

2 After confirming that “BLUETOOTH

READY” is indicated on the display, select “SC-HTB690” from the

Bluetooth

®

device’s Bluetooth

®

menu.

Disconnecting a Bluetooth

®

device

Press and hold [ -PAIRING] until the

“BLUETOOTH READY” is indicated on the display.

≥ When “BLUETOOTH” is selected as the source, this system will automatically try and connect to the last connected Bluetooth

®

device. If the connection attempt fails, try to establish a connection again.

≥ This system can only be connected to one device at a time.

To change the sound quality, refer to page 24 “LINK MODE”.

SQT0852

19

SC-HTB690-SQT0852.book 20 ページ 2015年4月28日 火曜日 午前9時54分

One-Touch Connection

(Connecting by NFC)

For NFC-compatible Bluetooth

®

devices

(Android TM devices) only

Simply by touching an NFC (Near Field

Communication)-compatible Bluetooth

®

device on the main unit, you can complete all preparations, from registering a Bluetooth ® device to establishing a connection.

Preparation

Turn on the NFC feature of the device.

Android device version lower than 4.1 requires the installation of the app “Panasonic

Music Streaming” (free of charge).

1

Enter “Panasonic Music Streaming” in the search box of Google Play TM to search, and then select

“Panasonic Music Streaming”.

2

Start the app “Panasonic Music Streaming” on the device.

– Follow on-screen instructions on your device.

– Always use the latest version of the app.

1 Press [ -PAIRING] to select

“BLUETOOTH”.

2 Touch and hold your device on the

NFC touch area of the main unit [ ].

(

>

6)

Do not move the Bluetooth ® device until it beeps, displays a message or reacts in some way.

Once the Bluetooth

®

device has reacted, move the device away from the main unit.

≥ When the registration and connection of the

Bluetooth ® device is complete, the name of the connected device is indicated on the display for a few seconds.

≥ The location of the NFC touch area differs depending on the device. When a connection cannot be established even if your Bluetooth

® device has touched the NFC touch area of the main unit, change the position of the device or main unit.

The condition may also improve if you download the dedicated app “Panasonic Music Streaming” and start it up.

3 Start playback on the Bluetooth

®

device.

If you touch another device to the main unit, you can update the Bluetooth

®

connection. The previously connected device will be disconnected automatically.

≥ When the connection is established, playback may start automatically depending on the type of device being used.

≥ The One-Touch Connection may not work properly depending on the type of device being used.

20

SQT0852

Remote control code

When other Panasonic devices respond to this system’s remote control, change the remote control code on this system and the remote control.

Preparation

Turn off all other Panasonic products.

Turn on the main unit.

Aim the remote control at this unit’s remote control sensor.

To set the code to “REMOTE 2”

While pressing and holding [MUTE], press and hold [OK] for 4 or more seconds.

“REMOTE 2” is indicated on the display.

To set the code to “REMOTE 1”

While pressing and holding [MUTE], press and hold [

4

] for 4 or more seconds.

“REMOTE 1” is indicated on the display.

SC-HTB690-SQT0852.book 21 ページ 2015年4月28日 火曜日 午前9時54分

Operations

Using this system

Preparation

Turn on the active subwoofer.

Turn on the TV and/or connected device.

1

2

INPUT

SETUP SOUND

 OK

1 Press [

Í

] to turn on the main unit.

2 Select the source.

Press

[INPUT]

To select

Input changes in the following order each time you press [INPUT].

“TV” -------------# “BD/DVD”

^--“BLUETOOTH” (-}

≥ When switching the source to

“BLUETOOTH” and then to

“TV” in succession, after switching it to “BLUETOOTH”, wait for a while, and press

[INPUT].

[ -PAIRING]

“BLUETOOTH”

This remote control cannot be used to control the operations of the connected devices.

When you select “BD/DVD”

Change the input on the TV to the one this unit is connected to, then start play on the device connected to this unit.

When you select “BLUETOOTH”

Start play on the Bluetooth

®

device connected to this unit.

To adjust the volume of this system

Press [ j

VOL i

].

≥ Volume range: 0 to 100

To mute the sound

Press [MUTE].

While muting, “MUTE” is indicated on the display.

≥ To cancel, press the button again or adjust the volume.

≥ Muting is cancelled if the main unit is turned off.

If this system does not operate as expected or sound is unusual, returning the settings to the factory preset may solve the problem. (

>

26)

≥ If there is sound coming out of the TV’s speakers, reduce the volume of the TV to its minimum.

There may be a difference in the maximum volume value of the TV and the unit.

≥ When playing equipment connected to the HDMI AV IN terminal, to switch audio/video to the TV, switch input to the TV tuner. If VIERA Link (HDMI) ( > 25) is not enabled, also switch the input of this unit to TV.

SQT0852

21

SC-HTB690-SQT0852.book 22 ページ 2015年4月28日 火曜日 午前9時54分

3D sound

This system provides a feeling that the sound and the image are as one.

≥ To change the applied effect, refer to “Sound menu”. (

> right)

e.g., Image of 3D sound field

Dolby

®

Virtual

Speaker

3D surround effect

Clear-mode dialog

3D sound

With this effect you can enjoy a surround sound effect similar to 5.1ch.

Adding to the Dolby Virtual

Speaker effect, Panasonic has applied its own sound field controlling technology to expand the sound field forwards, backwards, upwards, and downwards, providing a sound with depth and force that better matches 3D images.

Sports commentary and dialogs from TV dramas are heard as if the sound is coming from the TV, giving the feeling that the sound and the image are one.

Also, the dialog will stand out from the other sounds during normal volume playback and when the volume is lowered for night time viewing.

≥ Dolby Virtual Speaker effect is ON except STEREO mode.

≥ To turn off Dolby Virtual Speaker and the 3D surround effects, select “STEREO” as the sound mode. ( > right)

To turn off the 3D surround and the Clear-mode dialog effects, refer to “3D CLR DIALOG”. ( > 23)

≥ You can also adjust the level of the Clear-mode dialog effect. ( > right)

22

SQT0852

Sound menu

1 Press [SOUND] repeatedly to select the sound effect.

2 Press [

4

] [

3

] repeatedly to select the desired setting and then press [OK].

SOUND

MODE

SUBWOOFER

DIALOG

H.BASS

Select the sound mode to suit the TV programme or connected equipment.

STANDARD

: Best suited for dramas and comedy shows.

STADIUM

: Produces a realistic sound for live sports broadcasts.

MUSIC

: Enhance the sound of musical instruments and songs.

CINEMA

: Produces threedimensional sound unique to movies.

NEWS

: Enhance the voice of news and sports commentaries.

STEREO

: Play any source of sound in stereo.

You can adjust the amount of bass. This system automatically selects the most suitable setting according to the type of playback source.

LEVEL 1

LEVEL 2

: Default for

2 channel audio source

LEVEL 3

: Default for multichannel audio source

LEVEL 4

The setting you make is retained and recalled every time you play the same type of source.

Adjust the dialog level.

LEVEL 1

LEVEL 2

LEVEL 3

LEVEL 4

“DIALOG” is not indicated on the display when “3D CLR

DIALOG” is set to “OFF”.

Enhance the harmonic bass effect.

ON

OFF

SC-HTB690-SQT0852.book 23 ページ 2015年4月28日 火曜日 午前9時54分

3D CLR

DIALOG

DUAL AUDIO

AGC

LOW VOL

MODE

The 3D Clear Mode Dialog feature creates a sound field similar to the sound coming from a TV screen and makes dialogues clearer.

ON:

3D Surround, Clear

Mode Dialog and Dolby

Virtual Speaker effect

OFF:

Dolby Virtual Speaker effect

The setting is set back to

“ON” every time you turn the main unit on.

Sets the preferred audio channel mode when there are two audio modes received by this system.

M1:

Main

M2:

Secondary

M1 + M2:

Main + Secondary

This effect only works if the audio output of the TV or player is set to “Bitstream” and “Dolby

Dual Mono” is available in the sound source.

Auto gain control prevents sudden loud sound by reducing the sound level automatically when the input is too high.

This function is suitable for

TV broadcast that has sound level difference.

ON

OFF

If the sound becomes unnatural, select “OFF”.

Enhance the dialog in low volume condition.

ON

OFF

Select “OFF” to cancel this effect if the dialog does not sound natural in low volume condition.

≥ The default setting is underlined. Changed settings will be kept until it is changed again, unless otherwise indicated.

Audio format

You can view the current audio format.

Press and hold [SOUND] for more than 4 sec.

DOLBY

DIGITAL

DTS

PCM MULTI

PCM

Dolby Digital is the audio source.

DTS ® is the audio source.

Linear pulse-code modulation is the audio source.

2 channel pulse-code modulation is the audio source.

≥ The audio format is displayed for about 2 seconds.

No audio format is displayed if input to this unit is

Bluetooth

®

.

SQT0852

23

SC-HTB690-SQT0852.book 24 ページ 2015年4月28日 火曜日 午前9時54分

Setup menu

1 Press [SETUP] repeatedly to select the setup item.

2 Press [

4

] [

3

] repeatedly to select the desired setting and then press

[OK].

DIMMER

BEEP

Dims the display after

5 seconds of inactivity.

ON

OFF

A beep sounds when the touch key on the main unit is operated and when the unit is turned on or off.

≥ This works during muting as well.

ON

OFF

AUTO POWER

DOWN

The main unit automatically is turned off if there is no audio input and when you do not use it for approx. 20 minutes.

ON

OFF

≥ When this is set, the display shows “P.OFF 1” to indicate that the main unit will turn off in approximately 1 minute.

VOL

LIMITATION

Sets the volume limit to 50 when you turn on the main unit although the volume is set to above 50 before it is turned off.

ON

OFF

BLUETOOTH

STANDBY

This function allows you to connect a paired Bluetooth ® device when the main unit is in standby mode.

ON

OFF

The main unit will be turned on automatically when you connect a paired Bluetooth

® device.

≥ If this function is set to

“ON”, the standby power consumption will increase.

24

SQT0852

LINK MODE

VIERA LINK

Change the Bluetooth ® connection link mode to suit the connection type. Make sure that the Bluetooth ® device is not connected

(“BLUETOOTH READY” is indicated on the display).

MODE 1

: Emphasis on connectivity.

MODE 2

: Emphasis on sound quality.

Turn on the VIERA Link function.

ON

OFF

Select “OFF” when your

HDAVI Control device does not work correctly with this system.

≥ ARC will be disabled.

Connect an optical digital audio cable.

≥ Turn off all connected devices and then turn them on again after changing the setting.

≥ The default setting is underlined. Changed settings will be kept until it is changed again, unless otherwise indicated.

SC-HTB690-SQT0852.book 25 ページ 2015年4月28日 火曜日 午前9時54分

Linked operations with the TV

(VIERA Link “HDAVI

Control

TM

”)

What is VIERA Link “HDAVI

Control”?

VIERA Link “HDAVI Control” is a convenient function that offers linked operations of this system, and a Panasonic TV (VIERA) under

“HDAVI Control”.

You can use this function by connecting the equipment with an HDMI cable. See the operating instructions for connected equipment for operational details.

Preparation

1

Confirm that the HDMI connection has been made. ( > 9, 10)

2

Set the “HDAVI Control” operations on the connected equipment (e.g., TV).

3

For the optimal “HDAVI Control” operations change the following settings on the connected TV

§ 1

.

≥ Set the default speaker settings to this system.

§ 2

≥ Set the speaker selection settings to this system.

4

Turn on all “HDAVI Control” compatible equipment and select the TV’s input for this system so that the “HDAVI Control” function works properly.

5

If a device is connected to the HDMI AV IN terminal, start play to check that the picture is displayed on the TV correctly.

When the connection or settings are changed, repeat this procedure.

§

1 The availability and function of the settings may vary depending on the TV. Refer to the operating instructions for the TV for details.

§ 2 If the TV has a default speaker setting within the VIERA Link setting items, choosing this system as the default speaker will automatically change the speaker selection to this system.

VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as

HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports

HDMI CEC cannot be guaranteed.

≥ This unit supports “HDAVI Control 5” function.

“HDAVI Control 5” is the standard for Panasonic’s HDAVI

Control compatible equipment. This standard is compatible with Panasonic’s conventional HDAVI equipment.

≥ Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.

What you can do with

VIERA Link “HDAVI Control”

To make sure that the audio is output from this system, turn the main unit on by using the TV’s remote control and selecting home cinema from the speaker menu of VIERA Link menu.

The availability and function of the settings may vary depending on the TV. Refer to the operating instructions for the TV for details.

Speaker control

You can select whether audio output is from this system or the TV speakers by using the TV menu settings.

Home cinema

This system is active.

≥ When the main unit is in standby mode, changing the TV speakers to this system in the VIERA Link menu will automatically turn the main unit on.

You can control the volume setting of this system using the volume or mute button on the TV remote control.

If you turn off the main unit, TV speakers will be automatically activated.

Audio will automatically be output from this system if the TV is compatible to VIERA Link “HDAVI Control 4” or later.

TV

TV speakers are active.

≥ The volume of this system is set to its minimum.

Automatic input switching

When the following operations are performed, the main unit will automatically change the input to the corresponding source.

j When play starts on an HDMI connected device.

§

3 j When the TV input or the TV channel is changed.

§ 3 If the speaker output setting on the TV is set to this system, the

TV and the main unit turn on automatically (Power on link).

Power off link

When the TV is turned off, the main unit also turns off automatically. (This function does not work when Bluetooth

®

is the source.)

Automatic lip-sync function

(for HDAVI Control 3 or later)

Delay between audio and video is automatically adjusted by adding time-lag to the audio output, enabling you to enjoy smooth audio for the picture.

≥ It may take up to 8 seconds for sound to be output from this unit after turning the TV (VIERA) on. You can reduce the amount of time it takes for sound to be output by using an optical digital audio cable. If you do so, reconnect the HDMI cable to a non-ARC compatible HDMI terminal on the TV (VIERA). (

>

10)

The delay information is automatically set if the TV is compatible to

VIERA Link “HDAVI Control 3” or later and the VIERA Link is set to on.

The setting causes a sound delay of approximately 0.04 seconds when connected to a Panasonic TV (VIERA) with VIERA Link (HDMI) version 2 or earlier or a TV from another manufacturer.

SQT0852

25

SC-HTB690-SQT0852.book 26 ページ 2015年4月28日 火曜日 午前9時54分

Reference

Troubleshooting

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the following guide do not solve the problem, consult your dealer for instructions.

If this system does not operate as expected, returning the settings to the factory preset may solve the problem.

To return to the factory preset.

1

While the main unit is on, touch and hold

[ Í /I] on the main unit for more than

4 sec.

(“RESET” is indicated on the display when this system is reset.)

2

Turn the unit off, then turn it on again.

≥ The remote control code will return to

“REMOTE 1” when this system is returned to the factory preset. To change the remote control code, refer to page 20.

General operation

No power.

≥ Unplug the AC mains lead for 10 sec before plug in again.

≥ After turning the main unit on, if the main unit immediately turns off, unplug the AC mains lead and consult your dealer.

≥ If the main unit does not turn on by turning on TV

(HDAVI control), turn on the main unit manually.

If the problem persists, refer to “HDMI” in

“Troubleshooting”.

The remote control does not work properly.

The battery is depleted. Replace it with a new one. ( > 8)

It is possible that the insulation sheet has not been removed. Remove the insulation sheet. ( > 8)

It may be necessary to set the code of the remote control again after changing the battery of the remote control. ( > 20)

Use the remote control within the correct operation range. ( > 8)

The main unit is automatically switched to standby mode.

“AUTO POWER DOWN” function is on.

The main unit will automatically switch to standby mode when no signal is input and no operation is performed for approx. 20 minutes.

Refer to page 24 to turn this function off.

The main unit is turned off when the TV’s speakers are selected in the speaker control.

This is a normal feature when using VIERA Link

(HDAVI Control 4 or later). Please read the operating instructions for the TV for details about its power save feature. ( > 25)

The switches on the main unit do not work.

[ Í /I], [VOL j ], [VOL i ], [INPUT], and

[ -PAIRING] on the main unit are touch keys.

Touch the switches with your finger. They may not work if operated with your fingernails or hands wearing gloves.

Colour irregularities on a CRT TV

If colour irregularities appear on the TV, turn off the TV for about 30 minutes and move the TV away from this unit slightly. If this does not fix the problem, move this unit away from the TV.

26

SQT0852

SC-HTB690-SQT0852.book 27 ページ 2015年4月28日 火曜日 午前9時54分

HDMI

This system does not operate correctly.

If the HDMI cable is connected to the wrong terminal (HDMI AV IN or HDMI AV OUT), this system will not operate correctly. Turn the main unit off, disconnect the AC mains lead and reconnect the HDMI cable(s). ( > 9, 10)

VIERA Link related operations no longer function properly.

Check the VIERA Link setting on the connected devices.

j

Turn on VIERA Link function on the connected devices.

j

Select this system as the speaker in the

TV's VIERA Link menu.

Have you turned the VIERA Link settings off?

( > 24)

When the HDMI connections are changed, after a power failure or after the AC mains lead has been removed, VIERA Link operations may not function properly.

j

Turn on all the devices that are connected to the

TV with an HDMI cable and then turn the TV on.

j

Turn off the VIERA Link settings of the TV and turn it on again. For details refer to the operating instructions for the TV.

j

While the main unit and the TV are connected with the HDMI cable, turn on the

TV and then remove the main unit’s AC mains lead and reconnect it again.

The first few seconds of audio cannot be heard when using the HDMI connection.

This may occur during DVD-Video chapter playback. Change the digital audio output setting on the connected device from

“Bitstream” to “PCM”.

When operating an HDMI compatible device of a different brand, the main unit reacts in an unwanted manner.

HDAVI Control commands may use a different signal depending on the brand of the device. In this case, turn VIERA Link off. (

>

24)

When the main unit is turned on or off, audio and video are temporarily disabled

When the main unit is turned on or off it is normal for the audio and video to be temporarily disabled. This is not a malfunction. This can occur when the device it is connected to, via

HDMI, does not support Panasonic’s VIERA

Link feature (HDAVI Control 3 or later).

The images from this system do not appear on the TV.

When outputting in 60p (4K), images may be distorted depending on the HDMI cable. Use

High Speed HDMI cables which support

18 Gbps bandwidth.

SQT0852

27

SC-HTB690-SQT0852.book 28 ページ 2015年4月28日 火曜日 午前9時54分

Bluetooth

®

Pairing cannot be done.

Check the Bluetooth ® device condition.

The device cannot be connected.

The pairing of the device was unsuccessful or the registration has been replaced. Try pairing the device again. ( > 19)

This system might be connected to a different device. Disconnect the other device and try pairing the device again.

The device is connected but audio cannot be heard through this system.

For some built-in Bluetooth

®

devices, you have to set the audio output to “SC-HTB690” manually. Read the operating instructions for the device for details.

Connection is interrupted.

Sound is interrupted/sound skips/there is a lot of noise.

Remove any obstacle between the main unit and the device.

Other devices that use the 2.4 GHz frequency band (wireless router, microwaves, cordless phones, etc.) are interfering. Bring the

Bluetooth

®

device closer to the main unit and distance it from the other devices.

Select “MODE1” for stable communication.

( > 24)

If the above does not fix the problem, you may be able to fix the problem by reconnecting the main unit and the Bluetooth

®

device. ( > 19)

The One-Touch Connection (NFC feature) is not working.

≥ Make sure the main unit and the NFC feature of the device are turned on. (

>

20)

≥ Change the touch location of the Bluetooth ® device or main unit and then touch the NFC touch area again.

Sound

No sound (or image).

≥ Turn muting off. ( > 21)

≥ Check the connections to the other devices.

( > 9, 10)

≥ Make sure that the received audio signal is compatible with this system. ( > 32)

≥ Turn this system off and then on again.

≥ If the main unit is connected to the TV with only an HDMI cable, make sure that the TV’s HDMI terminal is labelled “HDMI (ARC)”. If not, connect using the optical digital audio cable. (

>

9, 10)

≥ If the main unit is connected to a Panasonic

TV and turned on using the remote control or the touch key on the main unit, sound might not be output from this system. In this case, turn the main unit on using the TV’s remote control. ( > 25)

≥ If the connections are correct, there might be a problem with the cables. Redo the connections with different cables.

≥ Check the audio output settings on the connected device.

The dual audio cannot be changed from main to secondary.

If the audio received from the connected device is not “Dolby Dual Mono” or the output setting is not “Bitstream”, the setting cannot be changed from this system. Change the setting on the connected device.

The volume is lowered when the main unit is turned on.

“VOL LIMITATION” is on.

If the main unit is turned off with the volume setting in the greater half (above 50), the main unit will automatically lower the volume to the middle (50) when the main unit is turned on. ( > 24)

The dialog is too persistent or the dialog does not sound natural.

This system has a function to make the dialog stand out when the volume is low. ( > 23)

The sound lags behind the image.

Depending on the TV, when this unit is connected to it via Bluetooth

®

, the sound output from this unit may lag behind the TV image.

Connect this unit and the TV with an HDMI cable/optical digital audio cable. ( > 9, 10)

28

SQT0852

SC-HTB690-SQT0852.book 29 ページ 2015年4月28日 火曜日 午前9時54分

There is no audio.

The power of the main unit turns off automatically.

(When the main unit detects a problem, a safety measure is activated and the main unit automatically switches to standby mode.)

≥ There is a problem with the amplifier.

≥ Is the volume extremely high?

If so, lower the volume.

≥ Is this system placed in an extremely hot place?

If so, move this system to a cooler place and wait a few moments and then try to turn it on again.

If the problem persists, confirm the display, turn this system off, remove the AC mains lead cord and consult your dealer. Please be sure to remember the display that was indicated and inform the dealer.

Main unit displays

“F61”

≥ There is a problem with the amplifier of the system.

≥ Disconnect the AC mains lead and consult the dealer.

“F70 HDMI”/ “U701”/ “U703”

Check HDMI connection.

Turn off the main unit and then switch it on again.

Disconnect the HDMI cable.

“F76”

There is a problem with the power supply.

Disconnect the AC mains lead and consult the dealer.

“U704”

≥ This system is receiving unsupported video format signal from the input source.

j Change the video resolution setting on the connected device. (Refer to the operating instructions for the device.) j If there is no image, connect the device directly to the TV to change the settings.

“U705”

The TV’s HDMI terminal connected to the main unit or the TV’s setting is not compatible with the HDCP 2.2 playback source.

j

Ensure to connect to the TV’s HDCP 2.2 compatible terminal.

j

Ensure the TV’s HDMI HDCP setting corresponds to HDCP 2.2.

(Refer to the operating instructions for the TV.)

“REMOTE

” (“

” stands for a number.)

The remote control and this unit are using different codes. Change the code on the remote control. (

>

20)

SQT0852

29

SC-HTB690-SQT0852.book 30 ページ 2015年4月28日 火曜日 午前9時54分

Active Subwoofer

No power.

Ensure the AC mains lead of the active subwoofer is connected properly.

After turning the subwoofer on, it immediately turns off.

Unplug the AC mains lead and consult your dealer.

No sound from the subwoofer.

≥ Check that the active subwoofer is turned on.

Check that the WIRELESS LINK indicator lights green. ( > 19)

The WIRELESS LINK indicator lights red.

There is no link between the main unit and the active subwoofer.

j

Check that the main unit is turned on.

j

Turn the active subwoofer off and then back on. Alternatively, turn the active subwoofer off, disconnect the AC mains lead and then reconnect it.

The active subwoofer and the main unit may not be paired correctly. Try the following operation. (Wireless pairing)

1

Turn on the main unit and active subwoofer.

2

Press and hold [I/D SET] on the rear of the active subwoofer for more than 3 sec.

(The WIRELESS LINK indicator will blink in red.)

3

While pressing and holding [INPUT] on remote control, touch and hold [VOL i

] on the main unit for more than 4 sec.

(“SUBWOOFER PAIRING” will be indicated on the display.)

≥ When the wireless pairing is successful,

“PAIRED” will be indicated on the display for

2 sec and WIRELESS LINK indicator lights green.

4

Turn the main unit off and on.

≥ Consult your dealer if the problem persists.

30

SQT0852

SC-HTB690-SQT0852.book 31 ページ 2015年4月28日 火曜日 午前9時54分

About Bluetooth

®

Panasonic bears no responsibility for data and/or information that is compromised during a wireless transmission.

Frequency band used

This system uses the 2.4 GHz frequency band.

Certification of this device

≥ This system conforms to frequency restrictions and has received certification based on frequency laws. Thus, a wireless permit is not necessary.

≥ The action below are punishable by law in some countries: j Taking apart or modifying the unit.

j Removing specification indications.

Restrictions of use

≥ Wireless transmission and/or usage with all

Bluetooth

®

equipped devices is not guaranteed.

≥ All devices must conform to standards set by

Bluetooth SIG, Inc.

≥ Depending on the specifications and settings of a device, it can fail to connect or some operations can be different.

≥ This system supports Bluetooth

®

security features. But depending on the operating environment and/or settings, this security is possibly not sufficient. Transmit data wirelessly to this system with caution.

This system cannot transmit data to a

Bluetooth

®

device.

Range of use

Use this device at a maximum range of 10 m.

The range can decrease depending on the environment, obstacles or interference.

Interference from other devices

≥ This system may not function properly and troubles such as noise and sound jumps may arise due to radio wave interference if the main unit is located too close to other

Bluetooth

®

devices or the devices that use the

2.4 GHz band.

≥ This system may not function properly if radio waves from a nearby broadcasting station, etc. are too strong.

Intended usage

≥ This system is for normal, general use only.

≥ Do not use this system near equipment or in an environment that is sensitive to radio frequency interference (example: airports, hospitals, laboratories, etc.).

Unit care

Clean this system with a soft, dry cloth

≥ When dirt is heavy, wring a cloth moistened in water tightly to wipe the dirt, and then wipe it with a dry cloth.

≥ When cleaning the speakers, use a fine cloth.

Do not use tissues or other materials (towels, etc.) that can fall apart. Small grains may get stuck inside the speaker cover.

≥ Never use alcohol, paint thinner or benzine to clean this system.

≥ Before using chemically-treated cloth, carefully read the instructions that came with the cloth.

To dispose or transfer this system

This system may keep the user settings information in the main unit. If you discard the main unit either by disposal or transfer, then follow the procedure to return all the settings to the factory presets to delete the user settings.

( > 26, “To return to the factory preset.”)

The operation history may be recorded in the memory of the main unit.

Licenses

Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic, and the double-D symbol are trademarks of

Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol,

& DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS,

Inc. All Rights Reserved.

HDMI, the HDMI Logo, and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other countries.

HDAVI Control TM is a trademark of Panasonic Corporation.

The Bluetooth

®

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license.

Other trademarks and trade names are those of their respective owners.

Google Play and Android are trademarks of Google Inc.

SQT0852

31

SC-HTB690-SQT0852.book 32 ページ 2015年4月28日 火曜日 午前9時54分

Specifications

AMPLIFIER SECTION

RMS output power (non-simultaneous drive)

Front ch (L, R ch)

70 W per channel (1 kHz, 10 %, 6 ≠ )

Centre ch (C ch)

70 W per channel (1 kHz, 10 %, 6 ≠ )

Subwoofer ch

140 W per channel (100 Hz, 10 %,3 ≠ )

Total RMS output power

350 W

TERMINAL SECTION

HDAVI Control

This unit supports “HDAVI Control 5” function.

HDMI AV input (BD/DVD)

1

Input connector

Type A (19 pin)

HDMI AV output (TV (ARC))

1

Output connector

Type A (19 pin)

Digital audio input (TV)

Optical digital input

Optical terminal

Sampling frequency

32 kHz, 44.1 kHz, 48 kHz

88.2 kHz, 96 kHz (only LPCM)

Audio format

LPCM, Dolby Digital, DTS Digital Surround TM

IR Blaster

Terminal Type

3.5 mm jack

USB Port

For service use only.

GENERAL

Power consumption

Main unit

40 W

Active subwoofer

30 W

In standby condition

Main unit

When “Network Standby”

§

is “OFF”

Approx. 0.48 W

When “Network Standby”

§

is “ON”

Approx. 3.0 W

§ “Network Standby” means both

“BLUETOOTH STANDBY” and “VIERA LINK”.

Active subwoofer

Power switch off

Approx. 0.48 W

The wireless link is not activated

Approx. 1.0 W

Power supply

AC 220 V to 240 V, 50 Hz

Dimensions (W

k

H

k

D)

Main unit

For table top layout

950 mm k

55 mm k

120 mm

For wall mounting layout

950 mm k

125.5 mm k

57.2 mm

Active subwoofer

180 mm k

378 mm k

303 mm

Mass

Main unit

For table top layout

Approx. 2.5 k g

For wall mounting layout

Approx. 2.5 k g

Active subwoofer

Approx. 4.7 k g

Operating temperature range

0 o

C to

i

40 o

C

Operating humidity range

20 % to 80 % RH (no condensation)

32

SQT0852

SC-HTB690-SQT0852.book 33 ページ 2015年4月28日 火曜日 午前9時54分

SPEAKER SECTION

Front speakers (Built-in, L/R/C)

Full range

6.5 cm cone type k 1

(Bass reflex type)

Active subwoofer

Woofer

16 cm cone type k 1

(Bass reflex type)

WIRELESS SECTION

Frequency Range

2.40335 GHz to 2.47735 GHz

No. of channels

38

Bluetooth

®

SECTION

Bluetooth

®

system specification

Bluetooth

®

Ver.2.1 +EDR

Wireless equipment classification

Class 2 (2.5 mW)

Supported profiles

A2DP

Frequency band

2.4 GHz band FH-SS

Operating distance

approx. 10 m Line of Sight

Supported codec

SBC

Specifications are subject to change without notice.

≥ Mass and dimensions are approximate.

≥ Total harmonic distortion is measured by a digital spectrum analyzer.

SQT0852

33

SC-HTB690-SQT0852.book 34 ページ 2015年4月28日 火曜日 午前9時54分

Safety information for customers in the EU

English

Declaration of Conformity (DoC)

Hereby, “

Panasonic Corporation

” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Customers can download a copy of the original DoC to our

R&TTE products from our DoC server: http://www.doc.panasonic.de

Contact to Authorised Representative: Panasonic Marketing

Europe GmbH,

Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,

Germany

This product is intended for general consumer. (Category 3)

Ελληνικά

Δήλωση συμμόρφωσης (DoC)

Με την παρούσα, η “

Panasonic Corporation

” δηλώνει ότι το

προϊόν αυτό είναι σύμφωνο με τις βασικές απαιτήσεις και άλλες

σχετικές διατάξεις της οδηγίας 1999/5/ΕC.

Οι πελάτες μπορούν να κατεβάσουν ένα αντίγραφο του

πρωτοτύπου DoC για τα R&TTE προϊόντα μας από τον DoC server μας: http://www.doc.panasonic.de

Στοιχεία επικοινωνίας Eξουσιοδοτημένου Aντιπροσώπου:

Panasonic Marketing Europe GmbH,

Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,

Γερμανία

Αυτό το προϊόν προορίζεται για καταναλωτές. (Κατηγορία 3)

Português

Declaração de Conformidade (DoC)

Com o presente documento, a “

Panasonic Corporation

” declara que este produto é conforme os requisitos específicos e demais especificações referentes à Directriz 1999/5/EC.

Os clientes podem baixar uma cópia da declaração de conformidade (DoC) para nossos produtos R&TTE do Server

DoC: http://www.doc.panasonic.de

Contacte o representante autorizado: Panasonic Marketing

Europe GmbH,

Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,

Alemanha

Este produto destina-se ao consumador geral. (Categoria 3)

Hrvatski

Deklaracija o podobnosti (DoC)

Ovime, “

Panasonic Corporation

” izjavljuje da je ovaj proizvod udovoljava osnovnim zahtjevima i ostalim relevantnim uvjetima

Smjernice 1999/5/EC.

Kupci mogu preuzeti kopiju originalne DoC za naše R&TTE proizvode s našeg DoC poslužitelja: http://www.doc.panasonic.de

Adresa ovlaštenog predstavništva: Panasonic Marketing Europe

GmbH,

Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,

Njemačka

Ovaj proizvod je namijenjen za opću potrošnju. (kategorija 3)

Lietuviškai

Atitikties deklaracija (AD)

Bendrovė “

Panasonic Corporation

” patvirtina, kad šis gaminys tenkina direktyvos 1999/5/EB esminius reikalavimus ir kitas taikytinas nuostatas.

Mūsų R&TTE gaminių originalios atitikties deklaracijos kopiją klientai gali atsisiųsti iš mūsų AD serverio: http://www.doc.panasonic.de

Įgaliotojo atstovo adresas: “Panasonic Marketing Europe

GmbH”,

Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,

Vokietija.

Šis gaminys skirtas bendrajam vartojimui. (3 kategorija.)

Slovensko

Izjava o skladnosti (DoC)

S pričujočo izjavo podjetje “

Panasonic Corporation

” izjavlja, da so svoji izdelki skladni s poglavitnimi zahtevami in drugimi odgovarjajočimi predpisi direktive 1999/5/ES.

Stranka lahko naloži izvod izvirnega DoC o naših izdelkih

R&TTE s strežnika DoC: http://www.doc.panasonic.de

Pooblaščeni zastopnik: Panasonic Marketing Europe GmbH,

Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,

Nemčija

Izdelek je namenjen splošni uporabi. (Razred 3)

Slovensky

Vyhlásenie o zhode (DoC)

Panasonic Corporation

” týmto prehlasuje, že tento výrobok je v zhode so základnými požiadavkami a ďalšími príslušnými ustanoveniami smernice 1999/5/ES.

Zákazníci si môžu stiahnuť kópiu pôvodného DoC na naše

R&TTE výrobky z nášho servera DoC: http://www.doc.panasonic.de

Kontakt na splnomocneného zástupcu: Panasonic Marketing

Europe GmbH,

Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,

Nemecko

Tento produkt je určený pre všeobecného spotrebiteľa. (Kategória

3)

Norsk

Samsvarserklæring (DoC)

Panasonic Corporation

” erklærer at utstyret er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/

5/EF.

Kundene kan laste ned en kopi av den originale samsvarserklæringen (DoC) for vårt R&TTE utstyr fra vår DoC server: http://www.doc.panasonic.de

Kontakt vår autoriserte representant: Panasonic Marketing

Europe GmbH,

Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,

Tyskland

Utstyret er beregnet på den vanlige forbruker (klasse 3).

34

SQT0852

SC-HTB690-SQT0852.book 35 ページ 2015年4月28日 火曜日 午前9時54分

Eesti keel

Vastavusdeklaratsioon (DoC)

Panasonic Corporation

” kinnitab käesolevaga, et see toode on vastavuses põhiliste nõuete ja muude direktiivi 1999/5/EÜ asjakohaste sätetega.

Kliendid saavad koopia meie R&TTE toodetele kehtiva originaalvastavusdeklaratsiooni koopia alla laadida meie DoCserverist: http://www.doc.panasonic.de

Võtke ühendust volitatud esindajaga: Panasonic Marketing

Europe GmbH,

Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,

Saksamaa

See toode on mõeldud tavakasutajale. (III kategooria)

Latviski

Atbilstības deklarācija (DoC)

Kompānija “

Panasonic Corporation

” ar šo paziņo, ka šis izstrādājums atbilst būtiskām prasībām un citām saistošām

Direktīvas 1999/5/EK prasībām.

Pircēji var lejupielādēt oriģinālo DoC kopiju mūsu R&TTE izstrādājumos no mūsu DoC servera: http://www.doc.panasonic.de

Lūdzam sazināties ar pilnvaroto parstāvi Panasonic

Marketing Europe GmbH,

Panasonic Testing Centre, Winsbergring 15, 22525

Hamburg, Vācijā

Šis izstrādājums ir paredzēts parastam patērētājam. (3. kategorija)

Български

Декларация за съответствие (DoC)

Panasonic Corporation

” декларира, че този продукт съответства на съществените изисквания и другите приложими разпоредби на Директива 1999/5/EC.

Потребителите могат да свалят копие от оригиналните DoC към нашите продуктите от типа R&TTE от сървъра, на който се съхраняват DoC: http://www.doc.panasonic.de

За контакт с оторизиран представител: Panasonic Marketing

Europe GmbH,

Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,

Германия

Този продукт е предназначен за обща употреба. (Категория

3)

Român

Declaraţie de Conformitate (DoC)

Prin prezenta, societatea “

Panasonic Corporation

” declară că produsul este conform cu cerinţele esenţiale şi cu alte norme corespunzătoare Directivei 1999/5/EC.

Clienţii pot descărca o copie a DoC-ului original al produselor noastre R&TTE de la adressa noastră DoC din Internet: http://www.doc.panasonic.de

Contact la Reprezentanţa autorizată: Panasonic Marketing

Europe GmbH,

Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,

Germania

Acest produs a fost proiectat pentru clientela generală. (Categoria

3)

Magyar

Megfelelőségi Nyilatkozat (DoC)

Ezennel a , “

Panasonic Corporation

” kijelenti, hogy a jelen termék kielégíti az 1999/5/EK Irányelv létfontosságú követelményeit és más vonatkozó rendelkezéseit.

A vásárlók letölthetik az R&TTE termékek eredeti DoC másolatát a DoC szerverünkről: http://www.doc.panasonic.de

Forduljon a hivatalos márkaképviselethez: Panasonic Marketing

Europe GmbH,

Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,

Németország

A terméket általános fogyasztóknak szánták. (3-as kategória)

Türkçe

Uygunluk Beyanı (DoC)

Panasonic Corporation

işbu belge ile bu ürünün 1999/5/EC sayılı Direktif'in temel gereklerine ve diğer ilgili hükümlerine uygun olduğunu beyan etmektedir.

Müşterilerimiz R&TTE ürünlerimizle ilgili orijinal DoC belgesinin bir kopyasını DoC sunucumuzdan indirebilir: http://www.doc.panasonic.de

Yetkili Temsilci ile temasa geçin:

Panasonic Marketing Europe GmbH, Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, Almanya

İşbu ürün genel tüketicilere yöneliktir. (Kategori 3)

SQT0852

35

SC-HTB690-SQT0852.book 36 ページ 2015年4月28日 火曜日 午前9時54分

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Safety information for customers in Norway

NORSK

ADVARSEL

Produkt

For å redusere faren for brann, elektrisk støt eller skade på apparatet: j

Utsett ikke produktet for regn, fukt, drypping eller sprut.

j Ikke plasser objekter som er fylt med væske, som vaser, på apparatet.

j

Bruk kun anbefalt tilbehør.

j Fjern ikke deksler.

j

Reparer ikke denne enheten selv, overlat service til kvalifisert servicepersonell.

Vekselstrømnett

≥ Nettstøpselet er trukket ut fra denne enheten.

Installer denne enheten slik at nettstøpselet umiddelbart kan trekkes fra stikkontakten.

FORSIKTIG

Produkt

Plasser ikke åpen ild, slik som levende lys, oppå apparatet.

Dette apparatet er beregnet for bruk under moderate klimaforhold.

Plassering

For å redusere faren for brann, elektrisk støt eller skade på apparatet: j

Ikke plasser apparatet i en bokhylle, et innebygget kabinett eller et annet lukket sted. Pass på at produktet er godt ventilert.

j

Apparatets ventilasjonsåpninger må ikke dekkes til med aviser, duker, gardiner eller lignende.

36

SQT0852

SC-HTB690-SQT0852.book 37 ページ 2015年4月28日 火曜日 午前9時54分

Limited Warranty (ONLY FOR AUSTRALIA)

Panasonic Warranty

1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its

Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of

Panasonic, the product is found to be faulty within the warranty period.

2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised

Distributors or Dealers and only where the products are used and serviced within Australia or it's territories. Warranty cover only applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when warranty service is requested.

3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations (as noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations), introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.

4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:

(a) Cabinet Part(s)

(b) Video or Audio Tapes

(c) SD cards or USB devices

(d) User replaceable Batteries etc

(e) DVD, Blu-ray or Recordable Discs

(f) Video / Audio Heads from wear and tear in normal use

(g) Information stored on Hard Disk Drive, USB stick or SD card

(h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)

5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover

(a) Internet and or DLNA connection / setup related problems

(b) Access fees and or charges incurred for internet connection

(c) The use of incompatible software or software not specifically stipulated in the product operations manual; and

(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet or any other device.

6. To claim warranty service, when required, you should:

Telephone Panasonic’s Customer Care Centre on 132600 or visit our website referred to below and use the Service Centre

Locator for the name/address of the nearest Authorised Service Centre.

Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of purchase date. Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be arranged by you.

Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the normal operating areas of the nearest Authorised Service Centres:

Plasma/LCD televisions / displays (screen size greater than 103 cm)

7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement of and do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation, de-installation, re-installation or transit.

Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however, coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator.

In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the

Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a major failure.

If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair or replace the product and will do so in a reasonable period of time from receiving notice from you.

THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)

SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES

If you require assistance regarding warranty conditions or any other enquiries, please visit the

Panasonic Australia website

www.panasonic.com.au

or contact by phone on

132 600

If phoning in, please ensure you have your operating instructions available.

Panasonic Australia Pty. Limited

ACN 001 592 187 ABN 83 001 592 187

1 Innovation Road, Macquarie Park NSW 2113

PRO-031-F11 Issue: 4.0

01-01-2011

SQT0852

37

SC-HTB690-SQT0852.book 38 ページ 2015年4月28日 火曜日 午前9時54分

38

SQT0852

SC-HTB690-SQT0852.book 39 ページ 2015年4月28日 火曜日 午前9時54分

SQT0852

39

SC-HTB690-SQT0852.book 42 ページ 2015年4月28日 火曜日 午前9時54分

For the United Kingdom and Ireland customers

Sales and Support Information

Customer Communications Centre

For customers within the UK: 0344 844 3899

For customers within Ireland: 01 289 8333

Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).

For further support on your product, please visit our website: www.panasonic.co.uk

Direct Sales at Panasonic UK

≥ Order accessory and consumable items for your product with ease and confidence by phoning our

Customer Communications Centre Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).

≥ Or go on line through our Internet Accessory ordering application at www.pas-europe.com.

≥ Most major credit and debit cards accepted.

≥ All enquiries transactions and distribution facilities are provided directly by Panasonic UK.

≥ It couldn’t be simpler!

≥ Also available through our Internet is direct shopping for a wide range of finished products. Take a browse on our website for further details.

EU

Manufactured by:

Importer for Europe:

Panasonic Corporation

Kadoma, Osaka, Japan

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Panasonic Corporation

Web Site: http://www.panasonic.com

Panasonic Corporation 2015

SQT0852-2

F0115BL3045

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
