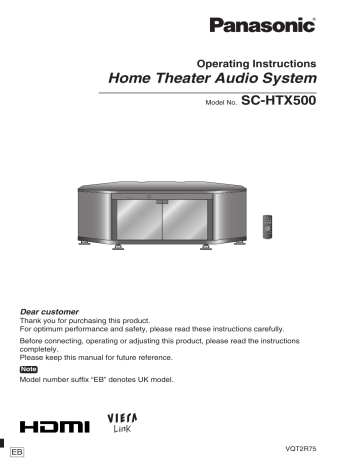

Operating Instructions
Home Theater Audio System
SC-HTX500
Model No. .
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions
completely.
Please keep this manual for future reference.
Note
Model number suffix “EB” denotes UK model.
EB
VQT2R75
Caution for AC Mains Lead / Safety precautions
Before use
Caution for AC Mains Lead Safety precautions
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains
plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that
the replacement fuse has a rating of 5-ampere and that it is
approved by ASTA or BSI to BS1362.
Check for the ASTA mark
or the BSI mark
on the
body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE
SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE
REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE
CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring code as stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance
with the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the terminal
which is marked with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH
TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE
EARTH SYMBOL OR COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF–KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains plug
(figures A and B). Confirm the AC mains plug fitted and follow the
instructions below. Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
Figure B
Fuse cover
Placement
Set the system up on an even surface away from direct
sunlight, high temperatures, high humidity, and excessive
vibration. These conditions can damage the system and
other components, thereby shorten the system’s service life.
Do not hang from or climb on the system. This may result in
serious injury.
Place the television properly on the system. Use the Fallprevention belt to prevent the television from falling over
and causing serious damage or injury.
Do not place items heavier than the recommended weight
on the system or the shelves.
Be careful not to get hit by the protruded TV.
When you use a stand with a rotating function, install it so it
does not protrude from the top plate of the system and do
not put hands or objects within the rotation range.
When you use a stand with a rotating function, install the system
keeping the distance from the wall so the TV does not hit the wall.
Do not apply oil on the casters (wheels).
Be careful not to catch your fingers when installing the system.
Do not insert your toe into the opening at the bottom of the
system when moving or installing the system.
Voltage
Do not use high voltage power sources. This can overload
the system and cause a fire.
Do not use a DC power source. Check the source carefully when
setting the system up on a ship or other place where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause a fire or
electric shock. Do not pull, bend, or place the system on the lead.
Grasp the plug firmly when unplugging the lead. Do not
move the system if AC mains lead is still connected to socket
outlet. Pulling the AC mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric shock.
Remove AC mains plug from socket outlet when not using
for a long period.
Foreign matter
Do not let metal objects fall inside the system. This can
cause electric shock or malfunction.
Do not let liquids get into the system. This can cause electric
shock or malfunction. If this occurs, immediately disconnect
the system from the AC mains lead and contact your dealer.
Do not spray insecticides onto or into the system. They contain
flammable gases which can ignite if sprayed into the system.
Glass shelf
Protect the board from scratching.
Do not touch the board if they crack. Consult your dealer for
immediate replacement.
Do not damage the glass or make an impact on it.
Service
2. Replace the fuse and close or attach the fuse cover.
Figure A
Figure B
Fuse
(5 ampere)
2
VQT2R75
Fuse
(5 ampere)
Do not attempt to repair this system by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any other
problem that is not covered in these instructions occurs, disconnect
the AC mains lead and contact your dealer or an authorized service
centre. Electric shock or damage to the system can occur if the system
is repaired, disassembled or reconstructed by unqualified persons.
Extend operating life by disconnecting the system from the
AC mains if it is not to be used for a long time.
Installing and
assembling the system ..7
Home Theater connections ..11
Checking speaker output............13
Basic connections ......................... 11
Connecting equipment with HDMI
terminal (TV, DVD recorder, etc.) ... 12
Connecting equipment without HDMI
terminal (DVD player, VCR, etc.) ..........12
Connecting STB, etc. with HDMI
terminal ...................................................13
Enjoying TV, movies
and music ....................14
Play
Enjoying sound field effects ......... 15
Sound effects ................................... 15
Sound mode ....................................15
Dolby Virtual Speaker ................... 15
Dolby Pro Logic .......................... 15
Cancelling the sound effects ............ 15
Clear Sound Reproduction
from the direction of the TV screen
(CLEAR-MODE DIALOG) ................ 15
You can enjoy dynamic surround effect
even when the sound volume level is low
(WHISPER-MODE SURROUND) ......... 15
Using the VIERA Link “HDAVI
Control™” ....................................16
Changing this system’s
settings .........................................18
Basic operations ............................ 18
Power saving mode (Eco mode)
“OFF/ON” setting.............................. 19
Adjusting sound quality
(Bass/Treble).................................... 19
Troubleshooting
and other
information
Specifications ..............................22
Digital audio signals supported
by this system .................................... 23
Maintenance .................................23
Troubleshooting guide................24
Checking audio output
with a test signal ............................ 13
Checking the subwoofer volume with
the test signal ................................... 13
Adjusting the volume balance of right
and left front speakers...................... 19
VIERA Link “HDAVI Control” “OFF/ON”
setting ............................................... 19
Fixing the TV audio input to the
optical digital input............................ 19
Switching the input automatically to
STB, etc. .......................................... 20
Setting when images arrive later than
audio ................................................ 20
Switching between dual sounds ....... 20
Clear audio at low volume ................ 20
Setting when the beginning of a CD
track is cut ........................................ 20
Factory settings (Reset) ................... 21
To prevent other Panasonic
equipment from operating with this
system’s remote control ................... 21
Convenient functions ..................21
Muting ............................................. 21
Displaying current status .............. 21
Connection
Supplied accessories ....................4
Control guide .................................5
Play
Connection
Caution for AC Mains Lead...........2
Safety precautions ........................2
Troubleshooting
and other
information
Before use
Before use
Table of contents
Error messages ...........................26
3
VQT2R75
Supplied accessories
Before use
Supplied accessories
Please check and identify the supplied accessories.
Packing plan
Use numbers indicated in parentheses when asking
for replacement parts.
7
(Product numbers correct as of January 2010. These
may be subject to change.)
6✽1
Keep the screws and the shelf holders out of reach of
children to prevent swallowing.
6
5
4
3
2
1 Shelf
[RFA3072]
6✽2
8
4 Shelf holders
1
[RMRX0095-H]
2 Glass doors
(1 for right and 1 for left)
Left side [RXQ1809]
Right side [RXQ1857]
Left side
5 Caster trays
Right side
1System 2AC mains lead
3Caster trays, Screws, Shelf holders
4Remote control 5Batteries
6Cushion
7Shelf
8Glass door
• Use 6✽1 and 6✽2 to remove casters. (
page 7)
[TBLB3008]
„ Sales and Support Information
2 Screws
[XTW4+16JFJK]
1 AC mains lead
[K2CZ3YY00005]
2 Batteries
(R6, AA)
1 Remote control
[N2QAYB000527]
4
VQT2R75
Customer Care Centre
• For customers within the UK: 0844 844 3852
• For customers within the Republic of Ireland:
01 289 8333
• Visit our website for product information
www.panasonic.co.uk
• E-mail: [email protected]
Direct Sales at Panasonic UK
• For customers: 0844 844 3856
• Order accessory and consumable items for your product
with ease and confidence by phoning our Customer
Care Centre
Monday-Thursday 9:00am-5:30pm,
Friday 9:30am-5:30pm (Excluding public holidays).
• Or go on line through our Internet Accessory
ordering application at www.pas-europe.com.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities
are provided directly by Panasonic UK Ltd.
• It couldn’t be simpler!
• Also available through our Internet is direct
shopping for a wide range of finished products,
take a browse on our website for further details.
Control guide
Front view/Rear view
Control panel (
below)
5
Rear view
Amplifier (
below)
OPTICAL 1 OPTICAL 2
1
2
3
3
6
7
4
1Front speaker (left) 2Front speaker (right) 3Subwoofer 4Caster/Caster trays 5Rear panel
6Cut-outs 7Openings
Control guide
Front view
Before use
This system
Control panel
Standby/on switch (8)
Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
Display
General display
For adjusting volume
VOLUME
SRD
INPUT
CLEAR-MODE
SELECTOR
DIALOG
“INPUT SELECTOR” switch
For using “CLEAR-MODE DIALOG” (
page 15)
Lights on when using “CLEAR-MODE DIALOG” (
page 15)
When the surround digital signal is being input or
the sound effects are being used (
page 15)
Amplifier
1
2
3
AC input terminal (
page 11)
Speaker terminals
Exhaust hole (Cooling fan)
AUDIO IN terminals (Analogue)
(
pages 11, 12)
5 DIGITAL AUDIO IN terminals
(
pages 12, 13)
6 HDMI AV terminals (
page 12)
1
2
3
4
4
5
6
Speaker terminals
If the connectors become disconnected, refer to the
illustration below for connection.
Terminal
block
R
L
The connectors and terminals
are colour-coded and can only
Connector be inserted in one direction.
Insert each connector into the
terminal of the same colour until
it clicks in position.
5
VQT2R75
Control guide
Control guide
Before use
Remote control (This manual explains the operations mainly using the remote control.)
Standby/on button (
page 14)
Test signal output (
page 13)
Input selector (
page 14)
For adjusting speaker output
(
page 13)
For adjusting the volume
For using “CLEAR-MODE
DIALOG” (
page 15)
(
pages 13, 14)
Muting (
For using “WHISPER-MODE
SURROUND” (
page 15)
page 21)
Making adjustment and settings/
confirming settings
For displaying the current status/
Entering setup mode
(
pages 18 to 21)
(
pages 18 to 21)
For returning to the previous menu
(
For selecting or cancelling Dolby
Virtual Speaker, Dolby Pro Logic and
sound mode (
page 15)
page 18)
Inserting the batteries
•
•
•
•
•
•
•
Do not mix old and new batteries.
Do not use different types of batteries at the same time.
Do not take apart or short circuit.
Do not attempt to recharge alkaline or manganese batteries.
Do not use batteries if the covering has been peeled off.
Do not heat or expose to flame.
Do not leave the batteries in an automobile exposed to direct
(R6/LR6, AA)
sunlight for a long period of time with doors and windows closed.
Insert so the poles (( and ))
Mishandling of batteries can cause electrolyte leakage which can
match those in the remote control. severely damage the remote control.
Use manganese batteries or
Remove the batteries if the remote control is not going to be
alkaline batteries.
used for a long period of time. Store them in a cool, dark place.
Press on the tab to open.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
Using the remote control
Control panel
Remote control
signal sensor
VOLUME
INPUT
CLEAR-MODE
SELECTOR
DIALOG
6
VQT2R75
Within 7 meters at the
front (The remote
controlling range varies
according to the angles.)
Transmission
window
The distance and the angles
are approximate.
30°
30°
Note
• Do not place an object between the signal sensor and the remote
control.
• Do not expose the signal sensor to the direct sunlight or the strong light
of a fluorescent lamp.
• Keep the transmission window and the system’s sensor free from dust.
Installing and assembling the system
Installation
• Take adequate measures to prevent the TV from
falling down. Make sure to set the caster trays
when the casters are attached.
• You can install this system so that it is flush with
the wall at the back. (Depending on the depth of
equipment to install or the type of cable, installing
this system flush with the wall may be impossible.)
• Do not place in front of curtains as they may
obstruct the system’s exhaust hole.
• If the surface of the wooden floor is soft, the caster
mark may remain.
• Do not put anything but a TV on the top board of
this system.
Do not put the following things in particular.
x Putting a hot thing may leave the mark and it
may not come off.
x If you put a vase with water in it and when it falls
down, the water may splash over this system
and this can cause malfunction.
How to lift the system
1 Tilt the system forward slightly then place your
hand under the bottom of the back side.
2 Place your other hand under the bottom of the
front side and lift the system up keeping it
horizontal.
Back side
Connection
This system
• At least 2 people are necessary for
lifting up the system.
• Use a phillips-head screwdriver.
(Do not use an electric screwdriver.)
• Avoid unstable places. Choose a flat
location for installation.
• Handle the glass doors with enough
care.
Installing and assembling the system
Setup
example
Front side
Removing casters
• Remove the casters on soft floor materials
(i.e. thick-piled carpet, etc.).
• To remove the casters, place the cushions
(
indicated with 6✽1 and 6✽2 on page 4,
packing plan) used at both ends of packaging, and
place this system with its back side facing down on
them.
(Bottom plate)
• Do not put anything on and in the system when
removing casters. (You do not need to remove the
amplifier and speakers as they are fixed.)
Front side
Cushion
6✽1
6✽2
Hold and pull
Caster
Soft
cloth, etc
7
VQT2R75
Installing and assembling the system
Shelf assembly
Remove the tape fixing the glass holder and open the glass holder.
1
Insert 2 shelf holders (supplied) into
the dowel holes on one side.
Dowel hole
Installing and assembling the system
Connection
Shelf holder
2
Insert the shelf (supplied) with a
slope and set it adjusting the shelf
groove on the shelf holders.
Groove (Under the shelf)
• When inserting the shelf, tilt upward the side
of shelf where the shelf holders have been
inserted.
(Shelf)
3
Back
Shelf
Front
Holding the shelf, insert 2 shelf
holders into the dowel holes on the
other side as well. Set the shelf
horizontally.
• The height of the shelf can be adjusted at 3
different levels (high, middle, low).
• Change the positions of holes for the shelf
holder to adjust the height of shelf.
• When you do not install the shelf, keep the
shelf holders in a safe place.
About equipment stored on the shelf
unit (mm)
Setting position
Upper shelf A
Dowel hole
position
Dowel hole
High
Shelf holder
position
High
Middle
Lower shelf B
Low
Shelf
holder
Middle
Low
Height of
Maximum depth for
Width of
compartment storing equipment compartment
A
95
B
147
A
125
B
117
A
155
B
87
(Upper view)
340
If the depth of
equipment to install
is 280 mm or more,
remove the cut-out
(large window).
page 9)
(
580
Note
8
VQT2R75
• Do not put equipment weighing more than 12 kg on the upper shelf A and lower shelf B.
• Refer to pages 11 to 13 for connections with other equipment.
• Image interference may occur if you put recording equipment on the shelf (Upper shelf A). Put it on the base board
(Lower shelf B) if this occurs.
• Depending on the equipment to install, the cables may not be connected. To install the equipment, adjust the height of the shelf
to the position where the cables can come out from the cut-outs.
Taking out cables (Refer to the operating instructions of equipment as well.)
(Rear view)
Openings
In the following cases, remove the cut-outs. This will
strain the connection parts and may cause malfunction.
• When the depth of equipment to install is 280 mm or more
Remove the large windows.
Connection
• When the cables are too thick to pull out
Remove the small windows.
Cut-outs
To remove the large window
To remove the small window
After removing the small window,
Insert your hand into the
insert your hand as illustrated,
opening as illustrated, press
press along the dotted line with
the center of small window
your thumb and pull out the panel.
with your thumb and pull out
the panel.
• Hold the rear panel with the other hand so it does not bend while removing.
Installing the television (Please also refer to the television’s operating instructions.)
Recommended : 42V inches or less
Place the TV stand in the center of the top board of the system.
(Upper view of the setup)
Wall
Note
• Do not put equipment weighing more than 80 kg on the top board.
• Lift the television when placing it on the system. Dragging it may damage the top board.
(For details, refer to the television’s operating instructions.)
• When you use a stand with a rotating function, keep distance away from the wall so the TV
does not hit the wall.
• This system is not magnetically shielded. Do not use with a CRT-based television.
TV
Arrange the
stand so the
TV does not
hit the wall
when rotated.
Stand
Installing and assembling the system
After installing equipment in the system, pull out
the cables from the openings of the rear panel.
Fall-prevention measure for TV
„ Fixing to the system
• Make sure to use the supplied screw to attach
the fall-prevention belt (supplied with a TV) as
illustrated at right.
(Setup example)
Fall-prevention belt
Note
• If the fall-prevention belt is not supplied with the TV,
consult with your supplying dealer for advice.
• Do not over-tighten the screws to avoid damaging the
fixing holes.
• For attaching the fall-prevention belt to the TV, follow the
operating instructions for the TV.
Prepared
screw
hole
Screw (supplied)
The illustration is an example.
The shape may differ from the actual product.
9
VQT2R75
Installing and assembling the system
Fixing the casters
Set the caster trays under all 5 casters
to fix this system.
(Caster direction)
Make the direction of front caster inward so the
caster tray does not protrude.
Cover
Align the cover
with the arrow.
inward
outward
Arrow
Connection
Caster tray
• At least 2 people are necessary for setting the
caster trays.
Be careful not to catch your fingers.
• See page 7 about how to lift the system.
Installing and assembling the system
Glass door assembly
1
Remove 4 screws from the glass holder and take
out the board.
Board
Screw
• Use the Phillips-head screwdriver that matches the screw size.
Phillips-head
screwdriver
Screw
2
Insert the glass door (supplied) to the glass
holder firmly and tighten the 2 screws in front
tentatively.
Magnet
catch
• The illustration at right shows how to fix the left glass door.
Hole
• The slippage prevention sheets are (Glass door surface)
pasted on the glass door insertion
Slippage prevention sheets
part. Leave the slippage prevention
sheets as they are for installation.
• One side of the magnet catch has
a hole. This is the inner side of the
glass.
Left
Right
3
Close the glass door and adjust the upper and
lower gaps.
Open the glass door carefully so it does not become misaligned. Tighten 2 screws in front firmly
and then tighten 2 screws at the back firmly.
Glass
holder
Screw
Left glass
door
(inner side)
Slippage prevention sheet
Adjust the upper and lower gaps.
• Attach the other glass door in the same way.
Screw
Screw
Left glass
door
(inner side)
10
VQT2R75
Phillips-head
screwdriver
Screw
Screw
Home Theater connections
• Turn off all equipment before
making any connections.
• To connect equipment, refer to the
appropriate operating instructions.
Basic connections
Refer to the operating instructions for the equipment you are connecting for the correct type of video cable.
If the optical digital output terminal is
available, use connection A.
If the optical digital output terminal is not
available, use connection B.
TV
Digital audio
out (optical)
AV IN
B
A
Amplifier
C
To listen to the sound through this system
after making all the connections, set the input
mode to “TV ” and reduce the volume on the
television to minimum.
OPTICAL 1 OPTICAL 2
AC mains
lead
(supplied)
Household mains socket
(AC 220 V to 240 V, 50 Hz)
AV
DVD player etc.
Connect AC mains lead after all other cables are connected.
READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 2 BEFORE CONNECTION.
When this system and all other equipment are turned off, this system consumes approx. 0.1 W with the AC mains lead
connected to the household main socket. When the system is not used for a long period of time, unplug it from the
household mains socket to save power.
Make sure to turn this system off before unplugging the AC mains lead.
Connection
A Optical fibre cable (not supplied)
B Stereo phono cable (not supplied)
C 21-pin scart cable (not supplied)
Home Theater connections
Audio out
R L
Note
• The supplied AC mains lead is for use with this system only. Do not use it with other equipment.
Also, do not use AC mains lead for other equipment with this system.
11
VQT2R75
Home Theater connections
• Turn off all equipment before
making any connections.
• To connect equipment, refer to the
appropriate operating instructions.
Connecting equipment with HDMI terminal (TV, DVD recorder, etc.)
Easy connection using ARC (Audio Return Channel)
(
below): The conventional setting has required 2
cables to connect this system and a TV: HDMI cable
and optical fibre or stereo phono cable. Now, with
the ARC technology, all you need is 1 HDMI cable to
connect to an ARC compatible TV.
The recommended HDMI cable is ARC compatible.
TV
Connecting the optical fibre cable
Do not bend the cable at a sharp angle.
Connection
It is necessary to enjoy TV sounds.
Digital audio
out (optical)
HDMI
input
R
Insert the cable so its shape fits correctly into the terminal.
C Stereo phono cable (not supplied)
C
Home Theater connections
• When connecting with the ARC compatible TV,
connect the [HDMI OUT TO TV (ARC)] terminal
of this system and the HDMI input terminal (ARC
compatible) of TV. (If the TV has ARC compatible
and incompatible terminals, connect to the ARC
compatible HDMI input terminal.)
B Optical fibre cable (not supplied)
This connection is necessary to connect
with TV incompatible with ARC.
Audio out
L
A HDMI cable (not supplied)
Note
A
B
Amplifier
A
„ HDMI cable notes
HDMI
Video/Audio
out
Blu-ray Disc player/
DVD recorder, etc.
„ ARC (Audio Return Channel)
This function was added to HDMI Ver.1.4.
This sends digital audio signals from the HDMI input terminal
of TV, etc. to the HDMI output terminal of this system.
• For ARC compatibility of the connected TV,
see operating instructions of the TV.
OPTICAL 1 OPTICAL 2
HDMI
Video/Audio
out
If connection B is not possible, make connection
C. When both are already connected, connection
B takes priority over connection C.
• See page 11 for AC mains lead connection.
Second HDMI
compatible equipment
• It is recommended that you use Panasonic’s HDMI cables.
Recommended part number:
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m),
RP-CDHS50 (5.0 m), etc.
• Please use High Speed HDMI Cables that
have the HDMI logo (as shown on the cover).
• Using the High Speed HDMI cable is
recommended for viewing HD picture (1080p).
Connecting equipment without HDMI terminal (DVD player, VCR, etc.)
If the optical digital output terminal is
available, use connection A.
If the optical digital output terminal is not
available, use connection B.
For connecting a DVD recorder with built-in
VCR, see the operating instructions for the
equipment.
TV
Audio out
L
R
Digital audio
out (optical)
AV IN
A
Amplifier
B
OPTICAL 1 OPTICAL 2
C
A Optical fibre cable (not supplied)
B Stereo phono cable (not supplied)
C 21-pin scart cable (not supplied)
• See page 11 for AC mains lead connection.
B
L
R
12
VQT2R75
Audio out
A
Digital audio
out (optical)
AV
DVD player, VCR, STB, CD player, etc.
Connecting STB, etc. with HDMI terminal
B
HDMI
output
Digital audio
out (optical)
Amplifier
A
Connect to HDMI input terminals other than
the one connected on page 12.
Connect STB, etc. to the HDMI 2 input terminal
page 12)
(AUX 1) on this system. (
Note
If all HDMI input terminals on this system are being
used, make the connection on the left.
• If the connected TV is VIERA Link “HDAVI Control”
compatible, when you make the setting for “Switching
the input automatically to STB, etc.” on page 20 after
connection, you can automatically switch this system’s
input by switching the input source of TV (VIERA) to
STB, etc.
A Optical fibre cable (not supplied)
B HDMI cable (not supplied)
Checking speaker output
Checking audio output with a test signal
Point the remote control at the signal sensor (
1
2
3
page 6) on the control panel of this system.
To turn on the system
Press.
To output the test signal
Press.
The test signal is output from one speaker at a
time for approx. 2 seconds in the following order.
Speaker display
TEST L TEST R
L : Front left,
TEST SW
R : Front right,
SW : Subwoofer
To confirm the audio output from speakers
Press.
Set the volume to the normal level and confirm
the test signal can be heard.
Adjustment range: 0 (Min) to 100 (Max)
Note
4
• Check connections when the speaker does
page 5)
not output the test signal. (
To stop the test signal
Press.
Connection
HDMI
input
STB etc.
Home Theater connections / Checking speaker output
TV
Checking the subwoofer volume with the test signal
Output the test signal. (
above steps 1 to 3)
1. Press [SPEAKER LEVEL] to adjust the subwoofer.
2. Press [SPEAKER LEVEL +, –] to adjust the volume of subwoofer.
• The front speakers cannot be adjusted with this operation.
• The test signal is output from the subwoofer during
adjustment. Then, the test signal is output again in above
order approx. 2 seconds after adjustment.
Stop the test signal after adjustment. (
above step 4)
Adjustment range:
SW: OFF, MIN, 1 to 15, MAX
Note
• After the above adjustment, each speaker volume of sound modes is adjusted at the same time.
• To confirm the subwoofer volume, press [SPEAKER LEVEL].
13
VQT2R75
Enjoying TV, movies and music
Preparation Turn on the TV and switch its input to the input which this system is connected to
([HDMI], etc.), using the TV’s remote control.
1
2
To turn on the system
Press.
To select the source
or
or
Press.
TV
BD/DVD
AUX 1
AUX 2
AUX 3
: TV (HDMI OUT TO TV (ARC), OPTICAL 1,
AUDIO IN)
: Blu-ray Disc player/DVD recorder (HDMI 1)
: AUX 1 terminal (HDMI 2)
: AUX 2 terminal (OPTICAL 2)
: AUX 3 terminal (AUDIO IN)
Play
„ “AUX 1 ” to “AUX 3 ” switch every time you
press [AUX].
3
4
Start play on the connected equipment.
To adjust the volume
Press.
Adjustment range: 0 (Min) to 100 (Max)
Enjoying TV, movies and music
„ After playback, reduce the volume level and
turn off the system.
14
VQT2R75
• You can do this operation on the main system as well.
(
page 5)
In this case, press [INPUT SELECTOR] to perform the
above step 2.
(The input source switches each time you press the button.)
• Adjusting the subwoofer volume during
playback.
1. Press [SPEAKER LEVEL] to adjust the
subwoofer.
2. Press [SPEAKER LEVEL +, –] to adjust the
volume of subwoofer.
Adjustment range:
SW: OFF, MIN, 1 to 15, MAX
x The front speakers cannot be adjusted with this
operation.
x If the sound is distorted, lower the speaker
level.
x You can adjust the subwoofer volume for each
sound mode. ( page 15)
Note
• Even if you switch input to “TV ” while playing the equipment
connected to the HDMI input terminal, images or sounds
of the equipment connected to the HDMI input terminal are
output from [HDMI OUT TO TV (ARC)] terminal.
When the equipment is connected to both HDMI input
terminals, signals of equipment whose input is selected last
are output.
• Even if this system is turned off, images or audio signals
of recorders, etc. connected to the HDMI input terminal go
through this system and are sent to the TV connected to
the [HDMI OUT TO TV (ARC)] terminal. (Standby through
function)
Enjoying sound field effects
You can add various effects to the audio output by this system.
STANDARD
STADIUM
MUSIC
CINEMA
NEWS
Standard playback mode. You can
enjoy the steric and broader feeling
of sound. Dolby Pro Logic
(
below) also works for
2-channel stereo signals.
You can enjoy a feeling of being at
a live sporting event while listening
to the commentator’s voice. Best
suited for sport programs such as
baseball and soccer.
Natural sound spread and dynamic
sound. Best suited for music.
You can enjoy dynamic bass
sound and a sense of being in
a movie theatre. Best suited for
watching movies.
This mode offers clearer voice of
news casters, etc. Best suited for
news programs etc. focusing on
human voice.
„ Dolby Virtual Speaker
Without connecting dedicated speakers for surround
playback, you can enjoy the steric virtual sound as if
you are listening to 5.1 channel sources.
Press [ VS]
• The sound mode is automatically set to
“STANDARD ” at the same time.
„ Dolby Pro Logic
This converts 2-channel stereo signals of TV, CD, etc.
to 5.1 channel signals and offers surround sounds.
Press [ PL ]
• The sound mode is automatically set to
“STANDARD ” at the same time.
Cancelling the sound effects
Press
• The sound effects are disabled.
• When input signals are surround digital signals
such as Dolby digital or LPCM (multi-channel),
those signals are converged to the 2.1 channel and
played back.
With this function, voices from TV drama or baseball
commentators, etc. can be heard more clearly and
you can enjoy the effect as if the voices are coming
from the TV screen.
When you do not use this effect, select “OFF ”.
Press [CLEAR-MODE DIALOG] to select “ON ”.
Each time you press, “ OFF ”
“ON ”
“ON ”: Use (Factory setting) “OFF ”: Not use
When this function is “ON ”, [CLEAR-MODE
DIALOG] indicator lights up on the control panel.
( page 5)
You can enjoy dynamic surround
effect even when the sound volume
level is low (WHISPER-MODE
SURROUND)
This function is effective during surround playback
only (When “SRD” lights up on the display).
You can enjoy the effect of sense of being in the
actual scene even when the sound volume level is
low.
Press [WHISPER-MODE SURROUND] to select
“W.S. ON ”.
The current setting is displayed first.
Each time you press, “W.S. OFF ”
“W.S. ON ”
“W.S. ON ”: Use
“W.S. OFF ”: Not use (Factory Setting )
Note
• Sound mode, Dolby Virtual Speaker and Dolby Pro Logic
x Dolby Pro Logic is not available for surround digital
signals such as Dolby Digital, DTS and LPCM
(multi-channel). (excluding 2-channel audio sources)
x With the optical digital connection, you cannot use Dolby
Virtual Speaker, sound mode and Dolby Pro Logic for
LPCM signals with sampling frequency of over 48 kHz.
(They are automatically cancelled if those signals are
input.)
To use the effects when playing back other sources, press
[MODE] again to select.
x The sound mode is set to “STANDARD ” when you press
[MODE] while the sound effect is disabled.
x Even if the sound effect is being cancelled during
2-channel input, the sound mode is set to “STANDARD ”
when multi-channel is input afterwards.
• CLEAR-MODE DIALOG
x This setting can be made on the main system as well.
( page 5)
Play
„ Sound mode
You can enjoy surround effects, such as sound
spread and sense of being in the actual scene, or
other effects such as easier to hear voices, more
dynamic sound, etc.
• You can enjoy surround effects as if you are
listening to 5.1 channel sources.
• Dolby Virtual Speaker (
below) functions.
• Press to display the current sound mode
Press
and press again to switch the mode.
Clear Sound Reproduction
from the direction of the TV screen
(CLEAR-MODE DIALOG)
Enjoying TV, movies and music
Sound effects
15
VQT2R75
Using the VIERA Link “HDAVI Control™”
What is VIERA Link “HDAVI Control” ?
VIERA Link “HDAVI Control” is a convenient function that offers linked operations of this system,
and a Panasonic TV (VIERA) or Blu-ray Disc player/DVD recorder (DIGA) under “HDAVI Control”.
You can use this function by connecting the equipment with the HDMI cable. See the operating
instructions for connected equipment for operational details.
• VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry
standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have
developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI
CEC cannot be guaranteed.
• This system supports “HDAVI Control 5” function.
“HDAVI Control 5” is the newest standard (current as of January, 2010) for Panasonic’s HDAVI Control
compatible equipment.
This standard is compatible with Panasonic’s conventional HDAVI equipment.
• Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.
Connection
Connect this system with VIERA Link “HDAVI Control” compatible TV (VIERA) and
Blu-ray Disc player/DVD recorder (DIGA) with an HDMI cable.
Play
(Non-HDMI-compliant cables cannot be utilized.)
See page 12 “Connecting equipment with HDMI terminal (TV, DVD recorder, etc.)” for detailed
connections.
To operate VIERA Link “HDAVI Control” normally
Setting
Using the VIERA Link “HDAVI Control™ ”
• Select “Home Cinema” on TV (VIERA).
16
VQT2R75
Operation
1. Turn on all equipment other than TV.
2. Turn on the TV (VIERA).
3. Switch TV (VIERA) input to HDMI terminal that this system is connected to.
4. Switch this system’s input to HDMI input and confirm the pictures from the Blu-ray Disc
player/DVD recorder (DIGA) etc. appear correctly.
Note
• Check that the setting to operate VIERA Link “HDAVI Control” has been made on the connected equipment.
• This setting is also necessary when adding equipment, reconnecting or changing “VIERA Link “HDAVI Control”
“OFF/ON” setting”.
When not using VIERA Link “HDAVI Control”
Set “VIERA Link “HDAVI Control” “OFF/ON” setting” to “CTRL OFF ”. (
page 19)
What you can do with VIERA Link “HDAVI Control”
Use the remote control of TV (VIERA) for operation.
Ensure to make the settings for “To operate VIERA Link “HDAVI Control” normally” on page 16.
Select “Home Cinema” on the remote control of TV (VIERA) without turning the power on using this system’s
remote control. (This system is automatically turned on.)
• Operations differ depending on the type of TV. For details, refer to the operating instructions for TV (VIERA).
Turning “ON/OFF” this system
automatically
TV (VIERA)
ON
Turn “ON/OFF” the TV (VIERA).
ON: This system is turned on.
OFF: This system is turned off.
ON
This system
Adjusting the speaker volume of this
system
By adjusting the speaker volume on TV (VIERA),
the speaker volume for this system can also be
adjusted.
Listening to the audio from TV
(VIERA)
The illustrations are examples, which may differ from the actual product.
Note
• If you turn this system off with the remote control operation
of TV (VIERA), when the VIERA Link “HDAVI Control”
compatible Blu-ray Disc player/DVD recorder (DIGA) is
connected via HDMI cable, the Blu-ray Disc player/DVD
recorder (DIGA) also turns off.
• When using with Panasonic TV (VIERA) supporting VIERA
Link “HDAVI Control” Ver. 4 and later version, when this
system is turned on, TV (VIERA) is set to “Home Cinema”.
• If you do operations such as selecting a channel on
the remote control of TV (VIERA), this system’s input is
switched to “TV ”.
• When you play back the Blu-ray Disc player/DVD recorder
(DIGA) etc. connected to the HDMI input terminal, this
system’s input is automatically switched to the HDMI input.
• The adjustable max. value of speaker volume for TV (VIERA)
may differ from the one for this system.
Using the VIERA Link “HDAVI Control™”
• Select “TV” from the VIERA Link “HDAVI Control”
menu on TV (VIERA).
x TV (VIERA) speakers become active.
When using with the Panasonic TV (VIERA)
supporting HDAVI Control 4 and later version, this
system is automatically turned off. (Intelligent Auto
Standby)
• To output audio from this system, select “Home
Cinema”. This system is automatically turned on.
Play
Speaker
volume
adjustment
17
VQT2R75
Changing this system’s settings
Basic operations
To enter the setup mode
Press and hold for approx. 2 seconds.
The setting items are displayed.
To switch the settings
Press [w][q] to select the setup
menu items and press [OK].
(Setup menu items)
ECO MODE • Reducing power consumption (Power
saving mode) ( page 19)
• Adjusting sound quality ( page 19)
BASS
TREB
BALANCE
Play
HDMI
TV AUDIO
STB AUTO
Changing this system’s settings
S. DELAY
DUAL PRG
DRCOMP
REMOTE
PCM FIX
RESET
• Adjusting the volume balance of front
speakers ( page 19)
• Setting the VIERA Link “HDAVI
Control” to “OFF/ON” ( page 19)
• Fixing the TV input to the optical digital
( page 19)
• Switching the input to STB
automatically✽ ( page 20)
• When images arrive later than audio
( page 20)
• Switching between dual sounds
( page 20)
• Clear audio at low volume ( page 20)
• Preventing remote control’s operations
to other equipment ( page 21)
• When the beginning of a CD track is
cut ( page 20)
• Factory settings (Reset) ( page 21)
✽ appears only when audio adjustment can be made.
• To finish the setup mode, select “EXIT ” and press
[OK].
Press [w][q][e][r] to switch the
setting item and press [OK].
• See pages 19 to 21 for detailed operations.
To finish the setting
Press [ RETURN] several times to
select “EXIT ” and press [OK] to finish
the setting.
18
VQT2R75
To return to the previous display/To cancel during setting change
operation: Press [ RETURN].
Enter the setup mode before operations. (
Power saving mode (Eco mode) “OFF/ON” setting
This function reduces the power consumption in the
following sound modes.
• When the sound mode is “OFF”.
• When the sound mode is set to “STANDARD ”
or “NEWS ” only.
✽ This function does not work when the sound
mode is set to “STADIUM ”, “MUSIC ” or
“CINEMA ”.
page 18)
VIERA Link “HDAVI Control” “OFF/ON” setting
When you do not use VIERA Link “HDAVI Control”
pages 16, 17), you can set the unlinked
(
operation by selecting “CTRL OFF ”.
HDMI
1. Press [w][q] to select
and press [OK].
2. Press [e][r] to select “CTRL ON ”
or “CTRL OFF ”and press [OK].
CTRL ON : When using (Factory setting)
CTRL OFF : When not using
1. Press [w][q] to select ECO MODE
and press [OK].
2. Press [e][r] to select “ON ” or
“OFF ” and press [OK].
Note
• This setting becomes effective by turning off all equipment
once after the setting is changed.
• When “CTRL OFF ” is set, the ARC function will be disabled.
Be sure to make the optical digital connection or analogue
page 12)
connection. (
ON : Using Eco mode (Factory setting)
OFF : Not using Eco mode
Adjusting sound quality (Bass/Treble)
BASS : Bass
TREB : Treble
2. Press [e][r] for adjustment, and
press [OK].
Adjustment range: –6 to +6
Factory setting: 0
Note
• The bass can be adjusted by adjusting the subwoofer (SW ).
page 14)
(
Adjusting the volume balance of
right and left front speakers
1. Press [w][q] to select BALANCE
and press [OK].
2. Press [w][q] for adjustment, and
press [OK].
L : Front left
R : Front right
Move the bar to left and right on the display
to adjust.
• As the bar moves closer to “L ”, the sound
moves to the left.
• As the bar moves closer to “R ”, the sound
moves to the right.
Fixing the TV audio input to the
optical digital input
When both the HDMI cable and the optical fibre
cable are connected to the ARC compatible
(
page 12) TV (VIERA) at the same time, you can
set which digital input to use as a priority.
1. Press [w][q] to select TV AUDIO
and press [OK].
2. Press [e][r] to select “OPT FIX ”
and press [OK].
AUTO : The digital audio input via HDMI
cable (ARC) is used as a priority
when this input can be used.
(Factory setting)
OPT FIX : Only the optical digital input
terminal is used whereas the
digital audio input via HDMI cable
(ARC) is not used.
Note
• If the connected TV is not compatible with ARC, the audio
input via the optical fibre cable is automatically selected even
if “AUTO ” is set.
Play
or
Changing this system’s settings
1. Press [w][q] to select
BASS
and press [OK].
TREB
Note
• The bar indication is approximate.
19
VQT2R75
Changing this system’s settings
Enter the setup mode before operations. (
Switching the input automatically to STB, etc.
When you make connections on page 13 with
Panasonic TV (VIERA), you can switch the input of
this system to STB, etc. in conjunction with the TV
(VIERA) setting.
Preparation: After the connection on page 13,
switch the input of TV (VIERA) and
show images of STB, etc.
1. Press [w][q] to select STB AUTO
and press [OK].
2. Press [e][r] to select “SET ” and
press [OK].
SET : The input is automatically switched to
“AUX2 - STB ”.
OFF : The input is not automatically switched
to “AUX2 - STB ”. (Factory setting)
Changing this system’s settings
Play
Note
• “STB AUTO ” is displayed only when the system is
connected to the Panasonic TV (VIERA).
If the above Preparation is not performed, this is not
displayed.
• When “SET ” is set and the input is switched to “AUX 2 ”,
“AUX2 - STB ” is displayed.
• If you change the connection after setting, set “OFF ” once
and set “SET ” again.
Setting when images arrive later
than audio
You can adjust audio timing to video timing by
delaying audio output when pictures arrive after
sounds.
1. Press [w][q] to select S. DELAY
and press [OK].
2. Press [e][r] to select the setting
and press [OK].
AUTO (Factory setting), OFF, 10, 20, 30, 40,
60, 80, 100, 120, 140, 160, 180, 200
Note
• If “AUTO ” is selected, the most suitable value is set
automatically when connecting the Panasonic TV (VIERA)
supporting VIERA Link “HDAVI Control” Ver. 3 and later
versions. (Auto Lip Synchronization Function.)
• When you connect the Panasonic TV incompatible with
“HDAVI Control” Ver. 3 and later versions or non-Panasonic
TV, if “AUTO ” is set, “40 ” (msec) is set.
20
VQT2R75
page 18)
Switching between dual sounds
You can switch between dual sounds of Dolby Digital
signals.
1. Press [w][q] to select DUAL PRG
and press [OK].
2. Press [e][r] to select the audio and
press [OK].
M1 : Main audio (Factory setting)
M2 : Sub channel audio output
M1+M2 : Main + Sub channel audio output
Clear audio at low volume
It compresses the dynamic range so that you can still
hear dialogue and leave the sound field unaffected.
This is effective only for the Dolby Digital signals
compatible with this function.
1. Press [w][q] to select DRCOMP
and press [OK].
2. Press [e][r] to select the setting
and press [OK].
OFF : Normal playback (Factory setting)
STANDARD : The best suited playback for
each audio source
MAX : Always compressed at the maximum
level
Setting when the beginning of a CD
track is cut
1. Press [w][q] to select PCM FIX
and press [OK].
2. Press [w][q] to select the input to
fix to PCM and press [OK].
Input : TV, DVD, AUX1, AUX2
3. Press [e][r] to select “ON ” and
press [OK].
ON, OFF (Factory setting)
Note
• When “ON ” is set, only PCM signals are played back.
• When noise occurs, return the setting to “OFF ”.
Enter the setup mode before
operations. ( page 18)
Convenient functions
Factory settings (Reset)
The operation settings for the system will be initialized
to the settings made at the time of factory setting.
1. Press [w][q] to select RESET
and press [OK].
2. Press [e][r] to select “YES ” and
press [OK].
YES : Reset
NO : Not reset
• To cancel, select “NO ”.
Note
• All the settings are reset when you select “YES ” and the
input selector automatically switches to “BD/DVD ”.
• If you select “NO ”, you will return to step 1. To finish the
setup mode, press [ RETURN] to select “EXIT ” and press
[OK].
Setting this system
1. Press [w][q] to select REMOTE
and press [OK].
2. Press [e][r] to select “REMOTE 2 ”
and press [OK].
Factory setting : REMOTE 1
• For this setting, after performing the
following “Setting the remote control”
operation, press [ RETURN] to select
“EXIT ”, and press [OK] to finish the
setting.
• To set the remote control code to 1, select
“REMOTE 1 ” in step 2 and press [OK].
Setting the remote control
Press and hold [OK], and then press
[BD/DVD]
(4 seconds or more)
[TV] : Remote control code 1 (Factory setting)
[BD/DVD] : Remote control code 2
• Select the same code number as the one
you have selected in step 2.
• To set the remote control code to 1,
press and hold [OK], and press [TV] for 4
seconds or more.
“MUTE ” blinks on the display while this function is active.
Press [MUTE].
Press this button again to cancel.
Note
• Muting is cancelled when you switch the system to standby.
• Muting is also cancelled when you adjust the volume.
Play
Other equipment (mini component system, AV amp,
etc.) manufactured by Panasonic may operate with
the remote control operations of this system. In this
case, switch the remote control code of this system
and remote control to “REMOTE 2 ”.
Muting
Displaying current status
The current statuses (Volume, Sound mode, Input
signal) are displayed in turn.
Press [-DISPLAY, –SETUP].
When you press [-DISPLAY, –SETUP] while each
item is being displayed, the next item is displayed.
(Display example)
Volume
• “VOLUME - 32”
Sound mode
• “STANDARD ” (
page 15)
• “DOLBY PL ” (Dolby Pro Logic )
• “DOLBY VS ” (Dolby Virtual Speaker)
etc.
Input signal
• “DOLBY DIGITAL 3 / 2.1 ” (Dolby Digital)
Number of subwoofer signals
Number of surround channels
Number of front and center channels
• “DUAL PROGRAM / MAIN ” (Reception status of dual audio)
• “LPCM 2CH”, “LPCM 5.1CH ” (Number of LPCM channels)
etc.
Note
• Sampling frequencies are also displayed for the input signal.
(only for 88.2 kHz, 96 kHz)
• If unknown signals are input, “NONE ” is displayed.
Changing this system’s settings / Convenient functions
To prevent other Panasonic equipment from
operating with this system’s remote control
21
VQT2R75
Specifications
„ AMPLIFIER SECTION
RMS Output Power (each channel driven)
1 kHz, 10% total harmonic distortion
Front (L/R)
62 W per ch (4 Ω)
100 Hz, 10% total harmonic distortion
Subwoofer
161 W per ch (6 Ω)
Total Power Output
285 W
Input sensitivity/Input impedance
AUDIO IN (TV, AUX 3)
700 mV/33 kΩ
S/N ratio
HDMI (BD/DVD, AUX 1),
DIGITAL IN (TV, AUX 2)
96 dB
Tone controls
BASS
50 Hz, +6 to –6 dB
TREBLE
20 kHz, +6 to –6 dB
2
1
Note
Troubleshooting
and other
information
Specifications
22
VQT2R75
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are
trademarks of Dolby Laboratories.
HDAVI Control™ is a trademark of Panasonic
Corporation.
Approx. 0.1 W
2
2
This system supports “HDAVI Control 5” function.
HDMI, the HDMI Logo, and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC in the United
States and other countries.
In standby condition
Operating temperature range
0 °C to 40 °C
Operating humidity range
35% to 80% RH (no condensation)
„ RACK SYSTEM SECTION
Dimensions (W x H x D) 1050 mm x 444 mm x 420 mm
Mass
Approx. 34.0 kg
Maximum loading weight
80 kg
Shelf Board Max loading weight
Top 12 kg/Bottom 12 kg
Input/Output Terminals
AUDIO IN
(TV, AUX 3)
DIGITAL AUDIO IN
OPTICAL 1, 2 (TV, AUX 2)
AV
HDMI IN (BD/DVD, AUX 1)
HDMI OUT (TO TV (ARC))
„ SPEAKER SYSTEM SECTION
Front (L/R)
[Type]
1-Way 1 Speaker System (Bass Reflex)
6.5 cm Cone Type Full Range x2
[Speaker unit]
Subwoofer
[Type]
1-Way 2 Speaker System (Bass Reflex)
[Speaker unit]
12 cm Cone Type Woofer x2
„ GENERAL
Power supply
AC 220 V to 240 V, 50 Hz
Power consumption
57 W
1. Specifications are subject to change without
notice.
2. Total harmonic distortion is measured by the digital
spectrum analyser.
Manufactured under license under U.S. Patent #’s:
5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,487,535 & other U.S. and worldwide patents
issued & pending. DTS and the Symbol are
registered trademarks & DTS Digital Surround
and the DTS logos are trademarks of DTS, Inc.
Product includes software. © DTS, Inc. All Rights
Reserved.
Digital audio signals supported by this system
„ LPCM (2-channel)
CD, DVD audio etc.
„ LPCM (Multi-channel)
Blu-ray disc, DVD audio etc.
„ This system supports x.v.Colour or Deep Colour.
x.v.Colour
This is a name of products compliant with ISO Standard for wider colour space: “xvYCC”. This system
supports x.v.Colour.
Deep Colour
This system can reproduce greater colour gradation (4096 steps) when connected to compatible TV and
recorder, etc.
You can enjoy exceptionally rich, natural-looking colours, with smooth, detailed gradation and minimal colour
banding.
Maintenance
Unplug the AC mains lead from the household mains socket and wipe the system using a soft and dry cloth.
• When the system is very dirty, wring the cloth soaked in water thoroughly, wipe the dirt and wipe moisture
off with a dry cloth.
• Do not use solvents such as benzine, thinner, alcohol, etc. because they may cause casing to deform and
coating to go off.
• Before using chemically treated cloth, read the instructions that come with the cloth carefully.
Digital audio signals supported by this system /
Maintenance
„ DTS
Blu-ray disc, DVD etc.
Note
• With the optical digital connection, this system can play
LPCM (multi-channel) signals with sampling frequency of up
to 48 kHz and LPCM (2-channel) signals of up to 96 kHz.
• Available sound effects when the sampling frequency of input
signal is over 48 kHz
HDMI connection: All functions can be used by converting
the frequency to 48 kHz on the playback
equipment.
Optical digital connection: You cannot use the sound mode,
Dolby Virtual Speaker and Dolby
Pro Logic functions. (They are
automatically cancelled.)
Enjoy with 2-channel stereo
playback.
Analogue connection: All functions can be used.
Troubleshooting
and other
information
„ Dolby Digital
Blu-ray disc, DVD etc.
23
VQT2R75
Troubleshooting guide
Before requesting service, make the following checks.
If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the
problem, consult your dealer for instructions.
Problem
No power.
Possible solution
• Ensure the AC mains lead is connected.
•
•
•
•
•
No sound or image
after playback starts.
•
•
•
•
Troubleshooting guide
24
VQT2R75
Common problems
Troubleshooting
and other
information
Image distortion or
noise occurs.
The remote control
does not work.
No sound from
microphone connected
to DVD player
(karaoke).
There is no DTS audio
output.
Sound is not heard
when playing DVD
audio.
Sound stops.
(“F61 ” appears on
the display for about 1
second.)
When this system detects
some abnormality, the
protection circuit is
activated and turns off the
system automatically.
•
•
Pages
11
Select the correct source.
14
Turn the muting off.
21
Check that the digital signals can be decoded by this system.
23
5,
Check if the cords and connectors are correctly connected to
11 to 13
speakers and other equipment.
12
(When the audio is not heard from TV) The optical fibre
or stereo phono cable is necessary to connect with a TV
incompatible with ARC. For details, refer to the operating
instructions for the connected TV.
20
Set “OFF ” for “Setting when the beginning of a CD track is cut”.
—
Turn this system off then on again.
13
Output the test signals of speakers and adjust the speakers.
—
If the connections are normal, this may be a cable-related
problem. Use other cables and make connections again.
If your mobile phone has been put on the system or is being
—
used extremely close to it, keep enough distance in use.
11 to 13
Check if the cable is connected properly.
• Replace the batteries if they are worn.
6
• No sound is output from microphone if this system is digitallyconnected with a DVD player. Make analogue connection.
12
• Set the digital audio output setting on the connected equipment
to Bitstream.
• This may occur due to digital copyright protection of the disc if
using digital connection. This system may not be able to play
sources with sampling frequency of over 48 kHz.
—
• Amplifier output is abnormal.
• Straining of the speakers through excessive volume or power.
• This may occur if you use the system in an extremely hot
environment.
• Curtains or other objects may be blocking the exhaust hole.
D Determine and correct the cause, then turn the system on
again. (The protection circuit is reset.)
(Consult your dealer if the problem persists.)
—
—
—
“F70 ††††” appears
• Turn off the system, unplug the AC mains lead, and consult
on the display.
your dealer.
(“DSP ”, “DAP ” or “HDMI ”
is displayed in † .)
“F76 ” appears on the
display.
• Unplug the AC mains lead, and consult your dealer.
(After displayed, the
system turns off.)
—
—
—
—
When using an HDMI
connection, the first
few seconds of sound
is cut off.
The system does not
work properly.
HDMI
VIERA Link “HDAVI
Control” does not
function properly.
Pages
• Set to Dolby Virtual Speaker, sound mode or Dolby Pro Logic .
15
• With the optical digital connection, you cannot use these
features with LPCM signals with sampling frequency of over
48 kHz. To use these, make the setting to convert the sampling
frequency to 48kHz in the setting such as PCM down sampling
conversion on playback equipment. For details, refer to the
operating Instructions of playback equipment.
• This may occur if you start play from a chapter on a DVD. The
following will correct the problem.
1 Change the digital audio output setting on the connected
equipment from Bitstream to PCM.
2 Set “ON ” for “Setting when the beginning of a CD track is
cut”.
• The system does not work properly if you have connected the
HDMI input and output terminals incorrectly. Turn the system
off, unplug the AC mains lead, and make the connection again.
• Confirm “VIERA Link “HDAVI Control” “OFF/ON” setting” is set
to “CTRL ON ” (When using).
When it is “CTRL OFF ”, change to “CTRL ON ”.
• Check VIERA Link “HDAVI Control” settings of the connected
equipment.
• VIERA Link “HDAVI Control” may not function when you change
the connections for HDMI equipment, insert and remove the
outlet, or during blackout. Do the following operations in this
case.
x Turn on the TV (VIERA) again while all the equipment
connected with HDMI cables is on.
x Cancel the setting to activate the VIERA Link “HDAVI Control”
function of TV (VIERA) and set it again. For details, refer to
the operating instructions for TV (VIERA).
x Connect this system to TV (VIERA) using the HDMI cable,
switch the TV (VIERA) on, unplug this system’s AC mains
lead, and insert it into a household mains socket again.
12, 13
Could watch TV
• When using this system in combination with TV (VIERA) only,
(VIERA) when
connect the HDMI cable to the [HDMI OUT TO TV (ARC)]
installed, but now
terminal.
cannot watch TV.
Even if multi-channel
audio sources,
such as DVD,
• When using VIERA Link “HDAVI Control” with the TV (VIERA)
set to “TV”, change the setting to “Home Cinema”.
Blu-ray disc, are
played back, “SRD”
is not displayed.
This system’s
input automatically
switches to
• After “Switching the input automatically to STB, etc.”, the
“AUX2 - STB ”, but
connection might have been changed. Select “OFF ” once and
sound is not heard.
“SET ” again.
Or unexpected sound
from other equipment
is heard.
—
20
12
19
—
—
—
16, 17
Troubleshooting
and other
information
Cannot use the sound
mode, Dolby Virtual
Speaker or Dolby Pro
Logic .
Possible solution
Troubleshooting guide
Sound field effects
Problem
No sound in surround
mode.
20
25
VQT2R75
Error messages
Display
21
MUTE (Blinking)
• This is always displayed while muting is on.
21
NOT CONDITIONAL
(Scrolling)
• The function you have attempted to operate is not currently
available.
x Dolby Pro Logic is not available for multi-channel signals.
x You cannot use Dolby Pro Logic for multi-channel broad casting
such as digital terrestrial broadcasting (DTTV).
x When the sampling frequency of over 48 kHz is input from the
optical digital input, you cannot use Dolby Virtual Speaker, sound
mode and Dolby Pro Logic .
PCM FIX (Blinking)
• Cancel PCM FIX.
20
• Set the same remote control code for this system and remote
control. When “REMOTE 2 ” is displayed, set the remote control
code to 2 in the operation of “Setting the remote control” for “To
prevent other Panasonic equipment from operating with this
system’s remote control”. When “REMOTE 1 ” is displayed, set
the code to 1 in the operation of “Setting the remote control” in the
same way.
• While “F70 …………” is displayed, all operations but turning ON/OFF
operation are not available.
Turn off the system, unplug the AC mains lead, and consult your
dealer.
21
U701
• The equipment connected by the HDMI cable is not compatible with
this system’s copyright protection technology.
—
U704
• The system received incompatible video signals through HDMI
connection. Check the settings of the connected equipment.
—
—
U703
• A problem has occurred with the HDMI connection. Try the
following to correct the problem. Consult your dealer if the error
code remains on the display.
– Turn the connected equipment off and on again.
– Disconnect the HDMI cable then reconnect it.
– Do not connect more than 2 sets of equipment to this system’s
output.
Error messages
Troubleshooting
and other
information
SWITCH OFF POWER
(Scrolling)
26
Pages
• The test signal is not output while muting is on.
Cancel muting for operation.
REMOTE 2
REMOTE 1
VQT2R75
Check point/Cause/Countermeasure
CANCEL MUTE
FUNCTION
(Scrolling)
15, 23
—
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents
mean that used electrical and electronic products and batteries should not be
mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points, in accordance with your national
legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save
valuable resources and prevent any potential negative effects on human health and
the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries,
please contact your local municipality, your waste disposal service or the point of
sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your
dealer or supplier for further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these
items, please contact your local authorities or dealer and ask for the correct method
of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it
complies with the requirement set by the Directive for the chemical involved.
Cd
27
VQT2R75
CAUTION!
• DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC
SHOCK OR FIRE HAZARD DUE TO OVERHEATING,
ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION
VENTS.
• DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES,
SUCH AS LIGHTED CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN
ENVIRONMENTALLY FRIENDLY MANNER.
The socket outlet shall be installed near the equipment
and easily accessible.
The mains plug of the power supply cord shall remain
readily operable.
To completely disconnect this apparatus from the AC
Mains, disconnect the power supply cord plug from AC
receptacle.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE,
* DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
* USE ONLY THE RECOMMENDED ACCESSORIES.
* DO NOT REMOVE THE COVER (OR BACK); THERE
ARE NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
THIS UNIT IS INTENDED FOR USE IN MODERATE
CLIMATES.
This product may receive radio interference caused by
mobile telephones during use. If such interference is
apparent, please increase separation between the product
and the mobile telephone.
EU
En
Web Site: http://panasonic.net
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
© Panasonic Corporation 2010
VQT2R75
H0110FS0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
