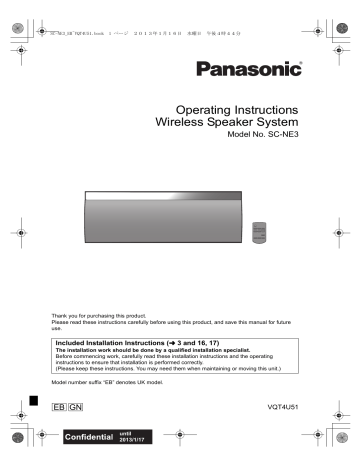

Operating Instructions
Wireless Speaker System
Model No. SC-NE3
Thank you for purchasing this product.
Please read these instructions carefully before using this product, and save this manual for future
use.
Included Installation Instructions (l 3 and 16, 17)
The installation work should be done by a qualified installation specialist.
Before commencing work, carefully read these installation instructions and the operating
instructions to ensure that installation is performed correctly.
(Please keep these instructions. You may need them when maintaining or moving this unit.)
Model number suffix “EB” denotes UK model.
EB GN
VQT4U51
until
2013/1/17
SC-NE3_EB~VQT4U51.book
2 ページ 2013年1月16日 水曜日 午後4時44分
Table of contents
Caution for AC Mains Lead
Caution for AC Mains Lead.............................. 2
Safety precautions............................................ 3
Accessories....................................................... 4
About Bluetooth® .............................................. 4
Control reference guide ................................... 5
Connections ...................................................... 6
Network settings............................................... 7
Using AirPlay with this unit’s speakers........ 10
Playing back music files on
the DLNA server ...........................................11
Bluetooth® operations .................................... 12
Sound adjustment .......................................... 13
Others .............................................................. 13
Troubleshooting.............................................. 15
Attaching the unit to a wall (optional)........... 16
Specifications ................................................. 18
Unit care .......................................................... 18
Licenses .......................................................... 18
Limited Warranty
(ONLY FOR AUSTRALIA) ............................ 19
(For the AC mains plug of three pins)
About descriptions in these operating
instructions
≥ Pages to be referred to are indicated as “l ±±”.
≥ Unless otherwise indicated, operations are
described using the remote control.
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 5-ampere and
that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on the
body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from your
local dealer.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of
AC mains plug (figures A and B). Confirm the AC
mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure B
Figure A
Fuse cover
AndroidTM, Google PlayTM, Google ChromeTM browser are
trademarks or registered trademarks of Google Inc.
2. Replace the fuse and close or attach the fuse cover.
Figure A
Figure B
Fuse
(5 ampere)
2
VQT4U51
Fuse
(5 ampere)
SC-NE3_EB~VQT4U51.book
3 ページ 2013年1月16日 水曜日 午後4時44分
Safety precautions
WARNING
CAUTION
Unit
≥ To reduce the risk of fire, electric shock or product damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases, on
this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
– Do not let metal objects fall inside this unit.
– Do not place heavy items on this unit.
AC mains lead
≥ To reduce the risk of fire, electric shock or product damage,
– Ensure that the power supply voltage corresponds to the
voltage printed on this unit.
– Insert the mains plug fully into the socket outlet.
– Do not pull, bend, or place heavy items on the lead.
– Do not handle the plug with wet hands.
– Hold onto the mains plug body when disconnecting the plug.
– Do not use a damaged mains plug or socket outlet.
≥ The mains plug is the disconnecting device.
Install this unit so that the mains plug can be unplugged from
the socket outlet immediately.
Button-type battery (Lithium battery)
≥ Risk of fire, explosion and burns. Do not recharge,
disassemble, heat above 60 xC or incinerate.
≥ Keep the Button-Type battery out of the reach of children.
Never put Button-Type battery in mouth. If swallowed call
your doctor.
Unit
≥ Do not place sources of naked flames, such as lighted
candles, on this unit.
≥ This unit may receive radio interference caused by mobile
telephones during use. If such interference occurs, please
increase separation between this unit and the mobile
telephone.
≥ This unit is intended for use in moderate climates.
Placement
≥ Place this unit on an even surface.
≥ To reduce the risk of fire, electric shock or product damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
– Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
– Do not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive vibration.
Button-type battery (Lithium battery)
≥ Danger of explosion if battery is incorrectly replaced. Replace
only with the type recommended by the manufacturer.
≥ Insert with poles aligned.
≥ Mishandling of batteries can cause electrolyte leakage and
may cause a fire.
– Remove the battery if you do not intend to use the remote
control for a long period of time. Store in a cool, dark
place.
– Do not heat or expose to flame.
– Do not leave the battery(ies) in a car exposed to direct sunlight
for a long period of time with doors and windows closed.
≥ When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of disposal.
Product Identification Marking is located on the bottom of the unit.
[For[the[United[Kingdom[and[Ireland[
1731
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Customers can download a copy of the original DoC to our R&TTE products from our DoC server:
http://www.doc.panasonic.de
Contact to Authorised Representative: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany
This product is intended for general consumer. (Category 3)
This product on purpose to connect to access point of 2.4 GHz WLAN.
Gaeilge
Dearbhú Comhréireachta (DoC)
Leis seo, dearbhaíonn “Panasonic Corporation” go bhfuil an táirge seo i gcomhréir le riachtanais riachtanacha agus forálacha
ábhartha eile den Treoir 1999/5/EC.
Féadfaidh custaiméirí coip dár nDearbhú Comhréireachta (DoC) bunaidh dár dtáirgí R&TTE ónár bhfreastalaí um Dhearbhú
Comhréireachta (DoC):
http://www.doc.panasonic.de
Mionsonraí Teagmhála Ionadaí Údaraithe: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, An Ghearmáin
Tá an táirge seo ceaptha don ghnáth-thomhaltóir. (Catagóir 3)
Tá an táirge seo ceaptha chun nascadh le pointe rochtana de 2,4 GHz WLAN.
3
VQT4U51
SC-NE3_EB~VQT4U51.book
4 ページ 2013年1月16日 水曜日 午後4時44分
Accessories
Check the supplied accessories before using this unit.
∏ 1 Remote control (with a battery)
(N2QAYC000091)
∏ [For[the[United[Kingdom[and[Ireland[
1 AC mains lead
(K2CT2YY00097)
∏ [For[Australia[and[New[Zealand[
About Bluetooth®
Panasonic bears no responsibility for data and/
or information that is compromised during a
wireless transmission.
∫ Frequency band used
≥ This unit uses the 2.4 GHz frequency band.
∫ Certification of this device
∏ 1 Screw
(XTB3+8JFJK-J)
≥ This system conforms to frequency restrictions and
has received certification based on frequency laws.
Thus, a wireless permit is not necessary.
≥ The actions below are punishable by law in some
countries:
– Taking apart or modifying the unit.
– Removing specification indications.
∏ 1 Safety holder
(RGQ0660-K)
∫ Restrictions of use
1 AC mains lead
(K2CJ2YY00093)
Wall mounting accessories
∏ 2 Wall mount brackets
(RMQX1082-S)
≥ Do not use AC mains lead with other equipment.
≥ Product numbers provided in these operating instructions are
correct as of January 2013. These may be subject to
change.
[For[the[United[Kingdom[and[Ireland[
Sales and Support Information
Customer Communications Centre
≥ For customers within the UK: 0844 844 3899
≥ For customers within Ireland: 01 289 8333
≥ Monday–Friday 9:00 am – 5:00 pm
(Excluding public holidays).
≥ For further support on your product, please visit
our website: www.panasonic.co.uk
Direct Sales at Panasonic UK
≥ Order accessory and consumable items for your
product with ease and confidence by phoning our
Customer Communications Centre
Monday–Friday 9:00 am – 5:00 pm
(Excluding public holidays).
≥ Or go on line through our Internet Accessory
ordering application at www.pas-europe.com.
≥ Most major credit and debit cards accepted.
≥ All enquiries transactions and distribution facilities
are provided directly by Panasonic UK.
≥ It couldn’t be simpler!
≥ Also available through our Internet is direct
shopping for a wide range of finished products.
Take a browse on our website for further details.
4
VQT4U51
≥ Wireless transmission and/or usage with all
Bluetooth® equipped devices is not guaranteed.
≥ All devices must conform to standards set by
Bluetooth SIG, Inc.
≥ Depending on the specifications and settings of a
device, it can fail to connect or some operations can
be different.
≥ This system supports Bluetooth® security features.
But depending on the operating environment and/or
settings, this security is possibly not sufficient.
Transmit data wirelessly to this system with caution.
≥ This system cannot transmit data to a Bluetooth®
device.
∫ Range of use
≥ Use this device at a maximum range of 10 m. The
range can decrease depending on the environment,
obstacles or interference.
∫ Interference from other devices
≥ This unit may not function properly and troubles such
as noise and sound jumps may arise due to radio
wave interference if this unit is located too close to
other Bluetooth® devices or the devices that use the
2.4 GHz band.
≥ This unit may not function properly if radio waves
from a nearby broadcasting station, etc. is too
strong.
∫ Intended usage
≥ This unit is for normal, general use only.
≥ Do not use this system near an equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals,
laboratories, etc).
SC-NE3_EB~VQT4U51.book
5 ページ 2013年1月16日 水曜日 午後4時44分
Control reference guide
Top view
1
− VOLUME +
4
SOUND
2
SETUP
5
1 4 9
5
PLAY MENU
3
6
7
10 11

12
1
Standby/on switch [Í/I] ([Í])
Press to switch the unit from on to standby mode or vice
versa.
In standby mode, the unit is still consuming a small amount
of power.
2
3
4
5
6
7
Enter sound menu
Enter setup menu
Select Bluetooth®/AUX
Adjust the volume (0 (min) to 50 (max))
Enter the Bluetooth® menu/
Change the sound input level of the external device
(l 6)/
Select the playback mode for AirPlay (l 11)
Mute the sound
Mutes the sound. Press again to cancel. “MUTE” is also
cancelled when the volume is adjusted or the unit is turned
off.
8
9
10
11
Selection/OK
WPS pairing button (l 8)
Display
Remote control signal sensor
OK

8
∫ Before using for the first time
Remove the insulation sheet A.
∫ To replace a button-type battery
Battery type: CR2025 (Lithium battery)
1
2
≥ Set the button-type battery with its (i) mark
facing upward.
≥ Keep the button-type battery out of reach of
children to prevent swallowing.
Distance: Within approx. 7 m directly in front.
≥ To avoid interference, please do not put any objects in
front of signal sensor.
12 Wi-Fi® status indicator
5
VQT4U51
SC-NE3_EB~VQT4U51.book
6 ページ 2013年1月16日 水曜日 午後4時44分
Connections
モヤチリワ
Connect the AC mains lead.
This unit consumes a small amount of AC power (l 18) even when turned off.
≥ In the interest of power conservation, if you will not be using this unit for an extended period of
time, unplug it from the household mains socket.
To household mains socket
AC mains lead (supplied)
[For[the[United[Kingdom[and[Ireland[
READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 2 BEFORE CONNECTION.
≥ These speakers do not have magnetic shielding. Do not place them near a television, personal computer or other devices easily
influenced by magnetism.
≥ When this unit is turned on for the first time after purchase, a message prompting you to connect a Bluetooth® device
(“PAIRING”) is displayed. (l 12)
Additional Connection
モヤチリワ
Connect an external music device (for AUX mode).
1 Plug the audio cable (not supplied) into the AUX jack.
Plug type: ‰3.5 mm stereo
2 Press [ , AUX] to select “AUX” and start playback on the
connected device.
Audio cable (not supplied)
∫ To select the sound input level of the external device
1 While in “AUX” mode, press [PLAY MENU] repeatedly to select “INPUT LEVEL” and then press [OK].
2 Press [3, 4] to select “NORMAL” or “HIGH”.
≥ The default setting is “NORMAL”.
6
≥ Switch the equalizer off or turn the volume of the external device down to reduce the input signal. High level of input signal will
distort the sound.
≥ For details, refer to the instruction manual of the other equipment.
≥ The cables and the devices are not supplied.
VQT4U51
SC-NE3_EB~VQT4U51.book
7 ページ 2013年1月16日 水曜日 午後4時44分
Network settings
You can wirelessly stream music from an iOS device
(iPhone, iPod, iPad), an Android device or a Mac/PC to
this unit’s speakers by using the AirPlay or DLNA
feature.
To use these features, this unit must join the same
2.4 GHz wireless network as the AirPlay compatible
device or the DLNA compatible device.
Preparation
≥ Place this unit close to the wireless network router.
1
2
Turn this unit on.
Follow the chart below to choose the network
setting method.
≥ It is also possible to use AirPlay without a wireless network
router. (l 10, “Directly streaming to this unit (AirPlay)”)
Does your wireless network router
support WPS?
Yes
No / Do not know
l 8,
“Method 1”
∫ Compatible AirPlay devices
iOS 4.3.3 or later
Are you using an iPod touch/iPhone/iPad,
or an Android device?
iPod touch
3rd, 4th, and 5th generation
iPhone 5 / iPhone 4S / iPhone 4 / iPhone 3GS
Yes
iPad (3rd, and 4th generation) / iPad 2 / iPad
No
iPad mini
iTunes 10.2.2 or later (Mac / PC)
l 8,
“Method 2”
(as of January 2013)
l 8,
“Method 3”
≥ If you want to apply the advanced setting,
or you want to perform wireless setting with your
Mac/PC, try “Method 3” on page 8.
≥ To cancel this setting in the middle, press [Í] to turn off the
unit.
≥ Simultaneous use with other 2.4 GHz devices, such as
microwaves, cordless telephones, etc., may result in
connection interruptions.
≥ For up to date compatibility information on your wireless
network router refer to
http://panasonic.jp/support/global/cs/
(This site is in English only.)
7
VQT4U51
SC-NE3_EB~VQT4U51.book
8 ページ 2013年1月16日 水曜日 午後4時44分
∫ Note for the iOS version
Method 1
If your wireless network router supports WPS
(Wi-Fi Protected SetupTM).
∫ Using the WPS Push Button
Configuration (PBC)
The WPS identifier mark
WPS Push Button Configuration
(PBC) compatible wireless network
router may have this mark.
1
Press and hold [– WPS] on the unit.
{. “WPS” flashes on the display.
(The Wi-Fi status indicator blinks blue.)
≥ Complete step 2 within 2 mins.
2
3
≥ “ _ ” stands for a digit that is unique to each set.
4
When a message indicating the completion of the
connection to this unit is displayed, restart the app.
5
When a message indicating the completion of the
Wi-Fi setup of this unit is displayed, close the app,
and then check the operation of AirPlay, etc.
After “WPS” is indicated, press the WPS button on
the wireless network router.
The unit’s settings are completed when
“SUCCESS” is displayed and the Wi-Fi status
indicator stops blinking and lights in blue.
“FAIL” may be displayed if the connection was not
made within the set time limit. Try the setting again.
If “FAIL” is still displayed, try other methods.
4
After step 2
1 Enter the password for the home wireless network
to which the iOS device is connected.
2 When a message instructing you to connect the
iOS device to this unit is displayed, press the
home button to close the app.
3 On the Wi-Fi network selection screen in
“Settings”, select “00 Setup _ _ _ _ _ _”.
Press [OK] on the remote control to exit the
setting.
≥ “Panasonic Stereo System Network Setup” for Mac OS is
also available at the App Store.
≥ To use the WPS PIN code, refer to the notes on page 9.
Method 2
Setting the network connection with the smartphone
app
You can make the wireless network settings with the
app, “Panasonic Stereo System Network Setup” (for
free).
If you’re using an Android device, download the app at
the Google Play Store. If you’re using an iPod touch/
iPhone/iPad, download it at the App Store.
Preparation
≥ Connect your smartphone to your home wireless
network.
≥ Check the password for your home wireless network.
1
Press [SETUP] on the remote control repeatedly
to select “NET SETUP” and then press [OK].
{. “SETTING” is indicated on the display.
(The Wi-Fi status indicator blinks purple.)
2
8
VQT4U51
Start “Panasonic Stereo System Network
Setup” on your smartphone and follow the
indications.
Method 3
Setting the network connection from an Internet
browser.
With this method, you will access this unit’s wireless
network settings from the Internet browser of your
compatible device.
≥ The following explanations are based on an iPhone.
1
Press [SETUP] on the remote control repeatedly
to select “NET SETUP” and then press [OK].
{. “SETTING” is indicated on the display.
(The Wi-Fi status indicator blinks purple.)
2
After “SETTING” is indicated, connect your
compatible device to this unit’s wireless network
named “00 Setup _ _ _ _ _ _”.
≥ “ _ ” stands for a digit that is unique to each set.
≥ Make sure that DHCP is enabled for the network setting
on your compatible device.
SC-NE3_EB~VQT4U51.book
3
9 ページ 2013年1月16日 水曜日 午後4時44分
Start the Internet browser on your compatible
device and type “http://192.168.1.12/” into the
URL address field and display the page.
Advanced network settings
≥ The below settings are the alternative or additional settings
for “Method 3”. (l 8)
Alternative settings
{. This unit’s setup window is displayed.
≥ Examples of Internet browsers
iOS device/Mac : Safari
Android device : Google Chrome browser
PC : Windows Internet Explorer
4
Select “Search wireless network”.
Instead of steps 4 and 5
Select “Manual settings”.
1 Type your home wireless network name into
the “Network name (SSID)” field.
2 Select the encryption method from the
“Security system” drop down list.
3 Type the password into the “Password” field
and then select “JOIN”.
Additional settings
If your home wireless network has been configured
to use specific IP Addresses, Subnet Mask, Default
Gateway, Primary DNS, etc.
Before step 6
Select “Advanced network settings”.
5
Select and input the details.
≥ Check your home wireless network name
(Network name (SSID)) and password for this
network. This can often be found on the wireless
network router itself.
{. Input the required addresses into each field and select
“JOIN”.
≥ To change the settings back to DHCP, select “ON” from the
“DHCP” drop down list.
If you want to change the name of this unit that is
displayed as the AirPlay speakers or DLNA renderer.
Before step 4
Select “Additional settings”.
1 Select “Edit STEREO SYSTEM name”.
2 Type a new name into the
“STEREO SYSTEM name” field.
{. Only ASCII characters can be used.
[1] Select your home wireless network
name.*1
[2] Type the password.
6
Select “JOIN” to apply the settings.
≥ In the pop-up screen, select “OK” to continue.
– Select “Cancel” to return to the setup window.
7
The unit’s settings are completed when
“SUCCESS” is displayed and the Wi-Fi status
indicator stops blinking and lights in blue.
If “FAIL” is displayed press [OK], check the wireless
network password and other settings and start again
from step 1.
8
Make sure to connect your compatible device back
to your home wireless network.
3
4
Select “OK”.
If this unit is already connected to your home
wireless network:
– Select “Additional settings” and then select
“Exit”.
If this unit is not connected to your home
wireless network:
– Continue to step 4 of “Method 3”.
≥ Enable Java and Cookies in your browser settings.
≥ This unit can also be set using the WPS PIN code.
Replace step 2 of “Method 1” with the following steps.
(Before starting, refer to the wireless network router’s
operating instructions for details on how to enter the PIN
code.)
1
While “WPS” is flashing press and hold [– WPS] again
to display the 8 digit PIN code.
{. Wi-Fi status indicator blinks purple.
2
Enter the PIN code into the wireless network router.
*1: If you have set your wireless network to be invisible, select
“BACK” and refer to “Alternative settings”.
9
VQT4U51
SC-NE3_EB~VQT4U51.book
10 ページ 2013年1月16日 水曜日 午後4時44分
Using AirPlay with this unit’s
speakers
Preparation
≥ Complete the network settings. (l 7)
≥ Connect the iOS device or Mac/PC to the same
home wireless network as this unit.
1
2
3
Turn the unit on.
≥ Check that the Wi-Fi status indicator lights in
blue.
≥ If it doesn’t light in blue, check the wireless
network settings. (l 7)
iOS device: Start the “Music” (or iPod) app.
Mac/PC: Start “iTunes”.
≥ If the Music app on your iOS device is used, select the
audio file you want to play.
Select “Panasonic NE3 _ _ _ _ _ _”*1, 2 from the
AirPlay
icon.
{. Check the volume settings before starting the playback.
(When AirPlay is used for the first time, the volume may
be output at the maximum setting.)
e.g., iPhone iOS 6.0.1
Directly streaming to this unit
(AirPlay)
With this function set to “ON”, you can stream music
from the iOS device or Mac / PC (iTunes 10.2.2 or
later) to this unit without the need of a wireless network
router.
≥ Previous network settings will be deleted when this
function is set to “ON”.
≥ The following explanations are based on an iPhone.
1
2
3
Press [SETUP] repeatedly to select
“D.CONNECT”.
Press [3, 4] to select “ON” and then press [OK].
Press [3, 4] to select “OK? YES” and then press
[OK].
“PW _ _ _ _ _ ”*1 is displayed.
The 5 digits after “PW” is the password for this
network.
4
Connect your iPhone to this unit’s wireless
network named “NE3 _ _ _ _ _ _”*2.
NE3
5
e.g., iTunes 11.0
6
Enter the password that is indicated on this unit’s
display.
Once the iPhone is connected to this unit’s
wireless network, the setup is competed.
NE3
4
Start play.
≥ The playback will start with a slight delay.
10
≥ This unit can be set to turn on automatically when this unit is
selected as the output speakers. (l 13)
≥ Playback of other audio sources will stop and AirPlay output
will have priority.
≥ Volume changes on the iOS device or iTunes will be applied
to this unit. (Refer to the iTunes Help for the required settings
in iTunes.)
≥ With some iOS and iTunes versions, it may not be possible
to restart the AirPlay playback if the selector is changed
(e.g., “AUX”) or the unit is turned off, during the AirPlay
playback.
In this case, select a different device from the AirPlay icon of
the Music App or iTunes and then re-select this unit as the
output speakers.
≥ AirPlay will not work when playing back videos on iTunes.
*1: “ _ ” stands for a digit that is unique to each set.
*2: The name that is displayed for this unit can be changed
from the “Edit STEREO SYSTEM name” settings.
(l 9, “Advanced network settings”)
VQT4U51
7
Continue to step 2 of “Using AirPlay with this unit’s
speakers”.
≥ This setting is reset to “OFF” when other network settings are
performed. (l 7)
≥ When “D.CONNECT” is set to “ON”, this unit will not be
connected to the Internet. It is not possible to update the
software or check the Wi-Fi signal strength.
≥ When AirPlay is not being used, disconnect the AirPlay
compatible device from this network.
≥ When using a computer on this network, make sure that all
the shared files are encrypted.
≥ This feature is only compatible with the “Open System”
authentication method. It is not compatible with “Shared Key”
authentication method.
*1: “ _ ” stands for a digit.
*2: “ _ ” stands for a digit that is unique to each set.
SC-NE3_EB~VQT4U51.book
11 ページ 2013年1月16日 水曜日 午後4時44分
Display the password
The first time “D.CONNECT” is set to “ON”, a
password for this unit’s wireless network is randomly
created and memorised in this unit.
≥ This password is memorised until it is changed.
1
2
3
4
While “D.CONNECT” is set to “ON”:
Press [SETUP] repeatedly to select
“D.CONNECT”.
Press [3, 4] to select “ON” and then press [OK].
The current password is displayed.
≥ The 5 digits after “PW” is the password for this
network.
Press any button to exit.
Change the password
1
2
3
4
5
While “D.CONNECT” is set to “OFF”:
Press [SETUP] repeatedly to select
“D.CONNECT”.
Press [3, 4] to select “CHANGE PW” and then
press [OK].
Press [3, 4] to select “OK? YES” and then press
[OK].
The new password is displayed.
≥ The 5 digits after “PW” is the new password for
this network.
Press any button to exit.
∫ Note about changing the password
After changing this unit’s wireless network password, if
you are not prompted to change the password on the
other devices, the following changes are required.
Playback modes
Select the playback mode. Perform the settings during
playback.
REPEAT
1 Press [PLAY MENU] to select “REPEAT”.
2 Press [3, 4] to repeat one track, all tracks, etc.
SHUFFLE
1 Press [PLAY MENU] to select “SHUFFLE”.
2 Press [3, 4] to turn on/off the shuffle function.
≥ Refer to the connected device to verify the selected setting.
≥ The applied settings will remain until it is changed.
Playing back music files on the
DLNA server
You can share music files stored in the DLNA Certified
media server (PC with Windows 7 installed,
smartphone, etc.) connected to your home wireless
network, and enjoy the contents with this unit’s
speaker.
Preparation
≥ Complete the network settings. (l 7)
≥ Connect your device with DMC (Digital Media
Controller) compatible software installed to the
same home wireless network as this unit.
≥ Add the contents and folder to the libraries of the
Windows Media® Player or the smartphone, etc.
– Playlist of Windows Media® Player can play back
only the contents that are stored in the libraries.
1
iOS device (iPod touch/iPhone/iPad)*1:
≥ Before choosing this unit’s network,
1
2
3
Select [ ] located beside this unit’s wireless
network name.
Select “Forget this Network” and then select
“Forget”.
Select this unit’s wireless network and enter the
new password.
Mac/PC:
≥ If the computer has memorised the old password, be
sure to change the memorised password for this
unit’s wireless network to the new one.
≥ Refer to the devices’s operating instructions for details.
*1: Steps are based on iOS 6.0.1.
2
Turn the unit on.
≥ Check that the Wi-Fi status indicator lights in
blue.
≥ If it doesn’t light in blue, check the wireless
network settings. (l 7)
Operate the DMC compatible device and connect
to this unit.
≥ The device name of this unit will be displayed as
“Panasonic NE3 _ _ _ _ _ _”*1, 2.
≥ For details on how to use DMC compatible
devices, refer to the operating instructions of the
devices or the software.
∫ Support format of DLNA client
File formats that are not supported by your DLNA
server cannot be played.
Audio codec
MP3
WAV
Example of file extension
.mp3
.wav
≥ Depending on the contents and the connected equipment,
playback may not be possible.
*1: “ _ ” stands for a digit that is unique to each set.
*2: The name that is displayed for this unit can be changed
from the “Edit STEREO SYSTEM name” settings.
(l 9, “Advanced network settings”)
11
VQT4U51
SC-NE3_EB~VQT4U51.book
12 ページ 2013年1月16日 水曜日 午後4時44分
Bluetooth® operations
By using the Bluetooth® connection, you can listen to the sound from the Bluetooth® audio device from this unit
wirelessly.
≥ Refer to the operating instructions of the Bluetooth® device for details.
Pairing Bluetooth® devices
Preparation
≥ Turn on the Bluetooth® feature of the device and
place the device near this unit.
≥ If this unit is already connected to a Bluetooth®
device, disconnect it.
1
Press [
, AUX] to select “BLUETOOTH”.
≥ If “PAIRING” is indicated on the display, go to step 3.
2
3
4
Press [PLAY MENU] to select “NEW DEV.” and
then press [OK].
{. “PAIRING” is indicated on the display.
Bluetooth® transmission mode
You can change the transmission speed to prioritize
transmission quality or sound quality.
Preparation
≥ Press [ , AUX] to select “BLUETOOTH”.
≥ If a Bluetooth® device is already connected,
disconnect it.
1
2
Select “SC-NE3” from the Bluetooth® device’s
Bluetooth® menu.
≥ The default setting is “MODE 1”.
≥ If prompted for the passkey, input “0000”.
≥ You can register up to 8 devices with this unit. If a 9th device
is paired, the device that has not been used for the longest
time will be replaced.
Connecting a paired Bluetooth®
device
Preparation
≥ Turn on the Bluetooth® feature of the device and
place the device near this unit.
≥ If this unit is already connected to a Bluetooth®
device, disconnect it.
2
3
Press [
If the sound input level of the Bluetooth® transmission
is too low, change the input level setting.
Preparation
≥ Connect a Bluetooth® device.
1
2
, AUX] to select “BLUETOOTH”.
Press [PLAY MENU] repeatedly to select “INPUT
LEVEL”.
Press [3, 4] to select the level and then press
[OK].
“LEVEL 0” ,. “LEVEL +1” ,. “LEVEL +2”
^---------------------------------------------------------J
Select “SC-NE3” from the Bluetooth® device’s
Bluetooth® menu.
{. The name of the connected device is indicated on the
display for 2 seconds.
≥ Select “LEVEL 0” if the sound is distorted.
≥ The default setting is “LEVEL 0”.
Start play on the Bluetooth® device.
≥ This unit can only be connected to one device at a time.
≥ When “BLUETOOTH” is selected as the source, this unit will
automatically try and connect to the last connected
Bluetooth® device.
≥ The Bluetooth® device will be disconnected if “AUX” is
selected as an audio source.
VQT4U51
Bluetooth® input level
{. “READY” is indicated on the display.
12
Press [3, 4] to select the mode and then press
[OK].
MODE 1: Emphasis on connectivity
MODE 2: Emphasis on sound quality
Start play on the Bluetooth® device.
1
Press [PLAY MENU] repeatedly to select
“LINK MODE”.
Disconnecting a Bluetooth® device
1
2
While a Bluetooth® device is connected:
Press [PLAY MENU] to select “DISCONNECT?”.
Press [3, 4] to select “OK? YES” and then press
[OK].
SC-NE3_EB~VQT4U51.book
13 ページ 2013年1月16日 水曜日 午後4時44分
Sound adjustment
The following sound effects can be added to the audio
output.
1
2
Press [SOUND] repeatedly to select the effect.
Press [3, 4] to select the setting and then press
[OK].
Direct-Vocal
Surround
(D.SURROUND)
“LEVEL 1”, “LEVEL 2” or
“OFF”.
Preset EQ
(PRESET EQ)
“HEAVY” (heavy), “SOFT”
(soft), “CLEAR” (clear),
“VOCAL” (vocal) or “FLAT”
(flat/off).
≥ The factory preset is “OFF”.
Automatic standby
As a factory preset, this unit will always turn off
automatically if there is no sound output and no
operation for approx. 30 minutes.
To cancel this function
1
2
Press [SETUP] repeatedly to select “AUTO OFF”.
Press [3, 4] to select “OFF” and then press [OK].
≥ To turn automatic standby on, select “ON” in step 2.
≥ When connected to a Bluetooth® device, the automatic
standby function does not work.
Wi-Fi signal strength
≥ The factory preset is “HEAVY”.
Bass (BASS) or
Treble (TREBLE)
Adjust the level (j4 to i4).
To check the Wi-Fi signal strength where the unit is
located.
Dynamic Bass
(D.BASS)
“ON D.BASS” or
“OFF D.BASS”.
Preparation
Connect this unit to the wireless network. (l 7)
≥ The factory preset is
“ON D.BASS”.
≥ You may experience a reduction in sound quality when these
effects are used with some sources. If this occurs, turn the
sound effects off.
Others
Sleep timer
The sleep timer can turn the unit off after a set time.
1
2
Press [SETUP] to select “SLEEP”.
Press [3, 4] to set the time (in minutes) and then
press [OK].
“SLEEP 30” ,. “SLEEP 60” ,. “SLEEP 90” ,. “SLEEP 120”
^---------------------. “OFF” (Cancel) (----------------------J
≥ The remaining time is indicated on the unit’s display except
when other operations are performed.
Display brightness
The brightness of this unit’s display can be changed.
1
2
Press [SETUP] repeatedly to select “DIMMER”.
Press [3, 4] to select “ON” and then press [OK].
≥ To cancel the dimmer, select “OFF” in step 2.
1
2
Press [SETUP] repeatedly to select “SIG.LEVEL”
and then press [OK].
≥ The unit’s display shows “LEVEL ”.
(“  ” stands for a number.)
Press [OK] to exit this display mode.
≥ It is recommended to have a signal strength of “3”. Change
the position or angle of your wireless network router or the
unit if the indication is “2” or “1” and see if the connection
improves.
≥ If “LEVEL 0” is displayed, this unit cannot establish a link with
the wireless network router. (l 16)
≥ This function does not work when “D.CONNECT” is set to
“ON”.
Network standby
This unit can turn on automatically from standby mode
when this unit is selected as the AirPlay speakers.
Preparation
Connect this unit to the wireless network. (l 7)
1
2
Press [SETUP] repeatedly to select “NET STNBY”
and then press [OK].
Press [3, 4] to select “ON” and then press [OK].
≥ To cancel this function, select “OFF” in step 2.
≥ The factory preset is “OFF”. If this function is set to “ON” the
standby power consumption will increase.
13
VQT4U51
SC-NE3_EB~VQT4U51.book
14 ページ 2013年1月16日 水曜日 午後4時44分
Software update
Occasionally, Panasonic may release updated
software for this unit that may add or improve the way
a feature operates. These updates are available free of
charge.
Preparation
≥ Turn the unit on.
≥ Connect this unit to the wireless network. (l 7)
– Make sure that the wireless network is connected
to the Internet.
– If “D.CONNECT” is set to “ON”, change the setting
to “OFF” and connect this unit to a wireless
network that is connected to the Internet.
1
2
Press [SETUP] repeatedly to select
“SW UPDATE” and then press [OK].
Press [3, 4] to select “UPDATE? Y” and then
press [OK] to start the update.
DO NOT DISCONNECT the AC mains lead while
one of the following messages is displayed.
Wireless network name (SSID)
Display the name for the connected wireless network
(SSID).
1
2
4
When the update has finished successfully,
“SUCCESS” is displayed.
Disconnect the AC mains lead and reconnect it
after 3 minutes.
≥ Downloading will require several minutes. It may take
longer or may not work properly depending on the
connection environment.
Press [OK] to exit.
≥ If “NOCONNECT” is displayed this unit is not connected to a
wireless network.
≥ All letters are displayed as capital letters, and characters that
cannot be displayed are replaced with “¢”.
IP/MAC Address
To check the unit’s IP address or the Wi-Fi MAC
address.
1
– “LINKING”, “UPDATING” or “%”
(“  ” stands for a number.)
≥ During the update process, no other operations can be
performed.
3
Press and hold [– WPS] on the unit and [OK] on
the remote control until the unit's display shows
the SSID.
Press and hold [– WPS] on the unit and [4] on the
remote control until the unit’s display shows the IP
address.
{. The IP address is partially displayed.
≥ To display the MAC address on the unit, repeat the
steps above by replacing [4] with [3].
2
Press [3, 4] on the remote control to show the
rest of the IP address.
≥ To exit the setting, wait 20 sec.
≥ The “ – ” displayed on the top or bottom left of the display
indicate the first and last units respectively.
≥ If you do not want to update the unit, select “UPDATE? N”
and then press [OK] in step 2.
≥ If there are no updates, “NO NEED” is displayed after step 2.
∫ Checking the software version
1
2
Press [SETUP] repeatedly to select “SW VER.” and then
press [OK].
{. The version of the installed software is displayed.
Press [OK] to exit.
Changing the unit and remote
control code
When other Panasonic equipment responds to the
supplied remote control, change the remote control
code.
1
2
3
Press [
, AUX] to select “AUX”.
While pressing and holding [ / AUX] on the unit,
press and hold [SOUND] on the remote control
until the unit’s display shows “REMOTE 2”.
Press and hold [OK] and [SOUND] on the remote
control for at least 4 seconds.
≥ To change the mode back to “REMOTE 1”, repeat the steps
above but replace the button pressed on the remote control
from [SOUND] to [ , AUX].
14
VQT4U51
SC-NE3_EB~VQT4U51.book
15 ページ 2013年1月16日 水曜日 午後4時44分
Troubleshooting
Before requesting service, make the following checks.
If you are in doubt about some of the check points, or if
the solutions indicated in the following guide do not
solve the problem, consult your dealer for instructions.
To return all settings to the factory preset
When the following situations occur, reset the
memory:
≥ There is no response when buttons are pressed.
≥ You want to clear and reset the memory contents.
1 Disconnect the AC mains lead. (Wait for at least
3 minutes before proceeding to step 2.)
2 While pressing and holding down [Í/I] on the
unit, reconnect the AC mains lead.
≥ Keep holding down [Í/I] until “--------” appears
on the display.
3 Release [Í/I].
≥ All the settings are returned to the factory preset. You will
need to reset the memory items.
Playback does not start.
The sound is interrupted.
≥ Simultaneous use with other 2.4 GHz devices, such as
microwaves, cordless telephones, etc., may result in connection
interruptions.
Increase the distance between this unit and these devices.
≥ Do not place this unit inside a metal cabinet, for it might block the
Wi-Fi signal.
≥ Place this unit closer to the wireless network router.
≥ If “D.CONNECT” is set to “ON”, place the AirPlay compatible
device closer to this unit.
≥ If several wireless devices are simultaneously using the same
wireless network as this unit, try turning off the other devices or
reducing their wireless network usage.
≥ If the playback stops, check the playback status on the iOS device
or iTunes.
≥ If play does not start (even though the Wi-Fi status indicator lights
in blue and the AirPlay
icon is displayed), restart the wireless
network router, turn the Wi-Fi connection on the iOS device or
Mac/PC off and on, and then make sure that your home wireless
network is selected.
≥ If the AirPlay
icon is not displayed even if Wi-Fi status
indicator lights in blue, try restarting the wireless network router.
≥ With some iOS and iTunes versions, it may not be possible to
restart the AirPlay playback if the selector is changed (e.g.,
“AUX”) or the unit is turned off, during the AirPlay playback.
In this case, select a different device from the AirPlay icon of the
Music App or iTunes and then re-select this unit as the output
speakers. (l 10)
Do you have the latest software installed?
≥ Occasionally, Panasonic may release updated software for this
unit that may add or improve the way a feature operates. (l 14)
Bluetooth®
Pairing cannot be done.
Common problems
Humming heard during play.
≥ An AC mains lead or fluorescent light is near the cords. Keep
other appliances and cords away from this unit’s cables.
AirPlay operations
Cannot connect to the network.
≥ Confirm the network connection and settings. (l 7)
≥ Your wireless network might be set to be invisible. In this case
select “Manual settings” in “Method 3”. (l 9)
≥ This unit cannot join a wireless network using WEP security
settings with the WPS methods (“Method 1”). Use “Method 3” to
join the wireless network. (l 8)
≥ Make sure that the multicast function on the wireless network
router is set to on (enabled).
≥ When “D.CONNECT” is used, if the password for "D.CONNECT"
has been changed connect the other device to this unit using the
new password. (l 10)
Cannot connect to the unit.
≥ Display the wireless network name that this unit is connected to
and make sure that the device is connected to the same network.
(l 7, 14)
≥ If “NET STNBY” is set to “OFF”, the AirPlay compatible device
cannot be connected when this unit is off.
≥ Turn off the Wi-Fi setting on the AirPlay compatible device, set
“NET STNBY” to “OFF” (l 13) and then turn this unit off and on.
Reconnect the compatible device to the Wi-Fi network and then
select this unit as the AirPlay speakers again.
≥ Check the Bluetooth® device condition.
The device cannot be connected.
≥ The pairing of the device was unsuccessful or the registration has
been replaced. Try pairing the device again.
≥ This unit might be connected to a different device. Disconnect the
other device and try pairing the device again.
The device is connected but audio cannot be heard
through this unit.
≥ For some built-in Bluetooth® devices, you have to set the audio
output to “SC-NE3” manually. Read the operating instructions for
the device for details.
The sound is interrupted.
≥ The device is out of the 10 m communication range. Bring the
Bluetooth® device closer to this unit.
≥ Remove any obstacle between this unit and the device.
≥ Other devices that use the 2.4 GHz frequency band (wireless
router, microwaves, cordless phones, etc.) are interfering. Bring
the Bluetooth® device closer to this unit and distance it from the
other devices.
≥ Select “MODE 1” for stable communication. (l 12)
Remote control
The remote control doesn’t work properly.
≥ The remote control and this unit are using a different code.
(l right, “REMOTE ”)
≥ Is the battery depleted or is the battery inserted incorrectly? (l 5)
My wireless network router is WPS PBC
compatible, but the pairing does not work.
≥ If the network is set to be invisible, the push button configuration
does not work. In this case, either make the wireless network
visible while you set up the network for this unit or use “Method 2”
or “Method 3”. (l 8)
15
VQT4U51
SC-NE3_EB~VQT4U51.book
16 ページ 2013年1月16日 水曜日 午後4時44分
Messages
The following messages or service numbers may
appear on the unit’s display.
“AUTO OFF”
≥ The unit has been left unused for about 30 minutes and will shut
down within a minute. Press any button to cancel it.
“DL ERROR”
≥ The software download has failed. Press any button to exit.
Please try again later.
≥ The server cannot be found. Press any button to exit. Make sure
that the wireless network is connected to the Internet.
“ERROR”
≥ Incorrect operation is performed. Read the instructions and try
again.
“F ” (“  ” stands for a number.)
≥ There is a problem with this unit.
Note down the displayed number, disconnect the AC mains lead
and consult your dealer.
“FAIL”
≥ Updating or setting has failed. Read the instructions and try again.
“LEVEL 0”
≥ There is no link between this unit and the wireless network router.
Try the following operations:
– Check that the wireless network router is turned on.
– Turn this unit off and on again.
– Reset the wireless network settings. (l 7)
If the problem persists, consult your dealer.
“LEVEL j”
≥ When “D.CONNECT” is set to “ON” the Wi-Fi signal strength
cannot be checked. To check the Wi-Fi signal strength from the
wireless network router, set “D.CONNECT” to “OFF”. (l 10)
Attaching the unit to a wall
(optional)
This unit can be wall mounted using the supplied wall
mount brackets, etc. Make sure that the screw used
and the wall are strong enough to support the weight of
at least 33 kg.
The screws and other items are not supplied as the
type and size will vary with each installation.
≥ Refer to step 2 of “Wall mount instructions” for details
about the required screws.
≥ Be sure to attach the fall prevention cord as a
secondary safety measure.
Installation accessories
∫ Supplied accessories
≥ 1 Safety holder
≥ 1 Screw
≥ 2 Wall mount brackets
∫ Additionally required accessories
(commercially available)
≥
≥
≥
≥
4 Wall mount bracket fixing screws
1 Safety holder fixing screw
1 Fall prevention cord*
1 Screw eye
* Use a cord that is capable of supporting over 33 kg
(with a diameter of about 1.5 mm).
≥ Keep the safety holder out of reach of children to
prevent swallowing.
≥ Keep the screws out of reach of children to prevent
swallowing.
≥ Keep the wall mount brackets out of reach of children
to prevent swallowing.
Safety precautions
“LINKING”
≥ This unit is communicating with the wireless network router
to complete the network settings.
Depending on the wireless network router this process may
take a few minutes. Try moving this unit closer to the wireless
network router.
“NOCONNECT”
≥ This unit is not connected to the network.
Check the network connection. (l 7)
“REMOTE ” (“  ” stands for a number.)
≥ The remote control and this unit are using different codes. Change
the code on the remote control.
– When “REMOTE 1” is displayed, press and hold [OK] and
[ , AUX] for more than 4 seconds.
– When “REMOTE 2” is displayed, press and hold [OK] and
[SOUND] for more than 4 seconds.
16
VQT4U51
Professional installation is required.
The installation should never be done by any
other than a qualified installation specialist.
PANASONIC DISCLAIMS ANY PROPERTY
DAMAGE AND/OR SERIOUS INJURY,
INCLUDING DEATH RESULTING FROM
IMPROPER INSTALLATION OR INCORRECT
HANDLING.
≥ Be sure to install this unit as indicated within
these operating instructions.
SC-NE3_EB~VQT4U51.book
17 ページ 2013年1月16日 水曜日 午後4時44分
4
Wall mount instructions
Attach the fall prevention cord (not supplied) to this
unit.
Before installation, turn the unit off and disconnect the
AC mains lead from the mains socket.
1
Cord
(not supplied)
Measure and mark the position of the wall mount
brackets (Both sides).
{. Use figures below to identify the screwing positions.
The position to attach the wall mount brackets
5
12.5 mm
Hook the unit securely onto the wall mount
brackets with both hands.
≥ Connect the AC mains lead to the unit before hanging
the unit onto the wall. (l 6)
≥ After hanging the unit, release your hands carefully to
confirm the unit sits securely on the wall.
252 mm
Space required
82 mm
300 mm
Wall
67 mm
83 mm
122 mm
252 mm
169 mm
319 mm
6
570 mm
≥ Refer to step 2 for requirements before screwing.
770 mm
2
Drive the safety holder fixing screw (not supplied)
to secure the safety holder onto the wall.
Safety holder
Attach the wall mount bracket to the wall with 2
screws (not supplied). (Both sides)
≥ Use a level to ensure both wall mount brackets are level.
Fixed to the wall
At least 30 mm
Safety holder fixing screw
(not supplied)
‰7.5 mm to
‰9.4 mm
‰4 mm
Wall mount bracket
7
Attach the fall prevention cord (not supplied) to the
wall.
≥ Make sure that the slack of the cord is minimal.
3
Fix the safety holder onto the unit with the screw
(supplied).
{. Screw tightening torque: 50 N0cm to 70 N0cm.
Screw eye
(not supplied)
Cord (not supplied)
Wall
Screw
(supplied)
17
VQT4U51
SC-NE3_EB~VQT4U51.book
18 ページ 2013年1月16日 水曜日 午後4時44分
Specifications
Unit care
∫ GENERAL
Pull out the AC mains lead from the outlet before
maintenance.
Power consumption
14 W
Power consumption in standby mode
Approx. 0.2 W
Power consumption in standby mode
(With “NET STNBY” set to “ON”)
Approx. 4.0 W
Power supply
AC 220 V to 240 V, 50 Hz
∫ Clean this unit with a soft, dry cloth
Dimensions (WkHkD)
570 mmk206 mmk100 mm
Mass
Approx. 2.8 kg
Operating temperature range
0 oC to r40 oC
Operating humidity range
35 % to 80 % RH (no condensation)
∫ AMPLIFIER SECTION
RMS Output Power Stereo mode
Front Ch (both ch driven)
20 W per channel (6 ≠), 1 kHz, 10 % THD
Total RMS Stereo mode power
40 W
≥ When dirt is heavy, wring a cloth moistened in water tightly to
wipe the dirt, and then wipe it with a dry cloth.
≥ Never use alcohol, paint thinner or benzine to clean this unit.
≥ Before using chemically treated cloth, carefully read the
instructions that came with the cloth.
∫ To dispose or transfer this unit
The unit may keep the user settings information in the
unit. If you discard this unit either by disposal or
transfer, then follow the procedure to return all the
settings to the factory presets to delete the user
settings.
(l 15, “To return all settings to the factory preset”)
≥ The operation history may be recorded in the
memory of this unit.
Licenses
∫ SPEAKER SECTION
Type
2 way, 2 speaker system (Bass reflex)
Speaker unit(s)
1. Woofer
8 cmk1 per channel
2. Tweeter
2.5 cmk1 per channel
Impedance
6≠
Output sound pressure
83.5 dB/W (1 m)
Frequency range
52 Hz to 25 kHz (s16 dB),
75 Hz to 22 kHz (s10 dB)
AirPlay, the AirPlay logo, iPad, iPhone, iPod, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other
countries.
∫ Wi-Fi/AirPlay SECTION
Wi-Fi
WLAN Standards
IEEE802.11b/g
Frequency range
2.4 GHz band
Security
WEP (64 bit/128 bit), WPATM, WPA2TM
WPS version
Version 2.0 (WEP not support)
∫ BLUETOOTH SECTION
Version
Bluetooth® Ver.2.1 +EDR
Output
Communication distance
Communication method
Correspondence profile
Class 2 (2.5 mW)
About 10 m*
2.4 GHz band FH-SS
A2DP
* Prospective communication distance
Measurement environment:
Temperature 25 oC / Height 1 m
Measure in “MODE 1”
∫ TERMINALS SECTION
AUX Terminal
Stereo, ‰3.5 mm jack
18
≥ Specifications are subject to change without notice.
Mass and dimensions are approximate.
≥ Total harmonic distortion is measured by a digital spectrum
analyzer.
VQT4U51
The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi
Alliance.
The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance.
“Wi-Fi”, “Wi-Fi Protected Setup”, “WPA” and “WPA2” are marks
or registered marks of the Wi-Fi Alliance.
MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.
The Bluetooth® word mark and logos are owned by the Bluetooth
SIG, Inc. and any use of such marks by Panasonic Corporation is
under license.
Other trademarks and trade names are those of their respective
owners.
Windows is a trademark or a registered trademark of Microsoft
Corporation in the United States and other countries.
SC-NE3_EB~VQT4U51.book
19 ページ 2013年1月16日 水曜日 午後4時44分
Limited Warranty (ONLY FOR AUSTRALIA)
Panasonic Warranty
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its
Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of
Panasonic, the product is found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised
Distributors or Dealers and only where the products are used and serviced within Australia or it's territories. Warranty cover only
applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when
warranty service is requested.
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations (as
noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal
domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation,
accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm
activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations),
introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the
product, exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Cabinet Part(s)
(e) DVD, Blu-ray or Recordable Discs
(b) Video or Audio Tapes
(f) Video / Audio Heads from wear and tear in normal use
(c) SD cards or USB devices
(g) Information stored on Hard Disk Drive, USB stick or SD card
(d) User replaceable Batteries
(h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)
etc
5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover
(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) The use of incompatible software or software not specifically stipulated in the product operations manual;
and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet or
any other device.
6. To claim warranty service, when required, you should:
Telephone Panasonic’s Customer Care Centre on 132600 or visit our website referred to below and use the Service Centre
Locator for the name/address of the nearest Authorised Service Centre.
Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of
purchase date. Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be arranged
by you.
Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the
normal operating areas of the nearest Authorised Service Centres:
Plasma/LCD televisions / displays (screen size greater than 103 cm)
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other
ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement of and
do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation,
de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however,
coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone
our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the
Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have
the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are
also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a
major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by
contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair
or replace the product and will do so in a reasonable period of time from receiving notice from you.
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
If you require assistance regarding warranty conditions or any other enquiries, please visit the Panasonic Australia
website www.panasonic.com.au or contact by phone on 132 600
If phoning in, please ensure you have your operating instructions available.
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
PRO-031-F11 Issue: 4.0
01-01-2011
19
VQT4U51
SC-NE3_EB~VQT4U51.book
20 ページ 2013年1月16日 水曜日 午後4時44分
Information for Users on Collection and Disposal of Old Equipment and used
Batteries
These symbols on the products, packaging, and/or accompanying documents
mean that used electrical and electronic products and batteries should not be mixed
with general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points, in accordance with your national
legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save
valuable resources and prevent any potential negative effects on human health and
the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries,
please contact your local municipality, your waste disposal service or the point of
sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your
dealer or supplier for further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these
items, please contact your local authorities or dealer and ask for the correct method
of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it
complies with the requirement set by the Directive for the chemical involved.
Cd
EU
EU
Pursuant to the applicable EU legislation
Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Corporation
Web Site: http://panasonic.net
C Panasonic Corporation 2013
p
VQT4U51
F0113BM0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
