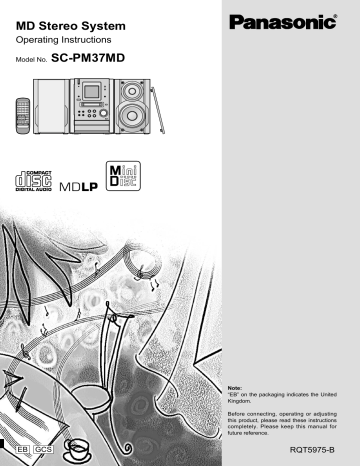

MD Stereo System
Operating Instructions
Model No.
SC-PM37MD
Note:
“EB” on the packaging indicates the United
Kingdom.
Before connecting, operating or adjusting
this product, please read these instructions
completely. Please keep this manual for
future reference.
EB GCS
RQT5975-B
Dear customer
Supplied accessories
Before use
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions
carefully.
These operating instructions are applicable to the following system.
System
SC-PM37MD
Main unit
SA-PM37MD
Speakers
SB-PM37
Please check and identify the supplied
accessories.
AC mains lead .................................................................1 pc.
For the United Kingdom
For others
(VJA0733)
(RJA0019-2K)
CD and MD sections
Right side of the product
Remote control ...............................................................1 pc.
(EUR648109)
Remote control batteries .............................................2 pcs.
CLASS 1
LASER PRODUCT
DANGER
INVISIBLE LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURE TO BEAM.
(Inside of product)
ADVARSEL
USYNLIG LASERSTRÅLING VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE
ER UDE AF FUNKTION. UNDGÅ UDSÆTTELSE FOR STRÅLING.
(Indersiden at apparatet)
VARO!
AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTÖNTÄ LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
(Tuotteen sisällä)
VARNING
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH
SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN.
(Apparatens insida)
ADVARSEL
USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES OG SIKKERHEDSLÅS
BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN.
(Produktets innside)
VORSICHT
UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET.
NICHT DEM STRAHL AUSSETZEN.
RQLS0218
(Im Inneren des Gerätes)
FM indoor antenna .........................................................1 pc.
For the United Kingdom
For others
(RSA0007-L)
(RSA0006-L)
FM antenna plug adaptor ...............................................1 pc.
(Only for the United Kingdom)
(SJP9009)
AM loop antenna.............................................................1 pc.
(RSA0033)
CAUTION!
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS
OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
RQT5975
Use the numbers indicated in parentheses when asking for replacement
parts.
2
Table of contents
Safety precautions
Before use
Placement
Listening operations
MDs .........................................................................................12
CDs..........................................................................................13
Other MD and CD functions ..................................................14
Cassette tapes .......................................................................16
The radio: manual tuning ......................................................18
The radio: preset tuning........................................................19
Recording operations
Before recording ....................................................................20
Recording CDs .......................................................................22
Recording the radio ...............................................................27
Recording cassette tapes on MDs .......................................28
Recording MDs on cassette tapes .......................................28
Recording selected tracks ....................................................28
MD editing operations
Using the MD group feature..................................................29
Moving tracks–MOVE ............................................................32
Combining tracks–COMBINE................................................33
Dividing tracks–DIVIDE .........................................................34
Erasing tracks and creating blank discs .............................35
Titling discs and tracks .........................................................36
Other operations
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These conditions
can damage the cabinet and other components, thereby shortening the
unit’s service life.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit and
cause a fire.
Do not use a DC power source. Check the source carefully when setting
the unit up on a ship or other place where DC is used.
Before use
Safety precautions...................................................................3
Caution for AC Mains Lead .....................................................4
Connections .............................................................................5
The remote control ..................................................................7
Opening the flap on top of the unit ........................................7
Control reference guide ..........................................................8
Demo and display mode .........................................................9
Switching the display ..............................................................9
Using headphones...................................................................9
Setting the time ......................................................................10
Auto power-off .......................................................................10
Some useful information about MDs and CDs....................11
AC mains lead protection
Ensure the AC mains lead is connected correctly and not damaged. Poor
connection and lead damage can cause fire or electric shock. Do not
pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC mains
lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric shock
or malfunction.
Do not let liquids get into the unit. This can cause electric shock or
malfunction. If this occurs, immediately disconnect the unit from the
power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain flammable
gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is interrupted,
indicators fail to light, smoke appears, or any other problem that is not
covered in these instructions occurs, disconnect the AC mains lead and
contact your dealer or an authorized service center. Electric shock or
damage to the unit can occur if the unit is repaired, disassembled or
reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power source if it
is not to be used for a long time.
Changing the sound quality..................................................40
Using the timers.....................................................................41
Using the unit with a computer ............................................44
Using other equipment..........................................................47
References
RQT5975
Specifications ........................................................................49
Displays ..................................................................................50
Troubleshooting guide ..........................................................50
Maintenance ............................................................Back cover
3
Caution for AC Mains Lead
(For United Kingdom)
(“EB” area code model only)
Before use
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for
your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is approved
by ASTA or BSI to BS 1362.
Check for the ASTA mark
or the BSI mark
on the body of
the fuse.
If the plug contains a removable fuse cover you must ensure that it
is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local dealer.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH
TERMINAL WHICH IS MARKED WITH THE LETTER E, BY
THE EARTH SYMBOL
OR COLOURED GREEN OR
GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF–KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains
plug (figures A and B). Confirm the AC mains plug fitted and follow
the instructions below. Illustrations may differ from actual AC mains
plug.
1. Open the fuse cover with a screwdriver.
Figure A
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE
SOCKET OUTLET IN YOUR HOME THEN THE FUSE
SHOULD BE REMOVED AND THE PLUG CUT OFF AND
DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF
THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE
SOCKET.
If a new plug is to be fitted please observe the wiring code as stated
below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with the
following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the
terminal which is marked with the letter L or coloured Brown or Red.
Figure B
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
Figure A
Fuse
(5 ampere)
Figure B
RQT5975
Fuse
(5 ampere)
4
Connections
Placement of speakers
For better sound
¡ Position the speakers 5 cm or more from the floor and wall.
¡ Put them on a flat, stable surface.
¡ Cover walls and windows with thick curtains.
Caution
¡ Use the speakers only with the recommended system.
Failure to do so may lead to damage to the amplifier and/or the
speakers, and may result in the risk of fire.
Consult a qualified service person if damage has occurred or if
you experience a sudden change in performance.
¡ Do not attach these speakers to walls or ceilings.
Note
Note
¡ Keep your speakers at least 1 cm away from the system for proper
ventilation.
¡ These speakers do not have magnetic shielding. Keep at least 10 cm
away from televisions, personal computers or other devices easily
influenced by magnetism.
¡ To avoid damage to the speakers, do not touch the speakers cones if
you have taken the nets off.
¡ You can damage your speakers and shorten their useful life if you play
sound at high levels over extended periods.
¡ Reduce the volume in the following cases to avoid damage
– When playing distorted sound.
– When the speakers are receiving howling from a microphone or
record player, noise from FM broadcasts, or continuous signals
from an oscillator, test disc, or electronic instrument.
– When adjusting the sound quality.
– When turning the unit on or off.
Before use
Speakers are designed identically so that no left or right channel
orientation is necessary.
Basic connections
Adhesive tape
Before connection
¡ Do not connect the AC mains lead until all other
connections are complete.
¡ To prepare the AM loop antenna, the FM antenna
(except for the United Kingdom) and speaker
cables, twist the vinyl tip and pull off.
1
(Right)
(Left)
2
AM ANT
EXT
LOOP
FM ANT
75 Ω
AC IN
4
(FOR THE UNITED KINGDOM ONLY)
READ THE CAUTION FOR THE AC MAINS
LEAD ON PAGE 4 BEFORE CONNECTION.
37)
RS (SB-PM
SPEAKE
Note
+
–
–
+
The included AC mains lead is for use with this unit
only. Do not use it with other equipment.
L
HIGH (6 Ω)
To household mains
socket
FM antenna
Fix the other end of the antenna where
reception is best.
For the United Kingdom
AM ANT
LOOP
LOOP
75 Ω
GND
75 Ω
FM ANT
AM loop antenna
Stand the antenna up on its base.
Keep loose antenna cord away from other
wires and cords.
For the United Kingdom
AM ANT
EXT
LOOP
FM ANT
75 Ω
For others
AM ANT
EXT
LOOP
GND
75 Ω
FM ANT
Speaker cables
Connect the cables to the
terminals of the same colour so
(+) and (–) are correct. Never
allow the exposed wires to
contact each other when
connected. Incorrect connection
can damage the unit.
The grey and blue cords are for
high frequency and the red and
black cords are for low
frequency.
AM ANT
EXT
FM ANT
3
For others
EXT
2
LOW (6 Ω)
4
L
L
R
HIGH (6 Ω)
R
LOW (6 Ω)
Black Red
Grey Blue
Connect the AC mains lead.
Insertion of connector
Even when the connector is perfectly inserted,
depending on the type of inlet used, the front part of
the connector may jut out as shown in the drawing.
However there is no problem using the unit.
HIGH (6 Ω)
LOW (6 Ω)
Appliance inlet
Connector
Approx. 6mm
For your reference
Information you enter into the unit’s memory, except for time, remains intact for up to
one week after the mains lead is disconnected.
RQT5975
1
3
R
5
A
Connections
Record player, etc.
Back of the unit
External unit connections
R L
¡ Turn off all units before making connections.
¡ Refer to the manual of the other unit for details.
(Cables and equipment not included.)
AUX
R L
Before use
Stereo phono cable
B
Satellite receiver, etc.
Back of the unit
OPT DIGITAL
OUT
A
OPT DIGITAL
IN
Connecting a record player or television
By connecting a record player or television to this unit, you can play
audio from these units through this unit’s speakers and record to the MD
and tape sections.
The example in the illustration shows connection of a record player with
a built-in phono equalizer.
When connecting a record player other than this type, consult your audio
dealer.
Optical fiber cable
C
White (L)
Red (R)
B
Portable MD player
ES
Headphone jack
USB
P-M
D PHON
Connection cable
(Plug type: 3.5 mm stereo)
Connecting digital equipment
You can play audio from digital equipment through this unit’s speakers
and record to the MD and tape sections.
Remove the dust cap before use.
Use an optical fiber cable to connect digital equipment to OPT DIGITAL
IN. This connection enables you to make digital recordings. Use analog
connection to make analog recordings.
When OPT DIGITAL IN is not in use
Replace the dust cap to prevent dust from causing malfunction.
C
D
FM outdoor antenna
Connecting a portable MD player
You can make analog recordings from a portable MD player.
Open the flap on top of the unit (a page 7) and connect this unit to the
headphone jack on the portable MD player.
Note
Do not put the portable MD player on top of this unit when recording.
This can cause noise.
75 Ω coaxial cable
See pages 47 and 48 for details about operating other equipment.
For the United Kingdom
Optional antenna connections
AM ANT
EXT
Use outdoor antennas if radio reception is poor.
LOOP
FM ANT
Use the antenna plug adaptor
(included).
75 Ω
;;
;;
;; ;;
;; ;;
;;
AM ANT
EXT
LOOP
RQT5975
GND
6
75 Ω
FM ANT
q
w
15 mm
e
FM outdoor antenna
¡ Disconnect the FM indoor antenna.
¡ The antenna should be installed by a competent technician.
30 mm
For others
D
Shield braid
Core wire
Connections
For the United Kingdom
5–12 m
For others
AM outdoor antenna
AM ANT
AM ANT
EXT
EXT
LOOP
LOOP
FM ANT
GND
75 Ω
5–12 m
A
AM outdoor antenna
Run a piece of vinyl wire horizontally across a window or other
convenient location.
Leave the loop antenna connected.
Note
¡ Disconnect the antenna when the unit is not in use.
¡ Do not use the antenna during an electrical storm.
75 Ω
FM ANT
B
The remote control
Before use
A
3
1
B Batteries
¡ Insert so the poles (+ and –) match those in the remote control.
¡ Do not use rechargeable type batteries.
2
Do not;
R6/AA/UM-3
C
¡ mix old and new batteries.
¡ use different types at the same time.
¡ heat or expose to flame.
¡ take apart or short circuit.
¡ attempt to recharge alkaline or manganese batteries.
¡ use batteries if the covering has been peeled off.
¡ keep together with metallic objects such as necklaces.
Mishandling of batteries can cause electrolyte leakage which can
damage items the fluid contacts and may cause a fire.
If electrolyte leaks from the batteries, consult your dealer.
Wash thoroughly with water if electrolyte comes in contact with any part
of your body.
Remote control
signal sensor
Remove if the remote control is not going to be used for a long period of
time. Store in a cool, dark place.
Replace if the unit does not respond to the remote control even when
held close to the front panel.
Transmission window
C Use
Aim at the sensor, avoiding obstacles, at a maximum range of 7 meters
directly in front of the unit.
¡ Keep the transmission window and the unit’s sensor free from dust.
¡ Operation can be affected by strong light sources, such as direct
sunlight, and the glass doors on cabinets.
Push
PUSH
OPEN
Do not;
¡ put heavy objects on the remote control.
¡ take the remote control apart.
¡ spill liquids onto the remote control.
D
Opening the flap on top of the unit
Open the flap to use the USB, P-MD, and PHONES jacks.
Close the flap when you are not using it to keep dust out.
ES
USB
D
P-M
PHON
RQT5975
D
7
A
Control reference guide
1
11
A Main unit
ES
USB
P-MD
PHON
2
12
Before use
N
OPE
13
3
/I
4
CD TAPE
AC IN
14
AUTO REC
5
CD MD
MD REC
MODE
LIGHT
6
7
– DEMO
15
–DUAL
HI-SPEED
8
16
EJECT
VOLUME
9
USB/EXT-IN
STOP
REW/
/
/
17
MD /
CD /
TAPE
TUNER/BAMD
DOWN
/FF
UP
18
OPEN/CLOSE
q P-MD terminal (P-MD) .......................................................................6
w USB terminal (USB).........................................................................44
e Standby/on switch (8)...................................................................12
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
r AC supply indicator (AC IN)
This indicator lights when the unit is connected to the AC mains
supply.
t Display
y Display and light mode/demonstration button
(LIGHT –DEMO) .................................................................................9
u Remote control signal sensor..........................................................7
i MD slot
o Main operating buttons
!0 CD tray
!1 Headphone jack (PHONES) ..............................................................9
!2 Cassette holder
!3 Cassette holder open button (OPEN ;) ........................................16
!4 Auto record buttons (* AUTO REC, CD q MD, CD q TAPE) ......23
!5 SP/LP2/LP4 recording mode select/high-speed recording mode
button (MD REC MODE –DUAL HI-SPEED).............................20, 25
!6 MD eject button (EJECT ;) ............................................................12
!7 Volume control (VOLUME) .............................................................12
!8 CD tray open/close button (OPEN/CLOSE ;)...............................13
10
B Remote control
!9
@0
@1
@2
@3
@4
@5
B
28
19
SLEEP
CLOCK/
– AUTO OFF TIMER
20
21
22
23
TITLE
CHARA
ENTER
DISPLAY
EDIT MODE
ABC
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
EXT-IN
24
REC
/
PLAY/
REC
/ FF
0
32
SPACE !"#
10
DELETE
33
STOP/
CANCEL
/
MD
CD
/
/
TAPE
29
30
31
PLAYMODE
34
TUNER PROGRAM
BAND
35
MD REC MODE SOUND THEATER S. MUTING
RQT5975
25
26
27
8
36
VOLUME
@6
@7
@8
@9
#0
#1
#2
#3
#4
#5
#6
Sleep/auto off button (SLEEP –AUTO OFF)............................10, 43
Standby/on button (^).....................................................................10
Character select button (CHARA)..................................................37
Title edit button (TITLE) ..................................................................36
Numbered, text buttons ......................................................14, 19, 37
Main operating buttons
SP/LP2/LP4 recording mode select button
(MD REC MODE) ..............................................................................24
Sound quality buttons (SOUND and THEATER S.) ......................40
Volume buttons (–, + VOLUME) ...............................................12, 40
Clock/timer button (CLOCK/TIMER) ........................................10, 41
Play/record timer button (z PLAY/z REC) ...................................41
Enter button (ENTER) .....................................................................29
Display select button (DISPLAY) .........................................9, 18, 20
Edit mode button (EDIT MODE) ...............................................20, 29
Delete button (DELETE)..................................................................37
Play mode button (PLAY MODE) .......................................15, 16, 18
Program button (PROGRAM) ...................................................14, 19
Muting button (MUTING).................................................................40
A
A
/I
Demo and display mode
CD TAPE
AC IN
Turning the demo function off
AUTO REC
CD MD
MD REC
MODE
LIGHT
LIGHT –DEMO
– DEMO
If you do not set the clock and the demo function is left on, then 10
seconds after you turn the unit off, a demonstration of the unit’s display
starts.
This function is set to on at the time of purchase.
–DUAL
HI-SPEED
EJECT
VOLUME
STOP
REW/
/
/
MD /
CD /
TAPE
TUNER/BAMD
DOWN
/FF
UP
OPEN/CLOSE
Press and hold [LIGHT –DEMO] until “DEMO OFF” is
displayed.
The display changes each time the button is held down.
DEMO OFF (off) ! DEMO ON (on)
Note
To save power during standby mode, turn the demo function off or set
the clock.
LIGHT
Before use
USB/EXT-IN
Changing the display and light mode
You can change the brightness of the display and turn the side lights on
or off by changing the display mode.
– DEMO
Press [LIGHT –DEMO].
B
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
1
GHI
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
Display and light mode
Display brightness
Side lights
2
3
JKL
MNO
SPACE !"#
MODE 1
Bright
On
MODE 2
Bright
Off
MODE 3
Dim
Off
4
5
6
PQRS
TUV
WXYZ
7
8
9
0
/
REW/
/
EXT-IN
REC
The mode changes each time you press the button.
The chart shows the type of display for each mode.
PLAY/
REC
/ FF
MD
CD
/
/
TAPE
DISPLAY
10
DELETE
STOP/
CANCEL
PLAYMODE
TUNER PROGRAM
BAND
/
MD REC MODE SOUND THEATER S. MUTING
B
VOLUME
DISPLAY
Switching the display
Press [DISPLAY].
The display changes each time you press the button.
The information displayed depends on the source.
¡ If you press this button while a title with 13 or more characters is being
displayed, the title will scroll from right to left. The next display is
shown if you press the button while a title is scrolling.
C
C
Headphones
Using headphones (not included)
Open the flap on top of the unit (\ page 7).
Reduce the volume before connection.
ES
D
USB
P-M
N
PHO
Avoid listening for prolonged periods of time to prevent hearing damage.
Plug type: 3.5 mm stereo
RQT5975
Top of the unit
9
A
A
B
1
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
CHARA
ABC
SLEEP –AUTO OFF
DISPLAY
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
/ FF
0
EXT-IN
MD
REC
TAPE
Before use
/
/
PLAY/
REC
ENTER
DISPLAY
Remote control only
This is a 24-hour clock.
The example shows how to set the clock for 16:25 (4:25 pm).
SPACE !"#
10
DELETE
STOP/
CANCEL
/
CD
2,4
Setting the time
PLAYMODE
/
TUNER PROGRAM
3
1
2
Press [^] to turn the unit on.
Press [CLOCK/TIMER] to display “CLOCK”.
Each time you press the button:
CLOCK / z PLAY / z REC / Original display
BAND
,
MD REC MODE SOUND THEATER S. MUTING
VOLUME
3
Within 10 seconds
Press [u/2 REW/
time.
] or [1/i
/FF] to set the
Press and hold to change the time faster.
4
A
Press [CLOCK/TIMER].
The time is set and the original display is restored.
1
Displaying the clock
Press [CLOCK/TIMER].
The clock is shown for about 10 seconds.
Or
Press [DISPLAY] until the clock is shown (\ page 9).
The clock is shown until you change the display again.
Note
2
CLOCK/
TIMER
The clock can gain or lose about one minute a month. Reset it regularly
to maintain accuracy.
B
3
REW/
/
Auto power-off
/ FF
Remote control only
/
When “MD”, “CD” or “TAPE” is selected as the source
To save power, the unit turns off if it is left unused for 10 minutes.
This function does not work if the source is tuner, AUX, P-MD, USB or
OPT IN.
Press and hold [SLEEP –AUTO OFF].
4
B
“AUTO OFF” is displayed.
CLOCK/
TIMER
To cancel
Press and hold [SLEEP –AUTO OFF] to clear “AUTO OFF” from
the display.
SLEEP
–AUTO OFF
RQT5975
AUTO OFF
10
For your reference
¡ The setting is maintained even if the unit is turned off. When the unit is
turned on again, the unit functions as described above.
¡ If you select any source other than “MD”, “CD” or “TAPE”, “AUTO
OFF” goes out. It comes on again when you select “MD”, “CD” or
“TAPE”.
Some useful information about MDs and CDs
Types of MDs
Glossary of terms
Analog
This is the method that phonographic records and cassettes use to
handle sound signals.
Shutter
Prerecorded MDs
These discs are for
playback only.
Recording MDs
Apart from the time limitations, it is
possible to record up to 254 tracks on an
MD.
Recording on MDs
MDs are different to tapes
MDs give you control over how tracks are recorded and editing functions
allow you to change the contents of an MD after recording.
Unlike cassettes, you do not need to find an empty space to start
recording as all recordings start from the first available space. When the
MD fills up, you can use the editing functions to erase unneeded tracks.
You cannot record over tracks.
Limitations on digital recording
The serial copy management system (SCMS) prevents unlimited
recording of digital material.
Clear, relatively intact, digital recordings can be made when recording a
CD in this unit. So to protect the rights of the producer of the original
material, it is not possible to make a further recording from that MD to
another MD.
Analog recordings are unlimited by this system.
CD
MD
MD
Digital
This is the usual method used by MDs and CDs to carry and record
sound signals. Digital recording can be of very high quality.
Editing
This refers to any post-recording changes made to the MD.
Marking
This is the act of adding track marks. It can be done automatically when
recording, or it can be done manually during recording or after recording
with the editing functions (DIVIDE).
Before use
Sound Cruise
TOC
Table of contents. Information stored on the MD about the tracks and
times.
Track marks
These marks separate tracks. There can be up 254 marks on one MD.
They can be inserted automatically or manually during recording, and
they can be added (DIVIDE) or removed (COMBINE) with the editing
functions after recording.
UTOC
User table of contents. This is information the user can edit, such as text
and track positions.
The message “UTOC Writing” appears on the display after recording and
editing.
Care and storage
Label MDs only as recommended. Extra labels and exposed adhesive
can cause malfunctions.
Do not open the shutter, and close it immediately if it accidentally opens.
Never touch the disc inside the MD cartridge.
Keep your MDs out of direct sunlight, humid and dusty places, and away
from the direct heat of heating appliances.
CD selection and care
(Long Play)
Advances in digital technology have now made it possible to record two
to four times the amount of stereo material on an MD.
Now you can record a maximum of 160 minutes of audio on an
80-minute MD using LP2 recording mode and 320 minutes using LP4
recording mode.
SP: Standard recording mode
LP2: Double the amount of material.
LP4: Four times amount of material.
The three modes can be used on the same MD.
Choose discs with this mark: (a)
Playing CD-R and CD-RW
This unit can play CD-DA (digital audio) format audio CD-R and CD-RW
that have been finalized upon completion of recording.
It may not be able to play some CD-R or CD-RW due to the condition of
the recording.
Finalizing is a process that enables CD-R/CD-RW players to play
audio CD-R and CD-RW.
Move the switch to open the write protect hole. Close the hole when you
want to record or edit the MD again.
Record protected Record enabled
open
closed
Do not;
¡ use irregularly shaped discs. (b)
¡ attach extra labels and stickers.
¡ use discs with labels and stickers that are coming off or with adhesive
exuding from under labels and stickers. (c)
¡ attach scratch-proof covers or any other kind of accessory.
¡ write anything on the CD.
¡ clean CDs with liquids. (Wipe with a soft, dry cloth.)
¡ use CDs printed with label printers available on the market.
Note when recording, editing, and titling
a
These operations are not complete until “UTOC Writing” and the
“ UTOC ” indicator stop flashing on the display. Be careful not to
interrupt the power supply otherwise these operations will not be
completed and the disc itself can be damaged.
b
c
RQT5975
Protecting your recordings
11
1
MDs
23 4
1
/I
AC IN
Press [8].
The unit comes on.
CD TAPE
AUTO REC
2
CD MD
MD REC
MODE
LIGHT
– DEMO
EJECT ;
EJECT
VOLUME
STOP g
USB/EXT-IN
STOP
REW/
/
/
MD /
CD /
TAPE
TUNER/BAMD
DOWN
/FF
Insert the MD.
If “MD” is selected as the source, the message “TOC Reading”
appears on the display, then information about the disc is shown;
total number of tracks, total play time, and any text information on
the disc.
If “MD” is not selected as the source, you can see this information
by pressing [MD q/h] and then [STOP g].
–DUAL
HI-SPEED
UP
3
OPEN/CLOSE
Press [MD q/h] to start play.
“SP” lights if the track was recorded with SP mode.
“LP2” lights if the track was recorded with LP2 mode.
“LP4” lights if the track was recorded with LP4 mode.
4
Listening operations
REW/u/2, 1/i/FF
Adjust the volume.
To stop the disc
Press [STOP g].
1
To pause play
Press [MD q/h]. Press [MD q/h] again to resume play.
Skipping tracks
Press [REW/u/2] (backward) or [1/i/FF] (forward).
Skipping groups (a page 30)
Press and hold [REW/u/2] (backward) or [1/i/FF] (forward) while
stopped.
/I
2
Total number of
tracks
Total play
time
Searching through tracks
During play or pause
Press and hold [REW/u/2] (backward) or [1/i/FF] (forward).
One touch play
When an MD is loaded and the unit is off, press [MD q/h]. The unit
comes on and starts play.
3
Lights if the track was
recorded monaurally
Elapsed play
time
Track number
To eject the MD
Press [EJECT ;].
For your reference
Å When “
” is displayed
There are 16 or more tracks on the disc.
MONO
MD /
When “BLANK DISC” is displayed
You inserted a blank disc.
Relay play
SP
Current mode
4
VOLUME
DOWN
RQT5975
A
12
UP
1
4
7
10
13
2
5
8
11
14
3
6
9
12
15
Plays in the order MD, TAPE, CD.
While stopped
Press and hold [MD q/h] until “RELAY” appears.
To cancel
Press [STOP g].
During relay play
¡ CD and MD repeat modes are canceled (a pages 15 and 31).
¡ CDs and MDs play in the selected play mode (program, random,
1-song or 1-group a pages 14, 15 and 31).
¡ Tape reverse mode switches to “/” if it was set to “$”
(a page 16).
CDs
3 4 1, 2
1
/I
AC IN
Press [OPEN/CLOSE ;] to open the tray.
The unit comes on automatically.
CD TAPE
AUTO REC
2
CD MD
– DEMO
–DUAL
HI-SPEED
EJECT
VOLUME
STOP g
USB/EXT-IN
STOP
REW/
/
/
MD /
CD /
TAPE
TUNER/BAMD
DOWN
/FF
Insert the CD.
Set a CD label up on the tray.
Press [OPEN/CLOSE ;] to close the tray.
If “CD” is selected as the source, the message “TOC Reading”
appears on the display then the total number of tracks and total
play time are displayed.
If “CD” is not selected as the source, you can see this information
by pressing [CD q/h] and then [STOP g].
MD REC
MODE
LIGHT
UP
OPEN/CLOSE
REW/u/2, 1/i/FF
1
2
Press [CD q/h] to start play.
Adjust the volume.
To stop the disc
Press [STOP g].
To pause play
Press [CD q/h]. Press [CD q/h] again to resume play.
OPEN/CLOSE
Skipping tracks
Press [REW/u/2] (backward) or [1/i/FF] (forward).
Label must face upward
Searching through tracks
During play or pause
Press and hold [REW/u/2] (backward) or [1/i/FF] (forward).
OPEN/CLOSE
Total number of tracks
Total play time
Listening operations
3
4
One touch play
When a CD is loaded and the unit is off, press [CD q/h]. The unit comes
on and starts play.
To remove a CD
Press [OPEN/CLOSE ;].
For your reference
Å When “
3
Track number Elapsed play time
” is displayed
There are 16 or more tracks on the disc.
Relay play
Plays in the order CD, MD, TAPE.
While stopped
Press and hold [CD q/h] until “RELAY” appears.
To cancel
Press [STOP g].
During relay play
¡ CD and MD repeat modes are canceled (a pages 15 and 31).
¡ CDs and MDs play in the selected play mode (program, random,
1-song or 1-group a pages 14, 15 and 31).
¡ Tape reverse mode switches to “/” if it was set to “$”
(a page 16).
CD /
VOLUME
DOWN
A
UP
1
4
7
10
13
2
5
8
11
14
3
6
9
12
15
RQT5975
4
13
Other MD and CD functions
A
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
CHARA
ABC
1–0, ≥10
DISPLAY
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REC
Preparation:
Press [q/h MD] or [q/h CD] to select “MD” or “CD” as the source then
press [g STOP/CANCEL].
SPACE !"#
10
DELETE
STOP/
CANCEL
/ FF
0
/
EXT-IN
Remote control only
ENTER
REW/
q/h MD,
q/h CD
PLAY/
REC
g STOP/CANCEL
/
MD
CD
/
/
TAPE
PLAYMODE
You can start play from a selected track.
TUNER PROGRAM
BAND
/
MD REC MODE SOUND THEATER S. MUTING
Select the track with the numbered buttons.
VOLUME
ABC
Listening operations
A Direct play
For tracks numbered 10 and over, press [≥10 SPACE!”#] then the two
digits.
For tracks numbered 100 and over, press [≥10 SPACE!”#] twice then the
three digits (MD only).
e.g. To select track no. 132:
[≥10 SPACE!”#] / [≥10 SPACE!”#] / [1] / [3] / [2]
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
SPACE !"#
10
Selected track Elapsed
number
play time
B Program play
You can select up to 24 tracks to play in the order you choose.
0
1
Press [PROGRAM].
2
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
u/2 REW/
/
EXT-IN
3
REC
/
PLAY/
REC
CHARA
/ FF
0
10
DELETE
STOP/
CANCEL
/
MD
CD
/
/
TAPE
SPACE !"#
PLAYMODE
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
3
2
g STOP/CANCEL
1/i
/FF
1
Programmed
track number
2
To cancel program play
Press [PROGRAM] to clear “PGM” from the display.
Programmed contents will be saved in memory.
¡ To play the program again
q Press [PROGRAM] so “PGM” is displayed.
w Press [q/h MD] or [q/h CD].
ABC
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
/FF]. The track numbers and
To add to the end of the program
Repeat step 2.
Programmed
order
To clear all the tracks
Press [g STOP/CANCEL].
“PGM CLEAR” is displayed and all the tracks are cleared.
“PROGRAM FULL” is displayed
24 tracks have been programmed.
SPACE !"#
10
“– –:– –” is displayed
Total playing time for the tracks is over 249 minutes and 59 seconds.
Tracks can be still programmed and played.
Note
0
Total play time
RQT5975
Do the following while stopped
To check the contents of the program
Press [u/2 REW/
] or [1/i
program positions are displayed in order.
PROGRAM
PGM
3
Press [q/h MD] or [q/h CD].
All the selected tracks are played in the selected order.
VOLUME
1
Enter the track number with the numbered buttons.
For tracks numbered 10 and over, press [≥10 SPACE!”#] then the
two digits.
For tracks numbered 100 and over, press [≥10 SPACE!”#] twice
then the three digits (MD only).
Repeat this step to program the tracks in the required order.
B
14
While stopped
MD
CD
/
/
¡ Skipping is done in the selected order in program play.
¡ You can search only within tracks in CD program mode.
¡ MD editing is not possible while in the program mode.
A
2
3
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
SPACE !"#
10
DELETE
STOP/
CANCEL
/ FF
0
/
2
Other MD and CD functions
1
GHI
/
EXT-IN
MD
REC
TAPE
CD
/
PLAYMODE
/
TUNER PROGRAM
Remote control only
g STOP/CANCEL
1
BAND
/
Preparation:
Press [q/h MD] or [q/h CD] to select “MD” or “CD” as the source then
press [g STOP/CANCEL].
MD REC MODE SOUND THEATER S. MUTING
VOLUME
A Random play
You can play the tracks once each in random order.
1
PLAYMODE
1
While stopped
Press [PLAY MODE] to select “RANDOM”.
Each time you press the button:
Original display / 1-SONG / 1-GROUP / RANDOM
RANDOM
,
CD
/
/
“1-GROUP” appears only if the MD has groups on it.
2
Press [q/h MD] or [q/h CD] to start play.
To cancel
While stopped, press [PLAY MODE] so “RANDOM” goes out.
B
TITLE
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
2
3
JKL
MNO
1
GHI
L
2
3
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
SPACE !"#
10
DELETE
/ FF
0
/
EXT-IN
REC
STOP/
CANCEL
/
MD
CD
/
/
TAPE
Note
¡ You cannot skip to tracks already played in random play.
¡ You can search only within tracks in random play.
¡ MD editing is not possible while in the random mode.
PLAYMODE
TUNER PROGRAM
Listening operations
2
MD
g STOP/CANCEL
1
B 1-song play
BAND
/
Play a selected track.
MD REC MODE SOUND THEATER S. MUTING
VOLUME
1
While stopped
Press [PLAY MODE] to select “1-SONG”.
,
1
Each time you press the button:
Original display / 1-SONG / 1-GROUP / RANDOM
PLAYMODE
“1-GROUP” appears only if the MD has groups on it.
1–SONG
2
2
3
REW/
/ FF
/
/
MD
CD
/
/
3
Press [u/2 REW/
the track.
] or [1/i
/FF] to select
Press [q/h MD] or [q/h CD] to start play.
To cancel
While stopped, press [PLAY MODE] so “1-SONG” goes out.
You can also select the track with the numbered buttons in step 2.
See direct play (a page 14).
Note
MD editing is not possible while in the 1-song mode.
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
q/h MD,
q/h CD
EXT-IN
REC
/
/ FF
0
CD
/
/
TAPE
10
STOP/
CANCEL
PLAYMODE
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
VOLUME
PLAYMODE
Press and hold [PLAY MODE] until “REPEAT ON” appears.
DELETE
/
MD
C Repeat play
SPACE !"#
g STOP/CANCEL
PLAY MODE
To cancel
Press and hold [PLAY MODE] until “REPEAT OFF” appears.
To repeat selected tracks
q Program the tracks (a page 14).
w Press and hold [PLAY MODE] until “REPEAT ON” appears.
To repeat a track
q Select “1-SONG” (a above).
w Press and hold [PLAY MODE] until “REPEAT ON” appears.
To repeat play randomly
q Select “RANDOM” (a above).
w Press and hold [PLAY MODE] until “REPEAT ON” appears.
RQT5975
C
15
Cassette tapes
1
OPE
Press [OPEN ;], insert a cassette with the tape facing
in.
When the button is pressed, the unit comes on automatically.
Make sure the cassette is fully inserted and close the lid by hand.
Play is ready to start from the forward side (“FWD o”).
1
N
2
Press [TAPE 7] to start play.
Each time you press the button:
FWD o ! p REV
“FWD o”: to play the forward side
“p REV”: to play the reverse side
2 3
/I
CD TAPE
AC IN
3
AUTO REC
CD MD
– DEMO
To stop the tape
Press [STOP g].
–DUAL
HI-SPEED
EJECT
VOLUME
A
STOP g
USB/EXT-IN
STOP
REW/
/
/
MD /
DOWN
TAPE
Selecting reverse mode
CD /
/FF
UP
Press [PLAY MODE] on the remote control to select the
reverse mode.
TUNER/BAMD
OPEN/CLOSE
Each time you press the button:
!///$
,
Listening operations
Adjust the volume.
MD REC
MODE
LIGHT
1
! : One side is played.
/ : Both sides are played.
$ : Both sides are played continuously.
OPEN
One touch play
Insert inside
the guides
When a cassette is inserted and the unit is off, press [TAPE 7].
The unit comes on and starts play in the direction last selected.
Forward side
Cassette tape selection and care
The unit can correctly play the following tapes. It identifies the type
automatically.
2
FWD
TAPE
3
VOLUME
DOWN
A
SLEEP
CLOCK/
– AUTO OFF TIMER
CHARA
ABC
DISPLAY
DEF
EDIT MODE
1
2
3
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/ FF
0
EXT-IN
MD
REC
TAPE
RQT5975
/
16
/
PLAY/
REC
ENTER
GHI
/
✓
High position/TYPE 2
✓
Metal position/TYPE 4
✓
¡ Tapes exceeding 100 minutes are thin and can break or get caught in
the mechanism.
¡ Tape slack can get caught up in the mechanism and should be taken
up before the tape is played.
¡ Endless tapes can get caught up in the deck’s moving parts if used
incorrectly. Use tapes appropriate to this unit’s auto-reverse
mechanism.
UP
TITLE
Normal position/TYPE 1
SPACE !"#
10
DELETE
STOP/
CANCEL
/
CD
PLAYMODE
/
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
VOLUME
PLAY MODE
Cassette tapes
REW/u/2, 1/i/FF
A
/I
Fast-forwarding and rewinding
CD TAPE
AC IN
Press [REW/u/2] or [1/i/FF] while the tape is stopped.
AUTO REC
CD MD
To rewind
To fast-forward
[REW/u/2]
[1/i/FF]
MD REC
MODE
LIGHT
– DEMO
–DUAL
HI-SPEED
EJECT
VOLUME
STOP g
USB/EXT-IN
STOP
REW/
/
/
MD /
CD /
TAPE
TUNER/BAMD
DOWN
/FF
TAPE 7
UP
B
Tape program sensor (TPS)
TPS finds the beginning of a track and resumes play from there.
OPEN/CLOSE
Press [REW/u/2] or [1/i/FF] during playback.
Forward
Play starts from the beginning of the next track.
[REW/u/2]: Backward
Play starts from the beginning of the present track.
A
Ç Each press increases the number of tracks skipped, up to a maximum
REW/
/
/
of 9.
/FF
Note
TPS may not operate correctly in the following situations:
¡ If the interval between tracks is less than 4 seconds.
¡ If there is noise between tracks.
¡ If there are silent parts within tracks.
B
Listening operations
[1/i/FF]:
Relay play
C
/
/
Beginning of
the current track
Display –9
Plays in the order TAPE, CD, MD.
While stopped
Press and hold [TAPE 7] until “RELAY” appears.
To cancel
Press [STOP g].
During relay play
¡ CD and MD repeat modes are canceled (a pages 15 and 31).
¡ CDs and MDs play in the selected play mode (program, random,
1-song or 1-group a pages 14, 15 and 31).
¡ Tape reverse mode switches to “/” if it was set to “$”
(a page 16).
/FF
–2
Track before
8 tracks before
Current play position
–1
+1
+2
+9
Next track
9 tracks later
Two tracks later
RQT5975
REW/
17
3
The radio: manual tuning
14
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
/I
AC IN
AUTO REC
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
MD REC
MODE
4
5
6
–DUAL
HI-SPEED
PQRS
TUV
WXYZ
7
8
9
0
/
CD MD
LIGHT
– DEMO
REW/
10
2
DELETE
STOP/
CANCEL
EJECT
EXT-IN
MD
REC
TAPE
/
VOLUME
USB/EXT-IN
STOP
REW/
/
/
MD /
CD /
TAPE
TUNER/BAMD
BAND
MD REC MODE SOUND THEATER S. MUTING
UP
VOLUME
OPEN/CLOSE
Press [PLAY MODE] on the remote control to select
“MANUAL”.
Each time you press the button:
MANUAL ! PRESET
2
PLAYMODE
/
/
DOWN
/FF
CD
TUNER PROGRAM
Press [TUNER/BAND] to select “FM” or “AM”.
The unit comes on automatically.
Each time you press the button:
FM ! AM
DISPLAY
SPACE !"#
/ FF
/
1
PLAY/
REC
CHARA
CD TAPE
PLAY
MODE
3
Press [REW/u/2] or [1/i/FF] to select the
frequency of the required station.
Listening operations
“TUNED” is displayed when a radio station is tuned.
“STEREO” is displayed when a stereo FM broadcast is being
received.
4
1
Auto tuning
Press and hold [REW/u/2] or [1/i/FF] for a moment until the
frequency starts changing rapidly. The unit begins auto tuning, stopping
when it finds a station.
¡ Auto tuning may not function when there is excessive interference.
¡ To cancel auto tuning, press [REW/u/2] or [1/i/FF] once again.
TUNER/BAND
2
Adjust the volume.
PLAYMODE
A
If noise is excessive in FM
Remote control only
Press and hold [PLAY MODE] to display “MONO”.
3
TUNED
REW/
/
/
This mode improves sound quality if reception is weak, but broadcasts
will be heard in monaural.
Press and hold [PLAY MODE] again to cancel the mode.
“MONO” goes out. MONO is also canceled if the frequency is changed.
Turn off “MONO” for normal listening. Stereo and monaural broadcasts
are automatically played as they are received.
STEREO
/FF
B
4
Remote control only
VOLUME
This unit can display the text data transmitted by the radio data system
(RDS) available in some areas (“RDS” lights on the display).
Displaying the name of a broadcasting station or a program type
Press [DISPLAY].
Each time you press the button:
Original display / Station name / Program type / clock
UP
,
DOWN
A
RDS broadcasting (Only for the United Kingdom)
If an MD is loaded, the available time on the MD, then the total number of
tracks and total play is displayed between program type and clock.
PLAYMODE
TUNED
Note
MONO
RDS displays may not be available if reception is poor.
“M.O.R M”=“Middle of the road music”
B
(Except for the United Kingdom)
About allocation settings
DISPLAY
RDS
PS
Each country allocates broadcast bands according to their particular
needs. This system can receive AM broadcasts allocated in 9 or 10 kHz
steps.
RDS
PTY
RQT5975
Program type displays
18
NEWS
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIED
POP M
ROCK M
M.O.R M
LIGHT M
CLASSICS
OTHER M
WEATHER
FINANCE
CHILDREN
SOCIAL A
RELIGION
PHONE IN
TRAVEL
LEISURE
JAZZ
COUNTRY
NATIONAL
OLDIES
FOLK M
DOCUMENT
TEST
ALARM
To change the step (9 kHz ! 10 kHz)
q Press [TUNER/BAND] to select FM.
w Press and hold [TUNER/BAND]. The band first changes to AM, then,
as you continue to hold down the button, the current lowest AM
frequency flashes on the lower line, then the minimum frequency
changes and the bottom line disappears.
Repeat this procedure to change the step back.
Note
¡ After changing the “allocation” setting, the frequencies you previously
preset in the memory will be cleared.
¡ AM broadcasts are interrupted for a moment when you open the
cassette holder.
¡ Personal computers can interfere with reception. Disconnect the USB
cable or move the computer further away from this unit if this occurs.
The radio: preset tuning
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
u/2 REW/
1/i
/FF
,
PLAY/
REC
/ FF
0
EXT-IN
MD
REC
TAPE
SPACE !"#
10
Remote control only
There are two methods of presetting stations.
1–0, ≥10
DELETE
STOP/
CANCEL
/
CD
/
PLAYMODE
/
TUNER PROGRAM
BAND
/
MD REC MODE SOUND THEATER S. MUTING
PLAY MODE
PROGRAM
BAND TUNER
VOLUME
Automatic presetting: The stations the tuner can receive are preset.
Manual presetting:
You can select the stations to preset and the
order they are preset in.
Up to 15 stations each can be set in the FM and AM bands.
Preparation:
Press [BAND TUNER] to select “FM” or “AM”.
A
Automatic presetting
A
Preparation:
Tune to the frequency where presetting is to begin (a page 18).
PROGRAM
Press and hold [PROGRAM].
PGM
Release the button when the frequency begins to change.
The tuner presets the stations it can receive into the channels in
ascending order. When finished, the last station memorized is tuned in.
q PLAYMODE
Manual presetting
Preset the stations one at a time.
ABC
w
REW/
/
/ FF
/
or
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
SPACE !"#
10
q Press [PLAY MODE] to select “MANUAL”.
w Press [u/2 REW/
] or [1/i
/FF] to select the frequency
of the required station.
e Press [PROGRAM].
r While “PGM” is flashing (about 10 seconds)
Press the numbered buttons to select a channel.
To select channel 10 or over
Press [≥10 SPACE!”#] then the two digits.
Repeat steps 2 to 4 to preset other stations.
0
The station occupying a channel is erased if another station is preset in
that channel.
B
Preset channel
Selecting channels
q Press [PLAY MODE] to select “PRESET”.
w Press [u/2 REW/
] or [1/i
/FF] to select the
channel.
OR
Press the numbered buttons to select the channel in step
w.
To select channel 10 or over
Press [≥10 SPACE!”#] then the two digits.
RQT5975
B
Listening operations
Do the following once each for FM and AM.
19
Before recording
1 2
TITLE
/I
CD TAPE
1
AC IN
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
2
3
JKL
MNO
AUTO REC
GHI
CD MD
MD REC
MODE
LIGHT
– DEMO
–DUAL
HI-SPEED
4
5
6
PQRS
TUV
WXYZ
7
8
9
0
/
REW/
/
/ FF
EXT-IN
MD
REC
TAPE
CD
/
EJECT
VOLUME
SPACE !"#
10
STOP/
CANCEL
PLAYMODE
/
BAND
Volume and sound quality
1/i /FF
u/2 REW/
*/h REC
MD REC MODE SOUND THEATER S. MUTING
USB/EXT-IN
STOP
REW/
/
/
MD /
CD /
TAPE
TUNER/BAMD
DOWN
/FF
VOLUME
UP
You can use MDs or cassettes to record ( MD REC
TAPE REC ).
You can also record CDs onto an MD and a cassette at the same time
( MD & TAPE REC ).
DELETE
TUNER PROGRAM
/
DISPLAY
EDIT MODE
Recordings are unaffected by changes to volume and sound quality.
Your attention is drawn to the fact that recording pre-recorded tapes or
discs or other published or broadcast material may infringe copyright
laws.
OPEN/CLOSE
For MD recording
Preparatory steps
Do these steps before each recording.
1
1
“BLANK DISC” is displayed when you insert a blank disc and MD is
selected as the source.
Each time you press the button:
SP / LP2 / LP4
MD REC
MODE
SP
¡ LP4 mode uses a special compression method in order to
achieve extended recording and this may rarely cause some
noise when recording some material.
¡ Use SP or LP2 for better sound quality.
–DUAL
HI-SPEED
Current mode
A
Press [MD REC MODE –DUAL HI-SPEED] to select the
SP/LP2/LP4 recording mode.
,
Recording operations
2
2
Insert an MD.
A
To see how much time is left on an MD
DISPLAY
Remote control only
The remaining time display also depends on the current recording mode.
MD remaining recordable time
B
REC
/
REW/
/
/ FF
Press [DISPLAY].
Press again and:
During recording, the MD track number and elapsed recording time
appear.
While stopped, the total number of tracks and total play time are
displayed.
/
B
Adjusting recording level
Remote control only
C
While stopped
EDIT MODE
Press and hold [*/h REC] then adjust the level with [u/2
REW/
] or [1/i
/FF].
You can adjust the level between –10 dB and +10 dB.
The level returns to “0 dB” when you turn the unit off.
C
MD recording mode
When recording any source except CD
Press [EDIT MODE] before pressing the recording button to select the
mode.
The modes you can choose depend on the source.
RQT5975
MANUAL
SYNCHRO
20
: Insert track marks manually.
: Recording starts automatically when you start play of the
source, pauses if a 3-second silence is detected, then
starts again when play starts. A track mark is added at the
point recording starts. You cannot insert track marks
manually.
TURN BACK : Records sound received a few seconds before the
recording button is pressed. This mode is useful when
recording the radio.
Track marks can be inserted manually.
TIME MARK : Track marks inserted every five minutes.
Track marks can also be inserted manually.
TURN/TIME : A combination of turn back and time mark.
A
Before recording
Side A
For tape recording
Tab for Side B
To re-record
Normal position tape
Tab for Side A
Selection of tapes for recording
High position tape
The unit automatically identifies the type of tape.
Normal position/TYPE 1
✓
High position/TYPE 2
✓
Metal position/TYPE 4
×
Detection hole
Metal position tapes can be used, but the unit will not be able to record
or erase them correctly.
B
N
2
A
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
1
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/I
/
CD TAPE
AC IN
AUTO REC
MD
REC
TAPE
/
CD MD
/
MD REC
MODE
LIGHT
– DEMO
/ FF
0
EXT-IN
SPACE !"#
10
DELETE
PLAYMODE
/
TUNER PROGRAM
BAND
VOLUME
REW/
/
/
CD /
TAPE
TUNER/BAMD
DOWN
/FF
3
Preparatory steps
Do these steps before each recording.
Wind up the leader tape so recording can begin immediately.
1
2
VOLUME
MD /
B
STOP/
CANCEL
/
CD
EJECT
STOP
The illustration shows how to remove the tabs to prevent recording.
To record on the tape again, cover as shown, being careful not to cover
the high position detection hole.
MD REC MODE SOUND THEATER S. MUTING
–DUAL
HI-SPEED
USB/EXT-IN
Erasure prevention for tapes
PLAY/
REC
Press [TAPE 7] to select TAPE.
Press [OPEN ;], insert a cassette with the tape facing
in.
Make sure the cassette is fully inserted and close the lid by hand.
UP
OPEN/CLOSE
3
1
Press [PLAY MODE] on the remote control to select
the reverse mode.
Recording operations
OPE
Each time you press the button:
!///$
,
!
: One side records only.
/ and $ : Both sides record.
(forward side / reverse side)
“$” automatically changes to “/” when the REC buttons are
pressed.
TAPE
2
OPEN
C
3
PLAYMODE
To record on the reverse side
Press [TAPE 7] twice and then [STOP g].
Erasing recordings on tape
C
Remote control only
FWD
q Press [7 TAPE] to select TAPE as the source then press
[g STOP/CANCEL].
w Press [PLAY MODE] to select the reverse mode.
e While pressing [*/h REC], press [7 TAPE].
TAPE
REV
STOP
RQT5975
TAPE
21
Recording CDs
/I
SLEEP
CLOCK/
– AUTO OFF TIMER
CD TAPE
AC IN
PLAY/
REC
AUTO REC
TITLE
CD MD
MD REC
MODE
LIGHT
– DEMO
–DUAL
HI-SPEED
EJECT
VOLUME
STOP
REW/
/
MD /
CD /
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
0
/
REW/
/
USB/EXT-IN
CHARA
/ FF
EXT-IN
MD
REC
TAPE
/
DOWN
/
TAPE
CD
TUNER/BAMD
OPEN/CLOSE
/
EDIT MODE
SPACE !"#
10
DELETE
STOP/
CANCEL
PLAYMODE
/
UP
/FF
Normal recording
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
g STOP/
CANCEL
q/h MD
7 TAPE
*/h REC
VOLUME
MD REC
TAPE REC
Preparation:
Do the preparatory steps. (a pages 20 and 21).
Insert the CD (a page 13) and press [CD q/h] to select CD as the
source then press [STOP g].
While pressing [*/h REC]
MD REC
: Press [q/h MD].
TAPE REC : Press [7 TAPE].
Recording starts automatically.
STOP g CD q/ h
MD REC
UTOC
REC
/
MD
REC
SP
To pause recording
MD REC
: While pressing [*/h REC], press [q/h MD].
The CD pauses and the MD goes to recording standby.
A track mark is added.
TAPE REC : While pressing [*/h REC], press [7 TAPE].
The CD pauses and the tape goes to recording standby.
Repeat to restart recording.
/
Recording operations
To stop recording
Press [g STOP/CANCEL].
CD and MD (or tape) stop.
MD REC
Å Recording on MD is complete after the message “UTOC Writing” and
“ UTOC ” stops flashing on the display.
Do not disconnect the unit from its power source while this message
is flashing. This can cause the recording to be erased and damage
the disc.
TAPE REC
REC
/
To start recording a track that is playing
MD REC
: While pressing [*/h REC], press [q/h MD]
TAPE REC : While pressing [*/h REC], press [7 TAPE]
The track returns to the beginning and recording starts and records
through to the last track on the CD.
The MD/cassette stops when recording finishes.
To record only the current track, first turn on 1-song play (a page 15).
To record from partway through a track, pause CD play, then start
recording (while pressing [*/h REC] press [q/h MD] or [7 TAPE]).
TAPE
REC
A
ı To add track marks while recording on MDs
UTOC
RQT5975
B
22
EDIT MODE
Press [EDIT MODE] on the remote control where the track mark is
required.
These marks can be removed after recording with the editing functions
(a “COMBINE”, page 33).
“SCMS CAN’T COPY” appears on the display
This appears when you try to make a digital recording of some CD-R and
CD-RW. You can record these discs by pressing [EDIT MODE] on the
remote control to select “ANALOG-REC”. You cannot use high-speed
recording in this case (a page 25).
* AUTO REC, CDqMD, CDqTAPE
/I
Recording CDs
Recording all the tracks on a CD: AUTO REC
CD TAPE
AC IN
AUTO REC
CD MD
MD REC
TAPE REC
MD & TAPE REC
This function automatically records all the tracks onto an MD and/or tape
as long as the remaining time allows.
MD REC
MODE
LIGHT
– DEMO
–DUAL
HI-SPEED
EJECT
Preparation:
Do the preparatory steps. (a pages 20 and 21).
Insert the CD (a page 13).
VOLUME
USB/EXT-IN
STOP
REW/
/
/
MD /
CD /
TAPE
TUNER/BAMD
DOWN
/FF
UP
OPEN/CLOSE
MD REC
Press and hold [* AUTO REC CD q MD] until “AUTO REC”
appears.
Recording starts.
STOP g
MD REC
UTOC
AUDIO REC
¡ If either LP2 or LP4 recording mode is used, then the recorded tracks
are treated as one group unless there is not enough space in UTOC.
¡ “NO REMAIN” appears if even one track cannot fit on the MD.
¡ “REMAINING SHORT” appears if there is not enough space on the
MD to record all the tracks. You can cancel AUTO REC by pressing
[STOP g] while this is displayed. You may be able to fit all the tracks
on the MD if you change the SP/LP2/LP4 recording mode.
REC
SP
Press and hold [* AUTO REC CD q TAPE] until “AUTO
REC” appears.
Recording starts.
¡ Recording begins from the beginning of the forward side.
The tape automatically rewinds.
¡ A track incompletely recorded on the forward side is recorded again
on the reverse side.
¡ The cassette must have tabs for both sides.
TAPE REC
CD TAPE
AUDIO REC
Recording operations
TAPE REC
CD MD
MD & TAPE REC
REC
Press and hold [* AUTO REC CD q MD] and [* AUTO REC
CD q TAPE] at the same time until “CD / MD & TAPE”
appears.
MD & TAPE REC
UTOC
CD TAPE
¡ The recording on the tape may be slightly interrupted at the point
recording switches from the forward to reverse side.
¡ Even if the MD or tape runs out of space, recording continues on the
other.
¡ You can only record simultaneously to an MD and tape from CDs.
This is not possible with the radio and AUX.
¡ You cannot use this in combination with high-speed recording.
AUDIO REC
REC
SP
REC
A
Note
UTOC
Play modes (random, 1-song and repeat) and program play are
canceled.
To stop recording
Press [STOP g].
Both the CD and MD and/or tape stop.
MD REC
MD & TAPE REC
Å Recording on MD is complete after the message “UTOC Writing” and
“ UTOC ” stops flashing on the display.
Do not disconnect the unit from its power source while this message
is flashing. This can cause the recording to be erased and damage
the disc.
RQT5975
CD MD
Recording starts.
23
Recording CDs
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
2
3
PLAY/
REC
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
EXT-IN
REC
/
/ FF
0
CD
/
/
TAPE
Remote control only
10
DELETE
STOP/
CANCEL
PLAYMODE
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
MD REC MODE
EDIT MODE
SPACE !"#
/
MD
Recording a track from a CD
g STOP/CANCEL
1
MD REC
TAPE REC
Records one track from a CD.
Preparation:
Insert the MD (a page 12) or the cassette tape (a page 16).
Insert the CD (a page 13) and press [q/h CD] to select CD as the
source then press [g STOP/CANCEL].
MD REC
Press [MD REC MODE] to select the SP/LP2/LP4 recording mode.
q/h CD
VOLUME
1
2
1
PLAYMODE
3
Recording operations
3
Press [u/2 REW/
] or [1/i
the track to be recorded.
/FF] to select
Unnecessary when recording the first track.
1–SONG
2
Press [PLAY MODE] to select “1-SONG”.
While pressing [*/h REC]
MD REC
: Press [q/h MD].
TAPE REC : Press [7 TAPE].
Recording starts.
REW/
/ FF
To stop recording
Press [g STOP/CANCEL].
Both CD and MD (or tape) stop.
MD REC
Å Recording is complete after the message “UTOC Writing” and
“ UTOC ”stops flashing on the display.
Do not disconnect the unit from its power source while this message
is flashing. This can cause the recording to be erased and damage
the disc.
/
/
MD REC
REC
/
To cancel the one track edit recording
While stopped, press [PLAY MODE] to clear “1-SONG” from the display.
MD
ı To add track marks while recording on MDs
/
Press [EDIT MODE] on the remote control where the track mark is
required.
These marks can be removed after recording with the editing function
(a “COMBINE”, page 33).
TAPE REC
REC
/
TAPE
A
UTOC
RQT5975
B
24
EDIT MODE
21
STOP g
Recording CDs
ABC
/I
DEF
1
2
3
GHI
JKL
MNO
High-speed recording from a CD to an MD
EDIT MODE
CD TAPE
AC IN
AUTO REC
CD MD
MD REC
MODE
LIGHT
– DEMO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
–DUAL
HI-SPEED
VOLUME
USB/EXT-IN
STOP
REW/
/
/
MD /
CD /
TAPE
TUNER/BAMD
REC
TAPE
CD
PLAYMODE
/
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
q/h CD
g STOP/
CANCEL
PLAY MODE
q/h MD
*/h REC
VOLUME
DOWN
/FF
STOP/
CANCEL
/
MD
/
10
DELETE
/ FF
0
EXT-IN
/
EJECT
SPACE !"#
UP
MD REC
You can record at up to four times normal speed from a CD to an MD.
This means you can complete recording from a 74-minute CD in 23
minutes.
Preparation:
Do the preparatory steps (a page 20).
Insert the CD (a page 13).
OPEN/CLOSE
1
2
Recording starts.
MD REC
MODE
–DUAL
HI-SPEED
AUDIO REC
UTOC
To stop recording
Press [STOP g].
Both CD and MD stop.
Å The message “UTOC Writing” and “ UTOC ” stop flashing on the
display.
CD MD
HI – SPEED
REC
SP
A
UTOC
For your reference
¡ From the remote control
q Press [q/h CD] to select “CD” as the source then press [g STOP/
CANCEL].
w While pressing [*/h REC], press [q/h MD].
¡ To record one track
q Select the track.
w Press [PLAY MODE] to select “1-SONG” (a page 15).
e While pressing [*/h REC], press [q/h MD].
Recording operations
When recording is finished
When the CD finishes the MD also stops.
Å The message “UTOC Writing” and “ UTOC ” stop flashing on the
display.
HI – SPEED
2
Press and hold [* AUTO REC CD q MD] until “AUTO
REC” appears.
Note
¡ If either LP2 or LP4 recording mode is used, then the recorded tracks
are treated as one group unless there is not enough space in UTOC
or you start recording with the remote control.
¡ You will not hear sound when using high-speed recording.
(Continued on next page)
RQT5975
1
Press and hold [MD REC MODE –DUAL HI-SPEED]
until “HIGH-SPEED” appears.
25
Recording CDs
Limitations on high-speed recording
This unit uses a copy management system to limit the use of high-speed
recording to protect the rights of the producers of music software.
¡ Some discs cannot be recorded at four times normal speed. CD-RW
are recorded a two times normal speed.
¡ You cannot use high-speed recording with program play, repeat play,
or random play.
¡ You cannot adjust the recording level when using high-speed
recording.
¡ Depending on the condition of the CD, some skipping of sound or
noise will be recorded to the MD. These problems can be relieved in
some cases by carefully cleaning the CD and then recording it at
normal speed.
¡ Depending on the signal level on a CD, some tracks will take longer to
record than others, even if they are the same length.
RQT5975
Recording operations
You cannot use high-speed recording to record the same track
twice within 74 minutes of starting recording.
¡ Even if you stop recording part way through, you cannot start
recording the same track again.
¡ If, for example, you complete recording in 20 minutes, you must wait a
further 54 minutes before using high-speed recording to record the
track again. You can record the track at normal speed.
26
You can record up to 50 tracks.
¡ If you finish recording 50 tracks within 74 minutes, you cannot start
recording the fifty-first track until 74 minutes have passed since you
started recording the first track.
¡ When you finish recording the 50th track, the message “PLEASE
WAIT KK min” (“KK” is the number of minutes) appears on the
display for a few seconds. “UTOC Writing” then flashes on the display
and recording ends.
¡ If you try to start recording before the waiting period is up, “PLEASE
WAIT KK min” appears again.
Recording the radio
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
EXT-IN
2, 3
REC
/
PLAY/
REC
/ FF
0
CD
/
/
DELETE
STOP/
CANCEL
PLAYMODE
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
MD REC MODE
1
10
/
MD
TAPE
SPACE !"#
Remote control only
g STOP/CANCEL
PLAY MODE
1
MD REC
TAPE REC
Preparation:
Insert the MD (a page 12) or the cassette tape (a page 16).
Tune to the required station. (a pages 18 and 19)
MD REC
Press [MD REC MODE] to select the SP/LP2/LP4 recording mode.
MD REC
VOLUME
1
Press [EDIT MODE] to select the desired mode.
(apage 20)
Each time you press the button:
MANUAL / TURN BACK / TIME MARK / TURN/TIME
,
If you selected “TURN BACK” or “TURN/TIME” in step 1
2
EDIT MODE
Note
Wait until the “TURN BACK” indicator stops flashing before
proceeding to step 3 to start recording. (Turn back may not function
correctly if recording is started while the indicator is flashing.)
3
2
TAPE REC
REC
/
TURN BACK
MD
“TURN BACK” indicator
/
TURN BACK
3
REC
/
While pressing [*/h REC], press [q/h MD].
1
While pressing [*/h REC], press [7 TAPE].
To stop recording
Press [g STOP/CANCEL].
MD REC
Recording operations
1
While pressing [*/h REC], press [q/h MD] to
enter recording standby.
Recording is complete after the message “UTOC Writing” and
“ UTOC ” stops flashing on the display.
Do not disconnect the unit from its power source while this message is
flashing. This can cause the recording to be erased and damage the
disc.
To pause recording
MD REC
: While pressing [*/h REC], press [q/h MD].
A track mark is added.
TAPE REC : While pressing [*/h REC], press [7 TAPE].
Repeat to restart recording.
MD
/
Å To add track marks while recording on MDs
Press [EDIT MODE] on the remote control where the track mark is
required.
These track marks can be removed after recording with the editing
function (a “COMBINE”, page 33).
REC
/
TAPE
A
TAPE REC
To reduce noise while tape recording an AM broadcast (Beat proof
function)
Press and hold [PLAY MODE] on the remote control.
Each time you press and hold the button: BP 1 ! BP 2
Select the position where there is less noise.
EDIT MODE
RQT5975
1
27
A
A
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
ENTER
DISPLAY
ABC
DEF
EDIT MODE
2
3
JKL
MNO
1
GHI
4
5
6
PQRS
TUV
WXYZ
7
8
9
0
/
REW/
MD REC MODE
1
Recording operations
2
EXT-IN
MD
REC
TAPE
1
10
CD
/
Remote control only
SPACE !"#
DELETE
STOP/
CANCEL
/ FF
/
2
PLAY/
REC
CHARA
g STOP/CANCEL
PLAYMODE
/
TUNER PROGRAM
7 TAPE
BAND
/
Recording cassette tapes on MDs
MD REC
Preparation:
Insert the MD (a page 12).
Insert the cassette tape (a page 16) and press [7 TAPE] to select
tape as the source then press [g STOP/CANCEL].
Press [MD REC MODE] to select the SP/LP2/LP4 recording mode.
1
VOLUME
2
EDIT MODE
Press [EDIT MODE] to select MD recording mode.
(a page 20)
Each time you press the button:
MANUAL ! TIME MARK
MD REC MODE SOUND THEATER S. MUTING
While pressing [*/h REC], press [q/h MD].
Recording starts.
To stop recording
Press [g STOP/CANCEL].
Both MD and tape stop.
Recording is complete after the message “UTOC Writing” and “ UTOC ”
stops flashing on the display.
Do not disconnect the unit from its power source while this message is
flashing. This can cause the recording to be erased and damage the
disc.
REC
/
To pause recording
While pressing [*/h REC], press [q/h MD].
The tape stop and the MD goes to recording standby. A track mark is
added.
Repeat to restart recording.
MD
/
ı To add track marks while recording on MDs
B
Press [EDIT MODE] on the remote control where the track mark is
required.
These track marks can be removed after recording with the editing
function (a “COMBINE”, page 33).
EDIT MODE
C
C
Recording MDs on cassette tapes
Remote control only
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
0
/
REW/
/
MD
REC
TAPE
/
*/h REC
7 TAPE
SPACE !"#
10
/ FF
EXT-IN
TAPE REC
Preparation:
Insert the cassette tape (a page 16).
Insert the MD (a page 12) and press [q/h MD] to select MD as the
source then press [g STOP/CANCEL].
PLAY/
REC
CD
DELETE
STOP/
CANCEL
PLAYMODE
/
While pressing [*/h REC], press [7 TAPE].
g STOP/CANCEL
q/h MD
TUNER PROGRAM
BAND
/
MD REC MODE SOUND THEATER S. MUTING
VOLUME
Recording starts.
To stop recording
Press [g STOP/CANCEL].
Both MD and tape stop.
To pause recording
While pressing [*/h REC], press [7 TAPE].
The MD pauses and the tape goes to recording standby.
Repeat to restart recording.
REC
/
D
TAPE
Recording selected tracks
Remote control only
D
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
RQT5975
EXT-IN
28
*/h REC
MD REC MODE
REC
/
/ FF
0
10
DELETE
STOP/
CANCEL
/
MD
CD
/
/
TAPE
When recording from CD to MD
q Program the tracks you want to record (a steps 1 to 2, page 14).
w Press [MD REC MODE] to select the SP/LP2/LP4 recording mode.
e While pressing [*/h REC], press [q/h MD] to start recording.
PLAYMODE
q/h MD
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
VOLUME
7 TAPE
When recording from CD to TAPE
q Program the tracks you want to record (a steps 1 to 2, page 14).
w While pressing [*/h REC], press [7 TAPE] to start recording.
When recording from MD to TAPE
q Program the tracks you want to record (a steps 1 to 2, page 14).
w While pressing [*/h REC], press [7 TAPE] to start recording.
MD editing
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
CHARA
ABC
4, 6
ENTER
DISPLAY
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
/ FF
0
EXT-IN
MD
REC
TAPE
/
PLAY/
REC
SPACE !"#
10
STOP/
CANCEL
PLAYMODE
/
TUNER PROGRAM
BAND
/
MD REC MODE SOUND THEATER S. MUTING
VOLUME
Remote control only
Putting tracks into groups
DELETE
/
CD
2, 3, 5, 7, 9
1
Using the MD group feature
g STOP/CANCEL
You can record a number of tracks onto an MD when you use LP2 and
LP4 recording modes. You can manage these tracks by putting them into
groups.
You can create up to 99 groups, depending on the available space in
UTOC.
For example, putting tracks 3, 4 and 5 into a group.
1
While stopped
Press [EDIT MODE] to select “GROUP?”.
Each time you press the button:
TRACK ERASE? / ALL ERASE? / MOVE?
EDIT MODE
/
,
1
GROUP? , TITLE ST.? , COMBINE?
2
Press [ENTER].
“SET?” appears.
“SET?” does not appears if all tracks are in groups.
3
ENTER
“––?” appears.
4
5
6
ENTER
REW/
/
/ FF
/
7
8
9
Press [u/2 REW/
] or [1/i
the first track in the group.
/FF] to select
Press [ENTER].
Press [u/2 REW/
] or [1/i
the last track in the group.
/FF] to select
Press [ENTER].
Give the group a title (a page 37).
Press [ENTER].
Group editing is complete when “UTOC Writing” stops flashing.
To cancel part way through
Press [g STOP/CANCEL].
5
ENTER
6
REW/
7
ENTER
9
ENTER
/
MD editing operations
4
3
Press [ENTER].
Note
/ FF
/
¡ Tracks can only be grouped in sequence (e.g., 1,2,3,4,5).
Tracks separated by other tracks cannot be grouped, so, for example,
you cannot group tracks 3, 7, and 9.
¡ A group can be made from one track.
¡ A single track cannot be put into more than one group.
¡ Groups are not ordered in the order you create them. They are
ordered by track numbers.
¡ If you create groups with this unit and then edit on a unit that is
incompatible with group functions, the group information may be
rendered unusable.
¡ The disc title may not be displayed correctly on a unit that is
incompatible with group functions.
¡ After using editing functions (\ pages 32 to 35) on a disc with groups,
the UTOC is refreshed to maintain consistent group information.
RQT5975
2
29
MD editing
A
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
CHARA
ABC
5
ENTER
DISPLAY
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/ FF
/
PLAY/
REC
0
2, 4, 6, 8
1
SPACE !"#
10
MD
REC
TAPE
CD
/
STOP/
CANCEL
g STOP/CANCEL
3
PLAYMODE
/
TUNER PROGRAM
MD REC MODE SOUND THEATER S. MUTING
1
Do the following to give groups titles or change existing ones.
1
2
BAND
/
Remote control only
A Changing group titles
DELETE
/
EXT-IN
Using the MD group feature
EDIT MODE
Press [EDIT MODE] to select “GROUP?”.
Press [ENTER].
“SET?” appears.
3
Press [1/i
/FF] to select “TITLE?”.
If there are no groups at all, only “SET?” can be selected.
Each time you press the button:
SET? / TITLE? / RELEASE? / ALL RELEASE?
3
,
2
ENTER
4
5
6
7
8
/ FF
/
Press [ENTER].
Press [u/2 REW/
the group.
] or [1/i
/FF] to select
Press [ENTER].
Give the group a title (a page 37).
Press [ENTER].
MD editing operations
Editing is complete when “UTOC Writing” stops flashing.
4
ENTER
To cancel part way through
Press [g STOP/CANCEL].
B Group skip
5
REW/
6
ENTER
8
ENTER
/ FF
/
First create groups (a page 29).
While stopped,
/
Press and hold [u/2 REW/
] or [1/i
select the group you want to play.
B
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
u/2 REW/
/
EXT-IN
REC
/
/ FF
0
10
DELETE
STOP/
CANCEL
/
MD
CD
/
/
TAPE
SPACE !"#
PLAYMODE
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
RQT5975
REW/
30
/
/ FF
/
1/i
/FF
/FF] to
MD editing
A
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
Using the MD group feature
PLAY/
REC
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
2
3
JKL
MNO
Remote control only
1
GHI
2
1, 4
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
SPACE !"#
/ FF
0
/
STOP/
CANCEL
/
EXT-IN
MD
REC
CD
TAPE
/
PLAYMODE
/
TUNER PROGRAM
BAND
/
A 1-group play
10
DELETE
1
3, 5
First create groups (a page 29).
1
MD REC MODE SOUND THEATER S. MUTING
VOLUME
2
3
4
1
MD
Press [q/h MD] to select MD as the source then press
[g STOP/CANCEL].
Press and hold [u/2 REW/
select the group.
] or [1/i
/FF] to
Press [PLAY MODE] to select “1-GROUP”.
Press [q/h MD].
Play starts.
STOP/
CANCEL
5
/
To play the group repeatedly (1-group repeat)
Press and hold [PLAY MODE] until “REPEAT ON”
appears.
To cancel, press and hold [PLAY MODE] until “REPEAT OFF”
appears.
2
REW/
/
To cancel
While stopped, press [PLAY MODE] so “1-GROUP” goes out.
/ FF
/
Note
3
B To release tracks from a group
PLAYMODE
To release one group
q Press [EDIT MODE] to select “GROUP?”.
w Press [ENTER].
e Press [u/2 REW/
] or [1/i
/FF] to select “RELEASE?”.
r Press [ENTER].
t Press [u/2 REW/
] or [1/i
/FF] to select group.
y Press [ENTER].
u Press [ENTER].
“UTOC Writing” appears.
1–GROUP
4
5
MD
/
To release all groups
q Press [EDIT MODE] to select “GROUP?”.
w Press [ENTER].
e Press [u/2 REW/
] or [1/i
RELEASE?”.
r Press [ENTER].
t Press [ENTER].
“UTOC Writing” appears.
PLAYMODE
1–GROUP
MD editing operations
MD editing is not possible while in the 1-group mode.
/FF] to select “ALL
B
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
1
GHI
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
2
3
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
EXT-IN
REC
/
/ FF
0
CD
/
/
TAPE
SPACE !"#
10
DELETE
STOP/
CANCEL
/
MD
ENTER
EDIT MODE
1/i
/FF
PLAYMODE
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
VOLUME
RQT5975
u/2 REW/
PLAY/
REC
31
MD editing
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
3
ENTER
DISPLAY
EDIT MODE
ABC
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/ FF
0
/
EXT-IN
REC
2, 4, 5
1
SPACE !"#
10
DELETE
STOP/
CANCEL
g STOP/CANCEL
q/h MD
/
MD
CD
/
/
TAPE
Moving tracks–MOVE
PLAY/
REC
CHARA
PLAYMODE
TUNER PROGRAM
BAND
/
MD REC MODE SOUND THEATER S. MUTING
Remote control only
This function allows you to permanently change the order tracks are
played in.
Make sure the disc is record enabled.
Preparation:
Insert the MD (a page 12).
Play the track you want to move.
VOLUME
1
Press [EDIT MODE] to select “MOVE?”.
Each time you press the button:
TRACK ERASE? / MOVE? / COMBINE? / DIVIDE?
,
2
1
A
1
B
MD editing operations
RQT5975
32
4
C
3
2
A
1
3
2
B
4
D
The track’s current number is shown and the new position flashes
to the right of it.
5
D
E
3
4
5
E
Press [ENTER].
C
Press [u/2 REW/
] or [1/i
the new track number.
/FF] to select
Press [ENTER].
The old track number and new track number are displayed.
5
Press [ENTER] to confirm the new track number.
Play stops and “UTOC Writing” and “ UTOC ” flash on the display.
When this stops flashing, the new track number has been entered.
EDIT MODE
To cancel part way through
Press [g STOP/CANCEL].
2
ENTER
3
REW/
/
4
ENTER
5
ENTER
/ FF
/
To move the track while the disc is stopped
q Press [q/h MD] to select “MD” as the source then press [g STOP/
CANCEL].
w Press [EDIT MODE] to select “MOVE?”.
e Press [ENTER].
r Press [u/2 REW/
] or [1/i
/FF] to select the track to
move.
t Press [ENTER].
y Press [u/2 REW/
] or [1/i
/FF] to select the new track
number.
u Press [ENTER].
i Press [ENTER].
For your reference
“GROUP DATA FULL” appears if UTOC is full and you will not be able to
move the track. Release a group or erase unnecessary titles before
proceeding.
MD editing
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
u/2 REW/
1/i
/FF
,
REC
q/h MD
SPACE !"#
10
STOP/
CANCEL
/
MD
CD
/
/
TAPE
2, 3
1
DELETE
/ FF
0
/
EXT-IN
Combining tracks–COMBINE
PLAY/
REC
g STOP/CANCEL
PLAYMODE
TUNER PROGRAM
BAND
/
Remote control only
This function removes track marks so the tracks either side effectively
become one track.
Make sure the disc is record enabled.
Preparation:
Insert the MD (a page 12).
Play the track that comes after the track mark you want to remove.
MD REC MODE SOUND THEATER S. MUTING
VOLUME
1
Press [EDIT MODE] to select “COMBINE?”.
Each time you press the button:
TRACK ERASE? / MOVE? / COMBINE? / DIVIDE?
,
2
1
A
1
B
EDIT MODE
4
C
B
D
E
4
C
A segment before and after the track mark plays repeatedly.
(8 seconds in SP mode, 16 seconds in LP2 mode, and 32 seconds
in LP4 mode.)
5
3
2
A
D
E
3
Press [ENTER] to confirm the combination.
Play stops and “UTOC Writing” and “ UTOC ” flashes on the
display. When this stops flashing the track mark has been removed
and the two tracks now are counted as one.
To cancel part way through
Press [g STOP/CANCEL].
2
ENTER
3
ENTER
To combine tracks while the disc is stopped
q Press [q/h MD] to select “MD” as the source then press [g STOP/
CANCEL].
w Press [EDIT MODE] to select “COMBINE?”.
e Press [ENTER].
r Press [u/2 REW/
] or [1/i
/FF] to select which pair of
tracks to combine.
t Press [ENTER].
y Press [ENTER].
Note
¡ If you combined titled tracks, the combined track retains only the title
of the first track.
¡ You cannot combine tracks recorded with different recording modes
(SP, LP2, and LP4).
¡ Sound may be unusual at the point where you join two tracks recorded
with LP4 mode.
MD editing operations
To divide the tracks again
Use DIVIDE (a page 34).
RQT5975
1
3
2
Press [ENTER].
33
MD editing
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
3
CHARA
ENTER
DISPLAY
EDIT MODE
ABC
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
0
EXT-IN
MD
REC
TAPE
/
2, 4
1
SPACE !"#
10
/ FF
/
Dividing tracks–DIVIDE
PLAY/
REC
DELETE
STOP/
CANCEL
g STOP/CANCEL
/
CD
PLAYMODE
Remote control only
This function allows you to manually add track marks.
You can edit a recording of a radio program or divide a symphony into its
separate movements.
Make sure the disc is record enabled.
/
Preparation:
Insert the MD (a page 12).
Play the track you want to divide.
TUNER PROGRAM
BAND
/
MD REC MODE SOUND THEATER S. MUTING
VOLUME
1
Press [EDIT MODE] to select “DIVIDE?”.
Each time you press the button:
TRACK ERASE? / MOVE? / COMBINE? / DIVIDE?
,
1
1
B
B
2
4
D
C
3
2
A
1
3
2
A
4
C1 C2
5
D
Press [ENTER] at the approximate point you want the
track mark to go.
A segment before and after the point you specify plays repeatedly.
(4 seconds in SP mode, 8 seconds in LP2 mode, and 16 seconds
in LP4 mode.)
3
Press [u/2 REW/
the point.
] or [1/i
/FF] to adjust
In SP mode you can adjust the point by 8 seconds, in LP2,
16 seconds, and in LP4, 32 seconds.
The display shows figures between –128 and +127
EDIT MODE
4
Press [ENTER].
RQT5975
MD editing operations
Play stops and “UTOC Writing” and “ UTOC ” flash on the display.
When this stops flashing, the new track mark has been entered.
34
2
To cancel part way through
Press [g STOP/CANCEL].
ENTER
To remove the track mark again
Use COMBINE (a page 33).
Note
3
REW/
4
ENTER
/
/ FF
/
¡ If you divide a titled track, the part after the new track mark becomes
untitled.
¡ “GROUP DATA FULL” appears if UTOC is full and you will not be able
to divide the track. Release a group or erase unnecessary titles before
proceeding.
¡ Sound may be unusual at the point where you divide a track recorded
with LP4 mode.
MD editing
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
3
CHARA
ENTER
DISPLAY
EDIT MODE
ABC
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/ FF
0
/
EXT-IN
MD
REC
TAPE
SPACE !"#
10
CD
2, 4, 5
1
There are two types of erasing;
g STOP/CANCEL
q/h MD
TRACK ERASE: You can erase between 1 and 24 tracks at a time.
ALL ERASE: You can erase all the tracks.
Make sure the disc is record enabled.
Remote control only
DELETE
STOP/
CANCEL
/
/
Erasing tracks and creating blank discs
PLAY/
REC
PLAYMODE
/
TUNER PROGRAM
BAND
/
Preparation:
Insert the MD (a page 12) and press [q/h MD] to select “MD” as the
source then press [g STOP/CANCEL].
MD REC MODE SOUND THEATER S. MUTING
VOLUME
1
While stopped
Press [EDIT MODE] to select “TRACK ERASE?” or
“ALL ERASE?”.
Each time you press the button:
TRACK ERASE? / ALL ERASE? / MOVE?
4
C
5
D
1
E
3
2
A
B
4
C
5
D
GROUP? , TITLE ST.? , COMBINE?
E
2
1
3
2
A
1
B
4
C
5
E
Blank disc
With TRACK ERASE
3
TRACK ERASE
EDIT MODE
4
ALL ERASE
] or [1/i
/FF] to
Press [ENTER].
Press [ENTER].
“UTOC Writing” and “ UTOC ” flash on the display.
TRACK ERASE:
When they stop flashing the track has been erased. The tracks
after it move back to fill the space so there is no missing track
number after a track is erased.
ALL ERASE:
When they stop flashing the disc has been erased and “BLANK
DISC” is shown on the display.
TRACK ERASE
ENTER
Press [u/2 REW/
select the track.
Repeat steps 3 and 4 to select other tracks to erase.
5
2
Press [ENTER].
ALL ERASE
To cancel part way through
Press [g STOP/CANCEL].
3
REW/
/
/ FF
Play time of the selected track
/
Selected track
4
ENTER
5
ENTER
Last selected
track number
Total number of
tracks selected
MD editing operations
B
You can use TRACK ERASE while playing or paused.
q Press [EDIT MODE] to select “TRACK ERASE?” while the track you
want to erase is playing or paused.
w Press [ENTER] twice.
If “SELECT OVER” is displayed
You have tried to select more than 24 tracks.
You cannot select anymore tracks to erase.
If you erase all tracks
The disc title and any group titles will also be erased.
RQT5975
3
2
A
/
,
1
35
MD editing
SLEEP
CLOCK/
– AUTO OFF TIMER
1, 6
2
TITLE
CHARA
ABC
ENTER
DISPLAY
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
/ FF
0
EXT-IN
MD
REC
TAPE
/
/
3, 5
SPACE !"#
10
DELETE
STOP/
CANCEL
/
CD
Titling discs and tracks
PLAY/
REC
PLAYMODE
/
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
g STOP/CANCEL
q/h MD
Remote control only
Each track and disc can have a title of up to 100 characters in length
(97 when recorded with LP2 or LP4).
A maximum of about 1700 characters can be entered.
“LP:” is automatically added to the beginning of track titles when you use
MDLP, so the number of characters you can put in an MD is reduced.
When you put tracks into groups, this group information is also recorded
and reduces the number of characters an MD can hold.
VOLUME
Preparation:
Press [q/h MD] to select MD as the source then press
[g STOP/CANCEL].
1
While stopped
Press [TITLE].
1
2
TITLE
Press [u/2 REW/
the item to be titled.
] or [1/i
Each time you press the button:
Disc ,/ Track 1 ,/ Track 2... ,/ Final track
REW/
/
/ FF
/
3
4
5
,
,
2
/FF] to select
Press [ENTER].
Enter the required characters. (a page 37)
Press [ENTER].
RQT5975
MD editing operations
Titling is complete after the message “UTOC Writing” and
“ UTOC ” flash on the display.
36
3
Repeat steps 2–5 until all required titles are entered.
ENTER
6
Press [TITLE] to finish.
To cancel part way through titling
Press [g STOP/CANCEL].
Any titles already entered remain.
The previous display is restored.
5
ENTER
6
TITLE
MD editing
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
ENTER
DISPLAY
ABC
DEF
EDIT MODE
2
3
JKL
MNO
1
GHI
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/ FF
0
/
EXT-IN
MD
/
REC
Titling discs and tracks
PLAY/
REC
CHARA
1
2
3
SPACE !"#
10
DELETE
STOP/
CANCEL
/
CD
PLAYMODE
Remote control only
Entering the characters
1
/
TAPE
Å (Capitals) / å (Lower case) / z (Numbers)
BAND
/
Press [CHARA] to select the type of character.
Each time you press the button:
TUNER PROGRAM
MD REC MODE SOUND THEATER S. MUTING
,
VOLUME
2
3
Press the numbered buttons so the character is
displayed in the EDIT EYE.
Press [1/i
/FF] to enter the character.
Repeat steps 1–3 to complete the title.
Step 1 is not necessary when you are entering characters of the same
type.
1
CHARA
To enter a space
Press [1/i
/FF] when no character is in the EDIT EYE.
For your reference
The character in the edit eye is also entered if you press another
numbered button or [CHARA]. Another character or character type is
then displayed.
ABC
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
Characters allocated to the numbered buttons
The characters change each time a numbered button is pressed.
SPACE !"#
Character type
10
EDIT EYE
0
Lower case å
2
ABC
abc
2
3
DEF
def
3
4
GHI
ghi
4
5
JKL
jkl
5
6
MNO
mno
/ FF
6
7
PQRS
pqrs
/
7
8
TUV
tuv
8
9
WXYZ
wxyz
9
1
0
0
To enter symbols
Press [≥10 SPACE!”#].
Each time the button is pressed, the symbols are displayed in the EDIT
EYE in the following order.
A
]
SLEEP
CLOCK/
– AUTO OFF TIMER
PLAY/
REC
CHARA
ENTER
DISPLAY
EDIT MODE
]
TITLE
ENTER
u/2 REW/
ABC
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
/ FF
0
EXT-IN
MD
REC
TAPE
/
/
+,–./:;<=>[email protected]_`
A Editing titles
SPACE !"#
10
DELETE
STOP/
CANCEL
/
CD
!"#$%&’()
represents a space.
PLAYMODE
/
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
10 SPACE !"#
DELETE
1/i /FF
To move the cursor
Press [u/2 REW/
] or [1/i
/FF].
]
Inserting a character or space
q Move the cursor over the character to the right of the place where the
new character or space is to go.
w Enter the desired character or press [≥10 SPACE!”#] to select “
”
(space).
VOLUME
Deleting a character
q Move the cursor over the character to be deleted.
w Press [DELETE].
Changing letters
q Delete the old letter.
w Insert the new letter.
Making corrections to a title
q Select the title to be corrected (a page 36, steps 1–3).
w Correct the title using the above editing techniques.
e Press [ENTER].
RQT5975
3
Numbers z
Capitals Å
1
MD editing operations
2
37
MD editing
SLEEP
CLOCK/
– AUTO OFF TIMER
1
TITLE
CHARA
ABC
ENTER
DISPLAY
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
EXT-IN
/ FF
0
MD
/
REC
/
Titling discs and tracks
PLAY/
REC
3, 6
10
Titling while recording a CD
DELETE
STOP/
CANCEL
g STOP/CANCEL
/
CD
PLAYMODE
/
TAPE
Remote control only
SPACE !"#
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
VOLUME
¡ You can title groups and all tracks when recording with AUTO REC
using LP2 or LP4.
¡ You can title all tracks when recording with AUTO REC using SP
mode.
¡ You can title the current track only when using any other recording
method.
1
While recording
Press [TITLE].
1
TITLE
When recording with AUTO REC using LP2 or LP4 mode:
The group titling screen appears.
When recording with AUTO REC using SP mode:
The track titling screen appears.
In other cases: The track titling screen appears.
When recording with AUTO REC
using LP2 or LP4 mode
2
Enter the title (a page 37).
When recording with AUTO REC
3
When recording with AUTO REC using LP2 or LP4 mode:
The track titling screen appears.
When recording with AUTO REC using SP mode:
The track titling screen for the next track appears.
When recording with AUTO REC
using SP mode
4
5
MD editing operations
Press [ENTER].
6
Enter the title (a page 37).
Repeat 3 and 4 to title all the tracks.
Press [ENTER].
The next track is selected even if you do not enter a title.
“TITLE WRITE” is displayed and then the normal displayed is
restored.
In other cases
Titling is complete after the recording is finished and “UTOC Writing” and
“ UTOC ” stop flashing on the display.
To cancel part way through
Press [g STOP/CANCEL].
Any titles you have confirmed by pressing [ENTER] remain intact.
RQT5975
To title a track while it is playing
q Press [TITLE].
w Enter the title (a page 37).
e Press [ENTER].
“TITLE WRITE” is displayed, then the previous display is restored.
38
3
ENTER
6
ENTER
When recording with AUTO REC
using LP2 or LP4 mode
Note
¡ Even if the next track starts playing or recording, that track will not
receive the title you are entering.
¡ If play or recording finishes while you are entering a title, the titling
display is cleared. Any titles you have entered, or partially entered,
remain intact.
¡ When 1-song recording finishes, titling is also stopped.
Complete the title after recording by following the normal titling steps.
¡ After you have entered a title during play, “ UTOC ” lights on the
display and you cannot perform other editing operations (DIVIDE, etc.)
except for titling until after you stop play and “UTOC Writing” and
“ UTOC ” stop flashing.
¡ Add other titles and make corrections after recording with the methods
described on page 37.
5
1, 6
/I
SLEEP
CLOCK/
– AUTO OFF TIMER
CD TAPE
AC IN
MD editing
3, 4, 7
Titling discs and tracks
PLAY/
REC
Copying the titles from one MD to another
(Title station)
AUTO REC
TITLE
CHARA
ENTER
DISPLAY
DEF
EDIT MODE
CD MD
ABC
LIGHT
– DEMO
MD REC
MODE
1
2
3
–DUAL
HI-SPEED
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
0
/
EJECT
REW/
/
VOLUME
USB/EXT-IN
STOP
REW/
/
/
MD /
CD /
TAPE
TUNER/BAMD
MD
REC
TAPE
/
DOWN
/FF
/ FF
EXT-IN
UP
/
OPEN/CLOSE
CD
SPACE !"#
10
2
DELETE
STOP/
CANCEL
PLAYMODE
/
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
VOLUME
You can copy the disc and track titles from one MD to another MD with
the same number of tracks. Any group information on the original disc is
also copied.
Preparation:
Press [q/h MD] to select “MD” as the source and press [g STOP/
CANCEL].
1
2
Insert the MD with the title.
While stopped
Press [EDIT MODE] to select “TITLE ST.?”.
Each time you press the button:
TRACK ERASE? / ALL ERASE? / MOVE?
GROUP? , TITLE ST.? , COMBINE?
1
When the disc is write-protected, only “TITLE ST.?” is displayed.
3
4
3
4
5
Press [ENTER].
“TITLE MEMORY” is displayed when the unit is copying the titles,
then “COMPLETE” / “EJECT MD” is displayed.
EDIT MODE
ENTER
Press [ENTER].
5
6
7
Press [EJECT ;] to eject the MD.
Insert the other MD.
When “Writing OK?” appears on the display
Press [ENTER] to start copying.
Copying is complete after “UTOC Writing” and “ UTOC ” stop
flashing on the display.
To cancel part way through
Press [g STOP/CANCEL].
ENTER
MD editing operations
2
/
,
q/h MD g STOP/CANCEL
Note
¡ You cannot copy titles from playback MDs.
¡ You can only copy titles if both MDs have the same number of tracks.
¡ The unit can only copy the titles from one MD.
¡ The title will be lost from the unit’s memory if the unit is turned off.
¡ Any titles already on the other MD will be replaced by this operation.
¡ “LP:” is added to the beginning of titles recorded with LP2 or LP4. This
means that when you copy the titles of such tracks, even tracks
recorded with SP mode will have “LP:” at the beginning of the title.
EJECT
6
ENTER
RQT5975
7
39
Changing the sound quality
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
THEATER S.
/ FF
0
EXT-IN
MD
REC
TAPE
Remote control only
Using the built-in sound equalizer
SPACE !"#
10
DELETE
This unit has a manual equalizer (MANUAL EQ) and a preset equalizer
(PRESET EQ).
You can adjust the bass and treble with MANUAL EQ.
You can select four sound qualities with PRESET EQ: Heavy, Clear,
Soft, and Vocal.
STOP/
CANCEL
/
CD
/
/
SOUND
PLAY/
REC
PLAYMODE
/
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
MUTING
–, + VOLUME
VOLUME
A
1
Using MANUAL EQ
Press and hold [SOUND] until “MANUAL EQ” appears.
Each time you press and hold the button:
MANUAL EQ ! PRESET EQ
2
A
Each time you press the button:
BASS / TREBLE / Original display
,
1
Press [SOUND] to select “BASS” or “TREBLE”.
SOUND
3
Press [VOLUME – or +] while “BASS” or “TREBLE” is
displayed to adjust the level.
You can adjust bass and treble between –4 dB and +4 dB.
2
B
SOUND
1
Using PRESET EQ
Press and hold [SOUND] until “PRESET EQ” appears.
Each time you press and hold the button:
MANUAL EQ ! PRESET EQ
3
Other operations
2
VOLUME
Press [SOUND] to select the sound quality.
Each time you press the button:
/ Heavy / Clear / Soft / Vocal
Heavy:
Clear:
Soft:
Vocal:
B
OFF (canceled) ,
Adds punch to rock
Clarifies higher sounds
Use this setting for background music
Adds gloss to vocals
Note
SOUND
Recordings are unaffected by changes to sound quality.
1
C Using Theater Sound
EQ–ON
2
SOUND
This effect gives dialog and vocals atmosphere, adding a natural breadth
and depth to sound.
Use it when listening to stereo sources.
Press [THEATER S.].
To cancel
Press [THEATER S.] again.
C
Note
THEATER S.
¡ This effect is less discernible when using headphones.
¡ Cancel this effect if noise increases when listening to FM.
D Muting the volume
RQT5975
D
40
Press [MUTING].
Volume is reduced to minimum.
MUTING
To cancel
Press [MUTING] again.
Volume is restored.
To cancel from the unit, turn [VOLUME] to minimum (- - dB), then raise it
to the required level.
Muting is also canceled when the unit is turned off.
1,2- ,35
2- ,32- ,34442
6
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
PLAY/
REC
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
0
/
REW/
/
/ FF
EXT-IN
MD
REC
TAPE
CD
/
/
SPACE !"#
10
DELETE
STOP/
CANCEL
PLAYMODE
/
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
VOLUME
2
1
3
1
2
CLOCK/
TIMER
This timer starts play of the selected source at the selected time.
The example shows settings for play between 6:30 and 7:40.
Preparation:
Press [^] to turn the unit on, set the time (a page 10).
1
PLAY
q REW/
/ FF
/
/
q
CLOCK/
TIMER
PLAY
3
4
ENTER
REW/
/ FF
/
/
CLOCK/
TIMER
ENTER
q
EXT-IN
MD
CD
/
/
TAPE
TUNER
q Press [u/2 REW/
] or [1/i
OFF time.
w Press [CLOCK/TIMER] or [ENTER].
/FF] to select
/FF] to select
Select the source and set the volume.
,
w
q (within 10 seconds or so)
Press [u/2 REW/
] or [1/i
ON time.
w Press [CLOCK/TIMER] or [ENTER].
q Select the source.
MD, CD, tape
Insert disc or cassette and press [q/h MD], [q/h CD] or
[7 TAPE] to select “MD”, “CD” or “TAPE”.
The radio
Press [BAND TUNER] and tune in the desired station.
An external unit
Press [EXT-IN] to select “OPT IN” or “AUX”.
Each time you press the button:
USB / OPT IN / AUX / P-MD
PLAY
PLAY
Set the external unit’s timer to the same time.
w Set the volume.
e When you selected “MD”, “CD” or “TAPE”
Press [g STOP/CANCEL] to stop play.
5
Press [z PLAY/z REC] to select “z PLAY”.
Each time you press the button:
TIMER-PLAY / TIMER-REC / TIMER-REC / TIMER OFF
MD REC
TAPE REC
(Canceled)
(when the record timer is set)
,
4
Press [CLOCK/TIMER] twice to select “z PLAY”.
Each time you press the button:
CLOCK / z PLAY / z REC / Original display
2
w
3
1
The play timer
BAND
6
w
Other operations
2
Remote control only
2
,
1
Using the timers
2
Press [^] to turn the unit off.
The timer starts in the set condition at the set time.
The volume increases gradually to the set level.
The “z PLAY” indicator flashes while the timer is functioning.
VOLUME
If you set the timer incorrectly
Repeat the procedure from step 1.
e
STOP/
CANCEL
To cancel the timer
While the unit is on
Press [z PLAY/z REC] to clear the timer indicator from the display.
Note
6
PLAY/
REC
PLAY
RQT5975
5
You cannot use the play timer and record timer at the same time.
41
6
1,2- ,35
2- ,32- ,32
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
1
GHI
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
2
3
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
0
/
REW/
/ FF
/
EXT-IN
REC
PLAY/
REC
MD
CD
/
/
TAPE
SPACE !"#
10
DELETE
2
1
1
STOP/
CANCEL
TUNER PROGRAM
MD REC MODE SOUND THEATER S. MUTING
2
Remote control only
The record timer
This timer records the radio or an external source at the set time.
The example shows settings for recording from 18:30 to 20:00.
Preparation:
¡Press [^] to turn the unit on, set the time (a page 10).
¡Do the preparatory steps for the MD (a page 20) or tape (a page 21).
¡When recording to an MD, adjust the recording level and select the
recording mode (\ page 20).
PLAYMODE
BAND
/
2
Using the timers
4
VOLUME
1
Press [CLOCK/TIMER] three times to select “z REC”.
Each time you press the button:
CLOCK / z PLAY / z REC / Original display
,
2
1
CLOCK/
TIMER
REC
3
2
q
REW/
/
w
CLOCK/
TIMER
/ FF
REC
/
4
ENTER
q (within 10 seconds or so)
Press [u/2 REW/
] or [1/i
ON time.
w Press [CLOCK/TIMER] or [ENTER].
q Press [u/2 REW/
] or [1/i
OFF time.
w Press [CLOCK/TIMER] or [ENTER].
/FF] to select
/FF] to select
Select the source.
The radio
Press [BAND TUNER] and tune in the desired station.
An external unit
Press [EXT-IN] to select “OPT IN” or “AUX”.
Each time you press the button:
USB / OPT IN / AUX / P-MD
REC
REW/
/
5
/ FF
/
Each time you press the button:
TIMER-PLAY / TIMER-REC / TIMER-REC / TIMER OFF
(when the play MD REC
TAPE REC
(Canceled)
timer is set)
REC
w
CLOCK/
TIMER
Press [z PLAY/z REC] to select “MD REC” or “TAPE
REC”.
,
Other operations
,
3
q
ENTER
6
Press [^] to turn the unit off.
Recording starts 30 seconds before the set time with the volume
muted during the set time.
The “z REC” indicator flashes while the timer is functioning.
4
TUNER
If you set the timer incorrectly
Repeat the procedure from step 1.
BAND
To cancel the timer
While the unit is on
Press [z PLAY/z REC] to clear the timer indicator from the display.
EXT-IN
Note
RQT5975
5
42
6
PLAY/
REC
REC
¡ Timer recording starts from the set time even if TURN BACK or
TURN/TIME is selected.
¡ You cannot use the play timer and record timer at the same time.
¡ When recording from “OPT IN”, select the recording level (a page 48)
before setting the record timer. The level is set when you set the timer.
Using the timers
A
SLEEP
CLOCK/
– AUTO OFF TIMER
Remote control only
PLAY/
REC
z PLAY/z REC
CLOCK/TIMER
TITLE
1
GHI
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
2
3
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
EXT-IN
REC
/ FF
0
SPACE !"#
Checking the timers
10
DELETE
STOP/
CANCEL
While the unit is off
Press [CLOCK/TIMER].
The timer conditions are shown in the following order (when set).
¡ Play timer:
Source, start and finish times / source and volume
¡ Record timer:
When recording to an MD
Source, start and finish times / recording mode, source and
destination / recording level
When recording to a tape
Source, start and finish times / source, source and destination
/
MD
CD
/
/
TAPE
A The play and record timers
PLAYMODE
TUNER PROGRAM
BAND
/
MD REC MODE SOUND THEATER S. MUTING
VOLUME
B
While the unit is on
Press [CLOCK/TIMER].
The start and finish times for “z PLAY” (or “z REC”) are displayed.
SLEEP
CLOCK/
– AUTO OFF TIMER
PLAY/
REC
SLEEP –AUTO OFF
TITLE
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
REW/
/
/ FF
0
EXT-IN
MD
REC
TAPE
10
DELETE
STOP/
CANCEL
/
CD
PLAYMODE
/
/
/
SPACE !"#
Turning the timers on and off
The selected timer comes on at the set times if the “z PLAY” indicator or
“z REC” indicator on the display is on. The indicator can be turned on
and off by pressing [z PLAY/z REC] while the unit is on.
Playing the unit after the timers are set
The unit can be used after the timers are set.
Turn the unit off before the set start time.
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
Note
If you select an external source, set the external unit’s timer to the same
time. (See the instruction manual that came with the external unit.)
VOLUME
B The sleep timer
This function turns the unit off after a set time.
Press [SLEEP –AUTO OFF] to select the time (minutes).
Each time you press the button:
/ SLEEP 30 / SLEEP 60 / SLEEP 90
SLEEP OFF , SLEEP 120 ,
To cancel the sleep timer
Press [SLEEP –AUTO OFF] to select “SLEEP OFF”.
To confirm the remaining time
Press [SLEEP –AUTO OFF].
The remaining time is shown for about 5 seconds.
To change the setting
Press [SLEEP –AUTO OFF] to display the remaining time, then press
again to select the required time.
Using the timers together
The play and sleep timer or the record and sleep timer can be used
together.
The sleep timer always has priority. Be sure not to overlap timer settings.
The play and record timer cannot be used in combination.
RQT5975
SLEEP
Other operations
While playing a source
SLEEP
– AUTO OFF
43
Using the unit with a computer
Computer
You can play music you have recorded on your computer through this
unit’s speakers by connecting the two with a USB cable.
Before use
Your computer must meet the following conditions for you
to connect it to this unit with a USB cable.
Type A
USB cable
Type B
Top of the unit
USB
P-M
D
ES
PHON
IBM PC/AT operating system compatible
USB board, version 1.0
One of the following operating systems:
Windows 98 Second Edition, Windows 2000 Professional, Windows
Millennium Edition
Correct operation is not guaranteed if you are using one of the following
operating systems:
¡ Windows 98, Windows 95, Windows NT
¡ When used with Windows 98 Second Edition, Windows 2000, or
Windows Millennium Edition that has been upgraded from Windows
3.1/95/98.
Recommended CPU
MMX Technology Pentium Processor, 266 MHz or equivalent
Note
¡ Operation is not guaranteed even if the above conditions are met.
¡ You cannot control the computer with this unit or vice versa.
¡ IBM and PC/AT are registered trademarks of International Business
Machines Corporation of the United States.
¡ MMX and Pentium are trademarks or registered trademarks of Intel
Corporation of the United States.
¡ Microsoft and Windows are registered trademarks of Microsoft
Corporation of the United States, in both the United States and other
countries.
¡ Other names of systems and products mentioned in these instructions
are usually the registered trademarks or trademarks of the
manufacturers who developed the system or product. The “™” and “®”
marks are not used to identify registered trademarks and trademarks
in these instructions.
RQT5975
Other operations
Connection
44
\ page 7).
Open the flap on top of the unit (\
Note
¡ Operation is not guaranteed if you connect a USB hub or extension
cord.
¡ Connect to the root hub terminal if your computer has more than one
USB board. (Read your computer’s operating instructions for details.)
A
Using the unit with a computer
Display in Windows Millennium Edition
First time connection – Install the driver
software
You must install the USB driver when you connect this unit to your
computer the first time. This only has to be done the first time. Driver
software is included with the computer’s operating system software.
You may need a CD-ROM to install the software so have it on hand.
Read the computer’s operating instructions before installation.
A
Driver installation
q Turn on your computer and start up the operating
system.
w Turn on this unit.
e Connect this unit to the computer with the USB cable
(a page 44).
The computer detects this unit and installs the appropriate device
driver. Follow the instructions displayed on the computer.
Do not disconnect the USB cable while the computer is detecting this
unit.
B
Confirm that the driver has been correctly installed.
Display in Windows Millennium Edition
q From the “Start” menu, select “Settings” and click on
“Control Panel”.
w In the control panel window, double-click on the
“System” icon.
e In Windows 98 Second Edition or Windows Millennium Edition
Click on the “Device Manager” tab.
Click on the “Hardware” tab and then click on “Device
Manager”.
r Check that the device has been recognized.
Confirm that “USB Audio Device” appears under “Sound, video and
game controllers” and that “USB Composite Device” appears under
“Universal Serial Bus controllers”.
If the devices have not been recognized
Disconnect the USB cable, then reconnect it. If the devices are still not
recognized, try restarting your computer.
Display in Windows 2000 Professional
Other operations
Make sure “View devices by type” is checked.
In Windows 2000 Professional
Note
What is actually displayed in the device manager list and other computer
windows depends on your computer environment.
RQT5975
B
Confirming driver installation
45
A
2
3
Using the unit with a computer
5
A
/I
1
CD TAPE
AC IN
AUTO REC
Play
Turn your computer on.
Wait for the computer to complete start-up.
CD MD
MD REC
MODE
LIGHT
– DEMO
–DUAL
HI-SPEED
EJECT
VOLUME
USB/EXT-IN
STOP
REW/
/
/
MD /
CD /
TAPE
TUNER/BAMD
DOWN
/FF
UP
2
2
3
4
5
Turn on this unit.
Press [USB/EXT-IN] to select “USB”.
Start playing the music on the computer.
Adjust the volume on this unit.
ı If there is no output, check the audio properties on the
computer.
q From the “Start” menu, select “Settings” and click on “Control
Panel”.
w Double click on the “Sound and Multimedia Properties” icon (or
“Multimedia”).
e Click on the “Audio” tab. Check the “USB Audio Device” is
selected as the priority play item.
r If there is a “Volume” item, click on it and check the volume
setting.
/I
3
Stopping play
Stop play on the computer and close the audio software.
USB/EXT-IN
Note
5
VOLUME
DOWN
UP
Display in Windows Millennium Edition
C
Other operations
B
¡ Do not turn this unit off or change the input source while playing as
this can cause your computer to malfunction.
¡ Close the audio software before disconnecting the USB cable.
¡ When you are finished but want to leave the two connected, turn this
unit off before shutting down your computer.
¡ Turn this unit off if the computer goes into sleep mode.
¡ Skipping and noise may occur under some computer operating
environments.
¡ Read the instructions for your computer and the audio software.
Recording
Remote control only
TAPE REC
only
Preparation:
Insert the cassette tape (\ page 16).
Press [EXT-IN] to select “USB”.
Start playing the music on the computer.
While pressing [*/h REC], press [7 TAPE] to start
recording.
To stop recording
Press [g STOP/CANCEL].
C
REW/
/
EXT-IN
*/h REC
7 TAPE
REC
/
RQT5975
TAPE
46
/ FF
0
EXT-IN
MD
REC
TAPE
/
/
STOP/
CANCEL
/
CD
PLAYMODE
/
g STOP/CANCEL
To pause recording
While pressing [*/h REC], press [7 TAPE].
Repeat to restart recording.
TUNER PROGRAM
BAND
Note
MD REC MODE SOUND THEATER S. MUTING
VOLUME
You cannot record to MDs.
Using other equipment
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
0
/
REW/
/
1
3
EXT-IN
REC
/
PLAY/
REC
/ FF
MD
CD
/
/
TAPE
SPACE !"#
2
10
STOP/
CANCEL
PLAYMODE
BAND
MD REC MODE SOUND THEATER S. MUTING
MD REC
TAPE REC
Make an analog recording from a portable MD player connected to the
P-MD terminal.
DELETE
TUNER PROGRAM
VOLUME
Recording from a portable MD player
g STOP/CANCEL
Preparation:
¡ Insert the MD (\ page 12) or the cassette tape (\ page 16).
¡ Set the volume on the portable MD player to an appropriate level and
turn all sound quality modes off.
Note
¡ Do not place the portable MD player on top of this unit during
recording. This can cause noise.
¡ Adjust the volume on the portable MD player if there is distortion.
1
Each time you press the button:
USB / OPT IN / AUX / P-MD
EXT-IN
,
1
Press [EXT-IN] to select “P-MD”.
MD REC
2
EDIT MODE
MANUAL: Normal recording mode
SYNCHRO: Recording starts automatically when the signal
from the source reaches a certain level, pauses if
a 3-second silence is detected, then starts again
when play starts. A track mark is added at the
point recording starts.
MD REC
3
REC
While pressing [*/h REC]
MD REC : Press [q/h MD].
Recording starts when you have selected MANUAL.
/
TAPE REC
/
: Press [7 TAPE].
Recording starts.
MD
4
Start the portable MD player.
MD REC
Recording starts when you have selected SYNCHRO.
TAPE REC
REC
/
To stop recording
Press [g STOP/CANCEL].
MD REC
Recording is complete after “UTOC Writing” and “ UTOC ” stop flashing
on the display.
Other operations
3
Each time you press the button:
MANUAL ! SYNCHRO
TAPE
RQT5975
2
Press [EDIT MODE] to select the desired mode.
47
Using other equipment
SLEEP
CLOCK/
– AUTO OFF TIMER
TITLE
CHARA
ENTER
DISPLAY
ABC
DEF
EDIT MODE
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
1,1
4
/
REC
/
/ FF
0
CD
/
/
3
10
1
STOP/
CANCEL
PLAYMODE
TUNER PROGRAM
BAND
MD REC MODE SOUND THEATER S. MUTING
Press [EXT-IN] to select “OPT IN” or “AUX”.
Each time you press the button:
USB / OPT IN / AUX / P-MD
DELETE
/
MD
TAPE
SPACE !"#
Listening to an external source
g STOP/CANCEL
2, 2
,
REW/
EXT-IN
PLAY/
REC
2
When you have selected “OPT IN”
Press [PLAY MODE] to select the play level.
VOLUME
NORMAL: normal mode
HIGH: when playing sources with low volume, such as satellite and
cable
3
Operate the unit.
See the unit’s operating instructions for details on operation and
connection.
Recording an external source
1, 1
MD REC
EXT-IN
1
2
TAPE REC
Press [EXT-IN] to select “OPT IN” or “AUX”.
When you have selected “OPT IN”
Press [PLAY MODE] to select the recording level.
NORMAL: normal mode
HIGH: when recording sources with low volume, such as satellite
and cable
2, 2
MD REC
PLAYMODE
3
only
Press [EDIT MODE] to select the desired mode.
(a page 20)
Each time you press the button:
MANUAL / SYNCHRO / TURN BACK
Other operations
3
4
/
MD
/
TAPE REC
REC
/
RQT5975
TAPE
TIME MARK
While pressing [*/h REC]
MD REC
: Press [q/h MD].
TAPE REC : Press [7 TAPE].
When you have selected TURN BACK or TURN/TIME, wait until
“TURN BACK” stops flashing and lights, then while pressing
[*/h REC] press [q/h MD].
MD REC
REC
48
4
/
,
TURN/TIME ,
EDIT MODE
5
Start the source to be recorded.
MD REC
Recording starts when you have selected SYNCHRO.
To stop recording
Press [g STOP/CANCEL].
MD REC
Recording is complete after “UTOC Writing” and “ UTOC ” stops flashing
on the display.
While “OPT IN” is selected
¡ There will be a one-second interruption when recording starts on the
MD. This has no effect on the recording.
¡ There will be a five-second interruption when recording finishes on the
MD while the unit writes UTOC.
Specifications
■ Amplifier section
■ MD section
RMS Power OUTPUT (both channels driven)
10 % total harmonic distortion
For the United Kingdom
LOW
15 W per channel (6 Ω)
HIGH
3 W per channel (6 Ω)
Total Bi-AMP Power
18 W per channel
For others
LOW
14 W per channel (6 Ω)
HIGH
3 W per channel (6 Ω)
Total Bi-AMP Power
17 W per channel
PMPO (Except for the United Kingdom)
160W
Input sensitivity
AUX
500 mV
P-MD
160 mV
USB
Based on USB Rev. 1.0
OPT-IN
Digital Optical Input
Input impedance
AUX
30 kΩ
P-MD
5 kΩ
Output impedance
Headphone
16–32 Ω
System
Recording
Reading
Sensitivity
Antenna terminals
87.50–108.00 MHz
(0.05 MHz steps)
16.3 dBf (1.8 µV, IHF’ 58)
75 Ω (unbalanced)
■ AM tuner section
Frequency range
For the United Kingdom
For others
Sensitivity
S/N 20 dB
522–1629 kHz (9 kHz steps)
522–1629 kHz (9 kHz steps)
520–1630 kHz (10 kHz steps)
500 µV/m
■ Cassette deck section
Track system
4 track, 2 channel
Heads
Record/playback
Solid permalloy head
Erasure
Double gap ferrite head
Motor
DC servo motor
Recording system
AC bias 100 kHz
Erasing system
AC erase 100 kHz
Tape speed
4.8 cm/sec
Overall frequency response (–6 dB at Deck out)
Type 1 (Normal)
35 Hz–14 kHz
Type 2 (High)
35 Hz–14 kHz
Wow and Flutter
0.18 % WRMS
■ Speakers (SB-PM37)
Type
Superwoofer
Fullrange
Impedance
LOW
HIGH
Input power
LOW
HIGH
Output sound pressure
Crossover frequency
Frequency range
Dimensions (W×H×D)
Mass
2 way 2 speaker, bassreflex system
10 cm cone type
8 cm cone type
6Ω
6Ω
35 W (Music)
15 W (Music)
86 dB/W (1.0 m)
110 Hz
55 Hz–25 kHz (–16 dB)
75 Hz–22 kHz (–10 dB)
133×225.3×237 mm
2.4 kg
■ General
Power supply
For the United Kingdom
For others
Power consumption
For the United Kingdom
For others
Standby
Dimensions (W×H×D)
Mass
AC 230–240 V, 50 Hz
AC 220–240 V, 50/60 Hz
60 W
60 W
0.9 W
165.4×228×315 mm
4.8 kg
Notes:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
US and foreign patents licensed from Dolby Laboratories.
■ CD section
Sampling frequency
Decoding
Beam source
Wavelength
Number of channels
Wow and Flutter
Digital filter
D/A converter
Based on USB Rev. 1.0
44.1 kHz
16 bit linear
Semiconductor laser
780 nm
2 channels stereo
Below measurable limit
8 fs
MASH (1 bit DAC)
References
Frequency range
■ USB DAC section
80 min (SP)
160 min (LP2)
320 min (LP4)
RQT5975
■ FM tuner section
Sampling frequency
Coding system
Number of channels
Wow and flutter
Recording/Playback time
80 min MD Disc use
MiniDisc Digital Audio System
Magnetic field modulation direct overwrite
Non-contact optical system
with semiconductor laser (λ=780 nm)
44.1 kHz
ATRAC/ATRAC3 (MDLP)
2 channels stereo
Below measurable limit
49
Displays
BLANK DISC
An MD with no recording on it is inserted.
CAN’T COMBINE
System limitations prevent combining some tracks.
CAN’T DIVIDE
System limitations prevent dividing some tracks.
CAN’T EDIT
You cannot edit titles during program, random, or repeat play. Cancel the modes to continue.
DISC ERROR
There is a problem with the disc and you need to replace it.
DISC FULL
There is no space on the disc. Erase some tracks or record with another disc.
DISC PROTECTED
Close the write protect hole to enable recording and editing (a page 11).
TAPE PROTECTED
Close the write protect hole to enable recording (a page 21).
EJECT ERROR
LOAD ERROR
A problem occurred while loading or ejecting the disc. After this is displayed the unit automatically switches
off. Remove the MD and start again.
EMERGENCY STOP
A problem occurred during recording. Eject the MD, reinsert it and start recording from the beginning again.
ERROR
Incorrect operation was performed. Read the instructions and try again.
F–
H–
There may be a problem with the circuitry. Turn the unit on again.
If this does not fix the problem, consult your dealer.
GROUP DATA FULL
There is no space in UTOC and editing is not possible. To proceed, erase or shorten titles, or release a group.
MD F –
Turn the unit off then on again and reinsert the MD. Consult a dealer if the display appears again.
MD NO DISC
CD NO DISC
A disc hasn’t been inserted.
You cannot record an entire CD if there is not enough space on the MD. Erase some tracks or record with
another disc.
REMAINING/SHORT
You have started AUTO REC on a CD to an MD but there is not enough space for all the tracks.
NO TAPE
A cassette hasn’t been inserted.
PlaybackDISC
This is a playback only disc. You cannot record on it or edit it.
SCMS CAN’T COPY
¡ You cannot record from video CDs or CD-ROM.
¡ You are trying to record digitally from a CD-R or CD-RW that is protected by SCMS (a page 11). Press
[EDIT MODE] to select “ANALOG-REC”.
TITLE FULL
You have entered the maximum number of letters for the track title.
TITLE OVER
The title has 101 or more characters. The extra characters are erased if you press [ENTER].
TOC Reading
The unit is reading information on the disc. The unit cannot be operated while this is displayed.
TRACK NUMBER/NOT EQUAL
You cannot use title station to copy titles if the second MD has a different number of tracks.
TRACK PROTECTED
The track was write-protected on another unit. Check whether you want to erase or edit the track before
proceeding.
UTOC FULL
This display appears for one of the following reasons.
¡ The section reserved for text information is full; erase unneeded titles to make room.
¡ The maximum number of tracks (254) has been reached; erase unneeded tracks.
¡ You tried to edit groups when there was not enough space in UTOC; erase or shorten titles, or release a
group.
References
NO REMAIN
Troubleshooting guide
Before requesting service, make the below checks. If you can’t fix the system as described below, or if something not listed here occurs, refer to the
enclosed directory to locate an Authorized Service Center convenient to you or contact your dealer.
Reference pages are shown as black circled numbers t.
Note
The unit may become warm during operation, but this is normal.
RQT5975
Common Problems
50
No sound.
Turn the volume up.
The speaker cords may be shorted. Turn the unit off, check and correct the connections and turn the unit on.
t
Sounds unfixed, reversed or
come from one speaker only.
Check the speaker connections. t
Humming heard during play.
An AC mains lead or fluorescent light is near the cables. Keep other appliances and leads away from this
unit’s cables.
If possible in your area, turn the AC mains lead’s plug or connector over to reverse the lead’s polarity.
Troubleshooting guide
MDs
Cannot start play.
There may be condensation inside the unit. Wait for an hour and try again.
Cannot record.
Close the write protect hole. !1
Check all connections. t, y
Replace with a recording MD. !1
Cannot enter text.
Reduce the amount of text on the MD. (An MD can hold up to about 1700 characters.) #6
The disc isn’t pulled
automatically into the unit, or it
needs to be pushed forcefully to
go in.
Turn the unit off then on again. This situation can occur if the MD is stopped when ejecting or if it is forced
into the slot.
Cannot high-speed record.
There are limitations on high-speed recording. @6
No operation or incorrect
display.
The MD may not act correctly because of the recording system. This may cause the following problems.
¡ UTOC FULL is displayed despite there being space on the MD and the maximum number of tracks is yet
to be reached.
¡ COMBINE or DIVIDE cannot be used.
¡ Remaining time doesn’t increase after erasing a track.
¡ The total time of the tracks and the remaining recording time do not add up to the total possible recording
time. This may occur because tracks less than two seconds are counted as two seconds.
A problem occurred while the unit was reading TOC.
1. Press [8] and wait a moment until the unit clicks to indicate it is completely off.
2. Press [EJECT ;]. The unit comes on and the MD is ejected.
(Repeat steps 1 and 2 if the MD is not ejected.)
3. Insert another MD. If the problem reoccurs, consult your dealer.
After inserting an MD, “TOC
Reading” continues to flash and
you are unable to operate the
unit or eject the MD.
Cannot play tracks recorded
with LP2 or LP4 on other
equipment.
The equipment must be compatible with
is played without sound.
Cannot record to an MD from
equipment connected through
the USB terminal.
You cannot record to MDs due to copyright restrictions. You can record to cassettes.
. “LP:” is displayed at the beginning of the title and the track
CDs
The display is wrong or play
won’t start.
The disc may be upside down. !3
Wipe the disc.
Replace the disc if it is scratched, warped, or nonstandard. !1
There may be condensation inside the unit. Wait for an hour and try again.
Only one track from the CD is
recorded.
Press [PLAY MODE] to cancel 1-song mode. !5
Noise is heard.
The stereo indicator flickers or
doesn’t light.
Sound is distorted.
Use an outdoor antenna. y, u
A beat sound is heard.
Turn the television or computer off or separate them from the unit.
A low hum is heard during AM
broadcast.
Separate the antenna from other cables and leads.
Cassette tapes
Poor quality sound.
Clean the heads. Back cover
Recording is not possible.
If the erasure prevention tabs have been removed, cover the holes with adhesive tape. @1
References
The radio
Remote control
Remote control doesn’t work.
Check the batteries are inserted correctly. u
Replace the batteries if they are worn. u
Sound skips.
The computer freezes.
¡ Close other applications.
¡ Use a lighter application to play audio.
No sound.
¡ Check the volume settings on the computer and audio software $6.
¡ Make “USB Audio Device” the priority device $6.
There is no sound from the
computer.
Disconnect the USB cable from the computer and restart the computer.
RQT5975
USB
51
Maintenance
If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
¡ Never use alcohol, paint thinner or benzine to clean this unit.
¡ Before using chemically treated cloth, read the instructions that came
with the cloth carefully.
For a cleaner crisper sound
Clean the heads regularly to assure good quality playback and
recording. Use a cleaning tape (not included).
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS
TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
CAUTION!
¡DO NOT INSTALL, OR PLACE THIS UNIT, IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING, ENSURE
THAT CURTAINS AND ANY OTHER MATERIALS DO NOT
OBSTRUCT THE VENTILATION VENTS.
¡DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.
¡DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH
AS LIGHTED CANDLES, ON THE UNIT.
¡DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
This product may receive radio interference caused by mobile
telephones during use. If such interference is apparent, please
increase separation between the product and the mobile
telephone.
For the United Kingdom
THIS UNIT IS INTENDED FOR USE IN MODERATE
CLIMATES.
For others
THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.
¡
¡
¡
Matsushita Electric Industrial Co., Ltd.
Web Site:http://www.panasonic.co.jp/global/
En
RQT5975-B
H0701RF0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
