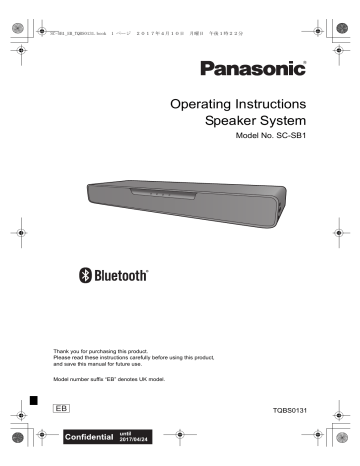

Operating Instructions
Speaker System
Model No. SC-SB1
Thank you for purchasing this product.
Please read these instructions carefully before using this product,
and save this manual for future use.
Model number suffix “EB” denotes UK model.
EB
TQBS0131
2017/04/24
SC-SB1_EB_TQBS0131.book
2 ページ 2017年4月10日 月曜日 午後1時22分
Safety precautions
Table of contents
WARNING
CAUTION
Unit
Unit
≥ To reduce the risk of fire, electric shock or product
damage,
j Do not expose this unit to rain, moisture, dripping or
splashing.
j Do not place objects filled with liquids, such as
vases, on this unit.
j Use only the recommended accessories.
j Do not remove covers.
j Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
≥ Do not place sources of naked flames, such as lighted
candles, on this unit.
≥ This unit may receive radio interference caused by
mobile telephones during use. If such interference
occurs, please increase separation between this unit
and the mobile telephone.
≥ This unit is intended for use in moderate climates.
≥ Product Identification Marking is located on the rear of
the unit.
AC mains lead
≥ To reduce the risk of fire, electric shock or product
damage,
j Ensure that the power supply voltage corresponds to
the voltage printed on this unit.
j Insert the mains plug fully into the socket outlet.
j Do not pull, bend, or place heavy items on the lead.
j Do not handle the plug with wet hands.
j Hold onto the mains plug body when disconnecting
the plug.
j Do not use a damaged mains plug or socket outlet.
≥ The mains plug is the disconnecting device.
Install this unit so that the mains plug can be
unplugged from the socket outlet immediately.
≥ Place this unit on an even surface.
≥ To reduce the risk of fire, electric shock or product
damage,
j Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this
unit is well ventilated.
j Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
j Do not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive
vibration.
≥ Do not place this unit and other devices (Blu-ray disc
recorder, external HDD, etc.) directly on top of each
other, as this may cause HDD failure or data damage.
Button-type battery (Lithium battery)
Button-type battery (Lithium battery)
≥ Risk of fire, explosion and burns. Do not recharge,
disassemble, heat above 60 oC or incinerate.
≥ Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
≥ Insert with poles aligned.
≥ Mishandling of batteries can cause electrolyte leakage
and may cause a fire.
j Remove the battery if you do not intend to use the
remote control for a long period of time. Store in a
cool, dark place.
j Do not heat or expose to flame.
j Do not leave the battery(ies) in a car exposed to
direct sunlight for a long period of time with doors
and windows closed.
≥ When disposing of the batteries, please contact your
local authorities or dealer and ask for the correct
method of disposal.
WARNING
DO NOT INGEST BATTERY,
CHEMICAL BURN HAZARD
This product contains a coin/button cell battery. If the
coin/button cell battery is swallowed, it can cause
severe internal burns in just 2 hours and can lead to
death. Keep new and used batteries away from
children. If the battery compartment does not close
securely, stop using the product and keep it away from
children. If you think batteries might have been
swallowed or placed inside any part of the body, seek
immediate medical attention.
Placement
AC adaptor
≥ The AC adaptor operates on AC between 220 V and
240 V. But obtain a suitable plug adaptor if the plug
does not fit the AC mains socket.
2
TQBS0131
3 ページ 2017年4月10日 月曜日 午後1時22分
About Bluetooth®
Panasonic bears no responsibility for data and/or
information that is compromised during a wireless
transmission.
∫ Frequency band used
This system uses the 2.4 GHz frequency band.
∫ Certification of this device
≥ This system conforms to frequency restrictions and has
received certification based on frequency laws. Thus, a
wireless permit is not necessary.
≥ The action below are punishable by law in some
countries:
j Taking apart or modifying the unit.
j Removing specification indications.
∫ Restrictions of use
≥ Wireless transmission and/or usage with all Bluetooth®
equipped devices is not guaranteed.
≥ All devices must conform to standards set by Bluetooth
SIG, Inc.
≥ Depending on the specifications and settings of a
device, it can fail to connect or some operations can be
different.
≥ This system supports Bluetooth® security features. But
depending on the operating environment and/or
settings, this security is possibly not sufficient. Transmit
data wirelessly to this system with caution.
≥ This system cannot transmit data to a Bluetooth®
device.
∫ Range of use
Use this device at a maximum range of 10 m.
The range can decrease depending on the environment,
obstacles or interference.
∫ Interference from other devices
Caution for AC Mains
Lead
For your safety, please read the following text
carefully.
This appliance is supplied with a moulded three
pin mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please
ensure that the replacement fuse has a rating of 5ampere and that it is approved by ASTA or BSI to
BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on
the body of the fuse.
If the plug contains a removable fuse cover you
must ensure that it is refitted when the fuse is
replaced.
If you lose the fuse cover the plug must not be
used until a replacement cover is obtained.
A replacement fuse cover can be purchased from
your local dealer.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type
of AC mains plug (figures A and B). Confirm the AC
mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
Figure B
≥ This system may not function properly and troubles
such as noise and sound jumps may arise due to radio
wave interference if this system is located too close to
other Bluetooth® devices or the devices that use the
2.4 GHz band.
≥ This system may not function properly if radio waves
from a nearby broadcasting station, etc. are too strong.
∫ Intended usage
≥ This system is for normal, general use only.
≥ Do not use this system near equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals, laboratories,
etc).
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
Figure A
Figure B
Fuse
(5 ampere)
Fuse
(5 ampere)
TQBS0131
3
Precautions
SC-SB1_EB_TQBS0131.book
SC-SB1_EB_TQBS0131.book
4 ページ 2017年4月10日 月曜日 午後1時22分
Table of contents
Safety precautions........................ 2
About Bluetooth® ......................... 3
Caution for AC Mains Lead.......... 3
Before use
Accessories................................... 4
Unit care ........................................ 4
Control reference guide ............... 5
This system (Front / Sides).................... 5
This system (Rear) ................................ 5
Remote control ...................................... 6
Getting started
Connections .................................. 7
Operations
Using this system ......................... 9
Linked operations with the TV
(VIERA Link
“HDAVI ControlTM”)................ 10
Bluetooth® connection............... 11
Advanced operations ................. 11
Reference
Troubleshooting ......................... 13
License ........................................ 14
Specifications ............................. 15
≥ The illustrations shown may differ from
your unit.
≥ Operations in this operating instructions
are described mainly with the remote
control, but you can perform the operations
on this system if the controls are the same.
4
TQBS0131
Accessories
Before use
Check the supplied accessory before using this
system.
∏ 1 Remote control (with a battery)
(N2QAYC000119)
∏ 1 AC mains lead
(K2CT2CA00007)
∏ 1 AC adaptor
(TXH0004AA)
≥ Product numbers are correct as of April 2017. These
may be subject to change.
≥ Do not use AC mains lead and AC adaptor with other
equipment.
≥ Do not use any other AC mains lead and AC adaptors
except the supplied one.
Unit care
∫ Clean this system with a soft, dry cloth
≥ When dirt is heavy, wring a cloth moistened in water
tightly to wipe the dirt, and then wipe it with a dry cloth.
≥ Never use alcohol, paint thinner or benzine to clean this
system.
≥ Before using chemically-treated cloth, carefully read the
instructions that came with the cloth.
∫ To dispose or transfer this system
This system may keep the user settings information in this
system. If you discard this system either by disposal or
transfer, then follow the procedure to return all the settings
to the factory presets to delete the user settings.
(> 13, “To return to the factory defaults.”)
≥ The operation history may be recorded in the memory
of this system.
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that this product is in
compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU.
Customers can download a copy of the original DoC to our RE
products from our DoC server:
http://www.doc.panasonic.de
Contact to Authorised Representative:
Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Germany
Type of wireless
Frequency band
Maximum power
(dBm e.i.r.p.)
Bluetooth®
2402 - 2480 MHz
10 dBm
SC-SB1_EB_TQBS0131.book
5 ページ 2017年4月10日 月曜日 午後1時22分
Control reference guide
This system (Front / Sides)
1
Precautions
2
3
4
LED indicators
3
Adjust the volume of this system (> 9)
The currently-selected device is indicated by the
lighting of the corresponding indicator.
4
[INPUT / j PAIRING] button
≥ Selects the connected device
(The device changes each time this button is
pressed)
≥ Registers Bluetooth® devices
Remote control signal sensor
A
(Bluetooth®) indicator (lights up blue)
B HDMI(BD) indicator (lights up green)
C HDMI(TV) indicator (lights up green)
D AUX indicator (lights up green)
2
5
Standby/on switch (Í/I)
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still
consuming a small amount of power.
Distance:
Within approx. 7 m directly in front
Angle:
Approx. 20e up and down and approx.
30e left and right
Getting started
1
This system (Rear)
5
1
2
3
4
Operations
2 3
6
DC IN (12 V) terminal
Firmware update (UPDATE
DC 5 V 500 mA)
terminal*
AUDIO IN (AUX IN) terminal
4
5
6
Ventilation holes
HDMI AV OUT (TV (ARC)) terminal
HDMI AV IN (BD/DVD) terminal
Reference
1
Before use
5
* Note about firmware updates
Use the firmware update terminal to update the version of this system through a USB memory
device. (Not used for normal operations.) For more details about version updates, refer to the
support site below.
http://av.jpn.support.panasonic.com/support/global/cs/
(This site is in English only.)
TQBS0131
5
SC-SB1_EB_TQBS0131.book
6 ページ 2017年4月10日 月曜日 午後1時22分
Remote control
1
ュリヮヮユン
2
ヴヶャヸヰヰョユン
3
≥ If no operation is performed for about 10 sec or any
button other than [i SUBWOOFER],
[SUBWOOFER j] or [DIMMER] is pressed, the
indicators return to normal status.
(If the bass is accidentally adjusted when
[i SUBWOOFER] or [SUBWOOFER j] is
pressed, follow the steps again from step 1.)
5
6
“Auto”
7
"Off”
ヮヶヴリヤ
ヷヰリヤユ
8
ヤリワユヮモ
ヴヵモワュモンュ
9
4
"Level 1"
"Level 2"
∫ Before using for the first time
Remove the insulation sheet A.
1
2
3
4
5
Turn this system on or off (> 9)
Select the input source (> 9)
“HDMI(BD)” --# “HDMI(TV)” --# “AUX”
^----------- “ ” (Bluetooth®) -----------}
Select the Bluetooth® device as the source
(> 9)
Select the sound mode (> 9)
Adjust the bass (adjustable in four steps)
Lowest
Highest
6
7
8
9
Switch the brightness of the LED indicators
Adjust the volume of this system (> 9)
Mute the sound (> 9)
Adjust the delay between video and audio
∫ To replace a button-type battery
Battery type: CR2025 (Lithium battery)


1 Press [AUDIO DELAY] on the remote control.
≥ The current mode will be indicated by the
corresponding LED indicator.
2 While the current mode is indicated (about
10 sec), press [i SUBWOOFER] or
[SUBWOOFER j].
≥ The setting changes in the following order each
time you press [i SUBWOOFER].
(It changes in the reverse order if you press
[SUBWOOFER j].)
“Auto” --# “Off” --# “Level 1” --# “Level 2”
6
TQBS0131
≥ Set the button-type battery with its (i) mark
facing upward.
≥ The symbols on the supplied remote control
represent the following:
Warning (refer to Operating Instructions for the button
cell battery)
SC-SB1_EB_TQBS0131.book
7 ページ 2017年4月10日 月曜日 午後1時22分
Connections
Getting started
≥Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead for this system to the socket outlet until all connections have
been completed.
≥Do not place this system directly on top of another device, such as a Blu-ray disc recorder.
≥Keep magnetised items away. Magnetised cards, watches, etc., can be damaged if placed too close to
this system.
HDMI IN (ARC)
≥ Be sure to connect to the TV’s
ARC compatible terminal.
HDMI cable
(not supplied)
What is ARC?
ARC is an abbreviation of “Audio Return
Channel”, also known as HDMI ARC. It
refers to one of the HDMI functions. When
you connect the terminal labelled “ARC”
and this system, TV pictures and sound can
be enjoyed with a single HDMI cable.
HDMI cable
(not supplied)
AC adaptor
(supplied)
TV
HDMI OUT
AC mains lead
(supplied)
Getting started
HDMI IN
(ARC)
Before use
≥ Purchase an HDMI cable rated as “High-Speed HDMI Cable”. Operation is not possible with a cable
that does not meet the HDMI standards.
This system supports 3D content.
≥ You can connect a 3D-compatible TV and a 3D-compatible Blu-ray disc recorder/player to this
system and enjoy spectacular 3D images of commercially-available Blu-ray discs and other storage
media.
This system supports HDR (High Dynamic Range) pass-through of 4K (50p/60p) signals.
≥ An HDMI cable that supports 18 Gbps is required to enjoy 4K (50p/60p) HDR content.
≥ You can connect a 4K-compatible TV and a 4K-compatible Blu-ray disc recorder/player to this
system and enjoy smooth high-definition pictures even on a large screen. (Two HDMI cables that
support 18 Gbps are required.)
This system
(rear)
Blu-ray disc recorder/player
To a household
mains socket
≥The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always
“live” as long as the AC adaptor is connected to an electrical outlet.
≥This system consumes a small amount of AC power (> 15) even when it is turned off. In the interest of
power conservation, if you will not be using this system for a long time, unplug it from the household
mains socket.
≥The symbols on the supplied AC adaptor represent the following:
AC
DC
Class II equipment (The construction of the product is double-insulated.)
TQBS0131
7
SC-SB1_EB_TQBS0131.book
8 ページ 2017年4月10日 月曜日 午後1時22分
∫ Changing the settings of your TV
To connect this system and the TV with an HDMI cable, you need to change the TV settings to output
sound correctly from this system. The instructions below use a Panasonic TV (VIERA) as an example.
≥The operating procedure and the names of on-screen displays differ depending on the TV (VIERA).
Refer to the operating instructions or electronic operating instructions for the TV (VIERA) for details.
1
Connect this system and the TV with an HDMI cable. (> 7)
2
Set the TV’s sound output destination to “Home Cinema”.
≥ After connecting this system and the TV, turn them on.
≥ Operation example:
Press [Apps], select “VIERA Link”, and set “Speaker Selection” to “Home Cinema”.
≥ Check to see if the VIERA Link setting of each device is turned on.
≥ Please also follow the steps above after adding a new device, reconnecting to the TV or restoring the default settings.
Using the AUDIO IN (AUX IN) terminal
You can also connect this unit using a stereo mini plug audio cable (not supplied).
Set the input of this system to “AUX”.
Device to be connected
This system
(rear)
Stereo mini plug audio cable (not supplied)
Headphone/earphone
jack
≥ Use an HDMI cable (not supplied) to connect a Blu-ray disc recorder/player.
≥ When a stereo mini plug audio cable (not supplied) is connected, high-res sound sources are output in CD-sound
source quality.
≥ The VIERA Link function of this system (> 10, “Linked operations with the TV (VIERA Link “HDAVI ControlTM”)”) can
not be used.
For more details about other connection methods, refer to the support site below.
http://av.jpn.support.panasonic.com/support/global/cs/
(This site is in English only.)
8
TQBS0131
SC-SB1_EB_TQBS0131.book
9 ページ 2017年4月10日 月曜日 午後1時22分
Using this system
Operations
Preparation
≥ Turn on the TV and/or connected device.
ュリヮヮユン
2
ヴヶャヸヰヰョユン
ヮヶヴリヤ
ヷヰリヤユ
ヤリワユヮモ
ヴヵモワュモンュ
Press [Í] to turn on this system.
Select the source.
[INPUT]
[
]
To select
“HDMI(BD)” # “HDMI(TV)” # “AUX”
^------- “ ” (Bluetooth®) !------}
“
≥ Each input mode retains a separate volume setting.
You can change the sound mode by pressing the
appropriate button.
≥ Confirm that the HDMI(TV) indicator and the AUX indicator
blink twice.
MUSIC: Enhance the sound of musical
instruments and songs.
VOICE: Enhance the voice of news and sports
commentaries.
CINEMA: Produces three-dimensional sound
unique to movies.
STANDARD: Best suited for dramas and comedy
shows.
” (Bluetooth®)
∫ When “ ” is selected as the source
On the Bluetooth® device:
Select this system as the output source of the
connected Bluetooth® device and start the
playback.
∫ To mute the sound
Press [MUTE].
≥ While muting, the HDMI(BD) indicator, HDMI(TV) indicator,
and AUX indicator blink simultaneously.
≥ To cancel, press the button again or adjust the volume.
≥ Muting is cancelled if this system is turned off.
∫ When “HDMI(BD)” is selected as the
source
Getting started
Press
Press [i VOL j].
∫ To select a sound mode
1
1
2
∫ To adjust the volume of this system
Operations
On the TV and the connected device:
Select the TV’s input for this system and start the
playback on the connected device.
If this system does not operate as expected or sound is unusual, returning the settings to the
factory preset may solve the problem. (> 13, “To return to the factory defaults.”)
When the problem persists (> 13, “Sound / Image”)
≥ If there is sound coming out of the TV’s speakers, reduce the volume of the TV to its minimum.
≥ The maximum volume levels of the TV and this system may differ.
≥ Switch the TV’s input to the TV tuner to select the TV as the video and audio source while playing the device
connected to the HDMI AV OUT (TV (ARC)) terminal. In addition, when VIERA Link (HDMI) is turned off, switch the
input of this system to TV mode.
≥ To select the TV as the audio source while playing the device connected to the AUDIO IN (AUX IN) terminal, switch
the input of the TV to the TV tuner.
TQBS0131
9
SC-SB1_EB_TQBS0131.book
10 ページ 2017年4月10日 月曜日 午後1時22分
Linked operations with the TV
(VIERA Link “HDAVI ControlTM”)
What is VIERA Link “HDAVI
Control”?
VIERA Link “HDAVI Control” is a convenient
function that offers linked operations of this
system, and a Panasonic TV (VIERA) under
“HDAVI Control”.
You can use this function by connecting the
equipment with an HDMI cable. See the
operating instructions for connected
equipment for operational details.
∫ Automatic input switching
When the following operations are performed, this
system will automatically change the input to the
corresponding source.
jWhen play starts on an HDMI connected
device.*
jWhen the TV input is changed.
*
If the speaker output setting on the TV is set to this
system, the TV and this system turn on automatically
(Power on link).
∫ Power off link
What you can do with
VIERA Link “HDAVI Control”
To make sure that the audio is output from this
system, turn this system on by using the TV’s
remote control and selecting home cinema from
the speaker menu of VIERA Link menu.
The availability and function of the settings may
vary depending on the TV. Refer to the operating
instructions for the TV for details.
∫ Speaker control
You can select whether audio output is from this
system or the TV speakers by using the TV menu
settings.
Home cinema
This system is active.
≥ When this system is in standby mode, changing the TV
speakers to this system in the VIERA Link menu will
automatically turn this system on.
≥ You can control the volume setting of this system using
the volume or mute button on the TV remote control.
≥ If you turn off this system, TV speakers will be
automatically activated.
≥ Audio will automatically be output from this system if the
TV is compatible to VIERA Link “HDAVI Control 4” or
later.
TV
TV speakers are active.
10
TQBS0131
When the TV is turned off, this system also turns
off automatically. (This function does not work
when Bluetooth® is the source.)
∫ Automatic lip-sync function
(for HDAVI Control 3 or later)
Delay between audio and video is automatically
adjusted by adding time-lag to the audio output,
enabling you to enjoy smooth audio for the picture.
≥ The delay information is automatically set if the TV is
compatible to VIERA Link “HDAVI Control 3” or later
and the VIERA Link is set to on.
≥ VIERA Link “HDAVI Control”, based on the control functions
provided by HDMI which is an industry standard known as
HDMI CEC (Consumer Electronics Control), is a unique
function that we have developed and added. As such, its
operation with other manufacturers’ equipment that
supports HDMI CEC cannot be guaranteed.
≥ This unit supports “HDAVI Control 5” function.
“HDAVI Control 5” is the standard for Panasonic’s HDAVI
Control compatible equipment. This standard is compatible
with Panasonic’s conventional HDAVI equipment.
≥ Please refer to individual manuals for other manufacturers’
equipment supporting VIERA Link function.
11 ページ 2017年4月10日 月曜日 午後1時22分
Bluetooth® connection
By using the Bluetooth® connection, you can listen
to the sound from the Bluetooth® audio device
from this system wirelessly.
≥ Refer to the operating instructions of the Bluetooth® device
for further instruction on how to connect a Bluetooth®
device.
Preparation
Advanced operations
Auto Power Down
This system is automatically turned off if there is no audio
input and when you do not use it for approx. 19 min and
30 sec.
1
≥ Turn on the Bluetooth® feature of the device and
place the device near this system.
≥ The current mode will be indicated by the
corresponding LED indicator.
Bluetooth® pairing
1
2
] to select “
≥ If the “
” indicator flashes quickly, go to step 3.
≥ If the “
3
2
Press [
Press and hold [
flashes quickly.
”.
] until the “
” indicator
” indicator flashes slowly, repeat step 2.
Select “SC-SB1” from the Bluetooth®
device’s Bluetooth® menu.
≥ If prompted for the passkey on the Bluetooth® device,
enter “0000”.
≥ Once the Bluetooth® device is connected, the “ ”
indicator stops flashing and lights up.
Bluetooth® Standby
This function allows you to connect a paired Bluetooth®
device when this system is in standby mode.
≥ You can register up to 8 devices with this system. If a 9th
device is paired, the device that has not been used for the
longest time will be replaced.
Connecting a paired
Bluetooth® device
Press [
] to select “
”.
≥ If the “ ” indicator lights, a Bluetooth® device is
already connected with this system. Disconnect it.
(> below)
2
Select “SC-SB1” from the Bluetooth®
device’s Bluetooth® menu.
While the current mode is indicated (about
20 sec), press [i SUBWOOFER] again.
≥ The setting changes each time [i SUBWOOFER] is
pressed.
≥ The indicator for the selected setting blinks for 20 sec and
then exits the setting mode.
≥ The setting is maintained until it is changed again.
≥ Default setting of this function is “On”.
1
1
“On”
“Off”
While pressing
and holding
[i SUBWOOFER]
on the remote control, press and hold
[VOL s] on this system for more than
4 sec.
“On”
“Off”
While pressing
and holding
[SUBWOOFER j]
on the remote control, press and hold
[VOL s] on this system for more than
4 sec.
≥ The current mode will be indicated by the
corresponding LED indicator.
2
While the current mode is indicated (about
20 sec), press [SUBWOOFER j] again.
≥ The setting changes each time [SUB WOOFER j] is
pressed.
≥ The indicator for the selected setting blinks for 20 sec and
then exits the setting mode.
≥ The setting is maintained until it is changed again.
≥ Default setting of this function is “On”.
∫ Disconnecting a Bluetooth® device
Press and hold [
] until the “
” indicator flashes.
≥ This system can only be connected to one device at a time.
TQBS0131
11
Operations
SC-SB1_EB_TQBS0131.book
SC-SB1_EB_TQBS0131.book
12 ページ 2017年4月10日 月曜日 午後1時22分
Switching the Bluetooth®
communication mode
Switching the AUX input
mode
Change the Bluetooth® connection link mode to suit the
connection type. You can switch to Mode 2 (priority on
sound quality) or Mode 1 (priority on connectivity) by
following the steps below.
You can switch the AUX input mode (TV/Music) by
following the steps below. Select the “TV” mode to
connect to the TV, or select the “Music” mode to connect
to a music device, etc.
1
Press [
1
2
“Mode 1”
“Mode 2”
While pressing
and holding
[DIMMER] on the
remote control,
press and hold [VOL s] on this system for
more than 4 sec.
3
] to select “
”.
≥ Turn off the connection of your device in advance.
“TV”
“Music”
While pressing
and holding
[INPUT] on the
remote control,
press and hold [VOL s] on this system for
more than 4 sec.
≥ The current mode will be indicated by the
corresponding LED indicator.
≥ The current mode will be indicated by the
corresponding LED indicator.
2
While the current mode is indicated (about
10 sec), press [DIMMER] again.
≥ The setting changes each time [INPUT] is pressed.
≥ The indicator for the selected setting blinks for 20 sec and
then exits the setting mode.
≥ Default setting of this function is “TV” mode.
≥ The setting changes each time [DIMMER] is pressed.
≥ The indicator for the selected setting blinks for 10 sec and
then exits the setting mode.
≥ The setting is maintained until it is changed again.
≥ Default setting of this function is "Mode 2".
Turning off VIERA Link
(HDMI) (HDAVI ControlTM)
You can turn off VIERA Link when, for example, operation
becomes unstable while a non-Panasonic HDMIcompatible device is connected.
While pressing and holding [MUTE] on the
remote control, press and hold [VOL s] on this
system for more than 4 sec.
≥ All the indicators will blink once when the volume limitation
is turned off.
≥ When VIERA Link (HDMI) is turned off, the ARC function
becomes unavailable. To select the TV as the source, be
sure to connect a stereo mini plug audio cable (not
supplied).
≥ To reset the setting, return to the factory preset. (> 13)
≥ Default setting of this function is “On”.
While the current mode is indicated (about
20 sec), press [INPUT] again.
Remote control code
When other Panasonic devices respond to this system’s
remote control, change the remote control code on this
system and the remote control.
Preparation
≥ Turn off all other Panasonic products.
≥ Turn on this system.
Change the remote control code to code 2:
1 Aim the remote control at this system’s remote
control sensor.
2 Press and hold [MUTE] and [VOL s] on the
remote control for more than 4 sec.
≥ All the indicators will blink for 10 sec when the code of
this system is changed.
≥ To change the remote control code to code 1, repeat the
steps above, but replace [VOL s] with [VOL i].
Turning off the volume
limitation
If a state of the lowered volume disturbs you every time
this system turns on, for example, it is possible to turn off
this function as follows:
While pressing and holding [MUTE] on the
remote control, press and hold [VOL i] on this
system for more than 4 sec.
≥ All the indicators will blink once when the volume limitation
is turned off.
≥ Default setting of this function is “On”.
≥ To reset the setting, return to the factory preset. (> 13)
12
TQBS0131
SC-SB1_EB_TQBS0131.book
13 ページ 2017年4月10日 月曜日 午後1時22分
Troubleshooting
Reference
To return to the factory defaults.
While this system is on, press and hold [Í/I] on
this system for more than 4 sec.
(All the indicators will blink twice when this
system is reset.)
If this system does not operate as expected,
returning the settings to the factory defaults
may solve the problem.
≥ The remote control code will return to “1” when
this system is returned to the factory preset. To
change the remote control code, refer to page 12.
General operation
No power.
≥ Insert the AC mains lead securely. (> 7)
≥ If the indicators blink and this system turns off
immediately after you have turned it on, unplug the AC
mains lead and consult your dealer.
The remote control does not work properly.
≥ The battery is depleted. Replace it with a new one.
(> 6)
≥ It may be necessary to set the code of the remote
control again after changing the battery of the remote
control. (> 12)
≥ Use the remote control within the correct operation
range. (> 5)
≥ The remote control signal sensor may not receive
signals if exposed to direct sunlight or strong light from
an inverter fluorescent lamp.
≥ It is possible that the insulation sheet has not been
removed. Remove the insulation sheet. (> 6)
The “AUX” indicator keeps blinking fast.
Turn off this system and unplug the AC mains lead first,
and then consult your dealer. Describe the LED indicator
status when consulting the dealer.
This system is automatically switched to
standby mode.
≥ Is the HDMI cable connected to the IN and OUT
terminals the other way around?
Turn off this system, and disconnect the AC mains lead
and reconnect the HDMI cable.
≥ If the AUX indicator blinks in a pattern of two blinks
followed by a pause three times, the remote control
code of this system is different from that of the remote
control. Set their remote control code again.
VIERA Link (HDMI) related operations no
longer function properly.
≥ This may occur when the HDMI connections are
changed, after a power failure or after the AC mains
lead has been removed. Try the following:
j After connecting the TV (VIERA) and this system with
an HDMI cable and turning on the TV (VIERA),
disconnect the AC mains lead of this system while
leaving the system turned on, and reconnect the AC
mains lead.
Sound / Image
The TV’s sound is not heard from this system.
No sound (or image) is output even after the
connected device starts playback.
Turn muting off. (> 9)
Check the connections to the other device. (> 7)
Turn this system off and then on again.
If this system is connected to a TV with an HDMI cable,
check that the TV’s HDMI terminal is labelled “HDMI
(ARC)”. If not, TV sound cannot be output from this
system. When using a TV with an HDMI terminal that is
not labelled “ARC”, connect the headphone/earphone
jack of the TV and the AUDIO IN (AUX IN) terminal
using a stereo mini plug audio cable (not supplied).
(> 8, “Using the AUDIO IN (AUX IN) terminal”)
≥ If this system is connected to a Panasonic TV (VIERA),
when you turn on this system by operating it directly,
sound may not be output from it. In this case, turn on
this system via VIERA Link by operating the remote
control of the TV (VIERA).
≥ If the connections are correct, there might be a problem
with the cables. Redo the connections with different
cables.
≥ Check the audio output settings on the connected device.
≥
≥
≥
≥
Operations
For further dedicated help, support and
advice about this system please visit:
http://av.jpn.support.panasonic.com/support/global/cs/
(This site is in English only.)
This system does not operate correctly.
The volume is lowered when this system is
turned on.
If this system is turned off with the volume setting in the
greater half (above 50), this system will automatically
lower the volume to the middle (50) when this system is
turned on. (> 12)
“Auto Power Down” function is on.
This system will automatically switch to standby mode
when no signal is input and no operation is performed for
approx. 19 min and 30 sec. Refer to page 11 to turn this
function off.
TQBS0131
13
Reference
Before requesting service, make the following checks. If
you are in doubt about some of the check points, or if the
solutions indicated in the following guide do not solve the
problem, consult your dealer for instructions.
SC-SB1_EB_TQBS0131.book
14 ページ 2017年4月10日 月曜日 午後1時22分
There is no audio.
The power of this system turns off
automatically.
(When this system detects a problem, a safety measure is
activated and this system automatically switches to
standby mode.)
≥ There is a problem with the amplifier.
≥ Is the volume extremely high?
If so, lower the volume.
≥ Is this system placed in an extremely hot place?
If so, move this system to a cooler place and wait a few
moments and then try to turn it on again.
≥ Depending on the combination of the TV and the
connected device used, when the TV is turned off and
on or the input is switched, audio may be temporarily
disabled.
≥ If the HDMI(BD) indicator and the HDMI(TV) indicator
light up and the AUX indicator keeps blinking,
HDCP 2.2 is not supported by the HDMI terminal or
setup of the TV. Refer to the operating instructions of
the TV for details.
Bluetooth®
Pairing cannot be done.
Check the Bluetooth® device condition.
The device cannot be connected.
License
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by Panasonic Corporation is under license.
Other trademarks and trade names are those of their
respective owners.
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing, LLC in the United States
and other countries.
HDAVI ControlTM is a trademark of Panasonic Corporation.
Applicable to HDMI AV OUT (TV (ARC)) only
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing Limited.
DTS, the Symbol, & DTS and the Symbol together are
registered trademarks of DTS, Inc.
© DTS, Inc. All Rights Reserved.
≥ The pairing of the device was unsuccessful or the
registration has been replaced. Try pairing the device
again. (> 11)
≥ This system might be connected to a different device.
Disconnect the other device and try pairing the device
again.
The device is connected but audio cannot be
heard through this system.
For some built-in Bluetooth® devices, you have to set the
audio output to “SC-SB1” manually. Read the operating
instructions for the device for details.
The sound is interrupted.
≥ The device is out of the 10 m communication range.
Bring the Bluetooth® device closer to this system.
≥ Remove any obstacle between this system and the
device.
≥ Other devices that use the 2.4 GHz frequency band
(wireless router, microwaves, cordless phones, etc.) are
interfering. Bring the Bluetooth® device closer to this
system and distance it from the other devices.
14
TQBS0131
Dolby, Dolby Audio, and the double-D symbol are
trademarks of Dolby Laboratories.
SC-SB1_EB_TQBS0131.book
15 ページ 2017年4月10日 月曜日 午後1時22分
Specifications
AMPLIFIER SECTION
RMS output power (non-simultaneous drive)
Front ch (L, R ch)
10 W per channel (1 kHz, 10 %, 6 ≠)
Subwoofer ch
20 W (100 Hz, 10 %, 3 ≠)
Total RMS output power
40 W
Sampling frequency
(HDMI ARC)
(HDMI)
32 kHz, 44.1 kHz, 48 kHz
32 kHz, 44.1 kHz, 48 kHz,
88.2 kHz, 96 kHz,
176.4 kHz, 192 kHz
Audio format
(BD/DVD)
Linear PCM (2 ch)
(TV (ARC))
Linear PCM (2 ch),
Dolby Digital / DTS (Bitstream)
SPEAKER SECTION
Front speakers (Built-in, L/R)
Full range
4 cm cone type k 1/ch
Tweeter
1.4 cm dome type k 1/ch
Impedance (Total)
6≠
Subwoofers (Built-in)
Woofer
8 cm cone type k 1
Impedance (Total)
3≠
Passive radiator
8 cm k2
GENERAL
Power supply
DC 12 V 4 A
AC adaptor
AC 220 V to 240 V, 50/60 Hz
Power consumption
Approx. 11 W
Power consumption in standby mode
When “Network Standby”* is “OFF”
Approx. 0.3 W
When “Network Standby”* is “ON”
Approx. 0.5 W
Bluetooth® system specification
Bluetooth® Ver. 2.1+EDR
Wireless equipment classification
Class 1
Supported profiles
A2DP
Supported codec
SBC
Frequency band
2.4 GHz band FH-SS
Operating distance
Approx. 10 m Line of sight
TERMINALS SECTION
HDAVI Control
This unit supports “HDAVI Control 5” function.
HDMI AV input (BD/DVD)
Input connector
1
type A (19 pin)
HDMI AV output (TV (ARC))
Output connector
1
type A (19 pin)
For update only
1
AUX input
Terminal type
1
‰ 3.5 mm Stereo mini
Dimensions (WkHkD)
Approx. 430 k52 k130 mm
(including the projecting parts)
Approx. 431 k52 k132 mm
Mass
Approx. 1.8 kg
Operating temperature range
0 oC to r40 oC
Operating humidity range
20 % to 80 % RH (no condensation)
*
“Network Standby” means “Bluetooth® Standby” and
“VIERA Link”.
≥ Specifications are subject to change without notice.
≥ Mass and dimensions are approximate.
≥ Total harmonic distortion is measured by a digital spectrum
analyzer.
TQBS0131
15
Reference
Bluetooth® SECTION
SC-SB1_EB_TQBS0131.book
17 ページ 2017年4月10日 月曜日 午後1時22分
Sales and Support Information
Customer Communications Centre
≥ For customers within the UK: 0344 844 3899
≥ For customers within Ireland: 01 289 8333
≥ Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).
≥ For further support on your product, please visit our website:
www.panasonic.co.uk
Direct Sales at Panasonic UK
≥ Order accessory and consumable items for your product with ease and confidence by phoning our
Customer Communications Centre Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).
≥ Or go on line through our Internet Accessory ordering application at www.pas-europe.com.
≥ Most major credit and debit cards accepted.
≥ All enquiries transactions and distribution facilities are provided directly by Panasonic UK.
≥ It couldn’t be simpler!
≥ Also available through our Internet is direct shopping for a wide range of finished products. Take a
browse on our website for further details.
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying documents mean
that used electrical and electronic products and batteries must not be mixed with
general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points in accordance with your national
legislation.
By disposing of them correctly, you will help to save valuable resources and prevent
any potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local
municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
Note for the battery symbol (bottom symbol):
This symbol might be used in combination with a chemical symbol. In this case it
complies with the requirement set by the Directive for the chemical involved.
Manufactured by:
Importer for Europe:
Panasonic Corporation
Kadoma, Osaka, Japan
Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
EU
Panasonic Corporation
http://www.panasonic.com
C Panasonic Corporation 2017
TQBS0131
F0417HA0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
