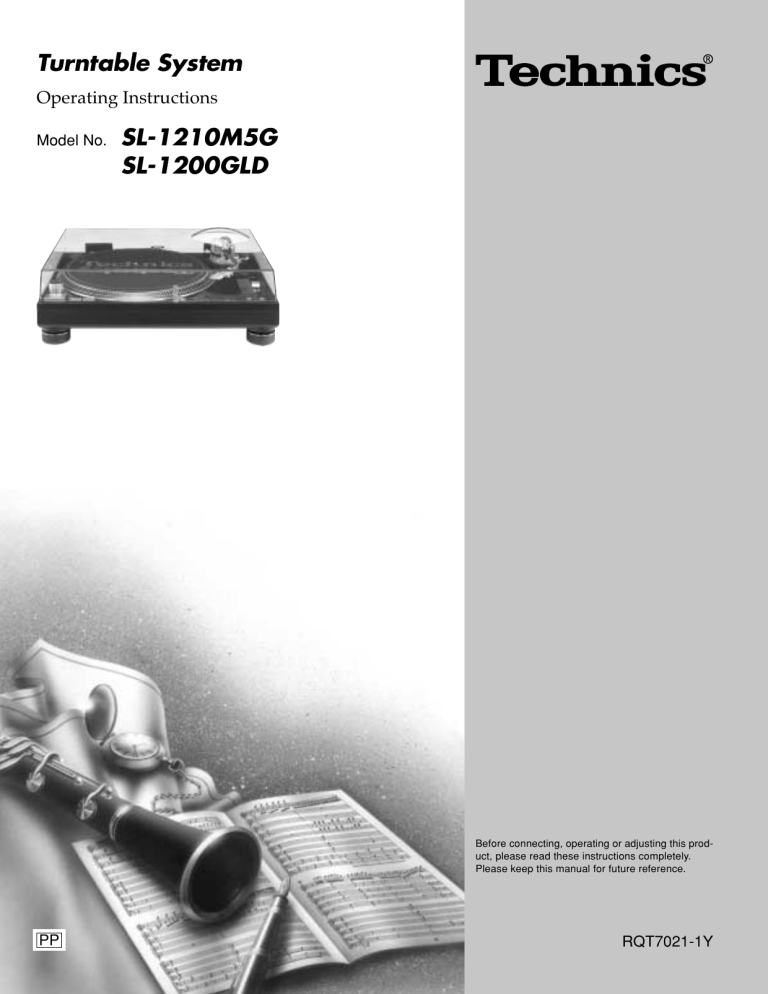

Turntable System
Operating Instructions
Model No.
SL-1210M5G
SL-1200GLD
Before connecting, operating or adjusting this product, please read these instructions completely.
Please keep this manual for future reference.
PP
RQT7021-1Y
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions
carefully.
The illustrations and photograph in this manual are of the SL1210M5G model.
Table of contents
Supplied accessories ................................................................... 2
IMPORTANT SAFETY INSTRUCTIONS ....................................... 3
Features ......................................................................................... 4
Preparation of the cartridge ........................................................ 4
Controls ......................................................................................... 4
Putting the player together ......................................................... 5
Connections and installation ...................................................... 5
Connecting to an amplifier and AC power supply cord ............. 5
Connecting to an Audio Mixer (not included) ............................ 6
Installation .................................................................................. 6
Preparatory adjustments ............................................................. 6
Horizontal balance and stylus pressure .................................... 6
Anti-skating ................................................................................ 7
Armlift height .............................................................................. 7
Tone arm height ......................................................................... 7
Fit the dust cover ....................................................................... 7
Playing records ............................................................................. 8
Adjustments while using the unit ............................................... 9
Pitch control ............................................................................... 9
Adjusting tone arm horizontal weight to reduce skipping when
scratch playing. .......................................................................... 9
Adjusting the turntable brake speed .......................................... 9
Maintenance ................................................................................ 10
Product service ........................................................................... 10
Troubleshooting guide ................................................................ 11
Specifications .............................................................................. 11
User memo:
Supplied accessories
Please check and identify the supplied accessories.
Use numbers indicated in parentheses when asking for replacements parts.
(Only for U.S.A.)
To order accessories contact 1-800-332-5368 or the
website (http://www.pasc.panasonic.com).
Turntable ................. 1pc.
SL-1210M5G(SFTE172-01Z1)
SL-1200GLD(SFTE172-02Z)
Balance weight ....... 1pc.
SL-1210M5G(SFPWG17201BK)
SL-1200GLD(RYQ0156-N)
Turntable mat .......... 1pc.
SL-1210M5G/SL-1200GLD
(RGS0008)
Auxiliary weight ...... 1pc.
SL-1210M5G(SFPWG17202)
SL-1200GLD(RFE0024)
Disc slip sheet set (included
only with SL-1210M5G) .... 1
(RGS0005Z-1)
•Disc slip sheet
•Transparent sheet
EP record adaptor .. 1pc.
SL-1210M5G(SFWE010A)
SL-1200GLD(SFWE010B)
Golden slip sheet (included
only with SL-1200GLD) .. 2
(RGS0012Z)
Dust cover ............... 1pc.
SL-1210M5G(RYF0370A-X)
SL-1200GLD(RGD0078AZ-T)
Head shell (with stylus
weight) ..................... 1pc.
SL-1210M5G(SFPCC31006K)
SL-1200GLD(SFPCC31007K)
DATE OF PURCHASE
DEALER NAME
Shell weight ............ 1pc.
SL-1210M5G/SL-1200GLD
(SFPZB3501)
Overhang gauge ..... 1pc.
SL-1210M5G/SL-1200GLD
(SFK0135-01)
Screw set for cartridge .. 1
SL-1210M5G/SL-1200GLD
•Nuts(RHN26003)
•Screws-short(SFCZV8801-1)
•Screws-long(SFPEV9801-1)
•Washers(SFPEW9601)
Sticker ...................... 1pc.
SL-1210M5G(RQLC0142-1)
SL-1200GLD(RQLC0111-1)
DEALER ADDRESS
TELEPHONE NUMBER
A cartridge is not included.
The model number and serial number of this product can be found
on either the back or the bottom of the unit.
Please note them in the space provided below and keep for future
reference.
Although the AC power switch is in the “off” position, the
unit is not completely disconnected from the mains.
Remove the plug from the main electrical outlet if you will
not be using the unit for an extended period of time. Place
the unit so the plug can be easily removed.
MODEL NUMBER
SL-1210M5G/SL-1200GLD
The following mark and symbols are located on bottom of the unit.
SERIAL NUMBER
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT
EXPOSE
THIS
APPARATUS
TO
RAIN,
MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.
CAUTION!
2
RQT7021
DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN
ANOTHER CONFINED SPACE. ENSURE THE
UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD
DUE TO OVERHEATING, ENSURE THAT
CURTAINS AND ANY OTHER MATERIALS DO
NOT OBSTRUCT THE VENTILATION VENTS.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock
to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions
listed below. Keep these operating instructions handy for future reference.
1)
Read these instructions.
2)
Keep these instructions.
3)
Heed all warnings.
4)
Follow all instructions.
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
7)
Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
8)
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9)
Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than
the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
CAUTION:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
¡Reorient or relocate the receiving antenna.
¡Increase the separation between the equipment and receiver.
¡Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
¡Consult the dealer or an experienced radio/TV technician
for help.
Any unauthorized changes or modifications to this
equipment would void the user’s authority to operate this
device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
3
RQT7021
Features
Controls
A masterpiece amongst turntables with a worldwide reputation.
Highly accurate turntable speed maintained continuously
with a quartz pitch control.
•The [±16/±8] button can control a wide range between –8 % and
+8 % and –16 % and +16 %.
The [±16/±8] indicator LED illuminates in the dark.
•The pitch can be varied throughout the range maintaining perfect
accuracy.
•Pitch can be instantly reset to the rated speed (33 1/3 or 45 r/min)
with the reset button.
•The pitch control slider can be easily replaced.
The direct drive produces high torque.
•Wow and flutter below 0.01 %. Starting torque of 1.5 kg-cm enabling the turntable to reach 33 1/3 r/min in 0.7 seconds.
•Smooth stops are achieved with a fully electronic braking system.
The braking speed can be adjusted with the brake speed control
knob.
Tone arm with gimbal suspension
•Using the balance weight control measurement units on the tone
arm, you can quickly change stylus pressure settings to the appropriate pressure.
•Stylus skipping can be reduced using horizontal weight control for
scratch play.
•The tone arm can be finely adjusted in a range of 6 millimeters
with the lockable height control.
Anti-vibration design with 3 layer cabinet construction
and large insulating legs.
Pop-up stylus light.
•A blue LED light illuminates the stylus.
Preparation of the cartridge
1
Attach a cartridge (not included).
Follow the cartridge’s instructions to correctly attach it to the
head shell.
•Use the included shell weight when using a light cartridge
(3.5 to 6.5 grams).
•Remove the stylus weight.
Using the stylus weight (
page 6).
Stylus weight
Screws
Head shell
Shell
weight
Lead wire
Terminal
Cartridge
Stylus
2
Adjust the overhang.
Fit the included overhang gauge to the head shell. Adjust the
overhang and facing of the cartridge and tighten the screws.
•Line the stylus tip up with the end of the gauge.
•The cartridge should be parallel on the shell head.
Screws
Overhang
gauge
Stylus tip
4
RQT7021
52 mm
No.
Name
Reference page(s)
EP record adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turntable base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Turntable mat (Or disc slip sheet) . . . . . . . . . . . . . . 5
Turntable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Center spindle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Strobe mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Power switch (power) . . . . . . . . . . . . . . . . . . . . . . . . 8
Strobe light, pilot lamp . . . . . . . . . . . . . . . . . . . . . . . 8
Start-stop button (start-stop) . . . . . . . . . . . . . . . . . . 8
Speed select buttons (33, 45) . . . . . . . . . . . . . . . . . . 8
Shell stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Arm-height control . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Horizontal weight control knob . . . . . . . . . . . . . . . . 9
Balance weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Stylus pressure control . . . . . . . . . . . . . . . . . . . . . . . 6
Arm lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Anti-skating control . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cue lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Arm clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Arm rest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tone arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pitch indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pitch control (pitch adj.) . . . . . . . . . . . . . . . . . . . . . . 9
Locking nut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Head shell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Reset button (reset) . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Variable range pitch button (±16/±8) . . . . . . . . . . . . 9
Stylus light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Stylus light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Putting the player together
In order to prevent damage during shipping some of the equipment
has been disassembled.
Put the player together in the following order.
•Do not connect the AC power supply cord until set up is complete.
•Leave the dust cover off until set up and adjustments are complete.
1
1
Fit the turntable and turntable mat.
Put the turntable on the center spindle and then lay the mat
on top.
•Be very careful when putting the turntable on the main unit.
The magnet on the bottom of the turntable is finely adjusted
and sharp contact can cause it to move and lead to poor
operation. Ensure the magnet remains free from dust and
iron particles.
•Do not adjust the screws attaching the magnet to the turntable. The rated performance of the unit cannot be guaranteed if the magnet is moved.
Turntable mat
2
Attach the head shell.
Fit the head shell into the tone arm, keep it horizontal and
tighten the locking nut.
Turntable
Magnet
Locking nut
Head shell
Screws
Center spindle
3
2
Tone arm
3
Attach the balance weight to the rear
of the tone arm.
If the cartridge weighs between 10 and 13 grams, attach the
included auxiliary weight to the main balance weight.
Balance weight
Auxiliary weight
Connections and installation
Connecting to an amplifier and AC power supply cord
1. Connect the PHONO earth lead and stereo PHONO
cables to the amplifier PHONO terminals.
Stereo connection cable
Amplifier
(not included)
White (L)
Red (R)
•If the earth lead isn’t connected, a hum will be heard from the
AC power source.
•You will not have adequate volume or sound quality if connecting to an amplifier that has no PHONO terminals.
2. Connect the AC power supply cord.
•Connect this cord only after all other connections are complete.
•Confirm the wattage of AC outlets on amplifiers and receivers
before using them for this unit. This unit consumes 14.5 W.
This unit
SIGNAL GND
PHONO
TUNER
(L) (R)
To household
AC outlet
2
11
Earth lead
Stereo connection cable
5
RQT7021
Connections and installation
Connecting to an Audio Mixer (not
included)
•Disconnect all units from the power source before making any connections.
•Reconnect the AC power supply cord after all other connections
are complete.
Unit
Unit
Installation
•Install the unit on a horizontal surface protected from vibrations.
•Keep this unit as far as possible from speakers.
•Ensure the unit is not exposed to direct sunlight, dust, humidity,
and heat from a heating appliance.
•This unit may pick up interference from a radio if there is one nearby.
Keep radios as far as possible from this unit.
Earth lead
Adjusting the height of the insulators
Place the unit where it is to be used and adjust the height of the legs
to make the unit horizontal.
;;
Audio mixer
Preparatory adjustments
Horizontal balance and stylus pressure
1
3
Release the tone arm.
Turn the stylus pressure control to “0”
1. Return the tone arm to the arm rest and fix it
with the arm clamp.
2. Turn the stylus pressure control to “0”.
1. Remove the stylus cover, taking care not to damage the stylus, then release the arm clamp.
2. Free the tone arm from the arm rest.
Hold the balance weight still while doing this.
Arm clamp
Balance weight
Center line
2
Turn stylus
pressure
control
Adjust horizontal balance
1. Push the cue lever down.
2. Turn the anti-skating control to “0”.
3. Turn the balance weight until the arm is approximately horizontal.
Arm clamp
Take care at this time not to allow the stylus to touch the unit.
Balanced
4
Adjust stylus pressure
Too far forward
Turn the balance weight to adjust to the appropriate pressure for the cartridge you are using.
Too far back
See the cartridge’s instructions for recommended stylus pressure.
The stylus pressure control will turn at the same time. Stop
when the center line points to the required pressure.
;
Arm clamp
Arm rest
Cue lever
Anti-skating control
6
RQT7021
Turn
balance
weight
Center line
For your reference
Use the stylus weight (included)
to increase stylus pressure by 4
grams.
Stylus weight
Head shell
Preparatory adjustments
Tone arm height
Using the balance weight control
Make note of the balance weight setting for your stylus cartridge,
you can quickly change the stylus pressure without having to readjust the horizontal balance of the arm each time you remove and
re-attach the stylus cartridge.
Attach the cartridge to the tone arm you are using.
Turn the balance weight control to the setting you previously
used to balance the weight including cartridge.
Turn the stylus pressure control dial to the setting you previously used to balance the weight including cartridge.
Balance weight
measurement units
1. Release the arm lock.
Released
1
Locked
3
2. Adjust the arm height.
•Adjust the ring using the chart
below as reference so the arm
height matches the indicated
height of the cartridge. Measurements are marked on the
arm height control ring in 0.5
millimeter intervals.
Index line
Arm height control ring
Anti-skating
Adjust the dial to the same value as the stylus pressure
control when playing normal music.
For scratch play
Adjust the control to reduce skipping.
Cartridge height
(H) in millimeters
Height control
position
17
18
19
20
21
22
23
0
1
2
3
4
5
6
•If you do not know the height of your cartridge, rest the stylus on
a record and adjust the height control until the tone arm and
record are parallel.
Tone arm and record parallel.
3. Lock the arm after adjusting the height.
Armlift height
Fit the dust cover
Preparation
1. Put a record on the turntable.
2. Take off the stylus cover and release the arm clamp.
Use a screwdriver to turn the armlift screw.
SL-1210M5G
Hold the dust cover with both hands and fit it over the
player from directly above.
Make this adjustment only if the cartridge you are using makes it
necessary.
•Turning the screw clockwise lowers the armlift.
•Turning the screw anti-clockwise raises the armlift.
Armlift screw
Armlift
SL-1200GLD
Place the dust cover in position from directly above, holding it at both sides.
For detaching the dust cover, be certain first to raise it as illustrated
before removal.
Armlift height (the distance between the record and stylus when the
cue lever is raised) is set to between 8 and 13 millimeters at time of
shipment.
7
RQT7021
Playing records
1
Preparation
1. Put a record on the turntable.
2. Take off the stylus cover and release the arm clamp.
•The pilot lamp comes on.
•33 1/3 r/min is automatically selected and the indicator lights.
•Press [45] if you are playing a 45 r/min record.
off
3
on
1
Turn [power] to turn the unit on.
Pilot lamp
Indicator
lights
p o w er
33
2
45
Press [start-stop].
The turntable starts revolving.
start • stop
33
2
4,5
3
Press [reset] to light the pitch control
green LED lamp.
The pitch returns to 33 1/3 or 45 r/min.
Use the above indicated
pitch for playing standard
music.
Green
LED indicator
reset
4
To temporarily stop play
Lift the cue lever and move the tone arm
over the record.
Lift the cue lever.
The stylus lifts off the record.
Refer to page 9 for fine adjustments to the pitch
Cue lever
When using EP records
EP record adaptor
1. Take the EP record adaptor out
of its holder and fit it over the
center spindle.
2. Press [45] to change the speed.
5
Lower the cue lever.
The tone arm moves down and play starts.
When play finishes
1. Lift the cue lever and move the tone arm back to the arm rest.
2. Press [start-stop].
The electronic brake gently stops the turntable.
3. Turn [power] to turn the unit off.
4. Clamp the tone arm and put the stylus cover back on.
When the player is to be used for scratch play.
To light up the stylus
Use the disc slip sheet instead of the turntable mat. This enables
the record to be easily moved during play.
•Top (printed side): Lay the record on this side.
•Bottom: Slippery side.
•Press the stylus light switch. A blue LED light rises up and illuminates the stylus.
•When the light is not required, press it down. The light also goes
out.
For a different kind of slip
Press the switch firmly. If the switch is lightly pressed, the light may
come on but not rise up.
Put the transparent sheet under
the disc slip sheet.
Disc slip sheet
Stylus light
Transparent sheet
Stylus light switch
8
RQT7021
Adjustments while using the unit
Adjusting tone arm horizontal weight to
reduce skipping when scratch playing.
Pitch control
Fine adjustment to the number of revolutions per minute.
1
Press [reset] to turn off the green LED
light.
2
Press [±16/±8] to select the pitch.
•When [±16/±8] is pressed once (up position), the [±16] pitch
indicator lights on the pitch control slider.
•When [±16/±8] is pressed twice (down position), the [± 8]
pitch indicator lights on the pitch control slider.
The horizontal weight of the tone arm can be adjusted using the
horizontal weight control knob on the gimbal suspension to reduce
skipping when scratch playing.
For scratch play
Turn the knob all the way in the “A” direction to apply horizontal
weight.
For normal play
Turn the knob all the way in the “B” direction to reduce horizontal
weight.
•Do not move the horizontal weight control knob when playing music.
Horizontal weight control knob
Green
LED indicator
Pitch control
Variable range
pitch button
3
Slide [pitch adj.] while the turntable is
revolving.
0
6
reset
When the horizontal weight control knob becomes worn
out
Replace with a new horizontal weight control knob.
Loosen the fastening screw to remove the knob.
Move the control to the required position.
•The numbers represent approximate percentages.
•Pitch can be adjusted between –8 % and +8 % or –16 % and +16 %.
Screw
To reset pitch to the preset value
Press [reset].
The green LED indicator lights and the pitch immediately returns to
the set value (33 1/3 or 45 r/min), regardless of any adjustments
made with [pitch adj.].
Press [reset] again and pitch returns to the adjusted value.
To measure pitch
The four rows of strobe mirrors around the edge of the turntable can
assist you in measuring pitch.
+6.4 % change in pitch when stationary
+3.3 % change in pitch when stationary
Normal turntable speed when stationary
_3.3 % change in pitch when stationary
They are lit by the strobo light as they pass and each row appears to
stand still at a different pitch.
off
on
Strobo light
Knob
Consult with a qualified dealer when purchasing a horizontal
weight control knob.
Use the following product number when asking for the replacement.
Product reference No. RGZ0053Z-S.
Adjusting the turntable brake speed
Brake speed can be adjusted by pressing [start-stop] until the turntable stops.
Use a small screwdriver in the hole on the turntable to adjust the
brake speed.
S: Slow stop
F: Fast stop
S
BRAKE
p o w er
F
Read the pitch control slider replacement instructions that comes
with this product carefully when replacing the pitch control slider.
9
RQT7021
Maintenance
Product service
Care of the parts
To clean this unit, wipe with a soft, dry cloth.
•Never use alcohol, paint thinner, or benzine to clean this unit.
•Before using chemically treated cloth, read the instructions that
came with the cloth carefully.
Do not wipe the dust cover while playing a record.
This can cause static electricity. This static can cause the tone arm
to be attracted towards the cover.
Thoroughly clean dust off the stylus and record.
•Use a soft brush to clean the stylus. Brush from the base to the tip.
•Use a good quality record cleaner to keep your records clean.
Head shell
terminals
Wipe the head shell terminals occasionally.
Use a soft cloth. Turn the amplifier off before fitting or removing the
head shell.
•Damage to your speakers can occur if the head shell is moved
while the volume is turned up.
•Leave the stylus cover on while handling the head shell to prevent
damaging the stylus.
Oiling the center spindle.
Apply 2 or 3 drops every 2000 hours of operation. Use SFW0010 oil
(not included).
Oil
Moving the unit
Repackage the unit in the packaging it came in.
If you no longer have the packaging, do the following:
•Return the tone arm to the arm rest and tape it in place.
•Remove the balance weight and head shell from the tone arm and
carefully wrap them.
•Take off the turntable and turntable mat and carefully wrap them.
•Carefully wrap the main unit in a blanket or paper.
10
RQT7021
1. Damage requiring service—The unit should be serviced by
qualified service personnel if:
(a) The AC power supply cord or AC adaptor has been
damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked
change in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to authorized servicing personnel.
3. Replacement parts—When parts need replacing ensure the
servicer uses parts specified by the manufacturer or parts that
have the same characteristics as the original parts.
Unauthorized substitutes may result in fire, electric shock, or
other hazards.
4. Safety check—After repairs or service, ask the servicer to
perform safety checks to confirm that the unit is in proper
working condition.
Product information
For product information or assistance with product operation:
In the U.S.A., contact the Panasonic Customer Call Center at 1800-211-7262, or the website http://www.panasonic.com/contactinfo,
or the website (http://www.panasonic.com/support).
In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or visit the website (www.panasonic.ca), or an
authorized Servicentre closest to you.
Troubleshooting guide
Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in
the chart do not solve the problem:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or the website http://www.panasonic.com/contactinfo, or
the website (http://www.panasonic.com/support).
In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or visit the website (www.panasonic.ca), or an
authorized Servicentre closest to you.
Problem
Probable cause(s)
Suggested remedy
No power.
Is the AC power supply cord plugged in?
Plug the cord in firmly.
There is power but no sound.
Sound is weak.
Are connections to the amplifier/receiver’s
PHONO terminals correct?
Connect the stereo pin cables to the amplifier’s
PHONO terminals.
Left and right sounds are reversed.
Are the stereo connection cable connections
to the amplifier or receiver reversed?
Double check all connections.
Humming heard during play.
Are there other appliances or their AC power
supply cords near the stereo connection
cable?
Separate the appliances and their AC power
supply cords from this unit.
Is the earth lead connected?
Make sure the earth lead is correctly connected.
Reference
page(s)
5
5
5
5
Specifications
Turntable section
Type
Quartz direct drive
Manual turntable
Drive method
Direct drive
Motor
Brushless DC motor
Turntable platter
Aluminum diecast
Diameter 33.2 cm (13-5/64")
Mass 1.7 kg (3.74 lb.)
Turntable speeds
33 1/3 r/min, 45 r/min
Variable range pitch
±8 %, ±16 % (two settings)
Starting torque
1.5 kg·cm (1.3 lb·in)
Build-up characteristics
0.7 s. from standstill to 33 1/3 r/min
Braking system
Electronic brake
Wow and flutter
0.01 % WRMS\
0.025 % WRMS (JIS C5521)
±0.035 % peak (IEC 98A Weighted)
Rumble
–56 dB (IEC 98A Unweighted)
–78 dB (IEC 98A Weighted)
\This rating refers to turntable assembly alone, excluding effects
of record, cartridge or tonearm, but including platter. Measured
by obtaining signal from built-in frequency generator of motor
assembly.
Tonearm section
Type
Universal
Effective length
230 mm (9-1/16")
Arm height adjustment range
0 – 6 mm
Overhang
15 mm (19/32")
Effective mass
12 g (without cartridge)
Offset angle
22°
Friction
Less than 7 mg (lateral, vertical)
Tracking error angle
Within 2° 32' (at the outer groove of 30 cm (12") record)
Within 0° 32' (at the inner groove of 30 cm (12") record)
Stylus pressure adjustment range
0–4g
Applicable cartridge weight range
3.5 – 13 g
11 – 20.5 g (including headshell)
(with auxiliary weight)
9.5 – 13 g
17 – 20.5 g (including headshell)
(with shell weight)
3.5 – 6.5 g
11 – 14 g (including headshell)
Headshell weight
7.5 g
General
Power supply
AC 120 V, 60 Hz
Power consumption
14.5 W
Dimensions (W×H×D) SL-1210M5G
45.3 × 17.2 × 35.5 cm
(17-27/32" × 6-25/32" × 13-31/32")
SL-1200GLD
45.3 × 17.2 × 36.0 cm
(17-27/32" × 6-25/32" × 14-5/32")
Mass
11.7 kg (25.74 Ib)
Specifications are subject to change without notice.
Mass and dimensions are approximate.
11
RQT7021
This manual was printed with soy based ink.
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
2003 Matsushita Electric Industrial Co., Ltd.
Printed in Japan
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario L4W 2T3
www.panasonic.ca
En
RQT7021-1Y
M0203TK1123
Download PDF

advertising
