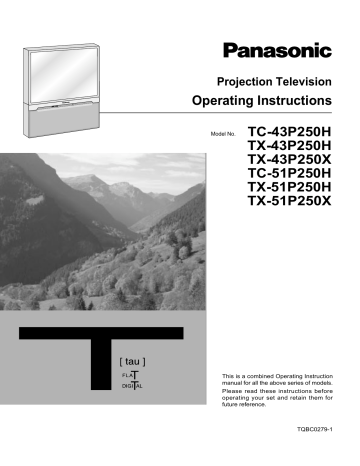

Projection Television

Operating Instructions

Model No.

TC-43P250H

TX-43P250H

TX-43P250X

TC-51P250H

TX-51P250H

TX-51P250X

This is a combined Operating Instruction manual for all the above series of models.

Please read these instructions before operating your set and retain them for future reference.

TQBC0279-1

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new Projection television set.

To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference.

Retain your purchase receipt also, and note down the Model Number and

Serial Number of your set in the space provided on the rear cover of these

Instructions.

Visit our Panasonic Web Site http://www.panasonic.co.jp/global/

Important Information

(1) The long time (max. 2 hours) use of TV game on the set is not recommended since the signal from TV game may be the cause of damage on picture projection tubes on the set.

(2) Do not allow a still picture to be displayed for an extended period, as this can cause a permanent afterimage to remain on the Projection TV screen.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in 16 : 9 mode.

If still picture cannot be avoided, reduce the brightness and contrast levels of the picture to minimize any damage that might occur.

(3) In order to minimize any damage to the projection tubes, this set uses the PICTURE SHIFT function

(Refer to page 35) to change (shift) the entire picture approximately 2 mm every 15 minutes.

Warnings and Cautions ................................................................. 4

Before Operating This Set ............................................................. 6

How to Use This Manual ......................................................................... 6

Quick Reference Guide for your TV Set ................................................. 7

Securing the casters ............................................................................... 7

Connecting the Aerial Cable to the RF In Terminal ................................ 8

Safety Precaution ................................................................................... 8

Connecting the Plug to the Wall Outlet ................................................... 9

How to Turn the Power On ...................................................................... 9

Battery Installation .................................................................................. 9

Battery cautions ...................................................................................... 9

Location of Controls .................................................................... 10

Controls and Terminals on the TV ........................................................

10

Connections ................................................................................. 11

How to connect the “AV1, 2, 3 or 4” Input Terminals ............................. 11

How to connect the DVD Input Terminals ............................................. 12

How to connect the AV Monitor Output Terminals to other equipment . 12

Connecting Headphones ...................................................................... 13

General Operation ........................................................................ 14

On-Screen menu Display from Remote Control .................................... 16

Convergence Adjustment ........................................................................ 18

Convergence Adjustment mode ........................................................... 18

Convergence1 Adjustment for RED, BLUE and GREEN ...................... 19

Convergence2 Adjustment for RED and BLUE .................................... 20

Tuning Channels ...................................................................................... 21

Sound System Selection (Different region use differing systems) ............ 22

Colour System Selection (Different region use differing systems) ............ 23

Channel Selection ................................................................................ 24

Channel Allocation ............................................................................... 25

Automatic Tune

(Channel Select and Regional System must already be set; Refer to pages 21) ...... 26

Manual Tune

(Channel Select and Regional System must already be set; Refer to pages 21) ...... 27

Fine Tuning ........................................................................................... 28

How to Cancel the Fine Tuning ............................................................. 28

Programme Number Skip ..................................................................... 29

How to Cancel the Skip Function ......................................................... 29

Picture Adjustment .................................................................................. 30

Sound Adjustment ................................................................................... 32

Setup Adjustment .................................................................................... 34

OFF TIMER .......................................................................................... 34

FLICKER REDUCTION ........................................................................ 34

COLOUR SYSTEM .............................................................................. 34

CH COLOUR SET ................................................................................ 35

VCR/GAME .......................................................................................... 35

CHILD LOCK ........................................................................................ 35

PICTURE SHIFT .................................................................................. 35

LANGUAGE ..........................................................................................

35

Multi Screen .............................................................................................. 36

Multi PIP ............................................................................................... 36

Channel search .................................................................................... 37

Strobe ................................................................................................... 37

TELE TEXT (No indication for TC-43P250H & TC-51P250H) ............... 38

Advanced Remoto Control Operation .................................................... 41

Stereo Bilingnal Sound Selection ......................................................... 41

VCR / LD / DVD Control ....................................................................... 41

Troubleshooting ....................................................................................... 42

Specifications ........................................................................................... 43

3

Warnings and Cautions

Warnings

Unplug the power cord in the eve n t o f a ny m a l f u n c t i o n

(screen goes blank, no sound, odd sounds, smoke or unusual odors coming from the unit).

U n p l u g t h e p owe r c o r d i f foreign matter or water falls into the unit, or if the unit is dropped or the cabinet is damaged.

DO NOT place any of the following on the unit:

Flower vases, flower pots, cups, small metal objects, or c o s m e t i c s c o n t a i n e r s , chemicals or water.

DO NOT insert foreign objects

(metal or easily flammable objects).

TAKE CARE NOT to damage the power cord.

DO NOT touch the aerial cable and this unit when there is lightning.

4

Cautions

DO NOT place in humid or d u s t y l o c a t i o n , o r a r e a s exposed to smoke or steam.

D O N OT p l a c e i n d i r e c t sunlight and other sources of direct heat.

D O N OT s t a n d , o r p l a c e heavy objects on the unit.

Par ticular care should be taken by families with small children.

DO NOT use this unit near water. (Near a bath tub, etc.)

DO NOT use if the power cord or power plug is damaged, or if the plug does not fit tightly into the socket.

DO NOT use at a voltage other than indicated

DO NOT remove the rear cover as live parts and High Voltage components are accessible w h e n t h e r e a r c o v e r i s removed.

DO NOT touch the power plug if your hands are wet.

DO NOT place in an unstable location.

Place in a safe location.

Fix the TV to a wall.

(refer to page 8)

Cautions

When inser ting batter ies, ensure that the polar ities

(positive and negative) are correctly aligned. Insert as shown on remote control. If inserted incorrectly, battery fluid may leak, and fire, injury, or damage to surrounding components may result.

A d e q u a t e v e n t i l a t i o n i s essential to prevent failure of electrical components, we recommend that a gap of at least 10 cm ( ) is left all around this unit even when it is placed inside a cabinet or between shelves.

Before cleaning, unplug the power plug from the socket.

Warnings and Cautions

D o n o t m i x n e w a n d o l d b a t t e r i e s . U s e o n l y t h e specified batteries. Failure to follow this precaution may result in leakage of battery fluid. Fire, injury, or damage to surrounding components may also result.

Turn the power “Off ” before connecting other electrical equipment.

DO NOT joint the unit.

Unplug the power plug from the socket if you are not going to use the unit for an extended period.

Ask your sales outlet to install the aerial.

Cleaning

To ensure continued excellent performance by this product, periodic cleaning is recommended.

The unit contains many plastic parts. For this reason DO NOT use benzine, thinner or other chemicals to clean the unit.

Dust will accumulate on the picture screen. Please wipe with the supplied soft cloth from time to time. If you use a c h e m i c a l l y t r e a t e d c l o t h , please be careful to follow the instructions that come with the cloth.

DO NOT bring into contact w i t h i n s e c t i c i d e o r o t h e r volatile substances.

DO NOT allow the unit to come into contact for extended periods with rubber or vinyl products.

Remove dirt and soiling by wiping with a light cloth.

Even if the unit is heavily soiled, do not apply cleaner directly to the unit. Soak a cloth in a solution of neutral cleanser thinned with water.

Then wring out the cloth, wipe the unit clean, and finish by wiping with a dry cloth.

D o n o t u s e a n y t y p e o f c l e a n s e r s o n t h e p i c t u r e screen.

5

Before Operating This Set

How to Use This Manual

Check the Model Number of your TV set; the Model Number is shown on the rear cover name plate on the set.

Use the table on the opposite page to confirm which features your particular Model is equipped with. This will help you to know which sections of the manual apply to your set.

TX-43P250H/X

TX-51P250H/X

TC-43P250H

TC-51P250H


SOUND

SET UP

TEXT Favourite

Page Selection

TV/TEXT

Selection

TV/TEXT

100Hz/

PROGRE

SURROUND

MULTI

PIP

F.P.

INDEX HOLD

CH SEARCH STILL

1 2 3

4 5 6

7 8 9

0

TV/AV


SOUND

SET UP

TV/AV

Picture AI

TEXT Index

/Channel Search

TEXT hold

/Still

Picture Noise

Reduction

D.PNR

100Hz/

PROGRE

SURROUND

MULTI

PIP

P. AI CH SEARCH STILL

1

4

2

5

3

6

7 8 9

0

Channel Search

Still

Note:

• Mainly the remote control for TX-43P250H/X and TX-51P250H/X is used as an example in the Operating

Instructions.

6

Before Operating This Set

Quick Reference Guide for your TV Set

Please check the model number of your set.

This Manual applies to several Models and there are slight differences among them.

Please check the table below to see what your TV is equipped with before you begin using these Operating Instructions. Instructions are given for all functions, please disregard these which do not apply to your TV.

X

TC-

43P250H

TC-51P250H TX-43P250H TX-51P250H TX-43P250 TX-51P250

X

Securing the casters

To prevent the set from tipping forward, turn the two casters on the front of the TV so they face forward, as shown in the picture.

7

Before Operating This Set

Connecting the Aerial Cable to the RF In Terminal

VHF Aerial

UHF Aerial

Mixer

75 Ohm

Coaxial Cable

RF In Terminal

To obtain optimum quality picture and sound, an Aerial, the correct cable (75 Ohm coaxial) and the correct terminating plug are required.

If a communal Aerial system is used, you may require the correct connection cable and plug between the wall

Aerial socket and your set.

Your local Television Service Centre or Dealer may be able to assist you in obtaining the correct Aerial system for your particular area and accessories required.

Any matters regarding Aerial installation, upgrading of existing systems or accessories required, and the costs incurred, are the responsibility of you, the Customer.

Safety Precaution

Please take safety precautions to prevent the unit form falling over.

The unit may fall over during earthquakes, or if someone stands on or shakes the TV.

Coaxial Aerial Plug

Coaxial aerial plug

RF in

Terminal

75 Ohm Coaxial Cable

Fixing to a wall

Use a strong rope or a chain to fasten the TV firmly to a strong support such as a wall or a pillar.

8

Before Operating This Set

Connecting the Plug to the Wall Outlet

Note:

Main plug types vary between countries. The main plug shown at left may therefore not be the type fitted to your set.

How to Turn the Power On

Power OFF

Power Indicator

No light: Power OFF condition

Note: Even when the Power Switch is "OFF", the TV set will still consume a small amount of power.

Power Indicator

Power Switch

Power ON

Push the Power switch on Television to turn the set on.

Power Indicator

No light: Normal viewing condition

Red : Stand by

Notes:

• When in the Stand-by condition (Refer to page 15), it is also possible to turn the TV set on by pressing any of the

“Direct Programme Number Selection buttons” (0~9) or “Programme Number Up or Down buttons” on the TV set or on the Remote Control.

• If the Wall Outlet is switched OFF or the Main Plug is unplugged, when the TV set is again turned ON (by either connecting the Main Plug to the Wall Outlet or switching the Wall Outlet ON), it will have returned to the original state.

Battery Installation

1

Open the cover.

Apply slight downward pressure while pulling towards the bottom.

2

B a t t e r i e s : U s e t w o “ R 6 ( A A ) ” s i z e batteries.

Insert the batteries ensuring the correct polarities.

This is identifiable by the “+” and “

” symbols on the batteries and inside the battery compartment.

Two “R6 (AA)” size

3

Replace the cover.

Do not use rechargeable (Ni-Cd) batteries.

They are different in shape and performance and may fail to ensure correct operation.

Battery cautions

The incorrect use of batteries can cause electrolyte leakage which will corrode the Remote Control or cause the batteries to burst.

Old Batteries New Batteries

Replace both batteries at the same time.

Don't mix diffrent battery types

(alkaline with carbon zinc, etc.)

Don't Recharge.

9

Location of Controls

Controls and Terminals on the TV

Main Sub.

S-VIDEO VIDEO L/MONO

AUDIO

R

AV3

IN

STR F TV/AV

MONITOR

OUT

S-VIDEO

AV1

IN

VIDEO

AV2

IN

Y

DVD

[Y-P

B-

P

R

]

MONO MONO

P

B

AV4

IN

VIDEO

Y

DVD

[Y-P

B-

P

R

]

L

AUDIO

R

P

R

MONO P

B

L

AUDIO

P

R

R

Item

No.

Function

Main Headphones Jack

Sub Headphones Jack

AV3 Input Terminals

STR

Function

Volume Down (

) /

Programme Number Down ( )

Volume Up (+) /

Programme Number Up ( )

Refer to

Page

14

14

14

13

13

11

14

Item

No.

Function

TV/AV Selection

Aerial Terminal (RF In Terminal)

Monitor Output Terminals

AV1 Input Terminals

AV2 Input Terminals

AV4 Input Terminals

DVD ( Y. P

B

. P

R

) Input

Refer to

Page

11

11

12

14

8

12

11

10

Connections

How to connect the “AV1, 2, 3 or 4” Input Terminals

Connect VCRs and other peripheral equipment

(VHS VCR)

R

Audio

OUT

L

Video

OUT

AV1

IN

VIDEO

AUDIO

MONO

MONITOR

OUT

S-VIDEO

AV1

IN

VIDEO

AV2

IN

Y

DVD

[Y-P

B-

P

R

]

MONO

MONO

P

B

AV4

IN

DVD

[Y-P

B-

P

R

]

VIDEO

Y

L

AUDIO

R

P

R

MONO P

B

L

AUDIO

P

R

R

(Super-VHS VCR)

R

Audio

OUT

L

Video

OUT

S-Video

OUT

AUDIO

VIDEO

AV1

IN

input

MONO

MONITOR

OUT

S-VIDEO

AV1

IN

VIDEO

AV2

IN

Y

DVD

[Y-P

B-

P

R

]

MONO MONO

P

B

AV4

IN

DVD

[Y-P

B-

P

R

]

VIDEO

Y

L

AUDIO

R

P

R

MONO P

B

L

AUDIO

P

R

R

Notes:

• When an S-Video cable is connected to the S-Video terminal, the Video input will be automatically switched off AV mode.

• When a Monaural VCR is used, connect the Monaural Audio cable to the Audio “L” (Left) terminal.

• Select the desired AV input position by pressing the TV/AV button. (Refer to page 15)

• Input 3 is located on the front of the unit.

• The AV2 and AV4 audio input terminals serve as the audio input terminal for both the Video input and the DVD input.

11

Connections

How to connect the DVD Input Terminals

DVD Player

R

Audio

OUT

L

P

R

DVD( Y-P

B-

P

R

) OUT

P

B

Y

L

MONO

AUDIO

R

P

B

P

R

DVD

[Y-P

B-

P

R

]

Y

Notes:

• The AV4 audio signal is common for both AV4 and DVD input signal terminals.

• The DVD signal input terminal takes priority over the AV4 video signal input terminal.

• Similar connection are available at the COMPONENT VIDEO input 2 terminal.

MONITOR

OUT

S-VIDEO

AV1

IN

VIDEO

AV2

IN

Y

DVD

[Y-P

B-

P

R

]

MONO MONO

P

B

AV4

IN

DVD

[Y-P

B-

P

R

]

VIDEO

Y

L

AUDIO

R

P

R

MONO P

B

L

AUDIO

P

R

R

How to connect the AV Monitor Output Terminals to other equipment

The “Monitor Out” Terminals output the same signals as main picture on the TV screen and sound from the speaker at that time, e.g. TV programmes or signals from AV1, AV2, AV3 or AV4 input.

Recording Equipment

(VHS VCR)

R

Audio

IN

L

Video

IN

VIDEO

AUDIO

MONITOR

OUT

S-VIDEO

VIDEO

L

AUDIO

R

MONITOR

OUT

AV1

IN

S-VIDEO

VIDEO

AV2

IN

Y

DVD

[Y-P

B-

P

R

]

MONO MONO

P

B

AV4

IN

DVD

[Y-P

B-

P

R

]

VIDEO

Y

L

AUDIO

R

P

R

MONO P

B

L

AUDIO

P

R

R

Notes:

• Never connect the same video recorder with both the VIDEO IN and MONITOR OUT terminals on this TV set, as this could cause incorrect operation.

• The monitor output emits the main picture normal video and audio signals.

• Teletext display on screen will not be output at the MONITOR OUT terminals.

• Even if the television is in picture-in-picture condition, MONITOR OUT terminals output the same signals as main picture on the screen and sound from speakers. Sub picture including strobe, still, channel search, etc. will not be output at the MONITOR OUT terminals.

• The DVD signal (Y, P

B

, P

R

) is not output at the MONITOR out terminals.

12

Connections

Connecting Headphones

Connect headphones as follows.

Main Sub.

S-VIDEO VIDEO L/MONO

AUDIO

R

AV3

IN

(3.5mm Plug)

(Optional)

(not supplied)

You can listen to sound from each of the headphones plugs as shown below.

Single picture/

Teletext

Screen condition

A

Speaker

Sound

Main

Headphones

Sub

Headphones

Monitor

Output

A

(Stereo)

A

(Stereo)

A

(Mono)

A

(Stereo)

Picture in Picture

A

B

A

(Stereo)

A

(Stereo)

B

(Mono)

A

(Stereo)

Picture in Picture/

CHANGE

B

A

B

(Stereo)

B

(Stereo)

A

(Mono)

B

(Stereo)

Main Headphones plug:

When a Main Headphones plug is inserted into the Headphones socket, all speakers will be automatically disconnected; only the Main Headphones will function.

Use Volume Up “+” or Down “-” button to control volume level.

Sub Headphones plug:

For the sub Headphones volume control, refer to page 32.

13

General Operation

STR F TV/AV

TV/AV Selection

Volume Up (+) /

Programme Number Up ( )

Power switch

Volume Down (-) / Programme Number Down ( )

STR

Used to store tuning and other function settings. Also used to start the menu demonstration.

Function selection

Displays the on screen display functions, use repeatedly to select from the available functions.

The following adjustments can be accessed directly.

Picture Menu (see page 16, 30)

Sound Menu (see page 16, 32)

Set up Menu (see page 17, 34)

Stereo/Bilingual Sound Selection

(see page 41)

VOLUME

CONTRAST

BRIGHTNESS

TUNING MODE

BALANCE

TREBLE

Notes:

• NTSC-TINT: Displayed when receiving NTSC signals.

• TUNING MODE : Not displayed during AV mode.

TEXT Favourite Page Selection

(see page 39)

TV/TEXT Selection (see page 37, 38)

COLOUR

BASS

100Hz/PROGRE (see page 31)

SHARPNESS

NTSC-TINT

Surround (see page 32, 33)

Store (see page 28, 29, 39)

Stores some settings in TUNING menus and TELE TEXT.

Picture in Picture Selection

(see page 36)

Recall

Press to display the current system s t a t u s , f o r e x a m p l e , P r o g r a m m e number, Channel number, Stereo mode, Picture menu, Sound menu,

Scan mode, Sound system and colour system.

VCR/LD/DVD Rewind/Review

Normalization (see page 31, 33)

TC-43P250H

TC-51P250H

Picture AI (see page 31)

Picture Noise Reduction (see page 31)

D.PNR

100Hz/

PROGRE

P.AI

CH SEARCH STILL

14

Channel Search

(see page 37)

Still (see page 37)

Volume Adjustment

General Operation


SOUND

SET UP

TV/TEXT

100Hz/

PROGRE

SURROUND

MULTI

PIP

Power (Stand-by) (see page 9)

Note:

The TV set must first be plugged into the wall set OFF to Standby mode.

• It is also possible to turn the TV set on from outlet and turned on at the power switch.

Press this button to turn the TV set On from

Standby mode, Press it again to turn the TV

S T A N D B Y m o d e b y p r e s s i n g t h e “ D i r e c t

Programme Number Selection” Buttons (0-9) and

Volume Adjustment

either on the set or on the Remote Control.

Sound Mute

Press to mute the sound completely the “Mute” symbol will appear.

Press again to restore the previous sound level, and cancel the mute.

Programme Number Selection

Press to select the next higher or lower Programme number.

Volume Adjustment

Press to increase or decrease the sound volume level.

VOLUME 18

TV/AV

F.P.

INDEX HOLD

CH SEARCH STILL

1 2 3

Coloured buttons used for

Multi Screen functions

(see page 36)

Teletext functions (see page 38)

AV selection (see page 15)

TV/AV Mode Selection

Press to select TV, AV1, AV2, AV3 a n d A V 4 i n p u t s i g n a l m o d e s sequentially.

Remote control :

TV/AV

TEXT Index (see page 40)

/Channel Search (see page 37)

TEXT hold (see page 39)

/Still (see page 37)

AV1 AV2 AV3 AV4

Press to display AV1 - AV4 at the b o t t o m o f t h e s c r e e n . E a c h coloured button corresponds to each input signals. For example, pressing the Red button selects

AV1.

4 5 6

7 8

0

9

VCR/LD/DVD Play

VCR/LD/DVD

Fast Forward/cue

Direct programme Number

Direct Programme Number

Selection (CH SELECT = DIRECT)

You can select the number directly by pressing the corresponding programme number buttons.

Programme Number 8.......

8

6

1 2

4

VCR/LD/DVD Stop

LD/DVD

REC-VCR

N

STR HELP

A

DISC SIDE

B

?

VCR/LD/DVD Control

(see page 41)

Help (see page 16)

Direct Programme Number

Selection (CH SELECT = POSITION)

You can select the numbers directly by pressing “Number 0-9” buttons or by pressing “Two Digit” and “Number 0-9” buttons.

Programme Number 8 ..... 8

2

Note:

• When the Skip setting for Programme

Number 100 through 125 is on, the c h a n n e l s e l e c t i o n t i m e w i l l b e shortened, and thus you can not input three digits at a time.

15

On-Screen menu Display from Remote Control

16

To PICTURE adjust menu

(see page 30)


MENU

CONTRAST

BRIGHTNESS

COLOUR

SHARPNESS

NTSC-TINT

C. TEMP


P-NR

AI

SCAN MODE

STANDARD

STANDARD

AUTO

ON

AUTO

To SOUND adjust menu

(see page 32)

SOUND

MENU

VOLUME

BASS

TREBLE

BALANCE

HEADPHONE VOL.

SUB HEADPHONE

SURROUND

DYNAMIC

OFF

To HELP MENU

HELP MENU

HOW TO USE THE MENUS

: MOVE BETWEEN

MENU OPTIONS

: ADJUST OR ACCESS

CHOSEN OPTION/MENU

: OPEN OR CLOSE THE MENUS

: GO BACK TO WATCHING

EXT. CONNECTION

MENU DEMO

ACCESS

T h e H E L P b u t t o n r u n s a demonstration of on screen display menus available.

Press the HELP button and select one of the options.


SOUND

SET UP

TV/AV

TV/TEXT

100Hz/

PROGRE

SURROUND

MULTI

PIP

F.P.

INDEX HOLD

CH SEARCH STILL

1 2 3

4 5 6

7 8 9

0

LD/DVD

REC-VCR

N

STR HELP

A

DISC SIDE

B

?

On-Screen menu Display from Remote Control

To SETUP MENU

(see page 34)

SETUP MENU

TELETEXT

OFF TIMER

FLICKER REDUC.

STROBE

CH COLOUR SET

VCR / GAME

TEXT SELECT

FASTEXT

OFF

DYNAMIC

OFF

ENGLISH

SETUP MENU

CHILD LOCK

PICTURE SHIFT

TUNING MENU

CONVERGENCE

LANGUAGE

OFF

OFF

ACCESS

ENGLISH

Press to access to TUNING MENU

To TUNING MENU

(see page 21)

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

POSITION

E.EUROPE

6. 0MHz

AUTO

OFF

SETUP MENU

TELETEXT

OFF TIMER

FLICKER REDUC.

STROBE

CH COLOUR SET

VCR / GAME

TEXT SELECT

FASTEXT

OFF

DYNAMIC

OFF

ENGLISH

SETUP MENU

CHILD LOCK

PICTURE SHIFT

TUNING MENU

CONVERGENCE

LANGUAGE

OFF

OFF

ACCESS

ENGLISH

Press to access to CONVERGENCE

To CONVERGENCE

(see page 18)

SELECT

ACCESS

RETURN TV / AV - EXIT

CONVERGENCE 1 ACCESS

CONVERGENCE 2

SELECT

ACCESS

RETURN TV / AV - EXIT

CONVERGENCE 1

CONVERGENCE 2 ACCESS

17

Convergence Adjustment

Convergence Adjustment mode

Prior to adjustment, tune the broadcast signal to the video input signal and operate the set for more than 60 minutes. If the location or direction of the set is changed or moved, the display may be out of alignment.

If necessary, carry out the following procedures once with PAL signal and again with the NTSC signal.

Vertical centre marker

Horizontal centre marker

1

2

SET UP

3

Press to display the Setup Menu.

Press to select the “CONVERGENCE”.

Press to access to the “CONVERGENCE” menu.

SETUP MENU

CHILD LOCK

PICTURE SHIFT

TUNING MENU

CONVERGENCE

LANGUAGE

OFF

OFF

ACCESS

ENGLISH

Press to select the “CONVERGENCE1” or the “CONVERGENCE2”.

Press to access to the function.

SELECT

ACCESS

RETURN TV / AV - EXIT

CONVERGENCE 1 ACCESS

CONVERGENCE 2

Example: CONVERGENCE1 is selected.

18

Convergence Adjustment

Convergence1 Adjustment for RED, BLUE and GREEN

RED

Press to align the horizontal red line with the horizontal blue line.

(Becomes a white line)

Press to align the vertical red line with the vertical blue line.

(Becomes a white line)

Press

N

button to adjust the blue mode.

(Stores RED)

CONVERGENCE

RED

ADJUST

ADJUST

TV / AV -EXIT

N-BLUE

BLUE

GREEN

Press to align the horizontal blue line with the horizontal yellow line.

(Becomes a white line)

Press to align the vertical blue line with the vertical yellow line.

(Becomes a white line)

Press

N

button to adjust the green mode.

(Stores BLUE)

CONVERGENCE

BLUE

ADJUST

ADJUST

TV / AV -EXIT

N-GREEN

Only when cannot adjust with RED and BLUE, proceed to the following GREEN Adjustment.

Vertical centre marker

CONVERGENCE

Press to align the horizontal green line with the vertical centre maker.

Press to align the vertical green line with the horizontal centre maker.

Press

N

button to adjust the red mode.

(Stores GREEN)

GREEN

ADJUST

ADJUST

TV / AV -EXIT

N-RED

Horizontal centre marker

TV/AV

Press at any time to return to the normal viewing.

19

Convergence Adjustment

Convergence2 Adjustment for RED and BLUE

This function adjust the convergence of the side part of the screen.

Press to select the CONVERGENCE2.

Press to access to the function.

SELECT

ACCESS

RETURN TV / AV - EXIT

CONVERGENCE 1

CONVERGENCE 2 ACCESS

TV/TEXT

100Hz/

PROGRE

SURROUND

MULTI

PIP

F.P.

INDEX HOLD

CH SEARCH STILL

1 2 3

4 5 6

7 8 9

0

Press the Number button on the Remoe Control to select the position which you’d like to adjust.

(Example) Position 1 is selectd.

1 3

4

2

RED

TV / AV -EXIT

N-BLUE

6

7 8 9

4

7

2

RED

ADJUST

ADJUST

TV / AV -EXIT

N-BLUE

8

Remoto control

RED

Press to align the horizontal red line with the horizontal blue line.

(Becomes a white line)

Press to align the vertical red line with the vertical blue line.

(Becomes a white line)

Press

N

button to adjust the blue mode.

(Stores RED)

1

4

7

2

RED

TV / AV -EXIT

N-BLUE

8

BLUE

Press to align the horizontal blue line with the horizontal yellow line.

(Becomes a white line)

Press to align the vertical blue line with the vertical yellow line.

(Becomes a white line)

Repeat above adjustment for each position.

1

4

2

BLUE

TV / AV -EXIT

N-RED

7 8

TV/AV

Press to return to the normal viewing. (Stores BLUE)

Note:

If you wish to view a video with a different colour system (PAL / SECAM, NTSC), repeat the steps above while displaying a picture.

3

6

9

3

6

9

3

6

9

20

Tuning Channels

1

Display the TUNING MENU

1

SET UP

2

Press to display the

SETUP MENU.

Press to select the

TUNING MENU.

SETUP MENU

TELETEXT

OFF TIMER

FLICKER REDUC.

STROBE

CH COLOUR SET

VCR / GAME

TEXT SELECT

FASTEXT

OFF

DYNAMIC

OFF

ENGLISH

SETUP MENU

CHILD LOCK

PICTURE SHIFT

TUNING MENU

CONVERGENCE

LANGUAGE

OFF

OFF

ACCESS

ENGLISH

Press to display the TUNING MENU.

2

1 Select the “POSITION” or the “DIRECT”

CH SELECT

Press to select the “CH SELECT (Channel

Select) ” Mode.

Press to select the “POSITION” or the “DIRECT”.

Setting range when the “POS.” (Position) has been selected: Position 0-99

Setting range when the “DIRECT” has been selected: Channel 0-125

The channel select indicator will change as follows. DIRECT POSITOIN

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

POSITION

E.EUROPE

6. 0MHz

AUTO

OFF

2 Regional System Selection

SYS SELECT (Before AUTO tuning and MANUAL tuning, set the “SYS SELECT” mode, as detailed below.)

CHINA

Press to select the “SYS SELECT”.

Press to select the appropriate system.

The system select indicator will change as follows.

HK/UK M.EAST

NZ/INDONES AUSTRALIA

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

POSITION

E.EUROPE

6. 0MHz

AUTO

OFF

JAPAN

System Select by Regional

CATV AMERICA SPECL VER E.EUROPE

SYSTEM SELECT Region

CHINA

HK / UK

ASIA/M.EAST

NZ / INDONES

AUSTRALIA

E.EUROPE

SPECL VER

AMERICA

CATV

JAPAN

China

Hong Kong, United Kingdom

Malaysia, Singapore, Thailand, Asia countries, Kuwait, Saudi Arabia, United Arab Emirates, Middle East countries, etc.

New Zealand, Indonesia, etc.

Australia

CIS, Poland, etc.

South Africa

U.S.A., Chile, Mexico, Panama, Pelu, Philippines, Taiwan, Venezuela, etc.

USA CATV

Japan

21

Tuning Channels

Sound System Selection

(Different region use differing systems)

This function is used only in the TV mode when the sound is not clear or no sound is produced on a Programme

Number, and is not applicable in AV mode .

1

Press to select the “SOUND SYS”.

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

POSITION

JAPAN

6. 0MHz

AUTO

OFF

Sound System Condition.

2

Press until the optimum sound is obtained.

The sound system will change as shown.

4.5MHz

6.5MHz

5.5MHz

6.0MHz

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

Note:

These are different sound broadcast transmission systems applicable to differing countries.

POSITION

JAPAN

6. 0MHz

AUTO

OFF

3

TV/AV

Press to exit from the “SOUND SYS”.

This returns the set to the normal viewing condition.

The selected Sound System is automatically memorised.

22

Tuning Channels

Colour System Selection

(Different region use differing systems)

If a clear picture with correct colours cannot be obtained when a Broadcast or AV signal is received.

1

2

Press to select the “COLOUR SYS”.

Press to produce the optimum image.

The colour system will change as shown.

AUTO

NTSC3.58

PAL SECAM

NTSC4.43

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

POSITION

JAPAN

6. 0MHz

AUTO

OFF

Colour System Condition.

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

POSITION

JAPAN

6. 0MHz

AUTO

OFF

Note:

PAL, SECAM and NTSC 3.58 are different colour signal broadcast transmission systems applicable to differing countries.

NTSC 4.43 is a trick playback mode used in special VCR to playback NTSC recorded video tapes through PAL television equipment.

3

TV/AV

Press to exit from the “COLOUR SYS”.

This returns the set to the normal viewing condition.

The selected Colour System is automatically memorised.

23

Tuning Channels

Channel Selection

Select the most easily viewed channel selection method.

2ch

4ch

6ch

8ch

10ch

12ch

14ch

16ch

18ch

20ch

POSITION SELECT

When the Channel Selection is on POS. (Position), and

Auto Tune is performed, the unit memories the channels tuned in order from programme No.1.

Press the button 1 to view channel 2.

Press the button 2 to view channel 4.

Press the button 3 to view channel 6.

During position mode various reception channels can be viewed.

Example

Programme

Number

7

8

5

6

9

10

1

2

3

4

Channel

Display

10

12

14

16

18

20

2

4

6

8

Received

Channel

10

12

14

16

18

20

2

4

6

8

DIRECT SELECT

When the Channel Selection is on DIRECT, and Auto Tune is performed, the unit memories the programme number which is the same as the channel tuned.

This method allows you to select the desired channel by pushing the channel display number directly on the remote control to select the station. The channel display numbers for the broadcast stations in each region are listed on page

25.

Example

Programme

Number

3

4

5

1

2

6

7

8

9

10

20

Channel

Display

6

8

2

4

10

20

Received

Channel

6

8

2

4

10

20

24

Tuning Channels

Channel Allocation

• CATV (USA CATV) channel numbers as recommended by the joint EIA/NCTA Engineering committee and published as EIA INTERIM STANDARD No.6-CABLE TELEVISION CHANNEL IDENTIFICATION PLAN-MAY 1983.

• The receiving channels are as follows;

Z9

Z10

Z11

Z12

Z13

Z14

Z15

Z16

Z17

Z18

Z19

Z20

Z37

Z1

57

73

74

75

76

77

78

79

80

81

62

63

69

70

89

94

95

96

97

90

91

92

93

98

99

100

19

20

21

22

23

24

28

57

58

59

117

118

120

125

SYS SELECT

CH DISPLAY

11

12

13

14

15

16

4

5

6

7

0

1

2

3

CHINA HK/UK ASIA/M.EAST NZ/INDONES AUSTRALIA E.EUROPE SPECL VER AMERICA CATV

RECEIVE CHANNEL

1

2

12

13

21

11

12

21

2

11

21

1

2

3

4

5

S2

0

1

2

S10

6

9

9A

10

11

12

S11

11

12

21

1

2

1

2

11

12

13

21

2

13

14

1

2

62

63

69

S'1

S'2

S'3

S1

S2

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S41

62

63

69

S'1

S'2

S'3

S1

S2

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S41

62

63

69

S'1

S'2

S'3

S1

S2

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S41

S44

20

21

80

62

63

69

S'1

S'2

S'3

S1

S2

S10

S14

S15

S16

S17

S18

S19

S20

S21

62

63

69

S'1

S1

S2

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S41

S41

62

63

69

62

63

99

100

125

JAPAN

1

2

12

13

62

C13

C49

25

Tuning Channels

Automatic Tune

(Channel Select and Regional System must already be set; Refer to pages 21)

This TV uses automatic tuning to determine whether or not a broadcast signal is being sent which it can receive, and automatically prepares so that the channel selection can respond to both the position select and direct select modes.

1

AUTO TUNE

Press to select the “AUTO TUNE”.

Press to access to the “AUTO TUNE”.

Search Start.

29

CH 29

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

POSITION

JAPAN

ACCESS

6. 0MHz

AUTO

OFF

AUTO SETUP IN PROGRESS

SEARCHING : PLESE WAIT

STORED CH29

When found a station.

SETUP : RETURN TO TUNING MENU

TV/AV : TO EXIT

The best tuning position is automatically memorized.

2

SOUND SYS

After all stations are tuned, the on-screen display will automatically change from “AUTO

TUNE” to “SOUND SYS” Position.

Press to improve the Sound quality, if the Sound is not clear or no sound is produced on a programme Number Position.

4.5MHz

6.5MHz

5.5MHz

6.0MHz

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

POSITION

JAPAN

6. 0MHz

AUTO

OFF

TV/AV

Press to exit from the Tuning Menu.

This returns the set to the normal viewing condition.

Note:

When sound volume is too small to confirm, tune it up by using the sound volume button on the remote control.

3

Press to check each station sequentially.

1 2

If necessary, repeat steps 1 to 2 for each Programme Number.

4

TV/AV

Press to exit from the Tuning Menu.

This returns the set to the normal viewing condition.

Helpful Hint

(1) If a clear picture with correct colours cannot be obtained when a Broadcast or AV signal is received, refer to the

“Colour System Selection” operation on page 23.

(2)

After the Automatic tune is finished, press this button to confirm the tuning condition for each

Programme Number. If some Programme Numbers are unused (no TV stations), it is possible to skip such Programme Numbers. Please refer to the Programme Number Skip operation on page

29.

26

Tuning Channels

Manual Tune

(Channel Select and Regional System must already be set; Refer to pages 21)

1

MANUAL TUNE

1

Press to select the MANUAL TUNE.

Press to access to the MANUAL TUNE.

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

POSITION

JAPAN

ACCESS

6. 0MHz

AUTO

OFF

2

Press to select the desired Programme

Number.

Press to select the higher or lower channel.

Search Start.

29

CH 12

When found a station.

PROGRAMME - /+

SEARCH - /+

RETURN TV / AV - EXIT

‘STR’ BUTTON-STORE

MANUAL TUNE

The best tuning position is automatically memorized.

2

SOUND SYS

Press to confirm the sound condition of each

Programme Number.

Press to improve the Sound quality, if the Sound is not clear or no sound is produced on a programme Number Position.

4.5MHz

5.5MHz

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

POSITION

JAPAN

6. 0MHz

AUTO

OFF

6.5MHz

6.0MHz

Note:

When sound volume is too small to confirm, tune it up by using the sound volume button on the remote control.

3

TV/AV

Press to exit from the Tuning Menu.

This returns the set to the normal viewing condition.

Helpful Hint

(1) If a clear picture with correct colours cannot be obtained when a Broadcast or AV signal is received, refer to the

“Colour System Selection” operation on page 23.

(2)

After the Manual tune is finished, press this button to confirm the tuning condition for each

Programme Number. If some Programme Numbers are unused (no TV stations), it is possible to skip such Programme Numbers. Please refer to the Programme Number Skip operation on page

29.

(3) When using a VCR without video and audio input/output terminals, it is convenient to connect the aerial cable as indicated in the instruction manual of VCR and to set the designated channel to programme No. “0”. In that case, perform manual tune after setting the colour system and sound system in advance. Further, in multi-system VCR, it is more convenient to set the designated channel to several programme Numbers.

27

Tuning Channels

Fine Tuning

1

FINE TUNE

2

3

STR

TV/AV

Under normal reception conditions this function is not required or necessary.

However, in areas of poor reception or constant interference, a slight adjustment of the tuning may improve the picture and sound quality.

Press to select the FINE TUNE.

Press until the clear picture is received.

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

Press to store the FINE TUNE.

This stores the FINE TUNE to the selected Programme Number.

POSITION

JAPAN

6. 0MHz

AUTO

OFF

Press to exit from the FINE TUNE.

This returns the set to the normal viewing condition.

How to Cancel the Fine Tuning

Cancelling previously adjusted (manually) fine tuning, means re-activating the AFT (Automatic Fine Tuning). Reactivating the Automatic Fine Tuning means albaming the set to automatically tune to the optimum tuning position, for that programme Number.

1

Select the Programme Number which you’d like to return to Automatic Fine Tuning

(cancel the manual fine tuning).

2

SET UP

3

4

5

28

STR

TV/AV

Press to display the SETUP MENU.

Proceed to the TUNING MENU (refer to page 21).

Press to select the MANUAL TUNE.

Press to access to MANUAL TUNE.

Press briefly to tune the best position.

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

POSITION

JAPAN

ACCESS

6. 0MHz

AUTO

OFF

Press to store the AFT.

This stores the re-activated AFT.

Press to exit from the MANUAL TUNE.

This returns the set to the normal viewing condition.

Tuning Channels

Programme Number Skip

It is possible to skip Programme Number on which no TV stations are tuned appearing on the screen. The function is only effective when selecting Programme Numbers by pressing the Programme Number Up or Down button either on the TV set or on the Remote control.

1

Press to select the Programme Number you’d like to skip.

2

3

4

Press to select the SKIP.

Press to change the mode to “ON.”.

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

POSITION

JAPAN

6. 0MHz

AUTO

ON

STR

Press to store the Skip function.

TV/AV

Press to exit from the SKIP.

This returns the set to the normal viewing condition.

3

1

2

Repeat Step1 to 3 for each Programme Number for which the Skip function is desired.

1

How to Cancel the Skip Function

Press to select the SKIP.

Press to change the mode to “OFF.”.

2

STR

Press to store the Skip function.

TUNING MENU

CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE

SOUND SYS

COLOUR SYS

FINE TUNE

SKIP

POSITION

JAPAN

6. 0MHz

AUTO

OFF

29

1

2

3

Picture Adjustment


TV/AV

Press to display the Picture Menu.

Press to select the desired function.

Press to adjust or change the function.


MENU

CONTRAST

BRIGHTNESS

COLOUR

SHARPNESS

NTSC-TINT

C. TEMP

STANDARD

STANDARD


P-NR

AI

SCAN MODE

AUTO

ON

AUTO

Press to go back to watching TV.

MENU

You can change the level of each Function (CONTRAST, BRIGHTNESS,

COLOUR, SHARPNESS, NTSC-TINT) for each Picture Menu.

Picture menu mode will be memorized for each TV, AV1, AV2, AV3 and AV4 mode.

Picture Menu

DYNAMIC

STANDARD

SOFT

Function

For viewing in brighter environments.

This menu selects a higher than normal levels of Brightness and Contrast.

For viewing in normal (evening lighting) environments.

This menu selects the normal levels of

Brightness and Contrast.

For viewing in a dark room.

This menu selects reduced levels of

Brightness and Contrast.


MENU

CONTRAST

BRIGHTNESS

COLOUR

SHARPNESS

NTSC-TINT

C. TEMP

STANDARD

STANDARD

MENU

MENU

MENU

DYNAMIC

STANDARD

SOFT

CONTRAST, BRIGHTNESS, COLOUR, SHARPNESS, NTSC-TINT

Increase or decrease the levels of CONTRAST, BRIGHTNESS, COLOUR and SHARPNESS options according to your personal preference.

With an NTSC-TINT signal source connected to the TV, the picture hue can be adjusted to suit your taste.


MENU

CONTRAST

BRIGHTNESS

COLOUR

SHARPNESS

NTSC-TINT

C. TEMP

STANDARD

Item Effect Function

CONTRAST

BRIGHTNESS

Adjust for contrast.

Less More

Darker Brighter

Adjusts for easier viewing of dark pictures such as night scenes and hair.

COLOUR

Adjusts slightly to a lighter colour.

Less More

SHARPNESS

NTSC-TINT

Displays a sharp image.

Less More

Reddish Greenish

Adjust for proper skin colour.

STANDARD

Notes:

• When set to Multi PIP mode, the main and sub pictures are both adjusted simultaneously.

• When the TV is receiving NTSC signals, NTSC-TINT is displayed and level adjustment would be possible.

• Only CONTRAST will be displayed during TEXT mode.

30

C. TEMP

(Colour Temperature)

Set the overall colour tone of the picture.

Press to switch between modes

STANDARD WARM COOL

Picture Adjustment


MENU

CONTRAST

BRIGHTNESS

COLOUR

SHARPNESS

NTSC-TINT

C. TEMP

STANDARD

STANDARD

P-NR

(Picture Noise

Reduction)

AI

SCAN MODE

Automatically reduces undesired picture noise.

Press to switch between modes

OFF

AUTO

STRONG

WEAK

TC-43P250H, TC-51P250H: Switching is also possible using

D.PNR

on the remote control.

Automatically analyses the incoming picture and processes it to give improved contrast and optimum depth of field.

TC-43P250H, TC-51P250H: Switching is also possible using

P. AI

on the remote control.

Choose the screen refresh method:

Press to switch between modes

AUTO 100 Hz MODE PROGRESSIVE


P-NR

AI

SCAN MODE


P-NR

AI

SCAN MODE


P-NR

AI

SCAN MODE

AUTO

ON

AUTO

AUTO

ON

AUTO

AUTO

ON

AUTO

MODE

AUTO

100 Hz MODE

PROGRESSIVE

Function

The TV software will select the best mode for the signal being viewed.

100Hz will give a steady picture for most signal transmission.

Recommended when receiving NTSC signals.

100Hz/

Switching is also possible using

PROGRE

on the remote control.

Note:

We recommend that you set Scan mode to Progressive when viewing a PAL 60 or

NTSC transmission. When viewing a PAL transmission (other than PAL 60) with Scan

mode set to Progressive, the screen will flicker, this is not a fault.

Helpful Hint (

N

Normalization)

By pressing the Normal “N” Button on the Remote Control while the Picture menu is displayed, the selected menu will be changed to the Normal Mode.

Normalization will not occur if the menu is not displayed when the “N” Button is pressed.

The Normal mode is the factory preset condition. Returning to this original condition is called “Normalization”.

31

Sound Adjustment

1

2

SOUND

Press to display the Sound Menu.

Press to select the desired function.

Press to adjust or change the function.

SOUND

MENU

VOLUME

BASS

TREBLE

BALANCE

HEADPHONE VOL.

SUB HEADPHONE

SURROUND

DYNAMIC

OFF

3

TV/AV

Press to go back to watching TV.

Note:

Some features are only available with the Surround feature switched off. Press

SURROUND

to switch between On and Off.

MENU

You can change the level of each Function (VOLUME, BASS, TREBLE,

BALANCE, HEADPHONE VOL, SUB HEADPHONE) for each Sound

Menu. Sound menu mode will be memorized for each TV, AV1, AV2,

AV3 and AV4 mode.

Sound Menu

DYNAMIC

STANDARD

SOFT

Function

Amplifies the Low frequencies and outputs optimum sound.

For music programmes for example.

For Normal use.

Human voices (middle pitch sounds) will sound more clear.

SOUND

MENU

VOLUME

BASS

TREBLE

BALANCE

HEADPHONE VOL.

SUB HEADPHONE

SURROUND

DYNAMIC

OFF

MENU

MENU

MENU

BALANCE

DYNAMIC

STANDARD

SOFT

VOLUME, BASS, TREBLE, BALANCE, HEADPHONE VOL., SUB HEADPHONE

Item

VOLUME

BASS

TREBLE

BALANCE

HEADPHONE VOL.

SUB HEADPHONE

Effect

Less

Less

Less

Left SP. Right SP.

Less

Less

More

More

More

More

More

Function

Adjusts output volume.

Adjusts low sounds.

Adjusts high sounds.

Adjust left and right volumes.

Adjust Headphone volume.

Adjust Sub Headphone volume.

SOUND

MENU

VOLUME

BASS

TREBLE

BALANCE

HEADPHONE VOL.

DYNAMIC

SUB HEADPHONE

SURROUND OFF

Notes:

• When set to Multi PIP mode, the main and sub sound are both adjusted simultaneously.

• When using one of the double window features, note that the headphones will relay the soundtrack for the programme in the main window, not the smaller window.

32

Sound Adjustment

SURROUND MENU

SURROUND

SOUND

Press to switch between ON and OFF.

SURROUND ON SURROUND

OR

Press to display the Sound Menu.

OFF

Press to select the SURROUND function.

Press to switch between ON and OFF.

SOUND

MENU

VOLUME

BASS

TREBLE

BALANCE

HEADPHONE VOL.

SUB HEADPHONE

SURROUND

DYNAMIC

ON

The benefits of surround sound are enormous. You can be completely enveloped in sound; just as if you were at a concert hall or cinema.

The surround effect can be obtained without the use of external surround speakers.

Helpful Hint (

N

Normalization)

By pressing the Normal “N” Button on the Remote Control while the Sound menu is displayed, the selected menu will be changed to the Normal Mode.

Normalization will not occur if the menu is not displayed when the “N” Button is pressed.

The Normal mode is the factory preset condition. Returning to this original condition is called “Normalization”.

33

1

2

3

Setup Adjustment

SET UP

TV/AV

Press to display the SETUP MENU.

Press to select the desired function.

Press to adjust or change the function.

SETUP MENU

TELETEXT

OFF TIMER

FLICKER REDUC.

STROBE

CH COLOUR SET

VCR / GAME

TEXT SELECT

FASTEXT

OFF

DYNAMIC

OFF

ENGLISH

SETUP MENU

CHILD LOCK

PICTURE SHIFT

TUNING MENU

CONVERGENCE

LANGUAGE

OFF

OFF

ACCESS

ENGLISH

Press to go back to watching TV.

OFF TIMER

Switches the TV off within a preset time which you can choose from between 0 to 90 minutes in 15 minute intervals.

OFF

90

15

75

30

60

45

SETUP MENU

TELETEXT

OFF TIMER

FLICKER REDUC.

STROBE

CH COLOUR SET

VCR / GAME

TEXT SELECT

FASTEXT

OFF

DYNAMIC

OFF

ENGLISH

FLICKER REDUCTION

Lets you control any picture movement. Set to Dynamic to activate motion compensation, to smooth the image and get rid of picture movement. Set to Normal to correct minor picture movement, or if slight ghosting of figures occurs when using the Dynamic setting. Set to Off to have no flicker reduction at aIl, occasional broadcasts may benefit from using this setting.

OFF NORMAL DYNAMIC

SETUP MENU

TELETEXT

OFF TIMER

FLICKER REDUC.

STROBE

CH COLOUR SET

VCR / GAME

TEXT SELECT

FASTEXT

OFF

DYNAMIC

OFF

ENGLISH

Note:

In NTSC when set the SCAN MODE to 100Hz MODE, this function is not available.

COLOUR SYSTEM

During AV mode, COLOUR SYSTEM is displayed.

If a clear picture with current colours cannot be obtained when a Broadcast or AV signal is received. The colour system will change as shown.

AUTO PAL SECAM

NTSC3.58

NTSC4.43

PAL, SECAM and NTSC 3.58 are different colour signal broadcast transmission systems applicable to differing countries. NTSC 4.43 is a trick playback mode used in special VCR to playback NTSC recorded video tapes through PAL television equipment.

SETUP MENU

TELETEXT

OFF TIMER

FLICKER REDUC.

COLOUR SYS

STROBE

CH COLOUR SET

VCR / GAME

FASTEXT

OFF

DYNAMIC

AUTO

OFF

34

Setup Adjustment

CH COLOUR SET

Colour density varying between broadcast channels can be adjusted to three levels for each reception channel.

SETUP MENU

TELETEXT

OFF TIMER

FLICKER REDUC.

STROBE

CH COLOUR SET

VCR / GAME

TEXT SELECT

FASTEXT

OFF

DYNAMIC

OFF

ENGLISH

VCR/GAME

Reproduction of irregular signals, such as certain TV games and rental video tapes, may be improved.

SETUP MENU

TELETEXT

OFF TIMER

FLICKER REDUC.

STROBE

CH COLOUR SET

VCR / GAME

TEXT SELECT

FASTEXT

OFF

DYNAMIC

ON

ENGLISH

CHILD LOCK

If the Child-Lock function is set ON, picture and sound of the TV/AV mode being viewed will disappear and a Black screen will appear.

SETUP MENU

CHILD LOCK

PICTURE SHIFT

TUNING MENU

CONVERGENCE

LANGUAGE

ON

OFF

ENGLISH

PICTURE SHIFT

For use as a screen saver, this function changes the entire picture position (shift) approximately 2 mm every 15 minutes.

SETUP MENU

CHILD LOCK

PICTURE SHIFT

TUNING MENU

CONVERGENCE

LANGUAGE

OFF

ON

ENGLISH

LANGUAGE

When you first install the TV, the On Screen Display language is set according to your choice of region. LANGUAGE lets you change the language used for On Screen

Displays.

SETUP MENU

CHILD LOCK

PICTURE SHIFT

TUNING MENU

CONVERGENCE

LANGUAGE

OFF

OFF

ENGLISH

35

Multi Screen

Multi PIP


SOUND

SET UP

TV/TEXT

100Hz/

PROGRE

SURROUND

MULTI

PIP

F.P.

INDEX HOLD

CH SEARCH STILL

1 2 3

4 5 6

7 8 9

0

Press

MULTI

PIP

to select the current programme, the picture in picture feature, or the picture

and picture feature.

TV/AV

The on screen selector keys for the features (corresponding to the four coloured buttons on the remote control) appear and disappear after a few seconds. If you’d like to select an operation when the keys are not shown, press

MULTI

PIP

once more and the keys will reappear.

Picture in Pcture (PIP)

MULTI

PIP

Press to view two pictures (sub picture in main picture) at the same tme.

LOCATE CHANGE EXIT

Red Green Yellow Blue

LOCATE CHANGE EXIT

Press the Red button:

Red

Sub picture main picture

Press the Yellow button:

Yellow

Sub picture main picture

A

A B

Sub picture

A main picture

LOCATE CHANGE EXIT

Each time the location of the sub picture is changed.

LOCATE CHANGE EXIT LOCATE CHANGE EXIT

Each time the main picture and the sub picture are swapped.

Blue

Press the Blue button to exit from the PIP mode.

Picture and Picture

MULTI

PIP

Press twice to view two pictures (picture and picture) at the same time.

Yellow

Press the Yellow button:

Each time the picture in the left and the picture in the right are swapped.

Blue

Press the Blue button to exit from the PIP mode.

36

A

LOCATE

B

CHANGE EXIT

Multi Screen

Channel search

INDEX

CH SEARCH

HOLD

STILL

CH SEARCH

( )

STILL

( )

Press to show freeze-frames of the programmes being broadcast on all of the stored channels. These images are displayed in series clockwise around the edge of the screen, starting from the top left.

The current programme is displayed in the centre of the screen, still playing.

1 2 3 4

Press to pause the search.

4

5

INDEX

6

Press to exit from the feature.

CH SEARCH

CH SEARCH

( )

SELECT OK

Channel search

EXIT

Red Green Yellow Blue

Press to watch the current programme (displayed centre screen), exiting the feature.

Press to watch the selected channel, exiting the feature.

Press to select each channel's freeze-frame in turn.

Picture and text

(No indication for TC-43P250H and TC-51P250H)

TV/TEXT

Press to select watching the current programme, the teletext or the picture and text feature.

TELETEXT TELETEXT

Note:

TELETEXT mode Picture and text mode

The remote control affects the teletext page; so select watching the current programme before making any changes to the programme.

Still

HOLD

Press to freeze the picture, press again to return to watching the current programme.

STILL

STILL

( )

Strobe

Lets you take a series of freeze-frame photos of a piece of action (for example: the finish of a race).

(Access Strobe via the Setup menu, see page 34).

Takes a series of up to twelve freeze-frame images

(one second delay between each image being taken) from the current programme watched.

HOLD

STILL

STILL

( )

EXIT

Press to pause (freeze) the Strobe, press again to continue taking the freeze-frames.

SETUP MENU

TELETEXT

OFF TIMER

FLICKER REDUC.

STROBE

CH COLOUR SET

VCR / GAME

TEXT SELECT

FASTEXT

OFF

DYNAMIC

ACCESS

OFF

ENGLISH

Press to exit from the Strobe feature and return to watching the current programme.

Blue

37

TELE TEXT

(No indication for TC-43P250H & TC-51P250H)

Teletext features may vary depending on the Broadcasting Companies and are only available when the channel selected is transmitting Teletext.

TEXT SELECT

(No indication for

TC-43P250H and

TC-51P250H)

Select character set, so that all characters needed are available for text on teletext pages (eg: cyrillic characters, etc).

ENGLISH CIS E.EUROPE

SETUP MENU

TELETEXT

OFF TIMER

FLICKER REDUC.

STROBE

CH COLOUR SET

VCR / GAME

TEXT SELECT

FASTEXT

OFF

DYNAMIC

OFF

ENGLISH

TV / Teletext mode

TV/TEXT

Press to select the current programme, the teletext and the picture or the teletext feature .


Press to display the contrast function with a cyan bar.

SOUND

Press to display the volume function with a green bar.

Press to alter the setting as required.

CONTRAST

VOLUME

SET UP

Press to display special function options at the bottom of the screen.

Press to select the desired function.

Red Green Yellow Blue

LIST / FASTEXT mode

LIST mode:

Choose 2 modes.

LIST FASTEXT

Four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV's memory.

SETUP MENU

TELETEXT

OFF TIMER

FLICKER REDUC.

STROBE

CH COLOUR SET

VCR / GAME

TEXT SELECT

FASTEXT

OFF

DYNAMIC

OFF

ENGLISH

FASTEXT mode:

Four differently coloured subjects are situated at the bottom of the display. To access more information , press the appropriately coloured button. This mode enables fast access to information on the subjects shown.

Note:

Characters will be illegible unless you select the Text Language which matches the text being received. Select the correct LANGUAGE (Refer to page 35).

38

Page Selection

(Two ways)

TELE TEXT

Press to increase or decrease the page number by one.

CH SEARCH STILL

1 2 3

4 5 6

7 8 9

0

Enter the page number directly using 0-9 on the remote control.

FulI / Bottom

SET UP

+

Green

Press to display special functions.

Press the Green button again to expand the BOTTOM half.

Press again to return to normal (FULL) size.

Reveal

SET UP

+

Press to reveal hidden words e.g. quiz page answers. Press again to hide.

Red

List Store

STR

In LIST mode the four page numbers can be altered (programme positions 1 - 25 only).

Press one of the four coloured buttons and enter the new page number.

Press and hold, the page numbers will change to white indication and the page is stored.

Hold

HOLD

STILL

Press to hold the Teletext page when viewing multi-page information.

Press again to return to automatic page update.

Favourite Page (F.P.)

Blue

+

0

F.P.

9 +

STR

Stores a favourite page in memory for instant recall. (programme positions 1 - 25 in List mode only).

Press the Blue button, select the page number, then press and hold

STR

.

The page number is now stored.

Press to recall the stored page number.

39

TELE TEXT

SET UP

+

Yellow

Teletext page

Press to display special functions to view the TV picture whilst searching for a Teletext page .

News Flash

Press to view the TV picture

When a news flash page has been selected.

Update

Press to see the update of information on certain pages.

P100 P100

When found a page.

Press to view the page.

TV picture viewing

Press to display the News

Flash.

When an update is received.

Press to view the page.

Yellow

TV/AV

Return to normal TV operation.

Index

INDEX

CH SEARCH

Press to return to the main index page.

Depending on the way information is transmitted, this may have to be pressed more than once to return to the main index page.

Sub Coded Page Access

When Teletext information exceeds more than one page, it may take some time for the automatic changing of the sub pages to reach the sub page you require.

It is possible to enter your required sub page and continue watching the normal programme until the correct sub page is found.

0 9

Select the required page number using buttons 0 - 9.

If the top of the page indicates that sub pages are being transmitted yet the page does not change, then the number at the top of the page is there to indicate that the broadcaster has updated the page's contents, there are no sub pages.

SET UP

+

T **** T0006

Blue

Enter desired sub page number before the T'''' disappears. To select page 6 enter 0, 0, 0 and 6.

Viewing a normal TV programme. Viewing the Teletext page.

Yellow

0

TV/AV

9 Select a new page number.

Press to return to normal TV operation.

40

Advanced Remoto Control Operation

Stereo Bilingnal Sound Selection

When you receive the stereo/bilingual sound system, sound output modes can be selected by pressing the stereo/bilingual sound selection button.

Audio Signal

Mode Indicator

STEREO MAIN I

I

NICAM .......used in Australia, Malaysia,Thailand, Indonesia etc.

Type of broadcast

Regular broadcast

(Standard Audio)

Regular + NICAM MONO I

(MAIN I )

Mode Indicator No Indicator I

SUB II

II

MONO

NICAM STEREO

NICAM DUAL MONO

(MAIN I / SUB II )

I II

A2(German) .......used in New Zealand, Malaysia,Singapore, China.

Type of broadcast

Regular broadcast

(Standard Audio)

BILINGUAL or DUAL MONO:

MAIN I / SUB II

Mode Indicator

No Indicator

I II

STEREO

Notes:

• If the stereo signal is poor or the receiving conditions are not optimum or if STEREO:MONO automatic switching occurs, it is recommended you switch from STEREO to MONO.

• Even when the contents of the receiving signal undergo changes, selection mode is kept intact.

• When the receiving conditions deteriorate, listening will be easier if the mode is set to the “MONO” position, using the stereo/bilingual sound selection button.

• “DUAL”, also known as “DUAL MONO” or as “BILINGUAL” is not currently transmitted in some countries.

4

6

1

2

VCR / LD / DVD Control

The Remote Control is capable of operating some functions of selected Panasonic VCRs, LD and DVD (Digital Versatile

Disc) equipment. Some VCR, LD and DVD equipment have different functions. So to ensure compatibility please refer to the equipment's instruction book or consult your dealer for details.

1

Button

VCR

Power Switch

Function

LD/DVD

LD/DVD

REC-VCR

N

STR HELP

A

DISC SIDE

B

?

3

5

7

2

3

4

5

6

7

A

DISC

SIDE B

REC (Record)

VCR/LD, DVD Select button

Pause/Still

Programme Number

Up and Down

Programme Skip

Still Advance

DISC SIDE A

Selection

DISC SIDE B

Selection

41

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.

Symptoms

Checks

Picture Sound

Aerial Location, direction or Connections

Snowy Picture

Noisy Sound

Aerial Location, direction or Connections

Multiple Image

Normal Sound

Electrical Appliances

Cars/Motorcycles

Fluorescent Lamps

Interference

Noisy Sound

Normal Picture

No Picture

No Sound

No Sound

Volume (Refer to page 15)

(Check whether the mute function has been activated on the Remote Control.)

Not plugged into AC outlet

Not switched on

Contrast and Brightness/Volume setting

(Check by pressing the Power Switch or

Stand-by Button on the Remote Control.)

Colour Control (Refer to page 30, 31)

Colour System (Refer to page 34)

No Colour

Normal Sound

Scrambled

Coloured Patches

Normal or

Weak Sound

Normal Sound

Retune Channels (Refer to page 21)

Magnetic interference from unshielded equipment;

TV set moved while “ON”.

Turn the TV set off for 30 minutes, using the “Power” Switch on the TV set.

Sound Menu (Refer to page 32)

Picture Menu (Refer to page 30)

No Colour

Noisy Sound

42

Specifications

TC-43P250H / TX-43P250H

TC-51P250H / TX-51P250H

AC 220-240 V, 50/60 Hz

TX-43P250X / TX-51P250X

Power Source

Power Consumption

228 W Stand-by condition 3.0 W

8

9

10

11

12

13

14

Receiving System

21 Systems

3

4

1

2

5

6

7

PAL B, G, H

PAL I

PAL D, K

SECAM B, G

SECAM D, K

SECAM K1

NTSC M (NTSC 3.58/4.5 MHz)

NTSC 4.43/5.5 MHz

NTSC 4.43/6.0 MHz

NTSC 4.43/6.5 MHz

NTSC 3.58/5.5 MHz

NTSC 3.58/6.0 MHz

NTSC 3.58/6.5 MHz

SECAM I

Function

Reception of broadcast t r a n s m i s - s i o n s a n d

Playback from Video

C a s s e t t e T a p e

Recorders.

Playback from Special

VCR's

15

16

17

18

19

20

21

AC 110-240 V, 50/60 Hz

238 W Stand-by condition 3.0 W

21 Systems

PAL 60 Hz/5.5 MHz

PAL 60 Hz/6.0 MHz

PAL 60 Hz/6.5 MHz

SECAM 60 Hz/5.5 MHz

SECAM 60 Hz/6.0 MHz

SECAM 60 Hz/6.5 MHz

NTSC 50 Hz/4.5 MHz

Receiving Channels

Regular TV

VHF BAND

2-12 (PAL/SECAM B, K1)

0-12 (PAL B AUST.)

1-9 (PAL B N.Z)

1-12 (PAL/SECAM D)

1-12 (NTSC M Japan)

2-13 (NTSC M U.S.A)

Receiving Stereo

System

UHF BAND

21-69 (PAL G, H, I/SECAM G,

K, K1)

28-69 (PAL B AUST.)

13-57 (PAL D, K)

13-62 (NTSC M Japan)

14-69 (NTSC M U.S.A)

NICAM I , NICAM B/G, NICAM D, A2 (German)

Tuning System

Frequency synthesizer Auto Search Tuning

POSITION : 100 Position

DIRECT : 125 Position

Audio Output

24 W [ 2-way, 4-speakers ; 12 W + 12 W ] ( 10 % THD )

Function

Playback from Special

D i s c P l a y e r s a n d

Special VCR's

CATV

S1-S20 (OSCAR)

1-125 (U.S.A CATV)

C13-C49 (JAPAN)

S21-S41 (HYPER)

Z1-Z37 (CHINA)

5A, 9A (AUST.)

Headphones

Aerial Impedance

Video/Audio/

Component Terminals

3.5 mm Plug

75

Unbalanced coaxial

AV 1, 2, 3, 4 S-Video In

Monitor Out

DVD (Y/P

B

/P

R

)

Video In

Audio In

Video Out

AV1 IN (Rear) : S-Video, Video, Audio L/R terminals

AV2 IN (Rear) : Video or Y/P

B

/P

R

, Audio L/R terminals

AV3 IN (Front) : S-Video, Video, Audio L/R terminals

AV4 IN (Rear) : Video or Y/P

B

/P

R

, Audio L/R terminals

Y:1 Vp-p, 75

C:0.3 Vp-p, 75

1 Vp-p, 75

Approx. 0.4 V 47 K

1 Vp-p, 75

Remote control

Transmitter

Dimensions

( W

×

H

×

D )

Mass (Weight)

EUR511250.....TX-43P250H/X, TX-51P250H/X EUR511251.....TC-43P250H, TC-51P250H

R6 (AA) Battery

×

2

TC-43P250H, TX-43P250H/X

932 mm

×

1261 mm

×

500 mm

TC-51P250H, TX-51P250H/X

1095 mm

×

1385 mm

×

500 mm

54 kg (Net) 58 kg (Net)

Note: Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.

43

Customer’s Record

The model number and serial number of this product can be found on its cabinet. You should note this serial number in the space provided below and retain this book plus your purchase receipt as a permanent record of your purchase to aid in identification in the event of theft or loss and for Warranty Service purposes.

Model Number Serial Number

Printed in Japan

MBS091O1111(MS)

Matsushita Electric Industrial Co., Ltd.

Web Site : http://www.panasonic.co.jp/global/

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
