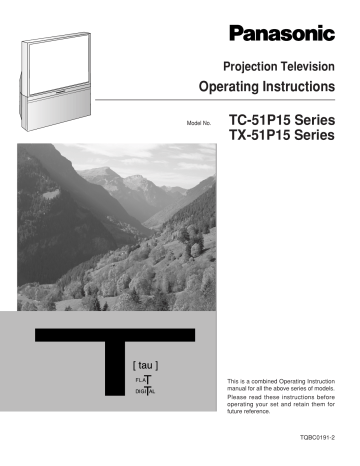

Projection Television
Operating Instructions
Model No.
TC-51P15 Series
TX-51P15 Series
This is a combined Operating Instruction
manual for all the above series of models.
Please read these instructions before
operating your set and retain them for
future reference.
TQBC0191-2
1
Dear Panasonic Customer
Welcome to the Panasonic family of customers. We hope that you will have many
years of enjoyment from your new colour television set.
To obtain maximum benefit from your set, please read these Instructions
before making any adjustments, and retain them for future reference.
Retain your purchase receipt also, and note down the Model Number and
Serial Number of your set in the space provided on the rear cover of these
Instructions.
Important Information
(1) The long time (max. 2 hours) use of TV game on the set is not recommended since the signal from
TV game may be the cause of damage on picture projection tubes on the set.
(2) Do not allow a still picture to be displayed for an extended period, as this can cause a permanent
after-image to remain on the Projection TV screen.
Examples of still pictures include logos, video games, computer images, teletext and images
displayed in 16 : 9 mode.
If still picture cannot be avoided, reduce the brightness and contrast levels of the picture to minimize
any damage that might occur.
(3) In order to minimize any damage to the projection tubes, this set uses the PICTURE SHIFT
function (Refer to page 46) to change (shift) the entire picture approximately 4 mm every 30
minutes.
2
Table of Contents
Warnings and Cautions
Before Operating This Set
4~5
6~9
How to Use This Manual ...................................................................................................................................................... 6
Quick Reference Guide for your TV Set .............................................................................................................................. 7
Securing the casters ............................................................................................................................................................ 7
Connecting the Aerial Cable to the RF In Terminal ............................................................................................................. 8
Safety Precaution ................................................................................................................................................................ 8
Connecting the Plug to the wall Outlet ................................................................................................................................. 9
How to Turn the Power On .................................................................................................................................................. 9
Battery Installation ............................................................................................................................................................... 9
Convergence Adjustment
Location of Controls
Connections
Flow Chart of Main menu
Tuning Procedure
10 ~ 11
12 ~ 14
15 ~ 17
18 ~ 19
20 ~ 31
Channel Selection .............................................................................................................................................................. 20
Regional System Selection ................................................................................................................................................ 22
Channel Allocation ............................................................................................................................................................. 23
Automatic Tune .................................................................................................................................................................. 24
Manual Tune ...................................................................................................................................................................... 26
Fine Tuning ........................................................................................................................................................................ 28
How to Cancel the Fine Tuning .......................................................................................................................................... 29
Programme Number Skip .................................................................................................................................................. 30
How to Cancel the Skip Function ....................................................................................................................................... 31
General Operation
32 ~ 35
How to switch the power ON or OFF / STANDBY mode ................................................................................................... 32
Programme Number Selection .......................................................................................................................................... 32
Direct Programme Number Selection ................................................................................................................................ 32
Volume adjustment ............................................................................................................................................................ 32
TV / AV mode Selection / Display button / Game button / Sound Mute button / Recall button / Off Timer button ............. 33
Sound System Selection .................................................................................................................................................... 34
Colour System Selection ................................................................................................................................................... 35
Advanced Remote Control Operation
36 ~ 41
PICTURE IN PICTURE Operation ..................................................................................................................................... 36
STROBE, CH SEARCH and STILL Operation .................................................................................................................. 38
P.AI and D.PNR Operation ................................................................................................................................................ 39
Surround Operation ........................................................................................................................................................... 40
Stereo Reception ............................................................................................................................................................... 41
Main Menu Operation
42 ~ 49
Picture Menu Operation ..................................................................................................................................................... 42
Sound Menu Operation ...................................................................................................................................................... 43
Features Menu Operation .................................................................................................................................................. 44
Language Menu Operation ................................................................................................................................................ 47
Multi PIP Menu Operation .................................................................................................................................................. 48
Teletext Operation (For TX-51P15 series)
Operation of the VCR / LD / DVD
Troubleshooting
Cleaning
Specifications
50 ~ 53
54 ~ 55
56
57
58 ~ 59
3
Warnings and Cautions
Warnings
Unplug the power cord in the
event of any malfunction
(screen goes blank, no sound,
odd sounds, smoke or unusual
odors coming from the unit).
Unplug the power cord if
foreign matter or water falls
into the unit, or if the unit is
dropped or the cabinet is
damaged.
DO NOT use this unit near
water. (Near a bath tub, etc.)
DO NOT place any of the
following on the unit:
Flower vases, flower pots,
cups, small metal objects, or
cosmetics containers,
chemicals or water.
DO NOT use if the power cord
or power plug is damaged, or
if the plug does not fit tightly
into the socket.
DO NOT insert foreign objects
(metal or easily flammable
objects).
DO NOT use at a voltage other
than indicated
TAKE CARE NOT to damage
the power cord.
DO NOT remove the rear
cover as live parts and High
Voltage components are
accessible when the rear
cover is removed.
DO NOT touch the aerial cable
and this unit when there is
lightning.
DO NOT touch the power plug
if your hands are wet.
Cautions
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent
after-image to remain on the Projection TV screen.
Examples of still pictures include logos, video games, computer images, teletext and images
displayed in 16 : 9 mode.
afterimages appear
4
Warnings and Cautions
Cautions
DO NOT place in humid or
dusty location, or areas
exposed to smoke or steam.
DO NOT place in direct
sunlight and other sources
of direct heat.
DO NOT place in an unstable
location
DO NOT stand, or place heavy
objects on the unit.
Particular care should be taken
by families with small children.
Place in a safe location.
When inserting batteries,
ensure that the polarities
(positive and negative) are
correctly aligned. Insert as
shown on remote control. If
inserted incorrectly, battery
fluid may leak, and fire, injury,
or damage to surrounding
components may result.
Do not mix new and old
batteries. Use only the
specified batteries. Failure to
follow this precaution may
result in leakage of battery
fluid. Fire, injury, or damage
to surrounding components
may also result.
Adequate ventilation is
essential to prevent failure of
electrical components, we
recommend that a gap of at
least 10 cm (
) is left all
around this unit even when it
is placed inside a cabinet or
between shelves.
Turn the power “Off” before
connecting other electrical
equipment.
Before cleaning, unplug the
power plug from the socket.
DO NOT joint the unit.
Unplug the power plug from the
socket if you are not going to
use the unit for an extended
period.
Ask your sales outlet to install
the aerial.
To ensure continued excellent performance by this product, periodic cleaning is recommended. See page 57 for more
information.
5
Before Operating This Set
How to Use This Manual
1. Check the Model Number of your TV set; the Model Number is shown on the rear cover name plate on the set.
Use the table on the opposite page to confirm which features your particular Model is equipped with. This will
help you to known which sections of the manual apply to your set.
2. Check the Part Number on the rear of your Remote Control handpiece, and note the functions available, as
shown below.
TC-51P15G
TC-51P15H
SURROUND
TV/AV
TX-51P15H
TX-51P15X
SURROUND
1
2
3
1
2
3
4
5
6
4
5
6
7
8
9
7
8
9
+
0
D.PNR
P. AI
+
CH SEARCH STILL
STROBE
+
D.PNR
PIP
P. AI
CHANGE PIP ACTION
VCR
LD/DVD
+
0
CH SEARCH STILL
STROBE
PIP
CHANGE PIP ACTION
VCR/LD/DVD
VCR/LD/DVD
VCR
A DISC SIDE B
LD/DVD
A DISC SIDE B
MAIN MENU
MAIN MENU
SKIP
N
RGB
F.P.
TIME
TEXT
R
G
SKIP
Stereo / Bilingual
Selection button
SKIP
N
RGB
SKIP
HOLD
TV/TEXT
INDEX
HOLD
REVEAL
F/T/B
TIME
TEXT
REVEAL
F/T/B
Y
B
TV/TEXT
INDEX
Stereo / Bilingual
Selection button
6
TV/AV
F.P.
TELETEXT Operation
button
Before Operating This Set
Quick Reference Guide for your TV Set
Please check the model number of your set.
This Manual applies to several Models and there are slight differences among them.
Please check the table below to see what your TV is equipped with before you begin using these Operating Instructions.
Instructions are given for all functions, please disregard these which do not apply to your TV.
Securing the casters
caster
To ensure safety, secure the casters in place using
the supplied stoppers.
This set is equipped with casters to enable it to be
easily moved. When positioning the set, place the
supplied stoppers under the casters to secure the
casters and prevent the set from moving.
Front
stopper
To prevent the set from tipping forward, turn the two
casters on the front of the TV so they face forward,
as shown in the picture.
7
Before Operating This Set
Connecting the Aerial Cable to the RF In Terminal
VHF Aerial
UHF Aerial
Mixer
75 Ohm
Coaxial Cable
RF In Terminal
Coaxial Aerial Plug
To obtain optimum quality picture and sound, an
Aerial, the correct cable (75 Ohm coaxial) and the
correct terminating plug are required.
If a communal Aerial system is used, you may require RF In Terminal
the correct connection cable and plug between the
wall Aerial socket and your set.
Your local Television Service Centre or Dealer may
be able to assist you in obtaining the correct Aerial
system for your particular area and accessories
required.
Any matters regarding Aerial installation, upgrading
of existing systems or accessories required, and the
costs incurred, are the responsibility of you, the
Customer.
Coaxial aerial plug
75 Ohm Coaxial Cable
Safety Precaution
Please take safety precautions to prevent the unit
form falling over.
The unit may fall over during earthquakes, or if someone stands on or shakes the TV.
Fixing to a wall
Use a strong rope or a chain to
fasten the TV firmly to a strong
support such as a wall or a pillar.
8
Before Operating This Set
Connecting the Plug to the Wall Outlet
Note:
Main plug types vary between countries. The main plug shown at left
may therefore not be the type fitted to your set.
When connecting the main plug to the wall outlet, the power indicator
will light (Orange).
How to Turn the Power On
Push the Power switch on Television to turn the set on.
The Power Indicator will light.
Power-OFF ....... Orange
...... Red
Stand-by
.........
Power-ON
Green
Note:
When in the Stand-by condition (Refer to page 32), it is possible to turn
the TV set on by pushing the “Power (Stand-by)” button any of the
“Direct Programme Number Selection” buttons (0~9) and Programme
Number Up and Down buttons on the TV set or Remote Control.
Battery Installation
1
2
3
Open the cover.
Apply slight downward
pressure while pulling
towards the bottom.
Batteries: Use two “R6 (AA)” size
batteries.
Insert the batteries ensuring correct polarity.
This is identifiable by the “+” and “−” symbols
on both the batteries and inside the battery
compartment.
Two “R6 (AA)” size
Replace the cover.
Do not use rechargeable (Ni-Cd) batteries.
They are different in shape and performance and may fail to ensure correct operation.
Battery cautions
The incorrect use of batteries can cause electrolyte leakage which will corrode the Remote Control or cause the
batteries to burst.
Old Batteries
New Batteries
Replace both batteries at the same time.
Don't mix battery types
(alkaline with carbon zinc, etc.)
Don't Recharge.
9
Convergence Adjustment
Convergence Adjustment mode
Prior to adjustment, tune the broadcast signal to the video input
signal and operate the set for more than 60 minutes. If the location or direction of the set is changed or moved, the display may
be out of alignment.
If necessary, carry out the following procedures once with PAL
signal and again with the NTSC signal.
Vertical centre marker
Horizontal centre marker
1
MAIN MENU
N
2
Select the “FEATURES” menu
by using the Position Left “<”
or Right “>” button.
Push the Position Up “∧” or
Down “∨” button to enter
FEATURES function.
N
Select the “CONVERGENCE”
menu by using the Position Up
“∧” or Down “∨” button.
N
Push the Position Left “<” or
Right “>” button to enter
CONVERGENCE ADJUSTMENT
mode.
3
10
Push the “Main Menu” button.
Convergence Adjustment
Convergence Adjustment for GREEN, RED and BLUE
Use the Position Up “∧” or Down “∨” button to
align the horizontal green line with the vertical
centre marker.
N
CONVERGENCE
_
GREEN
Vertical center
marker
NEXT: N
Use the Position Left “<” or Right “>” button to
align the vertical green line with the horizontal
centre marker.
N
CONVERGENCE
GREEN
NEXT: N
_
Horizontal centre marker
Push the “N” button to adjust the red mode.
(Stores green)
N
CONVERGENCE
RED
NEXT: N
Use the Position Up “∧” or Down “∨”, Left “<” or
Right “>” buttons to align the red line with the
green line. (Becomes a yellow line)
N
CONVERGENCE
RED
NEXT: N
Push the “N” button to adjust the blue mode.
(Stores red)
N
CONVERGENCE
BLUE
NEXT: N
Use the Position Up “∧” or Down “∨” , Left “<” or
Right “>” buttons to align the blue line with the
yellow line. (Becomes a white line)
N
CONVERGENCE
BLUE
NEXT: N
Push the “N” button to return to the normal
viewing. (Stores blue)
N
If you wish to view a video with a different colour
system (PAL / SECAM, NTSC), repeat the steps
above while displaying a picture.
11
Location of Controls
Remote Control
Surround (page 40)
Power (Stand-by) (page 32)
Direct Programme Number Selection (page 32)
Recall (page 33)
Channel Search (page 38)
D.PNR (page 39)
Strobe (page 38)
P.AI (page 39)
VCR / LD / DVD Play (page 55)
VCR / LD / DVD Rewind / Review (page 55)
VCR / LD / DVD Power (page 55)
LD / DVD button (page 54)
VCR button (page 54)
Main Menu (page 18)
Normalization (page 42, 43)
Position button
Off Timer button (page 33)
Stereo / Bilingual Sound Selection (page 41)
TC-51P15 Series are not equipped
TV / TEXT Selection (page 51)
TEXT Favourite Page Selection (page 51)
Time TEXT (page 52)
12
Sound Mute (page 33)
SURROUND
TV/AV
TV / AV Mode Selection (page 33)
1
2
3
4
5
6
7
8
9
+
0
Programme Number Up and Down (page 32)
+
Volume Up and Down (page 32)
Two Digit Programme Number Selection (page 32)
D.PNR CH SEARCH STILL
P.AI
STROBE
CHANGE
PIP
PIP ACTION
Picture in Picture Selection (page 36)
Still (page 38)
PIP Action (page 37)
VCR/LD/DVD
Main / Sub Picture Change (page 37)
VCR / LD / DVD Fast Forward / Cue (page 55)
VCR / LD / DVD Stop (page 55)
VCR
LD/DVD
A DISC SIDE B
VCR Still Advance (VCR) (page 55)
DISC SIDE A Selection (LD / DVD)
VCR Record (VCR) (page 55)
MAIN MENU
SKIP
VCR / LD / DVD Pause / Still (page 55)
N
SKIP
F.P.
TV/TEXT
INDEX
HOLD
TIME
TEXT
REVEAL
F/T/B
Programme Number Up and Down (VCR) (page 55)
TC-51P15 Series are not equipped
TEXT Hold (page 51)
TEXT Index (page 51)
TEXT Full / Top / Bottom Selection (page 51)
TEXT Reveal (page 51)
TEXT Colour-coded Button (page 51)
OPEN
13
Location of Controls
Controls and Terminals on the TV
Display button (See page 33)
TV / AV Selection button (See page 33)
Preset button (See page 21)
Volume Up(+) / Down(-) button (See page 32)
Programme Number button (See page 32)
Game button (See page 33)
PRE.
-
+
^
DISPLAY TV/AV
AV2
IN
^
GAME
Main
Sub.
Main headphone Jack (See page 17)
Sub headphone Jack (See page 17)
MONITOR
OUT
S-VIDEO
VIDEO
L/MONO
R
AUDIO
AV2 Input Terminals
AV1
IN
AV3
IN
AV4
IN
DVD(Y•PB•PR)
S - VIDEO
Y
VIDEO
MONO
LEFT
MONO
MONO
PB
AUDIO
RIGHT
PR
Aerial Terminal (RF In Terminal)
(See page 8)
AV4 Input Terminals (See page 16)
AV3 Input Terminals (See page 15)
AV1 Input Terminals (See page 15)
Monitor Output Terminals (See page 16)
14
Connections
How to connect the “AV1, 2, 3 or 4” Input Terminals
(Super-VHS VCR)
AV1
IN
Audio
R OUT
L
Video
OUT
S-Video
OUT
(
S Video
input
)
MONITOR
OUT
AV1
IN
AV3
IN
AV4
IN
DVD(Y•PB•PR)
S - VIDEO
MONO
Y
VIDEO
MONO
MONO
MONO
PB
LEFT
AUDIO
RIGHT
PR
VIDEO
AUDIO
(VHS VCR)
Audio
R OUT
L
Video
OUT
AV1
IN
MONITOR
OUT
AV1
IN
AV3
IN
AV4
IN
DVD(Y•PB•PR)
S - VIDEO
VIDEO
AUDIO
MONO
Y
VIDEO
MONO
LEFT
MONO
MONO
PB
AUDIO
RIGHT
PR
Note:
(1) When AV1, AV2, AV3 or AV4 is selected, and that AV mode has no input picture signal, the Background Colour of
the TV screen will change. (This only occurs if the Blue-Back function is set to the ON condition; refer to page 45
for details.)
(2) When an S-Video cable is connected to the S-Video terminal, the Video input will be automatically switched off for
that AV mode.
(3) When a Monaural VCR is used, connect the Monaural Audio cable to the Audio “L” (Left) terminal.
(4) Similar connections are available at the AV1, AV2, AV3 and AV4 input terminals.
Select the desired AV input position by pushing the TV/AV button. (Refer to page 33)
(5) The AV4 audio input terminals serves as the audio input terminal for both the Video input and for the DVD input.
15
Connections
How to connect the DVD Input Terminals
DVD Player
R
Audio
OUT L
DVD(Y•PB•PR) OUT
PR
PB
Y
MONITOR
OUT
AV1
IN
AV3
IN
AV4
IN
DVD(Y•PB•PR)
DVD(Y•PB•PR)
S - VIDEO
Y
Y
VIDEO
AUDIO
MONO
PB
MONO
MONO
PB
LEFT
AUDIO
PR
RIGHT
PR
Note:
(1) The AV4 audio signal is common for both AV4 and DVD input signal terminals.
(2) The DVD signal input terminal takes priority over the AV4 video signal input terminal.
How to connect the AV Monitor Output Terminals to other equipment.
The “Monitor Out” Terminals output the same signals as main picture on the TV screen and sound from the speaker at
that time, e.g. TV programmes or signals from AV1, AV2, AV3 or AV4 input.
Recording Equipment
(VHS VCR)
R
Audio
IN L
MONITOR
OUT
Video
IN
MONITOR
OUT
AV1
IN
AV3
IN
AV4
IN
DVD(Y•PB•PR)
S - VIDEO
Y
VIDEO
MONO
LEFT
VIDEO
MONO
PB
AUDIO
RIGHT
AUDIO
MONO
PR
Note:
(1) Never connect the same video recorder with both the VIDEO IN and MONITOR OUT terminals on this TV set, as
this could cause incorrect operation.
(2) The monitor output emits the main picture normal video and audio signals.
(3) Teletext display on screen will not be output at the MONITOR OUT terminals.
(4) Even if the television is in picture-in-picture condition, MONITOR OUT terminals output the same signals as main
picture on the screen and sound from speakers. Sub picture including strobe, still, channel search, etc. will not be
output at the MONITOR OUT terminals.
(5) DVD signal (Y, PB, PR) are not output at the MONITOR out terminals.
16
Connections
Connecting Headphones
Connect headphones as follows.
AV2
IN
Main
Sub.
S-VIDEO
VIDEO
L/MONO
R
AUDIO
(3.5mm Plug)
(Optional)
(not supplied)
You can listen to sound from each of the headphones plugs as shown below.
Speaker
Sound
Screen condition
Single picture/
Teletext
A
Picture in Picture/
CHANGE
B
Monitor
Output
A
(Stereo)
A
(Stereo)
A
(Mono)
A
(Stereo)
B
A
(Stereo)
A
(Stereo)
B
(Mono)
A
(Stereo)
A
B
(Stereo)
B
(Stereo)
A
(Mono)
B
(Stereo)
A
Picture in Picture
Main
Sub
Headphones Headphones
Main Headphones plug:
When a Main Headphones plug is inserted into the Headphones socket, all speakers will be automatically disconnected;
only the Main Headphones will function.
Use Volume Up “+” or Down “−” button to control volume level.
Sub Headphones plug:
For the sub Headphones volume control, refer to page 37.
17
Flow Chart of Main menu
When the “MAIN MENU” button is pushed at the Main menu screen, the screen display will return to the normal
viewing condition.
When the “MAIN MENU” button is pushed at each menu screen (Picture, Sound, Features, Language, Preset, Multi
PIP), the screen display will return to the Main menu screen.
MAIN MENU
Push
Select
Symbol . Mark
On-Screen
Indication
Push
On-Screen
Indication
(example)
18
Flow Chart of Main menu
Only for
TX-51P15 Series
19
Tuning Procedure
Channel Selection
Select the most easily viewed channel selection method.
2ch
4ch
6ch
8ch
10ch
12ch
14ch
16ch
18ch
20ch
Example
POSITION SELECT
Programme
Number
Channel
Display
Received
Channel
1
2
3
4
5
6
7
8
9
10
2
4
6
8
10
12
14
16
18
20
2
4
6
8
10
12
14
16
18
20
Programme
Number
Channel
Display
Received
Channel
1
2
3
4
5
6
7
8
9
10
–
2
–
4
–
6
–
8
–
10
–
2
–
4
–
6
–
8
–
10
20
20
20
Example
20
When the Channel Selection is on POS. (Position), and
Auto Tune is performed, the unit memories the channels
tuned in order from programme No.1.
Push the button
1
to view channel 2.
Push the button
2
to view channel 4.
Push the button
3
to view channel 6.
During position mode various reception channels can
be viewed.
DIRECT SELECT
When the Channel Selection is on DIRECT, and Auto
Tune is performed, the unit memories the programme
number which is the same as the channel tuned.
This method allows you to select the desired channel
by pushing the channel display number directly on the
remote control to select the station. The channel display
numbers for the broadcast stations in each region are
listed on page 23.
Tuning Procedure
2
DISPLAY TV/AV
PRE.
-
+
^
1, 3
^
GAME
(TV set)
Before Regional System Selection and AUTO tuning, set the “CHANNEL SELECT” mode, as detailed
below.
1
PRE.
2
+
Push the “PRE.” (PRESET)
button, setting the Preset
Menu to “CH SELECT”.
“CH SELECT” Condition
Setting range when the
“POS.” (Position) has been
selected: Position 0-99
Setting range when the
“DIRECT” has been selected:
Channel 0-125
Select the “CH SELECT
(Channel Select)” Mode by
pushing the Volume Up “+” or
Down “−” button.
The channel select indicator
will change as follows.
DIRECT
POS.
Push the “PRE.” (PRESET)
button 8 times.
3
1
CH1
This returns the set to the
normal viewing condition.
PRE.
21
Tuning Procedure
Regional System Selection
2
DISPLAY TV/AV
PRE.
-
+
^
1, 3
^
GAME
(TV set)
Before AUTO tuning and MANUAL tuning, set the “SYSTEM SELECT” mode, as detailed below.
1
PRE.
2
+
Push the “PRE.” (PRESET)
button twice, setting the Preset
Menu to “SYS SELECT”.
“SYS SELECT” Condition.
Select the appropriate System
by pushing the Volume Up “+”
or Down “-” button.
The system select indicator
will change as follows.
JAPAN
HK / UK
CATV
ASIA / M.E.
AMERICA
NZ / INA
SPECL
AUS
E.EUROPE
This returns the set to the
normal viewing condition.
Push the “PRE.” (PRESET)
button 7 times.
3
CHINA
PRE.
System Select by Regional
SYSTEM SELECT
CHINA
HK / UK
ASIA / M.E.
NZ / INA
AUS
E.EUROPE
SPECL
AMERICA
CATV
JAPAN
22
Region
China
Hong Kong, United Kingdom
Malaysia, Singapore, Thailand, Asia countries, Kuwait, Saudi Arabia, United Arab Emirates, Middle East countries, etc.
New Zealand, Indonesia, etc.
Australia
CIS, Poland, etc.
South Africa
U.S.A., Chile, Mexico, Panama, Pelu, Philippines, Taiwan, Venezuela, etc.
USA CATV
Japan
Tuning Procedure
Channel Allocation
• CATV (USA CATV) channel numbers as recommended by the joint EIA/NCTA Engineering committee and
published as EIA INTERIM STANDARD No.6-CABLE TELEVISION CHANNEL IDENTIFICATION PLAN-MAY
1983.
• The receiving channels are as follows;
SYS SELECT
CH DISPLAY
0
1
2
AUS
E.EUROPE SPECL
RECEIVE CHANNEL
0
–
–
1
1
1
2
2
2
CHINA
HK/UK
ASIA/M.E.
NZ/INA
–
1
2
–
–
2
–
1
2
19
20
–
–
–
–
–
–
–
–
–
–
–
–
11
12
–
–
–
–
–
–
11
–
–
–
–
–
–
–
11
12
–
–
5A
–
9A
–
11
12
–
–
–
–
–
–
11
12
13
–
–
–
–
–
21
21
21
21
21
21
21
62
63
62
63
62
63
62
63
62
63
62
63
62
63
69
E65
69
69
69
E69
S01
S02
S03
–
–
–
–
–
S'1
–
–
–
–
–
–
–
–
S'1
S'2
S'3
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
11
12
13
14
15
12
13
AMERICA
CATV
JAPAN
–
–
2
–
1
2
–
1
2
12
13
13
14
28
57
58
62
63
69
57
–
–
–
–
–
–
69
69
69
73
74
75
76
77
78
79
–
–
–
–
–
–
–
–
–
–
–
–
S'1
S'2
S'3
–
–
–
–
–
–
S'1
S'2
S'3
–
–
–
–
–
–
S'1
S'2
S'3
–
–
–
80
81
–
Z1
S1
S2
S1
S2
S1
S2
S1
S2
S1
S2
S1
S2
89
90
91
92
93
94
95
96
97
98
99
Z9
Z10
Z11
Z12
Z13
Z14
Z15
Z16
Z17
Z18
Z19
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S10
–
–
–
S14
S15
S16
S17
S18
S19
S20
100
Z20
S21
S21
S21
S21
S21
S21
117
Z37
–
–
–
–
S41
–
–
S41
–
–
S41
–
–
S41
–
–
S41
–
–
S41
–
–
70
120
125
–
–
–
–
–
–
–
62
63
62
C13
99
C49
100
–
–
–
–
–
–
–
125
23
Tuning Procedure
Automatic Tune (Channel Select and Regional System must already be set; Refer to pages 20 to 23)
DISPLAY TV/AV
PRE.
3
2, 4
-
+
^
1, 6
^
GAME
(TV set)
This TV uses automatic tuning to determine whether or not a broadcast signal is being sent which
it can receive, and automatically prepares so that the channel selection can respond to both the
position select and direct select modes.
Push the “PRE.” (PRESET)
button 3 times.
1
Automatic Search “AUTO
TUNE” Condition.
PRE.
2
+
Push the Volume Up “+” or
Down “−” button.
Search Start.
AUTO
The best tuning position is
automatically memorized.
3
4
+
24
After all stations are tuned,
the on-screen display will
automatically change from
“AUTO TUNE” to “SOUND
SYS” Position. Confirm the
sound condition of each
Programme Number by using
the Programme Number Up
“∧” button.
If the Sound is not clear or
no sound is produced on a
Programme Number, then
follow the next Step 4.
I f n e c e s s a r y, p u s h t h e
Volume Up “+” or Down “−”
button, to improve the Sound
quality.
The sound indicator will
change as follows.
Note:
When sound volume is too
small to confirm, turn it up by
using the sound volume
button on the remote control.
4.5MHz
5.5MHz
6.5MHz
6.0MHz
Tuning Procedure
5
3
4
Use the Programme Number
Up “∧” button to sequentially
check each station.
If necessary, repeat steps 3 to
4 for each Programme Number.
This returns the set to the
normal viewing condition.
Programme Number
memory locations.
After all stations are tuned,
push the “PRE.” (PRESET)
button 4 times.
6
PRE.
Helpful Hint
(1) To tune, push the Main Menu button and Position button on the Remote Control.
By following the display in the Preset Menu, setting can be formed using only the Remote Control.
(2) If a clear picture with correct colours cannot be obtained when a Broadcast or AV signal is received, refer to the
“Colour System Selection” operation on page 35.
(3) After the Automatic tune is finished, push the Programme Number “∧” button to confirm the tuning condition for
each Programme Number. If some Programme Numbers are unused, it is possible to skip such Programme
Numbers. Please refer to the Programme Number Skip operation on page 30.
(4) Repeated pushing of the “PRE.” (PRESET) button changes the Preset Menu as follows;
CH SELECT
SYS SELECT
AUTO TUNE
MANUAL TUNE
SOUND SYS
(Page 21)
(Page 22)
(Page 24)
(Page 26)
(Page 34)
TV Mode
(Normal viewing condition)
SKIP
FINE TUNE
COLOUR SYS
(Page 30)
(Page 28)
(Page 35)
25
Tuning Procedure
Manual Tune (Channel Select and Regional System must already be set; Refer to pages 20 to 23)
TV/AV
PRE.
-
+
^
DISPLAY
2
3, 5
1, 4, 6
^
GAME
(TV set)
Push the “PRE.” (PRESET)
button 4 times.
Manual Search “MANUAL
TUNE” Condition.
2
Push either the Programme
Number Up “∧” or Down “∨”
button.
Select the desired Programme
Number.
3
Push the Volume Up “+” or
Down “−” button.
Search Start.
1
PRE.
+
Volume “+” : Next higher
Channel
The best tuning position is
automatically memorized.
Volume “−” : Next lower
Channel
Push the “PRE.” (PRESET)
button.
4
PRE.
26
“SOUND SYS” Condition.
Tuning Procedure
5
+
If the sound is not clear or no
sound is produced on a
Programme Number Position,
push the Volume Up “+” or
Down “−” button.
Yo u m a y i m p r o v e t h e
Sound quality.
The sound indicator will
change as follows.
4.5MHz
5.5MHz
6.5MHz
6.0MHz
Note:
When sound volume is too
small to confirm, turn it up
by using the sound volume
button on the remote
control.
Push the “PRE.” (PRESET)
button 4 times.
6
This returns the set to the
normal viewing condition.
PRE.
Helpful Hint
(1) If a clear picture cannot be obtained even when a Broadcast or AV signal is received, refer to the “Colour System
Selection” operation on page 35.
(2) After the Manual tune is finished, push the Programme Number “∧” button to confirm the tuning condition for each
Programme Numbers. If some Programme Numbers are unused, it is possible to skip such Programme Numbers.
Please refer to the Programme Number skip operation on page 30.
(3) When using a VCR without video and audio input/output terminals, it is convenient to connect the aerial cable as
indicated in the instruction manual of VCR and to set the designated channel to programme No. “0”. In that case,
perform manual tune after setting the colour system and sound system in advance. Further, in multi-system VCR,
it is more convenient to set the designated channel to several programme Numbers.
27
Tuning Procedure
Fine Tuning
3
DISPLAY
TV/AV
PRE.
-
1
+
^
2, 4
^
GAME
(TV set)
Under normal reception conditions this function is not required or necessary.
However, in areas of poor reception or constant interference, a slight adjustment of the tuning may
improve the picture and sound quality.
1
Select the channel which you
want to improve, using the
Programme Number Up “∧” or
Down “∨” button.
2
Push the “PRE.” (PRESET)
button 7 times, setting the
Preset menu to “FINE TUNE”.
Fine Tune Condition.
Push and hold the Volume Up
“+” or Down “−” button until the
clear picture is received.
Fine Tune Start.
Push the “PRE.” (PRESET)
button twice.
This returns the set to the
normal viewing condition.
PRE.
3
+
4
PRE.
28
2
Select the desired
Programme Number.
The AFC function is
deactivated.
The “ ” symbol appears to
the left of the Programme
Number.
Tuning Procedure
How to Cancel the Fine Tuning
3
DISPLAY TV/AV
PRE.
-
1
+
^
2, 4
^
GAME
(TV set)
Cancelling previously adjusted (manually) fine tuning, means re-activating the AFC (Automatic Frequency
Control) Function, also know as AFT (Automatic Fine Tuning). Re-activating the Automatic Fine Tuning
means albaming the set to automatically tune to the optimum tuning position, for that programme Number.
1
Select the “AFC OFF”
Programme Number which you
want to return to Automatic
Frequency Control (cancel the
manual fine tuning).
2
Push the “PRE.” (PRESET)
button 4 times, setting the
Preset menu to “MANUAL
TUNE”.
Manual Search Condition.
Push the Volume Up “+” or
Down “−” button, briefly.
The best tuning position is
automatically memorized.
(In other words, manually
tune away from the
transmission, and then back
to it.)
Push the “PRE.” (PRESET)
button 5 times.
This returns the set to the
normal viewing condition.
PRE.
3
+
4
2
“AFC OFF” Programme
Numbers are indicated to
you by the “ ” symbol to
the left of the Programme
Numbers in the On-Screen
Display.
PRE.
29
Tuning Procedure
Programme Number Skip
3
DISPLAY TV/AV
PRE.
-
2
+
^
1, 5
^
GAME
(TV set)
It is possible to skip Programme Number on which no TV stations are tuned appearing on the screen.
The function is only effective when selecting Programme Numbers by pushing the Programme Number
up or Down button either on the TV set or the Remote control.
Push the “PRE.” (PRESET)
button 8 times, setting the
Preset menu to “SKIP”.
1
PRE.
2
Select a Programme Number
you want to skip by pushing
the Programme Number up
“∧” or down “∨” button.
3
Push the Volume up “+” or
down “−” button.
+
4
2
5
PRE.
30
3
Channel Skip mode.
The displayed “OFF” mode
changes to “ON”.
Repeat Steps 2 and 3 for the
remaining Programme
Numbers for which the Skip
function is desired.
After the Skip Operation is
completed, push the “PRE.”
(PRESET) button (once).
This returns the set to the
normal viewing mode.
Tuning Procedure
How to Cancel the Skip Function
3
DISPLAY TV/AV
PRE.
-
2
+
^
1, 5
^
GAME
(TV set)
Push the “PRE.” (PRESET)
button 8 times, setting the
Preset Menu to “SKIP”.
1
PRE.
2
Select a skipped Programme
Number, by pushing the
Programme Number Up “∧” or
Down “∨” button.
3
Push the Volume Up “+” or
Down “−” button.
+
4
2
5
PRE.
3
Channel Skip Condition
The displayed “ON” condition
changes to “OFF”.
Repeat Steps 2 and 3, if you
wish to cancel the skip
function on any other
Programme Number.
After the Skip Cancel
Operation is completed, push
the “PRE.” (PRESET) button
(once).
This returns the set to the
normal viewing condition.
31
General Operation
+
-
PRE.
2
^
DISPLAY TV/AV
4
How to switch the power ON or OFF /
STANDBY mode.
The TV set must first be switched on at the
wall outlet and at the Power Switch. (Refer
to page 9)
Push this button to turn the TV set ON, from
STANDBY mode.
Push it again to turn the TV set OFF,
STANDBY mode.
Note:
It is also possible to turn the TV set on
STANDBY by pushing the “Direct Programme
Number Selection” buttons (0-9) and the
“Programme Number Up or Down” button,
either on the set or on the Remote Control.
2
Programme Number Selection
Push the Programme Number Up “∧” or
Down “∨” button to select the next higher or
lower Programme number.
7
^
^
5
6
1
^
GAME
(TV set)
3
SURROUND
1
3
9
TV/AV
1
2
3
4
5
6
7
8
9
+
P.AI
STROBE
8
5
2
Programme Number 8 ....... 8
+
0
D.PNR CH SEARCH STILL
PIP
1
4
3
2
LD/DVD
A DISC SIDE B
MAIN MENU
SKIP
N
F.P.
INDEX
HOLD
TIME
TEXT
REVEAL
F/T/B
4
+
+
Volume adjustment
Push the Volume Up “+” or Down “−” button
to increase or decrease the sound volume
level.
12 VOLUME
32
, 1 , 2
Note:
When the Skip setting for Programme
Number 100 through 125 is on, the channel
selection time will be shortened, and thus you
can not input three digits at a time.
SKIP
10
TV/TEXT
Programme Number 12......
Direct Programme Number Selection
(CH SELECT = DIRECT)
You can select the number directly by pushing
the corresponding programme number
button.
Programme Number 8....... 8 / 0 , 8
Programme Number 36..... 3 , 6
Programme Number 124... 1 , 2 , 4
CHANGE PIP ACTION
VCR/LD/DVD
VCR
Direct Programme Number Selection
(CH SELECT = POS.)
You can select the numbers directly by
pushing “Number 0-9” button and the two digit
Numbers by pushing “Two Digit” and
“Programme Number” buttons.
8
General Operation
5
TV/AV
TV/AV
TV/AV mode Selection
Push the “TV/AV” button to select TV,
AV1, AV2, AV3, AV4 input signal
modes sequentially.
9
+
Recall button
Push the “Recall” button to display
the current system status.
Push again to cancel.
4
6
DISPLAY
S-DYNAMIC
P-DYNAMIC
Display button
When the Display button is pressed,
the Panasonic Logo is displayed.
Push the Display button a second time
to the normal viewing condition.
30
Programme Number (Refer to page 20)
Audio Mode (Refer to page 41)
Sound Menu (Refer to page 43)
Picture Menu (Refer to page 42)
Off Timer (Refer to page 33)
Note:
(1) When this button is pushed,
Picture and Sound menus
change to Picture (DYNAMIC)
and Sound (DYNAMIC).
(2) When this button is pushed during
Game mode, Picture and Sound
menus change to Picture (GAME)
and Sound (DYNAMIC).
7
GAME
Game button
Push this button to change to the AV2
input signal and enter Game mode.
The picture and sound changes to a
suitable mode for video games.
Note:
When you push this button during
stand-by mode, the TV will turn on
automatically and Picture and Sound
changes to a suitable mode for video
games.
8
Sound Mute button
Push this button to mute the sound
completely.
The “Mute” symbol will appear.
(Colour change to red)
10
Off Timer button
The TV set may be preset to switch
to stand-by after a fixed period.
By pushing “Off-Timer” button, you
can select the preset time; either “30”,
“60”, “90” minutes or AUTO mode.
30
60
90
AUTO
0
Setting Off-Timer to AUTO mode.
If the set is not switched off when the
TV station stops broadcasting, it will
automatically go to Stand-by mode
after 5 minutes.
Note:
Off-Timer setting will not operate in
AUTO mode when the Television set
is in AV mode.
Push the button once again to restore
the previous sound level, and cancel
the mute.
33
General Operation
Sound System Selection (Different region use differing systems)
2
DISPLAY TV/AV
PRE.
-
+
^
1, 3
^
GAME
(TV set)
This function is used only in the TV mode, and is not applicable in AV mode when the sound is not clear or
no sound is produced on a Programme Number.
1
Push the “PRE.” (PRESET)
button 5 times.
Sound System Condition.
Push the Volume Up “+” or
Down “−” button repeatedly
until the optimum sound is
obtained.
The sound system will change
as shown.
PRE.
2
+
4.5MHz
5.5MHz
6.5MHz
6.0MHz
Note:
These are different sound
broadcast transmission
systems applicable to differing
countries.
Push the “PRE.” (PRESET)
button 4 times.
3
This returns the set to the
normal viewing condition.
PRE.
The selected Sound System is
automatically memorised.
34
General Operation
Colour System Selection (Different region use differing systems)
2
DISPLAY TV/AV
PRE.
-
+
^
1, 3
^
GAME
(TV set)
If a clear picture with current colours cannot be obtained when a Broadcast or AV signal is received.
1
PRE.
2
+
Push the “PRE.” (PRESET)
button 6 times. (In AV mode it
is only necessary to push the
“PRE.” (PRESET) button
once.)
Colour System Condition.
Push the Volume Up “+” or
Down “-” button repeatedly
until the optimum image is
produced.
The colour system will change
as shown.
AUTO
NTSC3.58
PAL
SECAM
NTSC4.43
Note:
PAL, SECAM and NTSC 3.58
are different colour signal
broadcast transmission
systems applicable to differing
countries NTSC 4.43 is a trick
playback mode used in special
VCR’s to playback NTSC
recorded video tapes through
PAL television equipment.
3
PRE.
Push the “PRE.” (PRESET)
button 3 times.
(In the AV mode, push the
“PRE.” (PRESET) button
once.)
This returns the set to the
normal viewing condition.
The selected Colour System is
automatically memorised.
35
Advanced Remote Control Operation
PICTURE IN PICTURE Operation
1
SURROUND
4
2
2
3
4
5
6
7
8
9
+
P.AI
STROBE
+
5
PIP
LD/DVD
1
CHANGE PIP ACTION
2
3
4
5
VCR/LD/DVD
VCR
(Picture in Picture mode)
(Normal mode)
3
0
D.PNR CH SEARCH STILL
6
The TV broadcast signals and the external
signals can be viewed simultaneously.
By pushing the PIP button to view the
following PIP conditions.
PIP condition is as shown below
TV/AV
1
PIP
Main Picture
input mode
7
AV1
Sub Picture
input mode
Main Picture
Sub Picture
A DISC SIDE B
MAIN MENU
SKIP
7
N
SKIP
F.P.
36
TV/TEXT
INDEX
HOLD
TIME
TEXT
REVEAL
F/T/B
Note:
(1) The DVD (Y, PB, PR) signal does not display a SubPicture.
(2) When the set is in PIP mode, the left and right picture
are processed by two different circuits.
Therefore there may be a minor difference in clarity
between the Pictures.
Advanced Remote Control Operation
2
PIP ACTION
1
Sub picture Direct Programme
(Channel) Number Selection
Push the “PIP ACTION” button and
Direct programme Number Selection
button to select the programme number
during the Sub Picture input mode
indication is blinking.
CHANGE
6
7
3
4
PIP ACTION
PIP ACTION
TV/AV
5
PIP ACTION
+
Sub picture Programme Number
Selection
Push the “PIP ACTION” button and
Programme Number Up “∧” or Down “∨”
button to select the next higher or lower
programme number.
S u b p i c t u r e T V / AV m o d e
Selection
Push the “PIP ACTION” button, and TV/
AV button to select TV, AV1, AV2, AV3,
AV4 input signal mode seguentially.
S u b H e a d p h o n e s Vo l u m e
adjustment
Push the “PIP ACTION” button, and
volume Up “+” or Down “−” button to
increase or decrease the sub
Headphones volume level.
CHANGE
Push the “CHANGE” button to swap from
Main picture to sub picture and vice
versa.
AV1
TV mode
7
N
AV mode
AV1
AV mode
7
TV mode
Position buttons (Only for PIP
mode)
By pushing each “Position” button, you
can select the 9 positions of the Sub
Picture on the screen.
Note:
By pushing the Normal “N” button while
the picture in picture mode is activated,
the Sub Picture position will move to the
bottom Right corner.
Note:
The volume for the main picture on subpicture can be adjusted separately.
37
Advanced Remote Control Operation
STROBE , CH SEARCH and STILL Operation
1
SURROUND
2
2
3
4
5
6
7
8
9
D.PNR
P.AI
1
TV/AV
1
+
STROBE
STROBE
Push the “STROBE” button to display the subpicture with a strobe effect.
When the “STROBE” is on, push the “STROBE”
button again to turn off the strobe, or push the
“STILL” button to freeze the strobe image.
Push the “STILL” button again to restart the strobe
effect.
PIP Size is Small
+
PIP Size is Large
0
CH SEARCH STILL
STROBE
PIP
3
CHANGE PIP ACTION
VCR/LD/DVD
2
CH SEARCH
CH (Channel) SEARCH
By pushing this button, it is possible to search
through all tuned programme numbers.
Push the desired programme number.
1
2
Channel Search
Number
3
4
1
2
3
3
STILL
STILL mode
PIP mode is OFF:
Push the Still button and the Main picture as a
still frame.
STILL
PIP mode is ON:
Push the Still button to display the Sub picture
as a still frame.
STILL
38
Advanced Remote Control Operation
P.AI and D.PNR Operation
SURROUND
2
3
4
5
6
7
8
9
D.PNR
2
1
P.AI
P.AI
P-AI (Picture-Artificial Intelligence)
The P-AI continuously detects fine difference in
the picture signal, with great precision, and
including the picture brightness, black level and
contrast. This function automatically adjusts the
picture to the best quality for the scene, and
reproduces images that provide a sense of
depth.
2
D.PNR
D.PNR
This Picture Noise Reduction System is designed
to reduce picture noise during poor quality
reception conditions.
TV/AV
1
+
1
+
0
CH SEARCH STILL
STROBE
PIP
CHANGE PIP ACTION
VCR/LD/DVD
The D.PNR mode will change as shown.
OFF
STRONG
WEAK
AUTO
39
Advanced Remote Control Operation
Surround Operation
1
SURROUND
2
3
4
5
6
7
8
9
P.AI
On screen display during surround mode.
Type of broadcast
On-screen display
+
0
CH SEARCH STILL
STROBE
PIP
TV mode
1
D.PNR
Surround button
The benefits of surround sound are enormous. You
can be completely enveloped in sound; just as if you
were at a concert hall or cinema.
The surround effect can be obtained without the use
of external surround speakers.
TV/AV
1
+
SURROUND
MONO (including
STEREO switched to
MONO by you) and
BILINGUAL
STEREO
CHANGE PIP ACTION
MONO SURROUND
SURROUND OFF
STEREO SURROUND
VCR/LD/DVD
SURROUND OFF
AV mode
Select the AV mode
( AV1, AV2, AV3 and
AV4)
STEREO SURROUND
MONO SURROUND
SURROUND OFF
Note:
If the stereo signal is poor or the receiving conditions
are not optimum or if STEREO: MONO automatic
switching occurs, it is recommended that “STEREO”
switch to MONO (Refer to page 41) be used. If problems
or unusual sudden effects are encountered in any of
the surround modes, it is recommended that
“SURROUND OFF” be selected.
40
Advanced Remote Control Operation
Stereo Reception
1
/
/
When you receive the stereo/bilingual sound system,
sound output modes can be selected by pushing the
stereo/bilingual sound selection button.
Audio Signal
SURROUND
TV/AV
STEREO
MAIN I
1
2
3
SUB II
4
5
6
MONO
7
8
9
+
P.AI
STROBE
I
II
+
0
D.PNR CH SEARCH STILL
Mode Indicator
PIP
CHANGE PIP ACTION
Type of broadcast
Mode Indicator
Regular broadcast
(Standard Audio)
No Indicator
VCR
LD/DVD
A DISC SIDE B
MAIN MENU
NICAM
VCR/LD/DVD
Regular
+
NICAM MONO I
(MAIN I )
I
NICAM STEREO
SKIP
N
SKIP
1
F.P.
TV/TEXT
INDEX
HOLD
TIME
TEXT
REVEAL
F/ T/ B
NICAM DUAL MONO
(MAIN I / SUB II )
Note:
(1) The “A2 (German)” stereo/bilingual TV
sound transmission system is used in the
following countries; Australia, Malaysia,
Thailand, Indonesia, etc.
The “NICAM” stereo TV sound transmission
system is used in the following countries;
New Zealand, Singapore, Hong Kong and
China.
(2) If the stereo signal is poor or the receiving
conditions are not optimum of if STEREO:
MONO automatic switching occurs, it is
recommended you switch from STEREO to
MONO.
When the broadcasting mode changes to
“STEREO” or “MONO” after you have
selected “MONO” mode, change over to
“STEREO” mode will be made
automatically.
A2 (German)
Regular broadcast
(Standard Audio)
BILINGUAL or DUAL
MONO : MAIN I /
SUB II
I
II
No Indicator
I
II
STEREO
Note:
(1) Even when the contents of the receiving signal
undergo changes, selection mode is kept intact.
(2) When the receiving conditions dereriorate, listening
will be easier if the mode is set to the “MONO”
position, using the stereo/bilingual sound selection
button.
(3) “DUAL”, also known as “DUAL MONO” or as
“BILINGUAL” is not currently transmitted in some
countries.
41
Main Menu Operation
Picture Menu Operation
1. Push the “Main Menu” button.
2. Select the “PICTURE” menu by pushing
the Position Left “<” or Right “>” button
and Access the “Picture” menu by
pushing the Position Up “∧” or Down “∨”
button.
3. Choose the option and adjust by pushing
the Position Up “∧” or Down “∨” button,
and by setting with the Position Left “<”
or Right “>” button.
MAIN MENU
Picture Menu
Function
DYNAMIC
For viewing in brighter environments.
This menu selects a higher than normal
level of Contrast.
STANDARD
For viewing in normal (evening lighting)
environments.
This menu selects the normal levels of
Brightness and Contrast.
SOFT
GAME
Item
1. You can change the level of each Function
( C O L O U R , N T S C - T I N T, B R I G H T,
CONTRAST, SHARPNESS) for each Picture
Menu.
2. Picture Menu mode will be memorized for
each TV, AV1, AV2, AV3 and AV4 mode.
Note
✼ Do not allow a still picture to be displayed for an
For viewing in a dark room.
This menu selects reduced levels of
Brightness and Contrast.
For playing TV GAME. ✼
Effect
extended period, as this can cause a permanent
after-image to remain on the Projection TV
screen.
Examples of still pictures include logos, video
games, computer images, teletext and images
displayed in 16 : 9 mode.
Indicator
32 COLOUR
COLOUR
Less
More
Reddish
Greenish
Darker
Brighter
Less
More
Less
More
32 NTSC-TINT
NTSC-TINT
32 BRIGHT
BRIGHT
63 CONTRAST
CONTRAST
32 SHARPNESS
SHARPNESS
Helpful Hint (
Note:
(1) When the to Multi PIP mode and Picture-inPicture mode, the main and sub pictures are
both adjusted simultaneously.
(2) Even if the TV is not set to “NTSC” mode,
“NTSC-TINT” will be displayed and level
adjustment would be possible. But it would
not function.
(3) When the TEXT mode, COLOUR, NTSCTINT and SHARPNESS will not displayed.
Normalization)
By pushing the Normal “N” button on the Remote Control while the Picture Menu is displayed, the selected Menu will be changed to
the Normal mode.
Normalization will not occur if the Menu is not displayed when the “N” button is pushed.
The Normal mode is the factory preset condition. Returning to this original condition is called “Normalization”.
42
Main Menu Operation
Sound Menu Operation
MAIN MENU
Sound Menu
Function
DYNAMIC
Amplifies the Low and High frequencies
and outputs
optimum sound.
For music programmes for example.
STANDARD
For Normal use.
AUTO
Sound and Music signals are altered and
the best sound is automatically adjusted:
sound (e. g. News and Human voice, etc.)
is adjusted so as to be easy to hear and
music is adjusted to give background
impression.
Item
Effect
Indicator
32 BASS
BASS
Less
More
Less
More
32 TREBLE
TREBLE
1. Push the “Main Menu” button.
2. Select the “Sound” menu by pushing the
Position Left “<” or Right “>” button and
Access the “Sound” menu by pushing the
Position Up “∧” or Down “∨” button.
3. Choose the option and adjust by pushing
the Position Up “∧” or Down “∨” button,
and by setting with the Position Left “<”
or Right “>” button.
1. You can change the level of each Function
(BASS, TREBLE) for each Sound Menu.
2. Sound Menu mode will be memorized for each
TV, AV1, AV2, AV3 and AV4 mode.
Note:
(1) When set to Multi PIP mode and Picture-inPicture mode, the main sound is adjusted .
(2) When SOUND AUTO mode is selected in
Sound Menu Operation, BASS and TREBLE
can not be adjusted.
32 BALANCE
BALANCE
Left SP.
Right SP.
Helpful Hint (
Normalization)
By pushing the Normal “N” button on the Remote Control while the Sound Menu is displayed, the selected Menu will be changed to
the Normal mode.
Normalization will not occur if the Menu is not displayed when the “N” button is pushed.
The Normal mode is the factory preset condition. Returning to this original condition is called “Normalization”.
43
Main Menu Operation
Features Menu Operation
MAIN MENU
D.PNR (Picture Noise Reduction) mode
This Picture Noise Reduction System is designed
to reduce picture noise during poor quality
reception conditions.
P.AI mode
The P.AI continuously detects fine differences in
the picture signal, with great precision, and
including the picture brightness, black level and
contrast.
This function Automatically adjusts the picture to
the best quality for the scene, and reproduces
images that provide a sense of depth.
C.TEMP (Colour Temperature) mode
The C.TEMP (Colour Temperature = classifying
white light) will change as follows.
STANDARD
COOL
WARM
CH COLOUR SET mode
Colour density varying between broadcast
channels can be adjusted to three levels for each
reception channel.
44
1. Push the “Main Menu” button.
2. Select the “FEATURES” menu by pushing
the Position Left “<” or Right “>” button
and Access the “Features” menu by
pushing the Position Up “∧” or Down “∨”
button.
3. Choose the option and adjust by pushing
the Position Up “∧” or Down “∨” button,
and by setting with the Position Left “<”
or Right “>” button.
Main Menu Operation
DEMO / D.PNR mode
You can check the D.PNR effect on the left and
right sides of the screen.
D.PNR
OFF
ON
BLUE BACK mode
When no picture signal is received, or the signal
is weak, the screen reverts to a blue background
colour and the Sound is muted.
Disable this Feature to continue watching very
weak signals.
Note:
If BLUE BACK mode is set on while a VCR signal
is being viewed, selecting CUE or REVIEW may
cause the screen to revert to the blue background
colour. Disable this Feature to view correctly.
Blue if no input picture
signal or input signal is
weak
VCR/GAME mode
Reproduction of irregular signals, such as certain
TV games and rental video tapes, may be
improved.
Note
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to
remain on the Projection TV screen.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 16 : 9
mode.
45
Main Menu Operation
AV Skip mode
When the AV Skip mode is set on, this step is
skipped at the time of selection with the TV/AV
button.
CHILD LOCK mode
(No indication in TEXT input mode)
If the Child-Lock function is set ON, picture and
sound of the TV/AV mode being viewed will
disappear.
PICTURE SHIFT
For use as a screen saver, the following displays
change position (shift) every 30 minutes by several
millimetres:
• Standard on-screen status indicators (all current
system settings can be displayed using the Recall
button).
• Input screen during Game mode.
CONVERGENCE ADJUSTMENT
(See page 10)
46
Main Menu Operation
Language Menu Operation
MAIN MENU
1. Push the “Main Menu” button.
2. Select the “Language” menu by
pushing the Position Left “ < ” or Right
“ > ” button.
3. Push the Position Up “ ∧ ” or Down “ ∨ ”
button. The on-screen language
display will change.
47
Main Menu Operation
Multi PIP Menu Operation
MAIN MENU
PIP mode
Select the PIP mode.
PIP SIZE mode
This feature allows the user to change the sub
picture size in PIP mode.
SMALL ..... 1/16 size of the main picture
LARGE ..... 1/9 size of the main picture
1. Push the “Main Menu” button.
2. Select the “Multi PIP” menu by pushing the
Position Left “<” or Right “>” button and
Access the “Multi PIP” menu by pushing
the Position Up “∧” or Down “∨” button.
3. Choose the option and adjust by pushing
the Position Up “∧” or Down “∨” button, and
by setting with the Position Left “<” or
Right “>” button.
OFF:Normal mode
ON: Picture in Picture
When the PIP size mode is
SMALL:
When the PIP size mode is
LARGE:
48
Main Menu Operation
CH (Channel) SEARCH mode
When the CH SEARCH mode is ON, it is possible
to search through all tuned programme numbers,
Push the desired programme numbers.
When the PIP Size Mode is
Small:
1
2
3
4
When the PIP SIZE Mode is
Large:
1
2
3
STROBE mode
When the STROBE mode is ON, to display the
sub-picture with a strobe effect.
When the PIP SIZE Mode is
Small:
When the PIP SIZE Mode is
Large:
STILL mode
PIP mode is OFF:
STILL mode on and the Main picture as a still
frame.
STILL
PIP mode is ON:
STILL mode on to display the sub picture as a
still frame.
CHANGE mode
When the CHANGE mode is ON to Swap from
Main picture to sub picture and vice versa.
STILL
7
TV mode
AV1
AV mode
AV1
AV mode
7
TV mode
49
Teletext Operation
( For TX-51P15 series )
· Teletext features may vary depending on the Broadcasting
Companies and is only available if the channel selected is
transmitting Teletext.
· When in teletext mode, the volume may still be altered to the
desired listening level.
SURROUND
2
1
2
3
4
5
6
7
8
9
+
2
+
0
D.PNR CH SEARCH STILL
P.AI
What is LIST mode?
In LIST mode, four different coloured page numbers are situated
at the bottom of the screen. Each of these numbers can be altered
and stored in the TV’s memory.
TV/AV
STROBE
PIP
CHANGE PIP ACTION
What are the advantages?
· Page selection at the touch of a Colour-coded button.
· Easy to use step-by-step selection of the topics subject.
· Reduction of waiting time.
· Page status line at bottom of screen so you always know which
button will take you to the desired information.
VCR/LD/DVD
VCR
LD/DVD
A DISC SIDE B
MAIN MENU
SKIP
N
SKIP
1
7
6
50
F.P.
TV/TEXT
INDEX
HOLD
TIME
TEXT
REVEAL
F/ T/ B
What is FASTEXT?
In FASTEXT mode, four differently coloured subjects are situated
at the bottom of the display. To access more information about
one of these subjects, push the appropriately coloured button.
This facility enables fast access to information of the subjects
shown.
4
8
3
5
Teletext Operation
TV/TEXT
1
TV/Teletext mode
By pushing the “TV/TEXT” button, to
change the TV/Teletext mode as
follows.
TV
2
0
2
Page Selection
Pages can be selected in two ways:
a) Push the Up/Down button to
increase or decrease the page
number by one.
b) By entering the page number,
using 0-9 on the remote control.
F/T/B
Full/Top/Bottom
Push to expand the Top half of the
page.
Push again to expand the Bottom half.
Push again to return to normal (FULL)
size.
4
HOLD
Hold
Push to hold the current page.
Push again to cancel the hold.
5
REVEAL
Light
Red Green Yellow Blue
F.P.
Teletext
3
6
7
8
INDEX
Favourite Page (F.P.)
Stores a favourite page in memory for
instant recall. To store such a page, the
TV must be in LIST mode, push the Light
BLUE button, select the page number,
then push List Store. The page number
is now stored.
Push F.P. to recall this page.
Index
Push INDEX to return to the main index
page.
Reveal
Push to reveal hidden words e.g.quiz
page answers.
Push again to hide.
Colour-Coded buttons
In FASTEXT mode these correspond
to the differently coloured subjects.
In LIST mode they correspond to the
differently coloured page numbers.
51
Teletext Operation
Sub Coded Page Access
The TEXT menu will be displayed in TEXT mode. When teletext
information exceeds more than one page, it may take some time for
the automatic changing of the sub pages to reach the sub page you
require. It is possible to enter your required sub page and continue
watching the normal programme until the correct sub page is found.
Select the required page number using buttons 0-9.
SURROUND
TV/AV
1
2
1
2
3
4
5
6
7
8
9
+
+
0
D.PNR CH SEARCH STILL
P.AI
Push the TIME TEXT button.
TIME
TEXT
STROBE
PIP
CHANGE PIP ACTION
2
0
0
0
6
Enter desired sub page number.
To select page 6 enter 0, 0, 0 and 6.
VCR/LD/DVD
VCR
LD/DVD
A DISC SIDE B
MAIN MENU
SKIP
N
SKIP
F.P.
1
3
52
TV/TEXT
INDEX
HOLD
TIME
TEXT
REVEAL
F/T/B
3
TIME
TEXT
Push the TIME TEXT button.
Teletext Operation
TEXT Menu Operation
MAIN MENU
1. Push the “TV/TEXT” button on the Remote
Control to select the TEXT mode.
2. Push the “Main Menu” button.
3. Select the “TEXT” menu by pushing the
Position Left “<” or Right “>” button and
Access the “TEXT” menu by pushing the
Position Up “∧” or Down “∨” button.
4. Choose the option and adjust by pushing the
Position Up “∧” or Down “∨” buttons, and by
setting with the Position Left “<” or Right “>”
buttons.
DISPLAY CANCEL
Push the Position Left “<” or Right “>” button to view the TV picture while searching for a Teletext page. When found, the
screen will display the page number at the top left.
News Flash
When a news flash page has been selected, push Position Left “<” or Right “>” button to view the TV picture, when an
update is received, it will be displayed on screen.
Update
Push Position Left “<” or Right “>” button to see the update of information on certain pages. When an update is received,
the page number will be displayed at the top left of the screen.
LIST STORE
In LIST mode the four page numbers can be altered for channel position. To do this, push one of the colour coded
buttons and enter the new page number.
Push and hold List store, the page number will change colour.
TEXT MODE
Push to change from FASTEXT mode to LIST mode and vice versa.
In FASTEXT mode four differently coloured subjects are displayed at the bottom of the page. Push the appropriate
coloured button to access more information about one of these subjects.
53
Operation of the VCR / LD / DVD
Manufacturer setting
Remote Control Operation is possible for the VCR’s, LD’s and DVD’s
of the various manufacturers.
After completion of setting, execute the various operations after pushing
the VCR or the LD/DVD button.
1
SURROUND
2
TV/AV
1
2
3
4
5
6
7
8
9
+
LD/DVD
2
+
1
0
D.PNR CH SEARCH STILL
P.AI
STROBE
VCR
CHANGE PIP ACTION
0
2
VCR
LD/DVD
A DISC SIDE B
MAIN MENU
SKIP
N
SKIP
F.P.
While pushing the VCR / LD / DVD Power
button, push the manufacturer code setting
(enter the two digit code), and push the VCR /
LD / DVD Stop button.
PIP
VCR/LD/DVD
1
1
Push the button of the unit to be set (VCR or
LD / DVD) .
VCR
TV/TEXT
INDEX
HOLD
TIME
TEXT
REVEAL
F/ T/ B
2
Manufacturer
Panasonic/
National
AIWA
FUJITSU
HITACHI
JVC
MITSUBISHI
Code
Manufacturer
NEC
10,11,12,13
ORION
15,16
PHILIPS
20
SANYO
25,26,27
SHARP
30,31,32
SONY
35,36
TOSHIBA
Code
40,41,42,43
45,46
50
55,56,57,58
60,61
65,66,67
70,71
LD
Manufacturer
Panasonic
KENWOOD
PHILIPS
PIONEER
Code
Manufacturer Code
10,11,12,13 SAMSUNG 30
15,16
35
SHARP
20
40,41,42,43
SONY
25
DVD
Manufacturer Code
Panasonic 70
NOTE:
After setting, execute operation confirmation.
If there is no operation, set a different code.
Helpful Hint
(1) The respective VCR / LD / DVD manufacturer code is cancelled
when battery has been exchanged.
Please set it again.
(2) Depending on the model, operation of VCR’s, LD’s or DVD’s of
the manufacturers listed above may not be possible.
(3) In some cases, new products may not be operative.
(4) It will not operate with other than the above manufactures.
54
Operation of the VCR / LD / DVD
Execute the various operations after pushing the VCR or LD / DVD
button.
Function
Button
SURROUND
TV/AV
1
2
3
4
5
6
7
8
9
+
P.AI
STROBE
2
VCR Power Button LD / DVD Power
Button
3
Stop Button
Stop Button
4
Still Advance
Button
DISC SIDE A
Selection Button
5
Play Button
Play Button
6
FF (Fast Forward) /
Cue Button
FF (Fast Forward) /
Cue Button
7
Rec (Record)
Button
DISC SIDE B
Selection Button
8
Pause / Still Button
Pause / Still Button
Programme
Number Up and
Down Button
Programme Skip
Button
Rew (Rewind) /
Review Button
CHANGE PIP ACTION
VCR/LD/DVD
1
2
Rew (Rewind) /
Review Button
+
PIP
LD/DVD
1
0
D.PNR CH SEARCH STILL
VCR
5
6
A
3
VCR
4
LD/DVD
A DISC SIDE B
MAIN MENU
SKIP
7
8
N
SKIP
F.P.
TV/TEXT
INDEX
HOLD
TIME
TEXT
REVEAL
F/T/B
9
B
SKIP
9
SKIP
55
Troubleshooting
Before you call for service, determine the symptoms and make a few simple checks as shown below.
Symptoms
Checks
Sound
Aerial Location, direction or Connections
Snowy Picture
Noisy Sound
Aerial Location, direction or Connections
Multiple Image
Normal Sound
Electrical Appliances
Cars / Motorcycles
Fluorescent Lamps
Interference
Noisy Sound
Volume
(Check whether the mute function has been
activated by the Remote Control.)
Normal Picture
No Picture
No Sound
No Sound
Not plugged into AC outlet
Not switched on
Contrast and Brightness / Volume setting
(Check by pushing the Power Switch or
Stand-by button on the Remote Control.)
Colour Control
No Colour
Normal Sound
Retune Channels
Scrambled
Normal or
Weak Sound
Convergence Adjustment (Refer to page 10)
Multiple Image Colour
Normal Sound
Sound System (Refer to page 34)
Colour System (Refer to page 35)
No Colour
56
Noisy Sound
Cleaning
To ensure continued excellent performance by this product, periodic cleaning is recommended.
The unit contains many plastic
parts. For this reason DO NOT
use benzine, thinner or other
chemicals to clean the unit.
Dust will accumulate on the
picture screen. Please wipe
with the supplied soft cloth from
time to time. If you use a
chemically treated cloth, please
be careful to follow the
instructions that come with the
cloth.
DO NOT bring into contact with
insecticide or other volatile
substances.
DO NOT allow the unit to come
into contact for extended periods
with rubber or vinyl products.
Remove dirt and soiling by
wiping with a light cloth.
Even if the unit is heavily soiled,
do not apply cleaner directly to
the unit. Soak a cloth in a
solution of neutral cleanser
thinned with water. Then wring
out the cloth, wipe the unit
clean, and finish by wiping with
a dry cloth.
Do not use any type of
cleansers on the picture screen.
57
Specifications
Power Source
TX-51P15X
TC-51P15G, TC-51P15H
TX-51P15H
AC Auto 110-240 V, 50/60 Hz
AC 220-240 V, 50 / 60 Hz
Power Consumption
Receiving System
Receiving Channels
193 W
Stand-by condition 0.4 W
21 Systems
PAL B, G, H
1
PAL I
2
PAL D, K
3
SECAM B, G
4
SECAM D, K
5
SECAM K1
6
NTSC M (NTSC 3.58/4.5 MHz)
7
8
NTSC 4.43/5.5 MHz
9
NTSC 4.43/6.0 MHz
10
NTSC 4.43/6.5 MHz
11
NTSC 3.58/5.5 MHz
12
NTSC 3.58/6.0 MHz
13
NTSC 3.58/6.5 MHz
14
SECAM I
PAL 60 Hz/5.5 MHz
15
PAL 60 Hz/6.0 MHz
16
PAL 60 Hz/6.5 MHz
17
SECAM 60 Hz/5.5 MHz
18
SECAM 60 Hz/6.0 MHz
19
SECAM 60 Hz/6.5 MHz
20
NTSC 50 Hz/4.5 MHz
21
Regular TV
VHF BAND
2-12 (PAL / SECAM B, K1)
0-12 (PAL B AUST.)
1-9 (PAL B N.Z)
1-12 (PAL / SECAM D)
1-12 (NTSC M Japan)
2-13 (NTSC M U.S.A)
188 W
Stand-by condition 0.4 W
Function
Reception of broadcast transmissions and Playback from Video
Cassette Tape Recorders
Playback from Special VCR's
Playback from Special Disc
Players and Special VCR's
UHF BAND
21-69 (PAL G, H, I / SECAM G, K, K1)
28-69 (PAL B AUST.)
13-57 (PAL D, K)
13-62 (NTSC M Japan)
14-69 (NTSC M U.S.A)
CATV
S1-S20 (OSCAR)
1-125 (U.S.A CATV)
C13-C49 (JAPAN)
S21-S41 (HYPER)
Z1-Z37 (CHINA)
5A, 9A (AUST.)
Receiving Stereo
System
58
NICAM I , NICAM B/G, NICAM D, A2 (German)
Specifications
Tuning System
Frequency synthesizer
Auto Search Tuning
POS (Position)
DIRECT
Audio Output
26 W [13 W + 13 W ] ( MAX )
24 W [12 W + 12 W ] ( 10 % THD )
Headphones
3.5 mm Plug × 2
Aerial Impedance
75 Ω Unbalanced coaxial
Video/Audio Terminals
AV 1, 2, 3, 4
: 100 Position
: 125 Position
S-Video In
DVD (Y / PB / PR)
Video In
Audio In
Monitor Out
Video Out
Audio Out
AV1 IN (Rear)
AV2 IN (Front)
AV3 IN (Rear)
AV4 IN (Rear)
Accessories Supplied
1 Vp-p, 75 Ω
Approx. 0.5 V 47 KΩ
1 Vp-p, 75 Ω
Approx. 0.5 V 1 KΩ
: S-Video, Video, Audio L/R terminals
: S-Video, Video, Audio L/R terminals
: Video, Audio L/R terminals
: Video or Y / PB / PR, Audio L/R terminals
Remote control Transmitter
R6 (AA) Battery × 2
75 Ω coaxial aerial plug
TNQE194 ....... TX-51P15H, TX-51P15X
TNQE196 ....... TC-51P15H, TC-51P15G
Dimensions
(W×D×H)
1095 mm × 500 mm × 1371 mm
Weight (Mass)
TX-51P15H, TX-51P15X, TC-51P15H:
TC-51P15G
Y:1 Vp-p, 75 Ω
C:0.3 Vp-p, 75 Ω
61 Kg (Net)
: 62 Kg (Net)
Note:
Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.
59
Customer’s Record
The model number and serial number of this product can be found on its cabinet. You should
note this serial number in the space provided below and retain this book plus your purchase
receipt as a permanent record of your purchase to aid in identification in the event of theft or
loss and for Warranty Service purposes.
Model Number
Printed in Japan
MB0799S2060(MS)
Serial Number
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-8692, Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
