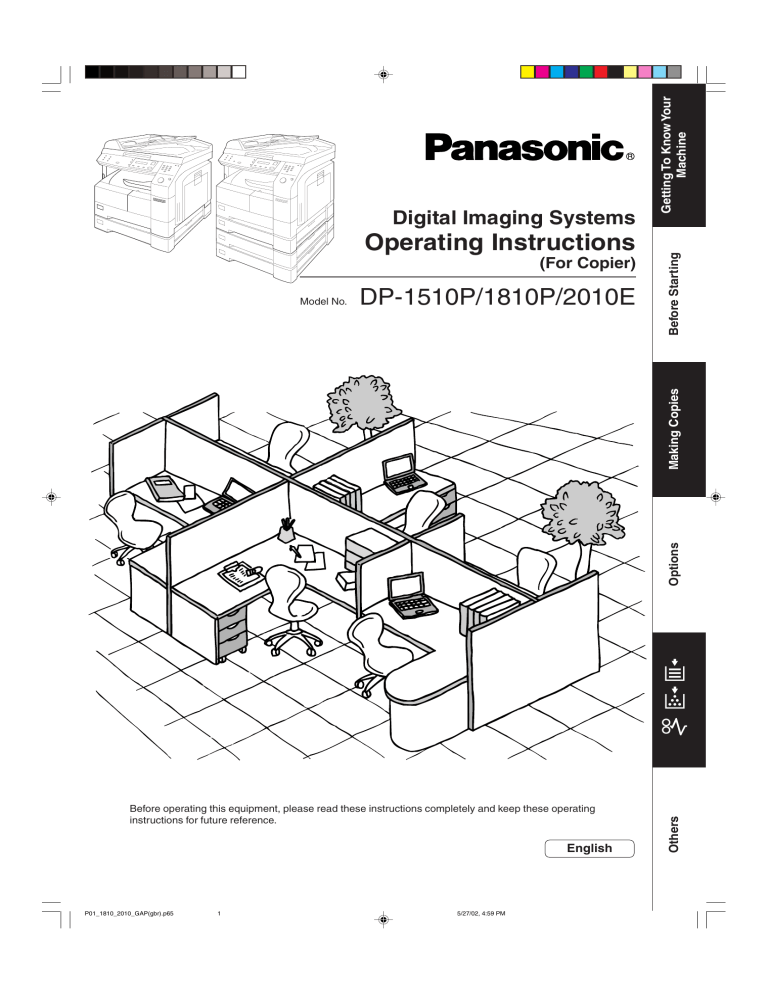

Operating Instructions
DP-1810P
with Options
(For Copier)
DP-2010E
with Options
DP-1510P/1810P/2010E
Getting To Know Your
Machine
Options
Making Copies
Model No.
Before Starting
Digital Imaging Systems
Before operating this equipment, please read these instructions completely and keep these operating
instructions for future reference.
English
P01_1810_2010_GAP(gbr).p65
1
5/27/02, 4:59 PM
Others
J
?
I
IMPORTANT INFORMATION
When requesting information, supplies or service always refer to the model and serial number of your
machine. The model and serial number plate (Main Name Plate) is located on the rear side of machine.
For your convenience, space is provided below to record information you may need in the future.
Model No.
Serial No.
Date of Purchase
Dealer
Address
Telephone Number
(
)
Supplies Telephone Number
(
)
Service Telephone Number
(
)
(Digital copier with ADF option)
Model and Serial Number
Copyright  2002 by Matsushita Graphic Communication Systems, Inc.
All rights reserved. Unauthorised copying and distribution is a violation of law. Printed in Japan.
The contents of these Operating Instructions are subject to change without notice.
2
P02-03_1810_2010_GAP(gbr).p65
2
5/27/02, 4:59 PM
Getting To Know Your
Machine
Operation Chart
Common Features and Usage
■ Basic Operation
Original
1
Load Paper
Turn the Power
Switch On
Place the
Original
2
3 4 5
Original Size
(Reduction/
Enlargement
Only)
Copy Size
Number
(Reduction/ of Copies
Enlargement
Only)
Press
START
■ Position of the Original
From Platen
Original Guide
A5
ADF Tray
Original Guides
Adjust to the original’s width
FLS1
A5
A4
FLS2
B4
A3
FLS
B4
A3
A3
A4
A4
FLS·B4
A4
A5
A4 R
A5
A5
A5 R
From ADF (or i-ADF)
C Place originals face down on the
platen or face up on the ADF.
C If the original is not positioned
properly, a portion of the original
may not be copied.
C For originals smaller than A5 size,
position the original within the area
of A5 and select A5.
■ Commonly Used Functions and Operating Procedures
Full Size
Makes a copy that is the same
size as the original
Reduction or Enlargement
Copies the original at a fixed
reduction or enlargement ratio
1 4 5
1 2 3 4 5
(See page 12)
(See page 13)
■ Memory Capacity
When the memory becomes full during original scanning, the message “OUT OF MEMORY”
“CONTINUE? 1: YES 2: NO” will be displayed in the message display. In this case, follow the
operating instruction in the message display.
When additional memory is required, consult with an authorised servicing dealer.
3
P02-03_1810_2010_GAP(gbr).p65
3
5/27/02, 4:59 PM
Energy Star
As an ENERGY STAR® Partner, Panasonic has determined that this product meets the
ENERGY STAR® guidelines for energy efficiency.
This voluntary program specifies certain energy consumption and usage standards. This
product will automatically “power down” after a specified period of non-use. The use of this
ENERGY STAR® compliant product will reduce energy consumption and ultimately benefit the
environment.
The default functions can be adjusted depending on your office requirements.
Please ask your authorised Panasonic dealer for more details.
4
P04-05_1810_2010_GAP(gbr).p65
4
5/27/02, 4:59 PM
Table of Contents
Table of Contents
Getting To Know Your Machine
Operation Chart .............................................................................................................................. 3
■ Common Features and Usage .............................................................. 3
Energy Star ..................................................................................................................................... 4
Before Starting
Precautions ..................................................................................................................................... 7
■ For Your Safety ..................................................................................... 7
■ Handling ............................................................................................... 8
■ Toner and Paper ................................................................................... 8
■ Ventilation ............................................................................................. 8
■ Installation ............................................................................................ 9
Control Panel ................................................................................................................................ 10
Making Copies
Basic Copy .................................................................................................................................... 12
■ Full Size Copying ................................................................................ 12
■ Reduction or Enlargement Copying .................................................... 13
■ Zoom Copying .................................................................................... 14
■ Using the Sheet Bypass ..................................................................... 15
Creative Features ......................................................................................................................... 16
■ 2 in 1 Copy ......................................................................................... 16
■ 2 Page Copy ....................................................................................... 17
■ Book/Edge/Margin .............................................................................. 18
■ 2-Sided/1-Sided Copy ......................................................................... 19
■ 1 \ 2/2 \ 1/2 \ 2 Copy .................................................................... 20
■ Book \ 2 Copy .................................................................................. 21
■ Job Memory ....................................................................................... 22
■ Sort Copy ........................................................................................... 23
Other Features .............................................................................................................................. 24
■ Energy Saver/Interrupt Mode .............................................................. 24
■ Skyshot Mode ..................................................................................... 25
Combined Function Table ............................................................................................................ 27
Function ........................................................................................................................................ 28
■ Checking the Copier’s Total Counter ................................................... 28
■ General Functions .............................................................................. 29
■ Copier Settings ................................................................................... 30
■ General Functions for Key Operator ................................................... 31
■ Copier Settings for Key Operator ........................................................ 32
■ Function Setting .................................................................................. 33
■ Function Setting for Key Operator ....................................................... 34
5
P04-05_1810_2010_GAP(gbr).p65
5
5/27/02, 4:59 PM
Table of Contents
Options
Accessories .................................................................................................................................. 39
■ Components ....................................................................................... 39
■ Automatic Document Feeder .............................................................. 40
Problem Solving
Problem Solving ........................................................................................................................... 42
■ Adding Paper (J) ............................................................................... 42
■ Adding the Toner and Replacing Waste Toner Container (?) ............. 43
■ Removing a Misfed Paper ................................................................... 45
Troubleshooting ........................................................................................................................... 52
■ Before Calling Service ........................................................................ 52
■ User Error Codes (U Code) ................................................................ 54
Others
Specifications ............................................................................................................................... 55
Options and Supplies ................................................................................................................... 57
6
P06-07_1810_2010_GAP(gbr).p65
6
5/27/02, 4:59 PM
Precautions
For Your Safety
■ Laser Safety
Before Starting
LASER SAFETY
This unit employs a laser. Only qualified service personnel should
attempt to service this device due to possible eye injury.
CAUTION:
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
■ Caution Label
(Digital copier with ADF option)
7
P06-07_1810_2010_GAP(gbr).p65
7
5/28/02, 3:53 PM
Precautions
Handling
■ Do not look directly at the exposure lamp when
copying.
■ Do not turn the power switch Off or open the front
panel during copying.
C Do not drop paper clips or other metal objects into
the copier.
Toner and Paper
■ Store toner, drum and paper in cool areas with low
humidity.
C Use high quality 60 - 90 g/m2 (Sheet Bypass:
56 - 128 g/m2) paper.
C For optimum performance, it is recommended that
only Panasonic Brand supplies are used in the
copier.
Ventilation
■ The copier should be installed in a well-ventilated
area to minimise the ozone density in the air.
■ The copier should not be installed in areas with the
following conditions:
C Extremely high or low temperature and humidity.
Ambient conditions
Temperature:
10 – 35°C
Relative humidity: 45 – 80%
C Where temperature and humidity can change
rapidly, causing condensation.
C Direct exposure to sunlight.
C Directly in the air conditioning flow.
C In areas of high dust concentration.
C In areas of poor ventilation.
C In areas with chemical fume concentration.
C In areas with extreme vibration.
C With unstable or uneven conditions (floors, etc.).
8
P08-09_1810_2010_GAP(gbr).p65
8
5/27/02, 4:59 PM
Precautions
Installation
■ The maximum power consumption is 1.2 kW.
Before Starting
A properly wired (grounded), dedicated, 6A, 220-240 V AC outlet is required.
Do not use an extension cord.
The power cord on this equipment must be used to disconnect the main power.
Please ensure that the socket outlet is installed near the equipment and is easily accessible.
FOR YOUR SAFETY
Caution Note: Disconnect from the mains supply before removing covers.
The mains plug on this equipment must be used to disconnect mains power. Please ensure that the
socket outlet is installed near the equipment and shall be easily accessible.
For U.K.
This appliance is supplied with a moulded three pin mains plug for your safety and convenience.
A 13 amp fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 13
amps and that it is approved by ASTA or BSI to BS1362
Check for the ASTA mark 7 or the BSI mark 6 on the body of the fuse.
If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is
replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local Panasonic Dealer.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR OFFICE
THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED
INTO ANY 13 AMP SOCKET.
If a new plug is to be fitted please observe the wiring code as shown below.
If in any doubt please consult a qualified electrician.
WARNING: THIS APPLIANCE MUST BE EARTHED.
IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:
Green and Yellow: Earth
Blue
: Neutral
Brown
: Live
As the colours of the wires in the main lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which
is marked by letter E or by the safety Earth symbol “L” or coloured GREEN or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal in the plug which is marked
with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in
the plug which is marked with the letter L or coloured RED.
How to replace the fuse.
Open the fuse compartment with a screwdriver and replace the fuse.
N
9
P08-09_1810_2010_GAP(gbr).p65
9
6/7/02, 10:23 PM
Control Panel
(For DP-2010E only)
No
Contents
Refer to
2 in 1 Key
C From two 1-sided originals, side by side, to 1-sided copies.
2 Page Copy Key
C Copying two facing pages on a A3 size original on two separate A4 size
sheets.
Sort Key
C When using Electric Sorting Mode. Optional memory is required.
#
$
%
Page 17
Page 23
&
MARGIN Key C Shifts the image to the right or left.
(
EDGE Key
C Creates a blank edge.
Page 18
)
BOOK Key
C Eliminates dark inner binding shadows.
Page 18
*
Photo; Text/Photo; Text Keys
C Select the type of original(s) for image density adjustment.
: Originals are mainly composed of photo.
TEXT/PHOTO: Combined originals with text and photo.
TEXT
: Originals are mainly composed of text.
Page 12
+
Exposure Keys (DARKER, LIGHTER)
Page 12
-
SET Key
C Set the present selection.
/
Page 18
——
FUNCTION Key
C Use when changing the paper size, initial values for functions (default
values) and key operator settings.
CLEAR Key C Clears the copy count in the display.
.
0
ENERGY-SAVER Key
C Can save power while the copier is not in use.
1
RESET Key
C Resets all features to the initial power-on state.
Pages 28 – 37
——
Page 24
——
C The Control Panel displayed above shows only copier functions. Please refer to the
appropriate operating instructions for other control panel functions or in the Panasonic
Document Management System CD-ROM for the Printer control panel functions.
C The illustration above shows the DP-2010E control panel.
NOTE
10
P10-11_1810_2010_GAP(gbr).p65
Page 16
10
5/27/02, 4:59 PM
Control Panel
Before Starting
LCD Display
Warning Indications
J Add Paper
? Add Toner
I Misfeed
2 Call Service
For DP-1510P/1810P
No
Contents
Refer to
2
STOP Key
C Stops the copy run.
——
3
START Key
C Used to start an operation.
——
4
INTERRUPT Key, MEMORY IN Key, M1/M2 Keys
C Interrupt Key interrupts other copy jobs while making copies.
C Memory In Key registers two copy jobs for recall at a later time.
C M1/M2 Keys are used to store a Job in Memory or to recall a Job stores in Memory.
Pages 22, 24
5
Cursor Keys C Select copy ratio and function modes using (G or F).
——
6
PAPER TRAY Key
7
8
C Used to select the paper tray manually.
COPY SIZE Key
C Used to select Reduction/Enlargement only. For additional details, see page 13.
ORIGINAL SIZE Key
C Used to select the original size manually. For additional details, see page 13.
C When selecting the Printer ON/OFF Line.
9
PRINT Key
:
2-Sided/1-Sided Copy Key
C Used to select 1 \ 2, 2 \ 2 and 2 \ 1, Book \ 2 copying
NOTE
——
——
——
——
——
C The Control Panel displayed above shows only copier functions. Please refer
to the appropriate operating instructions for other control panel functions or in
the Panasonic Document Management System CD-ROM for the Printer
control panel functions.
11
P10-11_1810_2010_GAP(gbr).p65
11
6/18/02, 3:53 PM
Basic Copy
Full Size Copying
■ Copying the Same Size Originals (1:1)
Copy size is automatically selected.
ORIGINAL SIZE Key CLEAR Key
1
2 3
Number of Copies* Press START**
Up to 999
Place the Original
LCD Display (Sample)
READY TO COPY
COPIES:001
Select the Original Size on units
without the ADF/i-ADF Option.
■ Manually Selecting Exposure Control or Original Type
# Select the Original Type
: Originals are mainly composed of photo.
TEXT/PHOTO: Combined originals with text and photo.
TEXT
: Originals are mainly composed of text.
$ Select Exposure Control
Press the DARKER/LIGHTER keys to adjust the exposure.
∗ Use Clear key when cancelling the copy count.
∗∗ While the copier is warming up, you may position your original on the copier, enter
NOTE
your copy job selections and press the Start key. The COPY JOB RESERVED
indicator displays until the warm up cycle is completed and the copy job is
automatically started.
12
P12_1810_2010_GAP(gbr).p65
12
5/27/02, 4:59 PM
Basic Copy
Reduction or Enlargement Copying
■ Copying with Preset Ratios
2
Select the
ORIGINAL SIZE
3
Select the COPY
SIZE
4 5
Number of
Copies
Example: Reduction
Original size
Making Copies
1
Place the
Original
RESET
Press
START
Copy size
A3
A4
A3 ->A4B [A4B ]
ZOOM: 71% COPIES:001
The correct ratio is automatically selected.
Reduction and enlargement ratios (%)
Copy Size
Original
Size
A3
A3
B4
A4
141
122
100
71
A5
200
173
141
100
B4
A4
A5
100
87
71
50
115
100
82
58
C When changing the paper tray, press the
Paper Tray key.
NOTE
C If the desired copy size is different from the paper size loaded in the paper
tray, use the sheet bypass. (See page 15)
C Press the RESET key to cancel all job settings.
13
P13-15_1810_2010_GAP(gbr).p65
13
5/27/02, 4:59 PM
Basic Copy
Zoom Copying
■ Zoom
Copies with variable zoom ratios from 50 % to 200 % in 1 % increments.
1
Place the
Original
2
3
Select ORIGINAL
SIZE
(without using
ADF/i-ADF)
Press Cursor (G or F)
keys to select Zoom Ratio
RESET
4 5
Number
of Copies
Press
START
B
A4 ->A4B [A4B ]
ZOOM:125% COPIES:001
(Example: 125 % Zoom)
ATTENTION
C When changing the paper size after setting the zoom ratio, please use the paper tray
key.
C Press the RESET key to cancel all job settings.
NOTE
14
P13-15_1810_2010_GAP(gbr).p65
14
5/27/02, 4:59 PM
Basic Copy
Using the Sheet Bypass
■ Copying on Special Paper, etc.
1
Place the original.
Open the sheet bypass.
Sheet
Bypass
3
# Place the sheets of paper into
the tray. (approximately up to
g m2)
50 A4 size sheets 80 /g
Making Copies
2
Pull out the sheet bypass tray
until it stops.
(For A3 size only)
Do not fill above.
Side Guides
Insert the paper until it stops.
$ Adjust the side guides.
Incorrect adjustment may cause the
paper to wrinkle, misfeed or skew.
Press START.
ATTENTION
NOTE
C Do not feed curled paper through the sheet bypass to avoid misfeed.
C Adjust the side guides properly to avoid skewing, wrinkling or misfeeding.
15
P13-15_1810_2010_GAP(gbr).p65
15
5/27/02, 4:59 PM
Creative Features
2 in 1 Copy
■ 2 in 1 Copy
From two 1-Sided originals, side by side, to 1-Sided pages.
1 \ 2 (Layout)*
1 \ 2 (Layout)*
2 \ 1 (Layout)*
2 \ 1 (Layout)*
Landscape (Orientation)*
Portrait (Orientation)*
■ Procedure
ADF/i-ADF
Face-Up
1
Place the
Originals
2
Press 2
in 1 key
(3 )
COPY SIZE
(Reduction/
Enlargement
Only)
Number of
Copies
C The ADF/i-ADF is required for 2 in 1 copy.
CPress the RESET key to cancel all job settings.
CNumbers in parenthesis “ ( ) ” represent that, an additional step is required to
activate the feature.
∗ The Orientation and Layout can be set in the Copier Settings function mode.
(See page 30)
NOTE
16
P16-17_1810_2010_GAP(gbr).p65
4 5
16
5/27/02, 5:00 PM
Press
START
Creative Features
2 PAGE COPY
■ 2 PAGE Copy
Copying two facing pages on a A3 size original on two separate A4 size sheets.
Making Copies
■ Procedure
1
2
Place the Press the 2
Originals PAGE COPY
key
Platen
3
4 5
ORIGINAL SIZE
(A4 or A3 size Only)
Number of
Copies
Press
START
A3 size original
Book Mark
Centre book
by length
and width
according
to centre
marks.
A4
NOTE
C To reset all job settings, press the RESET key.
17
P16-17_1810_2010_GAP(gbr).p65
17
5/27/02, 5:00 PM
Creative Features
BOOK/EDGE/MARGIN
■ BOOK Key
Eliminates dark inner binding shadows when copying from a book.
■ EDGE Key
Creates a blank edge.
■ MARGIN Key
Shifts the image to the right or left.
■ Procedure
3
2
1
Place the
Original
Press Cursor (G or F) keys to adjust
the void width while the button is
blinking. (approx. 5 sec.)
CVoid/Margin width: 5-99 mm
Press BOOK, EDGE
or MARGIN key
Book
BOOK MARGIN
CENTER VOID = 20mm ∨∧
Edge
EQUAL RATE
VOID MARGIN = 5mm ∧
Margin**
LEFT MARGIN
10mm ∨∧
4 5
Number
of Copies
∗
Initial Book Margin setting (Factory setting): 20 mm
∗
Initial Equal Rate setting (Factory setting): 5 mm
∗
Initial Left Margin setting (Factory setting): 10 mm
∗
Initial setting (Factory setting) can be changed in the Copier Settings function mode.
(See page 30)
∗∗ If a part of the copied image is missing when using the Margin mode, change the
Frame Reduction setting to ON.
(See page 30)
CPress the RESET key to cancel all job settings.
NOTE
18
P18_1810_2010_GAP(gbr).p65
Press
START
18
5/27/02, 5:00 PM
Creative Features
2-Sided/1-Sided Copy (For DP-2010E)
■ Key Operation
Press 2-Sided/1-Sided Copy key (circulation) to select a 2-Sided/1-Sided Copy function.
1\2
From 1-Sided originals to 2-Sided
copies.
(See page 20)
2\2
From 2-Sided originals to 2-Sided
copies.
(See page 20)
From book originals to 2-Sided copies.
(See page 21)
From 2-Sided originals to 1-Sided
copies.
(See page 20)
Book \ 2
2\1
NOTE
Making Copies
2-Sided/1-Sided Copy key
C 2-Sided originals may be handled either manually or automatically using the
i-ADF (DA-AR201).
C 2-Sided/1-Sided Copy function is only available for DP-2010E.
19
P19_1810_2010_GAP(gbr).p65
19
5/27/02, 5:00 PM
Creative Features
1 \ 2 / 2 \ 1 / 2 \ 2 Copy (For DP-2010E)
■ 1 \ 2 Copy
■ 2 \ 1 Copy
From 1-Sided originals to
2-Sided copies.
(From Copier Platen & i-ADF/
ADF)
■ 2 \ 2 Copy
From 2-Sided originals to
1-Sided copies.
(Using i-ADF)
From 2-Sided originals to
2-Sided copies.
(Using i-ADF)
Long Edge (Binding)*
Long Edge (Binding)*
Long Edge (Binding)
Short Edge (Binding)*
Short Edge (Binding)*
Short Edge (Binding)
■ Procedure
i-ADF
Face-Up
1
Place the
Originals
2
(3 )
Press 2-Sided/
1-Sided Copy key
(circulation) to
select 1 \ 2, 2 \ 2
or 2 \ 1
4 5
COPY SIZE
Number of
(Reduction/
Copies
Enlargement Only)
BINDING:LONG EDGE
PRESS < > TO SELECT
Press
START
Press the I or H key to select
the binding location.
(When selecting 1 \ 2 Copy or 2 \ 1 Copy)
C To reset each selection, press the RESET key.
The initial setting of binding location for 1 \ 2 Copy and 2 \ 1 Copy (Long edge or
Short edge) can be set in function mode. (See page 30)
C 1 \ 2, 2 \ 2, 2 \ 1 Copy function is only available for DP-2010E.
NOTE
∗
20
P20_1810_2010_GAP(gbr).p65
20
5/27/02, 5:00 PM
Creative Features
Book \ 2 Copy (For DP-2010E)
■ Book \ 2 Copy
From book originals to 2-Sided copies.
A3 size originals only.
Flipping (Book Format)*
Making Copies
Facing (Book Format)*
1
2
Place the
Original on
the Platen
Platen
(3 )
Press 2-Sided/
1-Sided Copy key
(circulation) to select
Book \ 2
A3 size original
Book Mark
COPY SIZE
(Reduction/
Enlargement Only*)
4 5
Number of
Copies
Press
START
A3
Centre book by
length and width
according to
centre marks.
A4
NOTE
C To reset each selection, press the RESET key.
C A3 and FLS/B4 copy sizes cannot be selected.
∗ The book format and page order can be set in function mode. (See page 30)
C Book \ 2 Copy function is only available for DP-2010E.
21
P21_1810_2010_GAP(gbr).p65
21
5/27/02, 5:00 PM
Creative Features
Job Memory
■ Two Copy Jobs Can Be Programmed in Memory (M1, M2) for recall at a
later time.
To Store a Job in Memory
# Set up the copy job to be stored in memory,
by first selecting each function you wish the
copier to perform.
JOB MEMORY
PRESS M1,M2 TO STORE.
$ Press the MEMORY IN (F2) key.
% Press the M1 (F3) or M2 (F4) key.
To Recall a Job Stored in Memory
& Place the Original
RECALL JOB MEMORY
LOADING...
( Press the M1 (F3) or M2 (F4) key.
The stored contents will be displayed.
) Press START
C Stored job(s) will not be deleted even if the power switch is turned Off.
C When storing a new job into programmed memory, the previously stored job will be
overwritten.
NOTE
22
P22_1810_2010_GAP(gbr).p65
22
5/27/02, 5:00 PM
Creative Features
Sort Copy
■ Sort Copy
The sort copy has 2 available electronic sorting functions as follows:
Note: Before using the sort copy, select the desired sorting mode by setting its function first
(See page 29).
Sort
Sort-Rotate
Multiple copies
sorted
automatically.
1
1
1
Multiple copies sorted
automatically and
Stacked in alternate
direction.
1
1
Platen Glass
(Up to A4 size)
Making Copies
1
ADF/i-ADF
1
2
ADF/i-ADF: Place the
Originals
Platen: Place the
First Original
(3)
COPY SIZE
(Reduction/
Enlargement
Only)
Select the
SORT Mode
4 5
Number of Press
Copies
START
From Platen Glass only:
6
9
ANOTHER ORIGINAL?
1:YES 2:NO
Press “1” key.
Repeat steps 6 and 7
until all originals are
scanned and stored
into the copier’s memory.
NOTE
7
10
Place next Original
8
Press START
ANOTHER ORIGINAL?
1:YES 2:NO
Press “2” key.
C When the memory becomes full during original scanning, the message
“OUT OF MEMORY” “CONTINUE? 1: YES 2: NO” will be displayed in the
message display. If this occurs, follow the instructions in the message
display.
For additional memory consult your authorised servicing dealer.
C To reset all job settings, press the RESET key.
C Electronic sorting function is available for DP-1810P/2010E.
23
P23_1810_2010_GAP(gbr).p65
23
5/27/02, 5:00 PM
Other Features
Energy Saver/Interrupt Mode
INTERRUPT (F1) Key
ENERGY SAVER
ENERGY-SAVER Key
■ These modes can save power while the copier is not
in use.
Energy Saver Mode
# To enter this mode
Press the ENERGY-SAVER key or the copier will
automatically enter the ENERGY-SAVER Mode after
15 minutes* from the last copy. The indicator will flash.
$ To cancel this mode and make copies
Press the ENERGY-SAVER key again.
Sleep Mode
# Automatically enters the Sleep Mode after 30
minutes from the last copy. The copier power will
drop and the indicator will light.
$ To make copies, press the ENERGY-SAVER key.
Interrupt Mode
INTERRUPT
C This mode can interrupt other copy jobs while
making copies.
# Press the INTERRUPT (F1) key, the indicator will
light.
$ Make another copy job using the platen glass.
% Press the INTERRUPT (F1) key again to continue
the original job.
Note: The ADF/i-ADF can not be used with interrupt.
(Use only the Platen)
∗
NOTE
Energy saver time (15 minutes) and Sleep time (30 minutes) can be changed by the
key operator. (See page 31)
Modes
Normal Operation
Energy Saver Mode
Sleep Mode
Power Consumption
Approximately 90 Wh
Approximately 38 Wh
Approximately 2.2 Wh
24
P24_1810_2010_GAP(gbr).p65
24
5/27/02, 5:00 PM
Warm Up Time
N/A
17 sec. recovery
30 sec. recovery
Other Features
Skyshot Mode
■ Skyshot allows copying a manuscript without generating dark borders
even if the platen cover or ADF/i-ADF is opened.
Skyshot mode eliminates dark borders around the originals, and is especially convenient for
copying small-sized originals like bank checks or documents with unusual shapes (round, oval,
etc.). These documents can be reproduced without generating any unnecessary black areas
simply by making a copy with the cover open.
Two types of Skyshot modes can be selected;
Digital Skyshot Mode : The scanning area (size) is not pre-determined.
Manual Skyshot Mode : The scanning area (size) is pre-registered into memory (M1 and M2) in
advance. (See page 30)
1
Place the Original on
the platen (Opening
the Platen Cover/
ADF/i-ADF)
2
3
Number of
Copies
Press
START Key
Note:The default setting of Digital Skyshot Mode is “NORMAL”. In this setting, the unit scans once.
If there are black areas around the borders in the copies, set the Digital Skyshot Mode to
“QUALITY” to soften the dark borders. In this setting, the unit scans twice.
# Press the FUNCTION key.
FUNCTION MODE (1-2)
ENTER NO. OR ∨ ∧
2:COPIER SETTINGS
PRESS SET TO SELECT
COPIER PARAM. (00-14)
ENTER NO._ OR ∨ ∧
06 DIGITAL SKYSHOT
2:NORMAL
$ Press the 2 key to select COPIER SETTINGS.
% Press the SET key.
& Press 6 and SET key to select DIGITAL
SKYSHOT.
( Press 1-3 key to select the Digital Skyshot Mode.
1: OFF
NONE
2: NORMAL Default setting (usually select this
mode).
3: QUALITY For better definition, select the
Quality mode.
) Press the SET key.
* Press the RESET key.
NOTE
C An incorrect exposure may occur when there is a black line at the edge of
the original or an image which the copier interprets as a black pattern in the
Skyshot mode.
C An incorrect position detection of the original may occur when a strong light
shines onto the glass during Skyshot mode.
25
P25_1810_2010_GAP(gbr).p65
25
5/27/02, 5:00 PM
Making Copies
■ Digital Skyshot Mode
Other Features
Skyshot Mode
■ Manual Skyshot Mode
When using this function, the custom size should be registered into memory (M1, M2) in
advance. (See page 32)
Platen
Upperleft
corner
1
2
Place the
Original
Select the Custom
Size (M1 or M2)
3 4
Number of
Copies
Press
START
# Press the FUNCTION key.
2
FUNCTION MODE (1-2)
ENTER NO. OR ∨ ∧
2:COPIER SETTINGS
PRESS SET TO SELECT
COPIER PARAM. (00-14)
ENTER NO._ OR ∨ ∧
07 MANUAL SKYSHOT
1:OFF
$ Press the 2 key to select COPIER SETTINGS.
% Press the SET key.
& Press 7 and SET key to select MANUAL SKYSHOT.
( Press 2 or 3 key to select the Custom Size.
1: OFF
NONE
2: M1 ON
M1 size is ON*
3: M2 ON
M2 size is ON*
4: M1, M2 ON Both sizes are ON
) Press the SET key.
* Press the RESET key.
∗ The default size for M1 is: 70(X) × 160(Y) mm, and M2 is: 95(X) × 220(Y) mm
C When changing the M1 or M2 size, consult with the key operator.
C When using the Manual Skyshot mode, M1 and M2 are turned ON and other
job memory cannot be used.
C Press the RESET key to cancel all job settings.
NOTE
26
P26_1810_2010_GAP(gbr).p65
26
5/27/02, 5:00 PM
Combined Function Table
Book
Edge
Margin
Non-Sort
Sort
Sort-Rotate
Manual Skyshot
Job Memory Retrieval
Job Memory Storing
O
O
O
O
A
A
O
2 in 1 Copy
O
A A O A A A O
O
O
O
O
O
A
A
O
2 Page Copy
O
A A A A A A O
O
O
O
O
O
A
A
O
1\2
O
O A A A A A O
O
O
O
O
O
A
A
O
2\2
O
O A A A A A O
O
O
O
O
O
A
A
O
Book \ 2
O
O A A A A A O
O
O
O
O
O
A
A
O
2\1
O
O A A A A A O
O
O
O
O
O
A
A
O
Book
O
O O O O O O A
O
O
O
O
O
A
A
O
Edge
O
O O O O O O O
A
O
O
O
O
A
A
O
Margin
O
O O O O O O O
O
A
O
O
O
A
A
O
Non-Sort
O
O O O O O O O
O
O
A
A
A
A
A
O
Sort
O
O O O O O O O
O
O
A
A
A
A
A
O
Sort-Rotate
O
O O O O O O O
O
O
A
A
A
A
A
O
Manual Skyshot
O
✕ ✕ A A A A O
O
O
–
–
–
A
A
✕
Interrupt
O
✕ O ✕ ✕ ✕ ✕ O
O
O
–
–
–
✕
✕
✕
Book \ 2
2\1
O
2\2
O O O O O O O
1\2
A
2 Page Copy
2 in 1 Copy
Remarks
Zoom Copy
2-ORIGINAL H
COPY
Margin
SORT
Other
Functions
SORT
Zoom Copy
First
Selections
Other
Functions
Margin
Making Copies
2-ORIGINAL
H COPY
Next
Selections
O : Possible Combined Functions.
✕ : Unavailable Combined Functions.
A : Next Selection is Carried Out.
– : Indicates that SORT mode cannot be used. Non-sort operation is carried out.
27
P27_1810_2010_GAP(gbr).p65
27
5/28/02, 11:37 AM
Function
■ Using Function Modes to Change the Initial Copy Modes
Options
General
Functions
Copier
Settings
LAN Settings
Printer
Settings
Input Identification Code
General
Functions for
Key Operator
Copier
Settings for
Key Operator
■ Procedure
LAN Settings
for Key
Operator
Printer
Settings for
Key Operator
FUNCTION Key
RESET Key
COPY SIZE PAPER
Key
TRAY Key
FUNCTION MODE (1-2)
ENTER NO. OR ∨ ∧
# Press the FUNCTION Key
$ Press 1 (GENERAL FUNCTIONS) or 2
(COPIER SETTINGS) key. You may also use
the (G or F) keys.
% Press the SET key.
& Press the Keypad to select function modes
or use the (G or F) keys.
( Follow the on screen instructions.
) After setting, press the SET key to set up the
function.
■ Checking the Copier’s Total Counter
To display the copier’s Total Counter, press the COPY SIZE and PAPER TRAY keys
simultaneously.
C Please refer to each option’s operating instructions for function settings.
NOTE
28
P28-29_1810_2010_GAP(gbr).p65
28
5/27/02, 5:00 PM
Function
General Functions
No.
Modes
Function
Initial
Setting
SORT MODE DEFAULT
Selects the sort mode.
NON-SORT
C NON-SORT, SORT (For DP-1810P/2010E)
05
SORT MEMORY USAGE
Displays the amount of sort memory used on
the panel.
C OFF, DISPLAY
(For DP-1810P/2010E)
OFF
06
DEPT. COUNTER
Copy usage and copy limit of the selected
department and total copy usage will appear
on the screen.
08
SORT-ROTATE DEFAULT
Select Sort-Rotate mode.
C OFF, ON
(For DP-1810P/2010E)
Consult
your
service
technician.
OFF
09
KEY OPERATOR MODE
Input the key operator ID code.
Making Copies
00
29
P28-29_1810_2010_GAP(gbr).p65
29
5/27/02, 5:00 PM
Function
Copier Settings
No.
Modes
00
MARGIN DEFAULT
Selects the margin position and shift value.
C POSITION (Left, Right, Top, Bottom)
C VALUE (5 - 99 mm)
LEFT
10 mm
01
EDGE DEFAULT
EQUAL RATE
5 mm
02
BOOK MARGIN DEF.
Selects the edge mode (Equal Rate = set the
same value for X & Y or Individual = set the
value for X & Y individually) and width.
C EQUAL RATE (X & Y ), INDIVIDUAL
C 5 - 99 mm
Selects the book Centre Void margin width.
C 5- 99 mm
03
FRAME MARGIN
Select the reduction ratio in margin mode.
C INVALID, VALID
INVALID
04
2-SIDED MODE DEF.
OFF
Function sets the duplex priority mode.
COFF, 1 \ 2, 2 \ 2, Book \ 2 (For DP-2010E)
05
2 in 1 WITH FRAME
Selects whether or not to disable edge deletion.
C INVALID, VALID
INVALID
06
DIGITAL SKYSHOT
Enables or disables the use of skyshot mode.
C OFF, NORMAL, QUALITY
NORMAL
07
MANUAL SKYSHOT
Enables or disables the use of Manual
Skyshot.
C OFF; M1 ON; M2 ON; M1, M2 ON
OFF
08
AUTO EXPOSURE
Automatically adjusts the copy density for text
and photographic originals.
C INVALID, VALID
VALID
09
1 \ 2 BINDING DEF.
Selects the binding location for 1 \ 2 Copy.
C LONG EDGE, SHORT EDGE (For DP-2010E)
LONG EDGE
10
2 \ 1 BINDING DEF.
Selects the binding location for 2 \ 1 Copy.
C LONG EDGE, SHORT EDGE (For DP-2010E)
LONG EDGE
11
BOOK \ 2 DEFAULT
12
2 in 1 DEFAULT
Selects the page order and book format for
FLIPPING
Book \ 2 Copy.
L\R
1. BOOK FORMAT (1: FACING, 2: FLIPPING)
2. PAGE ORDER (1: L \ R, 2: R \ L) (For DP-2010E)
Selects the orientation and layout for 2 in 1 Copy. PORTRAIT
L\R
C ORIENTATION (Portrait, LANDSCAPE)
C LAYOUT (L \ R, R \ L)
13
2 PAGE MODE DEF.
Selects the 2 page mode.
C L \ R, R \ L
14
KEY OPERATOR MODE
Input key operator ID code.
C Certain Functions or Parameters are available for selection only when their
respective option is installed.
NOTE
30
P30_1810_2010_GAP(gbr).p65
Initial
Setting
Function
30
6/18/02, 3:53 PM
20 mm
L\R
Function
General Functions for Key Operator
No.
Modes
Function
Sets the paper size of each paper tray.
C Tray-1, Tray-2, Tray-3, Tray-4
Selects the Control Panel reset time.
C OFF, 30 sec, 1 min., 2 min., 3 min., 4 min.
Sets the Energy Saver mode and time.
C INVALID, ENERGY-SAVER, SLEEP
Energy save mode timer : 1-120 minutes
Sleep mode timer
: 1-120 minutes
Initial
Setting
Consult your
service technician.
1 min.
00
PAPER SIZE
01
AUTO RESET TIME
02
ENERGY SAVER MODE
04
LANGUAGE DEFAULT
05
SPECIAL TRAY 1
06
SPECIAL TRAY 2
09
KEY/TOUCH BEEP
10
BYPASS SET BEEP
11
ORIG. SET BEEP ADF
Sets the sound when put paper(s) on ADF.
C 1: INVALID 2: VALID
VALID
14
DEPT. COUNTER MODE
Consult
your
service
technician.
15
TOTAL COUNT
Monitors copy usage of each department.
(1) TOTAL COUNTER
(2) DEPT. COUNTER
(3) DEPT. COUNTER LIST
Total print out volume from the main unit.
16
PC PRINT COUNT
Total print out volume from the PC.
22
TCP/IP ADDRESS
∗
23
TCP/IP SUBNET MSK
24
TCP/IP G/W ADDR.
25
COPY SETTING LIST
NOTE
SLEEP
Selects the message language of the display.
A-ENGLISH
C A-ENGLISH, C-FRENCH, SPANISH
Sets the paper tray for special paper (ex: coloured). NONE
C NONE, TRAY 1, TRAY 2, BYPASS
Sets the IP Address assigned to your machine.
C 3 digit × 4 (Use the MEMORY IN key to
enter the “.” between each set of 3-digit
numbers)
∗ Sets the Subnet Mask.
C 3 digit × 4 (Use the MEMORY IN key to
enter the “.” between each set of 3-digit
numbers)
∗ Sets the Subnet Mask.
C 3 digit × 4 (Use the MEMORY IN key to
enter the “.” between each set of 3-digit
numbers)
Prints list containing Current Setting and
Standard Setting.
NONE
Making Copies
Sets the paper tray for special paper.
C NONE, TRAY 1, TRAY 2, BYPASS
Sets the panel touch sound.
C OFF, SOFT, LOUD
Sets the sound when put paper(s) on bypass
tray.
C 1: INVALID 2: VALID
SOFT
INVALID
Contact
your
Network
Adminstrator.
Contact
your
Network
Adminstrator.
Contact
your
Network
Adminstrator.
C It is necessary to input the Key Operator ID code before changing items on
this page.
C The Special Tray 1 and 2 are not auto-selectable in the switching mode.
∗ Not available for plain copier, but will be available when installing options
with advanced functions. (See page 57)
31
P31_1810_2010_GAP(gbr).p65
31
5/27/02, 5:00 PM
Function
Copier Settings for Key Operator
No.
Modes
01
ORIGINAL (HOME)
02
TEXT CONTRAST
03
T/P CONTRAST
04
PHOTO CONTRAST
10
MAX. COPY SETTING
12
M1, SIZE
13
M2, SIZE
Input a size in memory 2 for frequent usage
size.
C X: 5~432/Y: 5~297 mm
(See page 22)
16
MEM. FULL ACTION
Selects the memory full action
C PRINT, CANCEL
Selects original setting
C TEXT, T/P (Text/Photo), PHOTO
Selects contrast for Text mode
C1 ~ 5
Selects contrast for Text/Photo mode
C1 ~ 5
Selects contrast for Photo mode
C1 ~ 5
Determines whether to limit number of copies
C 1 ~ 999
Input a size in memory 1 for frequent usage
size.
C X: 5~432/Y: 5~297 mm
(See page 22)
T/P
(Text/Photo)
3
3
3
999
70 × 160 mm
(X) (Y)
95 × 220 mm
(X) (Y)
C It is necessary to input the Key Operator ID code before changing items on
this page.
NOTE
32
P32-33_1810_2010_GAP(gbr).p65
Initial
Setting
Function
32
5/27/02, 5:00 PM
Print
Function
Function Setting
■ Changing the Auto Exposure Setting
You can select whether the copying density is adjusted automatically for text and photographic
originals.
2
Proceed as Follows:
FUNCTION Key
FUNCTION MODE (1-2)
ENTER NO. OR ∨ ∧
# Press the 2 key to select COPIER SETTINGS.
2:COPIER SETTINGS
PRESS SET TO SELECT
$ Press the SET key.
COPIER PARAM. (00-14)
ENTER NO._ OR ∨ ∧
08 AUTO EXPOSURE
2:VALID
Making Copies
1
Press the FUNCTION key.
% Press 8 and SET key to select AUTO
EXPOSURE MODE.
& Press 1 or 2 key to select whether Auto
Exposure is to be carried out or not.
( Press the SET key to set up the AUTO
EXPOSURE MODE.
) Press the RESET key to exit the Function mode.
33
P32-33_1810_2010_GAP(gbr).p65
33
5/27/02, 5:00 PM
Function
Function Setting for Key Operator
■ Changing the Paper Size
The Paper Trays are designed to accommodate A5, A4, A4 R, FLS/B4 and A3 size paper. To
change the paper size, perform the steps shown below.
1
Press the FUNCTION key.
2
Proceed as Follows:
FUNCTION Key
FUNCTION MODE (1-2)
ENTER NO. OR ∨ ∧
# Press the 1 key to select GENERAL
FUNCTIONS.
1:GENERAL FUNCTIONS
PRESS SET TO SELECT
$ Press the SET key.
GENERAL PARAM. (0-9)
ENTER NO._ OR ∨ ∧
( Press 00 and 1 or 2 key to select
the PAPER SIZE.
00 PAPER SIZE
1:TRAY-1[A3i]
) Press SET to select the paper tray and
press (G or F) keys to set the paper
size.
Paper size changes are as follows.
A3
% Press 9 key.
09 KEY OPERATOR MODE
ENTER PASSWORD=- ■ ■
& Input the Key Operator ID code (3 digit)
and the SET key.
KEY OPR. MODE (00-25)
ENTER NO._ OR ∨ ∧
A4R
FLS1
34
FLS2
A4
A5
B5
B5R
* Press the SET key to set up the PAPER
SIZE.
+ Press the RESET key to exit the Function
mode.
34
P34-35_1810_2010_GAP(gbr).p65
B4
5/27/02, 5:00 PM
Function
Function Setting for Key Operator
3
Changing the Paper Guide and Paper Size Indicator in the Paper Tray
# Pull the Paper Tray out and remove
paper.
Paper
Guide a
Stopper
Paper
Guide b
Making Copies
$ Adjust the paper guide a to the
required paper length.
% Adjust the Paper Guide b to the
required paper width.
Pinch the stopper to move the Paper
Guide b.
& Change the Paper Size Indicator.
Size
Indicator
( Close the Paper Tray.
NOTE
C It is recommended that the paper guide b be fixed in place with screws.
Consult an authorised servicing dealer for details on how to fasten with
screws.
35
P34-35_1810_2010_GAP(gbr).p65
35
5/27/02, 5:00 PM
Function
Function Setting for Key Operator
■ Department Counter
The Key Operator can manage, limit copies, counters and code numbers for each department.
(Maximum department counters: 50)
1
Press the FUNCTION key.
2
Proceed as Follows:
FUNCTION Key
FUNCTION MODE (1-2)
ENTER NO. OR ∨ ∧
# Press the 1 key to select GENERAL
FUNCTIONS.
1:GENERAL FUNCTIONS
PRESS SET TO SELECT
$ Press the SET key.
GENERAL PARAM. (0-9)
ENTER NO._ OR ∨ ∧
& Press the Key Operator ID code (3 digit)
and SET key.
KEY OPR. MODE (00-25)
ENTER NO._ OR ∨ ∧
( Press 14 and the SET key to select
DEPT. COUNTER MODE.
% Press 9 key.
09 KEY OPERATOR MODE
ENTER PASSWORD=- ■ ■
C To reset the function mode, press the RESET key.
NOTE
C Contact your authorised servicing dealer to enable the Department Counter
feature.
36
P36-37_1810_2010_GAP(gbr).p65
36
5/27/02, 5:00 PM
Function
Function Setting for Key Operator
3
Select the Department Counter Mode.
DEPT.COUNTER MODE
1:TOTAL COUNTER
DEPT. CODE (01-50)
ENTER NO. OR ∨ ∧
Change the Department ID Code, limit the maximum number of copies
and Department Counter number.
ID CODE
01:1234
Making Copies
4
Press 2 and the SET key.
# Press the Keypad and the SET key to input the
Department ID Code.
01: 1234
Department ID Code
Department No.
MAX COPIES
01:123456
$ Press the Keypad and the SET key to input the
maximum number of copies.
01: 123456
Maximun number of copies (6 digits)
Department No.
DEPT.COUNTER
01:123456
% Press the Keypad and the SET key (G or F keys) to
select the Department No.
01: 123456
Counter (6 digits)
Department No.
& Press 0 and the SET key (Input “0”) to clear the counter.
NOTE
C To reset the function mode, press the RESET key.
37
P36-37_1810_2010_GAP(gbr).p65
37
5/27/02, 5:00 PM
38
P38_1810_2010_GAP(gbr).p65
38
5/27/02, 5:00 PM
Accessories
Components
i-ADF (Inverting Automatic Document Feeder)
(DA-AR201)
C Feeds original automatically
C Duplexing
C 2:1 Copy
C 2 in 1 Copy
DP-1810P
with Options
DP-2010E
with Options
Image Memory
(DA-SM08B/SM16B/SM64B/SM28B)
C 8/16/64/128 MB
C To increase the memory capacity for
electronic sorting and sort printing.
DP-1510P/1810P
(For DP-1810P/2010E)
C To increase the memory capacity for sort
printing. (For DP-1510P)
2nd/4th Paper Feed Module
(DA-DS182)
C To increase the paper feed sources
and capacity.
Paper Feed Module × 1 (550 sheets)
PCL6 Emulation Kit
(DA-PC210)
C Printer Controller for PCL6*
10/100 Ethernet Interface/
Internet Fax Kit
(DA-NE200)
C Network Interface Board
3rd Paper Feed Module
(DA-DS183)
C To increase the paper feed sources
and capacity.
Paper Feed Module × 1 (550 sheets)
Options
DP-2010E
∗
PCL6 is a Page Description Language of the Hewlett-Packard Company.
C The table below shows the options which are required for various functions.
C Contact your authorized servicing dealer for details on combinations of options.
Sort-Rotate
Sort
Manual Skyshot
Other
Functions
SORT
Non-Sort
Margin
Edge
Book
Margin
2\1
Book \ 2
2\2
Zoom Copy
2 in 1 Copy
Options
1\2
2-ORIGINAL H
COPY
Function
2 Page Copy
NOTE
ADF (Automatic Document Feeder)
(DA-AS180)
C Feeds originals automatically.
C 2 in 1 Copy
ADF
i-ADF
:Required
39
P39-40_1810_2010_GAP(gbr).p65
39
5/27/02, 5:00 PM
Accessories
Automatic Document Feeder
■ ADF (DA-AS180) / i-ADF (DA-AR201)
1. Features
# Automatic Original Feeding
C The ADF/i-ADF tray can hold up to 50 A4 size originals of 80 g/m2 paper (up to 30 FLS/B4 or
A3 size originals). It can accommodate from A5 to A3 size originals.
C Automatic original size detection.
$ 2 in 1 Copy
C To make a 1-Sided copy (full size or reduction), from two 1-Sided originals side-by-side.
% Duplex Copying (DA-AR201)
C The i-ADF allows you to copy 2-sided originals either manually or automatically.
2. Components
C Set the originals up to the upper limit arrow.
ADF (DA-AS180)
i-ADF (DA-AR201)
ADF Tray
Original Guides
Adjust to the original’s width
i-ADF Tray
Original Guides
Adjust to the original’s width
40
P39-40_1810_2010_GAP(gbr).p65
40
5/27/02, 5:00 PM
Accessories
3. Operation
■ Operation Procedure
ADF/i-ADF
Face-Up
1
Place the
Original
(2)
34
For Duplex Copy
(If required)
Press
START
C Paste-ups
C Pressure sensitive or carbon backed papers
C Paper with excessive curl
C Stapled originals
C Freshly printed copies from a laser printer
Options
Inappropriate Originals
C Paper with a smooth surface such as glossy
and coated papers
C Transparencies
C Originals with a lead edge that is “creased”,
“folded”, “punched” or “glued”
Number of
Copies
NOTE
C To copy these kinds of originals, use the Platen Glass instead.
41
P41_1810_2010_GAP(gbr).p65
41
5/27/02, 5:00 PM
Problem Solving
J)
Adding Paper (J
■ 550-Sheet Paper Tray
1
Pull the Paper Tray out.
2
Place the paper with the copying
surface facing upward.
3
Make sure paper is not loaded
above the overfill indicator located
in the Paper Tray.
4
Firmly push the Paper Tray back
into the copier.
ATTENTION
Special papers, like glossy paper, mailing
labels and transparencies cannot be used
in the paper tray.
Use the Sheet Bypass for special paper.
C Do not use paper with folds or wrinkles.
Refer to page 35 for details on adjusting the paper tray size.
C Unused paper should always be placed into a bag and the opening should be sealed
for storage.
If the paper is left exposed, problems such as paper curl, paper jams, wrinkles or
loss of copied image quality may occur.
42
P42_1810_2010_GAP(gbr).p65
42
5/27/02, 5:00 PM
Problem Solving/U13
?)
Adding the Toner and Replacing Waste Toner Container (?
1
Open the Front Cover.
2
Remove the Waste Toner Container by
slowly pulling it towards the left as
illustrated.
3
Seal the container with the enclosed
cap and dispose of it properly.
Cap
4
1
2
# Turn the empty Toner Bottle
counter-clockwise until it stops. The
Arrow mark (Unlocked symbol )
visible on the end of the Toner
Bottle is aligned with the Arrow
mark on the machine.
Note: To prevent toner spill, ensure
that the key is facing upwards
before removing the toner bottle.
$ Pull the empty Toner Bottle out.
Note: If the bottle will not pull out from
the machine, turn the bottle
slightly in either direction to
release the key and try it again.
Continued on the next page...
ATTENTION
C For optimum copy quality use the recommended Panasonic toner. Store toner in a cool
dark place. Do not unseal toner before use. Use it as fast as possible after unsealing.
C When U13 is displayed the Add Toner Warning Indicator will begin to flash. This message
is to prompt you that the toner bottle is nearly empty (approx. 300-sheets can be printed).
This message will continue to be displayed until the bottle is replaced. When the countdown counter reaches 0, the copier will stop operating. To clear the message and enable
the copier to operate, replace the empty toner bottle with a new one.
43
P43_1810_2010_GAP(gbr).p65
43
5/27/02, 5:00 PM
J
?
Problem Solving
?)
Adding the Toner and Replacing Waste Toner Container (?
5
# Shake the new Toner Bottle four
or five times to loosen the
contents.
2
1
$ Remove the cap from the Toner
Bottle.
6
1
2
2-1
2-3
Incorrect
Correct
2-2
# Align the Key of the bottle, also
represented by the Arrow mark
(Unlocked symbol ) visible on
the end of the Toner Bottle with
the Arrow mark on the machine.
Note: To prevent toner spill,
ensure that the key is facing
upwards before installing the
bottle.
$ Insert the bottle as far as it will
go, then turn it clockwise (160°,
approx. 1/2 turn) until it locks
(Locked symbol ).
Note: If the bottle is not inserted
all the way into the machine
as illustrated, turn the bottle
slightly in either direction to
engage the key and try it
again.
7
Install a new Waste Toner
Container.
8
Close the Front Cover.
ATTENTION
C Do not reuse the toner from the Waste Toner Container.
44
P44_1810_2010_GAP(gbr).p65
44
5/27/02, 5:00 PM
Problem Solving
Removing a Misfed Paper
■ Paper Misfeed Indicators and Locations
When a paper misfeed occurs, the misfeed indicator and the misfeed
location(s) will be displayed on the panel display.
I Misfeed Indicator
For DP-1510P/1810P
For DP-2010E
Paper Misfeed Locations
A: ADF (see page 51), i-ADF(see page 50)
(J70, J71)
B: Copier (Paper Exit, Paper Entry/Transport,
ADU) areas (see page 46-48) (J51 - J59,
J80)
C: Paper Feed Module (see page 49)
(J00 - J50, J81-J89)
I
NOTE
C Make sure that the misfeed indicator goes off after removing the misfed
paper.
C The misfeed indicator will not go off if the paper is still jammed in the copier.
Check again and remove all misfed paper.
45
P45-46_1810_2010_GAP(gbr).p65
45
5/27/02, 5:00 PM
Problem Solving
Removing a Misfed Paper
■ Paper Exit Area
C Make sure that the misfeed indicator
goes off after removing all misfed
paper.
For DP-1510P/1810P
1
ATTENTION
For DP-2010E
Remove the misfed paper.
C Make sure that the misfeed indicator goes off after removing all misfed paper.
46
P45-46_1810_2010_GAP(gbr).p65
46
5/27/02, 5:00 PM
Problem Solving
■ Paper Entry/Transport Area
C Make sure that the misfeed indicator
goes off after removing all misfed
paper.
For DP-1510P/1810P
For DP-2010E
1
Open the Right Cover.
2
Remove the misfed paper.
3
If copy paper is fed far into the copier:
# Turn the right paper clearing knob.
$ Remove the misfed paper.
4
# Open the Heat Roller Cover.
$ Remove the misfed paper.
% Close the Right Cover.
Caution
heated
surface
Caution: This fuser area may be
hot.
I
ATTENTION
C Make sure that the misfeed indicator goes off after removing all misfed paper.
47
P47-48_1810_2010_GAP(gbr).p65
47
5/27/02, 5:00 PM
Problem Solving
Removing a Misfed Paper
■ ADU Area (For DP-2010E only)
C Make sure that the misfeed indicator
goes off after removing all misfed
paper.
1
Open the Right Cover.
2
Remove the misfed paper.
3
If copy paper is fed far into the copier;
# Turn the right paper clearing knob.
$ Remove the misfed paper.
4
Close the Right Cover.
48
P47-48_1810_2010_GAP(gbr).p65
48
5/27/02, 5:00 PM
Problem Solving
■ Paper Feed Module
C Make sure that the misfeed indicator
goes off after removing all misfed
paper.
For DP-1510P/1810P
For DP-2010E
1
# Pull the paper tray out.
$ Remove the misfed paper.
% Return the Paper Tray to the original
position.
2
# Open the Feed Cover.
$ Remove the misfed paper.
% Close the Feed Cover.
I
ATTENTION
C Make sure that the misfeed indicator goes off after removing all misfed
paper.
49
P49_1810_2010_GAP(gbr).p65
49
5/27/02, 5:00 PM
Problem Solving
Removing a Misfed Paper
■ i-ADF (For DP-2010E only)
C Make sure that the misfeed indicator
goes off after removing all misfed
paper.
1
# Open the Entry Cover.
$ Remove the misfed paper.
% Close the Entry Cover.
2
# Open the ADF Cover.
$ Remove the misfed paper.
% Close the ADF Cover.
& Open and close the Entry Cover to
reset the error.
3
# Lift up the ADF Input Tray.
$ Open the ADF exit cover.
% Remove the misfed paper.
& Close the ADF exit cover.
( Close the ADF Input Tray.
ATTENTION
C Push the tab
on the centre of the Entry Cover to close it.
C To prevent original(s) damage, please make sure to open the ADF Cover before
removing misfed original(s).
50
P50_1810_2010_GAP(gbr).p65
50
5/29/02, 10:59 AM
Problem Solving
■ ADF
C Make sure that the misfeed indicator
goes off after removing all misfed
paper.
For DP-1510P/1810P
1
# Open the Entry Cover.
$ Remove the misfed paper.
% Close the Entry Cover.
2
# Open the ADF Cover.
Note: To prevent damaging the originals,
open the ADF Cover before
removing the misfed original(s).
$ Remove the misfed paper.
% Close the ADF Cover.
& Close the ADF.
I
ATTENTION
C To prevent original(s) damage, please make sure to open the ADF Cover
before removing misfed original(s).
51
P51-52_1810_2010_GAP(gbr).p65
51
5/27/02, 5:00 PM
Troubleshooting
Before Calling Service
Action
Check
Unit Does Not Operate
Check if the Power Switch is turned On and
that the power cord is connected into the
outlet.
Does the display light?
(No)
Does the Energy Saver key flash (or light)
and displays are turned OFF? (See page
24)
(No)
Does any of the U## codes and messages
appear on the display?
(U01, U07, U13, U14, U20 and U21)
(See page 54)
(Yes)
Press Energy Saver key on the Control
Panel.
(Yes)
Perform actions in accordance with each
message.
(Yes)
(No)
Does the add paper indicator and message
appear on the display? (J)∗
(No)
Add paper. (See page 42)
(Yes)
Does the paper misfeed indicator and
message appear on the display? (I)
(No)
Remove the misfed paper. (See page 45)
(Yes)
Does E#-## indicator and message appear
on the display?
Turn the copier Off, then On. If the Error
Code does not clear, call for service.
(Yes)
When the Add Toner Warning Indicator begins to flash∗ or is lit, replace the toner bottle with a new
one. After this warning is activated, machine operation will begin with the Toner Charging Mode
(approximately 3 minutes to complete) each time the power switch is turned Off then On or if the
Front/Right Cover is opened and then closed.
Note: ∗When the warning indicator starts flashing, a 300-sheet count-down counter is activated,
and upon reaching 0 the machine will stop operating. The 300-sheet counter is based on
6 % fill, depending on the density some pages may print Blank.
Machine operation and displays are as follows:
1. When turning the power switch to On or opening and then closing the Front/Right Cover, the
machine starts to warm-up and the LCD displays:
PLEASE WAIT...
52
P51-52_1810_2010_GAP(gbr).p65
52
5/27/02, 5:00 PM
Troubleshooting
2. The Toner Charging Mode starts and the LCD displays:
CHARGING TONER
Add Toner Warning Indicator:
C Flashing = Toner Bottle is nearly empty
C Lit
= Toner Bottle is empty
3. This message is displayed for approximately 200 seconds.
CHARGING TONER
❚❚❚❚❚
∗
Each “ ❚ ” is approximately 10 sec.
4. This massage will continue to be displayed until the warm-up cycle is completed, and if the toner
bottle was replaced. Upon completion, the Add Toner Warning Indicator automatically turns Off.
Check
Action
Light Copies
Press the Darker key until the indicator
LED is set to Darker. (See page 12)
Does the exposure indicator say “Lighter”?
(No)
(Yes)
Does the add toner indicator and message
appear on the display? (?)
Add Toner. (See page 43)
(Yes)
Marked Copies
Is the copier Platen Glass or Platen Cover
dirty?
Clean the Glass or Platen Cover.
(See page 54)
Others
(Yes)
53
P53-54_1810_2010_GAP(gbr).p65
53
5/27/02, 5:00 PM
Troubleshooting
User Error Codes (U Code)
The self-diagnostic functions detect troubles in the important components of the copier.
When any trouble occurs, the copier stops.
Code
U01
U07
U13
Display Message
CLOSE FRONT/RT COVER
CLOSE FEED COVER
TONER IS RUNNING LOW
NO WASTE TONER BOX
U14
WASTE TONER BOX IS FULL
U20
CLOSE ADF COVER
U21
CLOSE PLATEN COVER
Check Points
Front Cover is open.
Feed Cover is open.
1. Toner Cartridge is incorrectly installed.
2. Low Toner or No Toner Waste Container.
1. Toner Waste Container is incorrectly
installed.
2. Toner Waste Container is full of toner.
ADF Cover is open.
While the copier is initializing, the ADF
Cover was opened. (Optional ADF installed)
■ If the measures outlined above do not solve the problem, call your Service provider.
Copier Care
■ As a rule, clean weekly.
Platen/Platen Cover
Platen
Cover
Platen
(Glass)
# Wipe marks off with a cloth and a neutral
detergent.
$ Wipe again with a dry cloth.
54
P53-54_1810_2010_GAP(gbr).p65
54
5/27/02, 5:00 PM
Specifications
■ DP-1510P/1810P/2010E (Copier)
Type
Desktop
Platen Type
Fixed
Acceptable Originals
Sheets, Books (max. A3)
Copying Method
Laser Electrophotography
Fixing Method
Heat Roller Fixing
Imaging Method
Dry-Type Single component imaging
Resolution
Max. 600 dpi
Maximum Copy Size
A3
Void Area
Max. 5 mm
Warm Up Time
Approx. 30 seconds (20°C)
First Copy Time
Approx. 6.5 seconds (A4
Multi-Copy Speed
DP-1510P : 15 cpm (A4 size)
DP-1810P : 18 cpm (A4 size)
DP-2010E : 20 cpm (A4 size)
Enlargement Ratios
Preset: 115 %, 122 %, 141 %, 173 %, 200 %
Variable: from 101 to 200 % in 1 % increments
Reduction Ratios
Preset: 87 %, 82 %, 71 %, 58 %, 50 %
Variable: from 99 to 50 % in 1 % increments
Paper Feed
Paper Tray (550 sheets × 1) + Sheet Bypass (50 sheets)
2nd Paper Feed Module (550 sheets - option)
3rd Paper Feed Module (550 sheets - option)
4th Paper Feed Module (550 sheets - option)
Paper Weight
Paper Tray: 60 - 90 g/m2
(Sheet Bypass: 56 - 128 g/m2)
Quantity Selector
Max. 999 sheets (Output Tray capacity is 250 sheets)
Electrical Consumption
AC 220 - 240 V, 50/60 Hz, 6.0 A
Energy Consumption
Max. 1.2 kW, 2.2 Wh in Sleep Mode
Dimensions (W × D × H)
DP-1510P/1810P: 588 × 605 × 458 mm
DP-2010E: 588 × 605 × 458 mm
Weight
DP-1510P/1810P: 41 kg
DP-2010E: 42 kg
Operating Environment
Temperature: 10 - 35°C Relative Humidity: 45 - 85 %
(However, the humidity should be 70 % or less at a temperature of 30°C, and
the temperature should be 30°C or less at a humidity level of 85 %.)
, from 1st tray)
Others
C Specifications are subject to change without notice.
55
Specifications
■ ADF (DA-AS180)
DA-AS180
Tray Capacity
A4, A5: 50 sheets (70 g/m2)
FLS/B4, A3: 30 sheets (70 g/m2)
Paper Size
A5/A4/FLS/B4/A3
Paper Weight
50 – 110 g/m2
Electrical Requirements
Supplied from the copier
Dimensions (W × D × H)
558 × 501 × 112 mm
Weight
5.0 kg
■ i-ADF (DA-AR201)
DA-AR201
Tray Capacity
A4, A5: 50 sheets (70 g/m2)
FLS/B4, A3: 30 sheets (70 g/m2)
Paper Size
A5/A4/FLS/B4/A3
Paper Weight
50 – 110 g/m2
Electrical Requirements
Supplied from the copier
Dimensions (W × D × H)
552 × 520 × 135 mm
Weight
9.3 kg
■ 2nd/4th Paper Feed Module (DA-DS182)
DA-DS182
Paper Size
A5/A4/FLS/B4/A3
Paper Weight
60 – 90 g/m2
Electrical Requirements
Supplied from the copier
Dimensions (W × D × H)
550 × 155 × 585 mm
Weight
9.5 kg
■ 3rd Paper Feed Module (DA-DS183)
DA-DS183
Paper Size
A5/A4/FLS/B4/A3
Paper Weight
60 – 90 g/m2
Electrical Requirements
Supplied from the copier
Dimensions (W × D × H)
550 × 155 × 585 mm
Weight
9.5 kg
C Specifications are subject to change without notice.
56
P56_1810_2010_GAP(gbr).p65
56
5/27/02, 5:01 PM
Options and Supplies
■ The DP-1510P/1810P/2010E is a digital photocopier which can produce images with great clarity.
Furthermore, its copying functionality can also be greatly enhanced by the addition of the following
options and supplies.
We hope you find that the wide ranging capabilities will make your office-place more productive and efficient.
■ Options
Part Name
Part No.
Remarks
Automatic Document Feeder
DA-AS180
Also referred as ADF
Inverting Automatic Document Feeder
DA-AR201
Also referred as i-ADF (For DP-2010E only)
2nd/4th Paper Feed Module
DA-DS182
4th Paper Feed Module is for DP-2010E only
3rd Paper Feed Module
DA-DS183
3rd Paper Feed Module is for DP-2010E only
DA-SM8B
For Electronic Sorting and Sort Printing
(For DP-1810P/2010E)
For Sort Printing (For DP-1510P)
DA-SM16B
For Electronic Sorting and Sort Printing
(For DP-1810P/2010E)
For Sort Printing (For DP-1510P)
DA-SM64B
For Electronic Sorting and Sort Printing
(For DP-1810P/2010E)
For Sort Printing (For DP-1510P)
DA-SM28B
For Electronic Sorting and Sort Printing
(For DP-1810P/2010E)
For Sort Printing (For DP-1510P)
Image Memory (8 MB)
Image Memory (16 MB)
Image Memory (64 MB)
Image Memory (128 MB)
■ For Printer
Part Name
Part No.
PCL6 Emulation Kit
DA-PC210
Remarks
Printer Controller for PCL6.
(For Network Printing, DA-NE200 is also required)
■ For Network Printing
Part Name
Part No.
10/100 Ethernet Interface/
Internet Fax Kit
DA-NE200
Remarks
Network Interface Board
■ Supplies
Part Name
Part No.
Toner Bottle
∗
Waste Toner Container included
PCL6 is a Page Description Language of the Hewlett-Packard Company.
Others
NOTE
DQ-TU10C
Remarks
57
P57_1810_2010_GAP(gbr).p65
57
5/27/02, 5:01 PM
58
P58-59_1810_2010_GAP(gbr).p65
58
5/27/02, 5:01 PM
59
P58-59_1810_2010_GAP(gbr).p65
59
5/27/02, 5:01 PM
For Service, Call:
Matsushita Electric Industrial Co., Ltd.
Osaka 542-8588, Japan
S0503-0-2053
DZSD001730-2
May 2003
Printed in Philippines
English
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
