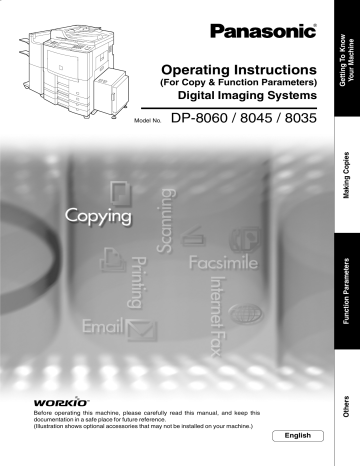

Panasonic DP8060, DP8035, DP8045 Operating instructions

Panasonic DP8060, DP8035, DP8045 Operating instructions
(For Copy & Function Parameters)
Getting To Know
Your Machine
Operating Instructions
Digital Imaging Systems
DP-8060 / 8045 / 8035
Others
Function Parameters
Making Copies
Model No.
Before operating this machine, please carefully read this manual, and keep this
documentation in a safe place for future reference.
(Illustration shows optional accessories that may not be installed on your machine.)
English
Getting To Know Your Machine
Operating Instructions
The following Operating Instruction manuals are included with this machine. Please refer to the appropriate manual and
keep all manuals in a safe place for future reference. If you lose a manual, contact an authorized Panasonic dealer.
Operating Instructions (For Setting Up)
This manual contains essential information for
setting up the machine.
Operating Instructions
(For Basic Operations)
Accessories
This manual contains essential information for
proper operation of the machine.
It describes basic Copy, Print, Network Scan,
Facsimile/Internet Fax/Email, and other functions.
For a more detailed explanation of each function,
please refer to the Operating Instruction manuals
included on two CD-ROM as illustrated below.
Operating Instructions
Adobe Reader 5.0 or newer is required and
must be installed to read the Operating
Instructions.
Unauthorized copying and distribution is a
violation of law.
Panasonic Communications Co., Ltd.
Digital Imaging Company
Microsoft, Windows, Windows NT and Windows Server are either registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries.
Adobe, the Adobe logo, and Reader are either registered trademarks or trademarks of
Adobe Systems Incorporated in the United States and/or other countries.
2005 Panasonic Communications Co., Ltd. All Right Reserved.
Made in Japan
Operating Instructions CD
Contains manuals with detailed information for Copy
& Function Parameters, Facsimile/Internet Fax/Email
Functions, and User Authentication.
PJJXC0110ZB
Document Management System CD
Adobe Reader 5.0 or newer is required and
must be installed to read the Operating
Instructions.
Unauthorized copying and distribution is a
violation of law.
Panasonic Communications Co., Ltd.
Digital Imaging Company
PJJXC0097ZB
Operating Instructions CD
Document Management System CD
Copy Function
Print Function
Describes how to make a copy with
creative features.
Describes how to print, change default
printer settings, or describes the course
of action to take when a problem
message appears, etc.
Function Parameters
Describes how to change the default
settings of each function using the
Control Panel of the machine.
Facsimile and Internet Fax/Email Function
(Facsimile function is available when
optional Fax Communication Board (DAFG600) is installed.)
Describes how to send/receive a Facsimile/
Internet Fax/Email, or describes the course
of action to take when a trouble message
appears, etc.
User Authentication
Describes how to enable, and use the
user authentication function.
2
Contains the Application Software, and manuals
with detailed information for the Print function, and
Application software.
Application Software
Describes how to use the application
software.
Ex: Quick Image Navigator, Network
Scanner, Utilities (Network Status
Monitor, Address Book Editor,
Device Configuration Editor)
Getting To Know
Your Machine
Symbols/Icons
The following Symbols/Icons are used throughout this operating instructions manual.
Place original(s) on the ADF
Getting to know your machine
Place original(s) on the Platen
(Book)
When making copies
Place original(s) on the Platen
(Sheet)
Press any Hard Key on the control
panel, or touch any Button on the
touch panel display
Press Hard Key
When setting the machine's
function parameters
Touch any Button
Others
(Index)
Input numbers
● Number of Copies, etc.
Input text with a QWERTY
Keyboard
Go to next step
Go to next step (below)
5
3
Operating Instructions
Symbols/Icons
3
2
Getting To Know Your Machine
Table of Contents
Getting To Know Your Machine
■ Operating Instructions ...................................................................................... 2
■ Symbols/Icons .................................................................................................. 3
Making Copies
Basic Menu ....................................................................................................................................... 6
■
■
■
■
■
■
■
■
■
■
■
2-Sided/Original
Copying the Same Size Originals (1:1) ............................................................ 6
Selecting the type of Original(s) ....................................................................... 6
Copying with Preset Ratios (Reduction/Enlargement) .................................... 8
Proof Copying ................................................................................................... 8
Tandem/Remote Copying ............................................................................... 10
Parameter Registration (Tandem User Parameter) ....................................... 12
Parameter Registration (Tandem Destination) .............................................. 14
Editing the Tandem/Remote Machine ............................................................ 16
Deleting the Tandem/Remote Machine .......................................................... 16
Job Queue ...................................................................................................... 18
Completion Notice .......................................................................................... 20
Copy .............................................................................................................. 22
2-Sided, 2-Sided
1-Sided, 2-Sided
2-Sided Copy ......... 22
■ 1-Sided
■ Book
2-Sided Copy .................................................................................. 24
■ 2 Page Copy ................................................................................................... 26
■ N in 1 Copy ..................................................................................................... 28
■ Booklet Copy .................................................................................................. 30
■ Multi-Size Feeding .......................................................................................... 32
■ Job Build and SADF Mode ............................................................................. 34
Sort/Finish ....................................................................................................................................... 36
■ When using Sort Mode ................................................................................... 36
Zoom/Effects .................................................................................................................................. 38
■ Zoom ............................................................................................................... 38
■ Auto Zoom ...................................................................................................... 38
■ Edge ............................................................................................................... 40
■ Book ................................................................................................................ 40
■ Margin ............................................................................................................. 42
■ Centring .......................................................................................................... 42
■ Image Repeat ................................................................................................. 44
■ Inverse ............................................................................................................ 44
■ Stamping (Page Numbering) ......................................................................... 46
■ Stamping (Date Stamp) .................................................................................. 46
■ Stamping (Issue Number Stamping) .............................................................. 48
Insertion/Overlay ............................................................................................................................ 50
■ Cover .............................................................................................................. 50
■ Page Insertion ................................................................................................ 50
■ OHP Interleaving ............................................................................................ 52
■ Presentation ................................................................................................... 52
■ Overlay ............................................................................................................ 54
■ File Edit ........................................................................................................... 54
■ Form Overlay .................................................................................................. 56
4
Getting To Know
Your Machine
Other Features ............................................................................................................................... 58
■ Job Memory .................................................................................................... 58
■ Double Exposure ............................................................................................ 60
■ Skyshot Mode ................................................................................................. 62
■ Reserve a Job ................................................................................................ 64
■ Energy Saver (Power Save Mode, Sleep/Shutdown Mode) .......................... 66
■ Interrupt Mode ................................................................................................ 66
Function Parameters
■ Using Function Modes to Change the Initial Settings .................................... 68
■ Procedure ....................................................................................................... 70
■ General Settings ............................................................................................. 72
■ Copier Settings ............................................................................................... 73
■ Scanner Settings ............................................................................................ 74
■ Printer Settings ............................................................................................... 75
For Key Operator ........................................................................................................................... 76
■ General Settings ............................................................................................. 76
■ Copier Settings ............................................................................................... 79
■ Printer Settings ............................................................................................... 81
Examples ........................................................................................................................................ 82
■ Weekly Timer .................................................................................................. 82
■ Registering a department counter .................................................................. 84
■ Verifying a department counter ....................................................................... 86
Combined Function Table .............................................................................................................. 88
Others
INDEX .............................................................................................................................................. 89
5
Making Copies
Making Copies
Basic Menu
■ Copying the Same Size Originals (1:1)
Copy size is automatically selected.
1
2
or
100%
If set to other
function mode
If original size
is not detected
■ Selecting the type of Original(s)
Ex: Copying on Heavy Paper (Post Cards, etc.) (133 g/m2 max.)
1
2
Touch the PAPER TRAY button.
3
Select Sheet Bypass and
touch the SIZE CHANGE button.
Load paper on the
Sheet Bypass.
NOTE
6
● During the copy operation and after making copies, the fan motor may start spinning. This is a
normal operation and is used to cool down the copier.
3
4
Adjust the Contrast
(7 levels)
or
Select type of Original(s)
Mainly Text
Mainly Photo
4
Select HEAVY PAPER.
Making Copies
Text and Photo
combined
Number of
Copies
(Max. 999)
5
7
Making Copies
Basic Menu
■ Copying with Preset Ratios (Reduction/Enlargement)
1
2
A4
A3
or
A3
If original size
is not detected
correctly
A4
■ Proof Copying
Allows you to make one proof set, before
proceeding to copy a large multi-set with
various settings.
Ex: 100 copies
1
2
100
1
or
2
Proof copy
Multi copy
NOTE
8
● If the desired copy size is different from the paper size loaded in the Paper Tray, use Sheet
Bypass.
3
The Correct ratio is automatically selected.
4
Reduction and enlargement ratios (%)
A3
B4
A4R
A5R
A3
100
115
141
200
COPY SIZE
B4
A4R
87
71
100
82
122
100
173
141
A5R
50
58
71
100
Making Copies
ORIGINAL
SIZE
Number of Copies
(Max. 999)
3
4
5
If the Proof Copy is OK,
the remaining number of
sets will be printed.
Select Copy Job settings
or
Number of Copies
(Max. 999)
NOTE
If the Proof Copy is NG,
again, place the originals
back on the ADF (or Platen),
change to appropriate
settings, and try again.
● Press the PROOF SET button again if the Proof Copying mode was reset.
9
Making Copies
Basic Menu
■ Tandem/Remote Copying
When using the Tandem/Remote Copy function,
requires network setup (see pages 77-78), and
Parameter registration (see pages 12-15).
The selected Remote printing copier must be either
DP-8060/8045/8035.
For the copier to function as a Remote/Tandem
Copier it has to be setup in advance.
1
2
or
Remote Copying
Select Copy Job settings
Other machine
100
copies
100 copies
5
Tandem Copying
Other machine
This machine
+
50
copies
NOTE
10
or
50
copies
Select
the other
machine.
● If the desired copy size is different from the paper size loaded in the Paper Tray, use Sheet
Bypass.
● This function requires the optional Hard Disk Drive Unit.
3
4
5
Making Copies
Number of Copies
(Max. 999)
7
6
For Tandem
For Remote
Select a Tandem or
Remote Copy function
Tandem Copying:
Half of the copy job is printed out by the remote
machine.
Remote Copying:
All of the copy job is printed out by the remote
machine.
11
Making Copies
Basic Menu
■ Parameter Registration (Tandem User Parameter)
To register the Tandem parameters for the device
(original), follow the steps in this paragraph.
Requires network setup (see pages 77-78), and
Parameter registration (see pages 12-15).
The selected Remote printing copier must be either
DP-8060/8045/8035.
For the copier to function as a Remote/Tandem
Copier it has to be setup in advance.
1
Parameter Registration needs to be carried out in
the following procedure;
Step1: Register the other machine's name in the
Tandem User Parameter.
Step2: Register the other machine's IP address in
the Tandem Destination.
4
Input the Key Operator Password if required.
● The default value for the password is 8 digits
(00000000).
Ask the Key Operator if this has been changed.
Input Password
(8 digits: alphanumerical; alphabet
(case-sensitive),
numbers, symbols
(@, ., _, and SPACE))
7
∗ The machine name
appears on the
screen. Change the
name if necessary.
Enter the key name∗
(up to 15 characters).
12
2
3
5
Making Copies
4
6
Scroll to 08/13
7
Machine name
(up to 15 characters)
Button Names on the QWERTY Keyboard
To input upper case letter(s).
To move the cursor (_) to the left or right side.
To input numbers and/or symbols.
To erase the character before the cursor.
13
Making Copies
Basic Menu
■ Parameter Registration (Tandem Destination)
To register the Tandem parameters for the device
(remote), follow the steps in this paragraph.
Requires network setup (see pages 77-78), and
Parameter registration (see pages 12-15).
The selected Remote printing copier must be either
DP-8060/8045/8035.
For the copier to function as a Remote/Tandem
Copier it has to be setup in advance.
1
If installing the machine on a Network with a different
subnet mask, you must first register it before being
able to use the Tandem/Remote Copying function.
4
Input Password
(8 digits: alpha-numerical;
alphabet (case-sensitive),
numbers, symbols
(@, ., _, and SPACE))
7
Machine name
(up to 15 characters)
14
2
3
4
5
Making Copies
Scroll to
05/05
6
Scroll to
05/05
7
IP Address∗
Ex: 192.168.0.1
When entering a 1 or 2-digit number
segment, add "00" or "0" in front of the
number, to scroll to the next segment of
numbers or press the " " key to enter a
period after the number.
∗ When clearing the IP address, press
the " " key to move to the next
segment of the IP address
(∗∗∗.∗∗∗.∗∗∗.∗∗∗) and press the
Clear key.
8
∗ The machine name
appears on the
screen. Change the
name if necessary.
Enter the key name∗
(up to 15 characters).
15
Making Copies
Basic Menu
■ Editing the Tandem/Remote Machine
To edit the registered machine’s settings
(IP Address, machine name or key name).
1
Open the Function Parameters screen by following the
procedures 1 to 4 on pages 14 and 15.
4
Enter the new IP
Address, same as for
the Parameter
Registration (Tandem
Destination) procedure
(see pages 14 and 15).
5
Enter the machine and
key name, same as for
the Parameter
Registration (Tandem
Destination) procedure
(see pages 14 and 15).
■ Deleting the Tandem/Remote Machine
To delete the registered machine.
1
Open the Function Parameters screen by following the
procedures 1 to 4 on pages 14 and 15.
4
16
2
3
Select the registered
machine name
4
Making Copies
Scroll to 05/05
2
3
Scroll to 05/05
Select the registered
machine name
4
17
Making Copies
Basic Menu
■ Job Queue
Use when the desired print job is not executed
immediately.
Refers to a list of jobs waiting to print, delete or
change their priority (Change for print job only).
Job
1
Job
2
Job
3
1
Job 3
Job 1
Job 2
Deleted
Select the job(s)
4
∗∗
Select the job(s)∗
you wish to delete
∗ You can select to delete multiple/all jobs.
∗∗ You can select the print job priority.
NOTE
18
● The PRINT JOB QUEUE requires the Key Operator’s Password. However, the COPY JOB
QUEUE does not require a password.
The Job Queue selection function is only available when the optional HDD is installed.
2
3
For Print Job Queue Only
4
Input Operation Password (4-digit)
The default value for the password is 4
digits (0000).
NOTE:
● Default Password is set to 0000, please consult the
Panasonic authorized dealer to change it.
● The Print Job Queue password can be disabled by
setting "11 Print Queue Delete" (Printer Settings for Key
Operator) to "Free".
5
6
2 times
19
Making Copies
or
Making Copies
Basic Menu
■ Completion Notice
If Completion Notice is set, you will be notified on
your computer when copying is completed.
Before using this function, install the Panasonic
Document Management System
(Communications Utility) and the Printer Driver
(with Job Status Utility) on your computer, and
then configure each software referring to Setting up
the Scanner Configuration using the
Communications Utility, and Setting up the
Completion Notice in the Operating Instructions
(For Setting Up) of provided booklet.
Copy is completed.
Pop up screen
1
Communications Utility
Icon
Job Status Utility Icon
Confirm that the Communications Utility, and the Job
Status Utility icons are displayed on the task bar of your
PC.
● If they are not, click Start button, and then
select [All Programs] -> [Panasonic] -> [Panasonic
Document Management System]
-> Communications Utility to activate the
Communications Utility icon, and/or select [All
Programs] -> [Panasonic] -> [Job Status Utility] ->
[Job Status Utility] to activate the Job Status Utility icon.
4
Select the desired
PC Name
NOTE
20
● This Completion Notice is available only when connected to the network.
To reset the Completion Notice, press the CANCEL button in step 4.
3
or
4
Making Copies
2
and
Setting desired copy mode.
5
Copy Job Completed Notice
will be displayed on your PC.
Number
of Copies
21
Making Copies
2-Sided/Original
■ 1-Sided
2-Sided, 2-Sided
1-Sided
2-Sided Copy
2-Sided
1-Sided Copy
2-Sided
2-Sided Copy
Copy
1-Sided, 2-Sided
NOTE:
● The standard setting of the 2-Sided/Original ->
Copy can be changed. Refer to "04 2-Sided Mode
Default" of the Copier Settings. (See page 73)
● Special paper such as cardboard cannot be used
for 2-Sided Copy.
22
2-Sided Copy
1
2
or
(1
2 Copy only)
Reduction/
Enlargement
only
3
4
5
Bind position
or
Making Copies
Number
of Copies
or
or
6
or
From Platen:
When "Last Original?"
message is displayed.
Ex: 2 originals
Touch "NO" button.
Place next original on
the platen.
3 Press Start Key.
4 Touch "YES" button.
or
Long Edge
Short Edge
e
Long E d g
S ty le
Short Edge
Style
(Portrait)
(Portrait)
Long Edge
Style
(Landscape)
NOTE
S h o rt E d g e
S ty le
(Landscape)
● When clearing the 2-Sided Copy mode:
Select
button or press the Reset key.
23
Making Copies
2-Sided/Original
■ Book
Copy
2-Sided Copy
Book
2-Sided Copy
1
2
1st Page Imaged
Reduction/
Enlargement
only
Platen
Ex: A3 size original
A4 ∗
A3
1st Page 2nd Page
1st Page
2nd Page
1st page is copied onto the front side and 2nd
page is copied onto the back side of the same
paper.
A4 A3
∗ For a A3 size, Centre the book by
length and width according to the
A4 size marks.
1st Page Blank
5
Number
of Copies
1st Page 2nd Page
Blank
Blank
1st Page
Blank page is copied onto the front side and 1st
page is copied onto the back side of the same
paper.
(2nd and 3rd pages are copied onto the next paper.)
NOTE:
● The standard setting of the 2-Sided / Original ->
Copy can be changed. Refer to "04 2-Sided Mode
Default" of the Copier Settings. (See page 73)
24
3
4
Original format Copy format
Making Copies
5
or
or
6
When "Last Original?" message is
displayed.
Ex: 2 originals
Touch "NO" button.
Place next original on the platen.
3 Press Start Key.
4 Touch "YES" button.
25
Making Copies
2-Sided/Original
Copy
■ 2 Page Copy
Two facing pages or a A3 size original can be
copied, and separated into 1-Sided sheets.
1
Platen
Ex: A3 size original
A4 ∗
A3
A4 A3
∗ For a A3 size, Centre the book by
length and width according to the
A4 size marks.
4
Number
of Copies
26
2
3
4
Making Copies
Copy Format
or
5
When "Last Original?"
message is displayed.
Ex: 2 originals
Touch "NO" button.
Place next original on the
platen.
3 Press Start Key.
4 Touch "YES" button.
27
Making Copies
2-Sided/Original
Copy
■ N in 1 Copy
From two/four/eight 1-Sided originals, side by
side, to 1-Sided pages.
1
2
● 2 in 1 Copy
or
● 4 in 1 Copy
1
1
2
3
2
4
4
3
4
● 8 in 1 Copy
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
8
● 2-Sided Copy
From four/eight/sixteen 1-Sided originals, side
by side, to 2-Sided copies.
28
3
● Copy is automatically reduced.
2 in 1: 71 %, 4 in 1: 50 %, 8 in 1: 35 %
(Ex. A4 to A4R- size)
∗ When the 2-SIDED button is touched.
∗
Original
N in 1 mode direction
4
Copy
layout
Making Copies
Ex. 2 in 1
or
or
or
Binding position
or
or
5
6
Reduction/
Enlargement
only
When 2 in 1 copying with different
original size, select desired copy
size with COPY SIZE Key
(not PAPER TRAY button on the
Touch Panel Display).
Number
of Copies
From Platen:
Same procedure as for 2 Page Copy
When "Last Original?" message is
displayed.
Ex: 2 originals
Touch "NO" button.
Place next original on the platen.
3 Press Start Key.
4 Touch "YES" button.
29
Making Copies
2-Sided/Original
Copy
■ Booklet Copy
Formats the output in a manner so that
documents can be folded and/or saddle
stitched∗ like a book.
2
1
2
3
4
1
1
3
DA-FS355A: Up to 40 originals
DA-FS605: Up to 60 originals
4
A4 or A5 originals only
∗ When optional 1/2-Bin Saddle-Stitch Finisher
∗
(DA-FS355A/FS605) is installed.
Reduction: Default copy size is fixed to 100 %.
4
Binding
position
Cover mode and
Paper Tray
or
30
3
4
Reduction/
Enlargement only
(A4R or A3 size)
Making Copies
2
• Default copy size is reduced, copy size can be
selected as 100 % or reduced.
• Refer to "11 Booklet Default Mag." of the Copier
Settings. (See page 73)
5
Number
of Copies
When the Fold Position is not matched with centre
position of the copies, set the binding margin. Refer to
"15-17 Fold Position" of the General Settings (For Key
Operator). (See page 77)
The stapled copies are delivered to the
saddle tray of the 1-bin saddle finisher as
shown below.
Staple position
Saddle tray
31
Making Copies
2-Sided/Original
Copy
■ Multi-Size Feeding
Use this function when copying mixed size originals
(A3, B4, A4) using the ADF, original size can be
detected automatically then can be copied to the
same size or one specified size.
1
2
Combination of Multi-Size Feeding
Originals
B4
A4R
A3
A4
32
Full Size
B4
A4R
A3
A4
Copies
Reduction
A4R/A5
A4R/A5
A4/A4R
A4/A4R
Enlargement
A3
A3
—
Reduction/
Enlargement
only
5
4
Bind position
Number
of Copies
Making Copies
3
or
33
Making Copies
2-Sided/Original
Copy
■ Job Build and SADF Mode
Special originals (like thin paper, etc.) can be fed
from the ADF Tray and copied continuously using
the Job Build and SADF Mode.
If the Job Build and SADF buttons are not shown
on the Touch Panel display, the Job Build and
SADF Modes must be enabled in the copier
function settings. Please consult with the Key
Operator. (See page 80)
1
2
Place one Original
at a time or up to 70
sheets (80g/m2)
Reduction/
Enlargement
only
5
Place the next original within 5 sec. of
last ejected copy.
If 5 sec. is passed, "Another Original?
YES or NO" message will be displayed.
Select "YES" button to continue copy
job.
Example: To make 5 sets of sorted copies of
100 sheets of originals. (A4 size)
1
2
70
100
1
1
Originals: 70 sheets
<1st scan>
100
Place the first 70 sheets
of originals on the ADF
Tray.
71
1st and 2nd Scanned Data
are combined into one job.
5 sets of 100 sheets
Originals: Remaining
sorted copies are printed
30 sheets <2nd scan>
5
Place the next original within 5 sec. of
last ejected copy.
(30 sheets)
If 5 sec. is passed, "Another Original?
YES or NO" message will be displayed.
Select "YES" button to continue copy
job.
34
3
4
5
Making Copies
Number
of Copies
6
When all the pages are read by the ADF,
"Another Original? YES or NO" message
appears.
Select the "NO" button.
3
4
Select Sorting/Finishing settings
or
or etc.
Number of
Copies
(Ex. 5)
5
6
When all the pages are read by the ADF, after
approximate 5 seconds "Another Original? YES
or NO" message appears.
Select the "NO" button.
35
Making Copies
Sort/Finish
■ When using Sort Mode
Available for Functions without an optional Finisher
Copy is stored on the Tray.
Rotate-Sort
Rotate-Group
1
Sort
2
Non-Sort
1
1
1
1
1
3
1
Multiple copy sets are sorted
automatically.
When loading both A4 and A4R
sized paper, multiple copy sets
are sorted automatically and
stacked in alternate direction
(rotation of 90 degrees).
(A4 size only)
When loading both A4 and A4R
sized paper, multiple copies of
individual pages are stacked in
alternate direction (rotation of 90
degrees).
(A4 size only)
Available for Functions with an optional Finisher
Shift-Sort
1
Shift-Group
1
1
When optional Finisher is installed.
Offset stacking using electronic
sorting
When optional Finisher is installed.
Offset stacking using electronic
sorting
● DA-FS330 (A4/Lower Bin only)
● FS355A/FS600/FS605
(A4, A4R, B4, A3)
● DA-FS330 (A4/Lower Bin only)
● FS355A/FS600/FS605
(A4, A4R, B4, A3)
When optional Finisher is
installed.
Sort by stapling sets.
36
2
3
1
Staple Sort
Punch
Staple Positions:
DA-FS330
Top left corner (1 position/
Lower Bin only)
(A4 size only)
DA-FS355A/FS600/FS605
(except A5 size)
● Top left corner (1 position)
● Left (2 positions)
● Bottom left corner (1 position)
When optional 2-Bin Finisher
(DA-FS330)/Punch Unit (DASP31/SP41) is installed.
Sort by punched sets.
(A4/A3)
● DA-SP31 for DA-FS600/605
DA-SP41 for DA-FS355A
Saddle-Stitch
When optional 1/2-Bin SaddleStitch Finisher (DA-FS355A/
FS605) is installed and Booklet
mode is selected. (See page 30)
● Original Size: A5/A4 only
● Maximum Originals (Images):
DA-FS355A : 40 images
DA-FS605 : 60 images
2
or
3
Sort mode
Number
of Copies
Making Copies
1
or
or
or
Original
ADF
When the optional Finisher is installed, this screen will change as follows:
For DA-FS330
or
Staple Position
Ex. Top left corner
or
For DA-FS600/FS605
or
or
For DA-FS355A
or
or
● Overflow
When overflow oF indicator appears on the display,
remove excess copies from the bin.
37
Making Copies
Zoom/Effects
■ Zoom
Copies with variable zoom ratios from 25 %
to 400 % in 1 % increments.
25%
1
2
400%
or
■ Auto Zoom
The copy Zoom Ratio adjusts automatically to the
selected paper size.
Fit to paper length or width
1
2
Opening the ADF
wider than 45
degrees.
∗1
∗1:For Auto Zoom
Fit to paper length and width
NOTE
38
An incorrect exposure may occur when there is a black
line at the edge of the original, or an image which the
copier interprets as a black pattern in the skyshot
mode.
An incorrect position detection of the original may occur
when a strong light shines onto the glass during skyshot
mode.
● If the margin around the original is 5 mm wide or less, the original may not be correctly
detected, and the copy image may be unclear.
3
Same vertical and
horizontal ratio
Different vertical and
horizontal ratio
4
or
∗2
25% - 400%
or
or
or Keypad
∗2
Number
of Copies
Making Copies
25% - 400%
or
or Keypad
∗2:Zoom Ratio
If using the keypad to set the zoom ratio,
press the CLEAR key first to reset the
current zoom ratio mode.
3
5
4
Enlarged or reduced
according to the vertical/
horizontal size of the
paper.
Paper Size
(Paper Tray)
Number
of Copies
Enlarged or reduced
according to both
vertical/horizontal size of
the paper.
ATTENTION
● When changing the paper size after setting the zoom ratio, use the PAPER TRAY button.
If paper size is changed with Copy size key, zoom ratio will be changed.
39
Making Copies
Zoom/Effects
■ Edge
Unnecessary edge can be erased by setting a blank
edge.
1
2
or
NOTE:
When "ZOOM" is selected, the erasing width
varies depending on the zoom ratio.
■ Book
When copying original such as the centre of folding
position may be shaded. This shade can be easily
eliminated.
1
2
Platen
Ex: A3 size original
A4 ∗
A3
The shade is erased.
NOTE:
● When "ZOOM" is selected, the erasing
width varies depending the zoom ratio.
A4 A3
∗ For a A3 size, Centre the book by
length and width according to the
A4 size marks.
NOTE
40
● If the margin around the original is 5 mm wide or less, the original may not be correctly
detected, and the copy image may be unclear.
3
Same vertical and
horizontal void value
Different vertical and
horizontal void value
4
or
or
or Keypad
3
or
Number
of Copies
Making Copies
5 - 99 mm
5 - 99 mm
or
or Keypad
4
5 - 99 mm
or
Number
of Copies
or Keypad
41
Making Copies
Zoom/Effects
■ Margin
The original can be copied by setting a binding
margin on the edge or in the centre of the paper.
1
2
or
NOTE:
● If a part of copied image is missing, change the
Margin Reduction setting to Yes. Refer to "03
Margin Reduction Def." of the Copier Settings.
(See page 73)
● When "OVERLAY" or "FORM OVERLAY" is
selected, the binding margin is also set for the
overlay original.
● If this setting is made when 2-Sided copying is
selected, the print position comes out different
between the front and back side of copy.
■ Centring
The copying image can be centred automatically on
selected paper.
1
Opening the ADF
● Remove the originals from the ADF before
selecting the Centring and Image Repeat mode.
An incorrect position detection of the original may
occur when a strong light shines onto the glass
during the Centring and Image Repeat mode.
Also an image which the copier interprets as a
black pattern in the Centring and Image Repeat
modes.
42
● In Centring and Image
Repeat mode, make
copies with the ADF
open more than 45
degrees wide.
2
3
4
5 - 99 mm
or
Number
of Copies
or Keypad
Making Copies
Margin area
3
4
Paper Size
(Paper Tray)
Number
of Copies
43
Making Copies
Zoom/Effects
■ Image Repeat
Creates multiple images on the sheet from single
sided original.
Minimum original size: 20 x 20 mm
1
2
Opening the ADF
The dotted line can be set to
“None” or “Print”. Refer to "18
Img. Repeat Dotted Line" of
the Copier Settings. (See
page 73)
● In Centring and
Image Repeat
mode, make
copies with the
ADF open more
than 45 degrees
wide.
● Remove the originals from the ADF before
selecting the Centring and Image Repeat mode.
An incorrect position detection of the original may
occur when a strong light shines onto the glass
during the Centring and Image Repeat mode.
Also an image which the copier interprets as a
black pattern in the Centring and Image Repeat
modes.
■ Inverse
Negative/Positive image can be created for special
effects.
1
2
or
44
3
4
Number
of Copies
Making Copies
Paper Size
(Paper Tray)
3
Number
of Copies
45
Making Copies
Zoom/Effects
■ Stamping (Page Numbering)
The original can be copied with page numbers
printed.
-1-
1
2
ADF only*1
1/8
NOTE:
● The default is -n- (number) format. To change
to n/m (number/maximum) format, refer to "16
Page Numbering Style" of the Copier
Settings. (See page 73)
■ Stamping (Date Stamp)
The original can be copied with a printed date. The
date is printed in DD/MM/YYYY format.
1
2
ADF only*1
01/08/2006
NOTE
46
*1 ● When copying with the Stamping mode combined with N in 1 mode, the Stamping mode can
be used from the platen too.
● Only 1 stamp profile (page number, date, control number and character) can be selected to
print per scanning job; 2 or more cannot be selected.
● No stamp is printed on a blank page when an odd number of originals is copied with "1->2"
setting is selected.
4
ORIENTATION
Stamping position
Stamping start page
From 1, 2 or 3
Number of Copies
(Max. 999)
or
From 3rd page
From 2nd page
● Multiple copy sets will be
From 1st page
sorted automatically.
3
4
ORIENTATION
Stamping position
Changing the stamp date
Number of Copies
(Max. 999)
or
Select the CHANGE
button, and then move
cursor (_) to date with
/
buttons, and
enter new date with the
Keypad.
● Multiple copy sets will be
sorted automatically.
47
Making Copies
3
Making Copies
Zoom/Effects
■ Stamping (Issue Number Stamping)
The original can be copied, and printed in
consecutive numbers from 001 to 999.
1
2
ADF only*1
001
NOTE
48
*1 ● When copying with the Stamping mode combined with N in 1 mode, the Stamping mode can
be used from the platen too.
● Only 1 stamp profile (page number, date, control number and character) can be selected to
print per scanning job; 2 or more cannot be selected.
● No stamp is printed on a blank page when an odd number of originals is copied with "1->2"
setting is selected.
4
ORIENTATION
or
Stamping position
Stamping the starting
issue number
or
Keypad
(up to 999)
Number of Copies
(Max. 999)
● Multiple copy sets will be
sorted automatically.
49
Making Copies
3
Making Copies
Insertion/Overlay
■ Cover
The original can be copied using other types of
paper as a Cover Page. Only the Front Cover, or
Front and Back Covers can be selected.
Original
2
1
+
Copied
cover
Copied
cover
1
2
2
ADF only
Original
Copied cover
2
Blank
cover
1
Blank cover
1
1
3
4
+
2
3
4
■ Page Insertion
Originals can be copied with other media inserted
between the specified pages.
You can copy specified pages (including the cover
page) on media such as coloured paper set in the
Paper Tray, or on the Sheet Bypass.
1
2
ADF only
1
2
3
4
5
6
5
1
1
2
2
3
3
4
4
5
Blank page
NOTE
50
6
5
6
Number of Copies
(Max. 999)
Copied page
● Certain types of transparency film may not be compatible with, and may damage your machine.
Consult with an authorized Panasonic dealer for advice regarding non-standard paper types.
(Panasonic has tested "3M PP2500" transparency film and found it to be compatible.)
3
4
Cover Page mode
Blank
Number of Copies
(Max. 999)
Paper Size∗
Paper Tray
Making Copies
Cover (Front) Cover (Front+Back)
Copy
3
4
5
Page Insertion mode
Blank
Copy
NOTE
Paper Size∗
Paper Tray
Set the insert page position with the
Keypad.∗∗
If selecting other position, move
/
buttons, then set
the sheet with
the insert page position with the Keypad.
∗ The size and orientation of the printed copy and recording paper should match.
∗∗ Blank page is inserted before the indicated selected page number.
51
Making Copies
Insertion/Overlay
■ OHP Interleaving
Inserts Blank/Copied pages between Transparency
film.
OHP1
1
2
OHP2
+
Original
ADF only
Copied
page
1
Copied page
2
Blank
page
Original
Blank page
1
(1)
2
OHP1
OHP(1)
OHP2
OHP(2)
(2)
+
(OHP: Transparency film)
■ Presentation
Inserts Blank/Copied pages between Transparency
film and make copied sets for handouts.
Blank
page
Original
Blank page
OHP1
(1)
2
(1)
(2)
+
Copied
page
1
Copied page
OHP2
+
Original
+
2
Handouts
1
2
1
(2)
ADF only
Handouts
OHP1
OHP(1)
OHP2
OHP(2)
(1)
+
(2)
(OHP: Transparency film)
NOTE
52
● Certain types of transparency film may not be compatible with, and may damage your machine.
Consult with an authorized Panasonic dealer for advice regarding non-standard paper types.
(Panasonic has tested "3M PP2500" transparency film and found it to be compatible.)
3
4
5
Load
Transparency
film onto the
Sheet Bypass
Blank
Paper Size∗
Paper Tray
Number of Copies
(Max. 999)
Making Copies
OHP Interleaving mode
Copy
(OHP: Transparency film)
3
4
5
Load
Transparency
film onto the
Sheet Bypass
Presentation mode
Blank
Paper Size∗
Paper Tray
Number of Copies
for handouts
(Max. 999)
Copy
(OHP: Transparency film)
NOTE
∗ The size and orientation of the printed copy and recording paper should match.
53
Making Copies
Insertion/Overlay
■ Overlay
The first original is used as an overlay for the
remaining originals.
The first page is called the overlay original, and the
second page onwards are called the scanned
originals, respectively.
1
2
For overlay original
or
NOTE:
● When "MARGIN" is selected, a binding margin
is also set for the overlay original.
● When "COVER" or "PAGE INSERTION" is
selected, if the cover page and insertion pages
are set to be copied, the overlay is not
executed for Blank pages. If these pages are
set to be copied, the overlay is executed for
copied pages.
■ File Edit
Up to three editing functions available in the File
Edit feature.
: To Add a new file
HDD = (Max. 5 files)
: To Erase a registered file
1
2
(Register only)
: To Change the title of a file
or
● The File Edit function for selecting a file is only
available when the optional Hard Disk Drive is
installed.
When the optional Hard Disk Drive is not installed,
only one file can be selected.
One image file can be registered.
Up to 5 image files can be registered on
the Hard Disk Drive.
If the selected File Key already contains a
registered file image, the new image will
overwrite the current image.
Without HDD, when pressing "FILE EDIT"
button, the machine skips Step 3 and
proceeds to Step 4 (Erase Mode).
6
(Register only)
7
(Register only)
File Name
54
4
Density for 1st page image
5
Number of Copies
(Max. 999)
or
3
From Platen:
Same procedure
as for Form
Overlay.
(See pages 56
and 57)
4
Select the overlay image to store
into memory for later use.
Making Copies
3
or
When the optional Hard Disk
Drive is installed, enter File
Name as below step 8 of File
Edit.
5
(Register only)
Density for
registered
Select a file
6
or
or
or
To cancel the registration,
touch "CANCEL" button.
4
8
(Register only)
4
5
Enter the file
name
55
Making Copies
Insertion/Overlay
■ Form Overlay
Overlay an image stored in memory onto the copy.
FORM
Data
The scanned
original
1
2
or
NOTE:
● Only A4 size is available for Form Overlay.
● If the orientation of the original is different than
of the Form, the original is copied by
automatically rotating when overlaid.
● The Form will not change size, and cannot be
enlarged or reduced.
However, the scanned original image can be
reproduced according to the selected settings
(Enlarged/Reduced using "ZOOM", or Paper
Size selection).
● Even if the "EDGE" or "BOOK" is selected, the
edge and centre erasing functions are not
performed for the overlay original.
● When "MARGIN" is selected, a binding margin
is also set for the overlay original.
● If "BLANK" is selected for the "COVER" or
"PAGE INSERTION" setting, overlay will not be
performed. The image overlay is carried out for
"COPY" pages instead.
NOTE
56
● This function requires the optional Hard Disk Drive Unit.
3
4
Number of Copies
(Max. 999)
Making Copies
Select a file
From Platen:
If “Another Original? message is
displayed, touch the "YES" or “NO”
button.
Ex: 2 originals
Touch "YES" button.
Place the next original on the
Platen.
3 Press Start Key.
4 Touch "NO" button.
57
Making Copies
Other Features
■ Job Memory
Five Copy Jobs can be stored in Memory
(M1 to M5) for recall at a later time.
NOTE:
When the M5 Key is used, the Double Exposure
Mode should be set to "Off" in the Copier
Settings "19 Double Exposure". (See page 73)
1
To store a job in
memory
1
To recall a job stored
in memory
Storing the
copy job
Recalling the
copy job
or
Ex: To store a
job (2 sided
original to 1
sided copy)
in memory.
1
4
NOTE
58
● JOB MEMORY mode will not be deleted even if the power switches are turned Off.
● When storing a new job into a programmed memory location, the previously stored job will be
overwritten and erased.
● M1, M2 can use as manual skyshot mode by setting the user function mode.
2
M1, M2, M3, M4, M5
2
Making Copies
(See NOTE on page 58)
3
Number of Copies
(Max. 999)
M1, M2, M3, M4, M5
(See NOTE on page 58)
2
3
4
or
5
6
M1, M2, M3, M4, M5
59
Making Copies
Other Features
■ Double Exposure
Select Double Exposure copy mode when copying
a 2-Sided original that is smaller than A5 size onto
one side of a standard size media (Ex: A4 size). One
side (Front) of the original is copied at the top of the
page, and the other side (Back) is copied at the
bottom on the copied page.
Original Size:
Maximum A5
1
Original Guide
• Front Side of Original
• Original Size:
Free, maximum A5 size
• Opening the ADF
• Fit original to the Original Guide.
Copy Size:
A4
Ex. A5
Back Side
Front Side
4
NOTE:
● If the ADF is opened during Double
Exposure copy mode, an incorrect position
detection of the original may occur when a
strong light shines onto the glass.
● An incorrect exposure may occur when
there is a black line at the edge of the
original, or an image which the machine
interprets as a black pattern in this mode.
● The final copy may be affected if coloured
background original(s) do not have a white
edge, or if they are less than 2 mm wide.
NOTE
60
NOTE:
If “YES” is selected, the machine
will start copying only scanned
original.
● When using the Double Exposure Mode, the M5 is turned On and other job requiring memory
cannot be used.
● The default setting of Double Exposure Mode is "ON" in the Copier Settings "19 Double
Exposure". If this setting is changed to "OFF", this mode cannot be used.
2
3
Other jobs requiring memory
cannot be performed, while M5
is being used for the Double
Exposure function.
6
5
Number of Copies
(Max. 999)
7
The following steps illustrate how to make
multiple copies when the Sort Mode is
selected. (See page 36)
Back Side
of Original
1: YES
Starts making copies.
2: NO
Continues to copy another
original.
61
Making Copies
4
Making Copies
Other Features
■ Skyshot Mode
Skyshot allows copying a manuscript without
generating dark borders even if the Platen Cover or
ADF is opened. Two types of Skyshot modes can be
selected:
1)Digital Skyshot Mode : The scanning area (size)
is not pre-determined.
2)Manual Skyshot Mode : The scanning area (size)
is pre-registered into memory (M1 and M2).
● An incorrect exposure may occur when there is a
black line at the edge of the original or an image
which the copier interprets as a black pattern in
the skyshot mode.
Digital Skyshot Mode
The Digital Skyshot has 2 modes.
The default setting of 06 Digital Skyshot Mode is “Freeshp”.
Before using this mode, select each setting by
using the Function setting. (See page 73)
No
: A copy is made without Digital
Skyshot.
Freeshp (Free shape) : A copy is made of the original,
even if it is of irregular shape, with
Digital Skyshot.
Parallel
: A copy is made straightened if the
original is placed at an angle, with
Digital Skyshot. (within 5 degrees)
Manual Skyshot Mode
● Set 07 Manual Skyshot Mode in Copier Settings first.
(See page 73)
NOTE
62
● Other jobs requiring memory cannot be performed, while M1 and M2 buttons are being used for
the Skyshot mode.
● An incorrect position detection of the original may occur when a strong light shines onto the
glass during skyshot mode.
2
Open the ADF more than
45 degrees wide.
1
Number of Copies
(Max. 999)
Making Copies
1
3
2
Platen
UpperLeft
Corner
Custom size∗
Number of Copies
(Max. 999)
∗ Default M1/M2 size can be changed
in the Function mode. (See page 80)
63
Making Copies
Other Features
■ Reserve a Job
The next copy job can be reserved even if the
current copy job is not completed.
1
1st job
1st job
1st job
Copy
or
Reserve
2nd job
2nd job
5
2nd job
6
Select Copy
Mode
or
NOTE
64
● The optional Hard Disk Drive is required to be installed.
2
3
4
5
Making Copies
Select Copy Mode
Scanning is completed
7
Job Waiting List can be
confirmed with Job Queue.
(See page 18)
65
Making Copies
Other Features
■ Energy Saver (Power Save Mode, Sleep/Shutdown Mode)
These modes save power while the copier is not in
use.
1
Power Save Mode
● The machine will not go into Sleep/Shutdown
Mode when the Weekly Timer is selected.
● Sleep Mode/Shutdown Mode and timer setup is
performed in the Key Operator mode.
(See page 76)
Indicator
Flash: Power Save Mode
Light: Sleep/Shutdown Mode
or
Sleep/Shutdown Mode
Automatically enters the Sleep/Shutdown Mode
after 90 minutes (for DP-8060/8045), 15 minutes
(for DP-8035) from the last copy job.
■ Interrupt Mode
This mode can interrupt other copy jobs while
making copies.
1
While making copy
2
Other Copy Job
or
66
To clear
Making Copies
2
3
4
5
Other Copy Job
is completed
67
Function
Function Parameters
■ Using Function Modes to Change the Initial Settings
General
Settings
Copier
Settings
Printer
Settings
Fax/Email
Settings
Scanner
Settings
Input Password
General
Settings for
Key Operator
Copier
Settings for
Key Operator
General Settings:
Printer
Settings for
Key Operator
Fax/Email
Settings for
Key Operator
Changing the Initial Machine Modes
● Power On Default mode, Manual Add Toner, etc.
(See page 72)
For Key Operator:
Paper size, Finisher bin/Staple mode, Department
Counter, Network TCP/IP settings, etc.
(See pages 76-79)
68
Copier Settings:
Changing the Initial Copy Modes
● Default function of each copy mode
(See page 73)
For Key Operator:
Paper size priority, Original mode, Contrast, Job Build
and SADF mode, etc.
(See pages 79 and 80)
Printer Settings:
Changing the Initial Printer Modes
● Default function of each print mode
(See page 75)
For Key Operator:
Job completion time, Page protection, Error page print,
Spool function, PS configuration, Font list print, Mailbox
data holding, etc.
(See page 81)
Scanner Settings:
Changing the Initial Scanner Modes
● Original mode, Compression mode, Resolution, Job
Build and SADF mode, Address book, etc.
(See page 74)
Changing the Initial Fax/Email Modes
Refer to Operating Instructions (For Facsimile and Internet
Fax/Email Functions).
Function Parameters
Fax/Email Settings:
69
Function Parameters
■ Procedure
1
2
Select the desired Function Mode
NOTE
70
3
Select the desired Function
● Please refer to the appropriate operating instructions manual for function settings on options.
4
5
6
5
6
Set the desired Function
Parameter(s).
4
When selecting the Key
Operator Mode:
Set the desired Function
Function Parameters
Set the desired Function
Parameter(s).
Password
(8 digits: alpha-numerical;
alphabet (case-sensitive),
numbers, symbols
(@, ., _, and SPACE))
71
Function Parameters
■ General Settings
Screen
No.
Modes
00 Power On Default Mode
Selects mode.
● COPY, PRINTER, SCANNER, FAX∗
COPY
01 Manual Add Toner
Adds toner manually.
● Off, On
Off
02 Sort Memory Status
Indicates the sorting memory status.
● Off, On
Off
03 Departmental Counter
Indicates the department counter.
Consult with an
authorized service
provider
04 Data Security Kit Info.
Indicates the Data Security Kit version and
Security setting of the machine, when the
Security Kit is installed.
09 Key Operator Mode
Input the Key Operator Password.
01/02
02/02
NOTE
72
Initial
Setting
Function
∗ When the optional Fax Communication Board is installed.
■ Copier Settings
Modes
00 Margin Value Default
Selects the margin shift value.
● 5 mm, 10 mm, 15 mm, 20 mm
10 mm
01 Edge Value Default
Selects the edge width.
● 5 mm, 10 mm, 15 mm, 20 mm
5 mm
02 Book Value Default
Selects the book void width.
● 15 mm, 20 mm, 25 mm, 30 mm
20 mm
03 Margin Reduction Def.
Selects the reduction ratio in margin mode.
● No, Yes
No
04 2-Sided Mode Default
Function sets the duplex priority mode.
● No, 1 to 2, 2 to 2, B to 2 (B: Book)
No
05 Reduce N in 1 For Space
Selects whether to disable edge deletion.
● No, Yes
No
06 Digital Skyshot Mode
Enables or disables the use of Skyshot mode.
● No, Freeshp (Freeshape), Parallel
Freeshp
07 Manual Skyshot Mode
Enables or disables the use of Manual Skyshot. Off
● Off / M1, On / M2, On / M1, M2, On
08 Auto Contrast Adjust
Automatically adjusts the copy density for text
and photographic originals.
● No, Yes
Yes
09 N in 1 Default Mode
Selects the N in 1 default mode.
● 2 in 1, 4 in 1, 8 in 1
2 in 1
11 Booklet Default Mag.
Selects the booklet magnification.
● 100 %, Reduce
Reduce
12 Sort Mode Def. ADF Copy
Selects the sort mode.
● Non-Sort, Sort, Stplsort (Staple-Sort),
Sftgroup (Shift-Group)
Sort
13 Sort Mode Def. FB Copy∗
Selects the sort mode.
● Non-Sort, Sort, Stplsort (Staple-Sort),
Sftgroup (Shift-Group)
Non-Sort
14 Staple Position Setting
Selects the staple position.
● Landscap (Landscape), Portrait, Centre
Portrait
15 Stamping Default Mode
Selects the stamping mode.
● Page, Date, Issue
Page
16 Page Numbering Style
Selects the page numbering style.
● -n-, n/m
-n-
17 Hole Punch Default
Enables the hole punch mode.
● Off, On
Off
18 Img. Repeat Dotted Line
Selects the dotted line.
● None, Print
Print
19 Double Exposure
Selects the double exposure.
● Off, On
On
24 Key Operator Mode
Input Key Operator Password.
01/05
02/05
03/05
04/05
05/05
Initial
Setting
Function
NOTE
Function Parameters
Screen
No.
∗ FB: Platen
73
Function Parameters
■ Scanner Settings
Screen
No.
Modes
00 Original Mode Default
Sets the original setting.
● Text, T/P (Text/Photo), Photo
T/P
01 Compression Mode Def.
Sets the default compression mode setting.
● MH, MR, MMR, JBIG
MMR
02 Resolution Default
Sets the default resolution setting.
● 150dpi, 300dpi, 600dpi
300dpi
03 Job Build And SADF Mode
Sets the SADF mode setting.
● No, Yes
No
04 Bind Edge 2-Side Orig.
Sets the bind position, 2-Sided original setting.
● Long, Short
Long
05 Add New Address
Adds a new address.∗
06 Edit Address Book
Edits the address book.∗
07 Delete Address
Deletes an address.∗
08 Scanner Settings Print
Prints scanner settings.
● Stop, Start
Start
09 XMF File Type
Sets the default XMF File Type.
● TIFF, PDF
PDF
01/02
02/02
NOTE
74
Initial
Setting
Function
∗ Address Book is not necessary to set in this function setting. Your PC can be registered with
Panasonic-DMS.
■ Printer Settings
01/04
02/04
03/04
04/04
NOTE
Modes
Initial
Setting
Function
00 Number Of Prints
Sets the initial number of prints.
● 1 ~ 999
1
01 Paper Size
Sets the paper size setting.
● A3, B4, A4, B5, A5, LEDGER, LEGAL,
LETTER, INVOICE, 8 x 13, 8.5 x 13
A4
02 Paper Tray
Sets the Paper Tray setting.
● Auto, Bypass, Tray 1, Tray 2, Tray 3, Tray 4,
LCT
Auto
03 Print Direction
Sets the print direction setting.
● Portrait, Landscap (Landscape)
Portrait
04 Auto Tray Selection
Sets the auto tray setting.
● Off, On
On
05 2-Sided Print
Sets the 2-sided print setting.
● Off, On
Off
06 Bind Edge
Sets the bind position.
● Long, Short
Long
07 Resolution
Sets the resolution setting.
● 1200 x 600, 600 x 600, 300 x 300
600 x 600
08 Font (PCL)
Sets the PCL font.
● 0 ~ 99
0
09 Symbol Table (PCL)
Sets PCL symbol table.
● 0 ~ 35
11
10 Pitch (PCL)
Sets the PCL pitch.
● 0.44 - 99.99
10.00
11 Point Size (PCL)
Sets PCL point size.
● 4.00 - 999.75
012.00
12 Lines/Page (PCL)
Sets PCL lines/page.
● 5 - 123
60
13 Return Character (PCL)
Sets PCL return character.
● CR, CR + LF
CR
14 Mutual A4/LTR
Converts A4 to Letter automatically.
● Off, On
Off
15 Mailbox Memory Status
Indicates the mailbox memory status.
16 Print Data
Sets print data.
● Stop, Start
19 Key Operator Mode
Input the Key Operator Password.
Function Parameters
Screen
No.
Stop
● Functions No. 08 to 13 are available when the optional Printer Controller Module (DA-PC800)
is installed.
75
Function Parameters
For Key Operator
■ General Settings
Screen
No.
Function
Initial
Setting
00 Paper Size
Sets the paper size of each paper drawer.∗
● Ledger, Legal, Letter, Letter-R, Invoice, A3,
B4, A4, A4-R, B5, B5-R, A5, 8 x 13, 8.5 x 13,
AUTO ∗∗
Consult with an
authorized service
dealer
01 Auto Reset Time
Selects the Control Panel reset time.
● None, 30 sec., 1 min., 2 min., 3 min.,
4 min.
1 min.
02 Power Save Mode Timer
Sets the Energy Saver mode and time.
● 1-240 minutes
15
03 Sleep/Shutdown Timer
Sets the Sleep/Shutdown timer.
● None, 1-240 minutes
90 minutes
(DP-8060/8045)
15 minutes
(DP-8035)
04 Language Default
Selects the message language of the display.
English
05 Special Paper Tray 1
Sets the paper drawer for special paper
(Ex.: coloured).
● None, Tray 1, Tray 2, Tray 3, Tray 4, LCT,
Bypass
None
06 Special Paper Tray 2
Sets the paper drawer for special paper
(Ex.: coloured).
● None, Tray 1, Tray 2, Tray 3, Tray 4, LCT,
Bypass
None
07 COPY Output Bin∗∗∗
Sets the output bin.
● Upper, Bottom
Upper
08 PRINTER Output Bin∗∗∗
Sets the output bin.
● Upper, Bottom
Bottom
09 FAX/EMAIL Output Bin∗∗∗
Sets the output bin.
● Upper, Bottom
Bottom
10 Auto Paper Out Rotate
Copier will automatically rotate image and
print when selected paper tray is empty.
● Off, On
Off
11 TCH Panel Beep Sound
Beep sounds when touching the panel.
● Off, Soft, Loud
Soft
12 Original Set Beep Sound
Beep sounds when original is set on the Platen. No
● No, Yes
13 Orig. Set In ADF Sound
Beep sounds when original is set into the ADF.
● No, Yes
Yes
14 Dept. Counter Mode
Monitors copy usage of each department.
(1) Print usage of each department
(2) Print limit of each department
(3) ID code of each department
Consult with an
authorized service
dealer
Modes
01/13
02/13
03/13
NOTE
76
● The Key Operator Password is required before any changes can be made to items on this
page.
∗ Only 3 Paper Sizes (Letter, A4, B5) will be available when selecting Tray 1.
∗∗ "AUTO" Paper Size can be selected for Tray 2.
∗∗∗ Functions No. 07 to 09 are available when optional Finisher DA-FS600/FS605 is installed.
■ General Settings
04/13
05/13
Modes
15 Fold Position (A3/LDR)
● -4.0 - +4.0 mm
0.0 mm
16 Fold Position (B4)
● -4.0 - +4.0 mm
0.0 mm
17 Fold Position (A4/LTR-R)
● -4.0 - +4.0 mm
0.0 mm
20 Date Time Setting
Sets date time registered.
● Day, Month, Year, Time
21 Weekly Timer
Sets the weekly On/Off timer.
Off
22 DHCP Default
Sets the DHCP.∗
● No, Yes
Yes
23 TCP/IP Address
Sets user IP address.∗
● 3 digits x 4
24 TCP/IP Subnet Mask
Sets the subnet mask.∗
● 3 digits x 4
25 TCP/IP Default Gateway
Sets the gateway address.∗
● 3 digits x 4
26 DNS Server Address
Sets the DNS server.∗
● No, Yes
Yes
27 Hard Disk Initialize
Selects the HDD format/deletion.
● Format, Deletion
<Sub Function>
For Format : No, Yes
For Deletion: Stop, Medium, High
<Sub Function>
For Medium/High: No, Yes
When disk initialization is performed, the
completion time varies depending on the amount
of data accumulated on the hard disk.
The approximate Maximum time to initialize the
HDD, depends on the data Deletion security level
setting below:
Medium = 2 hours
High
= 3 hours
Format (Stop)
28 Hard Disk Error Check
Selects the hard disk error check.∗∗
● Stop, Start
06/13
NOTE
Initial
Setting
Function
Function Parameters
Screen
No.
● The Key Operator Password is required before any changes can be made to items on this
page.
∗ When Functions No. 22 to 26 are set, cycle the power by turning the Power Switch on the
Left side of the machine OFF and ON.
∗∗ Not required in copying mode, but needed when installing options with advanced functions.
77
Function Parameters
For Key Operator
■ General Settings
Screen
No.
07/13
08/13
Modes
30 Sleep/Shutdown Select
Selects the Sleep/Shutdown mode.
● Sleep, Shutdown
31 Print General Settings
Print out the General Function Parameters list.
● Stop, Start
32 Corona Wire Cleaning
Sets the corona wire cleaning.
● Off, On
33 MAC Address
Indicates the MAC address.
34 Address Book Group ID
Inputs group ID for address book.∗
● 0 ~ 99
35 Tandem User Parameter
Inputs parameter of user machine.∗
36 Community Name (1)
Selects to change the SNMP of Community
Name (1).∗
● Enables read only.
37 Community Name (2)
Selects to change the SNMP of Community
Name (2).∗
● Enables read/write.
38 Device Name
Inputs the device name when necessary.∗
(For Status Monitor/EtherTalk Machine Name)
39 Device Location
Inputs the device location when necessary.∗
(For Status Monitor)
40 Daylight Time
Set the daylight time according to your local
regulations.∗∗∗
● No, MAR 2nd, APR 1st
MAR 2nd
41 Routing Menu Function
Selects the Document Distribution function.∗∗
● No, Yes
No
42 Doc. Dist Server Name
Inputs the Document Distribution System
routing server name.∗∗
43 Doc Dist Server IP
Inputs the Document Distribution System
routing server IP address.∗∗
● 3 digits x 4
0. 0. 0. 0.
45 Special Paper Tray 3
Sets the Paper Tray for special paper
(Ex.: coloured).
● None, Tray 1, Tray 2, Tray 3, Tray 4, LCT, Bypass
None
46 Special Paper Tray 4
Sets the Paper Tray for special paper
(Ex.: coloured).
● None, Tray 1, Tray 2, Tray 3, Tray 4, LCT, Bypass
None
47 Special Paper Tray 5
Sets the Paper Tray for special paper
(Ex.: coloured).
● None, Tray 1, Tray 2, Tray 3, Tray 4, LCT, Bypass
None
09/13
10/13
NOTE
∗
∗∗
∗∗∗
78
Initial
Setting
Function
Sleep
0
When Functions No. 34 to 39 are set, cycle the power by turning the Power Switch on the
Left side of the machine OFF and ON.
When the optional Document Distribution System (DA-WR10) is installed.
MAR 2nd: From 2:00 AM 2nd Sunday of March to 2:00 AM 1st Sunday of November.
APR 1st: From 2:00 AM 1st Sunday of April to 2:00 AM Last Sunday October.
● This setting is applied from March 2007. If you select “MAR 2nd” before March 2007, the
daylight time will automatically set to “APR 1st”.
■ General Settings
Screen
No.
Modes
Initial
Setting
Function
48 Data Deletion Of HD
Selects the deletion level of hard disk data in
every copy/scan/print job.
● Basic, Medium, High
When the optional hard disk unit is installed, every
copy/print job data is automatically deleted after each
job is completed.
Select one of the 3 available Data deletion security
levels (Basic, Medium and High).
For higher security select Medium and High, however,
the deletion time increases with the increase in
security level, and may take longer to erase the data.
49 Copy Bin Home Position
Sets the copy bin to return to its home position. Off
● Off, On
10/13
Basic
50 Key Operator Password
Input the Key Operator Password.
51 HD Drive Lock Settings
Sets or releases the Drive Lock, or changes
the password for the Drive Lock.
● Set Drive Lock
● Change Password
● Release Drive Lock
55 User Authentication
Enables or disables the user authentication for each Off
function. (copying, faxing, scanning, and printing)
(For each function)
● Copy, Fax, Scanner, Printer
● Time Zone
Depends on Country code.
56 Authentication Method*
Selects the authentication method to use by
the User Authentication function.
● Clear Text, NTLM
57 Administrator Name
Inputs the system administrator name and password.
58 ID Timeout*
Selects the valid period of authentication.
● Auto Reset Time, After Every Job
Auto Reset Time
59 Logon Attempts*
Sets the permitted number of logon attempts.
●0 ~ 9
0
60 Lockout Time*
Sets the time period for the system lockout
when the permitted number of logon attempts
is exceeded during the user authentication.
● 1 ~ 60
5
61 User Auth. Domain
Sets the NetBIOS domain and DNS suffix to
use for user authentication.
● 00 ~ 09
12/13
13/13
NTLM
Function Parameters
11/13
00000000
* No. 56, 58, 59, 60 are only available when No.55 setting is set to On.
■ Copier Settings
Screen
No.
Modes
00 Paper Size Priority
Selects paper size priority.
● LEDGER, LEGAL, LETTER, LETTER-R,
INVOICE, A3, B4, A4, A4-R, B5, B5-R, A5,
8 x 13, 8.5 x 13
A4
01 Original Mode Default
Selects original setting.
● Text, T/P (Text/Photo), Photo
T/P
01/05
NOTE
Initial
Setting
Function
● The Key Operator Password is required before any changes can be made to items on this page.
79
Function Parameters
For Key Operator
■ Copier Settings
Screen
No.
01/05
02/05
Modes
Initial
Setting
Function
02 Text Contrast
Selects contrast for Text mode.
●1 ~ 7
4
03 T/P Contrast
Selects contrast for Text/Photo mode.
●1 ~ 7
4
04 Photo Contrast
Selects contrast for Photo mode.
●1 ~ 7
4
06 Interleaving Default
Selects OHP interleaving paper.
● Blank, Copy
Blank
07 Page Insertion Default
Selects page insertion.
● Blank, Copy
Blank
08 Cover Mode Default
Selects cover paper.
● F, Blank, F, Copy
FB, Blank, FB, Copy (F: Front, FB: Front + Back)
F, Blank
09 Job Build And SADF Mode
Enables or disables the use of SADF function.
● No, Yes
Yes
10 Maximum Copy Setting
Determines whether to limit number of copies
(0-99).
0
(No limit)
12 M1, Size
Inputs a size in job memory 1 for frequently
used size.
● X: 5~432/Y: 5~297 mm
(See pages 62-63)
70 x 160 mm
(X) (Y)
13 M2, Size
Inputs a size in job memory 2 for frequently used size.
● X: 5~432/Y: 5~297 mm
(See pages 62-63)
95 x 220 mm
(X) (Y)
16 Memory Overflow Warning
Selects the task to perform when memory
overflow occurs.
● Print, Cancel
Print
17 Toner Save Mode (T)
Selects the toner save in Text mode.
● None, Level 1, Level 2∗
None
18 Toner Save Mode (T/P)
Selects the toner save in Photo/Text mode.
● None, Level 1, Level 2∗
None
19 Toner Save Mode (P)
Selects the toner save in Photo mode.
● None, Level 1, Level 2∗
None
20 Add New Tandem Desti.
Inputs a new destination to split the copy job.
21 Edit Tandem Destination
Edits the split copy job destination.
22 Delete Tandem Desti.
Deletes the split copy job destination.
23 Copier Settings Print
Prints the copier settings.
● Stop, Start
03/05
04/05
05/05
NOTE
80
● The Key Operator Password is required before any changes can be made to items on this page.
∗ “Level 1 or 2” setting consumes less Toner than “None” setting, however, the copy quality will
diminish slightly.
Toner saving is based on the Panasonic 6 % density Test Chart (N910653):
Level 1: Uses approximately 10 % less Toner than None setting.
Level 2: Uses approximately 20 % less Toner than None setting.
■ Printer Settings
01/03
Modes
00 Job Completion Time
Sets the job completion time setting.
● 1 ~ 999 sec.
01 Page Protection
Compresses automatically and then prints out. Off
● Off, On
02 Error Page Print
Sets the error page printout.
● Off, On
On
03 Spool Function
Sets the spool function.∗,∗∗
● Off, On
On
04 Text Print
Prints text page only.
● Off, On
On
05 PS Configuration Print
Prints the PS status page.∗
● Stop, Start
06 Printer Settings Print
Prints the printer status.
● Stop, Start
07 Font List Print (PCL)
Prints the PCL font list.∗
● Stop, Start
08 Font List Print (PS)
Prints the PS font list.∗
● Stop, Start
09 Mailbox Data Holding
Sets the automatic holding period of mailbox
7 days
data.∗
● Infinity, 1 day, 2 days, 3 days, 4 days, 6 days,
7 days
10 Delete Mailbox Data
Deletes the mailbox data.∗
● All, Before
11 Print Queue Delete
Sets the delete authorization for the print queue. Key op.
● Free, Key op. (operator)
12 AppleTalk Zone Name
Inputs an AppleTalk Zone name.∗∗
● Maximum 32 characters
13 NetWare
Sets the NetWare Operating System.∗∗
● Off, On (When using IPX/SPX protocol of
Novell NetWare)
02/03
03/03
NOTE
Initial
Setting
Function
180
Before
Function Parameters
Screen
No.
On
● The Key Operator Password is required before any changes can be made to items on this
page.
∗ Functions No. 03, 05, 07, 08, 09, and 10 are available when the following options are
installed.
Function No. 07: Printer Controller Module (DA-PC800)
Function No. 05 and 08: Multi Page Description language Controller Module (DA-MC800)
Functions No. 03, 09 and 10: Hard Disk Drive (DA-HD60)
∗∗ When Function No. 03, 12 or 13 is set, cycle the power by turning the Power Switch on the
Left Side of the machine OFF and ON.
81
Function Parameters
Examples
■ Weekly Timer
Key Operator can administer the weekly On/Off
timers.
1
2
5
Scroll to
05/13
8
Start time
● Set the time the machine automatically starts
the Sleep/Shutdown mode.
82
3
4
5
Password
(8 digits: alpha-numerical;
alphabet (case-sensitive),
numbers, symbols (@, ., _,
and SPACE))
6
7
8
● Set the time the machine automatically wakes
up from the Sleep/Shutdown mode.
9
10
Input time
Ex: 0800
Function Parameters
End time
11
Input time
Ex: 1700
83
Function Parameters
Examples
■ Registering a department counter
The Department Counter feature can limit the
number of copies, administer counters and
Identification Code numbers for each department.
(Maximum Number of Departments: 300)
Contact your authorized service provider to enable
the Department Counter feature.
1
2
5
Scroll to
03/13
7
For Maximum Prints
Select Page
Select Department
84
Maximum Number
of Copies (8-digit)
3
4
5
Password
(8 digits: alpha-numerical;
alphabet (case-sensitive),
numbers, symbols (@, ., _,
and SPACE))
6
For Identification Code
7
Function Parameters
Select Page
ID Code
(8-digit)
Select Department
6 Input a Department Name (up to 25 characters) using
the QWERTY Keyboard, and touch the OK button. (See
page 13, How to use the QWERTY Keyboard)
8
85
Function Parameters
Examples
■ Verifying a department counter
1
2
5
Scroll to
03/13
8
86
3
4
5
Password
(8 digits: alpha-numerical;
alphabet (case-sensitive),
numbers, symbols (@, ., _,
and SPACE))
6
For Total Counter
7
For Department Counter
8
Prints all the
active
department
counters.
Select Page
Clear the
counter (8-digit)
to “0”
Function Parameters
Displays the sum of all the
active department counters.
Select Department
To clear the total counter, touch the
INPUT button, enter 0 and touch the
OK button.
87
Function Parameters
Combined Function Table
Others
INSERTION/
OVERLAY
ZOOM/
EFFECTS
SORT/
FINISH
2-SIDED/ORIG.
COPY
First
Selections
A
R
*1
*2
*3
*4
88
1
1
1
2
2
1
2
2
Book 2
2 Page
N in 1
Booklet
Multi-Size Feeding
Job Build and SADF
Sort
Shift-Sort
Rotate-Sort
Staple-Sort
Shift-Group
Rotate-Group
Non-Sort
Punch
Zoom
Auto Zoom
Edge
Book
Margin
Stamping
Image Repeat
Centring
Inverse
Cover
Insertion
OHP Interleaving
Presentation
Overlay
Form Overlay
File Edit
Interrupt
Proof Copy
Tandem Copy
Concurrent Copying
Manual Skyshot
Digital Skyshot
Double Exposure
SORT/
FINISH
2-SIDED/ORIG.
COPY
ZOOM/
EFFECTS
INSERTION/
OVERLAY
Others
1 1
1 2
2 1
2 2
Book
2
2 Page
N in 1
Booklet
Multi-Size Feeding
Job Build and SADF
Sort
Shift-Sort
Rotate-Sort
Staple-Sort
Shift-Group
Rotate-Group
Non-Sort
Punch
Zoom
Auto Zoom
Edge
Book
Margin
Stamping
Image Repeat
Centring
Inverse
Cover
Insertion
OHP Interleaving
Presentation
Overlay
Form Overlay
File Edit
Interrupt
Proof Copy
Tandem Copy
Concurrent Copying
Manual Skyshot
Digital Skyshot
Doubele Exposure
Next
Selections
*1
*1
*1
*2
*4
*4
*1
*4
*3
*3
*3
: Combined setting is available.
NOTE :
A registered image cannot
: Possible Combined Functions without full size copy ratio.
be availed in selected copy
: Combined setting is not available.
function of above grey
: Next Selection is Carried Out.
highlighted.
: When the same function is selected twice, the second selection is ignored.
: Not available.
: Posssible on all models except the DA-FS330.
Multi-size Feeding with any shift function is not possible.
:Setting is possible only when the paper size is the same.
:"Saddle Stitch" is set.
:When the Issue Number is selected in Stamping function, Non Sort, Shift-Group or Rotate-Group can not
be selected.
:When the Issue Number is selected in Stamping function, Non Sort, Shift-Group or Rotate-Group will be
automatically changed to Sort function.
Others
Others
INDEX
A
Adjust the Contrast ....................................................... 7
Auto Zoom .................................................................. 38
B
Book ............................................................................ 40
Book
2-Sided Copy .............................................. 24
Booklet Copy .............................................................. 30
Button Names on the QWERTY Keyboard ................. 13
C
Centring ...................................................................... 42
Combined Function Table .......................................... 88
Completion Notice ...................................................... 20
Copier Settings ........................................................... 73
Copier Settings (For Key Operator) ....................... 79-80
Copying the Same Size Originals (1:1) ........................ 6
Copying with Preset Ratios
(Reduction/Enlargement) ....................................... 8
Cover .......................................................................... 50
I
Image Repeat ............................................................. 44
Insertion/Overlay ................................................... 50-57
Interrupt Mode ............................................................ 66
Inverse ........................................................................ 44
Issue Number Stamping ............................................. 48
J
Job Build and SADF Mode ......................................... 34
Job Memory ................................................................ 58
Job Queue .................................................................. 18
M
Margin ......................................................................... 42
Multi-Size Feeding ..................................................... 32
N
N in 1 Copy ................................................................. 28
Non-Sort ..................................................................... 36
O
oF (Overflow) Indicator ............................................... 37
OHP Interleaving ........................................................ 52
Operating Instructions .................................................. 2
Overlay ....................................................................... 54
D
P
Date Stamp ................................................................. 46
Deleting the Tandem/Remote Machine ...................... 16
Double Exposure ........................................................ 60
Page Insertion ............................................................ 50
Page Numbering ........................................................ 46
Parameter Registration (Tandem User Parameter) ... 12
Parameter Registration (Tandem Destination) .......... 14
Power Save Mode ...................................................... 66
Presentation ............................................................... 52
Printer Settings ........................................................... 75
Printer Settings (For Key Operator) ............................ 81
Proof Copying ............................................................... 8
Punch .......................................................................... 36
F
File Edit ....................................................................... 54
Form Overlay .............................................................. 56
Freeshp (Free shape) ................................................. 62
Function Parameters .................................................. 68
G
General Settings ......................................................... 72
General Settings (For Key Operator) ..................... 76-79
R
Reduction and enlargement ratios (%) ........................ 9
Reduction/Enlargement ............................................... 8
Registering a department counter ............................. 84
Reserve a Job ............................................................ 64
Rotate-Group .............................................................. 36
Rotate-Sort ................................................................. 36
Others
E
Edge ........................................................................... 40
Editing the Tandem/Remote Machine ........................ 16
Energy Saver .............................................................. 66
Function Parameters
1-Sided
2-Sided, 2-Sided
1-Sided,
2-Sided
2-Sided Copy .................................... 22
2-Sided/Original
Copy ..................................... 22-35
2 Page Copy ............................................................... 26
89
Others
S
Saddle Stitch .............................................................. 36
Scanner Settings ........................................................ 74
Selecting the type of Original(s) ................................... 6
Shift-Group ................................................................. 36
Shift-Sort ..................................................................... 36
Shutdown Mode ......................................................... 66
Skyshot Mode ............................................................. 62
Sleep Mode ................................................................ 66
Sort ............................................................................. 36
Sort/Finish ................................................................... 36
Stamping ............................................................... 46-49
Staple Position ............................................................ 37
Staple Sort .................................................................. 36
Symbols/Icons .............................................................. 3
T
Tandem/Remote Copying .......................................... 10
V
Verifying a department counter .................................. 86
W
Weekly Timer .............................................................. 82
Z
Zoom ........................................................................... 38
Zoom/Effects .......................................................... 38-49
90
Others
memo
91
The following trademarks and registered trademarks are used throughout this manual:
Microsoft, Windows, Windows NT, Windows Server, Outlook & Windows logo are either
registered trademarks or trademarks of Microsoft Corporation in the USA and other countries.
Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation.
Adobe, Acrobat Reader & Adobe logo are either registered trademarks or trademarks of Adobe Systems
Incorporated.
All other trademarks identified herein are the property of their respective owners.
PEERLESSPageTM is a trademark of the PEERLESS Systems Corporation; and,
PEERLESSPrintTM and Memory Reduction Technology® are registered trademarks of PEERLESS
Systems Corporation; and, COPYRIGHT © 2002 PEERLESS Systems Corporation.
Universal Font Scaling Technology (UFST) and all typefaces have been licensed from Monotype Imaging
Agfa® and the Agfa rhombus are registered trademarks of Agfa-Gevaert N.V. registered in the U.S. Patent
and Trademark Office and may be registered in other jurisdictions. Monotype® is a registered trademark of
AMT registered in the U.S. Patent and Trademark Office and may be registered in other jurisdictions.
ColorTune® is a registered trademark of Agfa-Gevaert N.V. registered in the U.S. Patent and Trademark
Office and may be registered in other jurisdictions. Profile Tool Kit™, Profile Studio™ and Profile Optimizer™
are trademarks of AMT and may be registered in certain jurisdictions.
Copyright © 2005 Monotype Imaging Inc. All rights reserved.
Captaris and RightFax are trademarks of Captaris, Inc.
Novell and NetWare are registered trademarks of Novell, Inc. in the United States and other countries.
© 2006 Panasonic Communications Co., Ltd. All Rights Reserved.
Unauthorized copying and distribution is a violation of law.
The contents of these Operating Instructions are subject to change without notice.
For Service, Call:
For Customer Support:
Panasonic Communications Co., Ltd.
Fukuoka Japan
http://panasonic.net
C1106-0(11)
PJQMC0601ZA
November 2006
Published in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
