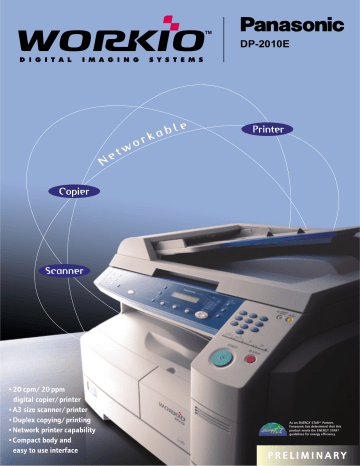

DP-2010E
As an ENERGY STAR® Partner,
Panasonic has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency.
PRELIMINARY
DP-2010E
Digital PPC
Document Management
System Software*5
• Auto Magnification Selection*1
• Auto Paper Selection*1
• Job Memory (2)
• Interrupt Mode
• Image Rotation (90 degrees)
• Electronic Sort
• Duplex Copy 1–>2
2–>1*2
2–>2*2
• Rotation Sort
• Skyshot Mode
• Margin Mode
• Book Mode
• 2 Page Copy Mode
• 2 in 1*1
• Document Manager
• Document Scanner
• Document Viewer with Annotation function
• Configuration Editor
• Status Monitor
Others
• Multi-tasking Operation
• Self Diagnostic Function
• Department Counter (50 departments)
• Energy Saver Mode
Printer
• Collation Stack
• N in 1 (2 in 1, 4 in 1)
• Network Printing*3
• Duplex Print
• Rotate Sort*4
• Image Overlay (Only for Windows® 98/Me)*4
Keypad Energy Saver Key
Quick View LCD Display
Select Copy Mode Keys
Function Select Keys
Zoom Key
2-Sided Copying Function
(For DP-2010E)
D P - 2 010 E M a j o r S p e c i f i c a t i o n s
Basic / Digital PPC
Desktop
Type
Laser Electrostatic Photographic method
Copy / Print Process
Dry type single component imaging
Developing Process
Approx. 30 sec.
Warm-up Time
6.5 sec. (A4)
First Copy Time
600 dpi
Resolution
Gray Scale
256 steps
Multi Copy Speed
20 cpm
Maximum Original Size
A3
Copy Size
A3, B4 Foolscap (8.5“ x 13”, 8” x 13”), A4, A5
Copy Ratio
Enlargement (fixed)
200%, 173%, 146%, 141%, 137%, 127%, 122%, 115%, 103%
Reduction (fixed)
97%,90%, 87%,82%,73%,71%, 68%,64%,58%,50%
Zoom (variable)
50~200%
Automatic Document Feeder 50 sheets (A4) / 30 sheets (A3, B4)
Paper Feed
550 sheets paper tray unit x 1 + 50-sheet bypass
Max. 2,250 sheets with optional paper tray unit x 3
Multiple Copy
999
Exposure Controller
Photo, Text / Photo, Text
Page Memory Capacity
24MB
Sort Memory Capacity
8MB
Optional Memory
Base Memory plus 8MB / 16MB / 64MB*6 / 128MB*6
Power Requirement
AC 220–240 V 50/60 Hz Single phase
Power Consumption
Max.: Less than 1.2 kW
Energy Saver mode: Approx. 38 Wh
Sleep mode: Approx. 2.2 Wh
Dimensions (W x D x H)*7 588 x 605 x 410 mm
H: To Platen Glass
Weight
42kg
Printer / Scanner
Printer Interface
Printing Speed
Printing Resolution
Scanning Resolution
Scanner Driver
OS
Page Description language
Bi-directional Parallel (IEEE1284)
Network (Ethernet 100Base-TX/10Base-T) with optional
10/100 Ethernet Interface Kit
20ppm
600dpi
600dpi
TWAIN
Windows® 98/Me/XP/2000, Windows NT® 4.0
PCL6 Emulation (with optional PCL6 Emulation Kit)
*1 Optional ADF or i-ADF is required.
*2 Optional i-ADF is required.
*3 Optional 10/100 Ethernet Interface Kit is required.
*4 Optional PCL6 Emulation Kit is required.
*5 Local connection only.
*6 Image Memory for Electric Sort (DA-SM64B, DA-SM28B) options may not be available in certain countries.
*7 Dimensions and weight are approximate.
Design and specifications are subject to change without notice.
Panasonic and National are the brand names of Matsushita Electric.
Matsushita Electric Industrial Co., Ltd.
Matsushita Graphic Communication Systems, Inc.
MG-R30 0202 Printed in Japan
