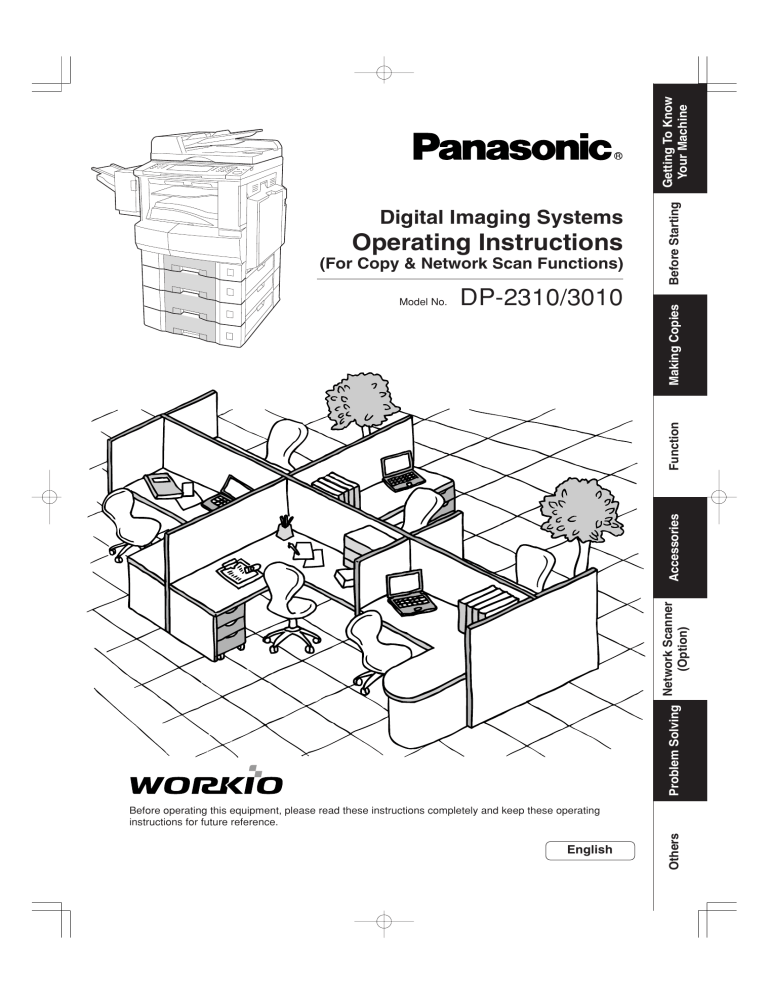

Getting To Know
Your Machine
(For Copy & Network Scan Functions)
DP-2310/3010
Problem Solving Network Scanner
(Option)
Accessories
Function
Model No.
Before Starting
Operating Instructions
Making Copies
Digital Imaging Systems
English
Others
Before operating this equipment, please read these instructions completely and keep these operating
instructions for future reference.
Getting To Know Your Machine
Useful Office Functions
Copy
• Copy up to A3 size.
Capable of copying text/photos/halftone originals.
Fax/Email
• Plain Paper High-speed Super G3 compatible Fax with JBIG
compression when optional Fax Communication Board (DAFG300) is installed.
• Quick-Scan
• Quick Memory Transmission
• Email Function can be used when optional Internet Fax/
E-Mail Module (DA-NF600) is installed.
Print
• Digital printer controller standard, printer resolution 300 or 600
dpi.
Scan/File
• Black & White original scanner can be used when optional Network Scanner Module (DA-NS600) is installed.
Scanning resolution up to 600 dpi.
• A document can be saved or retrieved to/from network server
via from the digital imaging system.
Application Software
• Document Manager
• Document Viewer
• Document Network Scanner*
• Utilities (Network Status Monitor, Phone Book Editor, Device
Configuration Editor)
∗ Document Network Scanner is only available when the optional
Network Scanner Module (DA-NS600) is installed.
DP-2310/3010 Operating Instructions
This copier includes the following operating instruction manuals, please use the correct manual when an operator intervention
is necessary.
2
<Copy & Network Scan>
Use the information provided in this manual whenever a copier function requires
intervention. For example: how to make copies, add paper, replace the toner bottle,
etc.
<Fax/Email>
Use the information provided in the DP-2310/3010 Fax & Email Operating
Instructions manual whenever a fax/internet fax function requires intervention.
For example: how to send/receive a fax/Email, or when a trouble message appears,
etc.
<Print &
Other Advanced Functions>
Use the information provided on the enclosed CD for an explanation of how to
use as a Network Printer, Network Scanner, Edit Directory Dialing Feature,
Device Settings, Network Status Monitor, and/or Document Management System.
Getting To Know
Your Machine
Outline of this Operating Instructions
● Operation Chart for quick operation
Getting To Know
Your Machine
Before Starting
Making Copies
Function
(See pages 10, 11)
● Adding Paper, Replacing the Toner Bottle,
Removing Misfed Paper and Error Codes
(See pages 10-17)
● Precautions for your safety
(See pages 7-9)
● Key/Button/Indicator names on the Control Panel
(See pages 19-21)
Operating Instructions for making copies according
to Function Categories on the LCD Touch Panel
Display
(See pages 22-49)
Changing the Initial "modes/ defaults"
● Copy, Printer, Scanner (Option)
and Fax/Email (Option)
(See pages 50-64)
Options
● Accessories
Components
(See page 65)
● Network Scanner
(See pages 66-69)
Problem Solving
Others
● Troubleshooting
(See pages 70, 71)
● Replacing the Battery
(See pages 72, 73)
Specifications, Options and Supplies and Index
(See pages 74-78)
3
Getting To Know Your Machine
Symbol Marks/Icons
Following symbol marks/Icons are used in this operating instructions for your operation.
Place original(s) on the i-ADF/ADF
Getting to know your machine
Before starting
Place original(s) on the Platen Glass
(Book)
When making copies
Place original on the Platen Glass
(Sheet)
Press any Hard Key on the
control panel or touch any Button
on the touch panel display
Press Hard Key
When setting the machine
modes
Touch any Button
When scanning document(s)
Input numerical
● Number of copies, etc.
Input text with keyboard
Options
(ex.: Finisher)
Go to next step
Problem solving
Go to next step (below)
5
Setting any function(s) if necessary
A3
FLS
B4
A4
A5
COPY
4
Others
Getting To Know
Your Machine
Table of Contents
Getting To Know Your Machine
Useful Office Functions .................................................................................................................. 2
DP-2310/3010 Operating Instructions ........................................................................................... 2
Outline of this Operating Instructions .......................................................................................... 3
Symbol Marks/Icons ....................................................................................................................... 4
Precautions ...................................................................................................................................... 7
Operation Chart ............................................................................................................................. 10
■ Basic Operation .............................................................................................. 10
■ Problem Solving ..............................................................................................11
Before Starting
Energy Star .................................................................................................................................... 18
Control Panel ................................................................................................................................. 19
Touch Panel Display ..................................................................................................................... 20
Making Copies
Basic Menu .................................................................................................................................... 22
■ Copying the Same Size Originals (1:1) .......................................................... 22
■ Notice for ADF/i-ADF (Option) ........................................................................ 22
■ Notice for copying on the heavy paper (Postal Card etc.) (maximum 133 g/m2) .. 22
■ Position of the Original(s) ............................................................................... 23
■ Copying with Preset Ratios ............................................................................ 24
■ Proof Copying ................................................................................................ 24
■ Tandem /Remote Copying .............................................................................. 24
■ Tandem/Remote Copy Settings (Registration 1) ............................................ 26
■ Tandem/Remote Copy Settings (Registration 2) ............................................ 26
■ Tandem/Remote Copy Settings (Editing) ....................................................... 26
■ Tandem /Remote Copy Settings (Deleting) .................................................... 26
■ Job Queue ...................................................................................................... 28
■ Completion Notice .......................................................................................... 28
2-Sided/Original
Copy .............................................................................................................. 30
■ 1
2, 2
1, 2
2 Copy ............................................................................ 30
■ Book
2 Copy .............................................................................................. 30
■ 2 Page Copy .................................................................................................. 32
■ N in 1 Copy .................................................................................................... 32
■ Booklet Copy .................................................................................................. 32
■ Multi-Size Feeding ......................................................................................... 34
■ JOB BUILD AND SADF Mode ........................................................................ 34
Sort/Finish ..................................................................................................................................... 36
■ When using Sort Mode ................................................................................... 36
Zoom/Effects ................................................................................................................................. 38
■ Zoom .............................................................................................................. 38
■ Auto Zoom ...................................................................................................... 38
■ Edge ............................................................................................................... 38
■ Book ............................................................................................................... 38
■ Margin ............................................................................................................ 40
■ Centering ........................................................................................................ 40
■ Image Repeat ................................................................................................. 40
■ Inverse ........................................................................................................... 40
■ Stamping (Page Numbering) .......................................................................... 42
■ Stamping (Date Stamp) .................................................................................. 42
■ Stamping (Issue Number Stamping) .............................................................. 42
Insertion/Overlay ........................................................................................................................... 44
■ Cover .............................................................................................................. 44
■ Page Insertion ................................................................................................ 44
■ OHP Interleaving ............................................................................................ 44
■ Presentation ................................................................................................... 44
5
Table of Contents
Insertion/Overlay/Job Memory ..................................................................................................... 46
■ Overlay ........................................................................................................... 46
■ File Edit .......................................................................................................... 46
■ Form Overlay ................................................................................................. 46
■ Job Memory ................................................................................................... 46
Other Features ............................................................................................................................... 48
■ Concurrent Copying ....................................................................................... 48
■ Energy Saver (Energy Saver Mode, Sleep/Shutdown Mode) ........................ 48
■ Skyshot Mode ................................................................................................ 48
■ Interrupt Mode ................................................................................................ 49
Function
■ Using Function Modes to change the Initial Copy Modes .............................. 50
■ Procedure ....................................................................................................... 50
■ GENERAL SETTINGS ................................................................................... 52
■ COPIER SETTINGS ...................................................................................... 52
■ SCANNER SETTINGS ................................................................................... 53
■ PRINTER SETTINGS .................................................................................... 54
For Key Operator ........................................................................................................................... 55
■ GENERAL SETTINGS ................................................................................... 55
■ COPIER SETTINGS ...................................................................................... 57
■ PRINTER SETTINGS .................................................................................... 58
For example ................................................................................................................................... 60
■ Changing the Auto Contrast Setting ............................................................... 60
■ Changing the Paper Size ............................................................................... 60
■ Weekly Timer ................................................................................................. 60
■ Department Counter ....................................................................................... 62
■ Network Settings ............................................................................................ 62
Combined Function Table ............................................................................................................ 64
Accessories
Components .................................................................................................................................. 65
■ Options ........................................................................................................... 65
■ Supplies ......................................................................................................... 65
Network Scanner (Option)
■
■
■
■
Document Scanning .......................................................................................
Adding your PC or DD Server IP Address ......................................................
Editing your PC or DD Server IP Address ......................................................
Erasing the Address .......................................................................................
66
66
68
68
Problem Solving
Troubleshooting ............................................................................................................................ 70
Replacing the Battery ................................................................................................................... 72
Others
Specifications ................................................................................................................................ 74
INDEX ............................................................................................................................................. 76
6
Getting To Know
Your Machine
Getting To Know Your Machine
Precautions
For Your Safety
■ Laser Safety
LASER SAFETY
This unit employs a laser. Only qualified service personnel
should attempt to service this device due to possible eye injury.
CAUTION:
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
■ Caution Label
7
Getting To Know Your Machine
Handling
■ Do not look directly at the exposure lamp when copying.
■ Do not turn the power switches Off or open the front cover/right cover during copying.
● Do not drop paper clips or other metal objects into the copier.
■ If you are not going to use the copier for long periods of time, turn OFF
the Power Switch on the Left Side of the machine and wait 10 seconds
then, turn OFF the Main Power Switch on the Back Side of the machine.
Toner and Paper
■ Store toner, drum and paper in cool areas with low humidity.
● Use high quality 60 - 90 g/m2 (Sheet Bypass: 55 - 133 g/m2) paper.
● For optimum performance, it is recommended that only Panasonic Brand supplies are used
in the copier.
● Do not unseal toner before use.
● Do not leave bottle opened for prolonged period of time.
● Certain types of transparency film may not be compatible and may damage your machine.
Consult with an authorised Panasonic dealer for advice regarding non-standard paper types.
(Panasonic has tested “3M PP2500” transparency film and found it to be compatible.)
Ventilation
■ The copier should be installed in a well-ventilated area to minimize the ozone density in the air.
Installation
■ The copier should not be installed in areas with the following conditions:
● Extremely high or low temperature and humidity.
Ambient conditions Temperature: 10 – 30°C
Relative humidity: 30 – 80 %
● Where temperature and humidity can change rapidly, causing condensation.
● Direct exposure to sunlight.
● Directly in the air conditioning flow.
● In areas of high dust concentration.
● In areas of poor ventilation.
● In areas with chemical fume concentration.
● In areas with extreme vibration.
● With unstable or uneven conditions (floors, etc.).
8
Getting To Know
Your Machine
FOR YOUR SAFETY
■ The maximum power consumption is 1.5 kW.
A properly wired (grounded), dedicated, 6.5A, 220-240V AC outlet is required. Do not use an
extension cord.
Caution Note: Disconnect from the mains supply before removing covers.
CAUTION
● THIS PRODUCT CONTAINS A LITHIUM BATTERY. DANGER OF EXPLOSION IF BATTERY IS
INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS OF YOUR LOCAL SOLID WASTE OFFICIALS.
Installation
For U.K.
This appliance is supplied with a moulded three pin mains plug for your safety and convenience.
A 13 amp fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 13 amps and that it
is approved by ASTA or BSI to BS1362
or the BSI mark on the body of the fuse.
Check for the ASTA mark
If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local Panasonic Dealer.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR OFFICE
THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13
AMP SOCKET.
If a new plug is to be fitted please observe the wiring code as shown below.
If in any doubt please consult a qualified electrician.
WARNING: THIS APPLIANCE MUST BE EARTHED.
IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:
Green and Yellow : Earth
Blue
: Neutral
Brown
: Live
As the colours of the wires in the main lead of this appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked
“ or coloured GREEN or GREEN-AND-YELLOW.
by letter E or by the safety Earth symbol “
The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N
or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter
L or coloured RED.
How to replace the fuse.
Open the fuse compartment with a screwdriver and replace the fuse.
N
9
Getting To Know Your Machine
Operation Chart
■ Basic Operation
1
From
i-ADF/
ADF
2
Face Up
COPY
If other function
is in use
Tray
Max. 50 originals*
or
Turn the Main
Power Switch
On
(Located on
the back of the
Copier)
(See page 8)
Turn the Power
Switch On
(Left side of the
copier)
*30 originals (B4/A3)
Original Guides
Adjust to the original’s width
Original Guides
● If the original is not positioned
properly, a portion of the original
may not be copied.
● For originals smaller than A5
size, position the original within
the A5 area and select A5.
A3
B4
A4-R
A5-R
A4
Face down
A5
From
Platen
Glass
Load Paper
● Adding Paper (Paper Tray)
1
2
3
4
Max Level Indicator
Paper Weight: 60-90 g/m2
4
Paper Capacity: 550 Sheets (80 g/m2)
NOTE:
When changing the paper size, refer to page 60.
● Adding Paper (Sheet Bypass)
Copying on Special Paper, etc.
1
2
3
Until it Stops
Face Down
4
Sheet Bypass
4
Side Guides
Adjust the side guides.
Incorrect adjustment may cause the
paper to wrinkle, misfeed or skew.
NOTE:
When paper size is not detected,
remove paper and press Reset Key.
Then, load paper again.
10
Load paper lower than Side Guides
Approximately up to 50
A4 size sheets / 80 g/m2
Paper Weight: 55-133 g/m2
Getting To Know
Your Machine
3
4
5
COPY
SIZE
Select the Copy Job(s)
if necessary
Reduction/ Enlargement only
(See page 24)
Number of copies
(Max. 999)
Adjust the Manual Exposure
or
Select the Original(s)
Mainly text
Combined with
text and photo
Mainly photo
Exit Position of Copies
Inner of machine (bottom)
Inner of machine (upper)
Exit tray/finisher (outside)
• INNER 2 and OUTER are only available when the optional Inner Tray
or Exit Tray/Finisher is installed.
Copy Jobs
(See pages 22-29)
(See pages 30-35)
(See pages 36, 37)
(See pages 38-43)
(See pages 44-47)
(See pages 46, 47)
■ Problem Solving
Removing Misfed Paper
(See pages 14-17)
Adding Paper
(See page 10)
Replacing Toner Bottle
(See page 12)
UXX
User Error Code
(See page 12)
EXX
Machine Error Code
(Call your Service provider)
Replacing Staple
Cartridge
(See page 12)
Replacing Toner Waste
Container
(See page 12)
11
Getting To Know Your Machine
Operation Chart
■ Problem Solving
● Replacing Toner Bottle/Replacing Toner Waste Container
Toner Waste Container
1
2
6
7
Replacing Toner Bottle
Replacing Toner Waste
Container
New Toner Bottle
Seal
Shake the new Toner
Bottle well to loosen the contents.
● Replacing the Staple Cartridge
1
2
or
6 Check the
8
7
operation
● User Error Codes (U Code)
U12
U11
U4
U20/U21/U22
U0
U90
U7
12
Check Points
U0
Contact your Key Operator.
• Key Counter is not installed.
• Department ID Code is not entered.
U1
Front Cover is open.
U4
Finisher is pull out.
U6
Right Cover is open.
U7
Feed Cover 1/2/3 is open.
U8
Transport Cover is open.
U6
U8
U1
U13
U14
U15
U16
U25
Code
Getting To Know
Your Machine
3
4
Cap
5
Toner Bottle
Toner Bottle
6
Toner Waste Container
8
9
New Toner Bottle
Bottle Green Knob
New Toner Waste Container
(NEW)
Replace the Toner Waste Container
along with the New Toner Bottle.
Bottle Green Knob
3
10
4
Staple Case
5
2 New
1
6
Empty
Staple Cartridge
FQ-SS32
Jammed
Staple
When the Staple is jammed
● Following message will be
displayed on the Touch
Panel Display.
"Can Not Complete
Confirm Staple Unit"
Code
2
1
3
Check Points
Code
Check Points
U11
Paper is remained in the Finisher Bin.
U20
ADF cover is open.
U12
Finisher Staple Cover/Top Cover is open.
U21
ADF is opened while scanning from ADF.
U13
Low Toner.
U22
ADF Exit Unit is open.
U14
Toner Waste Container is full.
U25
Shake Toner Bottle well.
U15
Toner Waste Container is not installed.
U90
U16
Call your Service provider.
U18
Total Copy Count is limit, consult your Key
Need to replace the battery.
(See page 72)
Operator.
13
Getting To Know Your Machine
Operation Chart
■ Problem Solving (Continued)
● Removing Misfed Paper (Paper Entry Area/1st Paper Tray)
1
2
Misfed Paper
Right Cover
6
Right Cover
● Removing Misfed Paper (Paper Transport Area)
1
2
Latch
1
Push 2
Misfed Paper
When the optional finisher/outer
tray is installed.
● Removing Misfed Paper (Automatic Duplex Unit)
1
2
Paper Feed Guide
Right Cover
● Removing Misfed Paper (2nd and 3rd/4th Paper Tray)
1
2
2
1
Options
3rd Paper Tray (DA-DS303)
4th Paper Tray (DA-DS304)
14
Feed Cover
2
1
Paper Tray
Getting To Know
Your Machine
Right Paper Clearing Knob
3
4
2
5
3
2
1
6
1
Paper Tray
Heat Roller Cover
3
4
Paper Transport Cover
Latch∗
Misfed Paper
∗ Check that the latch is securely fastened.
3
4
Misfed Paper
2
1
Right Cover
Paper Feed Guide
3
4
Feed Cover
15
Getting To Know Your Machine
Operation Chart
■ Problem Solving (Continued)
● Removing Misfed Paper (i-ADF)
1
2
Misfed Paper
ADF Cover
6
7
Exit Unit
ADF Tray
● Removing Misfed Paper (ADF)
1
2
Misfed Paper
ADF Cover
6
7
Exit Guide
ADF Tray
● Removing Misfed Paper (Finisher)
1
2
Finisher
Release Button
16
Misfed Paper
Getting To Know
Your Machine
3
4
5
Misfed Paper
6
Exit Unit
ADF Tray
8
Misfed Paper
9
2
1
3
4
5
Misfed Paper
6
Exit Guide
ADF Tray
8
Misfed Paper
9
2
1
3
Finisher
NOTE:
If the misfed indication remains, open the upper cover
and remove misfed paper.
When using the Staple Sort, Shift-Sort or Shift-Group
mode, remove remaining copies on the staple tray.
Then copy job will restart.
Upper Cover
1
3
Remaining
Copies
2
Misfed Paper
17
Before Starting
Energy Star
As an ENERGY STAR® Partner, Panasonic has determined that this product meets
the ENERGY STAR® guidelines for energy efficiency.
This voluntary program specifies certain energy consumption and usage standards.
This product will automatically “power down” after a specified period of non-use. The
use of this ENERGY STAR® compliant product will reduce energy consumption and
ultimately benefit the environment.
The default functions can be adjusted depending on your office requirements.
Please ask your authorised Panasonic dealer for more details.
18
Control Panel
2
10
ORIGINAL COPY SIZE
SIZE Keys Keys
No.
1
2
3
4
5
6
7
8
9
10
8
3
4
5
6
7
Before Starting
1
9
Touch Panel
Display
Keypad
START
Key
Contents
COPY Key
● Press when using the unit as a photocopier.
ENERGY SAVER Key
● Can save power while the copier is not in use.
INTERRUPT Key
● Interrupts other copy or print jobs while making copies.
FUNCTION Key
● Use when changing the paper size, initial values for functions (default values) and key operator settings.
RESET Key
● Resets all features to the initial power-on state.
CLEAR Key
● Clears the copy count in the display.
STOP Key
● Stops the copy run.
ALARM LED (RED)
● Lights when trouble occurs.∗∗
ACTIVE LED (GREEN)
● Lights when machine is active.
PRINT DATA LED (GREEN)
● Lights when print data receive.
∗ FAX/EMAIL ON LINE LED for optional FAX/Email functions
Print ON LINE LED for Printer function
NOTE
∗∗ When the machine detects a problem or an alarm status is activated, the
8 Alarm LED lights
up or begins to flash.
LED Lights: Machine detected a trouble status
• No paper in the selected tray or toner has run out.
• Machine detected trouble, such as paper misfeed or jam.
LED Flashes: Machine detected an alarm status
• No paper in the tray. (tray not selected)
• Running low on toner etc.
● The Control Panel displayed above shows only copier functions. Please refer to the appropriate operating instructions for other control panel functions.
19
Before Starting
Touch Panel Display
6 7
1
2 3
4
5
14
8 9 10 11 12 13
15
16
17
18
19
20
29
28
27
26
25
24
NOTE
23
22
21
● Use only soft finger pressure to activate the Touch Panel Display. DO NOT USE SHARP
OBJECTS such as pens, fingernails etc., as this may damage the panel.
● Touch Panel Display Brightness Adjustment:
To adjust the brightness of the Touch Panel display, press and while holding down the "C"
(CLEAR) key, keep pressing the "ORIGINAL SIZE/A3" or the "COPY SIZE/A3" keys until the
desired brightness is achieved.
ORIGINAL SIZE/A3 : Dimmer
COPY SIZE/A3
: Brighter
20
No.
Contents
Before Starting
■ Touch Panel Display Indications
See Page
1
Warning Indications
: Add Toner
: Add Paper
10 - 13
2
Original Icon
—
3
Original Size Indication
—
4
Job Build and SADF/Multi-Size Feed Mode Indication
5
Rotate Mode Indication
—
6
Number of Copies
—
7
Machine / User Error Code Indication (E1-01, U13, etc.)
8
Copy Icon
—
9
Copy Size Indication
—
10
Reserve a Job Button
49
11
Finisher Functions Indication
12
Machine Outline with Tray Selection (Paper Tray and Output Tray)
—
13
Paper Level and Size Indication
—
14
Paper Tray Selection Button
—
15
Tandem/Remote Button Indication
25
16
Tandem/Remote Button
25
17
Output Tray Indication
11
18
Output Tray Button
11
19
Density Indicator (7 steps)
11, 23
20
Manual Exposure Select Buttons (Lighter and Darker)
11, 23
21
Original Mode Select Button (Text; Text / Photo; Photo)
11, 23
22
Copy Image and Paper Image Indication
—
23
Copy Ratio Indication
—
24
Original Image Indication
—
25
Completion Notice Button
29
26
Job Queue Button
28
27
Job Settings Button
—
28
Proof Set Button
25
29
Function Categories
—
: Call Service (Call your service provider)
: Waste Toner
34, 35
11 - 13
36, 37
21
Making Copies
Basic Menu
■ Copying the Same Size Originals (1:1)
Copy size is automatically selected.
1
2
or
100%
If other function
is in used
If original size
is not detected
■ Notice for ADF/i-ADF (Option)
i-ADF(DA-AR250)/ADF(DA-AS200)
Inappropriate Originals
● Paper with a smooth surface such as glossy
and coated papers
● Transparencies
● Originals with a Lead Edge that is “creased”,
“folded”, “punched” or “glued”
● Paste-ups
● Pressure sensitive or carbon backed papers
● Paper with excessive curl
● Stapled originals
● Freshly printed copies from a laser printer
ADF Tray
Original Guides
Adjust to the original’s width
Set the originals up to the upper limit arrow
■ Notice for copying on the heavy paper (Postal Card etc.) (maximum 133 g/m2)
1
Load paper
on the sheet
bypass
2 Select the sheet bypass and
4 touch the Size Change button
3 Select the heavy paper
3
4
5
NOTE
22
● During the copy operation and after making copies, the fan motor may start spinning. This is a
normal operation and is used to cool down the copier.
3
4
Adjust the Manual Exposure
or
Making Copies
Select the Original(s)
Mainly text
Combined text and Photo
Number of copies
(Max. 999)
Mainly photo
Features
Automatic Original Feeding
Duplex Copying (DA-AR250)
Feeds original automatically
Up to 50/A4 size of 75 g/m2 paper
(up to 30 B4 or A3 size)
Automatic original size detection
A5 to A3
Insertion/Overlay
• Cover
• Page Insertion
• OHP Interleaving
• Presentation
• Overlay
2-Sided originals
2 or 1-Sided copy
automatically
(See pages 44-47)
(See pages 30, 32)
■ Position of the original(s)
From ADF/i-ADF
NOTE
From Platen Glass
● Memory Capacity:
If the memory becomes full during original scanning, the message “Cannot Complete / Job
Exceeds Memory Capacity” will be displayed on the LCD. If this occurs, follow the instructions
on the LCD.
When additional memory is required, consult with an authorised servicing dealer.
23
Making Copies
Basic Menu
■ Copying with Preset Ratios
1
A4
2
or
or
A3
A3
If original size
is not detected
A4
■ Proof Copying
Allows you to make one proof set, before
proceeding to copy a large multi-set with
various settings.
100
1
1
2
or
2
Proof copy
Set the Copy Job(s)
if necessary
Multi copy
■ Tandem /Remote Copying
Required installation of optional Hard Disk Drive/
DA-HD30 and Image Memory (DA-SM16B/SM64B/
SM28B), network setup (See pages 56, 62) and
registration of parameter of the user machine
(See page 26).
1
Remote Copying
2
or
Other copier
100
copies
100 copies
Set the Copy Job(s)
if necessary
5
Tandem Copying
This copier
Other copier
or
+
50
copies
NOTE
24
50
copies
Station
● If the desired copy size is different from the paper size loaded in the paper tray, use sheet
bypass. (See page 10)
The selected Remote printing copier, must be either DP-2310 or DP-3010.
For the copier to function as a Remote/Tandem Copier it has to be setup in advance.
3 The Correct ratio is automatically selected.
4
Reduction and enlargement ratios (%)
A3
100
115
141
200
COPY SIZE
B4
A4R
87
71
100
82
122
100
173
141
A5
50
58
71
100
Making Copies
ORIGINAL
SIZE
A3
B4
A4R
A5
Number of copies
(Max. 999)
3
4
5
If the Proof copy is OK,
the remaining number
of sets will be printed.
or
If the Proof Copy is NG,
again, place the originals
back on the ADF (or Platen
Glass) and try again.
Number of copies
(Max. 999)
3
4
5
Number of copies
(Max. 999)
6
For Tandem
7
For Remote
NOTE
Press the PROOF SET button again if the Proof Copying mode was reset.
25
Making Copies
Basic Menu
■ Tandem/Remote Copy Settings (Registration 1)
It is necessary to input the Key Operator
ID code.
1
4
Input ID Code
(4-digit)
7
∗ By default, the key name will
be up to 15 characters of the
station’s name.
Enter the key name∗
(up to 15 characters).
■ Tandem/Remote Copy Settings (Registration 2)
1
If either DP-2310 or DP-3010 is installed
on a network with a different subnet mask,
must first register the DP-2310 or DP-3010
before being able to use the
Tandem/Remote Copying function.
2
5
6
IP Address
Ex: 123.123.12.1
When entering a one or
two digit address, add
“00 “ or “0” in front of
the address, or enter “ “
after address.
Scroll to
04/04
■ Tandem/Remote Copy Settings (Editing)
To edit the registered machine’s settings
(IP Address, machine name or key name).
1
2
Open the screen
04/04 same as
above procedures
(Registrations).
■ Tandem /Remote Copy Settings (Deleting)
To delete the registered machine.
26
1
Open the screen
04/04 same as
above procedures
(Registrations).
2
2
3
Scroll to
02/02
6
Making Copies
5
4
7
Scroll to
07/08
Machine name
(up to 15 characters)
Button name of Keyboard
To input capital letter.
To move the cursor (_) to the left or right side.
To input number and symbol mark.
To erase the character before the cursor.
3
4
5
Scroll to
04/04
7
Input ID Code
(4-digit)
8
Enter the machine and key
name same as above
procedures (Registration).
3
4
5
Enter the new IP Address
same as above procedures
(Registration).
Enter the machine and key
name same as above
procedures (Registration).
Select the registered
machine name
3
Select the registered
machine name
4
27
Making Copies
Basic Menu
■ Job Queue
Can refer to a job list waiting for printing, delete
or change of priority (only for print job).
1
Job 3
Job
1
Job 1
Job
2
4
∗∗
Job 2
Deleted
Job
3
Select the job(s)∗
wish to delete
Select the job(s)
∗ You can select to delete multiple or all jobs.
∗∗ Priority can be selected for print jobs only
when the optional HDD is installed.
■ Completion Notice
A Job Completion Notice via a pop up screen on the
PC when the Copy Job is completed.
Before using the Completion Notice, install the
Panasonic-DMS included with the machine.
1
2
or
Copy is completed.
Select the
Pop up Display
Right click the
Status Monitor icon
Pop up screen
NOTE
28
● The PRINT JOB QUEUE requires the Key Operator’s Password, however, the COPY JOB
QUEUE does not require a password.
The Job Queue selection function is only available when the optional HDD is installed.
2
3
4
5
Making Copies
Input password
(4-digit)
6
2 times
3
4
5
Select the desired
PC Address
NOTE
Number
of Copies
● This Completion Notice is available only when connected to the network.
To reset the Completion Notice, press the CANCEL button.
29
Making Copies
2-Sided/Original
■1
2, 2
●1
1, 2
Copy
2 Copy
2 Copy
1
●2
2
1 Copy
or
●2
Reduction/
Enlargement
only
2 Copy
(1
2 Copy only)
● Duplex Notice function
“2-SIDED PRINT” is printed on the copy.
Bottom right
position
■ Book
● Book
or
Upper right
position
2 Copy
2 Copy
1
2
(1st Page BLANK)
Platen Glass
A4/A3
(1st Page IMAGED)
● Duplex Notice function
“2-SIDED PRINT” is printed on bottom right position
of the copies.
30
A3
Reduction/
Enlargement
only
4
Bind position
5
Number
of Copies
or
or
Making Copies
3
or
4
When clearing
the 2-Side Copy:
6
From Platen:
When "Last Original?" is
indicated.
Ex: 2 originals
Touch "NO" button.
Place next original on
the platen glass.
3 Press Start Key.
4 Touch "YES" button.
If necessary
or
or
When DUPLEX NOTICE
is selected.
2-SIDED PRINT
Original format
3
Copy format
4
5
If
necessary
or
Number
of Copies
or
or
6
When DUPLEX NOTICE
is selected.
"Last Original?" is indicated.
Ex: 2 originals
Touch "NO" button.
Place next original on the
platen glass.
3 Press Start Key.
4 Touch "YES" button.
2-SIDED PRINT
31
Making Copies
2-Sided/Original
Copy
■ 2 Page Copy
Copying two facing pages or a A3 size original
on two separate A4 size sheets.
1
2
Platen Glass
Example: A3 size original
A3
A3/A4
■ N in 1 Copy
From two/four/eight 1-Sided originals, side by side,
to 1-Sided pages.
● 2 in 1 Copy
1
● 8 in 1 Copy
1
2
3
4
5
6
2
● 4 in 1 Copy
1
1
1
2
3
2
or
2
3
4
3
4
4
Reduction/
Enlargement
only
7
5
6
7
8
8
When 2 in 1 copying onto a different
paper size than the original, select
desired copy paper size using
"COPY SIZE" key (and not "PAPER
TRAY" button of LCD touch panel).
● 2-Sided Copy
From 4/8/16 1-Sided originals, side by side, to
2-Sided copies.
■ Booklet Copy
1
Prints/Copies output in order so
document can be folded like a book.
2
1
2
3
4
1
2
3
3
4
A4 or A5 originals only
Reduction/
Enlargement
only
32
∗ Default copy size is Reduce,
copy size can be selected
with 100 % or Reduce.
Copy Format
4
5
Number
of Copies
"Last Original?" is indicated.
Ex: 2 originals
Touch "NO" button.
Place next original on the
platen glass.
3 Press Start Key.
4 Touch "YES" button.
Making Copies
3
or
3
4
5
∗
N in 1 mode
Original
direction
Copy
layout
Number
of Copies
ex. 2 in 1
or
or
or
or
● Copy is automatically reduced.
2 in 1: 71 %, 4 in 1: 50 %, 8 in 1: 35 %
(ex. A4 to A4- size)
∗ When the N in 1 Copying with 2-Sided
copy.
“2-SIDED PRINT” will be printed on the
copy.
From Platen Glass:
Same Procedures as for 2 Page
Copy
Binding position
or
4
5
Binding
position
Cover mode and
Paper Tray
Number
of Copies
or
33
Making Copies
2-Sided/Original
Copy
■ Multi-Size Feeding
1
Use this function when copying mixed A3/A4 size
originals using the i-ADF/ADF. Original size can be
detected automatically then can be copied full size or
same size.
2
A4 + A3 originals
Reduction/
Enlargement
only
A4 + A4R Copies
Originals
A3
A4
Copies
Full Size
A3
A4
Reduction
A4/A4R
A4/A4R
■ JOB BUILD AND SADF Mode
Special originals (like thin paper, etc.) can be fed
from the i-ADF/ADF Tray and copied continuously
using the JOB BUILD AND SADF Mode.
1
2
Place the original One
at a Time or up to 50∗
sheets (80 g/m2)
∗ 30 sheets/A3, B4
Reduction/
Enlargement
only
Example: To make 5 sets of sorted copies of
80 sheets of originals. (A4 size)
1
2
50
80
1
1
Originals: 50 sheets <1st scan>
Place the first 50 sheets
of originals on the i-ADF/
ADF Tray.
80
51
1st and 2nd Scanned Data
are combined into one job.
Originals: Remaining 30 sheets <2nd scan>
NOTE
34
5 sets of 80 sheets sorted
copies are printed
● Multi-Size Feeding Function cannot be combined in another 2-sided/original
1 and 2
2.
● JOB BUILD AND SADF function cannot be combined with 2
● Optional Image Memory or Hard Disk Drive may be required.
copy function.
4
3
Making Copies
Number
of Copies
4
5
6
3
Number
of Copies
Place the next original
within 5 sec. of last
ejected copy.
If message “Another original?
YES or NO” is shown, touch
“NO” button.
3
4
Desired sorting/finishing
5
Number
of Copies
(ex. 5)
6
Place the next original within
5 sec. of last ejected copy.
(30 sheets)
or
or
etc.
If message “Another original?
YES or NO” is shown, touch
“NO” button.
35
Making Copies
Sort/Finish
■ When using Sort Mode
Sort
Multiple copy sets are sorted
automatically.
1
1
1
1
or
1
Rotate-Sort
1
1
Multiple copy sets are sorted
automatically and stacked in
alternate direction (rotate).
(A4 size only)
Note: For this function both A4 (portrait)
and A4R (landscape) need to be
available.
2
Rotate-Group
Multiple copies of individual
pages are stacked in alternate
direction (rotate).
(A4 size only)
1
Staple Position
ADF
3
Shift-Sort
When optional finisher (DA-FS300)
is installed.
Offset using electronic sorting
(A4, A4R, B4, A3)
1
1
1
Platen Glass
Shift-Group
1
2
When optional finisher (DA-FS300)
is installed.
Offset using electronic sorting
(A4, A4R, B4, A3)
3
Staple Sort
P
P
Non-Sort
36
When optional finisher (DA-FS300)
is installed.
Sort by stapling sets.
Up to 30 sheets.
(A4, A4R, B4, A3)
Copy is stored on the tray.
3
4
Making Copies
2
Number
of Copies
Sort mode
or
Reduction/
Enlargement
only
or
or
1-Bin Finisher (DA-FS300)
When the optional finisher is installed,
this screen will be changed as follows:
For DA-FS300
or
or
Bin
● Stapling (Up to 30 sheets: A4/A4R,
20 sheets: B4/A3)
● Shift electronic sort
● When copying with B4/A3 size, pull out
the bin until it stops.
● Paper Capcity (80 g/m2 Paper)
Paper Size
A5, A4
Non-sot/Rotate
500
B4, A3
250
(A5 Size is only available in Non-sort mode)
Shift
500
(Max. 30 Sheets/Shift)
250
(Max. 20 Sheets/Shift)
Staple∗
10 to 30 Sheets: 45 to 16 Sets
2 to 9 Sheets: 70 to 50 Sets
10 to 20 Sheets: 25 to 12 Sets
2 to 9 Sheets: 70 to 28 Sets
∗Ex: A4 Size
10 Sheets: 45 Sets
30 Sheets: 16 Sets
37
Making Copies
Zoom/Effects
■ Zoom
Copies with variable zoom ratios from 25 %
to 400 % in 1 % increments.
25%
1
2
400%
or
■ Auto Zoom
1
The copy Zoom Ratio adjusts automatically to
the selected paper size.
2
Opening the
i-ADF/ADF
Fit to paper length or width
Fit to paper length and width
■ Edge
Creates a blank edge.
1
2
or
■ Book
Eliminates dark inner binding shadows.
1
Platen Glass
2
A3
A4/A3
ATTENTION
● If using the keypad to set the zoom ratio, press the CLEAR key first to reset the zoom ratio.
When changing the paper size after setting the zoom ratio, use the PAPER TRAY button.
NOTE
● For Auto Zoom
An incorrect exposure may occur when there is a black line at the edge of the original or an
image which the copier interprets as a black pattern in the skyshot mode.
An incorrect position detection of the original may occur when a strong light shines onto the
glass during skyshot mode.
38
3
Same ratio of vertical and
horizontal
Different ratio of vertical
and horizontal
4
or
or
or Keypad
25% - 400%
or
Number
of Copies
Making Copies
25% - 400%
or
or Keypad
3
4
5
Paper Size
(Paper tray)
Fit to paper length
or width
Number
of Copies
Right: Fit to paper
length and width
3 Same value of vertical and
Different ratio of vertical
and horizontal
horizontal void
4
or
5 - 99 mm
or
or
or Keypad
3
5 - 99 mm
or
Number
of Copies
or Keypad
4
5 - 99 mm
or
Number
of Copies
or Keypad
NOTE
● Zoom ratio
If using the keypad to set the zoom ratio, press the CLEAR key first to reset the zoom ratio.
39
Making Copies
Zoom/Effects
■ Margin
1
Shifts image to right, left, up or down.
2
or
■ Centering
Copy image can be centred automatically on
selected paper.
1
2
Opening the
i-ADF/ADF
■ Image Repeat
Create continuous copy image on one sheet.
Minimum original size: 20 x 20 mm
1
2
Opening the
i-ADF/ADF
The dotted line can be selected
“None” or “Print” by Function mode
(See page 53).
■ Inverse
Negative/Positive image can be made for
interesting effects.
1
2
or
NOTE
40
● In Centering and Image Repeat mode, make copies with i-ADF/ADF open.
● Remove the originals from the i-ADF/ADF before selecting the Centering and Image Repeat mode.
An incorrect position detection of the original may occur when a strong light shines onto the
glass during the Centering and Image Repeat mode.
Also an image which the copier interprets as a black pattern in the Centering and Image
Repeat modes.
3
4
Number
of Copies
5 - 99 mm
3
or
or Keypad
Making Copies
Margin area
If a part of the copied image
is missing when using the
Margin mode, change the
Margin Reduction setting to
Yes. (See page 52)
4
Paper Size
(Paper tray)
3
Number
of Copies
4
Paper Size
(Paper tray)
Number
of Copies
3
Number
of Copies
41
Making Copies
Zoom/Effects
■ Stamping (Page Numbering)
The page number can be automatically printed
on each page.
1
2
i-ADF/ADF only∗
-1-
1/8
The page numbering
format can be changed
in function mode.
Initial format is "-n-".
(See page 53)
■ Stamping (Date Stamp)
A selected date can be automatically printed
on each page.
1
2
i-ADF/ADF only∗
01/05/2003
■ Stamping (Issue Number Stamping)
The issue number can be automatically printed
on each page.
1
2
i-ADF/ADF only∗
001
NOTE
42
∗ When copying the Stamping mode combined with N in 1 mode, the Stamping mode can be
used from the platen.
4
ORIENTATION
Stamping position
Number of Copies
(Max. 999)
Stamping start page
From 1, 2 or 3
or
From 3rd page
From 2nd page
From 1st page
3
● Multiple copy sets will be
sorted automatically.
4
ORIENTATION
Stamping position
Number of Copies
(Max. 999)
Stamping date
if you change
or
● Multiple copy sets will be
sorted automatically.
3
4
ORIENTATION
Stamping position
Stamping issue number
Number of Copies
(Max. 999)
or
● Multiple copy sets will be
sorted automatically.
43
Making Copies
3
Making Copies
Insertion/Overlay
■ Cover
1
Adds cover page(s) to the copies.
Original
Blank
Paper
1
Blank paper
2
1
+
2
i-ADF/ADF only
Original
Colour
Paper
Colour
Paper
1
Copied paper
2
1
3
+
4
2
3
4
■ Page Insertion
1
Inserts paper between the copies.
Original
Blank paper
2
Blank
Paper
+
Original
i-ADF/ADF only
Copied
Paper
Insertion
Insertion
+
Copied paper
2
■ OHP Interleaving
1
Inserts paper between OHP film.
Original
Blank
Paper
OHP1
1
Blank paper
2
OHP2
+
Original
(1)
2
i-ADF/ADF only
Copied
Paper
1
Copied paper
(2)
+
OHP1
OHP(1)
OHP2
OHP(2)
■ Presentation
Inserts paper between OHP film and make copied 1
sets for hand-outs.
Original
Blank paper
Blank
Paper
2
NOTE
44
OHP2
+
(1)
2
(1)
(2)
+
i-ADF/ADF only
Copied
Paper
1
+
2
Handouts
OHP1
1
Original
Copied paper
2
(2)
Handouts
OHP1
OHP(1)
OHP2
OHP(2)
(1)
+
(2)
● Certain types of transparency film may not be compatible and may damage your machine.
Consult with an authorised Panasonic dealer for advice regarding non-standard paper types.
(Panasonic has tested "3M PP2500" transparency film and found it to be compatible.)
3
4
Blank
Number of copies
(Max. 999)
Paper Size∗
Paper tray
Making Copies
Cover mode
Cover (Front) Cover (Front+Back)
Copy
3
4
Insertion mode
Blank
Number of copies
Input insert page position with
(Max. 999)
Keypad∗∗
If inserting other position, move
the sheet with
/
button then,
input insert page position with Keypad
Paper Size∗
Paper tray
Copy
3
5
4
5
Load OHP film on
the sheet bypass
Interleaving mode
Blank
Paper Size∗
Paper tray
Number of copies
(Max. 999)
Copy
3
4
5
Load OHP film on
the sheet bypass
Presentation mode
Blank
Paper Size∗
Paper tray
Number of copies
for hand-outs
(Max. 999)
Copy
NOTE
∗ Paper size/direction for copy and paper should be the same.
∗∗ Blank page to be inserted before indicated selected page number.
45
Making Copies
Insertion/Overlay/Job Memory
■ Overlay
Overlays a second image onto the first by using
a second original.
1st-page
1
2
or
■ File Edit
There are three File Edit available 1
in the Form Overlay function.
Register : To Add a new file∗
(Max. 5 files)
Erase
: To Erase a
registered file
Title Edit : To Change the
title of a file
2
3
∗∗
or
Select a file
∗ Up to 5 image files can be registered.
(Register only)
∗∗
If the selected File Key already contains a
registered file image, the new image will
overwrite the current image.
When the optional Hard Disk Drive (DAHD30) is not installed, next step after "2"
skips to step "ERASE " in step 4.
■ Form Overlay
Overlay an image stored in memory onto the copier. 1
2
File
or
■ Job Memory
Five Copy Jobs can be stored in Memory
(M1 to M5) for recall at a later time.
To store a job in memory
1
2
Set up the copy
job to be stored.
M1, M2, M3, M4, M5
NOTE
46
● Function to select the files is only available when the optional Hard Disk Drive (DA-HD30) is
installed.
When the optional Hard Disk Drive is not used, selectable file is only one file.
● When the image is not available in the memory to overlay, Form Overlay function will not be
selectable.
4
5
Number of copies
(Max. 999)
Density for second image
or
4
From Platen Glass:
Same procedures of
Form Overlay
5
6
Select to store the overlay image
into memory for later use.
Making Copies
3
or
7
REGISTER
Density for
second image
File name
or
When cancel the registration,
touch "CANCEL" button.
4
ERASE
4
FILE NAME EDIT
5
Enter the file name
3
4
Select a file
From Platen Glass:
When "Another Original?" is indicated.
Ex: 2 originals
Touch "NO" button.
Place next original on the platen
glass.
3 Press Start Key.
4 Touch "YES" button.
Number of copies
(Max. 999)
To recall a job stored in memory
1
2
3
or
M1, M2, M3, M4, M5
NOTE
Number of copies
(Max. 999)
● JOB MEMORY mode will not be deleted even if the power switches are turned Off.
● When storing a new job into a programmed memory location, the previously stored job will be
overwritten and erased.
● M1, M2 can use as manual skyshot mode by setting user function mode.
47
Making Copies
Other Features
■ Concurrent Copying
1st job
1
Next copy job can be reserved even if the current
copy job is not completed.
(Requires the optional Hard Disk Drive/DA-HD30 to
be installed.)
1st job
1st job
Copy
2nd job
Reserve
2
Select Function
or
2nd job
■ Energy Saver (Power Save Mode, Sleep/Shutdown Mode)
These modes can save power while the copier is not in use.
1 Power Save Mode
Sleep/Shutdown Mode∗∗
or
To clear
2
Automatically enters the Sleep/
Shutdown Mode after 15 minutes
from the last copy.
Modes
Enter
Indicator
Flash : Power Save Mode
Light : Sleep/Shutdown Mode
Power Consumption
Warm Up Time
Normal Operation
Approx. 140 Wh
N/A
Power Save
Approx. 28 Wh
Min. 30 sec.
Sleep
Approx. 18 Wh
35 sec.
Shutdown
Approx. 4 Wh
35 sec.
The machine will not go into Sleep/Shutdown Mode when the Weekly
Timer is selected.
■ Skyshot Mode
Skyshot allows copying a manuscript without generating dark borders even if the platen cover or i-ADF/ADF is opened.
Two types of Skyshot modes can be selected;
Digital Skyshot Mode : The scanning area (size) is not pre-determined.
Manual Skyshot Mode: The scanning area (size) is pre-registered into memory (M1 and M2) in advance.
Digital Skyshot Mode
NORMAL
Default setting (usually select this mode).
QUALITY∗
For better definition, select the Quality mode.
The default setting of Digital Skyshot Mode is
“NORMAL”. In this setting, the unit scans once.
If there are black areas around the borders in
the copies, set the Digital Skyshot Mode to
“QUALITY” to soften the dark borders. In this
setting, the unit scans twice.
(See page 52)
NOTE
48
1
Opening the
i-ADF/ADF
∗ When copying the Quality mode combined with 1
2
Number of copies
(Max. 999)
2, BOOK
2, 2PAGE, N in 1, “Quality”
mode will be changed to “Normal” mode.
∗∗ Sleep Mode/Shutdown Mode and entering timer can be selected by the key operator.
(See page 55)
● An incorrect exposure may occur when there is a black line at the edge of the original or an
image which the copier interprets as a black pattern in the skyshot mode.
3
4
5
6
Select
Function
Job Waiting List can be
confirmed with Job Queue.
(See page 28)
Scanning is completed
■ Interrupt Mode
This mode can interrupt other copy jobs while making copies.
Other Job set
1
2
3
4
5
Other Job is
completed
or
Manual Skyshot Mode
● Set 09 Manual Skyshot Mode in Copier Settings first. (See page 52)
1
Platen
UpperLeft
Corner
2
Custom size∗
3
Number of copies
(Max. 999)
∗ Default M1/M2 size can be changed
by Function mode. (See page 57)
NOTE
● If using i-ADF, place original on the center position of ADF Tray. The i-ADF/ADF can feeds only
50-105 g/m2 plain paper.
● When using the manual skyshot mode, the M1 and M2 are turned On and other job memory
cannot be used.
● An incorrect position detection of the original may occur when a strong light shines onto the
glass during skyshot mode.
49
Making Copies
or
Function
■ Using Function Modes to change the Initial Copy Modes
Procedure
Options
GENERAL
SETTINGS
COPIER
SETTINGS
PRINTER
SETTINGS
FAX/EMAIL
SETTING
SCANNER
SETTINGS
Input Identification (Key Operator ID) Code
General
Settings for
Key Operator
Copier
Settings for
Key Operator
GENERAL SETTINGS:
Printer
Settings for
Key Operator
Fax/Email
Settings for
Key Operator
Changing the Initial Machine Modes
● Power on default mode, Manuals add toner, etc.
(See page 52)
For Key Operator:
Paper size, Finisher bin/Staple mode, Department
Counter, Network TCP/IP settings, etc.
(See pages 55, 56)
■ Procedure
1
2
3
Select desired Function Mode
NOTE
50
Select desired Function
● Please refer to each operating instructions for options function settings.
COPIER SETTINGS:
Changing the Initial Copy Modes
● Default function of each copy mode
(See pages 52, 53)
For Key Operator:
Paper size priority, Original mode, Contrast, JOB BUILD
AND SADF mode, Original size of Manual Skyshot
mode, etc.
(See page 57)
PRINTER SETTINGS:
Changing the Initial Printer Modes
Function
● Default function of each print mode
(See page 54)
For Key Operator:
Job completion time, Page protection, Error page print,
Spool function, PS configuration, Font list print, Mailbox
data holding, etc.
(See page 58)
<When Optional accessory is installed>
SCANNER SETTINGS:
Changing the Initial Scanner Modes
● Original mode, Compression mode, Resolution, JOB
BUILD AND SADF mode, Address book, etc.
(See page 53)
● Even if without Scanner Option, Completion Notice for
copier function works.
FAX/EMAIL SETTINGS:
Changing the Initial Fax/Email (i-FAX) Modes
Refer to Operating Instructions (For FAX/Email function).
When the Key Operator Mode:
4
Setting the function parameter
5
Identification Code
(4-digit)
6
Sets desired function
parameter(s) according to
shown message and image
on the touch panel display.
51
Function
■ GENERAL SETTINGS
Screen
No.
Modes
00 Power On Default Mode
Selects mode.
● Copy, Printer, Scanner
Copy
01 Manual Copy Quality Adj
Sets to activate the manual density control.
● Off, On
Off
02 Manual Add Toner
Adds toner manually.
● Off, On
Off
03 Sort Memory Status
Indicates the sorting memory status.
● Off, On
Off
04 Departmental Counter
Indicates the department counter.
Consult with an
authorised service
provider
09 Key Operator Mode
Input the Key Operator ID Code.
01/02
02/02
Initial
Setting
Function
■ COPIER SETTINGS
Screen
No.
Modes
00 Margin Value Default
Selects the margin shift value.
● 5 mm, 10 mm, 15 mm, 20 mm
10 mm
01 Edge Value Default
Selects the edge width.
● 5 mm, 10 mm, 15 mm, 20 mm
5 mm
02 Book Value Default
Selects the book void width.
● 15 mm, 20 mm, 25 mm, 30 mm
20 mm
03 Margin Reduction Def.
Selects the reduction ratio in margin mode.
● No, Yes
No
04 2-Sided Mode Default
Function sets the duplex priority mode.
● No, 1 to 2, 2 to 2, Book to 2
No
05 N in 1 Default Mode
Selects the N in 1 default mode
● 2 in 1, 4 in 1, 6 in 1
2 in 1
06 Reduce N in 1 For Space
Selects whether to disable edge deletion
● No, Yes
No
07 Booklet Default Mag.
Select the booklet magnification
● 100%, Reduce
Reduce
08 Digital Skyshot Mode
Enables or disables the use of Skyshot mode.
● No, Normal, Quality
Normal
09 Manual Skyshot Mode
Enables or disables the use of Manual Skyshot. Off
● Off, M1 On, M2 On, M1&M2 On
01/04
02/04
52
Initial
Setting
Function
■ COPIER SETTINGS
03/04
Modes
Initial
Setting
Function
10 Auto Contrast Adjust.
Automatically adjusts the copy density for text,
T/P.
● No, Yes
Yes
11 Sort Priority ADF
Selects the sort mode.
● None (Non-Sort), Sort, Staple, Group, Shift
Sort
12 Sort Priority Glass
Selects the sort mode.
● None (Non-Sort), Sort, Staple, Group, Shift
None
13 Stamping Default Mode
Selects the stamping mode.
● Page, Date, Issue
Page
14 Page Numbering Style
Selects the page numbering style.
● -n-, n/m
-n-
15 Imag. Repeat Dotted Line
Selects the dotted line.
● None, Print
Print
19 Key Operator Mode
Input Key Operator ID Code.
04/04
Function
Screen
No.
■ SCANNER SETTINGS
Screen
No.
Modes
Initial
Setting
Function
00 Scanner Settings Print
To print scanner settings print.
● Stop, Start
Start
01 Original Mode Default
Sets the original setting.
● Text, T/P (Text/Photo), Photo
T/P
02 Compression Mode Def.
Sets the compression mode setting.
● MH, MR, MMR, JBIG
JBIG
03 Resolution Default
Sets the resolution setting.
● 150 dpi, 300 dpi, 600 dpi
600 dpi
04 Job Build and SADF Mode
Sets the Job Build and SADF mode initial
setting.
● No, Yes
No
05 Bind Posi., 2-Sided Origi.
Sets the bind position, 2-sided original initial
setting.
● Longedge, Shortedg (Shortedge)
Longedge
06 Add New Address
To add new address.
● PC, DD, FTP
0, 0, 0, 0
07 Edit Address Book
To edit address book. (See page 68)
08 Delete Address
To delete address.
01/02
02/02
53
Function
■ PRINTER SETTINGS
Screen
No.
01/04
02/04
03/04
04/04
54
Modes
Initial
Setting
Function
00 Number of Prints
Sets the initial number of prints.
● 1 ~ 999
1
01 Paper Size
Sets the paper size setting.
● A3, B4, A4, B5, A5, LEDGER, LEGAL,
LETTER, INVOICE, 8 x 13, 8.5 x 13
A4
02 Paper Tray
Sets the paper tray setting.
● Auto, Bypass, Tray 1, Tray 2, Tray 3, Tray 4
Auto
03 Print Direction
Sets the print direction setting.
● Portrait, Landscape
Portrait
04 Auto Tray Selection
Sets the auto tray setting.
● Off, On
On
05 2-Sided Print
Sets the 2-sided print setting.
● Off, On
Off
06 Bind Position
Sets the bind position.
● Longedge, Shortedge
Longedge
07 Resolution
Sets the resolution setting.
● 1200 x 600, 600 x 600, 300 x 300
600 x 600
08 Font (PCL)
Sets the font of PCL.
● 0 ~ 99
0
09 Symbol Table (PCL)
Sets symbol table (PCL).
● 0 ~ 35
11
10 Pitch (PCL)
Sets pitch (PCL).
● 0.44 - 99.99
10.00
11 Point Size (PCL)
Sets point size (PCL).
● 4.00 - 999.75
012.00
12 Lines/Page (PCL)
Sets lines/page (PCL).
● 5 - 123
60
13 Return Character (PCL)
Sets return character (PCL).
● CR, CR + LF
CR
14 Mutual A4/LTR
Converts Letter to A4 automatically.
● Off, On
Off
15 Mailbox Memory Status
Indicates the memory status of mailbox.
● Memory, Box
16 Print Data
Sets print data.
● Stop, Start
19 Key Operator Mode
Input the Key Operator ID Code.
Start
For Key Operator
■ GENERAL SETTINGS
Modes
00 Print General Settings
Sets print of common menu for the user initial setting. Start
● Stop, Start
01 Paper Size
Sets the paper size of each paper tray.
● Ledger, Legal, Letter, Letter-R, Invoice,
A3, B4, A4, A4R, B5, B5R, A5, A5R, 8 x 13,
8.5 x 13
Consult with an
authorised service
provider
02 A4R/A5 Size Selection
Sets initial paper size of sheet bypass.
● A4R, A5
A4R
03 B5R/A5R Size Selection
Sets initial paper size of sheet bypass.
● B5R, A5R
B5R
04 Special Paper Tray 1
Sets the paper tray for special paper
(ex: coloured).
● None, Paper Tray 1, Paper Tray 2, Paper Tray
3, Paper Tray 4, Sheet Bypass
None
05 Special Paper Tray 2
Sets the paper tray for special paper
(ex: coloured).
● None, Paper Tray 1, Paper Tray 2, Paper Tray
3, Paper Tray 4, Sheet Bypass
None
06 Auto Paper Out Rotate
Copier will automatically rotate image and print
when selected paper tray is empty.
● Off, On
Off
07 Copy Output Tray
Sets the output tray for copy.
● Inner 1, Inner 2, Outer
Inner 1
08 Printer Output Tray
Sets the output tray for PRINTER.
● Inner 1, Inner 2, Outer
Inner 1
09 Fax/Email Output Tray
Sets the output tray for FAX/EMAIL.
● Inner 1, Inner 2, Outer
Inner 1
10 Auto Reset Time
Selects the Control Panel reset time.
● None, 30 sec., 1 min., 2 min., 3 min., 4 min.
1 min.
11 Power Save Mode Timer
Sets the Power Save Timer.
● 1 - 240 minutes
15
12 Sleep/Shutdown Select
Sets the Sleep/Shutdown mode.
● Sleep, Shutdown
Sleep
13 Sleep/Shutdown Timer
Sets the Sleep/Shutdown timer.
● None, 1 - 240 minutes
15
14 Language Sel. Priority
Selects the message language of the display.
● Off, On
Off
15 Language Default
Selects the message language of the display.
● English, French, Spanish
English
16 TCH Panel Beep Sound
Beep sound when touching the panel.
● Off, Soft, Loud
Soft
17 Original Set Beep Sound
Beep sound when original is set on the platen.
● No, Yes
No
18 Orig. Set In ADF Sound
Beep sound when original is set in the ADF.
● No, Yes
Yes
19 Dept. Counter Mode
Monitors copy usage of each department
(1) Printer usage of each document
(2) Print limit of each department
(3) ID code of each department
Consult with an
authorised service
provider
01/08
02/08
03/08
04/08
NOTE
Initial
Setting
Function
Function
Screen
No.
● It is necessary to input the Key Operator ID Code before changing items on this page.
55
Function
For Key Operator
■ GENERAL FUNCTIONS
Screen
No.
Modes
20 Date Time Setting
Sets date time registered.
● Day, Month, Year, Time
21 Weekly Timer
Sets the weekly On/Off timer.
● Off, On (Set)
Off
22 Daylight Time
Sets the daylight time.
● No, Yes
Yes
23 DHCP Default
Sets the DHCP.
● No, Yes
Yes
24 TCP/IP Address
Sets user IP address.∗∗
● 3 digits x 4
0. 0. 0. 0
25 TCP/IP Subnet Mask
Sets the subnet mask.
● 3 digits x 4
0. 0. 0. 0
26 TCP/IP Default Gateway
Sets the gateway address.∗∗
● 3 digits x 4
0. 0. 0. 0
27 DNS Server Address
Sets the DNS server.∗∗
● No, Yes
28 MAC Address
Indicates the MAC address.
29 Hard Disk Format
∗ Selects the hard disk format
Stop
30 Hard Disk Error Check
Select the hard disk error check
● Stop, Start
Stop
31 Address Book Group ID
Input group ID for address book.
● 0 ~ 99
0
32 Tandem User Parameter
Input parameter of user machine.
33 Community Name (1)
Selects to change the SNMP of Community
Name (1).∗∗
● Enables read only.
public
34 Community Name (2)
Selects to change the SNMP of Community
Name (2).∗∗
● Enables read/write.
public
35 Device Name
Input the device name when necessary.∗∗
(For Status Monitor/EtherTalk Machine Name)
Panasonic
DP-2310 or DP-3010
36 Device Location
Input the device location when necessary.∗∗
(For Status Monitor)
05/08
06/08
Initial
Setting
Function
Yes
● Stop, Start
07/08
08/08
NOTE
56
● It is necessary to input the Key Operator ID Code before changing items on this page.
∗ Not required in copying mode, but needed when installing options with advanced functions
(See page 65).
∗∗ When functions No. 24 to 27 and No. 33 to 36 are set, cycle the power by turning the Power
Switch OFF and ON.
■ COPIER SETTINGS
Modes
00 Copier Settings Print
Print the copier settings.
● Stop, Start
Start
01 Paper Size Priority
Selects paper size priority
● LEDGER, LEGAL, LETTER, LETTER-R,
INVOICE, A3, B4, A4, A4R, B5, B5R, A5,
A5R, 8 x 13, 8.5 x 13
A4
02 Original Mode Default
Selects original setting
● Text, T/P (Text/Photo), Photo
T/P
03 Text Contrast
Selects contrast for Text mode
●1 ~ 7
4
04 T/P Contrast
Selects contrast for Text/Photo mode
●1 ~ 7
4
05 Photo Contrast
Selects contrast for Photo mode
●1 ~ 7
4
06 Overlay Contrast
Sets the density (transparency) of the page
being produced in overlay mode.
●1 ~ 7
4
07 Interleaving Default
Selects OHP interleaving paper
● Blank, Copy
Blank
08 Page Insertion Default
Selects page insertion
● Blank, Copy
Blank
09 Cover Mode Default
Selects cover paper
● F, Blank, F, Copy
FB, Blank, FB, Copy
(F: Front, FB: Front + Back)
F, Blank
10 Job Build And SADF Mode
Enables or disables the use of SADF function.
● No, Yes
Yes
11 Maximum Copy Setting
Determines whether to limit number of copies
(0-99).
0
(No limit)
12 M1, Size
Input a size in job memory 1 for frequently
used size.
● X: 5~432/Y: 5~297 mm
(See page 46)
70 x 160 mm
(X) (Y)
13 M2, Size
Input a size in job memory 2 for frequently
used size.
● X: 5~432/Y: 5~297 mm
(See page 46)
95 x 220 mm
(X) (Y)
14 Memory Overflow Warning
Selects the task to perform when memory
overflow occurs
● Print, Cancel
Print
15 Add New Tandem Desti.
Inputs a new destination to split the copy job
16 Edit Tandem Destination
Edits a copy destination
17 Delete Tandem Desti.
Deletes a copy destination
01/04
02/04
03/04
04/04
NOTE
Initial
Setting
Function
● It is necessary to input the Key Operator ID Code before changing items on this page.
Function
Screen
No.
57
Function
For Key Operator
■ PRINTER SETTINGS
Screen
No.
Modes
00 Printer Settings Print
Sets the printer status print.
● Stop, Start
Start
01 Job Completion Time
Sets the job completion time setting.
● 1~ 999 sec.
180
02 Page Protection
Compress automatically then print out.
● Off, On
Off
03 Error Page Print
Sets print the error page.
● Off, On
On
04 Spool Function
Sets the spool function.
● Off, On
On
05 Text Print
Prints text page only.
● Off, On
On
06 PS Configuration Print
Sets the status page print of PS.
● Stop, Start
Start
07 Font List Print (PCL)
Sets the font list print of PCL.
● Stop, Start
Start
08 Font List Print (PS)
Sets the font list of PS.
● Stop, Start
Start
09 Mailbox Data Holding
Sets the automatic holding function of mailbox 7 days
data.
● Infinity, 1 day, 2 days, 3 days, 4 days, 6 days,
7 days
10 Delete Mailbox Data
Sets delete the mailbox data.∗
● All, Before
Before
11 Print Queue Delete
Sets authorization to delete the print queue.
● Free, Key op. (operator)
Key op.
12 AppleTalk Zone Name
Input an AppleTalk Zone name.∗∗
● Maximum 32 characters
01/03
02/03
03/03
NOTE
58
Initial
Setting
Function
● It is necessary to input the Key Operator ID Code before changing items on this page.
∗ Functions except 0 and 11 are available when optional accessories are installed.
∗∗ When function No. 12 is set, cycle the power by turning the Power Switch OFF and ON.
Function
MEMO
59
Function
For Example
■ Changing the Auto Contrast Setting
You can select whether the copying density is adjusted automatically for text and photographic originals.
1
2
3
Scroll to
03/04
■ Changing the Paper Size
The paper trays are designed to accommodate A5, A4, A4-R, B4/FLS and A3 Size paper.
1
2
3
Scroll to
02/02
6
7
8
9
Paper tray
Paper size
■ Weekly Timer
Key Operator can manage each on/off time in a week.
1
2
3
Scroll to
02/02
6
7
End time
60
8
Input time
Ex.: 1700
Start time
4
5
or
5
Function
4
6
ID Code
(4-digit)
10
11
12
a
b
Pull out the paper tray
Adjust the paper guide a / b
Change the paper size indicator
Note: It is recommended that the paper guide (b) be fixed in place with screws. Consult
an authorised servicing dealer for details on how to fasten using screws.
4
5
6
ID Code
(4-digit)
9
Scroll to
05/08
10
11
Input time
Ex.: 0800
61
Function
For example
■ Department Counter
Department Counter can be managed, limit copies, counters and code numbers for each department.
(Maximum department number: 300)
Contact your authorised servicing dealer to enable the Department Counter feature.
1
2
3
Scroll to
02/02
6 For Total Counter
For Identification Code
or
Displays the sum of all the
active department counters.
or
Prints all the active
department counters.
To clear the total counter, touch the INPUT
button, enter 0 and touch the OK button.
ID Code
(8-digit)
Select Page
Select Department
7
6 Input a Department Name (up to 25
characters) with the Keyboard and
touch the OK button. (How to use the
Keyboard, refer to page 27)
■ Network Settings
When the Parameter “23 DHCP Default” is set to “No”, the Key Operator must administer the Network settings manually.
1
2
3
Scroll to
02/02
5
6
Scroll to 05/08
or
Scroll to 06/08
62
Input address
Ex.: 192.168.1.100
When entering a one or two digit address, add “00 “ or “0” in
front of the address, or enter “ “ after address.
4
5
6
Scroll to
04/08
ID Code
(4-digit)
For Maximum Prints
For Department Counter
Clear the
counter
(8-digit) to “0”
Select Page
Select Department
Maximum number
of Copies (8-digit)
Select Page
Select Department
4
5
ID Code
(4-digit)
7
8
Turn Off and On the power switch
63
Function
or
Function
Combined Function Table
Others
INSERTION/
OVERLAY
ZOOM/
EFFECTS
SORT/
FINISH
2-SIDED/ORIG.
COPY
First
Selections
SORT/
FINISH
ZOOM/
EFFECTS
INSERTION/
OVERLAY
1
1
1
2
2
1
2
2
Book 2
2 Page
N in 1
Booklet
Multi-Size Feeding
Job Build and SADF
Sort
Shift-Sort
Rotate-Sort
Staple-Sort
Shift-Group
Rotate-Group
Non-Sort
Zoom
Auto Zoom
Edge
Book
Margin
Stamping
Image Repeat
Centering
Inverse
Cover
Insertion
OHP Interleaving
Presentation
Overlay
Form Overlay
File Edit
Interrupt
Proof Copy
Tandem Copy
Concurrent Copying
Manual Skyshot
Digital Skyshot
: Possible Combined Functions.
: Possible Combined Functions without full size copy ratio.
: Unavailable Combined Functions.
A : Next Selection is Carried Out.
R : When the same function is selected twice, the second selection is ignored.
: Functional combination that cannot be performed.
64
Others
1 1
1 2
2 1
2 2
Book
2
2 Page
N in 1
Booklet
Multi-Size Feeding
Job Build and SADF
Sort
Shift-Sort
Rotate-Sort
Staple-Sort
Shift-Group
Rotate-Group
Non-Sort
Zoom
Auto Zoom
Edge
Book
Margin
Stamping
Image Repeat
Centering
Inverse
Cover
Insertion
OHP Interleaving
Presentation
Overlay
Form Overlay
File Edit
Interrupt
Proof Copy
Tandem Copy
Concurrent Copying
Manual Skyshot
Digital Skyshot
Next
Selections
2-SIDED/ORIG.
COPY
Accessories
Components
■ The DP-3010/2310 is a digital photocopier which can produce images with great clarity.
Furthermore, its copying functionality can also be greatly enhanced by the addition of the following options and
supplies.
We hope you find that the wide ranging capabilities will make your office-place more productive and efficient.
■ Options
i-ADF
(DA-AR250)
ADF
(DA-AS200)
(See page 22)
Image Memory
(DA-SM16B/64B/28B)
● 16/64/128 MB
● To increase the memory capacity for electronic
sorting.
Inner Tray
(DA-XN200)
HDD Unit
(DA-HD30)
● For PS Printing (for Fonts)
Security Print/Mailbox
Tandem copy/Concurrent copy
I-FAX without mail server
1,000 Station registration
Print Job Spooling
OneRIP
Account Management
1-Bin Finisher
(DA-FS300)
Exit Tray
(DA-XT200)
Accessories
Expansion Board
(DA-EM600)
● Expansion F-ROM (8 MB)
Network Scanner Module
(DA-NS600)
Printer Controller Module
(DA-PC300)
● Printer Controller for PCL6∗
Multi Page Language
Controller Module
(DA-MC300)
● Printer Controller for PS∗/PCL6
3rd Paper Tray
(DA-DS303)
Fax Communication Board
(DA-FG300)
4th Paper Tray
(DA-DS304)
Internet Fax/E-Mail Module
(DA-NF600)
■ Supplies
Part Name
Part No.
Remarks
Staple Cartridge
FQ-SS32
Staple Cartridge Refills (3) for DA-FS300
Toner
DQ-TU15E
Toner
NOTE
∗ PCL6 is a Page Description Language of the Hewlett-Packard Company.
PS is a Page Description Language of the Adobe Cooperation.
● Contact your authorised servicing dealer for details on combinations of options.
65
Network Scanner (Option)
Document Scanning/Address Book
■ Document Scanning
1
When Panasonic Document Management
System (PDMS) is installed and configured
onto PC, document(s) can be scanned from
the DP-2310/3010 to PC.
2
or
5
Original Size
if original size is not shown
■ Adding your PC or DD Server IP Address
If the PC or Server is not entered with PDMS software,
input the Address with copier touch panel.
1
2
3
Scroll to 02/02
6
7
Key name
(Max. 15 characters)
Ex.: PC name
Document Save
Docu. Retrieve
12
8
Assign the address into
the Favourite section
or
13
Port number
For PC
(DD Server only)
For saving
For retrieving
For DD Server
14
(DD Server only)
Making shortcut button
Do not make
Make
66
3
4
5
Select a destination (PC)∗
∗ A destination will be indicated
Select mode if necessary
Resolution∗
2 Sided Original
Exposure
Thin Original
Original mode
7
∗ 150dpi: Text mode only.
Refer to PDMS operating
instructions on the
CD-ROM.
4
5
6
Server name
(Max. 15 characters)
Ex.: SALES DEPT
IP address
Ex.: 192.168.1.10∗∗
9
(DD Server only)
10
(DD Server only)
11
(DD Server only)
Network Scanner
(Option)
6
PC Screen
12
Account name
(Max. 60 characters)
Ex.: Jack
Password
(Max. 60 characters)
Ex.: Jack
∗∗
Directory name
(Max. 60 characters)
Ex.: \ddserver\sub01
“\deserver” is must
When entering a one or two digit address, add “00” or
“0” in front of the address, or enter “ “ after address.
Button name of Keyboard
To input capital letter.
To move the cursor (_) to the left or
right side.
To input number and symbol mark.
To erase the character before the
cursor.
67
Network Scanner (Option)
Document Scanning/Address Book
■ Editing your PC or DD Server IP Address
If you have to change or erase any of the Address Book stations, follow the steps below.
1
2
3
Scroll to 02/02
6
7
New name
(Max. 15 characters)
Ex.: SALES DEPT 01
8
New key name
(Max. 15 characters)
Ex.: PC name
Document Save
Docu. Retrieve
(DD Server only)
Assign the address into
the Favourite section
or
13
12
14
Port number
Directory name
(Max. 60 characters)
Ex.: \ddserver\sub01
“\deserver” is must
(DD Server only)
For saving
For retrieving
■ Erasing the Address
If you have to delete any of the Address Book entries.
1
2
3
Scroll to 02/02
68
4
5
6
Select the entry you wish to change
New IP address
Ex.: 192.168.1.11∗
10
9
(DD Server only)
11
(DD Server only)
12
Account name
(Max. 60 characters)
Ex.: Jack
For PC
Password
(Max. 60 characters)
Ex.: Jack
For DD Server
15
(DD Server only)
∗ When entering a one or two digit address,
add “00” or “0” in front of the address, or
enter “ “ after address.
Making shortcut button
Do not make
4
Network Scanner
(Option)
Make
5
Select the entry you wish to delete
69
Problem Solving
Troubleshooting
Check
Action
Unit Does Not Operate
Does the display light?
Check if the Power Switches (Main Power
Switch on the back and Power Switch on the
Left Side of the machine) are turned ON and if
the power cord is plugged into the AC outlet.
Does the Energy Saver key flash (or light)
and displays are turned OFF?
(See page 48)
Press Energy Saver key on the control panel.
Does any of the U## codes and messages
appear on the display?
(U1, U4, U6, U7, U11....etc.)
Perform actions in accordance with each
message.
Does the Add Staples indicator and message
appear on the display?
Add Staples (See page 12)
Remove all jammed staples. (See page 13)
Does the Add Paper indicator and message
appear on the display? ( )
Add paper. (See page 10)
Does the paper misfeed indicator and
message appear on the display? ( )
Remove the misfed paper. (See pages 14 - 17)
Does E#-## indicator and message appear
on the display?
Turn the Main Power Switch on the Back and
the Power Switch on the Left Side of the
machine to the OFF position, then back ON
again. If the error code does not clear, call
your Service provider.
The machine would not accept the next job
during operation, instructed job would not be
accepted for long time period or job would not
be completed.
Turn the Power Switch Off/On.
Light Copies
70
Does the exposure indicator say “LIGHTER”?
Touch the “DARKER” button.
Does the Add Toner indicator and message
appear on the display? ( )
Replace the Toner Bottle.
(See pages 12, 13)
Check
Action
Marked Copies
Is the copier Platen Glass or Platen Sheet
dirty?
Clean the Platen Glass or Sheet.
Is the original an OHP film or a dark original?
Cover the original with a sheet of white paper
before copying or lighten the exposure setting.
■ If the measures outlined above do not solve the problem, call your Service provider.
Copier Care
Platen Sheet
Platen Glass/Platen Sheet
Wipe marks off with a cloth and a neutral detergent.
Wipe again with a dry cloth.
Platen (glass)
Problem Solving
■ As a rule, clean weekly.
71
Problem Solving
Replacing the Battery
The copier has an internal battery (Product No.:
CR2032) which maintains the date and time.
In the event the battery requires replacement,
the following message will be displayed.
1
2
Turn the Power Switch on the
Left Side of the machine to
the OFF position.
Set the date and time
6
7
10
Scroll to 05/08
NOTE
72
● The service life of the battery is approximately 1 year under normal use.
3
4
5
Turn the Power Switch
on the Left Side of the
machine to the ON
position.
8
6
9
10
ID Code
(Department Code)
11
12
Day, Month, Year,
Time
Time
Problem Solving
Day/Month/Year/Time
CAUTION
denotes hazards that could result in minor injury or damage to the machine.
● THIS PRODUCT CONTAINS A LITHIUM BATTERY. DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS OF YOUR LOCAL SOLID WASTE OFFICIALS.
73
Others
Specifications
■ DP-2310/3010 (Copier)
Type:
Desk Top
Platen Type:
Fixed
Acceptable Originals:
Sheets, Books (max. A3)
Copying Method:
Laser Electrophotography
Fixing Method:
Heat Roller Fixing
Imaging Method:
Dry-Type Dual components imaging
Resolution:
Max. 600 dpi
Operation Panel:
Touch Panel Display
Maximum Copy Size:
A3 - A5 via paper drawer/tray
Void Area:
Max. 5 mm
Warm Up Time:
Approx. 35 seconds (20°C)
First Copy Time:
Less than 4.5 seconds (A4
Multi-Copy Speed:
DP-2310 : 23 cpm (A4 size)
DP-3010 : 30 cpm (A4 size)
Enlargement Ratios:
Preset: 115%, 122%, 141%, 173%, 200%
Variable: from 101% to 400% in 1% increments
Reduction Ratios:
Preset: 87%, 82%, 71%, 58%, 50%
Variable: from 99% to 25% in 1% increments
Paper Feed:
Paper tray (550 sheets × 2) + Sheet bypass (50 sheets)
Paper Weight:
Paper drawer/tray: 60 - 90 g/m2 (Bypass: 55 - 133 g/m2)
Quantity Selector:
Max. 999 sheets (output tray capacity is 250 sheets)
Electrical Requirements:
AC 220 - 240V, 50Hz, 6.3A
Energy Consumption:
Max. 1.5 kW, 18 Wh in Sleep Mode
Dimensions:
599 (W) × 707 (D) × 697 (H) mm
Weight:
72 kg
Operating Environment:
Temperature: 10°C - 30°C Relative Humidity: 30% - 80%
(However, the humidity should be 70% or less at a temperature of 30°C,
and the temperature should be 27°C or less at a humidity level of 80%.)
● Specifications are subject to change without notice.
74
, from 1st tray to inner tray 1)
■ ADF (DA-AS200), i-ADF (DA-AR250)
DA-AS200
DA-AR250
Tray Capacity:
A4, A5: 50 sheets (75 g/m2)
A3, B4·FLS: 30 sheets (75 g/m2)
Paper Size:
A5, A4, B4·FLS, A3
Paper Weight:
50 - 110 g/m2
Electrical Requirements:
Supplied from copier
Dimensions:
552 (W) × 520 (D) × 135 (H) mm (without tray)
Weight:
8.3 kg
9.3 kg
■ 1-Bin Finisher (DA-FS300)
Paper Size:
A5, A4, B4·FLS, A3
Paper Weight:
60 - 90 g/m2
Stacking Capacity:
A4: 500 sheets, B4·FLS: 250 sheets, A3: 250 sheets
Staple Sort :
A4: 30 sheets, B4: 20 sheets, A3: 20 sheets
Electrical Requirements:
Supplied from copier
Dimensions:
182 (W) × 498 (D) × 257 (H) mm
Weight:
10 kg
■ 3rd/4th Paper Feed Module (DA-DS303/DA-DS304)
DA-DS303
DA-DS304
Paper Size:
A5, A4, B4·FLS, A3
Paper Weight:
60 - 90 g/m2
Electrical Requirements:
Supplied from copier
Dimensions:
550 (W) × 596 (D) × 155 (H) mm
550 (W) × 599 (D) × 174 (H) mm
Weight:
9.5 kg
8.5 kg
75
Others
● Specifications are subject to change without notice.
Others
INDEX
1
2 Copy ································································· 30
2 Page Copy ······························································· 32
2
1 Copy ································································· 30
2
2 Copy ································································· 30
2-Sided/Original
Copy ······································· 30-35
A
Accessories (Components) ········································· 65
ACTIVE LED (GREEN) ··············································· 19
Adjust the Manual Exposure ································· 11, 23
ALARM LED (RED) ····················································· 19
Auto Zoom ··································································· 38
B
Basic Menu ···························································· 22-29
Book ············································································ 38
Book
2 Copy ··························································· 30
Booklet Copy ······························································· 32
C
Centering ····································································· 40
Changing the Paper Size ············································ 60
CLEAR Key ································································· 19
Combined Function Table ··········································· 64
Completion Notice ······················································· 28
Completion Notice Button ····································· 20, 29
Concurrent Copying ···················································· 48
Control Panel ······························································ 19
Copier Care ································································· 71
Copy Image and Paper Image Indication ···················· 20
COPY Key ····························································· 10, 19
Copy Ratio Indication ·················································· 20
Copy Size Indication ··················································· 20
Copy SIZE Key ······················································ 19, 24
Copying the Same Size Originals (1:1) ······················· 22
Copying with Preset Ratios ········································· 24
Cover ··········································································· 44
D
Density Indicator (7 steps) ···································· 11, 20
Digital Skyshot Mode ·················································· 48
DP-2310/3010 Operating Instructions ··························· 2
Duplex Notice function ················································ 30
Functions Indication ················································· 20
Making Copies ························································· 36
Replacing Staple Cartridge ······································ 12
Removing Misfed Paper ··········································· 16
Specifications ··························································· 75
User Error Codes (U11/U12) ···································· 12
Form Overlay ······························································ 46
Function ······································································ 50
Function (COPIER SETTINGS for Key Operator) ······· 57
Function (COPIER SETTINGS) ····························· 52-53
Function (For example:
Changing the Auto Contrast Setting) ······················· 60
Function (For example: Changing the Paper Size) ···· 60
Function (For example: Department Counter) ··········· 62
Function (For example: Network Settings) ·················· 62
Function
(GENERAL FUNCTIONS for Key Operator) ········ 55-56
Function (GENERAL FUNCTIONS) ···························· 52
Function (PRINTER SETTINGS for Key Operator) ····· 58
Function (PRINTER SETTINGS) ································ 54
Function (Procedure) ·················································· 50
Function (SCANNER SETTINGS) ······························ 53
Function Categories ···················································· 20
FUNCTION Key ···················································· 19, 50
H
How to using the Keyboard ··································· 26, 67
I
Image Repeat ······························································ 40
Insertion/Overlay ···················································· 44-47
INTERRUPT Key ·················································· 19, 49
Inverse ········································································ 40
J
JOB BUILD AND SADF Mode ···································· 34
Job Build and SADF/
Multi-Size Feed Mode Indication ························· 20, 34
Job Memory ································································ 46
Job Queue ··································································· 28
Job Queue Button ················································· 20, 28
Job Settings Button ····················································· 20
K
E
Keypad ········································································ 19
Edge ············································································ 38
Energy Saver ······························································ 48
ENERGY SAVER Key ··········································· 19, 48
Energy Star ································································· 18
Exit Position of Copies ················································ 11
Light Copies ································································ 70
Load Paper (Paper Tray) ············································· 10
Load Paper (Sheet Bypass) ········································ 10
L
F
M
File Edit ······································································· 46
Finisher
Components ····························································· 65
Function ··································································· 55
Machine Outline with Tray Selection ··························· 20
Machine/User Error Code Indication
(U13, E1-01, etc.) ·········································· 12, 20, 70
76
Manual Exposure Select Buttons
(Lighter and Darker) ······································ 11, 20, 23
Manual Skyshot Mode ················································· 49
Margin ········································································· 40
Marked Copies ···························································· 71
Multi-Size Feeding ······················································ 34
N
N in 1 Copy ································································· 32
Network Scanner (Option) ······································ 66-69
Network Scanner (Option)
(Adding your PC or DD Server IP Address) ·············· 66
Network Scanner (Option) (Document Scanning) ······· 66
Network Scanner (Option)
(Editing your PC or DD Server IP Address) ·············· 68
Network Scanner (Option) (Erasing the Address) ······· 68
Non-Sort ······································································ 36
Notice for ADF/i-ADF (Option) ····································· 22
O
OHP Interleaving ························································· 44
Operation Chart (Basic Operation) ······························ 10
Operation Chart (Load Paper) ····································· 10
Operation Chart (Problem Solving) ····························· 11
Original Image Indication ············································ 20
Original Mode Select Button
(Text; Text / Photo; Photo) ····························· 11, 20, 23
Original Size Indication ··············································· 20
ORIGINAL SIZE Key ··················································· 19
Outline of this Operating Instructions ···························· 3
Output Tray Button ················································ 11, 20
Output Tray Indication ··········································· 11, 20
Overlay ········································································ 46
P
Page Insertion ····························································· 44
Paper Level and Size Indication ································· 20
Paper Tray Selection Button ······································· 20
Position Original(s) ······················································ 10
Precautions
(Handling, Toner and Paper, Ventilation, Installation) ···· 8
Precautions (For Your Safety) ······································· 7
Presentation ································································ 44
PRINT DATA LED (GREEN) ······································· 19
Problem Solving (Replacing the Battery) ···················· 72
Problem Solving (Troubleshooting) ····························· 70
Proof Copying ····························································· 24
Proof Set Button ···················································· 20, 25
S
Select the Original(s) ··················································· 23
Shift-Group ·································································· 36
Shift-Sort ····································································· 36
Skyshot Mode ····························································· 48
Sort ·············································································· 36
Sort/Finish ····························································· 36, 37
Specifications ························································ 74, 75
Stamping (Date Stamp) ··············································· 42
Stamping (Issue Number Stamping) ··························· 42
Stamping (Page Numbering) ······································· 42
Staple Sort ·································································· 36
START Key ·································································· 19
STOP Key ··································································· 19
Symbol Marks/Icons ······················································ 4
T
Table of Contents ······················································ 5, 6
Tandem /Remote Copy Settings (Deleting) ················· 26
Tandem /Remote Copying ··········································· 24
Tandem/Remote Button ········································ 20, 25
Tandem/Remote Button Indication ························ 20, 25
Tandem/Remote Copy Settings (Editing) ···················· 26
Tandem/Remote Copy Settings (Registration) ············ 26
Touch Panel Display ···················································· 20
U
Unit Does Not Operate ················································ 70
Useful Office Functions ················································· 2
User Error Codes (U Code) ········································· 12
W
Warning Indications ·········································· 10-13, 20
Z
14
16
14
16
77
Others
Zoom ··········································································· 38
Zoom/Effects ·························································· 38-43
R
Removing Misfed Paper
(2nd and 3rd/4th Paper Tray) ····································
Removing Misfed Paper (ADF) ···································
Removing Misfed Paper (Automatic Duplex Unit) ·······
Removing Misfed Paper (Finisher) ······························
Removing Misfed Paper (i-ADF) ································· 16
Removing Misfed Paper
(Paper Entry Area/1st Paper Tray) ···························· 14
Removing Misfed Paper (Paper Transport Area) ········ 14
Replacing the Staple Cartridge ··································· 12
Replacing Toner Bottle/
Replacing Toner Waste Container ···························· 12
Reserve a Job Button ··········································· 20, 49
RESET Key ································································· 19
Rotate Mode Indication ··············································· 20
Rotate-Group ······························································ 36
Rotate-Sort ·································································· 36
Others
IMPORTANT INFORMATION
When requesting information, supplies or service always refer to the model and serial number of your
machine. The model and serial number plate (Main Name Plate) is located on the rear side of machine.
For your convenience, space is provided below to record information you may need in the future.
Model No.
Serial No.
Date of Purchase
Dealer
Address
Telephone Number
(
)
Supplies Telephone Number
(
)
Service Telephone Number
(
)
Model and Serial Number
Factory ID
Manufacturer’s name and address
Copyright © 2003 Panasonic Communications Co., Ltd.
All rights reserved. Unauthorised copying and distribution is a violation of law.
The contents of these Operating Instructions are subject to change without notice.
PEERLESSPAGE™ is a trademark of the PEERLESS Systems Corporation; and,
PEERLESSPrint® and Memory Reduction Technology® are registered trademarks PEERLESS
Systems Corporation; and, COPYRIGHT © 2000 PEERLESS Systems Corporation
Universal Font Scaling Technology (UFST) and all typefaces have been licensed from Agfa Monotype
78
For Service, Call:
For Customer Support:
Panasonic Communications Co., Ltd.
Fukuoka, Japan
http://www.panasonic.co.jp/global/
Ko0403-0
DZSD001959-0
April 2003
Printed in Japan
English
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
