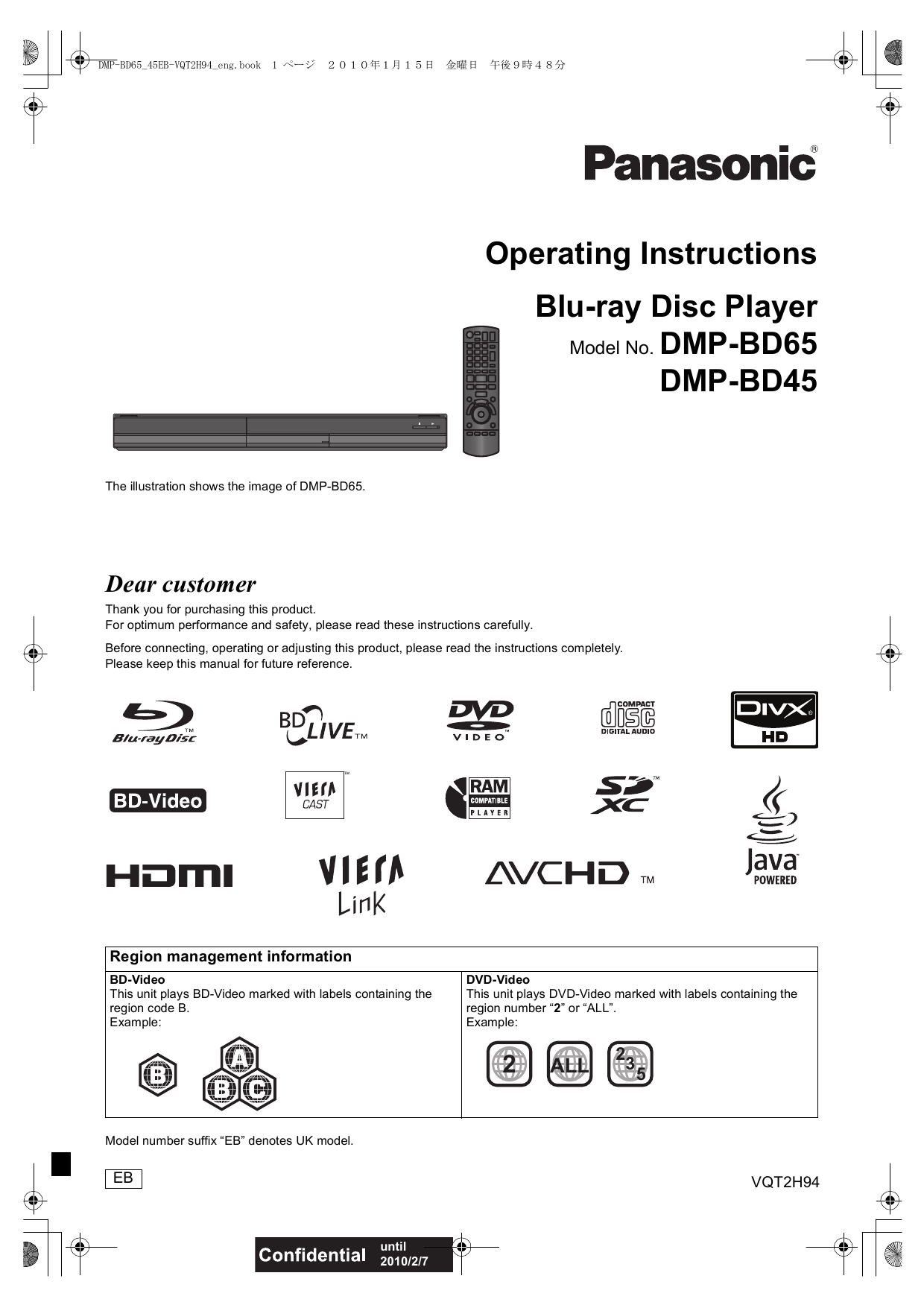

Operating Instructions
Blu-ray Disc Player
Model No. DMP-BD65
DMP-BD45
The illustration shows the image of DMP-BD65.
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely.
Please keep this manual for future reference.
Region management information
BD-Video
This unit plays BD-Video marked with labels containing the
region code B.
Example:
DVD-Video
This unit plays DVD-Video marked with labels containing the
region number “2” or “ALL”.
Example:
2
ALL
2
3
5
Model number suffix “EB” denotes UK model.
EB
VQT2H94
until
2010/2/7
DMP-BD65_45EB-VQT2H94_eng.book
2 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Caution for AC Mains Lead
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains
plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is
approved by ASTA or BSI to BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on the body
of the fuse.
If the plug contains a removable fuse cover you must ensure
that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local
dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE
SHOULD BE REMOVED AND THE PLUG CUT OFF AND
DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK
IF THE CUT OFF PLUG IS INSERTED INTO ANY
13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring code as
stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with the
following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the
terminal which is marked with the letter N or coloured Black or
Blue.
The wire which is coloured Brown must be connected to the
terminal which is marked with the letter L or coloured Brown or
Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E, BY THE EARTH SYMBOL Ó OR COLOURED
GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC
mains plug (figures A and B). Confirm the AC mains plug fitted
and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
Figure B
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
Figure A
Figure B
Fuse
(5 ampere)
Fuse
(5 ampere)
CAUTION!
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
≥DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK
OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
≥DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS
WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
≥DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
≥DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE,
≥ DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,
DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED
WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON
THE APPARATUS.
≥ USE ONLY THE RECOMMENDED ACCESSORIES.
≥ DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The socket outlet shall be installed near the equipment and
easily accessible.
The mains plug of the power supply cord shall remain
readily operable.
To completely disconnect this apparatus from the AC Mains,
disconnect the power supply cord plug from AC receptacle.
2
VQT2H94
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
This product may receive radio interference caused by
mobile telephones during use. If such interference is
apparent, please increase separation between the product
and the mobile telephone.
THIS UNIT IS INTENDED FOR USE IN MODERATE
CLIMATES.
DMP-BD65_45EB-VQT2H94_eng.book
3 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Reference
Caution for AC Mains Lead . . . . . . . . . . .2
Accessory. . . . . . . . . . . . . . . . . . . . . . . . .4
Unit and media care . . . . . . . . . . . . . . . . .4
Control reference guide . . . . . . . . . . . . . .5
Playable discs/Cards/USB devices . . . . .6
Troubleshooting guide. . . . . . . . . . . . . . 30
Messages . . . . . . . . . . . . . . . . . . . . . . . 32
Audio Information . . . . . . . . . . . . . . . . . 33
About MP3/JPEG/DivX/AVCHD/MPEG2
files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Specifications . . . . . . . . . . . . . . . . . . . . 36
Safety precautions. . . . . . . . . . . . . . . . . 36
Supplemental information . . . . . . . . . . . 37
Glossary . . . . . . . . . . . . . . . . . . . . . . . . 38
Index . . . . . . . . . . . . . . . . . . . . Back cover
STEP 1 : Connecting to a TV . . . . . . . . . .8
STEP 2 : Connecting to
an amplifier/receiver . . . . . . . .9
STEP 3 : Connecting to
a broadband network [BD65] . . .10
STEP 4 : Connecting AC mains lead . . .11
STEP 5 : Setting. . . . . . . . . . . . . . . . . . .12
STEP 6 : Reprogramming the remote
control . . . . . . . . . . . . . . . . . .14
Playback
About descriptions in these operating
instructions
≥ Instructions for operations are generally described
using the remote control.
≥ These operating instructions are applicable to models
DMP-BD65 and DMP-BD45. Unless otherwise
indicated, illustrations in these operating instructions
are of DMP-BD65.
[BD65] [BD45] : indicates features applicable to
DMP-BD65 and DMP-BD45, respectively.
Playback
Connections and settings
Connections and settings
Getting started
Getting started
Table of contents
Firmware updating (> 14)
Settings
Playback menu. . . . . . . . . . . . . . . . . . . .24
Setup menu . . . . . . . . . . . . . . . . . . . . . .26
Sales and Support Information
Settings
Customer Care Centre
≥ For customers within the UK: 0844 844 3852
≥ For customers within the Republic of Ireland:
01 289 8333
≥ Visit our website for product information
www.panasonic.co.uk
≥ E-mail: [email protected]
Direct Sales at Panasonic UK
≥ For customers: 0844 844 3856
≥ Order accessory and consumable items for your
product with ease and confidence by phoning our
Customer Care Centre Monday–Thursday 9:00
a.m.–5:30 p.m., Friday 9:30 a.m.–5:30 p.m.
(Excluding public holidays)
≥ Or go on line through our Internet Accessory
ordering application at www.pas-europe.com.
≥ Most major credit and debit cards accepted.
≥ All enquiries transactions and distribution facilities
are provided directly by Panasonic UK Ltd.
≥ It couldn’t be simpler!
≥ Also available through our Internet is direct shopping
for a wide range of finished products, take a browse
on our website for further details.
Reference
Inserting or removing a media . . . . . . . .15
FUNCTION menu. . . . . . . . . . . . . . . . . .15
Playing video contents . . . . . . . . . . . . . .16
Playing still pictures . . . . . . . . . . . . . . . .20
Playing music . . . . . . . . . . . . . . . . . . . . .21
Linked operations with the TV
(VIERA Link “HDAVI Control™”) . . . . . .22
Enjoying VIERA CAST™ [BD65] . . . . . . . . .23
Interested in purchasing an extended guarantee?
Please call 0870 240 6284 or visit our website
www.panasonic.co.uk/guarantee.
3
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
4 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Accessory
Unit and media care
Check the supplied accessories before using this unit.
∫ Clean this unit with a soft, dry cloth
1
≥ Never use alcohol, paint thinner or benzine to clean this
unit.
≥ Before using chemically treated cloth, carefully read the
instructions that came with the cloth.
Gettin g started
2
1
Remote control
[BD65] (N2QAKB000077)
[BD45] (N2QAKB000079)
Batteries for remote control
AC mains lead
(K2CZ3YY00005)
∫ Clean the lens with the lens cleaner
≥ Product numbers correct as of December 2009. These may be subject to
change.
≥ Do not use AC mains lead with other equipment.
Using the remote control
Insert so the poles (i and j) match those in the remote control.

Lens cleaner: RP-CL720E
≥ This lens cleaner may not be available for sale in all
countries, e.g. not available in Germany, please consult
your Panasonic dealer for advice.
≥ This lens cleaner is primarily for use on Panasonic DVD
recorders (DIGA), but it is also suitable for use on this
unit.
∫ Clean discs
DO
DO NOT

Wipe with a damp cloth and then wipe dry.
R6/LR6, AA
(Alkaline or manganese batteries)
Point it at remote control signal sensor on this unit. (> 5)
Mishandling of batteries can cause electrolyte leakage which can damage
items the fluid contacts and may cause a fire.
≥ Do not mix old and new batteries or different types at the same time.
≥ Do not heat or expose to flame.
≥ Do not leave the battery(ies) in an automobile exposed to direct sunlight
for a long period of time with doors and windows closed.
≥ Do not take apart or short circuit.
≥ Do not attempt to recharge alkaline or manganese batteries.
≥ Do not use batteries if the covering has been peeled off.
Remove batteries if the remote control is not going to be used for a long
period of time. Store in a cool, dark place.
∫ Disc and card handling precautions
≥ Handle discs by the edges to avoid inadvertent scratches or
fingerprints on the disc.
≥ Do not attach labels or stickers to discs.
≥ Do not use record cleaning sprays, benzine, thinner, static
electricity prevention liquids or any other solvent.
≥ Clean any dust, water, or foreign matter from the terminals
on the rear side of the card.
≥ Do not use the following discs:
– Discs with exposed adhesive from removed stickers or
labels (rented discs etc).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.
∫ To dispose or transfer this unit
The unit may keep the user settings information in the unit. If
you discard this unit either by disposal or transfer, then follow
the procedure to return all the settings to the factory presets to
delete the user settings. (> 30, “To return all settings to the
factory preset.”)
≥ The operation history may be recorded in the memory of
this unit.
4
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
5 ページ ２０１０年１月１５日　金曜日　午後９時４８分
1
2
12
1
2
3
13
[BD45]
14
3
15
16
4
5
3
17
18
6
4
5
6
7
8
9
10
11
23
7
8
19
12
13
20
9
21
14
15
16
17
22
10
11
18
19
20
21
22
23
1
Turn the unit on and off (> 12)
TV operation buttons (> 14)
You can operate the TV through the unit’s remote control.
[Í TV] : Turn the television on and off
[AV] : Switch the input select
[i j VOL] : Adjust the volume
[W X CH] : Channel select
Select title numbers, etc./Enter numbers or characters
(> 23)
[CANCEL] : Cancel
Show playback menu (> 24)
Switch on/off Secondary Video (Picture-in-picture) (> 18)
Basic playback control buttons (> 16)
Show status messages (> 16)
Show Pop-up menu (> 16)
Show Top menu/DIRECT NAVIGATOR (> 16)
Show OPTION menu (> 17)
Coloured buttons (red, green, yellow, blue)
These buttons are used when;
≥ Operating a BD-Video disc that includes JavaTM
applications (BD-J).
≥ Displaying “Title View” and “Album View” screens.
(> 20)
≥ Operating contents of VIERA CAST. [BD65](> 23)
Transmit the remote control signal
Open or close the disc tray (> 15)
CAUTION
Do not place objects in front of the unit. The disc tray may
collide with objects when it is opened, and this may cause
injury.
Adjust the volume of an amplifier/receiver.(> 14)
Select audio (> 16)
Reproduce more natural audio (> 17)
Select drive (BD/DVD/CD, SD card or USB device)
(> 15)
[BD65] Displays the Home screen of the VIERA CAST
(> 23)
Exit the menu screen
Show FUNCTION menu (> 15)
Selection/OK, Frame-by-frame (> 16)
Return to previous screen
[BD45] Switch on/off Secondary Audio (> 18)
2
3
4 5
SD CARD
Pull to flip down
the front panel.
1
2
3
6
Standby/on switch (Í/I) (> 12)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
Disc tray (> 15)
Display
Disc indicator
SD card indicator
USB device
indicator
4
5
6
7
8
9
7
8 9
Remote control signal sensor
Distance: Within approx. 7 m
Angle: Approx. 20e up and down, 30e left and right
Open or close the disc tray (> 15)
SD card slot (> 15)
USB port (> 15)
Stop (> 16)
Start play (> 16)
Rear panel terminals (> 8–11)
The indicator blinks when reading data from a disc, a card
or a USB device, or writing data to a card.
5
VQT2H94
Getting started
Control reference guide
DMP-BD65_45EB-VQT2H94_eng.book
6 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Playable discs/Cards/USB devices
Type
Logo
examples
BD
Type detail
BD-Video
Video
BD-RE
Video
JPEG
BD-R
Video
DivX®
DVD-Video
Video
DVD-RAM
Video
AVCHD
JPEG
DVD-R
DVD
DVD-R DL
DVD-RW
—
CD
—
Playable contents*
Video
AVCHD
DivX
MP3
JPEG
Video
AVCHD
+R/+RW/+R DL
Music CD
Music [CD-DA]
CD-R
CD-RW
DivX
Music [CD-DA]
MP3
JPEG
SD Memory Card (from 8 MB to 2 GB)
(Including miniSD Card and microSD Card)
SDHC Memory Card (from 4 GB to 32 GB)
SD
(Includes microSDHC Card)
SDXC Memory Card (48 GB, 64 GB)
MPEG2
AVCHD
JPEG
(Includes microSDXC Card)
USB
—
USB device
(up to 128 GB)
* See page 7, 34–35 for more information on the types of content that can be played.
6
VQT2H94
DivX
MP3
JPEG
7 ページ ２０１０年１月１５日　金曜日　午後９時４８分
∫ Discs that cannot be played in this unit
∫ SD card
Any other disc that is not specifically supported or
previously described.
≥ 2.6 GB and 5.2 GB DVD-RAM
≥ DVD-RAM that cannot be removed from their cartridges
≥ Super Audio CD
≥ Photo CD
≥ DVD-Audio
≥ Video CD and Super Video CD
≥ WMA discs
≥ HD DVD
≥ MiniSD Cards, microSD Cards, microSDHC
Cards and microSDXC Cards can be used, but
must be used with an adaptor card. These are
usually supplied with such cards, or otherwise
customer provided.
≥ Keep the Memory Card out of reach of children
to prevent swallowing.
≥ To protect the card’s contents, move the record
prevention tab (on the SD card) to “LOCK”.
≥ This unit is compatible with SD Memory Cards that meet SD
Card Specifications FAT12 and FAT16 formats, as well as
SDHC Memory Cards in FAT32 format (Does not support
long file name.) and SDXC Memory Cards in exFAT.
≥ If the SD card is used with incompatible computers or
devices, recorded contents may be erased due to the card
being formatted etc.
≥ Useable memory may be slightly less than the card
capacity.
∫ Region management information
BD-Video
This unit plays BD-Video marked with labels containing the
region code “B”.
Example:
∫ USB device
DVD-Video
This unit plays DVD-Video marked with labels containing the
region number “2” or “ALL”.
Example:
2
ALL
2
3
5
≥ This unit supports connecting a USB memory, digital
camera and video camera produced by Panasonic, etc. It is
not warranted that all USB devices will work with this unit.
≥ This unit does not support USB device charging.
≥ FAT12, FAT16 and FAT32 file systems are supported.
≥ This unit supports USB 2.0 High Speed.
∫ BD-RE, BD-R
Discs recorded in DR mode using Panasonic Blu-ray Disc
recorders may not playback the audio etc., correctly.
∫ Finalize
DVD-R/RW/R DL, +R/+RW/+R DL and CD-R/RW recorded by
a recorder, etc. needs to be finalized by the recorder to play
on this unit. Please refer to the recorder’s instructions.
∫ BD-Video
This unit supports high bit rate audio (Dolby Digital Plus,
Dolby TrueHD, DTS-HD High Resolution Audio and DTS-HD
Master Audio) adopted in BD-Video. In order to enjoy these
audio formats, refer to page 33.
∫ Music CD
Operation and sound quality of CDs that do not conform to
CD-DA specifications (copy control CDs, etc.) cannot be
guaranteed.
≥ It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the recording method and how the files
were created.
≥ The producers of the disc can control how discs are played. So you may not always be able to control play as described in these operating instructions. Read
the disc’s instructions carefully.
7
VQT2H94
Getting started
DMP-BD65_45EB-VQT2H94_eng.book
DMP-BD65_45EB-VQT2H94_eng.book
8 ページ ２０１０年１月１５日　金曜日　午後９時４８分
STEP 1 : Connecting to a TV
≥ Do not place the unit on amplifiers/receiver or equipment
that may become hot. The heat can damage the unit.
≥ Before making any connections we suggest you temporarily
disconnect all the units from AC power.
≥ Do not connect video signals through a video recorder. Due
to copy guard protection the picture may not be displayed
properly.
≥ Refer to page 33, about recommended settings for each
piece of connected equipment.
≥ Please use High Speed HDMI Cables that have the HDMI
logo (as shown on the cover). It is recommended that you
use Panasonic’s HDMI cable. When outputting 1080p
signal, please use HDMI cables 5.0 meters or less.
Recommended part number:
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m),
RP-CDHS50 (5.0 m), etc.
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 2 BEFORE CONNECTION.
Highest Quality
(VIDEO)
Standard Quality
(VIDEO)
∫ Via an HDMI AV OUT terminal
HDMI IN
∫ Via a COMPONENT VIDEO
OUT terminal [BD65]
COMPONENT
VIDEO IN
Component
Video cable
AUDIO IN
R
L
Audio/Video
cable
HDMI cable
≥ The HDMI connection supports
VIERA Link “HDAVI Control” (> 22)
when used with a compatible
Panasonic TV.
≥ Set “HDMI Video Mode” [BD65] and
“HDMI Audio Output” to “On” (> 28).
8
VQT2H94
≥ Connect terminals of the same
colour.
≥ Set “Component Resolution” to
“576p/480p”, “720p” or “1080i”.
(> 28)
≥ Set “HDMI Video Mode” to “Off”
(> 28).
∫ Via a VIDEO OUT terminal
AUDIO IN
R
L VIDEO IN
Audio/Video cable
≥ Connect terminals of the same
colour.
DMP-BD65_45EB-VQT2H94_eng.book
9 ページ ２０１０年１月１５日　金曜日　午後９時４８分
STEP 2 : Connecting to an amplifier/receiver
Digital Audio
∫ Via an HDMI AV OUT terminal
∫ Via an OPTICAL terminal
Amplifier/receiver
HDMI IN
OPTICAL IN
Connections and settings
HDMI IN
HDMI cable
Multi channel
speakers
HDMI OUT
Optical cable
Amplifier/receiver
HDMI IN
HDMI cable
≥ The HDMI connection supports VIERA Link “HDAVI
Control” (> 22) when used with a compatible Panasonic
TV.
≥ Set “HDMI Video Mode” [BD65] and “HDMI Audio Output” to
“On” (> 28).
≥ Set “Digital Audio Output” depending on the used terminal
and connected amplifier/receiver. (> 27)
≥ When connecting a TV (> 8) with HDMI AV OUT terminal,
set “HDMI Audio Output” to “Off” (> 28).
≥ Set “Digital Audio Output” depending on the connected
amplifier/receiver (> 27)
9
VQT2H94
VQT2H94~Body_mst.fm
10 ページ ２０１０年１月１８日　月曜日　午後２時１１分
STEP 3 : Connecting to a broadband network
[BD65]
The following services can be used when this unit is
connected to broadband.
≥ Firmware can be updated (> 14)
≥ You can enjoy the BD-Live (> 18)
≥ You can enjoy the VIERA CAST (> 23)
For details about connection method, refer to the instructions
supplied with the connected equipment.
≥ The unit is not compatible with public wireless LAN services
(Hotspot etc.) provided in airports, stations, cafes etc.
∫ Using LAN (ethernet) cable
∫ Using Wireless LAN Adaptor DY-WL10
(optional)
Front of the unit
Pull to flip down
the front panel.
Wireless LAN Adaptor
LAN Cable
(Straight)
Broadband router, etc.
Internet
≥ Use shielded LAN cables when connecting to peripheral
devices.
≥ Inserting any cable other than a LAN cable in the LAN
terminal can damage the unit.
10
VQT2H94
Wireless router
(Access point), etc.
Internet
≥ Only the Wireless LAN Adaptor DY-WL10 (optional) can be
used.
≥ Read the operating instructions for the Wireless LAN
Adaptor DY-WL10 (optional) thoroughly when using it.
≥ For up to date compatibility information on your Wireless
router (Access Point) refer to
http://panasonic.jp/support/global/cs/
DMP-BD65_45EB-VQT2H94_eng.book
11 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Connections and settings
STEP 4 : Connecting AC mains lead
AC mains lead
(supplied)
To a household mains socket
(AC 220 to 240 V, 50 Hz)
≥ This unit consumes a small amount of AC power (“Quick
Start”: “Off”, approx. 0.2 W) even when turned off. In the
interest of power conservation, if you will not be using this
unit for an extended period of time, it can be disconnected.
11
VQT2H94
VQT2H94~Body_mst.fm
12 ページ ２０１０年１月１８日　月曜日　午後２時２５分
STEP 5 : Setting
∫ “Wireless” connection
If you select “Wireless” and “Wireless LAN Adaptor is not
connected.” is displayed, check that the Wireless LAN
Adaptor is fully inserted. Alternatively, disconnect and
reconnect it. If there is still no change in the display, consult
your dealer for advice.
Easy Setting
After connecting your new player for the first time and
pressing [Í], a screen for the basic settings will appear.
Preparation
Select “WPS (PUSH button)” or “Search for
access point” and then follow the on-screen
instructions and make the settings.
Turn on the television and select the appropriate video
input on the television.
1
2
Access Point Connection Setting
Select a connection method for access to
Wireless LAN.
Please refer to the operating instructions of
the access point about connection methods.
Press [Í].
Setup screen appears.
If this unit is connected to a Panasonic TV (VIERA)
supporting HDAVI Control 2 or later via an HDMI cable,
then the setting information on the TV is acquired by this
TV.
Follow the on-screen instructions and
make the settings with [3, 4] and press
[OK].
“On-Screen Language”, “TV Aspect” and “Quick Start” are
set.(> 27 – 29)
[BD65] After completing “Easy Setting”, you can perform
“Network Easy Setting”.
≥You can perform this setup anytime by selecting “Easy Setting” in the
Setup menu. (> 29)
≥ You can also change these settings individually. (> 27 – 29)
Network Easy Setting
[BD65]
After completing “Easy Setting”, you will be asked to perform
“Network Easy Setting”.
Select “Wired” or “Wireless” and press [OK].
Network Easy Setting (Connection Test)
Select a connection mode.
Current setting
: Wired
LAN cable connection:
Connect a LAN cable to the unit and select “Wired”.
Wireless LAN connection:
Connect the Wireless LAN Adaptor (DY-WL10) to the USB
port and select “Wireless”.
WPS (PUSH button)
Search for access point
WPS (PUSH button):
e.g.
If your Wireless router (Access point)
supports WPS (PUSH button), you can
easily perform the settings by pressing WPS
button on it.
*1
WPS (Wi-Fi Protected Setup) is a standard that
facilitates settings relating to the connection
and security of wireless LAN devices.
1 Press WPS button or corresponding button of Wireless
router (Access point) until the lamp starts flashing.
≥ For details, refer to the operating instruction of Wireless
router (Access point).
2 Press [OK].
*1
Wi-Fi Protected Setup-compatible Wireless router (Access point) may
have the mark.
Search for access point:
Available Wireless routers (Access points) are searched and
listed. You can select the one to use from the list.
1 Press [3, 4] to select SSID*2 of Wireless router (Access
point) you want to connect with. Then press [OPTION] to
show information of the selected router, make a note of
the authentication and encryption type.
Access Point Connection Setting
Select an access point to connect with.
To search for access point again, please
select "Search again" below.
Reception
SSID
XXXXXXXXXX
XXXXXXXXXX
XXXXXXXXXX
SSID
XXXXXXXXXX
Wireless type
XXXXXXXXXX
Authentication type
XXXXXXXXXX
Encryption type
XXXXXXXXXX
XXXXXXXXXX
:XXXXXXXXXXXXXXX
:802.11n/g/b (2.4GHz)
:WPA-PSK
:AES
Search again
OK
Wired
Wireless
OK
RETURN
∫ “Wired” connection
Follow the on-screen instructions to make your connection settings.
≥ When you experience problems (> 13)
≥ If you can not find the SSID*2, select “Search again”.
2 Press [RETURN] and then press [OK].
Then select an item on the following screen which
corresponds to the authentication type noted down in step
1 above.
Access Point Connection Setting
Select authentication type.
WPA2-PSK (AES/TKIP)
WPA-PSK (AES/TKIP)
Open/Shared Key (WEP)
Open system
Follow the on-screen instructions to make the settings.
≥ Input your encryption key code in “Encryption Key”
supplied with your Wireless router (Access point).
12
VQT2H94
VQT2H94~Body_mst.fm
13 ページ ２０１０年１月１８日　月曜日　午後２時３３分
When you experience
problems with settings
Access Point Connection Setting
Access Point Connection Setting
Failed to connect to the access point.
A conflict with other devices occurred.
Do you wish to setup Access Point
Connection Setting again ?
1. LAN cable connection or
Connection to access point
:Pass
2. IP address setting
:Fail
3. Connection to gateway
:Fail
1. LAN cable connection or
Connection to access point
:Pass
2. IP address setting
:Pass
3. Connection to gateway
:Fail
≥ Connection
and settings
of the hub
and router
≥ Settings of
“IP Address /
DNS
Settings”
(> 29)
Network Easy Setting (Internet Connection Test)
Complete.
- Connection to the Internet
Display
≥ Please wait a few moments,
and then try again.
A time out error
occurred.
≥ Setting of the Wireless router
(Access point) for MAC
Address etc.
≥ The signal may be weak. Using
the USB extension cable
supplied with the Wireless LAN
Adaptor, adjust the position of
the Wireless LAN Adaptor.
≥ The SSID* 2 and the encryption
key of the Wireless router
(Access point).
≥ Please wait a few moments,
and then try again.
An authentication error
or a time out error
occurred.
≥ Connection of Wireless LAN
Adaptor
If there is no improvement in
symptom, consult your dealer.
A device error
occurred.
: Fail(B019)
Failed the connection test.
Cannot find the server.(B019)
Please refer to the operating instructions for the cause
of the error and the solution for it.
Press [OK].
Check the following
A conflict with another
device occurred.
Connections and settings
Network Easy Setting (Internet Connection Test)
No
Yes
OK
OK
Display
Check the following
Cannot find the server. ≥ “Primary DNS” and “Secondary
DNS” settings of “IP Address /
(B019)
DNS Settings” (> 29)
Failed to connect to
the server.
(B020)
≥ The server may be busy or the
service may have been
suspended. Please wait a few
moments, and then try again.
≥ Settings of “Proxy Server
Settings” (> 29) and the router
≥ Refer to the operating instructions of the hub or router.
≥ You can perform this setup anytime by selecting “Network Easy Setting” in
the Setup menu. (> 29)
≥ You can redo these settings individually using “Network Settings”. (> 29)
≥ Do not connect to a wireless network for which you do not have usage
rights. Wireless networks for which you do not have usage rights (SSID*2)
may appear during the automatic search for a wireless network
environment. However, if you connect, there is a risk that it will be
regarded as illegal access.
≥ After performing network settings on this unit, the settings (encryption
level, etc.) of the Wireless router (Access point) might change.
When you have trouble getting online on your PC, perform the network
settings on your PC in accordance with the settings of Wireless router
(Access point).
Network Easy Setting (Connection Test)
Network Easy Setting (Connection Test)
Complete.
1. LAN cable connection
2. IP address setting
3. Connection to gateway
: Fail
: Fail
: Fail
LAN cable is not connected.
Please check the connection.
Select “Yes” and press [OK] to check network
connection again.
Select “No” and press [OK] to finish Network
Easy Setting.
Yes
No
OK
*2
Check the
following
Display
1. LAN cable connection or
Connection to access point
:Fail
2. IP address setting
:Fail
3. Connection to gateway
:Fail
This is a name given to identify specific networks among wireless LANs.
When the SSID is the same in two devices, data can be transmitted
between them.
≥ Connection of
the LAN
cables
(> 10)
13
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
14 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Firmware updating
Occasionally, Panasonic may release updated firmware for
this unit that may add or improve the way a feature operates.
These updates are available free of charge.
[BD65] : This unit is capable of checking the firmware
automatically when connected to the Internet via a broadband
connection.
When a new firmware version is available, the following
screen is displayed.
Firmware Update
Latest Online Version: x.xx
Current Installed Version: x.xx
Do you want to start firmware update?
For the update information, please visit the
following website:
http://panasonic.net/support/
Yes
RETURN
If you use [BD45] or you use [BD65] but downloading on this
unit fails or this unit is not connected to the Internet, then you
can download the latest firmware from the following website
and burn it to a CD-R to update the firmware.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
To show the firmware version on this unit. (> 29, “System
Information”)
DO NOT DISCONNECT the unit from the AC power or
perform any operation while the update takes place.
After the firmware is installed, “FINISH” will be displayed on
the unit’s display. Unit will restart and the following screen will
be displayed.
The firmware has been updated.
Current Installed Version: x.xx
OK
RETURN
≥ [BD65] : You can perform update anytime by selecting “Firmware
Update” in the Setup menu. (> 29)
≥ Downloading will require several minutes. It may take longer or may not work
properly depending on the connection environment.
≥ If you do not want to check for the latest firmware version, set “Automatic
Update Check” to “Off”. (> 29)
VQT2H94
For other Panasonic products
If you have more than one Panasonic player/recorder and the
remote control operates both products at once, you will need
to change the remote control code on one product to prevent
this occurrence. After changing the remote control code on
this product, you will need to change the code of the remote
control. (> 29, “Remote Control”)
For TV or amplifier/receiver
No
OK
14
STEP 6 :
Reprogramming the
remote control
You can operate the TV or amplifier/receiver using the unit’s
remote control.
1
For televisions
Input the 2-digit code (> 37) with the
numbered buttons while pressing [Í TV].
For amplifiers/receivers
Input the 2-digit code (> 37) with the
numbered buttons while pressing
[RECEIVER j VOL].
2
e.g., 01: [0] B [1]
Test by turning on the television or
adjusting the volume of the amplifier/
receiver.
≥ If your television or amplifier/receiver brand has more than one code
listed, select the one that allows correct operation.
DMP-BD65_45EB-VQT2H94_eng.book
15 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Inserting or removing a
media
Playback
FUNCTION menu
Major functions of this unit can be operated from the
FUNCTION menu.
Press [3, 4] to select the item and press [OK].
[BD65]
Blu-ray Disc Player
FUNCTION MENU
BD-Video
Playback
Top Menu
SD CARD
SD card
USB device
To Others
OK
RETURN
≥ When inserting a media, ensure that it is facing the right
way up.
≥ When indicator on this unit's display blinks, do not turn off
the unit or remove the media. Such action may result in loss
of the media's contents.
≥ When removing the SD card, press on the centre of the card
and pull it straight out.
≥ If you connect a Panasonic product with a USB connection
cable, setup screen may be displayed on connected
equipment. For details, refer to the instructions for the
connected equipment.
∫ To switch drives
Press [DRIVE SELECT] to select “BD/DVD/CD”, “SD card”
or “USB device”.
≥ If a media is inserted while the unit is stopped, the drive
switches automatically depending on the inserted media.
Playback
Play back the contents.
Top Menu
(> 16)
Menu
(> 16)
Viewing Picture
(> 20)
Viewing Video
(> 16)
Listening Music
(> 21)
Network [BD65]
Displays the Home screen of
the VIERA CAST(> 23)
BD/DVD/CD
SD card
Switches to each drive.
USB device
To Others
Playlists
You can play playlists created
on DVD-VR.
Setup
(> 26)
Card
Management
(> 18)
To exit the screen
Press [FUNCTION MENU].
≥ Items to be displayed may vary with the media.
≥ If FUNCTION screen is not displayed, press [FUNCTION MENU].
15
VQT2H94
Playback
Connections and settings
Network
DMP-BD65_45EB-VQT2H94_eng.book
16 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Playing video contents
BD DVD CD
Preparation
SD
These functions may not work depending on the media and
contents.
USB
Turn on the television and select the appropriate video input
on the television.
1
1
2
Insert the media.
Play starts.
≥ If the menu is displayed, press [3, 4, 2, 1] to select the
item and press [OK].
≥ If play does not start, press [1] (PLAY).
You can display Top Menu, DIRECT NAVIGATOR or Pop-up
Menu.
Press [TOP MENU/DIRECT NAVIGATOR] or [POP-UP
MENU].
≥ Press [3, 4, 2, 1] to select the item and press [OK].
≥ Pop-up menu also appears by pressing [OPTION] and
selecting “Pop-up Menu”.
While playing, press [STATUS].
The status messages give you information about what is
currently being played. Each time you press [STATUS], the
display information may change or will disappear from the
screen.
e.g.BD-Video
T: Title, C: Chapter, PL: Playlist
Elapsed time in the title
BD-Video
0:05.14
0:20.52
PLAY
Total time
≥ Signal from PAL discs is output as PAL. Signal from NTSC discs is output
as “NTSC” or “PAL60”. You can select “NTSC” or “PAL60” in “NTSC
Contents Output” for NTSC discs. (> 27)
≥ DISCS CONTINUE TO ROTATE WHILE MENUS ARE DISPLAYED.
Press [∫] when you have finished playback to protect the unit’s motor,
your television screen and so on.
≥ Depending on media and contents, the display may change or may not
appear.
≥ DivX: Successive play is not possible.
≥ It is not possible to playback AVCHD and MPEG2 video which have　been dragged and dropped, copied and pasted to the media.
16
VQT2H94
Press [;].
≥ Press [;] again or [1] (PLAY) to restart play.
Search/Slow-motion
Slow-motion
While paused, press [6] or [5].
≥ BD-Video and AVCHD: Forward direction [5] only.
The speed increases up to 5 steps.
≥ Press [1] (PLAY) to revert to normal playback speed.
Skip
∫ To show the status messages
Current position
Press [∫].
The stopped position is memorized.
Resume play function
Press [1] (PLAY) to restart from this position.
≥ The position is cleared if the tray is opened or you press [∫]
several times to display “STOP” on unit’s display.
≥ On BD-Video discs including BD-J (> 38), the resume
play function does not work.
Search
While playing, press [6] or [5].
≥ Music and MP3: The speed is fixed to a single step.
∫ To show menus
C1
Stop
Pause
Press [Í] to turn on the unit.
 T1
Other operations during play
While playing or paused, press [:] or [9].
Skip to the title, chapter or track you want to play.
≥ Each press increases the number of skips.
Frame-by-frame
While paused, press [2] (2;) or [1] (;1).
≥ Press and hold to change in succession forward or
backward.
≥ Press [1] (PLAY) to revert to normal playback speed.
≥ BD-Video and AVCHD: Forward direction [1] (;1) only.
Changing audio
Press [AUDIO].
You can change the audio channel number or soundtrack
language (> 24), etc.
17 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Enhancing the brilliance of
audio playback
(Discs recorded at 48 kHz or less)
Press [RE-MASTER] to select an item.
This feature gives you brighter sound by increasing the high
frequency portion of the audio.
Recommended setting
Useful functions
1
2
Press [OPTION].
Select an item, then press [OK].
While DIRECT NAVIGATOR screen is displayed
Properties
To display the title properties (recording date,
etc.)
Re-master 1
Pop and rock
Re-master 2
Jazz
Chapter
View
To select the chapter
Re-master 3
Classical
To Picture
Playing still pictures (> 20)
Folder
To switch to another folder
≥ This function is effective for audio from the HDMI terminal or the OPTICAL
terminal only when “Digital Audio Output” is set to “PCM” (> 27).
(However, in this case, audio is output as 2ch from the OPTICAL
terminal.)
While playing
Screen
Aspect
When black bars are shown at the top and
bottom or left and right sides of the screen,
you can enlarge the image to fill the screen.
Top Menu
To display Top Menu.
Pop-up
Menu
To display Pop-up Menu.
Menu
To display Menu.
≥ Depending on the played contents if you perform “Screen
Aspect”, there may be not effect.
≥ When “TV Aspect” (> 28) is set to “4:3 Pan & Scan” or “4:3
Letterbox”, the “Zoom” effect in “Screen Aspect” is disabled.
Playback
DMP-BD65_45EB-VQT2H94_eng.book
≥ Depending on the media and contents, displayed items are different.
17
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
18 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Enjoying BD-Live [BD65] or
BONUSVIEW in BD-Video
What is BONUSVIEW?
BONUSVIEW allows you to enjoy functions such as
picture-in-picture or secondary audio etc.
What is BD-Live?
In addition to the BONUSVIEW function, BD-Live allows you to
enjoy more functions such as subtitles, exclusive images and
online games by connecting this unit to the Internet.
≥ The usable functions and the operating method may vary
with each disc, please refer to the instructions on the disc
and/or visit their website.
]
Playing picture-in-picture
To turn on/off secondary video
Press [PIP].
Secondary video
Enjoying BD-Live discs with
Internet [BD65]
Some BD-Live content available on the Blu-ray discs may
require an Internet account to be created in order to access
the BD-Live content. Follow the screen display or instruction
manual of the disc for information on acquiring an account.
1
2
3
Connect to the network. (> 10)
Insert an SD card (with 1 GB or more free space).
SD card is used as the local storage (> 38).
Insert the disc.
∫ Deleting data/Formatting SD cards
Insert an SD card.
Press [FUNCTION MENU].
Press [3, 4] to select “To Others” and press [OK].
Press [3, 4] to select “Card Management” and press
[OK].
5 Press [3, 4] to select “BD-Video Data Erase” or “Format
SD Card” and press [OK].
1
2
3
4
Card Management
SD CARD
No. of Files 6
Free space 300 MB
BD-Video Data Erase
Format SD Card
OK
Format this SD Card.
RETURN
Primary video
To turn on/off secondary audio
[DISPLAY] > select “Disc” > [1] >
select
“Signal Type” > [OK] > set “Soundtrack” in
“Secondary Video” to “On” or “Off”
OR
[BD45] : Press
[SECONDARY AUDIO].
≥ During search/slow-motion or frame-by-frame, only the primary video is
displayed.
≥ When “BD-Video Secondary Audio” in “Digital Audio Output” is set to “Off”,
secondary audio will not be played (> 27).
18
VQT2H94
6 Press [2, 1] to select “Yes” and press [OK].
7 Press [2, 1] to select “Start” and press [OK].
≥ To use the above functions, it is recommended that you format the card on
this unit. If the SD card you use is formatted, all data on the card will be
erased. It cannot be recovered.
≥ “BD-Live Internet Access” may need to be changed for certain discs
(> 26).
≥ When discs supporting BD-Live are played back, the player or disc IDs
may be sent to the content provider via the Internet.
DMP-BD65_45EB-VQT2H94_eng.book
19 ページ ２０１０年１月１５日　金曜日　午後９時４８分
∫ Displaying subtitles text
Regarding DivX
ABOUT DIVX VIDEO:
DivX® is a digital video format created by DivX, Inc. This is an
official DivX Certified device that plays DivX video. Visit
www.divx.com for more information and software tools to
convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND:
This DivX Certified® device must be registered in order to play
DivX Video-on-Demand (VOD) content.
To generate the registration code, locate the DivX VOD
section in the device setup menu.
Go to vod.divx.com with this code to complete the registration
process and learn more about DivX VOD.
≥ It is not possible to playback DivX VOD content recorded on
the USB device.
You can display subtitles text on the DivX video disc on this
unit.
This function has no relation to the subtitles specified in DivX
standard specifications and has no clear standard. The
operation might be different or it may not operate properly
depending on the way the file was made or the state of this
unit (playing, stopped, etc.).
Set “Subtitle” in “Disc” (> 24)
≥ DivX video files that do not display “Text” do not contain subtitles text.
≥ If the subtitles text are not displayed correctly, try changing the language
settings. (> 26)
Display the unit’s registration code.
(> 29, “DivX Registration” in “General”)
DivX Registration
You must register this unit to play
protected DivX videos.
The registration code is necessary to
register this unit.
Please register at www.divx.com/vod/
10 alphanumeric
characters
Playback
Registration Code: XXXXXXXXXX
≥ After playing DivX VOD content for first time, the registration
code is not displayed.
≥ If you purchase DivX VOD content using a registration code
different from this unit’s code, you will not be able to play
this content. (“Authorisation Error.” is displayed.)
Cancel the unit’s registration.
(> 29, “DivX Registration” in “General”)
Press [2, 1] to select “Yes” in “DivX Registration”.
Use the deregistration code to cancel the registration in
www.divx.com.
Regarding DivX VOD content that can only be played a
set number of times
Some DivX VOD content can only be played a set number of
times. When you play this content, the remaining number of
plays is displayed. You cannot play this content when the
number of remaining plays is zero. (“Rental Expired.” is
displayed.)
≥ The remaining number of plays decreases each time a
program is played. However, when playing from the point
where play was previously stopped, the remaining number
of plays does not decrease due to the resume play function.
19
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
20 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Playing still pictures
BD DVD CD
SD
USB
(BD-RE, DVD-RAM/-R/-R DL, CD-R/RW, SD Card,
USB device)
Useful functions
1
2
Press [OPTION].
Select an item, then press [OK].
While “Album View” or “Picture View” screen is displayed
1
Insert a disc, SD card or USB device.
If the menu is displayed, press [3, 4] to select the item
and press [OK].
2
Start
Slideshow
BD-RE, DVD-RAM
Press [3, 4, 2, 1] to select the album
and press [OK].
Album View
DIRECT NAVIGATOR
DVD-RAM(VR)

3
Slideshow
Setting
2006 9 12
Total 13
106_DVD
Total 8
OPTION
Video
Previous
Video
OK
RETURN

Next

Slideshow
Page 02/02
DIRECT NAVIGATOR
Press OK to go to Picture View.
Picture View
DVD-RAM(VR)
Video
2006 9 12
0001
0002
0003
0004
0005
0006
0007
0008
Display interval
Change the display interval.
Transition Effect
Set display method.
Repeat Play
Repeat slideshow.
Soundtrack
The MP3 that is recorded on the USB device
or the music CD can be played back as
background music during the slideshow.
Soundtrack Folder
A folder to playback can be selected when a
USB device with MP3 recorded is connected
to this unit.
Press [3, 4, 2, 1] to select “Set” and
press [OK].
Press [3, 4, 2, 1] to select the still
picture and press [OK].
You can display still pictures one by one at a
constant interval.
Select
Folder
To switch to another higher folder
≥ Only if there is a multiple number of higher
folders recognizable
Folder
To select the still pictures in another folder
To Video
Playing video contents (> 16)
To album
view
To display album view.
While playing (except for slideshow)
0009
Rotate
RIGHT
Page 001/001
Rotate the still picture.
Rotate LEFT
Play
OPTION
RETURN
Zoom out
To show DIRECT NAVIGATOR screen or exit the screen
Press [TOP MENU/DIRECT NAVIGATOR].
Reduce the still picture
≥ This function is only available for
small-sized still pictures.
Zoom in
Cancel “Zoom out”
∫ To show the picture properties
Press [2, 1] to display the previous or next still picture.
While playing, press [STATUS] twice.
e.g. JPEG on DVD-RAM
Shooting date
Date
11.12.2007
To exit the screen
Press [STATUS].
20
VQT2H94
Total
3/9
≥ Depending on the media and contents, displayed items are different.
≥ When a still picture with large number of pixels is played, the display
interval may become longer. Even if the setting is changed, the display
interval may not become shorter.
≥ When both the music CD and the USB device with MP3 recorded is
inserted to this unit, the music CD has a priority to be played back as
background music.
DMP-BD65_45EB-VQT2H94_eng.book
21 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Playing music
DVD CD USB
(DVD-R/-R DL, music CD, CD-R/RW, USB device)
1
Insert a disc or USB device.
If the menu is displayed, press [3, 4] to select the item
and press [OK].
2
Press [3, 4] to select the track and press
[OK].
Music list
DIRECT NAVIGATOR
CD
No.
01
02
03
04
05
OPTION
“
0.09
4.30
Track1
5 Tracks / Total Play Time 20min54sec
Track Name
Play Time
4min30sec
Track1
3min41sec
Track2
Track3
4min30sec
Track4
3min11sec
5min 2sec
Track5
Play
RETURN
” indicates the track currently playing.
Playback
To show DIRECT NAVIGATOR screen or exit the screen
Press [TOP MENU/DIRECT NAVIGATOR].
∫ Playing a track in another folder
While the “Music list” is displayed
Press [OPTION], press [3, 4] to select
“Select Folder” and press [OK].
≥ You cannot select folders that contain no compatible tracks.
21
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
22 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Linked operations with
the TV
(VIERA Link “HDAVI Control™”)
What is VIERA Link “HDAVI Control”?
VIERA Link “HDAVI Control” is a convenient function
that offers linked operations of this unit, and a
Panasonic TV (VIERA) or other device under “HDAVI
Control”.
You can use this function by connecting the equipment
with an HDMI cable. See the operating instructions for
connected equipment for operational details.
Preparation
1 Set “VIERA Link” to “On” (> 28).
(The default setting is “On”.)
2 Set the “HDAVI Control” operations on the connected
equipment (e.g., TV).
3 Turn on all “HDAVI Control” compatible equipment and
select this unit’s input channel on the connected TV so
that the “HDAVI Control” function works properly.
Also when the connection or settings are changed,
repeat this procedure.
Automatic input switching
Power on link
When the following operations are performed, the television
will automatically switch the input channel and display the
corresponding action. When the television is off, the television
will automatically turn on.
– When play starts on the unit
– When an action that uses the display screen is performed
(e.g., DIRECT NAVIGATOR screen)
– BD-Video, DVD-Video:
When playback stops, the TV will automatically return to TV
tuner mode.
Power off link
All connected equipment compatible with “HDAVI Control”,
including this unit, automatically turns off when you switch the
television off.
Playing music continuously even after turning off power
to the television
When the unit is connected to a Panasonic TV (VIERA) that
supports HDAVI Control 2 or later and an amplifier/receiver
supports VIERA Link.
1 While playing music
Press [OPTION].
2 Press [3, 4] to select “TV Power” and press [OK].
22
VQT2H94
Easy control only with VIERA
remote control
Only TV supports “HDAVI Control 2” or later
By using the TV remote control, you can play discs using the
“Control Panel” and display the Top Menu or Pop-up Menu,
etc.
1
2
Press [OPTION].
Control Panel
Select an item, then
press [OK].
Screen Aspect
Top Menu
Pop-up Menu
OPTION
OK
RETURN
≥ The OPTION menu may not
appear while the Top Menu for
BD-Video or DVD-Video is displayed.
≥ The buttons that you can use for this unit vary depending on the TV. For
details, refer to the operating instructions of the TV.
≥ The operation of this unit may be interrupted when you press incompatible
buttons on the TV remote control.
≥ This unit supports “HDAVI Control 5” function.
“HDAVI Control 5” is the newest standard (current as of December, 2009)
for Panasonic’s HDAVI Control compatible equipment. This standard is
compatible with Panasonic’s conventional HDAVI equipment.
≥ VIERA Link “HDAVI Control”, based on the control functions provided by
HDMI which is an industry standard known as HDMI CEC (Consumer
Electronics Control), is a unique function that we have developed and
added. As such, its operation with other manufacturers’ equipment that
supports HDMI CEC cannot be guaranteed.
≥ Please refer to individual manuals for other manufacturers’ equipment
supporting VIERA Link function.
DMP-BD65_45EB-VQT2H94_eng.book
23 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Enjoying VIERA CAST™
[BD65]
You can access a selection of Internet services from the
Home screen with VIERA CAST, for example YouTube,
Picasa Web Albums. (Current as of December 2009)
Preparation
≥ Network connection (> 10)
≥ Network setting (> 12)
1
Press [VIERA CAST].
Message is displayed. Please read these instructions
carefully and then press [OK].
2
Press [3, 4, 2, 1] to select the item and
press [OK].
Operable buttons:
[3, 4, 2, 1], [OK], [RETURN], coloured buttons,
numbered buttons
≥ In the following cases, settings are possible using “Internet Content
Settings” (> 29)
–When restricting the use of VIERA CAST.
–When the audio is distorted.
–When wrong time is displayed
≥ If using slow Internet connection, the video may not be displayed
correctly. A high-speed Internet service with a speed of at least 6 Mbps is
recommended.
≥ Be sure to update the firmware when a firmware update notice is
displayed on the screen. If the firmware is not updated, you will not be
able to use the VIERA CAST™ function. (> 14)
≥ VIERA CAST™ home screen is subject to change without notice.
≥ The services through VIERA CAST™ are operated by their respective
service providers, and service may be discontinued either temporarily or
permanently without notice. Therefore, Panasonic will make no warranty
for the content or the continuity of the services.
≥ All features of websites or content of the service may not be available.
≥ Some content may be inappropriate for some viewers.
≥ Some content may only be available for specific countries and may be
presented in specific languages.
VIERA CAST Home screen;
Setup
London, United Kingdom
3°
Weather
WSW 21
COMING SOON
km/h
Featured Photos
Featured Videos
COMING
SOON
COMING
SOON
Bloomberg
TELEVISION
XXX
XXX
XXX
15min. delay
7465.95
-89.68
778.94 -9.47998
1442.82
-25.15
Playback
Images are for illustration purposes, contents may change
without notice.
To return to VIERA CAST Home screen
Press [VIERA CAST].
To exit from VIERA CAST
Press [EXIT], [FUNCTION MENU] or [TOP MENU/DIRECT
NAVIGATOR].
23
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
24 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Playback menu
Settings
1
Disc
Signal Type
Press [DISPLAY].
Primary Video
e.g., BD-Video
Disc
Play
Sound
Signal Type
Subtitle
Subtitle Style
Menus
Items
Off
-
Main
Angle
1ENG
Video
The recording method of original video
appears.
Soundtrack
Select the type of audio or language.
-
Settings
2
Press [3, 4] to select the menu and press
[1].
3
Press [3, 4, 2, 1] to select the item and
press [1].
4
Press [3, 4] to select the setting.
Some items can be changed by pressing [OK].
To exit the screen
Press [DISPLAY].
Depending on the condition of the unit (playing, stopped,
etc.) and media contents, there may be some items that
you cannot select or change.
Regarding Language, Audio attribute and video attribute:
(> 37)
Secondary Video
Video
Select on/off of images. The recording
method of original video appears.
Soundtrack
Select on/off of audio and the language.
Video
The recording method of original video appears.
Soundtrack
Show or change the soundtrack.
Subtitle
Turn the subtitle on/off, and change the language depending
on the media.
Subtitle Style
Select the subtitle style.
Audio channel
Select the audio channel number.
(> 16, Changing audio)
Angle
Select the number of the angle.
Some items may be changed only on the disc specific menu.
(> 16)
Play
Repeat Play
(Only when the elapsed time is being displayed on the unit’s
display.)
Select the item which you want to repeat. The items displayed
differ depending on the type of media.
Select “Off” to cancel.
Random
Select whether or not to play random.
24
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
25 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Sound
Mode
Sound Effects*1 *2
Select the picture quality mode during play.
≥ If you select “User”, you can make further adjustments.
Press [1] to select “Picture Adjustment” and press [OK].
≥ 3D NR: Reduces the rough noise in the background to give
a greater feeling of depth.
When “24p Output” is set to “On”, this function may not
operate. (> 28)
≥ Integrated NR: Smoothes block noise and reduces the
smudging that appears around contrasting sections of the
picture.
Select the sound effect.
≥ Re-master: (> 17)
Detail Clarity
≥ Night Surround:
Enjoy a movie with powerful sound even when the volume is
kept low at night. The audio is set in such a way that it can
be heard easily.
Dialog Enhancer*2
The volume of the centre channel is raised to make dialog
easier to hear.
The picture is sharp and detailed.
*1
Progressive
Select the method of conversion for progressive output to suit
the type of material being played.
≥ If the video is disrupted when "Auto" is selected, select
either "Video" or "Film" depending on the material to be
played back.
*2
Not every function can be set individually.
This function is effective for audio from the HDMI terminal or the OPTICAL
terminal only when “Digital Audio Output” is set to “PCM” (> 27).
(However, in this case, audio is output as 2ch from the OPTICAL
terminal.)
24p
Settings
Movies and other material recorded on DVD-Video at 24p are
output at 24p.
≥ Only when you have selected “On” in “24p Output” (> 28)
and play discs recorded at a rate of 60 fields per second.
25
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
26 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Setup menu
Change the unit’s settings if necessary. The settings remain
intact even if you switch the unit to standby.
1
Press [FUNCTION MENU] and press [3, 4]
to select “To Others” and press [OK].
2
Press [3, 4] to select “Setup” and press
[OK].
Setup
Disc
Set a ratings level to limit DVD-Video play.
≥ Follow the on-screen instructions. Enter the 4-digit
password with the numbered buttons when the password
screen is shown.
BD-Video Ratings
Set an age limit of BD-Video play.
≥ Follow the on-screen instructions. Enter the 4-digit
password with the numbered buttons when the password
screen is shown.
Soundtrack Preference
Sound
Choose the language for audio.
≥ If “Original” is selected, the original language of each disc
will be selected.
≥ Enter a code (> 37) with the numbered buttons when you
select “Other ¢¢¢¢”.
TV / Device Connection
Network
General
OK
RETURN
3
Press [3, 4] to select the menu and press
[OK].
4
Press [3, 4] to select the item and press
[OK].
If there are any other items, repeat these steps.
Press [3, 4, 2, 1] to select the option
and press [OK].
≥ There may be differences in operation methods. If this happens, follow the
on-screen instructions for the operation.
About the password
The following items use the same password.
Don’t forget your password.
≥ “DVD-Video Ratings”
≥ “BD-Video Ratings”
≥ “Lock” [BD65] (> 29)
26
DVD-Video Ratings
Display
5
Disc
VQT2H94
Subtitle Preference
Choose the language for subtitle.
≥ If “Automatic” is selected and the language selected for
“Soundtrack Preference” is not available, subtitles of that
language will automatically appear if available on that disc.
≥ Enter a code (> 37) with the numbered buttons when you
select “Other ¢¢¢¢”.
Menu Preference
Choose the language for disc menus.
≥ Enter a code (> 37) with the numbered buttons when you
select “Other ¢¢¢¢”.
BD-Live Internet Access [BD65] (> 18)
You can restrict Internet access when BD-Live functions are
used.
≥ If “Limit” is selected, Internet access is permitted only for
BD-Live contents which have content owner certificates.
DivX Subtitle Text
Select a suitable item according to the language used for DivX
subtitles text (> 19).
≥ This item is displayed only after playing back a file.
27 ページ ２０１０年１月１９日　火曜日　午後２時３０分
Still Mode
Select the type of picture shown when you pause playback.
Automatic
Automatically selects the type of picture
shown.
Field
Select if jittering occurs when “Automatic” is
selected.
Frame
Select if small text or fine patterns cannot be
seen clearly when “Automatic” is selected.
Seamless Play
The chapters segment in playlists are played seamlessly.
≥ Select “On”, when the picture freezes for a moment at the
chapters segment in playlists.
NTSC Contents Output
Select PAL60 or NTSC output when playing NTSC discs.
Sound
Dynamic Range Compression
You can listen at low volumes but still hear dialog clearly.
(Dolby Digital, Dolby Digital Plus and Dolby TrueHD only)
≥ “Auto” is effective only when playing Dolby TrueHD.
Digital Audio Output (> 33)
Press [OK] to show the following settings.
Dolby D/Dolby D +/Dolby TrueHD
DTS/DTS-HD
MPEG Audio
Select the audio signal to output.
≥ Select “PCM”, when the connected equipment cannot
decode the respective audio format.
≥ Not making the proper settings may result in noise.
BD-Video Secondary Audio
Select whether to mix or not mix the primary audio and
secondary audio (including the button click sound). (> 18)
≥ If “Off” is selected, the unit outputs the primary audio only.
PCM Down Conversion
Select how to output audio with a sampling frequency of
96 kHz for the PCM output from the DIGITAL AUDIO OUT.
≥ If “On” is selected, the signals that are converted to 48 kHz
are output.
≥ If “Off” is selected, and the connected equipment does not
support 96 kHz, the sound will not be output normally.
≥ Signals are converted to 48 kHz despite the settings across
in the following cases:
– when the signals have a sampling frequency of 192 kHz
– when the disc has copy protection
– when “BD-Video Secondary Audio” is set to “On”
Downmix
Select the downmix system of multi-channel to 2-channels
sound.
≥ Select “Surround encoded”, when the connected equipment
supports the virtual surround function.
≥ There is no effect on “Bitstream” via HDMI AV OUT and
DIGITAL AUDIO OUT.
≥ The audio will be output in “Stereo” in the following cases.
– AVCHD playback
– Playback of secondary audio (including the button click
sound).
7.1ch Audio Reformatting [BD65]
Surround sound with 6.1ch or less is automatically expanded
and played back at 7.1ch.
≥ If “Off” is selected, sound is played over the original number
of channels.
(Note that in the case of 6.1ch audio, playback will be at
5.1ch.)
Audio reformatting is enabled in the following cases:
≥ When you have selected “PCM” in “Digital Audio Output”.
≥ When the audio is Dolby Digital, Dolby Digital Plus, Dolby
TrueHD or LPCM.
Display
On-Screen Messages
Choose whether to show status messages automatically.
On-Screen Language
Choose the language for these menus and on-screen
messages.
Screen Saver Function
This is to prevent burn-in on the screen.
≥ When this is set to “On”:
If there is no operation for 10 minutes or more, DIRECT
NAVIGATOR screen switches to FUNCTION screen
automatically.
≥ While playing and pausing, etc., this function is not
available.
≥ As for Music [CD-DA] or MP3, regardless of the setting, if
there is no operation for a while, DIRECT NAVIGATOR
screen switches to the other states automatically.
FL Display
Settings
VQT2H94~Body_mst.fm
Changes the brightness of the unit’s display.
≥ If “Automatic” is selected the display is dimmed during
playback and bright except during playback.
Software Licence
Information about the software used by this unit is displayed.
27
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
28 ページ ２０１０年１月１５日　金曜日　午後９時４８分
TV / Device Connection
TV Aspect
VIERA Link
Set to use “HDAVI Control” function when connected with
an HDMI cable to a device that supports “HDAVI Control”.
≥ Select “Off” when you do not want to use “HDAVI Control”.
Set to match the type of television connected.
When connected to a 4:3 aspect television and playing 16:9
ratio image:
4:3 Pan &
Scan
4:3
Letterbox
The sides are cut off so
the picture fills the screen.
When playing BD-Video,
video is output as “4:3
Letterbox”.
Black bands appear at the
top and bottom of the
picture.
When connected to a 16:9 widescreen television and
playing 4:3 ratio image:
Video is displayed as a 4:3 ratio image in the
16:9
centre of the screen.
Video is displayed as a horizontally
16:9 full
stretched 16:9 image.
HDMI Connection
Press [OK] to show the following settings.
HDMI Video Mode [BD65]
Select “On” when video is output from HDMI AV OUT
terminal.
On
Off
Images are output from the HDMI terminal in the
resolution set in “HDMI Video Format”.
Images are output in the resolution set in
“Component Resolution”.
HDMI Video Format
The items supported by the connected devices are
indicated on the screen as “¢”. When any item without “¢”
is selected, the images may be distorted.
≥ If “Automatic” is selected, automatically selects the output
resolution best suited to the connected television.
≥ To enjoy high definition video up-converted to 1080p, you
need to connect the unit directly to 1080p compatible
HDTV (High Definition Television). If this unit is connected
to an HDTV through other equipment, the other must also
be 1080p compatible.
24p Output
When this unit is connected to a TV supporting 1080/24p
output using an HDMI cable, movies and other material
recorded at 24p are output at 24p.
≥ When playing DVD-Video, set to “On” and then set “24p”
in “Picture” (> 25) to “On”
≥ When BD-Video images other than 24p are played,
images are output at 60p.
HDMI Output Range
The signal is enhanced to reproduce clear video, when
connected to a device that only supports RGB output.
HDMI Audio Output
This setting selects whether or not to output audio from
HDMI.
≥ Select “Off” when the TV is connected to this unit via an
HDMI terminal, and this unit is also connected to other
devices, such as an amplifier/receiver via an OPTICAL
terminal.
28
VQT2H94
Deep Colour Output
This setting is for selecting whether to use Deep Colour
Output when a television that supports Deep Colour is
connected.
Contents Type Flag
Depending on the playback content, the TV will output
adjusting to the optimal method when a TV that supports
Contents Type Flag is connected.
Component Resolution [BD65]
This sets the video output resolution when using the
component video terminal.
480i, 480p: When playing NTSC discs
576i, 576p: When playing PAL discs
≥ Even if you select “720p” or “1080i”, the video output
resolution is restricted to “576p/480p” when DVD-Video
discs, DivX and BD-Video discs recorded at a rate of 50
field per second are output from the COMPONENT VIDEO
OUT terminals.
TV System
Perform the setup so it matches the TV System of the
connected TV.
≥ When NTSC contents are played, they are outputted in the
signal format specified in the “NTSC Contents Output”,
irrespective of the settings here.
DMP-BD65_45EB-VQT2H94_eng.book
29 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Network [BD65]
General
Network Easy Setting(> 12)
Remote Control
Network Settings
Change the remote control code if other Panasonic products
react to this remote control.
Perform network-related settings individually.
Press [OK] to show the following settings.
Quick Start
Select connection method.
Access Point Connection Setting
This allows the Wireless router (Access point) and
connection settings to be set and the current connection
settings and connection state to be checked when a
wireless connection is used.
Connection Setting
The Wireless router (Access point) connection wizard will
be displayed.
IP Address / DNS Settings
This is for checking the state of the network connection and
setting the IP address and DNS-related.
Press [OK] to show the respective setting.
≥ “Connection Speed Setting” is enabled only when
“Connection Speed Auto-Config” is turned “Off”.
Proxy Server Settings
This is for checking the state of connection with the Proxy
server and performing settings.
Press [OK] to show the respective setting.
Internet Content Settings (> 23) (VIERA CAST)
Press [OK] to show the following settings.
Lock
You can restrict the usage of VIERA CAST.
≥ Follow the on-screen instructions. Enter the 4-digit password
with the numbered buttons when the password screen is shown.
Audio Auto Gain Control
Volume that is different depending on the contents is
adjusted automatically to the standard volume while using
the VIERA CAST.
≥ Depending on contents, this function effect will not work.
≥ Select “Off” when the audio is warped.
Time Zone
By selecting the time zone, it is possible to set the unit’s
time to match your location.
≥ Some VIERA CAST contents require the time zone to
be set. Set the time zone if necessary.
Summer Time
≥ Select “On” when using Daylight Saving time.
Speed of startup from standby mode is increased.
≥ Internal control unit will be powered when it is set to “On” so
compared to when the setting is“Off” the following will occur.
– Idle power consumption will increase. (about the power
consumption> 36)
Easy Setting
You can execute basic settings (“On-Screen Language”, “TV
Aspect”, “Quick Start”)
Default Settings
This returns all values in the Setup menu and the playback
menu, except for “Remote Control”, “On-Screen Language”, “IP
Address / DNS Settings” [BD65], “Proxy Server Settings” [BD65],
“Lock” [BD65], “DVD-Video Ratings” and “BD-Video Ratings” to
the default settings.
DivX Registration (> 19)
You need this registration code to purchase and play DivX
Video-on-Demand (VOD) content.
System Information
Display firmware version of this unit and wireless LAN module
of your Wireless LAN Adaptor [BD65].
Firmware Update [BD65] (> 14)
Press [OK] to show the following settings.
Automatic Update Check
When this equipment remains connected to the Internet, it
will check for the latest firmware version when it is turned on
and you can update it if necessary.
Update Now
You can update the firmware manually if a firmware update
is available.
Settings
LAN Connection Mode
MAC Address
Displays the MAC address of this unit.
29
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
30 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Troubleshooting guide
R eference
Before requesting service, please perform the
following steps.
Do you have the latest firmware installed?
Firmware updates may be released to correct operating
irregularities that are discovered with certain movies.
(> 14)
4
Make the following checks.
If the problem remains unresolved, consult
your dealer for instructions.
The following do not indicate a problem with this unit:
≥ Regular disc rotating sounds.
≥ Image disturbance during search.
General operation
To return to the factory preset.
¾ Select “Yes” in “Default Settings” in the Setup menu. (> 29)
To return all settings to the factory preset.
¾ Reset the unit as follows:
1 While the unit is off, press and hold [OK], the yellow
button and the blue button on the remote control at the
same time for more than 5 seconds.
– “00 RET” is displayed on the unit’s display.
2 Repeatedly press [1](right) on the remote control or [Í/I]
on the unit until “08 FIN” is displayed on the unit's display.
3 Press and hold [OK] on the remote control or [< OPEN/
CLOSE] on the unit for at least 3 seconds.
Power of this unit is turned off when the input
for the TV is switched.
∫ Unit doesn’t respond to remote control
or front panel buttons.
¾ This is a normal phenomenon when using VIERA Link
(HDAVI Control 4 or later). For details please read the
operating instructions for the TV.
Press and hold [Í/I] on the main unit for 3 seconds.
– If still unable to turn the unit off, disconnect the AC mains
lead, wait 1 minute, then reconnect the AC mains lead.
The remote control doesn’t work properly.
∫ Cannot eject disc.
The unit may have a problem.
1 While the unit is off, press and hold [OK], the yellow
button and the blue button on the remote control at the
same time for more than 5 seconds.
– “00 RET” is displayed on the unit’s display.
2 Repeatedly press [1](right) on the remote control or [Í/I]
on the unit until “06 FTO” is displayed on the unit's
display.
3 Press [OK] on the remote control or [< OPEN/CLOSE] on
the unit.
¾ The remote control and main unit are using different
codes. If “SET 1”, “SET 2” or “SET 3” is displayed when a
button is pressed on the remote control, change the code
on the remote control. (> 29)
¾ It may be necessary to set the manufacturer code or the
remote control code again after changing the batteries for
remote control. (> 14)
The TV tuner mode is not displayed when the
TV is switched on.
¾ This phenomenon may occur, depending on the TV
setting, when “Quick Start” is set to “On”.
– Depending on the TV, this phenomenon may be prevented
by reconnecting the HDMI cable to a different HDMI input
terminal or by changing the HDMI auto connection setting.
You have forgotten your ratings password.
You want to cancel the ratings level.
¾ The ratings level returns to the factory preset.
1 While the unit is on, press and hold [OK], the yellow
button and the blue button on the remote control at the
same time for more than 5 seconds.
– “00 RET” is displayed on the unit’s display.
2 Repeatedly press [1] (right) on the remote control or [Í/
I] on the unit until “03 VL” is displayed on the unit's
display.
3 Press [OK] on the remote control or [< OPEN/CLOSE] on
the unit.
30
VQT2H94
31 ページ ２０１０年１月１５日　金曜日　午後９時４８分
The images from this unit do not appear on
the television.
Picture is distorted.
¾ An incorrect resolution is selected in “Component
Resolution” [BD65] or “HDMI Video Format”. Reset the
setting as follows:
1 While the unit is on, press and hold [OK], the yellow
button and the blue button on the remote control at the
same time for more than 5 seconds.
– “00 RET” is displayed on the unit’s display.
2 Repeatedly press [1](right) on the remote control or [Í/I]
on the unit until “04 PRG” is displayed on the unit's
display.
3 Press and hold [OK] on the remote control or [< OPEN/
CLOSE] on the unit for at least 3 seconds.
Set the item again. (> 28)
– When Dolby Digital Plus, Dolby TrueHD, and DTS-HD audio
are not output in bitstream, select “Yes” in “Default Settings”
and make proper settings. (> 29)
¾ The unit and television are using different video systems.
While stopped, keep pressing [∫] and [< OPEN/CLOSE]
on the main unit for 5 or more seconds. The system
switches from PAL to NTSC or vice versa.
¾ The system used on the disc doesn’t match your
television.
– PAL discs cannot be correctly viewed on an NTSC
television.
– This unit can convert NTSC signals to PAL60 for viewing
on a PAL television (“NTSC Contents Output” in the
“Picture”).
Video is not output in high definition.
¾ Confirm that the “HDMI Video Mode” [BD65], “HDMI Video
Format”, and “Component Resolution” [BD65] in the Setup
menu are set properly. (> 28)
¾ [BD65] The video output resolution is restricted to “576p/
480p” when DVD-Video discs, DivX and BD-Video discs
recorded at a rate of 50 field per second are output from
the COMPONENT VIDEO OUT terminals.
A black band is displayed around the edge of
the screen.
The aspect ratio of the screen is abnormal.
¾ Confirm the “TV Aspect” is set properly. (> 28)
¾ Adjust the aspect setting on the television.
(Adjustment using “Screen Aspect” (> 17) on the unit is
also possible.)
Audio
Cannot switch audio.
¾ When connecting an amplifier/receiver using an OPTICAL
terminal or an HDMI terminal, you cannot switch the audio
if “Digital Audio Output” is set to “Bitstream”. Set “Digital
Audio Output” to “PCM” or connect using AUDIO OUT
terminal. (> 9, 27)
Cannot hear the desired audio type.
¾ Check the connections and the “Digital Audio Output”
settings. (> 27)
¾ To output audio from a device connected with an HDMI
cable, set “HDMI Audio Output” to “On” in the Setup
menu. (> 28)
Playback
Disc cannot be played.
¾ The disc is dirty. (> 4)
¾ Check the region code.
The contents of the USB device cannot be
read.
¾ [BD65] USB devices connected using USB extension
cable other than the supplied with the Wireless LAN
Adaptor DY-WL10 (optional) or a USB hub may not be
recognized by this unit.
¾ If inserted during playback the USB device may not be
recognized by this unit.
¾ [BD65] If two USB devices other than Wireless LAN
adaptor are connected simultaneously, they will not be
recognized by this unit.
Still pictures (JPEG) do not playback
normally.
¾ The images that were edited on the PC, such as
Progressive JPEG, etc., may not playback.
I can’t play back BD-Live. [BD65]
¾ The SD card is write-protected. (> 7)
¾ Confirm that this unit is connected to the broadband
Internet. (> 10, 29)
¾ Confirm the “BD-Live Internet Access” settings. (> 26)
¾ Confirm an SD Card is inserted into the SD Card slot.
(> 15)
Network [BD65]
I can’t connect to the network.
¾ Confirm the network connection and settings. (> 10, 29)
¾ Check the operating instructions for each device and
connect accordingly.
31
VQT2H94
Reference
DMP-BD65_45EB-VQT2H94_eng.book
DMP-BD65_45EB-VQT2H94_eng.book
32 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Messages
The following messages or service numbers appear on the
television or unit’s display when something unusual is
detected during startup and use.
On the television
Cannot play.
¾ You inserted an incompatible disc.
Cannot play on this unit.
¾ You tried to play a non-compatible image.
¾ Confirm “SD” on the unit’s display is not blinking and
re-insert the card.
No disc is inserted.
¾ The disc may be upside down.
$ This operation is not available.
¾ Some operations are unsupported by the unit. For
example;
– BD-Video: During playback, reverse slow-motion or
reverse frame-by-frame is not possible.
IP address is not set. [BD65]
¾ The “IP Address” in “IP Address / DNS Settings” is “---. ---.
---. ---”. Set the “IP Address”, “Subnet Mask”, and
“Gateway Address”. (Select the automatic address
acquisition if necessary.)
On the unit’s display
F99
¾ The unit fails to operate properly. Press [Í/I] on the main
unit for 3 seconds to switch the unit to standby, then
switch back on.
HDMI ONLY
¾ Some BD-Video discs can only be output with HDMI.
NET [BD65]
¾ Displays while VIERA CAST is starting up.
No PLAY
¾ There is a viewing restriction on a BD-Video or
DVD-Video. (> 26)
No READ
¾ The media is dirty or badly scratched. The unit cannot
play.
PLEASE WAIT
¾ The unit is carrying out internal process.This is not a
malfunction. You cannot operate the unit while “PLEASE
WAIT” is displayed.
REMOVE
¾ The USB device is drawing too much power. Remove the
USB device.
SET 
(“ ” stands for a number.)
¾ The remote control and main unit are using different
codes. Change the code on the remote control.
Press and hold [OK] and the
indicated number button at the
same time for more than 5
seconds.
U59
¾ The unit is hot.
The unit switches to standby for safety reasons. Wait for
about 30 minutes until the message disappears.
Select a position with good ventilation when installing the
unit. Do not block the ventilation hole on the rear and side
of the unit.
U72
U73
¾ The HDMI connection acts unusually.
– Turn the unit and TV off.
– Disconnect the HDMI cable between the player and the
TV.
– Please use HDMI cables that have the HDMI logo.
– The connected equipment may not be compatible. If
connecting through an amplifier/receiver, try connecting
directly to the TV to see if message clears.
H or F
(“ ” stands for a number.)
¾ There is something unusual.
¾ Check the unit using the troubleshooting guide. If the
service number does not disappear, do the following.
1 Disconnect the plug from the household mains socket
wait a few seconds, then reconnect it.
2 Press [Í/I] to turn the unit on. (The unit may be fixed.)
If the service number does not disappear despite doing the
above, request service from the dealer. Inform the dealer of
the service number when requesting service.
START [BD65]
¾ The system is being restarted during the firmware update.
Please do not turn off the unit.
UPD/ [BD65]
(“ ” stands for a number.)
¾ The firmware is being updated.
Please do not turn off the unit.
FINISH
¾ The firmware update is complete.
32
VQT2H94
VQT2H94~Body_mst.fm
33 ページ ２０１０年１月１９日　火曜日　午後２時５７分
Audio Information
About audio from audio output terminal
The audio output differs depending on which terminals are connected to the amplifier/receiver, and the settings on the unit. (> 27,
Digital Audio Output)
≥ The number of channels listed is the maximum possible number of output channels.
HDMI AV OUT/DIGITAL AUDIO OUT
Terminal
“Dolby D/Dolby D +/Dolby
TrueHD”/“DTS/DTS-HD”
“BD-Video Secondary Audio”
Dolby Digital/
Dolby Digital EX*6
HDMI AV OUT
“Bitstream”*1
“On”*4
DTS-HD High Resolution
Audio/
DTS-HD Master Audio
“Off”
*2
*3
*4
*5
*6
*7
*8
*9
“On”*5
Dolby Digital
Outputs using
original audio
“Bitstream”
“PCM”
“On”/“Off”
“On”/“Off”
“Off”
BD-Video : 7.1ch PCM*8
Dolby Digital/
Dolby Digital
EX*7
7.1ch PCM
Dolby Digital
DVD-Video : 5.1ch PCM
DTS Digital
Surround/
DTS-ES *7
BD-Video : 7.1ch PCM*9
DTS Digital
Surround
Down-mixed
2ch PCM
DTS Digital
Surround
7.1ch PCM*9
7.1ch LPCM
*1
“PCM”*2*3
DVD-Video : 5.1ch PCM
Dolby Digital Plus/
Dolby TrueHD
DTS Digital Surround/
DTS-ES*6
DIGITAL AUDIO OUT
7.1ch PCM
Down-mixed 2ch PCM
When the connected equipment is not supported with these audio formats, the audio is output as Dolby Digital bitstream, DTS Digital Surround bitstream or
down-mixed 2ch PCM (e.g., TV).
When the connected equipment is not supported with multi channel surround, the audio is output as down-mixed 2ch PCM.
[BD45] : Regardless of a condition, the maximum possible number is 5.1ch PCM.
When playing BD-Video without secondary audio or button click sound, the audio is output as the same format as if “BD-Video Secondary Audio” was set to
“Off”.
When playing BD-Video with secondary audio or button click sound, the audio is output as 5.1ch.
With PCM output, Dolby Digital EX becomes PCM audio decoded as Dolby Digital, DTS-ES recorded to DVD-Video becomes PCM audio decoded as DTS
Digital Surround, and DTS-ES recorded to BD-Video becomes PCM audio decoded as DTS-ES.
When “BD-Video Secondary Audio” is set to “On”, Dolby Digital EX is output as Dolby Digital and DTS-ES is output as DTS Digital Surround, however if
playing BD-Video without secondary audio or button click sound, the audio is output as the original format.
[BD65] : When BD-Video is played and “7.1ch Audio Reformatting” is set to “Off”, the audio is output as 5.1ch.
The audio output is amplified from 5.1ch or 6.1ch to 7.1ch depending on the DTS, Inc. specifications.
Recommended audio output setting
The settings of the audio output vary depending on the connected equipment. Refer to the table below and set each of items.
Press [FUNCTION MENU] > select “To Others” > “[OK]”> select “Setup” > “[OK]”> “Sound” >
Set each item
For details of the each item, refer to page 27.
Example of connected equipment
Receiver with
HD audio*2 decoder
via HDMI
Receiver without
HD audio*2 decoder
via HDMI
Receiver via OPTICAL
“Dolby D/Dolby D
+/Dolby TrueHD”
“PCM”
“Bitstream”
“PCM”
“PCM”
“DTS/DTS-HD”
“PCM”
“Bitstream”
“PCM”
“PCM”
“BD-Video
Secondary Audio”
“Off”
“Off”
“Off”
“Off”
“PCM Down Conversion”
No effect
No effect
No effect
“Off”*3
“Downmix”
“Stereo”
No effect
No effect
“Stereo”*4
Setup menu
“Digital
Audio
Output”
Reference
TV via HDMI*1
≥ Because underlined items are the factory presets, it is not necessary to change these settings.
*1
*2
*3
*4
If connected to TV via except HDMI, these settings have no effect.
HD audio: Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio and DTS-HD Master Audio
If the connected equipment that does not support 96 kHz, set to “On”.
If the connected equipment that supports the virtual surround function, set to “Surround encoded”.
33
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
34 ページ ２０１０年１月１５日　金曜日　午後９時４８分
About MP3/JPEG/DivX/
AVCHD/MPEG2 files
Subtitles text file of DivX
File format
Subtitles text file of DivX
File format
MicroDVD, SubRip, or TMPlayer
Extension
Files must have the extension “.SRT”,
“.srt”, “.SUB”, “.sub”, “.TXT”, or “.txt”
Reference
≥ The DivX video file and subtitles text file
are inside the same folder, and the file
names are the same except for the file
extensions.
≥ Depending on the methods used to
create the file or the state of the
recording, only parts of the subtitles may
be displayed, or the subtitles may not be
displayed at all.
MP3
File format
MP3
Extension
Files must have the extension “.mp3” or
“.MP3”.
Compression
rate
32 kbps to 320 kbps
Sampling rate 44.1 kHz/48 kHz
Reference
ID3 tags: version 1, 2.2, 2.3, 2.4
(Only titles and the names of artists)
AVCHD
File format
AVCHD format (V1.0) used on High
Definition Video Camera
(Panasonic and some other’s)
JPEG
Codec
MPEG-4 AVC/H.264
Extension
Files must have the extension “.jpg” or
“.JPG”.
≥ Discs must conform to UDF 2.5.
resolution
between 34k34 and 8192k8192 pixels
(sub sampling is 4:2:2 or 4:2:0)
Reference
JPEG conforming DCF* is supported.
≥ MOTION JPEG and Progressive JPEG is
not supported.
JPEG
File format
* Design rule for Camera File system: unified standard
established by Japan Electronics and Information
Technology Industries Association (JEITA).
≥ DVD-RAM must conform to UDF 2.0.
≥ BD-RE must conform to UDF 2.5.
DivX
File format
DivX
Extension
Files must have the extension “.DIVX”,
“.divx”, “.AVI” or “.avi”.
resolution
Up to 1920k1080 pixels
Reference
≥ DivX certified to play DivX video up to HD
1080p, including premium content.
Video
– Number of stream: Up to 1
– Codec: DIV3, DIV4, DIVX, DX50, DIV6
– FPS (Frame Per Second): Up to 60 fps
Audio
– Number of stream: Up to 8
– Format: MP3, MPEG, Dolby Digital
– Multi channel: Dolby Digital is possible.
MPEG multi is 2 ch conversion.
≥ GMC (Global Motion Compensation) is
not supported.
≥ DVD-R and DVD-R DL must conform to UDF 1.02 without
ISO9660 and UDF 1.5 with ISO9660.
≥ BD-R must conform to UDF 2.5.
34
VQT2H94
MPEG2
File format
SD-Video format* used on Standard
Definition Video Camera
(Panasonic and some other’s)
Codec
MPEG2
* SD-Video Entertainment Video Profile
≥ With certain recording states and folder structures, the play order may
differ or playback may not be possible.
≥ CD-R, CD-RW : ISO9660 level 1 or 2 (except for extended formats), Joliet
This unit is compatible with multi-session.
This unit is not compatible with packet writing.
≥ DVD-R, DVD-R DL (except for AVCHD) : ISO9660 level 1 or 2 (except for
extended formats), Joliet, UDF bridge (UDF 1.02/ISO9660)
This unit is not compatible with multi-session.
This unit is not compatible with packet writing.
DMP-BD65_45EB-VQT2H94_eng.book
35 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Structure of MP3 folders
Structure of folders that can be
played in this unit
in DVD-R/DVD-R DL/CD-R/CD-RW/USB device
Prefix the file names with 3-digit numbers in the order you
want to play them.
e.g.,
Root
You can play files on this unit by structure of folders as
shown below. However depending on the method of
writing data (writing software), play may not be in the
order you numbered the folders.
001XXXX.mp3
002XXXX.mp3
001
003XXXX.mp3
004XXXX.mp3
005XXXX.mp3
: Folder which can be displayed with this unit
¢¢¢: Numbers
XXX: Letters
*2
*3
Folder B
006XXXX.mp3
007XXXX.mp3
008XXXX.mp3
009XXXX.mp3
¢¢¢: from 001 to 999
¢¢¢: from 100 to 999
XXXXX: 5 figures
¢¢¢¢: from 0001 to 9999
XXXX: 4 figures
Folder C
010XXXX.mp3
011XXXX.mp3
012XXXX.mp3
Structures of still picture (JPEG) folders
Structure of DivX folders
in DVD-R*4/DVD-R DL*4/CD-R*5/CD-RW*5
Files inside a folder are displayed in the order they were
updated or taken.
Root
e.g.,
in BD-R*7/DVD-R*7/DVD-R DL*7/CD-R*7/CD-RW*7/USB
device*7
Files inside a folder are displayed in the order they were
updated or taken.
e.g.,
Root
P0000001.divx
P0000002.divx
Folder A
Folder A
P0000003.divx
P0000004.divx
P0000005.divx
Folder B
Folder B
P0000006.divx
P0000007.divx
P0000008.divx
P0000009.divx
Folder C
Folder C
in BD-RE*6/DVD-RAM*4
≥ Folder structure is not displayed.
Root
e.g.,
P0000010.divx
P0000011.divx
P0000012.divx
*4
*5
*6
*7
JPEG
DCIM
*1
XXXXX *2
The total combined maximum number of recognizable picture contents
and folders: 3000 picture contents and 300 folders.
The total combined maximum number of recognizable picture contents
and folders: 999 picture contents and 99 folders.
The total combined maximum number of recognizable picture contents
and folders: 9999 picture contents and 300 folders.
The total combined maximum number of recognizable file contents and
folders: 200 file contents and 300 folders.
*3
DCIM
XXXXX *2
*3
in SD card*4/USB device*4
Displays JPEG files in all folders.
≥ Folder structure is not displayed.
e.g.,
Root
DCIM
XXXXX *2
*3
Folder A
Reference
*1
Folder A
35
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
36 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Specifications
Safety precautions
Signal system:
PAL/NTSC
Operating temperature range:
i5 oC to i35 oC
Operating humidity range:
10 % to 80 % RH (no condensation)
Video output:
1.0 Vp-p (75 ≠)/Pin jack :1 system
[BD65] Component video output (Y: green, PB: blue, PR: red):
Y :1.0 Vp-p (75 ≠)/PB, PR : 0.7 Vp-p (75 ≠)/
Pin jack:1 system
Audio output:
2 Vrms (1 kHz, 0 dB)/Pin jack
Number of connectors :
2 channel:1 system
Digital audio output:
Optical digital output :Optical terminal
HDMI AV output:
Type A (19 pin)
HDMI (V.1.4, Content Type)
This unit supports “HDAVI Control 5” function.
SD card slot:
Connector : 1 system
USB slot:
USB2.0 : 1 system
[BD65] : Ethernet:
10BASE-T/100BASE-TX : 1 system
LASER Specification
Class 1 LASER Product:
Wave length:790 nm (CDs)/655 nm (DVDs)/405 nm (BDs)
Laser power: No hazardous radiation is emitted with the
safety protection
Power supply:
AC 220 to 240 V, 50 Hz
Power consumption:
[BD65]:
Approx. 20 W
[BD45]:
Approx. 19 W
Power consumption in standby mode: Approx. 0.2 W
Power consumption in quick start standby mode: Approx. 7 W
Dimensions (WkDkH) : Including the projecting parts
430 mmk207 mmk49 mm
Mass:
Approx. 1.9 kg
∫ Placement
Specifications are subject to change without notice.
Set the unit up on an even surface away from direct sunlight,
high temperatures, high humidity, and excessive vibration.
These conditions can damage the cabinet and other
components, thereby shortening the unit’s service life. Do not
place heavy items on the unit.
∫ Voltage
Do not use high voltage power sources. This can overload the
unit and cause a fire. Do not use a DC power source. Check
the source carefully when setting the unit up on a ship or other
place where DC is used.
∫ AC mains lead protection
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fire
or electric shock. Do not pull, bend, or place heavy items on
the lead.
Grasp the plug firmly when unplugging the lead. Pulling the
AC mains lead can cause electric shock. Do not handle the
plug with wet hands. This can cause electric shock.
∫ Foreign matter
Do not let metal objects fall inside the unit. This can cause
electric shock or malfunction.
Do not let liquids get into the unit. This can cause electric
shock or malfunction. If this occurs, immediately disconnect
the unit from the power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.
∫ Service
Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any
other problem that is not covered in these instructions occurs,
disconnect the AC mains lead and contact your dealer or an
authorized service centre. Electric shock or damage to the
unit can occur if the unit is repaired, disassembled or
reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power
source if it is not to be used for a long time.
36
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
37 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Supplemental information
Brand
TV Code
Panasonic
AIWA
AKAI
BEKO
BENQ
BRANDT
BUSH
CENTREX
CURTIS
DAEWOO
DESMET
DUAL
ELEMIS
FERGUSON
FINLUX
FISHER
FUJITSU
FUNAI
GOLDSTAR
GOODMANS
GRADIENTE
GRUNDIG
HITACHI
IRRADIO
ITT
JVC
KDS
KOLIN
KONKA
LG
LOEWE
MAG
METZ
MITSUBISHI
MIVAR
01/02/03/04
35
27/30
05/71/72/73/74
58/59
10/15
05
66
05
64/65
05
05
05
10/34
61
21
53
63/67
05/50/51
05
36
09
05/22/23/40/41
30
25
17/30/39/70
52
45
62
05/50/51
07/46
52
05/28
05/19/20/47
24
Brand
Amplifier/
Receiver Code
Panasonic
TECHNICS
ADCOM
AIWA
ALPINE
ARCAM
BOSE
DENON
HARMAN
KARDON
JVC
KENWOOD
KLH
LG
LUXMAN
01/02/03
35
62
04/05/06/48/49
63
57/58
07
08/09/10/11/50/51/52
12
12
13/14
15/16/17
18
19
59
Brand
TV Code
NEC
NOBLEX
NOKIA
NORDMENDE
OLEVIA
ONWA
ORION
PEONY
PHILCO
PHILIPS
PHONOLA
PIONEER
PROVIEW
PYE
RADIOLA
SABA
SALORA
SAMSUNG
SANSUI
SANYO
SCHNEIDER
SEG
SELECO
SHARP
SIEMENS
SINUDYNE
SONY
TCL
TELEFUNKEN
TEVION
THOMSON
TOSHIBA
WHITE
WESTINGHOUSE
YAMAHA
Brand
MARANTZ
MCINTOSH
NAD
NAKAMICHI
ONKYO
OUTLAW
PREAMP
PHILIPS
PIONEER
SAMSUNG
SONY
TEAC
THOMSON
YAMAHA
36
33
25/26/27/60/61
10
45
30/39/70
05
49/69
41/48/64
05/06/46
05
37/38
52
05
05
10
26
32/42/43/65/68
05
21/54/55/56
05/29/30
05/69/75/76/77/78
05/25
18
09
05
08
31/33/66/67/69
10/11/12/13/14
52
10/15/44
16/57
05
18/41
Amplifier/
Receiver Code
20/21
54
22/55
60/61
23
56
24/44
25/26/27/28
45/46/47
29/30/31
32/33/34
43/53
36/37/38/39/40/41/42
∫ Video attribute
DIsplay
MPEG-2/MPEG-4 AVC/VC-1
∫ Audio attribute
Meaning
Video recording method
DIsplay
Meaning
LPCM/
Digital/
Digital+/
Signal type
TrueHD/DTS/DTS 96/DTS-HD HI RES/
DTS-HD MSTR/MPEG
ch (channel)
Number of channels
k (kHz)
Sampling frequency
b (bit)
Number of bits
∫ Display languages list
DIsplay Language DIsplay Language DIsplay Language
ENG
FRA
DEU
ITA
ESP
NLD
SVE
NOR
DAN
POR
RUS
English
French
German
Italian
Spanish
Dutch
Swedish
Norwegian
Danish
Portuguese
Russian
JPN
CHI
KOR
MAL
VIE
THA
POL
CES
SLK
HUN
FIN
Japanese
Chinese
Korean
Malay
Vietnamese
Thai
Polish
Czech
Slovak
Hungarian
Finnish
ARA
HIN
PER
IND
MRI
BUL
RUM
GRE
TUR
Arabic
Hindi
Persian
Indonesian
Maori
Bulgarian
Romanian
Greek
Turkish
Others
∫ Language code list
Language Code Language
Abkhazian
6566
Afar:
6565
Afrikaans:
6570
Albanian:
8381
6577
Amharic:
Arabic:
6582
Armenian:
7289
Assamese:
6583
Aymara:
6589
Azerbaijani:
6590
Bashkir:
6665
Basque:
6985
Bengali; Bangla:
6678
Bhutani:
6890
Bihari:
6672
Breton:
6682
Bulgarian:
6671
Burmese:
7789
Byelorussian: 6669
Cambodian:
7577
Catalan:
6765
Chinese:
9072
Corsican:
6779
Croatian:
7282
Czech:
6783
Danish:
6865
Dutch:
7876
English:
6978
Esperanto:
6979
Estonian:
6984
Faroese:
7079
Fiji:
7074
Finnish:
7073
French:
7082
Frisian:
7089
Galician:
7176
Georgian:
7565
German:
6869
Greek:
6976
Greenlandic:
7576
Guarani:
7178
Code Language Code
Gujarati:
Hausa:
Hebrew:
Hindi:
Hungarian:
Icelandic:
Indonesian:
Interlingua:
Irish:
Italian:
Japanese:
Javanese:
Kannada:
Kashmiri:
Kazakh:
Kirghiz:
Korean:
Kurdish:
Laotian:
Latin:
Latvian, Lettish:
Lingala:
Lithuanian:
Macedonian:
Malagasy:
Malay:
Malayalam:
Maltese:
Maori:
Marathi:
Moldavian:
Mongolian:
Nauru:
Nepali:
Norwegian:
Oriya:
Pashto, Pushto:
Persian:
Polish:
Portuguese:
Punjabi:
Quechua:
7185
7265
7387
7273
7285
7383
7378
7365
7165
7384
7465
7487
7578
7583
7575
7589
7579
7585
7679
7665
7686
7678
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
7865
7869
7879
7982
8083
7065
8076
8084
8065
8185
Rhaeto-Romance:
8277
Romanian:
8279
Russian:
8285
Samoan:
8377
Sanskrit:
8365
Scots Gaelic:
7168
Serbian:
8382
Serbo-Croatian: 8372
Shona:
8378
Sindhi:
8368
Singhalese:
8373
Slovak:
8375
Slovenian:
8376
Somali:
8379
Spanish:
6983
Sundanese:
8385
Swahili:
8387
Swedish:
8386
Tagalog:
8476
Tajik:
8471
Tamil:
8465
Tatar:
8484
Telugu:
8469
Thai:
8472
Tibetan:
6679
Tigrinya:
8473
Tonga:
8479
Turkish:
8482
Turkmen:
8475
Twi:
8487
Ukrainian:
8575
Urdu:
8582
Uzbek:
8590
Vietnamese:
8673
Volapük:
8679
Welsh:
6789
Wolof:
8779
Xhosa:
8872
Yiddish:
7473
Yoruba:
8979
Zulu:
9085
37
VQT2H94
Reference
∫ TV/Amplifier/Receiver code list
DMP-BD65_45EB-VQT2H94_eng.book
38 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Glossary
AVCHD
AVCHD is a new format (standard) for high definition video
cameras that can be used to record and play high-resolution
HD images.
BD-J
Some BD-Video discs contain Java applications, and these
applications are called BD-J. You can enjoy various
interactive features in addition to playing normal video.
Deep Colour
This unit incorporates HDMI (V.1.4, Content Type) technology
that can reproduce greater colour gradation (4096 steps)
when connected to a compatible TV.
You can enjoy exceptionally rich, natural-looking colours, with
smooth, detailed gradation and minimal colour banding.
[A lower colour gradation (256 steps), without Deep Colour,
will be reproduced if connected to a TV which does not
support Deep Colour.
The unit will automatically set appropriate output to suit the
connected TV.]
Dolby Digital
This is a method of coding digital signals developed by Dolby
Laboratories. Apart from stereo (2-channel) audio, these
signals can also be multi-channel audio.
Dolby Digital Plus
Multi-channel audio and higher audio quality is made possible
using Dolby Digital Plus. BD-Video supports up to 7.1 channel
output.
Dolby TrueHD
Dolby TrueHD is a very high quality audio format that
reproduces the studio master audio. BD-Video supports up to
7.1 channel output.
DTS (Digital Theater Systems)
This surround system is used in many movie theatres. There
is good separation between the channels, so realistic sound
effects are possible.
DTS-HD
DTS-HD is a high-quality, sophisticated audio format used in
movie theatres. Previous DTS Digital Surround-compatible
equipment can play DTS-HD as DTS Digital Surround audio.
BD-Video supports up to 7.1 channel output.
DTS-HD High Resolution Audio
This is a signal format achieved by improving the previous
DTS, DTS-ES and DTS 96/24 formats. It is compatible with
sampling frequency 96 kHz/48 kHz. BD-Video supports up to
7.1 channel output.
DTS-HD Master Audio
This is a lossless audio format and compatible with 96 kHz/
7.1ch or less. In addition, faithful reproduction of the master
audio is enabled using lossless audio encoding technology.
BD-Video supports up to 7.1 channel output.
HDMI (High-Definition Multimedia Interface)
HDMI is a digital interface for consumer electronic products.
Unlike conventional connections, it transmits uncompressed
digital video and audio signals on a single cable.
Local storage [BD65]
This storage area is used as a destination for sub contents for
playing BD-Live on BD-Video.
38
VQT2H94
LPCM (Linear PCM)
These are a kind of PCM format.
These are uncompressed digital signals, similar to those
found on CDs.
P4HD (Pixel Precision Progressive Processing for HD)
This is a processor which makes use of an exclusive
Panasonic algorithm. Various processing is supported,
including a high-level conversion of the TV scanning format
from interlace to progressive and a high-level conversion of
standard resolution (480i or 576i) video signal to a 1080 High
Definition video signal.
Consequently, this unit is able to provide video of optimal
resolution to the connected TV.
PCM (Pulse Code Modulation)
This is one format for converting analogue audio into digital
audio, enabling you to enjoy digital audio with no hassle.
x.v.Colour™
x.v.Colour™ is a name for devices that are compatible with the
xvYCC format, an international standard for expanded colour
in motion pictures, and that follow the rules for signal
transmission.
You can enjoy vivid colours of wider colour ranges for a more
realistic picture when connected to a TV that supports the
x.v.Colour™ with HDMI cable.
24p
This is a progressive image recorded at a rate of 24 frames
per second (motion-picture film). Many BD-Video movie
contents are recorded in 24 frames/second in accordance with
the film materials.
DMP-BD65_45EB-VQT2H94_eng.book
39 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Java and all Java-based trademarks and logos are trademarks or
registered trademarks of Sun Microsystems, Inc. in the United States
and other countries.
“BD-LIVE” logo is trademark of Blu-ray Disc Association.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
YouTube and Picasa are trademarks of Google, Inc.
Manufactured under license under U.S. Patent #’s: 5,451,942;
5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195;
7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents
issued & pending.
DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD
Master Audio | Essential and the DTS logos are trademarks of DTS,
Inc.
Product includes software. © DTS, Inc. All Rights Reserved.
This product incorporates copyright protection technology that is
protected by U.S. patents and other intellectual property rights. Use
of this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited viewing uses
only unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
This product is licensed under the AVC patent portfolio license and
VC-1 patent portfolio license for the personal and non-commercial
use of a consumer to (i) encode video in compliance with the AVC
Standard and VC-1 Standard (“AVC/VC-1 Video”) and/or (ii) decode
AVC/VC-1 Video that was encoded by a consumer engaged in a
personal and non-commercial activity and/or was obtained from a
video provider licensed to provide AVC/VC-1 Video. No license is
granted or shall be implied for any other use. Additional information
may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
HDAVI Control™ is a trademark of Panasonic Corporation.
x.v.Colour™ is a trademark.
VIERA CAST™ is a trademark of Panasonic Corporation.
“AVCHD” and the “AVCHD” logo are trademarks of Panasonic
Corporation and Sony Corporation.
SDXC Logo is a trademark of SD-3C, LLC.
DivX® is a registered trademark of DivX, Inc., and is used under
license.
“BONUSVIEW” is trademark of Blu-ray Disc Association.
This product incorporates the following software:
(1) the software developed independently by or for Panasonic
Corporation,
(2) the software owned by third party and licensed to Panasonic
Corporation,
(3) the software licensed under the GNU General Public License,
Version 2 (GPL v2),
(4) the software licensed under the GNU LESSER General Public
License, Version 2.1 (LGPL v2.1) and/or,
(5) open sourced software other than the software licensed under
the GPL v2 and/or LGPL v2.1
For the software categorized as (3) and (4), please refer to the terms
and conditions of GPL v2 and LGPL v2.1, as the case may be at
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html.
In addition, the software categorized as (3) and (4) are copyrighted
by several individuals. Please refer to the copyright notice of those
individuals at
http://www.am-linux.jp/dl/JPRCBW98
The GPL/LGPL software is distributed in the hope that it will be
useful, but WITHOUT ANY WARRANTY, without even the implied
warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
PURPOSE.
At least three (3) years from delivery of products, Panasonic will give
to any third party who contact us at the contact information provided
below, for a charge no more than our cost of physically performing
source code distribution, a complete machine-readable copy of the
corresponding source code covered under GPL v2/LGPL v2.1.
Contact Information
[email protected]
Source code is also freely available to you and any other member of
the public via our website below.
http://www.am-linux.jp/dl/JPRCBW98
“Blu-ray Disc” is trademark.
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and
electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable
collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment which could otherwise arise from inappropriate
waste handling.
For more information about collection and recycling of old products and batteries, please contact your local
municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact your local
authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement
set by the Directive for the chemical involved.
Cd
39
VQT2H94
DMP-BD65_45EB-VQT2H94_eng.book
40 ページ ２０１０年１月１５日　金曜日　午後９時４８分
Index
A AC mains lead. . . . . . . . . . . . . . . 11
Angle . . . . . . . . . . . . . . . . . . . . . . 24
Audio
Changing audio . . . . . . . . . . . . 16
Channel . . . . . . . . . . . . . . . . . . 24
Language . . . . . . . . . . . . . . 24, 26
AVCHD. . . . . . . . . . . . . . . . . . . . . 34
B BD-Live . . . . . . . . . . . . . . . . . . . . 18
BD-Video Ratings . . . . . . . . . . . . 26
BONUSVIEW . . . . . . . . . . . . . . . . 18
C Chapter . . . . . . . . . . . . . . . . . . . . 17
Cleaning . . . . . . . . . . . . . . . . . . . . 4
Connection . . . . . . . . . . 8, 9, 10, 11
D Deep Colour . . . . . . . . . . . . . . . . 38
Default Settings . . . . . . . . . . . . . 29
DIRECT NAVIGATOR . . . . . . . . . 16
DivX . . . . . . . . . . . . . . . . . . . . 19, 34
DNS Server . . . . . . . . . . . . . . . . . 29
Dolby Digital . . . . . . . . . . . . . 27, 33
Dolby Digital Plus . . . . . . . . . 27, 33
Dolby TrueHD . . . . . . . . . . . . 27, 33
DTS . . . . . . . . . . . . . . . . . . . . 27, 33
DTS-HD . . . . . . . . . . . . . . . . . 27, 33
DVD-Video Ratings. . . . . . . . . . . 26
F Finalize . . . . . . . . . . . . . . . . . . . . . 7
Firmware update. . . . . . . . . . . . . 14
Frame-by-frame . . . . . . . . . . . . . 16
H HDMI . . . . . . . . . . . . . . . . . . . . . 8, 9
I IP address. . . . . . . . . . . . . . . . . . 29
J JPEG . . . . . . . . . . . . . . . . . . . 20, 34
L LAN . . . . . . . . . . . . . . . . . . . . . . . 10
Language
Audio . . . . . . . . . . . . . . . . . 24, 26
Menu . . . . . . . . . . . . . . . . . . . . 26
On-Screen . . . . . . . . . . . . . . . . 27
Soundtrack . . . . . . . . . . . . . . . . 24
Subtitle . . . . . . . . . . . . . . . . 24, 26
Local storage . . . . . . . . . . . . . . . 38
M MPEG2 . . . . . . . . . . . . . . . . . . . . 34
MP3 . . . . . . . . . . . . . . . . . . . . 21, 34
N Network
Connection . . . . . . . . . . . . . . . . 10
Setting . . . . . . . . . . . . . . . . 12, 29
O On-Screen Language. . . . . . . . . 27
P Picture-in-picture . . . . . . . . . . . . 18
Playback
AVCHD . . . . . . . . . . . . . . . . . . 16
DivX . . . . . . . . . . . . . . . . . . . . . 16
JPEG . . . . . . . . . . . . . . . . . . . . 20
MPEG2 . . . . . . . . . . . . . . . . . . 16
MP3 . . . . . . . . . . . . . . . . . . . . . 21
Playlists . . . . . . . . . . . . . . . . . . . 15
Pop-up menu . . . . . . . . . . . . . . . 16
Proxy Server. . . . . . . . . . . . . . . . 29
P4HD . . . . . . . . . . . . . . . . . . . . . . 38
(Inside of product)
Q Quick Start . . . . . . . . . . . . . . . . . 29
R Random play . . . . . . . . . . . . . . . 24
Re-master . . . . . . . . . . . . . . . 17, 25
Remote control . . . . . . . . . 4, 5, 14
Repeat play . . . . . . . . . . . . . . . . 24
Resume play function . . . . . . . . 16
S SD card . . . . . . . . . . . . . . . . . . 7, 18
Setup menu . . . . . . . . . . . . . . . . 26
Slideshow . . . . . . . . . . . . . . . . . . 20
Slow-motion . . . . . . . . . . . . . . . . 16
Soundtrack . . . . . . . . . . . . . . . . . 24
Status Message . . . . . . . . . . . . . 16
Still picture . . . . . . . . . . . . . . . . . 20
Subtitle . . . . . . . . . . . . . . . . . . . . 24
U USB device . . . . . . . . . . . . . . . . . . 7
V VIERA CASTTM . . . . . . . . . . . . . . 23
VIERA Link
“HDAVI ControlTM” . . . . . . . . . . 22
W Wireless LAN . . . . . . . . . . . . . . . 10
X x.v.Colour TM . . . . . . . . . . . . . . . . 38
24p . . . . . . . . . . . . . . . . . . . . 25, 28
(Back of product)
EU
Environment friendly printed on chlorine free bleached paper.
Panasonic Corporation
Web Site: http://panasonic.net
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
C Panasonic Corporation 2010
p
VQT2H94
F0110SS0
