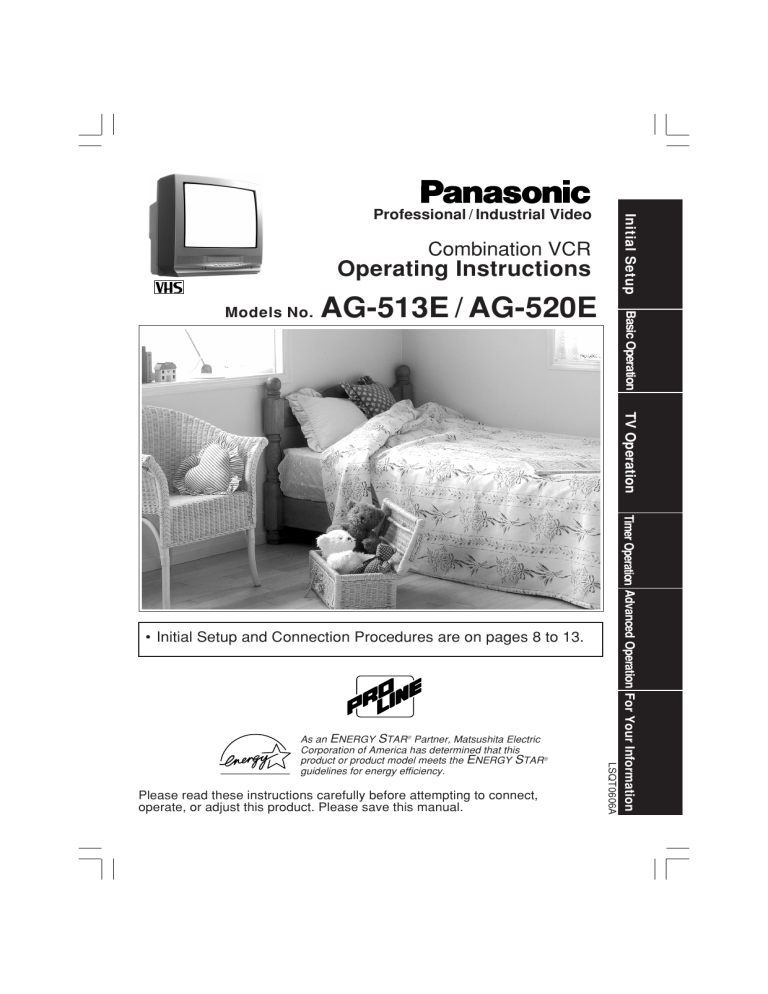

Initial Setup
Professional / Industrial Video
Combination VCR
Operating Instructions
AG-513E / AG-520E
Basic Operation
Models No.
TV Operation
Please read these instructions carefully before attempting to connect,
operate, or adjust this product. Please save this manual.
LSQT0606A
As an ENERGY STAR® Partner, Matsushita Electric
Corporation of America has determined that this
product or product model meets the ENERGY STAR®
guidelines for energy efficiency.
Timer Operation Advanced Operation For Your Information
• Initial Setup and Connection Procedures are on pages 8 to 13.
Important Safeguards and Precautions
READ AND RETAIN ALL SAFETY AND
OPERATING INSTRUCTIONS. HEED ALL
WARNINGS IN THE MANUAL AND ON UNIT
INSTALLATION
1 POWER SOURCE CAUTION
Operate only from power source indicated on unit
or in this manual. If uncertain, have your Electric
Utility Service Company or Video Products Dealer
verify your home power source.
2 POWER CORD PLUG
For safety, this unit has a polarized type plug (one
wide blade), or a three-wire grounding type plug.
Always hold the plug firmly and make sure your
hands are dry when plugging in or unplugging the
AC power cord. Regularly remove dust, dirt, etc.
on the plug.
POLARIZED PLUG CAUTION:
The plug fits into the outlet only one way. If it cannot
be fully inserted, try reversing it. If it still will not fit,
have an electrician install the proper wall outlet. Do
not tamper with the plug.
GROUNDING PLUG CAUTION:
The plug requires a three-hole grounding outlet.
If necessary, have an electrician install the proper
outlet. Do not tamper with the plug.
3 POWER CORD
To avoid unit malfunction, and to protect against
electrical shock, fire, or personal injury:
- Keep power cord away from heating appliances
and walking traffic. Do not rest heavy objects on,
or roll such objects over the power cord.
- Do not tamper with the cord in any way.
- An extension cord should have the same type
plug (polarized or grounding) and must be
securely connected.
- Overloaded wall outlets or extension cords are
fire hazards.
- Frayed cords, damaged plugs, and damaged or
cracked wire insulation are hazardous and should
be replaced by a qualified electrician.
4 DO NOT BLOCK VENTILATION HOLES
Ventilation openings in the cabinet release heat
generated during operation. If blocked, heat
build-up may result in a fire hazard or heat
damage to cassettes.
For your protection:
a. Never cover ventilation slots while unit is ON,
or operate unit while placed on a bed, sofa,
rug, or other soft surface.
b. Avoid built-in installation, such as a book case
or rack, unless properly ventilated.
5 AVOID EXTREMELY HOT LOCATIONS OR
SUDDEN TEMPERATURE CHANGES
Do not place unit over or near a heater or radiator,
in direct sunlight, etc. If unit is suddenly moved
from a cold place to a warm place, moisture may
condense in unit and on the tape causing
damage.
6 TO AVOID PERSONAL INJURY
• Never place unit on support or stand that is not
firm, level, and adequately strong.
The unit could fall causing serious
injury to a child or adult and
damage to the unit.
• Move any appliance and cart
combination with care.
Quick stops, excessive force, and
uneven surfaces may cause objects to overturn.
• Carefully follow all operating instructions.
2
OUTDOOR ANTENNA INSTALLATION
1 SAFE ANTENNA AND CABLE CONNECTION
An outside antenna or cable system must be properly
grounded to provide some protection
against built up static charges
and voltage. Section 810
of the National Electrical
Code, ANSI/NFPA 70 (in
Canada, part 1 of the
Canadian Electrical Code)
provides information
regarding proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
NEC - NATIONAL ELECTRICAL CODE
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE
POWER LINES OR CIRCUITS
Locate an outside antenna system well away from power
lines and electric light or power circuits so it will never
touch these power sources should it ever fall. When
installing antenna, absolutely never touch power lines,
circuits or other power sources as this could be fatal.
USING THE UNIT
Before unit is brought out of storage or moved to a new location,
refer again to the INSTALLATION section of these safeguards.
1 KEEP UNIT WELL AWAY FROM WATER OR
MOISTURE, such as vases, sinks, tubs, etc.
2 IF EXPOSED TO RAIN, MOISTURE, OR
STRONG IMPACT, unplug unit and have it inspected
by a qualified service technician before use.
3 ELECTRICAL STORMS
During a lightning storm, or before leaving unit unused for
extended periods of time, disconnect all equipment from
the power source as well as the antenna and cable system.
4 WHEN UNIT IS PLUGGED IN
• DO NOT OPERATE IF:
- liquid has spilled into unit.
- unit was dropped or otherwise damaged.
- unit emits smoke, odours, or noises.
Immediately unplug unit, and have it inspected by a
service technician to avoid potential fire and shock hazards.
• Never drop or push any object through openings in unit.
Touching internal parts may cause electric shock or fire hazard.
• Keep magnetic objects, such as speakers, away from
unit to avoid electrical interference.
5 USING ACCESSORIES
Use only accessories recommended by the manufacturer
to avoid risk of fire, shock, or other hazards.
6 CLEANING UNIT
Unplug unit. Use a clean, dry, chemically untreated cloth to
gently remove dust or debris. DO NOT USE cleaning fluids,
aerosols, or forced air that could over-spray, or seep into unit and
cause electrical shock. Any substance, such as wax, adhesive
tape, etc. may mar the cabinet surface. Exposure to greasy,
humid, or dusty areas may adversely affect internal parts.
SERVICE
1 DO NOT SERVICE PRODUCT YOURSELF
If, after carefully following detailed operating instructions, the
unit does not operate properly, do not attempt to open or
remove covers, or make any adjustments not described in the
manual. Unplug unit and contact a qualified service technician.
2 REPLACEMENT OF PARTS
Make sure the service technician uses only parts specified
by the manufacturer, or have equal safety characteristics
as original parts. The use of unauthorized substitutes may
result in fire, electric shock, or other hazards.
3 SAFETY CHECK AFTER SERVICING
After unit is serviced or repaired, request that a thorough safety
check be done as described in the manufacturer’s service
literature to ensure video unit is in safe operating condition.
Safety Precautions/Mesures de sécurité
Warning : To prevent fire or shock hazard, do not expose this equipment to rain or moisture.
Caution : To prevent electric shock, match wide blade of plug to wide slot and insert fully.
Avertissement : Afin de prévenir tout risque d’incendie ou de chocs électriques, ne pas
exposer cet appareil à la pluie ou à une humidité excessive.
Attention : Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans
la borne correspondante de la prise et pousser jusqu’au fond.
This video recorder, equipped with the HQ (High Quality) System, is compatible with
existing VHS equipment.
Only use those tapes with the
mark. It is recommended that only cassette tapes that
have been tested and inspected for use in 2, 4, 6, and 8 hour VCR machines be used.
This television receiver provides display of television closed captioning in accordance with
§15.119 of the FCC rules.
FCC WARNING : Any unauthorized changes or modifications to this equipment
would void the user’s authority to operate.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS
INSIDE REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL
This symbol warns the user that uninsulated
voltage within the unit may have sufficient
magnitude to cause electric shock.
Therefore, it is dangerous to make any kind
of contact with any inside part of this unit.
This symbol alerts the user that important
literature concerning the operation and
maintenance of this unit has been included.
Therefore, it should be read carefully in order
to avoid any problems.
This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead.
Disposal of these materials may be regulated in your community due to environmental
considerations. For disposal or recycling information please contact your local authorities, or the
Electronics Industries Alliance: <http://www.eiae.org.>
3
Before Using
Congratulations
Loading the Batteries
on your purchase of one of the most
sophisticated and reliable products on the
market today. Used properly, it will bring
you and your family years of enjoyment.
Please fill in the information below.
The serial number is on the tag located on
the back of your unit.
1) Open the cover.
Date of Purchase
Dealer Purchased From
Dealer Address
Dealer Phone No.
Model No.
Serial No.
2) Insert batteries as marked.
3) Close the cover.
Accessories
Remote Control
LSSQ0280
Battery replacement caution
• Do not mix old and new batteries.
• Do not mix alkaline with manganese batteries.
Head Cleaning
Batteries 2 “AA”
Playing older or damaged tapes may eventually
cause video heads to become clogged.
Video Head Clog Sensor
During playback this
screen appears if clogging
is detected. To remove
screen, press PLAY on
the remote or unit.
V I DEO HEADS MAY
NEED CLEAN I NG
PL EASE I NSERT HEAD
CLEAN I NG CASSETTE
OR REFER TO MANUAL
END : PLAY
Prevent Accidental Tape Erasure
Break off the tab
to protect.
• Use “dry” type head cleaning cassette only.
(Part No. NV-TCL30PT is recommended.)
• Follow cleaning tape directions carefully.
Excessive use of head cleaning tape can shorten
the video head life.
• If head clog symptoms persist, contact your
nearest Factory Service Center.
Record/Playback Time
Record Tab
Screw driver
To record again.
Cover the hole with
cellophane tape.
4
Only use tapes with the
Tape Speed
Setting
mark in this unit.
Type of Video Cassette
T60
T120
T160
SP (Standard Play)
1 Hour
2 Hours
LP (Long Play)
2 Hours
4 Hours
SLP (Super Long Play)
3 Hours
6 Hours
2 Hours
40 Minutes
5 Hours
20 Minutes
8 Hours
Table of Contents
Initial Setup
Important Safeguards and Precautions / Safety Precautions ..... 2, 3
Before Using ......................................................................................... 4
Table of Contents ................................................................................. 5
Location of Controls ........................................................................ 6, 7
Connections ......................................................................................... 8
Initial Setup .................................................................................... 9 - 11
Basic Operation
Reset Language, Channels, Clock, Time Zone Adjust ............. 12, 13
Playback a Tape ................................................................................. 14
Record On a Tape .............................................................................. 14
Copy Your Tapes (Dubbing) ............................................................. 15
TV Operation
TV Operation ...................................................................................... 16
Picture Adjustment ............................................................................ 17
TV Timer Features ........................................................................ 18, 19
Closed Caption System ............................................................... 20, 21
Timer Operation Advanced Operation For Your Information
Timer Recording ........................................................................... 22, 23
Tape Operation ............................................................................ 24 - 27
Special VCR Features ................................................................. 28 - 31
V-Chip Control Feature ............................................................... 32 - 35
On-Screen Displays (OSD) ................................................................ 36
Unit Information ................................................................................. 37
Before Requesting Service ............................................................... 38
Index .................................................................................................... 39
5
Location of Controls
Remote Control Buttons
EJECT button:
When EJECT is pressed, the tape is ejected from Cassette Compartment.
If EJECT is pressed during recording, the unit will not respond to the command.
6
<Model AG-520E unit shown>
REWIND/SEARCH Page 14
Page 12
ACTION
Cassette Compartment
Page 14
Page 14
Page 11
PLAY/REPEAT
Page 14
CHANNEL UP/DOWN Page 16
TRACKING UP/DOWN Page 37
SELECT UP/DOWN Page 11
FAST FORWARD/SEARCH
Page 14
STOP/EJECT
ACTION
REC
Page 14
VOLUME UP/DOWN Page 16
SET/BACK SPACE Page 11
INPUT
Page 15
POWER
Page 9
Built-In Speaker
Audio/Video In Jack
Page 15
Phones Jack
Page 16
REC Indicator
Lights up during recording.
In Rec Pause or OTR Pause mode,
the indicator flashes.
Page 14
PROG TIMER Indicator
Lights up when the unit is set for
Timer Recording. It flashes when a
Timer Recording has been set with
no tape inserted, the clock is not set,
or the tape is in motion.
Page 22
REC ON TIMER PROG TIMER
Remote Sensor
ON TIMER Indicator
Lights up when the On Timer is set.
Page 18
Rear View of the unit
<Model AG-513E unit shown>
AC Power Plug
When plugged into
an AC outlet, the unit
consumes 4.0 W of
electric power in OFF
mode.
Easy-Grip-Handle
<Model AG-513E only>
Use when transporting
the unit.
VHF/UHF
VHF/UHF Antenna
Input Terminal
In from your
Antenna or Cable.
Pages 8, 10.
7
Initial Setup
Front View of the unit and Indicators on the Front Panel
Connections
Outdoor Antenna Connections
UHF/VHF Band Mixer
(not supplied)
(Flat) Twin Lead
300 Ohm Cable
Unhook the antenna from your previous
TV or VCR and connect it to the back of
the unit as shown in the diagram.
If your antenna system has separate
UHF and VHF lead-ins, you need a
UHF/VHF Band Mixer (not supplied.)
(Round) 75 Ohm
coaxial Cable
VHF/UHF
WARNING:
When using “Nut type” RF coaxial
cables, tighten with fingers only.
Overtightening may damage terminals.
from
Antenna
300-75 ohm
Transformer
(not supplied)
or
(Flat) Twin Lead
300 Ohm Cable
Back of unit
(Model AG-520E unit shown)
DSS/Cable Box Connections
Unit
■ Without a Cable Box
You can;
• record or view unscrambled channels.
You cannot;
• record or view scrambled channels.
• view a channel other than the one
selected for any type of recording.
■ With a Cable Box
You can;
• record or view any channel including scrambled channels.
NOTE: Channel selection must be made at the cable box.
You cannot;
• view a channel other than the one selected for any
type of recording.
• do a Timer recording of a channel unless you select it
at the cable box.
Note to CABLE System Installer
This reminder is provided to call the CABLE (Cable TV) System
Installers attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that
the cable ground shall be connected to the grounding system of
the building, as close to the point of cable entry as practical.
Antenna
or
CABLE
Antenna
or
CABLE
VHF/
UHF
Unit
Cable Box
IN
VHF/
UHF
OUT
■ With a DSS Receiver
Antenna
You can;
Satellite
or
• record or view any channel including scrambled
channels.
CABLE
NOTE: Channel selection must be made at the DSS
Receiver.
You cannot;
• view a channel other than the one selected for any
DSS Receiver
type of recording.
• do a Timer recording of a channel unless you select
it at the DSS box.
IN IN
NOTE: The DSS receiver must be turned off to view
OUT
programs from a cable box or antenna.
See the DSS manual for details.
8
Unit
VHF/
UHF
Initial Setup
1
2
Press POWER on the remote or unit.
• If wrong language is set,
complete “Reset all unit
Memory Functions” steps
on page 37.
• If you use a cable box,
it must be left on.
3
SET CLOCK
:
1/ /
DST : ON
SELE CT MONTH
Press CH to select
English.
OR
Press CH to select
Spanish (Español).
OR
Press VOL+ to select
French (Français).
Your unit can be set to Tuner ON
or Tuner OFF. When the unit is first
turned on, the tuner is set to off
and a prompt to set the clock is
displayed.
By selecting “TUNER:ON” (see
below left), you can place channels
in memory and use the Auto Clock
Set feature (see pages 10 and 11).
1) Press
to select
the month.
2) Press to set.
• Likewise, set date,
year, time, and DST
(Daylight Saving Time).
To Make Corrections,
repeatedly press
to move to error, then
correct.
SELECT :
SET
:
END
: ACT I ON
4
Press ACTION to end setup.
(Clock starts.)
Tuner ON / OFF
When Tuner OFF is selected, your unit is automatically
in LINE mode. When Tuner ON is selected, Channel
selection, Input selection, Channel Add/Delete, etc. is
available.
1
2
Press ACTION to display MAIN MENU.
M A I N MENU
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
3
SET UP VCR
TUNER
REPEAT PLAY
T I MER PROGRAMMING
T I ME STAMP
SELECT :
SET
:
END
: ACT I ON
: OFF
: OFF
: ON
1) Press
to
select “VCR.”
2) Press ACTION to
display SET UP
VCR screen.
1) Press
to select
TUNER.
2) Press to set “ON”
or “OFF.”
• If you selected ON, go to “Setup Channel and
Auto Clock Set” selection on pages 10 and 11.
4
Press ACTION twice to return to the
normal screen.
9
Initial Setup
Set the Clock (Initial Power On)
Initial Setup (continued)
Setup Channel and Auto Clock Set (TUNER:ON only)
1
2
Press CH
or CH
to display CHANNEL/CLOCK AUTO SET screen .
• If you use a cable box, turn it on and select PBS channel in your time zone.
Press CH
CHANNEL / CLOCK AUTO SET
CONNECT ANTENNA CABLE
AND I F YOU USE A CABLE
BOX, TUNE I T TO YOUR
LOCAL PBS CH
THEN. . .
to start Channel Auto Set.
These on-screen displays will appear in sequence.
• CH AUTO SET PROCEEDING
• CH AUTO SET COMPLETED
PLE ASE PRESS CH UP KEY
Auto Clock Set
Auto Clock Set is performed only when Channel Auto Set is completed in above steps.
1
2
Press ACTION to display MAIN MENU.
1) Press
to select “CLOCK.”
2) Press ACTION to display SET CLOCK screen.
M A I N MENU
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
3
1) Press
to select “AUTO CLOCK SET,” then
press .
2) Press CH to start.
SET CLOCK
AUTO CLOCK
K SET
MANUAL
T I ME ZONE ADJUST : 0
SELECT :
SET
:
: ACT I ON
END
• If Channel Auto Set is not performed, “CH AUTO SET
PROCEEDING” appears.
• “AUTO CLOCK SET PROCEEDING” appears.
Setup completed
Setup incomplete
Press CH
to exit.
3 / 6 / 2002 WEDDST
12 :: ON
00PM • If your area observes
SETT I NG : CH 1 0
AUTO CLOCK SET
COMPLETED
END : PRESS CH UP KEY
daylight saving time, but
you would like to turn the
DST feature off, set
DST : OFF (see “Clock”
on pages 12 and 13).
• If time is not correct...
even though your area observes daylight
saving time and DST is set to ON, do
“Time Zone Adjust” steps on page 13.
AUTO CLOCK SET
I S I NCOMPLETE
PLEASE SET CLOCK BY
PRESS I NG ACT I ON KEY
See next page.
IMPORTANT NOTE FOR AUTO CLOCK SET
• Auto clock set is performed the first time the unit is turned off each day. If used, a cable box must be left on
and tuned to the PBS channel at the time the unit power is turned off if you want auto clock set to be done.
• If using a DSS receiver, it must be turned off for auto clock set.
• If a Cable Box or DSS receiver is connected to the unit via Audio/Video Jacks, an RF coaxial cable must
also be connected for auto clock set and channel auto set features.
• If for any reason the time is changed manually, automatic time correction will not occur.
10
Initial Setup
Setup incomplete
Set the clock manually.
a
Press ACTION
to display SET
CLOCK screen.
AUTO CLOCK SET
I S I NCOMPLETE
PLEASE SET CLOCK BY
PRESS I NG ACT I ON KEY
b
SET CLOCK
:
1/ /
DST : ON
SELE CT MONTH
1) Press
to select
the month.
2) Press to set.
• Likewise, set date,
year, time, and DST
(Daylight Saving Time).
To Make Corrections,
to move to error, then
repeatedly press
correct.
SELECT :
SET
:
END
: ACT I ON
c
Press ACTION twice to end setup.
(Clock starts.)
ACTION key
on the unit
Notes
• Channel auto set selects normal
TV or Cable channels depending
on your unit hookup.
• The Language, Channel, and
Clock settings can be changed at
a later time (see pages 12 and
13). To reset all of these settings,
do the “Reset all unit Memory
Functions” steps on page 37.
• This unit’s calendar is accurately
maintained up to Dec. 31, 2089,
11:59 PM.
On Unit
You can operate the
menu screen using
unit buttons.
To display the menu,
press STOP/EJECT
and REW together
with no tape
inserted. To exit the
menu, repeat above
with or without tape
inserted until normal
screen appears.
Using
On Remote
keys
On Unit
: CH UP
: CH DOWN
: VOLUME UP
: VOLUME DOWN
Whenever the menu or program
screen is displayed,CHANNEL
UP/DOWN function as
and
VOLUME UP/DOWN function as
only.
11
Reset Language, Channels, Clock,
1
M A I N MENU
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
2
Press ACTION
to display MAIN MENU.
<TUNER:ON MAIN MENU is shown>
Language
Channels
1) Press
to
select language
icon.
(TUNER:ON only)
1) Press
to
select “CH.”
M A I N MENU
M A I N MENU
TV
VCR
LANGUAGE
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
SELECT :
SET
: ACT I ON
2) Press ACTION
repeatedly.
MENU PR I NC I PAL
HOLA
TV
VCR
IDIOMA
CANAL
REL OJ
SAL I R
ELEG I R :
F I JAR : ACT I ON
For Spanish
MENU
BONJOUR
T ELE
LANGUE
MAGNET .
CANAL HORLOGE SORT I E
SEL.
:
REGLER : ACT I ON
For French
M A I N MENU
HELLO
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
For English
3) Press
to
select “EXIT,” then
press ACTION to
exit.
12
Time Zo
2) Press ACTION.
SET UP CHANNEL
ANTENN
ENNA : CABLE
AUTO SET
CHANNEL CAPT I ON
WEAK S I GNAL D I SPLAY : OFF
SELECT :
SET
:
END
: ACT I ON
3) Press
to select
“ANTENNA,” then
press to set your
antenna system
(“TV” or “CABLE”).
4) Press
to select
“AUTO SET,” then
press .
Clock
1) Press
to
select “CLOCK.”
M A I N MENU
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
2) Press ACTION.
If TUNER:OFF, go to
step 4).
SET CLOCK
AUTO CLOCK SET
MANU
NUAL
T I ME ZONE ADJUST : 0
SELECT :
SET
:
: ACT I ON
END
(“TIME ZONE ADJUST”
appears only when
auto clock is set.)
3)Press
to select
“MANUAL,” then
press .
(For Auto Clock Set,
select “AUTO CLOCK
SET,” and press .
Then, press CH .)
Continued on the
next page.
k,
Time Zone Adjust
Time Zone Adjust
SET CLOCK
DST : ON
SELE CT HOUR
SE
(TUNER:ON only)
(Only when Auto Clock is set.)
1) Press
to
select “CLOCK.”
SELECT :
SET
:
END
: ACT I ON
<Example MANUAL
CLOCK SET screen>
4)Press
and
press to select
and set the month,
date, year, time, and
DST (Daylight Saving
Time).
To Make Corrections,
repeatedly press
to move to error, then
correct.
5)Press ACTION
twice to start the
clock and exit this
mode.
Basic Operation
3 / 6/2002 WED 12: 00PM
M A I N MENU
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
2) Press ACTION.
SET CLOCK
AUTO CLOCK SET
MANUAL
T I ME ZONE ADJUST : 0
SELECT :
SET
:
END
: ACT I ON
3)Press
to select
“TIME ZONE
ADJUST” and
press or to
subtract or add
hour(s) as
necessary.
Add or Delete a Channel
(TUNER:ON only)
To add channel:
Select channel with number
keys and press ADD/DLT.
CHANNEL 08 ADDED
SET CLOCK
AUTO CLOCK SET
MANUAL
T I ME ZONE ADJUST : +1
SELECT :
SET
:
: ACT I ON
END
4)Press ACTION
twice to exit.
• TIME ZONE ADJUST
returns to “0” if clock is
set manually.
To delete channel:
Select channel with CH
or number keys and press
ADD/DLT.
CHANNEL 08 DELE TED
13
Playback a Tape
Ready Checklist
All connections are made.
Your unit is plugged in.
1
Insert a tape.
• The unit power comes
on automatically.
Record
tab
To prevent tape jam,
remove loose or peeling
labels from tapes.
2
• If tape has no record tab (see page 4),
auto play begins.
• These features work best in SP or SLP mode.
• After the unit is in Still or Slow mode for 3
minutes, it will switch to Stop mode automatically
to protect the tape and the video head.
Stop ➔ Press STOP.
Rewind tape ➔ Press REW in Stop mode.
Fast forward tape ➔ Press FF in Stop mode.
Eject tape ➔ Press EJECT on the remote
or STOP/EJECT on the unit.
Operation using unit button
<Model AG-520E unit shown>
CH
PLAY
REC
Insert a tape.
INPUT
■ Press to stop and/or
eject tape.
14
1
2
3
REC Indicator
Insert a tape with record tab.
• The unit power comes on automatically.
Press CH
or number keys to
select Channel.
• For “LINE” input, see bottom of next page.
Press SPEED to select recording
speed (see page 4).
SP = Standard Play
LP = Long Play
SLP = Super Long Play
• Selected speed is displayed.
Press PLAY to play a tape.
■ Forward/Reverse scene search
➔ Press FF or REW.
➔ Press again or PLAY to release.
■ Still (Freeze) picture
➔ Press PAUSE/SLOW.
➔ Press PLAY to release.
■ Slow Motion picture
➔ Hold down PAUSE/SLOW in
Still mode.
➔ Press PLAY to release.
■ Frame by Frame picture
➔ Press PAUSE/SLOW in Still mode.
➔ Press PLAY to release.
Notes
■
■
■
■
Record On a Tape
4
Press REC to start recording.
• To edit out unwanted portions,
press PAUSE/SLOW to pause and
resume recording.
• You cannot view another channel during
recording.
■ Stop ➔ Press STOP.
■ One Touch Recording (OTR)
Normal Rec
Press REC repeatedly
to set the recording
4:00
3:00
length (30 min - 4 hours.)
0:30
2:00
1:00
1:30
• The unit stops recording at a preset time.
• PROG TIMER Indicator lights up on the unit.
Notes
• After the unit has been in Rec Pause mode for 5
minutes, it will stop automatically to protect the
tape and the video head.
• The remaining recording time of an OTR can be
displayed by pressing DISPLAY.
Copy Your Tapes (Dubbing)
Connections you’ll need to make.
Recording (Editing) unit
Playing (Source) VCR
AUDIO VIDEO
OUT
IN FROM ANT.
OUT TO TV
Playback (Source)
1
2
3
4
5
VIDEO IN AUDIO IN
AUDIO IN
Basic Operation
IN
Recording (Editing) unit
Insert blank tape
with record tab.
Insert prerecorded tape.
• Dubbing tapes protected
with Copy Guard will have
poor quality results.
Select “LINE” mode.
See “Selecting Input Mode” below.
Press PLAY then PAUSE at
Press REC, then PAUSE/SLOW
starting point to put in Standby
immediately to put in Standby mode.
mode.
(Perform operation of steps 4 and 5 on both units simultaneously.)
Press PAUSE/SLOW to start
Press PLAY to start dubbing.
dubbing.
Press STOP to stop dubbing.
Press STOP to stop dubbing.
Selecting Input Mode (TUNER:ON only)
Method 1:
Press INPUT on the unit.
Channel Number
LINE
Method 2:
Press CH
.
The display will change as follows.
1
LINE
2
3
(CABLE) (TV)
125 or 69
Method 3:
a) Press ACTION for MAIN MENU.
b) Press
to select “TV,” then
press ACTION for SET UP TV screen.
c) Press
to select “INPUT SELECT,” and
then press to select “TUNER” or “LINE.”
d) Press ACTION twice to exit this mode.
Caution
• Unauthorized exchanging and/or copying of copyrighted recordings may be
copyright infringement.
15
TV Operation
Ready Checklist
All connections are made.
Your unit is plugged in.
<Model AG-520E unit shown>
1
2
Press POWER on the remote or unit.
08
ABC
3
Use CH
or
number keys to
select a channel.
Press VOL + or VOL to adjust volume.
VOL + / VOL24
CH
POWER
PHONES
Jack
NIGHT (NITE) Mode
Color and picture intensity levels are adjusted so the
screen is easier on your eyes during night time use.
N I GHT
Press NITE to set NIGHT
mode.
• NIGHT mode may be
selected when watching TV
or playing a tape.
Press NITE to cancel.
• Previous settings are restored.
• NIGHT mode is canceled when power is turned
off or power failure occurs.
■ Using the 100 key
When selecting CABLE channels 100 to 125 with
the number keys, first press the 100 key, and
then enter the remaining two digits.
■ Rapid Tune
Press R-TUNE to display the last channel you
were watching.
■ Audio Mute
Press MUTE to instantly mute the sound.
Press again to restore the previous sound level.
■ Phones
Connect an earphone (not supplied) or
headphones (not supplied) to the Phones Jack.
16
Picture Adjustment
1
2
Press ACTION
to display MAIN MENU.
M A I N MENU
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
1) Press
to
select “TV.”
2) Press ACTION to
display SET UP TV
screen.
<TUNER:ON MAIN
MENU is shown>
SELECT :
SET
:
: ACT I ON
END
: TUNER
1) Press
to select
VIDEO ADJUST.
2) Press to display
screen.
<Only when TUNER:ON>
4
COLOR
T I NT
BR I GHTNESS
P I CTURE
SHARPNESS
NORMAL
SELECT :
ADJUST :
END
: ACT I ON
Picture Adjustment
■ COLOR Control
COLOR
T I NT
BR I GHTNESS
P I CTURE
SHARPNESS
NORMAL
Adjust color intensity.
■ TINT Control
Adjust for natural flesh tones.
■ BRIGHTNESS Control
SELECT :
SET
:
END
: ACT I ON
Adjust picture brightness.
■ PICTURE Control
1)Press
to select
an adjustment item.
(See below left.)
2)Press
to adjust.
To Reset Picture
Controls.
Press
and to
select and set
“NORMAL.”
All controls return to
their factory settings.
Adjust picture intensity by
adjusting both contrast and
color level in the proper
balance.
■ SHARPNESS Control
Adjust picture sharpness.
5
Press ACTION three times to exit.
17
TV Operation
3
SET UP TV
LOCK
CAPT I ON
I NPUT SELECT
V I DEO ADJUST
TV Timer Features
ON-TIMER with Alarm
This unit can be set to automatically power on in one of 2
modes (TV or Playback). Even if you set the On Timer, it
will not be performed during Play Lock mode. You can also
combine the On-Timer with a one minute alarm that
gradually increases in volume.
1
2
Press PROG
to display SET PROGRAM screen.
SET PROGRAM
T I MER PROGRAMMING
ON TIMER
SELECT :
SET
:
END
: PROG
3
Ready Checklist
The clock is set to correct time.
ON T I MER
6:--AM CH -ALARM : ON
SELE CT HOUR
SELECT :
SET
:
END
: PROG
1)Press
to select
“ON TIMER.”
2)Press to display
ON TIMER screen.
<Model AG-520E unit shown>
1) Press
to select
desired settings.
2) Press to set the
ON-TIMER TIME or
ON-TIMER mode.
• You can choose TV or PLAY for the On
Timer mode. (If TUNER:OFF, you can only
select PLAY.)
• Make sure a tape is inserted if Playback
mode is selected.
4
ON T I MER
6:00AM CH08
ALARM : ON
ON TIMER
Indicator
Press
to select
ALARM “ON” or “OFF.”
ABC
SELE CT ALARM
CANCEL : ADD / DLT
SELECT :
SET
:
END
: PROG
When “ON” is selected,
an alarm will gradually increase in volume for one
minute or until canceled by pressing any button
(including VOL + -).
To Make Corrections,
and
to move back and correct.
use
5
Press PROG
to set ON TIMER.
• “ON TIMER SET” is displayed.
• ON TIMER Indicator lights up on the unit.
To Cancel ON-TIMER set,
repeat steps 1 and 2. Then, press ADD/DLT to
clear the time in step 3. Now, press PROG to end.
“ON TIMER END” briefly appears on-screen.
18
Note
• If no button on the remote or unit
(including a button used to turn off
the alarm) is pressed within 60
minutes after unit turns itself on,
it will turn itself back off.
Sleep Timer
This unit can be set for auto power off.
Press SLEEP repeatedly
to set SLEEP TIMER.
• Pressing DISPLAY with sleep timer set
displays remaining time.
• Sleep Timer will not be performed during
Play Lock mode.
SLEEP TIMER 30
SLEEP TIMER 60
TV Operation
SLEEP TIMER 90
SLEEP TIMER 00
Press SLEEP repeatedly
until “SLEEP TIMER 00” appears to cancel.
19
Closed Caption System
Closed Caption is ...
This multi-use system not only allows the hearing
impaired to enjoy selected programs, but also
makes useful information from TV stations
available to everyone.
Closed Caption Mode Feature
1
2
Press ACTION
to display MAIN MENU.
M A I N MENU
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
1) Press
to select “TV.”
2) Press ACTION
to display SET
UP TV screen.
<TUNER:ON MAIN
MENU is shown>
3
SET UP TV
LOCK
CAPT I ON
I NPUT SELECT
V I DEO ADJUST
: TUNER
SELECT :
SET
:
: ACT I ON
END
1) Press
to
select “CAPTION.”
2) Press to
display CAPTION
screen.
<Only when TUNER:ON>
4
CAPT I ON
CAPT I ON MODE
CC ON MUTE
: CAP C1
: CAP C1
SELECT :
SET
:
END
: ACT I ON
OFF
CAP C1
TEXT C2
1)Press
to
select CAPTION
MODE.
2)Press
repeatedly to
select mode.
(See left.)
Closed Caption Mode
Selections
Caption Mode: CAP C1 or C2
A narration of selected TV
programs is displayed.
Check TV program listings for
CC (Closed Caption) broadcasts.
Caption Mode: TEXT C1 or C2
The all of the screen will be
blocked out. When the TV station
broadcasts information, such as
program listings, it will appear in
this space.
Caption Mode: OFF
Closed Caption/Text narration
will not be displayed.
NOTE :
The closed caption or text signal
may be broadcast over C1, C2,
or both. Also, text contents can
vary so you may wish to try
different settings.
TEXT C1
CAP C2
5
Press ACTION three times
to return to the normal screen.
Recording and Playing Back a Closed Caption/Text Program
Record
: Record normally.
Closed Caption/Text signal, if present, is recorded automatically.
Playback : Start playback. Do above steps to select desired caption mode.
20
Caption On Mute Feature
Closed Caption narration, if available, is displayed
when MUTE button is pressed for silence.
1
2
Press ACTION
to display MAIN MENU.
M A I N MENU
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
1) Press
to select “TV.”
2) Press ACTION
to display SET
UP TV screen.
<TUNER:ON MAIN
MENU is shown>
: TUNER
SELECT :
SET
:
: ACT I ON
END
1) Press
to
select “CAPTION.”
2) Press to
display CAPTION
screen.
<Only when TUNER:ON>
4
CAPT I ON
CAPT I ON MODE
CC ON MUTE
: OFF
: CAP C1
SELECT :
SET
:
END
: ACT I ON
5
1) Press
to
select CC ON
MUTE.
2) Press
repeatedly to
select desired
mode.
NO
CAP C1
CAP C2
6
7
1) Press
to
select CAPTION
MODE.
2) Press
repeatedly to
select “OFF.”
• Each press of
will
change the display
as shown left.
• The caption may be
broadcast over CAP
C1 or C2.
Press ACTION three times
to return to the normal screen.
Press MUTE to mute the sound and
display closed captioning.
• To cancel, press MUTE again.
21
TV Operation
3
SET UP TV
LOCK
N
CAPT I ON
I NPUT SELECT
V I DEO ADJUST
Timer Recording
You can set up to 8 programs to be recorded while
you are away.
1
2
Press PROG
to display SET PROGRAM screen.
to select
1) Press
SET PROGRAM
TIMER PROGRAMMING.
T I MER PROGRAMMING
ON TIMER
2) Press to display
screen.
SELECT :
SET
:
END
: PROG
3
<Model AG-520E unit shown>
• If a program is already in
memory, press
, and
to select an unused
program number.
CH
START
STOP
Press
to select
7 FR I --:-- --:-- -- and or to set
TODAY
SLP
CATEGORY : N / A
------------------------ the recording DATE.
DATE
• 1~31 = One time
• DAILY = MON~FRI
• WEEKLY SUN~SAT
= Same time once a week
SELE CT START DATE
SELECT :
SET
:
END
: PROG / ACT I ON
Example
Today’s
Date
8
7
9
/
WEEKLY
(SAT)
2
1
31
SELECT
6
Selection Order
WEEKLY
(MON)
PROG TIMER Indicator
DAILY
WEEKLY
(SUN)
Repeat step 3 to set:
• start time, stop time
• Channel (or LINE for outside source)
• Category [N/A (not applicable), SPORTS, MOVIE,
COMEDY, MUSIC, DRAMA]
• Speed (SP, LP, SLP)
4
Ready Checklist
All connections are made.
Your unit is plugged in.
The clock is set to the correct time.
The tape is long enough.
The record tab is in place.
P
1
2
3
4
DT
day
----
START
9 : 00 p
-- : --- : --- : --
STOP
12 : 00a
-- : --- : --- : --
CH SPD
08 SP
-- --- --- --
CANCEL : ADD / DLT
SELECT 1 - 8 :
ENTER :
END
: PROG / ACT I ON
Timer Recording Using
unit Buttons
You can set a Timer Recording
using ACTION key on the unit.
(See page 11.)
Press PROG
(or ACTION) to end
the program.
<Model AG-520E button shown>
To Enter More Programs,
press
to select and 1 Press STOP/EJECT and REW
to set a blank program
together without a tape
number, and then repeat
inserted to display MAIN MENU.
step 3.
2 Press
5
22
Press PROG twice (or ACTION)
to exit this mode.
• If you’re using a cable box, make sure that
it is tuned to the desired channel and the
power is left on for timer recording.
• Make sure TUNER:ON is selected for
Channel Timer Recording.
• PROG TIMER Indicator lights up on the unit.
3
4
+ - to select “VCR,”
and then STOP/EJECT and
REW together to display SET
UP VCR screen.
Press
to select “TIMER
PROGRAMMING” and + to
display the TIMER PROGRAM
screen.
Repeat main steps 3 ~ 5.
Cancel a Timer Recording:
(Recording is in progress)
Hold down STOP for a few
seconds to cancel the Timer
Recording.
• Any future daily or weekly recordings
will be performed as programmed.
Review, Replace or Clear Program
Contents : (Recording is not in progress)
1
2
Repeat steps 1 and 2 on page 22.
P
1
2
3
4
DT START STOP CH SPD
day 9 : 00p 12 : 00a 08 SP
8 10 : 00a 12 : 00p 125 SP
10 8 : 00p 9 : 00p 10 SP
SU 9 : 00p 10 : 00p L LP
Press
to select
the desired program.
CANCEL : ADD / DLT
SELECT 1 - 8 :
ENTER :
END
: PROG / ACT I ON
3
To Replace program...
DATE
START
STOP
CH
8 SAT 9:00P 12:00A 08
ABC
TODAY
SP
CATEGORY : MOV I E
---------------------------------------------SELE CT START DATE
SELECT :
SET
:
END
: PROG / ACT I ON
1) Press to display.
2) Press
to select
and press or
to set new program
contents.
3) Press PROG
(or ACTION).
To Clear program...
DT START STOP CH
-- -- : -- -- : -- -8 10 : 00p 12 : 00a 125
10 8 : 00p 9 : 00p 10
SU 9 : 00p 10 : 00p L
SPD
-SP
SP
LP
Press ADD/DLT.
Timer Operation
P
1
2
3
4
SELECT 1 - 8 :
ENTER :
END
: PROG / ACT I ON
4
Press PROG twice (or ACTION)
to exit this mode.
Notes
• 2 minutes before Timer recording is performed, “PLEASE PREPARE FOR TIMER REC” appears
and/or the PROG TIMER Indicator flashes. Be sure a cassette with record tab is loaded and the
unit is in Stop mode.
• If the start times of two programs overlap, the lower numbered program will have priority.
• If the start time for a Timer Recording comes up during a normal recording or One Touch
Recording (page 14), the Timer Recording will not be performed.
• If there is a power interruption of more than one minute, the recording may not be performed or
continued.
• If “INCOMPLETE” appears after all items have been set, check all entries and make necessary
corrections.
23
Tape Operation
Search System is ...
Each time a recording is made, an invisible index mark is placed on the tape.
When timer recordings are made, program index and information is also included.
These index marks can be used to access or scan recordings.
Index Search
Go directly to the desired recording.
1
2
Press SEARCH in Playback or Stop
mode to display INDEX SEARCH
screen.
1) Press number
keys to select
the recording
number.
I NDEX SEARCH
ENTER I NDEX NUMBER : 1
US I NG 1- 9 KEYS
FORWARD SEARCH : FF
REVERSE SEARCH : REW
NEXT : SEARCH
EX I T : STOP
• To calculate
number, see below.
2) Press FF or REW
to start search.
I NDEX SEARCH 3
I NDEX SEARCH
• Play begins at search
end. To search forward or
back 1 index, press FF or
REW while screen left is
displayed (10 seconds).
I NDEX SEARCH
FORWARD SEARCH : FF
REVERSE SEARCH : REW
To cancel, press PLAY or STOP.
■ To calculate the Index Number
Example 1:
To go to rec. 2 from rec. 4, enter 3 and press REW.
1
2
3
4
5
6
7
Example 2:
To go to rec. 6 from rec. 2, enter 4 and press FF.
1
2
3
4
5
6
Notes
7
NOTE: indicates start points of each recording.
24
• Make each entry within 5 minutes, or the
Index Search mode will be canceled.
• If Index Search is started very close to an
index mark, that index mark may not be
counted in the search.
Program End Search
Locates end point of recording for continuity.
1
2
Press SEARCH twice in Playback or
Stop mode to display PROGRAM END
SEARCH screen .
Press FF
to start search.
PROGRAM END SEARCH
To cancel,
press PLAY or STOP.
SEARCH START : FF
EX I T : SEARCH
Example of Program End Search operation.
Fig.1
PLAYBACK DIRECTION
INDEX
Program 1
Press SEARCH button
FF
Program 2 or BLANK
End Point
Fig.2
BLANK
INDEX
Program 1
Program 2
Press SEARCH button
BLANK
End Point
FF
Fig.3 If search exceeds a few seconds in BLANK area.
Press SEARCH button
Program 2
Advanced Operation
BLANK
INDEX
Program 1
FF
End Point
Upon locating end point...
The unit searches slightly past end point,
reverse searches, and plays the last few
seconds of the program, then stops.
Press SEARCH button
Note
• If Program End Search is started very close to an
index mark, that mark may be skipped over.
25
Tape Operation (continued)
Auto Operation Functions
■ Auto Shut Off
No broadcast signal in TV mode, blank
tape is played for 5 minutes
➔ Power turns off
• This feature is canceled if any button is
pressed during above conditions.
■ Auto Playback
Insert a tape in Power off mode
➔ Power turns on
• Playback begins if tape has no record tab.
■ Auto Rewind
Tape reaches its end
➔ Rewind, ➔ Stop
■ Playback Auto Eject (Repeat Play is “OFF”)
Tape with no record tab reaches its end
➔ Rewind, ➔ Stop, ➔ Eject
Repeat Play
Set to see a recording over and over.
1
2
Press ACTION
to display MAIN MENU.
M A I N MENU
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
3
SET UP VCR
TUNER
REPEAT PLAY
T I MER PROGRAMMING
T I ME STAMP
: OFF
: OFF
: ON
SELECT :
SET
:
: ACT I ON
END
Tape Position Display
To find out present tape position and amount of
tape remaining.
Tape position cannot be detected for
C-Cassettes, tapes under 30 minutes, and some
other tapes.
1
Press TAPE POSITION
to detect current tape position.
DETECT I NG TAPE POS I T I ON
SLP
R 120 MIN.
BEG I N
2
END
• “DETECTING TAPE
POSITION” is displayed only
when a cassette is first
inserted and it takes several
seconds for correct tape
position to appear.
• The present tape position
indication and amount of
tape remaining (according to
tape speed) is displayed.
• Tape remaining time display
may not be precise.
Press TAPE POSITION (or wait 5
seconds) to return to normal screen.
Note
• This function cannot display exact amount of tape
remaining for tapes 30 minutes or less, or for
tapes over 120 minutes in length.
26
4
1)Press
to select “VCR.”
2)Press ACTION
to display SET
UP VCR screen.
1)Press
to
select “REPEAT
PLAY.”
2)Press to set
REPEAT PLAY
“ON” or “OFF.”
Press ACTION twice
to end setup.
Notes
• Playback repeats when tape end is reached or
unrecorded portion over 30 seconds is detected.
• During playback, you may also press
PLAY/REPEAT repeatedly on the unit to select
REPEAT “ON” or “OFF.”
Play Lock mode
The unit may be locked in Repeat Play mode so
that all other function keys are inoperative.
PLAY LOCK
REPEAT ON
To turn “ON,”
hold down PLAY on
the remote or unit for
7 seconds.
To turn “OFF.”
Repeat above operation
in Play Lock mode.
When the Play Lock mode is selected,
• Auto Repeat function is activated automatically.
• On Timer and Sleep Timer become nonfunctional.
Commercial Skip
<Model AG-520E unit shown>
By pressing the CM/ZERO button in Playback
mode you can skip over 1 to 3 minutes of recorded
tape in just a few seconds.
1
Press CM/ZERO repeatedly to
select skip time in Playback mode.
• No indication appears.
PLAY/REPEAT
Zero Search
To quickly return to a specific tape counter location.
1
2
Press DISPLAY during playback
to display the Counter.
0 : 00 : 00
BEG I N
END
Continue playback, rewind, or
fast forward.
Press STOP.
1 : 23 : 45
BEG I N
Press CM/ZERO
in stop mode to
start ZERO
SEARCH.
END
•
Note
• If a blank portion exists on the tape, and
depending on the position of the mark,
the mark display may be out of position.
: Present position mark
: Zero position mark
• Unit goes into FF or REW mode and
stops at the last point the Counter was
set to 0:00:00.
27
Advanced Operation
3
4
5
Press COUNTER
RESET at the
desired position to
reset to “0:00:00.”
Special VCR Features
Channel Caption is ...
Station names, e.g. ABC, CNN, etc.
are set so they will appear when a
channel is selected. Choose 24
preset names (Preset Caption), or
make up to 10 names of your own
(Manual Caption).
Ready Checklist
Preset Caption (TUNER:ON only)
1
2
You need a list of stations and
the channel numbers you
receive them on.
Press ACTION
to display MAIN MENU.
M A I N MENU
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
3
SET UP CHANNEL
ANTENNA : CABLE
AUTO SET
CHANNEL CAPT I ON
WEAK S I GNAL D I SPLAY : OFF
SELECT :
SET
:
: ACT I ON
END
4
CHANNEL CAPT I ON
PRESET CAPT I ON
MANUAL CAPT I ON
SELECT :
SET
:
END
: ACT I ON
5
-----
PBS
CNN
ESPN
HBO
-----
SELECT :
SET
:
END
: ACT I ON
PRESET CAPT I ON
PBS
ABC
CNN
CBS
ESPN
FOX
HBO
NBC
CLEAR : ADD / DLT
SELECT :
SET
:
: ACT I ON
END
1) Press
to select
CHANNEL CAPTION.
2) Press to display
screen.
1) Press
to select
PRESET CAPTION.
2) Press to display
screen.
• To create your own
captions, go to “Manual
Caption” on page 29.
PRESET CAPT I ON
ABC
CBS
FOX
NBC
1) Press
to
select “CH.”
2) Press ACTION to
display SET UP
CHANNEL screen.
1) Press
to select
a station.
2) Press to move
cursor to the right.
3) Press
to select
channel number.
4) Press to set
preset captions.
• Repeat step 5 until the
Caption List is
complete.
To Make Corrections
Press
Press
6
28
, then to select channel number.
to change, or ADD/DLT to delete.
Press ACTION four times
to end setup.
Manual Caption (TUNER:ON only)
1
2
Do “Preset Caption” steps 1~3
(page 28).
1) Press
to select
MANUAL CAPTION.
2) Press to display
screen.
CHANNEL CAPT I ON
PRESET CAPT I ON
MANUAL CAPT I ON
SELECT :
SET
:
END
: ACT I ON
3
1) Press
to select
CH NUMBER.
2) Press to move
cursor to the right.
MANUAL CAPT I ON
CH NUMBER
CAPT I ON
----
O2
SELECT :
SET
:
: ACT I ON
END
MANUAL CAPT I ON
CAPT I ON
CH NUMBER
A---
O2
CLEAR : ADD / DLT
SELECT :
SET
:
END
: ACT I ON
1) Press
to select
and to enter your
caption.
• Characters change in the
following order.
A
B
C
9
Z BLANK
2 1 0 /
&
!
• Press repeatedly to move the
cursor to “CH NUMBER.” Repeat
steps 3 and 4 as desired.
To Make Corrections
Press
Press
5
, then to select channel number.
to change, or ADD/DLT to delete.
Press ACTION four times
to end setup.
29
Advanced Operation
4
• Channels already set in
Preset Caption and
channels deleted from
Channel Memory are not
displayed.
• You can set a total of ten
channel captions with up
to four characters each.
Special VCR Features (continued)
Weak Signal Display Feature
(TUNER:ON only)
When “ON” is selected, the picture is displayed even
when a broadcast signal is weak or non-existent.
1
2
Press ACTION
to display MAIN MENU.
M A I N MENU
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
3
SET UP CHANNEL
ANTENNA : CABLE
AUTO SET
CHANNEL CAPT I ON
WEAK S I GNAL D I SPLAY : OFF
SELECT :
SET
:
END
: ACT I ON
1)Press
to select “CH.”
2)Press ACTION
to display SET UP
CHANNEL screen.
to
1) Press
select WEAK
SIGNAL DISPLAY.
2) Press to set
“ON” or “OFF.”
Notes
• “ON” = Picture is displayed regardless of signal
condition, and may not always be clearly
visible.
“OFF” = Screen turns solid blue when signal is absent
or weak.
• If unit is connected to equipment which has blue back
feature, selecting “ON” will have no effect on the other
equipment.
4
Press ACTION twice
to return to the normal screen.
<Model AG-520E unit shown>
VCR Lock
All operations are prohibited except Timer recording and
tape eject. Useful for families with small children.
REC
30
In Stop mode, hold
down REC on the
VCR LOCK ACT I VATED
unit without a cassette
inserted for 7 seconds
to turn “ON.”
(Please ignore NO
VCR LOCK OFF
CASSETTE warning.)
Repeat above with or
without cassette to
turn “OFF.”
• VCR Lock is canceled automatically
after about 24 hours if clock is set.
Ready Checklist
The clock is set to correct time.
The record tab is in place.
Time Stamp Feature
This unit writes program data (see example below)
for about the first 10 seconds of every recording.
The information is then displayed about 10 seconds
after playback begins.
1
2
Press ACTION
to display MAIN MENU.
M A I N MENU
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
3
SET UP VCR
TUNER
REPEAT PLAY
T I MER PROGRAMMING
T I ME STAMP
SELECT :
SET
:
END
: ACT I ON
: OFF
: OFF
: ON
1) Press
to select “VCR.”
2) Press ACTION
to display SET
UP VCR screen.
1)Press
to
select TIME
STAMP.
2)Press to set
“ON” or “OFF.”
• When “OFF” is selected, the program data
is written on the tape, but will not be displayed.
Press ACTION twice
to return to normal screen.
Advanced Operation
4
<Time Stamp Example >
Normal/
One Touch Recording
Timer Recording
When Clock is not set...
31
V-Chip Control Feature
Process of V-Chip Control Feature
Enter Code
Setup
Blocking
V-Chip Control Feature is...
This unit has a built-in V-Chip Control which allows
you to block unwanted TV usage based on
US MOVIES and US TV PROGRAMS Ratings.
Secret Code
A 4-digit code must be entered to view a blocked program
or change rating settings.
1
2
Press ACTION
to display MAIN MENU.
M A I N MENU
TV
VCR
LANGUAGE
CH
CLOCK
EX I T
SELECT :
SET
: ACT I ON
1) Press
to
select “TV.”
2) Press ACTION to
display SET UP TV
screen.
<TUNER:ON MAIN
MENU is shown>
3
SET UP TV
LOCK
CAPT I ON
I NPUT SELECT
V I DEO ADJUST
: TUNER
SELECT :
SET
:
END
: ACT I ON
1) Press
to select
LOCK.
2) Press to display
screen.
<Only when TUNER:ON>
Changing your secret code
• You will need your current code.
Do steps 1 ~ 4. In step 5,
press ADD/DLT to clear
current code.
Repeat steps 4 and 5 to enter
new code.
Notes
• DO NOT forget your secret code.
• Once ratings are set, restricted tapes
or programs cannot be accessed
unless the secret code is entered.
• Some rental movies do not include
V-Chip data.
32
4
LOCK
ENTER 4-D I G I T CODE
---ENTER : 0 - 9
END
: ACT I ON
To Make Corrections,
Press repeatedly to
move the cursor.
Press number keys to
make the correction.
5
LOCK
CONF I RM 4-D I G I T CODE
****
****
RECOGN I ZED
CHANGE CODE : ADD / DLT
CONT I NUE :
: ACT I ON
END
1) Press number
keys to enter your
secret code.
2) Enter same code
again for confirmation.
• Step 2) not necessary
when changing rating or
secret code.
• Take care that you are
not observed entering
the secret code.
Press to display US
Ratings menu (see
pages 33 and 34).
Or
Press ACTION three
times to exit.
If LOCK menu is not displayed,
“Secret Code” steps on page 32.
Process of V-Chip Control Feature
Enter Code
Setup
Blocking
US MOVIES Ratings
1
LOCK
US MOVIES
: OFF
CHANGE SETT I NGS
: OFF
US TV PROGRAMS
CHANGE SETT I NGS
NEXT PAGE
SELECT :
SET
:
: ACT I ON
END
1) Press
to
select US
MOVIES.
2) Press to set
“ON” or “OFF.”
■ “ON” ➔ V-Chip Control is activated.
■ “OFF” ➔ V-Chip Control is deactivated.
Note
• “NEXT PAGE” displays CANADIAN V-Chip
setting menu. Not necessary except when
viewing Canadian tapes or broadcasts.
2
3
LOCK
US MOVIES
: OFF
CHANGE SET T I NGS
US TV PROGRAMS
: OFF
CHANGE SETT I NGS
NEXT PAGE
SELECT :
SET
:
END
: ACT I ON
V I EW NR PROGRAMS? : YES
G
UNLOCKED
PG
PG-13
R
NC-17
X
CONTA I NS NO RAT I NG
SELECT :
SET :
END
: ACT I ON
1)Press
to
select CHANGE
SETTINGS.
2)Press to
display screen.
1) Press
to
select VIEW NR
PROGRAMS?.
2) Press to set
“YES” or “NO.”
4
5
V I EW NR PROGRAMS? : YES
G
UNLOCKED
PG
PG-13
R
NC-17
X
GENERAL AUD I ENCE
SELECT :
SET :
END
: ACT I ON
Press
to
select and to set
ratings to be
blocked.
(See ratings chart
right.)
Press ACTION to redisplay LOCK
menu and continue with US TV
PROGRAMS Ratings Setup (next
page).
Or, press ACTION four times to exit.
US MOVIES RATINGS
G
GENERAL AUDIENCE:
All ages admitted.
PG PARENTAL GUIDANCE:
Some material may not be
suitable for children.
PG-13 PARENTS CAUTIONED:
Some material may be
inappropriate for children under 13.
R
RESTRICTED:
Children under 17 must be
accompanied by a parent or adult.
NC-17 OVER AGE 17 ONLY:
No one 17 and under admitted.
X
ADULTS ONLY:
33
Advanced Operation
NR (Not Rated) PROGRAMS
Some movies, such as old movies
or foreign movies usually have no ratings.
V-Chip Control Feature (continued)
If LOCK menu is not displayed,
“Secret Code” steps on page 32.
US TV PROGRAMS Ratings
1
LOCK
US MOVIES
: OFF
CHANGE SETT I NGS
US TV PROGRAMS
: OFF
CHANGE SETT I NGS
NEXT PAGE
SELECT :
SET
:
END
: ACT I ON
1) Press
to
select US TV
PROGRAMS.
2) Press to set
“ON” or “OFF.”
■ “ON” ➔ V-Chip Control is activated.
■ “OFF” ➔ V-Chip Control is deactivated.
Note
• “NEXT PAGE” displays CANADIAN V-Chip
setting menu. Not necessary except when
viewing Canadian tapes or broadcasts.
US TV PROGRAMS RATINGS:
Chart 1
TV-Y
2
3
LOCK
US MOVIES
: OFF
CHANGE SETT I NGS
US TV PROGRAMS
: OFF
CHANGE SETT I NGS
NEXT PAGE
SELECT :
SET
:
END
: ACT I ON
V I EW NR PROGRAMS? : YES
UNLOCKED
TV-Y
FV
TV-Y7
TV-G
V S L D
TV-PG
V S L D
TV-1 4
V S L
TV-MA
CONTA I NS NO RAT I NG
SELECT :
SET :
END
: ACT I ON
1)Press
to
select CHANGE
SETTINGS.
2)Press to
display screen.
1) Press
to
select VIEW NR
PROGRAMS?.
2) Press to set
“YES” or “NO.”
NR (Not Rated) PROGRAMS
Some TV shows, such as news, sports,
weather, bulletins, and emergency
information usually have no ratings.
4
V I EW NR PROGRAMS? : YES
UNLOCKED
TV-Y
FV
TV-Y7
TV-G
V S L
TV-PG
V S L
TV-1 4
V S L
TV-MA
FOR ALL CH I LDREN
SELECT :
SET :
END
: ACT I ON
D
D
1) Press
to
select and to
set ratings to be
blocked.
(See ratings
charts right.)
• Ratings highlighted
in Green will be
blocked. Ratings in
white letters will not
be blocked.
5
34
Press ACTION four times
to exit this mode.
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
FOR ALL CHILDREN:
Content specifically geared to
young viewers ages 2-6.
FOR AGE 7 AND OLDER:
May contain mild physical or
comedic violence which may
frighten children under 7.
GENERAL AUDIENCE:
Contains little or no violence,
strong language, sexual dialogue
or situations.
PARENTAL GUIDANCE:
May contain infrequent coarse
language, limited violence, some
suggestive sexual dialogue and
situations.
PARENTS CAUTIONED:
May contain sophisticated themes,
sexual situations, strong language,
and more intense violence.
MATURE AUDIENCE:
May contain mature themes,
profane language, graphic
violence, and sexual situations.
US TV PROGRAMS RATINGS:
Chart 2
FV
V
S
L
D
Fantasy Violence
Violence
Sexual Situations
Adult Language
Sexually Suggestive
Dialogue
Process of V-Chip Control Feature
Enter Code
Setup
Blocking
Blocking Message
<When V-Chip Control is activated>
• If a program or movie exceeds the ratings
you have set, a message will appear on a
black background and sound is muted.
ABC
PROGRAM RAT I NG EXCEEDED
RAT I NG : PG-1 3
ACCESS CODE
----
ENTER : 0-9
To View a Blocked Program / Movie
[Temporarily Deactivate V-Chip Control]
Enter your secret code (ACCESS CODE) in
the Blocking Message screen.
• V-Chip Control is reactivated when
power is turned off or power failure occurs.
[Deactivate V-Chip Control]
Enter your secret code (steps 1-4 on page 32).
Then, set US MOVIES and/or US TV
PROGRAMS to “OFF” using
and .
(Ratings set on pages 33 and 34 are retained
and will be in effect when V-Chip Control is
activated again.)
STOP
1 1 : 0 0AM
Advanced Operation
• If DISPLAY is pressed, even when V-Chip
control is deactivated, rating is displayed
on-screen.
ABC
0 : 12 : 34
SP
RAT I NG : PG-1 3
• If DISPLAY is pressed, even when no
V-Chip data, “NO V-CHIP DATA” is
displayed on-screen.
STOP
1 1 : 0 0AM
ABC
0 : 12 : 34
SP
NO V-CH I P DATA
35
On-Screen Displays (OSD)
Blue Screen Display
VCR Status & Clock Display
Whenever a blank section of a
tape comes up in Play mode, or
when the selected channel has no
broadcast signal with the Weak
Signal Display Feature set to
“OFF” (see page 30), the screen
will turn solid blue.
Press DISPLAY
to display or remove the overlay.
Function Status
Channel Caption
(See pages 28, 29.)
Current Time
Rec Time Remaining
(OTR mode only,
see page 14.)
REC
0 : 25
Channel & Function Display
ABC
1 2 : 0 0PM
-0 : 1 2 : 3 4
SP
12 / 2 4 / 2 0 0 1 MON
12 : 0 0PM - 1 : 0 0PM
CH 0 8 ABC MOV I E
Counter
Tape Speed
(See page 4.)
When a function button is pressed
(PLAY, FF, etc.) or you change
channels, the unit mode or channel
number will be displayed. (Some
station names may also appear if
Channel Caption is set. See pages
28 and 29.)
08
Time Stamp Data (See page 31.)
Warning and Instruction Displays
ABC
These displays will alert you to a missed
operation or provide further instructions.
Caution
Page
NO CH FOUND PLEASE CHECK
• If no active channels are found for CHANNEL
ANTENNA CABLE CONNECTION THEN
MEMORY...
PUSH CH UP KEY AGAIN
8, 10, 12
OSD
PLEASE SET CLOCK BEFORE
PROGRAMMING
• If you attempt to set or review a Timer Recording,
12, 13
or set the On-Timer and the Clock is not set...
CHECK CASSETTE RECORD TAB
• If you press REC, and a cassette is inserted with
no record tab...
TO CANCEL TIMER REC HOLD DOWN
STOP KEY FOR APPROX 3 SEC
• If you press STOP during a Timer Recording...
23
NO CASSETTE
PLEASE INSERT A CASSETTE
• If you press PLAY, FF, REW, or REC without a
cassette inserted...
14
PLEASE PREPARE FOR TIMER REC
• If the unit is not in Stop mode or a cassette with
record tab is not inserted two minutes before a
Timer Recording is about to begin...
22, 23
VIDEO HEADS MAY NEED CLEANING
PLEASE INSERT HEAD CLEANING
CASSETTE OR REFER TO MANUAL
END: PLAY KEY
• If head cleaning becomes necessary while
playing back a tape...
VCR LOCK ACTIVATED
• If you press a function button other than STOP/
EJECT or POWER while the unit is in VCR Lock
mode...
36
4, 14
4
30
Unit Information
Reset all unit Memory Functions
When moving unit to a new location, or if a
mistake was made in the Initial Setup section.
• Make sure a tape is not inserted in the unit.
<Model AG-520E unit shown>
1
Turn the unit
Power on.
2
Press and hold both PLAY and FF on
the unit for more than 5 seconds.
• The power will shut off.
• Please ignore “NO CASSETTE” warning.
3
Do “Initial Setup” on pages 9 - 11.
Features for a Quality Picture
Display
Picture Tube:
13 inch (AG-513E)
20 inch (AG-520E)
measured diagonal 90°
deflection Picture Tube
VCR
Video Recording System: 4 rotary heads helical
scanning system
Audio Track:
1 track
Tuner
Broadcast Channels:
VHF 2 ~ 13, UHF 14 ~ 69
CABLE Channels:
Midband A through I (14 ~ 22)
Superband J through W
(23 ~ 36)
Hyperband AA ~ EEE (37 ~ 64)
Lowband A-5 ~ A-1 (95 ~ 99)
Special CABLE channel 5A (01)
Ultraband 65 ~ 94, 100 ~ 125
General
Power Source:
120 V AC, 60 Hz
Power Consumption:
Power On
Approx. 69 watts (AG-513E)
Approx. 110 watts
(AG-520E)
Power Off
Approx. 4.0 watts
Television System:
EIA Standard NTSC color
Speaker:
1 piece
Operating Temperature: 5 °C ~ 40 °C (41 °F ~ 104 °F)
Operating Humidity:
10 % ~ 75 %
Weight:
12 Kg (26.4 lbs.) (AG-513E)
23 Kg (50.7 lbs.) (AG-520E)
Dimensions:
386 (W) X 385 (H) X
374 (D) mm
15-3/16” (W) X 15-3/16” (H)
X14-3/4” (D) (AG-513E)
515 (W) X 505 (H) X
474 (D) mm
20-5/16” (W) X 19-7/8” (H)
X 18-11/16” (D) (AG-520E)
Note: Designs and specifications are subject to
change without notice.
DST (Daylight Saving Time)
Unit auto adjusts clock for DST (Daylight Saving
Time.)
■ Spring (First Sunday in April)
DST : ON ➜ Sets clock ahead one hour.
■ Autumn (Last Sunday in October)
DST : ON ➜ Turns clock back one hour.
• If your area does not observe Daylight Saving
Time, select DST:OFF (see “Clock” on pages
12 and 13.)
• Keep these time changes in mind when
programming the unit for timer recordings.
37
For Your Information
Digital Auto Tracking
Continuously analyzes the signal and adjusts
for optimum picture quality.
Manual Tracking Control (to reduce picture
noise)
Use during Playback and Slow Motion mode to
reduce picture noise. Press the 3 or 6 number
key on the remote control or CH
on the
unit until the picture clears up. To return to
Auto Tracking, press POWER off, then on
again a few seconds later.
V-Lock Control
In Still mode, the 3 or 6 number key on the
remote control or CH
on the unit operate
as a V-Lock control to reduce jitter.
PanaBlack Picture Tube
<For Model AG-520E only>
This unit uses a PanaBlack picture tube for
better color reproduction and picture contrast.
Specifications
Before Requesting Service
Check the following points if you are having trouble with your unit.
Correction
Power
No power…
• Completely insert Power Plug into an AC outlet.
• Set POWER button to ON.
Correction
Monitor
Poor picture with normal sound...
•
•
•
•
Poor sound with normal picture...
Poor TV reception...
No color or poor color...
Ghost (multiple) images...
TV programs cannot be watched...
Channel cannot be selected...
•
•
•
•
•
•
No picture or sound...
VCR
Make sure your antenna system (TV or CABLE), is correctly set. (P. 8, 12)
Completely insert Power Plug into an AC outlet.
Set POWER button to ON.
Adjust BRIGHTNESS, SHARPNESS, and PICTURE controls in the
SET UP TV menu. (P. 17)
Adjust VOLUME control. (P. 16)
Adjust SHARPNESS and PICTURE controls in the SET UP TV menu. (P. 17)
Adjust TINT and COLOR controls in the SET UP TV menu. (P. 17)
Install a directional antenna.
Make sure the selected channel is in unit’s memory. (P. 10, 12)
Only the channel being recorded can be viewed on this unit.
Correction
TV program cannot be recorded... •
•
Timer recording cannot be
•
performed…
•
•
•
No playback picture, or the playback
picture is noisy or contains streaks...
VCR cannot be controlled...
•
•
•
•
Remote Control
Make sure your antenna system (TV or CABLE), is correctly set. (P. 8, 12)
Make sure cassette record tab is intact. (P. 4)
Check that clock is set to current time and date.
Make sure DSS/CABLE box (if used) is left on and tuned to channel to
be recorded.
Set recording Start/Stop times correctly. (P. 22, 23)
Timer recording may not be performed or continued if a power
interruption of more than 1 minute occurs before or during a Timer
recording even after power is restored.
Adjust TRACKING control in either direction. (P. 37)
Try Head Cleaning. (P. 4)
Make sure PLAY/VCR LOCK is set to off. (P. 26, 30)
Make sure unit is not in a Timer Record operation.
Correction
Unit cannot be controlled...
•
•
•
•
ACTION and PROG buttons
cannot be selected...
• Check remote batteries.
Miscellaneous
Video cassette cannot be
inserted...
Video cassette cannot be
removed...
Tape cannot be ejected or
inserted...
Video cassette ejects when a
recording is started, or the power
is turned off for timer recording...
In Stop mode, the VCR motor
(CYLINDER) continues to rotate...
VCR cannot be controlled...
38
Aim remote at remote sensor on unit (P. 7) so that signal is unobstructed.
Inspect the remote batteries. (P. 4)
Make sure PLAY/VCR LOCK is set to off. (P. 26, 30)
Exposing unit remote sensor to direct fluorescent or outdoor light may
cause signal interference.
Correction
• Insert the cassette window side up; record tab facing you.
• Completely insert Power Plug into an AC outlet.
• Try ejecting or inserting the tape again after turning POWER off, then
back on.
• Make sure cassette record tab is intact. (P. 4)
• To enable Quick Play mechanism, the VCR cylinder will rotate for
about 3 minutes. This reduces response time from Stop to Play mode
and from Play to Rewind Search mode.
• Make sure PLAY/VCR LOCK is set to off. (P. 26, 30)
Index
A Accessories ................................................ 4
B
C
D
E
F
H
I
L
M
N
O
Q Quality Picture .......................................... 37
R Rapid Tune ............................................... 16
S
T
U
V
W
Z
REC button ........................................... 6, 14
REC Indicator ....................................... 7, 14
Rec(ord) ................................................... 14
Record/Playback Speed Settings .............. 4
Remote Control Buttons ............................. 6
Remote Sensor .......................................... 7
Repeat Play .............................................. 26
Reset Language, Channels, Clock .... 12, 13
Reset unit ................................................. 37
Reverse Search ....................................... 14
REW button .......................................... 6, 14
Rewind ..................................................... 14
R-TUNE button ..................................... 6, 16
Safety Precautions ..................................... 3
SEARCH button ............................. 6, 24, 25
Secret Code .............................................. 32
SELECT/SET button ............................ 6, 11
Sleep Timer .............................................. 19
Slow Motion .............................................. 14
Special VCR Features ..................... 28 - 31
Specifications ........................................... 37
SPEED button .......................................... 14
Still Picture ........................................... 6, 14
Stop .......................................................... 14
STOP button ............... 6, 14, 15, 23 - 25, 27
Table of Contents ....................................... 5
Tape Erasure Prevention ........................... 4
Tape Operation ................................ 24 - 27
Tape Position Display .............................. 26
Timer Program Review, Replace, Clear .. 23
Timer Recording ................................. 22, 23
Timer Recording Cancellation ................. 23
Time Stamp .............................................. 31
Time Zone Adjust ..................................... 13
TUNER ON/OFF ........................................ 9
TV Operation ............................................ 16
TV Timer Features ............................. 18, 19
Unit, Front/Rear View ................................. 7
Unit Information ........................................ 37
US Movies Ratings ................................... 33
US TV Programs Ratings ......................... 34
VCR Lock ................................................. 30
VCR Status & Clock Display .................... 36
VHF/UHF Antenna Input Terminal ............. 7
VOLUME UP/DOWN button ................ 6, 16
V-Chip Control Feature .................... 32 - 35
Warning and Instruction Displays ............ 36
Weak Signal Display Feature .................. 30
Zero Search .............................................. 27
39
For Your Information
P
ACTION button ..................................... 6, 12
AC power plug ............................................ 7
ADD/DLT button ................................... 6, 13
Audio Mute ............................................... 16
Auto Operation Functions ........................ 26
Batteries ..................................................... 4
Before Requesting Service ...................... 38
Before Using .............................................. 4
Blocking Message .................................... 35
Blue Screen Display ................................. 36
Caption On Mute ...................................... 21
Cassette Compartment .............................. 7
Channel ....................................... 10, 12, 36
Channel and Auto Set ........................ 10, 12
Channel Caption ................................ 28, 29
CHANNEL UP/DOWN button .............. 6, 16
Clock (Auto/Manual Set) .................... 9 - 13
Closed Caption ................................... 20, 21
CM SKIP/ZERO SEARCH button ........ 6, 27
Commercial Skip ...................................... 27
Connections ............................................... 8
Copy Your Tapes (Dubbing) .................... 15
COUNTER RESET button ................... 6, 27
DISPLAY button ................................... 6, 36
DSS/Cable Box Connections ..................... 8
DST (Daylight Saving Time) .................... 37
EJECT button ................................... 6, 7, 14
Eject tape ................................................. 14
Fast Forward ............................................ 14
FF button .............................................. 6, 14
Forward Search ........................................ 14
Frame by Frame Advance .......................... 14
Front Panel Indicators ................................ 7
Function Display ....................................... 36
Head Cleaning ........................................... 4
Important Safeguards and Precautions ....... 2
Index Search ............................................ 24
Initial Setup ........................................ 9 - 11
Input Mode ............................................... 15
Language ............................................. 9, 12
Location of Controls ............................... 6, 7
