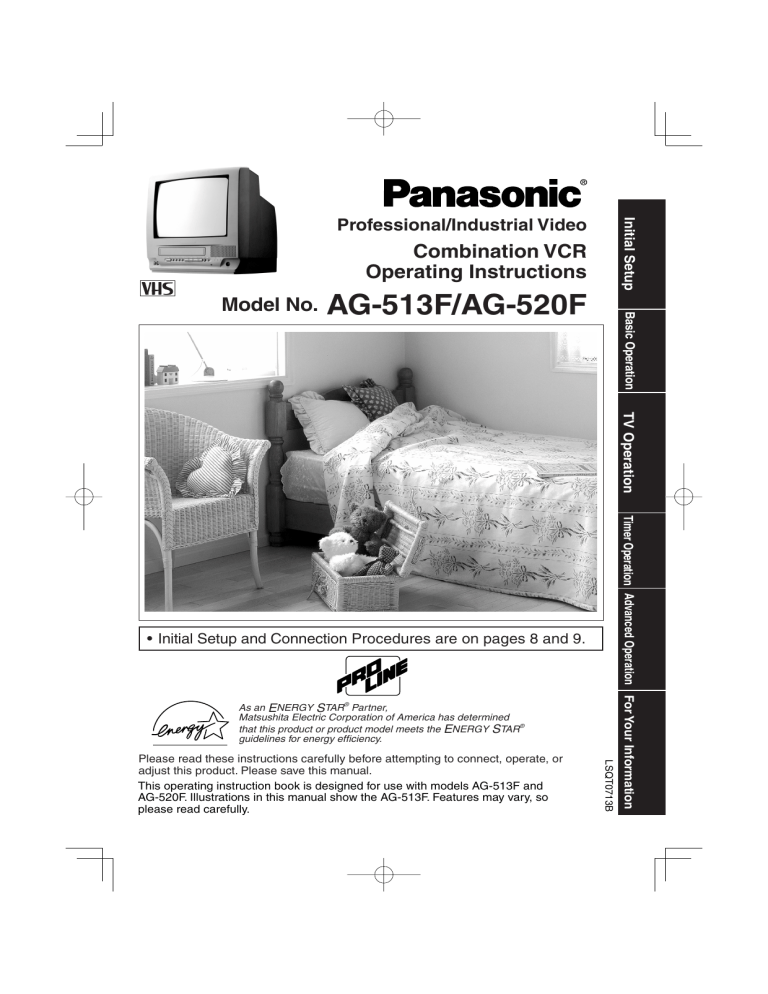

Initial Setup
Professional/Industrial Video
Combination VCR
Operating Instructions
AG-513F/AG-520F
Basic Operation
Model No.
TV Operation
As an ENERGY STAR® Partner,
Matsushita Electric Corporation of America has determined
that this product or product model meets the ENERGY STAR®
guidelines for energy efficiency.
LSQT0713B
Please read these instructions carefully before attempting to connect, operate, or
adjust this product. Please save this manual.
This operating instruction book is designed for use with models AG-513F and
AG-520F. Illustrations in this manual show the AG-513F. Features may vary, so
please read carefully.
Timer Operation Advanced Operation For Your Information
• Initial Setup and Connection Procedures are on pages 8 and 9.
Important Safeguards and Precautions
READ AND RETAIN ALL SAFETY AND
OPERATING INSTRUCTIONS. HEED ALL
WARNINGS IN THE MANUAL AND ON UNIT
INSTALLATION
1 POWER SOURCE CAUTION
Operate only from power source indicated on unit or in
this manual. If uncertain, have your Electric Utility
Service Company or Video Products Dealer verify
your home power source.
2 POWER CORD PLUG
For safety, this unit has a polarized type plug (one
wide blade), or a three-wire grounding type plug.
Always hold the plug firmly and make sure your hands
are dry when plugging in or unplugging the AC power
cord. Regularly remove dust, dirt, etc. on the plug.
POLARIZED PLUG CAUTION:
The plug fits into outlet one way. If it cannot be fully
inserted, try reversing it. If it still will not fit, have an
electrician install the proper wall outlet. Do not tamper
with the plug.
GROUNDING PLUG CAUTION:
The plug requires a three-hole grounding outlet.
If necessary, have an electrician install the proper outlet.
Do not tamper with the plug.
3 POWER CORD
To avoid unit malfunction, and to protect against
electrical shock, fire or personal injury:
- Keep power cord away from heating appliances and
walking traffic. Do not rest heavy objects on, or roll
such objects over the power cord.
- Do not tamper with the cord in any way.
- An extension cord should have the same type plug
(polarized or grounding) and must be securely
connected.
- Overloaded wall outlets or extension cords are fire
hazards.
- Frayed cords, damaged plugs, and damaged or
cracked wire insulation are hazardous and should
be replaced by a qualified electrician.
4 DO NOT BLOCK VENTILATION HOLES
Ventilation openings in the cabinet release heat
generated during operation. If blocked, heat
build-up may result in a fire hazard or heat damage to
cassettes.
For your protection:
a. Never cover ventilation slots while unit is ON, or
operate unit while placed on a bed, sofa, rug, or
other soft surface.
b. Avoid built-in installation, such as a book case or
rack, unless properly ventilated.
5 AVOID EXTREMELY HOT LOCATIONS OR
SUDDEN TEMPERATURE CHANGES
Do not place unit over or near a heater or radiator, in
direct sunlight, etc. If unit is suddenly moved from a
cold place to a warm place, moisture may condense in
unit and on the tape causing damage.
6 TO AVOID PERSONAL INJURY
• Never place unit on support or
stand that is not firm, level, and adequately strong.
The unit could fall causing serious injury to a child or
adult and damage to the unit.
• Move any appliance and cart
combination with care. Quick
stops, excessive force, and
uneven
surfaces may cause objects to
overturn.
• Carefully follow all operating
instructions.
2
OUTDOOR ANTENNA INSTALLATION
1 SAFE ANTENNA AND CABLE CONNECTION
An outside antenna or cable system must be properly grounded to
provide some protection against built up static charges and voltage.
Section 810 of the National Electrical Code, ANSI/NFPA 70 (in Canada,
part 1 of the Canadian Electrical
Code) provides information
NEC - NATIONAL
ANTENNA LEAD
ELECTRICAL CODE
IN WIRE
regarding proper grounding of
ANTENNA
GROUND
DISCHARGE UNIT
the mast and supporting
CLAMP
(NEC SECTION 810-20)
structure, grounding of the
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
ELECTRIC
lead-in wire to an antenna
SERVICE
GROUND CLAMPS
EQUIPMENT
discharge unit, size of grounding
POWER SERVICE
GROUNDING
conductors, location of antenna
ELECTRODE SYSTEM
(NEC ART 250, PART H)
discharge unit, connection to
grounding electrodes, and
requirements for the grounding electrode.
2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE POWER LINES OR
CIRCUITS
Locate an outside antenna system well away from power lines and
electric light or power circuits so it will never touch these power sources
should it ever fall. When installing antenna, absolutely never touch power
lines, circuits or other power sources as this could be fatal.
USING THE UNIT
Before unit is brought out of storage or moved to a new location,
refer again to the INSTALLATION section of these safeguards.
1 KEEP UNIT WELL AWAY FROM WATER OR MOISTURE,
such as vases, sinks, tubs, etc.
2 IF EXPOSED TO RAIN, MOISTURE, OR STRONG IMPACT,
unplug unit and have it inspected by a qualified service
technician before use.
3 ELECTRICAL STORMS
During a lightning storm, or before leaving unit unused for
extended periods of time, disconnect all equipment from the
power source as well as the antenna and cable system.
4 WHEN UNIT IS PLUGGED IN
• DO NOT OPERATE IF:
- liquid has spilled into unit.
- unit was dropped or otherwise damaged.
- unit emits smoke, malodors, or noises.
Immediately unplug unit, and have it inspected by a service
technician to avoid potential fire and shock hazards.
• Never drop or push any object through openings in unit.
Touching internal parts may cause electric shock or fire
hazard.
• Keep magnetic objects, such as speakers, away from unit to
avoid electrical interference.
5 USING ACCESSORIES
Use only accessories recommended by the manufacturer to
avoid risk of fire, shock, or other hazards.
6 CLEANING UNIT
Unplug unit. Use a clean, dry, chemically untreated cloth to
gently remove dust or debris. DO NOT USE cleaning fluids,
aerosols, or forced air that could over-spray, or seep into unit
and cause electrical shock. Any substance, such as wax,
adhesive tape, etc. may mar the cabinet surface. Exposure to
greasy, humid, or dusty areas may adversely affect internal
parts.
SERVICE
1 DO NOT SERVICE PRODUCT YOURSELF
If, after carefully following detailed operating instructions, the unit
does not operate properly, do not attempt to open or remove
covers, or make any adjustments not described in the manual.
Unplug unit and contact a qualified service technician.
2 REPLACEMENT OF PARTS
Make sure the service technician uses only parts specified by the
manufacturer, or have equal safety characteristics as original
parts. The use of unauthorized substitutes may result in fire,
electric shock, or other hazards.
3 SAFETY CHECK AFTER SERVICING
After unit is serviced or repaired, request that a through safety
check be done as described in the manufacturer’s service
literature to ensure video unit is in safe operating condition.
Safety Precautions/Mesures de sécurité
Warning :
To prevent fire or shock hazard, do not expose this equipment to rain or
moisture.
Avertissement : Afin de prévenir tout risque d’incendie ou de chocs électriques, ne pas exposer
cet appareil à la pluie ou à une humidité excessive.
FCC WARNING : Any unauthorized changes or modifications to this equipment would void the
user’s authority to operate.
This video recorder, equipped with the HQ (High Quality) System, is compatible with existing VHS
equipment. Only use those tapes with the
mark. It is recommended that only cassette tapes that
have been tested and inspected for use in 2, 4, 6, and 8 hour VCR machines be used. This television
receiver provides display of television closed captioning in accordance with §15.119 of the FCC rules.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS
INSIDE REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL
This symbol warns the user that uninsulated voltage within the unit
may have sufficient magnitude to cause electric shock. Therefore, it
is dangerous to make any kind of contact with any inside part of this
unit.
This symbol alerts the user that important literature concerning the
operation and maintenance of this unit has been included. Therefore,
it should be read carefully in order to avoid any problems.
This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal
of these materials may be regulated in your community due to environmental considerations. For
disposal or recycling information please contact your local authorities, or the Electronics Industries
Alliance: <http://www.eiae.org.>
Congratulations
Accessories
Remote Control
On your purchase of one of the most sophisticated
and reliable products on the market today. Used
properly, it will bring you and your family years of
enjoyment. Please fill in the information below. The
serial number is on the tag located on the back of
your unit.
LSSQ0390
Date of Purchase
Dealer Purchased From
Dealer Address
Dealer Phone No.
Batteries 2 “AA”
Model No.
Serial No.
Loading the Batteries
Battery replacement caution
• Do not mix old and new batteries.
• Do not mix alkaline with manganese batteries.
Prevent Accidental Tape Erasure
Break off the tab to
prevent recording.
To record again.
Record
Tab
Cover the hole
with cellophane tape.
Screwdriver
3
Unit Information
Head Cleaning
Specifications
Playing older or damaged tapes may eventually
cause video heads to become clogged.
Display
Head Clog Sensor
During playback this screen
appears if clogging is
detected. To clear message
from screen, press PLAY on
the remote or unit.
Picture Tube
V I DEO HEADS MAY
NEED CLEAN I NG
PL EASE I NSERT HEAD
CLEAN I NG CASSETTE
OR REFER TO MANUAL
END : PLAY
• Use “dry” type head cleaning cassette only.
(Part No. NV-TCL30PT is recommended.)
• Follow cleaning tape directions carefully.
Excessive use of head cleaning tape can shorten
the video head life.
VCR
Video Recording
System
Audio Track
Tuner
Broadcast Channels
CABLE Channels
Features for a Quality Picture
Digital Auto Tracking
Continuously analyzes the signal and adjusts for
optimum picture quality.
Manual Tracking Control (to reduce picture noise)
Use during Playback and Slow Motion mode to
reduce picture noise. Press the 3 or 6 number key
on the remote control or CH
on the unit until
the picture clears up. To return to Auto Tracking,
press POWER off, then on again a few seconds
later.
V-Lock Control
In Still mode, the 3 or 6 number key on the
remote control or CH
on the unit operate as a
V-lock control to reduce jitter.
Tape Speed
Setting
4
Power
On
Power
Consumption Power
Off
Television System
Speaker
Operating
Temperature
Operating Humidity
Weight
Dimensions
(W X H X D)
4 rotary heads helical scanning
system
1 track
VHF 2 ~ 13, UHF 14 ~ 69
Midband A through I (14 ~ 22)
Superband J through W (23 ~
36) Hyperband AA ~ EEE (37
~ 64) Lowband A-5 ~ A-1 (95
~ 99) Special CABLE channel
5A(01) Ultraband 65 ~ 94, 100
~ 125
120 V AC, 60 Hz
Approx. 69 W (AG-513F)
Approx. 110 W (AG-520F)
Approx. 2.5 W
EIA Standard NTSC color
1 pieces
5 °C ~ 40 °C (41 °F ~ 104 °F)
10 % ~ 75 %
12 Kg (26.4 lbs.) (AG-513F)
23 Kg (50.7 lbs.) (AG-520F)
386 mm (15-3/16″) X 385 mm
(15-3/16″) X 374 mm (14-3/4″)
(AG-513F)
515 mm (20-5/16″) X 505 mm
(19-7/8″) X 474 mm (18-11/16″)
(AG-520F)
Note
Record/Playback Time
Only use tapes with the
General
Power Source
13 inch (AG-513F)/
20 inch (AG-520F)
measured diagonal 90°
deflection Picture Tube
mark in this unit.
• Designs and specifications are subject to change
without notice.
Type of Video Cassette
T60
T120
T160
DST (Daylight Saving Time)
SP
(Standard
Play)
1 Hour
2 Hours
2 Hours
40 Minutes
Unit auto adjusts clock for DST (Daylight Saving
Time.)
LP
(Long Play)
2 Hours
4 Hours
5 Hours
20 Minutes
SLP
(Super Long
Play)
■ Spring (First Sunday in April)
DST: ON ➞ Sets clock ahead one hour.
■ Autumn (Last Sunday in October)
DST: ON ➞ Turns clock back one hour.
3 Hours
6 Hours
8 Hours
• If your area does not observe Daylight Saving Time,
select DST: OFF.
• Keep these time changes in mind when programming
the unit for timer recordings.
Table of Contents
Important Safeguards and Precautions ................................................ 2
Safety Precautions/Mesures de sécurité............................................... 3
Unit Information....................................................................................... 4
Location of Controls ............................................................................... 6
Connections............................................................................................. 8
Initial Setup .............................................................................................. 9
Initial Setup
Reset Language, Channels, Clock, Time Zone Adjust....................... 12
Playback a Tape..................................................................................... 14
Record On a Tape.................................................................................. 14
Copy Your Tapes (Dubbing) ................................................................. 15
Basic Operation
Tape Operation ...................................................................................... 24
Special VCR Features ........................................................................... 28
V-Chip Control Feature ......................................................................... 29
On-Screen Display (OSD) ..................................................................... 32
Warning and Instruction Displays ....................................................... 33
Before Requesting Service................................................................... 34
Index ....................................................................................................... 35
Timer Operation Advanced Operation For Your Information
Timer Recording .................................................................................... 22
TV Operation
TV Operation .......................................................................................... 16
Picture Adjustment................................................................................ 17
TV Timer Features ................................................................................. 18
Closed Caption System ........................................................................ 20
5
Location of Controls
Remote Control Buttons
EJECT
NIGHT
POWER
Color and picture intensity level
are adjusted during night time
use.
Turns unit on or off.
SLEEP
Ejects tape.
DISPLAY
Displays the VCR status and
clock.
Turns off the unit automatically.
TRACKING UP/DOWN
TAPE POSITION
Reduces picture noise during
Playback and Slow Motion.
Finds out present tape position
and amount of tape remaining.
NUMBER Keys
COUNTER RESET
Resets to “0:00:00” at the
desired position.
RAPID TUNE
Displays the last channel you
were watching.
MUTE
Mutes the sound instantly.
CHANNEL UP/DOWN
Selects a channel.
SELECT UP/DOWN
Controls navigation around
on-screen menu.
ACTION
Displays Main Menu.
STOP
Stops recording or playback.
REC
Records the program.
REWIND/SEARCH
Rewinds tape, and searches
reverse scene.
PLAY
Begins playback.
PAUSE/SLOW
Pauses and slow motion
and frame advance picture.
Selects a channel directly.
ADD/DELETE
Adds or deletes a channel.
SEARCH
Goes directly to the desired
recording. Locates end point of
recording.
VOLUME UP/DOWN
Adjusts volume.
SET/BACK SPACE
Sets a selected menu, or goes
back to correct.
PROGRAM
Displays SET PROGRAM
screen. You can set Timer
Program and On-Timer.
FAST FORWARD/SEARCH
Fast forwards tape, and
searches forward scene.
CM SKIP/ZERO SEARCH
In Stop mode, goes to the
counter “0:00:00.“ In Play
mode, skips over 1 to 3 minutes
of tape.
SPEED
Selects recording speed.
Note
• When EJECT is pressed, the tape is ejected from Cassette Compartment.
If EJECT is pressed during recording, the unit will not respond to the command.
6
Front View of the Unit and Indicators
VOL
POWER
CH
STOP/EJECT REW/
PLAY/REPEAT FF/
REC
INPUT
REC ON TIMER PROG TIMER
ACTION
Initial Setup
<Model AG-513F unit shown>
VIDEO IN AUDIO IN
Built-In
Speaker
AUDIO VIDEO IN Jack
For dubbing.
POWER
Turns unit on or off.
VOLUME UP/DOWN
Adjusts volume.
SET/BACK SPACE
Sets a selected menu, or
goes back to correct.
CHANNEL UP/DOWN
Selects a channel.
TRACKING UP/DOWN
Reduces picture noise
during Playback and Slow
Motion.
SELECT UP/DOWN
Controls navigation around
on-screen menu.
REWIND/SEARCH
Rewinds tape, and
searches reverse scene.
ACTION
Press together with STOP.
PHONES Jack
Connect an
earphone or
headphones.
PLAY
Begins playback.
REPEAT
Repeats a recording.
PROG TIMER
Indicator
Lights when the
unit is set for
Timer Recording.
FAST FORWARD/SEARCH
Fast forwards tape, and
searches forward scene.
ON TIMER
Indicator
Lights when the
On-Timer is set.
REC
Records the program.
REC Indicator
Lights during
recording.
INPUT
Selects a LINE mode directly.
STOP
Stops recording or playback.
EJECT
Ejects tape.
ACTION
Press together with REW.
Remote Sensor
Rear View of the Unit
<Model AG-513F unit shown>
Easy Grip-Handle
<Model AG-513F only>
Use when transporting the
unit.
VHF/UHF
AC Power Plug
When plugged into an AC outlet, the
unit consumes 2.5 W of electric power
in OFF condition.
VHF/UHF Antenna Input Terminal
In from your Antenna or Cable (See
page 8).
7
Connections
Please make all cable or antenna connections before power on.
Connecting
For ANT./Cable
Connect the cable from Antenna/Cable to the VHF/UHF terminal on the unit.
UNIT (rear view)
VHF/UHF
VHF/UHF
IN from
ANT./CABLE
VHF/UHF
For DSS/Cable Box
Connect the OUT jack on your cable box to the VHF/UHF terminal on the unit
with a RF cable.
UNIT (rear view)
Cable TV
Converter Box
VHF/UHF
VHF/UHF
VHF/UHF
IN from
ANT./CABLE
WARNING:
Overtightening “Nut type” RF coaxial cables may damage jacks. Finger tighten only.
8
Initial Setup
Set the Clock (Initial Power On)
1
2
Plug the unit power cord into AC wall
outlet.
Press POWER on the remote or unit.
When Tuner OFF is selected, your unit is
automatically in LINE mode. When Tuner ON
is selected, Channel selection, Input selection,
Channel Add/Delete, etc. is available.
1
2
Press ACTION to display MAIN MENU.
M A I N MENU
LOCK LANGUAGE
TV
CH
EX I T
CLOCK
Initial Setup
Your unit can be set to Tuner ON or Tuner OFF.
When the unit is first turned on, the tuner is set to
off and a prompt to set the clock is displayed.
By selecting “TUNER:ON” (see at right), you can
place channels in memory and use the Auto Clock
Set feature (see page 12).
Tuner ON/OFF
1) Press
to select “TV.”
2) Press ACTION
to display SET
UP TV screen.
SELECT :
SET
: ACT I ON
3
SET CLOCK
1/ /
:
DST : ON
SELECT :
END
: ACT I ON
SET :
Press
to
select the month
and press to
set. In the same
manner, select
and set the date,
year, time, and
DST. (Daylight
Saving Time)
To Make Corrections,
to move to error, then
repeatedly press
correct.
4
3
SET UP TV
CAPT I ON
V I DEO ADJUST
TUNER
SELECT :
END
: ACT I ON
4
Press ACTION to end setup.
(Clock starts.)
5
SET :
<Only when TUNER:ON>
SET UP TV
CAPT I ON
I NPUT SELECT
V I DEO ADJUST
TUNER
SELECT :
END
: ACT I ON
POWER
:OFF
1) Press
to
select TUNER.
to set
2) Press
“ON” or “OFF.”
: TUNER
: ON
1) Press
to
select INPUT
SELECT.
to set
2) Press
“TUNER.”
SET :
Press ACTION twice to return to the
normal screen.
• If you selected “TUNER:ON”, go to “Channels”
selection on page 12.
ACTION
SELECT/SET
:CH UP
:CH DOWN
:VOL UP
:VOL DOWN
9
Initial Setup (continued)
POWER
NUMBER Keys
ADD/DLT
ACTION
10
SELECT/SET
:CH UP
:CH DOWN
:VOL UP
:VOL DOWN
Reset all unit Memory Functions
To add channel:
Select channel with number keys and
press ADD/DLT.
When moving unit to a new location, or if a mistake
was made in the Initial Setup section.
• Make sure a tape is not inserted in the unit.
CHANNEL 08 ADDED
Initial Setup
Add or Delete a Channel
To delete channel:
or number
Select channel with CH
keys and press ADD/DLT.
CHANNEL 08 DELE TED
POWER
VOL
CH
STOP/EJECT REW/
PLAY/REPEAT FF/
REC
INPUT
REC ON TIMER PROG TIMER
ACTION
VIDEO IN AUDIO IN
1
Turn the unit
Power on.
2
Press and hold both
PLAY/REPEAT and FF on the
unit for more than 5 seconds.
• The power will shut off.
• Please ignore “NO CASSETTE”
warning.
3
Do “Initial Setup” on page 8.
Note to CABLE System Installer
This reminder is provided to call the CABLE
(Cable TV) System Installers attention to
Article 820-40 of the NEC that provides
guidelines for proper grounding and, in
particular, specifies that the cable ground
shall be connected to the grounding system
of the building, as close to the point of cable
entry as practical.
11
Reset Language, Channels, Clock,
1
Press ACTION to display
M A I N MENU
LOCK LANGUAGE
TV
CH
CLOCK
MAIN MENU.
EX I T
SELECT :
SET
: ACT I ON
2
Language
Clock
Channels
(TUNER: ON only)
1) Press
to
select language
icon.
1) Press
select “CH.”
M A I N MENU
CH
EX I T
CLOCK
SELECT :
SET
: ACT I ON
MENU PR I NC I PAL
HOLA
BLOQUEO IDIOMA
CANAL
TV
CH
M A I N MENU
LOCK LANGUAGE
CLOCK
EX I T
SELECT :
SET
: ACT I ON
2) Press ACTION
repeatedly.
TV
REL OJ
2) Press ACTION.
SET UP CHANNEL
ANTENNA : CABLE
AUTO SET
WEAK S I GNAL D I SPLAY : OFF
SELECT :
END
: ACT I ON
MENU
BONJOUR
BLOCAGE
LANGUE
CANAL HORLOGE SORT I E
SEL.
:
REGLER : ACT I ON
For French
M A I N MENU
CH
HELLO
LOCK LANGUAGE
CLOCK
EX I T
SELECT :
SET
: ACT I ON
For English
3) Press
to select “EXIT.”
Press ACTION
to exit.
12
CH
LOCK LANGUAGE
CLOCK
EX I T
SELECT :
SET
: ACT I ON
SET :
For Spanish
TV
TV
2) Press ACTION.
SET CLOCK
AUTO CLOCK SET
MANUAL
T I ME ZONE ADJUST : 0
SAL I R
ELEG I R :
F I JAR : ACT I ON
TELE
1) Press
to
select “CLOCK.”
M A I N MENU
LOCK LANGUAGE
TV
to
3) Press
to select
“ANTENNA,” then
press to set your
antenna system
(“TV” or “CABLE”).
4) Press
to select
“AUTO SET,” then
press .
• After Channel Auto Set is
finished, Clock Auto Set
will be performed. (If clock
is set manually, Clock Auto
Set will not be performed.)
SELECT :
END
: ACT I ON
SET :
(“TIME ZONE ADJUST” appears
only when auto clock is set.)
3) Press
to select
“MANUAL” or “AUTO
CLOCK SET” and
press .
• For Auto Clock Set, select
“AUTO CLOCK SET,” then
press .
SET CLOCK
2 / 6/2003 THU 12: 00PM
DST : ON
SELECT :
START : ACT I ON
SET :
4) Press
and
press
to select and
set the month, date, year,
time, and DST (Daylight
Saving Time).
5) Press ACTION twice to
start the clock and exit
this mode.
Time Zone Adjust
POWER
Time Zone Adjust
(TUNER: ON only)
1) Press
to
select “CLOCK.”
M A I N MENU
Basic Operation
(Only when Auto Clock is set.)
SELECT/SET
:CH UP
:CH DOWN
:VOL UP
:VOL DOWN
ACTION
LOCK LANGUAGE
TV
CLOCK
CH
EX I T
SELECT :
SET
: ACT I ON
2) Press ACTION.
SET CLOCK
AUTO CLOCK SET
MANUAL
T I ME ZONE ADJUST : 0
SELECT :
END
: ACT I ON
SET :
3) Press
to
select TIME ZONE
ADJUST and
press repeatedly
to select mode.
(See below.)
+1
0
-1
SET CLOCK
AUTO CLOCK SET
MANUAL
T I ME ZONE ADJUST : +1
SELECT :
END
: ACT I ON
SET :
4) Press ACTION
twice to exit.
ACTION key on
the unit
Using
STOP/EJECT REW/
keys
VOL
CH
ACTION
On Unit
You can operate the
menu screen using
unit buttons. To
display the menu,
press STOP/EJECT
and REW together
with no tape
inserted. To exit the
menu, repeat above
with or without tape
inserted until normal
screen appears.
On Remote
On Unit
: CH UP
: CH DOWN
: VOLUME UP
: VOLUME DOWN
Whenever the menu or
program screen is displayed,
CHANNEL UP/DOWN
and VOLUME
function as
UP/DOWN function as
only.
13
Playback a Tape
Check List
Cable or antenna is connected.
Power cord is plugged in.
1
Insert a cassette.
• The unit power comes
on automatically.
Record tab
Record On a Tape
1
Insert a cassette with record tab
2
Press CH
channel.
3
Press SPEED to select
recording speed (see page 4).
SP = Standard Play
LP = Long Play
SLP = Super Long Play
To prevent tape jam,
remove loose or peeling
labels from tapes.
2
• The unit power comes on automatically.
or number keys to select a
• For “LINE” input, see bottom of next page.
• Selected speed is displayed.
Press PLAY.
• Playback begins if cassette has no record
tab.
■ Forward/Reverse scene search
➞ Press FF or REW
➞ Press PLAY to release.
■ Still (Freeze) picture
➞ Press PAUSE/SLOW
➞ Press PLAY to release.
■ Slow Motion picture
➞ Hold down PAUSE/SLOW in
Still mode
➞ Press PLAY to release.
■ Frame by Frame picture
➞ Press PAUSE/SLOW in Still mode
➞ Press PLAY to release.
Notes
• These features work best in SP or SLP mode.
• After the unit is in Still or Slow mode for 3 minutes, it
will switch to Stop mode automatically to protect the
tape and the video head.
■ Stop ➞ Press STOP
■ Rewind tape ➞ Press REW in Stop mode
■ Fast forward tape ➞ Press FF in Stop
mode
■ Eject tape ➞ Press EJECT on the remote
or STOP/EJECT on the unit
4
Press REC to start recording.
• To edit out unwanted portions, press
PAUSE/SLOW to pause and resume recording.
• You cannot view another channel during
recording.
■ Stop ➞ Press STOP
■ One Touch Recording (OTR)
Press REC repeatedly Normal Rec
to set the recording
length (30 min. - 4 hours). 4:00 3:00
CH
Notes
• After the unit has been in Rec Pause mode for 5
minutes, it will stop automatically to protect the tape
and the video head.
• The remaining recording time of an OTR can be
displayed by pressing DISPLAY.
EJECT
TRACKING
DISPLAY
NUMBER
Keys
ACTION
PLAY
REC
STOP
REW
ADD/DLT
SELECT/SET
:CH UP
:CH DOWN
:VOL UP
:VOL DOWN
FF
PLAY
SPEED
POWER
VOL
CH
STOP/EJECT REW/
PLAY/REPEAT FF/
REC
INPUT
REC ON TIMER PROG TIMER
ACTION
REC
VIDEO IN AUDIO IN
■ Press to stop and/or
eject tape.
14
REC Indicator
1:00
1:30
• The unit stops recording at a preset time.
• PROG TIMER indicator lights on the unit.
You can operate using the
buttons on the unit
Insert a cassette.
0:30
2:00
PAUSE/
SLOW
e
Copy Your Tapes (Dubbing)
Recording (Editing) unit
Connections you’ll need to make.
Playing (Source) VCR
AUDIO VIDEO IN FROM ANT.
OUT
OUT TO TV
VIDEO IN AUDIO IN
IN
1
2
3
Recording (Editing) unit
Insert blank tape
with record tab.
Insert
pre-recorded
tape.
• Dubbing tapes protected with
Copy Guard will have poor
quality results.
Basic Operation
Playback (Source)
Select “LINE” mode.
See “Selecting Input Mode” below.
Press PLAY then
Press REC, then
PAUSE at starting
PAUSE/SLOW
point to put in
immediately to put in
Standby mode.
Standby mode.
(Perform operation of steps 4 and 5 on both units at same time.)
4
5
STOP
Press PLAY
to start dubbing.
Press PAUSE/SLOW
to start dubbing.
Press STOP
to stop dubbing.
Press STOP
to stop dubbing.
Selecting Input Mode (TUNER:ON only)
Method 1:
Press INPUT on the unit.
Channel Number
LINE
Method 2:
Press CH
1
LINE
. The display will change as follows.
2
3
(CABLE) (TV)
125 or 69
Method 3:
a Press ACTION for MAIN MENU.
b Press
to select “TV,” then press
ACTION for SET UP TV screen.
c Press
to select “INPUT SELECT,” and
then press to select “TUNER” or “LINE.”
d Press ACTION twice to exit this mode.
Caution
• Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.
15
TV Operation
1
Press POWER on the remote or unit.
Check List
Cable or antenna is connected.
Power cord is plugged in.
2
CH 08
Use CH
or number
keys to select
a channel.
Press VOL + or
VOL - to adjust
volume.
3
VOL + / VOL24
NIGHT Mode
POWER
VOL
CH
STOP/EJECT REW/
PLAY/REPEAT FF/
REC
INPUT
REC ON TIMER PROG TIMER
ACTION
Color and picture intensity levels are adjusted so
the screen is easier on your eyes during night time
use.
NIGHT
VIDEO IN AUDIO IN
Press NIGHT to
set NIGHT mode.
CH
PHONES
Jack
POWER
• NIGHT mode may be
selected when watching
TV or playing a tape.
Press NIGHT to
cancel.
• Previous settings are
restored.
• NIGHT mode is canceled
when power is turned
off or power failure
occurs.
■ Using the 100 key
When selecting CABLE channels 100 to 125 with the number keys, first press the 100
key, and then enter the remaining two digits.
■ Rapid Tune
Press R-TUNE to display the last channel you were watching.
■ Audio Mute
Press MUTE to instantly mute the sound. Press again to restore the previous sound level.
■ Phones
Connect an earphone (not supplied) or headphones (not supplied) to the Phones Jack.
16
Picture Adjustment
1
2
POWER
100 Key
RAPID
TUNE
M A I N MENU
NIGHT
TV
NUMBER
Keys
CH
SELECT/SET
:CH UP
:CH DOWN
:VOL UP
:VOL DOWN
LOCK LANGUAGE
EX I T
CLOCK
1) Press
to select “TV.”
2) Press ACTION
to display SET
UP TV screen.
SELECT :
SET
: ACT I ON
3
MUTE
VOL
UP/DOWN
Press ACTION to display MAIN MENU.
CH
SET UP TV
CAPT I ON
I NPUT SELECT
V I DEO ADJUST
TUNER
SELECT :
END
: ACT I ON
: TUNER
: ON
1) Press
to
select VIDEO
ADJUST.
to
2) Press
display screen.
SET :
ACTION
4
COLOR
T I NT
BR I GHTNESS
P I CTURE
SHARPNESS
NORMAL
SELECT :
ADJUST :
END
: ACT I ON
1) Press
to
select an
adjustment
item. (See
below left.)
to
2) Press
adjust.
TV Operation
<Only when TUNER:ON>
COLOR
T I NT
BR I GHTNESS
P I CTURE
SHARPNESS
NORMAL
SELECT :
END
: ACT I ON
Picture Adjustment
■ COLOR Control
SET :
To Reset Picture Controls,
and
to select and set “NORMAL.”
press
All controls return to their factory settings.
Adjust color intensity.
■ TINT Control
Adjust for natural flesh
tones.
5
Press ACTION three times to exit.
■ BRIGHTNESS Control
Adjust picture brightness.
■ PICTURE Control
Adjust picture intensity by
adjusting both contrast and
color level in the proper
balance.
■ SHARPNESS Control
Adjust picture sharpness.
17
TV Timer Features
ON-TIMER with Alarm
This unit can be set to automatically power on in one of 2
modes (TV or Playback). Even if you set the On Timer, it
will not be performed during Play Lock mode. You can also
combine the On-Timer with a one minute alarm that
gradually increases in volume.
1
2
The clock is set to the correct time.
Press PROG to display SET PROGRAM screen.
SET PROGRAM
T I MER PROGRAMMING
ON TIMER
SELECT :
END
: PROG
3
Check List
SET :
ON T I MER
6:--AM CH -ALARM : ON
SELECT :
END
: PROG
1) Press
to select “ON
TIMER.”
2) Press to display ON
TIMER screen.
1) Press
to select
desired settings.
2) Press to set the
ON-TIMER TIME or
ON-TIMER mode.
SET :
• You can choose TV or PLAY for the On Timer mode.
(If TUNER:OFF, you can only select PLAY.)
• Make sure a tape is inserted if Playback mode is selected.
POWER
4
ON T I MER
6:00AM CH08
Press
to select
ALARM “ON” or “OFF.”
VOL
CH
STOP/EJECT REW/
PLAY/REPEAT FF/
REC
INPUT
REC ON TIMER PROG TIMER
ACTION
VIDEO IN AUDIO IN
ALARM : ON
CH
CANCEL : ADD / DLT
SELECT :
SET :
END
: PROG
ON TIMER
indicator
When “ON” is selected, an alarm will gradually increase
in volume for one minute or until canceled by pressing any
button (including VOL + -).
and
to move back
To Make Corrections, use
and correct.
5
Press PROG to set ON TIMER.
• “ON TIMER SET” is displayed.
• ON TIMER Indicator lights on the unit.
To Cancel ON-TIMER,
Repeat steps 1 and 2. Then, press ADD/DLT to clear the
time in step 3. Now, press PROG to end.
“ON TIMER END” briefly appears on-screen.
Note
• If no button on the remote or unit
(including a button used to turn
off the alarm) is pressed within 60
minutes after unit turns itself on,
it will turn itself back off.
18
Sleep Timer
This unit can be set for auto power off.
SLEEP
Press SLEEP repeatedly
to set SLEEP TIMER.
DISPLAY
• Pressing DISPLAY with sleep timer set displays remaining
time.
• Sleep Timer will not be performed during Play Lock mode.
ADD/DLT
SELECT/SET
:CH UP
:CH DOWN
:VOL UP
:VOL DOWN
PROG
SLEEP TIMER 30
SLEEP TIMER 60
SLEEP TIMER 90
SLEEP TIMER 00
TV Operation
Press SLEEP repeatedly until “SLEEP TIMER 00” appears
to cancel.
19
Closed Caption System
Closed Caption is ...
This multi-use system not only allows the hearing impaired to enjoy selected programs, but also makes
useful information from TV stations available to everyone.
Closed Caption Mode Feature
1
2
Press ACTION to display MAIN MENU.
M A I N MENU
LOCK LANGUAGE
TV
CH
EX I T
CLOCK
1) Press
to
select “TV.”
2) Press ACTION to
display SET UP TV
screen.
SELECT :
SET
: ACT I ON
3
SET UP TV
CAPT I ON
I NPUT SELECT
V I DEO ADJUST
TUNER
: TUNER
: ON
SELECT :
END
: ACT I ON
1) Press
to select
“CAPTION.”
to display
2) Press
CAPTION screen.
SET :
Closed Caption Mode
Selections
Caption Mode: CAP C1 or C2
A narration of selected
TV programs is displayed.
Check TV program listings for CC
(Closed Caption) broadcasts.
Caption Mode: TEXT C1 or C2
The lower half of the screen will
be blocked out. When the TV
station broadcasts information,
such as program listings, it will
appear in this space.
Caption Mode: OFF
Closed Caption / Text narration
will not be displayed.
NOTES :
<Only when TUNER:ON>
4
CAPT I ON
CAPT I ON MODE
CC ON MUTE
: CAP C1
: CAP C1
SELECT :
END
: ACT I ON
SET :
OFF
1) Press
to select
CAPTION MODE.
repeatedly
2) Press
to select mode.
(See left.)
• The closed caption or text signal
may be broadcast over C1, C2, or
both. Also, text contents can vary
so you may wish to try different
settings.
• While recording one station and
watching another, Captioning will
not be displayed.
CAP C1
TEXT C2
TEXT C1
CAP C2
5
Press ACTION three times to
return to the normal screen.
Recording and Playing Back a Closed Caption/Text Program
Record:
Record normally.
Closed Caption/ Text signal, if present, is recorded automatically.
Playback: Start playback. Do above steps to select desired caption mode.
20
Caption On Mute Feature
Closed Caption narration, if available, is displayed when
MUTE button is pressed.
1
Press ACTION to display MAIN MENU.
2
M A I N MENU
LOCK LANGUAGE
TV
CH
MUTE
SELECT :
SET
: ACT I ON
3
SET UP TV
CAPT I ON
I NPUT SELECT
V I DEO ADJUST
TUNER
: TUNER
: ON
SELECT :
END
: ACT I ON
ACTION
1) Press
to select
“CAPTION.”
to display
2) Press
CAPTION screen.
SET :
TV Operation
SELECT/SET
:CH UP
:CH DOWN
:VOL UP
:VOL DOWN
EX I T
CLOCK
1) Press
to
select “TV.”
2) Press ACTION to
display SET UP TV
screen.
<Only when TUNER:ON>
4
CAPT I ON
CAPT I ON MODE
CC ON MUTE
: OFF
: CAP C1
SELECT :
END
: ACT I ON
SET :
1) Press
to select
CAPTION MODE.
repeatedly to
2) Press
select “OFF.”
to select
CC ON MUTE.
2) Press
repeatedly to
select desired mode.
1) Press
5
SELECT :
END
: ACT I ON
NO
SET :
• Each press of
will change
the display as shown left.
• The caption may be broadcast
over CAP C1 or C2.
CAP C1
CAP C2
6
Press ACTION three times to
return to the normal screen.
7
Press MUTE to mute the sound and display
closed captioning.
• To cancel, press MUTE again.
21
Timer Recording
You can set up to 8 programs to be recorded while you are
away.
1
2
Press PROG to display SET PROGRAM screen.
SELECT :
END
: PROG
3
1) Press
to select
TIMER
PROGRAMMING.
2) Press to display
screen.
SET PROGRAM
T I MER PROGRAMMING
ON TIMER
DATE
START
• If a program is already in
, and to
memory, press
select an unused program
number.
SET :
STOP
Press
to select
and or to set the
recording DATE.
CH
7 FR I --:-- --:-- -TODAY
SP
-----------------------SELECT :
END
: PROG
Check List
Cable or antenna is connected.
Power cord is plugged in.
The clock is set to correct time.
The tape is long enough.
The record tab is in place.
• 1~31 = One time
• DAILY = MON~FRI
• WEEKLY SUN~SAT
= Same time once a week
SET :
POWER
VOL
CH
STOP/EJECT REW/
PLAY/REPEAT FF/
REC
INPUT
REC ON TIMER PROG TIMER
ACTION
Example
Today’s
Date
VIDEO IN AUDIO IN
8
7
9
31
SELECT
/
WEEKLY
(SAT)
1
2
6
Selection Order
WEEKLY
(MON)
DAILY
WEEKLY
(SUN)
Repeat step 3 to set:
• Start time, Stop time
• Channel (or LINE for outside source)
• Speed (SP, LP, SLP)
4
P
1
2
3
4
DT
day
----
START
9 : 00 p
-- : --- : --- : --
STOP
12 : 00a
-- : --- : --- : --
CH SPD
08 SP
-- --- --- --
CANCEL : ADD / DLT
SELECT :
SET :
END
: PROG
5
22
Press PROG to
end the program.
To Enter More Programs,
press
to select
and to set a blank
program number, and
then repeat step 3.
Press PROG twice to exit this mode.
• If you’re using a cable box, make sure that it is tuned
to the desired channel and the power is left on for timer
recording.
• Make sure TUNER:ON is selected for Channel Timer
Recording.
• PROG TIMER indicator lights on the unit.
PROG TIMER indicator
Cancel a Timer Recording:
(Recording is in progress)
Hold down STOP for a few
seconds to cancel the Timer
Recording.
• Any future daily or weekly recordings
will be performed as programmed.
Review, Replace or Clear Program
Contents : (Recording is not in progress)
Repeat steps 1 and 2 on page 22.
1
2
P
1
2
3
4
DT START STOP CH SPD
day 9 : 00p 12 : 00a 08 SP
8 10 : 00a 12 : 00p 125 SP
10 8 : 00p 9 : 00p 10 SP
SU 9 : 00p 10 : 00p L LP
Press
to select the
desired program.
CANCEL : ADD / DLT
SELECT :
SET :
END
: PROG
3 To Replace program...
DATE
START
STOP
CH
1) Press
to display.
to select and
press or to set new
program contents.
3) Press PROG.
8 SAT 9:00P 12:00A 08 2) Press
TODAY
SP
---------------------------------------------SELECT :
END
: PROG
ADD/DLT
To Clear program...
P
1
2
3
4
DT START STOP CH SPD
-- -- : -- -- : -- -- -8 10 : 00p 12 : 00a 125 SP
10 8 : 00p 9 : 00p 10 SP
SU 9 : 00p 10 : 00p L LP
Press ADD/DLT.
STOP
CANCEL : ADD / DLT
SELECT :
SET :
END
: PROG
4
Press PROG twice to exit this mode.
Timer Operation
SELECT/SET
:CH UP
:CH DOWN
:VOL UP
:VOL DOWN
PROG
SET :
Notes
• 2 minutes before Timer recording is performed, “PLEASE
PREPARE FOR TIMER REC” appears and/or the PROG
TIMER Indicator flashes. Be sure a cassette with record tab is
loaded and the unit is in Stop mode.
• If the start times of two programs overlap, the lower numbered
program will have priority.
• If the start time for a Timer Recording comes up during a
normal recording or One Touch Recording (page 12), the Timer
Recording will not be performed.
• If there is a power interruption of more than one minute, the
recording may not be performed or continued.
• If “INCOMPLETE” appears after all items have been set, check
all entries and make necessary corrections.
23
Tape Operation
Search System is ...
Each time a recording is made, an invisible index mark is placed on the tape. When timer recordings are
made, program index and information are also included. These index marks can be used to access or
scan recordings.
Index Search
Go directly to the desired recording.
1
I NDEX SEARCH
ENTER I NDEX NUMBER : 1
US I NG 1- 9 KEYS
FORWARD SEARCH : FF
REVERSE SEARCH : REW
EX I T : SEARCH
Press SEARCH in
Playback or Stop
mode to display
INDEX SEARCH
screen, and then
press number keys
to select the recording
number.
NUMBER Keys
SEARCH
• To calculate number, see
below.
Press FF or REW to
start search.
FF
REW
2
Play begins at
search end.
To search forward
or back 1 index,
press FF or REW
while screen
left is displayed
(10 sec.).
I NDEX SEARCH
FORWARD SEARCH : FF
REVERSE SEARCH : REW
To cancel, press
PLAY.
■ To calculate the Index Number
Example 1:
To go to rec. 2 from rec. 4, enter 3 and press REW.
1
2
3
4
5
6
7
Example 2:
To go to rec. 6 from rec. 2, enter 4 and press FF.
POWER
VOL
CH
STOP/EJECT REW/
PLAY/REPEAT FF/
REC
ACTION
VIDEO IN AUDIO IN
1
2
3
4
5
6
7
FF
NOTE: indicates start points of each recording.
Note
• If Index Search is started very close to an index mark, that
index mark may not be counted in the search.
24
REW
INPUT
REC ON TIMER PROG TIMER
Auto Operation Functions
■ Auto Shut Off
No broadcast signal in TV (Only when
Weak Signal Display is set to OFF),
blank tape is Played for 5 minutes
➞ Power turns off
• This feature is canceled if any button is
pressed during above mode.
■ Auto Playback
Insert a tape in Power off mode
➞ Power turns on
• Playback begins if tape has no record tab.
■ Auto Rewind
Tape reaches its end
➞ Rewind ➞ Stop
■ Playback Auto Eject (Repeat Play is “OFF”)
Tape with no record tab reaches its end
Rewind ➞ Stop ➞ Eject
Tape Position Display
To find out present tape position.
Tape position is displayed for VHS-C Cassettes
type, tapes under 30 minutes, and some other
tapes, but the position is not correct.
TAPE
POSITION
1
Press TAPE POSITION to detect current tape
position.
• “DETECTING TAPE
POSITION” only appears the
first time a cassette is inserted
and it takes several seconds
for correct indication to appear.
• The present tape position
indication is displayed.
BEG I N
2
END
Advanced Operation
DETECT I NG TAPE POS I T I ON
Press TAPE POSITION (or wait 5 seconds)
to return to the normal screen.
25
Tape Operation (continued)
Commercial Skip
Zero Search
To quickly return to a specific tape counter location.
1
Press COUNTER RESET during
playback to display the Counter.
2
0 : 00 : 00
Press COUNTER
RESET at the
desired position to
reset to “0:00:00.”
3
Continue playback, rewind, or fast
forward.
4
Press STOP.
5
1 : 23 : 45
By pressing the CM/ZERO button in Playback
mode you can skip over 1 to 3 minutes of recorded
tape in just a few seconds.
Press CM/ZERO repeatedly to select skip
time in Play mode.
• No indication appears.
Press CM/ZERO in
stop mode to start
ZERO SEARCH.
DISPLAY
COUNTER
RESET
• Unit goes into FF or REW mode and stops at the last
point the Counter was set to 0:00:00.
REW
STOP
PLAY
FF
CM/ZERO
26
Repeat Play
Set to see a recording over and over.
POWER
VOL
CH
STOP/EJECT REW/
PLAY/REPEAT FF/
REC
INPUT
REC ON TIMER PROG TIMER
ACTION
PLAY
REPEAT ON
In PLAY mode,
press
PLAY/REPEAT
on the unit to
turn “ON.”
PLAY
REPEAT OFF
Repeat above to
turn “OFF.”
VIDEO IN AUDIO IN
PLAY/REPEAT
Note
• Playback repeats when tape end is reached or
unrecorded portion over 30 seconds is detected.
Play Lock mode
The unit may be locked in Repeat Play mode so
that all other function keys are inoperative.
PLAY LOCK
REPEAT ON
When the Play Lock mode is selected,
• Auto Repeat function is activated automatically.
• On Timer and Sleep Timer become nonfunctional.
Advanced Operation
To turn “ON,”
hold down PLAY
on the remote or
unit for 7 seconds.
To turn “OFF.”
Repeat above
operation in Play
Lock mode.
27
Special VCR Features
Weak Signal Display ON/OFF
(TUNER:ON only)
When “ON” is selected, the picture is displayed even when
a broadcast signal is weak or non-existent.
1
2
Press ACTION to display MAIN MENU.
M A I N MENU
LOCK LANGUAGE
TV
CH
CLOCK
EX I T
1) Press
to
select “CH.”
2) Press ACTION to
display SET UP
CHANNEL screen.
SELECT :
SET
: ACT I ON
3
SET UP CHANNEL
ANTENNA : CABLE
AUTO SET
WEAK S I GNAL D I SPLAY : OFF
SELECT :
END
: ACT I ON
SELECT/SET
:CH UP
:CH DOWN
:VOL UP
:VOL DOWN
1) Press
to select
WEAK SIGNAL
DISPLAY .
to set “ON” or
2) Press
“OFF.”
SET :
Notes
ACTION
• “ON” = Picture is displayed regardless of signal condition,
and may not always be clearly visible.
“OFF” = Screen turns solid blue when signal is absent or
weak.
• If unit is connected to equipment which has blue back feature,
selecting “ON” will have no effect on the other equipment.
4
Press ACTION twice to
return to the normal screen.
VCR Lock
All operations are prohibited except Timer recording and
tape eject. Useful for families with small children.
VCR LOCK ACT I VATED
VCR LOCK OFF
In stop mode, hold
down REC on the
unit without a cassette
inserted for 7 seconds
to turn “ON.”
Please ignore NO
CASSETTE warning.
Repeat above with or
without cassette to turn
“OFF.”
POWER
VOL
CH
STOP/EJECT REW/
PLAY/REPEAT FF/
REC
INPUT
ACTION
VIDEO IN AUDIO IN
REC
• VCR Lock is canceled automatically after about 24 hours if clock
is set.
28
REC ON TIMER PROG TIMER
V-Chip Control Feature
Process of V-Chip Control Feature
Enter Code
Setup
Blocking
V-Chip Control Feature is...
This unit has a built-in V-Chip Control
which allows you to block unwanted TV
usage based on US MOVIES and US TV
PROGRAMS Ratings.
Enter Secret Code
A 4-digit code must be entered to view a blocked program
or change rating settings.
1
2
Press ACTION to display MAIN MENU.
NUMBER Keys
M A I N MENU
TV
CH
LOCK LANGUAGE
CLOCK
1) Press
to select
“LOCK.”
2) Press ACTION to
display screen.
EX I T
SELECT :
SET
: ACT I ON
3
LOCK
ENTER 4-D I G I T CODE
----
1) Press NUMBER keys
to enter your secret
code.
2) Enter same code again
for confirmation.
ADD/DLT
SELECT/SET
:CH UP
:CH DOWN
:VOL UP
:VOL DOWN
ACTION
ENTER : 0 - 9
END
: ACT I ON
• Step 2) not necessary when
changing rating or secret
To Make Corrections
code.
Press repeatedly to move • Take care that you are not
observed entering the secret
the cursor. Press number
code.
keys to make the correction.
LOCK
CONF I RM 4-D I G I T CODE
****
****
RECOGN I ZED
CHANGE CODE : ADD / DLT
CONT I NUE :
END
: ACT I ON
Press to display
US Ratings menu
(see page 30).
Or
Press ACTION
twice to exit.
Advanced Operation
4
Changing your secret code
• You will need your current code. Do steps 1 ~ 3.
In step 4, press ADD/DLT to clear current code.
Repeat steps 3 and 4 to enter new code.
Notes
• DO NOT forget your secret code.
• Once ratings are set, restricted tapes or programs cannot be
accessed unless the secret code is entered.
29
V-Chip Control Feature (continued)
If LOCK menu is not displayed, do “Enter Secret
Code” steps on page 29.
Setup US MOVIES Ratings
1
LOCK
US MOVIES
: OFF
CHANGE SETT I NGS
US TV PROGRAMS
: OFF
CHANGE SETT I NGS
NEXT PAGE
SELECT :
END
: ACT I ON
SET :
1) Press
to
select US
MOVIES.
2) Press to set
“ON” or “OFF.”
Process of V-Chip Control Feature
Enter Code
Setup
Setup US TV PROGRAMS Ratings
1
LOCK
US MOVIES
: OFF
CHANGE SETT I NGS
: OFF
US TV PROGRAMS
CHANGE SETT I NGS
NEXT PAGE
SELECT :
END
: ACT I ON
SET :
1) Press
to
select US TV
PROGRAMS.
2) Press to set
“ON” or “OFF.”
■ “ON” ➞V-Chip Control is activated.
■ “OFF” ➞V-Chip Control is deactivated.
Note
■ “ON” ➞V-Chip Control is activated.
■ “OFF” ➞V-Chip Control is deactivated.
Note
• “NEXT PAGE” displays CANADIAN V-Chip setting
menu. Not necessary except when viewing Canadian
tapes or broadcasts.
• “NEXT PAGE” displays CANADIAN V-Chip setting
menu. Not necessary except when viewing Canadian
tapes or broadcasts.
2
LOCK
US MOVIES
: OFF
CHANGE SETT I NGS
US TV PROGRAMS
: OFF
CHANGE SETT I NGS
NEXT PAGE
SELECT :
END
: ACT I ON
3
SET :
V I EW NR PROGRAMS? : YES
G
UNLOCKED
PG
PG-13
R
NC-17
X
CONTA I NS NO RAT I NG
SELECT :
SET :
END
: ACT I ON
1) Press
to
select
CHANGE
SETTINGS.
2) Press to
display screen.
2
1) Press
to
select
VIEW NR
PROGRAMS?.
2) Press to set
“YES” or “NO.”
3
4
V I EW NR PROGRAMS? : YES
G
UNLOCKED
PG
PG-13
R
NC-17
X
GENERAL AUD I ENCE
SELECT :
SET :
END
: ACT I ON
Press
to select
and to set ratings
to be blocked. (See
ratings chart next
page.)
LOCK
US MOVIES
: OFF
CHANGE SETT I NGS
US TV PROGRAMS
: OFF
CHANGE SETT I NGS
NEXT PAGE
SELECT :
END
: ACT I ON
SET :
V I EW NR PROGRAMS? : YES
UNLOCKED
TV-Y
FV
TV-Y7
TV-G
V S L D
TV-PG
V S L D
TV-1 4
V S L
TV-MA
CONTA I NS NO RAT I NG
SELECT :
SET :
END
: ACT I ON
4
V I EW NR PROGRAMS? : YES
UNLOCKED
TV-Y
FV
TV-Y7
TV-G
V S L D
TV-PG
V S L D
TV-1 4
V S L
TV-MA
FOR ALL CH I LDREN
SELECT :
SET :
END
: ACT I ON
Note
5
Press ACTION to redisplay LOCK menu
and continue with US TV PROGRAMS
Ratings Setup (this page). Or, press
ACTION three times to exit.
1) Press
to
select
CHANGE
SETTINGS.
2) Press to
display screen.
1) Press
to select
VIEW NR
PROGRAMS?.
2) Press to set
“YES” or “NO.”
NR (Not Rated) PROGRAMS
Some TV shows, such as news, sports,
weather, bulletins, emergency information
usually have no ratings.
NR (Not Rated) PROGRAMS
Some movies, such as old movies or foreign
movies usually have no ratings.
• You may select from
standard TV ratings (chart
1), or customize to a specific
content rating (chart 2).
5
30
Blocking
Press
to
select and to set
ratings to be
blocked.
(See ratings charts
next page.)
• Ratings highlighted
in Green will be
blocked. Ratings in
white letters will not
be blocked.
Press ACTION three times to exit this
mode.
Process of V-Chip Control Feature
Enter Code
Setup
Blocking
Blocking Message
<When V-Chip Control is activated>
CH08
PROGRAM RAT I NG EXCEEDED
RAT I NG : PG-1 3
ACCESS CODE
----
• If a program or movie
exceeds the ratings you
have set, a message
will appear on a black
background and sound is
muted.
US MOVIES RATINGS
G
PG
PG-13
ENTER : 0-9
R
To View a Blocked Program / Movie
[Temporarily Deactivate V-Chip Control]
Enter your secret code (ACCESS CODE) in the
Blocking Message screen.
NC-17
X
GENERAL AUDIENCE:
All ages admitted.
PARENTAL GUIDANCE:
Some material may not be suitable for
children.
PARENTS CAUTIONED:
Some material may be inappropriate
for children under 13.
RESTRICTED:
Children under 17 must be
accompanied by a parent or adult.
OVER AGE 17 ONLY:
No one 17 and under admitted.
ADULTS ONLY:
• V-Chip Control is reactivated when power is turned off
or power failure occurs.
[Deactivate V-Chip Control]
Enter your secret code (steps 1-4 page 29). Then,
set US MOVIES and/or US TV PROGRAMS to
and keys. (Ratings set on
“OFF” using
page 30 is retained and will be in effect when
V-Chip Control is activated again.)
DISPLAY
ACTION
TV-Y
FOR ALL CHILDREN:
Content specifically geared to young
viewers ages 2-6.
TV-Y7 FOR AGE 7 AND OLDER:
May contain mild physical or comedic
violence which may frighten children
under 7.
TV-G GENERAL AUDIENCE:
Contains little or no violence, strong
language, or sexual dialogue or
situations.
TV-PG PARENTAL GUIDANCE:
May contain infrequent coarse
language, limited violence, some
suggestive sexual dialogue and
situations.
TV-14 PARENTS CAUTIONED:
May contain sophisticated themes,
sexual situations, strong language, and
more intense violence.
TV-MA MATURE AUDIENCE:
May contain mature themes, profane
language, graphic violence, and sexual
situations.
Advanced Operation
SELECT/SET
:CH UP
:CH DOWN
:VOL UP
:VOL DOWN
US TV PROGRAMS RATINGS: Chart 1
US TV PROGRAMS RATINGS: Chart 2
FV
V
S
L
D
Fantasy Violence
Violence
Sexual Situations
Adult Language
Sexually Suggestive Dialogue
31
On-Screen Display (OSD)
VCR Status & Clock Display
Press DISPLAY to display or remove the overlay.
Function Status
Rec Time Remaining
(OTR mode only,
see page 12.)
Current Time
REC
0 : 25
Channel
CH08
1 2 : 0 0PM
-0 : 1 2 : 3 4
SP
Counter
NO V-CHIP DATA
Tape Speed
Blue Screen Display
Whenever a blank section of a tape comes up in
Play mode, or when the selected channel has no
broadcast signal with the Weak Signal Display set
to “OFF” (see page 28), the screen will turn solid
blue.
32
Channel & Function Display
When a function button is pressed (PLAY, FF, etc.)
or you change channels, the unit mode or channel
number will be displayed.
CH 08
Warning and Instruction Displays
These displays will alert you to a missed operation or provide further instructions.
OSD
CAUTION
Page
PLEASE SET CLOCK BY
PRESSING ACTION KEY
If you attempt to set or review a Timer Recording, or
set the On-Timer and the Clock is not set...
8 - 11
CHECK CASSETTE RECORD TAB
If you press REC, and a cassette is inserted with no
record tab...
3, 12
TO CANCEL TIMER REC HOLD
DOWN STOP KEY FOR APPROX 3
SEC
If you press STOP during a Timer Recording...
23
NO CASSETTE
If you press PLAY, FF, REW, or REC without a
cassette inserted...
12
PLEASE PREPARE FOR TIMER
REC
If the unit is not in Stop mode or a cassette with
record tab is not inserted two minutes before a Timer
Recording is about to begin...
VIDEO HEADS MAY NEED
CLEANING PLEASE INSERT HEAD
CLEANING CASSETTE OR REFER
TO MANUAL END: PLAY
If head cleaning becomes necessary while playing
back a tape...
VCR LOCK ACTIVATED
If you press a function button other than STOP/EJECT or
POWER while the unit is in VCR Lock mode...
22 - 23
4
28
For Your Information
33
Before Requesting Service
Check the following points once again if you are having trouble with your unit.
Power
No power…
Monitor
No picture or sound...
Poor picture with normal sound...
Poor sound with normal picture...
Poor TV reception...
No color or poor color...
Ghost (multiple) images...
TV programs cannot be
watched...
Channel cannot be selected...
VCR
TV program cannot be
recorded...
Timer recording cannot be
performed…
CORRECTION
• Completely insert Power Plug into an AC outlet.
• Set POWER button to ON.
CORRECTION
•
•
•
•
•
•
•
•
Make sure your antenna system (TV or CABLE), is correctly set. (P.8)
Completely insert Power Plug into an AC outlet.
Set POWER button to ON.
Adjust BRIGHTNESS, SHARPNESS, and PICTURE controls in the SET UP TV
menu. (P.15)
Adjust VOLUME control. (P.14)
Adjust SHARPNESS and PICTURE controls in the SET UP TV menu. (P.15)
Adjust TINT and COLOR controls in the SET UP TV menu. (P.15)
Install a directional antenna.
• Make sure the selected channel is in unit’s memory. (P.11-12)
• Only the channel being recorded can be viewed on this unit.
CORRECTION
•
•
•
•
Make sure your antenna system (TV or CABLE), is correctly set. (P.8)
Make sure cassette record tab is intact. (P.3)
Check that clock is set to current time and date.
Make sure DSS/CABLE box (if used) is left on and tuned to channel to be
recorded.
• Set recording Start/Stop times correctly. (P.22-23)
• Timer recording may not be performed or continued if a power interruption
of more than 1 minute occurs before or during a Timer Recording, even after
power is restored.
No playback picture, or the
playback picture is noisy or
contains streaks...
• Adjust TRACKING control in either direction. (P.4)
• Try Head Cleaning. (P.4)
VCR cannot be controlled...
• Make sure VCR LOCK is set to off. (P.28)
• Make sure unit is not in a Timer Record operation.
Remote Control
Unit cannot be controlled...
•
•
•
•
Aim remote at remote sensor on unit so that signal is unobstructed. (P.7)
Inspect the remote batteries. (P.3)
Make sure VCR LOCK is set to off. (P.28)
Exposing unit remote sensor to direct fluorescent or outdoor light may cause
signal interference.
ACTION and PROG buttons
cannot be selected...
• Check remote batteries.
Miscellaneous
CORRECTION
Video cassette cannot be
inserted...
Video cassette cannot be
removed...
Tape cannot be ejected or
inserted...
Video cassette ejects when a
recording is started, or the power
is turned off for timer recording...
In Stop mode, the VCR motor
(CYLINDER) continues to
rotate...
VCR cannot be controlled...
34
CORRECTION
• Insert the cassette window side up; record tab facing you.
• Completely insert Power Plug into an AC outlet.
• Try ejecting or inserting the tape again after turning POWER off, then back on.
• Make sure cassette record tab is intact. (P.3)
• To enable Quick Play mechanism, the VCR cylinder will rotate for about 3
minutes. This reduces response time from Stop to Play mode and from Play to
Rewind Search mode.
• Make sure VCR LOCK is set to off. (P.28)
Index
A
R
Accessories ....................................................... 3
Audio Mute ...................................................... 16
Auto Operation Functions................................ 25
Before Requesting Service.............................. 34
Blocking Message ........................................... 31
Blue Screen Display ........................................ 32
Rapid Tune ...................................................... 16
Record ............................................................. 14
Record/Playback Speed Settings ...................... 4
Remote Control Buttons .................................... 6
Repeat Play ..................................................... 27
Reset all unit Memory Functions ..................... 11
Reverse Search............................................... 14
Rewind............................................................. 14
C
S
Caption On Mute Feature ................................ 21
Channel & Function Display ............................ 32
Channel (SET UP CHANNEL)......................... 12
Clock (SET CLOCK)........................................ 12
Closed Caption Mode Feature......................... 20
Commercial Skip ............................................. 26
Connections....................................................... 8
Copy Your Tapes (Dubbing)............................ 15
Selecting Input Mode....................................... 15
Set the Clock (Initial Power On) ........................ 9
Sleep Timer ..................................................... 19
Slow Motion ..................................................... 14
Special VCR Features ..................................... 28
Specifications .................................................... 4
Still (Freeze) Picture ........................................ 14
Stop ................................................................. 14
D
T
DST (Daylight Saving Time) .............................. 4
Tape Erasure Prevention................................... 3
Tape Position Display...................................... 25
Timer Program Review, Replace, Clear .......... 23
Timer Recording .............................................. 22
Timer Recording Cancellation ......................... 23
Time Zone Adjust ............................................ 13
Tuner ON/OFF................................................... 9
TV Operation ................................................... 16
TV Timer Features..................................... 18–19
B
E
Eject Tape ....................................................... 14
Enter Secret Code ........................................... 29
F
Fast Forward ................................................... 14
Features for a Quality Picture............................ 4
Forward Search ............................................... 14
Frame by Frame Advance ............................... 14
Front Panel Indicators ....................................... 7
H
Head Cleaning................................................... 4
I
Important Safeguards and Precautions ............. 2
Index Search ................................................... 24
L
Language......................................................... 12
Loading the Batteries......................................... 3
Location of Controls....................................... 6–7
U
Unit, Front View ................................................. 7
Unit, Rear View.................................................. 7
Using the 100 key............................................ 16
US MOVIES RATINGS.................................... 31
US TV PROGRAMS RATINGS ....................... 31
V
V-Chip Control Feature.............................. 29–31
VCR Lock ........................................................ 28
VCR Status & Clock Display............................ 32
W
N
Warning and Instruction Displays .................... 33
Weak Signal Display ON/OFF ......................... 28
NIGHT Mode ................................................... 16
Z
O
P
Phones ............................................................ 16
Picture Adjustment .......................................... 17
Playback .......................................................... 14
Play Lock mode ............................................... 27
Zero Search..................................................... 26
For Your Information
ON-TIMER with Alarm ..................................... 18
One Touch Recording ..................................... 14
35
Broadcast & Digital Systems Company
Panasonic Broadcast & Television Systems Company
Division of Matsushita Electric Corporation of America
Executive Office:
One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7000
Eastern Zone:
One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621
Central Region:
1707 N Randall Road E1-C-1, Elgin, IL 60123 (847) 468-5200
Western Zone:
3330 Cahuenga Blvd W, Los Angeles, CA 90068 (323) 436-3500
Government Marketing Department:
52 West Gude Drive, Rockville, MD 20850 (301) 738-3840
LSQT0713B
Matsushita Electric Corporation of America
Corporate Sales Group, Hawaii Region
99-859 Iwaiwa ST., Alea, Hl 96701-3267 (808) 488-7779
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 (905) 624-5010
Panasonic Sales Company
Division of Matsushita Electric of Puerto Rico, Inc.
Ave. 65 de infantería. Km. 9.5 San Gabriel Industrial Park, Carolina, PR 00985
(787) 750-4300
Printed in Indonesia
LSQT0713B
S0403-1053
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
