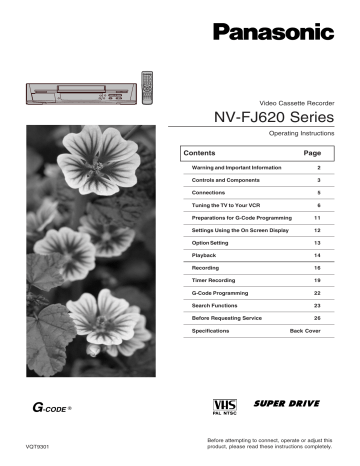

Video Cassette Recorder
NV-FJ620 Series
Operating Instructions
Contents
Page
Warning and Important Information
2
Controls and Components
3
Connections
5
Tuning the TV to Your VCR
6
Preparations for G-Code Programming
11
Settings Using the On Screen Display
12
Option Setting
13
Playback
14
Recording
16
Timer Recording
19
G-Code Programming
22
Search Functions
23
Before Requesting Service
26
Specifications
Back Cover
G-CODE g
VQT9301
Before attempting to connect, operate or adjust this
product, please read these instructions completely.
Warning and Important
Information
As this equipment gets hot during use, operate it
in a well ventilated place; do not install this
equipment in a confined space such as a book
case or similar unit.
Important
Your attention is drawn to the fact that the recording of
pre-recorded tapes or discs or other published or broadcast
material may infringe copyright laws.
Warning
To reduce the risk of fire or shock hazard, do not expose this
equipment to rain or moisture.
For your safety
Do not remove outer cover.
Touching internal parts of the VCR is dangerous, and may
seriously damage it.
To prevent electric shock, do not remove cover. There are no
user serviceable parts inside. Refer all servicing to qualified
service personnel.
Inserting Remote Control Batteries
Insert the batteries with the polarity (+ and -) correctly
aligned.
+
-
+
Notes:
The service life of the batteries is approximately 1 year.
However, it varies considerably depending on the frequency
of use.
– When they are exhausted, replace them with two AA, UM3,
or R6 size batteries.
– When the batteries are exhausted, remove them
immediately and dispose of them correctly.
– Make sure that the batteries are inserted with the polarity
(+ and -) correctly aligned.
– Do not mix old battery with new battery.
– Do not mix different battery types, i.e. Alkaline and
Manganese.
– Do not use rechargeable (Ni-Cd) batteries.
– Do not heat or short-circuit the batteries.
– When you do not use the remote control for a long time,
take out the batteries and store them in a cool, dry place.
Cautions before you operate this VCR
Avoid:
– Humidity and dust.
– Covering the ventilation holes with soft materials such as
cloth or paper.
– Extreme heat such as direct sunlight.
– Magnets or electromagnetic objects.
– Touching internal parts of the VCR.
– Water or some other liquid.
– Lightning. (Disconnect the aerial plug from the VCR during
lightning storms.)
– Anything heavy on the VCR.
– Connecting or handling the equipment with wet hands.
– Using a cell phone near the VCR because doing so may
cause noise to adversely affect the picture and sound.
Do:
– Wipe the VCR with a clean and dry cloth.
– Install the VCR in a horizontal position.
– Keep the VCR, TV and other equipment switched off until
you have finished all connections.
Condensation may form in the following cases:
– The VCR is brought from cold surroundings into a
well-heated room.
– The VCR is suddenly brought from cool surroundings,
such as an air-conditioned room or car, to a place which is
hot and humid.
Note:
– In any of the above-mentioned conditions, do not operate
the VCR for at least 1 hour.
This VCR is not equipped with a dew sensor.
Press the POWER button 1 to switch the VCR from on the
standby mode or vice versa. In the standby mode, the VCR
us still connected to the mains.
NV-FJ620A:
NV-FJ620EA:
Plug in Auto Tuning (NV-FJ620EA only)
Aerial
Setting image illustration
TV
On Screen Display
1 Connect the
aerial cable.
2 Connect the
mains lead.
AUTO TUNING
IN PROGRESS,
PLEASE WAIT.
CH 22
SEARCH
21
END: MENU
3 Press the POWER
button 1.
All broadcasting stations that can be received in the area
are automatically tuned and stored in memory.
– Do not turn off the VCR halfway. (See page 6.)
2
Plug in Auto
Tuning is
completed.
Australian model
New Zealand model
Controls and Components
1
W
NF
A
7X
EJECT
POWER
STOP
PLAY
TIMER REC
CVC
PICTURE MODE
YZ
REC/OTR
5
[
\ ]
SEARCH
6 /REW
6
8G
^
_
FF/ 5
`
IN (AV1) OUT
IN
VIDEO
L
RF
AUDIO
R
OUT
a
1
POWER
2
DIRECT REC OSD
1
2
4
3
4
5
6
7
REPEAT
Í
3
6
5
VOLUME
7
8
AV
0
NAVI
9
+
–
INDEX
INPUT SELECT
SEARCH PICTURE MODE
REC
MENU
G-CODE/SV
8
OK
9
:
;
<
=
>
VCR
TV
1
2
3
4
r
r
r
DATE
ON
OFF
s
s
s
SPEED
TIMER
PROG. / CHECK CANCEL
Á
DISPLAY
RESET
AUDIO
VCR/TV
R
Q
P
O
N
M
L
K
J
I
H
G
F
E
D
C
B
A
@
?
POWER
bc
DIRECT REC OSD
d
REPEAT
Í
1
2
3
4
5
6
7
8
9
AV
0
VOLUME
NAVI
+
U
–
INDEX
INPUT SELECT
SEARCH PICTURE MODE
V
REC
MENU
G-CODE/SV
T
S
OK
VCR
TV
1
2
3
4
r
r
r
DATE
ON
OFF
s
s
s
SPEED
TIMER
AUDIO
VCR/TV
PROG. / CHECK CANCEL
Á
DISPLAY
RESET
3
1 POWER button
2 Numeric buttons
To select the programme positions (1–99).
Example:
09: 9
19:
1
9
To enter a G-Code number.
To enter numbers for various settings.
3 AV button
4 NAVI button
5 PICTURE MODE button
6 SEARCH button
V Child Lock Function buttons
(Convenient function to prevent unauthorized use)
This function deactivates all buttons on the VCR and the
remote control. Use this function, when you do not want
other people to operate the VCR.
To Activate the Child Lock Function:
1 Hold down the OK and the OFF (i) buttons V
simultaneously until the [!" hold] indication appears
in the VCR display.
– If you press a button while the Child Lock function is on,
the [!" hold] indication appears in the VCR display to
inform you that no operation is possible.
To Cancel the Child Lock Function:
1 Hold down the OK and the OFF (i) buttons V
simultaneously until the [!" hold] indication
disappears.
7 Play button
W Cassette compartment
8 Rewind button
X EJECT button
9 Channel button
Y VIDEO IN (AV2)
: DATE button
Z AUDIO IN (AV2)
; CANCEL button
[ Infra-red Remote Control Receiver window
< PROG./CHECK button
> DISPLAY button
\ CVC indicator
The crystal view control function ensure that you always
obtain the optimum picture quality so that you get the best
picture automatically.
While the VCR is turned on, the CVC indication \ is
always displayed to show that the Crystal View Control is
activated
? AUDIO button
] VCR display
@ VCR/TV button
^ REC/OTR button
A TIMER (REC) button
_ VIDEO IN socket
B SPEED button
` VIDEO OUT socket
C OFF button
a AUDIO IN socket
D ON button
b AUDIO OUT socket
E VCR/TV switch
c RF IN socket
F Stop button
d RF OUT socket
= RESET button
To reset the tape counter (elapsed time) to [0:00.00].
– The tape counter is automatically reset to [0:00.00]
when a video cassette is inserted.
G Fast Forward button
I REC button
Note:
You can use the POWER 1°1, Numeric 2°2, AV 3°3,
VOLUME M°4 and Channel N°5 button for your TV operation.
J Pause/Slow button
– Set the VCR/TV switch E to [TV].
K INPUT SELECT button
°1 To switch the TV on from standby mode (OFF) or vice
versa.
On some TVs it is only possible to switch the TV to
standby mode (OFF) with this button, but not on. In this
case, try to turn the TV on with one of the following
buttons:
Numeric buttons 2
AV button 3
Channel button N
°2 To select the programme positions (1–99) on the TV.
°3 To select desired AV input on the TV.
°4 To adjust the volume of the TV.
°5 To select the desired programme position (TV station) on
the TV.
H G-CODE/SV button
L INDEX button
M VOLUME button
N Channel button
O REPEAT button
P OSD button
Q DIRECT REC button
R Infra-red transmitter
S Cursor buttons
T OK button
U MENU button
4
Setting the Remote Control to Operate Your
TV
Connections
You can operate the TVs of the manufacturers listed below
with the remote control after setting it.
This section shows you how to connect the VCR to an aerial,
TV, etc.
This setting procedure allows you to operate the TVs of some
manufacturers using the supplied remote control.
When the VCR is turned on after unpacking and
connecting the aerial cable and the mains lead, Plug in
Auto Tuning starts automatically. (NV-FJ620EA only)
Preparation
– Set the VCR/TV switch E to [TV].
Basic Connections
Operations
1 Find the manufacturer number of your TV while
referring to the following table.
The following connections are required to record and play
back the video cassette through the TV.
Aerial (Not supplied)
TV Set (Not supplied)
2 While holding down the POWER button 1 , use the
Numeric buttons 2 to enter the manufacturer number.
This completes the settings for the TV manufacturer.
– Be sure to enter the number in two digits.
Example: 1 ) 01
3 To confirm the correct settings were made, check
whether the TV can be operated properly.
– When a manufacturer has multiple numbers in the
following table, try entering other numbers if the TV
operations cannot be performed properly, and then
select the optimal number.
Notes:
– If you are using a Panasonic TV, this setting has already
been made, and so you do not need to perform the above
setting procedure. However, this remote control may not
work with some Panasonic TVs.
– Some TV models cannot be operated using this remote
control (including all TVs non-remote compatible).
1
2
Aerial Input
socket c
Aerial Connector
IN (AV1) OUT
IN
VIDEO
L
RF
AUDIO
R
OUT
Aerial Output
socket d
3
To mains supply
Connection to a TV using the Audio/Video Input Socket
Set the RF output channel of the VCR to [ss] (RF OFF)
when the VCR is connected to the TV via the Audio/Video
cable. (See page 7.)
Aerial (Not supplied)
TV Set (Not supplied)
List of TVs Compatible with the VCR’s Remote Control
Aerial Connector
[Brand]
[Code]
Panasonic/National
01–04
SONY
05
TOSHIBA
06
JVC
07
HITACHI
08
MITSUBISHI
09, 10
SHARP
11
PHILIPS, SAMSUNG
12
NEC
13
SANYO
14
GOLDSTAR/LG
15, 16
2
1
VIDEO IN
AUDIO IN
Aerial Input
socket c
3 (Supplied)
IN (AV1) OUT
IN
VIDEO
L
RF
AUDIO
R
OUT
Aerial Output
socket d
4
To mains supply
AUDIO OUT b /
VIDEO OUT `
Connection to a Stereo Amplifier
PLAYBACK
IN (AV1)
(Not supplied)
SAMSUNG
17, 18
SANYO
19
OUT
IN
VIDEO
L
AC IN~
SECTEUR~
Stereo Amplifier (Not supplied)
RF
AUDIO
REC
AUDIO IN a
R
OUT
AUDIO OUT b
5
Tuning the TV to Your VCR
The VCR supplies a signal to the TV via the RF coaxial cable
on channel AU28–69, or NZ21–69.
It is possible to view the video picture on your TV in the same
way that you watch TV broadcasts.
If you have connected the VCR to the TV through the Audio/
Video input sockets, then you do not need to follow the
procedure below.
Pre-programmed TV Channels
(NV-FJ620A/Australia)
The local TV broadcast channels 2, 7, 9, 10 and 28 are
factory-preset in this VCR.
That is, if you can receive television broadcasts on VHF
channels 2, 7, 9, 10 and UHF channel 28, these are already
tuned on the programme positions with the matching
numbers. However, it is possible to cancel these settings and
tune the local TV broadcast channels to any desired
programme position.
Plug in Auto Tuning
(NV-FJ620EA/New Zealand)
When the VCR is turned on after connecting the aerial cable
and the mains lead, Auto Tuning starts.
Auto tuning searches for TV stations from VHF minimum to
UHF maximum and memorizes every tuned programme
position.
– If you turn the VCR off during Auto Tuning, Auto Tuning will
stop halfway.
– If the VCR starts playback during Auto Tuning, Auto Tuning
will stop halfway.
Preparation
– Turn on the TV and the VCR.
Operations
1 Set the TV to an unused position which you wish to use
for your video playback.
– Tune the TV until the display shown below appears on
the screen. (Please refer to the TV manufacturers
operating instructions regarding tuning.)
Preparation
– Turn on the TV and the VCR.
CH 22
Operation
1 Hold down MENU button U for 5 seconds or more.
2
3
Set the TV to an unused position which you wish to use
for your video playback.
On Screen Display
– Tune the TV until the display
shown on the right appears on the
Panasonic VCR
screen. (Please refer to the TV
manufacturers operating
instructions regarding tuning.)
END: MENU
Press the MENU button U.
AUTO TUNING IS
COMPLETED.
AUTO TUNING
IN PROGRESS,
PLEASE WAIT.
END: MENU
SEARCH
21
END: MENU
During Plug in Auto Tuning
After Plug in Auto Tuning
2 Press the MENU button U.
Notes:
– If the VCR is turned on with the aerial not connected, all
channels are skipped. Therefore, firmly connect the aerial
and then turn the VCR off and on again to execute Plug in
Auto Tuning
– Auto Tuning takes five or more minutes to complete its
search.
To Cancel Auto Tuning Mid-Operation:
Press the MENU button U during Auto Tuning. Auto Tuning
is cancelled.
To Restart Plug in Auto Tuning:
1 Press the EJECT button X and remove the video
cassette.
2 Keep the Channel buttons N on the VCR pressed
simultaneously for 3 seconds or more during the VCR on.
– The channel displayed on the VCR display disappears
for a moment then changes to 1.
VCR display
Disappears
1
3 Disconnect the mains lead and then reconnect it.
4 Turn off the VCR and then turn it on.
– Auto Tuning commences.
If Auto Tuning stops halfway by turning the VCR off,
playback or a power failure:
1 Disconnect the mains lead and then reconnect it.
2 Turn off the VCR and then turn it on.
– Auto Tuning commences.
6
To Change the RF output Channel
Auto Tuning Using the On Screen Display
In some rare cases after tuning the TV to your VCR,
interference may be visible on the picture. To get rid of this
interference, you can manually adjust the RF output channel
a few channels up and down from the current setting. The
procedure is described below.
Introduction
The VCR is tuned automatically by Plug in Auto Tuning.
However, Auto Tuning using the On Screen Display should
be performed according to the following method if necessary.
Operations
1 Hold down MENU button U for 5 seconds or more.
– The VCR display changes as shown below and the
VCR picture on the TV displays this pattern.
VCR display
Example for NV-FJ620A
Example for NV-FJ620EA
Preparations
– Confirm that the TV is on and the VCR viewing channel is
selected.
– Turn on the VCR and select any programme position
except A1 or A2.
– Set the VCR/TV switch E to [VCR].
Operations
1 Press the MENU button U to
display the Main menu on the TV
screen.
MENU
CLOCK SET
TUNER PRESET
CH ADD&DELETE
G-CODE CH SET
SYSTEM
OPTION
On Screen Display
SELECT :
, OK
END
:MENU
Panasonic VCR
2 Press the Cursor buttons (34
34) S
34
to select [TUNER PRESET] then
press OK button T.
END: MENU
MENU
CLOCK SET
TUNER PRESET
CH ADD&DELETE
G-CODE CH SET
SYSTEM
OPTION
SELECT :
, OK
END
:MENU
2 Enter the desired channel number (AU28– 69, NZ21– 69)
by the Numeric buttons 2 or the Channel button N.
– Ensure that the VCR/TV switch E is set to [VCR].
– Set the RF output channel of the VCR to [ss] (RF OFF)
when the VCR is connected to the TV via the Audio/
Video cable.
Press the Channel button N to display [ss].
28
NV-FJ620A:
69
ss
(RF OFF)
21
NV-FJ620EA:
Example:
…
3 Press the Cursor buttons (34
34) S
34
to select [AUTO TUNE] then press
21
the Cursor buttons (21
21) S to start
the Auto Tuning.
– When Auto Tuning is completed,
the On Screen Display
disappears and programme
position 1 is selected.
2
[OFF]
[3]
END :MENU
SELECT:
AUTO TUNING
IN PROGRESS,
PLEASE WAIT.
CH 1
69
ss
(RF OFF)
28:
TUNER PRESET
CH 1
CLEAR
AUTO TUNE
SEARCH
FINE
SEARCH
100
END: MENU
The number displayed here
is the number of channels
still to be auto tuned.
8
3 Press the MENU button U to finish the setting mode.
Channels that can be Received
VHF
CATV
NV-FJ620A
0–12
45–470MHz
28–69
NV-FJ620EA
1–11
45–470MHz
21–69
4 Retune your TV to the new RF channel for the VCR.
Note:
– Even if the RF output channel has been changed, it is not
necessary to perform Auto Tuning.
UHF
Notes:
– Auto Tuning searches for TV stations from VHF minimum to
UHF maximum and memorizes every tuned programme
position. Other programme positions are skipped.
– Auto Tuning takes five or more minutes to complete its
search.
– If the VCR is not correctly tuned by Auto Tuning, follow the
procedure on the next page.
7
Manual Tuning Procedure
Direct Tuning
1
Press the MENU button U to display the Main menu on
the TV screen.
2
Press the Cursor buttons (34) S to select [TUNER
PRESET] then press OK button T.
Follow steps 1 to 3 of Manual Tuning Procedure.
4 Confirm that [CLEAR] is set to [OFF].
3
Press the Cursor buttons (34) S to select [CH] then
select the channel number you want tuned by pressing
the Cursor buttons (21) S.
4
Confirm that [CLEAR] is set to [OFF].
5
Press the Cursor buttons (34) S to select [SEARCH]
then press the Cursor buttons (21)S to start the Manual
Tuning.
– If the desired TV station has not been tuned, press the
Cursor buttons (21) S again.
– Press the MENU button U and repeat steps 3 –5 for
each programme position you want to tune to a station.
On Screen Display
CH 2
CH 2
SEARCH
END: MENU
6
SEARCH 74
END: MENU
Press the MENU button U three times to exit the On
Screen Display.
5 Press the Cursor buttons (34) S to select [SEARCH].
6 Press the Numeric buttons 2 to enter the number of the
desired programme position.
For the 5A and 9A channels, input the following numbers:
90 for CH-5A, 91 for CH-9A. (Example for NV-FJ620A.)
– For other channels that require tuning, repeat
steps 3–6.
7 Press the MENU button U twice to exit the On Screen
Display.
Fine Tuning Procedure
Follow steps 1 to 3 of Manual Tuning Procedure.
4 Press the Cursor buttons (34) S to select [FINE] then
press the Cursor buttons (21) S to obtain the best
tuning condition.
– Press the OK button T to return the tuning to its former
state.
5 Press the MENU button U to exit
the On Screen Display.
CH2
FINE
:
AFC: OK
END: MENU
Blanking of Unused Programme Positions
Follow steps 1 to 3 of Manual Tuning Procedure.
4 Press the Cursor buttons (34) S to select [CLEAR] then
press the Cursor buttons (21) S to select [ON].
– Repeat steps 3–4 for other unused programme
positions to skip during the selection of programme
positions.
– To cancel the blanking of a programme position select
that programme position then set [CLEAR] to [OFF].
5 Press the MENU button U twice to exit the On Screen
Display.
8
To Add and Delete the Channel
Example:
If you want to add a new channel between Channel 4 and
Channel 6,
1 Press the MENU button U to display the Main menu on
the TV screen.
Example:
If you want to delete Channel 6,
1 Press the MENU button U to display the Main menu on
the TV screen.
On Screen Display
MENU
CLOCK SET
TUNER PRESET
CH ADD&DELETE
G-CODE CH SET
SYSTEM
OPTION
2 Press the Cursor buttons (34) S
to select [CH ADD&DELETE] then
press the OK button T.
SELECT :
, OK
END
:MENU
SELECT :
, OK
END
:MENU
MENU
CLOCK SET
TUNER PRESET
CH ADD&DELETE
G-CODE CH SET
SYSTEM
OPTION
3 Press the Cursor buttons (34) S
to select the desired programme
position (example CH3) then press
the Cursor button (1) S to select
[ADD].
CH 3
SELECT :
, OK
END
:MENU
CH 3
CH ADD&DELETE
ADD:
CH SELECT:
CH 3
ADD:
CH SELECT:
MENU
CLOCK SET
TUNER PRESET
CH ADD&DELETE
G-CODE CH SET
SYSTEM
OPTION
3 Press the Cursor buttons (34) S
to select the desired programme
position (example CH3) then press
the Cursor button (2) S to select
[DELETE].
CH ADD&DELETE
DELETE:
END: MENU
MENU
CLOCK SET
TUNER PRESET
CH ADD&DELETE
G-CODE CH SET
SYSTEM
OPTION
2 Press the Cursor buttons (34) S
to select [CH ADD&DELETE] then
press the OK button T.
SELECT :
, OK
END
:MENU
CH 3
CH ADD&DELETE
DELETE:
END: MENU
ADD:
CH SELECT:
CH ADD&DELETE
DELETE:
END: MENU
ADD:
CH SELECT:
DELETE:
END: MENU
Programme
Position
Channel
Programme
Position
Channel
Programme
Position
Channel
Programme
Position
Channel
1
2
1
2
1
2
1
2
2
4
2
4
2
4
2
4
3
6
3
–
3
6
3
8
4
8
4
6
4
8
4
10
5
10
5
8
5
10
5
12
6
12
6
10
6
12
6
–
7
–
7
12
7
–
7
–
8
–
8
–
8
–
8
–
– Adding a channel shifts the programme positions of
Channel 6 to Channel 12 up, as shown in the list
above.
– The list of the programme positions do not appear on
the On Screen Display.
4 After adding, tune the added channel. (See steps 3– 5 in
Manual Tuning on page 8.)
– Press the MENU button U twice and repeat steps 3–4
for each of the other programme positions.
– Deleting a channel shifts the programme positions of
Channel 8 to Channel 12 down, as shown in the list
above.
– The list of the programme positions do not appear on
the On Screen Display.
– Repeat step 3 for each of the other programme
positions.
4 Press the MENU button U twice to exit the On Screen
Display.
5 Press the MENU button U four times to exit the On
Screen Display.
9
Setting the Clock of Your VCR
Time Reset Function
The clock will operate for at least 3 years in total after it has
been set, - in the event of a power failure, it will operate on its
backup system. After 3 years, it will only operate for 1 hour
on its backup system.
If the clock is less than two minutes slow or fast, it can easily
be reset to the proper time.
Preparations
– Confirm that the TV is on and the VCR viewing channel is
selected.
– Turn on the VCR.
Example:
Date; 16 October, 2005
Time; 20:15
Operations
On Screen Display
1
Press the MENU button U to
display the Main menu on the TV
screen.
MENU
CLOCK SET
TUNER PRESET
CH ADD&DELETE
G-CODE CH SET
SYSTEM
OPTION
SELECT :
, OK
END
:MENU
2
Press the Cursor buttons (34) S
to select [CLOCK SET] then press
the OK button T.
MENU
CLOCK SET
TUNER PRESET
CH ADD&DELETE
G-CODE CH SET
SYSTEM
OPTION
SELECT :
, OK
END
:MENU
3
Set each item by pressing the
Cursor buttons (341) S. Press
the Cursor button (2) S to return to
the previous item.
At the set time (H:M) point:
– When it is kept pressed, the
indication changes in 30 minute
steps.
– There is no need to press the
Cursor button (1) S.
4
10
Press the MENU button U.
– The clock starts.
CLOCK SET
Y
2005
M
1
D
1
START:MENU
H:M
0:00
Example:
Resetting the clock to 12:00.00
1 Press the MENU button U to display the Main menu on
the TV screen.
2 Press the Cursor buttons (34) S to select [CLOCK SET]
then press the OK button T.
3 When the current clock display on the VCR is between
11:58.00 and 12:01.59, press the MENU button U as
soon as you hear the 12:00.00 signal. This resets the
time to 12:00.00.
The guide channel numbers are subject to change. Please
refer to the guide channels listed in the latest newpapers or
TV listings.
Preparations for G-Code
Programming
Identification numbers must be set for G-Code programming.
Proceed with the G-Code programming operation described
on page 22, and the identification numbers of the TV stations
concerned will be set automatically. This will allow G-Code
programming to be undertaken without performing the
operation described on this page. However, you can follow
the setting procedure described below if you wish to set the
identification numbers of all the TV stations prior to actual
programming.
[Identification numbers] refer to the numbers used for
identifying TV stations.
The programme positions on the VCR receiving the TV
stations are set in these identification numbers.
Have a newspaper or magazine which lists today’s local TV
station programmes and G-Code numbers on hand.
Preparations
– Set the clock of the VCR. See page 10.
– Store TV broadcasts in your VCR. See pages 7–9.
– Confirm that the TV is on and the VCR viewing channel is
selected.
– Turn on the VCR.
Operations
1 Press the MENU button U to
display the Main menu on the TV
screen.
On Screen Display
MENU
CLOCK SET
TUNER PRESET
CH ADD&DELETE
G-CODE CH SET
SYSTEM
OPTION
SELECT :
, OK
END
:MENU
2 Press the Cursor buttons (34) S
to select [G-CODE CH SET] then
press the OK button T.
MENU
CLOCK SET
TUNER PRESET
CH ADD&DELETE
G-CODE CH SET
SYSTEM
OPTION
G-CODE CH SET
GUIDE CH
001
–
CH
--
END:MENU
4 Press the Cursor buttons (21) S
then press the Cursor buttons (34)
S to select the programme position
(1– 99, A1 or A2).
– To set the other TV stations, press
the Cursor buttons (21) S then
repeat steps 3 and 4.
Position Number
Identification Number
(GUIDE CH)
ABC
2
002
ATN
7
007
TCN
9
009
TEN
10
010
SBS
28
028/001
TV Station
Example:
(NV-FJ620EA)
TV Station
Identification Number
(GUIDE CH)
TV ONE
001
CHANNEL 2
002
TV3
003
°SKY TV MOVIES
004
°SKY TV SPORTS
005
°SKY TV NEWS
006
°SKY ORANGE
007
°SKY DISCOVERY&TRACKSIDE
CTV
SELECT :
, OK
END
:MENU
3 Press the Cursor buttons (34) S
to select the identification number
(GUIDE CH) (001– 255).
Example:
(NV-FJ620A)
008
011
° Connection to the Sky decoder
When the Sky decoder is connected to the Audio/Video input
sockets:
Set to [A1] or [A2].
When the Sky decoder is connected by means of the RF
coaxial cable:
Set to the programme position that the Sky decoder is
turned to.
– When G-Code programming, turn on the Sky decoder and
select the desired Sky channel.
G-CODE CH SET
GUIDE CH
001
–
CH
1
END:MENU
5 Press the MENU button U twice to exit the On Screen
Display.
Note:
To receive satellite stations, the satellite receiver must be
connected to the VCR and programme position must be set
depending on the type of connection.
A1/A2: When the satellite receiver is connected to the
Audio/Video input sockets (AV1/AV2).
– When the satellite receiver is connected by means of the
RF coaxial cable, set to a free programme position
between 1 and 99.
11
2 STEREO or BILINGUAL indicator (NV-FJ620A)
When receiving a TV programme, the type of sound
system in which it is broadcast is automatically indicated.
STEREO, M1 and M2 Indicator (NV-FJ620EA)
When receiving a TV programme with the Stereo,
Bilingual or NiCAM sound system, the type of sound
system in which it is broadcast is automatically indicated.
STEREO: When receiving a Stereo/NICAM stereo
broadcast.
M1 M2: When receiving a Bilingual/NICAM dual-sound
boadcast.
M1:
When receiving a NICAM monaural broadcastl.
Settings Using the On Screen
Display
Preparations
– Confirm that the TV is on and the VCR viewing channel is
selected.
– Turn on the VCR.
– Set the VCR/TV switch E to [VCR].
To Set the Colour TV System
1
2
3
4
Press the MENU button U to
display the Main menu on the TV
screen.
– To hear stereo performance connect as shown on page 5
to a TV or Stereo Amplifier with left and right audio inputs.
On Screen Display
SYSTEM
AUTO
PAL
NTSC
B/W
Press the Cursor buttons (34) S
to select [SYSTEM] then press the
OK button T.
3 Programme position
4 Tape running display
SELECT:
END
:MENU
Stop, Eject
Press the Cursor buttons (34) S to select [AUTO].
– The VCR automatically distinguishes between [PAL] or
[NTSC] signals. If the picture lacks colour during AV
external recording or playback, set to [PAL] or [NTSC].
– When you want to record or play back in black and
white, set to [B/W].
Press the MENU button U twice to exit the On Screen
Display.
CH 1
STEREO
LR
0:00.22
SP
PAL
7
8
9
Stereo: Both the Left (L) and Right (R) Indicators appear.
Left:
The Left (L) Indicator appears
Right: The Right (R) Indicator appears.
Normal: Neither the Left (L) nor Right (R) Indicator
appears.
– At every push of this button, the audio output mode
changes as follows.
During playback:
R
Stereo
L
Normal audio track
While the broadcast signals are being received:
R
Normal
5
Playback
1
Recording
¥
Recording pause
;¥
Repeat playback
R1
Information
1 Audio Output Mode Indicators
At each press of the AUDIO button ?, the selected sound
mode is indicated with Left (L) and Right (R).
L
Fast Forward, Cue
Display
Present time
17:24
Tape counter
–2:35.47
Remaining tape time
STANDARD
Stereo
6
5 Present time/Tape counter/Remaining tape time/ Index
Search/OTR indication/Play-Off Timer
To Make Various Indicators Appear On
Screen Display
123
45 6
At a press of the OSD button P,
the following indications appear
on the TV screen.
– Press the OSD button P again to
make the On Screen Display
disappear.
Rewind, Review
Index Search
REMAIN 2:34
S 01
OTR indication
OTR 60
Play-Off Timer
OFF 60
6 Tape speed indicator (SP/LP/EP)
7 Cassette-in indicator
8 Colour system indicator
Any selected colour TV system except [AUTO] appears
on screen display. (See the To Set the Colour TV
System on this page.)
9 Picture mode indicator
At each press of the PICTURE MODE button 5, the
selected picture mode is set and following picture mode
indicators appear.
Example:
STANDARD:
DYNAMIC:
SOFT:
CARTOON:
For TV programme recorded
For Scenery, Sports
For Rental soft tape
For Cartoon
Note:
– The on screen display may be disturbed or disappear
during special playback.
12
DELETE NAVIDATA:
Option Setting
1 Press the MENU button U to
display the Main menu on the TV
screen.
On Screen Display
MENU
CLOCK SET
TUNER PRESET
CH ADD&DELETE
G-CODE CH SET
SYSTEM
OPTION
3 Press the Cursor buttons (34) S
to select the desired field.
TAPE SELECT:
OPTION
TAPE SELECT
NTSC INPUT SELECT
NTSC PB SELECT
JET NAVIGATOR
DELETE NAVIDATA
DIRECT REC
MONAURAL
SELECT:
NO:
END:
Initially set at this position.
It is done to delete all the Jet Navigator data.
DIRECT REC:
To set to the conditions for Direct
Recording Function.
– Press the Cursor buttons (21) S to select [ON] or
[OFF].
SELECT :
, OK
END
:MENU
2 Press the Cursor buttons (34) S
to select [OPTION] then press the
OK button T.
To delete all the Jet Navigator
data stored in the VCR’s memory.
– Press the Cursor buttons (21) S to select [OK] then
press the OK button T to do the deletion.
[AUTO]
[AUTO]
[onPALTV]
[OFF]
[NO]
[OFF]
[ON]
OFF:
ON:
END :MENU
To select the corresponding
video cassette tape length to
display the approximaste
remaining tape time.
– Press the Cursor buttons (21) S to select the
corresponding video cassette tape length.
AUTO: The VCR automatically distinguishes E30, -60,
-90, -120, -180 and -240 tapes.
E195: For E195 tape
E260: For E260 tape
E300: For E300 tape
– The remaining tape time may not be displayed correctly
depending on the tape used.
Initially set at this position.
This setting enables Direct Recording.
AV Input (A1) becomes exclusive channel for
Direct Recording.
(See page 17.)
MONAURAL:
To select the sound mode.
(For NV-FJ620EA only)
– Press the Cursor buttons (21) S to select [ON] or
[OFF].
ON:
OFF:
To record the normal sound during a NICAM
broadcast or if the stereo sound is distorted
due to inferior reception conditions.
Normally set at this position.
4 Press the MENU button U twice to exit the On Screen
Display.
NTSC INPUT SELECT: To select the colour TV system
used to record NTSC signals.
– Press the Cursor buttons (21) S to select [AUTO].
Allows NTSC [4.43] or [3.58] signals to be distinguished
automatically.
– If the tape has not recorded
correctly, select 4.43 or 3.58.
4.43:
When recording NTSC 4.43 signals.
3.58:
When recording NTSC 3.58 signals.
Some programmes on NTSC 3.58 system
cannot be recorded correctly at this position.
NTSC PB SELECT:
To select the colour TV system of
the TV used to play back a tape
recording NTSC signals.
– Press the Cursor buttons (21) S to select the desired
position according to the colour TV system of the TV.
on PAL TV: For TVs that can receive PAL signals.
4.43:
For TVs that can receive NTSC 4.43
signals.
3.58:
For TVs that can receive NTSC 3.58
signals.
JET NAVIGATOR:
To set to the conditions for the Jet
Navigator Function.
– Press the Cursor buttons (21) S to select [ON] or
[OFF].
OFF:
ON:
Initially set at this position.
appears on the VCR display and Jet
Navigator function works.
13
Playback
Preparations
– Confirm that the VCR is on.
– Confirm that the TV is on and the VCR viewing channel is
selected.
– Insert a recorded video cassette.
For Normal Playback:
Press the Play button 7.
VCR display
For Cue or Review Playback:
During playback, tap the Fast Forward
button G or the Rewind button 8.
– To return to normal playback, press
the Play button 7.
– If you press and hold down the Fast
Forward button G or the Rewind
button 8, cue or review playback
continues for as long as you keep the
button pressed, and operation returns
to normal playback when the button
is released.
For High speed Cue or Review Playback (JET SEARCH):
During playback, tap the Fast Forward button G or the
Rewind button 8 twice.
For Still Playback:
During playback, press the Pause/Slow button J.
– To return to normal playback, press
the Play button 7, the Pause/Slow
button J.
For Slow Playback:
During playback, keep the
Pause/Slow button J pressed for
2 seconds or more.
– To return to normal playback, press the Play button 7.
Fast-forwarding or Rewinding the Tape:
Press the Fast Forward button G or the Rewind button 8 in
the stop mode.
– To stop fast-forwarding or rewinding, press the Stop button
F.
– To briefly view the picture during fast-forwarding or
rewinding, press and hold down the corresponding button.
To Stop Playback
Press the Stop button F.
14
Notes:
– JET SEARCH, Cue, review or slow playback will be
automatically cancelled after 10 minutes, and still playback
after 5 minutes.
– During playback function other than normal playback,
horizontal noise bars may appear in the picture, the colour
of the picture may be unstable, or the picture may be
otherwise distorted.
– When you play back a tape recorded in the LP mode, the
picture may be in black and white.
– When you play back a tape recorded in the EP mode, the
picture and the sound may be unstable.
However, these are not malfunctions.
To Play back S-VHS Cassette Tape
(SQPB=S-VHS Quasi Playback)
It is also possible to play back tapes recorded in the S-VHS
system.
– Some picture noise may occur depending on the type of
tape used.
– It is not possible to fully obtain the high resolution that
S-VHS is capable of.
– It is not possible to record in the S-VHS system with this
VCR.
To Play Back a Recorded Part Repeatedly
Press the REPEAT button O.
The [R 1] indication appears on the TV screen.
– Repeat Playback function does not work during Play-Off
Timer.
To Cancel the Repeat Playback Mode:
Press the Stop button F.
To Stop Playback Automatically
(Playback Off Timer Function)
To Playback in the Desired Picture Quality
(Picture Mode)
If you set the playback duration, the playback will stop
automatically.
After the set playback time has elapsed, the VCR
automatically stops playback and switches off.
This function reproduces optimum playback picture from
various kind of recorded tapes and contents.
To Activate the Playback Off Timer Function:
During normal playback, press the Play button 7 on the
VCR for more than 2 seconds to put the VCR in the Playback
Off Timer mode.
After that, press the Play button 7 on the VCR repeatedly
until the desired playback duration is displayed on the VCR
display.
– Repeatedly pressing this button changes the indication in
the following order:
Counter display
60
30
(normal playback mode)
(min.)
(min.)
240
180
120
90
(min.)
(min.)
(min.)
(min.)
– The VCR will automatically switch off when Play-Off Timer
is completed. To turn the VCR on again, press the POWER
button 1.
Notes:
– The Play-Off Timer function works during normal playback.
– When the tape reaches its end during Play-Off Timer, the
tape will be rewound to the start and the VCR will turn itself
off.
To Stop Midway:
Press the Stop button F.
NTSC Playback
Tapes recorded in the NTSC system can be played back with
this VCR via a PAL system TV.
– Select [NTSC PB SELECT] from the on screen display
according to the colour TV system of the TV.
(See page 13.)
– NTSC 3.58 recording requires [NTSC INPUT SELECT] to
be in the AUTO or 3.58 position (see page 13), however if
[NTSC INPUT SELECT] is in this position when recording a
NTSC 3.58 signal, no colour is available for the PAL TV.
Once the recording is completed, you then need to select
[on PAL TV] to view the recording in colour on PAL TV.
– On some TVs, the playback picture may roll up or down; if
your TV has V-HOLD control or equivalent adjustment
function, use it to adjust the picture.
Note for only NTSC Playback on PAL system TV
This function is designed to allow only the playback of tapes
recorded by NTSC signals on a PAL system TV. The NTSC
signal is not completely converted to a PAL signal. For this
reason, images played back by this function cannot be
recorded correctly on other VCRs.
Press the PICTURE MODE button 5 and select the
corresponding Picture Mode as follows.
Example:
Mode
STANDARD
DYNAMIC
SOFT
CARTOON
Characteristic
Example for Purpose
Normal
TV Programme recorded
Clear & Vivid
Scenery, Sports
Mild
Rental soft tape
Delicate
Cartoon
– Pressing the PICTURE MODE button 5 once makes the
On Screen Display appear; after that, pressing it
repeatedly changes the indication in the following order:
STANDARD
(Initial Setting)
CARTOON
DYNAMIC
SOFT
Convenient Automatic Functions
VCR Auto Power On
When you insert a video cassette, the VCR switches on
automatically.
Auto Playback Start
When you insert a video cassette with a broken erasure
prevention tab, playback start automatically without having to
press the Play button 7.
VCR-off Playback
When the VCR is off, an inserted cassette can be played
back by pressing the Play button 7.
Auto Rewind
When the tape reaches the end, the VCR automatically
rewinds it to the beginning.
– This function does not work during timer recording
and OTR.
Automatic Switching Off and Ejection
When the VCR is switched off, an inserted cassette can be
ejected simply by pressing the EJECT button X. The VCR
will eject the cassette and automatically turn itself off again.
VCR-off Search
When the VCR is off, the VCR starts intro-jet scan of an
inserted cassette by pressing the SEARCH button 6.
To Eject Video Cassette Using the Remote
Control
Keep pressing the Stop button F for at least 3 seconds.
15
To Display the Approximate Remaining
Tape Time
Recording
Preparations
– Confirm that the VCR is on.
– Confirm that the TV is on and the VCR viewing channel is
selected.
– Set the VCR/TV switch E to [VCR].
2 Press the DISPLAY button > repeatedly until the
Remaining Tape Time appears on the VCR display.
Operations
1
2
3
4
Insert a video cassette with an intact erasure
prevention tab.
– If it has already been inserted, press the POWER
button 1 to turn the VCR on.
Select the TV station using the
Channel buttons N.
– It is also possible to select by
pressing the Numeric buttons 2.
Press the REC (REC/OTR) button
I (^) to start recording.
The remaining tape time can be displayed in the VCR
display.
1 Select [TAPE SELECT] from the on screen display and
select the corresponding video cassette tape length.
See page 13.
Clock
Counter
Remaining Tape Time
REMAIN
For certain cassettes, the remaining tape time may not be
displayed correctly.
VCR display
REC
Press the Stop button F to stop recording.
To Select the Desired Tape Speed
Press the SPEED button B before recording.
– SP provides standard recording time,
SP
optimum picture and sound quality.
LP provides doubled recording time
with slightly reduced picture and
sound quality.
EP provides tripled recording time with slightly reduced
picture and sound quality.
When you play back a tape recorded in the EP mode, the
monaural sound may be unstable.
When you start the recording in the EP mode, [EP] indication
on the VCR display flashes for about 8 seconds.
Notes:
– When playing back a cassette recorded in the LP or EP
mode, some picture and sound distortion may occur.
However, this is not a malfunction.
– The recording pause mode will be automatically cancelled
after 5 minutes and return to the stop mode.
– The tape recorded in the EP mode on this VCR cannot be
played back on the other VCR without EP mode function.
– On the other VCR (even with EP mode function), when you
play back the tape recorded in the EP mode, the picture
and the sound may be distorted. However, this is not a
malfunction.
– When a video cassette with a broken off erasure
prevention tab is inserted, the [1] indication will flash to
indicate that recording is not possible even if the REC
(REC/OTR) button I (^) is pressed.
Recording of Stereo or Bilingual
Programmes (NV-FJ620A only)
1 Recording is automatically made in the stereo or
bilingual mode. This prevents errors in the selection of
the dubbed or the original language.
2 During playback press the AUDIO button ? to select the
desired sound mode. (See page 12.)
EP mode means Super Long Play (SLP).
The NICAM Broadcast System
(NV-FJ620EA only)
To Pause Recording
Press the Pause/Slow button J
during recording.
Press it again to continue recording.
REC
To View One TV Programme while
Recording Another TV Programme
After pressing the REC button I to start recording, select on
your TV the programme position of the TV programme that
you want to view.
To Prevent Accidental Erasure of Recorded
Contents
Break out the erasure prevention tab after recording.
If you insert a video cassette with a broken out erasure
prevention tab and press the REC button I, the 1
indication flashes on the VCR display to indicate that
recording is not possible.
In this case, cover the tab hole with two layers of adhesive
tape.
16
NV-FJ620EA is equipped with the NICAM sound system.
NICAM is a 2 channel sound broadcast system to provide
either a high quality stereo sound track or 2 independent
MONO sound tracks, M1 and M2.
NICAM programmes are always accompanied by standard
sound broadcasts and you can select the desired sound with
the AUDIO button ? during playback.
– The NICAM digital stereo sound can only be recorded on
the Hi-Fi audio track.
– When NICAM programme is being received, the indicators
are lit to inform you of the type of broadcast. (See page 12.)
– To record the regular sound (ordinary normal sound) on
the FM audio tracks when a NICAM programme is
received, set [MONAURAL] to [ON]. (See page 13.)
– To hear stereo performance connect as shown on page 5
to a TV or Stereo Amplifier with left and right audio inputs.
Important Note for the NICAM System
When NV-FJ620EA is switched on, the tuner will
automatically switch to a NICAM broadcast, if NICAM is
being transmitted.
At this time the NICAM signal is transmitted on stereo
channels only, since the M1 and M2 formats are not yet
available. Even if the sound track is MONO, the stereo
indicator will appear.
To Immediately Record the Same Scenes of
Programme That You Are Viewing on the
TV (Direct Recording)
This function allows you to immediately start recording the
same scenes of programme that you are viewing on the TV.
Conditions for correct operation of the Direct TV Recording
function:
– Set [DIRECT REC] to [ON] (see page 13).
– The VCR must be connected to the TV’s Audio/Video
output socket via Audio/Video cable as shown.
To Select the Recording Duration and
Perform Timer Recording (OTR Recording)
OTR means One-Touch Recording and is called this way,
because you can start recording and select the recording
duration by repeatedly pressing a single button. This is very
convenient, for example when you want to start recording
immediately but need to go out or want to go to bed.
After the selected recording duration has elapsed, recording
stops and the VCR automatically switches off.
To Perform an OTR Recording:
1 Display the VCR picture on the TV.
AV1 (AUDIO IN a / VIDEO IN _)
2 Insert a video cassette with an intact erasure prevention
tab.
OUT
IN (AV1)
IN
VIDEO
L
RF
AUDIO
R
OUT
3 Press the Channel buttons N to select the programme
position on which the TV programme to be recorded will
be broadcast.
4 Press the REC/OTR button ^ to start recording.
Audio/Video Output Socket of TV
To Perform Direct Recording:
1 Insert a video cassette with an intact erasure prevention
tab.
2 Press the DIRECT REC button Q.
– Recording of the TV programme that you are viewing
on the TV starts.
– In some cases, it may not be possible to change the
programme position on the TV during Direct TV
Recording.
When viewing or displaying the programme from your TV:
– Do not press the AV button 3, Numeric buttons 2 or
Channel button N during Direct Recording, otherwise
the recording may not be performed correctly.
5 Press the REC/OTR button ^ repeatedly to select the
desired recording duration.
– Every time you press this button, the recording duration
indicated in the VCR display changes in the following
order.
– For example, if you select [30], the VCR records a
programme from that moment on for 30 minutes.
Counter display
60
30
(normal recording mode)
(min.)
(min.)
240
180
120
90
(min.)
(min.)
(min.)
(min.)
To Stop the OTR Recording Before the End:
Press the Stop button F.
Notes:
– The OTR function works during normal recording.
– When the tape reaches its end during OTR, the VCR will
turn itself off.
When viewing or displaying the programme from your
VCR:
– It is possible to select and view any other TV
programme from your TV while the Direct Recording
continues.
After pressing the DIRECT REC button Q to start
recording, select on your TV the programme position of
the TV programme that you want to view.
3 Press the Stop button F to stop recording.
17
Recording from an external source
Operations
This function can be used to make up an edited tape from
other recordings or video sources.
A new scene can be added to the end of previous one.
1 Press the Play button 7 to start playback.
AV1 (AUDIO IN a / VIDEO IN _)
AV2 (AUDIO IN Z / VIDEO IN Y)
Recording VCR
OUT
IN (AV1)
POWER
IN
VIDEO
L
2 At the point where you want to join a new scene, press
the Pause/Slow button J to put it in the still playback
mode.
3 Press the REC button I to put it in the recording pause
mode.
4 Start playback on the source unit and search for the point
from which you want to record (copy) onto this VCR.
RF
AUDIO
PICTURE MODE
R
OUT
Other VCR or
Video movie camera
5 When that point is reached, press the Pause/Slow button
J again to start recording the new picture and sound
from the playback unit.
6 To record (copy) additional scenes, press the Pause/
Slow button J to put this VCR in the recording pause
mode and then perform above steps 4 and 5 again.
7 At the point where you want to stop recording, press the
Stop button F to finish recording.
Preparations
– Connect a video movie camera or another VCR to this
VCR as shown.
– Display the VCR picture on the TV.
– Insert the cassette on which the copying is to be
performed, and make sure that its erasure prevention tab is
not broken out.
– Select the audio source required by pressing the INPUT
SELECT button K to set A1 or A2.
A1:
Through the AV1 (AUDIO IN/VIDEO IN)
sockets.
A2:
Through the AV2 (AUDIO IN/VIDEO IN) sockets
on front panel.
– Use the L and R connectors for operations in the
normal (monaural) mode.
POWER
PICTURE MODE
(Not supplied)
Other Monaural VCR or
Video movie camera
18
Hint:
– The new sound is recorded on both the Hi-Fi audio tracks
and the normal audio track. The sound recorded on the
normal audio track is always in mono.
Notes:
– If you leave the VCR in the recording pause mode for more
than 5 minutes in step 3 or 6, the VCR automatically
switches over to the stop mode to protect the video heads.
– If [DIRECT REC] is set to [ON], connect with AV2 sockets
and select A2.
Timer Recording
5 Press the OFF button C to set the
ending time.
CH DATE ON
OFF
2 27SA 2 0 : 0 2 2 1 : 3 0 SP
4-Key Programming
Up to 16 timer programmes, including weekly and daily
programmes, can be recorded up to one month in advance
by setting the timer.
Preparations
– Confirm that the VCR is on.
– Confirm that the TV is on and the VCR viewing channel is
selected.
– Insert a video cassette with an intact erasure prevention
tab.
– Check that the clock is set to the correct time. If it has not
been set, refer to page 10.
– Set the VCR/TV switch E to [VCR].
Example (In case of [JET NAVIGATOR] is set to [ON].):
Programme position (channel);
2
Date;
27 October
Starting time;
20:02
Ending time;
21:30
Tape speed;
LP
Category;
MUSIC
(Present date; 16 October)
CATEGORY
6 Press the SPEED button B to set the desired tape
speed.
– SP provides standard recording
time, optimum picture and sound
CH DATE ON
OFF
quality.
2 27SA 2 0 : 0 2 2 1 : 3 0 LP
LP provides double recording
time with slightly reduced picture
CATEGORY
and sound quality.
EP provides triple recording time with slightly reduced
picture and sound quality.
Regarding the [A] indication, refer to page 20.
When you play back a tape recorded in the EP mode,
the monaural sound may be unstable.
7 Press the Cursor buttons (1) S to select the
Category. Then, select the desired category by
pressing the Cursor buttons (3421) S.
CATEGORY SETTING
≥MOVIE
≥MUSIC
≥DRAMA
≥EDUCA
≥DOCUM
≥SPORT
≥CHILD
≥NEWS
≥OTHER
≥– – – – –
CATEGORY SETTING
≥MOVIE
≥MUSIC
≥DRAMA
≥EDUCA
≥DOCUM
END : MENU
Operations
≥SPORT
≥CHILD
≥NEWS
≥OTHER
≥– – – – –
END : MENU
On Screen Display
1 Press the PROG./CHECK button
< to display the menu for timer
programme on the TV screen.
CH DATE ON
OFF
– – – – – – – – : – – – – : – – SP
– Alternatively, you can set the category on the Navigator
list. (See page 23 for details.)
– This function is activated when [JET NAVIGATOR] is set
to [ON]. (See page 13.) When [JET NAVIGATOR] is set
to [OFF], procced to the step 9.
CATEGORY
2 Press the Channel button 9 to select the programme
position of the desired TV station.
– Every time you select the programme position, the
background changes.
8 Press the MENU button U to
make the previous display appear.
CH DATE ON
OFF
2 27SA 2 0 : 0 2 2 1 : 3 0 LP
CHECK
CH DATE ON
OFF
2 – – – – – – : – – – – : – – SP
CH DATE ON
OFF
2 – – – – – – : – – – – : – – SP
CATEGORY
CATEGORY
– The next item will flash after about 2 seconds.
3 Press the DATE button : to set the date on which the
TV programme will be broadcast.
CH DATE ON
OFF
2 27SA – – : – – – – : – – SP
CH DATE ON
OFF
2 27SA – – : – – – – : – – SP
CATEGORY
CATEGORY
: PROG./CHECK
9 Press the TIMER (REC) button A to switch the VCR
over to the timer recording standby mode.
– When [JET NAVIGATOR] is set to [ON], the
[PROGRAMME IS COMPLETE. REMAINING
PROGRAMME 49] message appers. (See page 13.)
– When [JET NAVIGATOR] is set to [OFF], the
[PROGRAMME IS COMPLETE.] message appears.
(See page 13.)
– The VCR will be set to the timer recording stanby mode
after about 1 minute if the TIMER (REC) button A is not
pressed.
4 Press the ON button D to set the starting time.
– When it is kept pressed, the indication changes
in 30 minute intervals.
CH DATE ON
OFF
2 27SA 2 0 : 0 2 – – : – – SP
CH DATE ON
OFF
2 27SA 2 0 : 0 2 – – : – – SP
CATEGORY
CATEGORY
19
To Suspend the Timer Recording Standby
Mode
When you want to use the VCR for playback, normal
recording or some other operation before the programmed
timer recording will be performed, you can temporarily
suspend the timer recording standby mode by pressing the
TIMER (REC) button A so that the [Á] indication on the VCR
display disappears.
However, after you have finished using the VCR, be sure to
reactivate the timer recording standby mode by pressing the
TIMER (REC) button A again otherwise the programmed
timer recording will not be performed.
Programming a Timer Recording of a TV
Programme Until its End
(Tape Speed Auto Change Function )
If the VCR determines that the remaining tape time is
insufficient to record the programme to its end during a timer
recording performed in the SP mode, this function
automatically changes the tape speed to ensure that the
whole programme will be recorded.
The tape speed will change as follows.
PAL system:
SP ) LP
NTSC system:
SP ) EP
On Screen Display
– This function cannot change the recording speed to the
EP mode for PAL system.
Weekly Timer Recording
In step 3 of 4-Key Programming,
select the desired day by pressing
the DATE button :.
For example, SU (Sunday)
CH DATE ON
OFF
2 SU
– – : – – – – : – – SP
CATEGORY
(SU=Sunday, MO=Monday, TU=Tuesday, WE=Wednesday,
TH=Thursday, FR=Friday, SA=Saturday)
Daily Timer Recording
In step 3 of 4-Key Programming,
select the desired days by pressing
the DATE button :.
For example, C
CH DATE ON
OFF
2 SU-SA – – : – – – – : – – SP
Depending on the remaining tape length, recording may be
performed in the LP (EP) mode from the start. However, if the
remaining tape time is still not sufficient in this case, the
programme cannot be recorded to the end.
– The tape length must be set correctly. (See page 13.)
– Some tapes may not work correctly.
– If the recording speed changes from SP to LP during a
timer recording, some brief picture distortion occurs at that
point.
To Activate the Tape Speed Auto Change Function:
Press the SPEED button B to select [A].
CATEGORY
A Daily recording from Monday to Friday (MO–FR)
B Daily recording from Monday to Saturday (MO– SA)
C Daily recording from Sunday to Saturday (SU– SA)
Timer Recording from an External Signal
Source
If timer recording is performed by a unit connected to the
Audio/Video input sockets, select the A1 or A2 indicator in
step 2 of 4-Key Programming for the programme position.
CH DATE ON
OFF
2 27SA 2 0 : 0 2 2 1 : 3 0 A
CATEGORY
– Every time you press the SPEED button B, the indication
changes in the following order:
PAL system:
NTSC system:
CH DATE ON
OFF
A2 – – – – – – : – – – – : – – SP
CATEGORY
– If the [DIRECT REC] is set to [ON], A1 is skipped.
Setting other Programmes in Succession
Repeat steps 1–9 of 4-Key Programming.
20
SP
LP
EP
A
SP
EP
A
Checking a Timer Programme
– The VCR must be turned on, or in timer recording standby
mode.
– Confirm that the TV is on and the VCR viewing channel is
selected.
On Screen Display
1 Press the PROG./CHECK button <
twice.
– Every time you press the PROG./
CHECK button <, the programme
shifts below.
2 Press the Cursor buttons (1) S to
display the Category. (When [JET
NAVIGATOR] is set to [ON].) Press
the Cursor buttons (1) S again to
make the previous display appear
CH
2
1
2 25
3 14
4
5
5 A2
6
4
7 ––
8 ––
DATE
27WE
SU-SA
SU
19TU
28TH
30SA
––––
––––
ON
OFF
2 0 :0 2 2 1 :3 0 SP
1 0 :3 0 1 1 :0 0 A
1 5 :0 0 1 6 :0 0 SP
2 2 :1 5 2 3 :3 0 EP
2 0 :0 2 2 1 :3 0 SP
1 9 :1 0 1 9 :5 5 EP
– –:– – – –:– –
– –:– – – –:– –
END:MENU
CH
2
1
2 25
3 14
4
5
5 A2
6
4
7 ––
8 ––
DATE
27WE
SU-SA
SU
19TU
28TH
30SA
––––
––––
ON
OFF
2 0 :0 2 2 1 :3 0
1 0 :3 0 1 1 :0 0
1 5 :0 0 1 6 :0 0
2 2 :1 5 2 3 :3 0
2 0 :0 2 2 1 :3 0
1 9 :1 0 1 9 :5 5
– –:– – – –:– –
– –:– – – –:– –
END:MENU
3 Press the MENU button U to exit
the On Screen Display.
Cancelling a Timer Programme
– The VCR must be turned on, or in timer recording standby
mode.
– Confirm that the TV is on and the VCR viewing channel is
selected.
1 Press the PROG./CHECK button <
twice.
2 Press the PROG./CHECK button <
repeatedly until the desired timer
programme is highlighted.
CH
2
1
2 25
3 14
4
5
5 A2
6
4
7 ––
8 ––
DATE
27WE
SU-SA
SU
19TU
28TH
30SA
––––
––––
ON
OFF
2 0 :0 2 2 1 :3 0 SP
1 0 :3 0 1 1 :0 0 A
1 5 :0 0 1 6 :0 0 SP
2 2 :1 5 2 3 :3 0 EP
2 0 :0 2 2 1 :3 0 SP
1 9 :1 0 1 9 :5 5 EP
– –:– – – –:– –
– –:– – – –:– –
END:MENU
CH
2
1
2 25
3 14
4
5
5 A2
6
4
7 ––
8 ––
DATE
27WE
SU-SA
SU
19TU
28TH
30SA
––––
––––
ON
OFF
2 0 :0 2 2 1 :3 0 SP
1 0 :3 0 1 1 :0 0 A
1 5 :0 0 1 6 :0 0 SP
2 2 :1 5 2 3 :3 0 EP
2 0 :0 2 2 1 :3 0 SP
1 9 :1 0 1 9 :5 5 EP
– –:– – – –:– –
– –:– – – –:– –
END:MENU
CH DATE
2 27WE
1
2 25 S U - S A
3 14 S U
4 –– ––––
5 A2 2 8 T H
6
4 30SA
7 –– ––––
8 –– ––––
ON
OFF
2 0 :0 2 2 1 :3 0 SP
1 0 :3 0 1 1 :0 0 A
1 5 :0 0 1 6 :0 0 SP
– –:– – – –:– – EP
2 0 :0 2 2 1 :3 0 SP
1 9 :1 0 1 9 :5 5 EP
– –:– – – –:– –
– –:– – – –:– –
END:MENU
3 Press the CANCEL button ;.
4 Press the MENU button U to exit
the On Screen Display.
Note:
– If timer recording is not completed (due to insufficient tape
or cancellation by the user), the programmed timer
recording data will be cancelled from the memory by
4 A.M two days later.
However, if the timer recording function is activated at that
time, the programmed timer recording data will not be
cancelled.
21
G-Code Programming
Programming is now easier than ever; simply enter the
G-Code number found in the programme scheduling pages
of newspapers and magazines.
G-Code numbers are numbers assigned to programmes
listed in the TV programme schedule found in newspapers
and TV guides. When these numbers are entered, the
numbers are converted to actual programming.
G-CODE is a registered trademark of Gemstar
Development Corporation. The G-CODE system is
manufactured under licence from Gemstar Development
Corporation.
Preparations
– Confirm that the VCR is on.
– Confirm that the TV is on and the VCR viewing channel is
selected.
– Insert a video cassette with an intact erasure prevention
tab.
– Set the VCR/TV switch E to [VCR].
– Check that the clock is set to the correct time. If it has not
been set, refer to page 10.
Example:
Programming a timer recording of a TV programme with the
G-Code number 123456
On Screen Display
Operations
G-CODE
1
Press the G-CODE/SV button H to
display the menu for entering the
G-Code number on the TV.
---------
END:G-CODE
G-CODE
2
Press the Numeric buttons 2 to
123456--enter the G-Code number.
– It is also possible to check the
PROGRAMME SET :OK
number with VCR display without
END:G-CODE
appearing the On Screen Display.
– If you have entered the wrong number, press the
CANCEL button ; then enter the proper number. An
alternative method is to press the Cursor button (2) S
and then enter the proper number.
3
Press the OK button T.
– The entered programme appears
on the display.
– The starting time and the ending
time appears alternately each
5 seconds on the VCR display.
SP ON
CATEGORY SETTING
≥MOVIE
≥MUSIC
≥DRAMA
≥EDUCA
≥DOCUM
≥SPORT
≥CHILD
≥NEWS
≥OTHER
≥– – – – –
CATEGORY SETTING
≥MOVIE
≥MUSIC
≥DRAMA
≥EDUCA
≥DOCUM
END : MENU
≥SPORT
≥CHILD
≥NEWS
≥OTHER
≥– – – – –
END : MENU
– Alternatively, you can set the category on the Navigator
list. (See page 23 for details.)
– This function is activated when [JET NAVIGATOR] is set
to [ON]. (See page 13.) When [JET NAVIGATOR] is set
to [OFF], procced to the step 6.
5 Press the MENU button U to
make the previous display appear.
CH DATE ON
OFF
2 27SA 1 3 : 4 5 1 4 : 1 5 SP
CHECK
: PROG./CHECK
6 Press the TIMER (REC) button A to switch the VCR
over to the timer recording standby mode.
– When [JET NAVIGATOR] is set to [ON], the
[PROGRAMME IS COMPLETE. REMAINING
PROGRAMME 49] message appers. (See page 13.)
– When [JET NAVIGATOR] is set to [OFF], the
[PROGRAMME IS COMPLETE.] message appears.
(See page 13.)
– Check that [Á] is lit on the VCR display.
If it is flashing, check the timer recording details again.
(See page 21.)
Notes:
– When the G-Code number is used for programming, the
recording time may be slightly longer than the actual
programme time.
– Repeat steps 2 and 3 if [PROGRAMME IS INCOMPLETE.]
appears.
– When programming two or more programmes, repeat
steps 1 –6.
– The procedures for checking and cancelling a timer
programme are the same as on page 21.
To Suspend the Timer Recording Standby
Mode
CH DATE ON
OFF
2 27SA 1 3 : 4 5 1 4 : 1 5 SP
GUIDE CH SET : OK
SP
OFF
– Confirm that the number
corresponds to the right
programme. If the display looks
CH DATE ON
OFF
– – 27SA 1 3 : 4 5 1 4 : 1 5 SP
like this and Á on the VCR
display flashes on and off: select
CATEGORY
the desired programme position
using the Channel button 9, then
press the OK button T.
– To make any corrections, use the DATE button :, the
ON button D, the OFF button C and the SPEED button
B the same way as described on page 19.
22
4 Press the Cursor buttons (1) S to select the
Category. Then, select the desired category by
pressing the Cursor buttons (3421) S.
See page 20.
To Set the Category
Search Functions
The category setting allows you to find what kind of
programmes are recorded by the character and the icon
indications.
Jet Navigator
This VCR can display a list of the recorded programs on the
inserted video cassette on the TV screen. You can then
select the desired programme, and the VCR will quickly
locate its beginning and start playback.
Conditions for correct operation of the Jet Navigator function:
– The tape length of the inserted cassette must be set
correctly.
– The VCR must not be in the timer recording standby mode.
– A programme of at least 15 minutes must be recorded on
the tape.
Preparations
– Display the VCR picture on the TV.
– Be sure to set [JET NAVIGATOR] to [ON] (See page 13.)
and preform recording.
Operations
On Screen Display
1 Press the NAVI button 4 to display
JET NAVIGATOR
the Jet Navigator list.
CH DATE ON
CATEGORY
1 1 0 / 1 8 1 0 :3 0 MUS IC
– Up to 14 programme data that
24 1 0 / 1 9 1 5 :0 0 S P O RT
5 1 0 / 2 1 2 2 :1 5
A2 1 0 / 2 3 2 0 :0 2
have been recorded last are
4 1 0 / 2 6 1 9 :1 0 E DUCA
2 1 0 / 2 7 2 0 :0 2
displayed on the Jet Navigator
1 2 1 0 / 2 7 2 0 :3 0
END : MENU
list.
(7 programme data for each
page)
– When more than 15 programs have been recorded for one
cassette, the programme data are deleted from the first
one.
– When pressing NAVI button 4 during playback, playback
stops and the Jet Navigator list appears.
2 Press the NAVI button 4 several times to select the
programme that you want to locate and play back.
After more than 3 seconds, the VCR starts the search for
the beginning of the selected programme and playback
starts automatically.
JET NAVIGATOR
– Every time you press the NAVI
CH DATE ON
CATEGORY
1 1 0 / 1 8 1 0 :3 0 MUS IC
24 1 0 / 1 9 1 5 :0 0 S P O RT
button 4, the programme shifts
5 1 0 / 2 1 2 2 :1 5
A2 1 0 / 2 3 2 0 :0 2
above.
4 1 0 / 2 6 1 9 :1 0 E DUCA
2 1 0 / 2 7 2 0 :0 2
– If, after playback has started, you
1 2 1 0 / 2 7 2 0 :3 0
END : MENU
want to search for the beginning
of the same or another
programme, press the NAVI
button 4 .
JET NAVIGATOR
Playback stops and the Jet
CH DATE ON
CATEGORY
1 1 0 / 1 8 1 0 :3 0 MUS IC
Navigator list appears.
24 1 0 / 1 9 1 5 :0 0 S P O RT
5
A2
4
2
12
To cancel the Jet Navigator list:
Press the MENU button U.
10/21
10/23
10/26
10/27
10/27
2 2 :1 5
2 0 :0 2
1 9 :1 0 E DUCA
2 0 :0 2
2 0 :3 0
END : MENU
Press the Cursor button (1) S while
the Jet Navigator list appears.
CATEGORY SETTING
≥MOVIE
≥MUSIC
≥DRAMA
≥EDUCA
≥DOCUM
≥SPORT
≥CHILD
≥NEWS
≥OTHER
≥– – – – –
END : MENU
Category
Indication
MOVIE
MOVIE
MUSIC
MUSIC
DRAMA
DRAMA
EDUCATION
EDUCA
DOCUMENTARY
DOCUM
SPORTS
SPORT
CHILDREN
CHILD
NEWS
NEWS
OTHERS
OTHER
Icon
To Delete the Jet Navigator Data of a Single Video
Cassette Tape:
Keep the CANCEL button ; pressed for more than
5 seconds while the Jet Navigator list appears.
[– –] appears on the list.
– See page 13 on the way to delete all the Jet Navigator
data stored in the VCR’s memory.
Notes:
– The Jet Navigator list is stored in each cassette.
– Signals approximately 10 seconds before and after the
current tape position are checked. (During this checking,
[CHECKING JET NAVIGATOR DATA.] is displayed on the
TV screen.)
– Checking cannot be performed properly when signals are
attempted to be checked at portions of the tape where
there are no signals such as at unrecorded portions of the
tape. In this case, press the NAVI button 4 at a portion of
the tape where a programme has been recorded of this
VCR. This will allow signal checking to be performed more
reliably. When a signal can still not be found, [CAN NOT
FIND JET NAVIGATOR DATA.] is displayed on the TV and
you cannot find the beginning of the programme.
– Up to 20 cassettes and 50 programmes can be registered.
– If 50 recorded programmes data is already stored in
memory and you attempt to store timer recording data for
another programme, the message [REMAINING
PROGRAMME 0. DELETE JET NAVIGATOR DATA.]
appears. If you attempt to make a new recording, this same
message also appears after you insert the cassette and the
Jet Navigator data is checked. As each timer recording or
manual recording is finished, the programme data is
deleted, starting from the oldest data.
– When a new programme is attempted to be recorded if
programmes equivalent to 20 cassettes are already stored
in memory, [REMAINING CASSETTE 0. FOR JET
NAVIGATOR.] is displayed. Programmes recorded without
deleting data as instructed are not registered in the list.
23
When Recording Over the Same Location on a Tape:
– The originally recorded programme is deleted from the list.
– Programme contents starting near the start and end of the
newly recorded programme (within 10 minutes before the
start and after the end of the newly recorded programme in
the EP mode) are also erased.
(Although old programme contents are also similarly
erased in the case of ordinary recording, the newly
recorded programme is not registered in the list.)
Eraced
Programme 1
Programme 2
Programme 3
New programme
Within 10 minutes in the EP mode
Eraced
Programme 1
Programme 2
Programme 3
New programme
Within 10 minutes in the EP mode
Eraced
Programme 1
Programme 2
Programme 3
New programme
10 minutes or more in the EP mode
To Demonstrate the Jet Navigator Function
Keep the NAVI button 4 pressed for more than 5 seconds
without inserting a cassette tape.
To Check the Recorded Programming Data
(Time Stamp Function)
When playback starts after searching
with Jet Navigator function or index
search function, recorded
programming data (called Time
Stamp) appears on the TV screen for
approx. 5 seconds.
On Screen Display
CH 2
10/27. SA
ON 20:02
Preparation
– Display the VCR picture on the TV.
Note:
– Time Stamp does not appear if the beginning of the Jet
Navigator data are not recorded 10 minutes before and
after the current tape position in the EP mode even when
index signals are recorded.
24
To Find the Beginning of Each Recording
(VHS Index Search System)
Searching while Checking the Video
Cassette Contents (Intro-Jet Scan)
This VCR automatically records special index signals on the
tape every time a recording is started. The Index search
function makes use of these index signals to let you find the
beginning of a desired programme quickly and easily.
This VCR automatically records special index signals on the
tape every time a recording starts. The Intro-Jet Scan
function makes use of these index signals to play back the
beginning of each programme recorded on the cassette one
after another at high speed. This lets you quickly and easily
check the contents of a cassette and find a desired
programme.
Index signals are automatically recorded in the following
cases:
– When you start a recording by pressing the REC button I,
REC/OTR button ^, or DIRECT REC button Q.
– When a timer recording starts.
– When you press the REC button I on the remote control
during recording.
Conditions for correct operation of the Index search function:
– The VCR must be in the stop mode or in the playback
mode.
– Each programme recorded on the tape must be at least
5 minutes long.
Preparations
– Display the VCR picture on the TV.
– Insert a recorded video cassette.
Operation
1 Press the INDEX button L (that corresponds to the
direction from the current tape position in which the
desired programme is located on the tape) to start the
index search.
VCR display
For example, if you want to
search for the 2nd recorded
programme in forward direction,
press the INDEX L button L
twice.
– The VCR fast-forwards or rewinds the tape and
searches for the specified index signal (the beginning
of the desired recorded programme).
When it has been found, playback starts automatically.
To Cancel the Index Search or to Stop Playback:
Press the Stop button F.
Notes:
– Searching in either direction is possible up to the 20th
index signal.
– If you press either of the INDEX button L too many times,
simply press the other INDEX button L (indicating the
opposite direction) to correct it. In this way, you can reduce
the displayed figure down to 1.
– The figure on the VCR display decreases by 1 every time
an index signal is located.
Index signals are automatically recorded in the following
cases:
– When you start a recording by pressing the REC button I,
REC/OTR button ^, or DIRECT REC button Q.
– When a timer recording starts.
– When you press the REC button I on the remote control
during recording.
Conditions for correct operation of the Intro-Jet Scan
function:
– VCR must be switched on, be in the playback mode or be
in the standby mode.
– Each programme recorded on the tape must be at least
15 minutes long.
Preparations
– Display the VCR picture on the TV.
– Insert a recorded video cassette.
Operations
1 Press the SEARCH button 6 to start the Intro-Jet Scan.
– After rewinding the tape to the beginning, the VCR
plays it back at high speed for approximately
10 seconds. It then fast-forwards the tape to the next
tape position marked by an index signal (beginning of
a programme), and every time an index signal is found,
the VCR switches over to high-speed playback (Cue)
for about 10 seconds.
On Screen Display
INTRO-JET SCAN
2 When you have found the programme that you want to
view, press the Play button 7 to start normal playback.
To Cancel the Intro-Jet Scan or to Stop Playback:
Press the Stop button F.
25
Before Requesting Service
Message of On Screen Display
The error message is indicated in brackets [
].
[PLEASE PUT IN A VIDEO CASSETTE.]
– REC/OTR button ^ (REC button I), TIMER (REC) button
A or DIRECT REC button Q has been pressed without a
video cassette inserted.
Insert a video cassette.
[PLEASE STOP THE TAPE.]
– [TUNER PRESET] has been selected during playback.
Stop the tape.
[PLEASE SET THE CLOCK.]
– TIMER (REC) button A, G-CODE/SV button H or
PROG./CHECK button < has been pressed when the
clock is not set.
Set the clock.
[PLEASE USE A CASSETTE WITH TAB.]
– REC/OTR button ^ (REC button I), TIMER (REC) button
A or DIRECT REC button Q has been pressed without a
video cassette with an intact erasure prevention tab.
Use a video cassette with an intact erasure prevention tab.
[NO TIMER RECORDING HAS BEEN SET.]
– TIMER (REC) button A has been pressed with no timer
programmes.
Set timer recording.
[TIMER PROGRAMMES ARE FULL.]
– G-CODE/SV button H has been pressed when
16 programmes have been already set.
Cancel unnecessary programmes.
[VCR IS IN THE TIMER STANDBY MODE.]
– POWER button 1 has been pressed during the timer
standby mode.
Press the TIMER (REC) button A to release the VCR from
the timer standby mode.
26
The VCR will not operate correctly
The symptom description is indicated in brackets [
].
[The VCR display is not illuminated.]
– The mains lead has not been connected.
Connect the mains lead to the mains supply.
[The VCR display is illuminated but the VCR will not
operate.]
– The VCR is in the timer mode.
Press the TIMER (REC) button A to operate the VCR
manually.
– Safety devices are operating.
Disconnect the mains lead and wait for 1 minute.
Reconnect the mains supply and check functions.
– Dew may have formed.
Do not operate the VCR for 1 hour.
Playback will not operate correctly
The symptom description is indicated in brackets [
].
[The picture is noisy or is not in color.
Horizontal bars or lines run down the screen.]
– Tracking is not correct.
Adjust the tracking. See page 27.
– The TV has not been tuned to the VCR.
Tune the TV to the VCR. See page 6.
– The video heads are clogged or worn.
Consult Panasonic Customer Care Centre for advice on
132600. (NV-FJ620A only)
– The playback picture is distorted when using an E300 type
video cassette that was recorded in the LP or EP mode.
We recommend that you use video cassettes other than
type E300.
Recording will not operate correctly
The symptom description is indicated in brackets [
].
[The 1 indication flashes whenever recording is attempted.]
– The erasure prevention tab on the video cassette has been
broken off.
Use a tape with an intact erasure prevention tab, or cover
the tab hole with adhesive tape, if the original recording is
no longer required.
[The picture is recorded with noise or a blank screen.]
– The aerial or aerial cable is defective.
Check the aerial connection to the VCR. See pages 5.
Check your normal TV picture. If there is no picture, check
your aerial.
– The VCR is not correctly tuned.
Retune the VCR. See pages 7–9.
– A1 or A2 has been selected.
Select the required TV programme.
[Timer recording cannot be performed.]
– The clock or calendar has been incorrectly set.
Check the clock and calendar. Set them to the present
time. (Note that this is a 24-hour clock.)
See page 10.
– The recording starting or ending time setting is incorrect.
Set the recording starting and ending time correctly.
– The VCR has not been set for timer recording.
Press the TIMER (REC) button A after programming for
timer recording.
[AV external recordings cannot be made.]
– A1 or A2 has not been selected.
Select A1 or A2 by pressing the INPUT SELECT button K.
– External AV connections are incorrect.
Check that the connections for external video and audio
sources are correct. See page 18.
– A1 has not been selected.
[DIRECT REC] is set to [ON].
Set [DIRECT REC] to [OFF].
See page 13.
The remote control will not operate correctly
The symptom description is indicated in brackets [
Adjusting the Playback Picture
Under normal conditions, the VCR automatically adjusts the
playback picture for optimum quality. However, in some
cases it may be necessary to adjust it manually.
If the Picture Contains Noise Bars and It Is Not Clear to
See (Tracking adjustment):
If noise bars appear during normal playback, slow playback
or still playback, follow the operations below.
During normal or slow playback,
press the Channel button N I (j) or
J (i) until the bars noise disappear.
– If the noise bars appear during still
playback, switch the VCR over to the
slow playback mode and then adjust
the tracking as explained above.
TV screen
Playback picture
containing noise bars
To Return to Auto Tracking:
Press the Channel button N I (j) and J (i)
simultaneously.
If the Still Picture Scrolls Up or Down
(V-Lock Adjustment):
If the still picture scrolls up or down, perform the following
operation.
During still playback, keep the Channel button N I (j) or
J (i) pressed until the picture stops scrolling.
Precautions:
– With certain TV models and tapes, it may not be possible to
adjust the tracking.
– If you play back a cassette that was recorded on another
VCR, the picture quality may be inferior and it may be
necessary to adjust the tracking. Also, on some TVs, the
picture may scroll up and down in the special playback
functions.
However, these are not malfunctions.
Dirt on the video heads
].
[The remote control does not operate correctly.]
– The remote control transmitter beam is not reaching the
VCR.
Ensure that the remote control is being pointed at the VCR
and that the transmitter beam is not obstructed.
– The distance is too far.
Use the remote control within 7 m of the VCR.
– The batteries are exhausted.
Replace the batteries. Note the precautions for
replacement on page 2.
– The batteries are incorrectly fitted with (+/-) reversed.
Fit the batteries correctly as shown on page 2.
If the video heads get dirty, pictures will not be recorded or
played back clearly.
(See the following conditions.)
Normal picture
Small amount
of dirt
Large amount
of dirt
If this happens, insert and eject a cassette 5–10 times
successively to remove the dirt from the video heads.
If the problem still persists after performing above, contact a
service personnel to request assistance.
Head cleaning by service agents is not covered by
warranty.
27
Specifications
NV-FJ620A/EA
Power Source:
Power Consumption:
Video Recording System:
Video Heads:
Audio Heads:
Tape Speed:
Tape Format:
Record/Playback Time:
FF/REW Time:
VIDEO
Television System:
Modulation System:
Input Level:
Output Level:
AUDIO
Input Level:
Output Level:
Audio Track:
Video Horizontal Resolution:
Signal-to-Noise Ratio:
Dynamic Range:
Audio Frequency Response:
Wow and Flutter:
Operating Temperature:
Operating Humidity:
Weight:
Dimensions:
Standard Accessories:
220–240 V AC 50/60 Hz
17 W
2 rotary heads, helical scanning system
4 heads
2 heads (Hi-Fi)
PAL SP; 23.39 mm/s
LP; 11.7 mm/s
NTSC SP; 33.3 mm/s
EP; 11.1 mm/s
VHS tape
PAL SP; 240 min with NV-E240
PAL LP; 480 min with NV-E240
PAL EP; 720 min with NV-E240
approx. 60 s with NV-E180
EP; 7.8mm/s
CCIR; 625 lines, 50 fields, PAL colour signal
EIA; 525 lines, 60 fields, NTSC colour signal
Luminance; FM azimuth recording
Colour signal; converted subcarrier phase shift recording
VIDEO IN (PHONO);
1.0 Vp-p,
VIDEO OUT (PHONO);
1.0 Vp-p,
RF Modulated;
UHF channel
AU28–69 (NV-FJ620A),
NZ21–69 (NV-FJ620EA),
75 ohm, terminated
75 ohm, terminated
75 ohm
75 ohm
AUDIO IN (PHONO);
s6 dBV,
more than 47 kohm
AUDIO OUT (PHONO);
s6 dBV,
less than 1 kohm
1 track (Normal-mono only), 2 channels (Hi-Fi sound-stereo)
Colour; more than 240 lines (SP)
Video; more than 43 dB (SP)
Audio; more than 90 dB (Hi-Fi audio track)
20 Hz–20 kHz/Hi-Fi
0.005% Wrms/Hi-Fi
5oC– 40oC
35%–80%
3.3 kg
430 (W)a87 (H)a282 (D) mm
1 pc. RF Coaxial cable
1 pc. Remote Control
2 pcs. R6 size batteries
1 pc. Audio/Video cable
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
