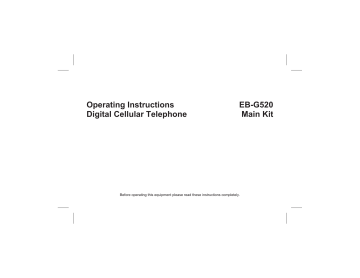

Operating Instructions
Digital Cellular Telephone
EB-G520
Main Kit
Before operating this equipment please read these instructions completely.
Contents
Before You Start . . . . . . . . . . . . . . . . 1 Additional Features. . . . . . . . . . . . . . 20
Symbols Used, Safety Information,
Fitting/Removing the SIM, Fitting/Removing the Battery
Key Guard, Phonebook, Messages, Call Service,
Call Divert, Security, Network, Personalise
Your Telephone . . . . . . . . . . . . . . . . 4 Battery Information. . . . . . . . . . . . . . 26
Location of Controls, Display
Low Battery, Charging the Battery
Basic Operation . . . . . . . . . . . . . . . . 6 Care and Maintenance . . . . . . . . . . . . 27
Power on/off, Making a Call, Ending a Call,
Other Information . . . . . . . . . . . . . . 28
Answering a Call, Adjusting Volume, Vibration Alert,
Automatic Redial
Glossary of Terms, Trouble Shooting,
Important Error Messages
Advanced Operation . . . . . . . . . . . . . 10 Specifications . . . . . . . . . . . . . . . . . 34
Concept of Operation, DTMF Tones,
Notes . . . . . . . . . . . . . . . . . . . . . 35
Call Hold/Call Waiting
Stored Numbers . . . . . . . . . . . . . . . . 13
Note Pad, Recent Numbers, Phonebook,
Fixed Dial, Service Numbers,
Hot Key Telephone Numbers
Alpha Entry . . . . . . . . . . . . . . . . . . 19
Editing Alpha Entry
1
Before You Start
Thank you for purchasing this Panasonic G520 digital cellular telephone. This telephone is designed to operate on
the Global System for Mobile Communications (GSM).
These operating instructions detail use of the equipment contained in the Main Kit.
Some services are network dependent or may only be available on a subscription basis. Some functions are SIM
dependent. For more information contact your Service Provider.
Symbols Used
F Shows that you should press the following key(s).
,Text- Shows that the display text will be flashing.
Shows that the information is a Quick Tip.
Safety Information
This equipment is intended for use when supplied with power from the built-in charger or Dual Charger
(EB-CR520) through the AC Adaptor (EB-CA600). Other usage will invalidate any approval given to this
apparatus and may be dangerous.The use of approved accessories is recommended to ensure optimum
performance and avoid damage to your telephone.
Switch off your cellular telephone when in an aircraft. The use of cellular telephones in an aircraft may be
dangerous to the operation of the aircraft, disrupt the cellular network and may be illegal. Failure to observe
this instruction may lead to the suspension or denial of cellular telephone services to the offender, or legal
action or both.
You are advised not to use the equipment at a refuelling point. You are reminded of the need to observe
restrictions on the use of radio equipment in fuel depots, chemical plants or where blasting operations are in
progress. Never expose the battery pack to extreme temperatures (in excess of 60°C) or charge the battery
pack for much longer than recommended.
You MUST exercise proper control of your vehicle at all times. Do not use a hand held telephone or
microphone while you are driving. Find a safe place to stop first. Do not speak into a hands free microphone
if it will take your mind off the road. Acquaint yourself thoroughly with restrictions concerning the use of
cellular telephones within the country you are driving and observe them at all times.
Care must be taken when using the telephone in close proximity to personal medical devices, such as
pacemakers and hearing aids.
Fitting/Removing the SIM
The SIM is fitted into a holder at the back of the telephone underneath the battery.
Fitting the SIM
1
5
3
2
4
Removing the SIM
To remove the SIM follow the above steps in reverse.
2
3
Fitting/Removing the Battery
Fit a fully charged battery pack. If the battery pack is not fully charged then it must be charged as shown in
“Charging the Battery” – see page 26.
Fitting the Battery
Removing the Battery
1
2
3
Your Telephone
Location of Controls
g Navigation key – pressing up/down scrolls through
options in the main area of the display or adjusts the
volume. Pressing left/right scrolls through options in the
option area of the display (see Display below)
Antenna
Speaker
Incoming/charging
indicator
B Select key – selects an option in the option area of
the display (see Display below)
A – accesses Phonebook or switches character types
D – makes a call or recalls recently dialled telephone
numbers
Display
C – clears the last digit entered, clears all digits when
pressed and held or returns to the previous display
E – ends a call or switches the telephone on/off when
pressed and held
Digit keys 0 to 9, * and # the # key will switch on and off
vibration alert
Microphone
External
connector
4
5
Y lights when you are registered to a non-home network
- roaming
Display
t lights when call divert is enabled
] lights when vibration alert is enabled
[ lights when all tones or ring volume is off
N flashes when an unread message is stored or lights
when message area is full
O lights when phone lock is enabled
S indicates that it is possible to make emergency calls
57
Location area - indicates
menu number, location
number, or alpha mode
Pana
T Indicates received signal strength - \weak
signal, T strong signal
H indicates the battery level - H full, L low
battery
Option area - shows options
that can be selected by B key
Following some operations the display will automatically
clear after three seconds or after pressing any key.
p indicates that the Navigation key (g) can be
pressed
Basic Operation
Power on/off
F E and hold to switch power on
A greeting will be displayed.
F E and hold to switch power off
Making a Call
Make sure that the telephone is switched on and the signal strength meter is displayed.
1 F area code and telephone number
00:01
Voice Call
2F D
Hold
Emergency Calls
To make an emergency call the antenna symbol (S) must be present.
F 1 1 2 D or press B when “SOS” is displayed in the option area of the display
6
7
International Dialling
Using the Automatic International Access Code “+” you will be able to dial international numbers
without having to know the code for the international exchange.
1 F 0 and hold until a “+” appears
2 F country code or e to scroll through the abbreviated international
names
Country:
3 F area code and telephone number
UK
4F D
OK
NOTE: Many countries include an initial “0” in the area code. This should, in most cases, be left out when dialling
international numbers. If you have difficulties making international calls, contact your Service Provider.
Ending a Call
F E
Answering a Call
To receive a call the telephone must be switched on and the signal strength meter must be displayed.
F any key except E or g
Incoming
F E to reject the call
If a call is not answered the number of unanswered calls will be displayed.
F any key to clear the display
Accept
Calling Line Identification
This feature allows you to identify incoming calls and accept or reject them. The caller’s
telephone number, and name if stored in Phonebook, will be displayed.
Home
NOTE: Call Line Identification may not always be available.
+01234567
Adjusting Volume
Accept
Earpiece Volume
Four levels of earpiece volume are available.
00:05
During a call:F a to decrease b to increase
Ear
Ring and Key Volume
See “Ring Volume” page 25 and “Key Volume” page 25.
Volume
Vibration Alert
When vibration alert is switched on the telephone will vibrate when a call is received. Switching on
vibration alert will silence the ring volume. However, when the ring volume is adjusted after the
vibration alert is switched on, the telephone will ring and vibrate when a call is received.
During standby:
F # and hold to switch on or off, when switched on, the phone will
vibrate briefly
8
9
Automatic Redial
When a call is unsuccessful the telephone will ask if you want to redial the telephone number again
automatically.
F B when “OK” is displayed in the option area
Auto Redial will countdown the display to the next redial
Auto Redial
00:32
To stop redialling, F B when “Cancel” is displayed in the option area
Cancel
If a call is repeatedly unsuccessful you will not be able to automatically redial the telephone number. In this case
you must redial the telephone number manually.
Advanced Operation
Concept of Operation
There is a close relationship between the select key,
navigation key and the display.
Pressing e scrolls through the main area of the display.
Pressing f scrolls through options at the bottom right of
the display. To choose the option, press B.
DTMF Tones
DTMF tones can be sent during conversation. These are often used to access voice mail, paging and computerised
home banking. For example, you may need to input a number to remotely access voice mail messages.
Send DTMF Tones During a Call
F digits (0 to 9, # and *)
Pause Dial
Using pauses allows you to send DTMF tones automatically.
1 F telephone number
2 F 0 and hold until a “P” appears
+01234P5
3 F DTMF digits after the pause e.g. Enter the number to access voice
mail messages. Repeat step 2 for more pauses.
4F D
When the call is successful DTMF tones will be sent every 3 seconds or when D is pressed
10
Menu
11
Call Hold/Call Waiting
Holding/Resuming a Call
F B when “Hold” is displayed in the option area
F B when “Resume” is displayed in the option area
Making a Second Call
1 F telephone number, or recall from Phonebook – see Retrieving a Telephone Number page 15
2F D
The first call will be placed on hold.
Receiving a Second Call
A second call can be received, if call waiting is switched on – see “Call Service” page 22. It is not possible to have
more than one fax or data call. All voice calls must be ended before you can make or receive a fax or data call.
Accept a Second Call
F B when “Accept” is displayed in the option area
The current call will be placed on hold.
Reject a Second Call
1 F f to display “Reject” in the option area
2F B
End Current Call and Receive Second Call
1 F E with a waiting call
2 F any key except E or g
Operation During Two Calls
Swap Between Calls
F B when “Swap” is displayed in the option area
Held call
End Current Call
Current call
1 F f to display “End” in the option area
00:34
Home
Voice Call
2
2F B
The held call will remain held.
End Both Calls
F E
12
Swap
13
Stored Numbers
Note Pad
During a call you can enter numbers which you may wish to dial when the call has ended.
During a call:F telephone number
When the call has ended press Dto call that number
To store in Phonebook, press A while the number is displayed – see “Phonebook” page 20.
Recent Numbers
Recently dialled telephone numbers will be stored in “Last Dialled”.
If Calling Line Identification is available the caller’s telephone number for an answered call will be stored in
“Answered” and an unanswered call will be stored in “Unanswered”.
When the store is full the next telephone number will overwrite the oldest.
1F D
2 F e to point at “Last Dialled”, “Answered” or “Unanswered”
3F B
4 F e to point at the telephone number (or name) you wish to dial
You can store these telephone numbers into the Phonebook by pressing A.
5F D
You can edit or delete the telephone number before dialling – see “Phonebook/Recall” page 20.
Calling the Last Dialled Number
To redial your last called telephone number F D D
Returning an Unanswered Call
When the display shows that you have received calls but not answered them.
1F B
The last caller’s telephone number will be displayed.
2 F e to point at the telephone number you wish to dial
3F D
Phonebook
Telephone numbers are stored on your SIM. Therefore, the number of locations, length of name and number of
telephone numbers that can be stored are dependant on your SIM.
Storing a Telephone Number
1 F telephone number
2F A
The telephone number entered in step 1 will be displayed.
3 Edit the displayed number if necessary
4 F B to enter the telephone number
5 F name – see “Alpha Entry” page 19
6 F B to enter the name
7 F location number – if you do not want Automatic location
14
15
Automatic Location
The telephone number can be stored automatically at the first available location. This can
be done instead of entering a location number.
Location:
F B when “Any” is displayed in the option area of the display
(1-250)
0-9
Any
Overwrite Protection
If a location is occupied you will be asked if you wish to overwrite the current information.
F B to overwrite the selected location
Overwrite?
F C to choose another location number
Home
(181)
Ok
Retrieving a Telephone Number
1F A
2 F e to browse through the Phonebook
You can browse through the Phonebook in the order that was last used by the Phonebook menu –
see page 20.
The telephone number, or name, pointed can be dialled, recalled, edited or deleted.
View
This is used to review the telephone number and name together or just the name.
F B when “View” is displayed in the option area
Recall
1 F f to display “Recall” in the option area
Direct
2F B
Home
Dialling
When the desired telephone number or name is displayed
F D
Work
20
Recall
Editing
1 F f to display “Edit” in the option area
Direct
2F B
Home
3 F new telephone number
Work
4F B
20
5 F new name
6F B
Deleting
1 F f to display “Delete” in the option area
2 F B twice
16
Edit
17
Speed Dial a Stored Number
1 F location number – leading zeros may be left out
2F#
3F D
Fixed Dial
The Fixed Dial Store is part of Phonebook, but with additional security. When the security feature Fixed Dial is
switched on it is only possible to make calls with telephone numbers that are in the Fixed Dial Store.
When Fixed Dial is switched on any manually dialled telephone numbers must match a telephone number in the
Fixed Dial Store.
To store, edit or delete a telephone number in the Fixed Dial Store “Fixed Dial” must be switched on – see Security
page 23. With Fixed Dial switched on, all telephone numbers can be added, edited or deleted as normal, but you will
be asked for PIN2 – see Security page 23.
“Wild” Numbers
“Wild” numbers are spaces that can be stored in a telephone number. The “wild” numbers must be filled before the
telephone number is dialled. In this way a call can be restricted to a specific area by storing the area code of a
telephone and when recalled the remainder can be added. The “wild” numbers can be anywhere within a stored
telephone number.
F 0 and hold until “_” appears to enter a wild number
When the telephone number is recalled pressing a numeric key will fill in a “wild” number.
+0123_45_
Menu
Service Numbers
Your Service Provider may program some special telephone numbers into the Service Dial area of the Phonebook.
It is not possible to modify the telephone numbers stored in the Service Dial part of the Phonebook.
F A and hold
F g to browse through the Service Dial list of telephone numbers
The telephone number pointed to can only be recalled or dialled.
Hot Key Telephone Numbers
It is possible to dial telephone numbers from the Phonebook or Service Dial part of Phonebook very quickly. Some
Hot Key telephone numbers may be reserved by the Service Provider, for example the first three Hot Key telephone
numbers may be linked to the Service Dial part of the Phonebook. To select a source for the Hot Key telephone
numbers see Personalise – page 25.
F 1 to 9 and hold
F D
18
19
Alpha Entry
Alpha Entry is used to enter alphanumeric characters into Phonebook, Short Messages, Price Per Unit and the
Greeting Message.
Key
Character entry type
Normal
(U)
Greek
(V)
Key
Extended
(W)
1
Space“@,.;:!¡?¿()’&%+-/<>=£$¥¤§
2
ABCabc
ΑΒΓ
3
DEFdef
∆ΕΖ
Character entry type
Normal
(U)
Greek
(V)
Extended
(W)
6
MNOmno
ΝΞΟ
MNÑOÖØmnñoöøò
AÄÅÆBCÇaäåæàbc
7
PQRSpqrs
ΠΡΣ
PQRSpqrsß
DEÉFdeéèf
8
TUVtuv
ΤΥΦ
TUÜVtuüùv
9
WXYZwxyz ΧΨΩ
WXYZwxyz
4
GHIghi
ΗΘΙ
GHIghiì
5
JKLjkl
ΚΛΜ
JKLjkl
Each time a key is pressed it will display the next character. When another key is pressed or no key is pressed for a
short time the cursor will move to the next position.
To access the different character types, normal (U), numerals (X), Greek characters (V) and extended
characters (W) press A.
Editing Alpha Entry
Pressing e will move you up or down one line. Pressing f will move you left or right one character.When the
cursor is moved over a character and another key pressed this will insert the new character. Pressing C will
delete the character to the left of the cursor or delete the current line when pressed and held.
Additional Features
When the word “Menu” is in the option area of the display
pressing the B will display a menu of telephone features.
To select a feature press e so that the pointer is showing
next to the feature that you require then press B.
Phonebook
Phonebook
A quick way of selecting a feature is to press the menu
number shown in the bottom left of the display.
To leave the menu press C repeatedly.
During a call a restricted menu will be available.
Key Guard
Keyguard
Key Guard will prevent any keys from being accidentally
pressed e.g. when the telephone is being carried.
When a call is received Key Guard will be temporarily
disabled allowing you to press any key to answer the call.
When the telephone is mounted in the optional Car
Mount Kit Key Guard will be disabled.
Emergency calls can still be made.
Disabling Key Guard
F B twice when “Free” is displayed in the
option area of the display.
Browse
Create
Review
My Numbers
Service Dial
Most common use of the Phonebook is covered in
Phonebook – see page 14.
When pointing to Browse pressing f will show “Loc’ns
(Locations)” to browse through Phonebook by location
number or “Name” to browse by name in alphabetical
order. When browsing by name pressing a lettered key
will take you to the first entry starting with that letter.
Review shows how many locations are available in the
Phonebook. Occupied locations are shown with “w“.
My Numbers is a convenient part of Phonebook where
your voice, fax and data telephone number(s) can be
stored and viewed.
Service Dial enables you to view or recall the service
dialling number(s) preprogrammed by your Service
Provider.
20
21
reply. With the word “Sender” displayed or a telephone
number in quotation marks (” “), pressing D dials the
telephone number or pressing A stores the telephone
number in the Phonebook.
Messages
Messages
Receive List
Send List
Create
Review
Parameters
Broadcasts
Receive
Message List
Topics
Languages
Auto Delete
Lifetime
Message Centre
Report
Protocol
You can receive, display, edit and/or send short text
messages, of up to 160 characters.
Before you can send a message you must enter the
Message Centre number into the Parameters. Your
Service Provider will supply the Message Centre
number.
When a message has been sent or edited it will be
stored in the Send List.
Create will create a new message and send or store it in
the Send List.
Review allows you to review how much of the message
area is available.
Parameters
The Parameters are necessary for receiving or sending
messages.
Auto Delete will erase messages automatically. When
“Rcvd (Received) Read” is selected, a new message will
overwrite the oldest read message. When “Rcvd
(Received) Any” is selected, a new message will
When new messages are received, the message
indicator (N) flashes and they are automatically stored in overwrite the oldest message even though it may not
have been read.
the message area of your SIM. When all the messages
Lifetime is the duration that your message is stored at the
are read, the N disappears. If the message area is full
Message Centre. Delivery attempts will be repeated until
the N lights and a new message will be rejected. To
receive new messages you will have to erase unwanted the message has been delivered or the Life Time
expires.
messages.
Received messages will be stored in the Receive List.
Flashing “•” will indicate unread messages. Once the
message is selected, you can read, delete, edit and
The Message Centre is where messages are sent before
they are forwarded on to their destination. The Message
Centre number may be pre-programmed into your SIM or
supplied by your Service Provider.
Call Service
Calls Service
When your message has been delivered a confirmation
can be received if Report is set to “Yes”.
The Message Centre may be able to convert the
message to the format specified by Protocol.
Broadcasts
Broadcast Messages can display information about your
current area such as traffic or weather information.
The Message List will display the last received broadcast
messages.
By specifying the required subjects in the Topics List the
telephone will receive related messages. If the required
topic is not displayed, enter its topic code provided by
your Service Provider.
The preferred Language in which broadcast messages
are displayed can be changed.
Reading a Newly Received Message
F B when “Read” is displayed in the option
area of the display.
Last Call
All Calls
Call Waiting
Caller's Id
Withhold Id
Call Charge
Cost Left
Price/Unit
Max Cost
Warning At
Last Call will display the duration and call charge, if
available, of the last call during standby or the current
call during a call. Times are indicated as: hours (0-99),
minutes (0-59), second (0-59) - HH:MM:SS.
All Calls displays the accumulated duration and call
charge, if available, of incoming and outgoing calls. The
lock code is required to reset the timer and PIN2 is
required to reset the timer and call charge.
Call Waiting allows you to receive a second call during
your current call. When updating or checking the status
of call waiting the telephone must be registered with a
network.
Caller’s ID allows you to check the status of Calling Line
Identification. The telephone must be registered with a
network.
22
23
Using Withhold ID it is possible to check if you send
Calling Line Identification information when you make a
call. When checking the Status of Withhold ID the
telephone must be registered with a network.
Call Charge will set the cost of each unit for call charge
information and the required currency in which call
charge is displayed.
Using Max. Cost can restrict use of the telephone to a
specified number of units.
When updating or checking the Status of Call Divert the
telephone must be registered with a network.
Security
Security
Phone Lock
Call Bar
PIN
PIN2
Fixed Dial
Bar Voice
Bar Fax
Bar Data
Cancel All
Status
Password
NOTE:The duration of one unit may vary during the day,
peak and off-peak times. Therefore, the call charge can
be calculated accordingly. However, call charge
There are three types of security code for your
information may not give an accurate reflection of the
telephone:
tariffs charged by your Service Provider.
Lock Code: Controls telephone security - Phone Lock.
Factory-set to “0000”.
Call Divert
PIN: Controls SIM security.
PIN2: Controls security for Fixed Dial Store and Call
Call Divert
Voice Calls
Charge metering.
Fax Calls
Data Calls
Cancel All
Status
When Call Divert is enabled the divert icon (t) is
displayed.
You can divert voice, fax and data calls using different
circumstances and to different telephone numbers.
It is recommended that you memorise your security
codes. If you need to make a note of your security codes,
never write them in a way that they can be recognised by
another person. If you forget them contact your dealer for
the lock code or your Service Provider for PIN and PIN2.
Phone Lock will prohibit normal operation of the
telephone. Only emergency calls can be made and
received calls answered. Once the Phone Lock is
enabled the lock icon (O) is displayed. To restore
normal operation, enter your lock code.
Network
New Network
Network
Call Bar is used to restrict certain outgoing and/or
Search Mode
incoming calls. Call Bar is controlled by a security
Network List
Password that is supplied by your Service Provider. When
updating or checking the Status of Call Bar the telephone
When not in your home country you may use a network
must be registered with a network. Different Call Bar
that you do not directly subscribe to, this is called
restrictions can be used for voice, fax and data calls. Any
ROAMING. National Law may not permit roaming in your
combination of call restrictions can be set.
home country.
When the PIN is enabled you will be asked to enter the
New Network is used to manually select a network that is
PIN every time the telephone is switched on. If asked,
available in your current location.
enter the PIN followed by B. The PIN can be changed
by pressing B when “Change” is displayed in the option When the Search Mode is set to “Automatic” the telephone
will search through the preferred network list and select a
area of the display.
new network automatically. While the Search Mode is set
The PIN2 can be changed by pressing B when
to “Manual” the telephone will display network(s) that are
“Change” is displayed in the option area of the display.
available in your current location to ask you to select
With Fixed Dial switched on you can only make calls with one.
the telephone numbers stored in Fixed Dial area of the
The Preferred Network List is used when the Search Mode
Phonebook – see Fixed Dial page 17. Emergency calls
has been set to “Automatic”. The location numbers in the
can be made at any time. To use this function PIN2 is
Preferred Network List show the search priority.
required.
Selecting “Insert” stores a new network in the currently
displayed location and then moves other networks down,
“Edit” overwrites the old network with a new one, and
“Add” stores a new network at the end of the list.
24
25
ignition is turned off during a call the call will be
maintained. When the call ends the timer will start. If the
Personalise
Personalise
Language
Tones
Keep Alive
Auto Answer
Greeting
Backlight
DTMF Length
Defaults
Hot Key Dial
All Tones
Ring Volume
Ring Type
Key Volume
Warning Tone
Voice Calls
Fax Calls
Data Calls
Messages
The Language that the telephone will use for display
messages can be changed.
In Tones, the telephone key, ring and warning tones
(except low battery warning), can be switched off. When
All Tones are switched off the silent indicator ([) is
displayed.
When the Ring Volume is switched off the silent indicator
([) is displayed. Increasing the volume level above
maximum can set an escalating ring tone.
A different Ring Type can be used for voice, fax, data and
messages.
The Keep Alive timer will delay switching off the
telephone, when the telephone is mounted in the optional
Car Mount Kit and the vehicle ignition is turned off. If the
telephone is removed from the Car Mount Kit during the
specified delay time, the timer will be cancelled and the
telephone will not be turned off.
When Automatic Answer is switched on, and the telephone
is mounted in the optional Car Mount Kit, a call will be
answered without pressing any keys.
A personalised Greeting Message can be programmed for
when the telephone is switched on – see Alpha Entry
page 19.
The brightness of the Backlight can be changed.
DTMF Length can be changed between short and long.
Defaults will return your Personal Settings to their factory
default, except the lock code and language.
The source for the Hot Key telephone numbers can be
set using the Hot Key Dial menu.
Battery Information
Operation of Battery Level Indicator
Low Battery
When the battery power is low a
warning tone will sound and a
LOW BATTERY message will
flash. The power will
automatically shut off shortly
after the warning tone. Fully
charge the battery pack or
replace it with a fully charged one.
LOW
BATTERY
AC Adaptor
During conversation finish your call immediately.
Charging the Battery
The battery pack must be attached to the telephone
before the AC Adaptor.
NOTE: DO NOT force the connector as this may
damage the telephone and/or the AC Adaptor.
When charging is complete remove the AC Adaptor.
To maintain maximum performance of Ni-MH Battery
Packs always use until the Low Battery Warning and
then fully recharge.
26
While charging
Charging complete
Telephone on
K
H
Telephone off
K
Indicator off
27
Care and Maintenance
Pressing any of the keys may produce a loud
tone. Avoid holding the telephone close to the
ear while pressing the keys.
Extreme temperatures may have a temporary
effect on the operation of your telephone. This
is normal and does not indicate a fault.
Do not disassemble the equipment. There are
no user-serviceable parts.
Do not subject the equipment to excessive
vibration or shock.
Avoid contact with liquids. If the equipment
becomes wet immediately remove the power
and contact your dealer.
The equipment may be cleaned with a soft
cloth dampened with a mild detergent and
water. Petroleum based cleaners may damage
the equipment.
Do not leave the equipment in direct sunlight or
a humid, dusty or hot area.
Keep metallic items that may accidentally touch
the terminals away from the equipment.
Always charge the Battery Pack in a well
ventilated area, not in direct sunlight, between
+5°C and +35°C. It is not possible to recharge
the battery pack if it is outside this temperature
range.
Avoid recharging battery packs for longer than
recommended.
Do not incinerate or dispose of the battery
packs as ordinary rubbish. The battery packs
must be disposed of in accordance with local
legislation and may be recycled.
When disposing of any packing materials or old
equipment check with your local authorities for
information on recycling.
Other Information
Glossary of Terms
DTMF Tones
Dual Tone Multi-Frequency tones allow you to communicate with computerised telephone
systems, voice mailboxes etc.
GSM
Global System for Mobile Communications. The name given to the advanced digital
technology that your telephone uses.
Home country
The country where your home network operates.
Home network
The GSM network on which your subscription details are held.
Network
Operator
The organisation responsible for operating a GSM network. Each country will have a different
network operator.
Password
Used for the control of the Call Bar. Supplied by your Service Provider.
PIN
Personal Identification Number used for SIM security. Supplied by your Service Provider. If
the PIN is entered incorrectly 3 times, the PIN will be blocked.
PIN2
Personal Identification Number used for the control of Fixed Dial Store and Call Charge
metering. Supplied by your Service Provider. If the PIN2 is entered incorrectly 3 times, the
PIN2 will be blocked.
28
29
PUK/ PUK2
PIN/PIN2 Unblocking Key. Used to unblock the PIN/PIN2. Supplied by your Service Provider.
If the PUK/PUK2 is entered incorrectly 10 times, the PUK/PUK2 will be blocked.
Registration
The act of locking on to a GSM network. This is usually performed automatically by your
telephone.
Roaming
The ability to use your telephone on networks other than your Home network.
Service
Provider
The organisation responsible for providing access to the GSM network.
SIM
Subscriber Identity Module. A small smart-card which stores unique subscriber and
user-entered information such as Phonebook and Short Messages. Supplied by your Service
Provider.
Trouble Shooting
Should any problem persist contact your dealer.
Problem
Cause
Telephone will not
switch on.
Remedy
Check that the Battery Pack is fully charged and correctly
connected to the telephone.
The network you are using and
Extremely short
battery life for a new the condition of the battery
pack can affect battery life.
battery pack.
Short battery life for
an old battery pack.
The battery pack was worn
out.
The life of the battery pack is
Short battery life for affected by improper charging,
Ni-MH battery pack. this is inherent in all Ni-MH
batteries.
The telephone
cannot be switched
on when charging
Replace with a new one.
To maintain maximum performance always use until the
Low Battery Warning and then fully recharge the battery
pack.
To revive the Battery Pack use the telephone until the Low
Battery Warning and then fully recharge, repeat this
process at least three times. However, if the battery life is
still short, the Battery Pack has eventually worn out.
Replace with a new one.
When the Battery Pack has
been deeply discharged the
Leave the telephone charging the Battery Pack for a few
telephone will take a short time
minutes before attempting to switch it on.
to detect which type of Battery
Pack it is charging
30
31
Problem
Calls cannot be
made.
Cause
Remedy
The telephone is locked.
Unlock the telephone (Menu: Security: Phone Lock)
Outgoing calls are barred.
Disable the outgoing call barring (Menu: Security: Call Bar)
The telephone is not registered Move to a coverage area and operate your telephone after
to a network.
it has registered with a network.
Check your SIM supports Fixed Dial.
Calls cannot be
made from Fixed
Dial Store.
Check if the Fixed Dial is switched on (Menu: Security:
Fixed Dial).
Check the telephone number is stored in the Fixed Dial.
Calls cannot be
received.
The telephone is not switched
on.
Switch the telephone on.
Incoming calls are barred.
Disable the incoming call barring (Menu: Security: Call Bar)
The telephone is not registered Move to a coverage area and operate your telephone after
to a network.
it has registered with a network.
Emergency calls
cannot be made.
You are not in a GSM
coverage area.
Telephone numbers The telephone is locked.
cannot be recalled. Fixed Dial is switched on.
Check that the antenna symbol S is displayed. Move to a
coverage area and operate your telephone when the
antenna symbol is displayed.
Unlock the telephone (Menu: Security: Phone Lock)
Switch off Fixed Dial (Menu: Security: Fixed Dial)
Important Error Messages
Area not
Allowed
Roaming in the selected area is not allowed.
Network not
Allowed
Roaming with the selected network is not allowed.
Security
Failure
The network has detected authentication failure because your SIM is not registered with that
network. Contact your Service Provider.
SIM Blocked
The SIM is blocked because the wrong PUK has been entered ten times. Contact your Service
Provider.
SIM Error
The telephone has detected a problem with the SIM. Switch the telephone off and then back on.
If the message does not disappear contact your Service Provider.
Message
Rejected
Store Full
A message has been received but the message store is full. To receive messages, delete some
of the currently stored messages or set messages to automatically clear (Menu: Messages:
Parameters: Auto Delete)
PIN2
Invalidated
The PIN2 is blocked permanently because the wrong PUK2 has been entered 10 times. Services
controlled by PIN2 cannot be used. Contact your Service Provider.
32
33
Warning
Store Full
Continue?
The message area is full. Your messages cannot be stored until some of the currently stored
messages are deleted.
Auto Redial
List Full
Redial list of unsuccessfully dialled numbers is full. Switch the telephone off and then on again.
Specifications
Telephone
Type
GSM Class 4
Temperature range
Charging
Storage
+5°C to +35°C
-20°C to +60°C
Battery – Attached to telephone
Battery Pack (EB-BS520)
Battery Pack (EB-BL520)
Weight
150g
205g
Dimensions
Height x Width x Depth
140 x 46 x 20.3mm
140 x 46 x 30.5mm
Supply Voltage
4.8V DC, 650mAh Ni-MH
4.8V DC, 1300mAh Ni-MH
Standby time (h)
Talk Time (h)
Up to 80
Up to 3
Up to 160
Up to 6
Charge Time (min)
130
260
NOTE: Charge time will be longer when the telephone is turned on. Battery life is affected by the network you are
using and the condition of the battery pack.
34
35
Notes
The Serial Number can be found on the outside of the telephone under the battery. For your convenience we
recommend that you note the following details as a record of your purchase.
Part Number
Serial Number
Dealer Name
Purchase Date
BULL CP8 PATENT
© Matsushita Communication Industrial UK Limited 1998
Information in this document is subject to change without notice. No part of these instructions may be reproduced or
transmitted in any form or by any means without obtaining express permission from Matsushita Communication
Industrial UK Limited
*7LA797A*
Printed in UK
990119
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
