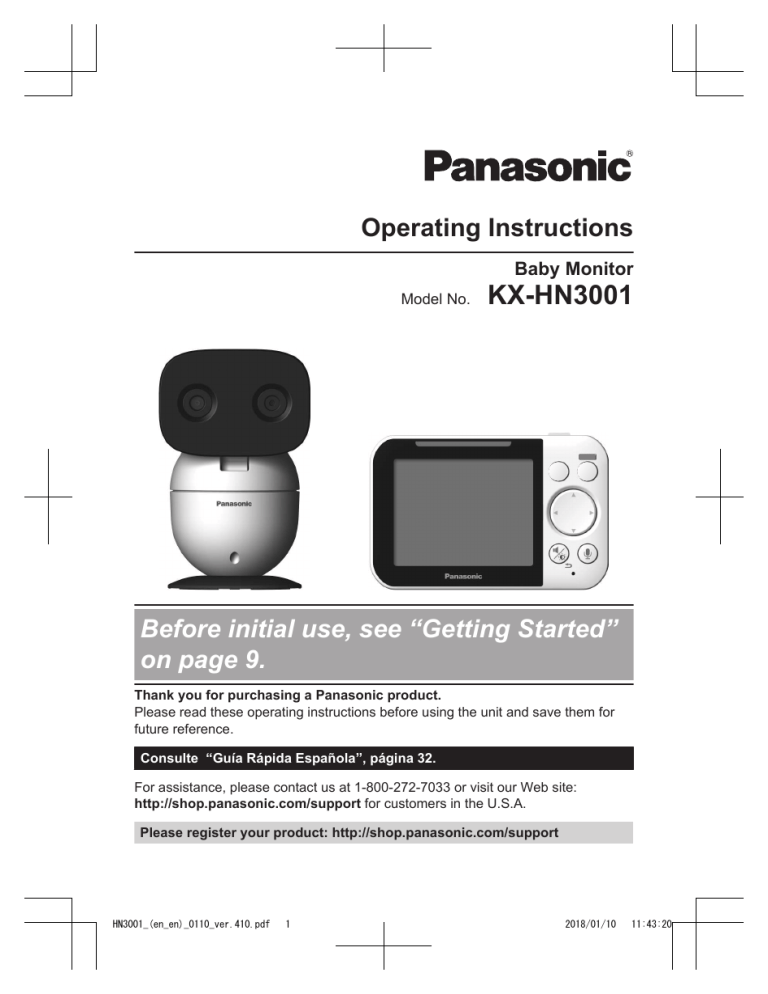

Operating Instructions
Baby Monitor
Model No.
KX-HN3001
Before initial use, see “Getting Started”
on page 9.
Thank you for purchasing a Panasonic product.
Please read these operating instructions before using the unit and save them for
future reference.
Consulte “Guía Rápida Española”, página 32.
For assistance, please contact us at 1-800-272-7033 or visit our Web site:
http://shop.panasonic.com/support for customers in the U.S.A.
Please register your product: http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
1
2018/01/10
11:43:20
Table of Contents
Introduction
Guía Rápida Española
About the baby monitor ................................3
Accessory information ..................................3
Important Information
Graphical symbols for use on equipment and
their descriptions ..........................................5
About this system .........................................5
For your safety .............................................5
Important safety instructions ........................7
For best performance ...................................7
Other information .........................................8
Guía Rápida Española ...............................32
Appendix
FCC and other information .........................36
Customer services .....................................37
Limited Warranty (ONLY FOR U.S.A.) .......38
Getting Started
Part names and functions ............................9
Setting up the camera unit .........................10
Setting up the monitor unit .........................14
Turning the power on/off ............................16
Language setting ........................................16
Smart LED indicator and display icon
colors ..........................................................16
Display icons ..............................................16
Confirming the usage area .........................17
Testing the baby monitor system ...............17
Using the Baby Monitor
Baby monitor ..............................................19
Viewing live camera images .......................19
Listening/talking to the camera unit ............19
Adjusting the speaker volume ....................20
Adjusting the chime/beep volume ..............20
Adjusting the brightness of camera
images ........................................................20
Adjusting the sleep mode ...........................20
Configuring the temperature sensor ...........20
Playing/canceling lullabies manually ..........21
Selecting camera units/using auto scan .....21
Programming
Menu list .....................................................22
Smart features ............................................25
Sensors ......................................................27
Timer ..........................................................28
Managing camera units ..............................28
Useful Information
Troubleshooting .........................................29
Specifications .............................................31
2
HN3001_(en_en)_0110_ver.410.pdf
2
2018/01/10
11:43:20
Introduction
About the baby monitor
The baby monitor system helps you keep an eye on your baby from anywhere in your house. The
system consists of a camera unit and a monitor unit that are connected wirelessly using DECT
technology, which provides secure, stable, and clear sound and picture without interference from
microwave ovens, wireless routers, etc.
The monitor unit features a compact design and a long-lasting rechargeable battery that provides
hours of use on a single charge, and the camera unit features a camera, speaker, and
microphone that let you see, talk, and listen to your baby. The system’s smart features give you
peace of mind to go about your day. For example, you can use auto lullaby (page 26) to play a
lullaby automatically when your baby is crying, and smart notification (page 26) to display
notifications on the monitor unit when your baby wakes or cries.
Model composition
Model No.
KX-HN3001
Monitor unit
Camera unit
Part No.
Part No.
KX-HNM300
KX-HNC300
Quantity
1
Accessory information
Supplied accessories
No.
Accessory item/Part number
A
AC adaptor for the camera unit/PNWYAC300W00
Quantity
1
B
AC adaptor for the monitor unit/PNWYAM300W00
1
C
Wall mounting adaptor for the camera unit/PNWYAC300W01
1
D
Rechargeable battery for the monitor unit/PNWYBM300W00
1
A
B
C
D
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
3
3
2018/01/10
11:43:20
Introduction
Expanding the baby monitor system
Camera unit (optional): KX-HNC301
You can expand your baby monitor system by
registering optional camera units (3 max.) to the
monitor unit.
Other information
R Design and specifications are subject to change without notice.
R The illustrations in these instructions may vary slightly from the actual product.
4
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
4
2018/01/10
11:43:20
Important Information
Graphical symbols for use on equipment and their
descriptions
Symbol
Explanation
Symbol
Explanation
Alternating current (A.C.)
Class P equipment
(equipment in which
protection against electric
shock relies on Double
Insulation or Reinforced
Insulation)
Direct current (D.C.)
“ON” (power)
Protective earth
“OFF” (power)
Protective bonding earth
Stand-by (power)
Functional earth
“ON”/“OFF” (power;
push-push)
For indoor use only
Caution, risk of electric
shock
About this system
For your safety
R This system is an auxiliary system; it is not
designed to provide complete protection from
property loss. Panasonic will not be held
responsible in the event that property loss
occurs while this system is in operation.
R This product should not be used as substitute for
a medical or caregiver’s supervision. It is the
caregiver’s responsibility to stay close enough to
handle any eventuality.
R The system’s wireless features are subject to
interference, therefore functionality in all
situations cannot be guaranteed.
Panasonic will not be held responsible for injury
or damage to property that occurs in the event of
wireless communication error or failure.
R If a power failure occurs or the power is
disconnected, the temperature will not be
accurate for up to an hour.
To prevent severe injury and loss of life/
property, read this section carefully before
using the product to ensure proper and safe
operation of your product.
WARNING
Power connection
R Use only the power source marked on the
product.
R Do not overload power outlets and
extension cords. This can result in the risk
of fire or electric shock.
R Completely insert the AC adaptor/power
plug into the power outlet. Failure to do so
may cause electric shock and/or excessive
heat resulting in a fire.
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
5
5
2018/01/10
11:43:20
Important Information
R Regularly remove any dust, etc. from the
AC adaptor/power plug by pulling it from
the power outlet, then wiping with a dry
cloth. Accumulated dust may cause an
insulation defect from moisture, etc.
resulting in a fire.
R Unplug the product from power outlets if it
emits smoke, an abnormal smell, or makes
an unusual noise. These conditions can
cause fire or electric shock. Confirm that
smoke has stopped emitting and contact us
at http://shop.panasonic.com/support
R Unplug from power outlets and never touch
the inside of the product if its casing has
been broken open. Danger of electric shock
exists.
R Never touch the plug with wet hands.
Danger of electric shock exists.
R Do not connect non-specified devices.
Installation
R To prevent the risk of fire or electrical
shock, do not expose the product to rain or
any type of moisture.
R Do not place or use this product near
automatically controlled devices such as
automatic doors and fire alarms. Radio
waves emitted from this product may cause
such devices to malfunction resulting in an
accident.
R WARNING:
Strangulation Hazard: Children have
STRANGLED in cords.
Keep this cord out of the reach of children
(more than 1 m (3 feet) away).
R Do not allow the AC adaptor to be
excessively pulled, bent or placed under
heavy objects.
6
R Keep small parts, such as screws, out of
the reach of children. There is a risk of
swallowing. In the event they are
swallowed, seek medical advice
immediately.
Operating safeguards
R Unplug the product from power outlets
before cleaning. Do not use liquid or
aerosol cleaners.
R Do not disassemble the product.
R Never put metal objects inside the product.
If metal objects enter the product, turn off
the circuit breaker and contact an
authorized service center.
Medical
R Consult the manufacturer of any personal
medical devices, such as pacemakers or
hearing aids, to determine if they are
adequately shielded from external RF
(radio frequency) energy. DECT features
operate between 1.92 GHz and 1.93 GHz
with a peak transmission power of 115 mW
(max.).
R Do not use the product in health care
facilities if any regulations posted in the
area instruct you not to do so. Hospitals or
health care facilities may be using
equipment that could be sensitive to
external RF energy.
Lithium Ion (Li-Ion) Polymer battery
R Do not open, puncture, crush, or drop the
battery. A damaged battery must not be
used. This can result in the risk of fire,
explosion, overheating, and leaking of the
electrolyte.
R Do not touch the terminals
and
with
metal objects.
R If any electrolyte should come into contact
with your hands or clothes, wash it off
thoroughly with water.
R If any electrolyte should come into contact
with your eyes, never rub your eyes. Rinse
your eyes thoroughly with water, and then
consult a doctor.
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
6
2018/01/10
11:43:20
Important Information
Attention:
CAUTION
Installation and location
R Never install wiring during a lightning storm.
R The AC adaptor is used as the main disconnect
device. Ensure that the AC outlet is installed
near the product and is easily accessible.
R Mount the product on the stable location where
the camera unit can be adequately supported
when installing.
R Do not mount the product on soft material. It
may fall down, break or cause injury.
R Do not mount the product on the following
materials: gypsum board, ALC (autoclaved
lightweight cellular concrete), concrete block,
plywood less than 25 mm (1 inch) thick, etc.
The lithium ion/polymer battery you have purchased
is recyclable.
Please call 1-800-8-BATTERY (1-800-822-8837)
for information on how to recycle this battery.
Preventing accidents and injuries
R Do not put your ear(s) near the speaker, as
loud sounds emitted from the speaker may
cause hearing impairment.
Lithium Ion (Li-Ion) Polymer battery
R Use only the specified battery.
R Insert the battery correctly.
R Do not leave the battery in an automobile
exposed to direct sunlight for a long period of
time with the doors and windows closed.
R Remove the battery if you do not use the product
for a long period of time. Keep it in a cool, dark
area.
R Do not replace a battery with wet hands.
R CAUTION:
Risk of explosion if battery is replaced by an
incorrect type. Dispose of used battery
according to local regulations.
R Stop using the battery immediately and keep
away from fire if it emits an abnormal smell or
leaks electrolyte. Released electrolyte may
cause fire or burns.
R Exercise care when handling the batteries. Do
not allow conductive materials such as rings,
bracelets, or keys to touch the batteries,
otherwise a short circuit may cause the batteries
and/or the conductive material to overheat and
cause burns.
R Do not put any conductive materials such as
coins or hairpins onto the battery terminals. This
can result in the risk of overheating.
R Charge the battery provided with or identified for
use with this product only, in accordance with
the instructions and limitations specified in this
manual.
Important safety
instructions
When using your product, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock, and
injury to persons, including the following:
1. Do not use this product near water for
example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet
basement or near a swimming pool.
2. Use only the power cord and batteries
indicated in this manual. Do not dispose of
batteries in a fire. They may explode.
Check with local codes for possible special
disposal instructions.
SAVE THESE INSTRUCTIONS
For best performance
Product location/avoiding noise
The monitor unit and camera units use radio
waves to communicate with each other.
R For maximum coverage and noise-free
communications, place your monitor unit:
– at a convenient, high, and central
location with no obstructions between
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
7
7
2018/01/10
11:43:21
Important Information
the monitor unit and the camera unit in
an indoor environment.
– away from electronic appliances such as
TVs, radios, personal computers,
wireless devices, or other phones.
– facing away from radio frequency
transmitters, such as external antennas
of mobile phone cell stations. (Avoid
putting the product on a bay window or
near a window.)
R If the reception for a monitor unit location is
not satisfactory, move the monitor unit to
another location for better reception.
Environment
R Keep the product away from electrical noise
generating devices, such as fluorescent
lamps and motors.
R The product should be kept free from
excessive smoke, dust, high temperature,
and vibration.
R Do not expose this product to direct
sunlight or other forms of powerful light
such as halogen lights for long periods of
time. (This may damage the image sensor.)
R Do not place heavy objects on top of the
product.
R When you leave the product unused for a
long period of time, unplug the product from
the power outlet.
R The product should be kept away from heat
sources such as heaters, kitchen stoves,
etc. It should not be placed in rooms where
the temperature is less than 0 °C (32 °F) or
greater than 40 °C (104 °F). Damp
basements should also be avoided.
R Operating the product near electrical
appliances may cause interference. Move
away from the electrical appliances.
Camera image quality
R Camera images may have the following
characteristics.
– Colors in images may differ from the
actual colors.
– Faces or objects may appear dark when
there is light behind the subject (i.e.,
backlighting).
– Image quality may be reduced in dark
locations.
– Images may appear hazy when there
are outdoor lights in use.
When the subject is lit by sunlight or
halogen lights, black areas of the image
may appear purplish. This is not a
malfunction.
Notice for product disposal, transfer,
or return
R Although the monitor unit does not have
recording functions, to protect your privacy/
confidentiality, we recommend that you
reset the registered camera units
(page 28) before you dispose of, transfer,
or return the product.
Notice:
Other information
Routine care
R Wipe the outer surface of the product
with a soft moist cloth.
R Do not use benzine, thinner, or any
abrasive powder.
8
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
8
2018/01/10
11:43:21
Getting Started
Part names and functions
Camera unit
1
3
2
A Light sensor
Allows the camera unit to switch
automatically to night vision mode in
low-light conditions.
B Camera lens
C Microphone
D Camera base
E Speaker
F Antenna
G DC jack
H LED indicator
4
I M
N (Pairing button)
J Temperature sensor
5
8
6
9
K Screw
Used to secure the camera base
(page 13) or wall mounting adaptor to the
camera unit (page 12).
7
j
k
LED indicator
You can use the LED indicator to confirm the camera unit’s status.
Check the color of the LED indicator after connecting the camera unit (page 12).
Indicator
Status
Off
No power
Green, lit
Normal operation
Green, blinking slowly
Registration mode
Green, blinking quickly
Device malfunction
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
9
9
2018/01/10
11:43:21
Getting Started
Monitor unit
A Smart LED indicator
3
4
5
1
B Display
6
2
7
8
9
C M N (Power)
Press to temporarily turn off the
display or press for about 2 seconds
to turn on/off the monitor unit
(page 16).
D MMENUN
E MSMARTN/MOKN
Use MSMARTN to access the
shortcut menu.
j
F Navigator key
MFN, MEN, MDN, or MCN:
– Scroll through various lists and
items
– Adjust the pan/tilt range
G M N (Talk)
k
H Microphone
I M
M
N (Volume/Brightness)
N (Back)
J Antenna
Using the stand
K Speaker
L micro-USB connector
M Battery cover
l
N Stand
n
m
Pan range
Setting up the camera unit
Information about pan/tilt range
The pan/tilt can be used to adjust the area
viewable from the camera unit by using MFN,
MEN, MDN, or MCN on the monitor unit.
If the area that you wish to view is not visible
even after adjusting the pan/tilt, change the
location or position of the camera unit so that it
can be viewed.
10
1
2
1 Range of visibility: 37°
2 Range of movement: 309°
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
10
2018/01/10
11:43:21
Getting Started
Tilt range
2
select which areas of the camera image are
monitored for motion detection.
1
Temperature sensor
1 Range of visibility: 28°
2 Range of movement: 72°
Information about sensor features
The camera unit has 3 sensor features: a
visual sensor used for motion detection, a
temperature sensor, and a sound sensor.
Please read the following information about
each sensor before deciding where to install
the camera unit.
Note:
R The camera unit’s sensor features are not
designed to be used in situations that
require high reliability. We do not
recommend use of the sensor features in
these situations.
R Panasonic takes no responsibility for any
injury or damage caused by the use of the
camera unit’s sensor features.
Using visible light to detect motion
The camera unit can detect motion by
recognizing changes in the brightness of
areas that are visible to the camera unit.
Note:
R The motion sensor does not function during
and for 5 seconds after pan/tilt operations.
R Movement may be incorrectly detected
when the moving object and the
background have similar colors.
R Movement may be incorrectly detected
when there are sudden changes to the
overall brightness level, such as when
lights are turned on.
R Detection becomes difficult when the image
is dark.
R You can also adjust the sensitivity of the
camera unit’s motion detection feature and
The sensor is triggered when the set
temperature range is exceeded.
Note:
R The temperature sensor may not detect
temperature accurately if the camera unit is
exposed to warm or cool breezes from
heating/cooling systems.
R If a power failure occurs or the power is
disconnected, the temperature will not be
accurate for up to an hour.
R You can adjust the temperature setting of
the temperature sensor (page 20).
Sound sensor
The sensor is triggered when the set sound
level is exceeded.
Note:
R The sound sensor does not function while
the camera unit’s lullaby feature is playing a
lullaby.
R The sound sensor does not function during
and for 5 seconds after pan/tilt operations.
R The sound sensor may not function as
desired when the camera unit is placed in
noisy environments.
R You can adjust the sound level setting of
the sound sensor (page 27).
Information about night vision mode
The camera unit features an array of infrared
LEDs that light automatically in low-light
conditions, allowing camera images to be
viewable even when the surrounding area is
dark.
Note:
R When night vision mode is active, camera
images are displayed in black and white.
R If the camera unit is installed in front of a
window and points directly at the window,
images may be poor when night vision
mode is active.
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
11
11
2018/01/10
11:43:21
Getting Started
Connections
Wall mounting
Insert the AC adaptor plug firmly into the
DC jack.
Connect the AC adaptor to the power
outlet.
Note:
R Use only the supplied AC adaptor
S006AKU0500100.
R Attach the wall mounting adaptor to the
camera unit after making the connections
(page 12).
R Only use the supplied screw that is
attached to the camera base when
attaching the wall mounting adaptor to the
camera unit. Do not use user supplied
screws. This may cause the camera unit to
become loose from the wall mounting
adaptor.
R Mount the camera unit on the stable
location where the unit can be adequately
supported when installing.
R Use a string or wire to prevent the camera
unit from falling and causing injury if the
camera unit comes off from the wall.
R Do not mount the wall mounting adaptor to
a ceiling.
R Do not mount the camera unit on a soft
material. It may fall down, break or cause
injury.
R Do not mount the camera unit on the
following places: plaster board, ALC
(autoclaved lightweight cellular concrete),
concrete block, plywood less than 25 mm
(1 inch) thick, etc.
2
1
Note about power connections
AC adaptor connection
R The AC adaptor must remain connected at
all times. (It is normal for the adaptor to feel
warm during use.)
R The AC adaptor should be connected to a
vertically oriented or floor-mounted AC
outlet. Do not connect the AC adaptor to a
ceiling-mounted AC outlet, as the weight of
the adaptor may cause it to become
disconnected.
Power failure
R The camera unit will not work during a
power failure.
Placing the camera unit on a flat
surface
1
Remove the screw and then remove the
camera base from the camera unit.
1
1 Supplied screw (page 9)
2
Attach the wall mounting adaptor to the
camera unit.
The camera unit can be placed on a flat
surface, however make sure to choose a
stable location.
12
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
12
2018/01/10
11:43:21
Getting Started
3
Drive the supplied screw into the camera
unit.
6
Adjust the angle of the camera unit by
using MFN, MEN, MDN, or MCN on the monitor
unit.
Reattaching the camera base
1
2
1
Take the camera unit off from the wall.
Remove the screw and then remove the
wall mounting adaptor from the camera
unit.
1 Supplied screw (page 9)
4
Drive the screws (not supplied) into the
wall.
2 Longer than 20 mm (25/32 inches)
3 Space 1.3 mm (1/32 inches)
1
1 Supplied screw (page 9)
2
3
3
Attach the camera base to the camera
unit.
4
Drive the supplied screw into the camera
unit.
Note:
R Use the following template when
determining the location of the screw
holes.
31 mm
(1 7/32 inches)
5
Mount the camera unit to the wall.
4 Screws
5 31 mm (1 7/32 inches)
1
5
1 Supplied screw (page 9)
4
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0215_ver.520.pdf 13
13
2018/02/15 10:07:59
Getting Started
Setting up the monitor unit
5
Drive the screw into the battery cover.
Battery installation
R USE ONLY the specified battery.
1
Remove the screw from the battery cover.
R Follow the directions on the display
to set up the unit.
2
3
Battery charging
Remove the battery cover.
Insert the battery.
1 BLK: black
2 RED
4
Insert the AC adaptor plug (A) firmly into
the monitor unit’s micro-USB connector.
2
Connect the AC adaptor (B) to the power
outlet.
A
B
2
1
1
Insert the tabs (A) into the slots, and
then close the battery cover (B).
2
Charge for about 8 hours.
Note:
R Use only the supplied AC adaptor
S006AKU0500100.
R When the AC adaptor plug is connected to
the monitor unit’s micro-USB connector,
is displayed on the screen.
R It is normal for the monitor unit to feel warm
during charging.
R The monitor unit resets if the AC adaptor is
disconnected when charging.
1
14
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
14
2018/01/10
11:43:21
Getting Started
Replacing the battery
5
R USE ONLY the specified battery.
1
Insert the tabs (A) into the slots, and
then close the battery cover (B).
2
Remove the screw from the battery cover.
1
6
2
Remove the battery cover.
3
Remove the currently used battery.
Drive the screw into the battery cover.
Battery level
Icon
Battery level
High
Medium
Low
Needs charging.*1
*1
4
Attach and insert the replacement battery.
1 BLK: black
2 RED
1
2
Two beeps sound from the monitor unit
every 3 minutes when the battery needs
charging.
Lithium Ion (Li-Ion) Polymer
battery performance (supplied
battery)
Operation
Operating time
In continuous use
5 hours max.
Not in use (standby)
13 hours max.
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
15
15
2018/01/10
11:43:21
Getting Started
Turning the power on/off
Press M N located on the top of the monitor
unit (page 10) for about 2 seconds.
R Press M N to enter sleep mode and turn off
the display (page 20).
Press any key on the monitor unit to exit
sleep mode and turn on the display.
Language setting
1
2
3
4
Smart LED
indicator
color
Display
icon
color
Green
Green
Motion or sound
detected at the
lower threshold
level
Example:
When your baby
makes small
movements or
cries quietly.
Amber
Amber
R Motion or
sound detected
at the higher
threshold level
Example:
When your
baby makes
big movements
or cries loudly.
R Temperature
detected above
or below the
threshold level
MMENUN
MbN: “Monitor Settings” a MOKN
MbN: “Language” a MOKN
MbN: Select the desired language. a
MOKN a MMENUN repeatedly to exit.
Smart LED indicator and
display icon colors
The colors of the smart LED indicator and
display icons (page 16) indicate the status of
the sensors. When sound or motion is
detected, the smart notification feature
(page 26) lights the smart LED indicator and
displays the motion and sound icons
according to the level of motion or sound
detected. The smart LED indicator also lights
when temperature is detected outside of the
specified limits (page 20).
Smart LED
indicator
color
Display
icon
color
Status
Off
Off
No detections
Off
White
(
only)
Normal operations
Status
Display icons
Item
Meaning
Range status:
Shows the signal level.
Out of service area*1
An error occurred on the
connected camera unit.*2
Camera unit number*2
The battery is charging.
(page 14)
The battery is fully charged.
Night vision mode is active.
(page 19)
Mute is on.
16
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
16
2018/01/10
11:43:21
Getting Started
Item
Meaning
Note:
Timer is set to "Once".
(page 28)
R
Timer is set to "Repeat".
(page 28)
Lullaby is set. (page 21)
Displays the temperature
detected by the temperature
sensor. (page 20)
Auto scan (page 21)
The monitor unit is talking to
the camera unit. (page 19)
Camera zoom is on.
(page 19)
Displayed when motion is
detected. (page 27)
Displayed when sound is
detected. (page 27)
*1
*2
2 beeps sound from the monitor unit
when the camera unit is out of the service
area.
The number displayed in the icon
changes depending on the number of the
connected camera unit.
Confirming the usage area
Wireless communication range
The wireless communication range of the
monitor unit from the camera unit is
approximately 457.5 m (1500 feet). Wireless
communication may be unreliable when the
following obstacles are located between the
monitor unit and camera unit.
R Metal doors or screens
R Walls containing aluminum-sheet insulation
R Walls made of concrete or corrugated iron
R Double-pane glass windows
R Multiple walls
R When using the monitor unit and camera
unit on separate floors or in different
buildings
is displayed on the monitor unit when
the camera unit is out of range.
Usage area cautions
Using the monitor unit in the following areas
may cause deformation, malfunction, or
operational failure.
R In direct sunlight
R Areas exposed to grease or steam, such as
kitchens
R Near fire or heating devices
R Near magnetic fields (such as near
microwaves and magnets)
R Areas subject to extreme temperature
changes, such as next to air conditioners
R Areas with reflective objects, such as glass,
that can interfere with detection of
temperature variation
R Areas where the temperature is affected by
strong illuminating objects (such as
fluorescent lights)
R Near devices that emit strong radio waves,
such as mobile phones
Testing the baby monitor
system
Before using your baby monitor system, you
should perform a test run to ensure that the
system is configured correctly. For example,
test the motion sensor, microphone, and
speaker.
Testing the motion detection
range
After setting up the camera unit and monitor
unit, you can use your monitor unit to test the
performance of the camera unit’s motion
detection feature.
1
Move to an area within the camera unit’s
viewable area.
2
While moving near the camera unit, use
your monitor unit to observe where you
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
17
17
2018/01/10
11:43:21
Getting Started
are in the viewable area when the camera
unit’s motion detection feature is triggered.
R When the motion detection feature is
is displayed on the
triggered,
monitor unit screen in green or amber
depending on the level of motion
detected.
3
Note the areas of the viewable area
where movement is detected, and make
adjustments as necessary.
Note:
R You can adjust the area detectable by the
motion sensor (page 27).
Testing the camera unit’s
microphone
To test the camera unit’s microphone, speak
loudly and clearly into the microphone while a
monitor unit user is viewing live images from
the camera unit.
Testing the camera unit’s speaker
To test the camera unit’s speaker, press and
hold M N, and talk into the monitor unit while
someone is listening to the camera unit.
Note:
R Make sure to adjust the camera unit’s
speaker volume to a suitable level when
testing the speaker (page 20).
18
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
18
2018/01/10
11:43:21
Using the Baby Monitor
Baby monitor
The baby monitor system allows you to listen
and view images on a monitor unit from a
room where the camera unit is located. With
the use of smart features (page 25), the
monitor unit notifies you when the camera
unit’s sensors are triggered, and you can also
play lullabies from the camera unit.
Important:
R You should perform a test run of the baby
monitor system before using it (page 17).
R The baby monitor system should not be
used as a substitute for a medical or
caregiver’s supervision. It is the caregiver’s
responsibility to stay close enough to
handle any eventuality.
Viewing live camera images
Images from the camera unit are automatically
displayed on the monitor unit when the
monitor unit is turned on.
Night vision mode
The infrared LEDs of the camera unit make it
possible to view camera images even when
the area surrounding the camera unit is dark.
Note:
R When night vision mode is active, camera
images are displayed in black and white.
Adjusting camera images from
the monitor unit
From the monitor unit, you can adjust the area
viewed by the camera unit by using the pan/tilt.
While viewing images from the camera unit,
press MFN or MEN to adjust the pan range and
MCN or MDN to adjust the tilt range.
Note:
R The sound sensor and motion sensor do
not function during and for 5 seconds after
pan/tilt operations.
R Only adjust the pan/tilt with operations from
the monitor unit. Do not adjust the pan/tilt of
the camera unit by hand.
Camera zoom
The camera zoom can be used to zoom in on
images displayed on the monitor unit.
1
2
MSMARTN
MCN: Select the desired setting. a
MMENUN
R The setting is saved and the screen is
switched to the selected setting.
Listening/talking to the
camera unit
Listening to the camera unit
Sound from the camera unit is heard on the
monitor unit while the monitor unit is turned
on, and even when it is in sleep mode and
images are not displayed.
Note:
R Sound is not heard on the monitor unit
when it is turned off or when it is out of
range of the camera unit.
R You can adjust the speaker volume of the
monitor unit (page 20).
Talking to the camera unit
While viewing images from the camera unit,
press and hold M N on the monitor unit to talk.
Release M N to finish talking.
Note:
R You can adjust the speaker volume of the
camera unit (page 20).
R Sound from the camera unit will not be
heard on the monitor unit while talking.
R When pressing M N, make sure to not
cover the microphone (page 10) with your
fingers.
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0215_ver.520.pdf 19
19
2018/02/15 10:08:00
Using the Baby Monitor
Adjusting the speaker
volume
Monitor unit
1
While viewing images from the camera
N.
unit, press M
2
MbN: Select the desired setting. a MOKN
Camera unit
MMENUN
Sleep mode is used to automatically turn off
the display of the monitor unit when the
monitor unit has been inactive for a specified
period of time. You can select how long the
monitor unit is inactive for before it enters
sleep mode, or turn off sleep mode.
1
2
3
4
MbN: “Camera Speaker Vol.” a MOKN
M N: Select the desired setting. a MOKN
a MMENUN repeatedly to exit.
b
1
2
3
Adjusting the sleep mode
5
MMENUN
MbN: “Monitor Settings” a MOKN
MbN: “Sleep Mode” a MOKN
MbN: Select the desired setting.
R To turn off sleep mode:
MbN: “OFF”
MOKN a MMENUN repeatedly to exit.
Adjusting the chime/beep
volume
Configuring the
temperature sensor
The monitor unit plays chimes and beeps to
indicate the status of the monitor unit and
camera unit sensors. You can adjust the
volume of chimes/beeps, or turn them off.
MbN: “Beep Volume” a MOKN
You can specify how the temperature units
(Celsius or Fahrenheit) are displayed on the
monitor unit and the alert range.
For the alert range, specify an upper and
lower limit. If the temperature of the room
where the camera unit is installed goes
outside of these limits, the monitor unit will
notify you by lighting the smart LED indicator,
playing a chime, etc.
MbN: Select the desired setting.
R To turn off chimes/beeps:
MbN: “OFF”
Configuring the temperature units
1
2
3
4
5
MMENUN
MbN: “Monitor Settings” a MOKN
MOKN a MMENUN repeatedly to exit.
Adjusting the brightness of
camera images
While viewing images from the camera
unit, press M
N.
2
M
20
b
1
N: Select the desired setting. a MOKN
1
2
3
4
5
MMENUN
MbN: “Sensor Settings” a MOKN
MbN: “Temperature Sensor” a MOKN
MbN: “Units” a MOKN
MbN: Select the desired setting. a MOKN
a MMENUN repeatedly to exit.
Configuring the alert range
1
2
3
MMENUN
MbN: “Sensor Settings” a MOKN
MbN: “Temperature Sensor” a MOKN
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
20
2018/01/10
11:43:21
Using the Baby Monitor
MbN: “Alert Range” a MOKN
b
M
N: “Lower Limit”
Selecting a lullaby
MMENUN
MbN: “Lullaby” a MOKN
MbN: “Sound List” a MOKN
MbN: Select the desired lullaby.
R To cancel a lullaby:
MbN: “OFF”
Selecting camera units/
using auto scan
If there are multiple camera units registered to
the monitor unit, you can select which camera
unit’s images to view, and also use auto scan.
Auto scan automatically switches images from
each camera unit every 10 seconds. See
page 28 for information on adding camera
units.
1
2
3
MMENUN
MbN: “Camera Select” a MOKN
To select camera units:
M N: Select the desired camera unit.
To select auto scan:
M N:
b
MOKN a MMENUN repeatedly to exit.
You can select from a range of lullabies and
manually play them from the camera unit, or
cancel them.
Note:
R Make sure to check the camera unit’s
speaker volume before playing lullabies
(page 20).
R The auto lullaby feature can be used to play
lullabies automatically (page 26).
5
MbN: Select the desired play time.
MOKN a MMENUN repeatedly to exit.
b
N: “Upper Limit”
MbN: Specify the desired temperature.
Playing/canceling lullabies
manually
1
2
3
4
4
5
MbN: Specify the desired temperature.
M
b
4
5
6
7
8
9
4
MOKN
Note:
R When a camera unit is selected, sound
detection, motion detection, and
temperature detection notifications are only
received from the selected camera unit.
Notifications from other camera units will
not be received.
MOKN a MMENUN repeatedly to exit.
Note:
R Lullabies can also be canceled by pressing
M N on the camera unit.
R If the monitor unit is turned off while
selecting lullabies, the lullaby will continue
to play from camera unit for the specified
time.
Selecting a lullaby play time
You can specify the time that lullabies play for.
1
2
3
MMENUN
MbN: “Lullaby” a MOKN
MbN: “Play Time” a MOKN
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
21
21
2018/01/10
11:43:21
Programming
Menu list
Items in the menu list can be configured in the following method.
1
2
3
4
MMENUN
Press MCN or MDN to select the desired main menu. ® MOKN
Press MCN or MDN to select the desired item from the sub-menus. ® MOKN
Press MCN, MDN, MFN, or MEN to select the desired setting. ® MOKN
Note:
R To exit the operation, press MMENUN repeatedly.
R In the following table, < > indicates the default settings.
R The number of sub-menus varies depending on the setting.
Display the menu tree
Main menu
Sub-menu 1
Camera Zoom
Lullaby*1
Smart
Notification
Auto Lullaby
22
Sub-menu 2
Settings
Page
–
<( 1X )>
( 2X )
19
Sound List
–
1. Lullaby1 - 10.
Heart beat
<OFF>
21
Play Time
–
5 min - 120 min
<15 min>
21
Sound
Notification
–
<Screen lit +
Notify>
Screen lit only
OFF
26
Motion
Notification
–
<Screen lit +
Notify>
Screen lit only
OFF
26
Sound List
–
1. Lullaby1 - 10.
Heart beat
Random
<OFF>
26
Sound Detect
Level*2
–
High
<Normal>
26
Detection
Time*2
–
15 sec
30 sec
45 sec
<60 sec>
90 sec
27
Play Time*2
–
5 min - 120 min
<15 min>
27
–
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
22
2018/01/10
11:43:21
Programming
Main menu
Sub-menu 1
Timer
Sub-menu 2
Settings
–
Once
<1H>
2H
3H
4H
5H
6H
Page
28
–
Repeat
<1H>
2H
3H
4H
5H
6H
28
–
OFF
–
28
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
23
23
2018/01/10
11:43:21
Programming
Main menu
Sub-menu 1
Sub-menu 2
Settings
Sensor Settings
Motion Sensor
Sensitivity
Level 7 (High)*3
Level 6*3
Level 5*3
<Level 4
(Mid)>*3
Level 3*3
Level 2*3
Level 1 (Low)*3
27
–
27
Set
Detection
Area
High : all
sounds
<Mid : all
sounds>
Low : all
sounds*4
High : baby
sounds*5
Mid : baby
sounds*5
Low : baby
sounds*4, *5
27
Units
°C
<°F>
20
Alert Range
Upper Limit:
33 - 104 °F (1 - 40
°C)
<80 °F (27 °C)>
20
Lower Limit:
32 - 103 °F (0 - 39
°C)
<60 °F (16 °C)>
20
Sound
Sensitivity
Temperature
Sensor
Page
–
Camera Speaker
Vol.
–
–
Level 1 - 6
<3>
OFF
20
Camera
Brightness
–
–
Level 1 - 5
<3>
20
Camera
Management
24
Add Camera
–
Delete Camera
–
Yes
<No>
28
Reset
–
Yes
<No>
28
–
28
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
24
2018/01/10
11:43:21
Programming
Main menu
Sub-menu 1
Settings
Page
Monitor Settings
Sleep Mode
–
1min
<3min>
5min
OFF
20
Beep Volume
–
3
2
<1>
OFF
20
Language
–
<English>
Français
Español
16
Monitor
Speaker Vol.
–
Level 1 - 6
<3>
OFF
20
–
<
–
Camera Select*6
Sub-menu 2
> (camera 1)
21
2 (camera 2)*7
3 (camera 3)*7
4 (camera 4)*7
(auto scan)*7
–
Information*8
*1
*2
*3
*4
*5
*6
*7
*8
–
–
–
The preset lullabies in this product (“1. Lullaby1” - “10. Heart beat”) are used with
permission of © 2017 Copyrights Vision Inc.
Can only be selected when a lullaby is selected for “Sound List”.
Change the settings to higher levels in the following situations. Otherwise, there is a
possibility that detections may not be made correctly.
– when your baby and the camera unit are separated
– when monitoring newborn babies
When sound is detected, the smart LED indicator is only lit in amber.
Reduces false detections from sounds other than your baby’s voice by reducing these
sounds from the surrounding area.
If your baby’s voice is not detected when using these settings, select a baby sounds setting
with a higher sensitivity. If your baby’s voice is still not detected, select an all sounds setting.
Can only be selected when there are multiple camera units registered to the monitor unit.
The number of camera units available for camera selecting or auto scan differs depending
on the number registered camera units.
Displays customer support Web address.
sensors. The smart features settings can be
accessed by pressing MSMARTN while viewing
images from the camera unit.
Smart features
With the use of smart features, you can
coordinate the camera unit and monitor unit to
respond automatically to detections from the
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
25
25
2018/01/10
11:43:21
Programming
Smart notification
Auto lullaby
By using the smart notification feature, you
can specify how the monitor unit notifies you
when motion or sound is detected by the
camera unit, and configure motion detection to
match the size of your baby. Depending on
the settings, the monitor unit can notify you by
lighting the smart LED indicator (page 16),
displaying a message, and playing a chime.
Important:
R Depending on factors such as the usage
environment, the monitor unit may not be
able to notify you of sensor detections.
Note:
R Notifications continue for 1 minute. You can
stop the notification by pressing MOKN.
You can configure lullabies to be played
automatically from the camera unit when
sound is detected.
Note:
R Make sure to check the camera unit’s
speaker volume before playing lullabies
(page 20).
R Auto lullaby does not function during the
following.
– while using or for 5 seconds after using
the pan/tilt
– while talking to the camera unit
– while configuring lullabies to be played
Configuring sound notifications
You can specify how the monitor unit notifies
you when sound is detected, or turn off
notifications.
1
2
3
4
5
MMENUN
MbN: “Smart Notification” a MOKN
MbN: “Sound Notification” a MOKN
MbN: Select the desired setting.
R To turn off sound notifications:
MbN: “OFF”
MOKN a MMENUN repeatedly to exit.
Configuring motion notifications
You can specify how the monitor unit notifies
you when motion is detected, or turn off
notifications.
1
2
3
4
5
26
MMENUN
MbN: “Smart Notification” a MOKN
MbN: “Motion Notification” a MOKN
MbN: Select the desired setting.
R To turn off motion notifications:
MbN: “OFF”
MOKN a MMENUN repeatedly to exit.
Configuring the sound settings
You can specify which lullaby is played when
sound is detected, or turn lullabies off.
1
2
3
4
5
MMENUN
MbN: “Auto Lullaby” a MOKN
MbN: “Sound List” a MOKN
MbN: Select the desired lullaby.
R To turn off lullabies:
MbN: “OFF”
MOKN a MMENUN repeatedly to exit.
Note:
R If the monitor unit is turned off while
selecting lullabies, the lullaby will continue
to play from the camera unit for the
specified time.
Configuring the sound detection level
You can adjust the level at which sound is
detected. Increase or decrease the detection
level needed to trigger the sound sensor.
1
2
3
4
*1
MMENUN
MbN: “Auto Lullaby” a MOKN
MbN: “Sound Detect Level”*1 a MOKN
MbN: Select the desired setting. a MOKN
a MMENUN repeatedly to exit.
This feature can only be selected when a
lullaby is selected for “Sound List”
(page 26).
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
26
2018/01/10
11:43:21
Programming
You can specify how long the sound sensor
continually detects sound before the camera
unit automatically plays a lullaby.
– the distance from the camera unit to your
baby
– the age of your baby in months
Change the settings in accordance with the
growth of your baby.
1
2
3
4
1
2
3
4
Configuring the detection time
*1
MMENUN
MbN: “Auto Lullaby” a MOKN
MbN: “Detection Time”*1 a MOKN
MbN: Select the desired setting. a MOKN
a MMENUN repeatedly to exit.
This feature can only be selected when a
lullaby is selected for “Sound List”
(page 26).
Configuring the play time
You can specify how long the camera unit
plays lullabies when sound is detected.
1
2
3
4
*1
MMENUN
MbN: “Auto Lullaby” a MOKN
MbN: “Play Time”*1 a MOKN
MbN: Select the desired setting. a MOKN
a MMENUN repeatedly to exit.
This feature can only be selected when a
lullaby is selected for “Sound List”
(page 26).
5
MMENUN
MbN: “Sensor Settings” a MOKN
MbN: “Motion Sensor” a MOKN
MbN: “Sensitivity” a MOKN
R A message is displayed. Press MOKN
to continue.
MbN: Select the desired setting. a MOKN
a MMENUN repeatedly to exit.
Configuring the motion sensor
detection area
1
2
3
4
MMENUN
MbN: “Sensor Settings” a MOKN
MbN: “Motion Sensor” a MOKN
MbN: “Set Detection Area” a MOKN
R An operation guide is displayed. Press
MOKN to continue.
5
Sensors
Press MCN, MDN, MFN, or MEN to select a
cell to disable detection for. a MOKN
R Repeat for each cell to be disabled.
R To enable detection for a disabled cell,
select the disabled cell. a MOKN
6
You can configure the sensors to match how
you want the motion and sound to be
detected. The sensor configurations will also
affect how the auto lullaby and smart
notification features operate.
When finished, press M
repeatedly to exit.
Configuring the sound sensor
Configuring the motion sensor
You can specify the sensitivity of the motion
sensor, and also which areas of images are
used to detect motion.
N a MMENUN
You can specify the sensitivity of the sound
sensor.
1
2
3
4
MMENUN
MbN: “Sensor Settings” a MOKN
MbN: “Sound Sensitivity” a MOKN
MbN: Select the desired setting. a MOKN
a MMENUN repeatedly to exit.
Configuring the motion sensor
sensitivity
Motion sensor sensitivity is configured using a
combination of the following.
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
27
27
2018/01/10
11:43:22
Programming
The timer can be used to play sound from the
monitor unit after the specified number of
hours has passed. The timer can be set to
sound once or repeat at specified intervals.
1
2
3
MMENUN
MbN: “Timer” a MOKN
MbN: Select “Once” or “Repeat”. a
MOKN
4
MbN: Specify when the timer is set for. a
MOKN a MMENUN
Note:
R Timers play for 1 minute. Press MOKN to
stop a timer. Press and hold MOKN for 5
seconds to stop timers from repeating.
R If the monitor unit is turned off after setting
a timer:
– “Once”: The timer will be canceled.
– “Repeat”: The timer will be played once
the specified time has passed from when
the monitor was turned on again.
Note:
R A message is displayed on the monitor unit
to show if the registration was successful or
not, and a beep sounds.
Resetting the settings for a
camera unit
The camera unit settings saved on a monitor
unit can be reset.
Note:
R All camera unit settings except for
registration settings are reset.
R Settings for all camera units registered to
the monitor unit are reset.
1
2
3
4
MMENUN
MbN: “Camera Management” a MOKN
MbN: “Reset” a MOKN
M N: “Yes” a MOKN
R A beep sounds from the monitor unit
when resetting is completed.
b
Timer
Canceling a camera unit
Up to 3 additional camera units can be
registered to the monitor unit.
Registering a camera unit
Additional camera units can be registered to
the monitor unit.
Monitor unit:
1
2
3
MMENUN
MbN: “Camera Management” a MOKN
You can cancel camera units that are no
longer needed.
Note:
R Only the currently connected camera unit is
canceled. To cancel other camera units,
select the displayed camera unit (page 21)
and then cancel that camera unit.
1
2
3
4
MMENUN
MbN: “Camera Management” a MOKN
MbN: “Delete Camera” a MOKN
M
b
Managing camera units
N: “Yes” a MOKN
MbN: “Add Camera” a MOKN
R An operation guide is displayed. Press
MOKN to continue.
R Complete the following step within 90
seconds.
Camera unit:
1
28
Press and hold M N for 3 seconds until
the LED indicator starts blinking.
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
28
2018/01/10
11:43:22
Useful Information
Troubleshooting
General use
Problem
Cause & Solution
The monitor unit does
not work.
R Make sure the battery is installed correctly (page 14).
R Fully charge the battery.
The camera unit does
not work.
R Make sure the AC adaptor is connected to the camera unit and
power outlet (page 12).
The monitor unit is
turned off.
R Press M N located on the top of the monitor unit for about 2
seconds.
Noise is heard, sound
cuts in and out.
R You are using the monitor unit or camera unit in an area with
high electrical interference. Re-position the monitor unit and use
the camera unit away from sources of interference.
The monitor unit or
camera unit does not
sound.
R The speaker volume is turned off. Adjust the speaker volume
(page 20).
Monitor unit display
Problem
Cause & Solution
The display is in a
language I cannot read.
R Change the display language setting (page 16).
is displayed.
R The monitor unit is too far from the camera unit. Move the
monitor unit closer to the camera unit.
R The camera unit’s AC adaptor is not properly connected.
Reconnect the AC adaptor to the camera unit.
R The camera unit has not been registered to the monitor unit.
Register the camera unit (page 28).
The monitor unit display
is blank.
R The monitor unit is in sleep mode. Press any button on the
monitor unit to activate the display.
R The monitor unit is not turned on. Turn it on (page 16).
Images are white or
black.
R The brightness of the display is not correctly adjusted. Adjust the
brightness when images are displayed (page 20).
R Place the camera unit in a different location or position.
Images are flickering.
R AC (alternating current) lights such as fluorescent lights may
cause flickering in dark environments. (This is not a malfunction.)
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
29
29
2018/01/10
11:43:22
Useful Information
Battery recharge
Problem
Cause & Solution
The monitor unit beeps
and
The battery is not fully
charged.
30
R Battery charge is low. Fully charge the battery (page 14).
is displayed.
R The temperature for the charging conditions is too low or too
high. Charge the battery within the specified charging condition
range (page 31).
R The battery may not be installed. Install the battery (page 14).
R The battery may be deteriorated. Please visit
http://shop.panasonic.com/support
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
30
2018/01/10
11:43:22
Useful Information
Specifications
R Standards
DECT (Digital Enhanced Cordless
Telecommunications)
R Frequency range
DECT: 1.92 GHz – 1.93 GHz
R RF transmission power
DECT: 115 mW (max.)
R Power source
Camera unit (AC adaptor):
Input: 100 – 240 V AC, 50/60 Hz
Output: 5.0 V DC, 1,000 mA
Monitor unit (AC adaptor):
Input: 100 – 240 V AC, 50/60 Hz
Output: 5.0 V DC, 1,000 mA
R Power consumption
Camera unit:
Normal operation: 2.8 W
Night vision mode: 4.2 W
Sleep mode: 2.1 W
Monitor unit:
Charging: 3.9 W
R Operating conditions
Camera unit:
0 °C – 40 °C (32 °F – 104 °F)
up to 90 % relative humidity
(non-condensing)
Monitor unit:
0 °C – 40 °C (32 °F – 104 °F)
up to 90 % relative humidity
(non-condensing)
R Charging conditions (monitor unit)
5 °C – 40 °C (41 °F – 104 °F)
R Transmitting range
Up to 457.5 m (1,500 feet)*1
R Image sensor
0.3 megapixel CMOS
R Minimum illuminance required
0 lx*2
R Focal length
Fixed (0.4 m (1.3 feet) – infinity)
R Angular field of view (camera angle)
Horizontal: approx. 37°
Vertical: approx. 28°
R Motion detection method
Visual sensor
R Detection range
Motion sensor:
Horizontal: approx. 37°
Vertical: approx. 28°
R Adjustable mounting angles
Horizontal: ±136°
Vertical: facing forward - facing down
approx. +0° to -44°
(movable range with the pan/tilt)
R Dimensions (height ´ width ´ depth)
Camera unit:
Approx. 123 mm ´ 77 mm ´ 69 mm
(4 13/16 inches ´ 3 1/16 inches ´
2 11/16 inches)
Monitor unit (flat):
Approx. 37 mm ´ 125 mm ´ 81 mm
(1 7/16 inches ´ 4 15/16 inches ´
3 3/16 inches)
Monitor unit (stand):
Approx. 79 mm ´ 125 mm ´ 48 mm
(3 1/8 inches ´ 4 15/16 inches ´ 1 7/8 inches)
Display:
3.5 inches
R Mass (weight)
Camera unit:
Approx. 224 g (0.49 lb)
Monitor unit:
Approx. 208 g (0.46 lb) including the battery
*1
*2
When used in the direction of maximum
radiation, in the line of sight, and with no
interference.
The infrared LEDs that surround the
camera lens will illuminate in low-light
conditions.
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0215_ver.520.pdf 31
31
2018/02/15 10:08:00
Guía Rápida Española
Guía Rápida Española
Conexiones de la unidad de cámara
1 Inserte el adaptador de corriente firmemente en el conector de CC.
2 Conecte el adaptador de corriente a la toma de corriente.
1
2
Instalación de la batería de la unidad del monitor
L Use solos la batería especificada.
1
2
2
1
Carga de la batería de la unidad del monitor
1 Inserte el enchufe del adaptador de corriente
(1) firmemente en el conector micro-USB de la
unidad del monitor.
2 Conecte el adaptador de corriente (2) a la toma
de corriente.
A
B
Cargue aproximadamente durante 8 horas.
32
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
HN3001_(en_en)_0110_ver.410.pdf
32
2018/01/10
11:43:22
Guía Rápida Española
Sugerencias de operación
4 {MENU}
5 {SMART}/{OK}
3
4
5
1
6
2
7
8
9
1 LED indicador inteligente
2 Pantalla
3 {c} (Alimentación)
Presione para apagar la pantalla de
manera temporal o presione durante
aproximadamente 2 segundos para
apagar o encender la unidad del monitor.
Utilice {SMART} para acceder al menú
de acceso rápido.
6 Tecla navegadora
{<}, {>}, {^}, o {V}:
– Navegue por diversas listas y
elementos
– Ajuste el rango de la panorámica y
la inclinación.
7 { } (Hablar)
8 Micrófono
9 { } (Volumen/Brillo)
{
} (Dorso)
Encendido y apagado de la unidad del monitor
Oprima {c} durante aproximadamente 2 segundos.
Idioma del visualizador (unidad del monitor)
(predeterminado: “English”)
1
2
3
4
{MENU}
{r}: “Monitor Settings” s {OK}
{r}: “Language” s {OK}
{r}: “Español” s {OK} s {MENU} repetidamente para salir.
Visualización de imágenes en vivo de la cámara (unidad del
monitor)
b
Las imágenes de la unidad de la cámara se muestran automáticamente en la unidad del
monitor cuando esta está encendida.
N Para ajustar la panorámica y la inclinación:
Presione {<}, {>}, {^}, o {V}.
N Para ajustar el zoom:
1 {SMART} s { V}: Seleccione la configuración deseada. s {MENU}
N Para ajustar el brillo:
Presione {
}.s { }: Seleccione la configuración deseada. s {OK}
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
HN3001_(en_en)_0110_ver.410.pdf
33
2018/01/10
33
11:43:22
Guía Rápida Española
Operaciones básicas
Escuchar y hablar con la unidad de la cámara (unidad del monitor)
Escuchar la unidad de la
cámara
Ajuste del altavoz de la unidad
de la cámara
El sonido de la unidad de la cámara se oye cuando la
unidad del monitor está encendida e incluso cuando se
encuentra en modo de reposo y no se muestran las
imágenes.
Mientras ve las imágenes de la unidad de la cámara,
mantenga presionado { } para hablar en la unidad del
monitor. Suelte { } para terminar de hablar.
Ajustar el volumen del altavoz (unidad del monitor)
Ajustar el altavoz de la unidad
del monitor
1 Mientras ve las imágenes de la unidad de la
cámara, presione {
}.
2 {r}: Seleccione la configuración deseada. s {OK}
1 {MENU}
2 {r}: “Vol. del alt. de cám.” s {OK}
3 { } : Seleccione la configuración deseada. s
b
Ajuste del altavoz de la unidad
{OK} s {MENU} repetidamente para salir.
Reproducir o cancelar las canciones de cuna de la unidad de la cámara (unidad del monitor)
1
2
3
4
Reproducir o cancelar una
canción de cuna
{MENU}
{r}: “Canción de cuna” s {OK}
{r}: “Lista de sonidos” s {OK}
{r}: Seleccione la canción de cuna deseada.
Para cancelar una canción de cuna:
{r}: “OFF”
5 {OK} s {MENU} repetidamente para salir.
Preguntas frecuentes
Pregunta
¿Por qué aparece
34
Causa y solución
?
L La unidad del monitor está demasiado lejos de la
unidad de la cámara.
Acerque la unidad del monitor a la unidad de la cámara.
L El adaptador de corriente de la unidad de la
cámara no está conectado correctamente.
Conecte de nuevo el adaptador de corriente a la unidad
de la cámara.
L La cámara no se ha registrado en la unidad del monitor.
Registre la cámara.
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
HN3001_(en_en)_0110_ver.410.pdf
34
2018/01/10
11:43:22
Guía Rápida Española
Preguntas frecuentes
Pregunta
¿Por qué no funciona la unidad
del monitor?
Causa y solución
L La batería no se instaló correctamente. Instale la batería.
L La batería no está cargada. Cargue la batería.
¿Por qué no funciona la unidad
de la cámara?
L El adaptador de corriente no está conectado
correctamente. Conecte de nuevo el adaptador de
corriente a la unidad de la cámara.
¿Por qué las imágenes
parpadean?
L Las luces de la CA (corriente alterna), como las
luces fluorescentes, pueden causar parpadeos
visibles en ambientes oscuros. Esto no es una falla.
¿Por qué el visualizador de la
unidad aparece en blanco?
L La unidad del monitor se encuentra en modo de reposo. Presione
cualquier botón en la unidad del monitor para activar la pantalla.
L La unidad del monitor no está encendida. Encienda la unidad del
monitor.
¿Por qué las imágenes
aparecen en blanco y negro?
L El brillo del visualizador no se ajustó correctamente.
Ajuste el brillo cuando se muestren las imágenes.
L Coloque la unidad de la cámara en una ubicación o
posición distintas.
¿Por qué aparece
L La carga de la batería está baja. Cargue por
completo la batería.
?
¿Por qué la batería no está
completamente cargada?
L La temperatura para las condiciones de carga es
excesivamente baja o excesivamente alta. Cargue la
batería dentro del rango de condición de carga
especificado.
L Es posible que la batería no esté instalada. Instale la
batería.
L La batería podría estar deteriorada. Visite
http://shop.panasonic.com/support
¿Por qué se oye ruido y el
sonido se corta?
L Está usando la unidad del monitor o de la cámara
en un área con mucha interferencia eléctrica.
Cambie la posición de la unidad del monitor y
utilice la cámara lejos de fuentes de interferencia.
¿Por qué no se escucha sonido de
la unidad del monitor o de la cámara?
L El volumen del altavoz está apagado. Ajuste el
volumen del altavoz.
Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés)
HN3001_(en_en)_0110_ver.410.pdf
35
2018/01/10
35
11:43:22
Appendix
FCC and other information
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including
interference that may cause undesired
operation.
Privacy of communications may not be
ensured when using this device.
CAUTION:
Any changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate this device.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/
TV technician for help.
a TV or VCR. If interference is experienced,
move this device further away from the TV or
VCR. This will often reduce or eliminate
interference.
FCC RF Exposure Warning:
R This product complies with FCC radiation
exposure limits set forth for an uncontrolled
environment.
R To comply with FCC RF exposure
requirements, the device must be installed
and operated 20 cm (8 inches) or more
between the product and all person’s body.
R This product may not be collocated or
operated in conjunction with any other
antenna or transmitter.
Notice:
R FCC ID can be found on the rear of the unit.
Charge only mode
The charge only mode is the dedicated mode
to charge the battery of the baby monitor. Do
not use this mode if it is unnecessary because
all functions except the baby monitor’s battery
charge are disabled with this mode.
n To activate the charge only mode:
1
Press M N (power) for about 2 seconds
until the baby monitor shuts down.
2
Connect the charger to the baby monitor.
After the LED indicator on the top of the
baby monitor illuminates in amber color
for about 30 seconds, the LED indicator
turns off automatically. Then the baby
monitor goes into charge-only mode.
n To deactivate the charge only mode:
– Press M N (power) for about 2 seconds
until the LCD display of the baby monitor
illuminates.
Some devices operate at frequencies that may
cause interference to nearby TVs and VCRs.
To minimize or prevent such interference, this
device should not be placed near or on top of
36
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
36
2018/01/10
11:43:22
Appendix
Customer services
Shop
Accessories!
for all your Panasonic gear
Go to
http://shop.panasonic.com/support
Get everything you need to get the most out of
your Panasonic products
Accessories & Parts for your Camera, Phone, A/V
products, TV, Computers & Networking, Personal
Care, Home Appliances, Headphones, Ba!eries,
Backup Chargers & more…
Customer Services Directory
For Product Informa"on, Opera"ng Assistance,
Parts, Owner’s Manuals, Dealer and Service info
go to http://shop.panasonic.com/support
You may also contact us directly at: 1-800-272-7033,
Monday - Friday 9 am to 9 pm;
Saturday - Sunday 10 am to 7 pm, EST.
For the hearing or speech impaired TTY: 1- 877-833-8855
As of June 2015
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
37
37
2018/01/10
11:43:22
Appendix
Limited Warranty (ONLY FOR U.S.A.)
Panasonic Products Limited Warranty
Limited Warranty Coverage (For USA Only)
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length
of the period indicated on the chart below, which starts with the date of original purchase
(“warranty period”), at its option either (a) repair your product with new or refurbished parts,
(b) replace it with a new or a refurbished equivalent value product, or (c) refund your
purchase price. The decision to repair, replace or refund will be made by the warrantor.
Product or Part Name
Home Network System Products
Parts
One (1) Year
Labor
One (1) Year
microSD card (Included model only)
90 days
N/A
During the “Labor” warranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. This Limited Warranty excludes both
parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet).
This warranty only applies to products purchased and serviced in the United States.
This warranty is extended only to the original purchaser of a new product which was
not sold “as is”.
Mail-In Service--Online Repair Request
Online Repair Request
To submit a new repair request and for quick repair status visit our Web Site at
http://shop.panasonic.com/support
When shipping the unit, carefully pack, include all supplied accessories listed in the
Owner’s Manual, and send it prepaid, adequately insured and packed well in a carton box.
When shipping Lithium Ion batteries please visit our Web Site at
http://shop.panasonic.com/support as Panasonic is committed to providing the most up to
date information. Include a letter detailing the complaint, a return address and provide a
daytime phone number where you can be reached. A valid registered receipt is required
under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL
BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING
DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL
BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF
OF PURCHASE.
38
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
38
2018/01/10
11:43:22
Appendix
Limited Warranty Limits and Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which
are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business
or rental use of the product, or service by anyone other than a Factory Service Center
or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT
OF ANY BREACH OF THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the servicer,
loss of or damage to media or images, data or other memory or recorded content.
The items listed are not exclusive, but for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary
from state to state. If a problem with this product develops during or after the warranty period,
you may contact your dealer or Service Center. If the problem is not handled to your
satisfaction, then write to:
Consumer Affairs Department
Panasonic Corporation of North America
661 Independence Pkwy
Chesapeake, VA 23320
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY,
ARE YOUR RESPONSIBILITY.
As of June 2015
For assistance, please visit http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf
39
39
2018/01/10
11:43:22
IMPORTANT!
If your product is not working properly. . .
A
B
C
D
E
Reconnect the AC adaptor to the camera unit.
Turn the monitor unit off.
Remove and then reinsert the monitor unit's battery.
Turn the monitor unit on.
Read the troubleshooting section in the Operating Instructions.
Visit our Web site: http://shop.panasonic.com/support
• FAQ and troubleshooting hints are available.
For your future reference
We recommend keeping a record of the following information to assist with any repair under
warranty.
Serial No.
Date of purchase
(found on the rear of the unit)
Name and address of dealer
Attach your purchase receipt here.
Two Riverfront Plaza, Newark, NJ 07102-5490
© Panasonic Corporation 2017
Printed in China
*PNQX8662XA*
*PNQX8662XA*
PNQX8662XA
HN3001_(en_en)_0215_ver.520.pdf 40
CC1117YK5028 (E)
2018/02/15 10:08:00
Download PDF

advertising
