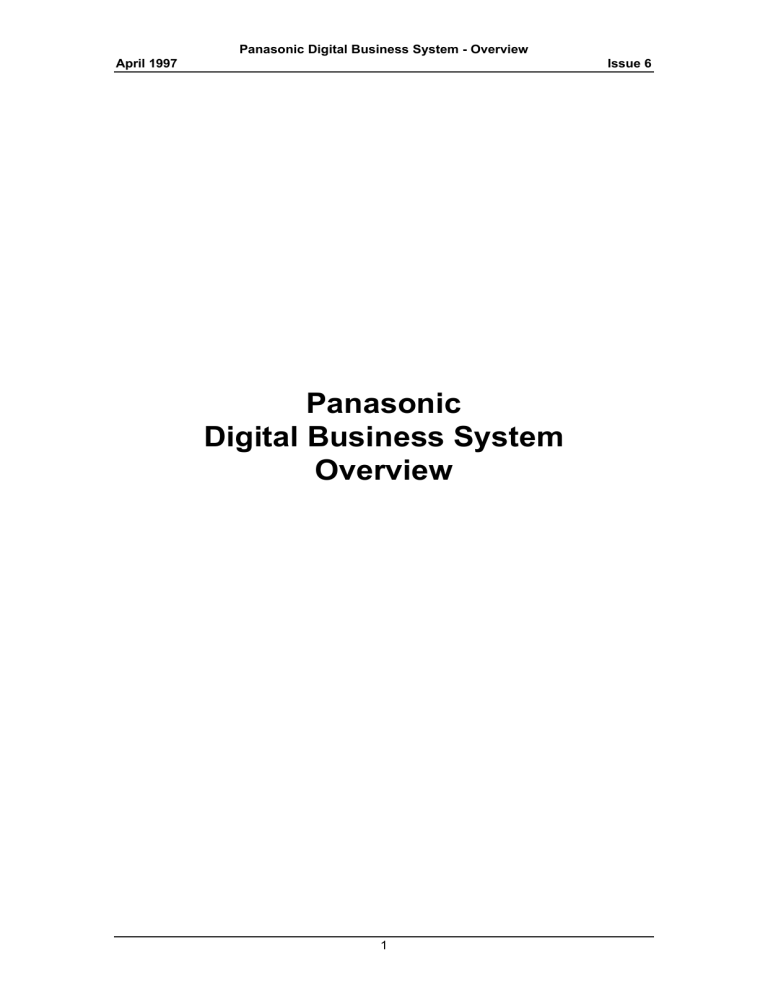

Panasonic Digital Business System - Overview
April 1997
Issue 6
Panasonic
Digital Business System
Overview
1
Panasonic Digital Business System - Overview
April 1997
Issue 6
Contents
INTRODUCTION
4
IMPORTANT SYSTEM DATA
PORT TYPES
SPECIAL AND OPTIONAL CIRCUITS SUPPORTED
PORT TO PORT CONNECTIONS PERMITTED
PORT TO PORT LOSS
RELATIVE LEVELS
LOUDNESS RATING
CABLING REQUIREMENT
OVER-VOLTAGE PROTECTION
PBX RECALL
1AS PORT LINE FEEDING
ANALOGUE EXTENSIONS
CALL PATH DELAY
POWER FAILURE
INTERCONNECTION OF PORTS
PREVENTION OF ACCESS BY THE USER
SIMPLE CALL ROUTING MODE
4
4
4
5
5
5
5
6
6
6
6
6
7
7
8
8
8
APPROVED FEATURES
9
SYSTEM CAPACITY AND SPECIFICATIONS
10
DBS EQUIPMENT DESCRIPTIONS
DBS CCU (DBS 38 / DBS 68 / DBS 90)
DBS 38 BUILT IN BATTERY
DBS 68 / 90 BUILT IN BATTERY
EXTERNAL BATTERY CABINET AND BATTERY
CPC-B CENTRAL PROCESSOR CARD
CPC-C CENTRAL PROCESSOR CARD
CPC-EX CENTREL PROCESOR CARD
SCC SYSTEM CONTROL CARD
RAI REMOTE ADMINISTRATION INTERFACE
EXCHANGE LINE CARD
DIGITAL EXTENSION CARD
ANALOGUE EXTENSION CARD
DTMF RECEIVER CARD
SLT RING GENERATOR
DOORPHONE INTERFACE
DOORPHONES
METER PULSE DETECTION CARD
-48V POWER SUPPLY
E&M CARD
AC15A CARD
PROPRIETARY KEY TELEPHONES
11
11
11
11
12
12
12
12
12
13
13
13
13
13
14
14
14
14
14
14
15
15
ISDN INTERFACE
DASS II EQUIPMENT LIST
DASS II FEATURES
DASS II FEATURES FOR FUTURE USE
16
16
16
16
2
Panasonic Digital Business System - Overview
April 1997
Issue 6
DASS II FEATURE DESCRIPTIONS
DASS II DETAILED FEATURE DESCRIPTIONS
DASS II RELATIONSHIP WITH EXISTING FEATURES
OTHER RESTRICTIONS WHEN USING DASS II ON DBS
16
17
20
22
VOICE ANNOUNCE UNIT
22
FEATURE ENHANCEMENTS WITH SOFTWARE VERSIONS 4.1 & ISDN 1.1
GROUP RINGING
INCOMING LINE NAME ASSIGNMENT
INTERNAL DTMF DIALLING FROM SYSTEM AND PERSONAL SPEED DIALS
CALL LOGGER INDICATION OF HELD AND TRANSFERRED CALLS
180 SYSTEM SPEED DIAL AVAILABILITY
CALL CHARGE RANGE INCREASED
SUPPRESSION OF CALL FORWARD INDICATIONS
ISDN DDI GROUP NAME DISPLAY
ABSENCE MESSAGE ENTRY WITHOUT A DSS CONSOLE
CALL FORWARD NO ANSWER SETTING FROM MENUS ON THE VB3411LDS
23
23
23
24
24
25
25
25
25
25
25
THE CPC-EX CARD
26
CPC-EX - EURO ISDN
EURO ISDN AND ISDN FEATURE ENHANCEMENTS
CALL FORWARD WITH GROUP RINGING
RINGING HUNTING FOR EXTERNAL CALLS
OPERATOR CALL FORWARD
EXTENSION FEATURE CLEAR
PROGRAMMING MODE FROM ANY DISPLAY KEYSET
27
27
27
27
28
28
28
CPC-EX - DBS DDI ENHANCEMENTS
DDI NIGHT SERVICE TABLE
ALTERNATIVE DDI DESTINATION - BUSY / NO ANSWER
DDI RING GROUP MEMBERSHIP
DDI HUNT GROUP
29
29
29
29
29
TONE AND LAMP INDICATION
31
3
Panasonic Digital Business System - Overview
April 1997
Issue 6
Introduction
The Digital Business System (DBS) range is a hybrid system allowing both digital key
telephone and analogue telephone handsets.
There is a range of three cabinet sizes. DBS38 , DBS68 and DBS90. These can be used
individually or combined with a second DBS90 to give a range of systems DBS38 , DBS68 ,
DBS90 , DBS128 (DBS90+DBS38) , DBS158 (DBS90+DBS68) and DBS180
(DBS90+DBS90).
The cabinets are supplied empty, except for the power supply, and are configured using
modular cards and equipment options.
This section describes the port types and equipment for the DBS.
Important System Data
This is a class A product.
In a domestic environment this product may cause radio interference, in which case the user
may be required to take appropriate measures.
This product has been CE marked to show compliance with the EMC Directive 89/336/EEC
amended by 92./31/EEC and 93/68/EEC.
Port Types
Port Type
PAS
requirements
1AS
requirements
ITS
Permitted Connection
2 wire PSTN exchange line without DDI
2 wire PBX extension
Loop calling unguarded clearing, DTMF or LD
signalling, timed break or earth recall.
2 wire analogue speech band equipment
DTMF or LD dialling, timed break recall
E.g. SLT, cordless telephone, FAX, modem
Panasonic proprietary DBS digital keytelephone
Panasonic digital Voice Announce Unit
Table 1 - Port Connections
Special And Optional Circuits Supported
Circuit Type
Meter Pulse, 50 Hz
DC5, 2 wire + E&M
ISDN 30 , DASS 2
Circuit Use
Call charge calculation
Private circuit link
ISDN network connection
Table 2 - Special & Optional Circuits
4
Panasonic Digital Business System - Overview
April 1997
Issue 6
Port To Port Connections Permitted
The following port to port connections can be made.
Call Path
PAS > ITS
PAS > 1AS
Call Path
ITS > ITS
ITS > 1AS
Call Path
ITS > PAS
1AS > PAS
Call Path
1AS > 1AS
1AS > ITS
Table 3 - Call Paths
Port To Port Loss
The following table shows the maximum port to port and associated cable loss.
Port > Port
PAS > 1AS
PAS > ITS
ITS > 1AS
Port > Port Loss
1.3 dB
Associated Cable Loss
0.7 dB
Table 4 - Port To Port Loss
Relative Levels
The input and output relative levels for each port type are shown below. These values
assume zero cable loss.
Port
PAS
1AS
ITS
Input (dBr)
-6
3.5
Output (dBr)
2.5
-7
Table 5 - Relative Levels
Loudness Rating
The loudness rating for each port type is given below. (PTRP PTRP > ITS
PTRP > 1AS
PTRP > PAS
0 dB
ITS > PTRP
1AS > PTRP
PAS > PTRP
Table 6 - Loudness Rating
5
)
2.5 dB
Panasonic Digital Business System - Overview
April 1997
Issue 6
Cabling Requirement
The cabling between the Central Control Unit (CCU) and each extension is 2 wire, 0.5mm
diameter copper conductor and terminated with a Line Jack Unit (LJU). Use a master LJU for
analogue extensions and a slave LJU for the digital extensions.
The following table shows the maximum cable length from the CCU.
Cabling from the Network Test and Termination Point (NTTP) must also comply with these
requirements.
Cable
CCU > ITS
CCU > DSS
CCU > 1AS (A version)
CCU > 1AS (B version)
CCU > PFU
NTTP > CCU
Maximum Loop Resistance
40 ohms
20 ohms
100 ohms
100 ohms
Maximum Length
240m
120m
480m
880m
250m
15m
Table 7 - Maximum Cable Distances
Over-voltage Protection
Surge arresters are fitted to the PAS, ITS and 1AS ports of the system. If the extension
cabling extends between buildings or runs around the outside of a building, surge arresters
should be fitted at both exit and entry points.
PBX Recall
The DBS can be installed as a host or subsidiary system to suitably approved PBX
equipment.
As a host the DBS will accept timed break recall signals from a PBX connected to a 1AS
port.
As a subsidiary the DBS can provide both timed break and earth recall signalling to the host
from PAS ports.
1AS Port Line Feeding
The DBS is not a through fed system. Line feeding from 1AS ports to connected equipment is
derived internally from the DBS CCU. The maximum current that can be supplied to
extension equipment on 1AS ports is 50mA.
Analogue Extensions
When using separately approved extension apparatus, Panasonic recommend DTMF
signalling. The recall signalling must be timed break. The impedance class of the apparatus
must be class (a) of clause 4.3.2.1 of BS6305:1982.
6
Panasonic Digital Business System - Overview
April 1997
Issue 6
Call Path Delay
The maximum call path delay for each speech link is shown below. The times are in microseconds.
Call Path
PAS > ITS
PAS > 1AS
Max. Delay
1000
875
Call Path
ITS > PAS
1AS > PAS
Max. Delay
1000
875
Table 8 - Call Path Delay
Power Failure
If installed the batteries inside the CCU will back up the operation of the DBS for a short
time. The precise time will depend upon system size and the volume of call traffic.
Alternatively an external battery may be added to increase the running time in the event of a
power failure.
In addition a number of power fail telephone units (PFUs) can be connected. The CCU will
divert the first few lines to these units if the power and battery backup fails. The number of
PFUs varies according to the CCU used.
7
Panasonic Digital Business System - Overview
April 1997
Issue 6
Interconnection Of Ports
Warning
Interconnection directly or by way of other apparatus, of ports marked in accordance with
clause 5.2 of BS6301:1989 with ports marked or not so marked may produce hazardous
conditions on the network. Advice should be obtained from a qualified engineer before such a
connection is made.
SAFETY WARNING: See Instructions For Use !
The ports so marked do not provide isolation sufficient to satisfy BS6301. Apparatus
connected to such ports should either have been approved to BS6301 or have previously
been evaluated against British Telecommunications PLC, Technical Guides 2 or 26 and
given permission to attach. Other usage will invalidate any approval given to the apparatus.
Prevention Of Access By The User
The DBS is intended to be accessible only to authorised personnel. There are no user
accessible parts inside the equipment. Failure to prevent such user access will invalidate any
approval given to this apparatus.
Simple Call Routing Mode
The DBS works only in Simple Call Routing Mode (SCRM). All PSTN ports can be configured
for SCRM working. ITS and 1AS ports are associated with the SCRM PSTN ports.
8
Panasonic Digital Business System - Overview
April 1997
Issue 6
Approved Features
The DBS has been approved for the use of the following facilities. This list includes exchange
line related features only and does not include internal facilities.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Direct exchange line access
Group exchange line access
Exchange line grouping
Exchange line key access
On hook dialling
Handsfree conversation
Speed (abbreviated) dialling
Last number redial
Saved number redial
Auto answer by lifting a handset
Call barring
Call barring override
Station lock
Call duration display
Trunk queuing
Hold and transfer
Music on hold
Hold reminder
Call pick up
External conference
Busy override
Call hunting
Meter pulse detection
Remote programming
DISA
PBX and PSTN recall
LD and DTMF dialling
Least cost routing
Headset connection
Night transfer
The CPC-C Card for ISDN provides all the above facilities and adds the following
• DASSII Primary Rate ISDN
• Calling Line Identity On ISDN Lines
• Direct Dial In (144 Numbers)
• Call Charge Information On ISDN Lines
The CPC-EX card provides ISDN and E&M/AC15A networking along with the facilities above
and the following
• Trunk To Trunk Conference
• External Call Forward
• DISA Break Out
• Trunk To Trunk Transfer
• Internal / External Ring Priority
• CLI Name Look Up
Any other usage will invalidate the approval of the apparatus if as a result it then ceases to
comply with the standards against which approval was granted.
9
Panasonic Digital Business System - Overview
April 1997
Issue 6
System Capacity And Specifications
Exchange Line Ports
Extension Ports
Extension/Line Ports
Max.Key Telephones
Max.Analogue Tels.
Max. DSS Consoles
Exch/Extn Speech
Conf Speech Paths
Operator Positions
Paging Groups
Speed
Personal
Dial
System
Digits
DBS 38
6
24
6/8
32
24
4
DBS 68
12
48
6/8
56
48
4
DBS 90
DBS 128
18
24
64
88
6/8
6/8 + 6/8
72
104
64
96
4
4
Non-Blocking
8
2
8
10
90 x 2
24
DBS 158
30
112
6/8 + 6/8
128
120
4
DBS 180
36
128
6/8 + 6/8
144
136
4
DBS 158
570W
768W
DBS
90+68
60.3
DBS 180
640W
888W
DBS
90+90
61.6
Table 9 - System Capacity
Power
Consumption
Dimensions
HxWxD
Weight (Kg)
Standby
Maximum
DBS 38
170W
216W
532x441x
210
24
DBS 68
250W
324W
532x554x
210
29.5
DBS 90
320W
444W
532x554x
210
30.8
DBS 128
490W
660W
DBS
90+38
54.8
Table 10 - Size & Power Specifications
10
Panasonic Digital Business System - Overview
April 1997
Issue 6
DBS Equipment Descriptions
This section contains a description of each component that can be used to build up a DBS
system. Refer to the Installation Manual for details about installing these components.
DBS CCU (DBS 38 / DBS 68 / DBS 90)
Model Numbers: VB3357 / VB3557 / VB3657
Max. Per System: 2
The DBS CCU is the basis of the whole system, modular cards and power supplies are fitted
to configure the system. A DBS 90 CCU can be doubled up with any one other CCU to
configure larger systems. The CCU has a bank of slots for the installation of modular cards
and a range of connection points for other optional equipment. The slots are divided into the
following groups:
CPC
SCC
LINE
EXT
EXT/LINE
AUX
For the main system processor card
For the system control card
LINE slots can accept either an exchange line card or E&M card
EXT slots can accept either digital or analogue extension cards
or Universal slot can accept exchange line , E&M , ISDN , digital or
analogue extension cards.
For DTMF receiver cards and system interconnection cables.
Connections are provided on the CCU for the following:
Exchange Lines
Extensions
E&M Circuits
Power Fail Telephones
SLT Ring Generator
Backup Batteries
Music On Hold (MOH) source
External Paging Adapter (EPA)
Earth connections
Doorphone Interface
-48v Power Supply
Call Logging Equipment (RS232C)
DBS 38 Built In Battery
Model Number: VB2450A2
Max. Per DBS38: 1
Batteries for use with the DBS 38 CCU to maintain system operation in the event of a power
failure. It will hold system operation for approximately 30 minutes on a fully configured
system. From discharged state it takes 15 hours charging to reach 80% fully charged.
DBS 68 / 90 Built In battery
Model Number: VB26502
Max. Per DBS68/90: 1
Batteries for use with the DBS 68 and 90 CCUs to maintain system operation in the event of
a power failure. It will hold system operation for approximately 30 minutes on a fully
configured DBS68 and 15 minutes for a fully configured DBS 90 system. From discharged
state it takes 15 hours charging to reach 80% fully charged.
11
Panasonic Digital Business System - Overview
April 1997
Issue 6
External Battery Cabinet And Battery
Model Number: VB2497 / VB24973PEX
Max. Per CCU: 1
With the internal batteries removed the external battery cabinet can be attached to the CCU.
This is larger capacity battery than the internal option and will hold the system operation for
approximately 4 hours on DBS 38 , 5 hours DBS 68 , 4 hours DBS 90 and 4 hours per
cabinet on an double CCU system. When used on a double CCU system one external battery
and cabinet is required to be installed for each CCU. From discharged state it takes 15 hours
charging to reach 80% fully charged.
CPC-B Central Processor Card
Model Number: VB3775
Max. Per System: 1
The Central Processor Card (CPC) is installed in a the dedicated CPC slot within the CCU. It
controls the system operation and holds the system software and engineer settings. It is a
68000 processor with the system program stored on EPROM and programmable options
stored in battery backed RAM. The system clock is also on this card. The CPU on this card is
in overall control of sub-CPUs on other system cards.
CPC-C Central Processor Card
Model Number: VB3775A
Max. Per System: 1
The CPC-C card performs the same function as the CPC-B card with the addition of DASSII
ISDN connection supporting DDI, CLI and CCI. For a full feature description see the later
section ‘ISDN Interface’
CPC-EX Centrel Procesor Card
Model Number: VB3776
Max. Per System: 1
The CPC-EX is a further enhanced CPC card replacing both CPC-B and C above on systems
where both DASSII and analogue private networking are required. It also provides addition
system features as described in the appropriate section later ‘The CPC-EX Card’.
SCC System Control Card
Model Number: VB3665
Max. Per System: 1
The System Control Card (SCC) is installed in the dedicated SCC slot next to the CPC. It
provides tone generators for the system and controls external interfaces for music on hold ,
external paging , remote administration and call logging.
12
Panasonic Digital Business System - Overview
April 1997
Issue 6
RAI Remote Administration Interface
Model Number: VB3666A
Max. Per System: 1
The Remote Administration Interface (RAI) is a plug in modem with 300 and 1200 bps
transmission speeds, V.21/22 standard. It is mounted onto the SCC. The RAI allows engineer
programming of the system from a remote location over an exchange line.
Exchange Line Card
Model Number: VB3660
Each exchange line card provides interfaces for 6 exchange lines. These are loop calling
unguarded clearing lines with LD or DTMF signalling. Exchange line cards are installed in
the LINE slots, but can also be installed in the universal slot. The maximum number which
can be installed is dependant upon the CCU used.
Digital Extension Card
Model Number: VB3670
Each Digital Extension Card (DEC) provides 8 interface circuits for the connection of
proprietary digital extensions. The card installed in the first EXT1 slot of the DBS must be a
DEC. The remaining slots can be any mix of DEC or Analogue Extension Cards (AEC). The
DEC can also be installed in the universal slot if required.
Analogue Extension Card
Model Number: VB3680
The Analogue Extension Card (AEC) provides a circuits for the connection of 8 analogue
equipment approved to BS6305. This equipment must used timed break recall signalling.
Dialling can be LD, however DTMF is recommended because not all features are accessible
form LD Telephones. To support this card the SLT Ring Generator VB3687 must be installed
and if DTMF telephones are used at least one DTMF Receiver Card VB3682. The AEC can
be installed in any EXT slot except the first EXT1 slot of the DBS.
DTMF Receiver Card
Model Number: VB3682
Max. Per System: 1
The DTMF Receiver Card (MFR) provides 8 DTMF receiver circuits for use by analogue
extensions and DISA calls.
13
Panasonic Digital Business System - Overview
April 1997
Issue 6
SLT Ring Generator
Model Number: VB3687
Max. Per CCU: 1
The SLT Ring Generator provides ringing signals to analogue extensions. The ring signal is
50vAC into 500ohms or 80vAC into 10 kilo-ohms at 25Hz +/- 3 Hz.
Doorphone Interface
Model Number: VB3473
The Doorphone interface is used to link upto 2 doorphones and lock releases to the DBS. It is
an externally mounted unit, which links into ports on the DBS.
Doorphones
Model Number: VL568G / VL582A
Max. Per VB3473: 2
The doorphones are connected to the doorphone interface. There is a small and large
version.
Meter Pulse Detection Card
Model Number: VB3667
Max. Per Line: 1
The Meter Pulse Detection (MPD) card is a small daughter board installed into sockets on the
exchange line cards. One MPD card is required for each line where meter pulses are used.
The -48v Power Supply is required when MPD cards are used.
-48v Power Supply
Model Number: VB3697
Max. Per CCU: 1
The -48v Power Supply is used to provide the power for the MPD cards and E&M cards.
E&M Card
Model Number: VB3663
Max. Per DBS 38: 1
Max. Per Other CCU: 2
The E&M card provides three DC5 E&M circuit interfaces for use when linking the DBS to a
private network. When installed the -48v Power Supply is required to power the E&M card. It
can be installed into any LINE or universal slot except the first LINE1 in the DBS.
14
Panasonic Digital Business System - Overview
April 1997
Issue 6
AC15A Card
Model Number: VB3673
Max. Per DBS38: 1
Max. Per Other CCU: 2
The AC15A card provides three AC15A private circuit interfaces for use when linking the
DBS to a private network. The -48v Power Supply is not required to power the AC15A card. It
can be installed into any LINE or universal slot except the first LINE1 in the DBS.
Proprietary Key Telephones
The following range of proprietary key telephone equipment is available for connection to
digital extension ports.
VB3411
VB3411DS
VB3411LDS
VB3611D
VB3611DS
VB3011
VB3631
12 Line Key Standard Handset
12 Line Key Handsfree Display Handset
12 Line Key Handsfree Large Display Handset
24 Line Key Display Handset
24 Line Key Handsfree Display Handset
O Line Key Handset
Direct Station Selection (DSS) Console
With the introduction of the CPC-EX Processor Card the following new models were added
provide feature enhancements.
VBD411
VBD411DS
VBD411LDS
VBD611D
VBD611DS
VBD631
12 Line Key Standard Handset
12 Line Key Handsfree Display Handset
12 Line Key Handsfree Large Display Handset
24 Line Key Display Handset
24 Line Key Handsfree Display Handset
Direct Station Selection (DSS) Console
15
Panasonic Digital Business System - Overview
April 1997
Issue 6
ISDN Interface
The DASS II interface and associated equipment allows the connection of Primary Rate
ISDN to the Digital Business System (DBS). A maximum of 30 digital channels can be
connected to any of the DBS systems irrespective of the system size. Connection of the
digital circuits will reduce the number of analogue lines which can be connected to the
system. The tables in the installation manual show which combinations are valid. The
maximum number of DASS channels plus analogue lines can never exceed 48.
DASS II Equipment List
DASS II TRK Card
DASS II MDF
CPC-C Card
Synchronisation Unit
VB3664UK
VB3688UK
VB3775AUK
VB3668UK
DASS II Features
The following features are supported by the DBS DASS II interface.
Category 1 & 2 Calls
Direct Dial In
Call Charge Information
Calling Line Identity
(DDI)
(CCI)
(CLI including OLI & TLI)
DDI , CCI and CLI require rental of network services.
DASS II Features For Future Use
The following features are intended for inclusion in future developments. These are proposed
features and their development in future products is not guaranteed.
Customer Controlled Diversion
Call Charge Rate Data
Customer Controlled Channel Busying Customer Controlled Call Barring
DASS II Feature Descriptions
Category 1 & 2 Calls
All calls on the ISDN have a Service Indication Code (SIC code) to allow the network to
determine the call type. The DBS will accept incoming calls with SIC codes 00H , 10H or 12H
only other call types will be refused. Outgoing calls from the DBS use the SIC 10H.
Direct Dial In
The network can send the last digits of the number dialled by the caller to the DBS. This
string can be 1 to 6 digits long dependant upon configuration and the network services being
subscribed to by the user. The DBS will use these digits to route the call to a specific
extension or group of extensions using a look up table.
16
Panasonic Digital Business System - Overview
April 1997
Issue 6
Call Charge Indication
The call charge is sent to the DBS at the end of an outgoing call. This data can be printed on
the call logger and/or optionally displayed on keysets with an LCD.
Calling Line Identity
The calling party’s number or called party’s number can be displayed on a keyset with an
LCD. The Incoming CLI from a caller is called Originating Line Identification (OLI) and the
number returned from the network from a called party is Terminating Line Identification (TLI).
DASS II Detailed Feature Descriptions
Where the DASS II features are different from the analogue equivalent the details are given
below.
Channel Seizure
The DASS channels are analogous to exchange lines and the terms channel and line can be
considered equivalent when discussing calls over ISDN. The method of selecting a DASS
line is the same as for Analogue lines. The two line types can be mixed in line groups, but
caution is required since the dialling method for each is slightly different. When a DASS line
is seized the B channel is set so that incoming calls on the selected channel are rejected.
Dummy Dial Tone
When a channel is selected the DBS will send a dummy dial tone to the internal user. The
tone stops when dialling starts. If no dialling is started during a specified time after seizure
the channel is released and busy tone sent to the user.
Dialling
Dialled digits are stored in the DBS and compiled into a dial message. this is sent to the
network when a send key (#) time-out expires. The send key can be assigned to an FF key.
If no digits are sent busy tone is heard by the user.
The timer restarts after each digit is entered. The time-out can be set by programming.
The # key is used as the send key. Analogue extensions using LD dialling will have to wait for
the time-out since they are unable to dial the send command. When dialling the first press of
# will send the digits entered so far to the line. A second press will act as a DTMF # or
account code terminator depending upon circumstances.
If digits are dialled after the send key is pressed they are stored by the DBS and sent as
DTMF after the called party answers. When using a DASS II channel the speech path is not
established until the called party answers.
17
Panasonic Digital Business System - Overview
April 1997
Issue 6
Call Type
When a call is received the SIC showing its type and capacity required are checked by the
DBS. Calls of a type which are not supported by the DBS are terminated.
DASS Incoming Ringing
Calls without DDI information will ring as if they were a standard analogue line. When A DDI
call is received it will ring as per the DDI settings. If the system is not set to use DDI numbers
and a DDI call is received it will ring as if it were a normal incoming call.
Direct Dial In
The DBS can connect calls directly to extensions using DDI information of 1 to 6 digits sent
from the network. Up to 144 DDI numbers can be specified in a programming look up table to
route calls to an extension or group of extensions. A maximum of 50 groups of 8 member
extensions can be created via programming.
In the DDI look up table each DDI number can only be specified once and route to one
extension or group. Extensions and groups can be the recipient of calls to multiple DDIs by
assignment to these DDI numbers in the table.
An incoming DDI call has priority over other incoming call types at the destination extension,
overriding DISA , private line and other incoming calls.
Delayed ringing does not operate with DDI calls.
Auto answer is always operative for DDI calls regardless of system settings.
DDI to Extensions
When a DDI call is routed to an extension hunting call forward and coverage groups will
operate as normal.
A extension cannot receive a DDI call under the following conditions.
Off hook
While receiving another call
While being used for programming
The extension to which call forward has been set cannot receive a call
While DND is set
While absence message is set
SLT overload (system cannot drive the ringer on any further SLTs)
While holding an internal or non appearing line and the DDI is also non appearing
While hunting is disabled
18
Panasonic Digital Business System - Overview
April 1997
Issue 6
DDI to Groups
When a DDI call is routed to a group hunting call forward and coverage groups are not
available and do not operate.
A extension in a group cannot receive a DDI call under the following conditions.
Off hook
While receiving another call
While being used for programming
The extension to which call forward has been set cannot receive a call
While DND is set
While absence message is set
SLT overload (system cannot drive the ringer on any further SLTs)
While holding an internal or non appearing line and the DDI is also non appearing
A group cannot receive a DDI call under the following conditions.
All members are unable to receive the call
The group is receiving another incoming DDI call which is not yet answered
Incoming DDI ringing is only sent once. If a receiving extension returns to idle after DDI
ringing is sent it will not ring for the missed DDI call.
Auto Transfer / Terminate Of DDI Calls
When a DDI call cannot be routed to its destination, is unanswered or the DDI number is not
recognised it will either be transferred to the operator or terminated depending upon system
program setting.
Sending Of DDI Number On Outgoing Calls
The DDI number of a telephone can be sent to the network with outgoing calls to become CLI
for the receiving party.
When a telephone has multiple DDI numbers assigned to it the DDI number sent is
determined using the following rules.
If the extension has its own DDI and is a DDI group member, extension DDI is sent
If the extension has more than one individual DDI, the DDI look up table is scanned
from 1 to 144 and the first DDI found for the extension is sent.
If more than one DDI group numbers and no extension DDI us set, the DDI look up
table is scanned from 1 to 144 and the first group DDI found for the extension is sent.
DASS II Called Party Busy
When the called party is busy the DBS can pass busy tone to the extension making the call
or terminate the call and pass dummy busy tone to the extension. It is also possible to display
the cause of the busy tone returned from the network on the LCD of a keyset. The action
taken when a called party is busy is specified through programming.
19
Panasonic Digital Business System - Overview
April 1997
Issue 6
Call Logging Output
The CLI and CCI data sent from the network is sent to the call logger. Condition codes for
incoming and outgoing DASS II calls have been added to the call logging output.
CLI Display
When a call is received the first 16 digits of a callers number can be displayed on the first
line of the LCD on a keyset. If CLI is not supplied by the network the channel number is
displayed similar to the display when an analogue incoming call is received.
When making a call the first 15 digits of the recipient party’s CLI can be displayed on the
second line of the LCD on a keyset if supplied by the network. If this data is not supplied the
dialled number is displayed as for analogue lines.
The number will not be displayed when the call is held, when the second line will display the
line number as for an analogue call.
Confirming Charge Data.
The charge data for the most recent call can be displayed on the LCD of a keyset. When new
CCI is received the previously stored value is replaced with the new one. This data is not
backed up.
The totals provided by the DBS at the operator console are cumulative and are only cleared
when the operator enters the command CONF #95 Ext No. *. See the DBS Operating
Instructions for more detail.
DASS II Relationship With Existing Features
Call Barring
Call barring operates in the same way as analogue lines.
Least Cost Routing
The LCR function will operate on the DASS II channels. However the method of accessing
the networks differ between the analogue and digital lines.
It is recommended that analogue line access be programmed as carrier 1 (NCC1) and DASS
II access be programmed as carrier 2 (NCC2).
When 131 access is used the 131 is sent first with the PIN and caller number are sent after
the network sends the acknowledged signal.
When 132 access is used , 132 and the caller number are sent at one time as a dial
message.
20
Panasonic Digital Business System - Overview
April 1997
Issue 6
Speed Dialling
Speed dial numbers should be stored in the usual way. When # is stored at the end of the
SSD the DBS will regard this as the send character and send the dial message. When # is
stored in the SSD before the end the DBS will send digits before the # as a dial message and
those after as DTMF after answer. When # is not stored it can be dialled after the SSD
command or the time-out can be allowed to run its course to send the dial message.
Speed dialling after answer will be sent as DTMF.
FLASH is treated in the same way as RECALL
Redial And Save Dial
When used during a DASS II channel the call is terminated, the channel cleared and dialling
sent on the same channel. Settings for flash and auto pause are ignored.
Exchange Line Pause
A pause stored in an SSD before the send command is ignored. Following the send
command the pause is inserted in the DTMF dialling at the stored location.
FLASH
Flash on a DASS II channel will terminate the current call and reserve the channel for
another call whilst presenting the extension with dummy dial tone.
RECALL
The Recall function is not supported by DASS II. Therefore the RECALL key will have no
effect unless set in programming to ‘Release And Re-seize’ in which case it operates as a
FLASH.
Exchange Line Hold And Transfer
When making a DASS II call it cannot be held or transferred until the called party answers.
Hold function and hence transfer are not available until the call is answered and the speech
path established. Before the speech path is established transfer, park hold, conference,
privacy release and call waiting will not function.
When receiving an incoming DASS II call the speech path is established immediately.
Off Hook Signal
A normal incoming DASS II call will off hook signal in the same way as an analogue
exchange line.
A DDI incoming call will not operate off hook signalling.
21
Panasonic Digital Business System - Overview
April 1997
Issue 6
Other Restrictions When Using DASS II On DBS
The DBS does not accept calls from DTE
DTE cannot be connected to DBS
Network Address Extension ( Sub-Addressing)is not supported
E&M (DC5) is not available when using the CPC-C DASS II card
Voice Announce Unit
Model Number: VB3632
The Voice Announce Unit (VAU) is an optional unit for use with the DBS. It is connected to
digital extension ports. The VAU provides recorded messages to callers, then transfers them
to another extension following the callers’ DTMF dialled instructions.
Each Voice Announce Unit contains two answering circuits each can have a different
message or messages recorded depending upon DIP switch settings. Each circuit is
associated with one DEC port. Circuit 1 for port 1 and circuit 2 for port 2.
The recorded messages and programmed information have a battery backup which will hold
the data for up to 5 days in the event of a power failure once the unit has been installed for
48 hours.
When the VAU detects a call, it answers and plays a recorded message. If the VAU is used
to back up an operator, or group of people, a delay to answer can be inserted, this allows the
original persons time to answer the call if they are available. Recall ringing will override the
delay to answer timer and the call will be answered immediately.
In the event that a caller is using an LD/pulse dialling telephone, or the DTMF level is low,
the VAU will automatically transfer the call to a predetermined extension.
22
Panasonic Digital Business System - Overview
April 1997
Issue 6
Feature Enhancements With Software Versions 4.1 & ISDN 1.1
Version 4.1 , for E&M users, and ISDN 1.1 , for ISDN users provide the following feature
enhancements over previous versions.
•
•
•
•
•
Group Ringing
Internal DTMF From Memories
180 Speed Dials To Extensions
Call Forward Indicator Suppression
Absence Message Entry Without DSS
•
•
•
•
•
Trunk Port Naming
Call Logging Indication Of Hold/Transfer
Call Charging Range Increased
ISDN DDI Group Name Display
Menu For Forward No Answer On LDS
Group Ringing
The DBS can support upto 50 ringing groups of 8 members each, for ISDN DDI or analogue
incoming lines.
Group ringing will operate for the following types of incoming call:
External Incoming
Internal Incoming
Transferred Calls
DISA Incoming
E&M Incoming
Incoming Line Name Assignment
Line ports on the DBS can be assigned an alphanumeric name of upto 16 characters. When
a name is assigned it will be displayed instead of the ‘INCOMING nn’ message when a call is
received. If the port is a DASS II channel with CLI in use the CLI will override the name
display.
The line name will be displayed in the following circumstances:
Incoming call
Incoming call redirected by Call Forward
Incoming call redirected by Hunt Group
DDI incoming call (if CLI not used)
Delayed ringing of an incoming call
Prime Line
The line name will not be displayed under the following circumstances:
Transferred call
Hold Recall
DISA incoming
Call reversion
Transfer Recall
Call Back when free
After answer
Retrieved call from hold
Outgoing call
Held call
E&M calls
Call Logger will show the line number
In these cases the line number will be displayed instead.
23
Panasonic Digital Business System - Overview
April 1997
Issue 6
Internal DTMF Dialling From System And Personal Speed Dials
It is now possible to send DTMF signals internally from System Speed Dials and Personal
Speed Dials on the DBS. This will allow single key access to voicemail systems to be set up.
To do this the destination extension is stored, followed by a DTMF send key and the DTMF to
send. The DTMF can include 1 - 9,0,*,# and REDIAL (pause). The DTMF tones are 250ms
mark / 250ms space and the pause time is the voicemail pause timer introduced in v4.0.
When using a memory to send internal DTMF in this way the keypad of the extension is
disabled until dialling is complete and if the extension is a display keyset the LCD is blank.
The blank LCD will keep passwords secret.
When dialling the tones can be audible or silent dependant upon system program setting. If
the memory is sent during a conversation the contents will be DTMF dialled over the speech.
Memories can be ‘chained’ together provided that the total length of the combined memories
does not exceed 24 digits.
When an System Speed Dial is used in this manner it does not increment the System Speed
Dial use counter which can be viewed from the operator extension, this counter is only for
external calls.
The facility can also be used over an E&M link, in which case the DTMF is sent after E&M
answer is received and any stored pause ignored.
This facility will operate to any extension. However if the extension is set to forward to
voicemail it will not operate, thus avoiding a repeating loop to voicemail.
Call Logger Indication Of Held And Transferred Calls
The call logging output has been updated to show DASS II calls and calls which have been
held or transferred.
The new condition codes are shown below:
Condition Code
H
T
i
o
Z
Meaning
Call has been held and retrieved or recalled. The time field shows when
the call was retrieved and the duration will shown how long it was held
for. If the caller cleared when on hold the line number will be preceded
by a ‘*’. Type of hold is not detected.
Call has been transferred or held and retrieved or recalled at some
point. This will print at the end of the call where the start time is the time
it was transferred or retrieved and the duration is the time since it was
transferred or retrieved.
Incoming DASS II call
Outgoing DASS II call
Incoming DASS II DDI call
24
Panasonic Digital Business System - Overview
April 1997
Issue 6
180 System Speed Dial Availability
The new versions of software allow for the DBS to be configured for 2 x 90 SSD groups or 1
x 180 SSD group. This is set via programming and requires a power off/on reset to take
effect. Changing this setting will not erase the contents of the SSDs.
The SSD numbering changes dependant upon the mode selected.
With 2 x 90
With 1 x 180
the SSD locations are numbered
the SSD locations are numbered
00~89 in each group
100~189,200~289
Call Charge Range Increased
For meter pulse detection call charging the allowable cost has been increased from 99.9p per
unit to 999.9p per unit. The step controlling the charge remains otherwise unchanged.
Suppression Of Call Forward Indications
It is now possible to suppress the display of call forward indication from the second line of a
keyset LCD and green LED indication on BLF keys, when an extension sets call forward. This
is useful when many users will be setting forward to voicemail and do not want these
indications present.
When suppressed the DND/CF LED on keysets will still be illuminated to indicate call forward
status.
ISDN DDI Group Name Display
The DDI group name can be displayed on the second line of a keyset LCD when an incoming
DASS II DDI call is received by a DDI group. This will clear after answer.
Group name will override CLI display.
Absence Message Entry Without A DSS Console
Absence messages can now be set by the operator extension using the keypad to enter the
characters. Maximum message length is 15 digits.
Call Forward No Answer Setting From Menus On The VB3411LDS
Call forward no answer option is now available from the function menu of the large display
keyset.
25
Panasonic Digital Business System - Overview
April 1997
Issue 6
The CPC-EX Card
The CPC-EX card is an expanded and enhanced CPU card for the DBS. It replaces the CPCB and CPC-C cards, combining the facilities of both and providing new facilities to further
enhance the functionality of the DBS.
The CPC-EX can be fitted to any existing DBS system, directly replacing the CPC-B or -C
card installed. The memory can be RAM transferred between CPC-B v3.2 or later and CPCEX but not from CPC-C to CPC-EX, so full programming details must be recorded before
upgrading a card where a manual system reprogram is required.
In conjunction with the CPC-EX there is a new range of handsets, which can directly replace
the current range and offer expanded features over the previous models. The new handsets
will only operate with the CPC-EX or later software, earlier handsets will still operate with
CPC-EX.
The following new features are available with the CPC-EX.
⇒
⇒
⇒
⇒
⇒
⇒
⇒
⇒
⇒
⇒
⇒
⇒
⇒
DC5/AC15A & ISDN features on a single CPC card
Incoming ringing priority for internal or external calls
Internal call queuing at the operator
Call forward to an external number
Trunk to trunk transfer
Trunk to trunk conference
DISA break out
Expanded hunt groups to 24 groups of 32 extensions
Internal call cyclic hunting mode
Internal call ringing hunting mode
Support for 4 BLF DSS units
ISDN CLI lookup using SSD names
Support for new DBS handset range
The new handsets offer the following in addition to the current range.
⇒ Live keypad
⇒ Volume control for
Incoming internal call ringing
Incoming external call ringing
Internal call monitor
External call monitor
⇒ Off hook monitor
⇒ Handset mute
⇒ Large LED for ringing and message indication
⇒ LINE key
⇒ MIC key now an FF key function
The new extension model numbers are listed below in the section ‘Proprietary Key
Telephones’.
26
Panasonic Digital Business System - Overview
April 1997
Issue 6
CPC-EX - Euro ISDN
This update details the new facilities for the DBS provided with the CPC-EX version 2.
These facilities are:
%
%
%
%
%
%
%
%
Euro ISDN
Multiple ISDN pipes
Alternative DDI Destination
DDI Group Ring With Call Forward
Ringing Hunting For External Calls
Operator Call Forward All Calls
Extension Feature Clear
Programming Mode At Any Display Keyset
They are described below.
EURO ISDN And ISDN Feature Enhancements
The v2 software provides the ability to connect to either DASSII or Q.931 ISDN protocols. In
addition a second digital trunk card may be fitted to double cabinet DBS systems to give a
full 48 ( maximum allowed by DBS ) channels split over two digital ‘pipes’. In this case both
cards must be running the same ISDN protocol. Channels can be split as required between
the two cards up to a maximum of 48.
Systems using DASSII will require a new DASII card with an additional Sync Unit connector
in the master CCU The second unit can be the existing DASSII card or a new card with the
additional connector. All Euro ISDN cards are equipped with the extra connection.
The Euro ISDN protocol supports Sub-addressing and 3.1Khz Audio calls in addition to the
DDI and CLI facilities available with DASSII. Sub-addressing is a DISA like function over the
digital network. Digits are dialled after the telephone number and these are passed to the
receiving system and used to route the call internally. 3.1Khz Audio is a setting which allows
calls requiring limited bandwidth ( modem and fax calls ) to only take up the minimum
required bandwidth and not reserve system resources from calls which require the full
channel bandwidth.
The DDI routing has been extended to include a follow on extension option for each DDI on
the system with the call reverting to the operator if both destinations are unanswered for any
reason.
Call Forward With Group Ringing
Call forward and group ringing are also modified so that extensions in ring groups can set call
forward for personal ( direct to the extension, not the group ) calls and still ring for group calls
which will bypass the call forward.
Ringing Hunting For External Calls
27
Panasonic Digital Business System - Overview
April 1997
Issue 6
External calls can now be made to ring around a hunt group on no answer. Set up the hunt
groups in the normal way, select circular or cyclic and set the member and group no answer
timers to the required settings (16 seconds and 320 seconds give a good ringing cycle ).
Make the incoming calls ring to the first member extension and they will hunt until answered.
.
Operator Call Forward
The Operator Extension can set a call forward for all calls provided the night ring telephone is
set to a port other than 1. If the port is covered by an extension card the system will detect its
presence and in this case a Keyset must be installed, which will lose the ability to call
forward; if the port is one that has no installed card associated with it the system will accept
the setting and let the Operator call forward without disabling any other extension.
Extension Feature Clear
Users sometimes set a feature on their extension and forget which feature it is. By going off
hook and entering 790 at the extension concerned all features set by the user will be cleared.
Extension feature clear from the Operator Extension still operates as before.
Programming Mode From Any Display Keyset
Programming mode can be entered from any display, previously this function was a toggle to
enable and disable programming, now it will immediately enable the Keyset when entered
and disable any previously set Keyset.
28
Panasonic Digital Business System - Overview
April 1997
Issue 6
CPC-EX - DBS DDI Enhancements
CPC-EX version 2.1 contains an range of enhancements to the DDI operation of the DBS
combined with E-ISDN and DASSII. The new features are:
%
%
%
%
%
Separate DDI table for Night Service
Alternative DDI destinations in Day & Night modes for Busy or No Answer
DDI Ring Group membership increased from 8 to 32 members
DDI Hunt Group, DDI Ring Groups and extensions can be members
DDI calls to the operator extension are now subject to overflow ringing
DDI Night Service Table
The DBS now includes a second DDI table for use in Night Service. The table duplicates the
options available for Day Service and allows a separate DDI ringing scheme to be made
operational out of hours.
Calls directed to the operator telephone will be re-routed to the Night Ring Telephone in Night
Service.
When making calls the DDI sent to network will be the DDI from the table ( Day or Night ) in
use at the time the call is made.
Alternative DDI Destination - Busy / No Answer
CPC-EX v2 introduced and alternative extension option to which a DDI call can be routed if
the primary destination is busy. CPC-EX v2.1 enhances this option by allowing the alternative
destination to be a group or extension.
DDI Ring Group Membership
Membership of the DDI Ring Groups has been extended from the original 8 to 32 members.
DDI Hunt Group
A new Hunt Group type has been added to the software for the exclusive use of DDI calls.
There are and additional 16 DDI Hunt Groups allowing 16 members of each. Members can
be extensions or DDI Ring Groups, and the hunting mode is circular, with no answer or busy
searching. No follow on group or alternative hunting modes are supported. The existing Hunt
Group operation is unchanged
For DDI Ring Groups to be included in a Hunt Group they will require a virtual extension
number to be assigned to reference them by. Extensions cannot be members of more than 1
DDI Hunt Group and cannot be included in a more than 1 Ring Group assigned to a DDI Hunt
Group, but can be individually in the same DDI Hunt Group as a Ring Group in which it is
also a member.
Group membership conditions for normal Hunt Groups are unchanged. (see following
example )
29
Panasonic Digital Business System - Overview
April 1997
Issue 6
In this example:
a)
b)
c)
d)
Cannot assign EXTN 300 to B, D and E
Cannot assign GROUP 310 to A, B, D and E
Cannot assign GROUP 320 to A, B, C and E
Cannot assign GROUP 330 to A, B, C and D
The original Hunt Group hunting takes precedence over the DDI Hunt Groups. If there are
calls to A and C and 300 becomes idle, the call on A will have priority over the call to C.
30
Panasonic Digital Business System - Overview
April 1997
Issue 6
Tone And Lamp Indication
Tone/Lamp
Internal Dial Tone
Timing / Cadence
Remarks
Frequency
Busy Tone
System Busy Tone
Internal Ring / Ring Back
Tone
Internal Dial Tone
With Confirmation
Internal MOH Tone
425Hz
+/- 10Hz
-27 dBm
Off Hook Signal / Call Waiting
Override Tone
Message Waiting
SLT Only
Conference Tone
Incoming Ring
In sync with
line ringing.
Line Key In Use At Own Ext
Line Key Busy At Other Ext /
Group Key Busy
Ringing - Other Ext
Ringing - Own Ext
Hold / Recall / Call Back /
Transfer
31
From Line
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
