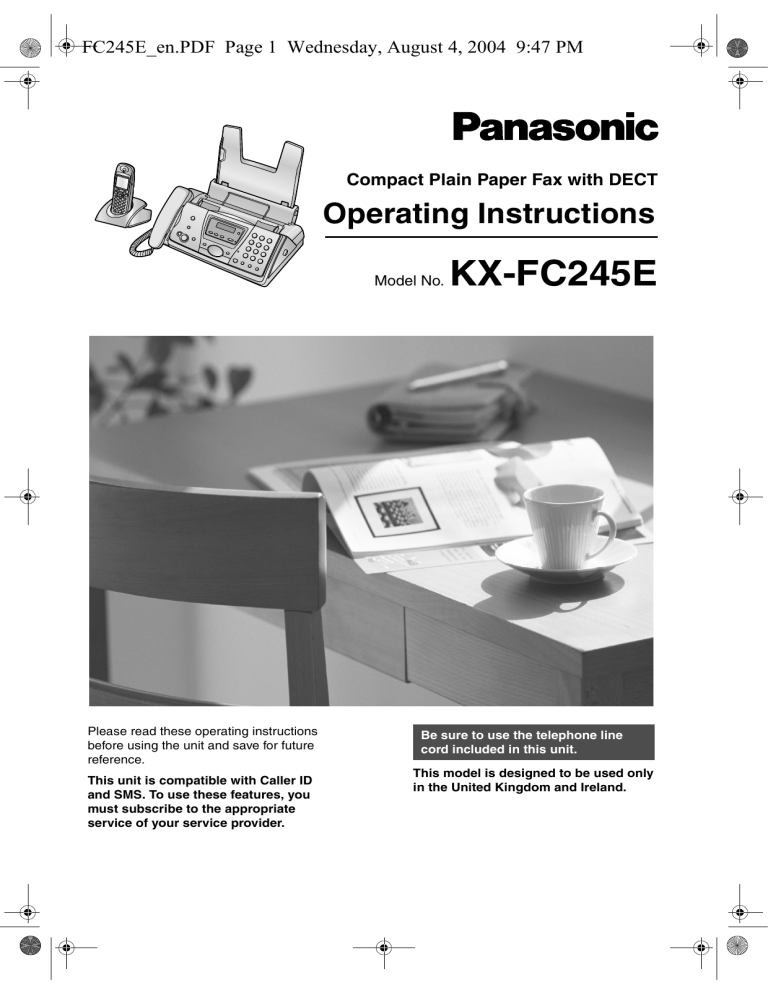

FC245E_en.PDF Page 1 Wednesday, August 4, 2004 9:47 PM Compact Plain Paper Fax with DECT Operating Instructions Model No. Please read these operating instructions before using the unit and save for future reference. This unit is compatible with Caller ID and SMS. To use these features, you must subscribe to the appropriate service of your service provider. KX-FC245E Be sure to use the telephone line cord included in this unit. This model is designed to be used only in the United Kingdom and Ireland. FC245E_en.book Page i Wednesday, August 4, 2004 9:47 PM Location of Controls How to use the operating instructions When following operating instructions, always keep the front cover page (next page) open for easy reference to the buttons. OPEN i FC245E_en.book Page ii Wednesday, August 4, 2004 9:47 PM Location of Controls Please keep this page open when following operating instructions. For a description of each button, see page 12, 13. Base unit A B C DE F GH LOCATOR/INTERCOM LOCA OR/INTERCOM MIC DIGITAL SP-PHONE I J K L M N Buttons (Listed in alphabetical order) AUTO ANSWER G LOCATOR/INTERCOM B CALLER ID A MENU N COPY I MIC (Microphone) H DIGITAL SP-PHONE O MUTE R ERASE D NAVIGATOR M FAX/START J PAUSE Q GREETING C PLAYBACK E HELP L RECALL P O P QR REDIAL Q SET J SMS PRINTING F START J STOP K VOLUME M Cordless handset A B C D F G H 1 2 3 4 5 6 7 8 9 Buttons Left soft key A C (Talk) B Joystick C s (Speakerphone) D R (Recall) E Right soft key F ih (Off/Power) G C (Clear) H INT (Intercom) I Microphone J 0 E I J ii FC245E_en.book Page 2 Wednesday, August 4, 2004 9:47 PM Dear purchaser, Thank you for purchasing a Panasonic fax machine. You have acquired a product made in compliance with the Digital Enhanced Cordless Telecommunications (DECT) standard. DECT technology is characterized by high-security protection against interceptions as well as high-quality digital transmission. This telephone was designed for a wide range of applications. For your future reference Date of purchase Serial number (found on the rear of the unit) Dealer’s name and address Dealer’s telephone number Attach your sales receipt here. Caution: L Note that the images of copied or received documents will remain on the used ink film. Use discretion when disposing of the used ink film. L Do not rub or use an eraser on the printed side of recording paper, as the print may smear. L In the event of problems, you should contact your equipment supplier in the first instance. L This equipment is designed for use on the UK and Republic of Ireland analogue telephone network. Declaration of Conformity: L Panasonic Communications Co., Ltd. declares that this equipment is in compliance with the essential requirements and other relevant provisions of Radio & Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC. Declarations of Conformity for the relevant Panasonic products described in this manual are available for download by visiting: http://www.doc.panasonic.de Contact: Panasonic Services Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, F.R. Germany Trademarks: L Eatoni and LetterWise are trademarks of Eatoni Ergonomics, Inc. 2 FC245E_en.book Page 3 Wednesday, August 4, 2004 9:47 PM Important Instructions Important Safety Instructions Instructions Important safety instructions When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on this unit. 3. Unplug this unit from power outlets before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this unit near water, for example near a bathtub, wash bowl, kitchen sink, etc. 5. Place the unit securely on a stable surface. Serious damage and/or injury may result if the unit falls. 6. Do not cover slots and openings on the unit. They are provided for ventilation and protection against overheating. Never place the unit near radiators, or in a place where proper ventilation is not provided. 7. Use only the power source marked on the unit. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. 8. For safety purposes this unit is equipped with a grounded plug. If you do not have this type of outlet, please have one installed. Do not defeat this safety feature by tampering with the plug. 9. Do not place objects on the mains lead. Install the unit where no one can step or trip on the cord. 10. Do not overload power outlets and extension cords. This can result in the risk of fire or electric shock. 11. Never push any objects through slots in this unit. This may result in the risk of fire or electric shock. Never spill any liquid on the unit. 12. To reduce the risk of electric shock, do not disassemble this unit. Take the unit to an authorised service centre when service is required. Opening or removing covers may expose you to dangerous voltage or other risks. Incorrect reassembly can cause electric shock when the unit is subsequently used. 13. Unplug this unit from power outlets and refer servicing to an authorised service centre when the following conditions occur: A. When the mains lead is damaged or frayed. B. If liquid has been spilled into the unit. C. If the unit has been exposed to rain or water. D. If the unit does not work normally by following the operating instructions. Adjust only controls covered by the operating instructions. Improper adjustment may require extensive work by an authorised service centre. E. If the unit has been dropped or physically damaged. F. If the unit exhibits a distinct change in performance. 14. During thunderstorms, avoid using telephones except cordless types. There may be a remote risk of an electric shock from lightning. 15. Do not use this unit to report a gas leak, when in the vicinity of the leak. SAVE THESE INSTRUCTIONS 3 FC245E_en.book Page 4 Wednesday, August 4, 2004 9:47 PM Important Instructions CAUTION: Installation L Never install telephone wiring during a lightning storm. L Never install telephone sockets in wet locations unless the socket is specifically designed for wet locations. L Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. L Use caution when installing or modifying telephone lines. L Do not touch the plug with wet hands. L This unit should not be used near emergency/intensive care medical equipment and should not be used by people with pacemakers. Battery To reduce the risk of fire or injury to persons, read and follow these instructions. L Use only the battery(ies) specified. L Do not dispose of the battery(ies) in a fire. They may explode. Check with local waste management codes for special disposal instructions. L Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause burns or injury to the eyes or skin. The electrolyte may be toxic if swallowed. L Exercise care when handling the battery(ies). Do not allow conductive materials such as rings, bracelets or keys to touch the battery(ies), otherwise a short circuit may cause the battery(ies) and/or the conductive material to overheat and cause burns. L Charge the battery(ies) provided with or identified for use with this product only in accordance with the instructions and limitations specified in these operating instructions. L Only use the included charger to charge the battery(ies). Do not tamper with the charger. Failure to follow these instructions may cause the battery(ies) to swell or explode. WARNING: L To prevent the risk of fire or electrical shock, do not expose this product to rain or any type of moisture. 4 For best performance Battery charge L Place the cordless handset on the charger for about 7 hours before initial use. L For details, see page 23. Operating distance and noise L The base unit and cordless handset use radio waves to communicate with each other. For maximum distance and noise-free operation, we recommend the following: 1 2 1 Placing your base unit away from electrical appliances such as TVs, radios, personal computers or other phones. 2 Placing the base unit in a HIGH and CENTRAL location with no obstructions such as walls. FC245E_en.book Page 5 Wednesday, August 4, 2004 9:47 PM Important Instructions Environment L Keep the unit away from electrical noise generating devices, such as fluorescent lamps and motors. L The unit should be kept free from dust, high temperature and vibration. L The unit should not be exposed to direct sunlight. L Do not place heavy objects on top of the unit. L The unit should be kept away from heat sources such as heaters, kitchen stoves, etc. It should not be placed in rooms where the temperature is less than 5 °C or greater than 35 °C (base unit) / 40 °C (cordless handset, charger unit). Damp basements should also be avoided. Routine care L Wipe the outer surface of the unit with a soft cloth. Do not use benzine, thinner, or any abrasive powder. Recording paper L Store unused paper in the original packaging, in a cool and dry place. Not doing so may affect print quality. 5 FC245E_en.book Page 6 Wednesday, August 4, 2004 9:47 PM Important Instructions Important Information Instructions Important Information The connection to the telecommunication systems must not be hard wired and must be unplugged before the earth is disconnected. Method of connection This apparatus is connected to the exchange line or PABX/PMBX extension by the new standard British Telecom plug and socket. Arrangements for provision of this type of termination can be made through the nearest British Telecom Sales Office. This apparatus may be connected to the following types of installation. a) For connection to the public switched telephone network (PSTN) and compatible (Private Branch Exchange), which use DTMF signalling. (Please consult your supplier for an up to date list of compatible PBX’s.) b) The apparatus can be used on extension sockets connected to a direct exchange line (D.E.L.). c) This apparatus is suitable for connection to the telecommunication system directly or via compatible private branch exchange as an extension. The supplier of the apparatus should be consulted for an up to date list of PBX’s with which the apparatus is compatible. It cannot be guaranteed that the apparatus will operate under all possible conditions of connection to compatible PBX’s. ● This apparatus is suitable for connection to a PBX with or without initial proceed indication. ● This apparatus is suitable for connection to a PBX with or without secondary proceed indication. Any cases of difficulty should be referred in the first instance to the supplier of the apparatus. d) The apparatus must not be connected in the following manner: –As an extension to a pay phone –As a party line with shared service 6 NOTES: ● If you experience any problems with the normal use of your apparatus, you should unplug it from the telephone outlet and connect a known working telephone in its place. If the known working telephone still gives problems, then please contact the customer service department of your PSTN operator (e.g. BT etc.). If it operates properly, then the problems are likely to be a fault in your apparatus. In this case, consult your supplier for advice. ● Your PSTN operator may charge you if they attend a service call that is not due to apparatus supplied by them. FC245E_en.book Page 7 Wednesday, August 4, 2004 9:47 PM Important Instructions Important Information Instructions For your safety This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362. Check for ASTA mark mark or the BSI on the body of the fuse. If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic dealer. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET. If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician. IMPORTANT: The wires in this mains lead are coloured in accordance with the following code: Green-and-Yellow: Earth Blue: Neutral Brown: Live As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured GREEN-ANDYELLOW must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW. The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with letter L or coloured RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse (and fuse cover). FUSE WARNING: THIS APPLIANCE MUST BE EARTHED. FUSE 7 FC245E_en.book Page 8 Wednesday, August 4, 2004 9:47 PM Table of Contents 1. Introduction 1. Table of Contents Accessories 1.1 Included accessories........................10 1.2 Accessory information ......................11 Finding the Controls 1.3 Button descriptions of the base unit . 12 1.4 Button descriptions of the cordless handset.............................................13 1.5 Display descriptions of the cordless handset.............................................14 1.6 Overview .......................................... 16 2. Installation Base Unit 2.1 Ink film installation / replacement ..... 17 2.2 Handset cord ....................................19 2.3 Paper tray .........................................19 2.4 Recording paper...............................20 Cordless Handset 2.5 Battery installation / replacement ..... 21 3. Preparation Connections and Set up 3.1 Connections .....................................22 3.2 Battery charge ..................................23 3.3 Turning the cordless handset power ON/OFF............................................ 24 Help Button 3.4 Base unit help function .....................24 Volume 3.5 Adjusting cordless handset volume .. 25 3.6 Adjusting base unit volume............... 25 Initial Programming 3.7 Date and time ...................................26 3.8 Your logo...........................................28 3.9 Your fax number ............................... 29 4. Telephone Making and Answering Calls 4.1 Making phone calls...........................30 4.2 Answering phone calls......................32 4.3 Using the recall feature..................... 32 Recording 4.4 Recording a telephone conversation (Cordless handset only) ................... 32 Automatic Dialling 4.5 Cordless handset phonebook........... 33 4.6 Base unit phonebook........................35 Caller ID 4.7 Caller ID service ............................... 37 4.8 Viewing and calling back using caller information........................................ 38 8 4.9 Editing a caller’s telephone number before calling back / storing.............. 39 4.10 Erasing caller information ................. 39 4.11 Storing caller information into the phonebook........................................40 SMS 4.12 4.13 4.14 4.15 4.16 4.17 SMS (Short Message Service)......... 41 Sending a message.......................... 41 Receiving a message .......................43 Guide to SMS settings......................44 Printing SMS messages ................... 45 Available character entries for SMS . 46 5. Fax Sending Faxes 5.1 Sending a fax manually .................... 48 5.2 Documents you can send ................. 49 5.3 Sending a fax using the base unit phonebook........................................50 5.4 Broadcast transmission .................... 50 Receiving Faxes 5.5 Selecting the way to use your fax machine............................................52 5.6 Receiving a fax manually – Auto answer OFF .................................................. 54 5.7 Receiving a fax automatically – Auto answer ON........................................ 55 5.8 Receive polling (retrieving a fax placed on another fax machine)................... 57 5.9 Junk fax prohibitor (preventing fax reception from undesired callers) ..... 58 6. Copy Copying 6.1 Making a copy ..................................59 7. Answering Machine Greeting 7.1 Recording your greeting message.... 61 Incoming Messages 7.2 Listening to recorded messages ...... 62 Memo Message 7.3 Leaving a message for others or yourself ............................................. 63 Remote Operation 7.4 Using the answering machine with the cordless handset ..............................63 7.5 Operating from a remote location ..... 67 FC245E_en.book Page 9 Wednesday, August 4, 2004 9:47 PM Table of Contents 8. Programmable Features Base Unit 8.1 Base unit programming ....................69 8.2 Basic features...................................70 8.3 Advanced features............................71 8.4 Direct commands for programming features.............................................74 Cordless Handset 8.5 Cordless handset programming ....... 76 8.6 Cordless handset programming using the base unit PIN..............................81 Guarantee 12.3 Condition of guarantee ................... 112 13.Index 13.1 Index.............................................. 113 9. Multi-unit Operation Additional Units 9.1 Operating additional units................. 84 9.2 Registering a cordless handset to a base unit...........................................84 9.3 Intercom ........................................... 85 9.4 Transferring calls / Conference calls. 86 9.5 Copying cordless handset phonebook items................................................. 87 9.6 Walkie-Talkie ....................................88 10.Useful Information Useful Information 10.1 Using the belt clip ............................. 89 10.2 Using an optional headset................ 89 10.3 Wall mounting the charger................ 90 10.4 Available character entries for the cordless handset ..............................91 11.Help Error Messages 11.1 Error messages – Reports ............... 93 11.2 Error messages – Base unit display . 93 Troubleshooting 11.3 When a function does not work, check here .................................................. 96 Jams 11.4 Recording paper jams ....................103 11.5 Document jams – sending.............. 105 Cleaning 11.6 Recording paper feeder cleaning ... 106 11.7 Document feeder / scanner glass cleaning ..........................................107 11.8 Thermal head cleaning................... 108 12.General Information Printed Reports 12.1 Reference lists and reports (Base unit only)................................................ 109 Specifications 12.2 Specifications ................................. 110 9 FC245E_en.book Page 10 Wednesday, August 4, 2004 9:47 PM 1. Introduction 1 Introduction 1.1 Included accessories Item Part number*1 Quantity 1 Mains lead PFJA03A005Y 1 2 Telephone line cord PQJA87S 1 3 Handset PFJXH0737Z 1 ---------- 4 Handset cord PFJA04C001Z 1 ---------- 5 Paper tray PFZXFC245E 1 ---------- 6 Starter ink film (10 metres long) ---------- 1 7 Cordless handset ---------- 1 8 Rechargeable batteries HHR-4EPT/BA2 (P03P) 2 9 Battery cover PQKK10134YB 1 ---------- j AC adaptor PQLV200EZ 1 ---------- k Belt clip PQKE10355Z6 1 ---------- l Charger PQLV30018ZES 1 ---------- m Operating instructions PFQX2037Z 1 ---------- n Quick installation guide PFQW2161Z 1 ---------- No. Notes ---------for UK prints about 30 A4sized pages.*2 ---------AAA size *1 Part numbers are subject to change without notice. *2 For replacement film, see page 11. 1 2 3 4 5 6 7 8 9 j k l m n Note: L If any items are missing or damaged, contact the place of purchase. L Save the original carton and packing materials for future shipping and transportation of the unit. 10 FC245E_en.book Page 11 Wednesday, August 4, 2004 9:47 PM 1. Introduction 1.2 Accessory information 1.2.1 Sales and Support Information Customer Care Centre L For UK customers: 08701 580560 L For Republic of Ireland customers: 01 289 8333 L Visit our website for product information L E-mail: [email protected] Direct Sales at Panasonic UK L Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre Monday - Friday 9:00am - 5:30pm (Excluding public holidays). L Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk L Most major credit and debit cards accepted. L All enquires transactions and distribution facilities are provided directly by Panasonic UK Ltd. L It couldn’t be simpler! L Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our website for further details. Additional/replacement accessories Model No. Item Specifications/Usage *1 35 m × 2 rolls (Each roll will print about 105 A4-sized pages.) KX-FA54X Replacement film P03P Rechargeable batteries Nickel metal hydride (Ni-MH) batteries P03H Rechargeable batteries Nickel cadmium (Ni-Cd) batteries KX-TCA151E Additional cordless handset ---------- KX-TCA89EX Headset ---------- *1 We recommend that you buy a full-size replacement film for continuous use of your unit. Please use genuine Panasonic replacement film. The ink film is not reusable. Do not rewind and use the ink film again. 11 FC245E_en.book Page 12 Wednesday, August 4, 2004 9:47 PM 1. Introduction Finding the Controls 1.3 Button descriptions of the base unit L Keep the front cover page open for button locations. A {CALLER ID} L To use Caller ID features (page 38, 40). B {LOCATOR/INTERCOM} L To page or locate a cordless handset (page 85). C {GREETING} L To record a greeting message (page 61). D {ERASE} L To erase messages (page 61, 62). E {PLAYBACK} L To play messages (page 62). F {SMS PRINTING} L To print SMS messages (page 45). G {AUTO ANSWER} L To turn the auto answer setting ON/OFF (page 52). H {MIC} (Microphone) L The built-in microphone. I {COPY} L To copy a document (page 59). J {FAX/START}{SET} L To start sending or receiving a fax. L To store a setting during programming. K {STOP} L To stop an operation or programming session. L To erase a character/number (page 29). Press and hold to erase all characters/numbers. L {HELP} L To print helpful information for quick reference (page 24). M {NAVIGATOR}{VOLUME} L To adjust volume (page 25). L To search for a stored item (page 36, 50). L To select features or feature settings during programming (page 69). L To navigate to the next operation. N {MENU} L To initiate or exit programming. O {DIGITAL SP-PHONE} L For speakerphone operation (page 31). 12 P {RECALL} L To access special telephone services such as call waiting (page 32) or for transferring extension calls. Q {REDIAL}{PAUSE} L To redial the last number dialled from the base unit. L To insert a pause during dialling. R {MUTE} L To mute your voice to the other party during a conversation. Press again to resume the conversation. FC245E_en.book Page 13 Wednesday, August 4, 2004 9:47 PM 1. Introduction 1.4 Button descriptions of the cordless handset L Keep the front cover page open for button locations. Using the joystick The cordless handset joystick can be used to navigate through menus and to select items shown on the display, by pushing it up, down, left, or right. A Left soft key L To select the item shown above this key (page 15). B {C} (Talk) L To make/answer calls (page 30, 32). C Joystick L To adjust volume (page 25). L To search for a stored item (page 33). L To select the item shown on the display (page 13). L To select features or feature settings during programming. L To navigate to the next operation. It can also be used to select the centre soft key icon (page 15), by pressing down on the centre of the joystick. D {s} (Speakerphone) L For speakerphone operation (page 30). E {R} (Recall) L To access special telephone services such as call waiting (page 32) or for transferring extension calls. F Right soft key Note: L Up to 5 menu items can be displayed at a time. To select a menu item not shown on the current page, scroll up or down by pushing the joystick up or down, respectively. L To select the item shown above this key (page 15). G {ih} (Off/Power) L To turn power ON/OFF (page 24). L To hang up (page 30, 32). L To stop an operation or programming session. L To exit programming. H {C} (Clear) L To erase a character/number (page 33). Press and hold to erase all characters/numbers. I {INT} (Intercom) L To page or locate the base unit or another cordless handset (page 85). J Microphone L The built-in microphone. 13 FC245E_en.book Page 14 Wednesday, August 4, 2004 9:47 PM 1. Introduction 1.5 Display descriptions of the cordless handset Display icons Various icons appear on the cordless handset display to indicate the current status of the unit. 7 8 9 j No. 1 1 23 45 6 wxk Cr5 H/set 1 q F ~ p k l r Display icon w Meaning Within range of a base unit L When flashing: No base unit (out of range of base unit, cordless handset is not registered to base unit, no power on base unit) No. Display icon Meaning 8 q New call (Caller ID service users only, page 38) 9 F New SMS message received (SMS users only, page 43) j r New messages have been recorded (page 64) k ~ Ringer volume is OFF (page 25) l p Direct call is ON (page 79) Menu icons When in standby mode, pressing the joystick reveals the cordless handset’s main menu. From here you can access various features and settings. Menu icon Menu/feature “Caller ID” “SMS” (Short Message Service) “TAM Operation” Cordless handset is accessing base unit (intercom, paging, etc.) “Setting Handset” k Cordless handset is on an outside call “Setting Base” o Call bar is ON (page 79) “Walkie-Talkie” 4 C Phonebook is being accessed (page 33) 5 r Auto answer setting is ON (page 52) 6 5 Battery strength (page 23) 2 x 3 “H/set 1” 7 Cordless handset number or name (page 79) Line is being used by another unit 14 FC245E_en.book Page 15 Wednesday, August 4, 2004 9:47 PM 1. Introduction Soft keys The cordless handset features two soft keys and a joystick. By pressing a soft key, or by pressing the centre of the joystick, you can select the feature or operation indicated by the soft key icon shown directly above it. L Pressing the left or right soft key selects the leftmost or rightmost soft key icon respectively. L Pressing the centre of the joystick selects the centre soft key icon. L The icons shown will vary depending on how you are using the unit. Soft key icons Soft key icon Soft key icon : Displayed when alphabet character entry is selected. Press to select another entry mode. ; Displayed when numeric character entry is selected. Press to select another entry mode. ! Displayed when Greek character entry is selected. Press to select another entry mode. x Displayed when extended 1 character entry is selected. Press to select another entry mode. y Displayed when extended 2 character entry is selected. Press to select another entry mode. % Displayed when Cyrillic character entry is selected. Press to select another entry mode. ? Places a check mark next to the menu item. @ Inserts a pause during dialling. ^ Turns the mute feature ON/OFF during a conversation. _ Erases the selected item. ( Displayed when the soft key has no function. Action z Returns to the previous screen. $ Displays the main menu. * Displays the appropriate submenu. , Accepts the current selection. - Displays a previously dialled telephone number. . Opens a phonebook. w Creates a new phonebook item. & Displays the phonebook search menu. " Turns the key lock feature OFF (page 30). / Switches between AM, PM, and 24-hour time entry. Z Stops recording or playback. # Displayed when LetterWise® character entry is selected. Press to select another entry mode. Action 15 FC245E_en.book Page 16 Wednesday, August 4, 2004 9:47 PM 1. Introduction 1.6.2 Cordless handset 1.6 Overview 1 1.6.1 Base unit 1 2 3 4 5 6 7 4 2 3 1 Ringer indicator / Charge indicator 2 Speaker 3 Headset socket 4 Receiver 8 9 j k l 1 Speaker 2 Document guides 3 Paper tray 4 Recording paper support 5 Recording paper entrance 6 Recording paper exit 7 Tension plate 8 Front cover 9 Document exit j Document entrance k Green button (Back cover release button) l Back cover 16 FC245E_en.book Page 17 Wednesday, August 4, 2004 9:47 PM 2. Installation L The ink film is safe to touch and will not rub off on your hands like carbon paper. L Make sure the blue gear (1) and white gear (2) are installed as shown. 2 Installation Base Unit 2.1 Ink film installation / replacement 2 Important: L Remove all blue shipping tape from the unit before installation. 2.1.1 Installing the ink film The included film roll is a starter ink film. 1 Open the front cover by pulling up the centre part. 1 5 2 Turn the blue gear (1) in the direction of the arrow until the ink film is tight (2). Release the back cover by pushing the green button (1). 1 3 Open the back cover. 4 Insert the front ink film roll by inserting its blue gear into the left slot of the unit (1). Insert the rear ink film roll by inserting its white gear into the left slot of the unit (2). 1 2 17 FC245E_en.book Page 18 Wednesday, August 4, 2004 9:47 PM 2. Installation Correct L The ink film is wrapped around the blue core (3) at least once. 1 turn Tight 3 Incorrect L The ink film is not wrapped around the blue core (4). 4 L The ink film is reversed. L The ink film is slack or creased. 6 Close the back cover securely by pushing down on the notched area at both ends (1). 1 18 7 Close the front cover securely. FC245E_en.book Page 19 Wednesday, August 4, 2004 9:47 PM 2. Installation 2.1.2 Replacing the ink film To ensure that the unit operates properly, we recommend the use of Panasonic replacement film. See page 11 for accessory information. L We cannot be responsible for any damage to the unit or degradation of print quality which may occur from the use of non-Panasonic replacement film. 2.2 Handset cord Connect the handset cord (1). Important: L Remove the recording paper and the paper tray beforehand, or the paper may misfeed or jam. 1 Open the covers (see steps 1 to 3 on page 17). 2 Remove the used core (1) and used ink film (2). 1 1 2.3 Paper tray Insert the tabs on the paper tray (1) into the slots on the back of the unit (2). 2 1 3 Remove the stoppers (1) and tags (2) from the new ink film (3). 2 2 1 3 1 4 Insert the ink film and close the covers (see steps 4 to 7 on page 17). 5 Install the paper tray (page 19), then insert the recording paper (page 20). 19 FC245E_en.book Page 20 Wednesday, August 4, 2004 9:47 PM 2. Installation 4 Push the tension plate back (1). 2.4 Recording paper The unit can hold up to 30 sheets of 80 g/m2 paper. Please refer to page 110 for information on recording paper. 1 1 Pull the tension plate forward (1). 1 L If the paper is not inserted correctly, readjust the paper, or the paper may jam. Correct 2 Fan the paper to prevent paper jams. 3 Insert the paper, print-side down. L The paper should not be over the tab (1). 1 20 Incorrect FC245E_en.book Page 21 Wednesday, August 4, 2004 9:47 PM 2. Installation Cordless Handset 2.5 Battery installation / replacement 2.5.1 Installing the batteries 1 Insert the batteries negative (−) terminal first. 2 Close the battery cover. 2.5.2 Replacing the batteries If 7 flashes even when the batteries have been fully charged, both batteries must be replaced. Please use only Panasonic batteries. See page 11 for accessory information. Important: L Charge the new batteries for about 7 hours before initial use. L When replacing the batteries, ensure that the correct battery type is selected (page 80) even if you install the same type of batteries. L Use only rechargeable batteries. If you install non-rechargeable batteries and start charging, the batteries may leak electrolyte. L Do not mix old and new batteries. 1 Press the notch on the cover firmly and slide it in the direction of the arrow. 2 Remove the batteries positive (+) terminal first. Replace both batteries. See the battery installation procedure. 21 FC245E_en.book Page 22 Wednesday, August 4, 2004 9:47 PM 3. Preparation (3), please connect the telephone line cord as follows. 3 Preparationand Set up Connections 3.1 Connections Important: L The unit will not function when there is a power failure. To make calls in emergency situations, you should connect a telephone that can function during a power failure to the telephone line. 3 3.1.1 Base unit 1 Mains lead L Connect to Household Mains Supply (220 V – 240 V, 50 Hz). 2 Telephone line cord L Connect to telephone network. 3.1.2 Charger unit 1 AC adaptor L Connect to Household Mains Supply (220 V – 240 V, 50 Hz). 2 Hooks L Fasten the AC adaptor cord to prevent it from being disconnected. 1 2 1 2 Caution: L The mains lead must remain connected at all times. L Never install telephone wiring during a lightning storm. L When you operate this product, the power outlet should be near the product and easily accessible. L Be sure to use the telephone line cord included in this unit. L Do not extend the telephone line cord. Note: L If any other device is connected to the same telephone line, this unit may disturb the network condition of the device. L If you use the unit with a computer and your internet provider instructs you to install a filter 22 Caution: L If the cordless handset is not charged, you cannot make or answer calls. L USE ONLY WITH the included Panasonic AC adaptor. L The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) L The AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet. Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the adaptor may cause it to become disconnected. FC245E_en.book Page 23 Wednesday, August 4, 2004 9:47 PM 3. Preparation 3.2 Battery charge Place the cordless handset on the charger for about 7 hours before initial use. The charge indicator (1) turns red while the batteries are charging, and turns green when the batteries are fully charged. 1 Battery life After your Panasonic batteries are fully charged, you can expect the following performance: Ni-MH Batteries (typical 700 mAh) Operation Operating Time While in use (talking) 10 hours approx. While not in use (standby) 180 hours approx. Ni-Cd Batteries (typical 250 mAh) 2 3 Note: L Clean the cordless handset charge contacts (2) and the charger charge contacts (3) with a soft, dry cloth once a month, otherwise the batteries may not charge properly. Clean more often if the unit is exposed to grease, dust or high humidity. Battery strength You can confirm the battery strength on the cordless handset display. Battery icons Operation Operating Time While in use (talking) 4 hours approx. While not in use (standby) 60 hours approx. Note: L Times indicated are for peak performance. L Battery operating time may be shortened depending on usage conditions and ambient temperature. L Battery power is consumed whenever the cordless handset is off the charger, even when the cordless handset is not in use. The longer you leave the cordless handset off the charger, the less time you can actually talk on the cordless handset. L The batteries cannot be overcharged unless they are repeatedly removed and replaced. L For maximum battery life, it is recommended that the cordless handset is not recharged until 7 flashes. Battery strength 5 High 6 Medium 7 Low L When flashing: Needs to be charged Note: L If the cordless handset is turned OFF, it will be turned ON automatically when it is placed on the charger. L The cordless handset will not operate while it is on the charger. L If 7 flashes when you lift the cordless handset off the charger, charge the batteries at least 15 minutes. 23 FC245E_en.book Page 24 Wednesday, August 4, 2004 9:47 PM 3. Preparation Help Button 3.3 Turning the cordless handset power ON/OFF 3.4 Base unit help function 3.3.1 Power ON Basic settings: How to set the date, time, your logo and fax number. Press {ih} for about 1 second. L The display will change to the standby mode. The unit contains helpful information which can be printed for quick reference. Feature list: How to program the features. Phonebook: How to store names and numbers in the base unit phonebook and how to dial them. Telephone answering machine operation: How to use the telephone answering machine. {ih} Fax receiving: How to set the base unit to receive faxes. Copier: How to use the copier function. 3.3.2 Power OFF Reports: List of available reports. Press {ih} for about 2 seconds. L The display will go blank. Caller ID: How to use the Caller ID features. {SET} 1 2 3 24 {HELP} {<}{>} Press {HELP}. Press {<} or {>} repeatedly to display the desired item. Press {SET}. L The selected item will be printed. FC245E_en.book Page 25 Wednesday, August 4, 2004 9:47 PM 3. Preparation Volume 3.5 Adjusting cordless handset volume Speaker volume 6 levels (high to low) are available. While using {s}, push the joystick up or down. 3.6 Adjusting base unit volume {C} {ih} {s} $/, {INT} Ringer volume 7 levels (high to off) are available. 1. Press $ (centre of joystick). 2. Use the joystick to select t “Setting Handset”. 3. Press ,. 4. Push the joystick up or down repeatedly to select “Ringer Option”. 5. Press ,. 6. Push the joystick up or down repeatedly to select “Ringer Volume”. 7. Press ,. 8. Push the joystick up or down repeatedly to select the desired volume. 9. Press ,. 10. Press {ih}. Note: L When the ringer volume is set to OFF, ~ is displayed. L When the ringer volume is set to OFF, the cordless handset will not ring for outside calls. The cordless handset will ring at the lowest level for intercom calls and when paged. Ringer type L You can select one of 15 ringer types for outside calls, intercom calls and paging. Caller ID service users can also use a different ringer for each category (page 77). Receiver volume 3 levels (high/medium/low) are available. While using {C} or {INT}, push the joystick up or down. {SET} {A}{B} Ringer volume 4 levels (high/medium/low/off) are available. While the unit is idle, press {A} or {B}. L If any documents are in the document entrance, you cannot adjust the volume. Confirm that there are no documents in the entrance. To turn the ringer OFF 1. Press {B} repeatedly to display “RINGER OFF= OK?”. 2. Press {SET}. L When a call is received, the base unit will not ring for outside calls and will display “INCOMING CALL”. The base unit will ring at the low level for intercom calls. L To turn the ringer back ON, press {A}. Ringer type L You can select the ringer types from one of 6 types for outside calls (feature #17 on page 70). Handset receiver volume 3 levels (high/medium/low) are available. While using the handset, press {A} or {B}. Speaker volume 8 levels (high to low) are available. While using the speakerphone, press {A} or {B}. Answering machine volume 9 levels (high to off) are available. While listening to messages, press {A} or {B}. 25 FC245E_en.book Page 26 Wednesday, August 4, 2004 9:47 PM 3. Preparation Example: 10 August, 2004 Press {1}{0} {0}{8} {0}{4}. Initial Programming 3.7 Date and time The date and time can be set using either the cordless handset or the base unit. L The other party’s fax machine will print the date and time on each page you send according to your unit’s date and time setting. L The accuracy of the clock is approximately ±60 seconds a month. 3.7.1 With the cordless handset Set Date/Time Date :10-08-04 Time :12:00 AM 7 Enter the current hour/minute by selecting 2 digits for each. Press / repeatedly to select “AM”, “PM”, or 24-hour time entry. L When neither “AM” nor “PM” are displayed, 24-hour time entry is selected. Example: 3:15 PM (12-hour time entry) 1. Press {0}{3} {1}{5}. / $/, {ih} Set Date/Time Date :10-08-04 Time :03:15 AM Important: L Confirm that the mains lead of the base unit is connected. L Ensure that w is not flashing. 1 2 3 4 5 Date :10-08-04 Time :03:15 PM Use the joystick to select t “Setting Handset”. Press ,. Push the joystick up or down repeatedly to select “Set Date/Time”. Press ,. L The cursor (|) will appear on the display. Date :01-01-04 Time :12:00 AM 26 Set Date/Time Press $ (centre of joystick). Set Date/Time 6 2. Press / repeatedly to display “PM”. Enter the current date/month/year by selecting 2 digits for each. 8 9 Press ,. Press {ih}. To correct a mistake L Use the joystick to move the cursor to the incorrect number, and make the correction. FC245E_en.book Page 27 Wednesday, August 4, 2004 9:47 PM 3. Preparation 3.7.2 With the base unit {SET} 1 If you have subscribed to a Caller ID service The date and time will be automatically set according to the received caller information. L If the time has not previously been set, Caller ID will not adjust the clock. {MENU} {<}{>} Press {MENU}. SYSTEM SETUP PRESS NAVI.[( )] 2 Press {<} or {>} repeatedly to display the following. SET DATE & TIME PRESS SET 3 Press {SET}. L The cursor (|) will appear on the display. D:| 01/M:01/Y:04 TIME: 12:00AM 4 Enter the current date/month/year by selecting 2 digits for each. Example: 10 August, 2004 Press {1}{0} {0}{8} {0}{4}. D:10/M:08/Y:04 TIME: | 12:00AM 5 Enter the current hour/minute by selecting 2 digits for each. Press {*} repeatedly to select “AM”, “PM”, or 24-hour time entry. L When neither “AM” nor “PM” are displayed, 24-hour time entry is selected. Example: 3:15PM (12-hour time entry) 1. Press {0}{3} {1}{5}. D:| 10/M:08/Y:04 TIME: 03:15AM 2. Press {*} repeatedly to display “PM”. D:| 10/M:08/Y:04 TIME: 03:15PM 6 Press {SET}. L The next feature will be displayed. 7 Press {MENU}. To correct a mistake Press {<} or {>} to move the cursor to the incorrect number, and make the correction. 27 FC245E_en.book Page 28 Wednesday, August 4, 2004 9:47 PM 3. Preparation 3.8 Your logo Your logo will be printed on the top of each page sent from your unit. The logo can be your name or the name of your company. Keypad Characters {4} G H I 4 g h 4 J K L 5 j k 5 {5} {6} {8} {STOP} {SET} 1 {MUTE} {MENU} Press {MENU}. SYSTEM SETUP PRESS NAVI.[( )] 2 Press {<} or {>} repeatedly to display the following. YOUR LOGO PRESS SET 3 Press {SET}. L The cursor (|) will appear on the display. LOGO=| 4 Enter your logo, up to 30 characters. See the following character table for details. 5 Press {SET}. L The next feature will be displayed. 6 {9} {<}{>}{A}{B} {RECALL} o 6 P Q R S 7 p q T U V 8 t u r s v 7 8 W X Y Z 9 w x 9 y z {0} Space {*} To change uppercase or lowercase letter. {RECALL} To enter a hyphen. {MUTE} To insert a space. {STOP} To delete a digit. 0 Note: L To enter another character that is located on the same dial key, press {>} to move the cursor to the next space. To enter your logo Example: “BILL” 1. Press {2} 2 times. LOGO=| B Press {MENU}. 2. Press {4} 3 times. LOGO=B| I To select characters with the base unit dial keypad Keypad Characters {1} Space @ {2} {3} , – b & ’ . / c 2 D E F 3 d 3 e f 3. Press {5} 3 times. # A B C 2 a 28 l M N O 6 m n {7} i 1 ( ) LOGO=BI| L 4. Press {>} to move the cursor to the next space and press {5} 3 times. LOGO=BIL| L To change uppercase or lowercase letters Pressing the {*} button will change to uppercase or lowercase letters alternately. FC245E_en.book Page 29 Wednesday, August 4, 2004 9:47 PM 3. Preparation 1. Press {2} 2 times. LOGO=| B 2. Press {4} 3 times. LOGO=B| I 3.9 Your fax number Your fax number will be printed on the top of each page sent from your unit. 3. Press {*}. LOGO=B| i 4. Press {5} 3 times. LOGO=Bi| l To correct a mistake 1. Press {<} or {>} to move the cursor to the incorrect character. 2. Press {STOP}. L To erase all characters, press and hold {STOP}. 3. Enter the correct character. To select characters using {A} or {B} Instead of pressing the dial keys, you can select characters using {A} or {B}. 1. Press {B} repeatedly to display the desired character. Characters will be displayed in the following order: 1 Uppercase letters 2 Number 3 Symbol 4 Lowercase letters L If you press {A}, the order will be reversed. 2. Press {>} to insert the character. 3. Return to step 1 to enter the next character. {STOP} {SET} 1 {MENU} {<}{>} {RECALL} Press {MENU}. SYSTEM SETUP PRESS NAVI.[( )] 2 Press {<} or {>} repeatedly to display the following. YOUR FAX NO. PRESS SET 3 Press {SET}. L The cursor (|) will appear on the display. NO.=| 4 Enter your fax number, up to 20 digits. Example: NO.=1234567| 5 Press {SET}. L The next feature will be displayed. 6 Press {MENU}. Note: L The {*} button enters a “+” and the {#} button enters a space. Example: +234 5678 Press {*}{2}{3}{4}{#}{5}{6}{7}{8}. L To enter a hyphen in a telephone number, press {RECALL}. To correct a mistake 1. Press {<} or {>} to move the cursor to the incorrect number. 2. Press {STOP}. L To erase all numbers, press and hold {STOP}. 3. Enter the correct number. 29 FC245E_en.book Page 30 Wednesday, August 4, 2004 9:47 PM 4. Telephone 4 Telephone Making and Answering Calls 4.1 Making phone calls 4.1.1 With the cordless handset ^ {C} {s} */$/ ,/" {ih} {C} 1 Lift the cordless handset and press {C} or {s}. 2 3 Dial the telephone number. When finished talking, press {ih} or place the cordless handset on the charger. Speakerphone operation L For best performance, please note the following: – Use the speakerphone in a quiet environment. – Speak alternately with the caller. – If you or the other party have difficulty hearing each other, push the joystick up or down repeatedly to adjust the speaker volume as necessary. To redial the last number dialled from the cordless handset Press {C} or {s}, then press - (soft key). To redial automatically Press {s}, then press - (soft key). L If the line is busy, the unit will automatically redial the number up to 11 times. While the cordless handset is redialling, mute is automatically turned ON. Note: L If mute does not turn OFF after the line is connected, press ^. To make a call using the redial list The last 10 telephone numbers dialled from the cordless handset are stored in the redial list. 1. Press - (soft key). L The last number dialled will be displayed. 30 2. Push the joystick up or down repeatedly to select the desired number. L To exit the list, press {ih}. 3. Press {C} or {s}. To edit a number in the redial list before calling it 1. Press - (soft key). 2. Push the joystick up or down repeatedly to select the desired number, then press *. 3. Select “Edit for Call”, then press ,. 4. Use the joystick to move the cursor, then edit the number. L Place the cursor on the number you wish to erase, then press {C}. L Place the cursor to the right of where you want to insert a number, then make the correction. 5. Press {C}, {s}, or , to call. To erase numbers in the redial list 1. Press - (soft key). 2. Push the joystick up or down repeatedly to select the desired number, then press *. 3. Select “Delete”, then press ,. L If you want to erase all numbers in the list, select “Delete All”, then press ,. 4. Select “Yes”, then press ,. 5. Press {ih}. To store a number from the redial list into the cordless handset phonebook 1. Press - (soft key). 2. Push the joystick up or down repeatedly to select the desired number, then press *. 3. Select “Save Phonebook”, then press ,. 4. Enter a name, up to 16 characters (see page 91 for character entry), then press ,. 5. Edit the telephone number if necessary, then press ,. 6. Select the desired category (page 37), then press , 2 times. 7. Press {ih}. Key lock The cordless handset can be locked so that no calls or settings can be made. Incoming calls can be answered, but all other functions are disabled while key lock is ON. Emergency calls (page 82) cannot be made until key lock is turned OFF. FC245E_en.book Page 31 Wednesday, August 4, 2004 9:47 PM 4. Telephone To turn key lock ON, press $ (centre of joystick) for about 2 seconds. L " will be displayed. Note: L If mute does not turn OFF after the line is connected, press {MUTE}. To turn key lock OFF, press " for about 2 seconds. Note: L Key lock is turned OFF when the cordless handset is turned OFF. 4.1.2 With the base unit {A}{B} {REDIAL} {DIGITAL SP-PHONE} {MUTE} 1 Lift the handset or press {DIGITAL SPPHONE}. 2 3 Dial the telephone number. When finished talking, replace the handset or press {DIGITAL SP-PHONE}. Speakerphone operation L For best performance, please note the following: – Use the speakerphone in a quiet environment. – Speak alternately with the caller. – If you or the other party have difficulty hearing each other, press {A} or {B} repeatedly to adjust the speaker volume as necessary. To redial the last number dialled from the base unit Lift the handset or press {DIGITAL SP-PHONE}, then press {REDIAL}. To redial automatically Press {DIGITAL SP-PHONE}, then press {REDIAL}. L If the line is busy, the unit will automatically redial the number up to 11 times. While the base unit is redialling, mute is automatically turned ON. 31 FC245E_en.book Page 32 Wednesday, August 4, 2004 9:47 PM 4. Telephone 4.2 Answering phone calls 4.2.1 With the cordless handset {C} {ih} {s} {INT} 1 Lift the cordless handset and press {C} or {s}. L You can also answer a call by pressing any dial key from {0} to {9}, {*}, {#} or {INT}. (Any key answer feature) 2 When finished talking, press {ih} or place the cordless handset on the charger. Auto talk feature You can answer calls simply by lifting the cordless handset off the charger. You do not need to press {C}. To turn this feature ON, see page 79. 4.2.2 With the base unit {DIGITAL SP-PHONE} 1 Lift the handset or press {DIGITAL SPPHONE}. 2 When finished talking, replace the handset or press {DIGITAL SP-PHONE}. 32 4.3 Using the recall feature L Keep the front cover page open for button locations. {RECALL} (base unit) / {R} (cordless handset) is used to access optional telephone services such as call waiting. Contact your telephone company business office for details. If your unit is connected to a PBX, pressing {RECALL} / {R} allows you to access some features of your host PBX such as transferring an extension call. Call waiting When a call waiting tone is heard during a conversation, place the existing call on hold and answer the second call by pressing {RECALL} / {R}. L Each time you press {RECALL} / {R}, you can switch between the first and second call. L Incoming calls cannot be dropped by the person who has received the call. Recording 4.4 Recording a telephone conversation (Cordless handset only) You can record a telephone conversation using the cordless handset. Recorded conversations are treated as new messages. To listen to the recorded conversation, see page 62, 64. L Keep the front cover page open for button locations. 1 Press * (centre of joystick) during a conversation. 2 Press ,. L A beep is heard and recording starts. L A beep sounds every 15 seconds and can be heard by the other party, but is not recorded. 3 To stop recording, press Z. Note: L There may be legal restrictions on recording two-way telephone conversations. Inform the other party that the conversation is being recorded. FC245E_en.book Page 33 Wednesday, August 4, 2004 9:47 PM 4. Telephone 9 Automatic Dialling 4.5 Cordless handset phonebook The cordless handset phonebook allows you to make calls without having to dial manually. You can store 200 names and telephone numbers to the phonebook and search for phonebook items by name or category. When the system has additional cordless handsets (page 84), each cordless handset can have its own phonebook. You can copy phonebook items between two cordless handsets (page 87). L The base unit has its own individual phonebook (page 35). Press {ih}. Note: L If there is no space to store new items, “Memory Full” will be displayed. Erase unnecessary items (page 34). To correct a mistake 1. Use the joystick to move the cursor to the incorrect character/number. 2. Press {C}. L To erase all characters/numbers, press and hold {C}. 3. Enter the correct character/number. 4.5.2 Making a phone call using the phonebook Before using this feature, store the desired names and telephone numbers in the cordless handset phonebook (page 33). . {C} {s} & 1 2 Press . (soft key). 3 Press {C} or {s}. L The cordless handset will start dialling automatically. {ih} {C} w/,/ * Push the joystick up or down repeatedly to display the desired item. L You can also find an item using one of the search methods on page 33. 4.5.1 Storing phonebook items 1 2 Press . (soft key). 3 Enter the name, up to 16 characters (see page 91 for character entry). 4 5 6 7 Press ,. 8 Press w. L The display shows the number of available items in the phonebook briefly. Enter the telephone number, up to 24 digits. Press ,. Select a category for the item, or select “Off”. L Caller ID service users can use additional private category features (page 37). L You can search for cordless handset phonebook items by category (page 34). L You can change the category names (page 78). Press , 2 times. L To program other items, repeat steps 3 to 8. To search for a name by initial 1. Press . (soft key). 2. Press the dial key ({0} to {9}) which corresponds to the letter you are searching for (page 91). L Press the same dial key repeatedly to display the first item corresponding to each letter located on that dial key. L If there is no item corresponding to the letter you selected, the next item will be displayed. 3. Push the joystick up or down repeatedly to display the desired item. To search for a name by first character (index search) This method is useful when you are searching for an item which does not start with a letter of the alphabet. 1. Press . (soft key). 2. Press &. 3. Select “Index Search”, then press ,. 33 FC245E_en.book Page 34 Wednesday, August 4, 2004 9:47 PM 4. Telephone 4. Press the right soft key repeatedly to select the character entry mode that contains the character you are searching for (:, ! or %). 5. Press the dial key ({0} to {9}) which contains the character you are searching for. L Press the same dial key repeatedly to select the character you are searching for. 6. Press ,. L The first item beginning with the character you selected is displayed. If there is no such item, the next item will be displayed. 7. Push the joystick down repeatedly to display the desired item. To search for a name by category 1. Press . (soft key). 2. Press &. 3. Select “Category”, then press ,. 4. Select the category you want to search, then press ,. L The first item in that category is displayed. L If “Memory Empty” is displayed, the category you selected has no items. 5. Push the joystick down repeatedly to display the desired item. 4.5.3 Editing a stored item 1 2 Press . (soft key). 3 4 Press *. 5 Edit the name. For further details, see the storing procedure on page 33. 6 Press ,. L If you do not need to edit the telephone number, skip to step 8. 7 Edit the telephone number. For further details, see the storing procedure on page 33. Push the joystick up or down repeatedly to display the desired item. L You can also find an item using one of the search methods on page 33. Select “Edit”, then press ,. L If you do not need to edit the name, skip to step 6. 8 Press ,. 9 Select the category, or select “Off”. 10 Press , 2 times. L To edit other items, repeat steps 2 to 10. 34 11 Press {ih}. 4.5.4 Erasing a stored item 1 2 Press . (soft key). 3 4 5 Press *. 6 7 Press ,. Push the joystick up or down repeatedly to display the desired item. L You can also find an item using one of the search methods on page 33. Select “Delete”, then press ,. Select “Yes”. L To cancel erasing, press {ih}. Press {ih}. 4.5.5 Hot key Cordless handset dial keys {1} to {9} can each be used as a hot key, allowing you to dial a number from the cordless handset phonebook by simply pressing a dial key. Assigning an item to a hot key 1. Press . (soft key). 2. Push the joystick up or down repeatedly to select the desired item. L You can also find an item using one of the search methods on page 33. 3. Press *. 4. Select “Reg. to Hot Key”, then press ,. 5. Push the joystick up or down repeatedly to select a desired dialling button. L Dial keys which have been registered as a hot key already will have a Q next to them. You can overwrite previous hot keys if desired. 6. Press , 2 times. 7. Press {ih}. Note: L If there are no items stored in the cordless handset phonebook when searching for the desired item, the display shows “Memory Empty”. Making a call using a hot key 1. Press and hold the desired hot key ({1} to {9}). L You can view other hot key registrations by pushing the joystick up or down. 2. Press {C} or {s}. FC245E_en.book Page 35 Wednesday, August 4, 2004 9:47 PM 4. Telephone Erasing a hot key 1. Press and hold the desired hot key ({1} to {9}) to display the telephone number. 2. Press * (centre of joystick). 3. Press ,. 4. Select “Yes”, then press ,. Note: L The number erased from a hot key will not be deleted from the phonebook. To erase from the phonebook, see page 34. 4.6 Base unit phonebook The base unit phonebook allows you to make calls without having to dial manually. You can store 100 names and telephone numbers to the phonebook. L You can also send faxes using the base unit phonebook (page 50). L The cordless handset has its own individual phonebook (page 33). {ERASE} {DIGITAL SP-PHONE} {STOP} {SET} {MENU} {<}{>}{A}{B} 4.6.1 Storing phonebook items 1 Press {MENU} repeatedly to display “PHONEBOOK SET”. 2 Press {*}. L The display shows the number of available items in the phonebook briefly. 3 Enter the name, up to 16 characters (see page 28 for instructions). 4 5 6 Press {SET}. 7 Press {MENU}. Enter the telephone number, up to 24 digits. Press {SET}. L To program other items, repeat steps 3 to 6. Helpful hints: L You can confirm the stored items by printing the telephone number list (page 109). To correct a mistake 1. Press {<} or {>} to move the cursor to the incorrect character/number. 2. Press {STOP}. L To erase all characters/numbers, press and hold {STOP}. 3. Enter the correct character/number. 35 FC245E_en.book Page 36 Wednesday, August 4, 2004 9:47 PM 4. Telephone 4.6.2 Making a phone call using the phonebook Before using this feature, store the desired names and telephone numbers in the base unit phonebook (page 35). 1 2 3 Press {>}. Press {A} or {B} repeatedly to display the desired item. Lift the handset or press {DIGITAL SPPHONE}. L The base unit will start dialling automatically. To search for a name by initial Example: “LISA” 1. Press {>}. 2. Press {A} or {B} to initiate the phonebook. 3. Press {5} repeatedly to display any name with the initial “L” (see the character table, page 28). L To search for symbols (not letters or numbers), press {1}. 4. Press {B} repeatedly to display “LISA”. L To stop the search, press {STOP}. L To dial the displayed party, lift the handset or press {DIGITAL SP-PHONE}. 4.6.3 Editing a stored item 1 2 Press {>}. 3 4 Press {MENU}. 5 Edit the name. For further details, see the storing procedure on page 35. 6 Press {SET}. L If you do not need to edit the telephone number, skip to step 8. 7 Edit the telephone number. For further details, see the storing procedure on page 35. 8 Press {SET}. Press {A} or {B} repeatedly to display the desired item. Press {*}. L If you do not need to edit the name, skip to step 6. 4.6.4 Erasing a stored item 1 36 Press {>}. 2 Press {A} or {B} repeatedly to display the desired item. 3 4 Press {MENU}. 5 Press {SET}. Press {#}. L To cancel erasing, press {STOP}. Another method to erase a stored item 1. Press {>}. 2. Press {A} or {B} repeatedly to display the desired item. 3. Press {ERASE}. 4. Press {SET}. FC245E_en.book Page 37 Wednesday, August 4, 2004 9:47 PM 4. Telephone Caller ID 4.7 Caller ID service This unit is compatible with Caller ID service offered by your local telephone company. To use this feature, you must subscribe to Caller ID service. Important: L This unit is designed in accordance with the ETS (European Telecommunication Standard) and only supports the basic CLIP (Calling Line Identification Presentation) features. L This unit will only display the caller’s telephone number and name. L This unit will not support future additional telephone services. L Depending on the service of the local telephone company, the date/time of the call or the caller’s name may not be displayed. Make sure the following ring setting is set to 2 or more rings beforehand. – FAX ring setting (feature #06 on page 70) 4.7.1 How Caller ID is displayed When an outside call is received, the calling party’s telephone number or name will be displayed. You then have the option of whether or not to answer the call. The unit will automatically store caller information (telephone number, name, date and time of the call) of the last 50 different callers. Caller information is stored by the most recent to the oldest call. When the 51st call is received, the oldest call is deleted. Caller information can be viewed on the display one item at a time (page 38) or confirmed by printing the Caller ID list (page 109). Note: L When caller information is received and it matches a telephone number stored in the unit’s phonebook: – The stored name will be displayed. – The cordless handset will use the ringer indicator colour and type assigned to the caller’s category. L If the unit is connected to a PBX (Private Branch Exchange) system, caller information may not be received properly. Consult your PBX supplier. L If the unit cannot receive caller information, the following will be displayed: “OUT OF AREA”: The caller dialled from an area which does not provide Caller ID service. “PRIVATE CALLER”: The caller requested not to send caller information. “LONG DISTANCE”: The caller made a long distance call. To confirm caller information by printing the Caller ID list – To print manually, see page 109. – To print automatically after every 50 new calls, activate feature #26 (page 71). Private category Private categories can help you identify who is calling by using different ringer indicator colours and ringer types for different categories of callers. You can assign items in the cordless handset phonebook to a category (page 33), change the category names (Friends, Family, etc., page 78), and search for phonebook items by category (page 34). When a call is received from a caller assigned to a category, the ringer indicator colour (page 78) and ringer type (page 77) you select is used. Call Waiting Caller ID This is a service of your service provider and will only operate if you have subscribed to this service. When you hear a call waiting tone during a conversation, the display will show the second caller’s information. You can answer the second call, keeping the first call on hold. Please consult your service provider for details of this service. Note: L The second caller’s information will not be displayed when: – the answering machine is recording an incoming message, – another telephone on the same line is in use, or – you are sending or receiving a fax document. 37 FC245E_en.book Page 38 Wednesday, August 4, 2004 9:47 PM 4. Telephone 4.8 Viewing and calling back using caller information You can easily view caller information and call back. Important: L Calling back will not be possible if the caller information does not include a telephone number. Display while viewing L When no calls have been received, the display will show “Memory Empty”. To stop viewing Press {ih} after step 3. 4.8.2 With the base unit The display will show the number of new calls in standby mode. Example: 4.8.1 With the cordless handset 10 NEW CALLS 10:59AM {CALLER ID} The display will show q and the number of new calls in standby mode. Example: H/set 1 10 Calls 17.8 10:59AM {STOP} {A}{B} {FAX/START} 1 Press {CALLER ID}. L The most recent call is displayed. 2 Press {B} to search from the most recently received caller information. L If you press {A}, the display order will be reversed. 3 Lift the handset or press {DIGITAL SPPHONE} to return the call. L The unit will start dialling automatically. L To send a fax, insert the document FACE DOWN and press {FAX/START}. {C} {s} {ih} $/, 1 2 Press $ (centre of joystick). 3 Push the joystick down repeatedly to search from the most recently received caller information. L If you push the joystick up repeatedly, the display order will be reversed. L A Q is displayed next to items which have already been viewed or answered, even if they were viewed or answered using the base unit or another cordless handset. 4 38 Select £, then press ,. L The most recent call is displayed. Press {C} or {s} to return the call. L The cordless handset will start dialling automatically. {DIGITAL SP-PHONE} To change the way caller information is displayed Press {CALLER ID} repeatedly after step 2. Example: 1345678901 20 Jul.11:20AM , b SAM LEE 20 Jul.11:20AM , L A Q on the display means the item has already been viewed or answered, even if it was viewed or answered using a cordless handset. FC245E_en.book Page 39 Wednesday, August 4, 2004 9:47 PM 4. Telephone Display while viewing L When the unit could not receive a name, the display will show “NO NAME RCVD”. L When no calls have been received, the display will show “MEMORY EMPTY”. To stop viewing Press {STOP} after step 2. 4.9 Editing a caller’s telephone number before calling back / storing L Keep the front cover page open for button locations. 4.9.1 With the cordless handset 1 2 3 Press $ (centre of joystick). 4 5 Select “Edit for Call”, then press ,. 6 Select £, then press ,. Push the joystick up or down repeatedly to display the desired item, then press *. 5 Lift the handset or press {DIGITAL SPPHONE} to call back the edited number. L The unit will start dialling automatically. L To send a fax, insert the document FACE DOWN and press {FAX/START}. Note: L The edited telephone number will not be saved as caller information. To store it into the base unit phonebook, see page 40. To correct a mistake 1. Press {<} or {>} to move the cursor to the incorrect number. 2. Press {STOP} to delete the number. 3. Enter the correct number. To delete a number Press {<} or {>} to move the cursor to the number you want to delete and press {STOP}. To insert a number 1. Press {<} or {>} to move the cursor to the position to the right of where you want to insert the number. 2. Enter the number. Use the joystick to move the cursor, then edit the number. L Place the cursor on the number you wish to erase, then press {C}. L Place the cursor to the right of where you want to insert a number, then make a correction. 4.10 Erasing caller information Press {C}, {s}, or , to call back the edited number. 4.10.1 With the cordless handset L Keep the front cover page open for button locations. 1 2 3 Press $ (centre of joystick). 4 To erase the selected item, select “Delete”, then press ,. To erase all items, select “Delete All”, then press ,. Press {A} or {B} repeatedly to display the desired item. 5 6 Select “Yes”, then press ,. 3 Press {CALLER ID} repeatedly to display the telephone number. 4.10.2 With the base unit 4 To insert a number in front of the telephone number, press the desired dial key ({0} to {9}). L You can also initiate the editing mode by pressing {*}. Note: L The edited telephone number will not be saved as caller information. To store it into the cordless handset phonebook, see page 40. 4.9.2 With the base unit 1 2 Press {CALLER ID}. Select £, then press ,. Push the joystick up or down repeatedly to display the desired item, then press *. Press {ih}. Erasing all caller information 1. Press {MENU} repeatedly to display “CALLER SETUP”. 2. Press {SET}. L “CALL LIST ERASE” will be displayed. 39 FC245E_en.book Page 40 Wednesday, August 4, 2004 9:47 PM 4. Telephone 3. Press {SET}. L To cancel erasing, press {STOP} 3 times. 4. Press {SET}. 5. Press {STOP}. Erasing specific caller information 1. Press {CALLER ID}. 2. Press {A} or {B} repeatedly to display the desired item. 3. Press {<}. L To cancel erasing, press {STOP} 2 times. 4. Press {SET}. L To erase other items, repeat steps 2 to 4. 5. Press {STOP}. Another method to erase a specific caller information 1. Press {CALLER ID}. 2. Press {A} or {B} repeatedly to display the desired item. 3. Press {ERASE}. L To erase other items repeat steps 2 to 3. 4. Press {STOP}. 4.11 Storing caller information into the phonebook L Keep the front cover page open for button locations. Important: L This feature is not available if the caller information does not include a telephone number. 4.11.1 Into the cordless handset phonebook 1 2 3 Press $ (centre of joystick). 4 5 Press *. 6 If a name is required, enter up to 16 characters for the name (page 91). Select £, then press ,. Push the joystick up or down repeatedly to display the desired item. Select “Save Phonebook”, then press ,. 7 Press , 2 times. 8 Select the category, or select “Off”. 9 Press , 2 times. 10 Press {ih}. Note: L To edit a name and number, see page 34. L If there is no space to store new items, “Memory Full” will be displayed. Erase unnecessary items (page 34). 4.11.2 Into the base unit phonebook 1 2 40 Press {CALLER ID}. Press {A} or {B} repeatedly to display the desired item. 3 4 Press {MENU}. 5 6 Press {SET}. If a name is required, enter up to 16 characters for the name (page 28). Press {SET}. FC245E_en.book Page 41 Wednesday, August 4, 2004 9:47 PM 4. Telephone Note: L You can confirm the stored items in the base unit phonebook by printing the telephone number list (page 109). L To edit a name and number, see page 36. SMS 4.12 SMS (Short Message Service) SMS allows you to send and receive text messages between other fixed-line and mobile phones that support compatible SMS networks and features. Important: L SMS features are available only after subscribing to Caller ID service. Consult your service provider for details and availability. Note: L 69 messages can be saved when you enter 80 characters per 1 message. L SMS messages are displayed on the cordless handset. The base unit displays the following when sending and receiving SMS messages: “TRANSFERRING MESSAGE”: Displayed when a message is being sent. “RECEIVING NEW SMS”: Displayed when a message is being received. L If the unit is connected to a PBX system, you may not be able to use SMS features. 4.13 Sending a message . $/,/ * {ih} {C} 4.13.1 Writing and sending a new message 1 2 3 Press $ (centre of joystick). Select }, then press ,. Select “Create”, then press ,. L To use the text from the last message you created, push the joystick up when “^ Use Last Text?” is displayed. 41 FC245E_en.book Page 42 Wednesday, August 4, 2004 9:47 PM 4. Telephone 4 Enter the message (page 46), then press ,. 5 Enter the destination telephone number. 2 3 4 Select }, then press ,. 5 To send the message, press *, select “Send”, press ,. – To send the message to the same destination number, continue from step 6, “4.13.1 Writing and sending a new message”, page 41. – To send the message to a different destination number, erase the displayed number by pressing {C}, then continue from step 5, “4.13.1 Writing and sending a new message”, page 41. Manually: Enter the number, up to 20 digits. Using the cordless handset phonebook: 1. Press . (soft key). 2. Push the joystick up or down repeatedly to display the desired item. L You can also find an item using one of the search methods on page 33. 3. Press ,. Using the Caller ID list: 1. Push the joystick up or down repeatedly to select the party. 2. Press ,. 8 4.13.3 Editing a saved message 1. Press - repeatedly to select the telephone number. 1 2 3 4 Press $ (centre of joystick). 5 6 7 Press *. Press ,. To save the message, select “Yes”, then press ,. L To send the message without saving it, select “No”, then press ,. To send the message, select “Send”, then press ,. L To cancel sending, press {ih}. Note: L An SMS message may contain up to 160 characters. Consult your SMS service provider for more information. L “Invalid Number” is displayed if you try to send a message to a telephone number saved in the cordless handset phonebook, Caller ID list, or redial list that is over 20 digits long. L When sending a message, “Sending Message” is displayed momentarily, then “Transferring Message” is displayed. L If your unit is connected to a PBX, store the PBX line access number (page 45). L If the SMS message memory becomes full, “Full” is displayed. Erase unnecessary messages (page 42, 43). 4.13.2 Displaying / Sending a saved message 1 42 To display a saved message, push the joystick up or down repeatedly to select the message, then press ,. L Messages are displayed in chronological order. Using the redial list: 2. Press ,. 6 7 Select “Send List”, then press ,. Press $ (centre of joystick). Select }, then press ,. Select “Send List”, then press ,. Push the joystick up or down repeatedly to select the message, then press ,. L The text message is displayed. Select “Edit Message”, then press ,. Continue from step 4, “4.13.1 Writing and sending a new message”, page 41. 4.13.4 Erasing a saved message 1 2 3 4 Press $ (centre of joystick). 5 6 7 8 Press *. Select }, then press ,. Select “Send List”, then press ,. Push the joystick up or down repeatedly to select the message, then press ,. L The text message is displayed. Select “Delete”, then press ,. Select “Yes”, then press ,. Press {ih}. FC245E_en.book Page 43 Wednesday, August 4, 2004 9:47 PM 4. Telephone 4.14 Receiving a message When an SMS message is received, the display will show “Receiving New SMS”. The F icon is displayed next to the number of new messages. Example: 4.14.2 Replying to a message H/set 1 2 SMS 17.8 10:59AM {C} {s} _ 1 While reading a received message, press * (centre of joystick). 2 3 Select “Reply”, then press ,. 4 Edit the destination telephone number and/or press ,. 5 Continue from step 7, “4.13.1 Writing and sending a new message”, page 41. {ih} $/,/ * 4.14.1 Displaying a received message 1 2 3 Press $ (centre of joystick). 4 Push the joystick up or down repeatedly to select a message. L The date, time, and telephone number of the sender are displayed. L Messages which have already been read are indicated by a Q, even if they were read using another cordless handset. L To erase a message, press _, select “Yes”, then press ,. 5 number. As a result, sender names stored in the cordless handset phonebook may not be displayed. L If the SMS message memory becomes full, “Full” is displayed. Erase unnecessary messages (page 42, 43). L New SMS messages cannot be received while the memory is full. Select }, then press ,. Select “Receive List”, then press ,. L The number of new messages and the total number of messages are displayed. Editing/forwarding a message 1. While reading a received message, press * (centre of joystick). 2. Select “Edit Message”, then press ,. 3. Continue from step 4, “4.13.1 Writing and sending a new message”, page 41. 4.14.3 Erasing a received message 1 While reading a received message, press * (centre of joystick). 2 3 4 Select “Delete”, then press ,. Select “Yes”, then press ,. Press {ih}. 4.14.4 Storing the sender’s number in the cordless handset phonebook 1 While reading a received message, press * (centre of joystick). 2 Select “Save Phonebook”, then press ,. 3 Continue from step 3, “4.5.1 Storing phonebook items”, page 33. Press , to read the message content. Note: L To call the message sender, press {C} or {s}. L If you receive a message from a party saved in the cordless handset phonebook, the stored name is displayed. L Some SMS service providers attach a 1-digit number to the message sender’s telephone Enter a message (page 46), then press ,. 43 FC245E_en.book Page 44 Wednesday, August 4, 2004 9:47 PM 4. Telephone 4.14.5 Editing the sender’s number before calling back 1 While reading a received message, press * (centre of joystick). 2 3 Select “Edit for Call”, then press ,. Edit the number, then press {C}, {s}, or , to call. 4.15 Guide to SMS settings L Keep the front cover page open for button locations. 4.15.1 Turning SMS ON/OFF 1 2 3 4 Press $ (centre of joystick). 5 6 7 Select “SMS On/Off”, then press ,. Select }, then press ,. Select “Parameters”, then press ,. Enter “0000” (default base unit PIN). L If you changed the PIN, enter it (page 82). Select “On” or “Off”, then press ,. Press {ih}. Note: L If you try to send a message while SMS is turned OFF, a tone sounds and the message is placed in the receive list with “FD” attached to it. L If someone tries to send you a message while SMS is turned OFF, the message will not be received and the message centre number will be logged in the Caller ID list. 4.15.2 Changing SMS message centre numbers SMS message centre telephone numbers must be stored in order to send and receive SMS messages. The following numbers (used for SMS services provided by BT Text) are preprogrammed in this unit. You can change them if necessary. – Message Centre 1: 1470PP17094009 (“P” indicates a dialling pause.) – Message Centre 2: 0800587529 Message Centre 1 is used for sending SMS messages, and Message Centre 2 is used for receiving messages. L Consult your service provider for more information. 1 2 3 4 44 Press $ (centre of joystick). Select }, then press ,. Select “Parameters”, then press ,. Enter “0000” (default base unit PIN). L If you changed the PIN, enter it (page 82). FC245E_en.book Page 45 Wednesday, August 4, 2004 9:47 PM 4. Telephone 5 Select “Message Centre1” or “Message Centre2”, then press ,. 6 Edit the number as necessary, then press , 2 times. 7 Press {ih}. Note: L If your unit is connected to a PBX, you need to add the PBX line access number and a dialling pause to the beginning of the Message Centre 1 telephone number. 4.15.3 Storing the PBX line access number (for PBX users only) L All received SMS messages will be printed. 3 Press {STOP}. 4.16.2 Printing a specific SMS message 1 Display the desired message using the cordless handset (page 42, 43). 2 3 Press {SMS PRINTING} on the base unit. Press {SET}. L The displayed message on the cordless handset will be printed. L To cancel printing, press {STOP}. Store your PBX line access number (up to 4 digits) so that SMS messages are sent properly. When sending SMS messages to items in the cordless handset phonebook, Caller ID list, or redial list, the PBX line access number will be deleted. 1 2 3 4 Press $ (centre of joystick). 5 6 7 Select “PBX Prefix”, then press ,. 8 Press {ih}. Select }, then press ,. Select “Parameters”, then press ,. Enter “0000” (default base unit PIN). L If you changed the PIN, enter it (page 82). Select “On”, then press ,. Enter your PBX line access code (up to 4 digits) and a dialling pause, if necessary, then press , 2 times. 4.16 Printing SMS messages Using the base unit, you can print all SMS messages in the receive list, or print a specific SMS message in the receive or send list from the base unit. L Keep the front cover page open for button locations. 4.16.1 Printing all received SMS messages 1 Press {SMS PRINTING}. L “ALL MESSAGES” will be displayed. 2 Press {SET}. 45 FC245E_en.book Page 46 Wednesday, August 4, 2004 9:47 PM 4. Telephone 4.17 Available character entries for SMS The cordless handset dial keys are used to enter characters and numbers. Each dial key has multiple characters assigned to it. The available character entry modes are; # (LetterWise), : (Alphabet), ; (Numeric), ! (Greek), and x (Extended). When in :, !, or x character entry modes, you can select which character is entered by pressing a dial key repeatedly. L Move the joystick to move the cursor. L Press dial keys to enter characters and numbers. L Press {C} to erase the character or number highlighted by the cursor. Press and hold {C} to erase all characters or numbers. L Press {*} to switch between uppercase and lowercase. L To enter another character located on the same dial key, push the joystick right to move the cursor to the next space, then press the appropriate dial key. (This is not necessary when entering text in LetterWise mode.) 4.17.1 Character entry modes Press the right soft key repeatedly to select the desired character entry mode. LetterWise Alphabet Numeric # : ; x ! Extended Greek Note: L The following character entry modes are available when entering text for SMS messages. For other character entry modes, see page 91. # LetterWise character table (for English) LetterWise is a simplified text entry system which suggests the most likely letter to follow the previously entered text. Text can be input faster because the number of key presses are reduced. You can change which language is used for LetterWise character entry (page 80). How to enter characters L Each time you press a dial key, LetterWise will suggest a character. L If the suggested character is incorrect, press {#} repeatedly to display the desired character. 46 FC245E_en.book Page 47 Wednesday, August 4, 2004 9:47 PM 4. Telephone : Alphabet character table ; Numeric entry table ! Greek character table x Extended character table L The following are used for both uppercase and lowercase: 47 FC245E_en.book Page 48 Wednesday, August 4, 2004 9:47 PM 5. Fax 5 Fax Sending Faxes 5.1 Sending a fax manually the other party has a compatible fax machine. – “PHOTO”: For documents containing photographs, shaded drawings, etc. L Using the “FINE”, “SUPER FINE” and “PHOTO” settings will increase transmission time. L If the resolution setting is changed during feeding, it will be effective from the next page. 1 To redial the last number 1. Press {REDIAL}. 2. Press {FAX/START}. L If the line is busy, the unit will automatically redial the number up to 5 times. L To cancel redialling, press {STOP}. {A}{B} {STOP} {FAX/START} 1 {REDIAL} {DIGITAL SP-PHONE} Adjust the width of the document guides (1) to fit the actual size of the document. 2 Insert the document (up to 10 pages) FACE DOWN until a single beep is heard and the unit grasps the document. L If the document guides are not adjusted to fit the document, re-adjust them. 3 If necessary, press {A} or {B} repeatedly to select the desired resolution. 4 Lift the handset or press {DIGITAL SPPHONE}. 5 6 Dial the fax number. When a fax tone is heard: Press {FAX/START}. When the other party answers your call: Ask them to press their start button. When the fax tone is heard, press {FAX/START}. Note: L After pressing {FAX/START}, you can replace the handset. To select the resolution Select the desired resolution according to the type of document. – “STANDARD”: For printed or typewritten documents with normal-sized characters. – “FINE”: For documents with small print. – “SUPER FINE”: For documents with very small print. This setting is effective only when 48 To send more than 10 pages at a time Insert the first 10 pages of the document. Add the other pages (up to 10 at a time) on top of the previously inserted pages before the last page feeds into the unit. To predial a fax number You can dial the fax number first before inserting the document. This is convenient if you need to refer to the document for the other party’s fax number. 1. Enter the fax number. 2. Insert the document. 3. Press {FAX/START}. To send from memory (Quick scan feature) You can scan the document into memory before sending. To use this feature, activate feature #34 (page 71) beforehand. 1. Insert the document. 2. Enter the fax number. 3. Press {FAX/START}. L The document will be fed into the unit and scanned into memory. The unit will then transmit the data. If the document exceeds the memory capacity, sending will be cancelled and this feature will be turned OFF automatically. You must send the entire document manually. L This feature cannot be used if the handset is in use, or {DIGITAL SP-PHONE} on the base unit, {C} or {s} on the cordless handset is pressed. To stop transmission Press {STOP}. FC245E_en.book Page 49 Wednesday, August 4, 2004 9:47 PM 5. Fax Printing a sending report A sending report provides you with a printed record of transmission results. To print sending reports, make sure feature #04 is activated (page 70). For an explanation of error messages, see page 93. Printing a journal report A journal report provides you with a printed record of the 30 most recent faxes. To print manually, see page 109. To print automatically after every 30 new fax transmissions and receptions, make sure feature #22 is activated (page 71). For an explanation of error messages, see page 93. 5.2 Documents you can send 128 mm Minimum document size Document weight L Single sheet: 45 g/m2 to 90 g/m2 L Multiple sheets: 60 g/m2 to 80 g/m2 Note: L Remove clips, staples or other fasteners. L Do not send documents that are on the following types of paper: (Make a copy of the document and send the copy.) – Chemically treated paper such as carbon or carbonless duplicating paper – Electrostatically charged paper – Badly curled, creased or torn paper – Paper with a coated surface – Paper with a faint image – Paper with printing on the opposite side that can be seen through the other side, such as newsprint. L Check that ink, paste or correction fluid has dried completely. L To send a document with a width of less than 210 mm, we recommend using a copy machine to copy the original document onto A4 or letter-sized paper, then sending the copied document. 128 mm 600 mm Maximum document size 216 mm Effective scanning area L Shaded area will be scanned. 2 mm 2 mm 4 mm 4 mm 208 mm 216 mm 49 FC245E_en.book Page 50 Wednesday, August 4, 2004 9:47 PM 5. Fax 5.3 Sending a fax using the base unit phonebook 5.4 Broadcast transmission Before using this feature, store the desired names and telephone numbers into the base unit phonebook (page 35). L Keep the front cover page open for button locations. By storing base unit phonebook items (page 35) into the broadcast memory, you can send the same document to multiple parties (up to 20). Your programmed items will remain in the broadcast memory, allowing frequent re-use. L Keep the front cover page open for button locations. 1 Adjust the width of the document guides to fit the actual size of the document. 2 Insert the document (up to 10 pages) FACE DOWN until a single beep is heard and the unit grasps the document. L If the document guides are not adjusted to fit the document, re-adjust them. 3 If necessary, press {A} or {B} repeatedly to select the desired resolution (page 48). 4 5 Press {>}. Press {A} or {B} repeatedly to display the desired item and press {FAX/START}. Fax auto redial If the line is busy or if there is no answer, the unit will automatically redial the number up to 5 times. L To cancel redialling, press {STOP}. If your unit does not send a fax L Confirm that you have entered the number correctly, and that the number is a fax number. L Confirm that the other party’s fax machine is answering by turning ON the connecting tone feature (feature #76 on page 73). 5.4.1 Programming items into the broadcast memory 1 Press {MENU} repeatedly to display “PHONEBOOK SET”. 2 Press {#}. L The number in brackets indicates the number of registered items. 3 Press {A} or {B} repeatedly to display the desired item. 4 Press {SET}. L To program other items, repeat steps 3 and 4 (up to 20 items). 5 Press {SET}. Note: L If you program the wrong item, press {STOP} after step 4 to erase the item. L Confirm the stored items by printing a broadcast programming list (page 109). 5.4.2 Adding a new item into the broadcast memory After initial programming, you can add new items (up to a combined total of 20). 1 2 3 4 5 50 Press {>}. Press {A} or {B} repeatedly to display “<BROADCAST>”. Press {MENU}. Press {*}. Press {A} or {B} repeatedly to display the desired item you want to add. 6 Press {SET}. L To add other items, repeat steps 5 and 6 (up to 20 items). 7 Press {STOP}. FC245E_en.book Page 51 Wednesday, August 4, 2004 9:47 PM 5. Fax 5.4.3 Erasing a stored item from the broadcast memory 1. Insert the document. 2. Press {>}. 1 2 Press {>}. 3. Press {A} or {B} repeatedly to display “<ONE TIME BROAD>”. Press {A} or {B} repeatedly to display “<BROADCAST>”. 4. Press {SET} to start programming the parties you want to send the document to. 3 4 5 Press {MENU}. 5. Press {A} or {B} repeatedly to display the desired party. Press {#}. Press {A} or {B} repeatedly to display the desired item you want to erase. L To cancel erasing, press {STOP}. 6 7 Press {SET}. 8 Press {STOP}. Press {SET}. L To erase other items, repeat steps 5 to 7. 5.4.4 Sending the same document to pre-programmed parties 1 2 Insert the document FACE DOWN. 3 4 Press {>}. 5 Press {FAX/START}. L The document will be fed into the unit and scanned into memory. The unit will then send the data to each party, calling each number sequentially. L After transmission, the stored document will be erased from memory automatically, and the unit will automatically print a report (Broadcast sending report). 6. Press {SET}. L To program other parties, repeat steps 5 and 6 (up to 20 items). 7. Press {FAX/START} to start transmission to the programmed parties. To cancel broadcast transmission 1. Press {STOP} while “BROADCASTING” is displayed. L The display will show “SEND CANCELLED?”. 2. Press {SET}. If necessary, press {A} or {B} repeatedly to select the desired resolution (page 48). Press {A} or {B} repeatedly to display “<BROADCAST>”. Note: L If you select “FINE”, “SUPER FINE” or “PHOTO” resolution, the number of pages that the unit can send will decrease. L If the document exceeds the memory capacity, sending will be cancelled. L If a party is busy or does not answer, it will be skipped and redialled later up to 5 times. To send the same document to a one-time group of parties You can also select a one-time group of parties to send the same document to. After transmission, this group will be deleted. 51 FC245E_en.book Page 52 Wednesday, August 4, 2004 9:47 PM 5. Fax Receiving Faxes 5.5 Selecting the way to use your fax machine Depending on your situation, select the way you prefer to use your fax machine. – Use as a telephone answering machine and/or fax (TAM/FAX mode) – Use only as a fax (FAX ONLY mode) – Use mostly as a telephone (TEL mode) 5.5.1 Use as a telephone answering machine and/or fax (TAM/FAX mode) Your situation You want to answer phone calls using the telephone answering machine and receive faxes automatically. Setup Set the fax machine to TAM/FAX mode (page 55) by pressing {AUTO ANSWER} repeatedly. L The {AUTO ANSWER} indicator on the base unit turns ON and r (next to the battery icon) appears on the cordless handset display. {FAX/START} 52 Note: L Make sure feature #77 is set to “TAM/FAX” beforehand (page 73). L Do not connect an answering machine to the same telephone line. If connected, set the automatic answer feature to OFF by pressing {AUTO ANSWER} repeatedly. How phone calls and faxes are received If the call is a phone call, the fax machine will record the caller’s message automatically. If a fax calling tone is detected, the fax machine will receive the fax automatically. FC245E_en.book Page 53 Wednesday, August 4, 2004 9:47 PM 5. Fax 5.5.2 Use only as a fax (FAX ONLY mode) 5.5.3 Use mostly as a telephone (TEL mode) Your situation You have a separate telephone line just for faxes. Your situation You want to answer calls by yourself. If a fax call is received, you must receive the fax manually. Setup Set the fax machine to FAX ONLY mode (page 57) by pressing {AUTO ANSWER} repeatedly. L The {AUTO ANSWER} indicator on the base unit turns ON and r (next to the battery icon) appears on the cordless handset display. Note: L Make sure feature #77 is set to “FAX ONLY” beforehand (page 73). How faxes are received All incoming calls will be answered as faxes. Setup Set the fax machine to TEL mode (page 54) by pressing {AUTO ANSWER} repeatedly. L The {AUTO ANSWER} indicator on the base unit turns OFF and r (next to the battery icon) disappears from the cordless handset display. How to receive phone calls and faxes You have to answer all calls manually. To receive a fax, press {FAX/START}. 53 FC245E_en.book Page 54 Wednesday, August 4, 2004 9:47 PM 5. Fax 5.6 Receiving a fax manually – Auto answer OFF 5.6.1 Activating TEL mode Set the fax machine to TEL mode by pressing {AUTO ANSWER} repeatedly to display the following. TEL MODE L The {AUTO ANSWER} indicator on the base unit turns OFF and r (next to the battery icon) disappears from the cordless handset display. Note: L By default, the unit reduces the size of the received document to 92% when printing (See feature #36 on page 72 for details). Activating TEL mode with the cordless handset 1. Press $ (centre of joystick). 2. Select K, then press ,. 3. Select “Answer Off”, then press ,. 4. Press {ih}. How to receive phone calls and faxes with the base unit 1. Lift the handset or press {DIGITAL SPPHONE} to answer the call. 2. When: – document reception is required, – a fax calling tone (slow beep) is heard, or – no sound is heard, press {FAX/START}. CONNECTING..... L The unit will start fax reception. 3. Replace the handset if using it. {STOP} {FAX/START} {DIGITAL SP-PHONE} {C} {s} $/, 54 {ih} How to receive phone calls and faxes with the cordless handset 1. Lift the cordless handset and press {C} or {s} to answer the call. 2. When: – document reception is required, – a fax calling tone (slow beep) is heard, or – no sound is heard, press {*}{#}{9} (default fax activation code) firmly. L You can also press {FAX/START} on the base unit. Note: L To receive fax documents using the cordless handset, make sure remote fax activation is turned ON beforehand (feature #41 on page 72). The default setting is ON. How to receive phone calls and faxes with an extension telephone If you have another telephone connected to the same line (extension telephone), you can use the extension telephone to receive faxes. 1. When the extension telephone rings, lift the handset of the extension telephone. 2. When: – document reception is required, – a fax calling tone (slow beep) is heard, or – no sound is heard, FC245E_en.book Page 55 Wednesday, August 4, 2004 9:47 PM 5. Fax press {*}{#}{9} (default fax activation code) firmly. L The fax machine will start fax reception. 3. Replace the handset. Note: L To receive fax documents using the extension telephone, make sure remote fax activation is turned ON beforehand (feature #41 on page 72). The default setting is ON. To stop receiving Press {STOP}. 5.7 Receiving a fax automatically – Auto answer ON 5.7.1 Activating TAM/FAX mode 1 Make sure feature #77 is set to “TAM/FAX” beforehand (page 73). 2 Press {AUTO ANSWER} repeatedly to display the following. TAM/FAX MODE L The {AUTO ANSWER} indicator on the base unit turns ON and r (next to the battery icon) appears on the cordless handset display. L The remaining time for recording incoming messages will be displayed. L The unit will announce the remaining recording time if it is less than 5 minutes. $/, {ih} 55 FC245E_en.book Page 56 Wednesday, August 4, 2004 9:47 PM 5. Fax Note: L The maximum recording time for incoming message can be changed (page 65, or feature #10 on page 70). L While an incoming call is being recorded, you can monitor it through the speaker. L If the unit announces the memory is full, erase unnecessary messages (page 62, 64). Activating TAM/FAX mode with the cordless handset 1. Press $ (centre of joystick). 2. Select K, then press ,. 3. Select “Answer On”, then press ,. 4. Press {ih}. Note: L Make sure feature #77 is set to “TAM/FAX” beforehand (page 73). How phone calls and faxes are received When receiving calls, the unit works as an answering machine and/or fax. L If the call is a phone call, the unit will record the caller’s message automatically. L If a fax calling tone is detected, the unit will receive the fax automatically. Note: L By default, the unit reduces the size of the received document to 92% when printing (See feature #36 on page 72 for details). Receiving a voice message and fax document in one call The caller can leave a voice message and send a fax document during the same call. Inform the caller of the following procedure beforehand. 1. The caller calls your unit. L The answering machine will answer the call. 2. The caller can leave a message after the greeting message. 3. The caller presses {*}{9}. L The unit will activate the fax function. 4. The caller presses the start button to send a fax. Ring setting in TAM/FAX mode You can change the number of rings before the unit answers calls. You can choose from “2” (default), “3”, “4”, “5”, “6”, “7” and “AUTO”. This setting can be changed by feature #06 on page 70. 56 “AUTO”: The unit answers after 2 or 3 rings when new messages have been recorded, and after 5 or 6 rings when there are no new messages. If you call your unit from outside to listen to new messages (page 67), you will know that there are no messages when the unit rings for the 4th time. You can then hang up without being charged for the call. Note: L You can also program this feature with the cordless handset (page 65). FC245E_en.book Page 57 Wednesday, August 4, 2004 9:47 PM 5. Fax 5.7.2 Activating FAX ONLY mode 1 Make sure feature #77 is set to “FAX ONLY” beforehand (page 73). 2 Press {AUTO ANSWER} repeatedly to display the following. FAX ONLY MODE L The {AUTO ANSWER} indicator on the base unit turns ON and r (next to the battery icon) appears on the cordless handset display. How faxes are received When receiving calls, the unit will automatically answer all calls and only receive fax documents. Note: L The number of rings before a call is answered in FAX ONLY mode can be changed (feature #06 on page 70). L By default, the unit reduces the size of the received document to 92% when printing (See feature #36 on page 72 for details). 5.8 Receive polling (retrieving a fax placed on another fax machine) This feature allows you to retrieve a document from another compatible fax machine. Therefore you pay for the call. Make sure that no documents are fed into your unit and that the other party’s machine is ready for your call. L Keep the front cover page open for button locations. $/, 1 Press {MENU} repeatedly to display “POLLING”. 2 3 4 Press {SET}. Dial the fax number. Press {SET}. L The unit will start fax reception. {ih} Activating FAX ONLY mode with the cordless handset 1. Press $ (centre of joystick). 2. Select K, then press ,. 3. Select “Answer On”, then press ,. 4. Press {ih}. Note: L Make sure feature #77 is set to “FAX ONLY” beforehand (page 73). 57 FC245E_en.book Page 58 Wednesday, August 4, 2004 9:47 PM 5. Fax 5.9 Junk fax prohibitor (preventing fax reception from undesired callers) If you subscribe to Caller ID service, this feature prevents fax reception from calls that do not show caller information. Additionally, you can store undesirable phone numbers in the junk fax prohibitor list; faxes sent from these phone numbers will not be received by your fax machine. L Keep the front cover page open for button locations. Important: L This feature does not work when: – the unit is set to the TEL mode, or – manual reception is performed. 5.9.1 Activating the junk fax prohibitor 1 Press {MENU} repeatedly to display “JUNK FAX PROH.”. 2 3 4 5 Press {>}. Press {A} or {B} repeatedly to select “ON”. Press {SET}. Press {MENU}. L While the junk fax prohibitor is activated, “JUNK FAX ON” is displayed. 5.9.2 Storing undesired callers You can register up to 10 undesired numbers from the Caller ID list (page 37) if you do not wish to receive faxes from them. 1 Press {MENU} repeatedly to display “JUNK FAX PROH.”. 2 Press {>} repeatedly to display “JUNK LIST SET”. 3 4 Press {SET}. 5 Press {SET}. L To program other parties, repeat steps 4 to 5. 6 Press {STOP} to exit the program. 58 Press {A} or {B} repeatedly to display the party you wish to prevent fax reception from. Note: L If there is no space to store new items, “LIST FULL” is displayed in step 3 or step 5. Erase unnecessary items. To display the junk fax prohibitor list 1. Press {MENU} repeatedly to display “JUNK FAX PROH.”. 2. Press {>} repeatedly to display “JUNK LIST DISP.”. 3. Press {SET}. 4. Press {A} or {B} repeatedly to display the items on the list. 5. Press {MENU} to exit the program. To print the junk fax prohibitor list 1. Press {MENU} repeatedly to display “JUNK FAX PROH.”. 2. Press {>} repeatedly to display “JUNK LIST PRINT”. 3. Press {SET}. 4. Press {MENU} to exit the list. To erase an item from the junk fax prohibitor list 1. Press {MENU} repeatedly to display “JUNK FAX PROH.”. 2. Press {>} repeatedly to display “JUNK LIST DISP.”. 3. Press {SET}. 4. Press {A} or {B} repeatedly to display the desired item. 5. Press {<}. L To cancel erasing, press {STOP}, then press {MENU}. 6. Press {SET}. L The item is erased. L To erase other items, repeat steps 4 to 6. 7. Press {MENU} to exit the list. FC245E_en.book Page 59 Wednesday, August 4, 2004 9:47 PM 6. Copy 6 Copy Copying 6.1 Making a copy 1 Quick scan feature This feature is helpful when you want to copy the document, then remove it for other uses. To use this feature, activate feature #34 (page 71) beforehand. The default setting is OFF. L The document will be fed into the unit and scanned into memory. The unit will then print the data. If the document exceeds the memory capacity, copying of the exceeded document will be cancelled and this feature will be turned OFF automatically. To stop copying Press {STOP}. 6.1.1 More copying features To enlarge a document {STOP} {START} {COPY} 1. Insert the document, then press {COPY}. {>}{A}{B} 1 Adjust the width of the document guides (1) to fit the actual size of the document. 2 Insert the document (up to 10 pages) FACE DOWN until a single beep is heard and the unit grasps the document. L If the document guides are not adjusted to fit the document, re-adjust them. 3 If necessary, press {A} or {B} repeatedly to select the desired resolution. 4 Press {COPY}. L If necessary, enter the number of copies (up to 30). 5 Press {START}, or wait for 15 seconds. L The unit will start copying. Note: L Any document which can be sent as a fax can also be copied (page 49). To select the resolution Select the desired resolution according to the type of document. – “FINE”: For printed or typewritten documents with small print. – “SUPER FINE”: For documents with very small print. – “PHOTO”: For documents containing photographs, shaded drawings, etc. L If you select “STANDARD”, copying will be done using “FINE” mode. 2. Press {>}. 3. Press {A} repeatedly to select “150%” or “200%”, then press {START}. L The unit will only enlarge the centre of the upper part of the document. To make an enlarged copy of the bottom of the document, turn the document around, and then make a copy. Example: 150% enlarged copy Original document Enlarged copy A B A B C D C D To reduce a document 1. Insert the document, then press {COPY}. 2. Press {>}. 3. Press {B} repeatedly to select “92%”, “86%” or “72%”, then press {START}. Setting Recording paper size Original document size “100%” (default) A4 A4, Letter “92%” A4 A4 “86%” A4 A4 “72%” A4 Legal 59 FC245E_en.book Page 60 Wednesday, August 4, 2004 9:47 PM 6. Copy A4 = 210 mm × 297 mm Legal = 216 mm × 356 mm Letter = 216 mm × 279 mm Note: L If the appropriate reduction rate is not selected, the document may be divided and the top of the second sheet will be deleted. L If the image at the bottom of the document is not copied when you copy a document that is the same length as the recording paper, try 92% or 86%. To collate multiple copies The unit can collate multiple copies in the same order as the original document pages. 1. Insert the document, then press {COPY}. 2. Enter the number of copies (up to 30). 3. Press {>} 2 times to display “COLLATE OFF”. 4. Press {A} or {B} repeatedly to display “COLLATE ON”. 5. Press {START}. Example: Making 2 copies of a 4-page original document 4 3 1 2 1 1 2 2 3 4 3 3 4 2 1 Collated pages 4 Uncollated pages Note: L The unit will store the documents into memory while collating the copies. If memory becomes full while storing, the unit will only print out the stored pages. L After copying, the collating feature will turn OFF automatically. L If the unit has run out of recording paper, the unit will scan the document but will not print, and the data will not be stored in the memory. Insert more paper, press {START}, then try copying again. 60 FC245E_en.book Page 61 Wednesday, August 4, 2004 9:47 PM 7. Answering Machine 7 Answering Machine Greeting 7.1 Recording your greeting message You can record your own greeting message for TAM/FAX mode, for a maximum of 16 (default) or 60 seconds in length. We recommend you record a message of less than 12 seconds to make it easier to receive faxes. To check the greeting message Press {GREETING}. L The unit will play the greeting message. 7.1.1 Erasing your recorded greeting message Press {GREETING}, and then press {ERASE} while your greeting message is played. Note: L If you erase your TAM/FAX greeting message, the pre-recorded greeting message will be played when a call is received. 7.1.2 Pre-recorded greeting message {STOP} {ERASE} {GREETING} {MIC} 1 Press and hold {GREETING} until the unit announces you to start recording. L A long beep will sound. 2 Speak clearly about 20 cm away from {MIC}. L The display will count up the recording time. 3 To stop recording, press {GREETING}. L The unit will repeat your message. L You can also stop recording by pressing {STOP}. If you do not record a greeting message, one of two pre-recorded messages will be played when a call is received, depending on the caller’s recording time (page 65, or feature #10 on page 70). To check the pre-recorded greeting, press {GREETING}. – When the recording time is set to “1 MINUTE” or “NO LIMIT”, the unit will play a greeting message asking callers to send faxes or leave messages. – When the recording time is set to “GREETING ONLY”, the unit will play a greeting message asking callers to call again. Note: L You can change the maximum TAM/FAX greeting message recording time to 60 seconds (feature #54 on page 72). – If you change the setting to 60 seconds, we recommend that you tell the caller in your TAM/FAX greeting message to press {*}{9} before starting fax transmission. – If you change the setting from 60 seconds to 16 seconds, your greeting message will be deleted. The pre-recorded greeting message will be played when a call is received. 61 FC245E_en.book Page 62 Wednesday, August 4, 2004 9:47 PM 7. Answering Machine Incoming Messages 7.2 Listening to recorded messages When the unit has recorded new voice messages: – The {AUTO ANSWER} indicator will flash when the auto answer setting is turned ON. – The total number of recorded messages will flash on the base unit display. Example: 02 Note: L The total recording time of all messages (greeting, incoming and memo) is about 30 minutes. A maximum of 64 messages (incoming and memo) can be recorded. If messages are recorded in noisy environment, the actual recording time may be less. To repeat a message Press {<} while listening to the message. L If you press {<} within 5 seconds of the beginning of the message, the previous message will be played. L To play back a specific message, press {<} or {>} and search for the message you want to listen to. To skip a message Press {>} to play the next message. To stop playback temporarily Press {STOP}. L If you press {PLAYBACK} within 1 minute, the unit will resume playing the rest of the messages. {STOP} {ERASE} {MENU} {<}{>}{A}{B} {PLAYBACK} {DIGITAL SP-PHONE} Press {PLAYBACK}. L Only new messages will be played. L Adjust the speaker volume using {A} or {B}. L After playing back all of the new messages; – the {AUTO ANSWER} indicator will stop flashing but will remain lit up when the auto answer setting is turned ON. – the total number of recorded messages will stop flashing and remain displayed. If you press {PLAYBACK} at this time, all recorded messages will be played. L At the end of the last message, the unit will announce the remaining recording time if it is less than 5 minutes. L If the unit announces that the memory is full after playback, erase unnecessary messages (page 62, 64). 62 Voice time/day stamp During playback, the unit will announce the day of the week and time that each message was recorded. If you subscribe to Caller ID service During playback, the display shows the name and/or number of the caller whose message is being played. You can call back the displayed number using the base unit. 1. Press {MENU} during playback. L The base unit stops playback. L If you do not need to edit the telephone number, skip to step 3. 2. Edit the telephone number (page 39). 3. Lift the handset or press {DIGITAL SPPHONE}. L The base unit automatically dials the telephone number. 7.2.1 Erasing recorded messages To erase a specific message Press {ERASE} while listening to the message you want to erase. FC245E_en.book Page 63 Wednesday, August 4, 2004 9:47 PM 7. Answering Machine To erase all messages 1 2 Press {ERASE}. Press {ERASE}. L To cancel erasing, press {STOP}. Memo Message 7.3 Leaving a message for others or yourself Remote Operation 7.4 Using the answering machine with the cordless handset Helpful hints: L To activate TAM/FAX mode with the cordless handset, see page 56. To leave a private message for yourself or someone else, you can record a voice memo. Recorded messages are treated as new messages. To listen to the recorded messages, see page 62, 64. L Keep the front cover page open for button locations. 1 Press {MENU} repeatedly to display “RECORD MEMO”. 2 Press {SET}. L A long beep will sound. 3 4 Speak clearly about 20 cm away from {MIC}. To stop recording, press {STOP}. {C} _ {ih} {s} Z/*/ $/, 1 7.4.1 Recording your greeting message 1 2 3 4 5 Press $ (centre of joystick). 6 To stop recording, press Z. L The greeting message is played back. 7 Press {ih}. Select K, then press ,. Select “Record”, then press ,. Select “Record OGM”, then press ,. Hold the cordless handset about 20 cm away and speak clearly into the microphone (1). To check the greeting message 1. Press $ (centre of joystick). 2. Select K, then press ,. 3. Select “Play OGM”, then press ,. L The greeting message is played back. 4. Press {ih}. To erase your recorded greeting message 1. Press $ (centre of joystick). 2. Select K, then press ,. 3. Select “Delete Message”, then press ,. 4. Select “Delete OGM”, then press ,. 63 FC245E_en.book Page 64 Wednesday, August 4, 2004 9:47 PM 7. Answering Machine 5. Select “Yes”, then press ,. 6. Press {ih}. 7.4.2 Listening to recorded messages When you have new messages, the number of new messages is displayed next to r. Example: H/set 1 2 Messages 17.8 10:59AM 1 2 3 Press $ (centre of joystick). 4. Select “Delete All”, then press ,. 5. Select “Yes”, then press ,. 6. Press {ih}. 7.4.3 Leaving a message for others or yourself 1 2 3 4 5 Press $ (centre of joystick). 6 7 To stop recording, press Z. Select K, then press ,. Select “Play New Msg.”, then press ,. L The new messages will be played back. L To play all messages, select “Play All Msg.”, then press ,. L Adjust the speaker or receiver volume pushing the joystick up or down repeatedly. Note: L While listening to messages, you can switch between the receiver and speaker by pressing {C} or {s}. L If there is no memory available to record voice messages, “Full” will be displayed. Erase unnecessary messages (page 62, 64). To repeat a message Push the joystick left while listening to the message. L If you push the joystick left within 5 seconds of the beginning of the message, the previous message will be played. To skip a message Push the joystick right to play the next message. To stop playback Press Z (soft key). To erase a specific message 1. Press _ (soft key) while listening to the message you want to erase. 2. Select “Yes”, then press ,. To erase all the messages 1. Press $ (centre of joystick). 2. Select K, then press ,. 64 3. Select “Delete Message”, then press ,. Select K, then press ,. Select “Record”, then press ,. Select “Record Memo”, then press ,. Hold the cordless handset about 20 cm away and speak clearly into the microphone (1). Press {ih}. Note: L Voice memos are treated as new messages. To listen to memo messages, see page 62, 64. L If there is no memory available to record voice messages, “Full” will be displayed. Erase unnecessary messages (page 62, 64). 7.4.4 Operation using the direct commands You can operate the answering machine by pressing dial keys as direct commands. To use the following commands, press $ (centre of joystick), select K, then press ,. Key Direct commands {1} Repeats a message (during playback)*1 {2} Skips message (during playback) {3} Enters the “Setting TAM” menu (page 65) {4} Plays new messages {5} Plays all messages {6} Plays greeting message {7}{4} Records memo message {7}{6} Records greeting message {8} Turns auto answer setting ON*2 {9} Stops the operation (recording, playback) FC245E_en.book Page 65 Wednesday, August 4, 2004 9:47 PM 7. Answering Machine Key Direct commands {0} Turns auto answer setting OFF {*}{4} Erases a specific message (during playback) {*}{5} Erases all messages {*}{6} Erases greeting message *1 If pressed within the first 5 seconds of the beginning of the message, the previous message will be played. *2 The receiving mode will be set to TAM/FAX or FAX ONLY mode, depending on the setting of feature #77 (page 73). If you have subscribed to a Caller ID service During playback, the display shows the number and/or name of the caller whose message is being played. You can call back the displayed number using the cordless handset. 1. Press * (centre of joystick) during playback. 2. Select “Call Back”, then press ,. L The cordless handset stops playback and automatically dials the telephone number. L If you need to edit the telephone number to return the call, select “Edit for Call” in step 2, then press ,. Edit the number (page 39), then press , to call back. 7.4.5 Programming for answering machine To set the remote operation ID A 3-digit remote operation ID must be entered when operating the answering system remotely (page 67). This ID prevents unauthorised parties from listening to your messages remotely. After you store your remote operation ID, remote operation is possible. 1. Press $ (centre of joystick). 2. Select K, then press ,. 3. Select “Setting TAM”, then press ,. 4. Select “Remote Code”, then press ,. 5. To activate the remote operation feature, enter a 3-digit remote operation ID. L To deactivate the remote operation feature, press {*}. 6. Press ,. 7. Press {ih}. Note: L You can also program this feature with the base unit (feature #11 on page 70). To change the ring setting in TAM/FAX mode To change the number of rings before the unit answers a call in TAM/FAX mode. You can select “Auto”, “2 Rings” (default), “3 Rings”, “4 Rings”, “5 Rings”, “6 Rings” or “7 Rings”. See page 56 for details. 1. Press $ (centre of joystick). 2. Select K, then press ,. 3. Select “Setting TAM”, then press ,. 4. Select “Number of Rings”, then press ,. 5. Select the desired setting, then press ,. 6. Press {ih}. Note: L You can also program this feature with the base unit (feature #06 on page 70). To change the maximum recording time for incoming messages “1 Minute”: Up to 1 minute. “No Limit” (default): Unlimited within the voice memory capacity (page 110). “Greeting Only”: The unit plays the greeting message but does not record caller messages. 1. Press $ (centre of joystick). 2. Select K, then press ,. 3. Select “Setting TAM”, then press ,. 4. Select “Msg Rec Time”, then press ,. 5. Select the desired setting, then press ,. 6. Press {ih}. Note: L You can also program this feature with the base unit (feature #10 on page 70). To set the greeting message monitor To select whether the greeting message is heard through the unit’s speaker when the unit answers a call. 1. Press $ (centre of joystick). 2. Select K, then press ,. 3. Select “Setting TAM”, then press ,. 4. Select “Greet Monitor”, then press ,. 5. Select “On” or “Off”, then press ,. 6. Press {ih}. 65 FC245E_en.book Page 66 Wednesday, August 4, 2004 9:47 PM 7. Answering Machine Note: L You can also program this feature with the base unit (feature #67 on page 73). 66 FC245E_en.book Page 67 Wednesday, August 4, 2004 9:47 PM 7. Answering Machine 7.5 Operating from a remote location You can call your unit from a remote location and access the answering machine. Important: L Activate the remote operation feature by setting the remote operation ID beforehand (page 65, or feature #11 on page 70). L Set the unit to TAM/FAX mode before going out (page 55). L Use a touch tone telephone for remote operations. Helpful hints: L When you press a key, press firmly. L Please make a copy of the following table, and carry it with you when you go out. Answering machine remote operation 1. Call your unit. {5} Plays all messages 2. Enter the remote operation ID during or after the TAM/FAX greeting message. {6} Plays greeting message {7} Records greeting message {9} Stops the operation (recording, playback) 3. Follow the voice menu or enter a remote command within 10 seconds. Key Remote command {*}{4} Erases a specific message {0} Turns OFF the answering machine {*}{5} Erases all messages {1} Repeats a message {*}{6} Erases greeting message (during greeting message playback) {2} Skips a message {*}{#} Ends remote operation {4} Plays new messages {#} Skips the greeting message 7.5.1 Summary of remote operation 1 2 Call your unit. 3 When there are new recorded messages L The unit will announce the number of new messages. During or after the TAM/FAX greeting message, enter the remote operation ID. Note: L The unit will announce the remaining recording time after playback if it is less than 5 minutes. L The messages are saved. L You can ignore the voice guidance and control the unit using remote commands (page 68). When there are no new messages L The unit will announce there are no new messages. When voice memory is full L The unit will announce the memory is full. Erase any unnecessary messages. 4 After 3 seconds, the voice menu will start (page 68). Follow the menu or enter a remote command (page 68). 5 To end remote operation, hang up. 67 FC245E_en.book Page 68 Wednesday, August 4, 2004 9:47 PM 7. Answering Machine 7.5.2 Remote operations following voice menu During remote operation, the unit will provide voice prompts in the following order. 1 “Press 1 to play back all messages. Press 2 for other functions.” {1}: All recorded messages will be played back. {2}: Voice prompt 2 is announced. 2 “Press 1 to play back new messages. Press 2 for other functions.” {1}: Only new messages will be played back. {2}: Voice prompt 3 is announced. 3 “Press 1 to record your message. Press 2 for other functions.” {1}: The unit will announce to leave your message and you can leave your own voice message. When you finish recording, hang up. {2}: Voice prompt 4 is announced. 4 “Press 1 to erase all messages. Press 2 for other functions.” {1}: All recorded messages will be erased and the unit will announce there are no messages. {2}: Voice prompt 5 is announced. 5 “Press 1 to record your greeting. Press 2 for other functions.” {1}: The unit will announce to record your greeting. Press {7} to start recording and speak after the long beep. Press {9} to stop the operation. {2}: Voice prompt 1 is announced. 7.5.3 Remote operation using remote commands {1} Repeat (During playback) L The current message is repeated. L If pressed within 5 seconds of playback, the previous message will be played. {2} Skip (During playback) L The current message is skipped. The next message is played. {4} New message playback L New messages are played back. {5} All message playback L All messages are played back. {6} Play greeting message L The unit will playback the greeting message. 68 {7} Record greeting message L Speak after the long beep and press {9} to stop the operation. {9} Stop L Operation (recording, playback) is stopped. {0} Turn OFF the answering machine L The unit hangs up and will switch to TEL mode. {*}{4} Erase a specific message (During playback) L The current message is erased. L A short beep will sound and the next message will be played. {*}{5} Erase all messages L All recorded messages are erased. L A long beep will sound and the unit will announce there are no messages. {*}{6} Erase greeting message (During greeting message playback) L Your greeting message will be erased. The unit will answer a call with a pre-recorded greeting message. {*}{#} End of remote operation L You can also hang up to end the remote operation at any time. To turn the auto answer setting ON 1. Call your unit and wait for 10 rings. L A beep will sound. 2. Enter the remote operation ID (page 65, or feature #11 on page 70) within 8 seconds. L The unit will play the greeting message, and the auto answer setting will be turned ON. The receiving mode will be set to TAM/FAX or FAX ONLY mode, depending on the setting of feature #77 (page 73). 3. Hang up the handset. FC245E_en.book Page 69 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features L The setting you selected is set, and the next feature will be displayed. 8 Programmable Base Unit Features 8.1 Base unit programming {SET} {MENU} {<}{>}{A}{B} 8.1.1 Programming basic features 1 2 Press {MENU}. Select the feature you wish to program. Press {<} or {>} repeatedly to display the desired feature. L The current setting of the feature will be displayed. 3 Press {A} or {B} repeatedly to display the desired setting. L This step may be slightly different depending on the feature. 4 Press {SET}. L The setting you selected is set, and the next feature will be displayed. 5 To exit programming, press {MENU}. 7 To exit programming, press {MENU} at any time. To program by entering the program code number directly You can select a feature by directly entering its program code (# and a 2-digit number) instead of using {<} or {>}. 1. Press {MENU}. 2. Press {#} and the 2-digit code (page 70 to page 73). 3. Press {A} or {B} repeatedly to display the desired setting. L This step may be slightly different depending on the feature. 4. Press {SET}. 5. To exit programming, press {MENU}. To cancel programming Press {MENU} to exit. 8.1.2 Programming advanced features 1 2 3 4 Press {MENU}. Press {<} or {>} repeatedly to display “ADVANCE SETTINGS”. Press {SET}. Select the feature you wish to program. Press {<} or {>} repeatedly to display the desired feature. L The current setting of the feature will be displayed. 5 Press {A} or {B} repeatedly to display the desired setting. L This step may be slightly different depending on the feature. 6 Press {SET}. 69 FC245E_en.book Page 70 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features 8.2 Basic features Code #01: Setting the date and time SET DATE & TIME PRESS SET See page 27 for details. Code #02: Setting your logo YOUR LOGO PRESS SET See page 28 for details. Code #03: Setting your fax number YOUR FAX NO. PRESS SET See page 29 for details. Code #04: Printing a sending report SENDING REPORT =ERROR [±] To print a sending report for fax transmission results (page 49). “ERROR” (default): A sending report will be printed only when fax transmission fails. “ON”: A sending report will be printed after every transmission. “OFF”: Sending reports will not be printed. Code #06: Changing the ring setting in FAX ONLY mode FAX RING COUNT RINGS=2 [±] To change the number of rings before the unit answers a call in FAX ONLY mode. You can select “1”, “2” (default), “3”, “4”, “5”, “6”, “7”, “8” or “9”. Note: L Set feature #77 to “FAX ONLY” (page 73) beforehand. Code #06: Changing the ring setting in TAM/FAX mode TAM RING COUNT RINGS=2 [±] To change the number of rings before the unit answers a call in TAM/FAX mode. You can select “2” (default), “3”, “4”, “5”, “6”, “7” or “AUTO”. See page 56 for details. Note: L Set feature #77 to “TAM/FAX” (page 73) beforehand. 70 L You can also program this feature with the cordless handset (page 65). Code #10: Changing the maximum recording time for incoming messages RECORDING TIME =NO LIMIT [±] “1 MINUTE”: Up to 1 minute. “NO LIMIT” (default): Unlimited within the voice memory capacity (page 110). “GREETING ONLY”: The unit plays the greeting message but does not record caller messages. Note: L You can also program this feature with the cordless handset (page 65). Code #11: Setting the remote operation ID REMOTE TAM ID ID= A 3-digit remote operation ID must be entered when operating the answering system remotely. This ID prevents unauthorised parties from listening to your messages remotely. After you store your remote operation ID, remote operation is possible. 1. Press {MENU}. 2. Press {#}, then {1}{1}. 3. To activate the remote operation feature, enter a 3-digit remote operation ID. L To deactivate the remote operation feature, press {*}. 4. Press {SET}. 5. Press {MENU}. Note: L You can also program this feature with the cordless handset (page 65). Code #17: Setting the ringer type for outside calls EXT RINGER TYPE =RINGER 1 [±] To set the base unit ringer type from one of 6 types for outside calls. You can select “RINGER 1” (default), “RINGER 2”, “RINGER 3”, “RINGER 4”, “RINGER 5” or “RINGER 6”. Note: L To set the cordless handset ringer type, see page 77. FC245E_en.book Page 71 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features 8. Press {SET}. 8.3 Advanced features Code #22: Setting the journal report to print automatically AUTO JOURNAL =ON [±] 9. Enter the transmission start time. L If you select 12-hour time entry when you set the date and time (page 26), press {*} repeatedly to select “AM” or “PM”. L If you selected 24-hour time entry when you set the date and time (page 26), the time is set using 24-hour time entry. “ON” (default): The unit will print a journal report automatically after every 30 new fax transmissions and receptions (page 49). “OFF”: The unit will not print a journal report, but will keep a record of the last 30 fax transmissions and receptions. 10. Press {SET}. Code #23: Sending documents overseas Code #26: Setting the Caller ID list to print automatically OVERSEAS MODE =ERROR [±] If you cannot send a fax overseas even if the number is correct and the line is connected, activate this feature before sending the fax. This feature improves the reliability by reducing the transmission speed. “ERROR” (default): When the previous fax transmission fails and you wish to re-send the document. “NEXT FAX”: This setting is effective only for the next attempted fax transmission. After transmission, the unit will return to the previous setting. “OFF”: Deactivates this feature. Note: L This feature is not available for broadcast transmission. L Calling charges may be higher than usual. Code #25: Sending a fax at a specific time DELAYED SEND =OFF [±] This feature allows you to take advantage of lowcost calling hours offered by your telephone company. This feature can be set up to 24 hours in advance of the desired time. To send a document: 1. Insert the document. 2. If necessary, press {A} or {B} repeatedly to select the desired resolution (page 48). 3. Press {MENU}. 4. Press {#} then {2}{5}. 5. Press {A} or {B} repeatedly to select “ON”. 6. Press {SET}. 11. Press {MENU}. Note: L To cancel after programming, press {STOP} then {SET}. AUTO CALL. LIST =OFF [±] “ON”: The Caller ID list will be printed automatically each time the unit logs 50 different callers (page 37). “OFF” (default): The Caller ID list will not be printed, but the unit will keep a record of the information for the last 50 different callers. Code #28: Setting call bar CALL BAR PRESS SET This feature prohibits making outside calls with the base unit. When call bar is turned ON, only intercom calls and emergency calls can be made. To store emergency numbers, see page 82. 1. Press {MENU}. 2. Press {#}, then {2}{8}. 3. Press {SET}. 4. Enter “0000” (default base unit PIN). L If you changed the PIN, enter it (page 82). 5. Press {A} or {B} repeatedly to select “ON”. 6. Press {SET}. 7. Press {MENU}. Note: L When call bar is turned ON, o is displayed on the base unit. L To prohibit making outside calls with the cordless handset, see page 79. Code #34: Setting the quick scan QUICK SCAN =OFF [±] 7. Enter the fax number. 71 FC245E_en.book Page 72 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features This feature is helpful when you want to remove the document for other uses, because the unit will release the document before sending or copying. “ON”: The unit will scan the document and store it into memory first, then the unit will start sending or copying. “OFF” (default): Deactivates this feature. Note: L If the document exceeds the memory capacity, sending of the whole document or copying of the exceeded document will be cancelled and this feature will be turned OFF automatically. Code #36: Receiving oversized documents RCV REDUCTION =92% [±] If the size of the document sent by the other party is as large as, or larger than the recording paper, the unit can reduce the document and print it. Select the desired reduction rate. Setting Recording paper size Original document size “100%” A4 Letter “92%” (default) A4 A4 “86%” A4 A4 “72%” A4 Legal Note: L The information of the sending party is printed on the top of each page. Therefore, even if the original document is the same size as the recording paper, the document will be divided into 2 sheets when printed at “100%”. Select “92%” to print on 1 sheet. Code #39: Changing the display contrast LCD CONTRAST =NORMAL [±] “NORMAL” (default): For normal contrast. “DARKER”: Used when the display contrast is too light. Code #41: Changing the fax activation code FAX ACTIVATION =ON [±] If you wish to use the cordless handset (page 54) or an extension telephone (page 54) to receive faxes, activate this feature and program the activation code. 72 1. Press {MENU}. 2. Press {#}, then {4}{1}. 3. Press {A} or {B} repeatedly to select “ON”. 4. Press {SET}. 5. Enter your code (2 to 4 digits) using the dial keys {0}–{9}, {*} and {#}. L The default code is “@#9”. L Do not enter “0000”. 6. Press {SET}. 7. Press {MENU}. Code #44: Setting the memory reception alert RECEIVE ALERT =ON [±] To alert you with a beeping sound when a received fax document is stored into memory due to some existing problem. The slow beeps will continue until you clear the printing problem and make sure the unit is supplied with enough paper to print the stored document. “ON” (default): You will be alerted to a reception problem by a beeping sound. “OFF”: Deactivates this feature. Code #46: Setting friendly reception FRIENDLY RCV =ON [±] To receive a fax automatically when you answer a call and hear a fax calling tone (slow beep). “ON” (default): You do not have to press {FAX/START} for fax reception. “OFF”: You have to press {FAX/START} for fax reception. Code #54: Changing the recording time for your TAM/FAX greeting message GREETING TIME =16s [±] “16s” (default): Maximum recording time is 16 seconds. “60s”: Maximum recording time is 60 seconds. See page 61 for details. Code #58: Setting the scan contrast SCAN CONTRAST =NORMAL [±] To send or copy a document with faint or dark writing, set this feature before transmission or copying. “NORMAL” (default): Used for normal writing. “LIGHT”: Used for faint writing. “DARKER”: Used for dark writing. FC245E_en.book Page 73 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features Code #67: Setting the greeting message monitor GREET MONITOR =ON [±] To select whether the greeting message is heard through the unit’s speaker when the unit answers a call. “ON” (default): You can monitor the greeting message. “OFF”: Only the caller message will be heard through the speaker. Note: L You can also program this feature with the cordless handset (page 65). Code #68: Setting the Error Correction Mode (ECM) ECM SELECTION =ON [±] “FAX ONLY”: Fax only mode (page 57) Code #80: Resetting advanced features to their default settings SET DEFAULT RESET=NO [±] To reset the advanced features: 1. Press {MENU}. 2. Press {#}, then {8}{0}. 3. Press {A} or {B} repeatedly to select “YES”. 4. Press {SET}. 5. Press {SET} again. 6. Press {MENU}. Note: L The ECM selection (feature #68 on page 73) will not be reset. L You can also reset advanced features with the cordless handset (page 83). This feature is available when the transmitting/receiving fax machines are ECM compatible. “ON” (default): To send a fax even if there is static interference on the telephone line. “OFF”: Deactivates this feature. Note: L You cannot change the setting when received documents are in memory. Code #76: Setting the connecting tone CONNECTING TONE =ON [±] If you often have trouble when sending faxes, this feature allows you to hear connecting tones: fax tone, ring back tone and busy tone. You can use these tones to confirm the status of the other party’s machine. “ON” (default): You will hear connecting tones. “OFF”: Deactivates this feature. Note: L If the ring back tone continues, the other party’s machine may not be a fax machine or may have run out of paper. Check with the other party. L The connecting tone volume cannot be adjusted. Code #77: Changing the receiving mode in the auto answer setting AUTO ANSWER =TAM/FAX [±] “TAM/FAX” (default): Telephone Answering Machine/Fax mode (page 55) 73 FC245E_en.book Page 74 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features 8.4 Direct commands for programming features You can also select the desired setting by directly entering the program code (# and a 2-digit number) and direct command. For more details on the features, see page 70 to page 73. 1 2 3 4 5 Press {MENU}. Press {#} and the 2-digit code number. Press the desired direct command to display the desired setting. L This step may be slightly different depending on the feature. Press {SET}. To exit programming, press {MENU}. 8.4.1 Program code and direct command button {#}{0}{1} Date and time L Enter the date and time using the dial keypad. See page 27 for details. {#}{0}{2} Your logo L Enter your logo using the dial keypad. See page 28 for details. {#}{0}{3} Your fax number L Enter your fax number using the dial keypad. See page 29 for details. {#}{0}{4} Sending report – {1}: “ON” – {2}: “OFF” – {3}: “ERROR” (default) {#}{0}{6} FAX ring count – {1}: “1” – {2}: “2” (default) – {3}: “3” – {4}: “4” – {5}: “5” – {6}: “6” – {7}: “7” – {8}: “8” – {9}: “9” {#}{0}{6} TAM ring count – {0}: “AUTO” – {2}: “2” (default) – {3}: “3” 74 – – – – {4}: “4” {5}: “5” {6}: “6” {7}: “7” {#}{1}{0} Message recording time – {1}: “1 MINUTE” – {2}: “GREETING ONLY” – {3}: “NO LIMIT” (default) {#}{1}{1} Remote operation ID L Enter a 3-digit number to activate the remote operation feature. To deactivate the remote operation feature, press {*}. {#}{1}{7} External ringer type – {1}: “RINGER 1” (default) – {2}: “RINGER 2” – {3}: “RINGER 3” – {4}: “RINGER 4” – {5}: “RINGER 5” – {6}: “RINGER 6” {#}{2}{2} Automatic journal report – {1}: “ON” (default) – {2}: “OFF” {#}{2}{3} Overseas mode – {1}: “NEXT FAX” – {2}: “OFF” – {3}: “ERROR” (default) {#}{2}{5} Delayed transmission – {1}: “ON” – {2}: “OFF” (default) L If you select “ON”, next enter the fax number and transmission time using the dial keypad (see feature #25 on page 71 for details). {#}{2}{6} Automatic Caller ID list – {1}: “ON” – {2}: “OFF” (default) {#}{2}{8} Call bar – {1}: “ON” – {2}: “OFF” (default) L The base unit PIN is required to turn call bar ON/OFF. {#}{3}{4} Quick scan – {1}: “ON” – {2}: “OFF” (default) {#}{3}{6} Receiving reduction – {1}: “72%” – {2}: “86%” – {3}: “92%” (default) FC245E_en.book Page 75 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features – {4}: “100%” {#}{3}{9} Display contrast – {1}: “NORMAL” (default) – {2}: “DARKER” {#}{4}{1} Fax activation code – {1}: “ON” (default) – {2}: “OFF” L If you select “ON”, next enter your 2 to 4 digit code using {0}–{9}, {*} and {#}. {#}{4}{4} Memory reception alert – {1}: “ON” (default) – {2}: “OFF” {#}{4}{6} Friendly reception – {1}: “ON” (default) – {2}: “OFF” {#}{5}{4} Greeting recording time – {1}: “16s” (default) – {2}: “60s” {#}{5}{8} Scan contrast – {1}: “NORMAL” (default) – {2}: “LIGHT” – {3}: “DARKER” {#}{6}{7} Greeting monitor – {1}: “ON” (default) – {2}: “OFF” {#}{6}{8} ECM selection – {1}: “ON” (default) – {2}: “OFF” {#}{7}{6} Connecting tone – {1}: “ON” (default) – {2}: “OFF” {#}{7}{7} Auto answer – {1}: “TAM/FAX” (default) – {2}: “FAX ONLY” {#}{8}{0} Set default – {1}: “YES” – {2}: “NO” (default) L If you select “YES”, press {SET} 2 times, then press {MENU} to exit programming. 75 FC245E_en.book Page 76 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features Cordless Handset 8.5 Cordless handset programming For your reference, a chart of all items which can be customised for the cordless handset is printed below. Details of each item can be found on the corresponding pages. L When customising the cordless handset, the current item or setting is indicated by ). Cordless handset settings menu “Set Date/Time” “Memo Alarm” Sub-menu Default setting ---------- ---------- Page page 26 “Alarm 1” “Off” page 77 “Alarm 2” “Off” page 77 “Alarm 3” “Off” page 77 “Ringer Volume” Maximum page 25 “EXT Ringer Type” “Ringer 1” page 77 “INT Ringer Type” “Ringer 1” page 77 “Paging Tone” “Ringer 1” page 77 “Private Ring” “Ringer 1”*1 page 77 “Tone Option” “Key Tone” “On” page 78 “Display Option” “Standby Display” “Handset Name” page 78 “Talk Display” “Talk Time” page 78 “Select Language” “English” page 78 “Private Colour” “Green”*1 page 78 “Category Name” Category (No.)*1 page 78 “Call Bar” “Off” page 79 “Ringer Option” “Call Option” “Direct Call No.” “Direct On/Off” “Registration” “Select Base” “Other Option” ---------“Off” page 79 page 79 “Register H/set” ---------- page 84 “Cancel Base” ---------- page 85 ---------- “Auto” page 84 “Change H/S PIN” “0000” page 79 “Change H/S Name” Handset (No.) page 79 “Auto Talk” “Off” page 79 “LetterWise” “English” page 80 “Battery Type” “Ni-MH” page 80 “Reset Handset” ---------- page 80 *1 Each category (1-9) has its own setting. Note: L Up to 5 menu items can be displayed at a time. To select a menu item not shown on the current page, scroll up or down by pushing the joystick up or down, respectively. 76 FC245E_en.book Page 77 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features 8.5.1 Programmable functions 12. Press ,. 13. Press ,. 14. Press {ih}. {C} {s} //_ {ih} $/, {INT} Helpful hints: L To exit programming, press {ih} at any time. 8.5.2 Memo alarm Setting memo alarm An alarm will sound for 3 minutes at the set time once or daily. 3 different alarms can be set. A text memo can also be displayed. Set the date and time beforehand (page 26). 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Memo Alarm”, then press ,. 4. Push the joystick up or down repeatedly to select an alarm (1 to 3). L Times and memos for previously set alarms will be displayed. To delete the previous setting, press _, select “Yes”, then press ,. 5. Press ,. 6. Select an alarm mode, then press ,. “Off” (default): Turns the alarm OFF. L If you select “Off” skip to step 13. “Once”: The alarm will sound once at the set time. Enter the desired date and month by selecting 2 digits for each. “Daily”: An alarm will sound daily at the set time. 7. Enter the desired hour and minute by selecting 2 digits for each. 8. Press / repeatedly to select “AM”, “PM”, or 24-hour time entry, then press ,. L If you do not need to enter a text memo, skip to step 10. 9. Enter a text memo, up to 32 characters (see page 91 for instructions). Note: L To stop the alarm, press {C}, {ih}, {s}, {0} to {9}, {*}, {#} or {INT}. L When the cordless handset is in talk or intercom mode, the alarm will not sound until the call has ended. L Memo alarm volume depends on cordless handset ringer volume (page 25). L The alarm will sound at the set time even when the ringer is turned OFF. L If you select “Once”, the setting will be changed to “Off” after the alarm sounds. 8.5.3 Ringer options Changing ringer types You can select the ringer type for the cordless handset from one of 15 types. “EXT Ringer Type”: Selects the ringer heard for outside calls. “INT Ringer Type”: Selects the ringer heard for intercom calls. “Paging Tone”: Selects the ringer heard when all cordless handsets are paged. “Private Ring”: Allows you to set a different ringer for each private category (for Caller ID service users only, page 37). 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Ringer Option”, then press ,. 4. Select the desired item, then press ,. L The ringer sounds using the current ringer type. L If you select “Private Ring” choose the desired category, then press ,. 5. Select the desired ringer type, then press ,. 6. Press {ih}. Note: L If you select one of the melody ringer types, the ringer will continue to sound for 10 seconds if the caller hangs up before you answer. You may hear a dial tone or no one on the line when you answer a call. L The preset melodies in this product are used with permission of M-ZoNE Co., Ltd. L To set the base unit ringer type, see feature #17 on page 70. 10. Press ,. 11. Select the ringer that will sound at the set time. 77 FC245E_en.book Page 78 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features 8.5.4 Tone options Setting key tone You can select whether or not key tones are heard when keys are pressed. Includes confirmation tones and error tones. 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Tone Option”, then press ,. 4. Select “Key Tone”, then press ,. 5. Select “On” (default) or “Off”, then press ,. 6. Press {ih}. 8.5.5 Display options Selecting the standby mode display “Base Number”: The current base unit number is displayed. “Handset Name” (default): The name of the cordless handset is displayed. “Off”: Only the current date and time are displayed. 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Display Option”, then press ,. 4. Select “Standby Display”, then press ,. 5. Select the desired setting, then press ,. 6. Press {ih}. Selecting the talk mode display You can change what is shown on the display when you make a call. “Talk Time” (default): The length of the current call will be displayed. “Phone Number”: The telephone number you dialled will be displayed. 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Display Option”, then press ,. 4. Select “Talk Display”, then press ,. 5. Select the desired setting, then press ,. 6. Press {ih}. Note: L Even if you select “Phone Number”, the length of the call will appear on your display when you receive calls. 78 Changing the display language 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Display Option”, then press ,. 4. Select “Select Language”, then press ,. 5. Select the desired language, then press ,. 6. Press {ih}. Note: L If you select a language you cannot read, press {ih}, press $, push joystick down, press ,, push joystick down 4 times, press ,, push joystick down 2 times, press ,, select the desired language, then press ,. Changing category private colours You can select the ringer indicator colour used when calls are received from parties assigned to a category in the cordless handset phonebook. (for Caller ID service users only) 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Display Option”, then press ,. 4. Select “Private Colour”, then press ,. 5. Select a category, then press ,. 6. Select a ringer indicator colour from “Green”(default), “Red” or “Orange”. L The ringer indicator flashes using the selected colour as a reference. 7. Press ,. 8. Press {ih}. Changing category names You can change the names of categories (Family, Friends, etc.) for the cordless handset phonebook. 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Display Option”, then press ,. 4. Select “Category Name”, then press ,. 5. Select a category, then press ,. 6. Edit the name, up to 10 characters (see page 91 for instructions). 7. Press ,. FC245E_en.book Page 79 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features 8. Press {ih}. 6. Press {ih}. 8.5.6 Call options Note: L If there is no direct call number stored when you turn direct call ON, you will be prompted to enter a telephone number. Setting call bar This feature prohibits making outside calls with the cordless handset. When call bar is turned ON, only intercom calls and emergency calls can be made. To store emergency numbers, see page 82. 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Call Option”, then press ,. 4. Select “Call Bar”, then press ,. 5. Enter “0000” (default cordless handset PIN). L If you changed the PIN, enter it (page 79). 6. Select “On” or “Off” (default), then press ,. 8.5.7 Other options Changing the cordless handset PIN (personal identification number) For security, the cordless handset PIN must be entered when changing certain settings. The default PIN is “0000”. Important: L If you change the PIN, please make note of your new PIN. The unit will not reveal the PIN to you. If you forget your PIN, consult our Customer Care Centre. 1. Press $ (centre of joystick). 7. Press {ih}. 2. Select t, then press ,. Note: L When call bar is turned ON, o is displayed on the cordless handset. L To prohibit making outside calls with the base unit, see feature #28 on page 71. 4. Select “Change H/S PIN”, then press ,. 3. Select “Other Option”, then press ,. 5. Enter the current 4-digit cordless handset PIN. Storing the direct call number This feature prohibits making outside calls except to the telephone number you store here. The number will be dialled automatically when {C} or {s} is pressed. 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Call Option”, then press ,. 4. Select “Direct Call No.”, then press ,. 5. Enter the telephone number, up to 24 digits. 6. Press , 2 times. 7. Turn this feature ON or OFF by selecting “On” or “Off” (default), then press ,. 8. Press {ih}. Note: L When direct call is turned ON, p is displayed in standby mode. 6. Enter the new 4-digit cordless handset PIN. Turning direct call ON/OFF 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Call Option”, then press ,. 4. Select “Direct On/Off”, then press ,. 5. Select “On” or “Off” (default), then press ,. Setting auto talk When this feature is turned ON, you can answer calls simply by lifting the cordless handset off the charger. You do not need to press any buttons. 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Other Option”, then press ,. 7. Enter the new 4-digit cordless handset PIN again. 8. Press {ih}. Changing the cordless handset name The cordless handset can be given a customised name. This feature is useful when you have multiple cordless handsets. 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Other Option”, then press ,. 4. Select “Change H/S Name”, then press ,. 5. Edit the name, up to 10 characters (see page 91 for instructions). 6. Press ,. 7. Press {ih}. 79 FC245E_en.book Page 80 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features 4. Select “Auto Talk”, then press ,. 5. Select “On” or “Off” (default), then press ,. 6. Press {ih}. Changing the LetterWise language You can change which language is used for LetterWise character entry (page 46, 91). 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Other Option”, then press ,. 4. Select “LetterWise”, then press ,. 5. Select the desired language, then press ,. 6. Press {ih}. Setting the battery type “Ni-Cd” : Nickel cadmium batteries are used. “Ni-MH” (default) : Nickel metal hydride batteries are used. 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Other Option”, then press ,. 4. Select “Battery Type”, then press ,. 5. Select the desired setting, then press ,. 6. Press {ih}. Resetting the cordless handset to its default settings 1. Press $ (centre of joystick). 2. Select t, then press ,. 3. Select “Other Option”, then press ,. 4. Select “Reset Handset”, then press ,. 5. Enter “0000” (default cordless handset PIN). L If you changed the PIN, enter it (page 79). 6. Select “Yes”, then press ,. 7. Press {ih}. Note: L The following items will be deleted or reset to their default settings: – Settings listed on page 76 – Redial list – Walkie-Talkie mode, group ID and group cordless handset no. (page 88) L The following items will be retained: – Cordless handset phonebook items – Date and time – Cordless handset name – Category names 80 FC245E_en.book Page 81 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features 8.6 Cordless handset programming using the base unit PIN For your reference, a chart of all items which can be customised for the unit using the base unit PIN is printed below. Details of each item can be found on the corresponding pages. L Keep the front cover page open for button locations. L When customising the unit, the current setting is indicated by ). Base unit settings menu Sub-menu Default setting Page “Call Option” “Recall” “Type 2” page 82 “Pause Time” “Short” page 82 “Emergency Call” “112” and “999” page 82 “Cancel Handset” “Other Option” “Call Restricted” ----------- page 82 ----------- ----------- page 84 “Change Base PIN” “Reset Base” “0000” ----------- page 82 page 83 Note: L Up to 5 menu items can be displayed at a time. To select a menu item not shown on the current page, scroll up or down by pushing the joystick up or down, respectively. 81 FC245E_en.book Page 82 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features 8.6.1 Call Options 8. Press {ih}. Changing the recall length Change the recall length of the cordless handset, if necessary, depending on the requirements of your service provider or PBX. “Type 1”: 700 ms “Type 2” (default): 80 ms “Type 3”: 400 ms 1. Press $ (centre of joystick). 2. Select u, then press ,. 3. Enter “0000” (default base unit PIN). L If you changed the PIN, enter it (page 82). 4. Select “Call Option”, then press ,. 5. Select “Recall”, then press ,. 6. Select the desired setting, then press ,. 7. Press {ih}. Setting call restriction You can restrict selected cordless handsets/base unit from dialling certain numbers. You can assign up to 6 telephone numbers to be restricted, and select which cordless handsets/base unit will be restricted. Storing area codes here will prevent the restricted cordless handsets/base unit from dialling any telephone number in that area code. If a restricted number is dialled, the call will not be connected. 1. Press $ (centre of joystick). 2. Select u, then press ,. 3. Enter “0000” (default base unit PIN). L If you changed the PIN, enter it (page 82). 4. Select “Call Option”, then press ,. 5. Select “Call Restricted”, then press ,. 6. Select the cordless handsets/base unit to be restricted, then press ?. L Restricted cordless handsets/base unit have a Q next to them. L To turn call restriction OFF for a cordless handset/base unit, select it, then press ?. 7. Press ,. 8. Select a memory location, then press ,. L Previously stored telephone numbers are displayed. 9. Enter the telephone number or area code to be restricted (up to 8 digits), then press ,. L To erase a restricted number, press {C}. 10. Press {ih}. Note: L If you put a first digit in step 9, the previously stored number will be all cleared. We recommend you to write down the previously stored number. Setting pause length Change the pause length of the cordless handset, if necessary, depending on the requirements of your service provider or PBX. “Short” (default): 3 sec. “Long”: 5 sec. 1. Press $ (centre of joystick). 2. Select u, then press ,. 3. Enter “0000” (default base unit PIN). L If you changed the PIN, enter it (page 82). 4. Select “Call Option”, then press ,. 5. Select “Pause Time”, then press ,. 6. Select the desired setting, then press ,. 7. Press {ih}. Storing/changing emergency numbers These settings determine which telephone numbers can be dialled while the call bar feature is ON (feature #28 on page 71, or page 79). 1. Press $ (centre of joystick). 2. Select u, then press ,. 3. Enter “0000” (default base unit PIN). L If you changed the PIN, enter it (page 82). 4. Select “Call Option”, then press ,. 5. Select “Emergency Call”, then press ,. 6. Select a memory location, then press ,. L If the memory location already contains an emergency number, the number is displayed. 7. Enter/edit the number, up to 24 digits, then press ,. 82 8.6.2 Other options Changing the base unit PIN (personal identification number) For security, the base unit PIN must be entered when changing certain settings. The default PIN is “0000”. Important: L If you change the PIN, please make note of your new PIN. The unit will not reveal the FC245E_en.book Page 83 Wednesday, August 4, 2004 9:47 PM 8. Programmable Features PIN to you. If you forget your PIN, consult our Customer Care Centre. 1. Press $ (centre of joystick). 2. Select u, then press ,. 3. Enter “0000” (default base unit PIN). L If you changed the PIN, enter it. 4. Select “Other Option”, then press ,. 5. Select “Change Base PIN”, then press ,. 6. Enter the new 4-digit base unit PIN. 7. Enter the new 4-digit base unit PIN again. 8. Press {ih}. Resetting the base unit advanced features to their default settings The base unit advanced features (page 71 to page 73) can be reset with the cordless handset. 1. Press $ (centre of joystick). 2. Select u, then press ,. 3. Enter “0000” (default base unit PIN). L If you changed the PIN, enter it (page 82). 4. Select “Other Option”, then press ,. 5. Select “Reset Base”, then press ,. 6. Select “Yes”, then press ,. 7. Press {ih}. Note: L The ECM selection (feature #68 on page 73) will not be reset. L You can also reset the base unit advanced features with the base unit (feature #80 on page 73). 83 FC245E_en.book Page 84 Wednesday, August 4, 2004 9:47 PM 9. Multi-unit Operation this procedure must be completed within 1 minute. 9 Multi-unitUnits Additional Operation 9.1 Operating additional units 9.1.1 Additional cordless handsets Up to 6 cordless handsets can be registered to a single base unit. Additional cordless handsets, for example, will allow you to have an intercom call with another cordless handset while a third cordless handset is on an outside call. See page 11 for accessory information. 9.1.2 Additional base units Cordless handsets can be registered to up to 4 base units, allowing you to add additional base units and extend the area in which your cordless handset(s) can be used. If a cordless handset moves out of range of its base unit when “Auto” is selected on base unit selection (page 84), it will look for another base unit to make or receive calls. Each base unit forms 1 radio cell. Note: L Calls will be disconnected when the cordless handset moves from one radio cell to another. L Intercom calls and call transfers are only possible between cordless handsets in the same radio cell. 9.2 Registering a cordless handset to a base unit The cordless handset supplied with the base unit is already registered. If an optional cordless handset is purchased, it must be registered using the following method. L Keep the front cover page open for button locations. 1 2 3 4 5 84 Press $ (centre of joystick). Select t, then press ,. Select “Registration”, then press ,. 6 7 Select a base number, then press ,. 8 Press ,. Note: L When the cordless handset has been registered successfully, a confirmation tone will be heard and w will stop flashing. 9.2.1 Selecting a base unit When “Auto” is selected, the cordless handset will automatically use any available base unit it is registered to. When a specific base unit is selected, the cordless handset will make and receive calls using that base unit only. If the cordless handset is out of range of that base unit, no calls can be made or received. 1 2 3 4 Press $ (centre of joystick). Select t, then press ,. Select “Select Base”, then press ,. Select the desired base unit number, or “Auto”, then press ,. L The cordless handset starts searching for the base unit. 9.2.2 Cancelling a cordless handset A cordless handset can cancel its own registration (or the registration of another cordless handset) that is stored in the base unit. This will allow the base unit to forget the cordless handset. 1 2 3 Press $ (centre of joystick). 4 Select “Cancel Handset”, then press ,. L The names of all cordless handsets registered to the base unit are displayed. 5 Select the cordless handset(s) you want to cancel, then press ?. 6 Press ,. Select “Register H/set”, then press ,. Press and hold {LOCATOR/INTERCOM} on the base unit for about 3 seconds, until the registration tone sounds. L After pressing {LOCATOR/INTERCOM}, the rest of Wait until “Enter Base PIN” is displayed, then enter “0000” (default base unit PIN). L If you changed the PIN, enter it (page 82). Select u, then press ,. Enter “0000” (default base unit PIN). L If you changed the PIN, enter it (page 82). FC245E_en.book Page 85 Wednesday, August 4, 2004 9:47 PM 9. Multi-unit Operation 9.2.3 Cancelling a base unit A cordless handset can cancel a base unit that it is registered to. This allows the cordless handset to forget the base unit. 1 2 3 4 5 Press $ (centre of joystick). 6 Select the base unit(s) you want to cancel, then press ?. 7 8 9 Press ,. Select t, then press ,. Select “Registration”, then press ,. Select “Cancel Base”, then press ,. Enter “0000” (default cordless handset PIN). L If you changed the PIN, enter it (page 79). 9.3 Intercom Intercom calls can be made between cordless handsets/base unit in the same radio cell, but not in different radio cells. L Keep the front cover page open for button locations. 9.3.1 Between cordless handsets Example: When cordless handset 1 calls cordless handset 2 1. Cordless handset 1: Press {INT} and {2} (desired cordless handset number). L The cordless handset 2 will ring. Select “Yes”, then press ,. 2. Cordless handset 2: Press {C} or {s} to answer. Press {ih}. 3. When finished talking, press {ih}. Note: L To register the cordless handset to another base unit or to the same base unit again, see page 84. 9.3.2 Between a cordless handset and the base unit Example: When cordless handset 1 calls the base unit 1. Cordless handset 1: Press {INT}, then press {0}. L The base unit will ring. 2. Base unit: Press {LOCATOR/INTERCOM}, {DIGITAL SP-PHONE} or lift the handset to answer. 3. Cordless handset 1: When finished talking, press {ih} or place the cordless handset on the charger. Base unit: When finished talking, press {DIGITAL SPPHONE}, {LOCATOR/INTERCOM} or replace the handset. Example: When the base unit calls cordless handset 1 1. Base unit: Press {LOCATOR/INTERCOM}, then press {1} (desired cordless handset number). L The cordless handset 1 will ring. L To page all cordless handsets, press {0}. You can talk with the cordless handset user who answers first. L To stop paging, press {LOCATOR/INTERCOM} again. 2. Cordless handset 1: Press {INT}, {C} or {s} to answer. 3. Base unit: 85 FC245E_en.book Page 86 Wednesday, August 4, 2004 9:47 PM 9. Multi-unit Operation When finished talking, press {DIGITAL SPPHONE}, {LOCATOR/INTERCOM} or replace the handset. Cordless handset 1: When finished talking, press {ih} or place the cordless handset on the charger. Note: L If the cordless handset user has difficulty hearing the base unit user, ask the base unit user to decrease the speaker volume by pressing {B}. Cordless handset locator Using this feature, you can locate a cordless handset if it has been misplaced. 9.4 Transferring calls / Conference calls Outside calls can be transferred to the base unit or to a cordless handset. 2 people can have a conference call with an outside party. L Keep the front cover page open for button locations. 9.4.1 From a cordless handset to the base unit Example: When cordless handset 1 transfers a call to the base unit 1. Cordless handset 1: During an outside call, press {INT} and {0} to page the base unit. L The outside call will be put on hold. L If there is no answer, press {INT} to return to the outside call. 2. Base unit: Press {LOCATOR/INTERCOM}, {DIGITAL SP-PHONE} or lift the handset to answer the page. L The base unit user can talk with cordless handset 1 user. 3. Cordless handset 1: To complete the call transfer, press {ih}. To establish a conference call, press {3}. To transfer a call without speaking to the base unit user After step 1, press {ih} on the cordless handset 1. If the transferred call is not answered within 60 seconds, the cordless handset 1 will ring again. Press {INT} to return to the outside call. 9.4.2 From the base unit to a cordless handset Example: When the base unit transfers a call to cordless handset 1 1. Base unit: During an outside call, press {LOCATOR/INTERCOM} and {1} (desired cordless handset number) to page the cordless handset. L The outside call will be put on hold. L If there is no answer, press {LOCATOR/INTERCOM} to return to the outside call. 2. Cordless handset 1: 86 FC245E_en.book Page 87 Wednesday, August 4, 2004 9:47 PM 9. Multi-unit Operation Press {INT}, {C} or {s} to answer the page. 3. Base unit: To complete the call transfer, press {DIGITAL SP-PHONE} or replace the handset. To establish a conference call, press {3}. To transfer a call without speaking to the cordless handset 1 user After step 1, press {DIGITAL SP-PHONE} or replace the handset. If the transferred call is not answered within 60 seconds, the base unit will ring again. Press {LOCATOR/INTERCOM} to return to the outside call. 9.4.3 Between cordless handsets Example: When cordless handset 1 transfers a call to cordless handset 2 1. Cordless handset 1: During an outside call, press {INT} and {2} (desired cordless handset number). L The outside call will be put on hold. L If there is no answer, press {INT} to return to the outside call. 2. Cordless handset 2: Press {INT}, {C} or {s} to answer. L Cordless handset 2 can talk with cordless handset 1. 3. Cordless handset 1: To complete the call transfer, press {ih}. To establish a conference call, press {3}. To transfer a call without speaking to the cordless handset 2 user After step 1, press {ih} on the cordless handset 1. If the transferred call is not answered within 60 seconds, the cordless handset 1 will ring again. Press {INT} to return to the outside call. 9.5 Copying cordless handset phonebook items Phonebook items (page 33) can be copied from the cordless handset to the phonebook of another cordless handset. L Keep the front cover page open for button locations. Example: When cordless handset 1 is sending phonebook items to cordless handset 2. 1. Establish an intercom call (page 85). 2. Cordless handset 2: Press * (centre of joystick), select “Recv Phonebook”, then press ,. 3. Cordless handset 1: Press *, select “Send Phonebook”, then press ,. L If you copy all items, skip to step 5. 4. Cordless handset 1: Push the joystick up or down repeatedly to select the desired item. 5. Press ,. 6. Cordless handset 1: Select “Copy One Item” or “Copy All Items”, then press ,. L When copying is completed, a beep sounds and “Copy Complete” is displayed. After a few seconds, the cordless handset will return to the intercom call. Note: L If cordless handset 2 (the receiver) did not prepare for copying, “Copy Failure” will be displayed on cordless handset 1 (the sender). L If phonebook memory is full on cordless handset 2 (the receiver), “Copy Incomplete” will be displayed on handset 1 (the sender). 87 FC245E_en.book Page 88 Wednesday, August 4, 2004 9:47 PM 9. Multi-unit Operation L If “Common” is selected, skip to step 7. 9.6 Walkie-Talkie This feature allows cordless handsets to communicate with each other directly when they are in range of the same base unit (common base station mode, group mode) and even when outside the range of the base unit (group mode only). L Keep the front cover page open for button locations. Important: L The maximum distance possible between 2 cordless handsets using Walkie-Talkie is 300 metres outdoors. Actual performance will vary depending on usage conditions. L When using Walkie-Talkie, talk time is about 6 hours; standby time is about 15 hours. Actual performance will vary depending on usage conditions. To improve battery performance, turn OFF the cordless handsets when not talking. L Outside calls cannot be received while in Walkie-Talkie mode. 9.6.1 Changing the Walkie-Talkie mode There are two Walkie-Talkie modes, common base station and group. Common base station mode: Communication is possible between cordless handsets registered to a common base unit. If the cordless handsets are registered to more than one base unit, the same base unit must be selected. Group mode: Communication is possible between cordless handsets that are both set to Walkie-Talkie mode and have the same 3-digit group ID. This allows cordless handsets to communicate in Walkie-Talkie mode regardless of which base unit they are registered to. The default setting is group. Important: L When in common base station mode, the cordless handsets cannot have WalkieTalkie conversations if the base unit selection is set to “Auto” (page 84). Either select a base unit number, or change the Walkie-Talkie mode to “Group”. 1 2 3 4 88 Press $ (centre of joystick). Select v, then press ,. Select “Setting”, then press ,. Select the desired mode, then press ,. 5 If “Group” is selected, enter a 3-digit group ID, then press ,. L The default ID is “000”. 6 Assign a cordless handset number (1–9) to be used during Walkie-Talkie conversations, then press , 2 times. L This number is displayed on the cordless handset only when using Walkie-Talkie. It does not affect other operations. 7 Press {ih}. Note: L To set the Walkie-Talkie mode to common base station mode, the cordless handset must be within range of a base unit. 9.6.2 Turning Walkie-Talkie ON 1 2 3 Press $ (centre of joystick). Select v, then press ,. Select “On”, then press ,. L The display changes to the Walkie-Talkie display, and the cordless handset’s Walkie-Talkie number is displayed. Note: L If a cordless handset is outside the range of a base unit and the Walkie-Talkie mode is set to common mode, Walkie-Talkie cannot be turned ON. L This feature is turned OFF when the cordless handset is turned OFF. Turning Walkie-Talkie OFF 1. Press * (centre of joystick). 2. Select “Off”, then press ,. 9.6.3 Starting Walkie-Talkie conversations Be sure to turn Walkie-Talkie ON beforehand on both cordless handsets. 1 Press {C}, {s}, or {INT}, then the other cordless handset’s Walkie-Talkie number. L The other cordless handset will ring if it is within range. 2 The other cordless handset user can answer the call by pressing {C}, {s}, or {INT}. 3 When finished talking, press {ih}. FC245E_en.book Page 89 Wednesday, August 4, 2004 9:47 PM 10. Useful Information 10 Useful Useful Information Information 10.1 Using the belt clip You can hang the cordless handset on your belt or pocket using the included belt clip. To attach the belt clip 10.2 Using an optional headset Connecting an optional headset to the cordless handset allows hands-free phone conversations. Please use only the Panasonic headset noted on page 11. The speakerphone is not available while a headset is plugged into the cordless handset. To switch to speakerphone, disconnect the headset. To connect an optional headset Open the headset socket cover and plug the optional headset into the headset socket as shown. To remove the belt clip Note: L Insert the connector plug into the headset socket firmly. 89 FC245E_en.book Page 90 Wednesday, August 4, 2004 9:47 PM 10. Useful Information 10.3 Wall mounting the charger 1 2 Connect the AC adaptor. Drive the screws (1) into the wall using the wall template as a guide, then mount the charger securely on the screws. L Fasten the AC adaptor cord around the hooks (2) to prevent it from being disconnected. 2.8 cm 1 2 Note: L Make sure the screws are securely fastened to the wall. Wall template for charger 2.8 cm 90 FC245E_en.book Page 91 Wednesday, August 4, 2004 9:47 PM 10. Useful Information 10.4 Available character entries for the cordless handset The cordless handset dial keys are used to enter characters and numbers. Each dial key has multiple characters assigned to it. The available character entry modes are; # (LetterWise), : (Alphabet), ; (Numeric), ! (Greek), x (Extended 1), y (Extended 2), and % (Cyrillic). When in :, !, x, y, or % character entry modes, you can select which character is entered by pressing a dial key repeatedly. L Move the joystick to move the cursor. L Press dial keys to enter characters and numbers. L Press {C} to erase the character or number highlighted by the cursor. Press and hold {C} to erase all characters or numbers. L Press {*} to switch between uppercase and lowercase. L To enter another character located on the same dial key, push the joystick right to move the cursor to the next space, then press the appropriate dial key. (This is not necessary when entering text in LetterWise mode.) 10.4.1 Character entry modes Press the right soft key repeatedly to select the desired character entry mode. LetterWise Alphabet Numeric Greek # : ; ! % y x Cyrillic Extended 2 Extended 1 Note: L For character entry when writing SMS messages, see page 46. # LetterWise character table (for English) LetterWise is a simplified text entry system which suggests the most likely letter to follow the previously entered text. Text can be input faster because the number of key presses are reduced. You can change which language is used for LetterWise character entry (page 80). How to enter characters L Each time you press a dial key, LetterWise will suggest a character. L If the suggested character is incorrect, press {#} repeatedly to display the desired character. : Alphabet character table 91 FC245E_en.book Page 92 Wednesday, August 4, 2004 9:47 PM 10. Useful Information ; Numeric entry table ! Greek character table x Extended 1 character table L The following are used for both uppercase and lowercase: y Extended 2 character table L The following are used for both uppercase and lowercase: % Cyrillic character table 92 FC245E_en.book Page 93 Wednesday, August 4, 2004 9:47 PM 11. Help 11 Help Error Messages 11.1 Error messages – Reports If a problem occurs during fax transmission or reception, one of the following messages will be printed on the sending and journal reports (page 49). COMMUNICATION ERROR (Code: 40-42, 46-72, FF) L A transmission or reception error occurred. Try again or check with the other party. COMMUNICATION ERROR (Code: 43, 44) L A line problem occurred. Connect the telephone line cord to a different socket and try again. L An overseas transmission error occurred. Try using the overseas mode (feature #23 on page 71). DOCUMENT JAMMED L The document is jammed. Remove the jammed document (page 105). ERROR-NOT YOUR UNIT (Code: 54, 59, 70) L A transmission or reception error occurred because of a problem with the other party’s fax machine. Check with the other party. JUNK FAX PROH. REJECT L The fax was rejected by the junk fax prohibitor feature (page 58). MEMORY FULL L The memory is full of received documents due to a lack of recording paper or a recording paper jam. Install paper (page 20) or clear the jammed paper (page 103). NO DOCUMENT L The document was not fed into the unit properly. Re-insert it and try again. OTHER FAX NOT RESPONDING L The other party’s fax machine is busy or has run out of recording paper. Try again. L The other party’s fax machine rings too many times. Send the fax manually (page 48). L The other party’s machine is not a fax machine. Check with the other party. L The number you dialled is not in service. PRESSED THE STOP KEY L {STOP} was pressed, and fax transmission or reception was cancelled. OK L Fax transmission or reception was successful. 11.2 Error messages – Base unit display If the unit detects a problem, one or more of the following messages will appear on the display. ————————————————————— BUSY L The cordless handset you tried to call is in use. L The cordless handset you are calling is too far from the base unit. ————————————————————— CALL SERVICE CALL SERVICE 2 L There is something wrong with the unit. Contact our service personnel. ————————————————————— CHECK DOCUMENT L The document was not fed into the unit properly. Re-insert the document. If misfeeding occurs frequently, clean the document feeder rollers (page 107) and try again. L Attempted to send a document longer than 600 mm. Press {STOP} to remove the document. Divide the document into two or more sheets and try again. ————————————————————— CHECK FILM L The ink film is empty. Replace the ink film with a new one (page 19). L The ink film is not installed. Install it (page 17). L The ink film is slack or creased. Tighten it (see step 5 on page 17). ————————————————————— CHECK MEMORY L Memory (telephone numbers, parameters, etc.) has been erased. Re-program. 93 FC245E_en.book Page 94 Wednesday, August 4, 2004 9:47 PM 11. Help ————————————————————— CHECK PAPER L Recording paper is not installed or the unit has run out of paper. Install paper and press {START} to clear the message. L The recording paper was not fed into the unit properly (page 105). Reinstall paper (page 20) and press {START} to clear the message. L The recording paper has jammed near the recording paper entrance. Clear the jammed paper (page 103) and press {START} to clear the message. ————————————————————— CLOSE TENSION PLATE L The tension plate is open. Close it (page 20). ————————————————————— COVER OPEN L The back cover is open. Close it. ————————————————————— DISPLAY MESSAGE USING CORDLESS L The SMS message is not displayed when you try to print it. Display the desired message using the cordless handset before pressing {SMS PRINTING} (page 45). ————————————————————— FAX IN MEMORY L The unit has a document in memory. See the other displayed message instructions to print out the document. For fax memory capacity, see page 110. ————————————————————— FAX MEMORY FULL L The memory is full of received documents due to a lack of recording paper or a recording paper jam. Install paper (page 20) or clear the jammed paper (page 103). L When performing memory transmission, the document being stored exceeded the memory capacity of the unit. Send the entire document manually. ————————————————————— FILM EMPTY L The ink film is empty. Replace the ink film with a new one (page 19). 94 L The ink film is slack. Tighten it (see step 5 on page 17) and install again. L The fax machine is positioned near appliances such as TVs or speakers which generate an intense magnetic field. ————————————————————— FILM NEAR EMPTY L The remaining ink film is low. Prepare a new ink film (page 11). ————————————————————— MEMORY FULL L There is no space to store new items in the base unit phonebook. Erase unnecessary items (page 36). L When making a copy, the document being stored exceeded the memory capacity of the unit. Press {STOP} to clear the message. Divide the document into sections. ————————————————————— MESSAGE FULL L There is no memory available to record voice messages. Erase unnecessary messages (page 62, 64). ————————————————————— MODEM ERROR L There is something wrong with the unit’s modem. Contact our service personnel. ————————————————————— NO FAX REPLY L The other party’s fax machine is busy or has run out of recording paper. Try again. ————————————————————— OPEN CABINET CHECK FILM SLACK b OPEN CABINET CHECK FILM TYPE L Please use genuine Panasonic replacement film (page 11). L The ink film is slack. Tighten it (see step 5 on page 17). L The fax machine is positioned near appliances such as TVs or speakers which generate an intense magnetic field. FC245E_en.book Page 95 Wednesday, August 4, 2004 9:47 PM 11. Help ————————————————————— PAPER JAMMED L A recording paper jam occurred. Clear the jammed paper (page 103). ————————————————————— PLEASE WAIT L The unit is checking that there is no slack or crease on the ink film. Wait for a moment while the check is completed. ————————————————————— POLLING ERROR L The other party’s fax machine does not support polling. Check with the other party. ————————————————————— RECORDING ERROR L The greeting message or voice memo you recorded was under 1 second long. Record a longer message. ————————————————————— REDIAL TIME OUT L The other party’s fax machine is busy or has run out of recording paper. Try again. ————————————————————— REMOVE DOCUMENT L The document is jammed. Remove the jammed document (page 105). L Press {STOP} to eject the jammed document. ————————————————————— SERIAL ERROR L There is something wrong with the unit and the base unit will not work. Contact our service personnel. To make or receive calls, use the cordless handset. ————————————————————— TRANSMIT ERROR L A transmission error occurred. Try again. ————————————————————— UNIT OVERHEATED L The unit is too hot. Stop using the unit for a while and let the unit cool down. 95 FC245E_en.book Page 96 Wednesday, August 4, 2004 9:47 PM 11. Help Troubleshooting 11.3 When a function does not work, check here If you still have difficulties after following the instructions in this section, reset the unit. Disconnect the mains lead and turn OFF the cordless handset. Reconnect the mains lead and turn ON the cordless handset. 11.3.1 Initial settings Problem Cause & Solution I cannot hear a dial tone. L If you use a splitter to connect the unit, remove the splitter and connect the unit to the wall socket directly. If the unit operates properly, check the splitter. L Disconnect the unit from the telephone line and connect a known working telephone. If the working telephone operates properly, contact our service personnel to have the unit repaired. If the working telephone does not operate properly, contact your telephone company. L The mains lead or telephone line cord is not connected. Check the connections. L If you connected the fax machine through a computer modem, connect the fax machine directly to a telephone line socket. I cannot make calls. L The call bar feature is set. Turn it OFF (feature #28 on page 71, or page 79). The unit does not ring. L The ringer volume is turned OFF. Adjust it (page 25). 11.3.2 General Problem Cause & Solution The unit displays “CHECK PAPER” even though paper is inserted. L The paper is inserted halfway. Insert it correctly (page 20) and press {START} to clear the message. The other party complains they only hear a fax tone and cannot talk. L FAX ONLY mode is set. Tell the other party the number is only used for faxes. L Change the receiving mode to TAM/FAX mode (page 55) or TEL mode (page 54). The {REDIAL} / {PAUSE} button does not function properly. L If this button is pressed during dialling, a pause will be inserted. If pressed immediately after a dial tone is obtained, the last number dialled will be redialled. During programming, I cannot enter the code or ID number. L All or part of the numbers are the same as another code or ID. Change the number: – remote operation ID: page 65, or feature #11 on page 70. – fax activation code: feature #41 on page 72. The ink film runs out quickly. L The help printing function, copy function, and reports also use ink film. L Even if there are only a few sentences, every page that comes out of the machine is considered a full page. L Turn OFF the following features: – sending report: feature #04 on page 70. – journal report: feature #22 on page 71. – Caller ID list: feature #26 on page 71. 96 FC245E_en.book Page 97 Wednesday, August 4, 2004 9:47 PM 11. Help Problem Cause & Solution The base unit beeps. L Recording paper/ink film has run out. Press {STOP} to stop the beeps and install paper/ink film. The speakerphone is not working. L Use the speakerphone in a quiet room. L If you have difficulty hearing the other party, adjust the volume. I cannot page a cordless handset or base unit. L The called cordless handset is too far from the base unit. L The called unit is in use. Try again later. Caller information is not displayed. L You have not subscribed to Caller ID service. L The caller requested not to send his/her information. While viewing caller information, the display returns to standby mode. L Do not pause for over 1 minute on the cordless handset or 3 minutes on the base unit while searching. 11.3.3 Cordless handset Problem Cause & Solution The cordless handset does not work. L L L L L L Make sure that the batteries are installed correctly (page 21). Charge the batteries fully (page 23). Clean the charge contacts and charge again (page 23). Turn the cordless handset power OFF, then ON (page 24). Check that the mains lead is connected properly. The cordless handset has not been registered to the base unit. Register the cordless handset (page 84). L Re-install the batteries (page 21) and charge them fully. The cordless handset display is blank. L The cordless handset is not turned ON. Turn the power ON (page 24). The cordless handset will not turn ON. L Make sure that the batteries are installed correctly (page 21). L Charge the batteries fully (page 23). L Clean the charge contacts and charge again (page 23). w is flashing. L The cordless handset is not registered to the base unit. Register it (page 84). L The cordless handset is too far from the base unit. Move closer. L The mains lead is not connected. Check the connections. The batteries should be charging but the battery icon does not change. L Clean the charge contacts and charge again (page 23). L The AC adaptor is disconnected. Plug in the AC adaptor. A busy tone is heard when {C} is pressed. L The cordless handset is too far from the base unit. Move closer and try again. L The base unit or another cordless handset is on an outside call. Wait for the other user to complete the call. Static, sound cuts in/out, fades. Interference from other electrical units. L Move the cordless handset and the base unit away from other electrical appliances. L Move closer to the base unit. 97 FC245E_en.book Page 98 Wednesday, August 4, 2004 9:47 PM 11. Help Problem Cause & Solution The cordless handset stops working while being used. L Disconnect the mains lead and turn OFF the cordless handset to reset the unit. Connect the mains lead, turn ON the cordless handset and try again. L You pressed a dialling button when the call bar feature was turned ON (page 79). L You dialled a number registered for the call restriction feature (page 82). While storing an item in the phonebook or assigning a hot key, the cordless handset starts to ring. L To answer a call, press {C} or {s}. Storing will be cancelled. Store the name and number again. I cannot redial by pressing -. L If the redialled number was more than 24 digits long, the number will not be redialled. Redial the number manually. 7 flashes or the cordless handset beeps intermittently while it is in use. L Charge the batteries fully (page 23). I charged the batteries fully, but 7 still flashes. L Clean the charge contacts and charge again (page 23). L It is time to replace the batteries (page 21). I cannot receive documents by pressing {*}{#}{9} on the cordless handset. L You must set remote fax activation to ON (feature #41 on page 72) beforehand. L Press {*}{#}{9} firmly. L The memory is full of received documents due to a lack of recording paper or a recording paper jam. Install paper (page 20) or clear the jammed paper (page 103). L The call bar feature was activated on the cordless handset. Deactivate this feature (page 79). L The direct call feature (page 79) was activated on the cordless handset. Deactivate this feature. I cannot make a call with the cordless handset. L The call bar feature is set. Turn it OFF (page 79). L You dialled a call restricted number. Remove the number from the call restricted list (page 82). L The key lock feature is turned ON. Turn it OFF (page 30). I cannot register a cordless handset to a base unit. L The maximum number of base units are already registered to the cordless handset. Cancel unused base unit registrations from the cordless handset (page 85). L The maximum number of cordless handsets are already registered to the base unit. Cancel unused cordless handset registrations from the base unit (page 84). L You entered the wrong PIN. If you forget your PIN, consult our Customer Care Centre. L Locate the cordless handset and the base unit away from other electrical appliances. 98 FC245E_en.book Page 99 Wednesday, August 4, 2004 9:47 PM 11. Help 11.3.4 Fax – sending Problem Cause & Solution I cannot send documents. L The other party’s fax machine is busy or has run out of recording paper. Try again. L The other party does not have a fax machine. Check with the other party. L The other party’s fax machine failed to answer the fax automatically. Send the fax manually (page 48). I cannot send a fax overseas. L Use the overseas transmission mode of feature #23 (page 71). L Add two pauses at the end of the telephone number or dial manually. The other party complains that letters on their received document are distorted or not clear. L If your line has special telephone services such as call waiting, the service may have been activated during fax transmission. Connect the unit to a line that does not have these services. L Another telephone on the same line is off the hook. Hang up the telephone and try again. L Try copying the document. If the copied image is clear, there may be something wrong with the other party’s machine. L Adjust the scan contrast using feature #58 (page 72). The other party complains that black lines, white lines or smudges appear on their received document. L The scanner glass, white plate or rollers are dirty with correction fluid, etc. Clean them (page 107). Please do not insert a document before correction fluid has dried completely. 11.3.5 Fax – receiving Problem Cause & Solution I cannot receive documents. L The ink film is empty. Replace the ink film with a new one (page 19). I cannot receive documents automatically. L The receiving mode is set to TEL mode. Change the receiving mode to TAM/FAX mode (page 55) or FAX ONLY mode (page 57). L The time taken to answer the call is too long. Decrease the number of rings before the unit answers a call (page 65, or feature #06 on page 70). L The greeting message is too long. Record a shorter message (page 61, 63). The display shows “CONNECTING.....”, but faxes are not received. L The receiving mode is set to FAX ONLY mode and the incoming call is not a fax. Change the receiving mode to TEL mode (page 54) or TAM/FAX mode (page 55). A blank sheet is ejected. L If a blank sheet is ejected after the received document is printed out, the size of the document sent by the other party is as large as, or larger than, the recording paper, or the receiving reduction rate is not programmed correctly. Program the proper rate in feature #36 (page 72). L The other party placed the document in their fax machine the wrong way. Check with the other party. 99 FC245E_en.book Page 100 Wednesday, August 4, 2004 9:47 PM 11. Help Problem Cause & Solution The printing quality is poor. Please do not reuse the ink film! Please use genuine Panasonic replacement film. Refer to page 11 for further details. L The thermal head is dirty. Clean it (page 108). L Some paper has instructions recommending which side to print on. Try turning the paper over. L You may have used paper with a cotton and/or fibre content that is over 20%, such as letterhead or resume paper. L If documents can be copied properly, the unit is working normally. The other party may have sent a faint document or there may be something wrong with the other party’s machine. Ask them to send a clearer copy of the document or to check their fax machine. The other party complains that they cannot send a document. L The receiving mode is set to TEL mode. Receive the document manually (page 54) or change the receiving mode to TAM/FAX mode (page 55) or FAX ONLY mode (page 57). L The memory is full of received documents due to a lack of recording paper or a recording paper jam. Install paper (page 20) or clear the jammed paper (page 103). I cannot receive documents by pressing {*}{#}{9} on the cordless handset. L You must set remote fax activation to ON (feature #41 on page 72) beforehand. L Press {*}{#}{9} firmly. L The memory is filled with received documents due to a lack of recording paper or a recording paper jam. Install paper (page 20) or clear the jammed paper (page 103). L The call bar feature was activated on the cordless handset. Deactivate this feature (page 79). L The direct call feature (page 79) was activated on the cordless handset. Deactivate this feature. I cannot select the desired receiving mode. L If you want to set TAM/FAX or FAX ONLY mode, set the desired mode using feature #77 (page 73), and press {AUTO ANSWER} repeatedly to select the desired mode. L If you want to set TEL mode, press {AUTO ANSWER} repeatedly to select TEL mode. 11.3.6 Copying Problem Cause & Solution The unit will not make a copy. L The ink film is empty. Replace the ink film with a new one (page 19). L You cannot make a copy during programming. L You cannot make a copy during a telephone conversation. A black line, a white line or smudge appears on the copied document. L The scanner glass, white plate or rollers are dirty with correction fluid, etc. Clean them (page 107). Please do not insert a document before correction fluid has dried completely. The copied image is distorted. L Adjust the width of the document guides to fit the actual size of the document. 100 FC245E_en.book Page 101 Wednesday, August 4, 2004 9:47 PM 11. Help Problem Cause & Solution The printing quality is poor. Please do not reuse the ink film! Please use genuine Panasonic replacement film. Refer to page 11 for further details. Original Copy ABC L Some paper has instructions recommending which side to print on. Try turning the paper over. L You may have used paper with a cotton and/or fibre content that is over 20%, such as letterhead or resume paper. L The thermal head is dirty. Clean it (page 108). 11.3.7 Answering machine Problem Cause & Solution The answering machine is turned ON, but caller messages are not recorded. L The recording time is set to “GREETING ONLY”. Select “1 MINUTE” or “NO LIMIT” (page 65, or feature #10 on page 70). L The message memory is full. Erase unnecessary messages (page 62, 64). I cannot operate the answering machine with the cordless handset. L Another user is using the answering machine, SMS features, accessing the Caller ID list or on an outside call. Wait for the other user to finish. L Another cordless handset user is changing program using the base unit PIN (page 81). Wait for the other user to finish. L A caller is leaving a message. Wait for the caller to finish. L The cordless handset is too far from the base unit. Move closer. I cannot retrieve recorded messages from a remote location. L Activate the remote operation feature by setting the remote operation ID beforehand (page 65, or feature #11 on page 70). L Press the remote operation ID correctly and firmly (page 67). L The unit is not in TAM/FAX mode. Change to TAM/FAX mode (page 55). The other party complains that they cannot leave a voice message. L The memory is full. Erase unnecessary messages (page 62, 64). L The recording time is set to “GREETING ONLY”. Select “1 MINUTE” or “NO LIMIT” (page 65, or feature #10 on page 70). While recording a greeting message or listening to messages, the unit rings and recording stops. L A call is being received. Answer the call and try again later. 101 FC245E_en.book Page 102 Wednesday, August 4, 2004 9:47 PM 11. Help 11.3.8 SMS Problem Cause & Solution I cannot send or receive SMS messages. L You have not subscribed to the appropriate service. Consult your service provider. L The SMS message centre number(s) are not stored or are incorrect. Store the correct numbers (page 44). L Message transmission was interrupted. Wait until the message has been sent before using other telephone functions. L SMS message memory is full. Erase unnecessary message in the receive and send lists (page 42, 43). “FD” is displayed. L The unit could not connect to the SMS message centre. Confirm that the correct SMS message centre numbers are stored (page 44). Confirm that SMS is turned ON (page 44). “FE” is displayed. L An error occurred while sending the message. Try again. “EO” is displayed. L Your telephone number is permanently withheld or you have not subscribed to the appropriate service. Consult your service provider. 11.3.9 If a power failure occurs L The unit will not function. L The unit is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made for access to emergency services. L Fax transmission and reception will be interrupted. L If delayed transmission (feature #25 on page 71) is programmed and power failure prevents the document from being sent at the set time, the document will be sent after power is restored. L If any fax documents are stored in the memory, they will be lost. When power is restored, a power down report will be printed stating which documents in memory have been erased. 102 FC245E_en.book Page 103 Wednesday, August 4, 2004 9:47 PM 11. Help Jams 3 Open the front cover by pulling up the centre part. 4 Release the back cover by pushing the green button (1). 11.4 Recording paper jams 11.4.1 When the recording paper has jammed in the unit The base unit display will show the following. PAPER JAMMED 1 Pull the tension plate forward (1) to remove the installed paper (2). L Do not remove the jammed paper (3). 2 3 1 1 2 5 Open the back cover. 6 Remove the jammed recording paper (1). Remove the paper tray (1). 1 1 103 FC245E_en.book Page 104 Wednesday, August 4, 2004 9:47 PM 11. Help 7 Turn the blue gear (1) in the direction of the arrow until the ink film is tight (2). L The ink film is reversed. L The ink film is slack or creased. 1 8 Close the back cover securely by pushing down on the notched area at both ends (1). 1 2 9 Close the front cover securely. Correct L The ink film is wrapped around the blue core (3) at least once. 1 turn Tight 3 10 Install the paper tray (page 19), then insert the recording paper (page 20). Incorrect L The ink film is not wrapped around the blue core (4). 4 104 FC245E_en.book Page 105 Wednesday, August 4, 2004 9:47 PM 11. Help 11.4.2 When the recording paper was not fed into the unit properly The base unit display will show the following. CHECK PAPER 11.5 Document jams – sending 1 1 2 Remove the recording paper and straighten. Pull the tension plate forward (1) and insert the paper. Open the front cover by pulling up the centre part. Remove the jammed document carefully (1). 1 1 2 3 Close the front cover securely. Push the tension plate back (1), then press {START} to clear the message. 1 {START} Note: L Do not pull out the jammed paper forcibly before opening the front cover. 105 FC245E_en.book Page 106 Wednesday, August 4, 2004 9:47 PM 11. Help 5 Cleaning Open the recording paper feeder cover (1). 1 11.6 Recording paper feeder cleaning Clean the recording paper feeder when the recording paper frequently misfeeds. Important: L Remove the recording paper and the paper tray beforehand, or the paper may misfeed or jam. 1 Disconnect the mains lead and the telephone line cord. 2 Open the front cover by pulling up the centre part. 6 Clean the recording paper feeder roller (1) with a cloth moistened with isopropyl rubbing alcohol, and let all parts dry thoroughly. Caution: L Do not use paper products, such as paper towels or tissues. 1 3 Release the back cover by pushing the green button (1). 1 4 Open the back cover. 106 7 Close the covers (see steps 8 and 9 on page 104). 8 Install the paper tray (page 19), then insert the recording paper (page 20). 9 Connect the mains lead and the telephone line cord. FC245E_en.book Page 107 Wednesday, August 4, 2004 9:47 PM 11. Help 4 Close the front cover securely. 5 Connect the mains lead and the telephone line cord. 11.7 Document feeder / scanner glass cleaning Clean the document feeder/scanner glass when: – Documents frequently misfeed. – Smudges or black/white lines appear on the original document when sending or copying. 1 Disconnect the mains lead and the telephone line cord. 2 Open the front cover by pulling up the centre part. 3 Clean the document feeder rollers (1) and rubber flap (2) with a cloth moistened with isopropyl rubbing alcohol, and let all parts dry thoroughly. Clean the scanner glass (3) and white plate opposite the scanner glass (4) with a soft, dry cloth. Caution: L Do not use paper products, such as paper towels or tissues. 1 2 4 3 107 FC245E_en.book Page 108 Wednesday, August 4, 2004 9:47 PM 11. Help 5 Remove the ink film (1). 11.8 Thermal head cleaning If smudges or black/white lines appear on a copied/received document, check whether there is dust on the thermal head. Clean the thermal head to remove the dust. Important: L Remove the recording paper and the paper tray beforehand, or the paper may misfeed or jam. 1 Disconnect the mains lead and the telephone line cord. 2 Open the front cover by pulling up the centre part. 1 6 Clean the thermal head (1) with a cloth moistened with isopropyl rubbing alcohol, and let it dry thoroughly. Caution: L To prevent a malfunction due to static electricity, do not use a dry cloth and do not touch the thermal head directly. 1 3 Release the back cover by pushing the green button (1). 1 4 Open the back cover. 108 7 Reinstall the ink film and close the covers (see steps 4 to 7 on page 17). 8 Install the paper tray (page 19), then insert the recording paper (page 20). 9 Connect the mains lead and the telephone line cord. FC245E_en.book Page 109 Wednesday, August 4, 2004 9:47 PM 12. General Information 12 General Printed Reports Information 12.1 Reference lists and reports (Base unit only) You can print out the following lists and reports for your reference. Setup list: provides you with the current settings of the base unit programming features (page 70 to page 73). Telephone number list: provides you with names and numbers which are stored in the base unit phonebook. Journal report: keeps records of fax transmission and reception. This report can be printed automatically after every 30 fax communications (feature #22 on page 71). Printer test: allows you to check the print quality of your unit. If the test print has a smudge, or blurred points or lines, clean the thermal head (page 108). Broadcast programming list: provides you with names and numbers which are stored in the broadcast memory (page 50). Caller ID list: keeps records of the last 50 different callers after subscribing to a Caller ID service. To print automatically after every 50 callers, activate feature #26 (page 71). {STOP} {SET} {MENU} {<}{>} 1 Press {MENU} repeatedly to display “PRINT REPORT”. 2 Press {<} or {>} repeatedly to display the desired item. 3 Press {SET} to start printing. L To stop printing, press {STOP} 2 times. 4 Press {MENU}. 109 FC245E_en.book Page 110 Wednesday, August 4, 2004 9:47 PM 12. General Information Specifications 12.2 Specifications 12.2.1 Base unit ■ Applicable lines: Public Switched Telephone Network ■ Document size: Max. 216 mm in width, Max. 600 mm in length ■ Effective scanning width: 208 mm ■ Effective printing width: A4: 202 mm ■ Transmission time*1: Approx. 8 s/page (ECM-MMR)*2 ■ Scanning density: Horizontal: 8 pels/mm Vertical: 3.85 lines/mm – in standard resolution, 7.7 lines/mm – in fine/photo resolution, 15.4 lines/mm – in super fine resolution ■ Photo resolution: 64-level ■ Scanner type: Contact Image Sensor ■ Fax memory capacity*3: Approx. 25 pages of memory transmission Approx. 28 pages of memory reception (Based on the ITU-T No. 1 Test Chart in standard resolution, without using the Error Correction Mode.) ■ Voice memory capacity*4: Approx. 30 minutes of recording time including greeting messages *1 Transmission speed depends upon the contents of the pages, resolution, telephone line conditions and capability of the other party’s machine. *2 Transmission speed is based upon the ITU-T No. 1 Test Chart. If the capability of the other party’s machine is inferior to your unit, the transmission time may be longer. *3 If an error occurs during fax reception, such as a paper jam or if the recording paper runs out, the fax and subsequent faxes will be retained in memory. *4 Recording time may be reduced by the calling party’s background noise. ITU-T No. 1 Test Chart ■ Printer type: Thermal Transfer on plain paper ■ Data compression system: Modified Huffman (MH), Modified READ (MR), Modified Modified READ (MMR) ■ Modem speed: 14,400 / 12,000 / 9,600 / 7,200 / 4,800 / 2,400 bps; Automatic Fallback ■ Operating environment: 5 °C – 35 °C, 20 % – 80 % RH (Relative Humidity) ■ Dimensions: Approx. height 139 mm × width 331 mm × depth 238 mm ■ Mass (Weight): Approx. 3.1 kg ■ Power consumption: Standby: Approx. 4.5 W Transmission: Approx. 15 W Reception: Approx. 35 W (When receiving a 20 % black document) Copy: Approx. 40 W (When copying a 20 % black document) Maximum: Approx. 130 W (When copying a 100 % black document) ■ Power supply: 220 V – 240 V AC, 50 Hz 110 Recording paper specifications Recording paper size: A4: 210 mm × 297 mm Recording paper weight: 64 g/m2 to 80 g/m2 Note for recording paper: L Do not use the following types of paper: – Paper with a cotton and/or fibre content that is over 20 %, such as letterhead paper or paper used for resumes – Extremely smooth or shiny paper, or paper that is highly textured – Coated, damaged or wrinkled paper – Paper with foreign objects attached, such as tabs or staples – Paper which has dust, lint or oil stains FC245E_en.book Page 111 Wednesday, August 4, 2004 9:47 PM 12. General Information L L L L L L – Paper that will melt, vaporize, discolour, scorch or emit dangerous fumes near 200 °C, such as vellum paper. These materials may transfer onto the fusing roller and cause damage. – Moist paper Some paper only accepts print on one side. Try using the other side of the paper if you are not happy with the print quality or if misfeeding occurs. For proper paper feeding and best print quality, we recommend using long-grained paper. Do not use paper of different types or thickness at the same time. This may cause a paper jam. Avoid double-sided printing. Do not use paper printed from this unit for double-sided printing with other copiers or printers. This may cause a paper jam. To avoid curling, do not open paper packs until you are ready to use the paper. Store unused paper in the original packaging, in a cool and dry location. 12.2.2 Cordless handset ■ Standard: DECT (Digital Enhanced Cordless Telecommunications) GAP (Generic Access Profile) ■ Number of channels: 120 Duplex Channels ■ Frequency range: 1.88 GHz to 1.9 GHz ■ Duplex procedure: TDMA (Time Division Multiple Access) ■ Channel spacing: 1,728 kHz ■ Bit rate: 1,152 kbit/s ■ Modulation: GFSK ■ RF transmission power: Approx. 250 mW ■ Voice coding: ADPCM 32 kbit/s ■ Operating environment: 5 °C – 40 °C, 20 % – 80 % RH (Relative Humidity) ■ Dimensions: Approx. height 143 mm × width 48 mm × depth 32 mm ■ Mass (Weight): Approx. 125 g 12.2.3 Charger unit ■ Operating environment: 5 °C – 40 °C, 20 % – 80 % RH (Relative Humidity) ■ Dimensions: Approx. height 60 mm × width 86 mm × depth 84 mm ■ Mass (Weight): Approx. 113 g ■ Power consumption: Standby: Approx. 2.3 W Maximum: Approx. 6.8 W ■ Power supply: AC adaptor (220 V – 240 V AC, 50 Hz) Note: L Design and specifications are subject to change without notice. L The pictures and illustrations in these instructions may vary slightly from the actual product. 111 FC245E_en.book Page 112 Wednesday, August 4, 2004 9:47 PM 12. General Information Guarantee 12.3 Condition of guarantee 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. This machine is supplied with a one year swap out warranty. Please retain your Proof of Purchase and Packaging in the unlikely event that your machine should require attention. For further information please contact us on 08701 580560 for UK or 01 6130082 for the Republic of Ireland, in addition you can visit our web site at www.panasonic.co.uk This warranty is in addition to and does not in any way affect any statutory or other right of consumer purchasers. This warranty relates only to product used within Mainland Great Britain, please refer to your dealer warranty information relating to use elsewhere within the United Kingdom and Ireland. This product is designed for use only on the United Kingdom and Ireland’s Public Switched Telephone Network and should be used only for normal purposes and in accordance with standard operating instructions. You should complete the registration form overleaf and fax it to us with 7 days of purchase; failure to do so may result in delays in providing warranty service. This warranty covers breakdowns due to design or manufacturing faults; it does not apply to damage, however caused, wear or tear, neglect, incorrect adjustment or repair, or to any items of limited natural life. This warranty does not cover consumables, i.e. ink films, film refills, ink cartridges, toner cartridges, drum units, paper and paper loads or any optional accessories which may have been purchased either at the same time as, or subsequent to, the main unit. Such accessories should be returned to the point of purchase if found to be faulty. In the event of a failure, please take the following action; a) Refer to the “Help” section of your instruction manual in order to identify and possibly correct the problem: b) If the problem is not resolved after referring to the user guide, please contact our customer helpline on 08701 580560 for UK or 01 6130082 for the Republic of Ireland In the event the helpline cannot resolve the problem, a like for like exchange fax will be despatched. The helpline operator will give you specific instructions on how the exchange will be executed. Failure to comply with these instructions may result in delay and cost to you. The exchange fax will be delivered in a customised case by courier. It is the customer’s responsibility to promptly remove the exchange fax and insert the faulty fax in the case provided for collection, to enable the courier to return it to Panasonic. The exchange fax is to be regarded as a like for like exchange under warranty and the balance of the warranty period will transfer to the exchange unit. The purchaser’s sole and exclusive remedy under this guarantee against Panasonic is for the repair or replacement of the appliance or any defective parts and no other remedy, including, but not limited to; incidental or consequential damage or loss of whatsoever nature shall be available to the purchaser. Where the original fax is found to be faulty as a result of unauthorised repairs or modifications or damage either by accident, misuse or improper installation then Panasonic reserves the right to charge the customer a contribution towards repair costs. If at any time during the guarantee period any parts of the appliance are replaced with parts not supplied or approved by us or of an objective quality, safe and suitable for the appliance, or has been dismantled or repaired by any person not authorised by us, we shall have the right to terminate this guarantee in whole or in part immediately without further notice. This warranty applies to the original purchaser only and is not transferable. 14. The warranty period applicable to this product shall be 12 months from the date of purchase. Please keep these Operating Instructions with your receipt. Panasonic Business Systems U.K. Receipt No. Model No. 112 Date of Purchase KX-FC245E Serial No. FC245E_en.book Page 113 Wednesday, August 4, 2004 9:47 PM 13. Index 13. Index 13.1 Index # #01 Date and time: 27 #02 Your logo: 28 #03 Your fax number: 29 #04 Sending report: 49, 70 #06 FAX ring setting: 70 #06 TAM ring setting: 56, 70 #10 Message recording time: 70 #11 Remote operation ID: 70 #17 External ringer type: 70 #22 Automatic journal report: 49, 71 #23 Overseas mode: 71 #25 Delayed transmission: 71 #26 Automatic Caller ID list: 71 #28 Call bar: 71 #34 Quick scan: 48, 59, 71 #36 Receiving reduction: 72 #39 Display contrast: 72 #41 Fax activation code: 72 #44 Memory reception alert: 72 #46 Friendly reception: 72 #54 Greeting recording time: 61, 72 #58 Scan contrast: 72 #67 Greeting monitor: 73 #68 ECM selection: 73 #76 Connecting tone: 73 #77 Auto answer: 73 #80 Set default: 73 A Accessories: 10 Belt clip: 89 Paper tray: 19 Additional base units: 84 Additional cordless handsets: 84 Advanced features: 71 Auto answer setting: 73 Auto talk feature: 32, 79 B Base unit PIN: 82 Selecting: 84 Base unit phonebook Editing: 36 Erasing: 36 Making a phone call: 36 Sending faxes: 50 Storing: 35 Basic features: 70 Battery Charge: 23 Installation: 21 Life: 23 Replacement: 21 Type: 80 Broadcast transmission: 50 Button description Base unit: 12 Cordless handset: 13 C Call bar: 71, 79 Caller ID: 37 Calling back: 38 Storing: 40 Caller ID list: 37, 71, 109 Call restriction: 82 Call waiting: 32, 37 Cancelling a base unit: 85 Cancelling a cordless handset: 84 Character entry Base unit: 28 Cordless handset: 91 SMS: 46 Cleaning: 106, 107, 108 Conference calls: 86 Connecting tone: 73 Connections: 22 Copy: 59 Collation: 60 Enlarge: 59 Reduce: 59 Cordless handset Changing name: 79 Locator: 86 PIN: 79 Registration: 84 Cordless handset phonebook Copying: 87 Editing: 34 Erasing: 34 Making a phone call: 33 Storing: 33 D Date and time: 26 Delayed transmission: 71 Direct call: 79 Display (Base unit) Contrast: 72 Error messages: 93 Display (Cordless handset) Description: 14 Language: 78 Standby mode: 78 Talk mode: 78 Document size: 49 113 FC245E_en.book Page 114 Wednesday, August 4, 2004 9:47 PM 13. Index E ECM selection: 73 Emergency call: 82 Error messages: 93 Extension telephone: 54 F Fax activation code: 72 Fax number: 29 Friendly reception: 72 G Greeting message: 61, 63 Greeting message monitor: 65, 73 H Headset: 89 Help: 24 Hot key: 34 I Ink film Installing: 17 Replacing: 19 Intercom: 85 J Jams Document: 105 Recording paper: 103 Journal report: 49, 71 Joystick: 13 Junk fax prohibitor: 58 K Key lock: 30 Key tone: 78 L Language: 78 LetterWise: 46, 80, 91 Listening to recorded messages: 62 From a remote location: 67 With the cordless handset: 64 Logo: 28 M Memo alarm: 77 Memory reception alert: 72 Message recording time: 65, 70 N Navigator: 29, 36, 50, 69 O Overseas mode: 71 P Pause length: 82 Phonebook Base unit: 35 Cordless handset: 33 PIN Base unit: 82 Cordless handset: 79 Polling: 57 Power failure: 102 Power ON/OFF (Cordless handset): 24 Private category: 37 Programming 114 Base unit programming: 69 Cordless handset programming: 65, 76, 81 Q Quick scan: 48, 59, 71 R Recall: 32, 82 Receiving faxes Automatically: 55 Manually: 54 Receiving reduction: 72 Recording Greeting message: 61, 63 Memo message: 63, 64 Telephone conversation: 32 Recording paper: 20, 110 Recording time for TAM/FAX greeting message: 61, 72 Redialling Base unit: 31, 48, 50 Cordless handset: 30 Redial list: 30 Remote operation: 67 Remote operation ID: 65, 70 Reports Broadcast programming: 109 Broadcast sending: 51 Caller ID list: 37, 71, 109 Journal: 49, 71, 109 Power down: 102 Printer test: 109 Sending: 49, 70 Setup: 109 Telephone number: 109 Reset Base unit: 73, 83 Cordless handset: 80 Resolution: 48, 59 Ringer type Base unit: 70 Cordless handset: 77 Ring setting FAX ONLY: 70 TAM/FAX: 65, 70 S Scan contrast: 72 Sending faxes Base unit phonebook: 50 Broadcast: 51 From memory: 48 Manually: 48 Sending report: 49, 70 SMS feature: 41 Soft keys: 15 Storing FC245E_en.book Page 115 Wednesday, August 4, 2004 9:47 PM 13. Index Broadcast: 50 Hot key: 34 Phonebook: 33, 35 T Transferring calls: 86 V Voice menu: 68 Voice time/day stamp: 62 Volume Base unit: 25 Cordless handset: 25 W Walkie Talkie: 88 Wall mounting: 90 115 FC245E_en.book Page 116 Wednesday, August 4, 2004 9:47 PM 0682 : Base Unit 0436 : DECT Cordless Handset Sales Department: Panasonic Business Systems U.K. Panasonic House, Willoughby Road, Bracknell, Berkshire, RG12 8FP Manufacturer: Panasonic Communications (Malaysia) Sdn. Bhd. PLO No.1, Kawasan Perindustrian Senai, KB No. 104, 81400 Senai, Negeri Johor Darul Ta’zim, Malaysia Global web site: http://www.panasonic.co.jp/global/ Copyright: L This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd. © 2004 Panasonic Communications Co., Ltd. All Rights Reserved. PFQX2037ZB CM0704MN1084
