Panasonic KXFC268FX Operating Instructions

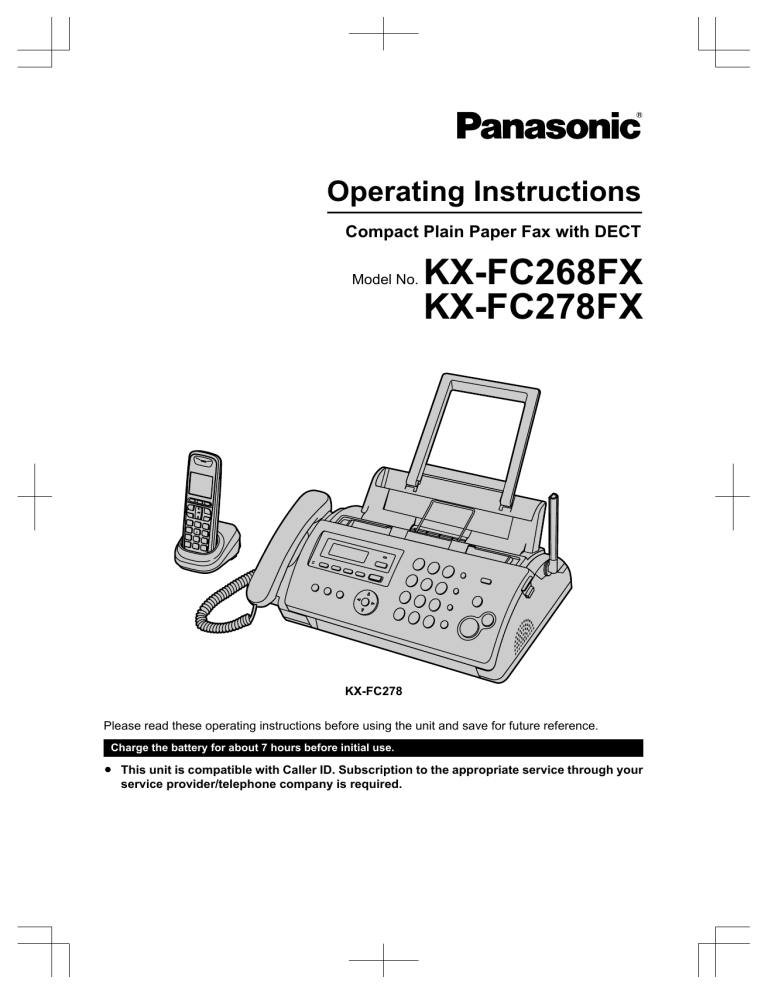

Operating Instructions
Compact Plain Paper Fax with DECT
Model No.
KX-FC268FX
KX-FC278FX
KX-FC278
Please read these operating instructions before using the unit and save for future reference.
Charge the battery for about 7 hours before initial use.
R This unit is compatible with Caller ID. Subscription to the appropriate service through your
service provider/telephone company is required.
Thank you for purchasing a Panasonic fax machine.
Things you should keep a record of
Attach your sales receipt here.
For your future reference
Date of purchase
Serial number (found on the rear of the unit)
Retailer’s/Dealer’s name and address
Retailer’s/Dealer’s telephone number
Note:
R The suffix in the model number will be omitted in these instructions.
Caution:
R Note that the images of copied or received documents will remain on the used ink film. Use discretion when
disposing of the used ink film.
R Do not rub or use an eraser on the printed side of the recording paper, as the print may smear.
Declaration of Conformity:
R Panasonic System Networks Co., Ltd. declares that this equipment is in compliance with the essential
requirements and other relevant provisions of Radio & Telecommunications Terminal Equipment (R&TTE)
Directive 1999/5/EC.
Declarations of Conformity for the relevant Panasonic products described in this manual are available for download
by visiting:
http://www.doc.panasonic.de
Contact to Authorised Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Notice for product disposal, transfer, or return:
R This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend
that you erase the information such as phonebook (or caller information) from the memory before you dispose of,
transfer or return the product.
Environment:
R Panasonic’s strategic direction incorporates concern for the environment into all aspects of the product life cycle,
from product development to energy saving designs; from greater product reusability to waste-conscious
packaging practices.
2
ENERGY STAR:
R As an ENERGY STAR® Partner, Panasonic has determined that this product meets the ENERGY STAR guidelines
for energy efficiency. ENERGY STAR is a U.S. registered mark.
3
Important Information
For your safety
To prevent severe injury and loss of life/property, read
this section carefully before using the unit to ensure
proper and safe operation of your unit.
WARNING
Power and ground connection
R Unplug this unit from power outlets if it emits smoke,
an abnormal smell or makes unusual noise. These
conditions can cause fire or electric shock. Confirm
that smoke has stopped and contact an authorised
service centre.
R Use only the power source marked on the unit. If you
are not sure of the type of power supplied to your
home, consult your retailer/dealer or local power
company.
R For safety purposes this unit is equipped with a
grounded plug. If you do not have this type of outlet,
please have one installed. Do not ignore this safety
feature by tampering with the plug.
R Do not place objects on the power cord. Install the
unit where no one can step or trip on the cord.
R Do not overload power outlets and extension cords.
This can result in the risk of fire or electric shock.
R Completely insert the AC adaptor/power plug into the
power outlet. Failure to do so may cause electric
shock and/or excessive heat resulting in a fire.
R Regularly remove any dust, etc. from the AC adaptor/
power plug by pulling it from the power outlet, then
wiping with a dry cloth. Accumulated dust may cause
an insulation defect from moisture, etc. resulting in a
fire.
R Unplug from power outlets and never touch the inside
of the product if its casing has been broken open.
R Never touch the plug with wet hands. There is a
danger of electric shock.
Installation
R Place the unit securely on a stable, level surface.
Serious damage and/or injury may result if the unit
falls.
R To prevent the risk of fire or electrical shock, do not
expose this product to rain or any type of moisture.
R Use this unit in a well ventilated area. Particularly, if
you will be using the unit for extended periods of time
or will be printing in large volumes, be sure to
ventilate the room sufficiently.
R Do not place or use this product near automatically
controlled devices such as automatic doors and fire
alarms. Radio waves emitted from this product may
cause such devices to malfunction resulting in an
accident.
R Do not allow the AC adaptor or telephone line cord to
be excessively pulled, bent or placed under heavy
objects.
4
Operating safeguards
R Unplug this unit from power outlets before cleaning.
Do not use liquid or aerosol cleaners.
R Do not cover slots and openings on the unit. They are
provided for ventilation and protection against
overheating. Never place the unit near radiators, or
in a place where proper ventilation is not provided.
R Never push any objects through slots in this unit. This
may result in the risk of fire or electric shock. Never
spill any liquid on the unit.
R To reduce the risk of electric shock, do not
disassemble this unit. Take the unit to an authorised
service centre when service is required. Opening or
removing covers may expose you to dangerous
voltage or other risks. Incorrect reassembly can
cause electric shock when the unit is subsequently
used.
R Follow all warnings and instructions marked on this
unit.
R Do not disassemble the product.
R Do not spill liquids (detergents, cleansers, etc.) onto
the telephone line cord plug, or allow it to become wet
at all. This may cause a fire. If the telephone line cord
plug becomes wet, immediately pull it from the
telephone wall jack, and do not use.
R Unplug this unit from power outlets and refer
servicing to an authorised service centre when any
of the following conditions occur:
– If the power cord is damaged or frayed.
– If the unit has been exposed to rain or water, or
liquid has been spilled into the unit. Do not use a
microwave oven to speed up the drying process
of any parts of the unit (including the cordless
handset) to avoid permanent damage.
– If the unit does not work normally by following the
operating instructions. Adjust only controls
covered by the operating instructions. Improper
adjustment may require extensive work by an
authorised service centre.
– If the unit has been dropped or physically
damaged.
– If the unit exhibits a distinct change in
performance.
Medical
R Consult the manufacturer of any personal medical
devices, such as pacemakers or hearing aids, to
determine if they are adequately shielded from
external RF (radio frequency) energy. (The product
operates in the frequency range of 1.88 GHz to 1.90
GHz, and the RF transmission power is 250 mW
(max.).)
R Do not use the product in health care facilities if any
regulations posted in the area instruct you not to do
so. Hospitals or health care facilities may be using
equipment that could be sensitive to external RF
energy.
Important Information
CAUTION
Installation and relocation
R After moving the unit from cold areas to warmer
areas, wait approximately 30 minutes before
connecting the unit to allow the unit to adjust to the
ambient temperature. If the unit is connected too
soon after a sudden climate change, condensation
may form inside the unit, causing malfunction.
R Never turn the unit upside down or sideways when
moving it.
R Never install telephone wiring during a lightning
storm.
R Never install telephone jacks in wet locations unless
the jack is specifically designed for wet locations.
R Never touch uninsulated telephone wires or terminals
unless the telephone line has been disconnected at
the network interface.
R Use caution when installing or modifying telephone
lines.
R The AC adaptor is used as the main disconnect
device. Ensure that the AC outlet is installed near the
unit and is easily accessible.
R This unit is unable to make calls when:
– the cordless handset batteries need recharging
or have failed.
– there is a power failure.
– the key lock feature is turned ON.
R Do not position the unit in a location where it is
unstable or subject to vibrations.
LED light
CLASS 1 LED PRODUCT
R When using the unit, do not look directly at the CIS’s
LED light. Direct eye exposure can cause eye
damage.
CIS’s LED light properties
LED radiation output : Max. 1 mW
Wavelength : Yellowish Green 570 nm typical
Emission duration : Continuous
Battery
R Do not mix old and new batteries.
R Do not open or mutilate the battery(ies). Released
electrolyte from the battery(ies) is corrosive and may
cause burns or injury to the eyes or skin. The
electrolyte is toxic and may be harmful if swallowed.
R Exercise care when handling the battery(ies). Do not
allow conductive materials such as rings, bracelets
or keys to touch the battery(ies), otherwise a short
circuit may cause the battery(ies) and/or the
conductive material to overheat and cause burns.
R Charge the battery(ies) provided with or identified for
use with this product only in accordance with the
instructions and limitations specified in these
operating instructions.
R Only use the compatible charger to charge the
battery(ies). Do not tamper with the charger. Failure
to follow these instructions may cause the
battery(ies) to swell or explode.
Important safety instructions
When using this unit, basic safety precautions should
always be followed to reduce the risk of fire, electric
shock, or personal injury.
1. Do not use this unit near water, for example near a
bathtub, wash bowl, kitchen sink, etc.
2. During thunderstorms, avoid using telephones
except cordless types. There may be a remote risk of
an electric shock from lightning.
3. Do not use the telephone of this unit (if so equipped)
to report a gas leak, when in the vicinity of the leak.
4. Use only the power cord and batteries indicated in
these operating instructions.
5. Do not dispose of the battery(ies) in a fire. They may
explode. Check with local codes for possible special
disposal instructions.
SAVE THESE INSTRUCTIONS
For best performance
Location
R To avoid malfunction, do not position the unit near
appliances such as TVs or speakers which generate
an intense magnetic field.
Static electricity
R To prevent static electricity damage to the interface
connectors or other electrical components inside the
unit, touch a grounded metal surface before touching
the components.
Location and noise
The base unit and other compatible Panasonic units use
radio waves to communicate with each other.
R For maximum coverage and noise-free
communications, place your base unit:
– at a convenient, high, and central location with no
obstructions between the cordless handset and
base unit in an indoor environment.
– away from electronic appliances such as TVs,
radios, personal computers, wireless devices, or
other phones.
– facing away from radio frequency transmitters,
such as external antennas of mobile phone cell
stations. (Avoid putting the base unit on a bay
window or near a window.)
5
Important Information
R Coverage and voice quality depends on the local
environmental conditions.
R If the reception for a base unit location is not
satisfactory, move the base unit to another location
for better reception.
Environment
R Keep the unit away from electrical noise generating
devices, such as fluorescent lamps and motors.
R The unit should be kept free from dust, high
temperature and vibration.
R The unit should not be exposed to direct sunlight.
R Do not place heavy objects on top of the unit.
R When you leave the unit unused for a long period of
time, unplug this unit from the power outlet.
R The unit should be kept away from heat sources such
as heaters, kitchen stoves, etc. It should not be
placed in rooms where the temperature is less than
5 °C (base unit)/0 °C (cordless handset, charger unit)
or greater than 35 °C (base unit)/40 °C (cordless
handset, charger unit). Damp basements should also
be avoided.
R The maximum calling distance may be shortened
when the unit is used in the following places: Near
obstacles such as hills, tunnels, underground, near
metal objects such as wire fences, etc.
Routine care
R Wipe the outer surface of the unit with a soft cloth. Do
not use benzine, thinner, or any abrasive powder.
Information for Users on
Collection and Disposal of Old
Equipment and used Batteries
A
B
C
These symbols (A, B, C) on the products, packaging,
and/or accompanying documents mean that used
electrical and electronic products and batteries should
not be mixed with general household waste.
For proper treatment, recovery and recycling of old
products and used batteries, please take them to
applicable collection points, in accordance with your
national legislation and the Directives 2002/96/EC and
2006/66/EC.
By disposing of these products and batteries correctly,
you will help to save valuable resources and prevent any
potential negative effects on human health and the
environment which could otherwise arise from
inappropriate waste handling.
6
For more information about collection and recycling of
old products and batteries, please contact your local
municipality, your waste disposal service or the point of
sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this
waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment,
please contact your dealer or supplier for further
information.
Information on Disposal in other Countries outside
the European Union
These symbols (A, B, C) are only valid in the European
Union. If you wish to discard these items, please contact
your local authorities or dealer and ask for the correct
method of disposal.
Note for the battery symbol
This symbol (B) might be used in combination with a
chemical symbol (C). In this case it complies with the
requirement set by the Directive for the chemical
involved.
Illegal copies
R It is unlawful to make copies of certain
documents.
Copying certain documents may be illegal in your
country. Penalties of fines and/or imprisonment may
be imposed on those found guilty. The following are
examples of items that may be illegal to copy in your
country.
– Currency
– Bank notes and checks
– Bank and government bonds and securities
– Passports and identification cards
– Copyright material or trademarks without the
consent of the owner
– Postage stamps and other negotiable
instruments
This list is not inclusive and no liability is
assumed for either its completeness or accuracy.
In case of doubt, contact your legal counsel.
Notice:
R Install your machine near a supervised area to
prevent illegal copies from being made.
Table of Contents
1. Introduction and Installation
Accessories
1.1
1.2
Included accessories .....................................9
Accessory information ...................................9
Finding the Controls
1.3
1.4
1.5
1.6
Button descriptions of the base unit ..............9
Button descriptions of the cordless
handset .......................................................10
Display descriptions of the cordless
handset .......................................................10
Overview .....................................................11
Installation
1.7
1.8
1.9
1.10
1.11
Ink film .........................................................12
Paper tray ....................................................14
Recording paper ..........................................14
Handset cord (KX-FC278 only) ...................15
Battery installation / replacement ................15
2. Preparation
Connections and Setup
2.1
2.2
2.3
2.4
Connections ................................................17
Battery charge .............................................18
Turning the cordless handset power ON/
OFF .............................................................18
Dialling mode ..............................................18
Volume
2.5
2.6
Adjusting cordless handset volume .............19
Adjusting base unit volume .........................19
Initial Programming
2.7
2.8
2.9
Date and time ..............................................19
Your logo .....................................................20
Your fax number ..........................................20
3. Telephone
Making and Answering Calls
3.1
3.2
Making phone calls .....................................21
Answering phone calls ................................21
Automatic Dialling
3.3
3.4
3.5
3.6
Cordless handset phonebook .....................22
Chain dial (Cordless handset only) .............22
Base unit phonebook ..................................23
One touch dial (Base unit only) ...................23
Caller ID
3.7
3.8
3.9
Caller ID service ..........................................24
Viewing and calling back .............................24
Editing a caller’s telephone number before
calling back .................................................25
3.10 Erasing caller information ............................25
3.11 Storing caller information into the
phonebook ..................................................26
4. Fax
Sending Faxes
4.1
4.2
4.3
4.4
Sending a fax manually ...............................27
Document requirements ..............................27
Sending a fax using the phonebook and one
touch dial .....................................................28
Broadcast transmission ...............................28
Receiving Faxes
4.5
4.6
4.7
4.8
4.9
Selecting the way to use your fax
machine .......................................................29
Receiving a fax manually – Auto answer
OFF .............................................................30
Receiving a fax automatically – Auto answer
ON ...............................................................31
Receive polling (retrieving a fax placed on
another fax machine) ..................................32
Junk fax prohibitor (preventing fax reception
from undesired callers) ................................32
5. Copy
Copying
5.1
Making a copy .............................................34
6. Answering Machine
Greeting
6.1
Recording your greeting message ..............35
Incoming Messages
6.2
Listening to recorded messages .................35
Memo Message
6.3
Leaving a message for others or
yourself ........................................................36
Remote Operation
6.4
6.5
Using the answering machine with the cordless
handset .......................................................36
Operating from a remote location ................37
7. Programmable Features
Base Unit
7.1
Base unit programming ...............................39
Cordless Handset
7.2
Cordless handset programming ..................44
8. Multi-unit Operation
Additional Units
8.1
8.2
Operating additional units ...........................47
Registering a cordless handset to a base
unit ..............................................................47
Other Features
8.3
8.4
8.5
Intercom ......................................................47
Transferring a call/conference .....................48
Copying phonebook items ...........................49
9. Useful Information
Useful Information
9.1
Character entry ...........................................50
10. Help
Reports and Displays
10.1 Report messages ........................................52
10.2 Display messages .......................................52
Troubleshooting
10.3 When a function does not work ...................54
7
Table of Contents
11. Maintenance
Jams
11.1 Recording paper jams .................................61
11.2 Document jams ...........................................62
Cleaning
11.3 Document feeder/recording paper feeder/
scanner glass cleaning ................................62
11.4 Thermal head cleaning ................................63
12. General Information
Printed Reports
12.1 Reference lists and reports (Base unit
only) ............................................................65
Specifications
12.2 Specifications ..............................................65
13. Index
13.1 Index............................................................67
8
1. Introduction and Installation
30 m ´ 2 rolls (Each roll will print about 90 A4-sized
pages.)
1.1 Included accessories
A Telephone line cord
1. . Introduction and Installation
B Handset*1
–
–
–
C Handset cord*1
D Paper tray
A Paper support
B Paper tray
A
B
E Starter ink film
(10 metres long)
F Cordless handset
Rechargeable batteries*2
Model No. (Part No.): P03P or HHR-4MRE
2 rechargeable nickel metal hydride (Ni-MH)
batteries, AAA (R03) size
Additional digital cordless handset
Model No. (Part No.): KX-TGA641FX
DECT repeater
Model No. (Part No.): KX-A272
*1 To ensure the unit operates properly, we
recommend using the Panasonic replacement
film. The ink film is not reusable. Do not
rewind and use the ink film again.
*2 Replacement batteries may have a different
capacity from that of the supplied batteries.
1.3 Button descriptions of the
base unit
A
G Rechargeable
batteries
BCDE F G
H IJ K
LMN
RS T U
H AC adaptor
(PQLV219CE)*1*2
OP Q
MMICN (Microphone)
I Charger*1
J Operating
instructions
R The built-in microphone.
MGREETING RECN
R To record a greeting message (page 35).
MGREETING CHECKN
R To check a greeting message (page 35).
MMEMON
*1 KX-FC278 only
*2 Part numbers are subject to change without notice.
Note:
R Save the original carton and packing materials for
future shipping and transportation of the unit.
R After unpacking the product, take care of the packing
materials and/or power plug cap appropriately.
R To record a memo message (page 36).
MERASEN
R To erase messages (page 35, 35).
MAUTO ANSWERN
R To turn the auto answer setting ON/OFF
(page 30, 31).
MPLAYBACKN
R To play messages (page 35).
1.2 Accessory information
MREDIALN/MPAUSEN
Additional/replacement accessories
R To redial the last number dialled. If the line is busy
when you make a phone call using the
MSP-PHONEN button, or when you send a fax, the
unit will automatically redial the number 2 or more
times.
–
Replacement film*1
Model No. (Part No.): KX-FA52X
9
1. Introduction and Installation
R To insert a pause during dialling.
MRN
R To access special telephone services or for
transferring extension calls.
R The recall/flash time can be changed (feature #72
on page 43).
1.4 Button descriptions of the
cordless handset
A
B
MCALLER IDN
R To use Caller ID features (page 25).
C
MSTOPN
D
E
F
R To stop an operation or programming session.
R To erase a character/number (page 50).
MLOCATORN/MINTERCOMN
R To make/answer intercom calls (page 47).
R To page or locate a cordless handset
(page 48).
MPRINT REPORTN
R To print lists and reports for reference purposes
(page 65).
Soft keys
R To select the features or operations displayed
directly above each key (page 11).
M
N (Talk)
MMENUN
R To make/answer calls (page 21, 21).
R To start or exit programming.
M N (Speakerphone)
Navigator/MPHONEBOOKN/MVOLUMEN
R For speakerphone operation.
R To search for a stored item (page 23, 28).
R To select features or feature settings during
programming (page 39).
R To adjust the volume (page 19).
R To open a phonebook.
M
MSETN
R To store a setting during programming.
MTONEN
R To change from pulse to tone temporarily during
dialling when your line has rotary pulse service.
MMUTEN
R To mute your voice during a conversation. Press
again to resume the conversation.
MSP-PHONEN
R For speakerphone operation.
MFAX STARTN
N (Off/Power)
R To turn power ON/OFF (page 18).
R To hang up (page 21, 21).
R To stop an operation or programming.
Navigator
R To adjust the receiver or speaker volume (up or
down) while talking (page 19).
R To scroll through (up or down) various lists or
items (page 22).
R To move the cursor (left or right) to edit number
or name.
M
N (Recall)
R To access special telephone services or for
transferring extension calls.
R The recall/flash time can be changed (feature #72
on page 43).
R To set the alarm feature (page 46).
R To send or receive a fax.
MCOPYN
R To copy a document (page 34).
1.5 Display descriptions of the
cordless handset
Display items
Display
item
Meaning
Within range of a base unit
R When flashing: Cordless handset
is searching for base unit.
(page 57)
Paging, intercom mode.
10
1. Introduction and Installation
Display
item
Meaning
Soft key
icon
Action
Cordless handset is on an outside
call.
Stop recording or playback.
Missed call*1 (page 24)
Erase the selected item.
When displayed next to the battery
icon: Auto answer setting is ON.
(page 31)
R When feature #10 is set to
“GREETING ONLY”, will be
displayed.
Allow you to make an intercom call.
When displayed with a number: New
messages have been recorded.
(page 36)
Answering machine answers calls
with a greeting message and caller
messages are not recorded.
(page 37)
Battery level
Alarm is ON. (page 46)
Insert a dialling pause.
Switch the screen. (page 24)
Erase a number/character.
Put the call on mute.
Symbols used in these operating instructions
Symbol
Meaning
“”
Select the words in quotations shown
on the display (e.g., “Time
Settings”) by pressing MDN or MCN
1.6 Overview
Ringer volume is OFF. (page 19)
New voice mail message received.*2
1.6.1 Base unit
R Someone is using the line.
R Answering machine is being used
by another cordless handset.
D
E F
C
B
*1 Caller ID subscribers only
*2 Voice mail subscribers only
G
A
Soft keys
The cordless handset features 3 soft keys. By pressing
a soft key, you can select the feature shown directly
above it on the display.
N
M
Soft key icons
Soft key
icon
H I J
Action
K
L
* The pictured model is KX-FC278.
Return to the previous screen.
A Document guides
Display the menu.
B Paper tray
Accept the current selection.
C Metal recording paper guide
Display a previously dialled telephone
number.
E Recording paper exit
D Paper support
Open the cordless handset phonebook.
F Recording paper entrance
Display the character entry mode for
phonebook search. (page 22)
G Antenna
Turn the key lock feature OFF.
(page 21)
I Front cover
H Microphone
J Document entrance
Select a character entry mode.
11
1. Introduction and Installation
K Document exit
L Speaker
1.7 Ink film
M Green button (Back cover release button)
The included film roll is a starter ink film.
N Back cover
1 Open the front cover.
Removing the shipping tape
2 Release the back cover by pushing the green button
* The pictured model is KX-FC278.
Note:
R Shipping tape positions are subject to change without
notice.
(A).
A
1.6.2 Cordless handset
A
C
3 Open the back cover.
B
D
E
A Charge indicator
Ringer indicator
B Speaker
C Receiver
D Microphone
E Charge contacts
12
4 Insert the blue gear of the ink film roll into the front
left slot of the unit (B) and the white gear of the ink
film roll into the rear left slot of the unit (C).
R The ink film is safe to touch and will not rub off on
your hands like carbon paper.
1. Introduction and Installation
R Make sure the blue gear (B) and white gear (C)
are installed as shown.
Correct
1 turn
C
Tight
F
Incorrect
B
No ink film is wrapped around the blue core.
5 Turn the blue gear (D) in the direction of the arrow
Slack/Crease
Reverse
until the ink film is tight (E) and at least one layer of
ink film is wrapped around the blue core (F).
6 Close the back cover securely by pushing down on
the dotted area at both ends (G).
G
D
7 Close the front cover securely.
E
13
1. Introduction and Installation
–
1.8 Paper tray
Pull up the metal recording paper guide (A), then install
the paper tray (B).
B
R
R
R
A
R Make sure the arrows on the paper tray and the unit
match.
R
R
R
R
1.
R If the paper support is folded, unfold it.
1.9 Recording paper
The unit can hold up to 20 sheets of 64 g/m2 to 80 g/
m2 paper.
Note for recording paper:
R Do not use the following types of paper:
14
Paper with a cotton and/or fibre content that is
over 20 %, such as letterhead paper or paper
used for resumes
– Extremely smooth or shiny paper, or paper that is
highly textured
– Coated, damaged or wrinkled paper
– Paper with foreign objects attached, such as tabs
or staples
– Paper which has dust, lint or oil stains
– Paper that will melt, vaporize, discolour, scorch
or emit dangerous fumes near 200 °C, such as
vellum paper. These materials may transfer onto
the fusing roller and cause damage.
– Moist paper
Some paper only accepts print on one side. Try using
the other side of the paper if you are not happy with
the print quality or if misfeeding occurs.
For proper paper feeding and best print quality, we
recommend using long-grained paper.
Do not use paper of different types or thickness at the
same time. This may cause a paper jam.
Avoid double-sided printing.
Do not use paper printed from this unit for
double-sided printing with other copiers or printers.
This may cause a paper jam.
To avoid curling, do not open paper packs until you
are ready to use the paper. Store unused paper in the
original packaging, in a cool and dry location.
For customers who live in high humidity areas:
Please be sure to store paper in an air-conditioned
room at all times. If you print using moist paper, it may
cause paper jam.
Fan the paper to prevent paper jams.
1. Introduction and Installation
2. Insert the paper gently, print-side down (A).
R Do not force the paper into the paper tray.
1.10 Handset cord (KX-FC278
only)
Connect the handset cord (A).
A
A
R If the paper is not inserted correctly, remove all of
the installed paper, and re-install it gently.
Otherwise the paper may jam.
Correct
Slant
Note:
R Remove all of the installed paper before adding
paper.
1.11 Battery installation /
replacement
Important:
R USE ONLY Ni-MH batteries AAA (R03) size.
Do NOT use alkaline/Manganese/Ni-Cd batteries
etc.
R Use the supplied rechargeable batteries. For
replacement, we recommend using the
Panasonic rechargeable batteries noted on
page 5, 9.
R Wipe the battery ends ( , ) with a dry cloth.
R Avoid touching the battery ends ( , ) or the unit
contacts.
R Confirm correct polarities ( , ).
R Install the batteries without touching the battery
ends ( , ) or the unit contacts.
15
1. Introduction and Installation
1 Press the notch on the cordless handset cover firmly,
and slide the cover.
R When replacing batteries, remove the old
batteries positive ( ) terminal first.
2 Insert the batteries negative ( ) terminal first. Close
the cordless handset cover.
R When the language selection is displayed, see
page 46.
16
2. Preparation
2.1 Connections
2. . Preparation
Important:
R The unit will not work during a power failure. We
recommend connecting a corded-type telephone
(without AC adaptor) to the same telephone line
or to the same telephone line jack, if you have
such a telephone jack in your house.
R If you use the unit with a computer and your internet
provider instructs you to install a filter (C), please
connect it as follows.
2.1.1 Base unit
A Telephone line cord
R Connect to a single telephone line jack.
B Power cord
C
R Connect to a power outlet (220 V – 240 V,
50/60 Hz).
2.1.2 Charger unit (KX-FC278 only)
A AC adaptor
R Connect to a power outlet (220 V – 240 V,
50/60 Hz).
B Hooks
R Fasten the AC adaptor cord to prevent it from
being disconnected.
C Screws (not included)
R The charger can be mounted on the wall, if
required.
25 mm
B
C
A
Caution:
R When you operate this product, the power outlet
should be near the product and easily accessible.
R Be sure to use the telephone line cord included
in this unit.
R Do not extend the telephone line cord.
Note:
R If any other device is connected to the same
telephone line, this unit may disturb the network
condition of the device.
A
B
*1
2 mm
*1 Use screws longer than 20 mm.
Caution:
R USE ONLY WITH the supplied Panasonic AC
adaptor.
R The AC adaptor must remain connected at all
times. (It is normal for the adaptor to feel warm
during use.)
R The AC adaptor should be connected to a
vertically oriented or floor-mounted AC outlet. Do
not connect the AC adaptor to a ceiling-mounted
AC outlet, as the weight of the adaptor may cause
it to become disconnected.
17
2. Preparation
R Press the AC adaptor plug firmly.
cloth once a month. Clean more often if the unit is
exposed to grease, dust, or high humidity.
Battery level
Icon
Battery level
High
Medium
Low
Needs charging.
2.2 Battery charge
Place the cordless handset on the base unit or charger
for about 7 hours before initial use. Confirm
“Charging” is displayed.
When the batteries are fully charged, the charge
indicator (A) goes OFF.
KX-FC278
B
A
D
Panasonic Ni-MH battery performance (included
batteries)
Operation
Operating time
In continuous use
18 hours max.
Not in use (standby)
170 hours max.
Note:
R It is normal for batteries not to reach full capacity at
the initial charge. Maximum battery performance is
reached after a few complete cycles of charge/
discharge (use).
R Actual battery performance depends on a
combination of how often the cordless handset is in
use and how often it is not in use (standby).
R Even after the cordless handset is fully charged, the
cordless handset can be left on the base unit or
charger without any ill effect on the batteries.
R The battery level may not be displayed correctly after
you replace the batteries. In this case, place the
cordless handset on the base unit or charger and let
it charge for at least 7 hours.
KX-FC268
B
A
2.3 Turning the cordless handset
power ON/OFF
Power ON
Press M
N for about 1 second.
Power OFF
Press M
N for about 2 seconds.
2.4 Dialling mode
If you cannot dial (page 21, 27), change this setting
according to your telephone line service.
With the base unit
C
Note:
R It is normal for the cordless handset to feel warm
during charging.
R Clean the charge contacts of the cordless handset
(B), base unit (C) or charger (D) with a soft and dry
18
1 MMENUN
2 Press MBNM1NM3N to display “DIAL MODE”.
3 Press M1N or M2N to select the desired setting.
M1N “PULSE”: For rotary/pulse dial service.
M2N “TONE” (default): For tone dial service.
4 MSETN
2. Preparation
5 Press MMENUN to exit.
2.5 Adjusting cordless handset
volume
Ringer volume
1.
2. Press MDN or MCN to select “Handset Setup”. A
3. Press MDN or MCN to select “Ringer Setup”. A
4. Press MDN or MCN to select “Ringer Volume”. A
5. Press MDN or MCN to select the desired volume. A
N
AM
Note:
R When receiving a call, you can adjust the ringer
volume by pressing MDN or MCN.
R When the ringer volume is turned OFF, is displayed
and the cordless handset does not ring for outside
calls.
However even when the ringer volume is set to OFF,
the cordless handset rings:
– at the low level for alarm (page 46) and intercom
calls (page 47)
– at the high level for paging (page 48)
2.7 Date and time
The date and time can be set using either the cordless
handset or the base unit.
R The other party’s fax machine will print the date and
time on the top of each page you send according to
your unit’s date and time setting.
R If a power failure occurs, the date and time setting
may be lost. If the correct date and time is not
displayed after the power has been restored, set the
date and time again.
2.7.1 With the cordless handset
1
2
3
4
5
“Handset Setup” A
“Time Settings” A
“Set Date/Time” A
Enter the current date, month, and year. A
Example: 3 August, 2010
M0NM3N M0NM8N M1NM0N
6 Enter the current hour and minute.
Example: 10:15 (12 hour clock format)
M1NM0N M1NM5N
R You can select 24-hour or 12-hour clock format
(“AM” or “PM”) by pressing MGN.
7
AM
N
Cordless handset receiver volume
While using the receiver, press MDN or MCN.
To correct a mistake
Speaker volume
Press MDN or MCN to move the cursor to the incorrect
number, and make the correction.
While using the speakerphone, press MDN or MCN.
2.7.2 With the base unit
2.6 Adjusting base unit volume
Ringer volume
While the unit is idle, press MJN or MKN.
R The ringer volume can only be adjusted if there are
no documents in the document feeder entrance.
To turn the ringer OFF
Press MKN repeatedly to display “RINGER OFF= OK?”.
A MSETN
R The base unit will not ring for outside calls.
The base unit will ring at the low level for intercom
calls.
R To turn the ringer back ON, press MJN.
Handset receiver volume (KX-FC278 only)
While using the receiver, press MJN or MKN.
Speaker volume
While using the speakerphone, press MJN or MKN.
Important:
R If is displayed on the base unit, either the date
and time has not been set or the setting has been
lost (due to a power failure, etc.). Set the date and
time by pressing MSETN, then follow step 2 to 4.
1 MMENUN A MBNM0NM1N A MSETN
2 Enter the current date/month/year by selecting 2
digits for each.
Example: 3 August, 2010
M0NM3N M0NM8N M1NM0N
3 Enter the current hour/minute by selecting 2 digits for
each.
Example: 10:15 PM (12 hour clock format)
1. M1NM0N M1NM5N
2. Press MGN repeatedly to select “PM”.
Press MGN repeatedly to select “AM” or “PM”, or
24-hour time entry.
4 MSETN
5 Press MMENUN to exit.
19
2. Preparation
To correct a mistake
Press MFN or MEN to move the cursor to the incorrect
number, and make the correction.
If you have subscribed to a Caller ID service
The date and time will be automatically set according to
the received caller information.
R To use this feature, make sure the time adjustment
is set to “AUTO” (feature #33 on page 41).
R If the time has not previously been set, Caller ID will
not adjust the clock.
2.8 Your logo
You can program your logo (name, company name, etc.)
so that it appears on the top of each page sent.
With the base unit
1 MMENUN A MBNM0NM2N A MSETN
2 Enter your logo, up to 30 characters (see page 50
for character entry).
R To enter a hyphen, press MRN.
R To enter a space, press MMUTEN.
3 MSETN
4 Press MMENUN to exit.
To correct a mistake
Press MFN or MEN to move the cursor to the incorrect
character, and make the correction.
R To erase all of the characters, press and hold
MSTOPN.
2.9 Your fax number
You can program your fax number so that it appears on
the top of each page sent.
With the base unit
1 MMENUN A MBNM0NM3N A MSETN
2 Enter your fax number, up to 20 digits.
R
R
R
R
To enter a “+”, press MGN.
To enter a space, press MBN.
To enter a hyphen, press MRN.
To erase a number, press MSTOPN.
3 MSETN
4 Press MMENUN to exit.
To correct a mistake
Press MFN or MEN to move the cursor to the incorrect
number, and make the correction.
R To erase all of the numbers, press and hold
MSTOPN.
20
3. Telephone
3.1 Making phone calls
3. . Telephone
3.1.1 With the cordless handset
1 Lift the cordless handset and dial the telephone
number.
R To correct a digit, press
.
2 M
N
R To make hands-free telephone calls, press M N.
3 To hang up, press M
N or place the cordless
handset on the base unit or charger.
Note:
R While talking using M N, you can switch to a
hands-free telephone conversation by pressing M N.
To switch back, press M N.
R For best performance, use the speakerphone in a
quiet environment.
To mute your conversation
While mute is turned ON, you can hear the other party,
but the other party cannot hear you.
1. Press
during conversation.
R
flashes.
2. To return to the conversation, press
again.
To redial using the redial list (Memory redial)
Example: If you need to dial the line access number
“0” when making outside calls with a PBX:
1. M0N A
2. Dial the telephone number. A M N
Note:
is
R A 3 second pause is inserted each time
pressed. Repeat as needed to create longer pauses.
3.1.2 With the base unit
KX-FC278:
1 Lift the handset or press MSP-PHONEN.
2 Dial the telephone number.
3 To hang up, replace the handset or press
MSP-PHONEN.
KX-FC268:
1 MSP-PHONEN
2 Dial the telephone number.
3 To hang up, press MSP-PHONEN.
To redial the last number dialled from the base unit
KX-FC278:
Lift the handset or press MSP-PHONEN. A MREDIALN
KX-FC268:
MSP-PHONEN A MREDIALN
The last 10 telephone numbers dialled from the cordless
handset are stored in the redial list (each 24 digits max.).
1.
2. Press MDN or MCN to select the desired number.
3. M N or M N
To mute your conversation
To erase numbers in the redial list
When the call is muted, you will be able to hear the other
party but the other party will not be able to hear you.
1.
2. Press MDN or MCN repeatedly to select the desired
A
number. A
3. “Yes” A
AM
N
Key lock
The cordless handset can be locked so that no calls or
settings can be made. Incoming calls can be answered,
but all other functions are disabled while key lock is ON.
To turn key lock ON, press
for about 3 seconds.
R
is displayed.
R To turn key lock OFF, press
for about 3 seconds.
Note:
R Calls to emergency numbers cannot be made until
key lock is turned OFF.
Pause (for PBX/long distance service users)
A pause is sometimes required when making calls using
a PBX or long distance service. When storing a calling
card access number and/or PIN in the phonebook, a
pause is also needed (page 23).
R If MSP-PHONEN is pressed and the line is busy, the
unit will automatically redial the number 2 or more
times.
Press MMUTEN.
R To release the mute, press MMUTEN.
3.2 Answering phone calls
3.2.1 With the cordless handset
When a call is being received, the ringer indicator on the
cordless handset flashes.
1 Lift the cordless handset and press M
N or M N when
the cordless handset rings.
R You can also answer the call by pressing any dial
key from M0N to M9N, MGN or MBN (Any key talk
feature).
2 To hang up, press M
N or place the cordless
handset on the base unit or charger.
21
3. Telephone
Auto talk feature (Cordless handset)
To search for a name by initial
You can answer calls simply by lifting the cordless
handset off the base unit or charger. You do not need to
press M N. To turn this feature ON, see page 45.
1.
3.2.2 With the base unit
KX-FC278:
1 Lift the handset or press MSP-PHONEN and talk into
MMICN.
2 To hang up, replace the handset or press
MSP-PHONEN.
KX-FC268:
1 Press MSP-PHONEN and talk into MMICN.
2 To hang up, press MSP-PHONEN.
R Change the character entry mode if necessary:
A Press MCN or MDN to select the character
entry mode. A
2. Press the dial key (M0N to M9N) which contains the
character you are searching for (page 50).
R Press the same dial key repeatedly to display the
first item corresponding to each character located
on that dial key.
R If there is no item corresponding to the character
you selected, the next item is displayed.
3. Press MDN or MCN repeatedly to scroll through the
phonebook if necessary.
3.3.3 Editing a stored item
Changing a name, telephone number
3.3 Cordless handset phonebook
You can store 100 items to the cordless handset
phonebook.
When the system has additional cordless handsets
(page 47), each cordless handset can have its own
phonebook.
R The base unit has its own individual phonebook
(page 23).
R You can copy phonebook items between the base
unit and the cordless handset, or between 2 cordless
handsets (page 49).
3.3.1 Storing phonebook items
1
A
2 “New Entry” A
3 Enter the name, up to 16 characters (see page 50
for character entry). A
R You can change the character entry mode by
pressing
(page 50).
4 Enter the telephone number, up to 24 digits. A
2 times
R To add other entries, repeat from step 3.
5 M
N
3.3.2 Making a phone call using the
phonebook
1
2 Press MDN or MCN repeatedly to display the desired
item.
R You can scroll through the phonebook item by
pressing and holding MCN or MDN.
3 M
22
N
1. Find the desired item (page 22). A
2. “Edit” A
3. Edit the name if necessary. For further details, see
the storing procedure on page 22. A
4. Edit the telephone number if necessary. For further
details, see the storing procedure on page 22. A
2 times
5. M
N
3.3.4 Erasing a stored item
To erase a specific item
1. Find the desired item (page 22). A
2. “Erase” A
3. “Yes” A
AM
N
To erase all items
1.
A
2. “Erase All” A
3. “Yes” A
4. “Yes” A
AM
N
3.4 Chain dial (Cordless handset
only)
This feature allows you to dial telephone numbers in the
cordless handset phonebook while you are on a call. This
feature can be used, for example, to dial a calling card
access number or bank account PIN that you have stored
in the cordless handset phonebook, without having to
dial manually.
1 During an outside call, press
.A
2 Press MDN or MCN repeatedly to select the desired
item.
R To search by first character (index search), see
page 22.
3. Telephone
3 Press
to dial the number.
Note:
R When storing a calling card access number and your
PIN in the phonebook as one phonebook item, press
to add pauses after the number and PIN as
necessary (page 21).
R If you have rotary/pulse service, you need to press
MGN before pressing
in step 1 to change the
dialling mode temporarily to tone. When adding
entries to the phonebook, we recommend adding
MGN to the beginning of telephone numbers you wish
to chain dial (page 22).
3.5 Base unit phonebook
You can store 100 items to the base unit phonebook.
R The cordless handset has its own individual
phonebook (page 22).
R You can copy phonebook items between the base
unit and the cordless handset (page 49).
3.5.1 Storing phonebook items
1 Press MMENUN repeatedly to display “PHONEBOOK
SET”. A MGN
2 Enter the name, up to 16 characters (see page 50
for character entry). A MSETN
3 Enter the telephone number, up to 24 digits. A
MSETN
R To program other items, repeat steps 2 to 3.
4 MMENUN
3.5.2 Making a phone call using the
phonebook
1 MPHONEBOOKN
2 Press MJN or MKN repeatedly to display the desired
item.
3 KX-FC278:
Lift the handset or press MSP-PHONEN.
KX-FC268:
MSP-PHONEN
To search for a name by initial
1. MPHONEBOOKN
2. Press MJN or MKN to initiate the phonebook.
3. Press the dial key (M0N to M9N) which contains the
character you are searching for (page 50).
R Press the same dial key repeatedly to display the
first item corresponding to each letter located on
that dial key.
R If there is no item corresponding to the letter you
selected, press another dial key.
4. Press MJN or MKN repeatedly to scroll through the
phonebook if necessary.
3.5.3 Editing a stored item
1 MPHONEBOOKN
2 Press MJN or MKN repeatedly to display the desired
item. A MMENUN A MGN
3 Edit the name if necessary. A MSETN
4 Edit the telephone number if necessary. A MSETN
3.5.4 Erasing a stored item
1 MPHONEBOOKN
2 Press MJN or MKN repeatedly to display the desired
item. A MMENUN A MBN
R To cancel erasing, press MSTOPN.
3 MSETN
3.5.5 Erasing all items
1 MPHONEBOOKN A MERASEN
2 Press MJN or MKN repeatedly to select “YES”. A
MSETN
R To cancel erasing, press MSTOPN.
3 MSETN
3.6 One touch dial (Base unit only)
Base unit dial keys M1N to M9N can each be used as a one
touch dial key, allowing you to dial a number from the
base unit’s phonebook by simply pressing a dial key.
To assign an item to a one touch dial key
1. MPHONEBOOKN
2. Press MJN or MKN repeatedly to display the desired
item. A MMENUN A M0N
3. Press MJN or MKN repeatedly to select a desired dial
key.
R When the dial key is already used as a one touch
dial key, is displayed next to the dial key
number. If you select this dial key, you can
overwrite the previous assignment.
4. MSETN A MSETN
R To program other items, repeat steps 2 to 4.
5. MSTOPN
To make a call using a one touch dial key
1. Press and hold the desired one touch dial key (M1N to
M9N).
R You can view other one touch dial assignments
by pressing MJN or MKN.
2. KX-FC278:
Lift the handset or press MSP-PHONEN.
23
3. Telephone
KX-FC268:
MSP-PHONEN
“OUT OF AREA”/“Out of Area”: The caller dials
from an area which does not provide a Caller ID
service.
“PRIVATE CALLER”/“Private Caller”: The
caller requests not to send caller information.
To erase a one touch dial assignment
1. Press and hold the desired one touch dial key (M1N to
M9N). A MERASEN
R To cancel erasing, press MSTOPN.
2. MSETN
Note:
R The corresponding base unit phonebook item will not
be erased.
3.7 Caller ID service
This unit is compatible with the Caller ID service
offered by your local telephone company. To use this
unit’s Caller ID features, you must subscribe to a
Caller ID service.
Important:
R This unit is designed in accordance with the ETS
(European Telecommunication Standard) and
only supports the basic CLIP (Calling Line
Identification Presentation) features.
R This unit will only display the caller’s telephone
number and name.
R This unit will not support future additional
telephone services.
R Depending on the service of the local telephone
company, the date/time of the call or the caller’s
name may not be displayed.
Make sure the following ring count is set to 2 or more
rings beforehand.
– FAX ring count (feature #06 on page 39)
– TEL/FAX ring count (feature #78 on page 44)
R The name display service may not be available in
some areas. For further information, please contact
your telephone company.
3.7.1 How Caller ID is displayed
The calling party’s name or telephone number will be
displayed. You have the option of whether or not to
answer the call.
The unit will automatically store caller information (name,
telephone number and date and time of the call) from the
50 most recent calls. It is possible to view caller
information on the display (page 24) or print the entire
Caller ID list (page 65).
R When caller information is received and it matches a
telephone number stored in the unit’s phonebook, the
stored name will be displayed.
R If the unit is connected to a PBX (Private Branch
Exchange) system, caller information may not be
received properly. Consult your PBX supplier.
R If the unit cannot receive caller information, the
following is displayed:
24
Missed calls
If a call is not answered, the unit treats the call as a
missed call. The number of missed calls are shown on
the display (the cordless handset also shows ). This
lets you know if you should view the caller list to see who
called while you were away.
To confirm caller information by printing the Caller
ID list (Base unit only)
–
–
To print manually, see page 65.
To print automatically after every 50 new calls,
activate feature #26 (page 41).
For call waiting or Call Waiting Caller ID service
users
To use call waiting, you must first subscribe to the call
waiting service of your service provider/telephone
company.
This feature allows you to receive calls while you are
already talking on the telephone. If you receive a call
while on the telephone, you will hear a call waiting tone.
If you subscribe to both Caller ID and Call Waiting
with Caller ID services, the 2nd caller’s information is
displayed on the base unit or cordless handset that is in
use after you hear the call waiting tone.
1. Press MRN on the base unit or M
N on the cordless
handset to answer the 2nd call.
2. To switch between calls, press MRN on the base unit
or M
N on the cordless handset.
Note:
R Please contact your service provider/telephone
company for details and availability of this service in
your area.
3.8 Viewing and calling back
Important:
R If the area code of the received telephone number
is the same as yours, the area code may need to
be deleted before calling back. This may only
apply to some areas. To edit the number, see
page 25.
R Make sure the unit’s date and time setting is
correct (page 19).
3.8.1 With the cordless handset
1
2 “Caller List” A
3. Telephone
3 Press MCN to search from the most recent call, or
press MDN to search from the oldest call.
R If the other party’s name is displayed on the
screen, you can switch the screen between the
name and its telephone number by pressing
repeatedly.
. A “Yes” A
R To erase the item, press
4 Press M
N or M N to start dialling.
5 Edit the number.
R Press dial key (M0N to M9N) to add,
6 M
to delete.
N or M N
3.9.2 With the base unit
1 MCALLER IDN
2 Press MJN or MKN repeatedly to display the desired
item.
3.8.2 With the base unit
3 Press MCALLER IDN repeatedly to display the
1 MCALLER IDN
2 Press MKN to search from the most recent call, or
4 Press MGN, then edit the number.
3 KX-FC278:
5 KX-FC278:
press MJN to search from the oldest call.
Lift the handset or press MSP-PHONEN to start
dialling.
KX-FC268:
Press MSP-PHONEN to start dialling.
R To send a fax, insert the document FACE DOWN
and press MFAX STARTN.
telephone number.
R Press dial key (M0N to M9N) to add, MSTOPN to
delete.
Lift the handset or press MSP-PHONEN.
KX-FC268:
MSP-PHONEN
R To send a fax, insert the document FACE DOWN
and press MFAX STARTN.
To change the way caller information is displayed
3.10 Erasing caller information
Press MCALLER IDN repeatedly after step 2 to change
name/telephone number information.
3.10.1 With the cordless handset
3.8.3 Symbols and operations for caller
information
What “ ” means
If the item has already been viewed or answered, “ ” is
displayed, even if it was viewed or answered using
another unit.
To stop viewing
Press M
base unit.
N on cordless handset or MSTOPN on the
1
2 “Caller List” A
3 Press MDN or MCN repeatedly to display the desired
item. A
4 “Erase” A
R To erase all items, select “Erase All”. A
5 “Yes” A
AM
N
3.10.2 With the base unit
3.9 Editing a caller’s telephone
number before calling back
To erase all caller information
3.9.1 With the cordless handset
2 MSETN
1
2 “Caller List” A
3 Press MDN or MCN repeatedly to display the desired
item.
R If the other party’s name is displayed on the
screen, you can switch the screen between the
name and its telephone number by pressing
repeatedly.
4
1 Press MMENUN repeatedly to display “CALLER
SETUP”. A MSETN
R “CALL LIST ERASE” will be displayed.
R To cancel erasing, press MSTOPN, then
MMENUN.
3 MSETN A MSTOPN
To erase specific caller information
1 MCALLER IDN
2 Press MJN or MKN repeatedly to display the desired
item. A MERASEN A MSTOPN
A “Edit & Call” A
25
3. Telephone
3.11 Storing caller information
into the phonebook
3.11.1 Into the cordless handset
1
2 “Caller List” A
3 Press MDN or MCN repeatedly to display the desired
item. A
4 “Add Phonebook” A
5 If a name is required, enter the name, up to 16
characters (see page 50 for character entry). A
6 Enter the telephone number, up to 24 digits. A
A
AM
N
3.11.2 Into the base unit
1 MCALLER IDN
2 Press MJN or MKN repeatedly to display the desired
item. A MMENUN
3 If a name is required, enter up to 16 characters for
the name (see page 50 for character entry). A
MSETN A MSETN
26
4. Fax
4.1 Sending a fax manually
4. . Fax
1 Adjust the width of the document guides to fit the
actual size of the document.
2 Insert the document (up to 10 pages) FACE DOWN
until a single beep is heard and the unit grasps the
document.
3 If necessary, press MJN or MKN repeatedly to select
the desired resolution.
4 KX-FC278:
Lift the handset or press MSP-PHONEN.
KX-FC268:
MSP-PHONEN
5 Dial the fax number.
6 When a fax tone is heard:
Press MFAX STARTN.
When the other party answers your call:
Ask them to press their start button. When the fax
tone is heard, press MFAX STARTN.
To select the resolution
Select the desired resolution according to the character
size.
– “STANDARD”: For normal-sized characters.
– “FINE”: For small-sized characters.
– “SUPER FINE”: For very small-sized characters.
– “PHOTO”: For photographs, shaded drawings, etc.
R Using the “FINE”, “SUPER FINE” and “PHOTO”
settings will increase transmission time.
To redial the last number
MREDIALN A MFAX STARTN
R If the line is busy, the unit will automatically redial the
number 2 or more times.
R To cancel redialling, press MSTOPN.
turned OFF automatically. You must send the entire
document manually.
R This feature cannot be used if the handset is being
used (KX-FC278 only), or if MSP-PHONEN on the
base unit, M N or M N on the cordless handset is
pressed.
To stop sending
Press MSTOPN.
To send a fax using the cordless handset
1. While talking to the other party, insert the document,
.
then press
.
2. Select “Fax Start”, then press
Printing a sending report
A sending report provides you with a printed record of
transmission results (errors, etc.). To print the sending
reports, make sure that feature #04 is activated
(page 39). The default setting is “ERROR”. For an
explanation of the messages, see page 52.
Printing a journal report
A journal report provides you with a printed record of the
30 most recent fax transmissions and receptions. To
print it manually, see page 65. To print it automatically
after every 30 new fax transmissions and receptions,
make sure feature #22 is activated (page 40). For an
explanation of the messages, see page 52.
4.2 Document requirements
Minimum document size
128 mm in width, 128 mm in length
Maximum document size
216 mm in width, 600 mm in length
Effective scanning area
R Shaded area will be scanned.
To send more than 10 pages at a time
2 mm
Insert the first 10 pages of the document. Add the other
pages (up to 10 at a time) on top of the previously
inserted pages while the last page is being fed into the
unit.
Pre-dialling a fax number
1. Enter the fax number.
2. Insert the document.
3. MFAX STARTN
Sending from memory (Quick scan feature)
To use this feature, activate feature #34 (page 41)
beforehand.
1. Insert the document.
2. Enter the fax number. A MFAX STARTN
R If the document exceeds the memory capacity,
transmission will be cancelled and this feature will be
2 mm
4 mm
4 mm
208 mm
216 mm
Document weight
R Single sheet:
45 g/m2 to 90 g/m2
R Multiple sheets:
60 g/m2 to 80 g/m2
27
4. Fax
Note:
R Remove clips, staples or other fasteners.
R Do not send the following types of documents: (Make
a copy of the document using another copier and
send the copy.)
– Chemically treated paper such as carbon or
carbonless duplicating paper
– Electrostatically charged paper
– Badly curled, creased or torn paper
– Paper with a coated surface
– Paper with a faint image
– Paper with printing on the opposite side that can
be seen through the other side, such as newsprint
R Check that ink, paste or correction fluid has dried
completely.
R To send a document with a width of less than 210
mm, we recommend using a copy machine to copy
the original document onto A4 or letter-sized paper,
then sending the copied document.
4.3 Sending a fax using the
phonebook and one touch dial
Before using this feature, store the desired names and
telephone numbers into the base unit’s phonebook
(page 23) and the base unit’s one touch dial (page 23).
1 Adjust the width of the document guides to fit the
actual size of the document.
2 Insert the document (up to 10 pages) FACE DOWN
until a single beep is heard and the unit grasps the
document.
3 If necessary, press MJN or MKN repeatedly to select
the desired resolution (page 27).
4 Using the phonebook:
1. MPHONEBOOKN
2. Press MJN or MKN repeatedly to display the
desired item. A MFAX STARTN
Using one touch dial:
1. Press and hold the desired one touch dial key
(M1N to M9N).
R You can view other one touch dial
assignments by pressing MJN or MKN.
2. MFAX STARTN
Fax auto redial
If the line is busy or if there is no answer, the unit will
automatically redial the number 2 or more times.
R To cancel redialling, press MSTOPN.
4.4 Broadcast transmission
By storing the base unit’s phonebook items (page 23)
into the broadcast memory, you can send the same
document to multiple parties (up to 20). Your
28
programmed items will remain in the broadcast memory,
allowing frequent re-use.
4.4.1 Programming items into the broadcast
memory
1 Press MMENUN repeatedly to display “BROADCAST
SET”. A MBN
2 Press MJN or MKN repeatedly to display the desired
item. A MSETN
R The number in brackets indicates the number of
registered items.
R If you have programmed the wrong item, press
MSTOPN to erase the item.
R To program other items, repeat step 2 (up to 20
items).
3 MSETN
4.4.2 Adding a new item into the broadcast
memory
1 MPHONEBOOKN
2 Press MJN or MKN repeatedly to display
“<BROADCAST>”. A MMENUN A MGN
3 Press MJN or MKN repeatedly to display the desired
item. A MSETN
R To add other items, repeat step 3 (up to 20 items).
4 MSTOPN
4.4.3 Erasing a stored item from the
broadcast memory
1 MPHONEBOOKN
2 Press MJN or MKN repeatedly to display
“<BROADCAST>”. A MMENUN A MBN
3 Press MJN or MKN repeatedly to display the desired
item you want to erase.
R To cancel erasing, press MSTOPN.
4 MSETN A MSETN A MSTOPN
4.4.4 Sending the same document to
pre-programmed parties
1 Insert the document FACE DOWN.
2 If necessary, press MJN or MKN repeatedly to select
the desired resolution (page 27). A
MPHONEBOOKN
3 Press MJN or MKN repeatedly to display
“<BROADCAST>”. A MFAX STARTN
R After transmission, the unit will automatically print
a report (Broadcast sending report).
4. Fax
Note:
R If you select “FINE”, “SUPER FINE” or “PHOTO”
resolution, the number of pages that the unit can
send will decrease.
R If the document exceeds the memory capacity,
transmission will be cancelled.
R If a party is busy or does not answer, it will be skipped
and redialled later 2 or more times.
To send the same document to a one-time group of
items
1. Insert the document. A MPHONEBOOKN
2. Press MJN or MKN repeatedly to display “<ONE TIME
BROAD>”. A MSETN
3. Press MJN or MKN repeatedly to display the desired
party. A MSETN
R If you have programmed the wrong item, press
MSTOPN to erase the item.
R To program other parties, repeat step 3 (up to 20
items).
4. Press MFAX STARTN to start transmission to the
programmed parties.
To cancel broadcast transmission
Press MSTOPN repeatedly to display “SEND
CANCELLED?”. A MSETN
4.5 Selecting the way to use your
fax machine
Depending on your situation, select the way you prefer
to use your fax machine.
– Use as a telephone answering machine and/or fax
(TAM/FAX mode)
– Use only as a fax (FAX ONLY mode)
– Use mostly as a telephone (TEL mode)
– Use as a telephone and/or fax (TEL/FAX mode)
4.5.1 Use as a telephone answering machine
and/or fax (TAM/FAX mode)
Your situation
You want to answer phone calls using the telephone
answering machine and receive faxes automatically.
Setup
Set the fax machine to TAM/FAX mode (page 31) by
pressing MAUTO ANSWERN repeatedly.
R The MAUTO ANSWERN indicator on the base unit
turns ON and
(next to the battery icon) appears
on the cordless handset display.
Note:
R Make sure feature #77 is set to “TAM/FAX”
beforehand (page 44).
R Do not connect an answering machine to the same
telephone line. If connected, set the automatic
answer feature to OFF by pressing MAUTO
ANSWERN repeatedly.
How phone calls and faxes are received
If the call is a phone call, the fax machine will record the
caller’s message automatically.
If a fax calling tone is detected, the fax machine will
receive the fax automatically.
4.5.2 Use only as a fax (FAX ONLY mode)
Your situation
You have a separate telephone line just for faxes.
Setup
Set the fax machine to FAX ONLY mode (page 32) by
pressing MAUTO ANSWERN repeatedly.
R The MAUTO ANSWERN indicator on the base unit
turns ON and
(next to the battery icon) appears
on the cordless handset display.
Note:
R Make sure feature #77 is set to “FAX ONLY”
beforehand (page 44).
How faxes are received
All incoming calls will be answered as faxes.
4.5.3 Use mostly as a telephone (TEL mode)
Your situation
You want to answer calls by yourself. If a fax call is
received, you must receive the fax manually.
Setup
Set the fax machine to TEL mode (page 30) by
pressing MAUTO ANSWERN repeatedly.
R The MAUTO ANSWERN indicator on the base unit
turns OFF and
(next to the battery icon)
disappears from the cordless handset display.
Note:
R Make sure feature #73 is set to “TEL” beforehand
(page 43).
How to receive phone calls and faxes
You have to answer all calls manually.
To receive a fax, press MFAX STARTN.
4.5.4 Use as a telephone and/or fax (TEL/FAX
mode)
Your situation
You want to answer phone calls yourself and receive
faxes automatically without rings.
Setup
Set the fax machine to TEL/FAX mode (page 30) by
pressing MAUTO ANSWERN repeatedly.
29
4. Fax
R The MAUTO ANSWERN indicator on the base unit
(next to the battery icon)
turns OFF and
disappears from the cordless handset display.
Note:
R Make sure feature #73 is set to “TEL/FAX”
beforehand (page 43).
How phone calls and faxes are received
If the call is a phone call, the fax machine will ring.
If a fax calling tone is detected, the fax machine will
receive the fax automatically without ringing.
4.6 Receiving a fax manually –
Auto answer OFF
Note:
R By default, the unit reduces the size of the received
document to 92% when printing (See feature #36 on
page 42 for details).
4.6.1 Activating TEL mode
1 Make sure feature #73 is set to “TEL” beforehand
(page 43).
2 Press MAUTO ANSWERN repeatedly to display “TEL
MODE”.
R The MAUTO ANSWERN indicator on the base unit
(next to the battery icon)
turns OFF and
disappears from the cordless handset display.
Activating TEL mode with the cordless handset
1.
2. “Answer System” A
3. “Answer Off” A
AM
N
Note:
R Make sure feature #73 is set to “TEL” beforehand
(page 43).
How to receive phone calls and faxes with the base
unit
KX-FC278:
1. Lift the handset or press MSP-PHONEN to answer the
call.
2. When:
– document reception is required,
– a fax calling tone (slow beep) is heard, or
– no sound is heard,
press MFAX STARTN.
3. Replace the handset if using it.
KX-FC268:
1. Press MSP-PHONEN to answer the call.
2. When:
– document reception is required,
– a fax calling tone (slow beep) is heard, or
30
– no sound is heard,
press MFAX STARTN.
How to receive calls and faxes with the cordless
handset
1. Lift the cordless handset and press M N or M N to
answer the call.
2. When:
– document reception is required,
– a fax calling tone (slow beep) is heard, or
– no sound is heard,
press
.
.
3. Select “Fax Start”, then press
R You can also press MFAX STARTN on the base
unit.
How to receive faxes with an extension telephone
If you have another telephone connected to the same line
(extension telephone), you can use the extension
telephone to receive faxes.
1. When the extension telephone rings, lift the handset
of the extension telephone.
2. When:
– document reception is required,
– a fax calling tone (slow beep) is heard, or
– no sound is heard,
press MGNMBNM9N (default fax activation code)
firmly.
3. Replace the handset.
Note:
R To receive fax documents using the extension
telephone, you must set the remote fax activation to
ON (feature #41 on page 42) beforehand. The
default setting is ON.
To stop receiving
Press MSTOPN.
4.6.2 Activating TEL/FAX mode
1 Make sure feature #73 is set to “TEL/FAX”
beforehand (page 43).
2 Press MAUTO ANSWERN repeatedly to display
“TEL/FAX MODE”.
R The MAUTO ANSWERN indicator turns OFF and
(next to the battery icon) disappears from the
cordless handset display.
3 The ringer volume setting should be ON (page 19).
Activating TEL/FAX mode with the cordless handset
1.
2. “Answer System” A
3. “Answer Off” A
AM
N
4. Fax
Note:
R Make sure feature #73 is set to “TEL/FAX”
beforehand (page 43).
How phone calls and faxes are received
1. “INCOMING CALL” will be displayed but the unit will
not ring.
2. The unit will wait for the duration of 2 rings before
answering the call.
R The number of rings is determined by the “TEL/
FAX delayed ring count” (feature #78 on
page 44).
R During this time, an extension telephone will ring.
3. The unit will answer the call and try to detect a fax
calling tone.
When a fax calling tone is detected
The unit receives the fax automatically without
ringing.
When a fax calling tone is not detected
A The unit will ring. You may answer the call.
R To answer the call, lift the handset (KX-FC278
only) or cordless handset and press M N, then
talk to the other party.
R To answer using another telephone connected to
the same telephone line as this unit, lift the
handset and press MGNM0N (default auto
disconnection code, feature #49 on page 43) to
talk to the other party.
try to receive a fax even if no fax calling tone is
detected.
Note:
R The auto disconnection code can be changed in
feature #49 on page 43.
4.7 Receiving a fax automatically
– Auto answer ON
Note:
R By default, the unit reduces the size of the received
document to 92% when printing (See feature #36 on
page 42 for details).
4.7.1 Activating TAM/FAX mode (Telephone
Answering Machine/Fax mode)
1 Make sure feature #77 is set to “TAM/FAX”
(page 44) beforehand.
2 Press MAUTO ANSWERN repeatedly to display
“TAM/FAX MODE”.
R The MAUTO ANSWERN indicator on the base unit
turns ON and
(next to the battery icon)
appears on the cordless handset display.
Note:
R The maximum incoming message recording time can
be changed (page 37, feature #10 on page 39).
Activating TAM/FAX mode with the cordless handset
1.
2. “Answer System” A
3. “Answer On” A
AM
N
Note:
R When the answering machine is turned ON,
displayed next to the battery icon.
R Make sure feature #77 is set to “TAM/FAX”
beforehand (page 44).
is
How phone calls and faxes are received
When receiving calls, the unit works as an answering
machine and/or fax.
R Callers will hear a ring back tone different from
the one generated by the telephone company.
B If you do not answer the call, the unit will activate
the fax function.
R Some fax machines do not generate fax calling
tones when sending faxes, therefore the unit will
Note:
R If you answer a call with an extension telephone (if
connected to the same line), and the answering
machine is answering the call, you can press
MGNM0N (default auto disconnection code) to speak to
the caller.
R The auto disconnection code can be changed in
feature #49 on page 43.
R Even when you answer a call with the extension
telephone, the answering machine may continue
answering the call depending on the type of an
extension telephone. Press MSTOPN on the fax
machine to talk with the calling party.
31
4. Fax
Receiving a voice message and fax document in one
call
The caller can leave a voice message and send a fax
document during the same call. Inform the caller of the
following procedure beforehand.
1. The caller calls your unit.
R The answering machine will answer the call.
2. The caller can leave a message after the greeting
message.
3. The caller presses MGNM9N.
R The unit will activate the fax function.
4. The caller presses the start button to send a fax.
Changing the ring count in TAM/FAX mode
You can select from “2” (default), “3”, “4”, “5”, “6”,
“7”, or “AUTO”. This setting can be changed by feature
#06 on page 39, or using the cordless handset
(page 37).
– “AUTO”: The unit answers after 2 or 3 rings when new
messages have been recorded, and after 5 or 6 rings
when there are no new messages. If you call your unit
from a remote location to listen to new messages
(page 37), you will know that there are no new
messages when the unit rings for the 4th time. You
can then hang up without being charged for the call.
4.7.2 Activating FAX ONLY mode
1 Make sure feature #77 is set to “FAX ONLY”
4.8 Receive polling (retrieving a
fax placed on another fax
machine)
This feature allows you to retrieve a document from
another compatible fax machine. Therefore you pay for
the call.
Make sure that no documents are fed into your unit and
that the other party’s machine is ready for your call.
1 Press MMENUN repeatedly to display “POLLING”.
A MSETN
2 Dial the fax number. A MFAX STARTN
4.9 Junk fax prohibitor
(preventing fax reception from
undesired callers)
If you subscribe to Caller ID service (page 24), this
feature prevents fax reception from calls that do not show
caller information.
Additionally, the fax machine will not accept faxes
originated from numbers that match the ones on a
programmable junk fax prohibitor list.
Important:
R This feature does not work when manual
reception is performed.
(page 44) beforehand.
2 Press MAUTO ANSWERN repeatedly to display “FAX
ONLY MODE”.
R The MAUTO ANSWERN indicator on the base unit
turns ON and
(next to the battery icon)
appears on the cordless handset display.
4.9.1 Activating the junk fax prohibitor
1 Press MMENUN repeatedly to display “JUNK FAX
PROH.”. A MEN
2 Press MJN or MKN repeatedly to select “ON”. A
MSETN
Activating FAX ONLY mode with the cordless
handset
3 Press MMENUN to exit the program.
1.
2. “Answer System” A
4.9.2 Storing undesired callers
3. “Answer On” A
AM
N
Note:
R Make sure feature #77 is set to “FAX ONLY”
beforehand (page 44).
You can register up to 10 undesired numbers from the
Caller ID list (page 24) if you do not wish to receive faxes
from them.
1 Press MMENUN repeatedly to display “JUNK FAX
PROH.”.
How faxes are received
2 Press MEN repeatedly to display “JUNK LIST
When receiving calls, the unit will automatically answer
all calls and only receive fax documents.
3 Press MJN or MKN repeatedly to display the item you
Note:
R The number of rings before a call is answered in FAX
ONLY mode can be changed (feature #06 on
page 39).
SET”. A MSETN
wish to prevent the fax reception from. A MSETN
4 Press MSTOPN to exit the program.
To display the junk fax prohibitor list
1. Press MMENUN repeatedly to display “JUNK FAX
PROH.”.
2. Press MEN repeatedly to display “JUNK LIST
DISP.”. A MSETN
32
4. Fax
3. Press MJN or MKN to display the item.
4. Press MMENUN to exit the program.
To print the junk fax prohibitor list
1. Press MMENUN repeatedly to display “JUNK FAX
PROH.”.
2. Press MEN repeatedly to display “JUNK LIST
PRINT”. A MSETN
3. Press MMENUN to exit.
To erase an item from the junk fax prohibitor list
1. Press MMENUN repeatedly to display “JUNK FAX
PROH.”.
2. Press MEN repeatedly to display “JUNK LIST
DISP.”. A MSETN
3. Press MJN or MKN repeatedly to display the desired
item. A MERASEN
R To cancel erasing, press MSTOPN, then press
MMENUN.
4. MSETN A MMENUN
33
5. Copy
5.1 Making a copy
5. . Copy
1 Adjust the width of the document guides to fit the
actual size of the document.
2 Insert the document (up to 10 pages) FACE DOWN
Example: 150% enlarged copy
Original document
Enlarged copy
A B
A B
C D
C D
until a single beep is heard and the unit grasps the
document.
3 If necessary, press MJN or MKN repeatedly to select
the desired resolution.
R If you select “STANDARD”, copying will be
performed using “FINE” mode.
4 MCOPYN
R If necessary, enter the number of copies (up to
20).
5 Press MSTARTN, or the unit will start copying within
15 seconds.
R The unit will start copying.
Note:
R Any document which can be sent as a fax can also
be copied (page 27).
To select the resolution
Select the desired resolution according to the character
size.
– “FINE”: For small-sized characters.
– “SUPER FINE”: For very small-sized characters.
– “PHOTO”: For photographs, shaded drawings, etc.
Copying from memory (Quick scan feature)
This feature is helpful when you want to copy the
document, then remove it for other uses. To use this
feature, activate feature #34 (page 41) beforehand.
The default setting is OFF.
R If the document exceeds the memory capacity,
copying of the exceeded document will be cancelled
and this feature will be turned OFF automatically.
To stop copying
Press MSTOPN.
To reduce a document
1. Insert the document.
2. MCOPYN A MEN
3. Press MKN repeatedly to select “92%”, “86%” or
“72%”, then press MSTARTN.
Setting
Recording
paper size
Original
document size
“100%”
(default)
A4
A4, Letter
“92%”
A4
A4
“86%”
A4
A4
“72%”
A4
Legal
Note:
R If the image at the bottom of the document is not
copied when you copy a document that is the same
length as the recording paper, try 92% or 86%.
To collate multiple copies
The unit can temporarily collate multiple copies in the
same order as the original document pages.
1. Insert the document.
2. MCOPYN
3. Enter the number of copies (up to 20).
4. Press MEN 2 times to display “COLLATE OFF”.
5. Press MJN or MKN repeatedly to display “COLLATE
ON”. A MSTARTN
Example: Making 2 copies of a 4-page original
document
5.1.1 More copying features
To enlarge a document
1. Insert the document.
2. MCOPYN A MEN
3. Press MJN repeatedly to select “150%” or “200%”.
A MSTARTN
R The unit will enlarge the centre of the upper part
of the document. To make an enlarged copy of
the bottom of the document, turn the document
around, and then make a copy.
1
2
3
4
1
1
2
2
1
2
3
4
Collated pages
3
3
4
4
Uncollated pages
Note:
R The unit will store the documents into memory while
collating the copies. If the memory becomes full while
storing, the unit will only print out the stored pages.
34
6. Answering Machine
6. . Answering Machine
6.1 Recording your greeting
message
6.2 Listening to recorded
messages
The unit has 2 pre-recorded greeting messages for TAM/
FAX mode. If you record your own greeting message, it
will be played instead of the pre-recorded greeting
message when a call is received.
The maximum recording time of your greeting message
is either 16 seconds (default) or 60 seconds. We
recommend you record a message of less than 12
seconds to make it easier to receive faxes.
Make sure feature #77 is set to “TAM/FAX” beforehand
(page 44).
When the unit has recorded new voice messages:
– The MAUTO ANSWERN indicator will flash when auto
answer is turned ON.
– The total number of recorded messages will flash on
the base unit display.
Important:
R When callers leave messages, the unit records
the day and time of each message. Make sure the
date and time have been set correctly (page 19).
1 MGREETING RECN
R A long beep will sound.
2 Speak clearly about 20 cm away from MMICN.
3 When finished recording, press MSTOPN.
Note:
R You can change the maximum TAM/FAX greeting
message time to 60 seconds (feature #54 on
page 43).
– If you change the setting to 60 seconds, we
recommend that you tell the caller in your TAM/
FAX greeting message to press G9 before
starting the fax transmission.
– If you change the setting from 60 seconds to 16
seconds, your current greeting message will be
deleted. The pre-recorded greeting message will
be played when a call is received.
R If you change the maximum recording time of
incoming messages to “GREETING ONLY” (feature
#10 on page 39), the unit will answer a call with your
current greeting message, and then hang up.
Re-record your greeting message to inform the caller
that the unit will not record any incoming messages.
To check the greeting message
Press MGREETING CHECKN.
R The unit will play the greeting message.
6.1.1 Erasing your recorded greeting
message
1 MGREETING CHECKN
R To cancel erasing, press MSTOPN.
6.2.1 To play back messages
Press MPLAYBACKN.
R Only new messages will be played.
R After playing back all of the new messages, the
MAUTO ANSWERN indicator will stop flashing but will
remain lit up when auto answer is turned ON. If you
press MPLAYBACKN at this time, all the recorded
messages will be played.
6.2.2 Useful features during playback
To repeat a message
Press MFN while listening to the message.
R If you press MFN within 5 seconds of the beginning of
the message, the previous message will be played.
R To play back a specific message, press MFN or MEN
and search for the message you want to listen to.
To skip a message
Press MEN to play the next message.
Voice time/day stamp
During playback, the unit will announce the day of the
week and time that each message was recorded.
If you subscribe to Caller ID service
During playback, you can call back the displayed name
or number using the base unit.
1. Press MMENUN during playback.
R The base unit stops playback.
R If you do not need to edit the telephone number,
skip to step 3.
2. Edit the telephone number (page 25).
3. KX-FC278:
Lift the handset or press MSP-PHONEN.
KX-FC268:
MSP-PHONEN
6.2.3 Erasing recorded messages
2 MERASEN
To erase a specific message
Note:
R If you erase your TAM/FAX greeting message, the
pre-recorded greeting message will be played when
a call is received.
Press MERASEN while listening to the message you want
to erase.
To erase all messages
1. MERASEN
35
6. Answering Machine
2. Within 5 seconds, press MERASEN.
Using a pre-recorded greeting message
6.3 Leaving a message for others
or yourself
You can record a voice memo to leave a private message
for yourself or someone else. Recorded messages are
treated as new messages.
1 MMEMON
6.4.2 Listening to recorded messages
R A long beep will sound.
2 Speak clearly about 20 cm away from MMICN.
3 To stop recording, press MSTOPN.
Note:
R If you record for over 3 minutes, the unit will stop
recording.
6.4 Using the answering machine
with the cordless handset
Helpful hints:
R To activate TAM/FAX mode with the cordless
handset, see page 31.
Important:
R When callers leave messages, the unit records
the day and time of each message. Make sure the
date and time have been set correctly (page 19).
6.4.1 Recording your greeting message
1
2
3
4
5
When new messages have been recorded,
is
displayed on the cordless handset with the total number
of new messages.
1
2 “Answer System” A
3 “Play New Msg.” or “Play All Msg.” A
4 When finished, press M
N.
Note:
R To switch to the receiver, press M N.
R If “Messages Full” is shown on the display, and
the total number of new messages are not displayed.
To repeat a message
Press M1N while listening to the message.
R If you press M1N within first 5 seconds of a message,
the previous message is played.
To skip a message
Press M2N to play the next message.
“Answer System” A
To stop playback
“Greeting” A
Press
“Start REC” A
If you subscribe to Caller ID service
“Yes” A
R Hold the cordless handset about 20 cm away and
speak clearly into the microphone.
If caller information is received for the call, you can call
the caller back while listening to a message.
1. Press
during playback.
2. “Call Back” A
6 Press
to stop recording. A M
N
1.
2. “Answer System” A
3. “Greeting” A
4. “Play Greeting” A
AM
To erase your greeting message
1.
2. “Answer System” A
3. “Greeting” A
4. “Default” A
5. M
N
2 times
.
Note:
To edit the number before calling back:
1. Press
during playback.
2. “Edit & Call” A
To check the greeting message
36
The unit provides 2 pre-recorded greeting messages:
– If you erase or do not record your own greeting
message, the unit plays a pre-recorded greeting
asking callers to leave a message.
– If the message recording time (page 37) is set to
“Greeting Only”, callers’ messages are not
recorded and the unit plays a different pre-recorded
greeting message asking callers to call again.
N
3. Edit the number. A M
N
6.4.3 Erasing recorded messages
To erase a specific message
Press MGNM4N while listening to the message you want
to erase.
To erase all messages
1.
6. Answering Machine
6.
2. “Answer System” A
3. “Erase All Msg.” A
4. “Yes” A
AM
N
6.4.4 Direct command operation
You can operate the answering machine by pressing dial
keys, rather than navigating through the menus. To use
the following commands, press
. A “Answer
System” A
AM
N
Note:
R You can also program this feature with the base unit
(feature #11 on page 39).
To change the ring count in TAM/FAX mode
M2N
Skip message (during playback)
M3N
Enter the “Settings” menu
M4N
Play new messages
You can change the number of times the unit rings
“Number of Rings” before the unit answers a call.
You can select 2 to 7 rings, or “Auto”.
The default setting is “2 Rings”.
“Auto”: The unit answers after 2 or 3 rings when new
messages have been recorded, and after 5 or 6 rings
when there are no new messages. If you call your unit
from a remote location to listen to new messages
(page 37), you will know that there are no new
messages when the unit rings for the 4th time. You can
then hang up without being charged for the call.
1.
2. “Answer System” A
M5N
Play all messages
3. “Settings” A
M6N
Play greeting message
4. “Number of Rings” A
M7NM6N
Record greeting message
5. Select the desired setting. A
M8N
Turn auto answer setting ON
M9N or
Stop recording/Stop playback
M0N
Turn auto answer setting OFF
Note:
R You can also program this feature with the base unit
(feature #06 on page 39).
MGNM4N*2
Erase currently playing message
MGNM5N
Erase all messages
MGNM6N
Erase greeting message*3
Key
Direct commands
MDN or MCN
Adjust the receiver or speaker volume
(during playback)
M1N
Repeat message (during playback)*1
*1 If pressed within the first 5 seconds of a message,
the previous message is played.
*2 You can also erase as follows:
A “Yes” A
*3 Unit resets to a pre-recorded greeting message.
6.4.5 Programming for answering machine
To set the remote operation ID
A 3-digit remote access code must be entered when
operating the answering machine remotely. This code
prevents unauthorised parties from listening to your
messages remotely.
Important:
R In order to operate the answering machine
remotely, you must first set a remote access
code.
1.
2. “Answer System” A
3. “Settings” A
4. “Remote Code” A
5. To turn ON remote operation, enter the desired
3-digit remote access code.
R To turn OFF remote operation, press MGN.
AM
N
To change the maximum recording time for
incoming messages
You can change the maximum message recording time
allotted to each caller. You can also select “Greeting
Only” which sets the unit to greet callers but not record
messages. The default setting is “3 Minutes”.
1.
2. “Answer System” A
3. “Settings” A
4. “Recording Time” A
5. Select the desired setting. A
AM
N
Note:
R When you select “Greeting Only”:
– If you do not record your own message, the unit
will play the pre-recorded greeting-only message
asking callers to call again later.
– If you use your own message, record the
greeting-only message asking callers to call
again later (page 36).
R You can also program this feature with the base unit
(feature #10 on page 39).
6.5 Operating from a remote
location
Using a touch-tone telephone, you can call your
telephone number from outside and access the unit to
listen to messages or change auto answer settings.
37
6. Answering Machine
Important:
R Program the remote operation ID beforehand
(page 37, feature #11 on page 39).
R Set the unit to TAM/FAX mode before going out
(page 31).
R Use a touch tone telephone for remote
operations.
6.5.1 Summary of remote operation
1 Call your unit.
2 Enter the remote operation ID during or after the
TAM/FAX greeting message.
3 When there are new recorded messages
1. A long beep will sound.
2. Short beep(s) will sound up to 8 times.
R This indicates the number of new messages.
3. New messages will be played back.
When there are no new messages
1. A long beep will sound (short beep will not sound).
2. Press M5N.
3. All the recorded messages will be played back.
4 To end remote operation press M9N, then hang up.
6.5.2 Remote operation using remote
commands
1 Call your unit.
2 Enter the remote operation ID during or after the
TAM/FAX greeting message.
3 Enter a remote command within 10 seconds.
Note:
R When you press a key, press firmly.
Key
Remote command
M1N
Repeat message (during
playback)*1
M2N
Skip message (during playback)
M4N
Play new messages
M5N
Play all messages
M6N
Play greeting message
M7N
Record greeting message
M9N
Stop current operation*2
M0N
Turn OFF auto answer setting
MGNM4N
Erase currently playing message
MGNM5N
Erase all messages
MGNM6N
Erase greeting message (during
greeting message playback)*3
38
Key
Remote command
MGNMBN
End remote operation
*1 If pressed within the first 5 seconds of a message,
the previous message is played.
*2 To resume operation, press a command key within
10 seconds.
*3 Unit resets to a pre-recorded greeting message.
Recording a marker message
After playing back the messages, you can leave an
additional message.
1. Wait for 3 beeps indicating the end of the remote
operation.
2. Wait about 10 seconds.
3. Hear the voice guide and/or hear 1 beep.
4. Leave a message.
To turn ON the auto answer setting
1. Call your unit and let it ring 10 rings.
R A beep will sound.
2. Enter the remote operation ID (page 37, feature #11
on page 39) within 10 seconds.
R The receiving mode will be set to TAM/FAX or
FAX ONLY mode, depending on the setting of
feature #77 (page 44).
3. Hang up the handset.
Note:
R You cannot turn ON the auto answer setting when the
unit is set to TEL/FAX mode.
7. Programmable Features
7.1 Base unit programming
1. MMENUN
2. Press MBN and the 2-digit code (page 39 to
page 44).
3. Press the desired command to display the desired
setting.
R This step may be slightly different depending on
the feature.
4. MSETN
5. To exit programming, press MMENUN.
7. . Programmable Features
MMENUN
MSETN
7.1.1 Basic features
Feature
Selection
Setting the date and time*1
MBNM0NM1N
Enter the date and time using the dial keypad. See page 19 for details.
Setting your logo
MBNM0NM2N
Enter your logo using the dial keypad. See page 20 for details.
Setting your fax number
MBNM0NM3N
Enter your fax number using the dial keypad. See page 20 for details.
Printing a sending report
MBNM0NM4N
M0N “OFF”: Sending reports will not be printed.
M1N “ON”: A sending report will be printed after every fax transmission.
M2N “ERROR” (default): A sending report will be printed only when a fax
transmission fails.
Changing the ring count in
FAX ONLY mode
MBNM0NM6N
M1N “1”, M2N “2” (default), M3N “3”, M4N “4”, M5N “5”, M6N “6”, M7N “7”, M8N
“8”, M9N “9”
Changing the ring count in
TAM/FAX mode*1
MBNM0NM6N
M0N “AUTO”, M2N “2” (default), M3N “3”, M4N “4”, M5N “5”, M6N “6”, M7N “7”
See page 32 for details.
Changing the maximum
recording time for incoming
messages*1
MBNM1NM0N
M1N “1 MINUTE”
M2N “GREETING ONLY”: The unit plays the greeting message but does not
record any incoming messages.
M3N “3 MINUTES” (default)
Note:
R Set feature #77 to “FAX ONLY” (page 44) beforehand.
Note:
R Set feature #77 to “TAM/FAX” (page 44) beforehand.
R You can also program this feature with the cordless handset (page 37).
Note:
R You can also program this feature with the cordless handset (page 37).
Setting the remote operation
ID*1
MBNM1NM1N
1. MMENUN A MBNM1NM1N
2. To activate the remote operation feature, enter a 3-digit remote operation
ID.
R To deactivate the remote operation feature, press MGN.
3. MSETN A MMENUN
Note:
R You can also program this feature with the cordless handset (page 37).
39
7. Programmable Features
Feature
Selection
Setting the dialling mode (for
the base unit and cordless
handset)
MBNM1NM3N
If you cannot make calls, change this setting according to your telephone line
service.
M1N “PULSE”: For rotary pulse dial service.
M2N “TONE” (default): For tone dial service.
Setting the ringtone for
outside calls*2
MBNM1NM7N
M1N “RINGTONE
M2N “RINGTONE
M3N “RINGTONE
M4N “RINGTONE
M5N “RINGTONE
M6N “RINGTONE
1” (default)
2”
3”
4”
5”
6”
*1 When this setting is changed using the base unit, the setting for the cordless handset will also be changed,
and vice versa.
*2 This setting can be changed individually for the base unit and the cordless handset.
– To set the cordless handset ringtone for outside calls, see page 45.
7.1.2 Advanced features
Feature
Selection
Setting the journal report to
print automatically
MBNM2NM2N
M0N “OFF”: The unit will not print a journal report, but will keep a record of the
last 30 fax transmissions and receptions.
M1N “ON” (default): The unit will print a journal report automatically after every
30 new fax transmissions and receptions (page 27).
Sending documents
overseas
MBNM2NM3N
If you cannot send a fax overseas even if the number is correct and the line is
connected, activate this feature before sending the fax.
This feature improves the reliability by reducing the transmission speed.
M0N “OFF”: Deactivates this feature.
M1N “NEXT FAX”: This setting is effective only for the next attempted fax
transmission. After transmission, the unit will return to the previous setting.
M2N “ERROR” (default): When the previous fax transmission fails and you wish
to re-send the document.
Note:
R Calling charges may be higher than usual.
40
7. Programmable Features
Feature
Selection
Sending a fax at a specified
time
MBNM2NM5N
This feature allows you to take advantage of low-cost calling hours offered by
your telephone company. This feature can be set up to 24 hours in advance of
the desired time.
M0N “OFF” (default)
M1N “ON”
To send a document:
1. Insert the document.
2. If necessary, press MJN or MKN repeatedly to select the desired resolution
(page 27).
3. MMENUN A MBNM2NM5N
4. Press M1N to select “ON”. A MSETN
5. Enter the fax number. A MSETN
6. Enter the transmission start time.
R If you select 12-hour time entry (page 19), press MGN repeatedly to select
AM or PM.
R If you select 24-hour time entry (page 19), the time is set using 24-hour
time entry.
7. MSETN A MMENUN
Note:
R To cancel after programming, press MSTOPN then MSETN.
Setting the Caller ID list to
print automatically
MBNM2NM6N
M0N “OFF” (default): The Caller ID list will not be printed automatically, but the
base unit will keep a record of the information for the last 50 callers.
M1N “ON”: The Caller ID list will be printed automatically each time the base unit
logs 50 callers (page 24).
Setting the time adjustment
MBNM3NM3N
Using this feature, the unit’s date and time setting will be automatically adjusted
when caller information is received.
M1N “AUTO”: The date and time setting will be automatically adjusted.
M2N “MANUAL” (default): Deactivates this feature.
Setting the quick scan
MBNM3NM4N
This feature is helpful when you want to remove the document for other uses,
because the unit will release the document before sending or copying.
M0N “OFF” (default): Deactivates this feature.
M1N “ON”: The unit will scan the document and store it into memory first, then
the unit will start sending or copying the documents.
Note:
R If the document exceeds the memory capacity, sending of the whole
document or copying of the exceeded document will be cancelled and this
feature will be turned OFF automatically.
41
7. Programmable Features
Feature
Selection
Receiving oversized
documents
MBNM3NM6N
If the size of the document sent by the other party is as large as or larger than
the recording paper, the unit can reduce the document and print it. Select the
desired reduction rate.
M1N “72%”
M2N “86%”
M3N “92%” (default)
M4N “100%”
Setting
Recording paper
size
Original document
size
“100%”
A4
Letter
“92%” (default)
A4
A4
“86%”
A4
A4
“72%”
A4
Legal
Note:
R The actual printing percentage may vary slightly depending on the type of
recording paper, or other usage environment of the sending/receiving
machines.
R The information of the sending party is printed on the top of each page.
Therefore, even if the original document is the same size as the recording
paper, the document will be divided into 2 sheets when printed at “100%”.
Select “92%” to print on 1 sheet.
Changing the LCD display
contrast*1
MBNM3NM9N
M1N “NORMAL” (default)
M2N “DARKER”
Changing the fax activation
code
MBNM4NM1N
If you wish to use an extension telephone (page 30) to receive faxes, activate
this feature and program the activation code.
M0N “OFF”
M1N “ON” (default)
1. MMENUN A MBNM4NM1N
2. Press M1N to select “ON”. A MSETN
3. Enter your code from 2 to 4 digits, using 0-9, MGN and MBN.
R The default code is “H#9”.
4. MSETN A MMENUN
Setting the memory reception
alert
MBNM4NM4N
To alert you with a beeping sound when a received fax document is stored into
memory due to some existing problem.
M0N “OFF”: Deactivates this feature.
M1N “ON” (default): You will hear a beeping sound.
Note:
R The slow beeps will continue until you clear the printing problem and make
sure the unit is supplied with enough paper to print the stored document.
Setting friendly reception
MBNM4NM6N
42
To receive a fax automatically when you answer a call and hear a fax calling
tone (slow beep).
M0N “OFF”: You have to press MFAX STARTN for fax reception.
M1N “ON” (default): You do not have to press MFAX STARTN for fax reception.
7. Programmable Features
Feature
Selection
Setting the auto
disconnection
MBNM4NM9N
To answer a call with an extension telephone in TEL/FAX mode (page 30), or
TAM/FAX mode (page 31) activate this feature and program the code.
M0N “OFF”
M1N “ON” (default)
1. MMENUN A MBNM4NM9N
2. Press M1N to select “ON”. A MSETN
3. Enter your code from 2 to 4 digits, using 0-9 and MGN.
R The default code is “H0”.
4. MSETN A MMENUN
Changing the greeting
message time for TAM/FAX
MBNM5NM4N
M1N “16s” (default): Maximum greeting message time is 16 seconds.
M2N “60s”: Maximum greeting message time is 60 seconds.
See page 35 for details.
Setting the scan contrast
MBNM5NM8N
To send or copy a document with faint or dark writing, set this feature before
transmission or copying.
M1N “NORMAL” (default): Used for normal writing.
M2N “LIGHT”: Used for dark writing.
M3N “DARKER”: Used for faint writing.
Copying phonebook data
from the base unit to the
cordless handset
MBNM5NM9N
M1N “1 ITEM” (default)
M2N “ALL ITEMS”
See page 49 for details.
Setting the ADSL mode
MBNM6NM2N
If you use a DSL/ADSL line, an echo may occur during a telephone
conversation. In this case, activate this feature. The volume of your voices will
be slightly decreased to reduce the echo.
M0N “OFF” (default)
M1N “ON”
Screening the incoming call
MBNM6NM7N
To hear an incoming call from the speaker when the answering machine is
recording the message.
M0N “OFF”
M1N “ON” (default)
Setting the Error Correction
Mode (ECM)
MBNM6NM8N
This feature is available when the transmitting/receiving fax machines are ECM
compatible.
M0N “OFF”: Deactivates this feature.
M1N “ON” (default): If there is an error during fax transmission/reception, the unit
will support the communication.
Note:
R You cannot change the setting when received documents are in memory.
Setting recall/flash time (for
the base unit and cordless
handset)
MBNM7NM2N
The recall/flash time depends on your telephone exchange or host PBX.
M1N “900msec.”, M2N “700msec.”, M3N “600msec.” (default), M4N
“400msec.”, M5N “300msec.”, M6N “250msec.”, M7N “200msec.”, M8N
“160msec.”, M9N “110msec.”, MGN “100msec.”, M0N “90msec.”, MBN
“80msec.”
Note:
R If the unit is connected via a PBX, this setting may need to be changed in
order for PBX functions (transferring a call, etc.) to work correctly. Consult
your PBX supplier for the correct setting.
Changing the receiving mode
in the manual answer setting
MBNM7NM3N
M1N “TEL” (default): Telephone mode (page 30)
M2N “TEL/FAX”: Telephone/Fax mode (page 30)
43
7. Programmable Features
Feature
Selection
Setting the connecting tone
MBNM7NM6N
If you often have trouble when sending faxes, this feature allows you to hear
connecting tones: fax tone, ring back tone and busy tone. You can use those
tones to confirm the status of the other party’s machine.
M0N “OFF”: Deactivates this feature.
M1N “ON” (default): You will hear connecting tones.
Note:
R If the ring back tone continues, the other party’s machine may not be a fax
machine or may have run out of paper. Check with the other party.
R The connecting tone volume cannot be adjusted.
Changing the receiving mode
in the auto answer setting
MBNM7NM7N
M1N “TAM/FAX” (default): Telephone Answering Machine/Fax mode (page 31)
M2N “FAX ONLY”: Fax only mode (page 32)
Changing the TEL/FAX
delayed ring count
MBNM7NM8N
If you use an extension telephone when this unit is in TEL/FAX mode, select
the desired number of times the extension telephone rings before the unit
answers the call.
M1N “1”, M2N “2” (default), M3N “3”, M4N “4”, M5N “5”, M6N “6”, M7N “7”, M8N
“8”, M9N “9”
See page 31 for details.
Resetting advanced features
to their default settings
MBNM8NM0N
M0N “NO” (default)
M1N “YES”
To reset the advanced features:
1. MMENUN A MBNM8NM0N
2. Press M1N to select “YES”. A MSETN A MSETN
Note:
R The ECM selection (feature #68 on page 43) will not be reset.
*1 This setting can be changed individually for the base unit and the cordless handset.
– To set the cordless handset LCD display contrast, see page 45.
7.2 Cordless handset programming
MDNMCN
MihN
1.
2. Press MCN or MDN to select the desired top-menu.
A
3. Press MCN or MDN to select the desired item in
sub-menu 1. A
R In some cases, you may need to select from
sub-menu 2. A
4. Press MCN or MDN to select the desired setting. A
R This step may vary depending on the feature
being programmed.
R To exit the operation, press M
N.
Note:
R For other top-menus, please refer to each chapter.
R The current item or setting is highlighted on the
display.
44
7. Programmable Features
7.2.1 Cordless handset features
Top-menu
Sub-menu 1
Sub-menu 2
Feature (default setting)
“Handset Setup”
“Time Settings”
“Set Date/Time”*1
Date and time: page 19
“Alarm”
Set the alarm: page 46
“Ringer Setup”
“Display Setup”*2
“Base Unit
Setup”
“Ringer
Volume”*2, *3
Cordless handset ringer volume
(Maximum): page 19
“Ringtone”*2, *4, *5
Ringtones for outside calls
(“Ringtone 1”)
“Language”
Display language (“English”):
page 46
“Contrast”
LCD display contrast
(Level 3)
“Register H.set”
–
page 47
“Keytones”*6
–
Keytones ON/OFF (“On”)
“Auto Talk”
–
Auto talk ON/OFF (“Off”):
page 22
“Base Unit PIN”
–
Change base unit PIN (“0000”).*7
Enter the current 4-digit base unit
PIN.*8
A Enter the new 4-digit base unit
PIN. A
“Repeater”
–
(“Off”) page 47
*1 When this setting is changed using the cordless handset, the setting for the base unit will also be changed,
and vice versa.
*2 This setting can be changed individually for the base unit and the cordless handset.
– To set the base unit ringer volume, see page 19.
– To set the base unit ringtone for outside calls, see feature #17 on page 40.
– To set the base unit LCD display contrast, see feature #39 on page 42.
*3 When the ringer volume is turned OFF, is displayed and the cordless handset does not ring for outside calls.
However even when the ringer volume is set to OFF, the cordless handset rings:
– at the low level for alarm (page 46) and intercom calls (page 48)
– at the high level for paging (page 48)
*4 If you select one of the melody ringer tones, the ringer tone continues to play for several seconds even if the
caller has already hung up. You may either hear a dial tone or no one on the line when you answer the call.
*5 The preset melodies in this product are used with permission of © 2007 Copyrights Vision Inc.
*6 Turn this feature OFF if you prefer not to hear key tones while you are dialling or pressing any keys, including
confirmation tones and error tones.
*7 If you change the PIN, please make note of your new PIN. The unit will not reveal the PIN to you.
*8 If you forget your PIN, consult your nearest Panasonic service centre.
45
7. Programmable Features
MCN 2 times, press
2 times, select the desired
language, then press
. Press M
N.
7.2.2 Cordless handset setup
Alarm
You can set one of 2 different alarm options (once or
daily) at a time for each cordless handset. An alarm
sounds at the set time for 3 minutes.
Important:
R Set the date and time beforehand (page 19).
1.
2. “Handset Setup” A
3. “Time Settings” A
4. “Alarm” A
5. Select the desired alarm option. A
“Off”
Turns alarm OFF. Press
M
N to exit.
again, then press
“Once”
An alarm sounds once at the set time. Enter the
desired date and month. A
“Daily”
An alarm sounds daily at the set time.
6. Set the desired time. A
7. Select the desired alarm tone. A
2 times
R We recommend selecting a different ringer tone
to the one used for outside calls.
8. M
N
R When the alarm is set, is displayed.
Note:
R You can skip to step 4 by pressing M
N in standby
mode.
R To stop the alarm, press any dial key or place the
cordless handset on the base unit or charger.
R When the cordless handset is in use, the alarm will
not sound until the cordless handset is in standby
mode.
R If you select “Once”, the setting changes to “Off”
after the alarm sounds.
Display language
Important:
R When the language selection is displayed after
installing the batteries for the first time,
perform step 5.
1.
2. “Handset Setup” A
3. “Display Setup” A
4. “Language” A
5. Select your desired language. A
AM
Note:
R If you select a language you cannot read, press
N,
, press MDN 3 times, press
, press
M
46
N
8. Multi-unit Operation
8.1 Operating additional units
8. . Multi-unit Operation
8.1.1 Additional cordless handsets
Up to 6 cordless handsets can be registered to a single
base unit. Additional cordless handsets will give you the
freedom to, for example, have an intercom call with
another cordless handset while a third cordless handset
is on an outside call.
Important:
R The additional cordless handset model
recommended for use with this unit is noted on
page 9. If another cordless handset model is
used, certain operations (cordless handset
settings, base unit settings, etc.) may not be
available.
8.2 Registering a cordless
handset to a base unit
The supplied cordless handset and base unit are
pre-registered. If for some reason the cordless handset
is not registered to the base unit (for example, flashes
even when the cordless handset is near the base unit),
re-register the cordless handset.
After purchasing an additional cordless handset, register
it to the base unit. Ensure that the additional cordless
handset is switched ON. If it is not ON, press and hold
M
N for few seconds to turn the cordless handset ON.
1
2 “Handset Setup”A
3 “Register H.set” A
4 Press and hold MLOCATORN on the base unit for
about 3 seconds, until the registration tone sounds.
R After pressing MLOCATORN, the rest of this
procedure must be completed within 1 minute.
5 Wait until “Base PIN” is displayed, then enter the
base unit PIN (default: “0000”), then press
.
R If you forget your PIN, consult your nearest
Panasonic service centre.
R When the cordless handset has been registered
successfully, will stop flashing. If keytones are
turned ON (page 45), a confirmation tone will be
heard.
Note:
R Charge the batteries of your additional cordless
handset for about 7 hours before initial use.
R When you purchase an additional cordless handset,
refer to the additional cordless handset’s installation
manual for registration.
8.2.1 Deregistering a cordless handset
the base unit. This allows the cordless handset to end its
wireless connection with the system.
1
2 “Base Unit Setup” A
3 M3NM3NM5N
4 “Cancel Register” A
R The numbers of all cordless handsets registered
to the base unit are displayed.
5 Select the cordless handset(s) you want to cancel, by
pressing the desired cordless handset number. A
R The selected cordless handset number(s)
flashes.
R To cancel a selected cordless handset number,
press the number again. The number stops
flashing.
6 “Yes” A
R A confirmation tone sounds as each cordless
handset number disappears.
R The cordless handset does not beep when
cancelling its own registration.
7 M
N
8.2.2 Increasing the range of the base unit
You can increase the signal range of the base unit by
using a DECT repeater. Please use only Panasonic
DECT repeater. See page 9 for accessory information.
Contact your Panasonic retailer/dealer for details.
Important:
R Before registering the repeater to this base unit,
you must turn the repeater mode ON.
R Do not use more than one repeater at a time.
Setting the repeater mode
1.
2. “Base Unit Setup” A
3. “Repeater” A
4. “On” or “Off” A
AM
N
Note:
R After turning repeater mode ON or OFF, flashes
on the cordless handset momentarily. This is normal
and the cordless handset can be used once stops
flashing.
8.3 Intercom
Intercom calls can be made between a cordless handset
and the base unit, and between 2 cordless handsets. You
can page all cordless handsets at once from the base
unit.
A cordless handset can cancel its own registration (or the
registration of another cordless handset) that is stored to
47
8. Multi-unit Operation
Note:
R If you receive an outside call while talking on the
intercom, you hear interrupt tones. To answer the
call, hang up the intercom, then answer the outside
call.
– see step 3 on “3.1.1 With the cordless handset”,
page 21.
– see step 3 on “3.1.2 With the base unit”,
page 21.
MRN / M
N cannot be used to answer outside calls.
R When paging the cordless handset, the paged
cordless handset beeps for 1 minute.
With the base unit
When the base unit is being paged, it will beep and
display the paging extension’s number.
8.3.1 Making intercom calls
2 To end the intercom call, press MSP-PHONEN or
1 Press MSP-PHONEN, MINTERCOMN or lift the
handset to answer the page.
2 To end the intercom call, press MSP-PHONEN,
MINTERCOMN or replace the handset.
KX-FC268:
1 Press MSP-PHONEN or MINTERCOMN to answer the
page.
MINTERCOMN.
With the cordless handset
1
A
2 To page the base unit, press M0N.
8.4 Transferring a call/conference
To page another cordless handset, press the
desired cordless handset number.
R The base unit or the destination cordless handset
will beep (be paged) for 1 minute.
R To stop paging, press M
N.
3 When the paged party answers, talk into the cordless
handset.
4 To end the intercom call, press M
KX-FC278:
N.
With the base unit
1 MINTERCOMN
2 To page one cordless handset, press the desired
cordless handset number.
To page all cordless handsets, press M0N.
R The destination cordless handset(s) will beep (be
paged) for 1 minute.
R To stop paging, press MSP-PHONEN or
MINTERCOMN.
Outside calls can be transferred between a cordless
handset and the base unit, and between 2 cordless
handsets using the intercom feature.
8.4.1 To the base unit or another cordless
handset (using the cordless handset)
1 Cordless handset:
to put the call on
During an outside call, press
hold.
R
flashes to indicate the outside call is on hold.
2 Cordless handset:
To page the base unit, press M0N.
To page another cordless handset, press the
desired cordless handset number.
3 Base unit (KX-FC278):
Press MSP-PHONEN or lift the handset to answer the
page.
3 When the paged party answers, talk into MMICN.
4 To end the intercom call, press MSP-PHONEN or
Base unit (KX-FC268):
Press MSP-PHONEN to answer the page.
Cordless handset locator
Another cordless handset:
Press M N or M N to answer the page.
MINTERCOMN.
You can locate a misplaced cordless handset by
pressing MLOCATORNM0N on the base unit.
R All registered cordless handsets beep for 1 minute.
To stop paging, press MLOCATORN again.
8.3.2 Answering intercom calls
With the cordless handset
When the cordless handset is being paged, it will beep
(be paged) and the ringer indicator will flash rapidly. The
display will show the paging extension’s number.
1 Press M N or M N to answer the page.
N.
2 To end the intercom call, press M
48
4 Cordless handset:
To complete the transfer, press M
N.
To establish a conference call, press M3N.
R To leave the conference, press M
N. The other
parties can continue the conversation.
Note:
R After the paging party disconnects, you can talk to the
outside caller.
Transferring a call without speaking to the base unit
user/other cordless handset user
N.
After step 2, press M
R The outside call rings at the base unit or the other
cordless handset.
8. Multi-unit Operation
Note:
R If the transferred call is not answered within 60
seconds, the call will ring at your cordless handset
again. Press M N or M N to return to the outside call.
8.4.2 To a cordless handset (using the base
unit)
1 Base unit:
During a telephone call, press MINTERCOMN.
R The call will be put on hold.
2 Base unit:
To page one cordless handset, press the desired
cordless handset number.
To page all cordless handsets, press M0N.
3 Cordless handset:
Press M
N or M N to answer the page.
4 Base unit (KX-FC278):
To complete the transfer, press MSP-PHONEN or
replace the handset.
To establish a conference call, press M3N.
Base unit (KX-FC268):
To complete the transfer, press MSP-PHONEN.
To establish a conference call, press M3N.
Transferring a call without speaking to the cordless
handset user
KX-FC278:
After step 2, press MSP-PHONEN or replace the handset.
R The outside call rings at the cordless handset(s).
KX-FC268:
After step 2, press MSP-PHONEN.
R The outside call rings at the cordless handset(s).
Note:
R If the transferred call is not answered within 60
seconds, the call will ring at the base unit again.
Press MSP-PHONEN or lift the handset (KX-FC278
only) to return to the outside call.
8.5 Copying phonebook items
3. To copy to the base unit, press M0N.
To copy to another cordless handset, enter the
desired cordless handset number you wish to send
the cordless handset phonebook item to.
R When an item has been copied, “Completed” is
displayed.
R To continue copying another item:
A Find the desired cordless
“Yes” A
handset phonebook item. A
4. M
N
Copying all the phonebook items
1.
A
2. “Copy All” A
3. To copy to the base unit, press M0N.
To copy to another cordless handset, enter the
desired cordless handset number you wish to send
the cordless handset phonebook item to.
R When all items have been copied,
“Completed” is displayed.
4. M
N
8.5.2 To the cordless handset (using the base
unit)
Copying one phonebook item
1. MMENUN A MBNM5NM9N
2. Press M1N to display “1 ITEM”. A MSETN
3. Enter the cordless handset number you wish to send
the item to.
4. Press MJN or MKN repeatedly to display the desired
item.
5. MSETN
R To copy another item, repeat steps 4 and 5.
6. After copying is completed, press MMENUN.
Copying all the phonebook items
1. MMENUN A MBNM5NM9N
2. Press M2N to display “ALL ITEMS”. A MSETN
3. Enter the cordless handset number you wish to send
the item to.
4. After copying is completed, press MMENUN.
One or all phonebook items can be copied between a
cordless handset and the base unit or between 2
cordless handsets. The destination unit will save the
items in its phonebook.
8.5.1 To the base unit or another cordless
handset (using the cordless handset)
Copying one phonebook item
1. Find the desired cordless handset phonebook item
(page 22). A
2. “Copy” A
49
9. Useful Information
9.1 Character entry
9. . Useful Information
The dial keys are used to enter characters and numbers. Each dial key has multiple characters assigned to it. The
available character entry modes are Alphabet (ABC), Numeric (0-9), Greek (
), Extended 1 (
), Extended 2
(
) and Cyrillic (
). When in these entry modes except Numeric, you can select which character is entered by
pressing a dial key repeatedly.
– Press MFN or MEN of the base unit and MDN or MCN of the cordless handset to move the cursor left or right.
– Press the dial keys to enter characters and numbers.
on the cordless handset to erase the character or number highlighted by
– Press MSTOPN on the base unit or
the cursor. Press and hold MSTOPN/
to erase all characters or numbers.
– Press MGN to switch between uppercase and lowercase.
– To enter another character located on the same dial key, press MEN of the base unit and MCN of the cordless handset
to move the cursor to the next space, then press the appropriate dial key.
– If you do not press any dial key of the cordless handset within 5 seconds after entering a character, the character
is fixed and the cursor moves to the right.
9.1.1 Character entry modes
Several character entry modes can be used when entering text. The characters that can be entered depend on the
entry mode.
9.1.2 Characters available in each character entry mode
When the base unit displays the character entry screen:
Press MBN repeatedly to select a character entry mode.
When the cordless handset displays the character entry screen:
A Select a character entry mode. A
Alphabet character table (ABC)
Numeric entry table (0-9)
Greek character table (
)
Extended 1 character table (
50
)
9. Useful Information
R The following are used for both uppercase and lowercase:
Extended 2 character table (
)
R The following are used for both uppercase and lowercase:
Cyrillic character table (
)
51
10. Help
10.1 Report messages
10. . Help
To indicate the unit’s fax transmission/reception status, one of the following messages will be printed on the sending
and journal reports (page 27).
Message
Code
COMMUNICATION ERROR
40-42
46-72
FF
Cause & Solution
R A transmission or reception error occurred. Try
again or check with the other party.
43
44
R A line problem occurred. Connect the telephone line
cord to a different jack and try again.
R An overseas transmission error occurred. Try using
the overseas mode (feature #23 on page 40).
DOCUMENT JAMMED
-----
R Remove the jammed document (page 62).
ERROR-NOT YOUR UNIT
53
54
59
70
R A transmission or reception error occurred because
of a problem with the other party’s fax machine.
Check with the other party.
JUNK FAX PROH. REJECT
-----
R The junk fax prohibitor feature of this unit rejected
fax reception.
MEMORY FULL
-----
R The memory is full of received documents due to a
lack of recording paper, a lack of ink film or a
recording paper jam. Install paper (page 14), install
ink film (page 12) or remove the jammed paper
(page 61).
NO DOCUMENT
-----
R The document was not fed into the unit properly.
Re-insert the document and try again.
OTHER FAX NOT RESPONDING
-----
R The other party’s fax machine is busy or has run out
of recording paper. Try again.
R The other party’s fax machine rang too many times.
Send the fax manually (page 27).
R The other party’s machine is not a fax machine.
Check with the other party.
R The number you dialled is not in service.
PRESSED THE STOP KEY
-----
R MSTOPN was pressed, and fax transmission or
reception was cancelled.
OK
-----
R Fax transmission or reception was successful.
10.2 Display messages
To indicate the unit’s status, one or more of the following messages will appear on the display.
10.2.1 Base unit
Display
Cause & Solution
“BACK COVER OPEN”
R The back cover is open. Close the back cover firmly.
“BUSY”
R The cordless handset you tried to call is in use.
R The cordless handset you are calling is too far from the base unit.
“CALL SERVICE”
R There is something wrong with the unit. Contact our service personnel.
52
10. Help
Display
Cause & Solution
“CHECK DOCUMENT”
R The document was not fed into the unit properly. Re-insert the document. If
misfeeding occurs frequently, clean the document feeder rollers
(page 62) and try again.
R The document is longer than 600 mm. Press MSTOPN to remove the
document. Divide the document into two or more sheets, and try again.
“CHECK FILM”
R The ink film is empty. Replace the ink film with a new one (page 12).
R The ink film is not installed. Install it (page 12).
R The ink film is slack or creased. Tighten it (see step 5 on page 13).
“CHECK PAPER”
R The recording paper is not installed or the unit has run out of paper. Install
paper and press MSETN to clear the message.
R The recording paper was not fed into the unit properly (page 62). Re-install
paper (page 14) and press MSETN to clear the message.
R The recording paper has jammed near the recording paper entrance.
Remove the jammed paper (page 61) and press MSETN to clear the
message.
“FAX IN MEMORY”
R See the other displayed message instructions to print out the document.
Received documents are stored in memory due to a lack of recording paper,
a lack of ink film or a recording paper jam. Install paper (page 14), install ink
film (page 12) or remove the jammed paper (page 61). You will lose all
faxes in memory if the power is removed. Check with power connected.
“FAX MEMORY FULL”
R The memory is full of received documents due to a lack of recording paper,
a lack of ink film or a recording paper jam. Install paper (page 14), install ink
film (page 12) or remove the jammed paper (page 61). You will lose all
faxes in memory if the power is removed. Check with power connected.
R When performing memory transmission, the document being stored
exceeded the memory capacity of the unit. Send the entire document
manually.
“FILM EMPTY”
R The ink film is empty. Replace the ink film with a new one (page 12).
R The ink film is slack. Tighten it (see step 5 on page 13) and install again.
R The fax machine is positioned near appliances such as TVs or speakers
which generate an intense magnetic field.
“FILM NEAR EMPTY”
R The remaining ink film is low. Prepare a new ink film (page 9).
“MEMORY FULL”
R The base unit’s phonebook memory is full. Erase unnecessary items
(page 23).
R When making a copy, the document being stored exceeded the memory
capacity of the unit. Press MSTOPN to clear the message. Divide the
document into sections.
“MESSAGE FULL”
R There is no room left in the memory to record voice messages. Erase
unnecessary messages (page 35, 36).
“MODEM ERROR”
R There is something wrong with the unit’s modem. Contact our service
personnel.
“NO FAX REPLY”
R The other party’s fax machine is busy or has run out of recording paper. Try
again.
“OPEN CABINET CHECK
FILM SLACK”
“OPEN CABINET CHECK
FILM TYPE”
R Please use genuine Panasonic replacement film (page 9).
R The ink film is slack. Tighten it (see step 5 on page 13).
R The fax machine is positioned near appliances such as TVs or speakers
which generate an intense magnetic field.
“PAPER JAMMED”
R A recording paper jam occurred. Remove the jammed paper (page 61).
R You forced the recording paper into the paper tray too strongly. Remove all
of the installed paper, and re-install it gently.
“PLEASE WAIT”
R The unit is checking that there is no slack or crease in the ink film. Wait for
a moment while the check is completed.
53
10. Help
Display
Cause & Solution
“POLLING ERROR”
R The other party’s fax machine does not support polling. Check with the other
party.
“RECORDING ERROR”
R The greeting message you recorded was under 1 second long. Record a
longer message.
“REDIAL TIME OUT”
R The other party’s fax machine is busy or has run out of recording paper. Try
again.
“REMOVE DOCUMENT”
R The document is jammed. Remove the jammed document (page 62).
R Press MSTOPN to eject the jammed paper.
“SERIAL ERROR”
R There is something wrong with the unit. Contact our service personnel.
“TRANSMIT ERROR”
R A transmission error occurred. Try again.
R If you send a fax overseas, try the following:
– Use the overseas transmission mode (feature #23 on page 40).
– Add 2 pauses at the end of the telephone number or dial manually.
“UNIT OVERHEATED”
R The unit is too hot. Stop using the unit for a while and let the unit cool down.
10.2.2 Cordless handset
Display
Cause & Solution
“Error”
R Recording was too short. Try again.
“Failed”
R Phonebook copy failed. Confirm the destination unit is in standby mode and
try again.
“Incomplete”
R The destination unit’s phonebook memory is full. Erase the unnecessary
phonebook items from the destination unit and try again.
“Memory Full”
R The cordless handset’s phonebook memory is full. Erase unnecessary
items (page 22).
“Messages Full”
R There is no room left in the memory to record voice messages. Erase
unnecessary messages (page 35, 36).
“No link. Reconnect AC
adaptor.”
R The cordless handset has lost communication with the base unit. Move
closer to the base unit and try again.
R Unplug the base unit’s power cord to reset the unit. Reconnect the power
cord and try again.
R The cordless handset’s registration may have been cancelled. Re-register
the cordless handset (page 47).
“Use rechargeable
battery.”
R A wrong type of battery such as Alkaline or Manganese was inserted. Use
only the rechargeable Ni-MH battery noted on page 5, 9.
“You must first
subscribe to Caller
ID.”
R You must subscribe to use Caller ID service. Once you receive caller
information after subscribing to a Caller ID service, this message will not be
displayed.
“Press
5sec on base,
then put on charger”
R The cordless handset is not registered to the base unit. Press
MLOCATORN ( ) on the base unit for about 5 seconds, then place the
cordless handset on the base unit or charger. The cordless handset will be
registered to the base unit.
10.3 When a function does not work
If you still have difficulties after following the instructions in this section, reset the unit. Disconnect the power cord and
turn OFF the cordless handset. Reconnect the power cord and turn ON the cordless handset.
54
10. Help
10.3.1 Initial settings
Problem
Cause & Solution
I cannot hear a dial tone.
R If you used a splitter/coupler to connect the unit, remove the splitter/coupler
and connect the unit to the wall jack directly. If the unit operates properly,
check the splitter/coupler.
R Disconnect the unit from the telephone line and connect a known working
telephone. If the working telephone operates properly, contact our service
personnel to have the unit repaired. If the working telephone does not
operate properly, contact your telephone company.
R The power cord or telephone line cord is not connected. Check the
connections.
R If you have connected the fax machine through a computer modem, connect
the fax machine directly to a telephone line jack.
The unit does not work.
R Check the connections (page 17).
R Make sure that the cordless handset’s battery is installed correctly
(page 15) and fully charge it (page 18).
The unit does not ring.
R The ringer volume is turned OFF. Adjust it (page 19).
I cannot make calls.
R The dialling mode setting may be wrong. Change the setting (feature #13
on page 40).
R The cordless handset is too far from the base unit. Move closer and try
again.
10.3.2 General
Problem
Cause & Solution
The unit displays “PAPER
JAMMED” even though paper
is installed.
R You forced the recording paper into the paper tray too strongly. Remove all
of the installed paper, and re-install it gently.
The unit displays “CHECK
PAPER” even though paper is
inserted.
R The paper is inserted halfway. Insert it correctly (page 62) and press
MSETN to clear the message.
The other party complains
they only hear a fax tone and
cannot talk.
R FAX ONLY mode is set. Tell the other party the number is only used for
faxes.
R Change the receiving mode to TEL mode (page 30), TEL/FAX mode
(page 30) or TAM/FAX mode (page 31).
MREDIALN or MPAUSEN on the
base unit does not function
properly.
R If this button is pressed during dialling, a pause will be inserted. If pressed
immediately after a dial tone is obtained, the last number dialled will be
redialled.
During programming, I
cannot enter the code or ID
number.
R All or part of the number is the same as another code or ID. Change the
number:
– remote operation ID (code): page 37, or feature #11 on page 39.
– fax activation code: feature #41 on page 42.
– auto disconnection code: feature #49 on page 43.
The ink film runs out quickly.
R Even if there are only a few sentences, every page that comes out of the
machine is considered a full page.
R Turn OFF the following features:
– sending report: feature #04 on page 39.
– journal report: feature #22 on page 40.
– Caller ID list: feature #26 on page 41.
The base unit beeps.
R The memory reception alert of feature #44 is ON (page 42), and the unit has
a document in memory. Press MSTOPN to stop the beeps, then see the
displayed message instructions to solve the problem.
55
10. Help
Problem
Cause & Solution
The speakerphone is not
working.
R Use the speakerphone in a quiet room.
R If you have difficulty hearing the other party, adjust the volume.
I cannot page a cordless
handset or base unit.
R The cordless handset is too far from the base unit.
Caller information is not
displayed.
R You must subscribe to use a Caller ID service. Contact your service
provider/telephone company for details.
R If you use a DSL/ADSL service, we recommend connecting a DSL/ADSL
filter between the base unit and the telephone line jack. Contact your DSL/
ADSL provider for details.
R Other telephone equipment may be interfering with this unit. Disconnect the
other equipment and try again.
R Other electrical appliances connected to the same outlet may be interfering
with the Caller ID information.
R Telephone line noise may be affecting the Caller ID information.
R The caller requested not to send his/her information (page 24).
R If a call is being transferred to you, the caller information will not be
displayed.
The display exits the Caller ID
list while viewing caller
information.
R Do not pause for over 1 minute on the cordless handset or 3 minutes on the
base unit while viewing.
Time on the unit has shifted.
R Incorrect time information from incoming Caller ID changes the time. Set the
time adjustment to “MANUAL” (OFF) (feature #33 on page 41).
10.3.3 Cordless handset
Problem
Cause & Solution
The cordless handset does
not automatically turn ON
after installing/replacing
batteries.
R The battery is empty or too weak to turn ON the power. Place the cordless
handset on the base unit or charger, and let it charge.
The cordless handset does
not work.
R Make sure that the batteries are installed correctly (page 15) and fully charge
them (page 18).
R Fully charge the batteries (page 18).
R Check the connections (page 17).
R Clean the charge contacts and charge again (page 18).
R Turn the cordless handset power OFF, then ON (page 18).
R Check that the power cord is connected properly.
R The cordless handset has not been registered to the base unit. Register the
cordless handset (page 47).
I do not know how to erase
(Missed call) from the
display.
R There are unviewed missed calls remaining. View them and erase
following way.
1.
2. “Caller List” A
in the
3. Press MCN to search from the most recent call, or press MDN to search from
the oldest call.
The cordless handset display
is blank.
R The cordless handset is not turned ON. Turn the power ON (page 18).
The cordless handset will not
turn ON.
R Make sure that the batteries are installed correctly (page 15).
R Fully charge the batteries (page 18).
R Clean the charge contacts and charge again (page 18).
56
10. Help
Problem
Cause & Solution
I have changed the cordless
handset display language to a
language I cannot read.
R Change the cordless handset display language (page 46).
While programming, the
cordless handset starts to
ring.
R A call is being received. Answer the call and start again after hanging up.
is flashing.
R The cordless handset is not registered to the base unit. Register it
(page 47).
R The cordless handset is too far from the base unit. Move closer.
R The power cord is not connected. Check the connections.
R You are using the cordless handset or base unit in an area with high
electrical interference. Re-position the base unit and use the cordless
handset away from sources of interference.
The cordless handset does
not ring.
R The ringer volume is turned OFF. Adjust it (page 19).
Static, sound cuts in/out,
fades. Interference from other
electrical units.
R Place the cordless handset and the base unit away from other electrical
appliances.
R Move closer to the base unit.
Noise is heard, sound cuts in
and out.
R You are using the cordless handset or base unit in an area with high
electrical interference. Re-position the base unit and use the cordless
handset away from sources of interference.
R Move closer to the base unit.
R If you use a DSL/ADSL service, we recommend connecting a DSL/ADSL
filter between the base unit and the telephone line jack. Contact your DSL/
ADSL provider for details.
The cordless handset beeps
and/or flashes.
R Battery charge is low. Fully charge the batteries (page 18).
I fully charged the batteries,
but still flashes.
R Clean the charge contacts and charge again (page 18).
R It is time to replace the batteries (page 15).
I fully charged the batteries,
but the operating time seems
to be shorter.
R Clean the battery ends ( ,
charge again.
I cannot make calls with the
cordless handset.
R The cordless handset is too far from the base unit. Move closer and try
again.
R Another unit is in use. Wait and try again later.
R The key lock feature is turned ON. Turn it OFF (page 21).
The name stored in the
phonebook is not fully
displayed while an outside
call is being received.
R Edit the phonebook item name to fit in 1 line of text (page 22).
I cannot register a cordless
handset to a base unit.
R The maximum number of cordless handsets are already registered to the
base unit. Cancel unused cordless handset registrations from the base unit
(page 47).
R You entered the wrong PIN. If you forget your PIN, consult your nearest
Panasonic service centre.
R Place the cordless handset and the base unit away from other electrical
appliances.
) and the charge contacts with a dry cloth and
57
10. Help
10.3.4 Fax – sending
Problem
Cause & Solution
I cannot send documents.
R The other party’s fax machine is busy or has run out of recording paper. Try
again.
R The other party’s machine is not a fax machine. Check with the other party.
R The other party’s fax machine failed to answer the fax automatically. Send
the fax manually (page 27).
R The memory is full of received documents and the quick scan (feature #34
on page 41) is ON. Turn this feature OFF, and send the fax again.
I cannot send a fax overseas.
R Use the overseas transmission mode (feature #23 on page 40).
R Add two pauses at the end of the telephone number or dial manually.
The other party complains
that letters on their received
document are distorted or not
clear.
R If your line has special telephone services such as call waiting, the service
may have been activated during fax transmission. Connect the unit to a line
that does not have these services.
R Another telephone on the same line is off the hook. Hang up the telephone
and try again.
R Try copying the document with this unit. If the copied image is clear, there
may be something wrong with the other party’s machine.
R Adjust the scan contrast using feature #58 (page 43).
The other party complains
that black lines, white lines or
smudges appear on their
received document.
R The scanner glass or rollers are dirty with correction fluid, etc. Clean them
(page 62). Please do not insert a document before correction fluid has
dried completely.
Documents frequently
misfeed.
R Clean the document feeder rollers, recording paper feeder and rubber flap
(page 62).
10.3.5 Fax – receiving
Problem
Cause & Solution
I cannot receive documents.
R The ink film is empty. Replace the ink film with a new one (page 12).
I cannot receive documents
automatically.
R The receiving mode is set to TEL mode.
Change the receiving mode:
– TAM/FAX mode (page 31), FAX ONLY mode (page 32) or TEL/FAX
mode (page 30).
R The time taken to answer the call is too long. Decrease the number of rings
(page 37, feature #06 on page 39, or #78 on page 44).
R The greeting message is too long. Record a shorter message (page 35).
The display shows
“CONNECTING.....”, but
faxes are not received.
R The receiving mode is set to FAX ONLY mode and the incoming call is not
a fax. Change the receiving mode:
– TAM/FAX mode (page 31), TEL mode (page 30) or TEL/FAX mode
(page 30).
A blank sheet is ejected.
R If a blank sheet is ejected after the received document is printed out, the
size of the document sent by the other party is as large as, or larger than,
the recording paper, and the receiving reduction rate is not programmed
correctly. Program the proper rate in feature #36 (page 42).
R The other party placed the document in their fax machine facing the wrong
way. Check with the other party.
58
10. Help
Problem
Cause & Solution
The printing quality is poor.
Please do not reuse the ink film!
Please use genuine Panasonic replacement film. Refer to page 9 for further
details.
R The thermal head is dirty. Clean it (page 63).
R If documents can be copied properly, the unit is working normally. The other
party may have sent a faint document or there may be something wrong
with the other party’s machine. Ask them to send a clearer copy of the
document or to check their fax machine.
R Some paper has instructions recommending which side to print on. Try
turning the recording paper over.
R You may have used paper with cotton and/or fibre content that is over 20%,
such as letterhead or resume paper.
Recording paper frequently
misfeeds.
R Clean the document feeder rollers, recording paper feeder and rubber flap
(page 62).
Letters on the received
document are distorted.
R If your line has special telephone services such as call waiting, the service
may have been activated during fax reception. Connect the unit to a line that
does not have these services.
I cannot receive documents
using the cordless handset.
R The memory is full of received documents due to a lack of recording paper,
a lack of ink film or a recording paper jam. Install paper (page 14), install ink
film (page 12) or remove the jammed paper (page 61).
When an extension telephone
is connected, I cannot receive
documents by pressing
MGNMBNM9N.
R You must set remote fax activation to ON (feature #41 on page 42)
beforehand.
R You may have changed the remote fax activation code from MGNMBNM9N
(default setting). Verify the remote fax activation code (feature #41 on
page 42).
R The memory is full of received documents due to a lack of recording paper,
a lack of ink film or a recording paper jam. Install paper (page 14), install ink
film (page 12) or remove the jammed paper (page 61).
The other party complains
that they cannot send a
document.
R The receiving mode is set to TEL mode. Receive the document manually
(page 30) or change the receiving mode to TAM/FAX mode (page 31), FAX
ONLY mode (page 32) or TEL/FAX mode (page 30).
R The memory is full of received documents due to a lack of recording paper,
a lack of ink film or a recording paper jam. Install paper (page 14), install ink
film (page 12) or remove the jammed paper (page 61).
I cannot select the desired
receiving mode.
R If you want to set TAM/FAX or FAX ONLY mode:
– select the desired mode using feature #77 (page 44), and press MAUTO
ANSWERN repeatedly until the desired mode is displayed.
R If you want to set TEL mode or TEL/FAX mode:
– select the desired mode using feature #73 (page 43), and press MAUTO
ANSWERN repeatedly until the desired mode is displayed.
10.3.6 Copying
Problem
Cause & Solution
The unit will not make a copy.
R The ink film is empty. Replace the ink film with a new one (page 12).
R You cannot make a copy during programming.
R You cannot make a copy during a telephone conversation.
A black line, white line or
smudge appears on the
copied document.
R The scanner glass or rollers are dirty with correction fluid, etc. Clean them
(page 62). Please do not insert a document before correction fluid has
dried completely.
The copied image is distorted.
R Adjust the width of the document guides to fit the actual size of the
document.
59
10. Help
Problem
Cause & Solution
The printing quality is poor.
Original
ABC
Copy
Documents or recording
paper frequently misfeed.
Please do not reuse the ink film!
Please use genuine Panasonic replacement film. Refer to page 9 for further
details.
R The thermal head is dirty. Clean it (page 63).
R Some paper has instructions recommending which side to print on. Try
turning the recording paper over.
R You may have used paper with a cotton and/or fibre content that is over
20%, such as letterhead or resume paper.
R Clean the document feeder rollers, recording paper feeder and rubber flap
(page 62).
10.3.7 Answering machine
Problem
Cause & Solution
I cannot listen to messages
from a remote location.
R Activate the remote operation feature by setting the remote operation ID
beforehand (page 37, feature #11 on page 39). Press the remote operation
ID correctly and firmly.
R The unit is not in TAM/FAX mode. Change to TAM/FAX mode (page 31).
The other party complains
that they cannot leave a voice
message.
R The recording time is set to “GREETING ONLY”. Select “1 MINUTE” or “3
MINUTES” (page 37, feature #10 on page 39).
R The memory is full. Erase unnecessary messages (page 35, 36).
R Make sure there is no other answering machine connected on the same line.
I cannot operate the
answering machine with the
cordless handset.
R Someone is operating the answering machine.
R You are too far from the base unit. Move closer to the base unit.
The message indicator
flashes slowly.
R This is normal. New messages have been recorded. Listen to the new
messages (page 35, 36).
Caller ID information does not
display during message
playback.
R The caller information will not be displayed if a message is recorded by using
MMEMON (page 36).
10.3.8 If a power failure occurs
R The unit will not function.
R The unit is not designed for making emergency telephone calls when the power fails. Alternative arrangements
should be made for access to emergency services.
R Fax transmission and reception will be interrupted.
R If delayed transmission (feature #25 on page 41) is programmed and a power failure prevents the document from
being sent at the set time, the document will be sent after power is restored.
R If any fax documents are stored in the memory, they will be lost. When power is restored, a power down report
will be printed stating which documents in memory have been erased.
60
11. Maintenance
11.1 Recording paper jams
11. . Maintenance
3 Turn the blue gear (E) in the direction of the arrow
until the ink film is tight (F) and at least one layer of
ink film is wrapped around the blue core (G).
11.1.1 When the recording paper has jammed
in the unit
The display will show the following:
– “PAPER JAMMED”
Important:
R Remove the recording paper, then remove the
paper tray beforehand, otherwise the paper may
misfeed or jam.
E
1 Open the front cover (A), push the green button
(B), then open the back cover (C).
C
F
B
Correct
A
1 turn
Tight
2 Remove the jammed recording paper (D).
G
D
Incorrect
No ink film is wrapped around the blue core.
Slack/Crease
Reverse
61
11. Maintenance
4 Close the back cover securely by pushing down on
the dotted area at both ends (H), then close the front
cover securely (I).
H
11.2 Document jams
1 Open the front cover. Remove the jammed document
carefully (A).
A
I
5 Install the paper tray (page 14), then insert the
recording paper gently (page 14).
11.1.2 When the recording paper was not fed
into the unit properly
The display will show the following:
– “CHECK PAPER”
Remove the recording paper and straighten. Insert the
paper, then press MSETN to clear the message.
2 Close the front cover securely.
Note:
R Do not pull out the jammed paper forcibly before
opening the front cover.
11.3 Document feeder/recording
paper feeder/scanner glass
cleaning
Clean the document feeder/recording paper feeder/
scanner glass when:
– Documents or recording paper frequently misfeed.
– Smudges or black/white lines appear on the original
document when sending or copying.
Important:
R Remove the recording paper, then remove the
paper tray beforehand, otherwise the paper may
misfeed or jam.
MSETN
62
11. Maintenance
1 Disconnect the power cord and the telephone line
cord.
2 Open the front cover (A), push the green button
4 Clean the recording paper feeder roller (G) with a
cloth moistened with isopropyl rubbing alcohol, and
let all parts dry thoroughly.
(B), then open the back cover (C).
G
C
B
A
3 Clean the document feeder rollers (D) and rubber
flap (E) with a cloth moistened with isopropyl rubbing
alcohol, and let all parts dry thoroughly. Clean the
scanner glass (F) with a soft, dry cloth.
Caution:
R Do not use paper products, such as paper
towels or tissues.
5 Close the back cover securely by pushing down on
the dotted area at both ends (H), then close the front
cover securely (I).
H
E
D
F
D
I
6 Install the paper tray (page 14), then insert the
recording paper gently (page 14).
7 Connect the power cord and the telephone line cord.
11.4 Thermal head cleaning
If smudges or black/white lines appear on a copied/
received document, check whether there is dust on the
thermal head. Clean the thermal head to remove the
dust.
63
11. Maintenance
Important:
R Remove the recording paper, then remove the
paper tray beforehand, otherwise the paper may
misfeed or jam.
4 Clean the thermal head (E) with a cloth moistened
with isopropyl rubbing alcohol, and let it dry
thoroughly.
Caution:
R To prevent a malfunction due to static
electricity, do not use a dry cloth and do not
touch the thermal head directly.
E
1 Disconnect the power cord and the telephone line
cord.
2 Open the front cover (A), push the green button
(B), then open the back cover (C).
C
5 Re-install the ink film and close the covers (see step
B
4 to 7 on page 12).
6 Install the paper tray (page 14), then insert the
recording paper gently (page 14).
A
7 Connect the power cord and the telephone line cord.
3 Remove the ink film (D).
D
64
12. General Information
12. General Information
12.1 Reference lists and reports
(Base unit only)
You can print out the following lists and reports for your
reference:
– “SETUP LIST”
– “PHONEBOOK LIST”
– “JOURNAL REPORT”
– “BROADCAST LIST”
– “PRINTER TEST”
R If the test print has a smudges, blurred points or
lines, clean the thermal head (page 63).
– “CALLER ID LIST”
You can set the following lists and reports to print
automatically:
– “AUTO JOURNAL”
R See feature #22 on page 40 for details.
– “AUTO CALL. LIST”
R See feature #26 on page 41 for details.
MMENUN
MSETN
12.2 Specifications
12.2.1 Base unit
n Applicable lines:
Public Switched Telephone Network
n Document size:
Max. 216 mm in width, Max. 600 mm in length
n Effective scanning width:
208 mm
n Effective printing width:
202 mm
n Transmission time*1:
Approx. 12 s/page (ECM-MMR)*2
n Scanning density:
Horizontal: 8 pels/mm
Vertical: 3.85 lines/mm – in standard resolution,
7.7 lines/mm – in fine/photo resolution,
15.4 lines/mm – in super fine resolution
n Photo resolution:
64-level
n Scanner type:
Contact Image Sensor
MFNMEN
MSTOPN
MPRINT REPORTN
1 MPRINT REPORTN
2 Press MFN or MEN repeatedly to display the desired
item.
3 MSETN
R If you select to print out a list or a report, printing
will start.
To stop printing, press MSTOPN.
R If you select “AUTO JOURNAL” or “AUTO CALL.
LIST”, press M0N or M1N to select the desired
setting, then press MSETN.
M0N “OFF”
M1N “ON”
4 MMENUN
n Printer type:
Thermal Transfer on plain paper
n Data compression system:
Modified Huffman (MH), Modified READ (MR), Modified
Modified READ (MMR)
n Modem speed:
9,600 / 7,200 / 4,800 / 2,400 bps; Automatic Fallback
n Operating environment:
5 °C – 35 °C, 20 % – 80 % RH (Relative Humidity)
n Dimensions:
KX-FC268: Approx. height 106 mm ´ width 374 mm ´
depth 200 mm
KX-FC278: Approx. height 106 mm ´ width 367 mm ´
depth 200 mm
n Mass (Weight):
KX-FC268: Approx. 2.7 kg
KX-FC278: Approx. 2.8 kg
n Power consumption:
Standby:
KX-FC268: Approx. 4.0 W
KX-FC278: Approx. 2.5 W
Transmission: Approx. 15 W
Reception: Approx. 40 W (When receiving a 20 % black
document)
65
12. General Information
Copy: Approx. 40 W (When copying a 20 % black
document)
Maximum: Approx. 135 W (When copying a 100 % black
document)
Recording paper specifications
n Power supply:
220 V – 240 V AC, 50/60 Hz
Recording paper weight:
n Fax memory capacity*3:
Approx. 25 pages of memory transmission
Approx. 28 pages of memory reception
(Based on the ITU-T No. 1 Test Chart in standard
resolution, without using the Error Correction Mode.)
n Voice memory capacity*4:
Approx. 15 minutes of recording time
n Copy memory capacity:
Approx. 10 pages (Based on the ITU-T No. 1 Test Chart
in fine resolution.)
n CIS’s LED light properties:
LED radiation output: Max. 1 mW
Wavelength: Yellowish Green 570 nm typical
Emission duration: Continuous
*1 Transmission speed depends upon the contents of
the pages, resolution, telephone line conditions and
capability of the other party’s machine.
*2 Transmission speed is based upon the ITU-T No. 1
Test Chart with original mode. If the capability of the
other party’s machine is inferior to your unit, the
transmission time may be longer.
*3 If an error occurs during fax reception, such as a
paper jam or if the recording paper runs out, the fax
and subsequent faxes will be retained in memory.
*4 Recording time may be reduced by the calling
party’s background noise.
ITU-T No. 1 Test Chart
Recording paper size:
A4: 210 mm ´ 297 mm
64 g/m2 to 80 g/m2
12.2.2 Cordless handset
n Standard:
DECT (Digital Enhanced Cordless
Telecommunications)
GAP (Generic Access Profile)
n Number of channels:
120 Duplex Channels
n Frequency range:
1.88 GHz to 1.90 GHz
n Duplex procedure:
TDMA (Time Division Multiple Access)
n Channel spacing:
1,728 kHz
n Bit rate:
1,152 kbit/s
n Modulation:
GFSK (Gaussian Frequency Shift Keying)
n RF transmission power:
Approx. 10 mW (average power per channel)
n Voice coding:
ADPCM 32 kbit/s
n Operating environment:
0 °C – 40 °C, 20 % – 80 % RH (Relative Humidity)
n Dimensions:
Approx. height 158 mm ´ width 48 mm ´ depth 30 mm
n Mass (Weight):
Approx. 130 g
12.2.3 Charger unit (KX-FC278 only)
n Operating environment:
0 °C – 40 °C, 20 % – 80 % RH (Relative Humidity)
n Dimensions:
Approx. height 52 mm ´ width 75 mm ´ depth 88 mm
n Mass (Weight):
Approx. 60 g
Note:
R Design and specifications are subject to change
without notice.
R The pictures and illustrations in these instructions
may vary slightly from the actual product.
66
n Power consumption:
Standby: Approx. 0.2 W
Maximum: Approx. 3.2 W
n Power supply:
AC adaptor (220 V – 240 V AC, 50/60 Hz)
13. Index
13.1 Index
#
#01 Date and time: 19
#02 Your logo: 20
#03 Your fax number: 20
#04 Sending report: 27
#06 FAX ring count: 39
#06 TAM ring count: 32
#10 Caller’s recording time: 39
#11 Remote operation ID: 39
#13 Dialling mode: 18
#17 External ringtone: 40
#22 Automatic journal report: 27
#23 Overseas mode: 40
#25 Delayed send: 41
#26 Automatic Caller ID list: 41
#33 Time adjustment: 41
#34 Quick scan: 27, 34
#36 Receiving reduction: 42
#39 LCD display contrast: 42
#41 Fax activation code: 42
#44 Memory reception alert: 42
#46 Friendly reception: 42
#49 Auto disconnection: 43
#54 Greeting time: 43
#58 Scan contrast: 43
#59 Copy phonebook: 49
#62 ADSL mode: 43
#67 Call screening: 43
#68 ECM selection: 43
#72 Recall/flash time: 43
#73 Manual answer: 43
#76 Connecting tone: 44
#77 Auto answer: 44
#78 TEL/FAX ring count: 44
#80 Set default: 44
A
Accessories: 9
Paper tray: 14
Additional cordless handsets: 47
ADSL mode: 43
Advanced features: 40
Alarm: 46
Auto answer setting: 44
Auto disconnection: 43
Auto talk feature: 22
B
Base unit phonebook
Copying: 49
Editing: 23
Erasing: 23
Making a phone call: 23
Sending faxes: 28
Storing: 23
Basic features: 39
Battery
Charge: 18
Installation: 15
Performance: 18
Replacement: 15
BROADCAST LIST: 65
Broadcast transmission: 28
Button description
Base unit: 9
Cordless handset: 10
C
Call screening: 43
Call waiting: 24
Caller ID: 24
Calling back: 24
Storing: 26
CALLER ID LIST: 24, 41, 65
Caller’s recording time: 39
Chain dial: 22
Character entry: 50
Cleaning: 62
Conference calls: 48
Connecting tone: 44
Connections: 17
Copy: 34
Collation: 34
Enlarge/Reduce: 34
Cordless handset
Cancelling: 47
Locator: 48
Power ON/OFF: 18
Registration: 47
Cordless handset phonebook
Copying: 49
Editing: 22
Erasing: 22
Making a phone call: 22
Storing: 22
D
Date and time: 19
Delayed send: 41
Dialling mode: 18
Display (Base unit)
Contrast: 42
Messages: 52
Display (Cordless handset)
Contrast: 45
Icons: 10
Language: 46
Messages: 54
Document size: 27
E
ECM selection: 43
Extension telephone: 30
F
Fax activation code: 42
67
13. Index
Fax number: 20
FAX ONLY mode: 29, 32
Flash time: 43
Friendly reception: 42
G
Greeting message
TAM/FAX: 35
Greeting message time
TAM/FAX: 43
Cordless handset programming: 44
Q
Quick scan: 27, 34
R
One touch
Base unit: 23
Overseas mode: 40
Recall time: 43
Receiving alert: 42
Receiving faxes
Automatically: 31
Manually: 30
Receiving reduction: 42
Recording
Greeting message: 35, 36
Memo message: 36
Recording paper: 14, 66
Recording time
Incoming message: 37, 39
TAM/FAX greeting: 43
Redial list: 21
Redialling
Base unit: 21, 27, 28
Registration: 47
Remote operation: 37
Remote operation ID: 37, 39
Repeater: 47
Reports
Broadcast programming: 65
Broadcast sending: 28
Caller ID: 65
Journal: 27, 52, 65
Phonebook: 65
Power down: 60
Printer test: 65
Sending: 27, 52
Setup: 65
Reset (Base unit): 44
Resolution: 27, 34
Ring count
FAX ONLY: 39
TAM/FAX: 37, 39
TEL/FAX: 44
Ringtone
Base unit: 40
Cordless handset: 45
P
S
Phonebook
Base unit: 23
Cordless handset: 22
Sending faxes: 28
PHONEBOOK LIST: 65
PIN
Base unit: 45
Polling: 32
Power failure: 60
Power ON/OFF (Cordless handset): 18
PRINTER TEST: 65
Programming
Base unit programming: 39
Scan contrast: 43
Sending faxes
Base unit one touch dial: 28
Base unit phonebook: 28
Broadcast: 28
From memory: 27
Manually: 27
Sending report: 27
SETUP LIST: 65
Soft keys: 10
Storing
Broadcast: 28
One touch: 23
I
Ink film: 12
Intercom: 47
J
Jams
Document: 62
Recording paper: 61
JOURNAL REPORT: 27, 65
Junk fax prohibitor: 32
K
Key lock: 21
Keytones: 45
L
Listening to recorded messages: 35, 36, 37
Logo: 20
M
Manual answer setting: 43
Memo message: 36
Memory reception alert: 42
Memory redial: 21
Missed call: 24
O
68
13. Index
Phonebook: 22, 23
T
TAM/FAX mode: 29, 31
TEL mode: 29, 30
TEL/FAX mode: 29, 30
Time adjustment: 41
Transferring a call: 48
V
Voice time/day stamp: 35
Volume
Base unit: 19
Cordless handset: 19
69
Notes
70
Notes
