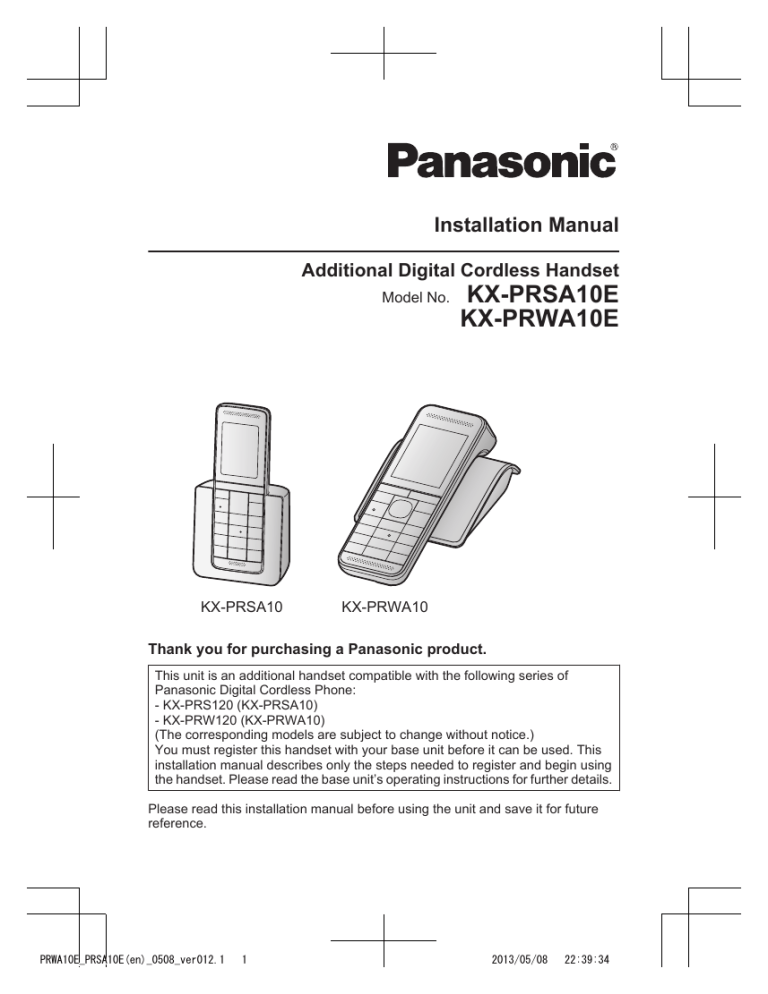

Installation Manual
Additional Digital Cordless Handset
Model No.
KX-PRSA10
KX-PRSA10E
KX-PRWA10E
KX-PRWA10
Thank you for purchasing a Panasonic product.
This unit is an additional handset compatible with the following series of
Panasonic Digital Cordless Phone:
- KX-PRS120 (KX-PRSA10)
- KX-PRW120 (KX-PRWA10)
(The corresponding models are subject to change without notice.)
You must register this handset with your base unit before it can be used. This
installation manual describes only the steps needed to register and begin using
the handset. Please read the base unit’s operating instructions for further details.
Please read this installation manual before using the unit and save it for future
reference.
PRWA10E_PRSA10E(en)_0508_ver012.1
1
2013/05/08
22:39:34
Installation
Accessory information
Supplied accessories
Accessory item/Part number
Quantity
Charger*1
1
AC adaptor/PNLV233EKZ
1
Rechargeable batteries*2
2
Handset cover*3
1
*1
*2
*3
KX-PRSA10: PNLC1047ZW (White)
KX-PRWA10: PNLC1046ZW (White)
Please read the base unit’s operating instructions for replacement battery
information.
The handset cover comes attached to the handset.
Note:
R Please read the base unit’s operating instructions for additional/replacement
accessories.
R Please read "General information" of the base unit’s operating instructions for
information regarding R&TTE Directive.
2
Helpline Tel. No.: U.K. 0844 844 3899 Ireland 01289 8333
PRWA10E_PRSA10E(en)_0508_ver012.2
2
2013/05/08
22:39:34
Installation
Setting up
Connections
Connect the AC adaptor plug to the unit until you hear a click.
Connect the AC adaptor to the power outlet.
KX-PRSA10: Fasten the cord by hooking it.
n KX-PRSA10
n KX-PRWA10
1
2
1
3
2
Note:
R Use only the supplied Panasonic AC adaptor PNLV233E.
R The AC adaptor must remain connected at all times. (It is normal for the adaptor
to feel warm during use.)
Battery installation/Battery charging
Important:
R Use the supplied rechargeable batteries. For replacement, we recommend using
the Panasonic rechargeable batteries noted in the base unit’s operating
instructions.
R USE ONLY rechargeable Ni-MH batteries AAA (R03) size (A).
R Do NOT use Alkaline/Manganese/Ni-Cd batteries.
R Confirm correct polarities ( ,
).
Charge for about 7 hours.
R Confirm “Charging” is displayed (B).
R When the batteries are fully charged, “Fully charged” is displayed.
3
Helpline Tel. No.: U.K. 0844 844 3899 Ireland 01289 8333
PRWA10E_PRSA10E(en)_0508_ver012.3
3
2013/05/08
22:39:34
Installation
n KX-PRSA10
2
1
n KX-PRWA10
2
1
Note:
R The handset display may show “Please wait for 1 minute.” when the
handset is placed on the charger if it is not registered to the base unit.
R If the batteries are fully charged, but the operating time seems to be shorter,
clean the battery ends ( ,
) and the charge contacts with a dry cloth and
charge again.
Registering the handset to the base unit
Ensure that the handset is switched on. If it is not on, press and hold M
few seconds to turn the handset on.
1 Handset:
Lift the handset and press M
N.
2
4
Base unit:
Press and hold M N for about 5 seconds.
R If all registered handsets start ringing, press M
this step.
N for
N again to stop, then repeat
Helpline Tel. No.: U.K. 0844 844 3899 Ireland 01289 8333
PRWA10E_PRSA10E(en)_0508_ver012.4
4
2013/05/08
22:39:34
Installation
n KX-PRSA10
{x}
n KX-PRWA10
{x}
3
Handset:
Place the handset on the base unit or charger.
R Continue the operation even when the handset display shows “Please
wait for 1 minute.”.
4
With the handset still on the base unit or charger, wait until a confirmation tone
is displayed.
sounds and
Note:
R If an error tone sounds, or if
is displayed, register the handset according to
the base unit’s operating instructions.
For your safety
To prevent severe injury and loss of life/property, read this section carefully before
using the product to ensure proper and safe operation of your product.
WARNING
Power connection
R Completely insert the AC adaptor/power plug into the power outlet. Failure to do
so may cause electric shock and/or excessive heat resulting in a fire.
R Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it
from the power outlet, then wiping with a dry cloth. Accumulated dust may cause
an insulation defect from moisture, etc. resulting in a fire.
R Unplug the product from power outlets if it emits smoke, an abnormal smell, or
makes an unusual noise. These conditions can cause fire or electric shock.
Confirm that smoke has stopped emitting and contact an authorised service
centre.
Installation
R To prevent the risk of fire or electrical shock, do not expose the product to rain
or any type of moisture.
5
Helpline Tel. No.: U.K. 0844 844 3899 Ireland 01289 8333
PRWA10E_PRSA10E(en)_0508_ver012.5
5
2013/05/08
22:39:34
Installation
R Do not place or use this product near automatically controlled devices such as
automatic doors and fire alarms. Radio waves emitted from this product may
cause such devices to malfunction resulting in an accident.
CAUTION
Installation and location
R The AC adaptor is used as the main disconnect device. Ensure that the AC
outlet is installed near the product and is easily accessible.
Battery
R We recommend using the supplied batteries or additional/replacement batteries
noted in the base unit’s operating instructions for replacement battery
information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.
R Do not mix old and new batteries.
R Do not open or mutilate the batteries. Released electrolyte from the batteries is
corrosive and may cause burns or injury to the eyes or skin. The electrolyte is
toxic and may be harmful if swallowed.
R Exercise care when handling the batteries. Do not allow conductive materials
such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit
may cause the batteries and/or the conductive material to overheat and cause
burns.
R Charge the batteries provided with or identified for use with this product only, in
accordance with the instructions and limitations specified in this manual.
R Only use a compatible base unit (or charger) to charge the batteries. Do not
tamper with the base unit (or charger). Failure to follow these instructions may
cause the batteries to swell or explode.
Important safety instructions
When using your product, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the following:
1. Do not use this product near water for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not dispose
of batteries in a fire. They may explode. Check with local codes for possible
special disposal instructions.
SAVE THESE INSTRUCTIONS
6
Helpline Tel. No.: U.K. 0844 844 3899 Ireland 01289 8333
PRWA10E_PRSA10E(en)_0508_ver012.6
6
2013/05/08
22:39:34
Installation
Other information
R Operating the product near electrical appliances may cause interference. Move
away from the electrical appliances.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
Routine care
R Wipe the outer surface of the product with a soft moist cloth.
R Do not use benzine, thinner, or any abrasive powder.
Notice for product disposal, transfer, or return
R This product can store your private/confidential information. To protect your
privacy/confidentiality, we recommend that you erase information such as
phonebook or caller list entries from the memory before you dispose of, transfer,
or return the product.
Information for Users on Collection and Disposal of Old Equipment and used
Batteries
1
2
3
These symbols (A, B, C) on the products, packaging, and/or accompanying
documents mean that used electrical and electronic products and batteries should
not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points, in accordance with your national
legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save
valuable resources and prevent any potential negative effects on human health
and the environment which could otherwise arise from inappropriate waste
handling.
For more information about collection and recycling of old products and batteries,
please contact your local municipality, your waste disposal service or the point of
sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
7
Helpline Tel. No.: U.K. 0844 844 3899 Ireland 01289 8333
PRWA10E_PRSA10E(en)_0508_ver012.7
7
2013/05/08
22:39:34
Installation
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your
dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
These symbols (A, B, C) are only valid in the European Union. If you wish to
discard these items, please contact your local authorities or dealer and ask for the
correct method of disposal.
Note for the battery symbol
This symbol (B) might be used in combination with a chemical symbol (C). In this
case it complies with the requirement set by the Directive for the chemical involved.
