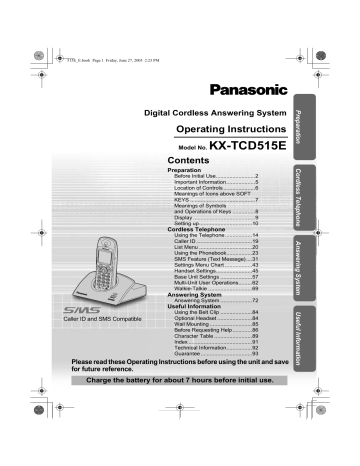

515E_E.book Page 1 Friday, June 27, 2003 2:23 PM
Operating Instructions
Model No.
KX-TCD515E
Preparation
Digital Cordless Answering System
Contents
Before Initial Use..........................2
Important Information...................5
Location of Controls .....................6
Meanings of Icons above SOFT
KEYS ...........................................7
Meanings of Symbols
and Operations of Keys ...............8
Display .........................................9
Setting up...................................10
Cordless Telephone
#
&
!
$
'
Answering System
Answering System
"
%
Using the Telephone..................14
Caller ID .....................................19
List Menu ...................................20
Using the Phonebook.................23
SMS Feature (Text Message)....31
Settings Menu Chart ..................43
Handset Settings........................45
Base Unit Settings .....................57
Multi-Unit User Operations.........62
Walkie-Talkie .............................69
Cordless Telephone
Preparation
Answering System .....................72
Useful Information
Using the Belt Clip .....................84
Optional Headset .......................84
Wall Mounting ............................85
Before Requesting Help.............86
Character Table .........................89
Index ..........................................91
Technical Information.................92
Guarantee ..................................93
Please read these Operating Instructions before using the unit and save
for future reference.
Charge the battery for about 7 hours before initial use.
Useful Information
Caller ID and SMS Compatible
515E_E.book Page 2 Friday, June 27, 2003 2:23 PM
Before Initial Use
Features
Digital Answering System
Up to 30 minutes recording time, with time/day stamp that records when
messages were received and counts the total number.
SMS (Short Message Service) compatibility
Now the convenience of sending and receiving text messages is
available from a home telephone.
32-Polyphonic Ring Tones
A variety of high-quality sounds can be reproduced for your ring tones.
You can choose from 9 pre-set melodies and 6 ring tones.
Hands-Free Speakerphone
You can talk without holding handset.
Convenient for talking while doing something else.
Headset Socket
Plug in the optional headset and the hands-free facility provides total
ease and freedom of use.
1
4
7
2
3
5
6
8
9
0
Illuminated Keypad
Lights up when there is an incoming call or you touch any key for easier
operation even in the dark.
200+20-Station Phonebook
Stores 200 station names and numbers with the built-in telephone
directory of the handset to be recalled easily and stores 20 station
names and numbers in the base unit for Audible Caller ID feature.
Multiple Handsets
Up to 6 handsets can be registered with a single base unit for added
convenience. (Optional handset/charger is available separately.)
LCD Backlight
Lights up when there is an incoming call or you touch any key for easier
operation even in the dark.
2
515E_E.book Page 3 Friday, June 27, 2003 2:23 PM
Before Initial Use
Thank you for purchasing your new Panasonic digital cordless telephone.
Preparation
Sales and Support Information Customer Care Centre
• For UK customers: 08700 100 076
• For Republic of Ireland customers:
01289 8333
• Visit our website for product information
http://www.panasonic.co.uk
• E-mail:
[email protected]
Direct Sales at Panasonic UK
• Order accessory and consumable items for your product with ease and confidence by
phoning our Customer Care Centre Monday - Friday
9:00am - 5:30pm.
(Excluding public holidays)
Or go on line through our Internet Accessory ordering application at
[email protected] http://www.panasonic.co.uk
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are handled directly by Panasonic
UK Ltd.
• It couldn't be simpler!
• Also available through our Internet is direct shopping for a wide range of finished
products, take a browse on our website for further details.
Dear purchaser,
You have acquired a KX-TCD515E, which is a product made in accordance with the
Digital Enhanced Cordless Telecommunications (DECT). DECT technology is
characterized by high-security protection against interceptions as well as high-quality
digital transmission. This telephone was designed for a wide range
of applications. For example, this telephone can be used within a network of base units
and handsets, constituting a telephone system which:
• operates up to 6 handsets at one base unit.
• allows an intercom between 2 handsets.
• allows the operation of a handset at up to 4 base units, expanding the communication
radio area.
Caller ID and SMS Services, where available, are network provider service. After
subscribing to Caller ID, this phone will display the caller’s phone number.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
3
515E_E.book Page 4 Friday, June 27, 2003 2:23 PM
Before Initial Use
Accessories (specific to product type)
AC Adaptor
Order No. PQLV19EZ
(PQLV19E)
Telephone Line Cord
Order No.
PQJA87S (for UK)
one
Belt Clip
Order No.
PQKE10355Z1
(Metallic Grey)
PQKE10355Z2
(Violet)
one
Rechargeable Batteries
(AAA size)
Order No.
HHR-4EPT/BA2 (P03P)
two
Operating Instructions...one
Battery Cover
Order No.
PQKK10134Y6
(Metallic Grey)
PQKK10134Y7
(Violet)
Quick Guide..................one
one
4
one
515E_E.book Page 5 Friday, June 27, 2003 2:23 PM
Important Information
Environment
Do not use this unit near water.
This unit should be kept away from heat
sources such as radiators, cookers, etc. It
should also not be placed in rooms where
the temperature is less than 5 °C or
greater than 40 °C.
The AC Adaptor is used as the main
disconnect device. Ensure that the AC
outlet is located/installed near the unit and
is accessible.
Battery Caution
1.
2.
3.
4.
Use only the specified batteries.
Only use rechargeable batteries.
Do not mix old and new batteries.
Do not dispose of batteries in a fire, as
they may explode.
Check local waste management codes
for special disposal instructions.
5. Do not open or mutilate the batteries.
Released electrolyte from the batteries is
corrosive and may cause burns or injury
to the eyes or skin.
The electrolyte may be toxic if swallowed.
6. Exercise care in handling the batteries in
order not to short circuit the batteries with
conductive materials such as rings,
bracelets and keys.
The batteries and/or conductor may
overheat and cause burns.
7. Charge the batteries in accordance with
the information provided in this operating
guide.
Location
• For maximum distance and noise-free
operation, place your base unit:
- Away from electrical appliances such
as TVs, radios, personal computers or
other phone.
- In a convenient, high, and central
location.
WARNING:
TO PREVENT THE RISK OF
ELECTRICAL SHOCK, DO NOT
EXPOSE THIS PRODUCT TO RAIN
OR ANY OTHER TYPE OF
MOISTURE.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
5
Preparation
Only use the power supply included with
the product.
Do not connect the AC Adaptor to any
AC outlet other than the standard
AC220-240 V.
The apparatus is approved for use with
PQLV19E (Order No. PQLV19EZ)
power supply.
This apparatus is unable to make calls
under the following conditions:
• The portable handset batteries need
recharging, or have failed.
• During a mains power failure.
• When the Key Lock is set to ON.
• When the unit is in Direct Call mode.
Do not open the base unit or handset
(other than to change the batteries).
This apparatus should not be used near
emergency/intensive care medical
equipment and should not be used by
people with pacemakers.
Care should be taken that objects do not
fall onto, and liquids are not spilled into
the unit. Do not subject this unit to
excessive smoke, dust, mechanical
vibration or shock.
515E_E.book Page 6 Friday, June 27, 2003 2:23 PM
Location of Controls
Handset
1-
Ringer/Charge
LED
Receiver
Display
1
Headset
Socket
6
2
7
8
3
4
5
Charge
Contact
Rear side
Speaker
2
3
4
5
6
7
8
9
1
0
LEFT SOFT KEY
2-
TALK Button
3-
JOYSTICK
4-
SPEAKERPHONE Button
5-
RECALL Button
6-
RIGHT SOFT KEY
7-
POWER/TALK OFF Button
9
8-
CLEAR Button
Charge
Contact
Microphone
9-
INTERCOM Button
How to Use the Handset Soft Keys
3 soft keys are used to select functions displayed directly
above the keys.
Functions displayed above the keys will change depending
on the state of use.
For example, on the standby mode display, “
”,
“
”, “
” are displayed above the soft keys.
Example: Standby
Mode Display
To operate “
” (Phonebook),
press LEFT SOFT KEY.
To operate “
” (Menu), press
JOYSTICK directly as the middle soft
key.
To operate “
” (Redial), press
RIGHT SOFT KEY.
When “
” is displayed above a
soft key, the soft key will not work.
• To select only “
” (Menu), you can also select it
moving JOYSTICK up, down, left or right.
6
515E_E.book Page 7 Friday, June 27, 2003 2:23 PM
Location of Controls
Base Unit
Preparation
PAGE Button
LINE
Meanings of Icons above SOFT KEYS
Icon
Function
Icon
Function
Go Back
LetterWise®
Menu
Alphabet
Sub-Menu
Numeric
OK
Extended 1
Redial
Extended 2
Phonebook
Greek
New Phonebook
Russian
Search
Select
Key Lock
Pause
12/24 Hour Clock
Mute
Stop
Delete
No Function
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
7
515E_E.book Page 8 Friday, June 27, 2003 2:23 PM
Meanings of Symbols and Operations of Keys
Symbol
Meaning
Move JOYSTICK up, down, left or right.
e.g., Search the main menu.
e.g., OK
e.g., Display of menu items
Press JOYSTICK
directly in the centre.
Press Directly
In this example, the
desired item is
selected.
e.g., Redial
e.g., Standby Mode Display
Press RIGHT SOFT KEY.
In this example, the telephone number
last dialled is displayed.
e.g.,
Go Back
e.g., Display of menu items
Press LEFT SOFT KEY.
In this example, the display returns to the
previous menu.
has the same function.
Press POWER/TALK OFF Button.
Press this button for one or two times, then the display returns to
the standby mode any time.
To go to the next step.
“
”
The words in “
Ringing Phone
8
” indicate the words in the display.
515E_E.book Page 9 Friday, June 27, 2003 2:23 PM
Display
Display Icons
Preparation
Within range of a base unit
Out of range/No registration/
No power on base unit
Paging or Intercom/
While connecting with base unit
Making or answering calls
IN USE
H/set 1
Call Bar ON
Phonebook Mode
Answering System ON
Message indication
Battery strength
Direct Call ON
Ringer Volume OFF
New call (Caller ID only)
H/set 1 Handset Name (e.g., Handset 1)
SMS mail (text messages) indication
IN USE
The line is being used by another
handset (for additional handset users).
Main Menu Display
To go to the Main Menu, press JOYSTICK
directly in the centre (or move
)
while in the standby mode display. The selected menu icon is turned over, and its title is displayed.
Example: “Caller ID” is selected.
Caller ID
SMS
TAM Operation
Setting Handset
Caller ID
Setting Base
Walkie-Talkie
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
9
515E_E.book Page 10 Friday, June 27, 2003 2:23 PM
Setting up
Connection
Battery Charge
Do not connect the telephone line cord
to the phone socket 4 until the handset
is fully charged.
Plug in the AC adaptor and the telephone
line cord in order 1, 2, 3.
At the time of shipment, the batteries are
not charged. To charge, place the
handset on the base unit. Please charge
the batteries for about 7 hours before
initial use.
Hooks
Hook
LINE
1
2
Fasten the AC
adaptor cord to
prevent it from
being
disconnected.
4
3
• The AC adaptor must remain
connected at all times (It is normal for
the adaptor to feel warm during use).
• Never install telephone wiring during a
lightning storm.
• USE ONLY WITH Panasonic
AC ADAPTOR PQLV19E (Order No.
PQLV19EZ).
During charging, the charge LED will light
as shown below.
During charging
Fully charged
Red
Display icon
Green
Battery strength
Battery Installation
High
Please ensure the batteries are inserted
as shown.
part should be inserted first.
Close the cover as indicated by the arrow.
• When you replace the batteries, part
should be removed first.
Medium
Low
Needs to be
charged
The handset which power is off will be
turned on automatically when it is placed
on the base unit.
The handset will not operate while it is
on the base unit.
If you do not recharge the handset battery
for more than 15 minutes, the display will
flash
when the handset is lifted off
the base unit.
10
515E_E.book Page 11 Friday, June 27, 2003 2:23 PM
Setting up
Battery Information
Ni-MH Batteries (typical 700 mAh)
Operation
Operating Time
While in use (TALK)
10 hrs approx.
While not in use
(Standby)
120 hrs approx.
Ni-Cd Batteries (typical 250 mAh)
Operation
Operating Time
While in use (TALK)
4 hrs approx.
While not in use
(Standby)
40 hrs approx.
• Times indicated are for peak
performance.
• The battery operating time may be
shortened depending on usage
conditions and ambient temperature.
• Clean the charge contacts of the
handset and the base unit with a
soft, dry cloth once a month. Clean
more often if the unit is subject to
grease, dust or high humidity.
Otherwise the battery may not charge
properly.
• The batteries cannot be overcharged
unless they are repeatedly removed
and replaced.
• For maximum battery life, it is
recommended that the handset not be
recharged until the battery icon flashes
.
Replacing the
Batteries
If the
icon flashes after a few
telephone calls even when the handset
batteries have been fully charged, both
batteries must be replaced.
• Charge new batteries for
approximately 7 hours before initial
use.
(The telephone line cord must not be
connected to the telephone socket
at this time.)
• When replacing the batteries, be
sure to set up the battery type even
if you install the same type of
batteries to initialise battery
remaining memory of your handset.
(See Setting the Battery Type on
page 54.)
• Do not use non-rechargeable batteries.
If non-rechargeable batteries are fitted
and start charging, it may cause the
leakage of the battery electrolyte.
• Press the notch on the cover firmly and
slide it as indicated by the arrow.
Replace both batteries (p.10) and
close the cover then charge the
handset for about 7 hours.
Please order Panasonic
P03P (Ni-MH) or P03H (Ni-Cd)
batteries.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
11
Preparation
After your Panasonic battery is fully
charged:
515E_E.book Page 12 Friday, June 27, 2003 2:23 PM
Setting up
Power ON/OFF
Power ON
Power OFF
Press and hold
POWER.
When POWER is
released, the
display changes
to the standby
mode.
Press and hold
POWER.
The display goes
blank.
Selecting the Display Language
You can select one of 19 languages. The factory preset is English.
To exit the operation, press
at any time.
JOYSTICK
1 Press
(or move).
“
2 Select
Handset”.
“Select
4 Select
Language”.
the desired
5 Select
language.
Setting
“Display
3 Select
Option”.
• If you set a language you cannot read, reset the handset to its initial settings.
Press
Press
Move
Press
Move
Press
Press
Enter 4-digit Handset PIN (Factory Preset 0000)
Move
Move
Press
All handset settings will be reset to their initial settings (p.56), however, the
phonebook data will be saved.
12
515E_E.book Page 13 Friday, June 27, 2003 2:23 PM
Setting up
Setting the Date and Time
JOYSTICK
1 Press
(or move).
“
2 Select
Handset”.
the date
4 Enter
(see below).
the time
5 Enter
(see below).
Setting
“Set
3 Select
Time”.
icon is
Date/
6 Press JOYSTICK.
Example: To set 16 February, 2003, 7:15 pm.
Date
Day
Month
Time
Year
Hour
Minute
12/24 hour clock
To select 12/24 hour clock
Press RIGHT SOFT KEY repeatedly.
24 hour
clock
12 hour
clock (AM)
12 hour
clock (PM)
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
13
Preparation
After a mains power failure, the clock needs to be adjusted. Ensure that the
not flashing.
To exit the operation, press
at any time.
515E_E.book Page 14 Friday, June 27, 2003 2:23 PM
Using the Telephone
Making a Call
Pre-Dialling
Phone
1 Enter
Number.
Post-Dialling
2 Press TALK.
1 Press TALK.
Phone
2 Enter
Number.
• If you need to make a correction while entering the phone number when using PreDialling, press
. The digit is cleared to the left, then you can enter numbers. All
digits are cleared if you press and hold
.
• You can also press
to make a call.
Answering a Call
Terminating a Call
Press TALK.
Press TALK
OFF.
(During a call)
• You can also answer a call by pressing
Talk).
to
,
,
,
or
(Any Key
Auto Talk
If you set Auto Talk to ON, you can answer the call by lifting the handset off the base
unit. (See Setting Auto Talk ON/OFF on page 54.)
14
515E_E.book Page 15 Friday, June 27, 2003 2:23 PM
Using the Telephone
Receiver (or Headset Receiver)/Speaker Volume
The choices for the receiver (or headset receiver) volume are 3 levels, and 6 levels for
the speakerphone volume.
(During a call)
To increase volume, move the JOYSTICK up.
To decrease volume, move the JOYSTICK down.
Hands-free allows you to talk to your caller without holding the handset and allows other
persons in the room to listen to the conversation.
To Return to Receiver
(During a call)
Press
SPEAKERPHONE.
Press TALK.
• For best performance, please note the following:
- Talk alternately with the caller in a quiet environment.
- If either party has difficulty hearing, move the JOYSTICK up or down to change the
volume accordingly. The choices for the speakerphone volume are 6 levels.
Muting Your Conversation
During a call, you can mute your phone so the other party cannot listen to you. When
muting your conversation, you can hear the other party.
To Mute
To Return to the conversation
(During a call)
Press LEFT SOFT
KEY, then Icon
flashes.
Press once more.
Icon stops flashing.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
15
Cordless Telephone
Have a Hands-Free Phone Conversation (using
Digital Speakerphone)
515E_E.book Page 16 Friday, June 27, 2003 2:23 PM
Using the Telephone
Key Lock
You can lock the handset dialling buttons. Only incoming calls are accepted while the
key lock is ON. When the key lock is ON, the menu icon
changes to
.
When the key lock is ON, emergency calls (p.59) cannot be made until key lock is
cancelled.
Key Lock ON
Key Lock OFF
(Standby Mode
Display)
Press and hold
JOYSTICK directly
for more than 2
seconds.
Press and hold JOYSTICK directly for
more than 2 seconds once more.
Handset Locator/Paging
You can locate a misplaced handset by paging it.
Paging
<Base Unit>
<All Handsets>
All registered handsets ring for
1 minute.
Press PAGE.
To Stop Paging
<One of Handsets>
<Base Unit>
Press PAGE.
• You can also stop paging by pressing
16
Press TALK.
OR
to
,
,
,
,
or
.
515E_E.book Page 17 Friday, June 27, 2003 2:23 PM
Using the Telephone
Redialling
The last 10 numbers dialled are automatically stored in the redial list.
Dialling with the Redial List
1 Press RIGHT SOFT KEY.
for the desired
2 Search
dialled item.
3 Press TALK.
Dialling the Last Number Dialled
1 Press TALK.
2 Press RIGHT SOFT KEY.
Auto Redial
If you press
then
to redial and the dialled number is engaged, the unit will
automatically call back every 40 seconds, up to 12 times. When using Auto Redial, press
again after pressing
if the muting has not be cancelled.
Recall Feature
RECALL
is used to access special telephone services. Contact your network
provider for details. If your unit is connected to a PBX, pressing RECALL allows you to
access some features of your host PBX such as transferring an extension call.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
17
Cordless Telephone
• If there is no item stored in the redial list when pressing
, the display shows
“Memory Empty”.
• If the items are scrolled at the end when you search for the desired dialled item, an
end tone sounds.
• You can also press
to make a call.
• To save the numbers from the redial list into the phonebook, or to edit or delete from
memory, see pages 21 and 22.
515E_E.book Page 18 Friday, June 27, 2003 2:23 PM
Using the Telephone
Dialling Pause (for PBX line/long distance service
users)
A dialling pause is used when a pause in the dialling of a phone number is necessary
using a PBX or accessing a long distance service.
For example, when 0 (line access number) is dialled followed by a pause to access an
outside line through a PBX:
1 Press 0.
RIGHT SOFT
2 Press
KEY.
Phone
3 Enter
Number.
4 Press TALK.
0
• Entering a pause prevents misdialling when you redial or dial a stored number.
• Pressing RIGHT SOFT KEY more than once increases the length of the pause
between numbers.
• To change the pause time, see page 58.
Call Waiting
Call Waiting is a service of your network provider and will only operate if you have
subscribed to this service. You can answer the second call, keeping the first call on
hold.
(Call waiting tone
sounds during a call)
Press RECALL.
The first call is put on hold and
you can answer the second
call.
To Return to the First Caller
Press RECALL once more.
• If you subscribed to Caller ID and Call Waiting services, your handset displays a
second caller’s phone number while talking.
• If the phone number is stored in the phonebook with its name, the caller’s name will
also be displayed.
• Please consult your Network provider for details of this service.
18
515E_E.book Page 19 Friday, June 27, 2003 2:23 PM
Caller ID
Caller ID Service
Caller ID is a service of your Network provider and will only operate if you have
subscribed to this service.
After subscribing to Caller ID, this phone will display the caller information.
If your unit is connected to a PBX or a telephone line that does not support this service,
you will not be able to use it.
Standby Mode Display
When new calls have been received, the display shows the
number of calls.
In the example on the left, 10 new calls have been received.
H/set 1
10 Calls
Making a Call from the Caller ID List
The last 50 caller’s phone numbers are stored in the order the calls were received. When
the 51st call is received, the oldest caller information is cleared. If the caller's name has
been stored with the number in the phonebook (see Storing Caller Information on
page 24), the caller’s name will also be displayed.
To exit the operation, press
at any time.
1 Press JOYSTICK (or move).
2 Select “
newest caller information is
3 The
displayed.
for the
4 Search
desired item.
Caller ID”.
5 Press TALK.
Time Received
Date Received
Name
Tel No.
17.8
14:59
JOHN SMITH
0123456789
• You can also press
to make a call.
• “ ” indicates you have already viewed this caller information, or answered the call.
• If the caller has requested not to display his/her information, the display shows
“Private Caller”.
• If the caller dialled from an area which does not provide Caller ID service, the display
shows “Out of Area”.
• If the items are scrolled at the end when you search for the desired item, an end tone
sounds.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
19
Cordless Telephone
17.8 14:59
515E_E.book Page 20 Friday, June 27, 2003 2:23 PM
List Menu
Caller ID List Menu
You can save the numbers from the Caller ID list into the Phonebook, and you can edit
(for calling) or delete item(s) in the Caller ID List.
To exit the operation, press
at any time.
JOYSTICK
1 Press
(or move).
“
2 Select
ID”.
Caller
the desired
3 Select
item.
Go to step 4.
• If the items are scrolled at the end when you search for the desired item, an end tone
sounds.
• If there is no item stored in the caller list when “Caller ID” is selected, the display
shows “Memory Empty”.
Storing the Number in the Phonebook
Follow steps 1 to 3 shown above, then:
“Save
4 Select
Phonebook”.
Name (p.26).
5 Enter
(max. 16 characters)
JOYSTICK
6 Press
twice.
twice
desired category
7 Select
or “Off” (p.23).
“Save”, then
8 Select
“Saved” is displayed.
Editing the Received Number for Calling
Follow steps 1 to 3 shown above, then:
“Edit for
4 Select
Call”.
Phone
5 Edit
Number.
TALK or press
6 Press
JOYSTICK to call.
(max. 24 digits)
OR
• You can also press
20
to make a call.
515E_E.book Page 21 Friday, June 27, 2003 2:23 PM
List Menu
Deleting One/All Caller ID Item(s)
Follow steps 1 to 3 on the previous page, then:
4 Select “Delete” or “Delete
All”.
“Yes”, then “Deleted” is
5 Select
displayed.
Redial List Menu
1 Press RIGHT SOFT KEY.
2 Select the desired item.
Go to step 3.
• If there is no item stored in the redial list when pressing
“Memory Empty”.
, the display shows
Storing the Number in the Phonebook
Follow steps 1 and 2 shown above, then:
“Save
3 Select
Phonebook”.
Name (p.26).
4 Enter
(max. 16 characters)
JOYSTICK
5 Press
twice.
twice
desired category
6 Select
or “Off” (p.23).
“Save”, then
7 Select
“Saved” is displayed.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
21
Cordless Telephone
You can save the numbers from the redial list into the Phonebook, and you can edit (for
calling) or delete item(s) in the redial list.
To exit the operation, press
at any time.
515E_E.book Page 22 Friday, June 27, 2003 2:23 PM
List Menu
Editing the Dialled Number for Calling
Follow steps 1 and 2 on the previous page, then:
“Edit for
3 Select
Call”.
Phone
4 Edit
Number.
TALK or press
5 Press
JOYSTICK to call.
(max. 24 digits)
OR
• You can also press
to make a call.
Deleting One/All Redial Item(s)
Follow steps 1 and 2 on the previous page, then:
3 Select “Delete” or “Delete
22
All”.
“Yes”, then “Deleted” is
4 Select
displayed.
515E_E.book Page 23 Friday, June 27, 2003 2:23 PM
Using the Phonebook
You can store up to 200 caller information in the handset phonebook and up to 20 caller
information in the base unit phonebook. If you subscribed to Caller ID and you received
a call from the same phone number you stored with name in the phonebook, the display
will show the caller’s name.
Private Category Feature
Private
Category No.
Ringer LED Colour*
Private
Ringer Type
Category
Name
1
3
Friends
3
2
Customers
Green
Orange
Red
* The factory preset LED colour is green.
• The unit will indicate an incoming call using the factory preset LED colour (green) and
the ringer pattern assigned to external calls (p. 48) momentarily until Caller ID
information is received from the network provider.
Audible Caller ID
To use this feature, you need to subscribe to Caller ID service. For further information,
please contact your network provider. You need to store caller information and to record
the name into the base unit phonebook (p. 25).
When a call comes in, the unit will ring and the caller information will be received. If you
receive a call from one of the same phone numbers stored in the base unit phonebook,
the recorded name will be announced.
• If the ringer volume of the handset is OFF, recorded names will not be announced.
Announcement volume depends on the handset ringer setting (p.48).
• Your unit may mute one or more of rings in order to announce the name of the caller,
as announcement is prior to rings.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
23
Cordless Telephone
You can categorise caller information in the phonebook. There are 9 categories
available. For example, category 1 can be used to save all friends numbers. For each
category, you can rewrite the category names (max. 10 digits: see Changing the
Category Name on page 50), you can select one of 3 Ringer LED colours (see Setting
the Private Colour on page 50) and one of 15 ringer types (see Ringer Options on
page 47).
This feature is only available after subscribing to Caller ID Service. Please contact
your network provider for further information.
Example
515E_E.book Page 24 Friday, June 27, 2003 2:23 PM
Using the Phonebook
Storing Caller Information
To exit the operation, press
at any time.
Handset Phonebook
LEFT SOFT
1 Press
KEY.
2 Press JOYSTICK.
“H/set
3 Select
Phonebook”, then
Name (p.26).
4 Enter
(max. 16 characters)
5 Press JOYSTICK.
7 Press JOYSTICK.
desired
8 Select
category or “Off”.
the display shows the
number of empty
phonebook entries.
Phone Number.
6 Enter
(max. 24 digits)
“Save”, then
9 Select
“Saved” is displayed.
• If “Memory Full” is displayed when you press
, the phonebook is full. To store,
delete other stored items in the phonebook.
• To continue storing other caller information, repeat from step 4.
24
515E_E.book Page 25 Friday, June 27, 2003 2:23 PM
Using the Phonebook
Base Unit Phonebook
To use an Audible Caller ID feature (p.23), you must store caller information into the
base unit phonebook.
Follow steps 1 and 2 on the previous page, then:
“Base
3 Select
Phonebook”, then
Name (p.26).
4 Enter
(max. 16 characters)
5 Press JOYSTICK.
7 Press JOYSTICK.
“Start
8 Select
Recording”.
the display shows the
number of empty
phonebook entries.
the name
9 Record
within 1 minute.
10 Press JOYSTICK.
“Save”, then
11 Select
“Saved” is displayed.
• If you don’t use Audible Caller ID feature, select “Skip Recording” at step 8 and
go to step 11.
Copying an Item from Handset Phonebook to Base Unit Phonebook
Press INTERCOM
Move
Press
to select the desired item
Press
Press
to select “Copy to Base”
(“Copy Complete” is displayed.)
To use the Audible Caller ID feature, record the name (see Editing a Caller Information
on page 28).
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
25
Cordless Telephone
Phone Number.
6 Enter
(max. 24 digits)
515E_E.book Page 26 Friday, June 27, 2003 2:23 PM
Using the Phonebook
Entering Names/Characters
Keys
Operations
Move the JOYSTICK up, down, left or right to move the cursor.
0
to
9
Press to enter letters/numbers. (Items are added to the left of the
cursor. If the cursor is at the beginning of a line, the item is added
at the beginning.)
Press to delete characters. (Character on the cursor is deleted. To
delete all characters, press and hold.)
Press to change between upper and lower case.
0
Press to insert a blank space (except when in Numeric input
mode).
1
Press to insert a symbol (
input mode).
x
, #, /, etc.) (except when in Numeric
Selecting the Input Mode
You can select one of 7 input modes by pressing RIGHT SOFT KEY while entering a
name. The function icon above the key displays the current input mode. The factory
preset is “LetterWise®”. LetterWise® is a simplified text entry system. This system
suggests to the user the most likely letter to follow the text entered previously. To enter
texts in this mode, see page 35.
For the full character map, see Phonebook Character Table (see page 89).
To switch the input mode while editing the name in the phonebook, press RIGHT SOFT
KEY.
LetterWise®
Alphabet
Numeric
Greek
Extended 1 Extended 2
Russian
• If LetterWise® is selected, select a language you require (see page 54).
Example (Alphabet Mode)
Enter the name using the letters on the keypad. For example, to enter “Anne” in Alphabet Mode:
2
26
6
6
6
6
3
3
515E_E.book Page 27 Friday, June 27, 2003 2:23 PM
Using the Phonebook
Finding Items in the Phonebook
All phonebook items are stored in the following order: Alphabet letter/Symbol/Number/
Telephone Number (when a name is not stored).
To exit the operation, press
at any time.
1 Press LEFT SOFT KEY.
JOYSTICK up or down to
2 Move
search for the desired item.
twice on step 1.
Searching for a Name by Initial
Example: To find “Felix”
LEFT SOFT
1 Press
KEY.
3 repeatedly
2 Press
until the first item
JOYSTICK down
3 Move
until “Felix” is displayed.
under “F” is displayed.
3
Searching by Private Category
LEFT SOFT
1 Press
KEY.
RIGHT SOFT
2 Press
KEY.
the desired
4 Select
category.
the desired
5 Select
item to display.
3 Select “Category”.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
27
Cordless Telephone
• When finding items in the Base Unit phonebook , press
515E_E.book Page 28 Friday, June 27, 2003 2:23 PM
Using the Phonebook
Searching by Index Search Mode
Example: To find “ΣΟΦΙΑ” (SOPHIA).
1 Press LEFT SOFT KEY.
RIGHT SOFT
2 Press
KEY.
“Index
3 Select
Search”.
RIGHT SOFT KEY
4 Press
repeatedly until the
the desired
5 Select
initial character “Σ”.
the
6 Move
JOYSTICK down
desired input mode
(Greek) appears.
until “ΣΟΦΙΑ” is
displayed.
• When finding items in the Base Unit phonebook , press
twice on step 1.
Dialling from the Phonebook
LEFT SOFT
1 Press
KEY.
the desired
2 Select
item (see above or
TALK or
3 Press
SPEAKERPHONE.
previous page).
• When finding items in the Base Unit phonebook , press
OR
twice on step 1.
Editing a Caller Information
To exit the operation, press
LEFT SOFT
1 Press
KEY.
at any time.
2 Select the desired item.
3 Select “Edit”.
handset phonebook: Go to step 4 on page 24.
4 For
For base unit phonebook: Go to step 4 on page 25.
• When finding items in the Base Unit phonebook , press
twice on step 1.
• To continue editing other caller information, repeat from step 2.
28
515E_E.book Page 29 Friday, June 27, 2003 2:23 PM
Using the Phonebook
Deleting Caller Information
To exit the operation, press
LEFT SOFT
1 Press
KEY.
at any time.
the desired
2 Select
item.
3 Select “Delete”.
“Yes”, then
4 Select
“Deleted” is displayed.
Cordless Telephone
• When finding items in the Base Unit phonebook , press
twice on step 1.
• To continue deleting other caller information, repeat from step 2.
• If there are no item stored in the phonebook when selecting the desired item, the
display shows “Memory Empty”.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
29
515E_E.book Page 30 Friday, June 27, 2003 2:23 PM
Using the Phonebook
Hot Keys
You can assign the dialling buttons
phone numbers from the phonebook.
To exit the operation, press
through
as hot keys. You can choose 9
at any time.
Registering a Phone Number as a Hot Key
LEFT SOFT
1 Press
KEY.
the desired
2 Select
item.
the desired
4 Select
dialling button
“Save”, then
5 Select
“Saved” is displayed.
“Reg.
3 Select
Hot Key”.
to
number.
• If there is no item stored in the phonebook when searching for the desired item, the
display shows “Memory Empty”.
• If an item is already stored to a hot key, “ ” will be displayed on the left of the key
number. If a hot key number with “ ” is selected, press “
” to select “Overwrite”.
Dialling with a Hot Key
and hold the dialling button
1 Press
registered as a hot key until a phone
2 Press TALK or SPEAKERPHONE.
number is displayed.
OR
Deleting the Hot Key Registration
and hold the
1 Press
dialling button
2 Press JOYSTICK.
3 Select “Delete”.
registered as a hot key
until a phone number
is displayed.
“Yes”, then
4 Select
“Deleted” is displayed.
• Phonebook registration will not be erased when hot key registration is deleted.
30
515E_E.book Page 31 Friday, June 27, 2003 2:23 PM
SMS Feature (Text Message)
You can send and receive text messages between other fixed and mobile phones that
also support a compatible SMS feature and network.
The SMS feature is only available after subscribing to Caller ID.
Please note the following instructions when sending text messages between fixed lines
and all mobile networks.
To Send a Text Message from Fixed Line to Fixed Line
There are no special requirements when sending a text message between fixed lines.
Please follow the instructions under Writing and Sending New Messages.
To Send a Text Message from Fixed Line to Mobile
There are no special requirements when sending a text message between fixed line and
mobile. Please follow the instructions under Writing and Sending New Messages. To
enable the person receiving your message to reply, the server will insert your telephone
number, within hash symbols, at the very end of your message. E.g. #01234 567899#.
Please note: If you have used up the full 160 characters for your text message, your
telephone number will overwrite the last letters of your message.
To Send a Text Message from Mobile to Fixed Line
There are special requirements when sending a text message from a mobile to a fixed
line. If the mobile sender is unaware of the fixed line SMS providers requirements for
sending a text message to a fixed line, please inform them of the following procedures.
Example: A Mobile is Replying to a Fixed Line Text Message
- Select reply to message.
- Input your text message.
- Within the text message, enter the fixed line phone number.
The number can be added anywhere within the message but it must be entered with
a hash at the beginning and the end of the number.
E.g. #01234 567899#
- Select send.
Example: Mobile is Writing/Sending a New Text Message to a Fixed Line
- Input your text message.
- Within the text message, enter the fixed line phone number.
The number can be added anywhere within the message but it must be entered with
a hash at the beginning and the end of the number.
E.g. #01234 567899#
- Send the message (including number) to Big Mobile on: 07786 201010.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
31
Cordless Telephone
Before sending your first text message, or to find out more information on SMS conditions and
registration, please read your SMS Conditions (Text Messaging) for Bizzyline (Direct) Ltd.
If you have any questions relating to the SMS Terms and Conditions, please call
09063020069. Calls are charged at 50p per minute. The helpdesk is open from 9.00am5.30pm (Mon-Fri).
The SMS Network Provider described in these Operating Instructions is not available within
the Republic of Ireland.
For further information, please contact the Customer Care Helpline No.: R.O.I. 01289 8333
515E_E.book Page 32 Friday, June 27, 2003 2:23 PM
SMS Feature (Text Message)
Writing and Sending New Messages
To exit the operation, press
at any time.
JOYSTICK
1 Press
(or move).
2 Select “
3 Select “Create”.
Message.
4 Enter
(p.34)
JOYSTICK, then
5 Press
“Destination” is displayed.
SMS”.
Go to step 6.
Entering a Number Manually
Follow steps 1 to 5 shown above, then:
Phone Number.
6 Enter
(max. 20 digits)
Press JOYSTICK.
Go to step 7 on the next page.
Entering a Number from the Phonebook
Follow steps 1 to 5 shown above, then:
LEFT SOFT
6 Press
KEY.
Select the desired item (p.27).
twice
Go to step 7 on the next page.
32
515E_E.book Page 33 Friday, June 27, 2003 2:23 PM
SMS Feature (Text Message)
Entering a Number from the Caller ID List
Follow steps 1 to 5 on the previous page, then:
6 Select the desired item.
twice
Go to step 7.
Entering a Number from the Redial List
RIGHT SOFT
6 Press
KEY.
Select the desired item.
twice
Go to step 7.
Follow steps 1 to 6 on the previous page and above, then:
is displayed, then select
7 “Save?”
“Yes” or “No”. (If “Yes” is selected,
8 Select “Send”.
“Saved Message” is displayed.)
• “Sending Message” is displayed after step 8. The display returns to the standby
mode, then “Transferring Message” is displayed.
• If the base unit does not have sufficient memory to send a message, the display will
show “SMS lists are memory full. Delete messages.”. The unit will then
return to the function menu.
• Once you have created a SMS message, the unit will display “WUse Last Text?”
each time you select “Create”. If you want to use the text of the last message sent
once again, move the JOYSTICK up to recall the last message.
• If you try to send a message using a phone number (Destination) over 20 digits long
from one of the Phonebook, Caller ID or Redial lists, “Invalid Number” is displayed
and the display returns to “<Enter Phone No>”.
• The maximum message length is 160 characters. Please consult your SMS service
provider for further details.
• 69 messages can be memorized when you enter 80 characters/1 message.
• If your phone is connected to PBX (Private Branch eXchange: private branch
exchange), see page 42 to enter the destination number.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
33
Cordless Telephone
Follow steps 1 to 5 on the previous page, then:
515E_E.book Page 34 Friday, June 27, 2003 2:23 PM
SMS Feature (Text Message)
Text Entry
Keys
Operations
Move JOYSTICK up, down, left or right to move the cursor.
0
to
9
Press to enter letters/numbers. (Items are added to the left of the
cursor. If the cursor is at the beginning of a line, the item is added
at the beginning.)
Press to delete characters. (Character on the cursor is deleted. To
delete all characters, press and hold.)
Press to switch between upper and lower case.
0
Press to insert a blank space (except when in Numeric input
mode).
1
Press to insert a symbol (
input mode).
x
, #, /, etc.) (except when in Numeric
Selecting the Input Mode
There are 5 text input modes: LetterWise® (default mode), Alphabet (ABC), Numeric (09), Greek (ΑΒΓ) and Extended (AÄÅ). The function icon above the key displays the
current input mode. For the full character map, see SMS Character Table (p.90).
To change the input mode while inputting a message, press RIGHT SOFT KEY.
LetterWise®
Alphabet
Numeric
Greek
Extended
• If LetterWise® (see next page) is selected, select a language you require (see page
54).
34
515E_E.book Page 35 Friday, June 27, 2003 2:23 PM
SMS Feature (Text Message)
Entering Text in LetterWise® Mode
LetterWise® is the default input mode. LetterWise® is a simplified text entry system.
This system suggests to the user the most likely letter to follow the text entered
previously.
Inserting Operations
Enter letters by pressing
-
.
If the letter displayed is not correct, change the letter by pressing
times).
(possibly several
To insert symbols, use
. If the symbol you want does not appear, press
repeatedly until the required symbol appears.
Example (When the language choice is English.)
To enter “hello”.
1 Press
2 Press
to change to the small letter.
4 . “i” is the most frequent first letter of a word.
to display the next candidate letter. “h” is the
3 Press
second most frequent letter.
4 Press
. “e” is most frequent letter.
5 Press
. “l” is most frequent letter.
6 Press
. “l” is most frequent letter.
7 Press
. “o” is most frequent letter.
<Enter Message>
i
h
he
hel
hell
hello
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
35
Cordless Telephone
Continue writing the word always checking that the letters displayed are correct and
change them if necessary.
515E_E.book Page 36 Friday, June 27, 2003 2:23 PM
SMS Feature (Text Message)
Reading/Displaying a Message in the Outgoing List
You can display messages saved in date/time order.
To exit the operation, press
at any time.
Reading/Displaying a message
JOYSTICK
1 Press
(or move).
2 Select “
the desired
4 Select
message.
through the
5 Scroll
message to read/display.
SMS”.
3 Select “Send
List”.
6 Press JOYSTICK.
Go to step 7.
Sending a message
Follow steps 1 to 6 shown above, then:
7 Select “Send”.
Follow steps from 6 of Writing and Sending New
Messages (p.32, 33).
Deleting a message
Follow steps 1 to 6 shown above, then:
7 Select “Delete”.
8 Select “Yes”, then “Deleted” is displayed.
• You can also delete by pressing
then selecting “Yes” on step 4.
Editing a message
Follow steps 1 to 6 shown above, then:
7 Select “Edit Message”.
36
Follow steps from 4 of Writing and Sending New
Messages (p.32, 33).
515E_E.book Page 37 Friday, June 27, 2003 2:23 PM
SMS Feature (Text Message)
Receiving a Text Message
When a message has been received, the
display will show the following and a tone
will sound.
Receiving
New SMS
H/set 1
1 SMS
17.8 14:59
The number indicates how many mails were received.
When the SMS message memory is full, “Full” is displayed.
No messages can be received if the memory is full.
Cordless Telephone
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
37
515E_E.book Page 38 Friday, June 27, 2003 2:23 PM
SMS Feature (Text Message)
Reading/Displaying a Message in the Incoming List
To exit the operation, press
at any time.
1 Press JOYSTICK (or move).
3 Select “Receive
2 Select “
SMS”.
List”.
New
Total
2
10
the JOYSTICK down.
4 •Move
The most recent sender’s details are
displayed.
• If the name and number have been
stored in the phonebook, the name is
also displayed.
• You can delete a message by
pressing
then selecting “Yes”.
5 Select the desired message.
Date Received
17.8
14:59
JOHN SMITH
0123456789
Time Received
Name
Tel. No.
through the message to read/
6 Scroll
display.
Go to step 7 on pages 39 and 40.
• If there is a “ ” icon placed against the time, this means the message has been read
or displayed previously.
• If the list is accessed and no messages have been received, “Receive List
Memory Empty” is displayed.
• If the base unit does not have sufficient memory to receive a message, the display will
show “SMS lists are memory full. Delete messages.”.
• Certain SMS service providers may attach a 1-digit number to the sender’s phone
number, the name will not be displayed even if the name and number have been
stored in the phonebook.
38
515E_E.book Page 39 Friday, June 27, 2003 2:23 PM
SMS Feature (Text Message)
Replying to a message
Follow steps 1 to 6 on the previous page, then:
7 Press JOYSTICK.
JOYSTICK
10 Press
twice.
8 Select “Reply”.
9 Enter Message.
is displayed,
“Saved Message” is
11 “Save?”
12 displayed,
then select “Yes”.
then select
“Send”.
• “Sending Message” is displayed. The display returns to the standby mode, then
“Transferring Message” is displayed.
• If the base unit does not have sufficient memory to send a message, the display will
show “SMS lists are memory full. Delete messages.”.
Deleting a message
Follow steps 1 to 6 on the previous page, then:
7 Press JOYSTICK.
8 Select “Delete”.
“Yes”, then
9 Select
“Deleted” is displayed.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
39
Cordless Telephone
twice
515E_E.book Page 40 Friday, June 27, 2003 2:23 PM
SMS Feature (Text Message)
Editing a message
Follow steps 1 to 6 on page 38, then:
7 Press JOYSTICK.
“Edit
8 Select
Message”.
steps 4 to 8 of
9 Follow
Writing and
Sending New
Messages (p.32, 33).
Storing the Sender’s Phone Number in the Phonebook
Follow steps 1 to 6 on page 38, then:
7 Press JOYSTICK.
“Save
8 Select
Phonebook”.
steps from 4
9 Follow
to 9 of Storing Caller
Information (p.24).
Editing the sender’s Phone Number for Call
Follow steps 1 to 6 on page 38, then:
7 Press JOYSTICK.
Phone Number.
9 Edit
(max. 24 digits)
8 Select “Edit
for Call”.
JOYSTICK, TALK or
10 Press
SPEAKERPHONE.
OR
Calling the Message Sender
Follow steps 1 to 5 (or 4) on page 38, then:
6 Press TALK or SPEAKERPHONE.
OR
40
OR
515E_E.book Page 41 Friday, June 27, 2003 2:23 PM
SMS Feature (Text Message)
Changing the SMS Message Centre Numbers
To send and receive SMS text messages, you need your SMS Message Centre
telephone numbers. Two numbers have been preset in your phone.
The phone number for SMS Message Centre 1 is used to SEND text messages while
the number for Message Centre 2 is used to RECEIVE text messages.
You can change the preset numbers if required.
To exit the operation, press
at any time.
2 Select “
4-digit Base Unit
4 Enter
PIN.
Message Centre
5 Select
1 or 2.
SMS”.
(Factory Preset 0000)
7 Press JOYSTICK.
3 Select
“Parameters”.
the current
6 Erase
number by
pressing
,
then enter the
new Message
Centre number.
“Save”, then
8 Select
“Saved” is displayed.
For your reference, these are the numbers that have been preset in your phone.
Message Centre 1: 0911 023 5029
Message Centre 2: 0161274599
• If your phone is connected to a PBX, you need to add the PBX line access number
(and a dialling pause) only to the Message Centre 1 phone number.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
41
Cordless Telephone
JOYSTICK
1 Press
(or move).
515E_E.book Page 42 Friday, June 27, 2003 2:23 PM
SMS Feature (Text Message)
Setting the PBX Line Access Number
This feature is only for the phones connected to a PBX. This allows you to delete
automatically the PBX line access number (max. 4 digits) when you enter the destination
phone number of an SMS outgoing message from Phonebook, Redial or Caller ID lists.
To exit the operation, press
at any time.
JOYSTICK
1 Press
(or move).
2 Select “
SMS”.
3 Select “Parameters”.
4-digit Base
4 Enter
Unit PIN.
5 Select “PBX
Prefix”.
6 Select “On”.
(Factory Preset
0000)
Line Access
7 Enter
Number.
8 Press JOYSTICK.
“Save”, then
9 Select
“Saved” is displayed.
(max. 4 digits)
Turning the SMS Feature On/Off
To exit the operation, press
at any time.
JOYSTICK
1 Press
(or move).
2 Select “
SMS”.
3 Select
“Parameters”.
4-digit Base Unit
4 Enter
PIN.
5 Select “SMS
On/Off”.
“On” or
6 Select
“Off”.
(Factory Preset 0000)
When the SMS feature is turned off;
• If you send a message, a tone sounds and the message will return to the SMS incoming
list with “FD” attached.
• If you receive from SMS centre call, the message will not be received but SMS centre
phone number will remain in the Caller ID list.
• If you turn the SMS feature on, the unit will begin ringing (one ring) after other
connected telephones.
• The factory preset is “On”.
42
515E_E.book Page 43 Friday, June 27, 2003 2:23 PM
Settings Menu Chart
Handset Settings Menu Chart
1st Menu
Setting Handset
2nd Menu
3rd Menu
Set Date/Time
Memo Alarm
Ringer Option
Ringer Volume
EXT Ringer Type
INT Ringer Type
Cordless Telephone
Paging Tone
Private Ring
Tone Option
Key Tone
Display Option
Standby Display
Talk Display
Select Language
Private Colour
Category Name
Call Option
Call Bar
Direct Call No.
Direct On/Off
Registration
Register H/set
Cancel Base
Select Base
Auto
Base 1
Base 4
Other Option
Change H/S PIN
Change H/S Name
Auto Talk
LetterWise
Battery Type
Reset Handset
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
43
515E_E.book Page 44 Friday, June 27, 2003 2:23 PM
Settings Menu Chart
Base Unit Settings Menu Chart
1st Menu
Setting Base
2nd Menu
3rd Menu
Ringer Option
Ringer Volume
Call Option
Recall
Pause Time
Emergency Call
Call Restricted
Cancel Handset
Other Option
Change Base PIN
Reset Base
44
515E_E.book Page 45 Friday, June 27, 2003 2:23 PM
Handset Settings
Memo Alarm
Set the date and time before setting the memo alarm (see page 13).
To exit the operation, press
at any time.
1 Press JOYSTICK (or move).
2 Select “
3 Select “Memo
the desired alarm number
4 Select
(1 -3).
Alarm”.
Setting Handset”.
Setting the Alarm Mode “Once” or “Daily”
Follow steps 1 to 4 shown above, then:
“Once” or
5 Select
“Daily”.
Enter the
6 “Once”:
date and time.
7 Press JOYSTICK.
“Daily”: Enter
time.
a memo
8 Enter
message (max. 32
the desired
9 Select
ringer pattern.
Select “Save”, then
10 “Saved”
is displayed.
characters) then press
JOYSTICK.
• When setting the time, remember to select 12 or 24 hour clock (see page 13).
• Memo Alarm volume depends on handset ringer volume. Even if you set ringer to off,
only Memo Alarm still rings.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
45
Cordless Telephone
Go to step 5.
515E_E.book Page 46 Friday, June 27, 2003 2:23 PM
Handset Settings
Setting the Alarm “Off”
Follow steps 1 to 4 on the previous page, then:
5 Select “Off”.
6 Select “Save”, then “Saved” is displayed.
• The factory preset is “Off”.
• To delete the displayed memo alarm, press
then select “Yes” on step 4.
To Stop the Alarm
(The Alarm sounds: Max. 3 minutes)
Press
• You can also stop the alarm by pressing
,
.
,
to
,
,
or
• If “Once” is selected, the setting is turned off. When in talk or intercom mode, the
alarm will not sound until the call is ended.
46
.
515E_E.book Page 47 Friday, June 27, 2003 2:23 PM
Handset Settings
Ringer Options
There are 15 ringer patterns available on each ringer. “Ringer 1” to “Ringer 6” are
the bell ringer patterns. “Ringer 7” to “Ringer 15” are the preset melody patterns as
below. The music data in this product belongs to M-ZoNE Co., Ltd.
To exit the operation, press
at any time.
Ringer No.
Ringer Pattern or Name
Ringer Pattern 1 to 6: Bell Patterns
Ringer Pattern 7 to 15: Preset Melody Patterns
Symphony No.5 in C minor
8
Air on G String
9
Wholetemperiere Clavier 1 Teil No 1 Fuga Das
10
Fantaisie Impromptu
11
Allegro Spring/The Four Seasons
12
Also Sprach Zarathustra
13
Liebestraum
14
Polovetsian Dance
15
24 Caprices
*
* © 2003 M-ZoNE Co., Ltd.
• If you select one of the melody ringer patterns, the phone will ring for 10 seconds even
if a caller has hung up. Therefore, you may hear a dial tone or no one on the line after
you answer a call.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
47
Cordless Telephone
7
515E_E.book Page 48 Friday, June 27, 2003 2:23 PM
Handset Settings
Setting the Ringer Volume
The choices are 6 levels and off. If you set the volume to OFF, “ ” is displayed,
however, still the volume of a paging and intercom call are level 1.
JOYSTICK
1 Press
(or move).
“
2 Select
Handset”.
“Ringer
4 Select
Volume”
increase volume, move
5 To
the JOYSTICK up.
.
Setting
“Ringer
3 Select
Option”.
6 Press
JOYSTICK.
To decrease volume,
move the JOYSTICK
down.
• The factory preset is 6.
Selecting the Ringer Pattern for External Call/Internal Call/Paging
Follow steps 1 to 3 shown above, then:
“EXT Ringer Type”, “INT
4 Select
Ringer Type” or “Paging Tone”.
5 Select the desired ringer pattern.
• The factory preset is 1.
Selecting the Ringer Pattern for Private Ring
Follow steps 1 to 3 shown above, then:
“Private
4 Select
Ring”.
the desired
5 Select
category.
• The factory preset of each ringer pattern is 1.
48
the desired
6 Select
ringer pattern.
515E_E.book Page 49 Friday, June 27, 2003 2:23 PM
Handset Settings
Setting the Handset Key Tone ON/OFF
You can turn the key tone on/off.
To exit the operation, press
at any time.
“
2 Select
Handset”.
JOYSTICK to
4 Press
select “Key Tone”.
5 Select “On” or “Off”.
Setting
“Tone
3 Select
Option”.
Cordless Telephone
JOYSTICK
1 Press
(or move).
• The factory preset is “On”.
Display Options
To exit the operation, press
JOYSTICK
1 Press
(or move).
at any time.
“
2 Select
Handset”.
Setting
“Display
3 Select
Option”.
Go to step 4.
Selecting the Standby Mode Display
Follow steps 1 to 3 shown above, then:
4 Select “Standby
Display”.
“Base Number”, “Handset
5 Select
Name” or “Off”.
• The factory preset is “Handset Name”.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
49
515E_E.book Page 50 Friday, June 27, 2003 2:23 PM
Handset Settings
Selecting the Talk Mode Display
Follow steps 1 to 3 of Display Options on the previous page, then:
4 Select “Talk
Display”.
“Talk
5 Select
Number”.
Time” or “Phone
• Even if you select “Phone Number”, the length of the call will appear on your display
when you receive calls.
• The factory preset is “Talk Time”.
Setting the Private Colour
Follow steps 1 to 3 of Display Options on the previous page, then:
4 Select “Private
Colour”.
5 Select the desired category.
Private Colour “Green”, “Red” or
6 Select
“Orange” for each category.
• The factory preset is “Green”.
• When you select the private colour on step 6, the Ringer LED will flash at the selected
colour.
Changing the Category Name
Follow steps 1 to 3 of Display Options on the previous page, then:
4 Select “Category
Name”.
Category Name.
6 Edit
(max. 10 characters: p. 26)
50
5 Select the desired category.
7 Press JOYSTICK.
515E_E.book Page 51 Friday, June 27, 2003 2:23 PM
Handset Settings
Call Options
To exit the operation, press
JOYSTICK
1 Press
(or move).
at any time.
“
2 Select
Handset”.
Setting
“Call
3 Select
Option”.
Go to step 4.
Follow steps 1 to 3 shown above, then:
4 Select “Call
Bar”.
4-digit Handset
5 Enter
PIN.
6 Select “On” or “Off”.
(Factory Preset
0000)
• While the Call Bar mode is turned on, “
” is displayed.
Setting the Direct Call Number
After a direct call number has been set and the feature has been turned on, you can dial
the direct call number only by pressing
or
. Incoming calls are able to be
accepted.
Follow steps 1 to 3 shown above, then:
“Direct Call
4 Select
No.”.
Direct Call
5 Enter
Number.
6 Press JOYSTICK.
(max. 24 digits)
7 Select “Save”.
8 Select “On”.
• While the direct call mode is turned on, “
” is displayed.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
51
Cordless Telephone
Call Bar On/Off
When this feature is set to ON, outgoing calls cannot be made. Intercom calls and calls
to numbers assigned as emergency numbers can be made (see Setting the
Emergency Calls on page 59).
515E_E.book Page 52 Friday, June 27, 2003 2:23 PM
Handset Settings
Setting the Direct Call ON/OFF
Follow steps 1 to 3 on the previous page, then:
4 Select “Direct
On/Off”.
5 Select “On” or “Off”.
• If the direct call mode is turned off, “
” will disappear.
• If you did not set the Direct Call Number, “Enter Phone No” will be displayed. Enter
the number then press
52
twice.
515E_E.book Page 53 Friday, June 27, 2003 2:23 PM
Handset Settings
Other Options
To exit the operation, press
JOYSTICK
1 Press
(or move).
at any time.
“
2 Select
Handset”.
Setting
“Other
3 Select
Option”.
Go to step 4.
Once you have programmed the handset PIN, you cannot confirm it. We recommend
you write down the handset PIN. If you forget it, please consult our Panasonic
Customer Care Helpline. U.K. 08700 100 076 R.O.I. 01289 8333
Follow steps 1 to 3 shown above, then:
4 Select “Change
H/S PIN”.
6 Enter new 4-digit Handset PIN.
5 Enter current 4-digit Handset PIN.
new 4-digit Handset PIN again
7 Enter
to verify.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
53
Cordless Telephone
Changing Handset PIN (Personal Identification Number)
The factory preset is 0000.
515E_E.book Page 54 Friday, June 27, 2003 2:23 PM
Handset Settings
Changing Handset Name
Follow steps 1 to 3 on the previous page, then:
“Change
4 Select
Name”.
H/S
Handset Name.
5 Edit
(max. 10 characters)
6 Press JOYSTICK.
Setting Auto Talk ON/OFF
Follow steps 1 to 3 on the previous page, then:
4 Select “Auto
Talk”.
5 Select “On” or “Off”.
• The factory preset is “Off”.
Changing the LetterWise® Language
Follow steps 1 to 3 on the previous page, then:
4 Select “LetterWise”.
5 Select the desired language.
• The factory preset is “English”.
Setting the Battery Type
Follow steps 1 to 3 on the previous page, then:
4 Select “Battery
Type”.
• The factory preset is “Ni-MH”.
54
5 Select “Ni-Cd” or “Ni-MH”.
515E_E.book Page 55 Friday, June 27, 2003 2:23 PM
Handset Settings
Reset the Handset Settings
You can reset all of the handset settings to their initial settings.
“
2 Select
Handset”.
“Reset
4 Select
Handset”.
4-digit Handset
5 Enter
PIN.
Setting
3 Select “Other Option”.
“Yes”, then
6 Select
“Deleted” is displayed.
(Factory Preset 0000)
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
55
Cordless Telephone
JOYSTICK
1 Press
(or move).
515E_E.book Page 56 Friday, June 27, 2003 2:23 PM
Handset Settings
Handset Initial Settings
Functions
Initial Settings
Memo Alarm Mode
OFF
Alarm Time
Delete
Handset Ringer Volume
6
Handset External Ringer Pattern
1
Handset Internal Ringer Pattern
1
Handset Paging Tone Pattern
1
Handset Private Ringer Pattern
1
Handset Alarm Tone Pattern
1
Key Tone
ON
Standby Mode Display
Handset Name
Talk Mode Display
Talk Time
Display Language
English
Call Bar Mode
OFF
Direct Call Mode
OFF
Direct Call Number
Delete
4-Digit Handset PIN
0000
Auto Talk
OFF
Select Base
Automatic Base Unit Selection
Redial Memory
Delete All
Handset Receiver Volume
Medium
Walkie-Talkie Setting
Group
SMS Text Input Mode
LetterWise®
Phonebook List
Remain
56
515E_E.book Page 57 Friday, June 27, 2003 2:23 PM
Base Unit Settings
Setting the Base Unit Ringer Volume
To exit the operation, press
1 Press
JOYSTICK (or
at any time.
“
2 Select
Setting
Base”.
4-digit Base Unit PIN.
3 Enter
(Factory Preset 0000)
move).
“Ringer
5 Select
Volume”.
increase volume, move the JOYSTICK
6 To
up.
Cordless Telephone
“Ringer
4 Select
Option”.
7 Press JOYSTICK.
To decrease volume or set to OFF, move the
JOYSTICK down. (3 levels)
• The factory preset is medium.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
57
515E_E.book Page 58 Friday, June 27, 2003 2:23 PM
Base Unit Settings
Call Options
To exit the operation, press
JOYSTICK
1 Press
(or move).
at any time.
“
2 Select
Base”.
Setting
4-digit Base
3 Enter
Unit PIN.
(Factory Preset 0000)
4 Select “Call
Option”.
Go to step 5.
Selecting the Flash/Earth Mode
An earth relay can be installed as an option depending on your PBX requirements.
Please consult our Panasonic Customer Care Helpline for installation. On installation,
you can then select the flash or earth mode to suit your PBX or network provider.
Follow steps 1 to 4 shown above, then:
5 Select “Recall”.
6 Select “Flash” or “Earth”.
When “Flash” was selected;
7 Select desired flash type. (see below)
• The factory preset is “Flash”.
• “Type 1”: 700 ms, “Type 2”: 80 ms, “Type 3”: 400 ms. The factory preset is “Type
2”.
Selecting the Pause Time
You can select the pause time to 3 or 5 seconds, depending on your PBX requirements.
Follow steps 1 to 4 shown above, then:
5 Select “Pause
Time”.
• The factory preset is “Short”.
58
6 Select “Short” (3 sec.) or “Long” (5 sec.).
515E_E.book Page 59 Friday, June 27, 2003 2:23 PM
Base Unit Settings
Setting the Emergency Calls
Even if handset is in Call Bar Mode, you can make an emergency call.
Follow steps 1 to 4 on the previous page, then:
5 Select “Emergency
“Emergency Call1” to
6 Select
“Emergency Call5”.
Call”.
8 Press JOYSTICK.
• The factory presets are 112 and 999.
Call Restriction
You can restrict selected handset(s) from dialling selected phone numbers. You can
assign up to 6 call restriction numbers (up to 8 digits). If you dial a restricted number, the
call does not connect and the restricted number flashes.
Follow steps 1 to 4 on the previous page, then:
“Call
5 Select
Restricted”.
and press RIGHT
6 Search
SOFT KEY to attach (or
7 Press
JOYSTICK.
cancel) “ ” to the desired
Handset(s) to restrict.
the restricted
8 Select
Number item (1-6).
the restricted phone
9 Enter
number (up to 8 digits).
10 Press
JOYSTICK.
NOTE: When you put a first digit on step 9, it must overwrite the current displayed
numbers. We recommend you to write down the restricted phone number
you entered.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
59
Cordless Telephone
7 Enter Emergency Call Number.
515E_E.book Page 60 Friday, June 27, 2003 2:23 PM
Base Unit Settings
Other Options
To exit the operation, press
JOYSTICK
1 Press
(or move).
at any time.
“
2 Select
Base”.
Setting
4-digit Base
3 Enter
Unit PIN.
(Factory Preset
0000)
4 Select “Other
Option”.
Go to step 5.
Changing the Base Unit PIN (Personal Identification Number)
The factory preset is 0000.
Once you have programmed the base unit PIN, you cannot confirm it. We recommend
you write down the base unit PIN. If you forget it, please consult our Panasonic
Customer Care Helpline. U.K. 08700 100 076 R.O.I. 01289 8333
Follow steps 1 to 4 shown above, then:
“Change Base
5 Select
PIN”.
new 4-digit Base
6 Enter
Unit PIN.
new PIN again
7 Enter
to verify.
Reset the Base Unit Settings
You can reset all of the base unit settings to their initial settings.
Follow steps 1 to 4 shown above, then:
5 Select “Reset
60
Base”.
6 Select “Yes”.
515E_E.book Page 61 Friday, June 27, 2003 2:23 PM
Base Unit Settings
Base Unit Initial Settings
Function
Initial Setting
Flash (Type 2: 80ms)
Pause Timing
Short (3 seconds)
Emergency Call Number 1
112
Emergency Call Number 2
999
Call Restricted Handset(s)
Delete All
Call Restriction Number(s)
Delete All
4-Digit Base Unit PIN
0000
Base Unit Ringer Volume
Medium
SMS Message Centre Number 1
0911 023 5029
SMS Message Centre Number 2
0161274599
Caller ID List
Delete All
SMS Message Lists
Delete All
SMS PBX Line Access Number Support ON/OFF
OFF
SMS PBX Line Access Number
Delete All
SMS Feature
ON
Date/Time
31-12-03/00:00
Answering System
ON
Your Own Greeting Message
Remain
Caller’s Recording Time
No Limit
Number of Rings
4 Rings
Greeting Monitor
ON
Remote Code
Delete (OFF)
Incoming/Memo Message(s)
Remain
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
Cordless Telephone
Recall
61
515E_E.book Page 62 Friday, June 27, 2003 2:23 PM
Multi-Unit User Operations
Operating Additional Handsets
Additional KX-TCA151E handsets are available for purchase separately. Up to 6
handsets can be registered to a single base unit. Using additional handsets allows you
to have an intercom call while simultaneously conducting a call to an outside line.
Operating Additional Base Units
You can register and operate your handset with up to 4 base units. Each base unit forms
1 radio cell. If the individual bases are linked to the same telephone line then you can
extend the operating range of the system by positioning the bases so that the two radio
cells overlap. If the handset is set to auto base selection, then in standby mode the
handset will automatically swap to the second base if the range on the first base is
exceeded. It is not possible to transfer calls between bases (only between handsets
linked to the same base unit).
1
2
4
3
Radio Cell
5
Example:
Additional handsets
(KX-TCA151E) registered
with 2 base units.
NOTE: Calls are disconnected when the handset moves from one radio cell to
another.
62
515E_E.book Page 63 Friday, June 27, 2003 2:23 PM
Multi-Unit User Operations
Handset Registration to a Base Unit
The handset supplied with the base unit is already registered. If an optional handset is
purchased, it must be registered as follows.
Charge the optional handset batteries for 7 hours before initial use.
Handset registration must be completed within 1 minute after pressing the
.
If over 1 minute, press
then start over again.
To exit the operation, press
at any time.
“
2 Select
Handset”.
“Register
4 Select
H/set”.
and hold
on the Base Unit (for about 3
5 Press
seconds) until the tone sounds.
Setting
3 Select
“Registration”.
• If all registered handset(s) start ringing (paging), press
to stop paging then start over again.
the desired
6 Select
base unit.
4-digit Base Unit
7 Enter
PIN.
8 Press JOYSTICK.
(Factory Preset 0000)
When a handset is registered successfully, a confirmation tone sounds and the “
icon is displayed.
”
• If you enter the incorrect Base Unit PIN, the error tone sounds and repeat from step 1.
• To register an handset to more than one base unit, repeat from step 1 with the other
base unit(s).
• The handset main menu may changes corresponding to the base unit registered to.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
63
Cordless Telephone
JOYSTICK
1 Press
(or move).
515E_E.book Page 64 Friday, June 27, 2003 2:23 PM
Multi-Unit User Operations
Cancelling a Handset
Each handset can cancel itself or another handset. This feature is usually used to cancel
a link between Handset and Base Unit.
To exit the operation, press
at any time.
1 Press JOYSTICK (or move).
2 Select “
4-digit Base Unit PIN.
3 Enter
(Factory Preset 0000)
4 Select “Cancel
and press RIGHT SOFT
5 Search
KEY to attach “ ” to the handset(s)
6 Press JOYSTICK.
Setting Base”.
Handset”.
to cancel.
Cancelling a Base Unit
If another handset is out of range and/or power is OFF when Cancelling a Handset, the
previous base unit number will still remain in the cancelled handset. Therefore, you need
to cancel the base unit registered in the cancelled handset. To exit the operation, press
at any time.
Follow steps 1 to 3 on the previous page, then:
4 Select “Cancel
4-digit Handset PIN.
5 Enter
(Factory Preset 0000)
Base”.
and press RIGHT SOFT KEY
6 Search
to attach “ ” to the base unit to cancel.
“Yes”, then “Deleted”
8 Select
displayed.
64
is
7 Press JOYSTICK.
515E_E.book Page 65 Friday, June 27, 2003 2:23 PM
Multi-Unit User Operations
Base Unit Selection
When “Auto” (Automatic Base Unit Selection) is selected, the handset automatically
searches for other registered base units if you move outside of the radio cell of the
current base unit.
When a specified base unit is selected, the handset will access that base unit only.
Calls (both incoming and outgoing) can be conducted only via the selected base unit,
even if the radio cells overlap with neighbouring base units.
To exit the operation, press
at any time.
1 Press JOYSTICK (or move).
2 Select “
3 Select “Select
4 Select “Auto” or desired base unit.
Intercom Between Handsets
You can use your handsets as a 2-way intercom.
Intercom calls can be conducted within the radio cell of the current base unit, but
not with units in neighbouring radio cells.
To exit the operation, press
at any time.
For example, when Handset 1 calls Handset 2:
<Handset 1>
1
<Handset 2>
Press INTERCOM
, then press
desired handset number
.
2
Press TALK
• You can also answer a call by pressing
pressing
(Any Key Talk).
,
to
,
.
,
or
instead of
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
65
Terminating a call
<Handset 1 or 2>
3 Press TALK OFF
.
Cordless Telephone
Base”.
Setting Handset”.
515E_E.book Page 66 Friday, June 27, 2003 2:23 PM
Multi-Unit User Operations
Transferring a Call to Another Handset
The intercom can be used during a call to transfer an external call between handsets
that are registered to the same base unit.
To exit the operation, press
at any time.
For example, when Handset 1 transfers a call to Handset 2:
<Handset 1>
<Handset 2>
(During a call)
1
Press INTERCOM
, then press
desired handset number
.
2
Press TALK
.
(Conversation between handset 1 and 2)
3
Press TALK OFF
.
(Conversation between outside line and
Handset 2)
• You can also answer a call by pressing
pressing
(Any Key Talk).
,
to
,
,
or
instead of
• If you press
after pressing the desired handset number, a call can be transferred
to another handset without speaking to another handset.
If the transferred call is not answered within 60 seconds, Handset 1 will ring again.
• When Handset 2 answers a call transferred, press
to establish a conference call
or press
to complete a call transfer.
66
515E_E.book Page 67 Friday, June 27, 2003 2:23 PM
Multi-Unit User Operations
Phonebook Copy
You can copy phonebook information between handsets registered to the same base
unit. The phonebook copy must be performed while in intercom mode (see Intercom
Between Handsets on page 65).
To exit the operation, press
at any time.
Copying an Item
<Handset 1: Receiver>
(During an intercom call)
Press JOYSTICK.
2
Select “Recv Phonebook”.
“Start Copying” is displayed.
(During an intercom call)
Cordless Telephone
1
<Handset 2: Sender>
3
Press JOYSTICK.
4
Select “Send Phonebook”.
5
Select the desired item to copy.
6
Select “Copy One Item” then “Start
Copying” is displayed.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
67
515E_E.book Page 68 Friday, June 27, 2003 2:23 PM
Multi-Unit User Operations
Copying All Items
To exit the operation, press
at any time.
Follow steps 1 to 4 on the previous page, then:
<Handset 1: Receiver>
<Handset 2: Sender>
5
Press JOYSTICK.
6
Select “Copy All Items”, then
“Start Copying” is displayed.
• When copying is completed, a beep sounds and “Copy Complete” is displayed.
After a few seconds, the display will return to the intercom call. “Copy Incomplete”
will be displayed if the receiver handset memory is full. If “Copy Failure” is
displayed on the sender handset, the receiver did not prepare for copying.
• If you move JOYSTICK up or down before pressing JOYSTICK on step 5, all items
will not be copied. The items, from the item indicated now to the last item, are copied.
68
515E_E.book Page 69 Friday, June 27, 2003 2:23 PM
Walkie-Talkie
Setting the Walkie-Talkie Mode
You can set the Walkie-Talkie mode. There are two types: Common Base Station mode
and Group mode. The factory preset is Group mode.
- In Common Base Station mode, communication is possible between handsets
registered to a common base unit. If the handsets are registered to more than one
base unit, the same base unit must be selected.
Please note, the feature will not operate if AUTO is set in the base unit selection.
If Common mode is selected and the handset is not registered to a base unit, an error
tone sounds.
- In Group mode, communication is possible between handsets that are both set to this
mode and whose Group ID’s are common.
This allows handsets to communicate in Walkie-Talkie mode regardless of which
base unit they are registered to.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
69
Cordless Telephone
The Walkie-Talkie feature allows handsets to communicate with each other outside the
range of the base unit. When the handsets are in Walkie-Talkie mode, external calls
cannot be received. Only KX-TCA151E with Walkie-Talkie feature can communicate
with one another.
Talk time in this mode is approximately 6 hours. Standby time in this mode is
approximately max. 15 hours. (It changes by the use conditions.) When using the
handset in Walkie-Talkie mode, we recommend keeping the handset turned off, turning
it on only when talking in Walkie-Talkie mode. Turning the handset off immediately after
use will improve battery operating time.
Range:
The maximum range between two handsets while in Walkie-Talkie mode is up to
300 metres outdoors.
515E_E.book Page 70 Friday, June 27, 2003 2:23 PM
Walkie-Talkie
To exit the operation, press
at any time.
JOYSTICK
1 Press
(or move).
2 Select “
3 Select “Setting”.
4 Select “Common” or “Group”.
Walkie-Talkie”.
When “Group” was selected;
3-digit Group Code.
5 Enter
(Factory Preset 000)
6 Press JOYSTICK.
Handset Number.
7 Enter
(1-9: Factory Preset is 1)
8 Press JOYSTICK twice.
twice
• If you select “Group”, enter Group Code (this can be 3 digits of your choice - the
factory preset is 000). Make note of your code.
• The factory preset of Handset Number is 1.
IMPORTANT: Each handset should have its own unique number.
70
515E_E.book Page 71 Friday, June 27, 2003 2:23 PM
Walkie-Talkie
To Turn the Walkie-Talkie Mode On/Off
To use the Walkie-Talkie feature, all handsets in conversation must be in Walkie-Talkie
mode.
To exit the operation, press
at any time.
To Turn the Walkie-Talkie Mode On
JOYSTICK
1 Press
(or move).
“
2 Select
Talkie”.
3 Select “On”.
Walkie-
Cordless Telephone
• When the Walkie-Talkie mode is ON, the handset number is displayed after
“Walkie-Talkie” appears on the display.
To Turn the Walkie-Talkie Mode Off
1 Press JOYSTICK.
2 Select “Off”.
• This feature is also turned off if you turn power off then on.
Talking in Walkie-Talkie Mode
Before proceeding with this function, please ensure Walkie-Talkie mode is turned on,
and the appropriate Walkie-Talkie mode has been selected.
For example, Handset 1 is calling Handset 2.
To exit the operation, press
at any time.
<Handset 1>
1
<Handset 2>
Press INTERCOM
,
or
,
then press desired handset number
.
2
Press TALK
• You can also answer a call by pressing
pressing
(Any Key Talk).
,
to
,
.
,
or
instead of
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
71
515E_E.book Page 72 Friday, June 27, 2003 2:23 PM
Answering System
If you set the current date and time (p.13) and set the answering system ON, a
synthesized voice announce the date and time an/a incoming/memo message was
recorded after playback-Voice Date/Time Stamp.
The total recording capacity is approximately 30 minutes or 64 messages. Any recorded
noise may shorten the recording time up to 3 minutes. The greeting recording time is
limited to 2 minutes and 30 seconds. We recommend you to record a brief greeting
message in order to leave more time for recording new incoming/memo messages. All
messages (greeting, incoming and memo) are stored indefinitely on a “Flash memory”
IC chip-even if a power failure occurs. All of the messages are saved until you erase
them-Flash Memory Message Backup.
Answering System ON/OFF
When you set the answering system ON, a caller can leave her/his messages.
To Set ON
Press JOYSTICK
1 (or
move).
“
TAM
2 Select
Operation”.
“Answer On”,
3 Select
then
is displayed.
“
TAM
2 Select
Operation”.
“Answer Off”,
3 Select
then
is disappeared.
To Set OFF
JOYSTICK
1 Press
(or move).
72
515E_E.book Page 73 Friday, June 27, 2003 2:23 PM
Answering System
Greeting Message
Recording Your Own Greeting Message
JOYSTICK
1 Press
(or move).
“
TAM
2 Select
Operation”.
3 Select “Record”.
“Record
4 Select
OGM”.
Greeting
5 Record
Message.
JOYSTICK
6 Press
finish recording.
to
8 inches (20 cm)
away from the Mic.
Selecting the Caller’s Recording Time
Follow steps 1 to 2 shown above, then:
“Setting
3 Select
TAM”.
“Msg
4 Select
Time”.
Rec
“1 Minute” or
5 Select
“No Limit” (up to 30
• The factory preset is “No Limit”.
73
Answering System
minutes) or “Greeting
Only” (no incoming
message will be
recorded).
515E_E.book Page 74 Friday, June 27, 2003 2:23 PM
Answering System
Playing back a Pre-Recorded Greeting Message
If you do not record your own greeting message, one of two pre-recorded messages will
be played. A pre-recorded greeting message depends on the selecting of same phone
caller's recording time.
When the recording time is set to “1 Minute” or “No Limit” (30 minutes).
- “Hello, we are not available now. Please leave your name and phone number after the beep.
We will return your call.”
When the recording time is set to “Greeting Only”.
- “Hello, We are not available now. Please call again. Thank you for your call.”
Press JOYSTICK
1 (or
move).
“
TAM
2 Select
Operation”.
3 Select “Play
OGM”.
3 Select “Play
OGM”.
Deleting Your Own Greeting Message
Press JOYSTICK
1 (or
move).
“
TAM
2 Select
Operation”.
RIGHT SOFT
4 Press
KEY.
5 Select “Yes”, then “Deleted” is displayed.
74
515E_E.book Page 75 Friday, June 27, 2003 2:23 PM
Answering System
Selecting the Number of Rings
You can select the number of times the unit rings before the answering system answers
a call, from 2 to 7 or Auto (for Toll Saver; as below).
Toll Saver (When set to “Auto”)
When you call the unit from a touch tone telephone:
If the unit answers on the 2nd or 3rd ring, there is at least one new message.
If the unit answers on the 5th or 6th ring, there are no new messages.
Hang up when you hear the 4th ring. This will save you the toll charge for the call.
JOYSTICK
1 Press
(or move).
“
TAM
2 Select
Operation”.
“Number
4 Select
Rings”.
“Auto” or “2 Rings” to “7 Rings” to select the
5 Select
number of rings.
of
3 Select “Setting
TAM”.
• The factory preset is “4 Rings”.
Answering System
75
515E_E.book Page 76 Friday, June 27, 2003 2:23 PM
Answering System
Incoming/Memo Messages
Incoming messages and memo messages are stored in chronological order. New messages
cannot be recorded when “Full” is displayed. We recommend you erase unnecessary
messages after each playback to leave more time for recording new message(s).
H/set 1
1 Messages
If new mesage(s) is (are) recorded,
icon and the
number of messages will be displayed.
17.8 14:59
Playing New Incoming/Memo Message(s)
JOYSTICK
1 Press
(or move).
“
TAM
2 Select
Operation”.
“Play
3 Select
Msg.”.
New
“Play
3 Select
Msg.”.
All
Playing All Incoming/Memo Messages
Press JOYSTICK
1 (or
move).
“
TAM
2 Select
Operation”.
Repeating a Message During Playback
(During Playing
Message)
1 Move JOYSTICK to LEFT.
• If you press within 5 seconds from the start of playback, the previous message will be
played. If you press after 5 seconds from the start of playback, the current message
will be played.
Skipping a Message During Playback
(During Playing
Message)
76
1 Move JOYSTICK to RIGHT.
515E_E.book Page 77 Friday, June 27, 2003 2:23 PM
Answering System
Stopping a Message During Playback
(During Playing
Message)
1 Press LEFT SOFT KEY.
Selecting the Receiver Volume During Playback
(During Playing
Message)
1 Move JOYSTICK to UP or DOWN.
Clearing One Incoming/Memo Message
(During Playing
Message)
1 Press JOYSTICK.
2 Select “Delete”.
3 Select “Yes”, then “Deleted” is displayed.
during playing message (p.76).
Clearing All Incoming/Memo Messages
“
TAM
1 Press JOYSTICK. 2 Select
Operation”.
“Delete
4 Select
All”.
“Delete
3 Select
Message”.
5 Select “Yes”, then “Deleted” is displayed.
Calling back to the Caller
(During Playing
Message)
1 Press JOYSTICK.
2 Select “Call
Back”.
77
Answering System
• You can also delete the message by pressing
515E_E.book Page 78 Friday, June 27, 2003 2:23 PM
Answering System
Editing a Number for Call
(During Playing
Message)
Phone
3 Edit
Number.
1 Press JOYSTICK.
“Edit
2 Select
Call”.
for
4 Press JOYSTICK, TALK or SPEAKERPHONE.
OR
OR
Monitor Function ON/OFF
When your greeting message is being played to the caller and the caller's message is
being recorded, you can listen to it through the handset.
JOYSTICK
1 Press
(or move).
“
TAM
2 Select
Operation”.
“Greet
4 Select
Monitor”.
5 Select “On” or “Off”.
• The factory preset is “On”.
78
“Setting
3 Select
TAM”.
515E_E.book Page 79 Friday, June 27, 2003 2:23 PM
Answering System
Answering System Direct Command
You can operate the answerring system by pressing dialling button as direct
command.
JOYSTICK 2 Select “
TAM
1 Press
(or move).
Operation”.
“Play New Msg.”
3 Select
or “Play All Msg.”.
Follow steps 1 to 3 shown above, then:
Press
1
To repeat a message.
Press
2
To skip a message.
Press
9
To stop the answering system operation.
Press
4
To delete one incoming/memo message. *1
Press
5
To delete all incoming/memo message.
Press
3
To enter the answering system setting menu.
Press
4
To playback new incoming/memo message(s).
Press
5
To playback all incoming/memo message(s).
Press
6
To playback a greeting message.
Press
7
4
To record a memo message.
Press
7
6
To record your own greeting message.
Press
8
To set the answering system ON.
Press
9
To stop the answering system operation.
Press
0
To set the answering system OFF.
Press
6
Answering System
Follow steps 1 to 2 shown above, then:
To delete your own recorded greeting message.
*1 This function is available only during incoming/memo message playback.
79
515E_E.book Page 80 Friday, June 27, 2003 2:23 PM
Answering System
Remote Operation from a Touch Tone Phone
You can operate the answering system from any touch tone phone.
Firstly you must store your remote code using the handset near the base unit.
The 3-digit remote code prevents unauthorised use of your answering system for
listening to recorded messages.
Setting the Remote Code ON
JOYSTICK
1 Press
(or move).
“
TAM
2 Select
Operation”.
“Setting
3 Select
TAM”.
“Remote
4 Select
Code”.
3-digit Remote
5 Enter
Code.
6 Press JOYSTICK.
Setting the Remote Code OFF
Follow steps 1 to 4 of Setting the Remote Code ON, then:
5 Press x.
6 Press JOYSTICK.
• The factory preset is Remote Code OFF.
Turnig ON the Answering System Remotely
You can Turnig on the answering system from any touch tone phone.
from a touch tone phone 2 Enter remote code within 10 seconds after a long
1 Call
then wait for 20 rings.
beep.
remote code after
menu starts after 3 seconds.
3 Enter
4 VoiceFollow
greeting message playback.
the guidance (See page 82).
OR
Enter your desired direct remote command
(See next page).
• If your remote code is not stored, you cannot turn on the answering system remotely.
80
515E_E.book Page 81 Friday, June 27, 2003 2:23 PM
Answering System
Summary of Remote Operation
You can operate the answering system from any touch tone phone.
from a touch tone
1 Call
phone.
message
2 Greeting
playback.
3 Enter remote code.
of new message is 5 Voice menu is started after 3 seconds.
4 Number
played.
Follow the guidance (See next page).
OR
Enter your desired direct remote command
(See below).
Direct Remote Commands
After entering the remote code, you can choose to operate your answering system using
direct commands as below, in place of listening to the voice menu. Hang up to end the
remote operation at any time.
Command
1
Repeat message (during playback)
2
Skip message (during playback)
4
New message playback
5
All message playback
6
Check greeting message
Record
Greeting message recording
9
Stop operating
0
Answering system off
4
Deleting specific message (during playback)
5
Deleting all messages
6
Deleting greeting messages (during playback)
Answering System
7
Function
Disconnect
81
515E_E.book Page 82 Friday, June 27, 2003 2:23 PM
Answering System
Voice Menu
The words in “ ” means a voice guidance.
Press
Press
2
Press
2
Press
2
1
.
“Press 1 to playback all messages.
Press 2 for other functions.”
“All message playback.” At the end
of the last message, “End of final
message” is announced.
When the remaining recording
time becomes less than 5
minutes, the remaining
recording time is announced.
“Press 1 to playback new messages.
Press 2 for other functions.”
“New message playback.”
“Press 1 to record your message.
Press 2 for other functions.”
“Please leave your message.” Talk
after you hear this message.
Hang up to finish recording.
Press
2
“Press 1 to erase all messages. Press 2 “No message.”
for other functions.”
Press
2
“Press 1 to record your greeting.
Press 2 for other functions.”
“Press 7 to record your greeting.
Press 9 to end recording.”
Press
7
to start recording.
Talk after the long beep.
Press
9
to finish recording.
• After playback, the voice menu will start again from the beginning.
• If you hear “Memory full” after playback, erase some or all of the messages (See page
77).
82
515E_E.book Page 83 Friday, June 27, 2003 2:23 PM
Answering System
Recording a Memo Message
Press JOYSTICK
1 (or
move).
“
TAM
2 Select
Operation”.
3 Select “Record”.
“Record
4 Select
Memo”.
Memo
5 Record
Message.
6 Press JOYSTICK.
8 inches (20cm)
away from the Mic.
Recording Your Telephone Conversation
When you record your 2-way telephone conversation, you should inform the other party
that the conversation is being recorded.
During recording, a beep will sound approximately every 15 seconds.
JOYSTICK twice to
1 Press
start recording, then
(During a call)
JOYSTICK to
2 Press
stop recording.
“Recording” is displayed.
Answering System
83
515E_E.book Page 84 Friday, June 27, 2003 2:23 PM
Using the Belt Clip
You can hang the handset on your belt or pocket using the belt clip.
To remove
the belt clip.
Optional Headset
Plugging an optional headset into the handset allows hands-free phone conversations.
Please use only the Panasonic KX-TCA89EX headset. To order, call the accessories
telephone number on page 3. While using the headset, speakerphone is not available.
To switch to speakerphone, disconnect the headset.
Connecting the optional headset to the handset
Open the headset socket cover, and connect the optional headset to the headset socket
as shown.
Headset Socket
84
515E_E.book Page 85 Friday, June 27, 2003 2:23 PM
Wall MountiMng
This unit can be mounted on a wall.
- Insert screws into the wall. The centre of the screw holes should be 8 cm horizontally
apart.
- Make sure the screws are securely fastened to the wall.
- Connect the AC adaptor and the telephone line cord.
- Arrange the wires as shown, then mount the unit.
8 cm
Hooks
Screws
Fasten the AC adaptor cord to
prevent it from being disconnected.
• Make sure the screws are securely fastened to the wall.
Useful Information
Wall Template
8 cm
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
85
515E_E.book Page 86 Friday, June 27, 2003 2:23 PM
Before Requesting Help
If you experience any problems with the normal use of your apparatus, you should
unplug it from the telephone outlet and connect a known working telephone in its place.
If the known working telephone still has problems, then please contact the customer
service department of your Network provider.
If it operates correctly, then the problem is likely to be a fault in your apparatus.
In this case, contact your supplier for advice. Your Network provider may charge you if
they attend a service call that is not due to an apparatus supplied by them.
Turn the power OFF then ON (Handset)/Disconnect then connect the AC adaptor
(Base Unit).
Problem
Possible cause
Solution
Page
The unit does not work.
• Batteries not installed
• Re-install batteries
properly.
properly.
• AC adaptor of base unit • Disconnect and then
not connected properly.
connect AC adaptor.
p.10
Display is blank.
• Handset not turned on.
• Turn on power.
p.12
Handset will not turn on.
• Batteries not inserted.
• Insert the 2 rechargeable p.10
• Batteries not charged.
• Place handset on base
• Dirty charge contact.
• Clean charge/battery
Battery charge icon not
counting up.
• Base not powered up.
icon flashes.
Handset busy tone heard
when
is pressed.
batteries supplied.
and connect AC adaptor
to base and AC outlet
(full charge period 7 hrs).
p.11
contact and retry charge.
• Connect AC adaptor to p.10
base unit and AC outlet.
• Handset not registered to • Register handset to
p.63
base.
base.
• Handset out of range of • Move handset closer to
base.
base.
• No power into base unit. • Connect AC adaptor to p.10
base unit and AC outlet.
• Handset out of range of • Move handset closer to
base.
base.
• Another handset in use. • Wait for the other user to
complete call.
No dial tone.
• Telephone line not
connected.
• Insert telephone cord to p.10
network.
• Turn power OFF then
p.12
• Call Bar mode set.
• Turn feature off.
• Particular dialled number • Remove number from
p.51
p.59
• Key lock mode ON.
p.16
ON.
Cannot dial out.
is restricted.
86
call restricted list.
• Turn key lock OFF.
515E_E.book Page 87 Friday, June 27, 2003 2:23 PM
Before Requesting Help
Problem
Handset will not ring.
Possible cause
• Ringer switched off.
Audible Caller sounds late. • Recording time is long.
No Caller ID number
displayed.
icon flashes
Solution
• Set ringer to one of 6
p.48
• Shorten recording time.
p.25
volume levels.
• Service not supplied.
• Caller ID service must be p.19
arranged with Network
• Caller has withheld info.
provider.
• Battery low.
• Recharge batteries.
Cannot register handset to • Max. number of bases
• Delete unused base
base.
already registered to
registrations from
handset.
handset.
• Max. number of handsets • Delete unused handset
already registered to
registrations from base.
base unit.
• Wrong PIN number
• If PIN number is lost,
entered (Default 0000).
contact the Panasonic
Customer Care Helpline.
• Electrical noise in local • Move base/handset
area.
away from sources of
electrical noise (e.g. TVs,
radios, etc.).
The unit begins ringing
(one ring) after other
connected telephones.
Page
• The SMS feature is
turned on.
The display is blank even if • Battery low.
the unit is charged.
p.10
p.64
p.64
p.60
p.5
• Turn the SMS feature off, p.42
if you do not use an SMS
service.
• Recharge batteries more
than about 15 minutes.
Answering System
Problem
Possible cause
Solution
Page
You cannot operate the
answering system from a
touch tone phone.
• Incorrect remote code
• Enter the correct remote p.81
entered.
code.
• Tone are too short to
• Press each button firmly.
activate the unit.
• The answering system is • Turn on the answering p.72, 80
off.
system.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
87
Useful Information
The answering system is • The recording time is set • Select “1 Minute” or “No p.73
on, but incoming messages to “Greeting Only”.
Limit (see “Answering
are not recorded.
System”).
• Erase some or all of the p.77
• Memory is full (30
minutes or 64 messages). messages.
515E_E.book Page 88 Friday, June 27, 2003 2:23 PM
Before Requesting Help
Answering System
Problem
Possible cause
Solution
Page
You cannot operate the
• Someone is operating
• Retry when other user
answering system with the the answering system
has finished operation.
handset.
• You are too far from the • Move closer to the base
base unit.
unit.
While recording a greeting • A call is being received. • To answer the call, press
TALK. The recording
message, the unit starts to
stops halfway. Start from
ring and stops recording.
the beginning after
hanging up.
During playback, the unit
starts to ring and stops
playback.
• A call is being received. • To answer the call, press
TALK.
SMS-Text Messaging
Problem
Cannot send a message.
Possible cause
Solution
• You have not subscribed • Caller ID service must be p.31
to Caller ID.
• SMS Centre number is
arranged with Network
provider.
• Store the number.
• Memory is full.
• Delete messages in the p.36
not stored in your
telephone.
• Message was interrupted • Wait until the message
during sending.
has been sent before
using any other
telephone functions.
Cannot send or receive a
message.
Error Code
FD
Page
p.41
Outgoing/Incoming lists. p.39
Description
Page
• Could not connect to the SMS Centre. Check that you p.41
have the correct SMS Centre numbers or turn the
SMS feature on.
p.42
FE
• There was a problem sending the message.
EO
• Your number is permanently withheld or you have not p.31
88
subscribed to a Caller ID service.
515E_E.book Page 89 Friday, June 27, 2003 2:23 PM
Character Table
9
8
Useful Information
4
Phonebook Character Table
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
89
515E_E.book Page 90 Friday, June 27, 2003 2:23 PM
Character Table
SMS Character Table
“LetterWise®” Character Table
Buttons
2
1
3
4
5
6
7
8
9
x
Character Space . @ / : ; #
ABC 2 DEF 3 GHI 4 JKL 5 MNO 6 PQRS 7 TUV 8 WXYZ 9
Displayed + - 1 " ’ , ! ¡ ? ¿ _ €
£ $ ¥ () [ ] { } & % \
abc 2 def 3 ghi 4 jkl 5 mno 6 pqrs 7 tuv 8 wxyz 9
^~|<>=¤§
• Press
• Press
• Press
for space or 0.
to change letter size; Capital > Small, Small > Capital.
to show the next suggested character.
“Alphabet”, “Numeric”, “Greek” and “Extended” Character Table
0
Space 0
x
9
Space . @ / : ; # + 1"’,!¡?¿_€£$¥
() [ ] { } & % \ ^ ~ | < >
=¤§
ABC 2
abc 2
DEF 3
def 3
GHI 4
ghi 4
JKL 5
jkl 5
MNO 6
mno 6
PQRS 7
pqrs 7
TUV 8
tuv 8
WXYZ 9
wxyz 9
Numeric
(0–9)
1
2
3
4
5
6
7
8
90
Greek (ΑΒΓ)
Extended (AÄÅ)
Space . @ / : ; # + - Space . @ / : ; # + - 1 "
1 " ’ , ! ¡ ? ¿ _ € £ $ ¥ ’ , ! ¡ ? ¿ _ € £ $ ¥ () [ ] { }
() [ ] { } & % \ ^ ~ | < > & % \ ^ ~ | < > = ¤ §
=¤§
AÀÁÂÃÄÅÆBCÇ2
ΑΒΓ 2
aàáâãäåæbcç2
DEÈÉÊËVF3
∆ΕΖ 3
deèéêëWf3
G G H I Ì Í Î ÏCE 4
ΗΘΙ 4
g g h i ì í î ïDi 4
JKL5
ΚΛΜ 5
jkl5
MNÑOÒÓÔÕÖø6
Ν Ο6
mnñoòóôõöø6
PQRSȘß7
ΠΡΣ 7
pqrsȘß7
TUÙÚÛÜHV8
ΤΥΦ 8
tuùúûüIv8
WXYZ9
ΧΨΩ 9
wxyz9
1
2
3
4
5
6
7
8
9
0
Space 0
x
Alphabet (ABC)
x
Buttons
Space 0
515E_E.book Page 91 Friday, June 27, 2003 2:23 PM
Index
AC Adaptor ........................................ 4, 10
Accessories.............................................. 4
Answering a Call .................................... 14
Answering System ................................. 72
Any Key Talk .......................................... 14
Audible Caller ID .................................... 23
Auto Talk .......................................... 14, 54
Base Unit
Initial Settings.................................... 61
PIN .................................................... 60
Reset................................................. 60
Selection ........................................... 65
Battery
Caution................................................ 5
Charge .............................................. 10
Information ........................................ 11
Installation......................................... 10
Call Bar ..................................................
Call Restriction .......................................
Call Waiting ............................................
Caller ID List Menu
Deleting.............................................
Editing ...............................................
Storing...............................................
Cancelling a Base Unit...........................
Cancelling a Handset .............................
Conference call ......................................
51
59
18
21
20
20
64
64
66
Date and Time........................................ 13
Dialling Pause .................................. 18, 58
Direct Call Number................................. 51
Display
Standby Mode................................... 49
Talk Mode ......................................... 50
Ringer Volume .................................. 48
Hands-Free Phone ................................ 15
Intercom................................................. 65
Key
Lock .................................................. 16
Tone.................................................. 49
Making a Call ......................................... 14
Memo Alarm .......................................... 45
Memo Message ............................... 76, 83
Mute ....................................................... 15
Phonebook
Copy ................................................. 67
Hot Keys ........................................... 30
Storing ........................................ 24, 25
Power ON/OFF ...................................... 12
Private Category .................................... 23
Recall ............................................... 17, 58
Receiver Volume ................................... 15
Recording Telephone Conversation ...... 83
Redial List Menu
Deleting............................................. 22
Editing............................................... 22
Storing .............................................. 21
Redialling ............................................... 17
Setting up............................................... 10
SMS Feature.......................................... 31
Specifications......................................... 92
Transferring a Call ................................. 66
Walkie-Talkie ......................................... 69
Emergency Calls .................................... 59
Useful Information
Flash/Earth............................................. 58
Guarantee .............................................. 93
Handset
Display ................................................ 9
Initial Settings.................................... 56
Locator/Paging.................................. 16
PIN .................................................... 53
Registration....................................... 63
Reset................................................. 55
Ringer Pattern................................... 48
91
515E_E.book Page 92 Friday, June 27, 2003 2:23 PM
Technical Information
Specifications
Standard:
Number of channels:
Frequency range:
Duplex procedure:
Channel spacing:
Bit rate:
Modulation:
RF Transmission Power:
Voice coding:
Power source:
Power consumption, base unit:
Operating conditions:
Dimensions, Base Unit:
Dimensions, Handset:
DECT=(Digital Enhanced Cordless
Telecommunications)
GAP=(Generic Access Profile)
120 Duplex Channels
1.88 GHz to 1.9 GHz
TDMA (Time Division Multiple Access)
1728 kHz
1152 kbit/s
GFSK
approx. 250 mW
ADPCM 32 kbit/s
AC Adaptor 220 - 240 V, 50 Hz
5 VA
5 - 40 °C, 20 - 80 % relative air humidity (dry)
About (58 mm x 128 mm x 105 mm) x 200 g
About (143 mm x 48 mm x 32 mm) x 125 g
• Specifications are subject to change.
• The illustrations used in this manual may differ slightly from the original device.
Connections: The telephone will not work during a power failure. We therefore
recommend you use a standard telephone and T Adaptor to connect this Digital
Cordless Phone to the line. Your Panasonic Sales Shop can offer you more information
about connection possibilities.
“Eatoni and LetterWise are trademarks of Eatoni Ergonomics, Inc.”
92
515E_E.book Page 93 Friday, June 27, 2003 2:23 PM
Guarantee
CONDITIONS OF GUARANTEE
This guarantee is in addition to and does not in any way affect any statutory or other rights of
consumer purchasers. If within the applicable guarantee period, the appliance proves to be
defective by reason of faulty design, workmanship or materials, we undertake subject to the
following conditions to have the defective appliance (or any part or parts there of) repaired or
replaced free of charge.
1. The appliance shall have been purchased and used solely within either the UK or ROI and
in accordance with standard operating instructions and the technical and/or Safety
Standards required in the UK.
2. The appliance should be returned together with this guarantee and proof of date of
purchase promptly on being found defective at the purchaser's risk and expense to the
authorised dealer from whom the appliance was purchased or to the nearest authorised
dealer. All enquires must be through such dealers.
3. This guarantee shall not apply to damage caused through fire, accident, lightning, misuse,
wear and tear, neglect, incorrect adjustment or repair, to damage caused through
installation, adaption, modification or use in an improper manner or inconsistent with the
technical and/or safety standards required in the country where this appliance is used, or
to damage occurred during transit to or from the purchaser.
4. If at any time during the guarantee period any part or parts of the appliance are replaced
with a part or parts not supplied or approved by us or of an objective quality safe and
suitable for the appliance, or the appliance has been dismantled or repaired by any person
not authorised by us, we shall have the right to terminate this guarantee in whole or in part
immediately without further notice.
5. The purchaser's sole and exclusive remedy under this guarantee against us is for the
repair or replacement of the appliance or any defective part or parts and no other remedy,
including, but not limited to, incidental or consequential damage or loss of whatsoever
nature shall be available to the purchaser.
6. This guarantee shall not apply to batteries and any other items of limited natural life.
7. Our decision on all matters relating to complaints shall be final. Any appliance or defective
part which has been replaced shall become our property.
8. The guarantee period applicable to this product shall be 12 months.
Please keep these Operating Instructions with your receipt.
Panasonic Business Systems U.K.
Date of Purchase
Model No. KX-TCD515E
Serial No.
Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333
Useful Information
Receipt No.
93
515E_E.book Page 94 Friday, June 27, 2003 2:23 PM
515E_E.book Page 95 Friday, June 27, 2003 2:23 PM
515E_E.book Page 96 Friday, June 27, 2003 2:23 PM
Hereby, Panasonic Communications Co., Ltd., declares that this Dect Cordless Telephone is
in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
A copy of the manufacturer's declaration of conformity to the essential requirements of the
R&TTE Directive is available at the following web address:
http://doc.panasonic-tc.de
For your future reference
Serial No.
(found on the bottom of the unit)
Date of purchase
Name and address of dealer
Attach or keep original receipt to assist with any repair under warranty.
Customer Care Helpline Tel. No. : U.K. 08700 100 076
R.O.I. 01289 8333
0436
1999/5/EC
This equipment is designed for use on the United Kingdom only.
In the event of problem, you should contact your equipment supplier in the first
instance.
Technical specifications are subject to change.
Sales Department:
Panasonic Business Systems U.K.
Panasonic House, Willoughby Road, Bracknell, Berkshire, RG12 8FP
Panasonic Communications Co., Ltd.
1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan
PQQX13616YA
D0503-1063
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
