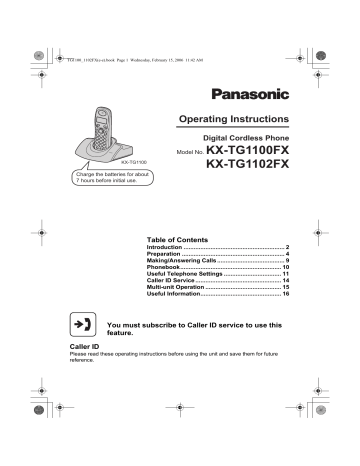

Operating Instructions
Digital Cordless Phone
Model No.
KX-TG1100
KX-TG1100FX
KX-TG1102FX
Charge the batteries for about
7 hours before initial use.
Table of Contents
Introduction ............................................................ 2
Preparation ............................................................. 4
Making/Answering Calls ........................................ 9
Phonebook............................................................ 10
Useful Telephone Settings .................................. 11
Caller ID Service ................................................... 14
Multi-unit Operation ............................................. 15
Useful Information................................................ 16
You must subscribe to Caller ID service to use this
feature.
Caller ID
Please read these operating instructions before using the unit and save them for future
reference.
TG1100_1102FX(e-e).book Page 2 Wednesday, February 15, 2006 11:42 AM
Introduction
Introduction
Thank you for purchasing a new Panasonic digital cordless phone.
For your future reference
Attach or keep original receipt to assist with any repair under warranty.
Serial No. (found on the bottom of the unit)
Date of purchase
Name and address of dealer
Note:
L In the event of problems, you should contact your equipment supplier in the first instance.
Declaration of Conformity:
L Panasonic Communications Co., Ltd. declares that this equipment is in compliance with the
essential requirements and other relevant provisions of Radio & Telecommunications
Terminal Equipment (R&TTE) Directive 1999/5/EC.
Declarations of Conformity for the relevant Panasonic products described in this manual
are available for download by visiting:
http://www.doc.panasonic.de
Contact:
Panasonic Services Europe
a Division of Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Your phone
KX-TG1100
KX-TG1102
Note:
L The handsets have been pre-registered for use with their base unit. If not registered, see
page 16.
2
TG1100_1102FX(e-e).book Page 3 Wednesday, February 15, 2006 11:42 AM
Introduction
Included accessories
Quantity
No. Accessory items
KX-TG1100
KX-TG1102
1
AC adaptor for base unit
Part No. PQLV19CE
1
1
2
Telephone line cord
1
1
3
Rechargeable batteries AAA (R03) size
Part No. HHR-55AAAB or HHR-4EPT
2
4
4
Handset cover*1
1
2
5
Charger
Part No. PQLV30018
–
1
6
AC adaptor for charger*2
Part No. PQLV200CE
–
1
*1 The handset cover comes attached to the handset.
*2 The AC adaptor for the charger comes connected with the charger.
1
2
3
4
5
6
Note:
L When replacing the batteries, use only 2 rechargeable AAA (R03) size nickel metal hydride
(Ni-MH) batteries. We recommend using Panasonic rechargeable batteries (Model No.
P03P).
L We cannot be responsible for any damage to the unit or degradation of performance which
may occur from using non-Panasonic rechargeable batteries.
3
TG1100_1102FX(e-e).book Page 4 Wednesday, February 15, 2006 11:42 AM
Preparation
Preparation
Important information
General
L Use only the AC adaptor included with this
product, noted on page 3.
L Do not connect the AC adaptor to any AC
outlet other than a standard 220–240 V
AC outlet.
L This product is unable to make calls when:
− The portable handset battery(ies) need
recharging or have failed.
− There is a power failure.
− The key lock feature is turned on.
− The call bar feature is turned on (only
phone numbers stored in the unit as
emergency numbers can be called).
L Do not open the base unit or handset
other than to replace the battery(ies).
L This product should not be used near
emergency/intensive care medical
equipment and should not be used by
people with pacemakers.
L Care should be taken that objects do not
fall onto, and liquids are not spilled into,
the unit. Do not subject this product to
excessive smoke, dust, mechanical
vibration or shock.
L Only the included handset can be used
with the base unit. No other handsets can
be registered or used.
Environment
L Do not use this product near water.
L This product should be kept away from
heat sources such as radiators, cookers,
etc. It should also not be placed in rooms
where the temperature is less than 5 °C or
greater than 40 °C.
L The AC adaptor is used as the main
disconnect device. Ensure that the AC
outlet is installed near the unit and is
easily accessible.
4
Warning:
L To prevent the risk of electrical shock, do
not expose this product to rain or any
other type of moisture.
L Unplug this unit from power outlets if it
emits smoke, an abnormal smell or makes
unusual noise. These conditions can
cause fire or electric shock. Confirm that
smoke has stopped and contact an
authorised service centre.
Battery caution
L We recommend using the battery(ies)
noted on page 3. Use only rechargeable
battery(ies).
L Do not mix old and new batteries.
L Do not dispose of the battery(ies) in a fire,
as they may explode. Check local waste
management codes for special disposal
instructions.
L Do not open or mutilate the battery(ies).
Released electrolyte from the battery(ies)
is corrosive and may cause burns or injury
to the eyes or skin. The electrolyte may be
toxic if swallowed.
L Exercise care when handling the
battery(ies). Do not allow conductive
materials such as rings, bracelets or keys
to touch the battery(ies), otherwise a short
circuit may cause the battery(ies) and/or
the conductive material to overheat and
cause burns.
L Charge the battery(ies) in accordance
with the information provided in these
operating instructions.
L Only use the included base unit (or
charger) to charge the battery(ies). Do not
tamper with the base unit (or charger).
Failure to follow these instructions may
cause the battery(ies) to swell or explode.
TG1100_1102FX(e-e).book Page 5 Wednesday, February 15, 2006 11:42 AM
Preparation
Information on Disposal for Users of
Waste Electrical & Electronic Equipment
(private households)
Union.
If you wish to discard this product, please
contact your local authorities or dealer and
ask for the correct method of disposal.
Connections
Base unit
Hooks
LINE
This symbol on the products and/or
accompanying documents means that used
electrical and electronic products should not
be mixed with general household waste.
For proper treatment, recovery and
recycling, please take these products to
designated collection points, where they will
be accepted on a free of charge basis.
Alternatively, in some countries you may be
able to return your products to your local
retailer upon the purchase of an equivalent
new product.
Disposing of this product correctly will help
to save valuable resources and prevent any
potential negative effects on human health
and the environment which could otherwise
arise from inappropriate waste handling.
Please contact your local authority for
further details of your nearest designated
collection point.
Penalties may be applicable for incorrect
disposal of this waste, in accordance with
national legislation.
For business users in the European
Union
If you wish to discard electrical and
electronic equipment, please contact your
dealer or supplier for further information.
Information on Disposal in other
Countries outside the European Union
To telephone
network
(220–240 V,
50 Hz)
Use only the included AC adaptor
and telephone line cord.
Charger (KX-TG1102 only)
Hooks
(220–240 V,
50 Hz)
Use only the included AC adaptor.
Note:
L Never install telephone wiring during a
lightning storm.
L Do not connect the AC adaptor to a
ceiling-mounted AC outlet, as the weight
of the adaptor may cause it to become
disconnected.
This symbol is only valid in the European
5
TG1100_1102FX(e-e).book Page 6 Wednesday, February 15, 2006 11:42 AM
Preparation
Location
For maximum distance and noise-free
operation, place your base unit:
− Away from electrical appliances such as
TVs, radios, personal computers or other
phones.
− In a convenient, high and central location.
Battery installation
Insert the batteries negative (T) terminal
first. Close the handset cover.
Battery charge
Place the handset on the base unit or
charger for about 7 hours before initial
use.
Battery strength
Battery icon
054
Battery strength
Fully charged.
5
High
6
Medium
7
Low
074
Needs to be charged.
Panasonic Ni-MH battery performance
Note:
L Use only the included rechargeable
batteries (page 3, 4).
Turning the power on/off
Power on
Press {ih} for about 1 second.
Power off
Press {ih} for about 2 seconds.
6
Operation
Operating time
In continuous use
10 hours max.
In continuous standby
mode
120 hours max.
Note:
L It is normal for batteries not to reach full
capacity at the initial charge. Maximum
battery performance is reached after a few
complete cycles of charge/discharge
(use).
L Actual battery performance depends on a
combination of how often the handset is in
use and how often it is not in use
(standby).
L Even after the handset is fully charged,
the handset can be left on the base unit or
charger without any ill effect on the
batteries.
L The battery strength may not be displayed
correctly after you replace the batteries. In
this case, place the handset on the base
unit or charger and charge for at least 7
hours.
TG1100_1102FX(e-e).book Page 7 Wednesday, February 15, 2006 11:42 AM
Preparation
Charger (KX-TG1102 only)
Controls
A
Handset
A Charge contacts
A
B
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
I
J
K
L
M
N
C
1
4
7
2
Displays
N
J
K
L
Icons
w
3
5
6
8
9
0
R
INT
M
H
0w4
Receiver
Display
{k} (Phonebook)
{C} (Talk)
Navigator ({e}/{v}/{>}/{<})
{R} (Redial/Pause)
{R} (Recall)
Charge contacts
Microphone
{j/OK} (Menu/OK)
{ih} (Off/Power)
{C} (Clear)
{INT} (Intercom)
Ringer
Meaning
Within range of base unit
Out of range, no registration
or no power on base unit
x
Paging, intercom mode or
accessing base unit
k
Making or answering a call
C
Phonebook mode
l
Setting mode
5
Battery strength
Call bar is on (page 11).
Direct call is on (page 11).
Key lock is on (page 9).
Ringer volume is off (page
11).
Displayed when you press
{#}.
Base unit
A
B
If “BS NO” is selected for
standby mode display (page
11) and the current base unit
number is 1, “-1-” is
displayed.
LINE
A Charge contacts
B {x} (Page)
7
TG1100_1102FX(e-e).book Page 8 Wednesday, February 15, 2006 11:42 AM
Preparation
Icons
Meaning
If “HS NO” is selected for
standby mode display (page
11) and the current handset
number is 2, “[2]” is
displayed.
4 new calls
When new calls have been received, the
display will show the number of new calls.
Symbols used in these
operating instructions
Note:
L If you select a language you cannot read,
press {ih}, {j/OK}, press {v}, press
{>}, press {v} 3 times, press {>}, press
{v} 2 times, press {>}, select the
desired language, then press {>}. Press
{ih}.
Dialling mode (tone/pulse)
Change the dialling mode depending on
your telephone line service.
“1” (Tone): Select when you have a touch
tone service.
“2” (Pulse): Select when you have rotary or
pulse service.
1 {j/OK}
2 Press {e} or {v} to select “SETTING
Symbol
Meaning
{j/OK}
Press {j/OK}.
i
Proceed to the next
operation.
3 Enter base unit PIN (default: “0000”).
Select the words in quotations
shown on the display (e.g.,
“SETTING HS”) by pressing
{e} or {v}.
4 {1}
5 Select the desired setting by pressing {1}
“”
Display language
13 display languages are available.
You can select “ENGLISH”, “SLOVENSKY”,
“CESTINA”, “HRVATSKI”, “SLOVENSCINA”,
“EESTI”, “LIETUVISKAI”, “LATVIESU”,
“ROMANA”, “BULGARSKI”, “SRPSKI”,
“MAKEDONSKI”, or “SHQIP”.
1 {j/OK}
2 Press {e} or {v} to select “SETTING
HS”. i {>}
3 Press {e} or {v} to select “DISPLAY
OPT”. i {>}
4 Press {e} or {v} to select “LANGUAGE”.
i {>}
5 Press {e} or {v} to select the desired
language. i {>} i {ih}
8
BS”. i {>} i {3}
L If you forget your PIN, see page 18.
for tone dialling mode or {2} for pulse
dialling mode.
6 {>} i {ih}
Date and time
1 {j/OK}
2 Press {e} or {v} to select “SETTING
BS”. i {>} i {*}
3 Enter the current hour and minute (24hour time entry).
L If you make a mistake, press {C}.
Digits will be cleared from the right.
4 {>} 2 times i {*} 2 times
5 Enter the current day, month, and year.
L If you make a mistake, press {C}.
Digits will be cleared from the right.
6 {>} i {ih}
TG1100_1102FX(e-e).book Page 9 Wednesday, February 15, 2006 11:42 AM
Making/Answering Calls
Making/Answering Calls
Making calls
1 Dial the phone number. i {C}
2 When finished talking, press {ih} or
place the handset on the base unit or
charger.
Answering calls
1 Press {C} to answer the call.
L You can also answer a call by pressing
any dial key from {0} to {9}, {*}, {#},
or {INT}. (Any key answer feature)
2 When finished talking, press {ih} or
place the handset on the base unit or
charger.
Handset locator
1 Press {x} on the base unit.
2 To stop paging, press {x} on the base
unit or press {C} on the handset.
To adjust the receiver volume
Press {e} or {v} while on a call.
Pause button (for PBX/long
distance service users)
A pause is sometimes required when
making calls using a PBX or long distance
service. Pressing {R} 1 time creates 1
pause. Press {R} repeatedly to create
longer pauses.
Temporary tone dialling (for
rotary or pulse service users)
You can temporarily switch the dialling
mode to tone when you need to access
touch tone services (e.g., telephone banking
services).
1 Make a call.
2 Press {*} when prompted to enter your
code or PIN, then press the appropriate
dial keys.
L The dialling mode will return to pulse
when you hang up.
Redial functions (Redialling/
Storing/Editing before calling/
Erasing)
1 {R} i Press {e} or {v} to select the
desired number.
2 ■ Redialling:
{C}
■ Storing:
{>} i “SAVE TEL NO” i {>} i
{j/OK} i Enter the name (9
characters max.; page 10). i
{j/OK}
■ Editing before calling:
{>} i “EDIT CALL NO” i {>}
i Edit the number. i {C}
■ Erasing:
{>} i “CLEAR”/“ALL CLEAR” i
{>} i “YES” i {>} i {ih}
Key lock
The handset can be locked so that no calls
or settings can be made. Incoming calls can
be answered, but all other functions are
disabled while key lock is on.
To turn key lock on, press {j/OK} for about
2 seconds.
To turn key lock off, press {j/OK} for about
2 seconds.
R button (to use the recall
feature)
{R} is used to access optional telephone
services. Contact your service provider/
telephone company for details.
Note:
L If your unit is connected to a PBX (private
branch exchange), consult your PBX
dealer for details.
9
TG1100_1102FX(e-e).book Page 10 Wednesday, February 15, 2006 11:42 AM
Phonebook
Phonebook
Adding entries to the
phonebook
Making calls/Editing/Erasing
The phonebook allows you to make calls
without having to dial manually. You can add
50 names and phone numbers to the
phonebook.
2 ■ Making calls:
1 {k} i Press {e} or {v} to display
the desired entry.
1 {j/OK} 2 times
2 Enter the party’s phone number (24 digits
max.). i {j/OK}
3 Enter the party’s name (9 characters
max.). i {j/OK} i {ih}
Note:
L When caller information is received and it
matches a phone number stored in the
unit’s phonebook, the stored name will be
displayed.
Character table
Keys
Characters
{1}
#
[
]
*
{2}
A
B
C
2
{3}
D
E
F
3
{4}
G
H
I
4
{5}
J
K
L
5
{6}
M N
O
6
{7}
P
Q
R
S
{8}
T
U
V
8
{9}
W X
Y
Z
{0}
(Space)
,
–
/
1
Assigning an entry in the phonebook to a
hot key
Dial keys {1} to {9} can each be used as a
“hot key”, allowing you to dial a number from
the phonebook by simply pressing a dial
key.
1 {k} i Press {e} or {v} to display
2 “HOT KEY REG” i {>}
3 Select the desired dial key. i {>}
7
L If the dial key is already assigned as a
hot key, the displayed number will
flash.
4 “YES” i {>} i {ih}
9
0
1 Press {<} or {>} to move the cursor to
the right of where you want to correct the
number/character.
2 {C} i Enter the correct number/
10
Hot key (quick dial)
the desired entry. i {j/OK}
To edit/correct a mistake
character.
{C}
■ Editing:
{>} i “EDIT” i {>} i Edit the
phone number. i {j/OK} i Edit
the name. i {j/OK}
■ Erasing:
{>} i “CLEAR” i {>} i “YES”
i {>} i {ih}
Making calls/Erasing
1 Press and hold the desired hot key ({1} to
{9}).
2 ■ Making calls:
{C}
■ Erasing:
{>} 2 times i “YES” i {>} i
{ih}
TG1100_1102FX(e-e).book Page 11 Wednesday, February 15, 2006 11:42 AM
Useful Telephone Settings
Useful Telephone Settings
Guide to handset settings
To customise the handset:
1
2
3
4
5
{j/OK}
Press {e} or {v} to select “SETTING HS”. i {>}
Press {e} or {v} to select the desired item in the handset settings menu. i {>}
Press {e} or {v} to select the desired item in the sub-menu. i {>}
Press {e} or {v} to select the desired setting, or follow the instructions in the “Feature”
column of the chart.
L To exit the operation, press {ih}.
Handset
settings menu
Sub-menu
Feature (default setting)
TIME ALARM
SET TIME
Set time alarm.
L Set the date and time beforehand (page 8).
− Enter the desired hour and minute (24-hour
time entry). i {>}
− Select the desired setting. i {>}
SET ALARM
Change alarm frequency (“OFF”).
RINGER OPT
RINGER VOL
Handset ringer volume (level 6)
EXT RINGER
Ringer type for external calls (“RING TYPE 1”)
INT RINGER
Ringer type for internal calls (“RING TYPE 1”)
TONE OPT
DISPLAY OPT
CALL OPT
PAGING
Ringer type for page (“RING TYPE 1”)
ALARM
Ringer type for alarm (“RING TYPE 1”)
KEY TONE
Keytones on/off (“ON”)
CALL WAITING
Call waiting tone on/off (“ON”)
RANGE ALARM
Range alarm on/off (“OFF”)
BATTERY LOW
Battery low alarm on/off (“ON”)
STANDBY MODE
Standby mode display (“CLOCK”)
TALK MODE
Talk mode display (“TALK TIME”)
LANGUAGE
Display language (“ENGLISH”): page 8
CALL BAR
Call bar on/off (“OFF”)*1
− Enter handset PIN (default: “0000”).*2
− Select the desired setting. i {>}
DIRECT NO
Store direct call number.*3
− Enter a phone number (24 digits max.).
− {j/OK} 2 times i “ON” i {>}
SET DIRECT
Direct call on/off (“OFF”)
11
TG1100_1102FX(e-e).book Page 12 Wednesday, February 15, 2006 11:42 AM
Useful Telephone Settings
Handset
settings menu
Sub-menu
Feature (default setting)
OTHER OPT
HSPIN CHANGE
Change handset PIN (“0000”).*4
− Enter the current 4-digit handset PIN.*2
− Enter the new 4-digit handset PIN.
− Enter the new 4-digit handset PIN again.
AUTO TALK
Auto talk on/off (“OFF”)*5
RESET HS
—————
Reset handset to its default settings.
− Follow steps 1, 2, and 3.
− Enter handset PIN (default: “0000”).*2
− {v} i {>}
*1 Call bar feature prohibits making outside calls. When call bar is turned on, only emergency
calls can be made. To store emergency numbers, see page 13.
*2 If you forget your PIN, see page 18.
*3 Direct call feature allows you to dial a preset phone number simply by pressing {C}. No
dialling is necessary.
*4 If you change the PIN, please write down your new PIN as the unit will not reveal the PIN
to you.
*5 Auto talk feature allows you to answer calls simply by lifting the handset off the base unit
or charger. You do not need to press {C}.
Guide to base unit settings
To customise the base unit:
1 {j/OK}
2 Press {e} or {v} to select “SETTING BS”. i {>}
L “INPUT CODE” is displayed.
3 Enter the desired code number. Follow the instructions in the “Feature” column of the
chart.
L To exit the operation, press {ih}.
Code No.
Feature (Default setting)
{0}
Reset base unit to its default settings.*1
− Enter base unit PIN (default: “0000”).*2 i {>}
{3}
Dialling mode (Tone): page 8
Flash time (600 ms)*3
− Enter base unit PIN (default: “0000”).*2 i {2} i {1}
− Select the desired setting by pressing {1} for 100 ms, {2} for 600 ms
or {3} for 300 ms. i {>}
DTMF mode (Off): page 14
12
TG1100_1102FX(e-e).book Page 13 Wednesday, February 15, 2006 11:42 AM
Useful Telephone Settings
Code No.
Feature (Default setting)
{5}
Change base unit PIN (“0000”).*4
− Enter the current 4-digit base unit PIN.*2
− Enter the new 4-digit base unit PIN.
− Enter the new 4-digit base unit PIN again.
{6}
Call restriction*5
■ Setting call restriction
− Enter base unit PIN (default: “0000”).*2 i Press the desired
handset numbers. i {>}
− Enter the phone number to be restricted (8 digits max.).
L To select a different memory location, press {>} and enter a
number.
− {>}
■ Turning on/off call restriction
− Enter base unit PIN (default: “0000”).*2
L Handset number will be displayed. A flashing number indicates
call restriction is on; a non-flashing number indicates call
restriction is off.
− Press the desired handset numbers to turn on/off. i {>} 2 times
Emergency number*6
− Enter base unit PIN (default: “0000”).*2 i {*}
■ Storing:
− Enter the emergency number (8 digits max.).
L To select a different memory location, press {>} and enter a
number.
− {>}
■ Editing:
Press {>} to display the desired number. i {C} i Enter the
new emergency number. i {>}
{*}
Date and time: page 8
*1 Only the emergency number setting will not be reset.
*2 If you forget your PIN, see page 18.
*3 Change the flash time if necessary to suit your PBX or service provider/telephone
company. For further information, consult your nearest Panasonic service centre.
*4 If you change the PIN, please write down your new PIN as the unit will not reveal the PIN
to you.
*5 Call restriction feature restricts the handset from dialling certain phone numbers. You can
assign up to 10 phone numbers (memory locations 0–9) to be restricted.
*6 Emergency number feature determines which phone numbers may be dialled while the
call bar feature is turned on. A total of 4 emergency numbers (memory locations 1–4) can
be stored.
13
TG1100_1102FX(e-e).book Page 14 Wednesday, February 15, 2006 11:42 AM
Caller ID Service
2 “SETTING BS” i {>} i {3}
3 Enter base unit PIN (default: “0000”).
Caller ID Service
Using Caller ID service
Important:
L This unit is Caller ID compatible. To use
Caller ID features (such as displaying
caller phone numbers), you must
subscribe to Caller ID service. Consult
your service provider/telephone company
for details.
Display indications
L When new calls have been received, the
display will show the number of new calls.
Example: 4 new calls have been
received.
L Phone numbers of the last 50 different
callers will be logged in the caller list.
Example:
*1
*1 Shown when this call has already been
viewed or answered. Press {C} to call
back.
L “OUT OF AREA”: When the caller dialled
from an area which does not provide
Caller ID service.
L “PRIVATE”: When the caller requested
not to send caller information.
DTMF mode setting
Certain service providers/telephone
companies send caller information between
the first and second rings. If the display does
not show caller information after a few rings,
follow these instructions to set DTMF mode.
14
4 {4}
5 Select DTMF mode by pressing {2}.
6 {>} i {ih}
L To cancel DTMF mode, press {1} in
step 5.
Storing/Editing/Erasing
Caller ID features
1 {j/OK}
L If you forget your PIN, see page 18.
1 Press {e} or {v} to display the desired
entry. i {>}
2 ■ Storing:
“SAVE TEL NO” i {>} i {j/OK}
i Enter the party’s name (9
characters max.; page 10). i
{j/OK} i {ih}
■ Editing:
“EDIT CALL NO” i {>} i Press
{<} or {>} to move the cursor to the
right of where you want to edit the
number. i Edit the phone number.
i {C}
■ Erasing:
“CLEAR”/“ALL CLEAR” i {>} i
“YES” i {>} i {ih}
Voice mail service
Voice mail is an automatic answering
service offered by your service provider/
telephone company. If you subscribe to this
service, your service provider/telephone
company’s voice mail system will answer
calls for you when you are unavailable to
answer the phone or when your line is busy.
Messages are recorded by your service
provider/telephone company, not your
telephone. Please consult your service
provider/telephone company for details of
this service.
TG1100_1102FX(e-e).book Page 15 Wednesday, February 15, 2006 11:42 AM
Multi-unit Operation
Multi-unit Operation
Intercom between
handsets (KX-TG1102
only)
Intercom calls can be made between
handsets in the same radio cell.
Example: When handset 1 calls handset 2
1 Handset 1:
{INT} i Press {2} (desired handset
number).
2 Handset 2:
Press {C} to answer.
Transferring a call without speaking to
the other handset user
1 During an outside call, press {INT}. i
Press the desired handset number.
L k flashes to indicate the outside call is
on hold.
2 {ih}
L The outside call rings at the other
handset.
Note:
L If the other handset user does not answer
the call within 30 seconds, the call will ring
at your handset again.
3 When finished talking, press {ih}.
Transferring calls
between handsets,
conference calls (KXTG1102 only)
Outside calls can be transferred between 2
people in the same radio cell. 2 people in the
same radio cell can have a conference call
with an outside party.
Example: When handset 1 transfers a call
to handset 2
1 Handset 1:
During an outside call, press {INT} i
Press {2} (desired handset number).
L The outside call will be put on hold.
L If there is no answer, press {INT} to
return to the outside call.
2 Handset 2:
Press {C} to answer the page.
L Handset 2 can talk with handset 1.
3 Handset 1:
To complete the call transfer, press
{ih}.
To establish a conference call, press {3}.
15
TG1100_1102FX(e-e).book Page 16 Wednesday, February 15, 2006 11:42 AM
Useful Information
Useful Information
Troubleshooting
If you still have difficulties after following the instructions in this section, disconnect the AC
adaptor and turn off the handset, then reconnect the AC adaptor and turn on the handset.
Problem
Cause & solution
w is flashing.
L The handset is too far from the base unit. Move
closer.
L The AC adaptor is not connected. Check the
connections.
L You are using the handset or base unit in an area
with high electrical interference. Place the handset
and base unit away from interference sources,
such as antennas and mobile phones.
L The handset registration is cancelled. Register the
handset to the base unit using the following
method.
1
2
3
4
5
{j/OK}
“SETTING HS” i {>}
“REGISTRATION” i {>}
“REGISTER HS” i {>}
Press and hold {x} on the base unit for about
5 seconds.
L If all registered handsets start ringing, press
{x} to stop, then start again from step 1.
L The rest of the procedure must be completed
within 1 minute.
6 Press {e} or {v} to select a base unit number.
i {>}
7 Wait until “BS PIN” is displayed. i Enter
base unit PIN (default: “0000”). i {>}
L If you forget your PIN, see page 18.
L A confirmation tone will sound, and w will
stop flashing.
L If w is still flashing, start again from step 1.
16
TG1100_1102FX(e-e).book Page 17 Wednesday, February 15, 2006 11:42 AM
Useful Information
Problem
Cause & solution
I cannot make or receive calls.
L The AC adaptor or telephone line cord is not
connected. Check the connections.
L The call bar feature is turned on. Turn it off (page
11).
L You dialled a call restricted number (page 13).
L The key lock feature is turned on. Turn it off (page
9).
L The dialling mode setting is incorrect. Set to
“Tone” or “Pulse” as needed (page 8).
The unit does not ring.
L The ringer volume is turned off. Adjust the ringer
volume (page 11).
The handset display is blank.
L The handset is not turned on. Turn the power on
(page 6).
The handset will not turn on.
L Make sure that the batteries are installed correctly
(page 6).
L Fully charge the batteries (page 6).
A busy tone is heard when {C}
is pressed.
L The handset is too far from the base unit. Move
closer and try again.
Static, sound cuts in/out, fades.
Interference from other electrical
units.
L Place the handset and the base unit away from
other electrical appliances.
L Move closer to the base unit.
L Your unit is connected to a telephone line with DSL
service. We recommend connecting a filter
(contact your DSL service provider) to the
telephone line between the base unit and the
telephone line jack.
Noise is heard during a call.
L You are using the handset or base unit in an area
with high electrical interference. Place the handset
and base unit away from interference sources,
such as antennas and mobile phones.
Pressing {R} does not display/
dial the last number dialled.
L The redialled number was more than 24 digits
long. Redial the number manually.
I fully charged the batteries, but
074 still flashes.
L Clean the charge contacts and charge again (page
6).
L It is time to replace the batteries (page 6).
17
TG1100_1102FX(e-e).book Page 18 Wednesday, February 15, 2006 11:42 AM
Useful Information
Problem
Cause & solution
Caller information is not
displayed.
L You must subscribe to Caller ID service.
L Consult your service provider.
L Your unit is connected to a telephone line with DSL
service. We recommend connecting a filter
(contact your DSL service provider) to the
telephone line between the base unit and the
telephone line jack.
I cannot remember the PIN.
L Change the PIN using the following method.
Handset PIN:
1
2
3
4
5
6
7
8
{j/OK}
“SETTING HS” i {>}
“OTHER OPT” i {>}
“HSPIN CHANGE” i {>}
Press {*}{7}{0}{0}{0}.
Enter the new 4-digit handset PIN.
Enter the new 4-digit handset PIN again.
{ih}
Base unit PIN:
1
2
3
4
5
6
7
18
{j/OK}
“SETTING BS” i {>}
Press {5}.
Press {*}{7}{0}{0}{0}.
Enter the new 4-digit base unit PIN.
Enter the new 4-digit base unit PIN again.
{ih}
TG1100_1102FX(e-e).book Page 19 Wednesday, February 15, 2006 11:42 AM
Useful Information
Specifications
■ Standard: DECT (Digital Enhanced
Cordless Telecommunications)
■ Number of channels: 120 Duplex
Channels
■ Frequency range: 1.88 GHz to 1.9 GHz
■ Duplex procedure: TDMA (Time
Division Multiple Access)
■ Channel spacing: 1,728 kHz
■ Bit rate: 1,152 kbit/s
■ Modulation: GFSK (Gaussian
Frequency Shift Keying)
■ RF transmission power: Approx. 250
mW
■ Power source: 220–240 V, 50 Hz
■ Power consumption:
Base unit:
Standby: Approx. 3.5 W
Maximum: Approx. 9.2 W
Charger*1:
Standby: Approx. 0.6 W
Maximum: Approx. 5.0 W
■ Operating conditions: 5 °C–40 °C, 20
%–80 % relative air humidity (dry)
■ Dimensions:
Base unit: Approx. 58 mm × 123 mm × 115
mm
Handset: Approx. 143 mm × 48 mm × 32
mm
Charger*1: Approx. 60 mm × 86 mm × 84
mm
■ Mass (weight):
Base unit: Approx. 180 g
Handset: Approx. 120 g
Charger*1: Approx. 120 g
actual product.
Connections:
The unit will not work during a power failure.
We recommend you connect a standard
telephone on the same line for power
protection.
Wall mounting
Base unit
80 mm
Screws
Charger (KX-TG1102 only)
28 mm
Screws
*1 KX-TG1102 only
Note:
L Specifications are subject to change.
L The illustrations used in these operating
instructions may differ slightly from the
19
TG1100_1102FX(e-e).book Page 20 Wednesday, February 15, 2006 11:42 AM
1999/5/EC
Panasonic Communications Zhuhai Co., Ltd.
3 Ping Xi 8 Lu, Nanping Keji Gongye Yuan, Zhuhai, Guangdong, China 519060
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced
for internal use only. All other reproduction, in whole or in part, is prohibited without the written
consent of Panasonic Communications Co., Ltd.
© 2006 Panasonic Communications Co., Ltd. All Rights Reserved.
PQQX15249ZA
DC0206DU0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
