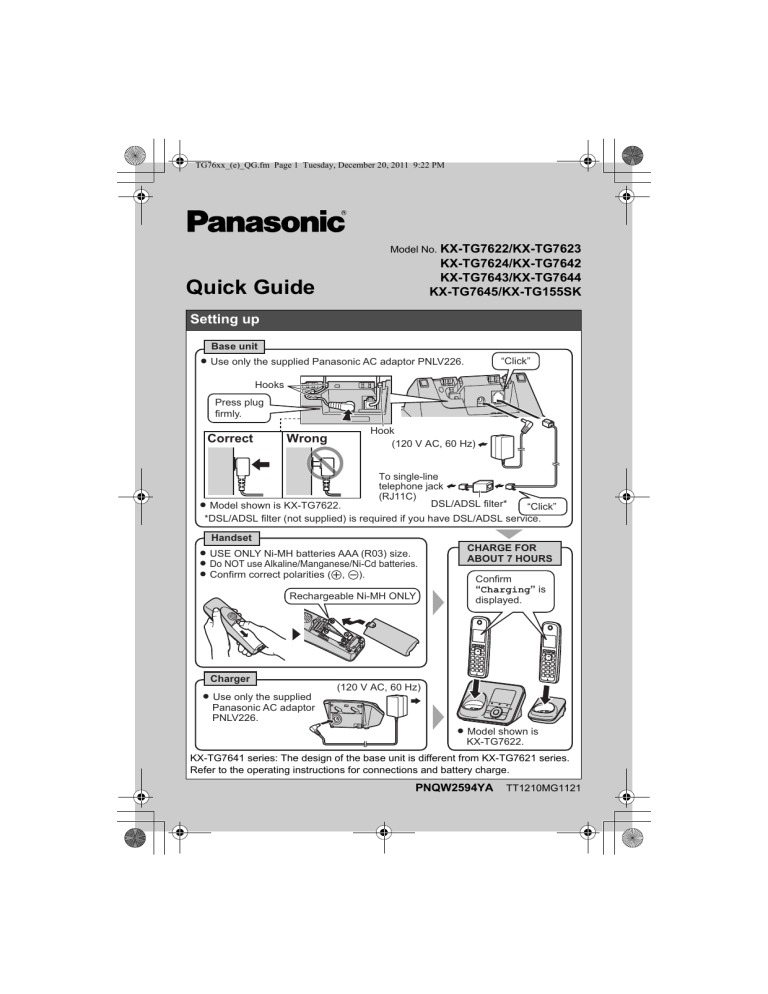

TG76xx_(e)_QG.fm Page 1 Tuesday, December 20, 2011 9:22 PM
Model No. KX-TG7622/KX-TG7623
KX-TG7624/KX-TG7642
KX-TG7643/KX-TG7644
KX-TG7645/KX-TG155SK
Quick Guide
Setting up
Base unit
L Use only the supplied Panasonic AC adaptor PNLV226.
“Click”
Hooks
Press plug
firmly.
Correct
Wrong
Hook
(120 V AC, 60 Hz)
To single-line
telephone jack
(RJ11C)
DSL/ADSL filter*
L Model shown is KX-TG7622.
“Click”
*DSL/ADSL filter (not supplied) is required if you have DSL/ADSL service.
Handset
L USE ONLY Ni-MH batteries AAA (R03) size.
L Do NOT use Alkaline/Manganese/Ni-Cd batteries.
L Confirm correct polarities (S, T).
Rechargeable Ni-MH ONLY
CHARGE FOR
ABOUT 7 HOURS
Confirm
“Charging” is
displayed.
Charger
L Use only the supplied
Panasonic AC adaptor
PNLV226.
(120 V AC, 60 Hz)
L Model shown is
KX-TG7622.
KX-TG7641 series: The design of the base unit is different from KX-TG7621 series.
Refer to the operating instructions for connections and battery charge.
PNQW2594YA
TT1210MG1121
TG76xx_(e)_QG.fm Page 2 Tuesday, December 20, 2011 9:22 PM
Operating tips
Soft keys
The handset features 3 soft keys. By pressing a soft
key, you can select the feature shown directly above
it on the display.
{C}, {MENU}, {CELL}, and other additional
functions are assigned to soft keys. Pay attention to
the display to see what functions the soft keys are
assigned during handset operation.
Navigator key
Handset:
− {^}, {V}, {<}, or {>}: Scroll through various lists
and items.
− ? VOL. (Volume: {^} or {V}): Adjust the receiver
or speaker volume while talking.
− {<} CID (Caller ID): View the caller list.
− {>} REDIAL (Redial): View the redial list.
Base unit (KX-TG7641 series):
− {^}, {V}, {7}, or {8}: Scroll through various lists
and items.
− {^} or {V} (Volume): Adjust the speaker volume
while talking.
− {7} CID (Caller ID): View the caller list.
− {8} REDIAL (Redial): View the redial list.
− {7}/{8}: Repeat/skip messages during
playback.
CELL
Handset
Volume up
{^}
{<}
{>}
{V}
Volume down
Base unit
Volume up
{^}
{7}
{8}
{V}
Volume down
Date and time (Handset)
1
2
3
4
{MENU} (1)1
Enter the current month, date, and year. s {OK}
Enter the current hour and minute (12-hour clock format).
{AM/PM}: Select “AM” or “PM”. s {SAVE} s {OFF}
Recording your greeting message for the answering
system for the landline (Handset)
If you use a pre-recorded greeting message, you do not need to record your own
greeting message.
1 {MENU} (3)2 s {r}: “Yes” s {SELECT}
2 After a beep sounds, hold the handset about 20 cm (8 inches) away and speak
clearly into the microphone (2 minutes max.).
3 Press {STOP} to stop recording. s {OFF}
–2–
TG76xx_(e)_QG.fm Page 3 Tuesday, December 20, 2011 9:22 PM
Link to cell
You can use the unit to make or answer calls using a cellular line. Your cellular
phones must be Bluetooth® wireless technology compatible with this product. For
more details, please visit our Web site: http://www.panasonic.com/link2cell
L Locate your cellular phone near the base unit. If the cellular phone is too close to
the base unit during a cellular call, you may hear noise. For best performance, we
recommend placing the cellular phone between 0.6 m to 3 m (2 feet to 10 feet)
away from the base unit.
Cellular line
Cellular phone
service provider
Registering a Bluetooth cellular phone
1 Handset:
For CELL 1: {MENU} (6241
For CELL 2: {MENU} (6242
L After the CELL 1 or CELL 2 indicator on the base unit starts flashing red, the rest
of the procedure must be completed within 5 minutes.
2 Your cellular phone:
While the CELL 1 or CELL 2 indicator is flashing red, follow the instructions of your
cellular phone to enter the registration mode.
L Depending on your cellular phone, it may ask you to enter the base unit PIN
(default: “0000”).
3 Handset:
Wait until a long beep sounds.
L It may take more than 10 seconds to complete registration.
L When the CELL 1 or CELL 2 indicator lights green, the cellular phone is
connected to the base unit. You are ready to make cellular calls.
4 To select which unit receives calls for the cellular line (default: “All”):
{OK} s {r}: Select the desired handset or “All”. s {SAVE}
L If not required, go to step 5.
5 {OFF}
Note:
L Make sure that your cellular phone is set to connect to this product automatically.
Refer to your cellular phone’s operating instructions.
Trademarks
L The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any
use of such marks by Panasonic Corporation is under license. All other trademarks
identified herein are the property of their respective owners.
–3–
TG76xx_(e)_QG.fm Page 4 Tuesday, December 20, 2011 9:22 PM
Link to cell
Base unit: CELL 1/CELL 2 indicators
Status
Meaning
Green (On)
A cellular phone is connected. Ready to make/receive
cellular calls.
Green (Flashing)
The cellular line is in use.
Phonebook entries are being copied from a cellular phone.
Green
(Flashing rapidly)
A cellular call is being received.
Amber (On)
A cellular phone is not connected to the base unit.
Amber
(Flashing rapidly)
The base unit is searching for the registered cellular
phone.
Red (Flashing)
A cellular call is put on hold.
Light off
A cellular phone is not registered to the base unit.
Handset: Link to cell display items
A cellular line is in use.
L When flashing: The cellular call is put on hold.
L When flashing rapidly: A cellular call is being received.
t
A cellular phone is connected.*1 Ready to make/receive cellular calls.
L When turned off: A cellular phone is not connected to the base unit.
*1 Corresponding cellular line(s) is indicated next to the item.
]12
uv
A cellular call is being received on that line.
Connecting/disconnecting the cellular phone
Auto connection to the cellular phone
The unit connects to the cellular phone at regular intervals if the connection is lost. To
change the interval (default: “1 min”), see the operating instructions.
L When you are using a cellular line or a Bluetooth headset, the base unit loses its
connection from other Bluetooth devices (cellular phone or headset). To
automatically resume the connection to cellular phones, leave the auto connection
on.
Connecting/disconnecting the cellular phone manually
When you make or answer calls with your cellular phone, we recommend
disconnecting it from the base unit, otherwise received audio may not be heard on
your cellular phone.
You can also manually reconnect the cellular phone to the base unit without waiting
for the auto connection feature to resume the connection.
1 To connect/disconnect:
For CELL 1: {MENU} (6251 (A long beep sounds.)
For CELL 2: {MENU} (6252 (A long beep sounds.)
2 {OFF}
–4–
TG76xx_(e)_QG.fm Page 5 Tuesday, December 20, 2011 9:22 PM
Link to cell
Cellular line only mode (If you do not use the landline)
If you do not use the landline, set the cellular line only mode to use this unit more
conveniently.
1 {MENU} (157
2 To turn on:
{r}: “On” s {SELECT} s {r}: “Yes” s {SELECT}
To turn off:
{r}: “Off” s {SELECT}
Basic operations
Making/Answering calls (Handset)
Making cellular calls
1 Dial the phone number. s {CELL}
L When the cellular line only mode is set, you can
also press {C}/{s} instead of {CELL}.
L When only 1 cellular phone is registered, the unit
starts dialing.
2 When 2 cellular phones are registered:
{r}: Select the desired cellular phone. s {SELECT}
Making landline calls
Dial the phone number. s {C}/{s}
Answering calls
{C}/{s}
To hang up
{OFF}
To adjust the receiver or
speaker volume
Press {^} or {V} repeatedly while talking.
Making a call using the
redial list
1 {>} REDIAL s {r}: Select the desired phone
number.
2 To make a cellular call:
When only 1 cellular phone is registered: {CELL}
or
When 2 cellular phones are registered:
{CELL} s {r}: Select the desired cellular phone.
s {SELECT}
To make a landline call:
{C}
–5–
TG76xx_(e)_QG.fm Page 6 Tuesday, December 20, 2011 9:22 PM
Basic operations
Making/Answering calls (Base unit): KX-TG7641 series
Making cellular calls
Dial the phone number. s {CELL 1}/{CELL 2}
L When the cellular line only mode is set, you can also
press {SP-PHONE} instead of {CELL 1}/{CELL 2}.
Making landline calls
Dial the phone number. s {SP-PHONE}
Answering calls
{SP-PHONE}
To hang up
{SP-PHONE}
To adjust the speaker
volume
Press {^} or {V} repeatedly while talking.
Making a call using the
redial list
1 {8} REDIAL
2 {r}: Select the desired phone number.
3 To make a cellular call: {CELL 1}/{CELL 2}
To make a landline call: {SP-PHONE}
Adjusting the ringer volume (Handset)
To adjust the handset
ringer volume (cellular
line)
1 For CELL 1: {MENU} (6281
To adjust the handset
ringer volume (landline)
1 {MENU} (16)
2 {r}: Select the desired volume. s {SAVE} s
To adjust the base unit
ringer volume (cellular
line)
1 For CELL 1: {MENU} (*6281
For CELL 2: {MENU} (6282
2 {r}: Select the desired volume. s {SAVE} s
{OFF}
{OFF}
For CELL 2: {MENU} (*6282
2 {r}: Select the desired volume. s {SAVE} s
{OFF}
To adjust the base unit
ringer volume (landline)
1 {MENU} (*16)
2 {r}: Select the desired volume. s {SAVE} s
{OFF}
–6–
TG76xx_(e)_QG.fm Page 7 Tuesday, December 20, 2011 9:22 PM
Basic operations
Shared phonebook
Adding entries
Handset:
1 {C} s {ADD}
2 Enter the party’s name (16 characters max.). s
{OK}
3 Enter the party’s phone number (24 digits max.). s
{OK}
4 {r}: Select the desired group. s {SELECT} 2 times
s {OFF}
Making calls
Handset:
1 {C} s {r}: Select the desired entry.
2 To make a cellular call:
When only 1 cellular phone is registered: {CELL}
or
When 2 cellular phones are registered:
{CELL} s {r}: Select the desired cellular phone.
s {SELECT}
To make a landline call:
{C}
Base unit (KX-TG7641 series):
1 {C} s {r}: Select the desired entry.
2 To make a cellular call: {CELL 1}/{CELL 2}
To make a landline call: {SP-PHONE}
Answering system for the landline (Base unit)
Answering on/off
Press {ANSWER ON/OFF} to turn on/off the answering
system.
Listening to messages
{6}
Answering system for the landline (Handset)
Listening to messages
To listen to new messages:
{MENU} s {PLAY}
or
{MENU} (323
To listen to all messages:
{MENU} (324
–7–
TG76xx_(e)_QG.fm Page 8 Tuesday, December 20, 2011 9:22 PM
Using Bluetooth devices
Copying phonebook entries from a Bluetooth cellular phone (phonebook
transfer)
You can copy phonebook entries from the registered cellular phones or other cellular
phones (not registered) to the unit’s shared phonebook.
Copying phonebook entries from a Bluetooth cellular phone
1 Handset: {MENU} (618
2 Handset:
To copy from registered cellular phones:
{r}: Select the desired cellular phone. s {SELECT}
L Copied items are stored to the group (“Cell 1” or “Cell 2”) which the cellular
phone is registered to.
To copy from other cellular phones (not registered):
{r}: “Other cell” s {SELECT} s {r}: Select the group you want to copy to.
s {SELECT}
3 When “Transfer phonebook from cell.” is displayed: Go to step 4.
When “Select mode” menu is displayed:
{r}: Select “Auto” or “Manual”. s {SELECT}
“Auto”: Download all entries from the cellular phone automatically. Go to step 5.
“Manual”: Copy entries you selected.
L “Select mode” menu is displayed only when the cellular phone supports PBAP
(Phone Book Access Profile) for Bluetooth connection.
4 Cellular phone:
Follow the instructions of your cellular phone to copy phonebook entries.
L For other cellular phones (not registered), you need to search for and select the
base unit. The base unit PIN (default: “0000”) may be required.
L The entries being copied are displayed on the handset.
5 Handset:
Wait until “Completed” is displayed. s {OFF}
–8–
TG76xx_(e)_QG.fm Page 9 Tuesday, December 20, 2011 9:22 PM
Using Bluetooth devices
Using a Bluetooth wireless headset (optional) for landline calls
By registering a Bluetooth headset to the base unit, you can have a hands-free
conversation wirelessly for landline calls.
L While someone is using a cellular line, the Bluetooth headset connection is not
available.
Registering a headset to the base unit
1 Your headset:
Register using the handset.
Set your headset to registration mode.
L Refer to your headset operating instructions.
2 Handset:
Register
{MENU} (621
3 Enter your headset PIN.
L Typically, default PIN is “0000”. Refer to the headset operating instructions.
4 Press {OK}, then wait until a long beep sounds. s {OFF}
L When the HEADSET indicator on the base unit lights green, you are ready to use
the headset.
Operating a Bluetooth wireless headset using a landline
Refer to your headset operating instructions for headset operations.
N Answering landline calls with your headset
To answer a landline call, turn on your headset referring to your headset operating
instructions.
When you finish talking, turn off your headset referring to your headset operating
instructions.
L If you cannot hang up the call using your headset;
− press {„} (STOP) on the base unit. (KX-TG7621 series)
− press {SP-PHONE} on the base unit 2 times. (KX-TG7641 series)
N Switching between the base unit and your headset
You can switch between the base unit and your headset:
− during a landline call with the base unit speakerphone. (KX-TG7641 series)
− during an intercom call between the base unit and handset. (KX-TG7641 series)
− while listening to messages recorded on the base unit answering system.*1
KX-TG7641 series
To switch to your headset:
Press {HEADSET} on the base unit.
To switch to the base unit:
Press {SP-PHONE} on the base unit.
*1 KX-TG7621 series
L You can only switch from the base unit to your headset. Turn on the headset
referring to your headset operating instructions.
–9–
TG76xx_(e)_QG.fm Page 10 Tuesday, December 20, 2011 9:22 PM
Frequently asked questions
Question
Cause/solution
Why is _ displayed?
L The handset is too far from the base unit. Move closer.
L The base unit’s AC adaptor is not properly connected.
Reconnect AC adaptor to the base unit.
L The handset is not registered to the base unit. Register it.
1 Handset: {MENU} (13)
2 Base unit: Press and hold {LOCATOR} for about 5
seconds until the registration tone sounds.
3 Handset: Press {OK}, then wait until a long beep
sounds.
Why can I not register a
cellular phone to the
base unit?
L Depending on the compatibility of the cellular phone, you may
not be able to register it to the base unit. For more information,
please visit http://www.panasonic.com/link2cell
L Confirm that the Bluetooth feature of your cellular phone
is turned on. You may need to turn this feature on
depending on your cellular phone.
Why can I not hear a
dial tone? (cellular line)
L Make sure that the CELL 1 or CELL 2 indicator lights
green and the cellular phone is connected to the base unit.
L The cellular phone has not been registered to the base
unit. Register the cellular phone.
How can I increase the
handset volume level?
L Press the navigator key {^} repeatedly while talking.
Why is the
conversation noisy or
cutting off?
L Try to relocate the base unit so that distance to the
handset is minimized.
L If the same problem occurs even if the handset is next to
the base unit, call Panasonic customer support at
1-800-211-PANA (1-800-211-7262).
Can I add another
accessory handset to
my base unit?
L Yes, you can add up to 6 handsets (including the
handset(s) sold with your base unit) to a single base unit.
L To purchase additional accessory handset(s)
(KX-TGA410/KX-TGA660), please visit
http://www.panasonic.com
or call 1-800-332-5368. TTY users (hearing or speech
impaired users) can call 1-866-605-1277.
Can I keep the batteries
charging all the time?
L You can leave the handset on the base unit or charger
anytime. This will not harm the batteries.
How can I answer a call
waiting call (2nd call)?
L Press {CALL WAIT} when you hear the call waiting tone.
For further registration information, visit
http://www.panasonic.com/RegisterYourHandset
– 10 –
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
