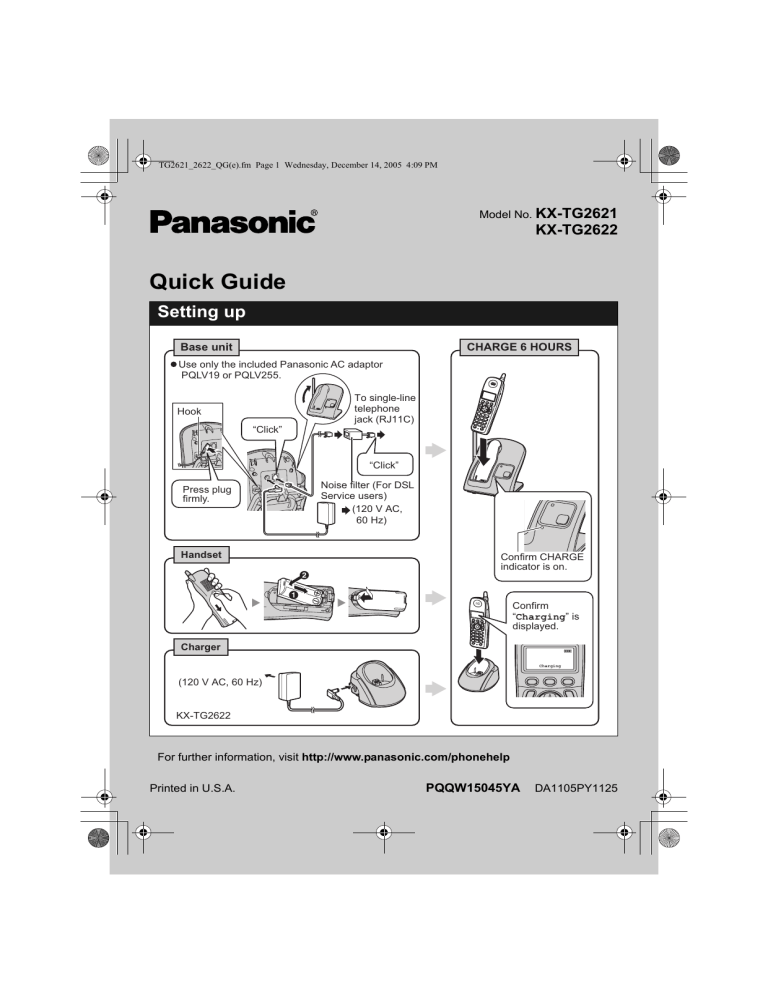

TG2621_2622_QG(e).fm Page 1 Wednesday, December 14, 2005 4:09 PM
Model No. KX-TG2621
KX-TG2622
Quick Guide
Setting up
CHARGE 6 HOURS
Base unit
Use only the included Panasonic AC adaptor
PQLV19 or PQLV255.
To single-line
telephone
jack (RJ11C)
Hook
“Click”
“Click”
Noise filter (For DSL
Service users)
(120 V AC,
60 Hz)
Press plug
firmly.
Handset
B
Confirm CHARGE
indicator is on.
A
Confirm
“Charging” is
displayed.
Charger
Charging
(120 V AC, 60 Hz)
KX-TG2622
For further information, visit http://www.panasonic.com/phonehelp
Printed in U.S.A.
PQQW15045YA
DA1105PY1125
TG2621_2622_QG(e).fm Page 2 Wednesday, December 14, 2005 4:09 PM
Operating tips
{ }: shows button names.
Using the navigator key
After pressing {MENU} or {Phonebook}, the
handset navigator key can be used. Press {^}, {V},
{<}, or {>} to navigate through menus and to select
items shown on the display.
{^}
{>}
{<}
{V}
Adjusting audio volume
Press {^} or {V} repeatedly while talking.
Handset soft keys
The handset features 2 soft keys. By pressing a soft
key, you can select the feature shown directly above
it on the display.
{Select}, {Save}, {OK}, {Flash} and additional other
functions are assigned to soft keys. Pay attention to
soft keys to find functions you need during handset
operation.
Rcvd
Kcalls
Phone
book L
Adding items to the phonebook (Handset)
1 {Phonebook} i {Add}
2 Enter the name (max. 16 characters). i {Next}
3 Enter the phone number (max. 32 digits). i {Next} i {Save} i {OFF}
For further information, visit http://www.panasonic.com/phonehelp or refer to
Operating Instructions.
–2–
TG2621_2622_QG(e).fm Page 3 Wednesday, December 14, 2005 4:09 PM
Basic operation (Handset)
Feature
Operation
Adjusting the receiver/
speaker volume
Press {^} or {V} repeatedly while talking.
Viewing the caller list and
calling back
Press {^} or {V} repeatedly to select the desired item. i
{C}
Ringer volume
1 {MENU} i {1}{1}
2 Select the desired volume. i {Save}
Answering call-waiting
call (2nd call)
Press {Flash} (soft key) when you hear call waiting tone.
Voice Mail service
Voice Mail is an automatic answering service offered by your telephone service provider.
After you subscribe to this service, the telephone service provider’s Voice Mail system will
answer calls for you when you are unavailable to answer the phone or when your line is
busy. Messages are recorded by the telephone service provider, not your telephone.
Feature
Operation
Storing the Voice Mail
(VM) access number
1 {MENU}{0}{7}{1}
2 Enter your access number (max. 32 digits). i {Save}
i {OFF}
Listening to Voice Mail
messages
1 Press {C} or {s}, then press {VM} within 15 seconds.
2 Follow the pre-recorded instructions.
3 Press {OFF} when finished.
For further information, visit http://www.panasonic.com/phonehelp
–3–
TG2621_2622_QG(e).fm Page 4 Wednesday, December 14, 2005 4:09 PM
Quick troubleshooting
1 Handset shows:
“No link to base. Move closer to base, try again.”
Place the handset on the base unit,
then check if CHARGE indicator is on.
CHARGE indicator is OFF.
Unplug and then plug AC
adaptor properly to both
the base unit and AC
outlet.
CHARGE indicator
is still OFF.
CHARGE indicator
is ON.
CHARGE
indicator is ON,
now.
Lift the handset, then try again.
If handset still shows the same
message, try re-registration as
explained later in this guide.
Re-registration
failed.
Unplug the AC adaptor of the base unit and remove the
battery from the handset, then plug in the AC adaptor
and insert the battery into the handset again. Try reregistration as explained later in this guide.
Re-registration
failed.
Your telephone may need service. For further troubleshooting,
please visit http://www.panasonic.com/phonehelp
–4–
TG2621_2622_QG(e).fm Page 5 Wednesday, December 14, 2005 4:09 PM
Quick troubleshooting
2 No dial tone is heard from handset.
Lift up the handset from the base unit
or charger.
Press {C} (TALK) at the handset,
then check if the display shows
“Talk”.
No link to base.
Move closer to
base, try again.
“No link to base.
Move closer to
base, try again.”
is displayed.
{C}
Talk
“Talk” is
displayed.
KFlash
Press {s} (SP-PHONE),
then check if the dial
tone is heard from the
speaker on the back.
{s}
No dial tone
Try remedy for 1
on previous page.
Check the telephone
cord is properly
connected to both
the base unit and
telephone jack on
the wall.
Dial tone is heard.
Your telephone may
need service when
only back speaker
provides a dial tone.
Still no dial tone
Your telephone may need service.
Please visit http://www.panasonic.com/phonehelp for further
troubleshooting.
–5–
TG2621_2622_QG(e).fm Page 6 Wednesday, December 14, 2005 4:09 PM
Frequently asked questions
Question
Cause/solution
How can I increase
handset volume level?
L Press navigator key {^} repeatedly while talking.
Why is the conversation
noisy or cutting off?
L Try to relocate the base unit so that distance from location
to use the handset will be minimized.
L Send your unit to service, if your unit has same problem
when the handset is next to the base unit.
Can I keep battery
charging all the time?
L You can leave handset on the base unit or charger
anytime. There is no damage to the battery.
How can I answer a callwaiting call (2nd call)?
L Press {Flash} (soft key) when you hear call-waiting tone.
For further troubleshooting information, visit http://www.panasonic.com/phonehelp or
refer to Operating Instructions.
–6–
TG2621_2622_QG(e).fm Page 7 Wednesday, December 14, 2005 4:09 PM
Registering a handset to base unit
The included handset and base unit are preregistered. If for some reason the handset is
not registered to the base unit, register the handset.
Handset
Press {MENU}, then press {0}{0}.
Refer to manual
to prepare base.
Then press
OKL
{MENU}
Base unit
L
L
KX-TG2621
Press and hold {HANDSET LOCATOR} until
the CHARGE indicator flashes.
KX-TG2622
Press and hold {1} or {2} until the CHARGE
indicator flashes.
L
Complete next step within 1 minute.
Handset
Press {OK}.
Refer to manual
to prepare base.
Then press
OKL
{OK}
For further registration information, visit
http://www.panasonic.com/RegisterYourHandset
–7–
HANDSE
NDSET
LOCATOR
HANDSE
NDSET
LOCATOR
TG2621_2622_QG(e).fm Page 8 Wednesday, December 14, 2005 4:09 PM
IMPORTANT!
If your product is not
working properly. . .
1 Read this Quick Guide or Operating
Instructions
L If you lost Operating Instructions, you can download at
http://www.panasonic.com/phonehelp
2 Visit our website:
http://www.panasonic.com/phonehelp
L FAQs and troubleshooting hints are available.
3 Contact us via the web at:
http://www.panasonic.com/contactinfo
4 Call us at:
1-800-211-PANA (1-800-211-7262)
L Monday - Friday 9:00am - 9:00pm (EST),
Saturday/Sunday 10:00am - 7:00pm (EST)
To order a replacement battery,
please call: 1-800-332-5368
Or visit: http://www.panasonic.com/batterystore
