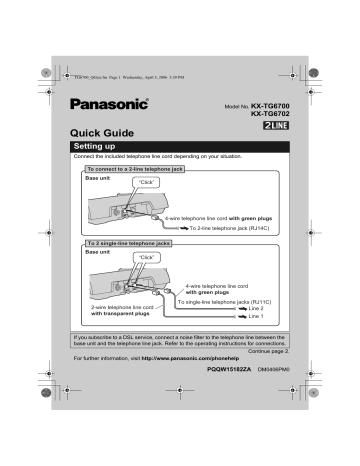

TG6700_QG(e).fm Page 1 Wednesday, April 5, 2006 3:39 PM
Model No. KX-TG6700
KX-TG6702
Quick Guide
Setting up
Connect the included telephone line cord depending on your situation.
To connect to a 2-line telephone jack
Base unit
“Click”
4-wire telephone line cord with green plugs
To 2-line telephone jack (RJ14C)
To 2 single-line telephone jacks
Base unit
“Click”
4-wire telephone line cord
with green plugs
2-wire telephone line cord
with transparent plugs
To single-line telephone jacks (RJ11C)
Line 2
Line 1
If you subscribe to a DSL service, connect a noise filter to the telephone line between the
base unit and the telephone line jack. Refer to the operating instructions for connections.
Continue page 2.
For further information, visit http://www.panasonic.com/phonehelp
PQQW15182ZA
DM0406PM0
TG6700_QG(e).fm Page 2 Wednesday, April 5, 2006 3:39 PM
Continued
Setting up
Base unit
CHARGE 7 HOURS
Use only the included Panasonic AC adaptor
PQLV207.
Hook
Confirm the charge
indicator is on.
(120 V AC,
60 Hz)
Press plug firmly.
Handset
B
A
C
Confirm the charge
indicator is on.
D
Charger
(120 V AC, 60 Hz)
KX-TG6702 only
For further information, visit http://www.panasonic.com/phonehelp or refer to
Operating Instructions.
–2–
TG6700_QG(e).fm Page 3 Wednesday, April 5, 2006 3:39 PM
Operating tips
{ }: indicates button names/soft key names.
Using the navigator key
{^}
Press {^}, {V}, {<}, or {>} to navigate through
menus and to select items shown on the display.
{>}
{<}
Adjusting audio volume
Press {^} or {V} repeatedly while talking.
{V}
Handset soft keys
The handset features 3 soft keys. By pressing a soft
key, you can select the feature shown directly above
it on the display.
{SELECT}, {SAVE}, {OK} and additional other
functions are assigned to soft keys. Pay attention to
soft keys to find functions you need during handset
operation.
LINE1 LINE2 REDIAL
Date and time (Handset)
1 {MENU} i {4}
2 Enter the current month, day, and year by selecting 2 digits for each.
3 Enter the current hour and minute (12-hour clock format) by selecting 2 digits for each.
4 Press {AM/PM} to select “AM” or “PM”. i {SAVE} i {OFF}
Adding items to the phonebook (Handset)
1 Press {^} or {V} i {C} i {ADD}
2 Enter the name (max. 16 characters). i {NEXT}
3 Enter the phone number (max. 32 digits). i {NEXT}
4 {SAVE} i {OFF}
For further information, visit http://www.panasonic.com/phonehelp or refer to
Operating Instructions.
–3–
TG6700_QG(e).fm Page 4 Wednesday, April 5, 2006 3:39 PM
Basic operation (Handset)
Feature
Operation
Adjusting the receiver/
speaker volume
Press {^} or {V} repeatedly while talking.
Viewing the caller list and
calling back
1 Press {^} or {V} i {CID}
2 Press {^} or {V} repeatedly to select the desired item. i
{C}
Ringer volume
1 {MENU} i {1}{1}
2 Select the desired line.
3 Select the desired volume. i {SAVE} i {OFF}
Answering call-waiting
call (2nd call)
Press {CALL WAIT} when you hear call waiting tone.
Basic operation (Base unit)
Feature
Operation
Adjusting the speaker
volume
Press {^} or {V} repeatedly while talking.
Ringer volume
1 Press {LINE SELECT} repeatedly to select the desired
line.
2 Press {^} or {V} repeatedly to select the desired volume.
L To turn the ringer off, press and hold {V} until the unit
beeps.
Answering call-waiting
call (2nd call)
Press {CALL WAIT} when you hear call waiting tone.
For further information, visit http://www.panasonic.com/phonehelp or refer to
Operating Instructions.
–4–
TG6700_QG(e).fm Page 5 Wednesday, April 5, 2006 3:39 PM
Answering system (Base unit)
Feature
Operation
Auto answer on/off
1 Press {LINE SELECT} repeatedly to select the desired
line(s).
2 {ANSWER ON}
Recording your greeting
message
(max. 2 minutes)
1 Press {LINE SELECT} repeatedly to select the desired
line(s).
2 {GREETING REC}
3 Within 10 seconds, press {GREETING REC} again.
4 Speak clearly about 20 cm (8 inches) away from the MIC.
5 To stop recording, press {STOP}.
Listening to new
messages
When the {MESSAGE} button flashes on the base unit,
press {MESSAGE}.
Listening to old
messages
When the {MESSAGE} button does not flash on the base
unit, press {MESSAGE}.
Erasing a message
Press {ERASE} during playback.
Using the answering
system remotely
1 Dial your phone number from a touch tone phone.
2 After the greeting message starts, enter your remote
code. (Default remote code is “11”.)
L The unit plays back new messages including memo
messages.
L After playing back new messages, the voice guidance starts.
3 Follow the voice guidance as necessary.
For further information, visit http://www.panasonic.com/phonehelp or refer to
Operating Instructions.
–5–
TG6700_QG(e).fm Page 6 Wednesday, April 5, 2006 3:39 PM
Frequently asked questions
Question
Cause/solution
How can I increase
handset volume level?
L Press {^} repeatedly while talking.
Why is the conversation
noisy or cutting off?
L Try to relocate the base unit so that distance from location
to use the handset will be minimized.
L Send your unit to service, if your unit has same problem
when the handset is next to the base unit.
Can I add another
accessory handset to my
base unit?
L Yes, you can add up to 8 handsets (including the
handset(s) sold with KX-TG6700 or KX-TG6702 base unit)
to a single base unit.
L To purchase accessory handsets (KX-TGA670),
please visit http://www.panasonic.com
or call 1-800-332-5368. TTY users (hearing or speech
impaired users) can call 1-866-605-1277.
Can I keep battery
charging all the time?
L You can leave handset on the base unit or charger
anytime. There is no damage to the battery.
How can I answer a callwaiting call (2nd call)?
L Press {CALL WAIT} when you hear call-waiting tone.
For further troubleshooting information, visit http://www.panasonic.com/phonehelp or
refer to Operating Instructions.
–6–
TG6700_QG(e).fm Page 7 Wednesday, April 5, 2006 3:39 PM
Quick troubleshooting
1 Handset shows:
“No link to base. Move closer to base, try again.”
Place the handset on the base unit,
then check if the charge indicator is on.
The charge indicator is OFF.
Unplug and then plug AC
adaptor properly to both
the base unit and AC
outlet.
The charge indicator
is still OFF.
The charge indicator
is ON.
The charge
indicator is ON,
now.
Lift the handset, then try again.
If handset still shows the same
message, try re-registration as
explained later in this guide.
Re-registration
failed.
Unplug the AC adaptor of the base unit and remove the
battery from the handset, then plug in the AC adaptor
and insert the battery into the handset again. Try reregistration as explained later in this guide.
Re-registration
failed.
Your telephone may need service. For further troubleshooting,
please visit http://www.panasonic.com/phonehelp
–7–
TG6700_QG(e).fm Page 8 Wednesday, April 5, 2006 3:39 PM
Quick troubleshooting
2 No dial tone is heard from handset.
Lift up the handset from
the base unit or charger.
Press {C} (TALK) at the
handset, then check if the
display shows “Talk”.
1
No link to base.
Move closer to
base, try again.
{C}
“No link to base.
Move closer to
base, try again.”
is displayed.
L1
Talk
1
Line 1
00-00-00
=Volume
“Talk” is
displayed.
dB
(VE)
LINE2
Press {s} (SP-PHONE),
then check if the dial
tone is heard from the
speaker on the back.
{s}
No dial tone
Try remedy for 1
on previous page.
Check the telephone
cord is properly
connected to both
the base unit and
telephone jack on
the wall.
Dial tone is heard.
Your telephone may
need service when
only back speaker
provides a dial tone.
Still no dial tone
Your telephone may need service.
Please visit http://www.panasonic.com/phonehelp for further
troubleshooting.
–8–
TG6700_QG(e).fm Page 9 Wednesday, April 5, 2006 3:39 PM
Registering a handset to base unit
The included handset and base unit are preregistered. If for some reason the handset is
not registered to the base unit, register the handset.
Handset
Press {MENU}, then press {0}{0}{1}.
{MENU}
Base unit
Press and hold {INTERCOM} until the IN USE
indicator flashes.
L
Complete next step within 1 minute.
Handset
Press {OK}, then press {OFF}
after a beep sounds.
Press INTERCOM
on base for 3sec
Then press OKL
For further registration information, visit
http://www.panasonic.com/RegisterYourHandset
–9–
TG6700_QG(e).fm Page 10 Wednesday, April 5, 2006 3:39 PM
IMPORTANT!
If your product is not
working properly. . .
1 Read this Quick Guide or Operating
Instructions
L If lost, you can download your Operating Instructions at
http://www.panasonic.com/phonehelp
2 Visit our website:
http://www.panasonic.com/phonehelp
L FAQs and troubleshooting hints are available.
3 Contact us via the web at:
http://www.panasonic.com/contactinfo
4 Call us at:
1-800-211-PANA (1-800-211-7262)
L Monday - Friday 9:00am - 9:00pm (EST),
Saturday/Sunday 10:00am - 7:00pm (EST)
To order a replacement battery,
please call: 1-800-332-5368
Or visit: http://www.panasonic.com/batterystore
